pandora::LArTransformationPlugin Class Reference

LArTransformationPlugin class. More...

#include "LArTransformationPlugin.h"

Inheritance diagram for pandora::LArTransformationPlugin:

Collaboration diagram for pandora::LArTransformationPlugin:

Public Member Functions
virtual double	UVtoW (const double u, const double v) const =0
	Transform from (U,V) to W position.
virtual double	VWtoU (const double v, const double w) const =0
	Transform from (V,W) to U position.
virtual double	WUtoV (const double w, const double u) const =0
	Transform from (W,U) to V position.
virtual double	UVtoY (const double u, const double v) const =0
	Transform from (U,V) to Y position.
virtual double	UVtoZ (const double u, const double v) const =0
	Transform from (U,V) to Z position.
virtual double	UWtoY (const double u, const double w) const =0
	Transform from (U,W) to Y position.
virtual double	UWtoZ (const double u, const double w) const =0
	Transform from (U,W) to Z position.
virtual double	VWtoY (const double v, const double w) const =0
	Transform from (V,W) to Y position.
virtual double	VWtoZ (const double v, const double w) const =0
	Transform from (V,W) to Z position.
virtual double	YZtoU (const double y, const double z) const =0
	Transform from (Y,Z) to U position.
virtual double	YZtoV (const double y, const double z) const =0
	Transform from (Y,Z) to V position.
virtual double	YZtoW (const double y, const double z) const =0
	Transform from (Y,Z) to W position.
virtual void	GetMinChiSquaredYZ (const double u, const double v, const double w, const double sigmaU, const double sigmaV, const double sigmaW, double &y, double &z, double &chiSquared) const =0
	Get the y, z position that yields the minimum chi squared value with respect to specified u, v and w coordinates.
virtual void	GetMinChiSquaredYZ (const double u, const double v, const double w, const double sigmaU, const double sigmaV, const double sigmaW, const double uFit, const double vFit, const double wFit, const double sigmaFit, double &y, double &z, double &chiSquared) const =0
	Get the y, z position that yields the minimum chi squared value with respect to specified u, v and w coordinates and a provided fit to an overall trajectory in 3D.
const std::string &	GetType () const
	Get the type.
const std::string &	GetInstanceName () const
	Get the instance name.
const Pandora &	GetPandora () const
	Get the associated pandora instance.

Protected Member Functions
virtual StatusCode	ReadSettings (const TiXmlHandle xmlHandle)=0
	Read the algorithm settings.
virtual StatusCode	Initialize ()
	Perform any operations that must occur after reading settings, but before running the process.
virtual StatusCode	Reset ()
	Perform any operations when pandora is reset, typically at the end of each event.
StatusCode	RegisterDetails (const Pandora *const pPandora, const std::string &type, const std::string &instanceName)
	Register i) the pandora instance that will run the process and ii) the process type.

Protected Attributes
const Pandora *	m_pPandora
	The pandora object that will run the process.
std::string	m_type
	The process type.
std::string	m_instanceName
	The process instance name.

Friends
class	PluginManager

Detailed Description

LArTransformationPlugin class.

Definition at line 20 of file LArTransformationPlugin.h.

Member Function Documentation

GetInstanceName()

const std::string & pandora::Process::GetInstanceName ( ) const

inlineinherited

Get the instance name.

Returns

The instance name

Definition at line 109 of file Process.h.

GetMinChiSquaredYZ() [1/2]

virtual void pandora::LArTransformationPlugin::GetMinChiSquaredYZ ( const double  u, const double  v, const double  w, const double  sigmaU, const double  sigmaV, const double  sigmaW, const double  uFit, const double  vFit, const double  wFit, const double  sigmaFit, double &  y, double &  z, double &  chiSquared  ) const

pure virtual

Get the y, z position that yields the minimum chi squared value with respect to specified u, v and w coordinates and a provided fit to an overall trajectory in 3D.

Parameters

u	the u coordinate
v	the v coordinate
w	the w coordinate
sigmaU	the uncertainty in the u coordinate
sigmaV	the uncertainty in the v coordinate
sigmaW	the uncertainty in the w coordinate
uFit	the u coordinate from a fit to an overall trajectory
vFit	the v coordinate from a fit to an overall trajectory
wFit	the w coordinate from a fit to an overall trajectory
sigmaFit	the uncertainty in coordinates extracted from the fit to an overall trajectory
y	to receive the y coordinate
z	to receive the z coordinate
chiSquared	to receive the chi squared value

Implemented in lar_content::LArRotationalTransformationPlugin.

GetMinChiSquaredYZ() [2/2]

virtual void pandora::LArTransformationPlugin::GetMinChiSquaredYZ ( const double  u, const double  v, const double  w, const double  sigmaU, const double  sigmaV, const double  sigmaW, double &  y, double &  z, double &  chiSquared  ) const

pure virtual

Get the y, z position that yields the minimum chi squared value with respect to specified u, v and w coordinates.

Parameters

u	the u coordinate
v	the v coordinate
w	the w coordinate
sigmaU	the uncertainty in the u coordinate
sigmaV	the uncertainty in the v coordinate
sigmaW	the uncertainty in the w coordinate
y	to receive the y coordinate
z	to receive the z coordinate
chiSquared	to receive the chi squared value

Implemented in lar_content::LArRotationalTransformationPlugin.

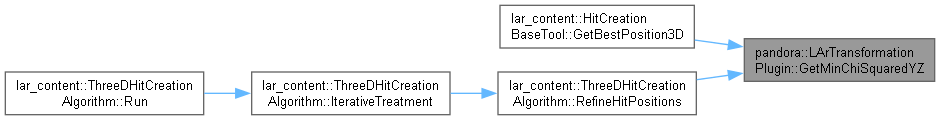

Here is the caller graph for this function:

GetPandora()

const Pandora & pandora::Process::GetPandora ( ) const

inlineinherited

Get the associated pandora instance.

Returns

the associated pandora instance

Definition at line 116 of file Process.h.

GetType()

const std::string & pandora::Process::GetType ( ) const

inlineinherited

Get the type.

Returns

The type

Definition at line 102 of file Process.h.

Initialize()

StatusCode pandora::Process::Initialize ( )

inlineprotectedvirtualinherited

Perform any operations that must occur after reading settings, but before running the process.

Reimplemented in lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, EventReadingAlgorithm, and EventWritingAlgorithm.

Definition at line 126 of file Process.h.

Here is the caller graph for this function:

ReadSettings()

virtual StatusCode pandora::Process::ReadSettings ( const TiXmlHandle  xmlHandle )

protectedpure virtualinherited

Read the algorithm settings.

Parameters

xmlHandle

the relevant xml handle

Implemented in lar_content::CheatingBeamParticleIdTool, lar_content::CheatingBeamParticleSliceSelectionTool, lar_content::CheatingClusterCreationAlgorithm, lar_content::CheatingCosmicRayIdentificationAlg, lar_content::CheatingCosmicRayRemovalAlgorithm, lar_content::CheatingCosmicRayShowerMatchingAlg, lar_content::CheatingCosmicRayTaggingTool, lar_content::CheatingEventSlicingTool, lar_content::CheatingNeutrinoCreationAlgorithm, lar_content::CheatingNeutrinoDaughterVerticesAlgorithm, lar_content::CheatingNeutrinoIdTool, lar_content::CheatingNeutrinoSliceSelectionTool, lar_content::CheatingPfoCreationAlgorithm, lar_content::CheatingSliceIdBaseTool, lar_content::CheatingSliceSelectionTool, lar_content::CheatingVertexCreationAlgorithm, lar_content::CheatingVertexSelectionAlgorithm, lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::MasterAlgorithm, lar_content::NeutrinoIdTool< T >, lar_content::PostProcessingAlgorithm, lar_content::PreProcessingAlgorithm, lar_content::SimpleNeutrinoIdTool, lar_content::SlicingAlgorithm, lar_content::StitchingCosmicRayMergingTool, lar_content::StreamingAlgorithm, lar_content::CustomParticleCreationAlgorithm, lar_content::PcaShowerParticleBuildingAlgorithm, lar_content::TrackParticleBuildingAlgorithm, lar_content::CosmicRayTaggingMonitoringTool, lar_content::EventValidationBaseAlgorithm, lar_content::HierarchyMonitoringAlgorithm, lar_content::HierarchyValidationAlgorithm, lar_content::MCParticleMonitoringAlgorithm, lar_content::MuonLeadingEventValidationAlgorithm, lar_content::NeutrinoEventValidationAlgorithm, lar_content::PfoValidationAlgorithm, lar_content::ShowerTensorVisualizationTool, lar_content::TestBeamEventValidationAlgorithm, lar_content::TestBeamHierarchyEventValidationAlgorithm, lar_content::TransverseMatrixVisualizationTool, lar_content::TransverseTensorVisualizationTool, lar_content::VertexMonitoringAlgorithm, lar_content::VisualMonitoringAlgorithm, lar_content::VisualParticleMonitoringAlgorithm, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArParticleIdPlugins::LArMuonId, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, lar_content::InitialRegionFeatureTool, lar_content::ConnectionRegionFeatureTool, lar_content::ShowerRegionFeatureTool, lar_content::AmbiguousRegionFeatureTool, lar_content::ElectronInitialRegionRefinementAlgorithm, lar_content::PeakDirectionFinderTool, lar_content::ProtoShowerMatchingTool, lar_content::ShowerSpineFinderTool, lar_content::ShowerStartFinderTool, lar_content::AmbiguousDeltaRayTool, lar_content::CosmicRayBaseMatchingAlgorithm, lar_content::CosmicRayRemovalTool, lar_content::CosmicRayShowerMatchingAlgorithm, lar_content::CosmicRayTrackMatchingAlgorithm, lar_content::CosmicRayTrackRecoveryAlgorithm, lar_content::CosmicRayVertexBuildingAlgorithm, lar_content::DeltaRayIdentificationAlgorithm, lar_content::DeltaRayMatchingAlgorithm, lar_content::DeltaRayMergeTool, lar_content::DeltaRayParentAlgorithm, lar_content::DeltaRayRemovalTool, lar_content::NViewDeltaRayMatchingAlgorithm< T >, lar_content::NViewDeltaRayMatchingAlgorithm< ThreeViewMatchingControl< DeltaRayOverlapResult > >, lar_content::NViewDeltaRayMatchingAlgorithm< TwoViewMatchingControl< TwoViewDeltaRayOverlapResult > >, lar_content::OneViewDeltaRayMatchingAlgorithm, lar_content::ThreeViewDeltaRayMatchingAlgorithm, lar_content::TwoViewAmbiguousDeltaRayTool, lar_content::TwoViewCosmicRayRemovalTool, lar_content::TwoViewDeltaRayMatchingAlgorithm, lar_content::UnambiguousDeltaRayTool, lar_content::UnattachedDeltaRaysAlgorithm, lar_content::BranchAssociatedPfosTool, lar_content::EndAssociatedPfosTool, lar_content::EventSlicingTool, lar_content::NeutrinoCreationAlgorithm, lar_content::NeutrinoDaughterVerticesAlgorithm, lar_content::NeutrinoHierarchyAlgorithm, lar_content::NeutrinoPropertiesAlgorithm, lar_content::TestBeamParticleCreationAlgorithm, lar_content::VertexAssociatedPfosTool, lar_content::HitCreationBaseTool, lar_content::LongitudinalTrackHitsBaseTool, lar_content::ShowerHitsBaseTool, lar_content::ThreeDHitCreationAlgorithm, lar_content::ThreeViewShowerHitsTool, lar_content::TrackHitsBaseTool, lar_content::ClearLongitudinalTracksTool, lar_content::MatchedEndPointsTool, lar_content::ThreeViewLongitudinalTracksAlgorithm, lar_content::RecursivePfoMopUpAlgorithm, lar_content::ShowerHierarchyMopUpAlgorithm, lar_content::ShowerPfoMopUpAlgorithm, lar_content::SlidingConePfoMopUpAlgorithm, lar_content::VertexBasedPfoMopUpAlgorithm, lar_content::ParticleRecoveryAlgorithm, lar_content::VertexBasedPfoRecoveryAlgorithm, lar_content::ClearRemnantsTool, lar_content::ConnectedRemnantsTool, lar_content::MopUpRemnantsTool, lar_content::ThreeViewRemnantsAlgorithm, lar_content::ClearShowersTool, lar_content::SimpleShowersTool, lar_content::SplitShowersTool, lar_content::ThreeViewShowersAlgorithm, lar_content::MatchingBaseAlgorithm, lar_content::NViewMatchingAlgorithm< T >, lar_content::NViewMatchingAlgorithm< ThreeViewMatchingControl< DeltaRayOverlapResult > >, lar_content::NViewMatchingAlgorithm< ThreeViewMatchingControl< float > >, lar_content::NViewMatchingAlgorithm< ThreeViewMatchingControl< FragmentOverlapResult > >, lar_content::NViewMatchingAlgorithm< ThreeViewMatchingControl< LongitudinalOverlapResult > >, lar_content::NViewMatchingAlgorithm< ThreeViewMatchingControl< ShowerOverlapResult > >, lar_content::NViewMatchingAlgorithm< ThreeViewMatchingControl< TransverseOverlapResult > >, lar_content::NViewMatchingAlgorithm< TwoViewMatchingControl< TwoViewDeltaRayOverlapResult > >, lar_content::NViewMatchingAlgorithm< TwoViewMatchingControl< TwoViewTransverseOverlapResult > >, lar_content::NViewTrackMatchingAlgorithm< T >, lar_content::NViewTrackMatchingAlgorithm< ThreeViewMatchingControl< FragmentOverlapResult > >, lar_content::NViewTrackMatchingAlgorithm< ThreeViewMatchingControl< LongitudinalOverlapResult > >, lar_content::NViewTrackMatchingAlgorithm< ThreeViewMatchingControl< TransverseOverlapResult > >, lar_content::NViewTrackMatchingAlgorithm< TwoViewMatchingControl< TwoViewTransverseOverlapResult > >, lar_content::ClearTrackFragmentsTool, lar_content::ThreeViewTrackFragmentsAlgorithm, lar_content::ClearTracksTool, lar_content::LongTracksTool, lar_content::MissingTrackSegmentTool, lar_content::MissingTrackTool, lar_content::OvershootTracksTool, lar_content::ThreeDKinkBaseTool, lar_content::ThreeViewTransverseTracksAlgorithm, lar_content::TracksCrossingGapsTool, lar_content::TrackSplittingTool, lar_content::UndershootTracksTool, lar_content::TwoViewClearTracksTool, lar_content::TwoViewLongTracksTool, lar_content::TwoViewSimpleTracksTool, lar_content::TwoViewThreeDKinkTool, lar_content::TwoViewTransverseTracksAlgorithm, lar_content::BranchGrowingAlgorithm, lar_content::ClusterCharacterisationBaseAlgorithm, lar_content::CutClusterCharacterisationAlgorithm, lar_content::CutPfoCharacterisationAlgorithm, lar_content::MvaPfoCharacterisationAlgorithm< T >, lar_content::PfoCharacterisationBaseAlgorithm, lar_content::ShowerGrowingAlgorithm, lar_content::TwoDShowerFitFeatureTool, lar_content::TwoDLinearFitFeatureTool, lar_content::TwoDVertexDistanceFeatureTool, lar_content::PfoHierarchyFeatureTool, lar_content::ThreeDLinearFitFeatureTool, lar_content::ThreeDVertexDistanceFeatureTool, lar_content::ConeChargeFeatureTool, lar_content::ThreeDOpeningAngleFeatureTool, lar_content::ThreeDPCAFeatureTool, lar_content::ThreeDChargeFeatureTool, lar_content::ClusterAssociationAlgorithm, lar_content::ClusterGrowingAlgorithm, lar_content::ClusterMergingAlgorithm, lar_content::CrossGapsAssociationAlgorithm, lar_content::CrossGapsExtensionAlgorithm, lar_content::HitWidthClusterMergingAlgorithm, lar_content::LongitudinalAssociationAlgorithm, lar_content::LongitudinalExtensionAlgorithm, lar_content::SimpleClusterGrowingAlgorithm, lar_content::SimpleClusterMergingAlgorithm, lar_content::TransverseAssociationAlgorithm, lar_content::TransverseExtensionAlgorithm, lar_content::ClusteringParentAlgorithm, lar_content::SimpleClusterCreationAlgorithm, lar_content::TrackClusterCreationAlgorithm, lar_content::BoundedClusterMopUpAlgorithm, lar_content::ClusterMopUpBaseAlgorithm, lar_content::ConeClusterMopUpAlgorithm, lar_content::IsolatedClusterMopUpAlgorithm, lar_content::NearbyClusterMopUpAlgorithm, lar_content::SlidingConeClusterMopUpAlgorithm, lar_content::BranchSplittingAlgorithm, lar_content::ClusterSplittingAlgorithm, lar_content::CrossedTrackSplittingAlgorithm, lar_content::DeltaRaySplittingAlgorithm, lar_content::KinkSplittingAlgorithm, lar_content::LayerSplittingAlgorithm, lar_content::OvershootSplittingAlgorithm, lar_content::TrackConsolidationAlgorithm, lar_content::TwoDSlidingFitConsolidationAlgorithm, lar_content::TwoDSlidingFitMultiSplitAlgorithm, lar_content::TwoDSlidingFitSplittingAlgorithm, lar_content::TwoDSlidingFitSplittingAndSplicingAlgorithm, lar_content::TwoDSlidingFitSplittingAndSwitchingAlgorithm, lar_content::VertexSplittingAlgorithm, lar_content::CosmicRayExtensionAlgorithm, lar_content::CosmicRaySplittingAlgorithm, lar_content::DeltaRayExtensionAlgorithm, lar_content::DeltaRayGrowingAlgorithm, lar_content::TrackMergeRefinementAlgorithm, lar_content::StreamSelectionAlgorithm, lar_content::TwoDParticleCreationAlgorithm, lar_content::InteractionSelectionAlgorithm, lar_content::ListChangingAlgorithm, lar_content::ListDeletionAlgorithm, lar_content::ListMergingAlgorithm, lar_content::ListPruningAlgorithm, lar_content::MopUpBaseAlgorithm, lar_content::PfoHitCleaningAlgorithm, lar_content::PfoMopUpBaseAlgorithm, lar_content::AsymmetryFeatureBaseTool, lar_content::CandidateVertexCreationAlgorithm, lar_content::EnergyKickFeatureTool, lar_content::EnergyKickVertexSelectionAlgorithm, lar_content::HitAngleVertexSelectionAlgorithm, lar_content::MvaVertexSelectionAlgorithm< T >, lar_content::RPhiFeatureTool, lar_content::TrainedVertexSelectionAlgorithm, lar_content::VertexRefinementAlgorithm, lar_content::VertexSelectionBaseAlgorithm, lar_dl_content::DLMasterAlgorithm, lar_dl_content::DlHitValidationAlgorithm, lar_dl_content::DlClusterCharacterisationAlgorithm, lar_dl_content::DlHitTrackShowerIdAlgorithm, lar_dl_content::DlPfoCharacterisationAlgorithm, lar_dl_content::DlTrackShowerStreamSelectionAlgorithm, lar_dl_content::DlVertexingAlgorithm, EventReadingAlgorithm, EventWritingAlgorithm, TemplateAlgorithm, TemplateAlgorithmTool, lar_content::EnergyDepositionAsymmetryFeatureTool, lar_content::GlobalAsymmetryFeatureTool, lar_content::LocalAsymmetryFeatureTool, lar_content::ShowerAsymmetryFeatureTool, lar_content::RemovalBaseTool, and lar_content::TrackRefinementBaseAlgorithm.

Here is the caller graph for this function:

RegisterDetails()

StatusCode pandora::Process::RegisterDetails ( const Pandora *const  pPandora, const std::string &  type, const std::string &  instanceName  )

inlineprotectedinherited

Register i) the pandora instance that will run the process and ii) the process type.

Parameters

pPandora	address of the pandora object that will run the process
type	the process type
instanceName	the process instance name

Definition at line 146 of file Process.h.

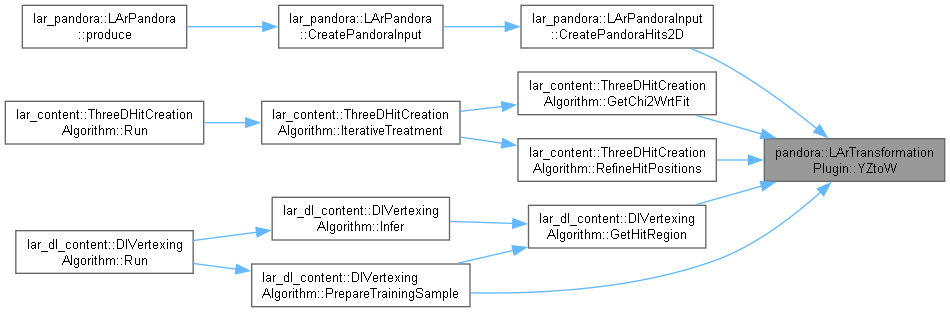

Here is the caller graph for this function:

Reset()

StatusCode pandora::Process::Reset ( )

inlineprotectedvirtualinherited

Perform any operations when pandora is reset, typically at the end of each event.

Reimplemented in lar_content::MasterAlgorithm, lar_content::PostProcessingAlgorithm, and lar_content::PreProcessingAlgorithm.

Definition at line 133 of file Process.h.

Here is the caller graph for this function:

UVtoW()

virtual double pandora::LArTransformationPlugin::UVtoW ( const double  u, const double  v  ) const

pure virtual

Transform from (U,V) to W position.

Parameters

U	the U position
V	the V position

Implemented in lar_content::LArRotationalTransformationPlugin.

UVtoY()

virtual double pandora::LArTransformationPlugin::UVtoY ( const double  u, const double  v  ) const

pure virtual

Transform from (U,V) to Y position.

Parameters

U	the U position
V	the V position

Implemented in lar_content::LArRotationalTransformationPlugin.

UVtoZ()

virtual double pandora::LArTransformationPlugin::UVtoZ ( const double  u, const double  v  ) const

pure virtual

Transform from (U,V) to Z position.

Parameters

U	the U position
V	the V position

Implemented in lar_content::LArRotationalTransformationPlugin.

UWtoY()

virtual double pandora::LArTransformationPlugin::UWtoY ( const double  u, const double  w  ) const

pure virtual

Transform from (U,W) to Y position.

Parameters

U	the U position
W	the W position

Implemented in lar_content::LArRotationalTransformationPlugin.

UWtoZ()

virtual double pandora::LArTransformationPlugin::UWtoZ ( const double  u, const double  w  ) const

pure virtual

Transform from (U,W) to Z position.

Parameters

U	the U position
W	the W position

Implemented in lar_content::LArRotationalTransformationPlugin.

VWtoU()

virtual double pandora::LArTransformationPlugin::VWtoU ( const double  v, const double  w  ) const

pure virtual

Transform from (V,W) to U position.

Parameters

V	the V position
W	the W position

Implemented in lar_content::LArRotationalTransformationPlugin.

VWtoY()

virtual double pandora::LArTransformationPlugin::VWtoY ( const double  v, const double  w  ) const

pure virtual

Transform from (V,W) to Y position.

Parameters

V	the V position
W	the W position

Implemented in lar_content::LArRotationalTransformationPlugin.

VWtoZ()

virtual double pandora::LArTransformationPlugin::VWtoZ ( const double  v, const double  w  ) const

pure virtual

Transform from (V,W) to Z position.

Parameters

V	the V position
W	the W position

Implemented in lar_content::LArRotationalTransformationPlugin.

WUtoV()

virtual double pandora::LArTransformationPlugin::WUtoV ( const double  w, const double  u  ) const

pure virtual

Transform from (W,U) to V position.

Parameters

W	the W position
U	the U position

Implemented in lar_content::LArRotationalTransformationPlugin.

YZtoU()

virtual double pandora::LArTransformationPlugin::YZtoU ( const double  y, const double  z  ) const

pure virtual

Transform from (Y,Z) to U position.

Parameters

Y	the Y position
Z	the Z position

Implemented in lar_content::LArRotationalTransformationPlugin.

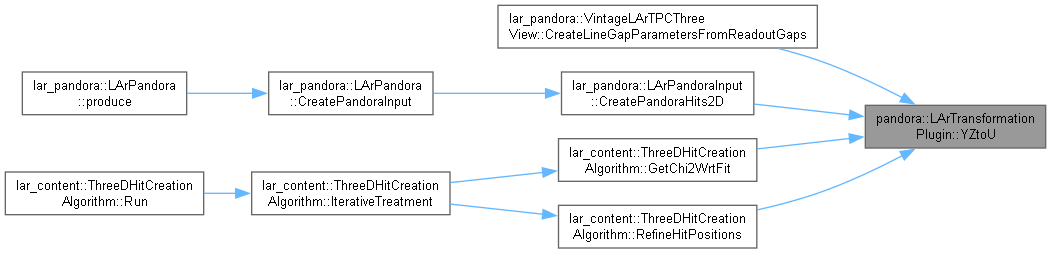

Here is the caller graph for this function:

YZtoV()

virtual double pandora::LArTransformationPlugin::YZtoV ( const double  y, const double  z  ) const

pure virtual

Transform from (Y,Z) to V position.

Parameters

Y	the Y position
Z	the Z position

Implemented in lar_content::LArRotationalTransformationPlugin.

Here is the caller graph for this function:

YZtoW()

virtual double pandora::LArTransformationPlugin::YZtoW ( const double  y, const double  z  ) const

pure virtual

Transform from (Y,Z) to W position.

Parameters

Y	the Y position
Z	the Z position

Implemented in lar_content::LArRotationalTransformationPlugin.

Here is the caller graph for this function:

Friends And Related Symbol Documentation

PluginManager

friend class PluginManager

friend

Definition at line 157 of file LArTransformationPlugin.h.

Member Data Documentation

m_instanceName

std::string pandora::Process::m_instanceName

protectedinherited

The process instance name.

Definition at line 89 of file Process.h.

m_pPandora

const Pandora* pandora::Process::m_pPandora

protectedinherited

The pandora object that will run the process.

Definition at line 87 of file Process.h.

m_type

std::string pandora::Process::m_type

protectedinherited

The process type.

Definition at line 88 of file Process.h.

---

The documentation for this class was generated from the following file:

• PandoraSDK/include/Plugins/LArTransformationPlugin.h
