DlPfoCharacterisationAlgorithm class. More...

#include "DlPfoCharacterisationAlgorithm.h"

Inheritance diagram for lar_dl_content::DlPfoCharacterisationAlgorithm:

[legend]

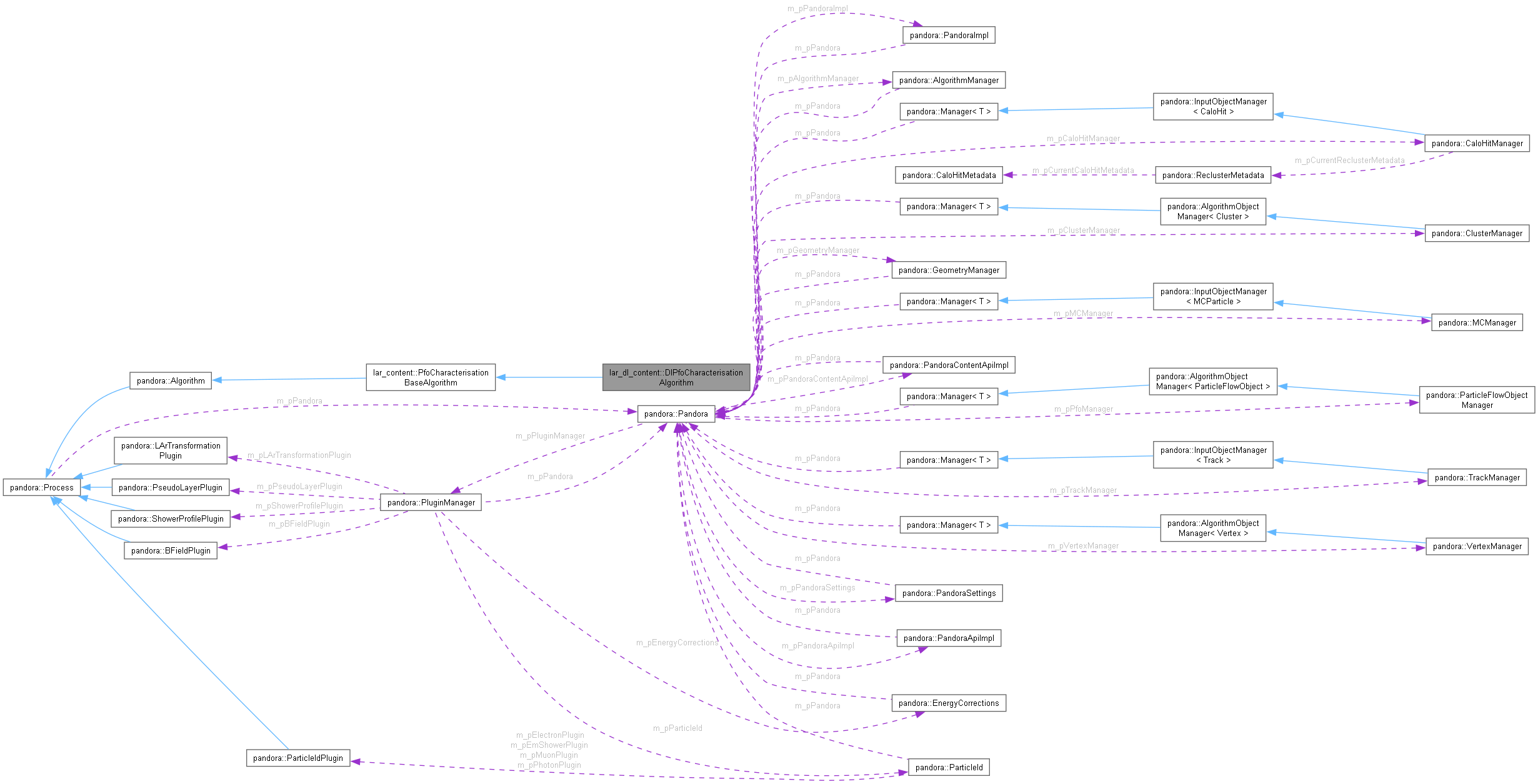

Collaboration diagram for lar_dl_content::DlPfoCharacterisationAlgorithm:

[legend]

Public Member Functions
	DlPfoCharacterisationAlgorithm ()
	Default constructor.

const std::string &	GetType () const
	Get the type.

const std::string &	GetInstanceName () const
	Get the instance name.

const Pandora &	GetPandora () const
	Get the associated pandora instance.

Protected Member Functions
pandora::StatusCode	Run ()
	Run the algorithm.

virtual bool	IsClearTrack3x2D (const pandora::ParticleFlowObject *const pPfo) const
	Whether pfo is identified as a clear track using its three clusters.

virtual StatusCode	Initialize ()
	Perform any operations that must occur after reading settings, but before running the process.

virtual StatusCode	Reset ()
	Perform any operations when pandora is reset, typically at the end of each event.

StatusCode	RegisterDetails (const Pandora *const pPandora, const std::string &type, const std::string &instanceName)
	Register i) the pandora instance that will run the process and ii) the process type.

Protected Attributes
std::string	m_trackPfoListName
	The track pfo list name.

std::string	m_showerPfoListName
	The shower pfo list name.

pandora::StringVector	m_inputPfoListNames
	The names of the input pfo lists.

bool	m_updateClusterIds
	Whether to update daughter cluster particle id labels to match pfo id.

bool	m_postBranchAddition
	Whether to use configuration for shower clusters post branch addition.

bool	m_useThreeDInformation
	Whether to use PFO and 3D information or clusters for characterisation.

unsigned int	m_minTrackLikeViews
	The minimum number of track-like views to declare a pfo as track-like.

const Pandora *	m_pPandora
	The pandora object that will run the process.

std::string	m_type
	The process type.

std::string	m_instanceName
	The process instance name.

Private Member Functions
bool	IsClearTrack (const pandora::Cluster *const pCluster) const
	Whether cluster is identified as a clear track.

bool	IsClearTrack (const pandora::ParticleFlowObject *const pPfo) const
	Whether pfo is identified as a clear track.

pandora::StatusCode	ReadSettings (const pandora::TiXmlHandle xmlHandle)
	Read the algorithm settings.

Detailed Description

DlPfoCharacterisationAlgorithm class.

Definition at line 19 of file DlPfoCharacterisationAlgorithm.h.

Constructor & Destructor Documentation

◆ DlPfoCharacterisationAlgorithm()

lar_dl_content::DlPfoCharacterisationAlgorithm::DlPfoCharacterisationAlgorithm ( )

Default constructor.

Definition at line 24 of file DlPfoCharacterisationAlgorithm.cc.

Member Function Documentation

◆ GetInstanceName()

const std::string & pandora::Process::GetInstanceName ( ) const

inlineinherited

Get the instance name.

Returns: The instance name

Definition at line 109 of file Process.h.

◆ GetPandora()

const Pandora & pandora::Process::GetPandora ( ) const

inlineinherited

Get the associated pandora instance.

Returns: the associated pandora instance

Definition at line 116 of file Process.h.

◆ GetType()

const std::string & pandora::Process::GetType ( ) const

inlineinherited

Get the type.

Returns: The type

Definition at line 102 of file Process.h.

◆ Initialize()

StatusCode pandora::Process::Initialize ( )

inlineprotectedvirtualinherited

Perform any operations that must occur after reading settings, but before running the process.

Reimplemented in lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, EventReadingAlgorithm, and EventWritingAlgorithm.

Definition at line 126 of file Process.h.

Here is the caller graph for this function:

◆ IsClearTrack() [1/2]

bool lar_dl_content::DlPfoCharacterisationAlgorithm::IsClearTrack ( const pandora::Cluster *const pCluster ) const

privatevirtual

Whether cluster is identified as a clear track.

Parameters

pCluster address of the relevant cluster

Returns: boolean

Implements lar_content::PfoCharacterisationBaseAlgorithm.

Definition at line 30 of file DlPfoCharacterisationAlgorithm.cc.

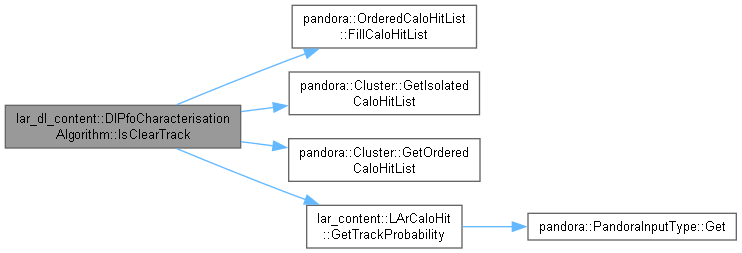

Here is the call graph for this function:

◆ IsClearTrack() [2/2]

bool lar_dl_content::DlPfoCharacterisationAlgorithm::IsClearTrack ( const pandora::ParticleFlowObject *const pPfo ) const

privatevirtual

Whether pfo is identified as a clear track.

Parameters

pPfo	address of the relevant pfo

Returns: boolean

Implements lar_content::PfoCharacterisationBaseAlgorithm.

Definition at line 68 of file DlPfoCharacterisationAlgorithm.cc.

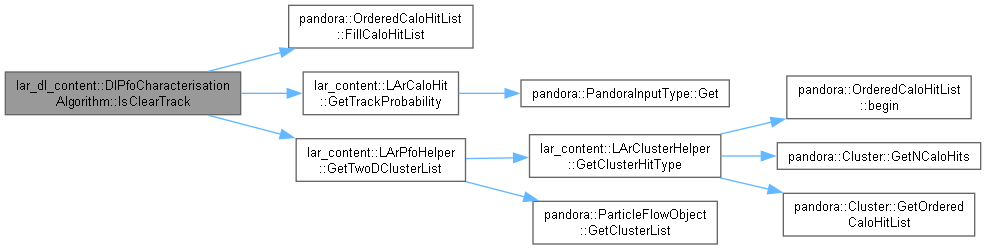

Here is the call graph for this function:

◆ IsClearTrack3x2D()

bool lar_content::PfoCharacterisationBaseAlgorithm::IsClearTrack3x2D ( const pandora::ParticleFlowObject *const pPfo ) const

protectedvirtualinherited

Whether pfo is identified as a clear track using its three clusters.

Parameters

pPfo	address of the relevant pfo

Returns: boolean

Definition at line 108 of file PfoCharacterisationBaseAlgorithm.cc.

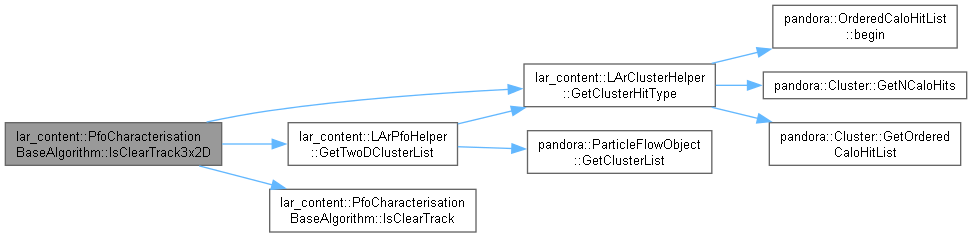

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReadSettings()

StatusCode lar_dl_content::DlPfoCharacterisationAlgorithm::ReadSettings ( const pandora::TiXmlHandle xmlHandle )

privatevirtual

Read the algorithm settings.

Parameters

xmlHandle the relevant xml handle

Implements pandora::Process.

Definition at line 111 of file DlPfoCharacterisationAlgorithm.cc.

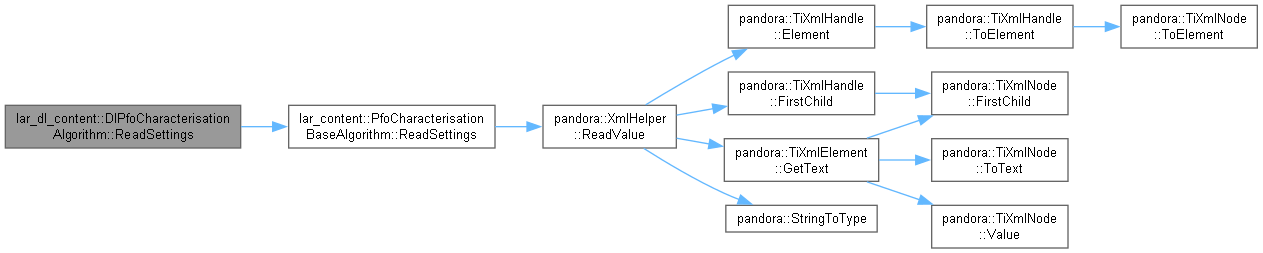

Here is the call graph for this function:

◆ RegisterDetails()

StatusCode pandora::Process::RegisterDetails	(	const Pandora *const	pPandora,
		const std::string &	type,
		const std::string &	instanceName
	)

inlineprotectedinherited

Register i) the pandora instance that will run the process and ii) the process type.

Parameters

pPandora	address of the pandora object that will run the process
type	the process type
instanceName	the process instance name

Definition at line 146 of file Process.h.

Here is the caller graph for this function:

◆ Reset()

StatusCode pandora::Process::Reset ( )

inlineprotectedvirtualinherited

Perform any operations when pandora is reset, typically at the end of each event.

Reimplemented in lar_content::MasterAlgorithm, lar_content::PostProcessingAlgorithm, and lar_content::PreProcessingAlgorithm.

Definition at line 133 of file Process.h.

Here is the caller graph for this function:

◆ Run()

StatusCode lar_content::PfoCharacterisationBaseAlgorithm::Run ( )

protectedvirtualinherited

Run the algorithm.

Implements pandora::Algorithm.

Definition at line 39 of file PfoCharacterisationBaseAlgorithm.cc.

Here is the call graph for this function:

Member Data Documentation

◆ m_inputPfoListNames

pandora::StringVector lar_content::PfoCharacterisationBaseAlgorithm::m_inputPfoListNames

protectedinherited

The names of the input pfo lists.

Definition at line 66 of file PfoCharacterisationBaseAlgorithm.h.

◆ m_instanceName

std::string pandora::Process::m_instanceName

protectedinherited

The process instance name.

Definition at line 89 of file Process.h.

◆ m_minTrackLikeViews

unsigned int lar_content::PfoCharacterisationBaseAlgorithm::m_minTrackLikeViews

protectedinherited

The minimum number of track-like views to declare a pfo as track-like.

Definition at line 71 of file PfoCharacterisationBaseAlgorithm.h.

◆ m_postBranchAddition

bool lar_content::PfoCharacterisationBaseAlgorithm::m_postBranchAddition

protectedinherited

Whether to use configuration for shower clusters post branch addition.

Definition at line 69 of file PfoCharacterisationBaseAlgorithm.h.

◆ m_pPandora

const Pandora* pandora::Process::m_pPandora

protectedinherited

The pandora object that will run the process.

Definition at line 87 of file Process.h.

◆ m_showerPfoListName

std::string lar_content::PfoCharacterisationBaseAlgorithm::m_showerPfoListName

protectedinherited

The shower pfo list name.

Definition at line 65 of file PfoCharacterisationBaseAlgorithm.h.

◆ m_trackPfoListName

std::string lar_content::PfoCharacterisationBaseAlgorithm::m_trackPfoListName

protectedinherited

The track pfo list name.

Definition at line 64 of file PfoCharacterisationBaseAlgorithm.h.

◆ m_type

std::string pandora::Process::m_type

protectedinherited

The process type.

Definition at line 88 of file Process.h.

◆ m_updateClusterIds

bool lar_content::PfoCharacterisationBaseAlgorithm::m_updateClusterIds

protectedinherited

Whether to update daughter cluster particle id labels to match pfo id.

Definition at line 68 of file PfoCharacterisationBaseAlgorithm.h.

◆ m_useThreeDInformation

bool lar_content::PfoCharacterisationBaseAlgorithm::m_useThreeDInformation

protectedinherited

Whether to use PFO and 3D information or clusters for characterisation.

Definition at line 70 of file PfoCharacterisationBaseAlgorithm.h.

The documentation for this class was generated from the following files:

LArContent/larpandoradlcontent/LArTrackShowerId/DlPfoCharacterisationAlgorithm.h
LArContent/larpandoradlcontent/LArTrackShowerId/DlPfoCharacterisationAlgorithm.cc
