CrossedTrackSplittingAlgorithm class. More...

#include "CrossedTrackSplittingAlgorithm.h"

Inheritance diagram for lar_content::CrossedTrackSplittingAlgorithm:

[legend]

Collaboration diagram for lar_content::CrossedTrackSplittingAlgorithm:

[legend]

Public Member Functions
	CrossedTrackSplittingAlgorithm ()
	Default constructor.

const std::string &	GetType () const
	Get the type.

const std::string &	GetInstanceName () const
	Get the instance name.

const Pandora &	GetPandora () const
	Get the associated pandora instance.

Protected Member Functions
virtual pandora::StatusCode	Run ()
	Run the algorithm.

virtual StatusCode	Initialize ()
	Perform any operations that must occur after reading settings, but before running the process.

virtual StatusCode	Reset ()
	Perform any operations when pandora is reset, typically at the end of each event.

StatusCode	RegisterDetails (const Pandora *const pPandora, const std::string &type, const std::string &instanceName)
	Register i) the pandora instance that will run the process and ii) the process type.

Protected Attributes
const Pandora *	m_pPandora
	The pandora object that will run the process.

std::string	m_type
	The process type.

std::string	m_instanceName
	The process instance name.

Private Types
typedef KDTreeLinkerAlgo< const pandora::CaloHit *, 2 >	HitKDTree2D

typedef KDTreeNodeInfoT< const pandora::CaloHit *, 2 >	HitKDNode2D

typedef std::vector< HitKDNode2D >	HitKDNode2DList

typedef std::unordered_map< const pandora::Cluster *, pandora::ClusterSet >	ClusterToClustersMap

typedef std::unordered_map< const pandora::CaloHit , const pandora::Cluster >	HitToClusterMap

Private Member Functions
pandora::StatusCode	ReadSettings (const pandora::TiXmlHandle xmlHandle)
	Read the algorithm settings.

pandora::StatusCode	PreparationStep (const pandora::ClusterVector &clusterVector)
	Perform any preparatory actions, such as caching information for subsequent expensive calculations.

pandora::StatusCode	TidyUpStep ()
	Tidy up any information cached in e.g. the preparation step.

pandora::StatusCode	FindBestSplitPosition (const TwoDSlidingFitResult &slidingFit1, const TwoDSlidingFitResult &slidingFit2, pandora::CartesianVector &splitPosition, pandora::CartesianVector &direction1, pandora::CartesianVector &direction2) const
	Find the best split position and direction for a pair of clusters.

void	FindCandidateSplitPositions (const pandora::Cluster const pCluster1, const pandora::Cluster const pCluster2, pandora::CartesianPointVector &candidateVector) const
	Find average positions of pairs of hits within a maximum separation.

void	GetListOfCleanClusters (const pandora::ClusterList *const pClusterList, pandora::ClusterVector &clusterVector) const
	Populate cluster vector with subset of cluster list, containing clusters judged to be clean.

void	BuildSlidingFitResultMap (const pandora::ClusterVector &clusterVector, TwoDSlidingFitResultMap &slidingFitResultMap) const
	Build the map of sliding fit results.

void	SplitCluster (const pandora::Cluster *const pCluster, const pandora::CartesianVector &splitPosition, const pandora::CartesianVector &splitDirection, pandora::CaloHitList &firstCaloHitList, pandora::CaloHitList &secondCaloHitList) const
	Split cluster at a given position and direction.

pandora::StatusCode	ReplaceClusters (const pandora::Cluster const pCluster1, const pandora::Cluster const pCluster2, const pandora::CartesianVector &splitPosition, const pandora::CartesianVector &firstDirection, const pandora::CartesianVector &secondDirection) const
	Replace crossed clusters with un-crossed clusters.

Private Attributes
float	m_maxClusterSeparation
	maximum separation of two clusters

float	m_maxClusterSeparationSquared
	maximum separation of two clusters (squared)

float	m_minCosRelativeAngle
	maximum relative angle between tracks after un-crossing

float	m_searchRegion1D
	Search region, applied to each dimension, for look-up from kd-trees.

ClusterToClustersMap	m_nearbyClusters
	The nearby clusters map.

unsigned int	m_halfWindowLayers
	half window layers for sliding linear fot

float	m_minClusterLength
	minimum length of clusters

Detailed Description

CrossedTrackSplittingAlgorithm class.

Definition at line 28 of file CrossedTrackSplittingAlgorithm.h.

Member Typedef Documentation

◆ ClusterToClustersMap

typedef std::unordered_map<const pandora::Cluster *, pandora::ClusterSet> lar_content::CrossedTrackSplittingAlgorithm::ClusterToClustersMap

private

Definition at line 41 of file CrossedTrackSplittingAlgorithm.h.

◆ HitKDNode2D

typedef KDTreeNodeInfoT<const pandora::CaloHit *, 2> lar_content::CrossedTrackSplittingAlgorithm::HitKDNode2D

private

Definition at line 38 of file CrossedTrackSplittingAlgorithm.h.

◆ HitKDNode2DList

typedef std::vector<HitKDNode2D> lar_content::CrossedTrackSplittingAlgorithm::HitKDNode2DList

private

Definition at line 39 of file CrossedTrackSplittingAlgorithm.h.

◆ HitKDTree2D

typedef KDTreeLinkerAlgo<const pandora::CaloHit *, 2> lar_content::CrossedTrackSplittingAlgorithm::HitKDTree2D

private

Definition at line 37 of file CrossedTrackSplittingAlgorithm.h.

◆ HitToClusterMap

typedef std::unordered_map<const pandora::CaloHit *, const pandora::Cluster *> lar_content::CrossedTrackSplittingAlgorithm::HitToClusterMap

private

Definition at line 42 of file CrossedTrackSplittingAlgorithm.h.

Constructor & Destructor Documentation

◆ CrossedTrackSplittingAlgorithm()

lar_content::CrossedTrackSplittingAlgorithm::CrossedTrackSplittingAlgorithm ( )

Default constructor.

Definition at line 23 of file CrossedTrackSplittingAlgorithm.cc.

Member Function Documentation

◆ BuildSlidingFitResultMap()

void lar_content::TwoDSlidingFitSplittingAndSwitchingAlgorithm::BuildSlidingFitResultMap	(	const pandora::ClusterVector &	clusterVector,
		TwoDSlidingFitResultMap &	slidingFitResultMap
	)		const

privateinherited

Build the map of sliding fit results.

Parameters

clusterVector	the input cluster vector
slidingFitResultMap	the output sliding fit result map

Definition at line 132 of file TwoDSlidingFitSplittingAndSwitchingAlgorithm.cc.

Here is the call graph for this function:

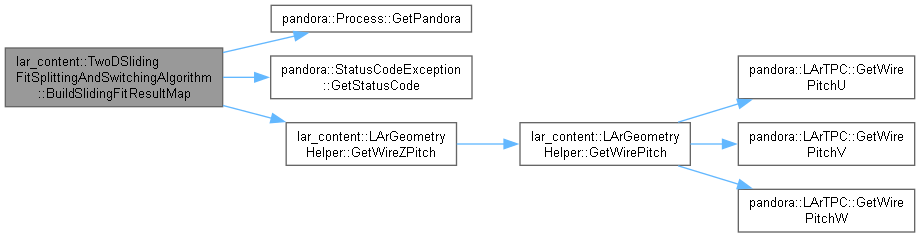

Here is the caller graph for this function:

◆ FindBestSplitPosition()

StatusCode lar_content::CrossedTrackSplittingAlgorithm::FindBestSplitPosition	(	const TwoDSlidingFitResult &	slidingFit1,
		const TwoDSlidingFitResult &	slidingFit2,
		pandora::CartesianVector &	splitPosition,
		pandora::CartesianVector &	direction1,
		pandora::CartesianVector &	direction2
	)		const

privatevirtual

Find the best split position and direction for a pair of clusters.

Parameters

slidingFit1	the sliding linear fit to the first cluster
slidingFit2	the sliding linear fit to the second cluster
splitPosition	the output split position
direction1	the output direction of the first new cluster
direction2	the output direction of the second new cluster

Implements lar_content::TwoDSlidingFitSplittingAndSwitchingAlgorithm.

Definition at line 86 of file CrossedTrackSplittingAlgorithm.cc.

Here is the call graph for this function:

◆ FindCandidateSplitPositions()

void lar_content::CrossedTrackSplittingAlgorithm::FindCandidateSplitPositions	(	const pandora::Cluster *const	pCluster1,
		const pandora::Cluster *const	pCluster2,
		pandora::CartesianPointVector &	candidateVector
	)		const

private

Find average positions of pairs of hits within a maximum separation.

Parameters

pCluster1	the first cluster
pCluster2	the second cluster
candidateVector	to receive the average positions

Definition at line 241 of file CrossedTrackSplittingAlgorithm.cc.

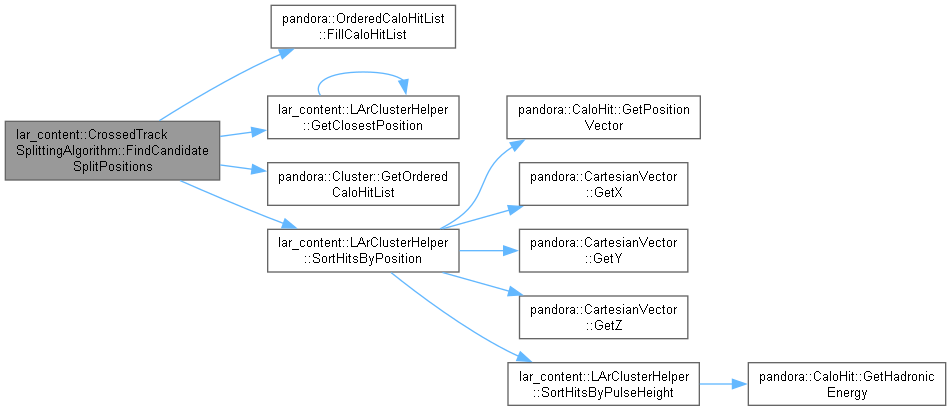

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetInstanceName()

const std::string & pandora::Process::GetInstanceName ( ) const

inlineinherited

Get the instance name.

Returns: The instance name

Definition at line 109 of file Process.h.

◆ GetListOfCleanClusters()

void lar_content::TwoDSlidingFitSplittingAndSwitchingAlgorithm::GetListOfCleanClusters	(	const pandora::ClusterList *const	pClusterList,
		pandora::ClusterVector &	clusterVector
	)		const

privateinherited

Populate cluster vector with subset of cluster list, containing clusters judged to be clean.

Parameters

pClusterList	address of the cluster list
clusterVector	to receive the populated cluster vector

Definition at line 115 of file TwoDSlidingFitSplittingAndSwitchingAlgorithm.cc.

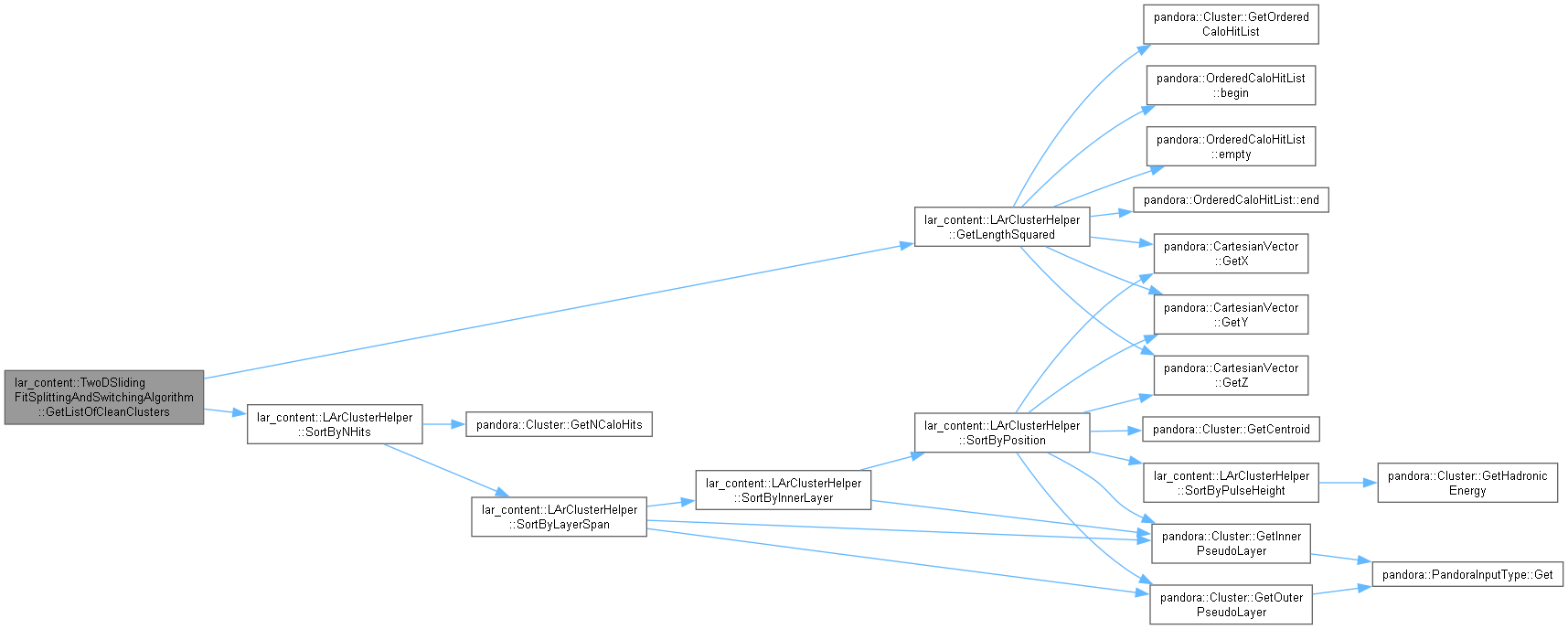

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPandora()

const Pandora & pandora::Process::GetPandora ( ) const

inlineinherited

Get the associated pandora instance.

Returns: the associated pandora instance

Definition at line 116 of file Process.h.

◆ GetType()

const std::string & pandora::Process::GetType ( ) const

inlineinherited

Get the type.

Returns: The type

Definition at line 102 of file Process.h.

◆ Initialize()

StatusCode pandora::Process::Initialize ( )

inlineprotectedvirtualinherited

Perform any operations that must occur after reading settings, but before running the process.

Reimplemented in lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, EventReadingAlgorithm, and EventWritingAlgorithm.

Definition at line 126 of file Process.h.

Here is the caller graph for this function:

◆ PreparationStep()

StatusCode lar_content::CrossedTrackSplittingAlgorithm::PreparationStep ( const pandora::ClusterVector & clusterVector )

privatevirtual

Perform any preparatory actions, such as caching information for subsequent expensive calculations.

Parameters

clusterVector the cluster vector

Reimplemented from lar_content::TwoDSlidingFitSplittingAndSwitchingAlgorithm.

Definition at line 33 of file CrossedTrackSplittingAlgorithm.cc.

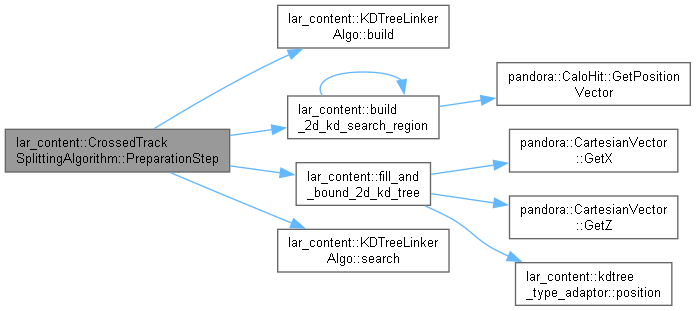

Here is the call graph for this function:

◆ ReadSettings()

StatusCode lar_content::CrossedTrackSplittingAlgorithm::ReadSettings ( const pandora::TiXmlHandle xmlHandle )

privatevirtual

Read the algorithm settings.

Parameters

xmlHandle the relevant xml handle

Reimplemented from lar_content::TwoDSlidingFitSplittingAndSwitchingAlgorithm.

Definition at line 274 of file CrossedTrackSplittingAlgorithm.cc.

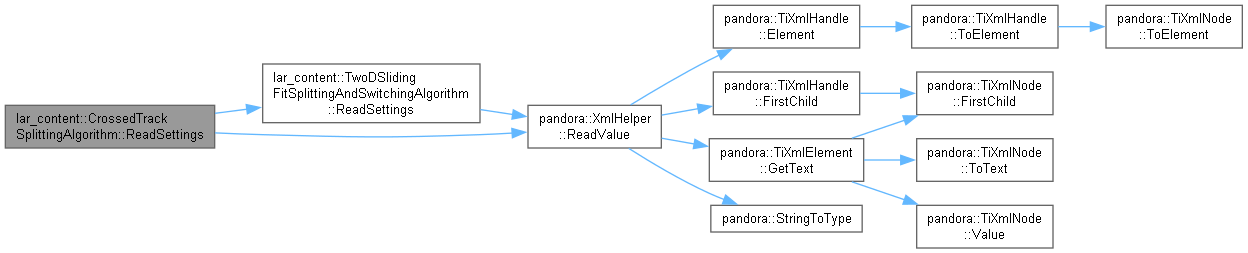

Here is the call graph for this function:

◆ RegisterDetails()

StatusCode pandora::Process::RegisterDetails	(	const Pandora *const	pPandora,
		const std::string &	type,
		const std::string &	instanceName
	)

inlineprotectedinherited

Register i) the pandora instance that will run the process and ii) the process type.

Parameters

pPandora	address of the pandora object that will run the process
type	the process type
instanceName	the process instance name

Definition at line 146 of file Process.h.

Here is the caller graph for this function:

◆ ReplaceClusters()

StatusCode lar_content::TwoDSlidingFitSplittingAndSwitchingAlgorithm::ReplaceClusters	(	const pandora::Cluster *const	pCluster1,
		const pandora::Cluster *const	pCluster2,
		const pandora::CartesianVector &	splitPosition,
		const pandora::CartesianVector &	firstDirection,
		const pandora::CartesianVector &	secondDirection
	)		const

privateinherited

Replace crossed clusters with un-crossed clusters.

Parameters

pCluster1	the first cluster to be deleted
pCluster2	the second cluster to be deleted
splitPosition	the split position
firstDirection	the direction of the first new cluster
secondDirection	the direction of the second new cluster

Definition at line 182 of file TwoDSlidingFitSplittingAndSwitchingAlgorithm.cc.

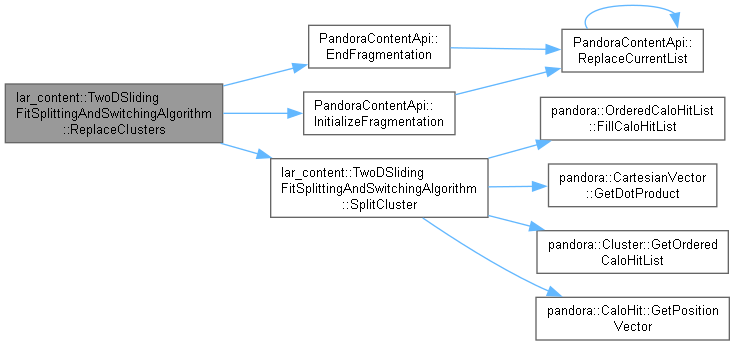

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Reset()

StatusCode pandora::Process::Reset ( )

inlineprotectedvirtualinherited

Perform any operations when pandora is reset, typically at the end of each event.

Reimplemented in lar_content::MasterAlgorithm, lar_content::PostProcessingAlgorithm, and lar_content::PreProcessingAlgorithm.

Definition at line 133 of file Process.h.

Here is the caller graph for this function:

◆ Run()

StatusCode lar_content::TwoDSlidingFitSplittingAndSwitchingAlgorithm::Run ( )

protectedvirtualinherited

Run the algorithm.

Implements pandora::Algorithm.

Definition at line 29 of file TwoDSlidingFitSplittingAndSwitchingAlgorithm.cc.

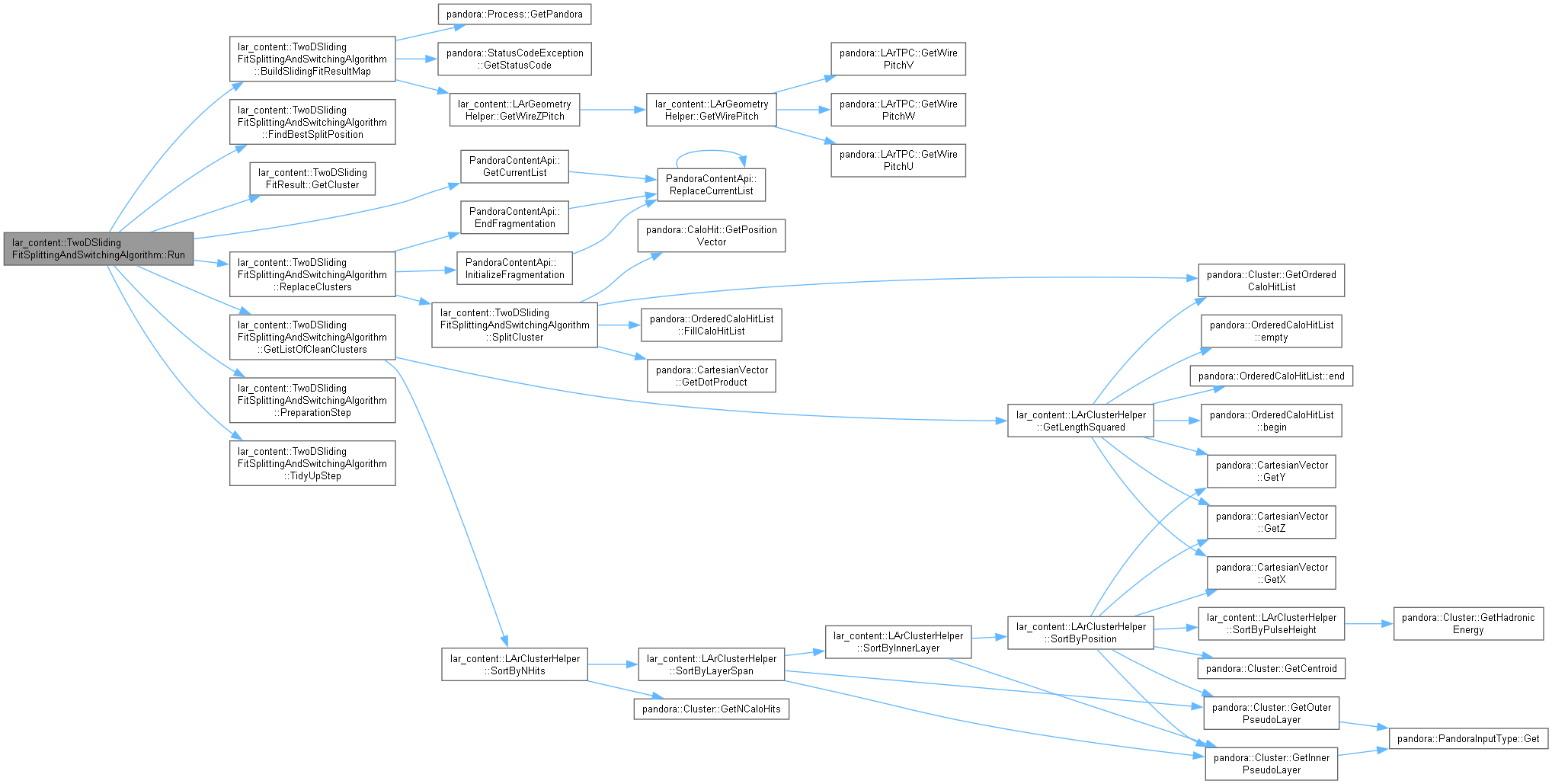

Here is the call graph for this function:

◆ SplitCluster()

void lar_content::TwoDSlidingFitSplittingAndSwitchingAlgorithm::SplitCluster	(	const pandora::Cluster *const	pCluster,
		const pandora::CartesianVector &	splitPosition,
		const pandora::CartesianVector &	splitDirection,
		pandora::CaloHitList &	firstCaloHitList,
		pandora::CaloHitList &	secondCaloHitList
	)		const

privateinherited

Split cluster at a given position and direction.

Parameters

pCluster	the cluster
splitPosition	the position at which to split the cluster
splitDirection	the direction of the un-crossed cluster
firstCaloHitList	the hits to be added to the first new cluster
secondCaloHitList	the hits to be added to the second new cluster

Definition at line 159 of file TwoDSlidingFitSplittingAndSwitchingAlgorithm.cc.

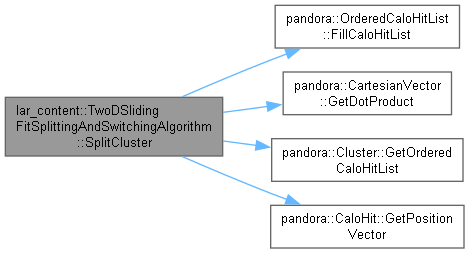

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TidyUpStep()

StatusCode lar_content::CrossedTrackSplittingAlgorithm::TidyUpStep ( )

privatevirtual

Tidy up any information cached in e.g. the preparation step.

Reimplemented from lar_content::TwoDSlidingFitSplittingAndSwitchingAlgorithm.

Definition at line 77 of file CrossedTrackSplittingAlgorithm.cc.

Member Data Documentation

◆ m_halfWindowLayers

unsigned int lar_content::TwoDSlidingFitSplittingAndSwitchingAlgorithm::m_halfWindowLayers

privateinherited

half window layers for sliding linear fot

Definition at line 99 of file TwoDSlidingFitSplittingAndSwitchingAlgorithm.h.

◆ m_instanceName

std::string pandora::Process::m_instanceName

protectedinherited

The process instance name.

Definition at line 89 of file Process.h.

◆ m_maxClusterSeparation

float lar_content::CrossedTrackSplittingAlgorithm::m_maxClusterSeparation

private

maximum separation of two clusters

Definition at line 60 of file CrossedTrackSplittingAlgorithm.h.

◆ m_maxClusterSeparationSquared

float lar_content::CrossedTrackSplittingAlgorithm::m_maxClusterSeparationSquared

private

maximum separation of two clusters (squared)

Definition at line 61 of file CrossedTrackSplittingAlgorithm.h.

◆ m_minClusterLength

float lar_content::TwoDSlidingFitSplittingAndSwitchingAlgorithm::m_minClusterLength

privateinherited

minimum length of clusters

Definition at line 100 of file TwoDSlidingFitSplittingAndSwitchingAlgorithm.h.

◆ m_minCosRelativeAngle

float lar_content::CrossedTrackSplittingAlgorithm::m_minCosRelativeAngle

private

maximum relative angle between tracks after un-crossing

Definition at line 62 of file CrossedTrackSplittingAlgorithm.h.

◆ m_nearbyClusters

ClusterToClustersMap lar_content::CrossedTrackSplittingAlgorithm::m_nearbyClusters

private

The nearby clusters map.

Definition at line 65 of file CrossedTrackSplittingAlgorithm.h.

◆ m_pPandora

const Pandora* pandora::Process::m_pPandora

protectedinherited

The pandora object that will run the process.

Definition at line 87 of file Process.h.

◆ m_searchRegion1D

float lar_content::CrossedTrackSplittingAlgorithm::m_searchRegion1D

private

Search region, applied to each dimension, for look-up from kd-trees.

Definition at line 64 of file CrossedTrackSplittingAlgorithm.h.

◆ m_type

std::string pandora::Process::m_type

protectedinherited

The process type.

Definition at line 88 of file Process.h.

The documentation for this class was generated from the following files:

LArContent/larpandoracontent/LArTwoDReco/LArClusterSplitting/CrossedTrackSplittingAlgorithm.h
LArContent/larpandoracontent/LArTwoDReco/LArClusterSplitting/CrossedTrackSplittingAlgorithm.cc

Public Member Functions

Protected Member Functions

Protected Attributes

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ ClusterToClustersMap

◆ HitKDNode2D

◆ HitKDNode2DList

◆ HitKDTree2D

◆ HitToClusterMap

Constructor & Destructor Documentation

◆ CrossedTrackSplittingAlgorithm()

Member Function Documentation

◆ BuildSlidingFitResultMap()

◆ FindBestSplitPosition()

◆ FindCandidateSplitPositions()

◆ GetInstanceName()

◆ GetListOfCleanClusters()

◆ GetPandora()

◆ GetType()

◆ Initialize()

◆ PreparationStep()

◆ ReadSettings()

◆ RegisterDetails()

◆ ReplaceClusters()

◆ Reset()

◆ Run()

◆ SplitCluster()

◆ TidyUpStep()

Member Data Documentation

◆ m_halfWindowLayers

◆ m_instanceName

◆ m_maxClusterSeparation

◆ m_maxClusterSeparationSquared

◆ m_minClusterLength

◆ m_minCosRelativeAngle

◆ m_nearbyClusters

◆ m_pPandora

◆ m_searchRegion1D

◆ m_type
