#include "ShowerSpineFinderTool.h"

Inheritance diagram for lar_content::ShowerSpineFinderTool:

[legend]

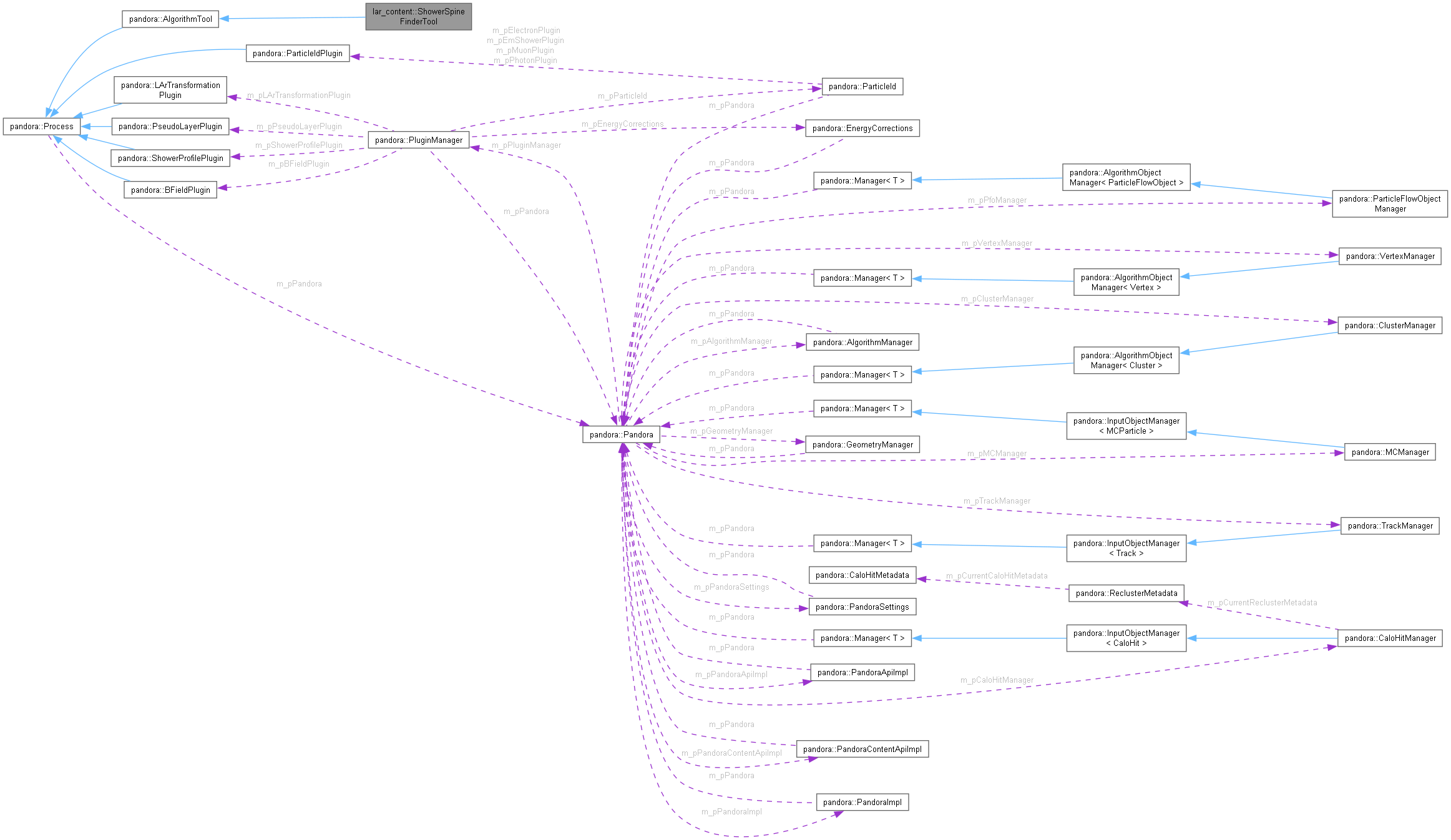

Collaboration diagram for lar_content::ShowerSpineFinderTool:

[legend]

Public Member Functions
	ShowerSpineFinderTool ()

pandora::StatusCode	Run (const pandora::CartesianVector &nuVertex3D, const pandora::CaloHitList *const pViewHitList, const pandora::HitType hitType, const pandora::CartesianVector &peakDirection, pandora::CaloHitList &unavailableHitList, pandora::CaloHitList &showerSpineHitList)

const std::string &	GetType () const
	Get the type.

const std::string &	GetInstanceName () const
	Get the instance name.

const Pandora &	GetPandora () const
	Get the associated pandora instance.

Protected Member Functions
virtual StatusCode	Initialize ()
	Perform any operations that must occur after reading settings, but before running the process.

virtual StatusCode	Reset ()
	Perform any operations when pandora is reset, typically at the end of each event.

StatusCode	RegisterDetails (const Pandora *const pPandora, const std::string &type, const std::string &instanceName)
	Register i) the pandora instance that will run the process and ii) the process type.

Protected Attributes
const Pandora *	m_pPandora
	The pandora object that will run the process.

std::string	m_type
	The process type.

std::string	m_instanceName
	The process instance name.

Private Member Functions
pandora::StatusCode	ReadSettings (const pandora::TiXmlHandle xmlHandle)
	Read the algorithm settings.

void	FindShowerSpine (const pandora::CaloHitList *const pViewHitList, const pandora::CartesianVector &nuVertex2D, const pandora::CartesianVector &initialDirection, pandora::CaloHitList &unavailableHitList, pandora::CaloHitList &showerSpineHitList) const
	Perform a running fit to collect the hits of the shower spine.

bool	CollectSubsectionHits (const TwoDSlidingFitResult &extrapolatedFit, const pandora::CartesianVector &extrapolatedStartPosition, const pandora::CartesianVector &extrapolatedEndPosition, const pandora::CartesianVector &extrapolatedDirection, const bool isEndDownstream, const pandora::CaloHitList *const pViewHitList, pandora::CartesianPointVector &runningFitPositionVector, pandora::CaloHitList &unavailableHitList, pandora::CaloHitList &showerSpineHitList) const
	Perform a running fit step: collect hits which lie close to the shower spine projection.

bool	IsCloseToLine (const pandora::CartesianVector &hitPosition, const pandora::CartesianVector &lineStart, const pandora::CartesianVector &lineDirection, const float distanceToLine) const
	Determine whether a hit lies close to the shower spine projection.

void	CollectConnectedHits (const pandora::CaloHitList &collectedHits, const pandora::CartesianVector &extrapolatedStartPosition, const pandora::CartesianVector &extrapolatedDirection, pandora::CartesianPointVector &runningFitPositionVector, pandora::CaloHitList &showerSpineHitList) const
	Add to the shower spine the connecting hits.

float	GetClosestDistance (const pandora::CartesianVector &position, const pandora::CartesianPointVector &testPositions) const
	Find the smallest distance between a position and a list of other positions.

Private Attributes
unsigned int	m_hitThresholdForSpine
	The hit threshold for a significant spine.

float	m_growingFitInitialLength
	The first step distance.

float	m_initialFitDistanceToLine
	The max. proximity to the spine projection for collection in the first step.

unsigned int	m_minInitialHitsFound
	The min. number of hits collected in the first step for continuation.

unsigned int	m_maxFittingHits
	The number of hits to consider in the running fit.

unsigned int	m_localSlidingFitWindow
	The standard sliding fit window for spine fits.

float	m_growingFitSegmentLength
	The standard step distance.

unsigned int	m_highResolutionSlidingFitWindow
	The high resolution sliding fit window for spine fits.

float	m_distanceToLine
	The max. proximity to the spine projection for collection.

float	m_hitConnectionDistance
	The max. separation between connected hits.

Detailed Description

Definition at line 19 of file ShowerSpineFinderTool.h.

Constructor & Destructor Documentation

◆ ShowerSpineFinderTool()

lar_content::ShowerSpineFinderTool::ShowerSpineFinderTool ( )

Definition at line 25 of file ShowerSpineFinderTool.cc.

Member Function Documentation

◆ CollectConnectedHits()

void lar_content::ShowerSpineFinderTool::CollectConnectedHits	(	const pandora::CaloHitList &	collectedHits,
		const pandora::CartesianVector &	extrapolatedStartPosition,
		const pandora::CartesianVector &	extrapolatedDirection,
		pandora::CartesianPointVector &	runningFitPositionVector,
		pandora::CaloHitList &	showerSpineHitList
	)		const

private

Add to the shower spine the connecting hits.

Parameters

collectedHits	the input list of close hits
extrapolatedStartPosition	the shower spine projection start position
extrapolatedDirection	the shower spine projection direction
runningFitPositionVector	the vector of the collected hit positions
showerSpineHitList	the list of collected shower spine hits

Definition at line 228 of file ShowerSpineFinderTool.cc.

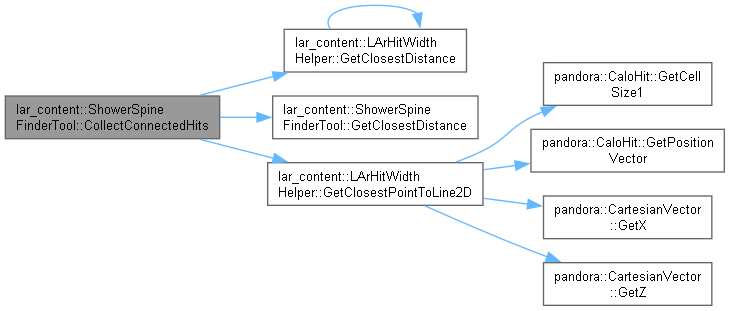

Here is the call graph for this function:

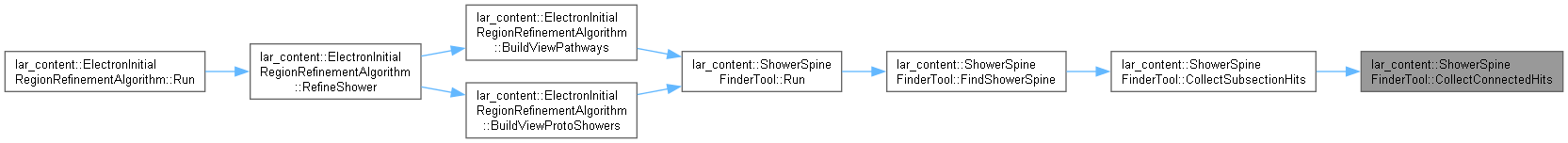

Here is the caller graph for this function:

◆ CollectSubsectionHits()

bool lar_content::ShowerSpineFinderTool::CollectSubsectionHits	(	const TwoDSlidingFitResult &	extrapolatedFit,
		const pandora::CartesianVector &	extrapolatedStartPosition,
		const pandora::CartesianVector &	extrapolatedEndPosition,
		const pandora::CartesianVector &	extrapolatedDirection,
		const bool	isEndDownstream,
		const pandora::CaloHitList *const	pViewHitList,
		pandora::CartesianPointVector &	runningFitPositionVector,
		pandora::CaloHitList &	unavailableHitList,
		pandora::CaloHitList &	showerSpineHitList
	)		const

private

Perform a running fit step: collect hits which lie close to the shower spine projection.

Parameters

extrapolatedFit	the fit to the hitherto collected hits
extrapolatedStartPosition	the shower spine projection start position
extrapolatedEndPosition	the shower spine projection end position
extrapolatedDirection	the shower spine projection direction
isEndDownstream	whether the shower direction is downstream (in Z) of the neutrino vertex
pViewHitList	the 2D event hit list
runningFitPositionVector	the vector of the hitherto collected hit positions
unavailableHitList	protected hits that cannot be collected
showerSpineHitList	the output list of shower spine hits

Returns: whether any hits were collected in the running fit step

Definition at line 155 of file ShowerSpineFinderTool.cc.

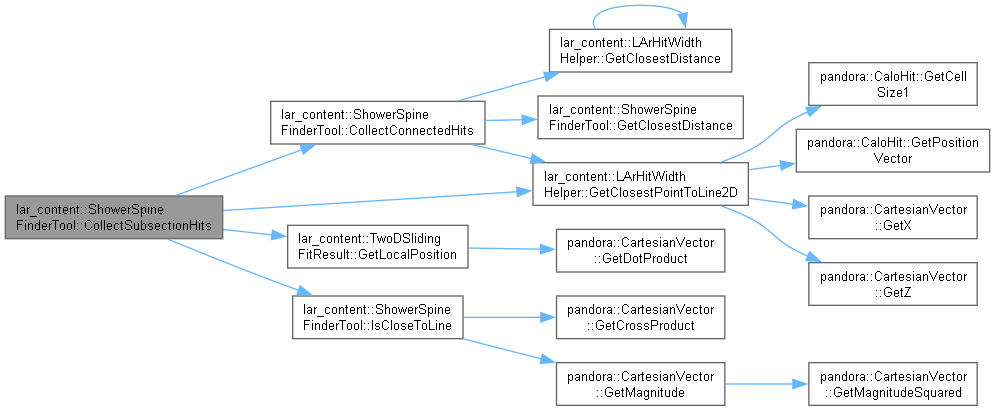

Here is the call graph for this function:

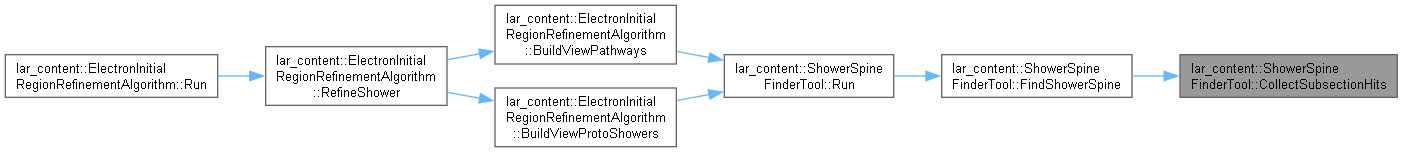

Here is the caller graph for this function:

◆ FindShowerSpine()

void lar_content::ShowerSpineFinderTool::FindShowerSpine	(	const pandora::CaloHitList *const	pViewHitList,
		const pandora::CartesianVector &	nuVertex2D,
		const pandora::CartesianVector &	initialDirection,
		pandora::CaloHitList &	unavailableHitList,
		pandora::CaloHitList &	showerSpineHitList
	)		const

private

Perform a running fit to collect the hits of the shower spine.

Parameters

pViewHitList	the 2D event hit list
nuVertex2D	the 2D neutrino vertex
initialDirection	the initial direction of the pathway
unavailableHitList	protected hits that cannot be collected
showerSpineHitList	the output list of shower spine hits

Definition at line 57 of file ShowerSpineFinderTool.cc.

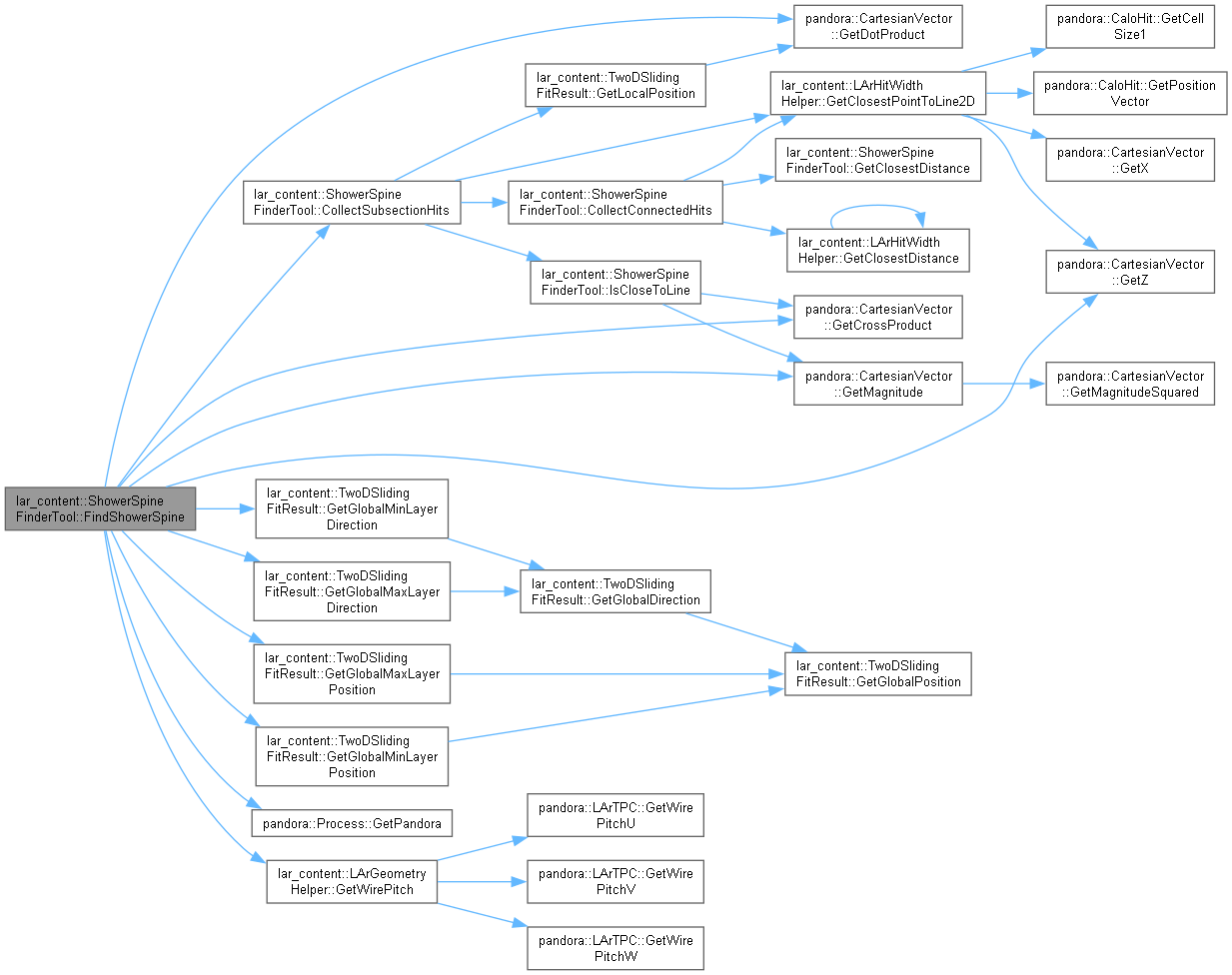

Here is the call graph for this function:

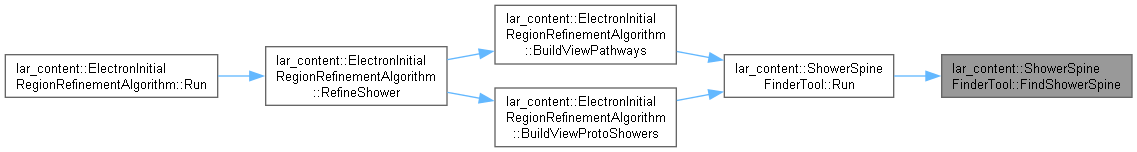

Here is the caller graph for this function:

◆ GetClosestDistance()

float lar_content::ShowerSpineFinderTool::GetClosestDistance	(	const pandora::CartesianVector &	position,
		const pandora::CartesianPointVector &	testPositions
	)		const

private

Find the smallest distance between a position and a list of other positions.

Parameters

position	the input position
testPositions	the list of other positions

Returns: the closest distance

Definition at line 262 of file ShowerSpineFinderTool.cc.

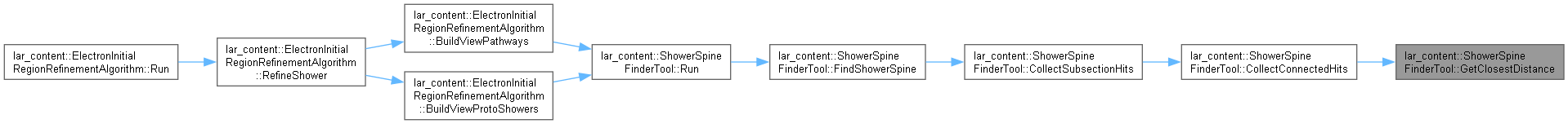

Here is the caller graph for this function:

◆ GetInstanceName()

const std::string & pandora::Process::GetInstanceName ( ) const

inlineinherited

Get the instance name.

Returns: The instance name

Definition at line 109 of file Process.h.

◆ GetPandora()

const Pandora & pandora::Process::GetPandora ( ) const

inlineinherited

Get the associated pandora instance.

Returns: the associated pandora instance

Definition at line 116 of file Process.h.

◆ GetType()

const std::string & pandora::Process::GetType ( ) const

inlineinherited

Get the type.

Returns: The type

Definition at line 102 of file Process.h.

◆ Initialize()

StatusCode pandora::Process::Initialize ( )

inlineprotectedvirtualinherited

Perform any operations that must occur after reading settings, but before running the process.

Reimplemented in lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, EventReadingAlgorithm, and EventWritingAlgorithm.

Definition at line 126 of file Process.h.

Here is the caller graph for this function:

◆ IsCloseToLine()

bool lar_content::ShowerSpineFinderTool::IsCloseToLine	(	const pandora::CartesianVector &	hitPosition,
		const pandora::CartesianVector &	lineStart,
		const pandora::CartesianVector &	lineDirection,
		const float	distanceToLine
	)		const

private

Determine whether a hit lies close to the shower spine projection.

Parameters

hitPosition	the hit position
lineStart	the shower spine projection start position
lineDirection	the shower spine projection direction
distanceToLine	the comparison distance for 'is close'

Returns: whether the hit is close to the shower spine projection

Definition at line 215 of file ShowerSpineFinderTool.cc.

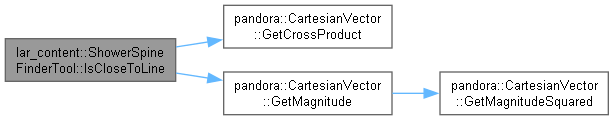

Here is the call graph for this function:

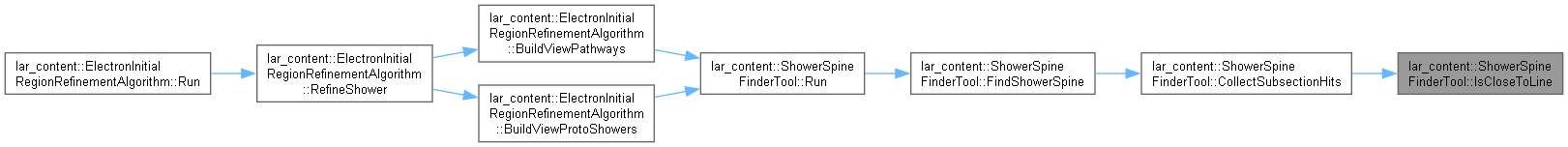

Here is the caller graph for this function:

◆ ReadSettings()

StatusCode lar_content::ShowerSpineFinderTool::ReadSettings ( const pandora::TiXmlHandle xmlHandle )

privatevirtual

Read the algorithm settings.

Parameters

xmlHandle the relevant xml handle

Implements pandora::Process.

Definition at line 279 of file ShowerSpineFinderTool.cc.

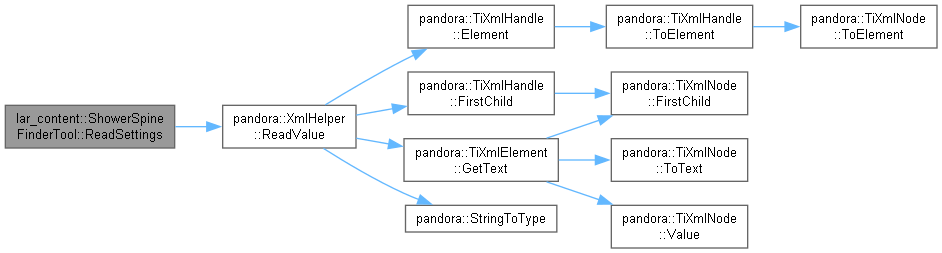

Here is the call graph for this function:

◆ RegisterDetails()

StatusCode pandora::Process::RegisterDetails	(	const Pandora *const	pPandora,
		const std::string &	type,
		const std::string &	instanceName
	)

inlineprotectedinherited

Register i) the pandora instance that will run the process and ii) the process type.

Parameters

pPandora	address of the pandora object that will run the process
type	the process type
instanceName	the process instance name

Definition at line 146 of file Process.h.

Here is the caller graph for this function:

◆ Reset()

StatusCode pandora::Process::Reset ( )

inlineprotectedvirtualinherited

Perform any operations when pandora is reset, typically at the end of each event.

Reimplemented in lar_content::MasterAlgorithm, lar_content::PostProcessingAlgorithm, and lar_content::PreProcessingAlgorithm.

Definition at line 133 of file Process.h.

Here is the caller graph for this function:

◆ Run()

StatusCode lar_content::ShowerSpineFinderTool::Run	(	const pandora::CartesianVector &	nuVertex3D,
		const pandora::CaloHitList *const	pViewHitList,
		const pandora::HitType	hitType,
		const pandora::CartesianVector &	peakDirection,
		pandora::CaloHitList &	unavailableHitList,
		pandora::CaloHitList &	showerSpineHitList
	)

Definition at line 41 of file ShowerSpineFinderTool.cc.

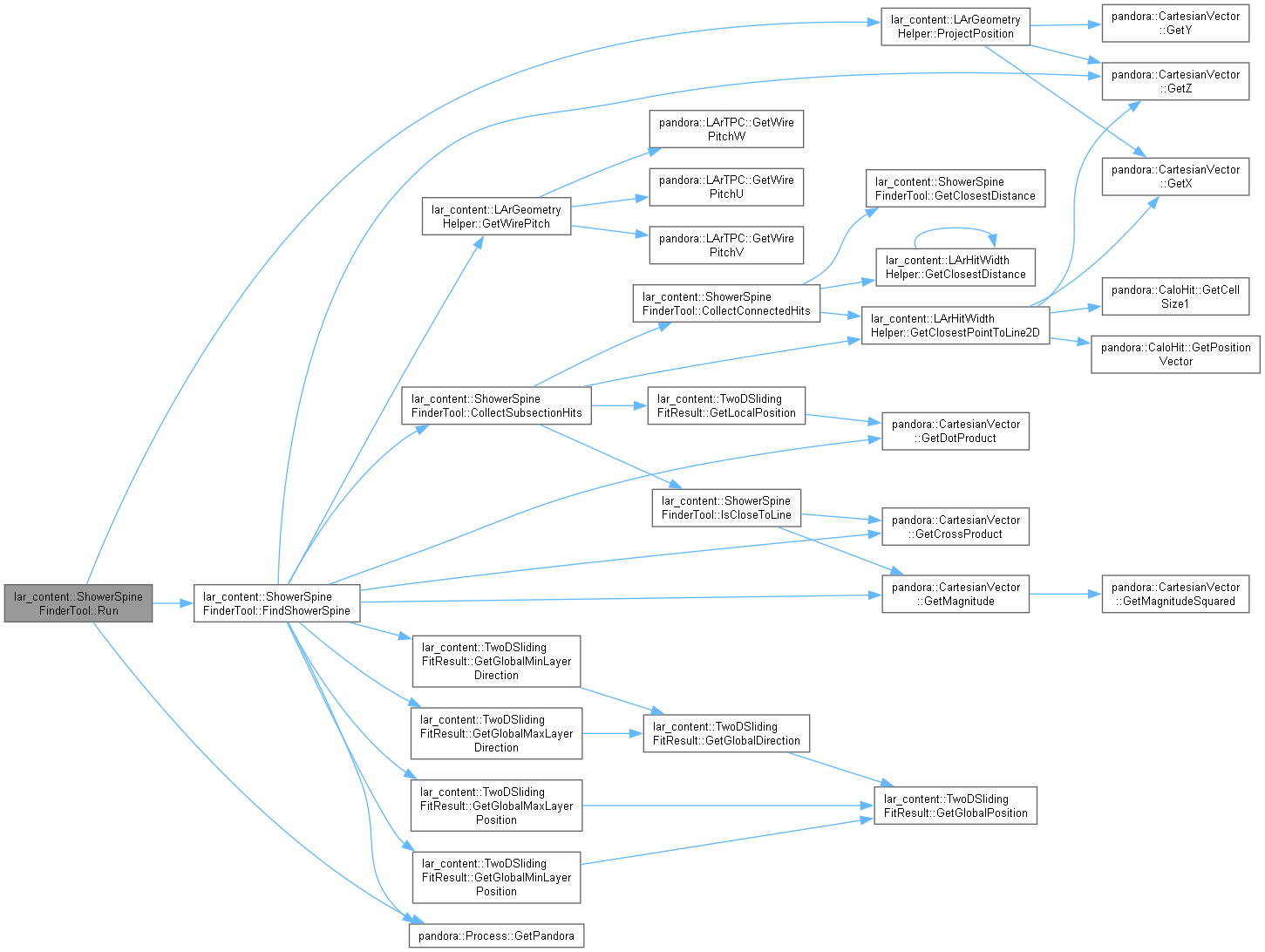

Here is the call graph for this function:

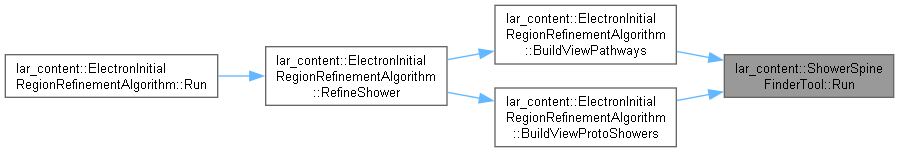

Here is the caller graph for this function:

Member Data Documentation

◆ m_distanceToLine

float lar_content::ShowerSpineFinderTool::m_distanceToLine

private

The max. proximity to the spine projection for collection.

Definition at line 106 of file ShowerSpineFinderTool.h.

◆ m_growingFitInitialLength

float lar_content::ShowerSpineFinderTool::m_growingFitInitialLength

private

The first step distance.

Definition at line 99 of file ShowerSpineFinderTool.h.

◆ m_growingFitSegmentLength

float lar_content::ShowerSpineFinderTool::m_growingFitSegmentLength

private

The standard step distance.

Definition at line 104 of file ShowerSpineFinderTool.h.

◆ m_highResolutionSlidingFitWindow

unsigned int lar_content::ShowerSpineFinderTool::m_highResolutionSlidingFitWindow

private

The high resolution sliding fit window for spine fits.

Definition at line 105 of file ShowerSpineFinderTool.h.

◆ m_hitConnectionDistance

float lar_content::ShowerSpineFinderTool::m_hitConnectionDistance

private

The max. separation between connected hits.

Definition at line 107 of file ShowerSpineFinderTool.h.

◆ m_hitThresholdForSpine

unsigned int lar_content::ShowerSpineFinderTool::m_hitThresholdForSpine

private

The hit threshold for a significant spine.

Definition at line 98 of file ShowerSpineFinderTool.h.

◆ m_initialFitDistanceToLine

float lar_content::ShowerSpineFinderTool::m_initialFitDistanceToLine

private

The max. proximity to the spine projection for collection in the first step.

Definition at line 100 of file ShowerSpineFinderTool.h.

◆ m_instanceName

std::string pandora::Process::m_instanceName

protectedinherited

The process instance name.

Definition at line 89 of file Process.h.

◆ m_localSlidingFitWindow

unsigned int lar_content::ShowerSpineFinderTool::m_localSlidingFitWindow

private

The standard sliding fit window for spine fits.

Definition at line 103 of file ShowerSpineFinderTool.h.

◆ m_maxFittingHits

unsigned int lar_content::ShowerSpineFinderTool::m_maxFittingHits

private

The number of hits to consider in the running fit.

Definition at line 102 of file ShowerSpineFinderTool.h.

◆ m_minInitialHitsFound

unsigned int lar_content::ShowerSpineFinderTool::m_minInitialHitsFound

private

The min. number of hits collected in the first step for continuation.

Definition at line 101 of file ShowerSpineFinderTool.h.

◆ m_pPandora

const Pandora* pandora::Process::m_pPandora

protectedinherited

The pandora object that will run the process.

Definition at line 87 of file Process.h.

◆ m_type

std::string pandora::Process::m_type

protectedinherited

The process type.

Definition at line 88 of file Process.h.

The documentation for this class was generated from the following files:

LArContent/larpandoracontent/LArShowerRefinement/ShowerSpineFinderTool.h
LArContent/larpandoracontent/LArShowerRefinement/ShowerSpineFinderTool.cc

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ShowerSpineFinderTool()

Member Function Documentation

◆ CollectConnectedHits()

◆ CollectSubsectionHits()

◆ FindShowerSpine()

◆ GetClosestDistance()

◆ GetInstanceName()

◆ GetPandora()

◆ GetType()

◆ Initialize()

◆ IsCloseToLine()

◆ ReadSettings()

◆ RegisterDetails()

◆ Reset()

◆ Run()

Member Data Documentation

◆ m_distanceToLine

◆ m_growingFitInitialLength

◆ m_growingFitSegmentLength

◆ m_highResolutionSlidingFitWindow

◆ m_hitConnectionDistance

◆ m_hitThresholdForSpine

◆ m_initialFitDistanceToLine

◆ m_instanceName

◆ m_localSlidingFitWindow

◆ m_maxFittingHits

◆ m_minInitialHitsFound

◆ m_pPandora

◆ m_type
