#include "NeutrinoIdTool.h"

Inheritance diagram for lar_content::NeutrinoIdTool< T >:

[legend]

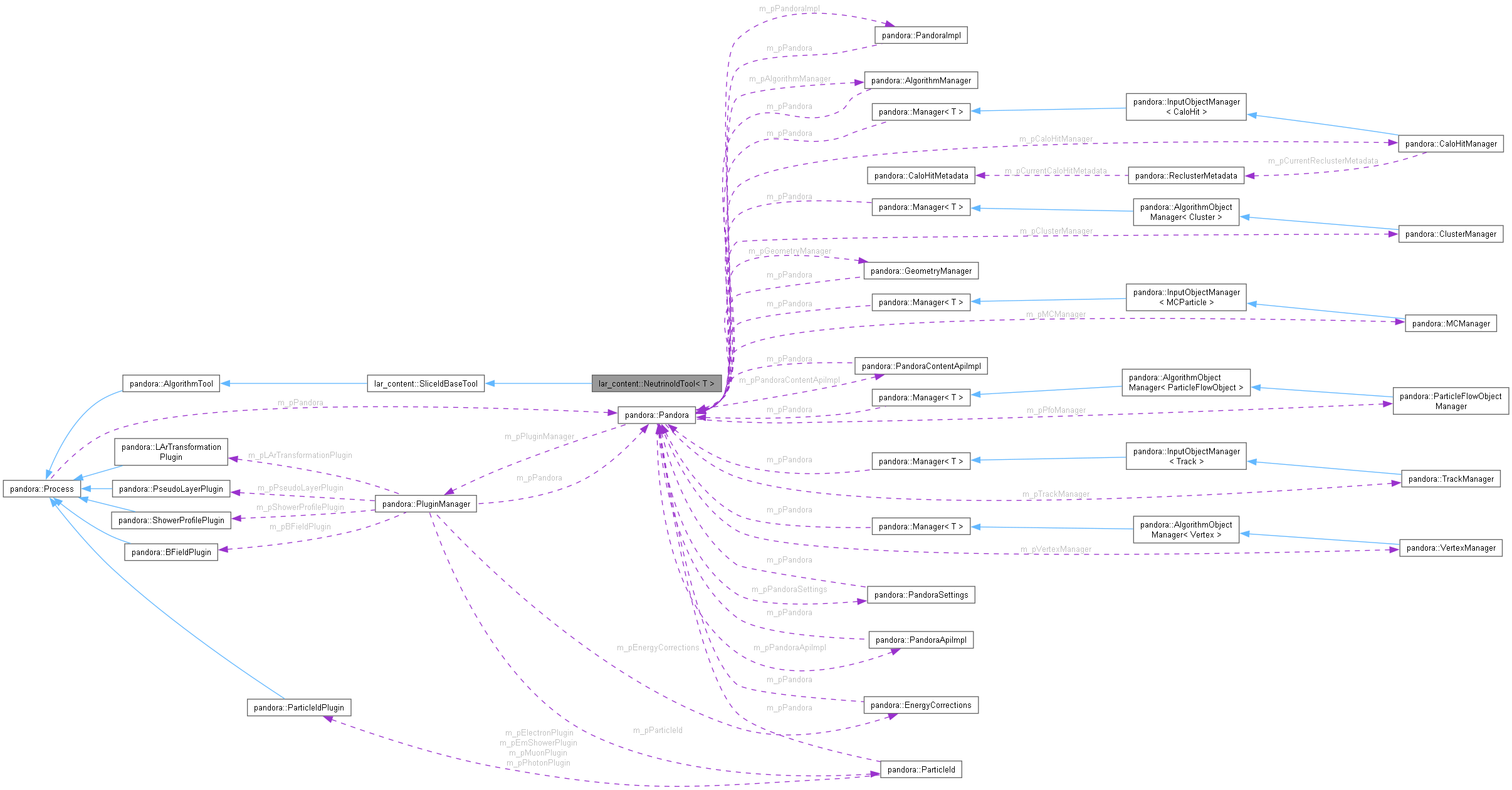

Collaboration diagram for lar_content::NeutrinoIdTool< T >:

[legend]

Classes
class	SliceFeatures
	Slice features class. More...

Public Member Functions
	NeutrinoIdTool ()
	Default constructor.

void	SelectOutputPfos (const pandora::Algorithm *const pAlgorithm, const SliceHypotheses &nuSliceHypotheses, const SliceHypotheses &crSliceHypotheses, pandora::PfoList &selectedPfos)
	Select which reconstruction hypotheses to use; neutrino outcomes or cosmic-ray muon outcomes for each slice.

const std::string &	GetType () const
	Get the type.

const std::string &	GetInstanceName () const
	Get the instance name.

const Pandora &	GetPandora () const
	Get the associated pandora instance.

Protected Member Functions
virtual StatusCode	Initialize ()
	Perform any operations that must occur after reading settings, but before running the process.

virtual StatusCode	Reset ()
	Perform any operations when pandora is reset, typically at the end of each event.

StatusCode	RegisterDetails (const Pandora *const pPandora, const std::string &type, const std::string &instanceName)
	Register i) the pandora instance that will run the process and ii) the process type.

Protected Attributes
const Pandora *	m_pPandora
	The pandora object that will run the process.

std::string	m_type
	The process type.

std::string	m_instanceName
	The process instance name.

Private Types
typedef std::pair< unsigned int, float >	UintFloatPair

typedef std::vector< SliceFeatures >	SliceFeaturesVector

Private Member Functions
void	GetSliceFeatures (const NeutrinoIdTool *const pTool, const SliceHypotheses &nuSliceHypotheses, const SliceHypotheses &crSliceHypotheses, SliceFeaturesVector &sliceFeaturesVector) const
	Get the features of each slice.

bool	GetBestMCSliceIndex (const pandora::Algorithm *const pAlgorithm, const SliceHypotheses &nuSliceHypotheses, const SliceHypotheses &crSliceHypotheses, unsigned int &bestSliceIndex) const
	Get the slice with the most neutrino induced hits using Monte-Carlo information.

bool	PassesQualityCuts (const pandora::Algorithm *const pAlgorithm, const float purity, const float completeness) const
	Determine if the event passes the selection cuts for training and has the required NUANCE code.

void	Collect2DHits (const pandora::PfoList &pfos, pandora::CaloHitList &reconstructedCaloHitList, const pandora::CaloHitSet &reconstructableCaloHitSet) const
	Collect all 2D hits in a supplied list of Pfos and push them on to an existing hit list, check so not to double count.

unsigned int	CountNeutrinoInducedHits (const pandora::CaloHitList &caloHitList) const
	Count the number of neutrino induced hits in a given list using MC information.

int	GetNuanceCode (const pandora::Algorithm *const pAlgorithm) const
	Use the current MCParticle list to get the nuance code of the neutrino in the event.

void	SelectAllPfos (const pandora::Algorithm *const pAlgorithm, const SliceHypotheses &hypotheses, pandora::PfoList &selectedPfos) const
	Select all pfos under the same hypothesis.

void	SelectPfosByProbability (const pandora::Algorithm *const pAlgorithm, const SliceHypotheses &nuSliceHypotheses, const SliceHypotheses &crSliceHypotheses, const SliceFeaturesVector &sliceFeaturesVector, pandora::PfoList &selectedPfos) const
	Select pfos based on the probability that their slice contains a neutrino interaction.

void	SelectPfos (const pandora::PfoList &pfos, pandora::PfoList &selectedPfos) const
	Add the given pfos to the selected Pfo list.

pandora::StatusCode	ReadSettings (const pandora::TiXmlHandle xmlHandle)
	Read the algorithm settings.

Private Attributes
bool	m_useTrainingMode
	Should use training mode. If true, training examples will be written to the output file.

std::string	m_trainingOutputFile
	Output file name for training examples.

bool	m_selectNuanceCode
	Should select training events by nuance code.

int	m_nuance
	Nuance code to select for training.

float	m_minPurity
	Minimum purity of the best slice to use event for training.

float	m_minCompleteness
	Minimum completeness of the best slice to use event for training.

float	m_minProbability
	Minimum probability required to classify a slice as the neutrino.

float	m_defaultProbability
	Default probability set if score could not be calculated.

unsigned int	m_maxNeutrinos
	The maximum number of neutrinos to select in any one event.

bool	m_persistFeatures
	If true, the mva features will be persisted in the metadata.

T	m_mva
	The mva.

std::string	m_filePathEnvironmentVariable
	The environment variable providing a list of paths to mva files.

Detailed Description

template<typename T>
class lar_content::NeutrinoIdTool< T >

NeutrinoIdTool class.

    Compares the neutrino and cosmic hypotheses of all of the slices in the event. Uses an MVA to calculate the probability of each slice
    containing a neutrino interaction. The N slices with the highest probabilities are identified as a neutrino (if sufficiently probable)
    all other slices are deemed cosmogenic.

    If training mode is switched on, then the tool will write MVA training exmples to the specified output file. The events selected for
    training must pass (user configurable) slicing quality cuts. Users may also select events based on their interaction type (nuance code).

Definition at line 32 of file NeutrinoIdTool.h.

Member Typedef Documentation

◆ SliceFeaturesVector

template<typename T >

typedef std::vector<SliceFeatures> lar_content::NeutrinoIdTool< T >::SliceFeaturesVector

private

Definition at line 162 of file NeutrinoIdTool.h.

◆ UintFloatPair

template<typename T >

typedef std::pair<unsigned int, float> lar_content::NeutrinoIdTool< T >::UintFloatPair

private

Definition at line 161 of file NeutrinoIdTool.h.

Constructor & Destructor Documentation

◆ NeutrinoIdTool()

template<typename T >

lar_content::NeutrinoIdTool< T >::NeutrinoIdTool ( )

Default constructor.

Definition at line 29 of file NeutrinoIdTool.cc.

Member Function Documentation

◆ Collect2DHits()

template<typename T >

void lar_content::NeutrinoIdTool< T >::Collect2DHits	(	const pandora::PfoList &	pfos,
		pandora::CaloHitList &	reconstructedCaloHitList,
		const pandora::CaloHitSet &	reconstructableCaloHitSet
	)		const

private

Collect all 2D hits in a supplied list of Pfos and push them on to an existing hit list, check so not to double count.

Parameters

pfos	input list of pfos
reconstructedCaloHitList	output list of all 2d hits in the input pfos
reconstructableCaloHitSet	set of reconstructable calo hits

Definition at line 166 of file NeutrinoIdTool.cc.

Here is the call graph for this function:

◆ CountNeutrinoInducedHits()

template<typename T >

unsigned int lar_content::NeutrinoIdTool< T >::CountNeutrinoInducedHits ( const pandora::CaloHitList & caloHitList ) const

private

Count the number of neutrino induced hits in a given list using MC information.

Parameters

caloHitSet input list of calo hits

Returns: the number of neutrino induced hits in the input list

Definition at line 188 of file NeutrinoIdTool.cc.

Here is the call graph for this function:

◆ GetBestMCSliceIndex()

template<typename T >

bool lar_content::NeutrinoIdTool< T >::GetBestMCSliceIndex	(	const pandora::Algorithm *const	pAlgorithm,
		const SliceHypotheses &	nuSliceHypotheses,
		const SliceHypotheses &	crSliceHypotheses,
		unsigned int &	bestSliceIndex
	)		const

private

Get the slice with the most neutrino induced hits using Monte-Carlo information.

Parameters

pAlgorithm	address of the master algorithm
nuSliceHypotheses	the input neutrino slice hypotheses
crSliceHypotheses	the input cosmic slice hypotheses
bestSliceIndex	the index of the slice with the most neutrino hits

Returns: does the best slice pass the quality cuts for training?

Definition at line 98 of file NeutrinoIdTool.cc.

Here is the call graph for this function:

◆ GetInstanceName()

const std::string & pandora::Process::GetInstanceName ( ) const

inlineinherited

Get the instance name.

Returns: The instance name

Definition at line 109 of file Process.h.

◆ GetNuanceCode()

template<typename T >

int lar_content::NeutrinoIdTool< T >::GetNuanceCode ( const pandora::Algorithm *const pAlgorithm ) const

private

Use the current MCParticle list to get the nuance code of the neutrino in the event.

Parameters

pAlgorithm address of the master algorithm

Returns: the nuance code of the event

Definition at line 209 of file NeutrinoIdTool.cc.

Here is the call graph for this function:

◆ GetPandora()

const Pandora & pandora::Process::GetPandora ( ) const

inlineinherited

Get the associated pandora instance.

Returns: the associated pandora instance

Definition at line 116 of file Process.h.

◆ GetSliceFeatures()

template<typename T >

void lar_content::NeutrinoIdTool< T >::GetSliceFeatures	(	const NeutrinoIdTool< T > *const	pTool,
		const SliceHypotheses &	nuSliceHypotheses,
		const SliceHypotheses &	crSliceHypotheses,
		SliceFeaturesVector &	sliceFeaturesVector
	)		const

private

Get the features of each slice.

Parameters

pTool	the address of the this NeutrinoId tool
nuSliceHypotheses	the input neutrino slice hypotheses
crSliceHypotheses	the input cosmic slice hypotheses
sliceFeaturesVector	vector to hold the slice features

Definition at line 88 of file NeutrinoIdTool.cc.

◆ GetType()

const std::string & pandora::Process::GetType ( ) const

inlineinherited

Get the type.

Returns: The type

Definition at line 102 of file Process.h.

◆ Initialize()

StatusCode pandora::Process::Initialize ( )

inlineprotectedvirtualinherited

Perform any operations that must occur after reading settings, but before running the process.

Reimplemented in lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, EventReadingAlgorithm, and EventWritingAlgorithm.

Definition at line 126 of file Process.h.

Here is the caller graph for this function:

◆ PassesQualityCuts()

template<typename T >

bool lar_content::NeutrinoIdTool< T >::PassesQualityCuts	(	const pandora::Algorithm *const	pAlgorithm,
		const float	purity,
		const float	completeness
	)		const

private

Determine if the event passes the selection cuts for training and has the required NUANCE code.

Parameters

pAlgorithm	address of the master algorithm
purity	purity of best slice
completeness	completeness of best slice

Returns: does the evenr pass the quality cuts on purity and completeness and has the required NUANCE code

Definition at line 153 of file NeutrinoIdTool.cc.

◆ ReadSettings()

template<typename T >

StatusCode lar_content::NeutrinoIdTool< T >::ReadSettings ( const pandora::TiXmlHandle xmlHandle )

privatevirtual

Read the algorithm settings.

Parameters

xmlHandle the relevant xml handle

Implements pandora::Process.

Definition at line 594 of file NeutrinoIdTool.cc.

Here is the call graph for this function:

◆ RegisterDetails()

StatusCode pandora::Process::RegisterDetails	(	const Pandora *const	pPandora,
		const std::string &	type,
		const std::string &	instanceName
	)

inlineprotectedinherited

Register i) the pandora instance that will run the process and ii) the process type.

Parameters

pPandora	address of the pandora object that will run the process
type	the process type
instanceName	the process instance name

Definition at line 146 of file Process.h.

Here is the caller graph for this function:

◆ Reset()

StatusCode pandora::Process::Reset ( )

inlineprotectedvirtualinherited

Perform any operations when pandora is reset, typically at the end of each event.

Reimplemented in lar_content::MasterAlgorithm, lar_content::PostProcessingAlgorithm, and lar_content::PreProcessingAlgorithm.

Definition at line 133 of file Process.h.

Here is the caller graph for this function:

◆ SelectAllPfos()

template<typename T >

void lar_content::NeutrinoIdTool< T >::SelectAllPfos	(	const pandora::Algorithm *const	pAlgorithm,
		const SliceHypotheses &	hypotheses,
		pandora::PfoList &	selectedPfos
	)		const

private

Select all pfos under the same hypothesis.

Parameters

pAlgorithm	address of the master algorithm
hypotheses	the lists of slices under a certain hypothesis
selectedPfos	the list of pfos to populate

Definition at line 229 of file NeutrinoIdTool.cc.

Here is the call graph for this function:

◆ SelectOutputPfos()

template<typename T >

void lar_content::NeutrinoIdTool< T >::SelectOutputPfos	(	const pandora::Algorithm *const	pAlgorithm,
		const SliceHypotheses &	nuSliceHypotheses,
		const SliceHypotheses &	crSliceHypotheses,
		pandora::PfoList &	selectedPfos
	)

virtual

Select which reconstruction hypotheses to use; neutrino outcomes or cosmic-ray muon outcomes for each slice.

Parameters

pAlgorithm	the address of the master instance, used to access MCParticles when in training mode
nuSliceHypotheses	the parent pfos representing the neutrino outcome for each slice
crSliceHypotheses	the parent pfos representing the cosmic-ray muon outcome for each slice
sliceNuPfos	to receive the list of selected pfos

Implements lar_content::SliceIdBaseTool.

Definition at line 46 of file NeutrinoIdTool.cc.

Here is the call graph for this function:

◆ SelectPfos()

template<typename T >

void lar_content::NeutrinoIdTool< T >::SelectPfos	(	const pandora::PfoList &	pfos,
		pandora::PfoList &	selectedPfos
	)		const

private

Add the given pfos to the selected Pfo list.

Parameters

pfos	the pfos to select
selectedPfos	the list of pfos to populate

Definition at line 321 of file NeutrinoIdTool.cc.

◆ SelectPfosByProbability()

template<typename T >

void lar_content::NeutrinoIdTool< T >::SelectPfosByProbability	(	const pandora::Algorithm *const	pAlgorithm,
		const SliceHypotheses &	nuSliceHypotheses,
		const SliceHypotheses &	crSliceHypotheses,
		const SliceFeaturesVector &	sliceFeaturesVector,
		pandora::PfoList &	selectedPfos
	)		const

private

Select pfos based on the probability that their slice contains a neutrino interaction.

Parameters

pAlgorithm	address of the master algorithm
nuSliceHypotheses	the input neutrino slice hypotheses
crSliceHypotheses	the input cosmic slice hypotheses
sliceFeaturesVector	vector holding the slice features
selectedPfos	the list of pfos to populate

Definition at line 247 of file NeutrinoIdTool.cc.

Here is the call graph for this function:

◆ m_pPandora

const Pandora* pandora::Process::m_pPandora

protectedinherited

The pandora object that will run the process.

Definition at line 87 of file Process.h.

◆ m_selectNuanceCode

template<typename T >

bool lar_content::NeutrinoIdTool< T >::m_selectNuanceCode

private

Should select training events by nuance code.

Definition at line 261 of file NeutrinoIdTool.h.

◆ m_trainingOutputFile

template<typename T >

std::string lar_content::NeutrinoIdTool< T >::m_trainingOutputFile

private

Output file name for training examples.

Definition at line 260 of file NeutrinoIdTool.h.

◆ m_type

std::string pandora::Process::m_type

protectedinherited

The process type.

Definition at line 88 of file Process.h.

◆ m_useTrainingMode

template<typename T >

bool lar_content::NeutrinoIdTool< T >::m_useTrainingMode

private

Should use training mode. If true, training examples will be written to the output file.

Definition at line 259 of file NeutrinoIdTool.h.

The documentation for this class was generated from the following files:

LArContent/larpandoracontent/LArControlFlow/NeutrinoIdTool.h
LArContent/larpandoracontent/LArControlFlow/NeutrinoIdTool.cc

Classes

Public Member Functions

Protected Member Functions

Protected Attributes

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ SliceFeaturesVector

◆ UintFloatPair

Constructor & Destructor Documentation

◆ NeutrinoIdTool()

Member Function Documentation

◆ Collect2DHits()

◆ CountNeutrinoInducedHits()

◆ GetBestMCSliceIndex()

◆ GetInstanceName()

◆ GetNuanceCode()

◆ GetPandora()

◆ GetSliceFeatures()

◆ GetType()

◆ Initialize()

◆ PassesQualityCuts()

◆ ReadSettings()

◆ RegisterDetails()

◆ Reset()

◆ SelectAllPfos()

◆ SelectOutputPfos()

◆ SelectPfos()

◆ SelectPfosByProbability()

Member Data Documentation

◆ m_defaultProbability

◆ m_filePathEnvironmentVariable

◆ m_instanceName

◆ m_maxNeutrinos

◆ m_minCompleteness

◆ m_minProbability

◆ m_minPurity

◆ m_mva

◆ m_nuance

◆ m_persistFeatures

◆ m_pPandora

◆ m_selectNuanceCode

◆ m_trainingOutputFile

◆ m_type

◆ m_useTrainingMode
