CosmicRayBaseMatchingAlgorithm class. More...

#include "CosmicRayBaseMatchingAlgorithm.h"

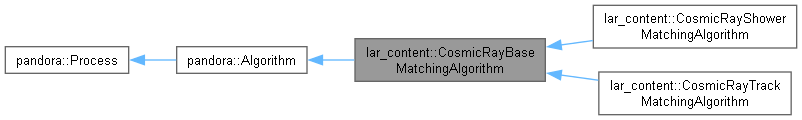

Inheritance diagram for lar_content::CosmicRayBaseMatchingAlgorithm:

[legend]

Collaboration diagram for lar_content::CosmicRayBaseMatchingAlgorithm:

[legend]

Classes
class	Particle
	Particle class. More...

Public Member Functions
const std::string &	GetType () const
	Get the type.

const std::string &	GetInstanceName () const
	Get the instance name.

const Pandora &	GetPandora () const
	Get the associated pandora instance.

Protected Types
typedef std::vector< Particle >	ParticleList

typedef std::unordered_map< const pandora::Cluster *, pandora::ClusterList >	ClusterAssociationMap

typedef std::set< unsigned int >	UIntSet

Protected Member Functions
pandora::StatusCode	Run ()
	Run the algorithm.

pandora::StatusCode	ReadSettings (const pandora::TiXmlHandle xmlHandle)
	Read the algorithm settings.

virtual void	SelectCleanClusters (const pandora::ClusterVector &inputVector, pandora::ClusterVector &outputVector) const =0
	Select a set of clusters judged to be clean.

virtual bool	MatchClusters (const pandora::Cluster const pCluster1, const pandora::Cluster const pCluster2) const =0
	Match a pair of clusters from two views.

virtual bool	CheckMatchedClusters3D (const pandora::Cluster const pCluster1, const pandora::Cluster const pCluster2, const pandora::Cluster *const pCluster3) const =0
	Check that three clusters have a consistent 3D position.

virtual void	SetPfoParameters (const CosmicRayBaseMatchingAlgorithm::Particle &protoParticle, PandoraContentApi::ParticleFlowObject::Parameters &pfoParameters) const =0
	Calculate Pfo properties from proto particle.

virtual StatusCode	Initialize ()
	Perform any operations that must occur after reading settings, but before running the process.

virtual StatusCode	Reset ()
	Perform any operations when pandora is reset, typically at the end of each event.

StatusCode	RegisterDetails (const Pandora *const pPandora, const std::string &type, const std::string &instanceName)
	Register i) the pandora instance that will run the process and ii) the process type.

Protected Attributes
const Pandora *	m_pPandora
	The pandora object that will run the process.

std::string	m_type
	The process type.

std::string	m_instanceName
	The process instance name.

Private Member Functions
pandora::StatusCode	GetAvailableClusters (const std::string inputClusterListName, pandora::ClusterVector &clusterVector) const
	Get a vector of available clusters.

void	MatchClusters (const pandora::ClusterVector &clusterVector1, const pandora::ClusterVector &clusterVector2, CosmicRayBaseMatchingAlgorithm::ClusterAssociationMap &matchedClusters12) const
	Match sets of clusters from two views.

void	MatchThreeViews (const CosmicRayBaseMatchingAlgorithm::ClusterAssociationMap &matchedClusters12, const CosmicRayBaseMatchingAlgorithm::ClusterAssociationMap &matchedClusters23, const CosmicRayBaseMatchingAlgorithm::ClusterAssociationMap &matchedClusters31, ParticleList &particleList) const
	Match clusters from three views and form into particles.

void	MatchTwoViews (const CosmicRayBaseMatchingAlgorithm::ClusterAssociationMap &matchedClusters12, const CosmicRayBaseMatchingAlgorithm::ClusterAssociationMap &matchedClusters23, const CosmicRayBaseMatchingAlgorithm::ClusterAssociationMap &matchedClusters31, ParticleList &particleList) const
	Match clusters from two views and form into particles.

void	MatchTwoViews (const CosmicRayBaseMatchingAlgorithm::ClusterAssociationMap &matchedClusters12, ParticleList &particleList) const
	Match clusters from two views and form into particles.

void	ResolveAmbiguities (const ParticleList &inputList, ParticleList &outputList) const
	Remove ambiguities between candidate particles.

void	BuildParticles (const ParticleList &particleList)
	Build PFO objects from candidate particles.

Private Attributes
std::string	m_inputClusterListNameU
	The name of the view U cluster list.

std::string	m_inputClusterListNameV
	The name of the view V cluster list.

std::string	m_inputClusterListNameW
	The name of the view W cluster list.

std::string	m_outputPfoListName
	The name of the output PFO list.

Detailed Description

CosmicRayBaseMatchingAlgorithm class.

Definition at line 22 of file CosmicRayBaseMatchingAlgorithm.h.

Member Typedef Documentation

◆ ClusterAssociationMap

typedef std::unordered_map<const pandora::Cluster *, pandora::ClusterList> lar_content::CosmicRayBaseMatchingAlgorithm::ClusterAssociationMap

protected

Definition at line 49 of file CosmicRayBaseMatchingAlgorithm.h.

◆ ParticleList

typedef std::vector<Particle> lar_content::CosmicRayBaseMatchingAlgorithm::ParticleList

protected

Definition at line 48 of file CosmicRayBaseMatchingAlgorithm.h.

◆ UIntSet

typedef std::set<unsigned int> lar_content::CosmicRayBaseMatchingAlgorithm::UIntSet

protected

Definition at line 50 of file CosmicRayBaseMatchingAlgorithm.h.

Member Function Documentation

◆ BuildParticles()

void lar_content::CosmicRayBaseMatchingAlgorithm::BuildParticles ( const ParticleList & particleList )

private

Build PFO objects from candidate particles.

Parameters

particleList the input list of particles

Definition at line 248 of file CosmicRayBaseMatchingAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CheckMatchedClusters3D()

virtual bool lar_content::CosmicRayBaseMatchingAlgorithm::CheckMatchedClusters3D	(	const pandora::Cluster *const	pCluster1,
		const pandora::Cluster *const	pCluster2,
		const pandora::Cluster *const	pCluster3
	)		const

protectedpure virtual

Check that three clusters have a consistent 3D position.

Parameters

pCluster1	the cluster from the first view
pCluster2	the cluster from the second view
pCluster3	the cluster from the third view

Returns: boolean

Implemented in lar_content::CosmicRayShowerMatchingAlgorithm, and lar_content::CosmicRayTrackMatchingAlgorithm.

Here is the caller graph for this function:

◆ GetAvailableClusters()

StatusCode lar_content::CosmicRayBaseMatchingAlgorithm::GetAvailableClusters	(	const std::string	inputClusterListName,
		pandora::ClusterVector &	clusterVector
	)		const

private

Get a vector of available clusters.

Parameters

inputClusterListName	the input name of the cluster list
clusterVector	the output vector of available clusters

Definition at line 52 of file CosmicRayBaseMatchingAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetInstanceName()

const std::string & pandora::Process::GetInstanceName ( ) const

inlineinherited

Get the instance name.

Returns: The instance name

Definition at line 109 of file Process.h.

◆ GetPandora()

const Pandora & pandora::Process::GetPandora ( ) const

inlineinherited

Get the associated pandora instance.

Returns: the associated pandora instance

Definition at line 116 of file Process.h.

◆ GetType()

const std::string & pandora::Process::GetType ( ) const

inlineinherited

Get the type.

Returns: The type

Definition at line 102 of file Process.h.

◆ Initialize()

StatusCode pandora::Process::Initialize ( )

inlineprotectedvirtualinherited

Perform any operations that must occur after reading settings, but before running the process.

Reimplemented in lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, EventReadingAlgorithm, and EventWritingAlgorithm.

Definition at line 126 of file Process.h.

Here is the caller graph for this function:

◆ MatchClusters() [1/2]

virtual bool lar_content::CosmicRayBaseMatchingAlgorithm::MatchClusters	(	const pandora::Cluster *const	pCluster1,
		const pandora::Cluster *const	pCluster2
	)		const

protectedpure virtual

Match a pair of clusters from two views.

Parameters

pCluster1	the first cluster
pCluster2	the second cluster

Returns: boolean

Implemented in lar_content::CosmicRayShowerMatchingAlgorithm, and lar_content::CosmicRayTrackMatchingAlgorithm.

Here is the caller graph for this function:

◆ MatchClusters() [2/2]

void lar_content::CosmicRayBaseMatchingAlgorithm::MatchClusters	(	const pandora::ClusterVector &	clusterVector1,
		const pandora::ClusterVector &	clusterVector2,
		CosmicRayBaseMatchingAlgorithm::ClusterAssociationMap &	matchedClusters12
	)		const

private

Match sets of clusters from two views.

Parameters

clusterVector1	the vector of clusters from the first view
clusterVector2	the vector of clusters from the second view
matchedClusters12	the map of cluster matches

Definition at line 81 of file CosmicRayBaseMatchingAlgorithm.cc.

Here is the call graph for this function:

◆ MatchThreeViews()

void lar_content::CosmicRayBaseMatchingAlgorithm::MatchThreeViews	(	const CosmicRayBaseMatchingAlgorithm::ClusterAssociationMap &	matchedClusters12,
		const CosmicRayBaseMatchingAlgorithm::ClusterAssociationMap &	matchedClusters23,
		const CosmicRayBaseMatchingAlgorithm::ClusterAssociationMap &	matchedClusters31,
		ParticleList &	particleList
	)		const

private

Match clusters from three views and form into particles.

Parameters

matchedClusters12	the map of matches between the view 1 and view 2
matchedClusters23	the map of matches between the view 2 and view 3
matchedClusters31	the map of matches between the view 3 and view 1
particleList	the output list of particles

Definition at line 112 of file CosmicRayBaseMatchingAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MatchTwoViews() [1/2]

void lar_content::CosmicRayBaseMatchingAlgorithm::MatchTwoViews	(	const CosmicRayBaseMatchingAlgorithm::ClusterAssociationMap &	matchedClusters12,
		const CosmicRayBaseMatchingAlgorithm::ClusterAssociationMap &	matchedClusters23,
		const CosmicRayBaseMatchingAlgorithm::ClusterAssociationMap &	matchedClusters31,
		ParticleList &	particleList
	)		const

private

Match clusters from two views and form into particles.

Parameters

matchedClusters12	the map of matches between the view 1 and view 2
matchedClusters23	the map of matches between the view 2 and view 3
matchedClusters31	the map of matches between the view 3 and view 1
particleList	the output list of particles

Definition at line 172 of file CosmicRayBaseMatchingAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MatchTwoViews() [2/2]

void lar_content::CosmicRayBaseMatchingAlgorithm::MatchTwoViews	(	const CosmicRayBaseMatchingAlgorithm::ClusterAssociationMap &	matchedClusters12,
		ParticleList &	particleList
	)		const

private

Match clusters from two views and form into particles.

Parameters

matchedClusters12	the map of matches between the first and second views
particleList	the output list of particles

Definition at line 185 of file CosmicRayBaseMatchingAlgorithm.cc.

Here is the call graph for this function:

◆ ReadSettings()

StatusCode lar_content::CosmicRayBaseMatchingAlgorithm::ReadSettings ( const pandora::TiXmlHandle xmlHandle )

protectedvirtual

Read the algorithm settings.

Parameters

xmlHandle the relevant xml handle

Implements pandora::Process.

Reimplemented in lar_content::CosmicRayShowerMatchingAlgorithm, and lar_content::CosmicRayTrackMatchingAlgorithm.

Definition at line 304 of file CosmicRayBaseMatchingAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RegisterDetails()

StatusCode pandora::Process::RegisterDetails	(	const Pandora *const	pPandora,
		const std::string &	type,
		const std::string &	instanceName
	)

inlineprotectedinherited

Register i) the pandora instance that will run the process and ii) the process type.

Parameters

pPandora	address of the pandora object that will run the process
type	the process type
instanceName	the process instance name

Definition at line 146 of file Process.h.

Here is the caller graph for this function:

◆ Reset()

StatusCode pandora::Process::Reset ( )

inlineprotectedvirtualinherited

Perform any operations when pandora is reset, typically at the end of each event.

Reimplemented in lar_content::MasterAlgorithm, lar_content::PostProcessingAlgorithm, and lar_content::PreProcessingAlgorithm.

Definition at line 133 of file Process.h.

Here is the caller graph for this function:

◆ ResolveAmbiguities()

void lar_content::CosmicRayBaseMatchingAlgorithm::ResolveAmbiguities	(	const ParticleList &	inputList,
		ParticleList &	outputList
	)		const

private

Remove ambiguities between candidate particles.

Parameters

inputList	the input list of particles
outputList	the output list of particles

Definition at line 215 of file CosmicRayBaseMatchingAlgorithm.cc.

Here is the caller graph for this function:

◆ Run()

StatusCode lar_content::CosmicRayBaseMatchingAlgorithm::Run ( )

protectedvirtual

Run the algorithm.

Implements pandora::Algorithm.

Definition at line 21 of file CosmicRayBaseMatchingAlgorithm.cc.

Here is the call graph for this function:

◆ SelectCleanClusters()

virtual void lar_content::CosmicRayBaseMatchingAlgorithm::SelectCleanClusters	(	const pandora::ClusterVector &	inputVector,
		pandora::ClusterVector &	outputVector
	)		const

protectedpure virtual

Select a set of clusters judged to be clean.

Parameters

inputVector	the input vector of all available clusters
outputVector	the output vector of clean clusters

Implemented in lar_content::CosmicRayShowerMatchingAlgorithm, and lar_content::CosmicRayTrackMatchingAlgorithm.

Here is the caller graph for this function:

◆ SetPfoParameters()

virtual void lar_content::CosmicRayBaseMatchingAlgorithm::SetPfoParameters	(	const CosmicRayBaseMatchingAlgorithm::Particle &	protoParticle,
		PandoraContentApi::ParticleFlowObject::Parameters &	pfoParameters
	)		const

protectedpure virtual

Calculate Pfo properties from proto particle.

Parameters

protoParticle	the input proto particle
pfoParameters	the output pfo parameters

Implemented in lar_content::CosmicRayShowerMatchingAlgorithm, and lar_content::CosmicRayTrackMatchingAlgorithm.

Here is the caller graph for this function:

Member Data Documentation

◆ m_inputClusterListNameU

std::string lar_content::CosmicRayBaseMatchingAlgorithm::m_inputClusterListNameU

private

The name of the view U cluster list.

Definition at line 156 of file CosmicRayBaseMatchingAlgorithm.h.

◆ m_inputClusterListNameV

std::string lar_content::CosmicRayBaseMatchingAlgorithm::m_inputClusterListNameV

private

The name of the view V cluster list.

Definition at line 157 of file CosmicRayBaseMatchingAlgorithm.h.

◆ m_inputClusterListNameW

std::string lar_content::CosmicRayBaseMatchingAlgorithm::m_inputClusterListNameW

private

The name of the view W cluster list.

Definition at line 158 of file CosmicRayBaseMatchingAlgorithm.h.

◆ m_instanceName

std::string pandora::Process::m_instanceName

protectedinherited

The process instance name.

Definition at line 89 of file Process.h.

◆ m_outputPfoListName

std::string lar_content::CosmicRayBaseMatchingAlgorithm::m_outputPfoListName

private

The name of the output PFO list.

Definition at line 159 of file CosmicRayBaseMatchingAlgorithm.h.

◆ m_pPandora

const Pandora* pandora::Process::m_pPandora

protectedinherited

The pandora object that will run the process.

Definition at line 87 of file Process.h.

◆ m_type

std::string pandora::Process::m_type

protectedinherited

The process type.

Definition at line 88 of file Process.h.

The documentation for this class was generated from the following files:

LArContent/larpandoracontent/LArThreeDReco/LArCosmicRay/CosmicRayBaseMatchingAlgorithm.h
LArContent/larpandoracontent/LArThreeDReco/LArCosmicRay/CosmicRayBaseMatchingAlgorithm.cc

Classes

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ ClusterAssociationMap

◆ ParticleList

◆ UIntSet

Member Function Documentation

◆ BuildParticles()

◆ CheckMatchedClusters3D()

◆ GetAvailableClusters()

◆ GetInstanceName()

◆ GetPandora()

◆ GetType()

◆ Initialize()

◆ MatchClusters() [1/2]

◆ MatchClusters() [2/2]

◆ MatchThreeViews()

◆ MatchTwoViews() [1/2]

◆ MatchTwoViews() [2/2]

◆ ReadSettings()

◆ RegisterDetails()

◆ Reset()

◆ ResolveAmbiguities()

◆ Run()

◆ SelectCleanClusters()

◆ SetPfoParameters()

Member Data Documentation

◆ m_inputClusterListNameU

◆ m_inputClusterListNameV

◆ m_inputClusterListNameW

◆ m_instanceName

◆ m_outputPfoListName

◆ m_pPandora

◆ m_type
