CheatingNeutrinoDaughterVerticesAlgorithm::Algorithm class. More...

#include "CheatingNeutrinoDaughterVerticesAlgorithm.h"

Inheritance diagram for lar_content::CheatingNeutrinoDaughterVerticesAlgorithm:

[legend]

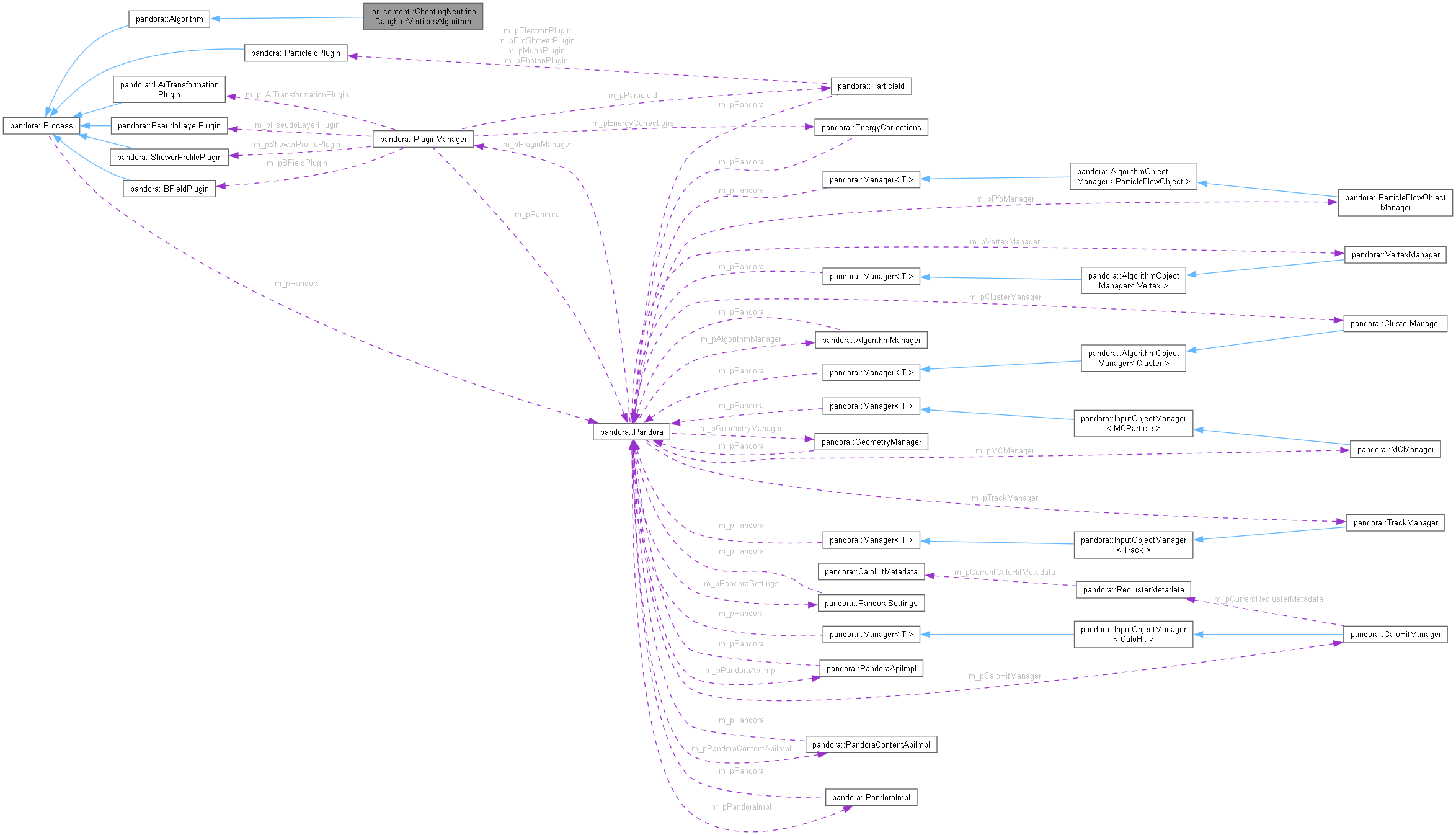

Collaboration diagram for lar_content::CheatingNeutrinoDaughterVerticesAlgorithm:

[legend]

Public Member Functions
	CheatingNeutrinoDaughterVerticesAlgorithm ()
	Default constructor.

const std::string &	GetType () const
	Get the type.

const std::string &	GetInstanceName () const
	Get the instance name.

const Pandora &	GetPandora () const
	Get the associated pandora instance.

Protected Member Functions
virtual StatusCode	Initialize ()
	Perform any operations that must occur after reading settings, but before running the process.

virtual StatusCode	Reset ()
	Perform any operations when pandora is reset, typically at the end of each event.

StatusCode	RegisterDetails (const Pandora *const pPandora, const std::string &type, const std::string &instanceName)
	Register i) the pandora instance that will run the process and ii) the process type.

Protected Attributes
const Pandora *	m_pPandora
	The pandora object that will run the process.

std::string	m_type
	The process type.

std::string	m_instanceName
	The process instance name.

Private Member Functions
pandora::StatusCode	Run ()
	Run the algorithm.

void	GetMCPrimaryMap (LArMCParticleHelper::MCRelationMap &mcPrimaryMap) const
	Get the mapping from mc particle to primary, only required if collapsed mc particle hierarchy specified.

void	ProcessRecoNeutrinos (const pandora::PfoList &neutrinoPfos, const LArMCParticleHelper::MCRelationMap &mcPrimaryMap) const
	Process the list of reconstructed neutrinos.

void	ProcessDaughterPfo (const pandora::ParticleFlowObject *const pDaughterPfo, const LArMCParticleHelper::MCRelationMap &mcPrimaryMap) const
	Process a daughter pfo.

pandora::StatusCode	ReadSettings (const pandora::TiXmlHandle xmlHandle)
	Read the algorithm settings.

Private Attributes
bool	m_collapseToPrimaryMCParticles
	Whether to collapse mc particle hierarchies to primary particles.

std::string	m_mcParticleListName
	The mc particle list name, required if want to collapse mc particle hierarchy.

std::string	m_neutrinoListName
	The input list of pfo list names.

std::string	m_vertexListName
	The name of the output cosmic-ray vertex list.

Detailed Description

CheatingNeutrinoDaughterVerticesAlgorithm::Algorithm class.

Definition at line 21 of file CheatingNeutrinoDaughterVerticesAlgorithm.h.

Constructor & Destructor Documentation

◆ CheatingNeutrinoDaughterVerticesAlgorithm()

lar_content::CheatingNeutrinoDaughterVerticesAlgorithm::CheatingNeutrinoDaughterVerticesAlgorithm ( )

Default constructor.

Definition at line 20 of file CheatingNeutrinoDaughterVerticesAlgorithm.cc.

Member Function Documentation

◆ GetInstanceName()

const std::string & pandora::Process::GetInstanceName ( ) const

inlineinherited

Get the instance name.

Returns: The instance name

Definition at line 109 of file Process.h.

◆ GetMCPrimaryMap()

void lar_content::CheatingNeutrinoDaughterVerticesAlgorithm::GetMCPrimaryMap ( LArMCParticleHelper::MCRelationMap & mcPrimaryMap ) const

private

Get the mapping from mc particle to primary, only required if collapsed mc particle hierarchy specified.

Parameters

mcPrimaryMap to receive the mapping from mc particle to primary

Definition at line 52 of file CheatingNeutrinoDaughterVerticesAlgorithm.cc.

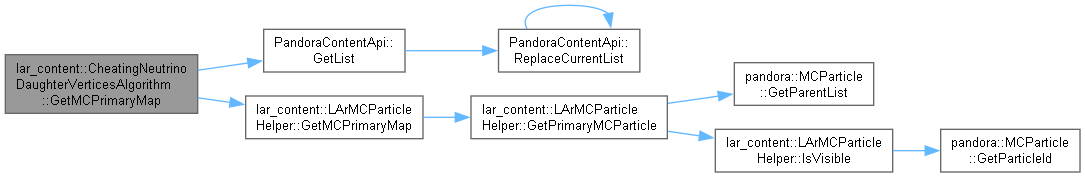

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPandora()

const Pandora & pandora::Process::GetPandora ( ) const

inlineinherited

Get the associated pandora instance.

Returns: the associated pandora instance

Definition at line 116 of file Process.h.

◆ GetType()

const std::string & pandora::Process::GetType ( ) const

inlineinherited

Get the type.

Returns: The type

Definition at line 102 of file Process.h.

◆ Initialize()

StatusCode pandora::Process::Initialize ( )

inlineprotectedvirtualinherited

Perform any operations that must occur after reading settings, but before running the process.

Reimplemented in lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, EventReadingAlgorithm, and EventWritingAlgorithm.

Definition at line 126 of file Process.h.

Here is the caller graph for this function:

◆ ProcessDaughterPfo()

void lar_content::CheatingNeutrinoDaughterVerticesAlgorithm::ProcessDaughterPfo	(	const pandora::ParticleFlowObject *const	pDaughterPfo,
		const LArMCParticleHelper::MCRelationMap &	mcPrimaryMap
	)		const

private

Process a daughter pfo.

Parameters

pDaughterPfo	the address of a daughter pfo
mcPrimaryMap	the mapping from mc particle to primary, only required if collapsed mc particle hierarchy specified

Definition at line 92 of file CheatingNeutrinoDaughterVerticesAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

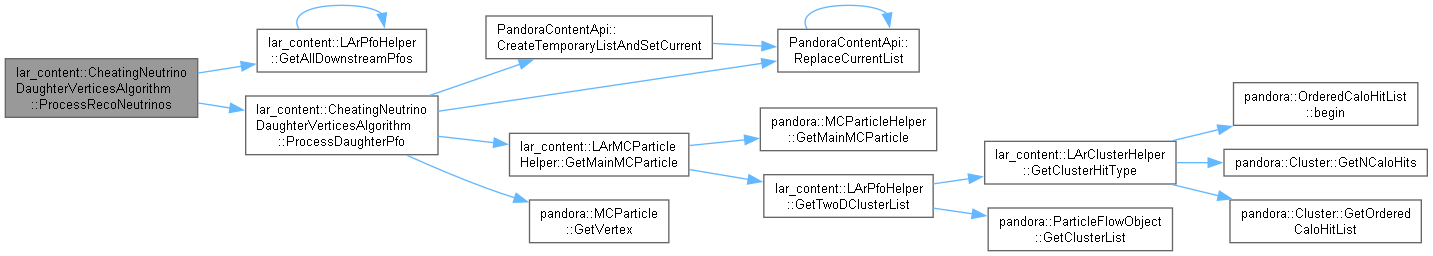

◆ ProcessRecoNeutrinos()

void lar_content::CheatingNeutrinoDaughterVerticesAlgorithm::ProcessRecoNeutrinos	(	const pandora::PfoList &	neutrinoPfos,
		const LArMCParticleHelper::MCRelationMap &	mcPrimaryMap
	)		const
