#include "CheatingEventSlicingTool.h"

Inheritance diagram for lar_content::CheatingEventSlicingTool:

[legend]

Collaboration diagram for lar_content::CheatingEventSlicingTool:

[legend]

Public Member Functions
void	RunSlicing (const pandora::Algorithm *const pAlgorithm, const SlicingAlgorithm::HitTypeToNameMap &caloHitListNames, const SlicingAlgorithm::HitTypeToNameMap &clusterListNames, SlicingAlgorithm::SliceList &sliceList)
	Run the slicing tool.

const std::string &	GetType () const
	Get the type.

const std::string &	GetInstanceName () const
	Get the instance name.

const Pandora &	GetPandora () const
	Get the associated pandora instance.

Protected Member Functions
virtual StatusCode	Initialize ()
	Perform any operations that must occur after reading settings, but before running the process.

virtual StatusCode	Reset ()
	Perform any operations when pandora is reset, typically at the end of each event.

StatusCode	RegisterDetails (const Pandora *const pPandora, const std::string &type, const std::string &instanceName)
	Register i) the pandora instance that will run the process and ii) the process type.

Protected Attributes
const Pandora *	m_pPandora
	The pandora object that will run the process.

std::string	m_type
	The process type.

std::string	m_instanceName
	The process instance name.

Private Types
typedef std::unordered_map< const pandora::MCParticle *, SlicingAlgorithm::Slice >	MCParticleToSliceMap

Private Member Functions
pandora::StatusCode	ReadSettings (const pandora::TiXmlHandle xmlHandle)
	Read the algorithm settings.

void	InitializeMCParticleToSliceMap (const pandora::Algorithm *const pAlgorithm, const SlicingAlgorithm::HitTypeToNameMap &caloHitListNames, MCParticleToSliceMap &mcParticleToSliceMap) const
	Initialize the map from parent mc particles to slice objects.

void	FillSlices (const pandora::Algorithm *const pAlgorithm, const pandora::HitType hitType, const SlicingAlgorithm::HitTypeToNameMap &caloHitListNames, MCParticleToSliceMap &mcParticleToSliceMap) const
	Fill slices using hits from a specified view.

Detailed Description

CheatingEventSlicingTool class.

Definition at line 21 of file CheatingEventSlicingTool.h.

Member Typedef Documentation

◆ MCParticleToSliceMap

typedef std::unordered_map<const pandora::MCParticle *, SlicingAlgorithm::Slice> lar_content::CheatingEventSlicingTool::MCParticleToSliceMap

private

Definition at line 30 of file CheatingEventSlicingTool.h.

Member Function Documentation

◆ FillSlices()

void lar_content::CheatingEventSlicingTool::FillSlices	(	const pandora::Algorithm *const	pAlgorithm,
		const pandora::HitType	hitType,
		const SlicingAlgorithm::HitTypeToNameMap &	caloHitListNames,
		MCParticleToSliceMap &	mcParticleToSliceMap
	)		const

private

Fill slices using hits from a specified view.

Parameters

pAlgorithm	address of the calling algorithm
hitType	the hit type (i.e. view)
caloHitListNames	the hit type to calo hit list name map
mcParticleToSliceMap	to receive the parent mc particle to slice map

Definition at line 86 of file CheatingEventSlicingTool.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetInstanceName()

const std::string & pandora::Process::GetInstanceName ( ) const

inlineinherited

Get the instance name.

Returns: The instance name

Definition at line 109 of file Process.h.

◆ GetPandora()

const Pandora & pandora::Process::GetPandora ( ) const

inlineinherited

Get the associated pandora instance.

Returns: the associated pandora instance

Definition at line 116 of file Process.h.

◆ GetType()

const std::string & pandora::Process::GetType ( ) const

inlineinherited

Get the type.

Returns: The type

Definition at line 102 of file Process.h.

◆ Initialize()

StatusCode pandora::Process::Initialize ( )

inlineprotectedvirtualinherited

Perform any operations that must occur after reading settings, but before running the process.

Reimplemented in lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, EventReadingAlgorithm, and EventWritingAlgorithm.

Definition at line 126 of file Process.h.

Here is the caller graph for this function:

◆ InitializeMCParticleToSliceMap()

void lar_content::CheatingEventSlicingTool::InitializeMCParticleToSliceMap	(	const pandora::Algorithm *const	pAlgorithm,
		const SlicingAlgorithm::HitTypeToNameMap &	caloHitListNames,
		MCParticleToSliceMap &	mcParticleToSliceMap
	)		const

private

Initialize the map from parent mc particles to slice objects.

Parameters

pAlgorithm	address of the calling algorithm
caloHitListNames	the hit type to calo hit list name map
mcParticleToSliceMap	to receive the parent mc particle to slice map

Definition at line 55 of file CheatingEventSlicingTool.cc.

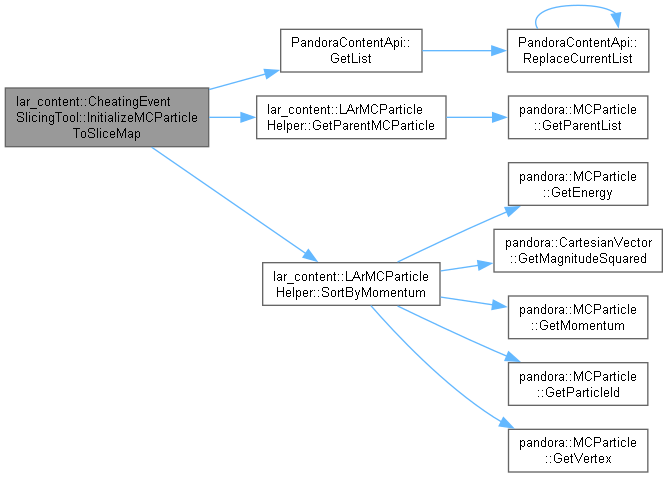

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReadSettings()

StatusCode lar_content::CheatingEventSlicingTool::ReadSettings ( const pandora::TiXmlHandle xmlHandle )

privatevirtual

Read the algorithm settings.

Parameters

xmlHandle the relevant xml handle

Implements pandora::Process.

Definition at line 121 of file CheatingEventSlicingTool.cc.

◆ RegisterDetails()

StatusCode pandora::Process::RegisterDetails	(	const Pandora *const	pPandora,
		const std::string &	type,
		const std::string &	instanceName
	)

inlineprotectedinherited

Register i) the pandora instance that will run the process and ii) the process type.

Parameters

pPandora	address of the pandora object that will run the process
type	the process type
instanceName	the process instance name

Definition at line 146 of file Process.h.

Here is the caller graph for this function:

◆ Reset()

StatusCode pandora::Process::Reset ( )

inlineprotectedvirtualinherited

Perform any operations when pandora is reset, typically at the end of each event.

Reimplemented in lar_content::MasterAlgorithm, lar_content::PostProcessingAlgorithm, and lar_content::PreProcessingAlgorithm.

Definition at line 133 of file Process.h.

Here is the caller graph for this function:

◆ RunSlicing()

void lar_content::CheatingEventSlicingTool::RunSlicing	(	const pandora::Algorithm *const	pAlgorithm,
		const SlicingAlgorithm::HitTypeToNameMap &	caloHitListNames,
		const SlicingAlgorithm::HitTypeToNameMap &	clusterListNames,
		SlicingAlgorithm::SliceList &	sliceList
	)

virtual

Run the slicing tool.

Parameters

pAlgorithm	address of the calling algorithm
caloHitListNames	the hit type to calo hit list name map
clusterListNames	the hit type to cluster list name map
sliceList	to receive the populated slice list

Implements lar_content::EventSlicingBaseTool.

Definition at line 26 of file CheatingEventSlicingTool.cc.

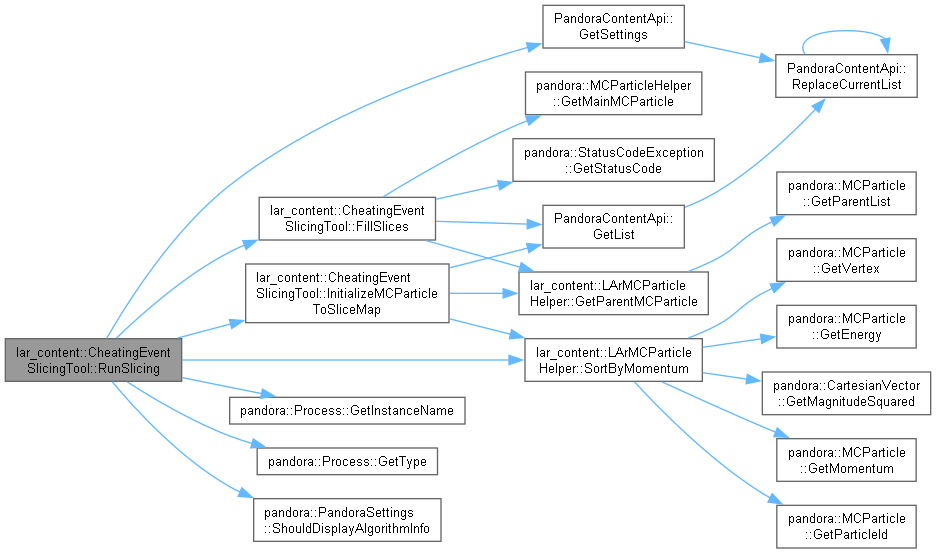

Here is the call graph for this function:

Member Data Documentation

◆ m_instanceName

std::string pandora::Process::m_instanceName

protectedinherited

The process instance name.

Definition at line 89 of file Process.h.

◆ m_pPandora

const Pandora* pandora::Process::m_pPandora

protectedinherited

The pandora object that will run the process.

Definition at line 87 of file Process.h.

◆ m_type

std::string pandora::Process::m_type

protectedinherited

The process type.

Definition at line 88 of file Process.h.

The documentation for this class was generated from the following files:

LArContent/larpandoracontent/LArCheating/CheatingEventSlicingTool.h
LArContent/larpandoracontent/LArCheating/CheatingEventSlicingTool.cc
