HitWidthClusterMergingAlgorithm class. More...

#include "HitWidthClusterMergingAlgorithm.h"

Inheritance diagram for lar_content::HitWidthClusterMergingAlgorithm:

[legend]

Collaboration diagram for lar_content::HitWidthClusterMergingAlgorithm:

[legend]

Public Member Functions
	HitWidthClusterMergingAlgorithm ()
	Default constructor.

const std::string &	GetType () const
	Get the type.

const std::string &	GetInstanceName () const
	Get the instance name.

const Pandora &	GetPandora () const
	Get the associated pandora instance.

Protected Types
typedef std::unordered_map< const pandora::Cluster *, ClusterAssociation >	ClusterAssociationMap

Protected Member Functions
virtual pandora::StatusCode	Run ()
	Run the algorithm.

virtual StatusCode	Initialize ()
	Perform any operations that must occur after reading settings, but before running the process.

virtual StatusCode	Reset ()
	Perform any operations when pandora is reset, typically at the end of each event.

StatusCode	RegisterDetails (const Pandora *const pPandora, const std::string &type, const std::string &instanceName)
	Register i) the pandora instance that will run the process and ii) the process type.

Protected Attributes
const Pandora *	m_pPandora
	The pandora object that will run the process.

std::string	m_type
	The process type.

std::string	m_instanceName
	The process instance name.

Private Member Functions
void	GetListOfCleanClusters (const pandora::ClusterList *const pClusterList, pandora::ClusterVector &clusterVector) const
	Populate cluster vector with subset of cluster list, containing clusters judged to be clean.

void	PopulateClusterAssociationMap (const pandora::ClusterVector &clusterVector, ClusterAssociationMap &clusterAssociationMap) const
	Populate the cluster association map.

bool	IsExtremalCluster (const bool isForward, const pandora::Cluster const pCurrentCluster, const pandora::Cluster const pTestCluster) const
	Determine which of two clusters is extremal.

bool	AreClustersAssociated (const LArHitWidthHelper::ClusterParameters &currentClusterParameters, const LArHitWidthHelper::ClusterParameters &testClusterParameters) const
	Determine whether two clusters are associated.

void	FindClosestPointToPosition (const pandora::CartesianVector &position, const LArHitWidthHelper::ConstituentHitVector &constituentHitVector, pandora::CartesianVector &closestPoint) const
	Determine the position of the constituent hit that lies closest to a specified position.

void	GetClusterDirection (const LArHitWidthHelper::ConstituentHitVector &constituentHitVector, pandora::CartesianVector &direction, const pandora::CartesianVector &fitReferencePoint, const float fittingWeight) const
	Determine the cluster direction at a reference point by performing a weighted least squared fit to the input consitutent hit positions The fit is performed in a rotated cartesian coordinate system defined by a fitting axis determined by eigen The function is composed of two main loops that calculate the:

void	GetConstituentHitSubsetVector (const LArHitWidthHelper::ConstituentHitVector &constituentHitVector, const pandora::CartesianVector &fitReferencePoint, const float fittingWeight, LArHitWidthHelper::ConstituentHitVector &constituentHitSubsetVector) const
	Obtain a vector of the minimum number of hits closest to a reference point that exceed a given weight.

void	GetFittingAxes (const LArHitWidthHelper::ConstituentHitVector &constituentHitSubsetVector, pandora::CartesianVector &axisDirection, pandora::CartesianVector &orthoDirection) const
	Obtain the axes of the fitting frame.

void	GetFittingCoordinates (const pandora::CartesianVector &axisDirection, const pandora::CartesianVector &constituentHitPosition, float &rL, float &rT) const
	Translate from (x, y, z) coordinates to (rL, rT) coordinates.

void	GetGlobalDirection (const pandora::CartesianVector &axisDirection, const float gradient, pandora::CartesianVector &globalDirection) const
	Translate a gradient in the fitting coordinate frame to a direction vector in the detector frame.

void	RemoveShortcutAssociations (const pandora::ClusterVector &clusterVector, ClusterAssociationMap &clusterAssociationMap) const
	Remove 'shortcut' associations from the cluster association map.

pandora::StatusCode	ReadSettings (const pandora::TiXmlHandle xmlHandle)
	Read the algorithm settings.

void	UnambiguousPropagation (const pandora::Cluster *const pCluster, const bool isForward, ClusterAssociationMap &clusterAssociationMap) const
	Unambiguous propagation.

void	AmbiguousPropagation (const pandora::Cluster *const pCluster, const bool isForward, ClusterAssociationMap &clusterAssociationMap) const
	Ambiguous propagation.

void	UpdateForUnambiguousMerge (const pandora::Cluster const pClusterToEnlarge, const pandora::Cluster const pClusterToDelete, const bool isForwardMerge, ClusterAssociationMap &clusterAssociationMap) const
	Update cluster association map to reflect an unambiguous cluster merge.

void	UpdateForAmbiguousMerge (const pandora::Cluster *const pCluster, ClusterAssociationMap &clusterAssociationMap) const
	Update cluster association map to reflect an ambiguous cluster merge.

void	NavigateAlongAssociations (const ClusterAssociationMap &clusterAssociationMap, const pandora::Cluster const pCluster, const bool isForward, const pandora::Cluster &pExtremalCluster, pandora::ClusterSet &clusterSet) const
	Navigate along cluster associations, from specified cluster, in specified direction.

Private Attributes
float	m_maxConstituentHitWidth
	The maximum hit width of a constituent hit of broken up hit, units cm.

float	m_hitWidthScalingFactor
	The scaling factor of the hit widths.

float	m_fittingWeight
	The maximum hit weight considered in the least squared fit.

float	m_minClusterWeight
	The threshold hit weight of the original, unscaled cluster to be considered in the merging process.

float	m_maxXMergeDistance
	The maximum x distance between merging points of associated clusters, units cm.

float	m_maxZMergeDistance
	The maximum z distance between merging points of associated clusters, units cm.

float	m_minMergeCosOpeningAngle
	The minimum cosine opening angle of the directions of associated clusters.

float	m_minDirectionDeviationCosAngle
	The minimum cosine opening angle of the direction of and associated cluster before and after merge.

float	m_minClusterSparseness
	The threshold sparseness of a cluster to be considered in the merging process.

LArHitWidthHelper::ClusterToParametersMap	m_clusterToParametersMap
	The map [cluster -> cluster parameters].

bool	m_mergeMade

bool	m_resolveAmbiguousAssociations
	Whether to resolve ambiguous associations.

Detailed Description

HitWidthClusterMergingAlgorithm class.

Definition at line 23 of file HitWidthClusterMergingAlgorithm.h.

Member Typedef Documentation

◆ ClusterAssociationMap

typedef std::unordered_map<const pandora::Cluster *, ClusterAssociation> lar_content::ClusterAssociationAlgorithm::ClusterAssociationMap

protectedinherited

Definition at line 43 of file ClusterAssociationAlgorithm.h.

Constructor & Destructor Documentation

◆ HitWidthClusterMergingAlgorithm()

lar_content::HitWidthClusterMergingAlgorithm::HitWidthClusterMergingAlgorithm ( )

Default constructor.

Definition at line 21 of file HitWidthClusterMergingAlgorithm.cc.

Member Function Documentation

◆ AmbiguousPropagation()

void lar_content::ClusterAssociationAlgorithm::AmbiguousPropagation	(	const pandora::Cluster *const	pCluster,
		const bool	isForward,
		ClusterAssociationMap &	clusterAssociationMap
	)		const

privateinherited

Ambiguous propagation.

Parameters

pCluster	address of the cluster to propagate
isForward	whether propagation direction is forward
clusterAssociationMap	the cluster association map

Definition at line 121 of file ClusterAssociationAlgorithm.cc.

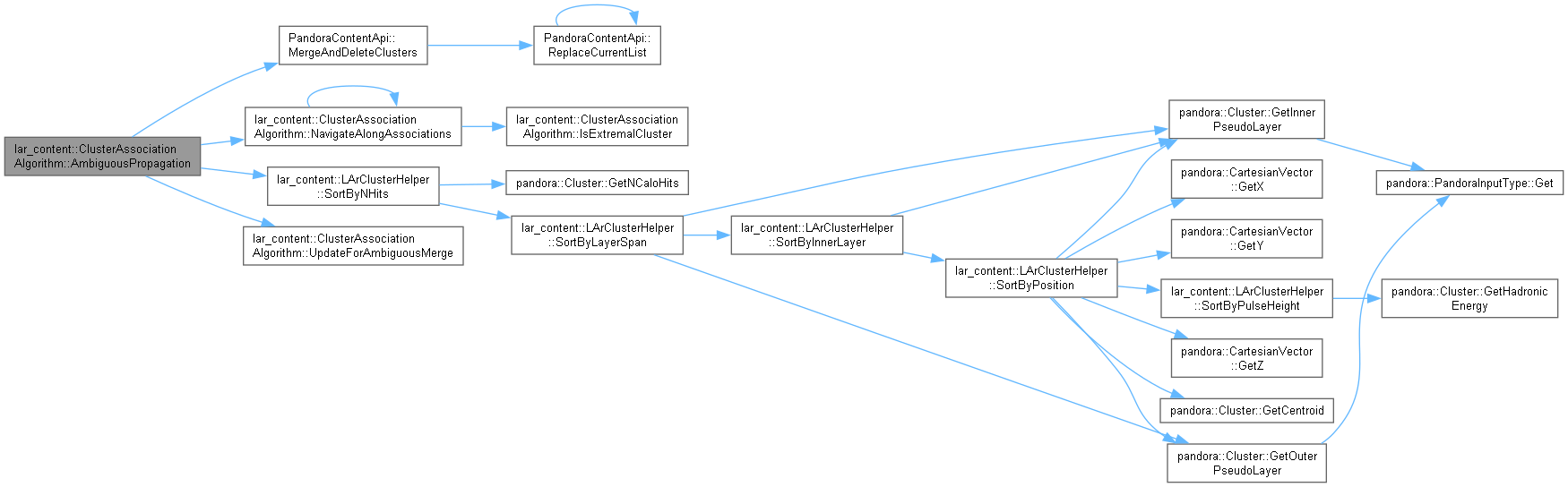

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AreClustersAssociated()

bool lar_content::HitWidthClusterMergingAlgorithm::AreClustersAssociated	(	const LArHitWidthHelper::ClusterParameters &	currentClusterParameters,
		const LArHitWidthHelper::ClusterParameters &	testClusterParameters
	)		const

private

Determine whether two clusters are associated.

Parameters

currentClusterParameters	parameters defining the current cluster
testClusterParameters	parameters defining the test cluster

Returns: boolean whether the clusters are associated

Definition at line 129 of file HitWidthClusterMergingAlgorithm.cc.

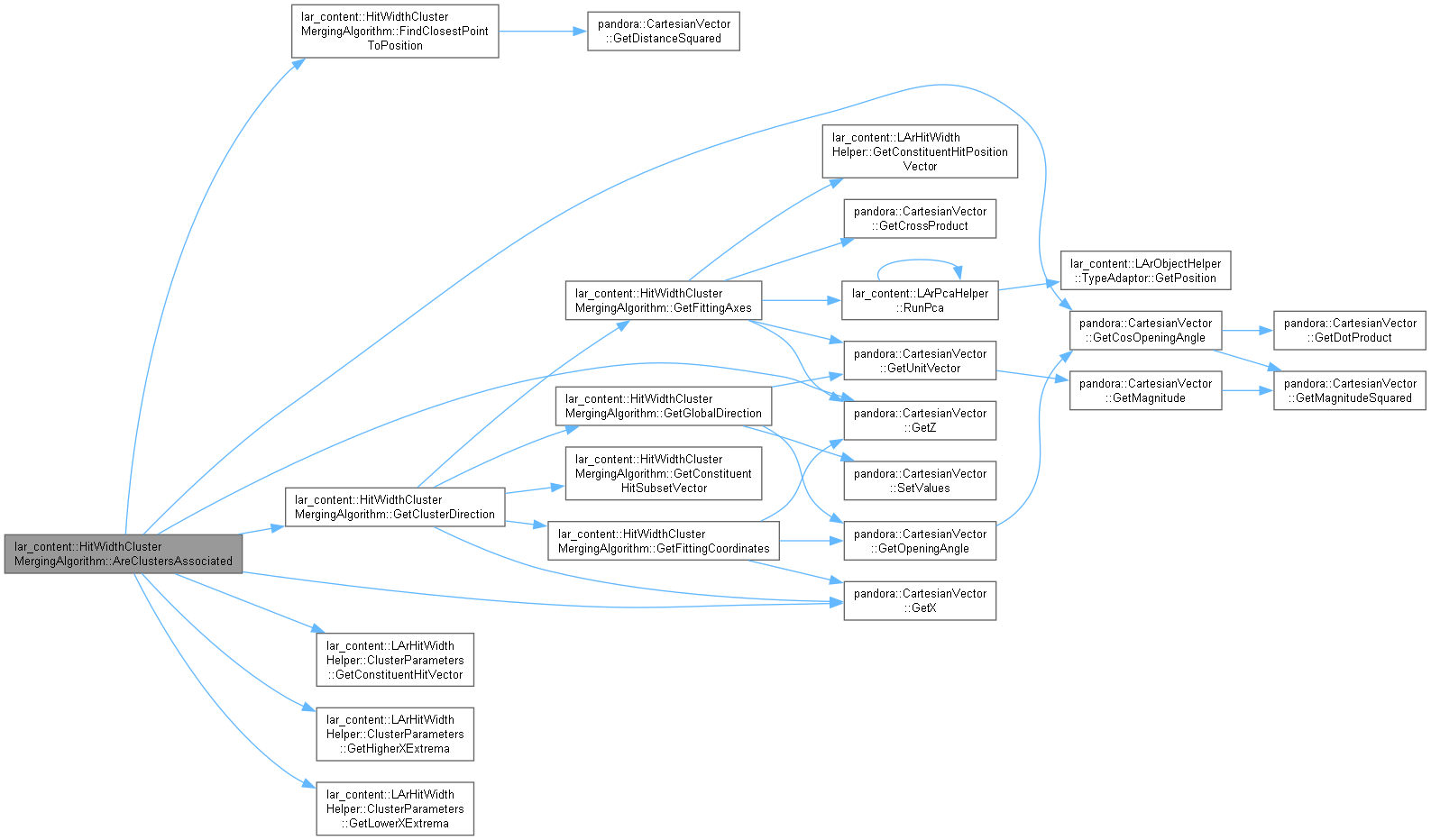

Here is the call graph for this function:

Here is the caller graph for this function:

◆ FindClosestPointToPosition()

void lar_content::HitWidthClusterMergingAlgorithm::FindClosestPointToPosition	(	const pandora::CartesianVector &	position,
		const LArHitWidthHelper::ConstituentHitVector &	constituentHitVector,
		pandora::CartesianVector &	closestPoint
	)		const

private

Determine the position of the constituent hit that lies closest to a specified position.

Parameters

position	the point to which the consituent hits will be compared
constituentHitVector	the input vector of constituent hits
closestPoint	the position of the closest constituent hit

Definition at line 206 of file HitWidthClusterMergingAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetClusterDirection()

void lar_content::HitWidthClusterMergingAlgorithm::GetClusterDirection	(	const LArHitWidthHelper::ConstituentHitVector &	constituentHitVector,
		pandora::CartesianVector &	direction,
		const pandora::CartesianVector &	fitReferencePoint,
		const float	fittingWeight
	)		const

private

Determine the cluster direction at a reference point by performing a weighted least squared fit to the input consitutent hit positions The fit is performed in a rotated cartesian coordinate system defined by a fitting axis determined by eigen The function is composed of two main loops that calculate the:

rL & rT weighted means
gradient of the fit The fit is performed using a subset of points that are closest to the fitReferencePoint

Parameters

constituentHitVector	the input vector of constituent hits
direction	the fitted cluster direction
fitReferencePoint	the hits closest to this point are included in the fit
fittingWeight	the weight that is considered in the fit

Definition at line 225 of file HitWidthClusterMergingAlgorithm.cc.

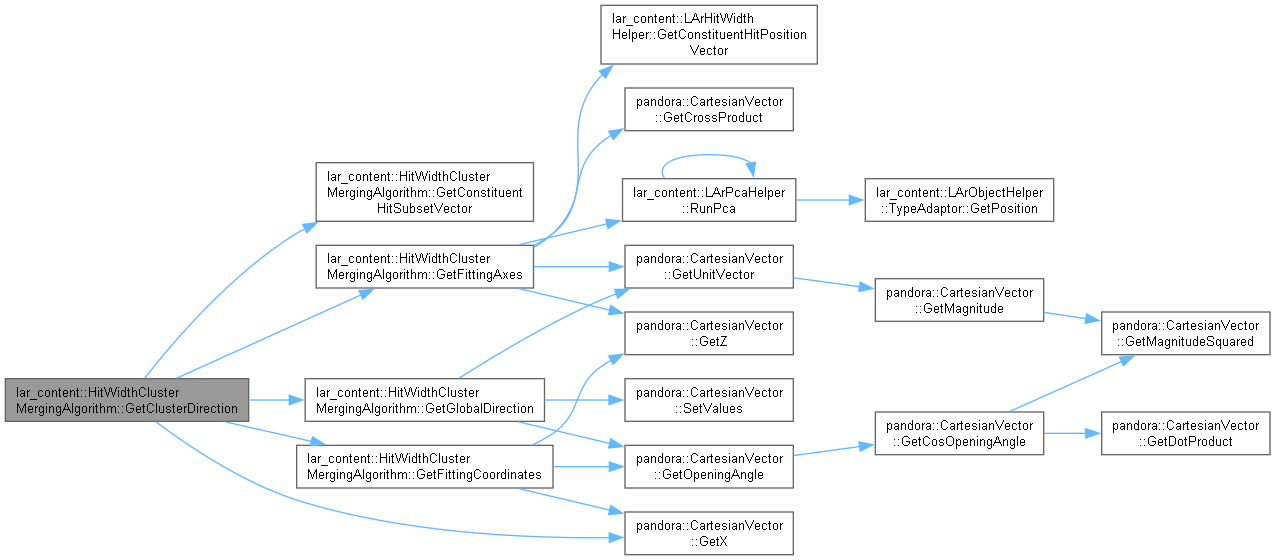

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetConstituentHitSubsetVector()

void lar_content::HitWidthClusterMergingAlgorithm::GetConstituentHitSubsetVector	(	const LArHitWidthHelper::ConstituentHitVector &	constituentHitVector,
		const pandora::CartesianVector &	fitReferencePoint,
		const float	fittingWeight,
		LArHitWidthHelper::ConstituentHitVector &	constituentHitSubsetVector
	)		const

private

Obtain a vector of the minimum number of hits closest to a reference point that exceed a given weight.

Parameters

constituentHitVector	the input vector of constituent hits
fitReferencePoint	the reference point
fittingWeight	the specified cumulative hit weight
constituentHitSubsetVector	the subset of constituent hits

Definition at line 307 of file HitWidthClusterMergingAlgorithm.cc.

Here is the caller graph for this function:

◆ GetFittingAxes()

void lar_content::HitWidthClusterMergingAlgorithm::GetFittingAxes	(	const LArHitWidthHelper::ConstituentHitVector &	constituentHitSubsetVector,
		pandora::CartesianVector &	axisDirection,
		pandora::CartesianVector &	orthoDirection
	)		const

private

Obtain the axes of the fitting frame.

Parameters

constituentHitSubsetVector	the input vector of constituent hits
axisDirection	the fitting 'x-axis'
orthoDirection	the fitting 'z-axis'

Definition at line 330 of file HitWidthClusterMergingAlgorithm.cc.

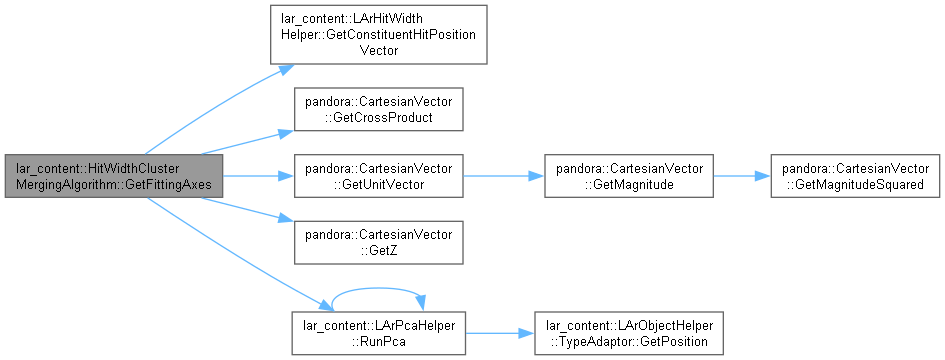

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetFittingCoordinates()

void lar_content::HitWidthClusterMergingAlgorithm::GetFittingCoordinates	(	const pandora::CartesianVector &	axisDirection,
		const pandora::CartesianVector &	constituentHitPosition,
		float &	rL,
		float &	rT
	)		const

private

Translate from (x, y, z) coordinates to (rL, rT) coordinates.

Parameters

axisDirection	the fitting 'x-axis'
constituentHitPosition	the (x, y, z) position of a constituent hit
rL	the fitting 'x' coordinate
rT	the fitting 'z' coordinate

Definition at line 356 of file HitWidthClusterMergingAlgorithm.cc.

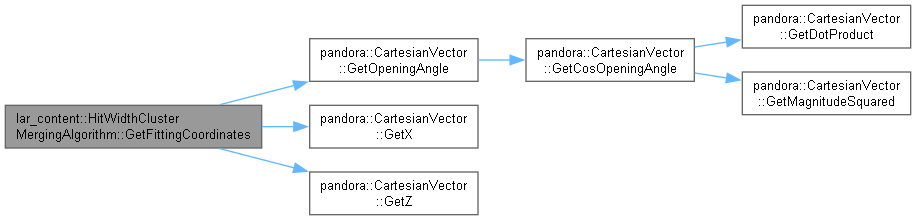

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetGlobalDirection()

void lar_content::HitWidthClusterMergingAlgorithm::GetGlobalDirection	(	const pandora::CartesianVector &	axisDirection,
		const float	gradient,
		pandora::CartesianVector &	globalDirection
	)		const

private

Translate a gradient in the fitting coordinate frame to a direction vector in the detector frame.

Parameters

axisDirection	the fitting 'x-axis'
gradient	the gradient dT/dL
globalDirection	the direction vector in the detector frame

Definition at line 369 of file HitWidthClusterMergingAlgorithm.cc.

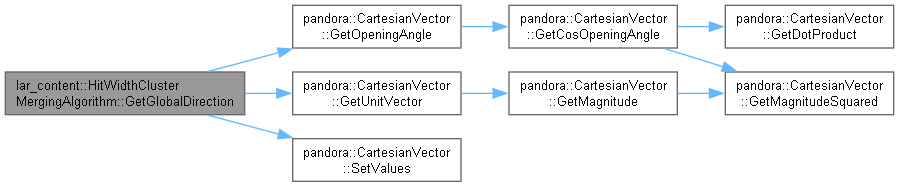

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetInstanceName()

const std::string & pandora::Process::GetInstanceName ( ) const

inlineinherited

Get the instance name.

Returns: The instance name

Definition at line 109 of file Process.h.

◆ GetListOfCleanClusters()

void lar_content::HitWidthClusterMergingAlgorithm::GetListOfCleanClusters	(	const pandora::ClusterList *const	pClusterList,
		pandora::ClusterVector &	clusterVector
	)		const

privatevirtual

Populate cluster vector with subset of cluster list, containing clusters judged to be clean.

Parameters

pClusterList	address of the cluster list
clusterVector	to receive the populated cluster vector

Implements lar_content::ClusterAssociationAlgorithm.

Definition at line 36 of file HitWidthClusterMergingAlgorithm.cc.

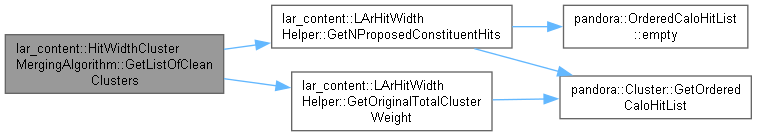

Here is the call graph for this function:

◆ GetPandora()

const Pandora & pandora::Process::GetPandora ( ) const

inlineinherited

Get the associated pandora instance.

Returns: the associated pandora instance

Definition at line 116 of file Process.h.

◆ GetType()

const std::string & pandora::Process::GetType ( ) const

inlineinherited

Get the type.

Returns: The type

Definition at line 102 of file Process.h.

◆ Initialize()

StatusCode pandora::Process::Initialize ( )

inlineprotectedvirtualinherited

Perform any operations that must occur after reading settings, but before running the process.

Reimplemented in lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, EventReadingAlgorithm, and EventWritingAlgorithm.

Definition at line 126 of file Process.h.

Here is the caller graph for this function:

◆ IsExtremalCluster()

bool lar_content::HitWidthClusterMergingAlgorithm::IsExtremalCluster	(	const bool	isForward,
		const pandora::Cluster *const	pCurrentCluster,
		const pandora::Cluster *const	pTestCluster
	)		const

privatevirtual

Determine which of two clusters is extremal.

Parameters

isForward	whether propagation direction is forward
pCurrentCluster	current extremal cluster
pTestCluster	potential extremal cluster

Returns: boolean

Implements lar_content::ClusterAssociationAlgorithm.

Definition at line 102 of file HitWidthClusterMergingAlgorithm.cc.

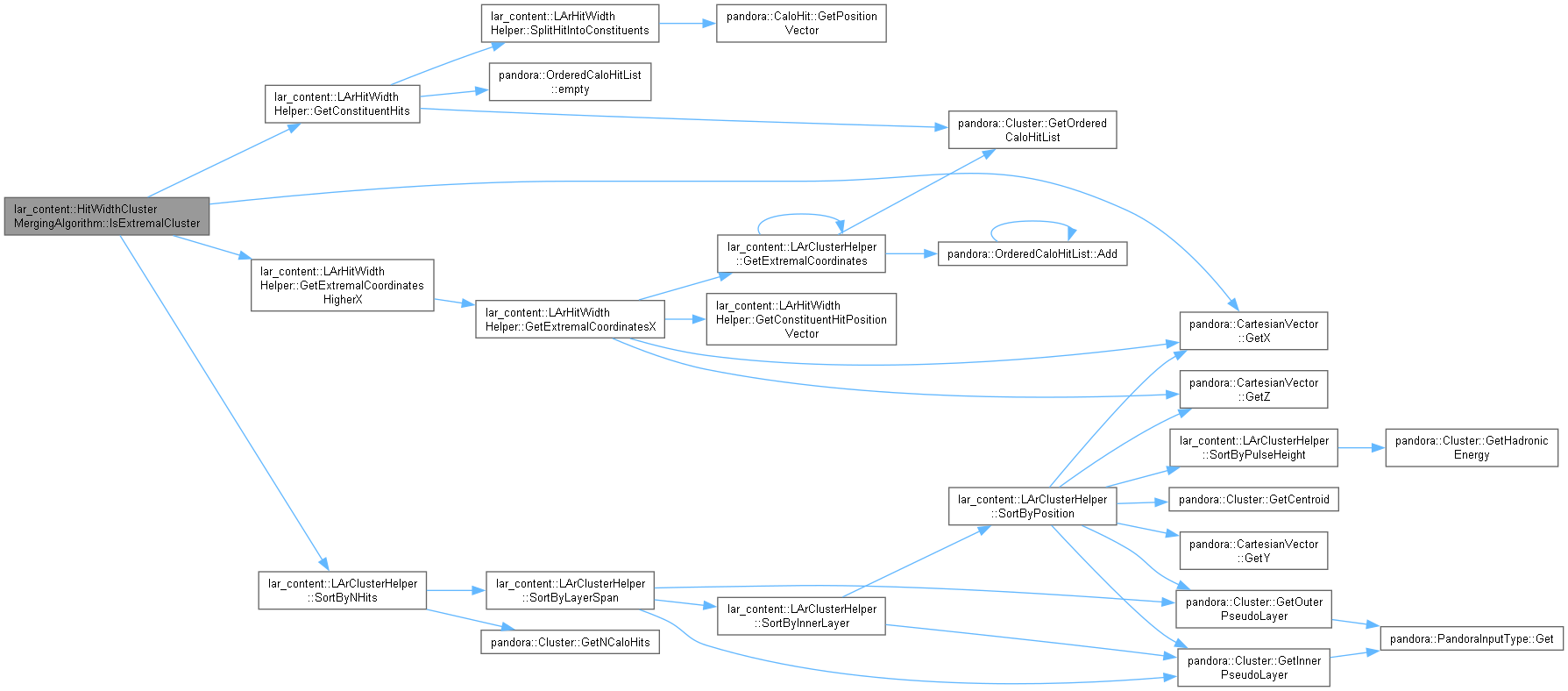

Here is the call graph for this function:

◆ NavigateAlongAssociations()

void lar_content::ClusterAssociationAlgorithm::NavigateAlongAssociations	(	const ClusterAssociationMap &	clusterAssociationMap,
		const pandora::Cluster *const	pCluster,
		const bool	isForward,
		const pandora::Cluster *&	pExtremalCluster,
		pandora::ClusterSet &	clusterSet
	)		const

privateinherited

Navigate along cluster associations, from specified cluster, in specified direction.

Parameters

clusterAssociationMap	the cluster association map
pCluster	address of cluster with which to begin search
isForward	whether propagation direction is forward
pExtremalCluster	to receive the extremal cluster
clusterSet	to receive set of clusters traversed

Definition at line 231 of file ClusterAssociationAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PopulateClusterAssociationMap()

void lar_content::HitWidthClusterMergingAlgorithm::PopulateClusterAssociationMap	(	const pandora::ClusterVector &	clusterVector,
		ClusterAssociationMap &	clusterAssociationMap
	)		const

privatevirtual

Populate the cluster association map.

Parameters

clusterVector	the cluster vector
clusterAssociationMap	to receive the populated cluster association map

Implements lar_content::ClusterAssociationAlgorithm.

Definition at line 71 of file HitWidthClusterMergingAlgorithm.cc.

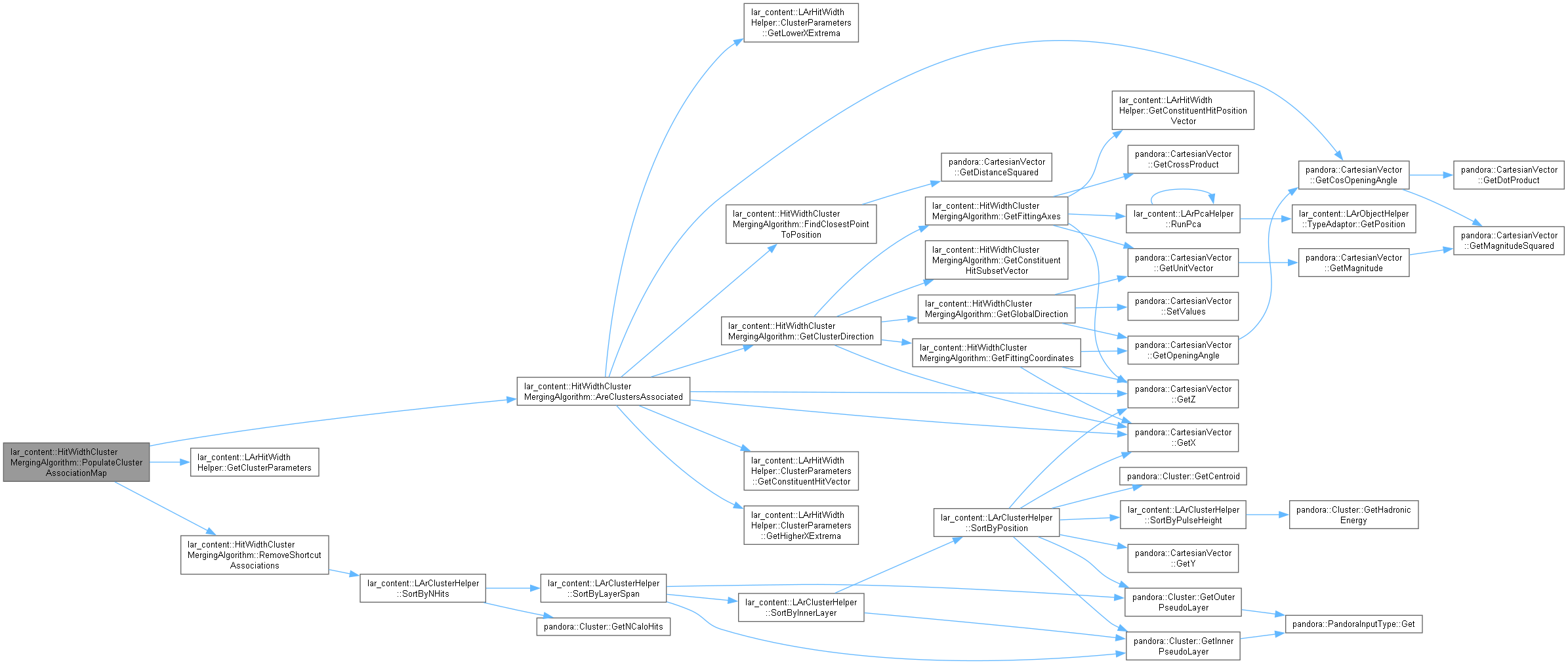

Here is the call graph for this function:

◆ ReadSettings()

StatusCode lar_content::HitWidthClusterMergingAlgorithm::ReadSettings ( const pandora::TiXmlHandle xmlHandle )

privatevirtual

Read the algorithm settings.

Parameters

xmlHandle the relevant xml handle

Reimplemented from lar_content::ClusterAssociationAlgorithm.

Definition at line 445 of file HitWidthClusterMergingAlgorithm.cc.

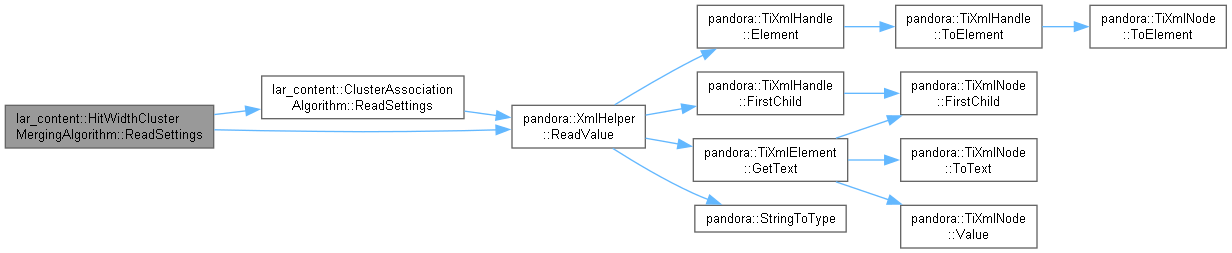

Here is the call graph for this function:

◆ RegisterDetails()

StatusCode pandora::Process::RegisterDetails	(	const Pandora *const	pPandora,
		const std::string &	type,
		const std::string &	instanceName
	)

inlineprotectedinherited

Register i) the pandora instance that will run the process and ii) the process type.

Parameters

pPandora	address of the pandora object that will run the process
type	the process type
instanceName	the process instance name

Definition at line 146 of file Process.h.

Here is the caller graph for this function:

◆ RemoveShortcutAssociations()

void lar_content::HitWidthClusterMergingAlgorithm::RemoveShortcutAssociations	(	const pandora::ClusterVector &	clusterVector,
		ClusterAssociationMap &	clusterAssociationMap
	)		const

private

Remove 'shortcut' associations from the cluster association map.

Parameters

clusterVector	the vector of clusters considered in the merging process
clusterAssociationMap	the mapping of clusters to forward/backward associations

Definition at line 384 of file HitWidthClusterMergingAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Reset()

StatusCode pandora::Process::Reset ( )

inlineprotectedvirtualinherited

Perform any operations when pandora is reset, typically at the end of each event.

Reimplemented in lar_content::MasterAlgorithm, lar_content::PostProcessingAlgorithm, and lar_content::PreProcessingAlgorithm.

Definition at line 133 of file Process.h.

Here is the caller graph for this function:

◆ Run()

StatusCode lar_content::ClusterAssociationAlgorithm::Run ( )

protectedvirtualinherited

Run the algorithm.

Implements pandora::Algorithm.

Definition at line 26 of file ClusterAssociationAlgorithm.cc.

Here is the call graph for this function:

◆ UnambiguousPropagation()

void lar_content::ClusterAssociationAlgorithm::UnambiguousPropagation	(	const pandora::Cluster *const	pCluster,
		const bool	isForward,
		ClusterAssociationMap &	clusterAssociationMap
	)		const

privateinherited

Unambiguous propagation.

Parameters

pCluster	address of the cluster to propagate
isForward	whether propagation direction is forward
clusterAssociationMap	the cluster association map

Definition at line 87 of file ClusterAssociationAlgorithm.cc.

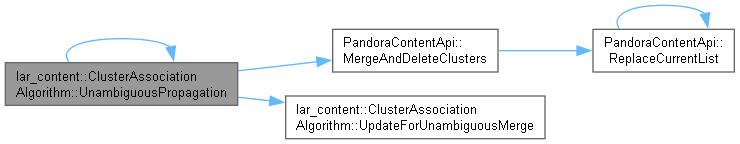

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UpdateForAmbiguousMerge()

void lar_content::ClusterAssociationAlgorithm::UpdateForAmbiguousMerge	(	const pandora::Cluster *const	pCluster,
		ClusterAssociationMap &	clusterAssociationMap
	)		const

privateinherited

Update cluster association map to reflect an ambiguous cluster merge.

Parameters

pCluster	address of the cluster to be cleared
clusterAssociationMap	the cluster association map

Definition at line 204 of file ClusterAssociationAlgorithm.cc.

Here is the caller graph for this function:

◆ UpdateForUnambiguousMerge()

void lar_content::ClusterAssociationAlgorithm::UpdateForUnambiguousMerge	(	const pandora::Cluster *const	pClusterToEnlarge,
		const pandora::Cluster *const	pClusterToDelete,
		const bool	isForwardMerge,
		ClusterAssociationMap &	clusterAssociationMap
	)		const

privateinherited

Update cluster association map to reflect an unambiguous cluster merge.

Parameters

pClusterToEnlarge	address of the cluster to be enlarged
pClusterToDelete	address of the cluster to be deleted
isForwardMerge	whether merge is forward (pClusterToEnlarge is forward-associated with pClusterToDelete)
clusterAssociationMap	the cluster association map

Definition at line 166 of file ClusterAssociationAlgorithm.cc.

Here is the caller graph for this function:

Member Data Documentation

◆ m_clusterToParametersMap

LArHitWidthHelper::ClusterToParametersMap lar_content::HitWidthClusterMergingAlgorithm::m_clusterToParametersMap

mutableprivate

The map [cluster -> cluster parameters].

Definition at line 142 of file HitWidthClusterMergingAlgorithm.h.

◆ m_fittingWeight

float lar_content::HitWidthClusterMergingAlgorithm::m_fittingWeight

private

The maximum hit weight considered in the least squared fit.

Definition at line 133 of file HitWidthClusterMergingAlgorithm.h.

◆ m_hitWidthScalingFactor

float lar_content::HitWidthClusterMergingAlgorithm::m_hitWidthScalingFactor

private

The scaling factor of the hit widths.

Definition at line 132 of file HitWidthClusterMergingAlgorithm.h.

◆ m_instanceName

std::string pandora::Process::m_instanceName

protectedinherited

The process instance name.

Definition at line 89 of file Process.h.

◆ m_maxConstituentHitWidth

float lar_content::HitWidthClusterMergingAlgorithm::m_maxConstituentHitWidth

private

The maximum hit width of a constituent hit of broken up hit, units cm.

Definition at line 131 of file HitWidthClusterMergingAlgorithm.h.

◆ m_maxXMergeDistance

float lar_content::HitWidthClusterMergingAlgorithm::m_maxXMergeDistance

private

The maximum x distance between merging points of associated clusters, units cm.

Definition at line 135 of file HitWidthClusterMergingAlgorithm.h.

◆ m_maxZMergeDistance

float lar_content::HitWidthClusterMergingAlgorithm::m_maxZMergeDistance

private

The maximum z distance between merging points of associated clusters, units cm.

Definition at line 136 of file HitWidthClusterMergingAlgorithm.h.

◆ m_mergeMade

bool lar_content::ClusterAssociationAlgorithm::m_mergeMade

mutableprivateinherited

Definition at line 123 of file ClusterAssociationAlgorithm.h.

◆ m_minClusterSparseness

float lar_content::HitWidthClusterMergingAlgorithm::m_minClusterSparseness

private

The threshold sparseness of a cluster to be considered in the merging process.

Definition at line 139 of file HitWidthClusterMergingAlgorithm.h.

◆ m_minClusterWeight

float lar_content::HitWidthClusterMergingAlgorithm::m_minClusterWeight

private

The threshold hit weight of the original, unscaled cluster to be considered in the merging process.

Definition at line 134 of file HitWidthClusterMergingAlgorithm.h.

◆ m_minDirectionDeviationCosAngle

float lar_content::HitWidthClusterMergingAlgorithm::m_minDirectionDeviationCosAngle

private

The minimum cosine opening angle of the direction of and associated cluster before and after merge.

Definition at line 138 of file HitWidthClusterMergingAlgorithm.h.

◆ m_minMergeCosOpeningAngle

float lar_content::HitWidthClusterMergingAlgorithm::m_minMergeCosOpeningAngle

private

The minimum cosine opening angle of the directions of associated clusters.

Definition at line 137 of file HitWidthClusterMergingAlgorithm.h.

◆ m_pPandora

const Pandora* pandora::Process::m_pPandora

protectedinherited

The pandora object that will run the process.

Definition at line 87 of file Process.h.

◆ m_resolveAmbiguousAssociations

bool lar_content::ClusterAssociationAlgorithm::m_resolveAmbiguousAssociations

privateinherited

Whether to resolve ambiguous associations.

Definition at line 125 of file ClusterAssociationAlgorithm.h.

◆ m_type

std::string pandora::Process::m_type

protectedinherited

The process type.

Definition at line 88 of file Process.h.

The documentation for this class was generated from the following files:

LArContent/larpandoracontent/LArTwoDReco/LArClusterAssociation/HitWidthClusterMergingAlgorithm.h
LArContent/larpandoracontent/LArTwoDReco/LArClusterAssociation/HitWidthClusterMergingAlgorithm.cc

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ ClusterAssociationMap

Constructor & Destructor Documentation

◆ HitWidthClusterMergingAlgorithm()

Member Function Documentation

◆ AmbiguousPropagation()

◆ AreClustersAssociated()

◆ FindClosestPointToPosition()

◆ GetClusterDirection()

◆ GetConstituentHitSubsetVector()

◆ GetFittingAxes()

◆ GetFittingCoordinates()

◆ GetGlobalDirection()

◆ GetInstanceName()

◆ GetListOfCleanClusters()

◆ GetPandora()

◆ GetType()

◆ Initialize()

◆ IsExtremalCluster()

◆ NavigateAlongAssociations()

◆ PopulateClusterAssociationMap()

◆ ReadSettings()

◆ RegisterDetails()

◆ RemoveShortcutAssociations()

◆ Reset()

◆ Run()

◆ UnambiguousPropagation()

◆ UpdateForAmbiguousMerge()

◆ UpdateForUnambiguousMerge()

Member Data Documentation

◆ m_clusterToParametersMap

◆ m_fittingWeight

◆ m_hitWidthScalingFactor

◆ m_instanceName

◆ m_maxConstituentHitWidth

◆ m_maxXMergeDistance

◆ m_maxZMergeDistance

◆ m_mergeMade

◆ m_minClusterSparseness

◆ m_minClusterWeight

◆ m_minDirectionDeviationCosAngle

◆ m_minMergeCosOpeningAngle

◆ m_pPandora

◆ m_resolveAmbiguousAssociations

◆ m_type
