SlidingConeClusterMopUpAlgorithm class. More...

#include "SlidingConeClusterMopUpAlgorithm.h"

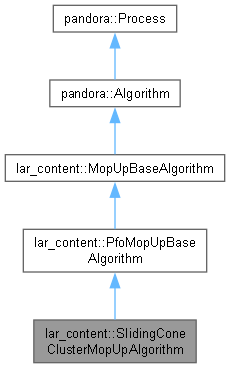

Inheritance diagram for lar_content::SlidingConeClusterMopUpAlgorithm:

[legend]

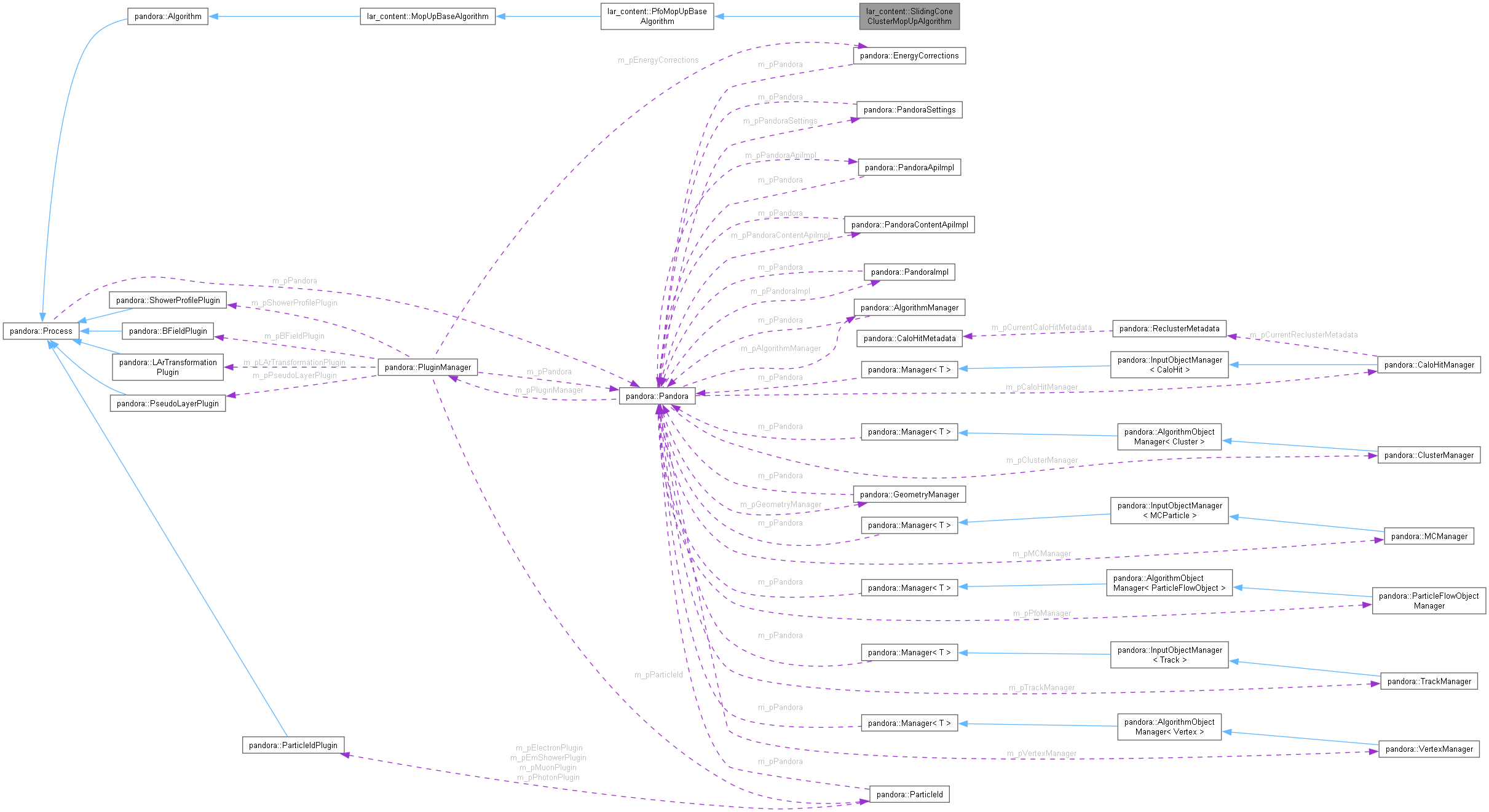

Collaboration diagram for lar_content::SlidingConeClusterMopUpAlgorithm:

[legend]

Classes
class	ClusterMerge
	ClusterMerge class. More...

Public Member Functions
	SlidingConeClusterMopUpAlgorithm ()
	Default constructor.

virtual void	MergeAndDeletePfos (const pandora::ParticleFlowObject const pPfoToEnlarge, const pandora::ParticleFlowObject const pPfoToDelete) const
	Merge and delete a pair of pfos, with a specific set of conventions for cluster merging, vertex use, etc.

template<typename T >
const std::string	GetListName (const T *const pT) const
	Find the name of the list hosting a specific object.

const std::string &	GetType () const
	Get the type.

const std::string &	GetInstanceName () const
	Get the instance name.

const Pandora &	GetPandora () const
	Get the associated pandora instance.

Static Public Member Functions
static const pandora::Cluster *	GetParentCluster (const pandora::ClusterList &clusterList, const pandora::HitType hitType)
	Select the parent cluster (same hit type and most hits) using a provided cluster list and hit type.

Protected Member Functions
virtual StatusCode	Initialize ()
	Perform any operations that must occur after reading settings, but before running the process.

virtual StatusCode	Reset ()
	Perform any operations when pandora is reset, typically at the end of each event.

StatusCode	RegisterDetails (const Pandora *const pPandora, const std::string &type, const std::string &instanceName)
	Register i) the pandora instance that will run the process and ii) the process type.

Protected Attributes
pandora::StringVector	m_daughterListNames
	The list of potential daughter object list names.

const Pandora *	m_pPandora
	The pandora object that will run the process.

std::string	m_type
	The process type.

std::string	m_instanceName
	The process instance name.

Private Types
typedef std::vector< ClusterMerge >	ClusterMergeList

typedef std::unordered_map< const pandora::Cluster , const pandora::ParticleFlowObject >	ClusterToPfoMap

typedef std::unordered_map< const pandora::Cluster *, ClusterMergeList >	ClusterMergeMap

Private Member Functions
pandora::StatusCode	Run ()
	Run the algorithm.

void	GetInteractionVertex (const pandora::Vertex *&pVertex) const
	Get the neutrino interaction vertex if it is available and if the algorithm is configured to do so.

void	GetThreeDClusters (pandora::ClusterVector &clusters3D, ClusterToPfoMap &clusterToPfoMap) const
	Get all 3d clusters contained in the input pfo lists and a mapping from clusters to pfos.

void	GetAvailableTwoDClusters (pandora::ClusterVector &availableClusters2D) const
	Get all available 2d clusters contained in the input cluster lists.

void	GetClusterMergeMap (const pandora::Vertex *const pVertex, const pandora::ClusterVector &clusters3D, const pandora::ClusterVector &availableClusters2D, ClusterMergeMap &clusterMergeMap) const
	Get the cluster merge map describing all potential 3d cluster merges.

void	MakeClusterMerges (const ClusterToPfoMap &clusterToPfoMap, const ClusterMergeMap &clusterMergeMap) const
	Make cluster merges based on the provided cluster merge map.

pandora::StatusCode	ReadSettings (const pandora::TiXmlHandle xmlHandle)
	Read the algorithm settings.

Private Attributes
pandora::StringVector	m_inputPfoListNames
	The input pfo list names.

bool	m_useVertex
	Whether to use the interaction vertex to select useful cone directions.

unsigned int	m_maxIterations
	The maximum allowed number of algorithm iterations.

unsigned int	m_maxHitsToConsider3DTrack
	The maximum number of hits in a 3d track cluster to warrant inclusion in algorithm.

unsigned int	m_minHitsToConsider3DShower
	The minimum number of hits in a 3d shower cluster to attempt cone fits.

unsigned int	m_maxHitsToConsider2DCluster
	The maximum number of hits in a 2d cluster to allow pick-up via sliding cone fits.

unsigned int	m_halfWindowLayers
	The number of layers to use for half-window of sliding fit.

unsigned int	m_nConeFitLayers
	The number of layers over which to sum fitted direction to obtain cone fit.

unsigned int	m_nConeFits
	The number of cone fits to perform, spread roughly uniformly along the shower length.

float	m_coneLengthMultiplier
	The cone length multiplier to use when calculating bounded cluster fractions.

float	m_maxConeLength
	The maximum allowed cone length to use when calculating bounded cluster fractions.

float	m_coneTanHalfAngle
	The cone tan half angle to use when calculating bounded cluster fractions.

float	m_coneBoundedFraction
	The minimum cluster bounded fraction for association.

Detailed Description

SlidingConeClusterMopUpAlgorithm class.

Definition at line 21 of file SlidingConeClusterMopUpAlgorithm.h.

Member Typedef Documentation

◆ ClusterMergeList

typedef std::vector<ClusterMerge> lar_content::SlidingConeClusterMopUpAlgorithm::ClusterMergeList

private

Definition at line 81 of file SlidingConeClusterMopUpAlgorithm.h.

◆ ClusterMergeMap

typedef std::unordered_map<const pandora::Cluster *, ClusterMergeList> lar_content::SlidingConeClusterMopUpAlgorithm::ClusterMergeMap

private

Definition at line 109 of file SlidingConeClusterMopUpAlgorithm.h.

◆ ClusterToPfoMap

typedef std::unordered_map<const pandora::Cluster *, const pandora::ParticleFlowObject *> lar_content::SlidingConeClusterMopUpAlgorithm::ClusterToPfoMap

private

Definition at line 92 of file SlidingConeClusterMopUpAlgorithm.h.

Constructor & Destructor Documentation

◆ SlidingConeClusterMopUpAlgorithm()

lar_content::SlidingConeClusterMopUpAlgorithm::SlidingConeClusterMopUpAlgorithm ( )

Default constructor.

Definition at line 24 of file SlidingConeClusterMopUpAlgorithm.cc.

Member Function Documentation

◆ GetAvailableTwoDClusters()

void lar_content::SlidingConeClusterMopUpAlgorithm::GetAvailableTwoDClusters ( pandora::ClusterVector & availableClusters2D ) const

private

Get all available 2d clusters contained in the input cluster lists.

Parameters

availableClusters2D to receive the sorted list of available 2d clusters

Definition at line 120 of file SlidingConeClusterMopUpAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetClusterMergeMap()

void lar_content::SlidingConeClusterMopUpAlgorithm::GetClusterMergeMap	(	const pandora::Vertex *const	pVertex,
		const pandora::ClusterVector &	clusters3D,
		const pandora::ClusterVector &	availableClusters2D,
		ClusterMergeMap &	clusterMergeMap
	)		const

private

Get the cluster merge map describing all potential 3d cluster merges.

Parameters

pVertex	the neutrino interaction vertex, if available
clusters3D	the sorted list of 3d clusters
availableClusters2D	the sorted list of available 2d clusters
clusterMergeMap	to receive the populated cluster merge map

Definition at line 146 of file SlidingConeClusterMopUpAlgorithm.cc.

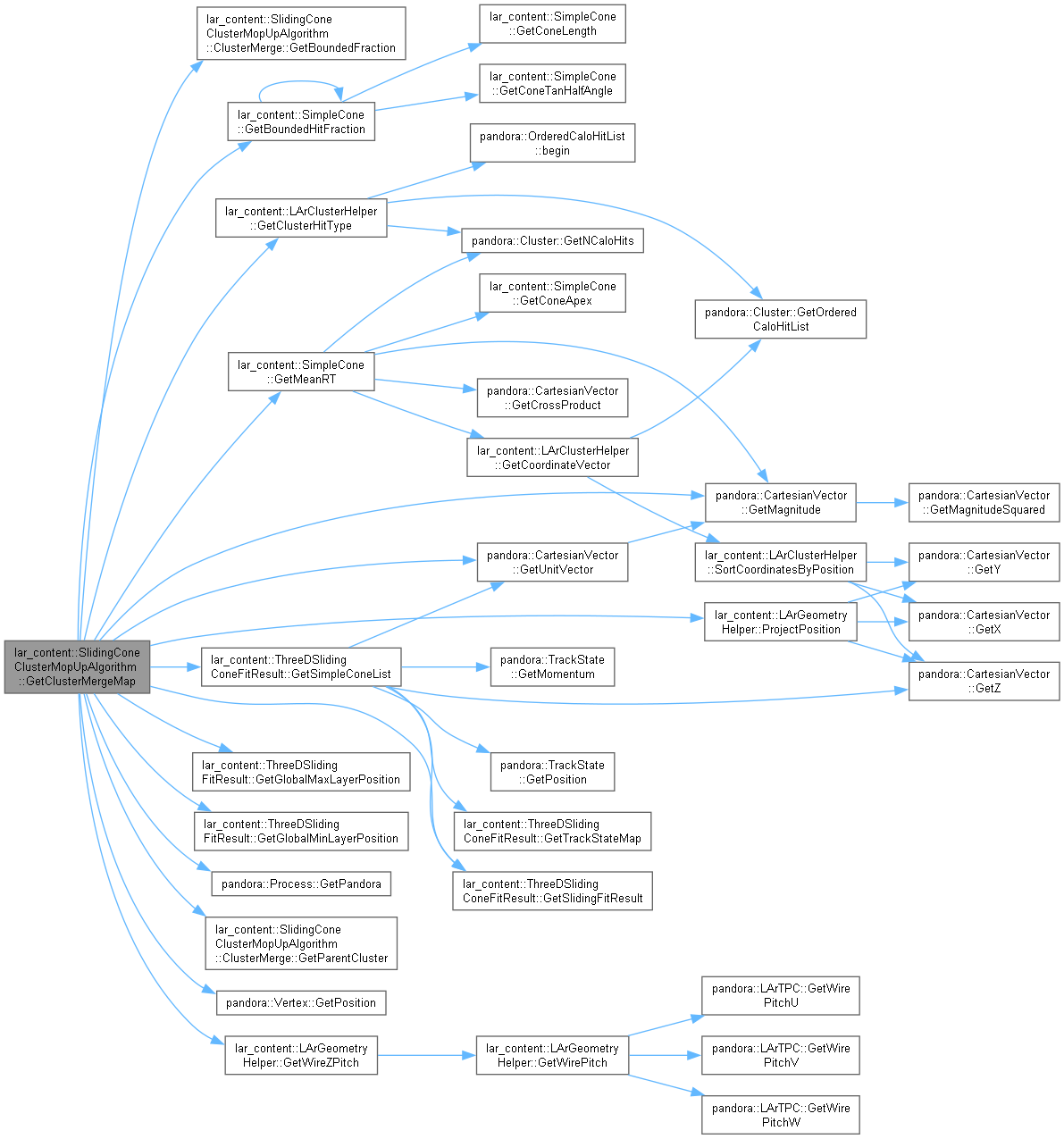

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetInstanceName()

const std::string & pandora::Process::GetInstanceName ( ) const

inlineinherited

Get the instance name.

Returns: The instance name

Definition at line 109 of file Process.h.

◆ GetInteractionVertex()

void lar_content::SlidingConeClusterMopUpAlgorithm::GetInteractionVertex ( const pandora::Vertex *& pVertex ) const

private

Get the neutrino interaction vertex if it is available and if the algorithm is configured to do so.

Parameters

pVertex to receive the neutrino interaction vertex

Definition at line 71 of file SlidingConeClusterMopUpAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetListName()

template<typename T >

template const std::string lar_content::MopUpBaseAlgorithm::GetListName ( const T *const pT ) const

inherited

Find the name of the list hosting a specific object.

Parameters

pT	the address of the object

Returns: the name of the list

Definition at line 19 of file MopUpBaseAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPandora()

const Pandora & pandora::Process::GetPandora ( ) const

inlineinherited

Get the associated pandora instance.

Returns: the associated pandora instance

Definition at line 116 of file Process.h.

◆ GetParentCluster()

const Cluster * lar_content::PfoMopUpBaseAlgorithm::GetParentCluster	(	const pandora::ClusterList &	clusterList,
		const pandora::HitType	hitType
	)

staticinherited

Select the parent cluster (same hit type and most hits) using a provided cluster list and hit type.

Parameters

clusterList	the cluster list
hitType	the hit type

Returns: the address of the parent cluster

Definition at line 61 of file PfoMopUpBaseAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetThreeDClusters()

void lar_content::SlidingConeClusterMopUpAlgorithm::GetThreeDClusters	(	pandora::ClusterVector &	clusters3D,
		ClusterToPfoMap &	clusterToPfoMap
	)		const

private

Get all 3d clusters contained in the input pfo lists and a mapping from clusters to pfos.

Parameters

clusters3D	to receive the sorted list of 3d clusters
clusterToPfoMap	to receive the mapping from 3d cluster to pfo

Definition at line 85 of file SlidingConeClusterMopUpAlgorithm.cc.

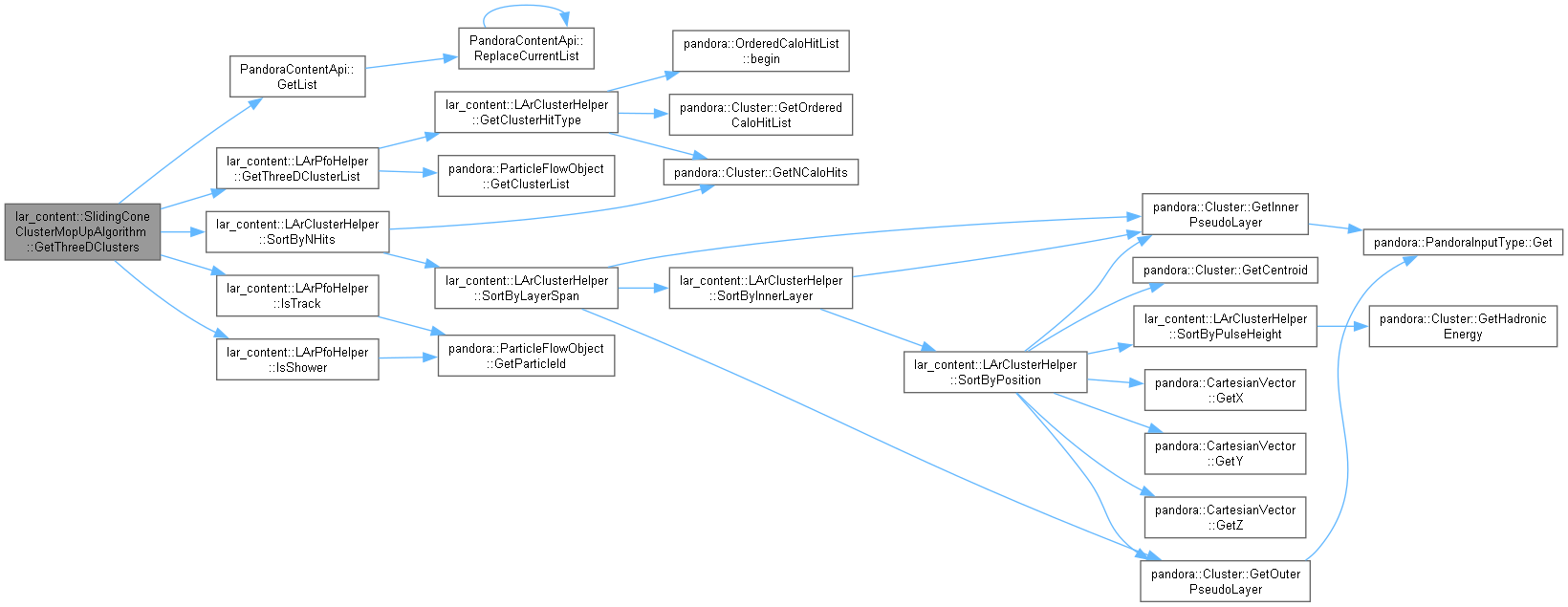

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetType()

const std::string & pandora::Process::GetType ( ) const

inlineinherited

Get the type.

Returns: The type

Definition at line 102 of file Process.h.

◆ Initialize()

StatusCode pandora::Process::Initialize ( )

inlineprotectedvirtualinherited

Perform any operations that must occur after reading settings, but before running the process.

Reimplemented in lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, EventReadingAlgorithm, and EventWritingAlgorithm.

Definition at line 126 of file Process.h.

Here is the caller graph for this function:

◆ MakeClusterMerges()

void lar_content::SlidingConeClusterMopUpAlgorithm::MakeClusterMerges	(	const ClusterToPfoMap &	clusterToPfoMap,
		const ClusterMergeMap &	clusterMergeMap
	)		const

private

Make cluster merges based on the provided cluster merge map.

Parameters

clusterToPfoMap	the mapping from 3d cluster to pfo
clusterMergeMap	the populated cluster merge map

Definition at line 207 of file SlidingConeClusterMopUpAlgorithm.cc.

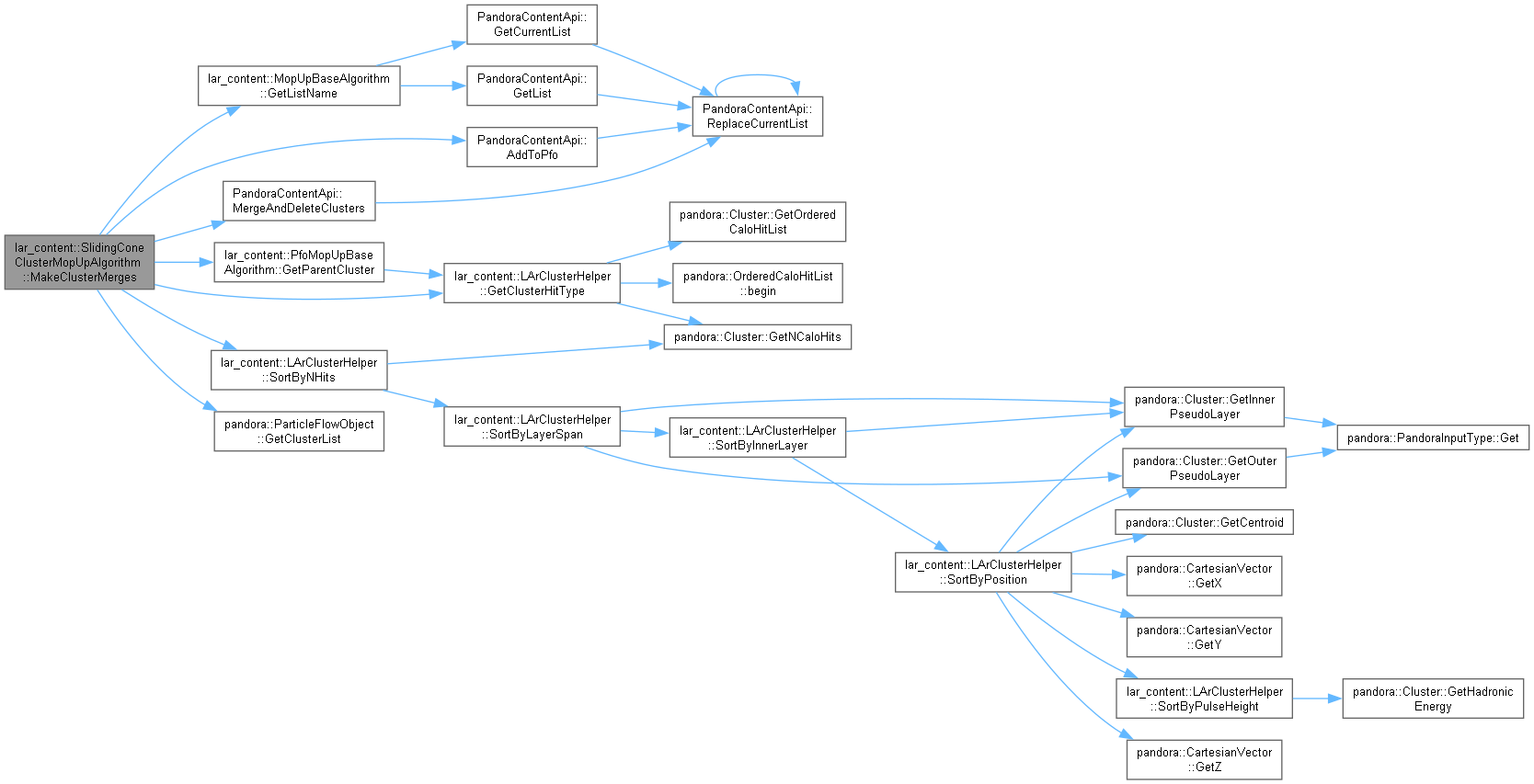

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MergeAndDeletePfos()

void lar_content::PfoMopUpBaseAlgorithm::MergeAndDeletePfos	(	const pandora::ParticleFlowObject *const	pPfoToEnlarge,
		const pandora::ParticleFlowObject *const	pPfoToDelete
	)		const

virtualinherited

Merge and delete a pair of pfos, with a specific set of conventions for cluster merging, vertex use, etc.

Parameters

pPfoToEnlarge	the address of the pfo to enlarge
pPfoToDelete	the address of the pfo to delete (will become a dangling pointer)

Definition at line 20 of file PfoMopUpBaseAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReadSettings()

StatusCode lar_content::SlidingConeClusterMopUpAlgorithm::ReadSettings ( const pandora::TiXmlHandle xmlHandle )

privatevirtual

Read the algorithm settings.

Parameters

xmlHandle the relevant xml handle

Reimplemented from lar_content::PfoMopUpBaseAlgorithm.

Definition at line 262 of file SlidingConeClusterMopUpAlgorithm.cc.

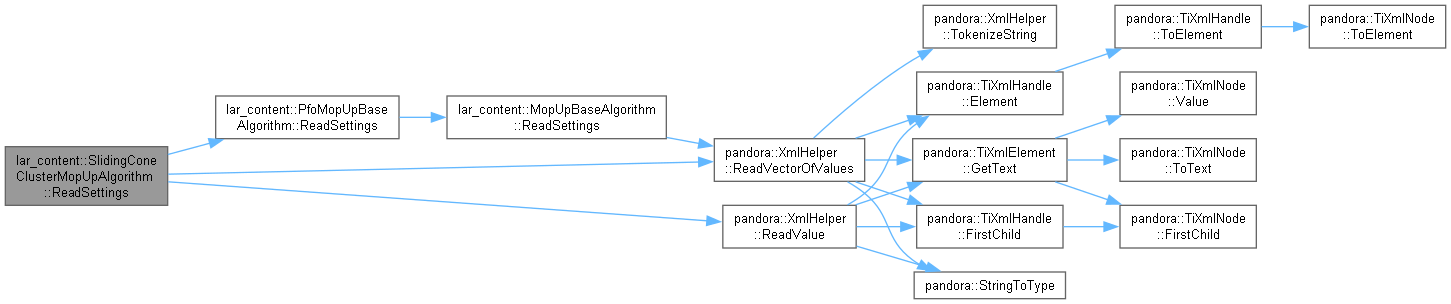

Here is the call graph for this function:

◆ RegisterDetails()

StatusCode pandora::Process::RegisterDetails	(	const Pandora *const	pPandora,
		const std::string &	type,
		const std::string &	instanceName
	)

inlineprotectedinherited

Register i) the pandora instance that will run the process and ii) the process type.

Parameters

pPandora	address of the pandora object that will run the process
type	the process type
instanceName	the process instance name

Definition at line 146 of file Process.h.

Here is the caller graph for this function:

◆ Reset()

StatusCode pandora::Process::Reset ( )

inlineprotectedvirtualinherited

Perform any operations when pandora is reset, typically at the end of each event.

Reimplemented in lar_content::MasterAlgorithm, lar_content::PostProcessingAlgorithm, and lar_content::PreProcessingAlgorithm.

Definition at line 133 of file Process.h.

Here is the caller graph for this function:

◆ Run()

StatusCode lar_content::SlidingConeClusterMopUpAlgorithm::Run ( )

privatevirtual

Run the algorithm.

Implements pandora::Algorithm.

Definition at line 42 of file SlidingConeClusterMopUpAlgorithm.cc.

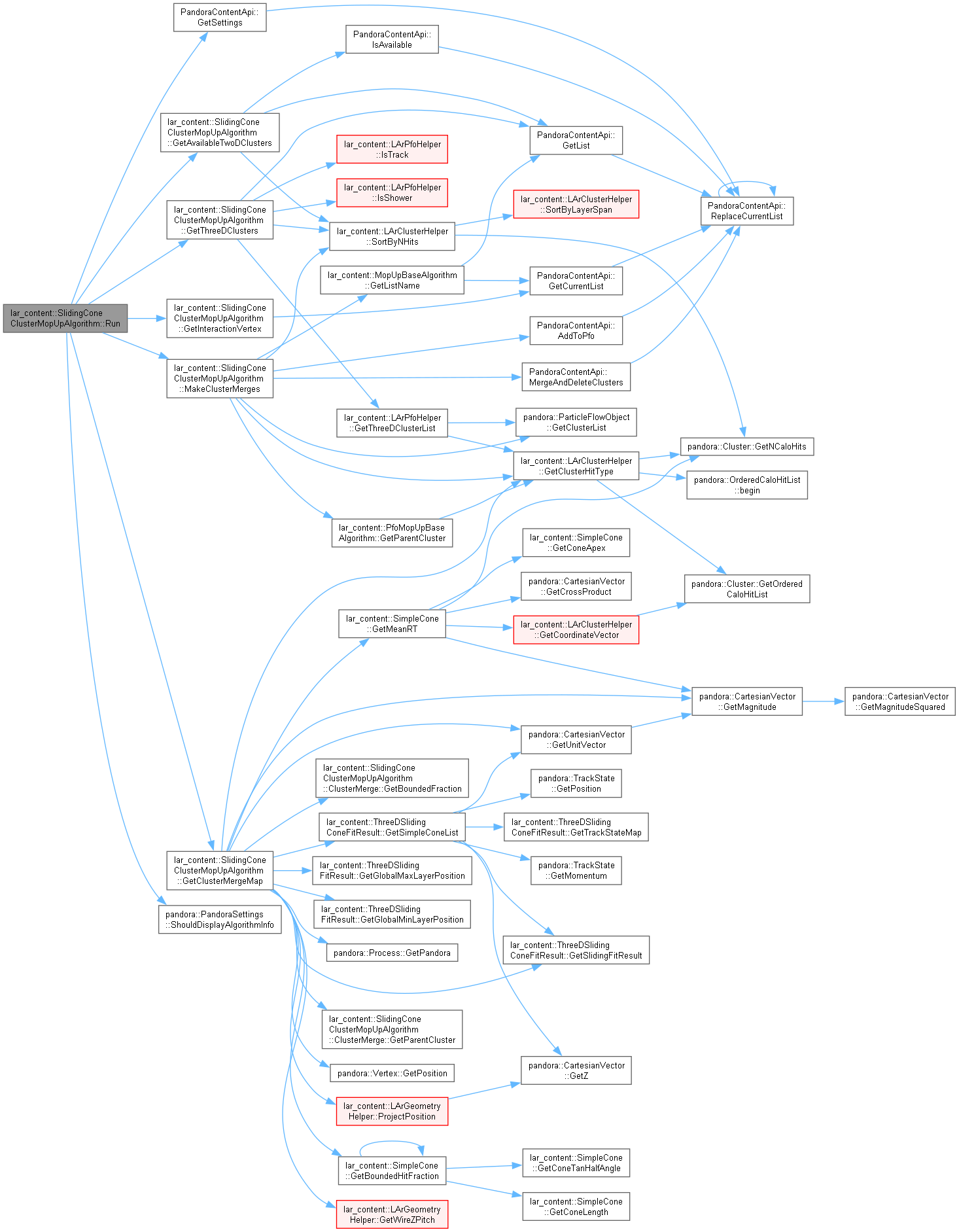

Here is the call graph for this function:

Member Data Documentation

◆ m_coneBoundedFraction

float lar_content::SlidingConeClusterMopUpAlgorithm::m_coneBoundedFraction

private

The minimum cluster bounded fraction for association.

Definition at line 144 of file SlidingConeClusterMopUpAlgorithm.h.

◆ m_coneLengthMultiplier

float lar_content::SlidingConeClusterMopUpAlgorithm::m_coneLengthMultiplier

private

The cone length multiplier to use when calculating bounded cluster fractions.

Definition at line 141 of file SlidingConeClusterMopUpAlgorithm.h.

◆ m_coneTanHalfAngle

float lar_content::SlidingConeClusterMopUpAlgorithm::m_coneTanHalfAngle

private

The cone tan half angle to use when calculating bounded cluster fractions.

Definition at line 143 of file SlidingConeClusterMopUpAlgorithm.h.

◆ m_daughterListNames

pandora::StringVector lar_content::MopUpBaseAlgorithm::m_daughterListNames

protectedinherited

The list of potential daughter object list names.

Definition at line 35 of file MopUpBaseAlgorithm.h.

◆ m_halfWindowLayers

unsigned int lar_content::SlidingConeClusterMopUpAlgorithm::m_halfWindowLayers

private

The number of layers to use for half-window of sliding fit.

Definition at line 138 of file SlidingConeClusterMopUpAlgorithm.h.

◆ m_inputPfoListNames

pandora::StringVector lar_content::SlidingConeClusterMopUpAlgorithm::m_inputPfoListNames

private

The input pfo list names.

Definition at line 132 of file SlidingConeClusterMopUpAlgorithm.h.

◆ m_instanceName

std::string pandora::Process::m_instanceName

protectedinherited

The process instance name.

Definition at line 89 of file Process.h.

◆ m_maxConeLength

float lar_content::SlidingConeClusterMopUpAlgorithm::m_maxConeLength

private

The maximum allowed cone length to use when calculating bounded cluster fractions.

Definition at line 142 of file SlidingConeClusterMopUpAlgorithm.h.

◆ m_maxHitsToConsider2DCluster

unsigned int lar_content::SlidingConeClusterMopUpAlgorithm::m_maxHitsToConsider2DCluster

private

The maximum number of hits in a 2d cluster to allow pick-up via sliding cone fits.

Definition at line 137 of file SlidingConeClusterMopUpAlgorithm.h.

◆ m_maxHitsToConsider3DTrack

unsigned int lar_content::SlidingConeClusterMopUpAlgorithm::m_maxHitsToConsider3DTrack

private

The maximum number of hits in a 3d track cluster to warrant inclusion in algorithm.

Definition at line 135 of file SlidingConeClusterMopUpAlgorithm.h.

◆ m_maxIterations

unsigned int lar_content::SlidingConeClusterMopUpAlgorithm::m_maxIterations

private

The maximum allowed number of algorithm iterations.

Definition at line 134 of file SlidingConeClusterMopUpAlgorithm.h.

◆ m_minHitsToConsider3DShower

unsigned int lar_content::SlidingConeClusterMopUpAlgorithm::m_minHitsToConsider3DShower

private

The minimum number of hits in a 3d shower cluster to attempt cone fits.

Definition at line 136 of file SlidingConeClusterMopUpAlgorithm.h.

◆ m_nConeFitLayers

unsigned int lar_content::SlidingConeClusterMopUpAlgorithm::m_nConeFitLayers

private

The number of layers over which to sum fitted direction to obtain cone fit.

Definition at line 139 of file SlidingConeClusterMopUpAlgorithm.h.

◆ m_nConeFits

unsigned int lar_content::SlidingConeClusterMopUpAlgorithm::m_nConeFits

private

The number of cone fits to perform, spread roughly uniformly along the shower length.

Definition at line 140 of file SlidingConeClusterMopUpAlgorithm.h.

◆ m_pPandora

const Pandora* pandora::Process::m_pPandora

protectedinherited

The pandora object that will run the process.

Definition at line 87 of file Process.h.

◆ m_type

std::string pandora::Process::m_type

protectedinherited

The process type.

Definition at line 88 of file Process.h.

◆ m_useVertex

bool lar_content::SlidingConeClusterMopUpAlgorithm::m_useVertex

private

Whether to use the interaction vertex to select useful cone directions.

Definition at line 133 of file SlidingConeClusterMopUpAlgorithm.h.

The documentation for this class was generated from the following files:

LArContent/larpandoracontent/LArTwoDReco/LArClusterMopUp/SlidingConeClusterMopUpAlgorithm.h
LArContent/larpandoracontent/LArTwoDReco/LArClusterMopUp/SlidingConeClusterMopUpAlgorithm.cc

Classes

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ ClusterMergeList

◆ ClusterMergeMap

◆ ClusterToPfoMap

Constructor & Destructor Documentation

◆ SlidingConeClusterMopUpAlgorithm()

Member Function Documentation

◆ GetAvailableTwoDClusters()

◆ GetClusterMergeMap()

◆ GetInstanceName()

◆ GetInteractionVertex()

◆ GetListName()

◆ GetPandora()

◆ GetParentCluster()

◆ GetThreeDClusters()

◆ GetType()

◆ Initialize()

◆ MakeClusterMerges()

◆ MergeAndDeletePfos()

◆ ReadSettings()

◆ RegisterDetails()

◆ Reset()

◆ Run()

Member Data Documentation

◆ m_coneBoundedFraction

◆ m_coneLengthMultiplier

◆ m_coneTanHalfAngle

◆ m_daughterListNames

◆ m_halfWindowLayers

◆ m_inputPfoListNames

◆ m_instanceName

◆ m_maxConeLength

◆ m_maxHitsToConsider2DCluster

◆ m_maxHitsToConsider3DTrack

◆ m_maxIterations

◆ m_minHitsToConsider3DShower

◆ m_nConeFitLayers

◆ m_nConeFits

◆ m_pPandora

◆ m_type

◆ m_useVertex
