CosmicRaySplittingAlgorithm class. More...

#include "CosmicRaySplittingAlgorithm.h"

Inheritance diagram for lar_content::CosmicRaySplittingAlgorithm:

[legend]

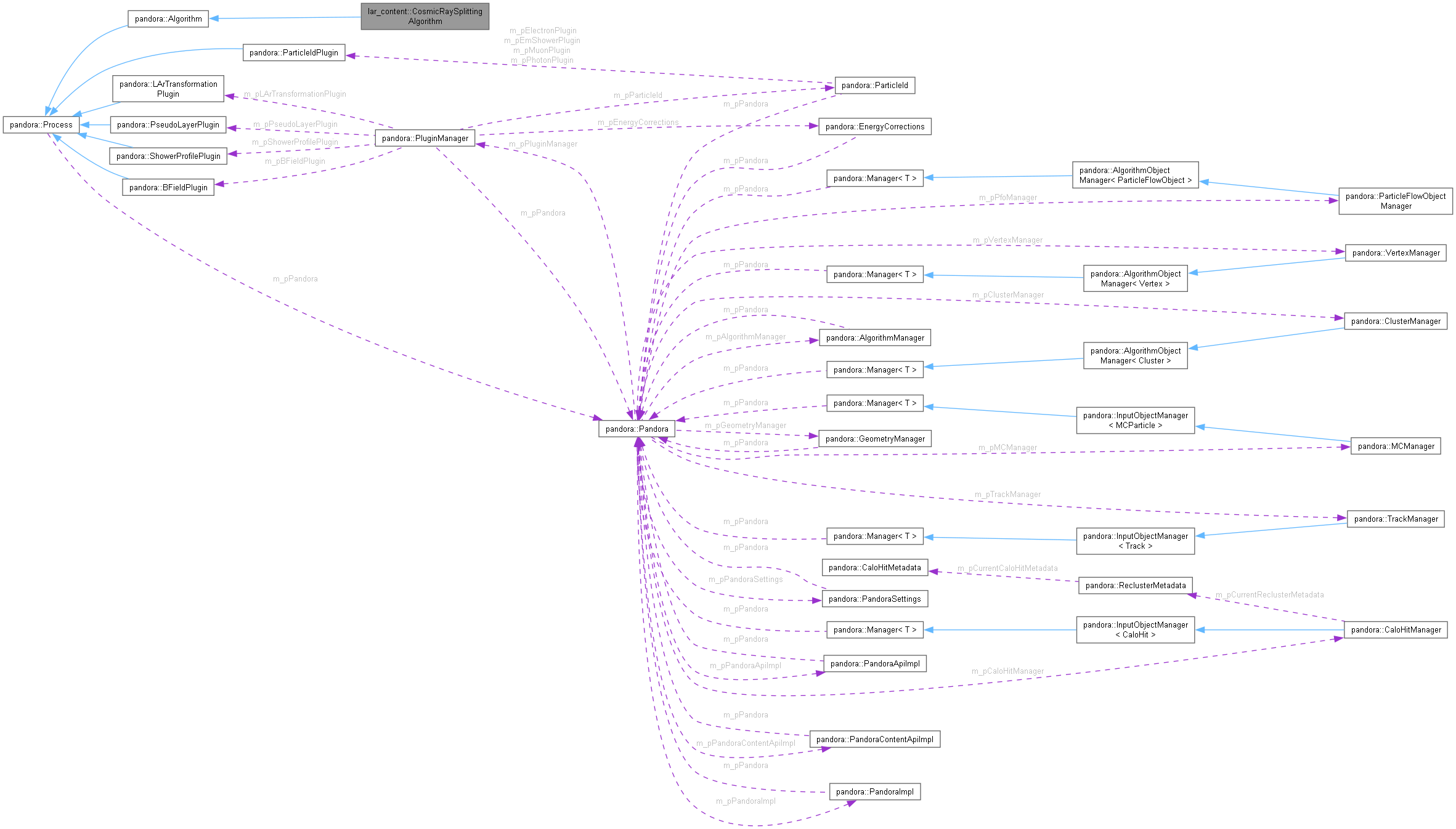

Collaboration diagram for lar_content::CosmicRaySplittingAlgorithm:

[legend]

Public Member Functions
	CosmicRaySplittingAlgorithm ()
	Default constructor.

const std::string &	GetType () const
	Get the type.

const std::string &	GetInstanceName () const
	Get the instance name.

const Pandora &	GetPandora () const
	Get the associated pandora instance.

Protected Member Functions
virtual StatusCode	Initialize ()
	Perform any operations that must occur after reading settings, but before running the process.

virtual StatusCode	Reset ()
	Perform any operations when pandora is reset, typically at the end of each event.

StatusCode	RegisterDetails (const Pandora *const pPandora, const std::string &type, const std::string &instanceName)
	Register i) the pandora instance that will run the process and ii) the process type.

Protected Attributes
const Pandora *	m_pPandora
	The pandora object that will run the process.

std::string	m_type
	The process type.

std::string	m_instanceName
	The process instance name.

Private Member Functions
pandora::StatusCode	Run ()
	Run the algorithm.

pandora::StatusCode	ReadSettings (const pandora::TiXmlHandle xmlHandle)
	Read the algorithm settings.

void	GetListOfCleanClusters (const pandora::ClusterList *const pClusterList, pandora::ClusterVector &clusterVector) const
	Populate cluster vector with subset of cluster list, containing clusters judged to be clean.

void	BuildSlidingFitResultMap (const pandora::ClusterVector &clusterVector, TwoDSlidingFitResultMap &slidingFitResultMap) const
	Build the map of sliding fit results.

pandora::StatusCode	FindBestSplitPosition (const TwoDSlidingFitResult &slidingFitResult, pandora::CartesianVector &splitPosition, pandora::CartesianVector &splitDirection1, pandora::CartesianVector &splitDirection2) const
	Find the position of greatest scatter along a sliding linear fit.

pandora::StatusCode	ConfirmSplitPosition (const TwoDSlidingFitResult &branchSlidingFitResult, const TwoDSlidingFitResult &replacementSlidingFitResult, const pandora::CartesianVector &splitPosition, const pandora::CartesianVector &splitDirection1, const pandora::CartesianVector &splitDirection2, float &lengthSquared1, float &lengthSquared2) const
	Find a second replacement cluster that aligns with the scatter of the first branch cluster.

pandora::StatusCode	PerformSingleSplit (const pandora::Cluster const pBranchCluster, const pandora::Cluster const pReplacementCluster, const pandora::CartesianVector &splitPosition, const pandora::CartesianVector &forwardDirection, const pandora::CartesianVector &backwardDirection) const
	Split a branch cluster for case of one replacement cluster.

pandora::StatusCode	PerformDoubleSplit (const pandora::Cluster const pBranchCluster, const pandora::Cluster const pReplacementCluster1, const pandora::Cluster *const pReplacementCluster2, const pandora::CartesianVector &splitPosition, const pandora::CartesianVector &splitDirection1, const pandora::CartesianVector &splitDirection2) const
	Split a branch cluster for case of two replacement clusters.

void	GetCaloHitListToMove (const pandora::Cluster const pBranchCluster, const pandora::Cluster const pReplacementCluster, const pandora::CartesianVector &splitPosition, const pandora::CartesianVector &forwardDirection, const pandora::CartesianVector &backwardDirection, pandora::CaloHitList &caloHitList) const
	Get list of calo hits to move in order to split a branch cluster into two segments for case of one replacement cluster.

void	GetCaloHitListsToMove (const pandora::Cluster *const pBranchCluster, const pandora::CartesianVector &splitPosition, const pandora::CartesianVector &splitDirection1, const pandora::CartesianVector &splitDirection2, pandora::CaloHitList &caloHitList1, pandora::CaloHitList &caloHitList2) const
	Get lists of calo hits to move in order to split a branch cluster into two segments for case of two replacement clusters.

bool	IdentifyCrossedTracks (const pandora::Cluster const pBranchCluster, const pandora::Cluster const pReplacementCluster1, const pandora::Cluster *const pReplacementCluster2, const pandora::CartesianVector &splitPosition) const
	Identify crossed tracks formed from the branch cluster and its replacement cluster.

pandora::StatusCode	GetCaloHitListToKeep (const pandora::Cluster *const pBranchCluster, const pandora::CaloHitList &caloHitListToMove, pandora::CaloHitList &caloHitListToKeep) const
	Split the branch cluster and add hits to the replacement cluster.

pandora::StatusCode	SplitCluster (const pandora::Cluster const pBranchCluster, const pandora::Cluster const pReplacementCluster, const pandora::CaloHitList &caloHitListToMove) const
	Split the branch cluster and add hits to the replacement cluster.

Private Attributes
float	m_clusterMinLength
	minimum length of clusters for this algorithm

unsigned int	m_halfWindowLayers
	number of layers to use for half-window of sliding fit

float	m_samplingPitch
	sampling pitch for walking along sliding linear fit

float	m_maxCosSplittingAngle
	smallest scatter angle allowed when splitting cluster

float	m_minCosMergingAngle
	largest relative angle allowed when merging clusters

float	m_maxTransverseDisplacement
	maximum transverse displacement of associated clusters

float	m_maxLongitudinalDisplacement
	maximum longitudinal displacement of associated clusters

float	m_maxLongitudinalDisplacementSquared
	longitudinal displacement squared

Detailed Description

CosmicRaySplittingAlgorithm class.

Definition at line 21 of file CosmicRaySplittingAlgorithm.h.

Constructor & Destructor Documentation

◆ CosmicRaySplittingAlgorithm()

lar_content::CosmicRaySplittingAlgorithm::CosmicRaySplittingAlgorithm ( )

Default constructor.

Definition at line 22 of file CosmicRaySplittingAlgorithm.cc.

Member Function Documentation

◆ BuildSlidingFitResultMap()

void lar_content::CosmicRaySplittingAlgorithm::BuildSlidingFitResultMap	(	const pandora::ClusterVector &	clusterVector,
		TwoDSlidingFitResultMap &	slidingFitResultMap
	)		const

private

Build the map of sliding fit results.

Parameters

clusterVector	the input cluster vector
slidingFitResultMap	the output sliding fit result map

Definition at line 181 of file CosmicRaySplittingAlgorithm.cc.

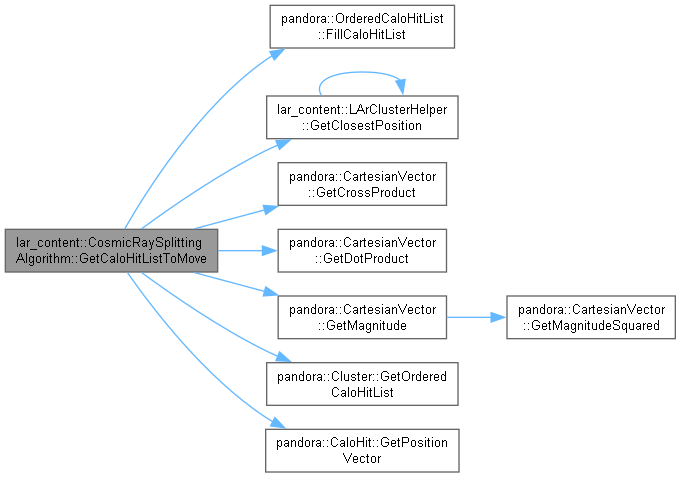

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ConfirmSplitPosition()

StatusCode lar_content::CosmicRaySplittingAlgorithm::ConfirmSplitPosition	(	const TwoDSlidingFitResult &	branchSlidingFitResult,
		const TwoDSlidingFitResult &	replacementSlidingFitResult,
		const pandora::CartesianVector &	splitPosition,
		const pandora::CartesianVector &	splitDirection1,
		const pandora::CartesianVector &	splitDirection2,
		float &	lengthSquared1,
		float &	lengthSquared2
	)		const

private

Find a second replacement cluster that aligns with the scatter of the first branch cluster.

Parameters

branchSlidingFitResult	the sliding fit result for the branch cluster
replacementSlidingFitResult	the sliding fit result for the replacement cluster
splitPosition	the candidate split position on the branch cluster
splitDirection1	the first track direction just above the split position
splitDirection2	the second track direction just below the split position
lengthSquared1	figure of merit for association with first track direction
lengthSquared2	figure of merit for association with second track direction

Definition at line 270 of file CosmicRaySplittingAlgorithm.cc.

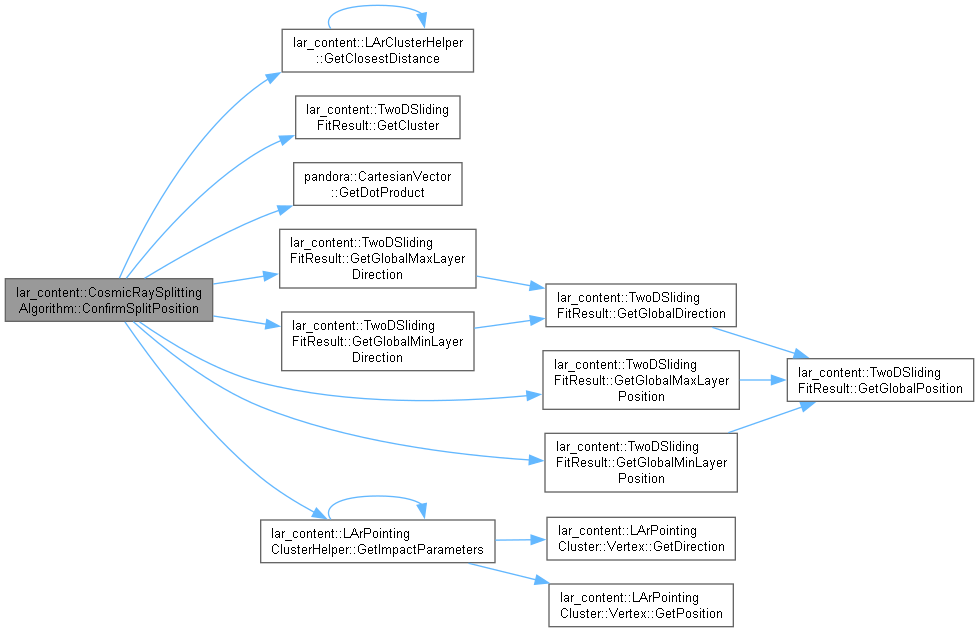

Here is the call graph for this function:

Here is the caller graph for this function:

◆ FindBestSplitPosition()

StatusCode lar_content::CosmicRaySplittingAlgorithm::FindBestSplitPosition	(	const TwoDSlidingFitResult &	slidingFitResult,
		pandora::CartesianVector &	splitPosition,
		pandora::CartesianVector &	splitDirection1,
		pandora::CartesianVector &	splitDirection2
	)		const

private

Find the position of greatest scatter along a sliding linear fit.

Parameters

slidingFitResult	the input sliding linear fit result
splitPosition	the position of greatest scatter
splitDirection1	the direction vector just above the scatter position
splitDirection2	the direction vector just below the scatter position

Definition at line 207 of file CosmicRaySplittingAlgorithm.cc.

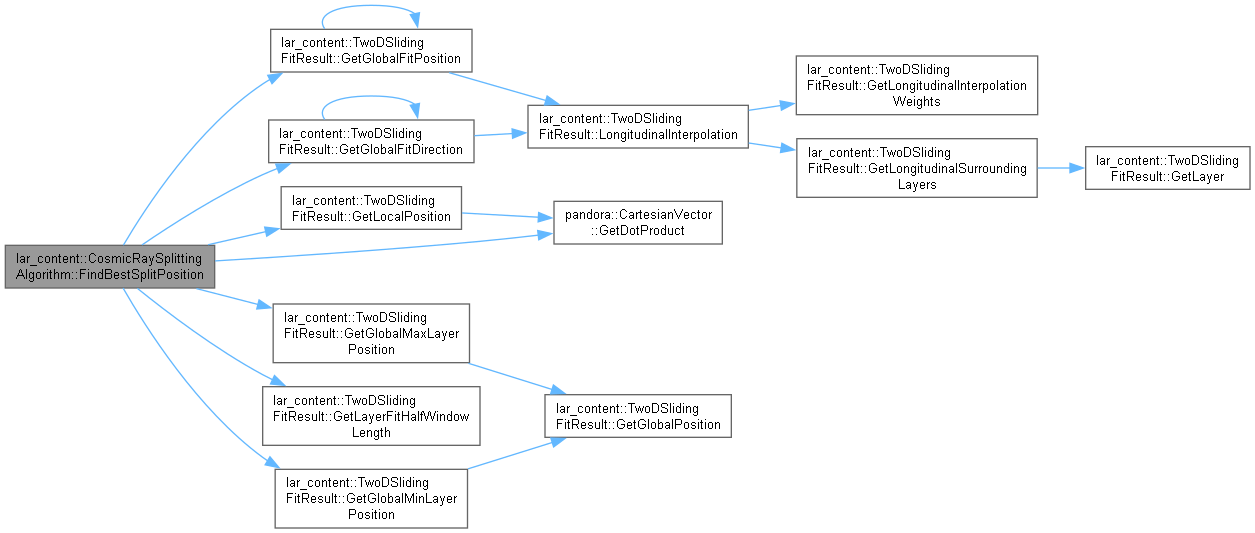

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetCaloHitListsToMove()

void lar_content::CosmicRaySplittingAlgorithm::GetCaloHitListsToMove	(	const pandora::Cluster *const	pBranchCluster,
		const pandora::CartesianVector &	splitPosition,
		const pandora::CartesianVector &	splitDirection1,
		const pandora::CartesianVector &	splitDirection2,
		pandora::CaloHitList &	caloHitList1,
		pandora::CaloHitList &	caloHitList2
	)		const

private

Get lists of calo hits to move in order to split a branch cluster into two segments for case of two replacement clusters.

Parameters

pBranchCluster	the branch cluster
splitPosition	the split position
splitDirection1	the direction of the branch cluster just above the split position
splitDirection2	the direction of the branch cluster just below the split position
caloHitList1	the first segment to be split from the branch cluster
caloHitList2	the second segment to be split from the branch cluster

Definition at line 449 of file CosmicRaySplittingAlgorithm.cc.

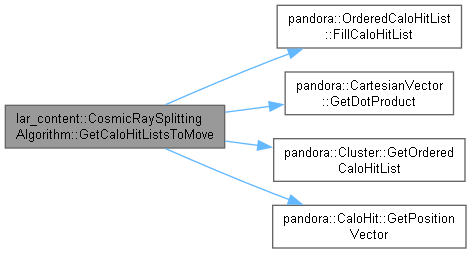

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetCaloHitListToKeep()

StatusCode lar_content::CosmicRaySplittingAlgorithm::GetCaloHitListToKeep	(	const pandora::Cluster *const	pBranchCluster,
		const pandora::CaloHitList &	caloHitListToMove,
		pandora::CaloHitList &	caloHitListToKeep
	)		const

private

Split the branch cluster and add hits to the replacement cluster.

Parameters

pBranchCluster	the branch cluster
caloHitListToMove	the list of hits to be removed from the branch cluster and added to the replacement cluster
caloHitListToKeep	to receive the list of calo hits to keep

Definition at line 491 of file CosmicRaySplittingAlgorithm.cc.

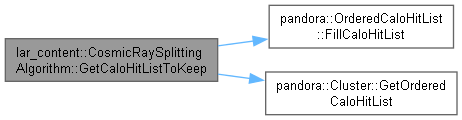

Here is the call graph for this function:

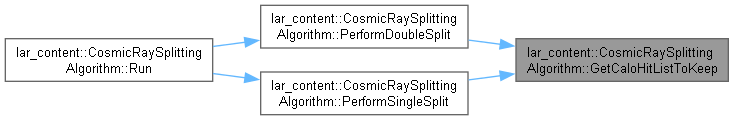

Here is the caller graph for this function:

◆ GetCaloHitListToMove()

void lar_content::CosmicRaySplittingAlgorithm::GetCaloHitListToMove	(	const pandora::Cluster *const	pBranchCluster,
		const pandora::Cluster *const	pReplacementCluster,
		const pandora::CartesianVector &	splitPosition,
		const pandora::CartesianVector &	forwardDirection,
		const pandora::CartesianVector &	backwardDirection,
		pandora::CaloHitList &	caloHitList
	)		const

private

Get list of calo hits to move in order to split a branch cluster into two segments for case of one replacement cluster.

Parameters

pBranchCluster	the branch cluster
pReplacementCluster	the replacement cluster
splitPosition	the split position
forwardDirection	the direction of the branch cluster just above the split position
backwardDirection	the direction of the branch cluster just below the split position
caloHitList	the output hits to be removed from the branch cluster

Definition at line 397 of file CosmicRaySplittingAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetInstanceName()

const std::string & pandora::Process::GetInstanceName ( ) const

inlineinherited

Get the instance name.

Returns: The instance name

Definition at line 109 of file Process.h.

◆ GetListOfCleanClusters()

void lar_content::CosmicRaySplittingAlgorithm::GetListOfCleanClusters	(	const pandora::ClusterList *const	pClusterList,
		pandora::ClusterVector &	clusterVector
	)		const

private

Populate cluster vector with subset of cluster list, containing clusters judged to be clean.

Parameters

pClusterList	address of the cluster list
clusterVector	to receive the populated cluster vector

Definition at line 164 of file CosmicRaySplittingAlgorithm.cc.

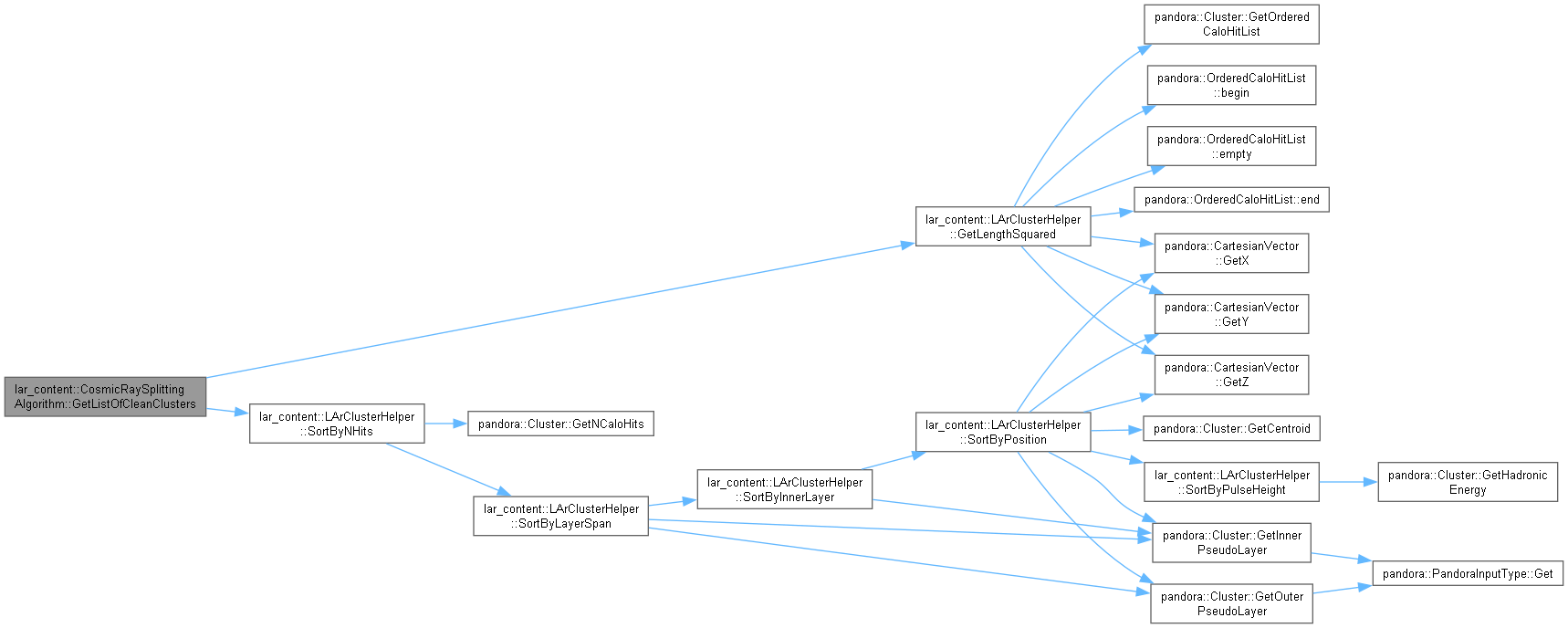

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPandora()

const Pandora & pandora::Process::GetPandora ( ) const

inlineinherited

Get the associated pandora instance.

Returns: the associated pandora instance

Definition at line 116 of file Process.h.

◆ GetType()

const std::string & pandora::Process::GetType ( ) const

inlineinherited

Get the type.

Returns: The type

Definition at line 102 of file Process.h.

◆ IdentifyCrossedTracks()

bool lar_content::CosmicRaySplittingAlgorithm::IdentifyCrossedTracks	(	const pandora::Cluster *const	pBranchCluster,
		const pandora::Cluster *const	pReplacementCluster1,
		const pandora::Cluster *const	pReplacementCluster2,
		const pandora::CartesianVector &	splitPosition
	)		const

private

Identify crossed tracks formed from the branch cluster and its replacement cluster.

Parameters

pBranchCluster	the branch cluster
pReplacementCluster1	the first replacement cluster
pReplacementCluster2	the second replacement cluster
splitPosition	the split position

Definition at line 474 of file CosmicRaySplittingAlgorithm.cc.

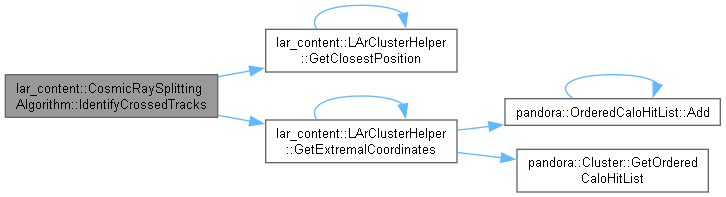

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Initialize()

StatusCode pandora::Process::Initialize ( )

inlineprotectedvirtualinherited

Perform any operations that must occur after reading settings, but before running the process.

Reimplemented in lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, EventReadingAlgorithm, and EventWritingAlgorithm.

Definition at line 126 of file Process.h.

Here is the caller graph for this function:

◆ PerformDoubleSplit()

StatusCode lar_content::CosmicRaySplittingAlgorithm::PerformDoubleSplit	(	const pandora::Cluster *const	pBranchCluster,
		const pandora::Cluster *const	pReplacementCluster1,
		const pandora::Cluster *const	pReplacementCluster2,
		const pandora::CartesianVector &	splitPosition,
		const pandora::CartesianVector &	splitDirection1,
		const pandora::CartesianVector &	splitDirection2
	)		const

private

Split a branch cluster for case of two replacement clusters.

Parameters

pBranchCluster	the branch cluster
pReplacementCluster1	the first replacement cluster
pReplacementCluster2	the second replacement cluster
splitPosition	the split position
splitDirection1	the direction of the branch cluster just above the split position
splitDirection2	the direction of the branch cluster just below the split position

Definition at line 371 of file CosmicRaySplittingAlgorithm.cc.

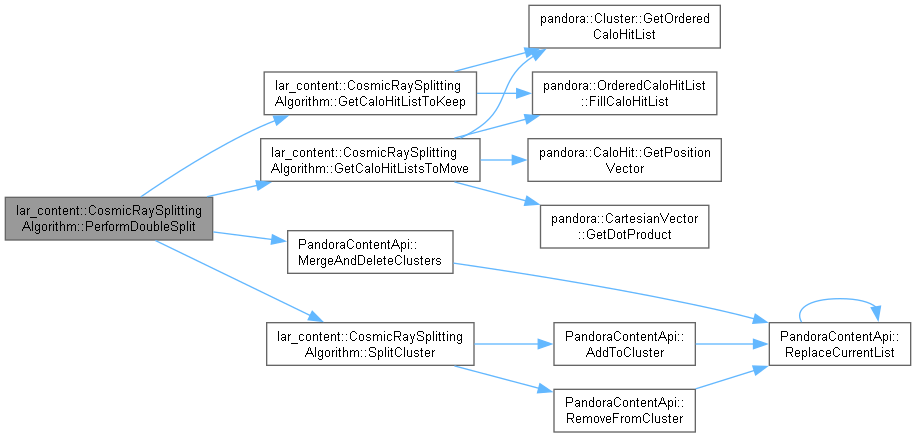

Here is the call graph for this function:

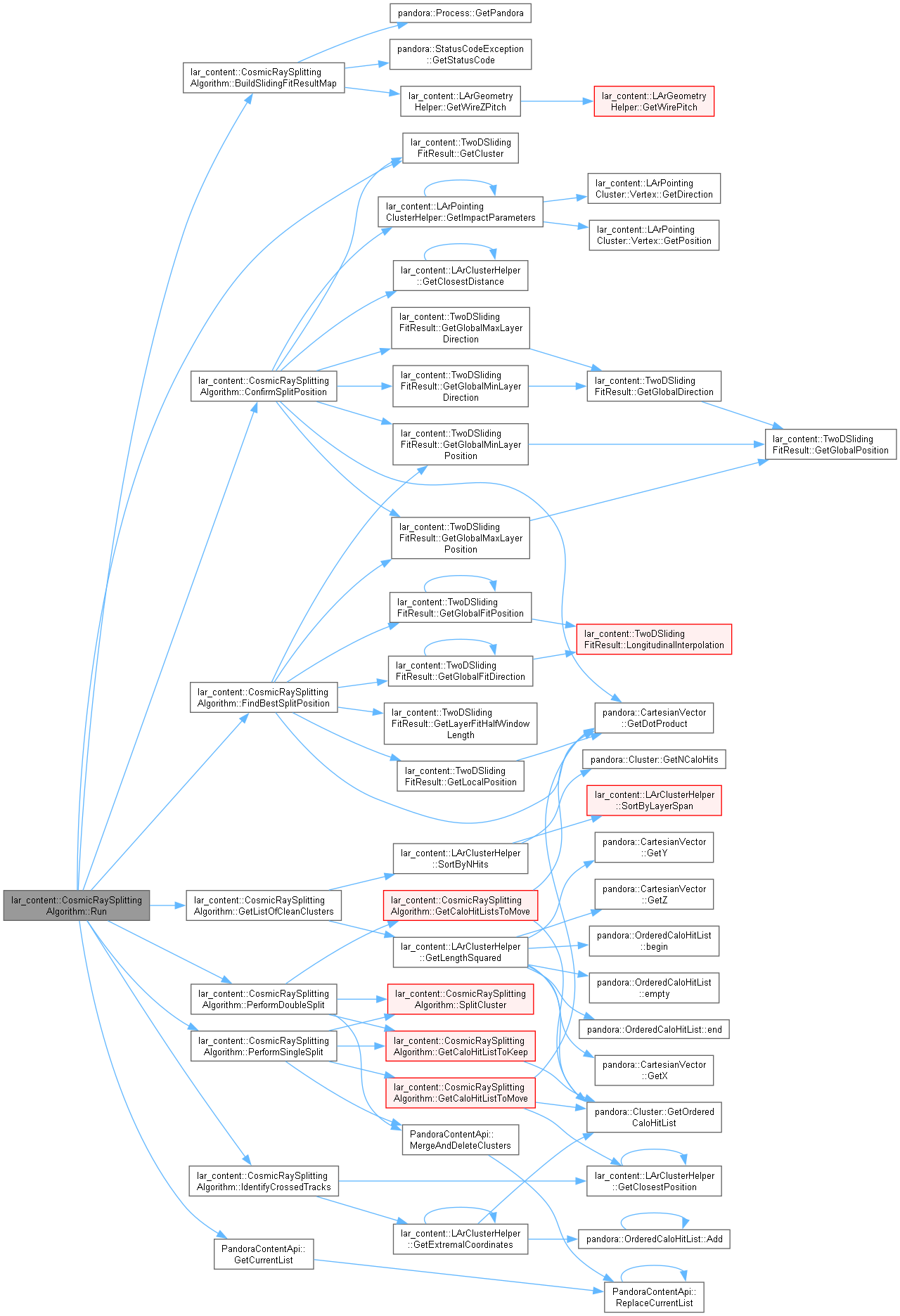

Here is the caller graph for this function:

◆ PerformSingleSplit()

StatusCode lar_content::CosmicRaySplittingAlgorithm::PerformSingleSplit	(	const pandora::Cluster *const	pBranchCluster,
		const pandora::Cluster *const	pReplacementCluster,
		const pandora::CartesianVector &	splitPosition,
		const pandora::CartesianVector &	forwardDirection,
		const pandora::CartesianVector &	backwardDirection
	)		const

private

Split a branch cluster for case of one replacement cluster.

Parameters

pBranchCluster	the branch cluster
pReplacementCluster	the replacement cluster
splitPosition	the split position
forwardDirection	the direction of the branch cluster just above the split position
backwardDirection	the direction of the branch cluster just below the split position

Definition at line 354 of file CosmicRaySplittingAlgorithm.cc.

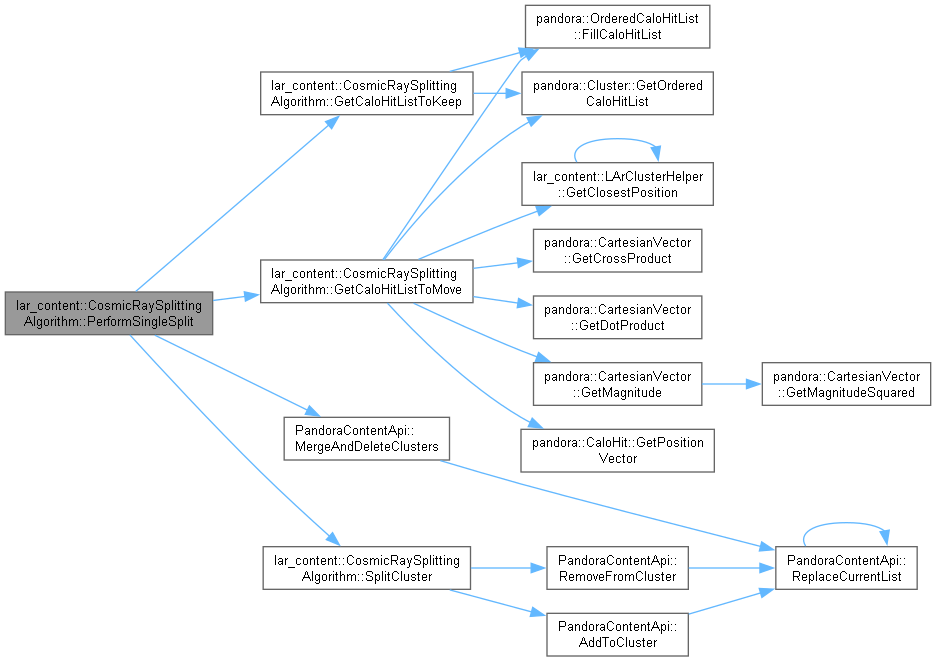

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReadSettings()

StatusCode lar_content::CosmicRaySplittingAlgorithm::ReadSettings ( const pandora::TiXmlHandle xmlHandle )

privatevirtual

Read the algorithm settings.

Parameters

xmlHandle the relevant xml handle

Implements pandora::Process.

Definition at line 531 of file CosmicRaySplittingAlgorithm.cc.

Here is the call graph for this function:

◆ RegisterDetails()

StatusCode pandora::Process::RegisterDetails	(	const Pandora *const	pPandora,
		const std::string &	type,
		const std::string &	instanceName
	)

inlineprotectedinherited

Register i) the pandora instance that will run the process and ii) the process type.

Parameters

pPandora	address of the pandora object that will run the process
type	the process type
instanceName	the process instance name

Definition at line 146 of file Process.h.

Here is the caller graph for this function:

◆ Reset()

StatusCode pandora::Process::Reset ( )

inlineprotectedvirtualinherited

Perform any operations when pandora is reset, typically at the end of each event.

Reimplemented in lar_content::MasterAlgorithm, lar_content::PostProcessingAlgorithm, and lar_content::PreProcessingAlgorithm.

Definition at line 133 of file Process.h.

Here is the caller graph for this function:

◆ Run()

StatusCode lar_content::CosmicRaySplittingAlgorithm::Run ( )

privatevirtual

Run the algorithm.

Implements pandora::Algorithm.

Definition at line 36 of file CosmicRaySplittingAlgorithm.cc.

Here is the call graph for this function:

◆ SplitCluster()

StatusCode lar_content::CosmicRaySplittingAlgorithm::SplitCluster	(	const pandora::Cluster *const	pBranchCluster,
		const pandora::Cluster *const	pReplacementCluster,
		const pandora::CaloHitList &	caloHitListToMove
	)		const

private

Split the branch cluster and add hits to the replacement cluster.

Parameters

pBranchCluster	the branch cluster
pReplacementCluster	the replacement cluster
caloHitListToMove	the list of hits to be removed from the branch cluster and added to the replacement cluster

Definition at line 513 of file CosmicRaySplittingAlgorithm.cc.

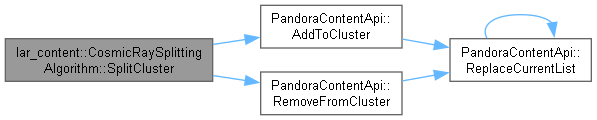

Here is the call graph for this function:

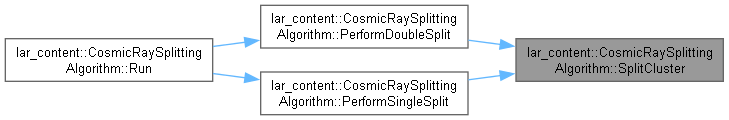

Here is the caller graph for this function:

Member Data Documentation

◆ m_clusterMinLength

float lar_content::CosmicRaySplittingAlgorithm::m_clusterMinLength

private

minimum length of clusters for this algorithm

Definition at line 161 of file CosmicRaySplittingAlgorithm.h.

◆ m_halfWindowLayers

unsigned int lar_content::CosmicRaySplittingAlgorithm::m_halfWindowLayers

private

number of layers to use for half-window of sliding fit

Definition at line 162 of file CosmicRaySplittingAlgorithm.h.

◆ m_instanceName

std::string pandora::Process::m_instanceName

protectedinherited

The process instance name.

Definition at line 89 of file Process.h.

◆ m_maxCosSplittingAngle

float lar_content::CosmicRaySplittingAlgorithm::m_maxCosSplittingAngle

private

smallest scatter angle allowed when splitting cluster

Definition at line 164 of file CosmicRaySplittingAlgorithm.h.

◆ m_maxLongitudinalDisplacement

float lar_content::CosmicRaySplittingAlgorithm::m_maxLongitudinalDisplacement

private

maximum longitudinal displacement of associated clusters

Definition at line 167 of file CosmicRaySplittingAlgorithm.h.

◆ m_maxLongitudinalDisplacementSquared

float lar_content::CosmicRaySplittingAlgorithm::m_maxLongitudinalDisplacementSquared

private

longitudinal displacement squared

Definition at line 168 of file CosmicRaySplittingAlgorithm.h.

◆ m_maxTransverseDisplacement

float lar_content::CosmicRaySplittingAlgorithm::m_maxTransverseDisplacement

private

maximum transverse displacement of associated clusters

Definition at line 166 of file CosmicRaySplittingAlgorithm.h.

◆ m_minCosMergingAngle

float lar_content::CosmicRaySplittingAlgorithm::m_minCosMergingAngle

private

largest relative angle allowed when merging clusters

Definition at line 165 of file CosmicRaySplittingAlgorithm.h.

◆ m_pPandora

const Pandora* pandora::Process::m_pPandora

protectedinherited

The pandora object that will run the process.

Definition at line 87 of file Process.h.

◆ m_samplingPitch

float lar_content::CosmicRaySplittingAlgorithm::m_samplingPitch

private

sampling pitch for walking along sliding linear fit

Definition at line 163 of file CosmicRaySplittingAlgorithm.h.

◆ m_type

std::string pandora::Process::m_type

protectedinherited

The process type.

Definition at line 88 of file Process.h.

The documentation for this class was generated from the following files:

LArContent/larpandoracontent/LArTwoDReco/LArCosmicRay/CosmicRaySplittingAlgorithm.h
LArContent/larpandoracontent/LArTwoDReco/LArCosmicRay/CosmicRaySplittingAlgorithm.cc

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ CosmicRaySplittingAlgorithm()

Member Function Documentation

◆ BuildSlidingFitResultMap()

◆ ConfirmSplitPosition()

◆ FindBestSplitPosition()

◆ GetCaloHitListsToMove()

◆ GetCaloHitListToKeep()

◆ GetCaloHitListToMove()

◆ GetInstanceName()

◆ GetListOfCleanClusters()

◆ GetPandora()

◆ GetType()

◆ IdentifyCrossedTracks()

◆ Initialize()

◆ PerformDoubleSplit()

◆ PerformSingleSplit()

◆ ReadSettings()

◆ RegisterDetails()

◆ Reset()

◆ Run()

◆ SplitCluster()

Member Data Documentation

◆ m_clusterMinLength

◆ m_halfWindowLayers

◆ m_instanceName

◆ m_maxCosSplittingAngle

◆ m_maxLongitudinalDisplacement

◆ m_maxLongitudinalDisplacementSquared

◆ m_maxTransverseDisplacement

◆ m_minCosMergingAngle

◆ m_pPandora

◆ m_samplingPitch

◆ m_type
