TransverseAssociationAlgorithm class. More...

#include "TransverseAssociationAlgorithm.h"

Inheritance diagram for lar_content::TransverseAssociationAlgorithm:

[legend]

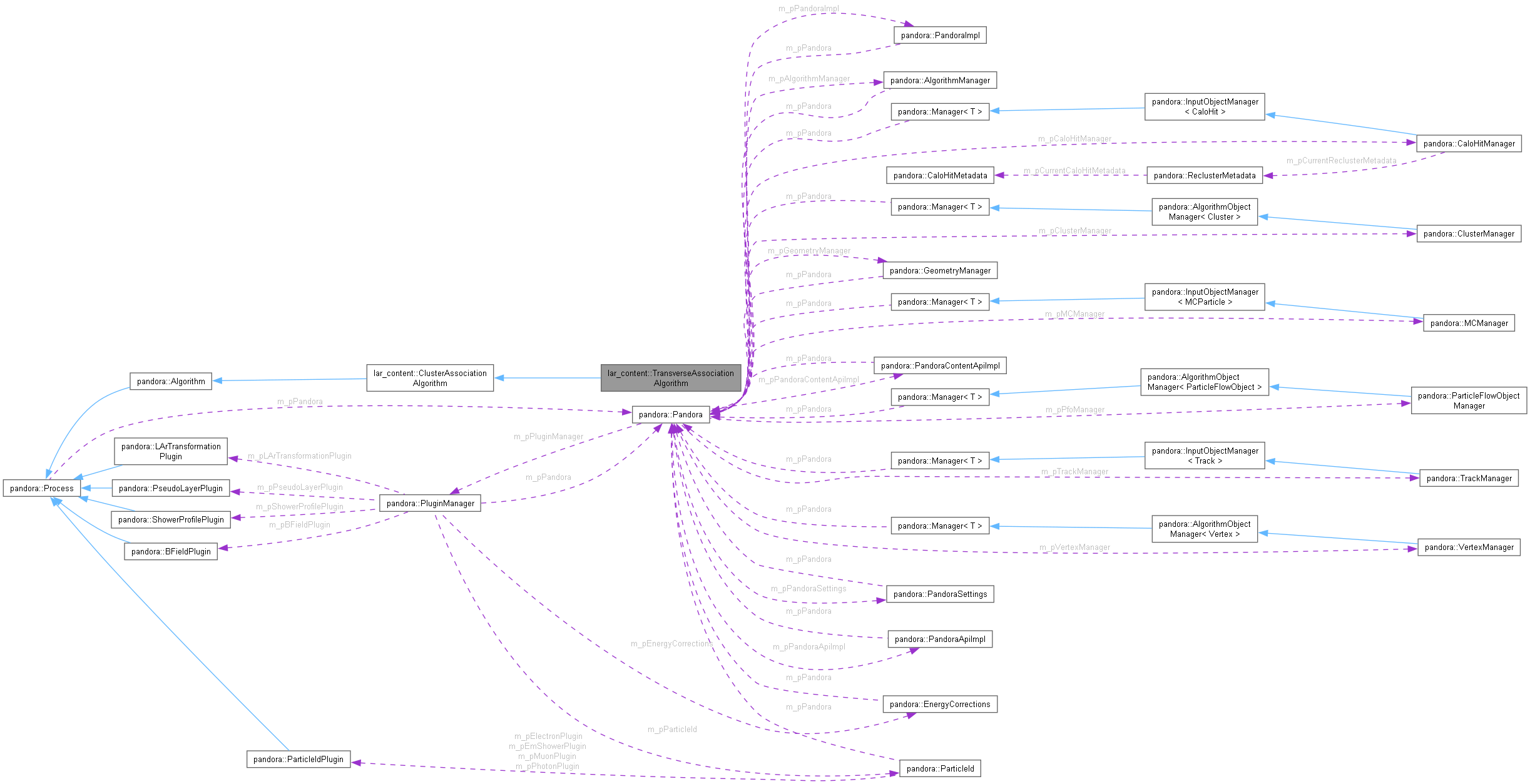

Collaboration diagram for lar_content::TransverseAssociationAlgorithm:

[legend]

Classes
class	LArTransverseCluster
	LArTransverseCluster class. More...

Public Member Functions
	TransverseAssociationAlgorithm ()
	Default constructor.

const std::string &	GetType () const
	Get the type.

const std::string &	GetInstanceName () const
	Get the instance name.

const Pandora &	GetPandora () const
	Get the associated pandora instance.

Protected Types
typedef std::unordered_map< const pandora::Cluster *, ClusterAssociation >	ClusterAssociationMap

Protected Member Functions
virtual pandora::StatusCode	Run ()
	Run the algorithm.

virtual StatusCode	Initialize ()
	Perform any operations that must occur after reading settings, but before running the process.

virtual StatusCode	Reset ()
	Perform any operations when pandora is reset, typically at the end of each event.

StatusCode	RegisterDetails (const Pandora *const pPandora, const std::string &type, const std::string &instanceName)
	Register i) the pandora instance that will run the process and ii) the process type.

Protected Attributes
const Pandora *	m_pPandora
	The pandora object that will run the process.

std::string	m_type
	The process type.

std::string	m_instanceName
	The process instance name.

Private Types
typedef std::vector< LArTransverseCluster * >	TransverseClusterList

typedef KDTreeLinkerAlgo< const pandora::CaloHit *, 2 >	HitKDTree2D

typedef KDTreeNodeInfoT< const pandora::CaloHit *, 2 >	HitKDNode2D

typedef std::vector< HitKDNode2D >	HitKDNode2DList

typedef std::unordered_map< const pandora::Cluster *, pandora::ClusterSet >	ClusterToClustersMap

typedef std::unordered_map< const pandora::CaloHit , const pandora::Cluster >	HitToClusterMap

Private Member Functions
pandora::StatusCode	ReadSettings (const pandora::TiXmlHandle xmlHandle)
	Read the algorithm settings.

void	GetListOfCleanClusters (const pandora::ClusterList *const pClusterList, pandora::ClusterVector &clusterVector) const
	Populate cluster vector with subset of cluster list, containing clusters judged to be clean.

void	PopulateClusterAssociationMap (const pandora::ClusterVector &clusterVector, ClusterAssociationMap &clusterAssociationMap) const
	Populate the cluster association map.

bool	IsExtremalCluster (const bool isForward, const pandora::Cluster const pCurrentCluster, const pandora::Cluster const pTestCluster) const
	Determine which of two clusters is extremal.

void	GetNearbyClusterMap (const pandora::ClusterVector &allClusters, ClusterToClustersMap &nearbyClusters) const
	Use a kd-tree to obtain details of all nearby cluster combinations.

void	SortInputClusters (const pandora::ClusterVector &inputClusters, pandora::ClusterVector &shortClusters, pandora::ClusterVector &transverseMediumClusters, pandora::ClusterVector &longitudinalMediumClusters, pandora::ClusterVector &longClusters) const
	Separate input clusters by length.

void	FillReducedAssociationMap (const ClusterToClustersMap &nearbyClusters, const pandora::ClusterVector &firstVector, const pandora::ClusterVector &secondVector, ClusterAssociationMap &clusterAssociationMap) const
	Form a reduced set of associations between two input lists of clusters.

void	FillAssociationMap (const ClusterToClustersMap &nearbyClusters, const pandora::ClusterVector &firstVector, const pandora::ClusterVector &secondVector, ClusterAssociationMap &firstAssociationMap, ClusterAssociationMap &secondAssociationMap) const
	Form associations between two input lists of cluster.

void	FillTransverseClusterList (const ClusterToClustersMap &nearbyClusters, const pandora::ClusterVector &inputClusters, const ClusterAssociationMap &inputAssociationMap, TransverseClusterList &transverseClusterList) const
	Create transverse cluster objects, these are protoclusters with a direction and inner/outer vertices.

void	FillTransverseAssociationMap (const ClusterToClustersMap &nearbyClusters, const TransverseClusterList &transverseClusterList, const ClusterAssociationMap &transverseAssociationMap, ClusterAssociationMap &clusterAssociationMap) const
	Form associations between transverse cluster objects.

void	GetAssociatedClusters (const ClusterToClustersMap &nearbyClusters, const pandora::Cluster *const pCluster, const ClusterAssociationMap &inputAssociationMap, pandora::ClusterVector &associatedClusters) const
	Find the clusters that are transversely associated with a target cluster.

bool	IsAssociated (const bool isForward, const pandora::Cluster const pCluster1, const pandora::Cluster const pCluster2, const ClusterToClustersMap &nearbyClusters) const
	Determine whether clusters are association.

bool	IsTransverseAssociated (const pandora::Cluster const pCluster1, const pandora::Cluster const pCluster2, const ClusterToClustersMap &nearbyClusters) const
	Determine whether two clusters are within the same cluster window.

bool	IsTransverseAssociated (const LArTransverseCluster const pTransverseCluster1, const LArTransverseCluster const pTransverseCluster2, const ClusterToClustersMap &nearbyClusters) const
	Determine whether two transverse clusters are associated.

bool	IsTransverseAssociated (const LArTransverseCluster *const pTransverseCluster, const pandora::CartesianVector &testPosition) const
	Determine whether one transverse cluster is associated with the vertex from a second transverse cluster.

bool	IsOverlapping (const pandora::Cluster const pCluster1, const pandora::Cluster const pCluster2) const
	Determine whether two clusters are overlapping.

float	GetTransverseSpan (const pandora::Cluster *const pCluster) const
	Calculate the overall span in X for a clusters.

float	GetLongitudinalSpan (const pandora::Cluster *const pCluster) const
	Calculate the overall span in Z for a clusters.

float	GetTransverseSpan (const pandora::Cluster *const pCluster, const pandora::ClusterVector &associatedClusters) const
	Calculate the overall span in X for a set of clusters.

void	GetExtremalCoordinatesX (const pandora::Cluster *const pCluster, float &minX, float &maxX) const
	Get minimum and maximum X coordinates for a given cluster.

void	GetExtremalCoordinatesZ (const pandora::Cluster *const pCluster, float &minZ, float &maxZ) const
	Get minimum and maximum Z coordinates for a given cluster.

void	GetExtremalCoordinatesXZ (const pandora::Cluster *const pCluster, const bool useX, float &minXZ, float &maxXZ) const
	Get minimum and maximum X or Z coordinates for a given cluster.

void	GetExtremalCoordinatesX (const pandora::Cluster *const pCluster, pandora::CartesianVector &innerCoordinate, pandora::CartesianVector &outerCoordinate) const
	Get extremal 2D coordinates for a given cluster (ordered by X)

void	FillReducedAssociationMap (const ClusterAssociationMap &inputAssociationMap, ClusterAssociationMap &outputAssociationMap) const
	Remove double-counting from association map.

void	FillReducedAssociationMap (const ClusterAssociationMap &firstAssociationMap, const ClusterAssociationMap &secondAssociationMap, const ClusterAssociationMap &secondAssociationMapSwapped, ClusterAssociationMap &clusterAssociationMap) const
	Use one map to block associations from another map.

void	FillSymmetricAssociationMap (const ClusterAssociationMap &inputAssociationMap, ClusterAssociationMap &outputAssociationMap) const
	Symmetrise an association map.

void	FinalizeClusterAssociationMap (const ClusterAssociationMap &inputAssociationMap, ClusterAssociationMap &outputAssociationMap) const
	Symmetrise and then remove double-counting from an association map.

void	UnambiguousPropagation (const pandora::Cluster *const pCluster, const bool isForward, ClusterAssociationMap &clusterAssociationMap) const
	Unambiguous propagation.

void	AmbiguousPropagation (const pandora::Cluster *const pCluster, const bool isForward, ClusterAssociationMap &clusterAssociationMap) const
	Ambiguous propagation.

void	UpdateForUnambiguousMerge (const pandora::Cluster const pClusterToEnlarge, const pandora::Cluster const pClusterToDelete, const bool isForwardMerge, ClusterAssociationMap &clusterAssociationMap) const
	Update cluster association map to reflect an unambiguous cluster merge.

void	UpdateForAmbiguousMerge (const pandora::Cluster *const pCluster, ClusterAssociationMap &clusterAssociationMap) const
	Update cluster association map to reflect an ambiguous cluster merge.

void	NavigateAlongAssociations (const ClusterAssociationMap &clusterAssociationMap, const pandora::Cluster const pCluster, const bool isForward, const pandora::Cluster &pExtremalCluster, pandora::ClusterSet &clusterSet) const
	Navigate along cluster associations, from specified cluster, in specified direction.

Private Attributes
float	m_firstLengthCut

float	m_secondLengthCut

float	m_clusterWindow

float	m_clusterAngle

float	m_clusterCosAngle

float	m_clusterTanAngle

float	m_maxTransverseOverlap

float	m_maxProjectedOverlap

float	m_maxLongitudinalOverlap

float	m_transverseClusterMinCosTheta

float	m_transverseClusterMinLength

float	m_transverseClusterMaxDisplacement

float	m_searchRegionX
	Search region, applied to x dimension, for look-up from kd-trees.

float	m_searchRegionZ
	Search region, applied to u/v/w dimension, for look-up from kd-trees.

bool	m_mergeMade

bool	m_resolveAmbiguousAssociations
	Whether to resolve ambiguous associations.

Detailed Description

TransverseAssociationAlgorithm class.

Definition at line 28 of file TransverseAssociationAlgorithm.h.

Member Typedef Documentation

◆ ClusterAssociationMap

typedef std::unordered_map<const pandora::Cluster *, ClusterAssociation> lar_content::ClusterAssociationAlgorithm::ClusterAssociationMap

protectedinherited

Definition at line 43 of file ClusterAssociationAlgorithm.h.

◆ ClusterToClustersMap

typedef std::unordered_map<const pandora::Cluster *, pandora::ClusterSet> lar_content::TransverseAssociationAlgorithm::ClusterToClustersMap

private

Definition at line 100 of file TransverseAssociationAlgorithm.h.

◆ HitKDNode2D

typedef KDTreeNodeInfoT<const pandora::CaloHit *, 2> lar_content::TransverseAssociationAlgorithm::HitKDNode2D

private

Definition at line 97 of file TransverseAssociationAlgorithm.h.

◆ HitKDNode2DList

typedef std::vector<HitKDNode2D> lar_content::TransverseAssociationAlgorithm::HitKDNode2DList

private

Definition at line 98 of file TransverseAssociationAlgorithm.h.

◆ HitKDTree2D

typedef KDTreeLinkerAlgo<const pandora::CaloHit *, 2> lar_content::TransverseAssociationAlgorithm::HitKDTree2D

private

Definition at line 96 of file TransverseAssociationAlgorithm.h.

◆ HitToClusterMap

typedef std::unordered_map<const pandora::CaloHit *, const pandora::Cluster *> lar_content::TransverseAssociationAlgorithm::HitToClusterMap

private

Definition at line 101 of file TransverseAssociationAlgorithm.h.

◆ TransverseClusterList

typedef std::vector<LArTransverseCluster *> lar_content::TransverseAssociationAlgorithm::TransverseClusterList

private

Definition at line 94 of file TransverseAssociationAlgorithm.h.

Constructor & Destructor Documentation

◆ TransverseAssociationAlgorithm()

lar_content::TransverseAssociationAlgorithm::TransverseAssociationAlgorithm ( )

Default constructor.

Definition at line 22 of file TransverseAssociationAlgorithm.cc.

Member Function Documentation

◆ AmbiguousPropagation()

void lar_content::ClusterAssociationAlgorithm::AmbiguousPropagation	(	const pandora::Cluster *const	pCluster,
		const bool	isForward,
		ClusterAssociationMap &	clusterAssociationMap
	)		const

privateinherited

Ambiguous propagation.

Parameters

pCluster	address of the cluster to propagate
isForward	whether propagation direction is forward
clusterAssociationMap	the cluster association map

Definition at line 121 of file ClusterAssociationAlgorithm.cc.

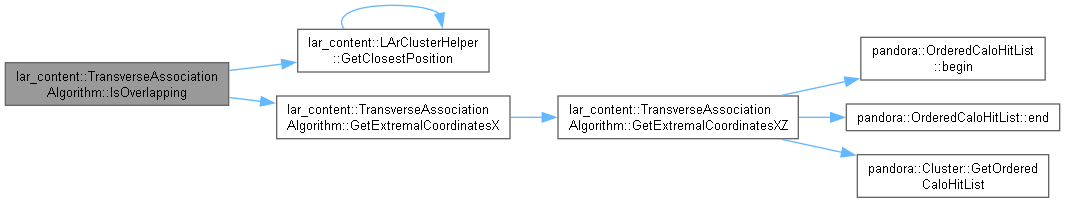

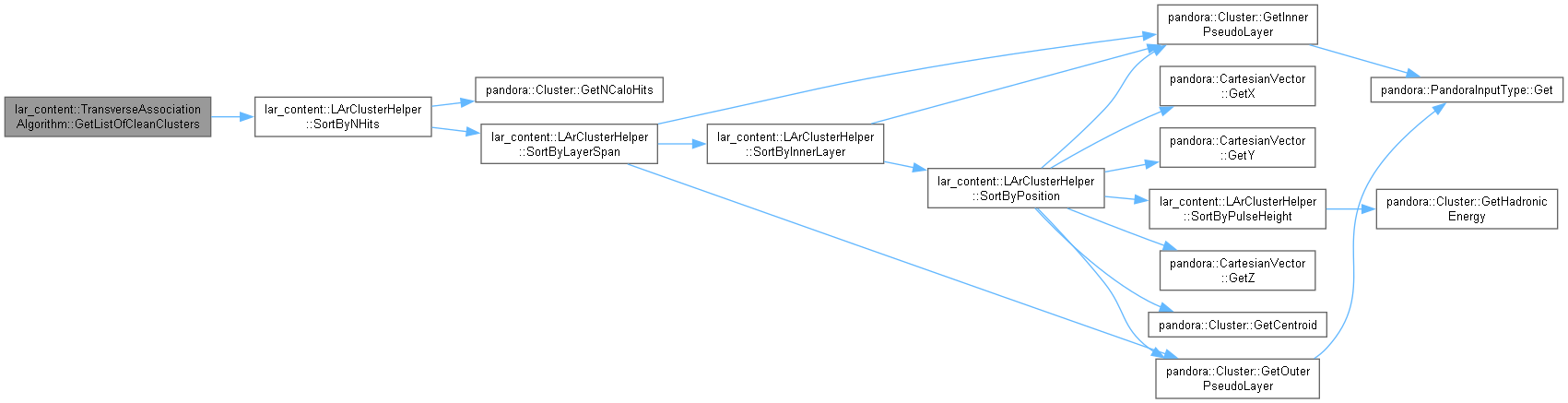

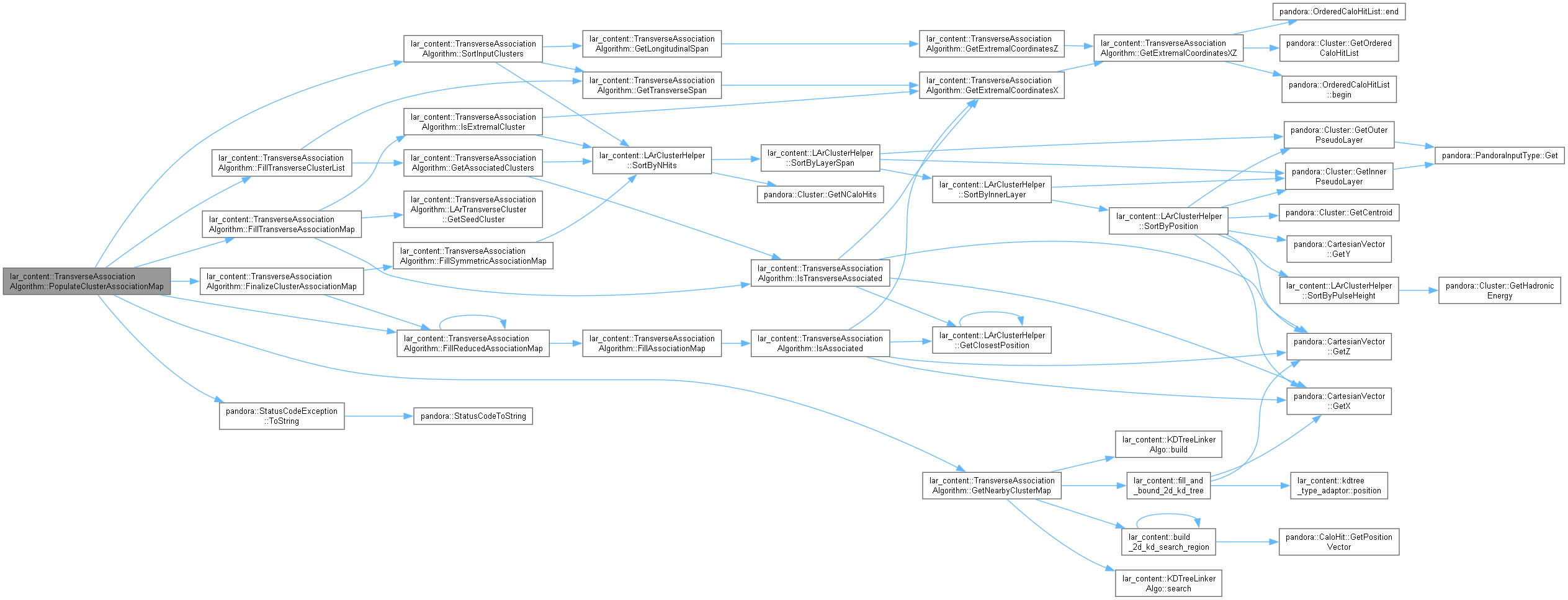

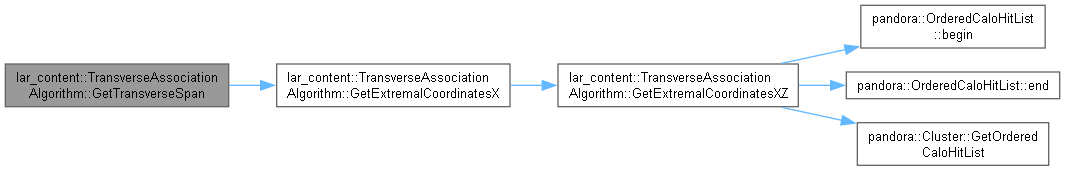

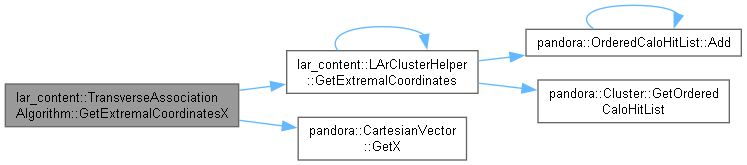

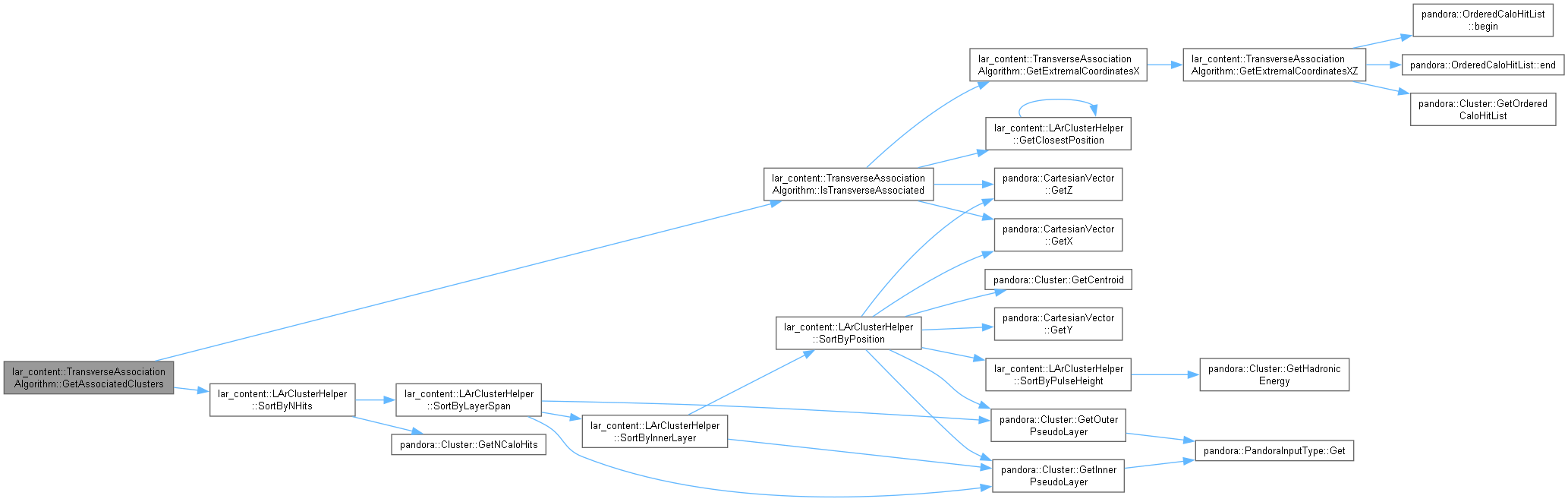

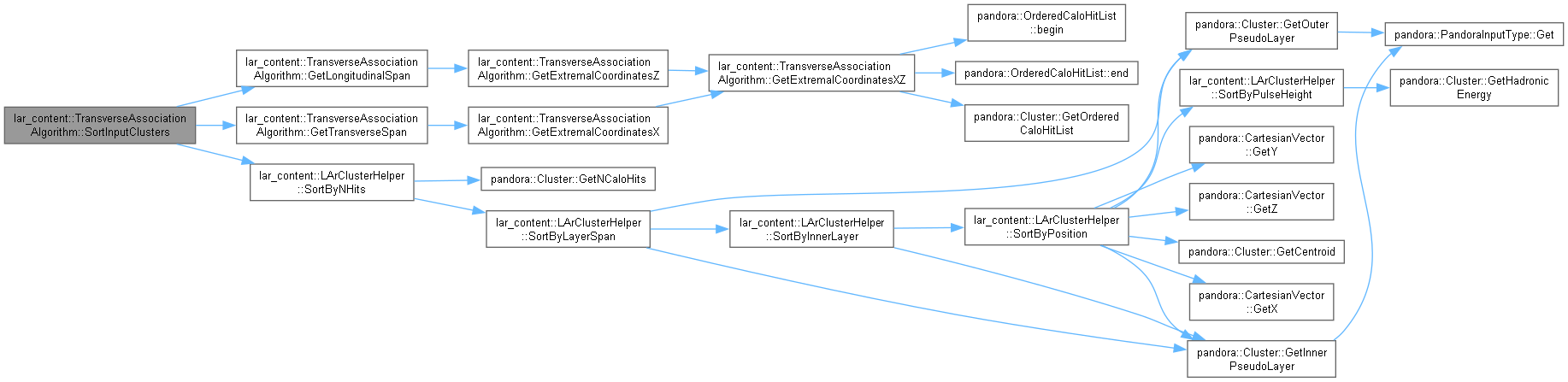

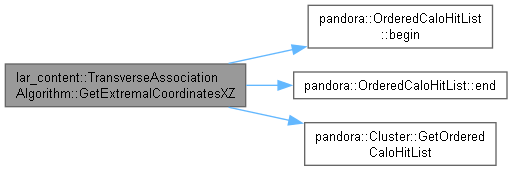

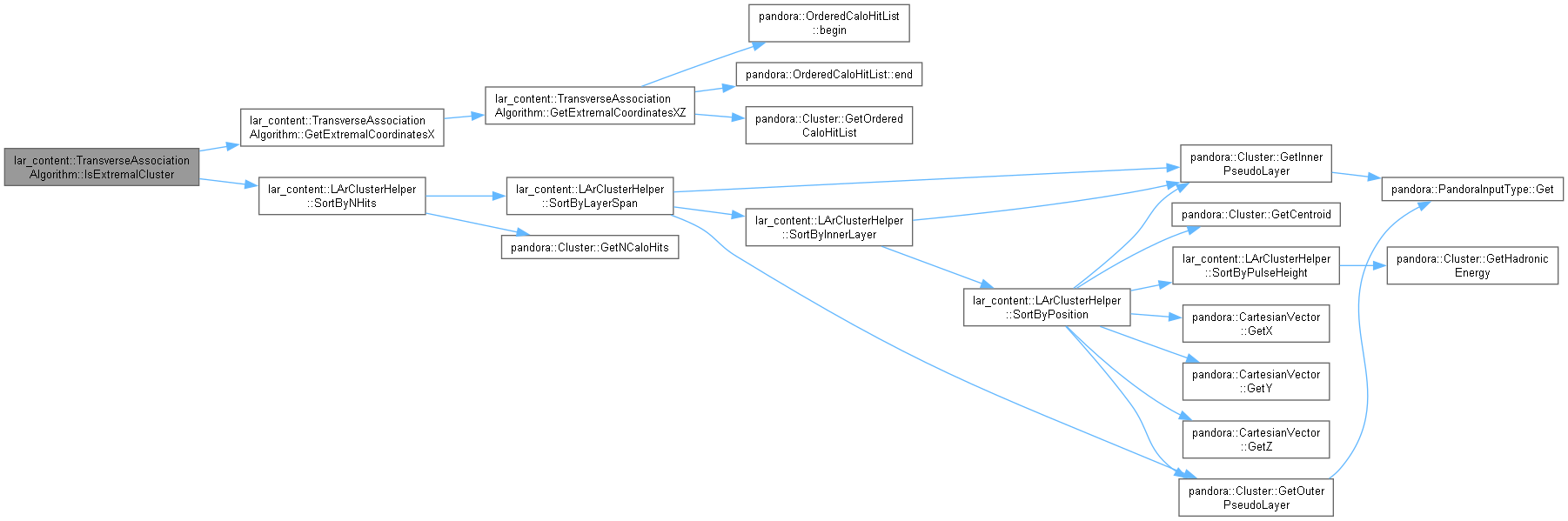

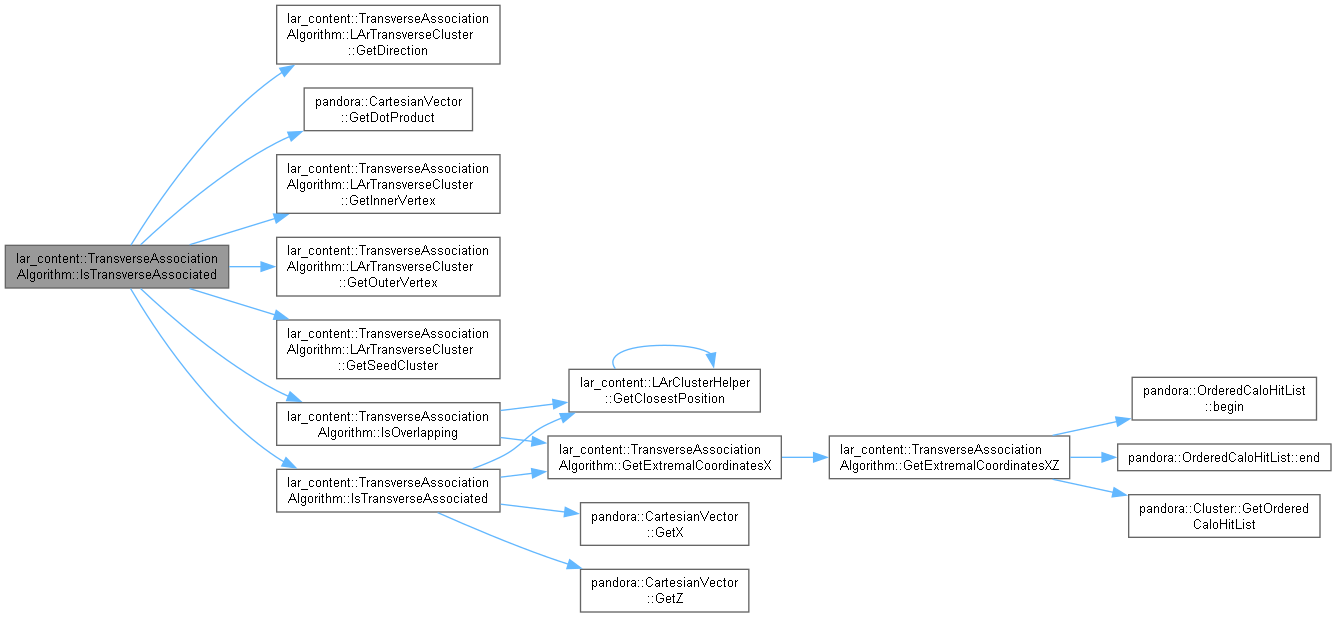

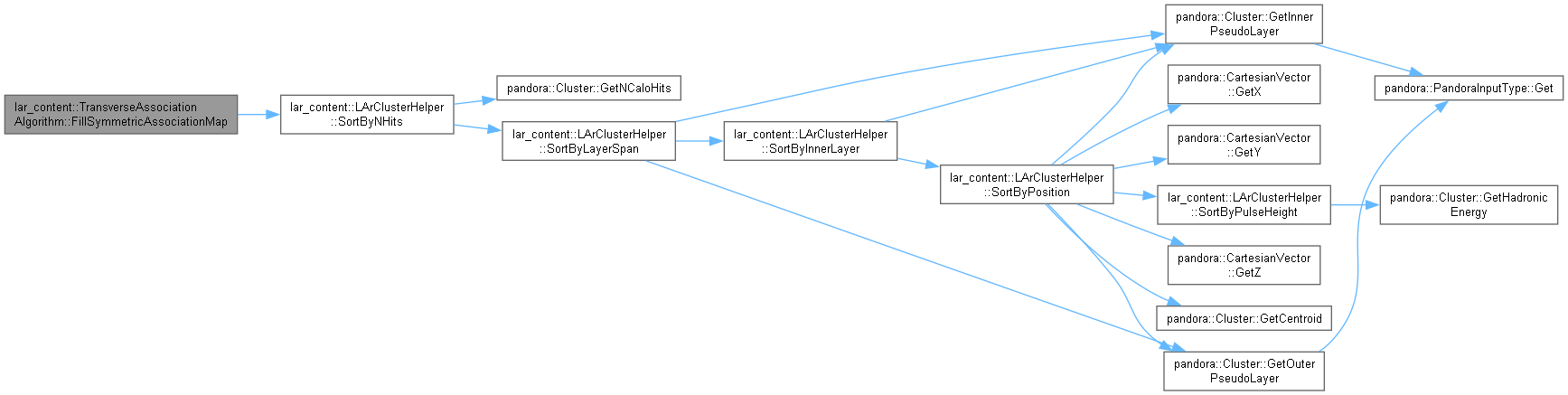

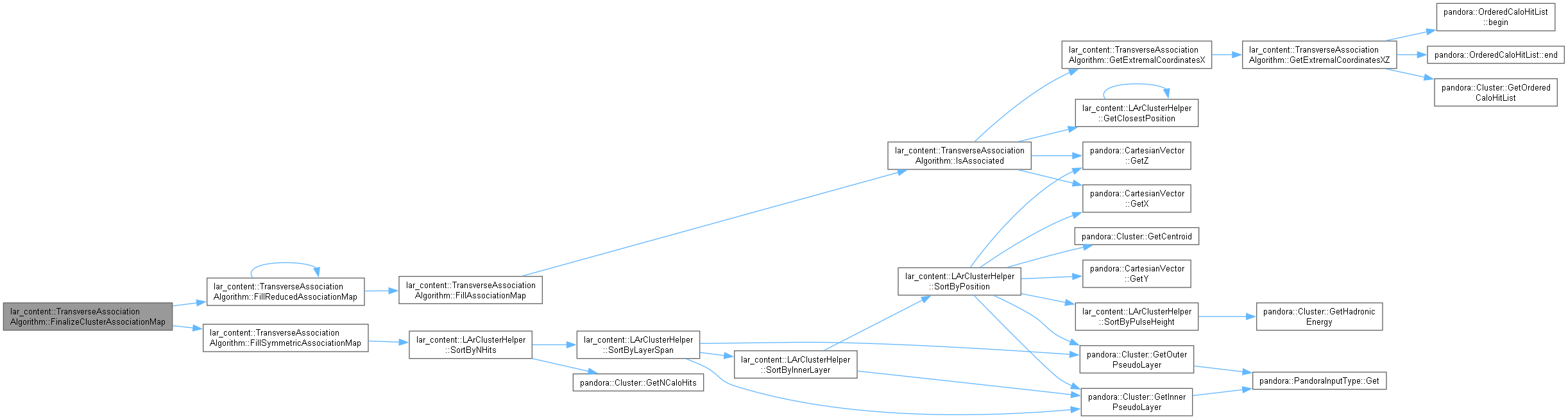

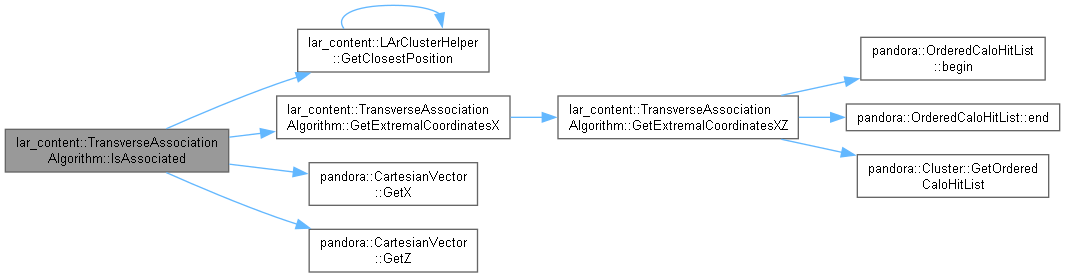

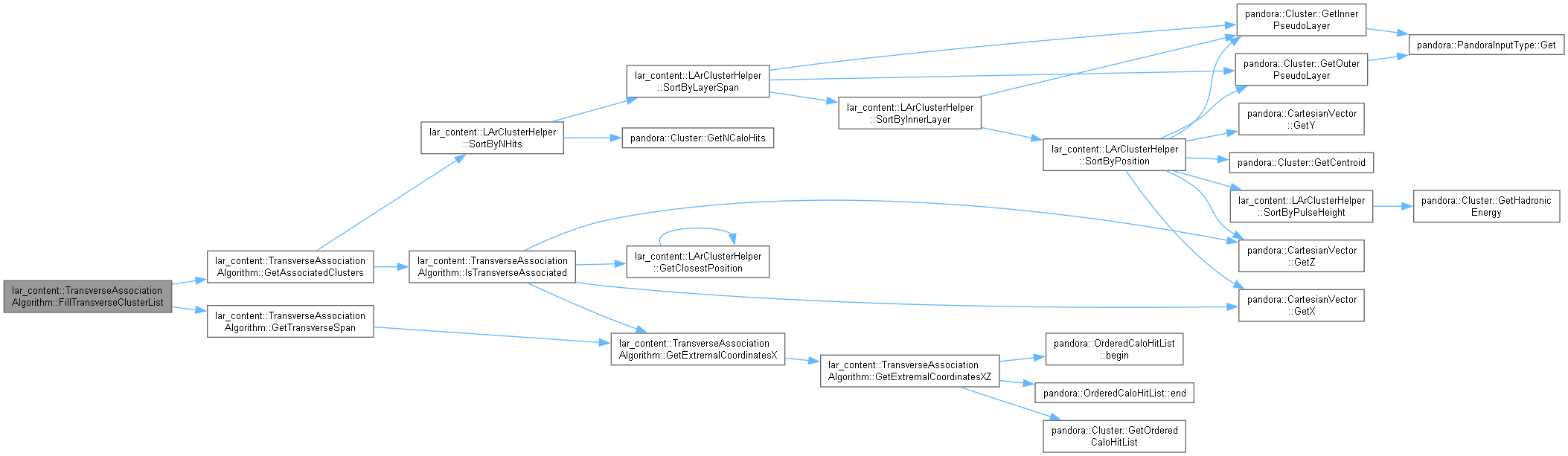

Here is the call graph for this function:

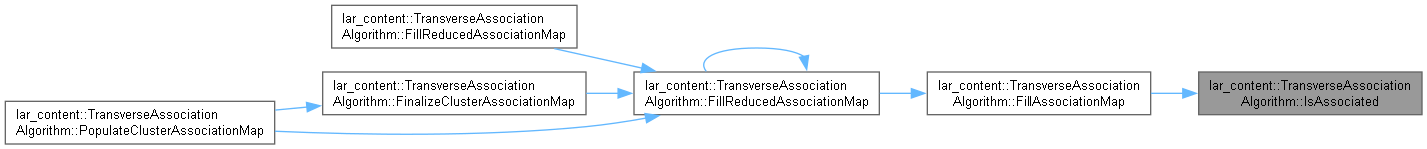

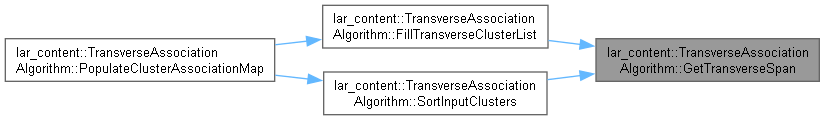

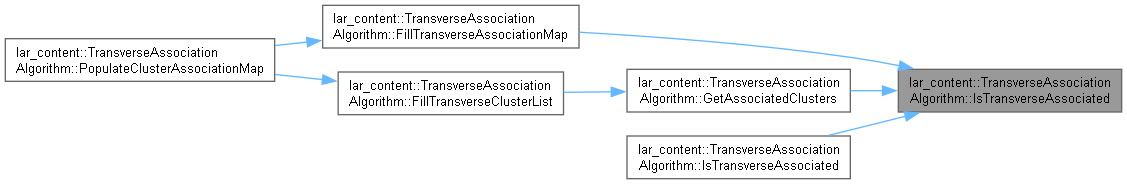

Here is the caller graph for this function:

◆ FillAssociationMap()

void lar_content::TransverseAssociationAlgorithm::FillAssociationMap	(	const ClusterToClustersMap &	nearbyClusters,
		const pandora::ClusterVector &	firstVector,
		const pandora::ClusterVector &	secondVector,
		ClusterAssociationMap &	firstAssociationMap,
		ClusterAssociationMap &	secondAssociationMap
	)		const

private

Form associations between two input lists of cluster.

Parameters

nearbyClusters	the nearby cluster map, extracted via use of a kd-tree
firstVector	the first input vector of clusters
secondVector	the second input vector of clusters
firstAssociationMap	the map of associations between first and second cluster vectors
secondAssociationMap	the reversed map of associations between first and cluster vectors

Definition at line 212 of file TransverseAssociationAlgorithm.cc.

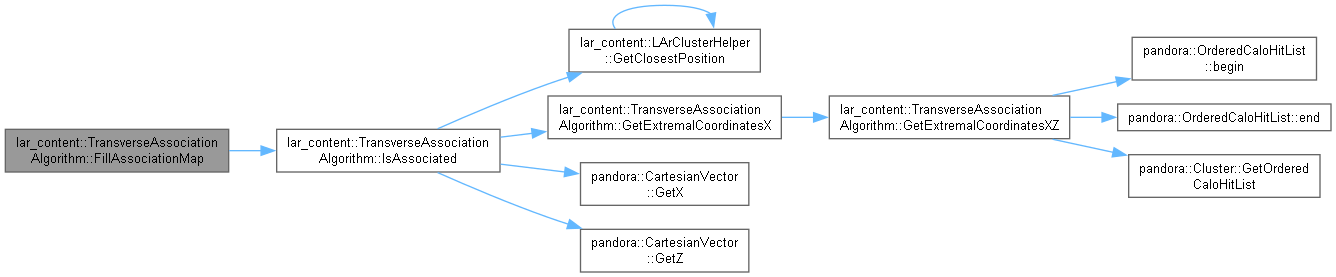

Here is the call graph for this function:

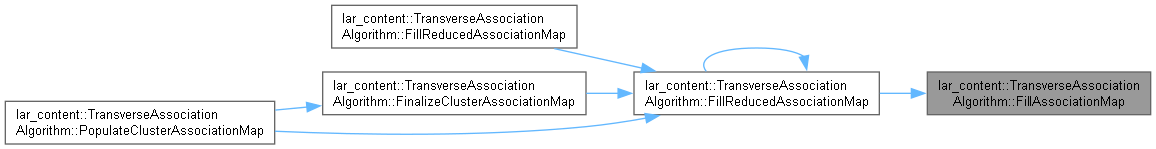

Here is the caller graph for this function:

◆ FillReducedAssociationMap() [1/3]

void lar_content::TransverseAssociationAlgorithm::FillReducedAssociationMap	(	const ClusterAssociationMap &	firstAssociationMap,
		const ClusterAssociationMap &	secondAssociationMap,
		const ClusterAssociationMap &	secondAssociationMapSwapped,
		ClusterAssociationMap &	clusterAssociationMap
	)		const

private

Use one map to block associations from another map.

Parameters

firstAssociationMap	the first association map
secondAssociationMap	the second association map
secondAssociationMap	the second association map reversed
clusterAssociationMap	the outputted association map

Definition at line 600 of file TransverseAssociationAlgorithm.cc.

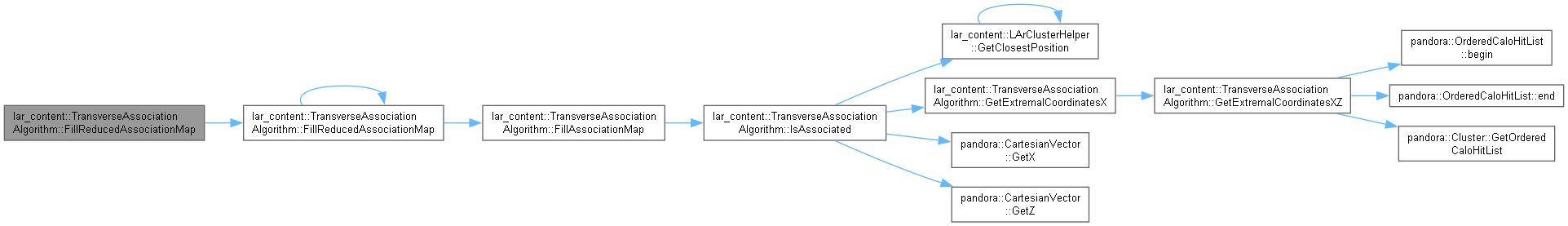

Here is the call graph for this function:

◆ FillReducedAssociationMap() [2/3]

void lar_content::TransverseAssociationAlgorithm::FillReducedAssociationMap	(	const ClusterAssociationMap &	inputAssociationMap,
		ClusterAssociationMap &	outputAssociationMap
	)		const

private

Remove double-counting from association map.

Parameters

inputAssociationMap	the inputted association map
outputAssociationMap	the outputted association map

Definition at line 592 of file TransverseAssociationAlgorithm.cc.

Here is the call graph for this function:

◆ FillReducedAssociationMap() [3/3]

void lar_content::TransverseAssociationAlgorithm::FillReducedAssociationMap	(	const ClusterToClustersMap &	nearbyClusters,
		const pandora::ClusterVector &	firstVector,
		const pandora::ClusterVector &	secondVector,
		ClusterAssociationMap &	clusterAssociationMap
	)		const

private

Form a reduced set of associations between two input lists of clusters.

Parameters

nearbyClusters	the nearby cluster map, extracted via use of a kd-tree
firstVector	the first input vector of clusters
secondVector	the second input vector of clusters
clusterAssociationMap	the output map of associations between clusters

Definition at line 195 of file TransverseAssociationAlgorithm.cc.

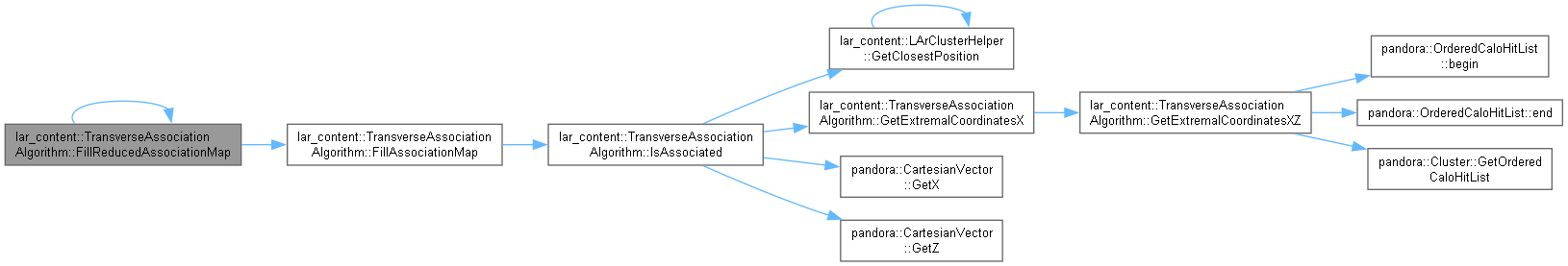

Here is the call graph for this function:

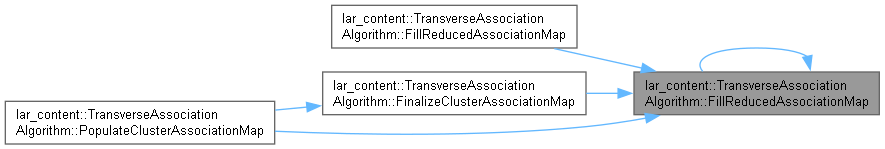

Here is the caller graph for this function:

◆ FillSymmetricAssociationMap()

void lar_content::TransverseAssociationAlgorithm::FillSymmetricAssociationMap	(	const ClusterAssociationMap &	inputAssociationMap,
		ClusterAssociationMap &	outputAssociationMap
	)		const

private

Symmetrise an association map.

Parameters

inputAssociationMap	the inputted association map
outputAssociationMap	the outputted association map

Definition at line 685 of file TransverseAssociationAlgorithm.cc.

Here is the call graph for this function:

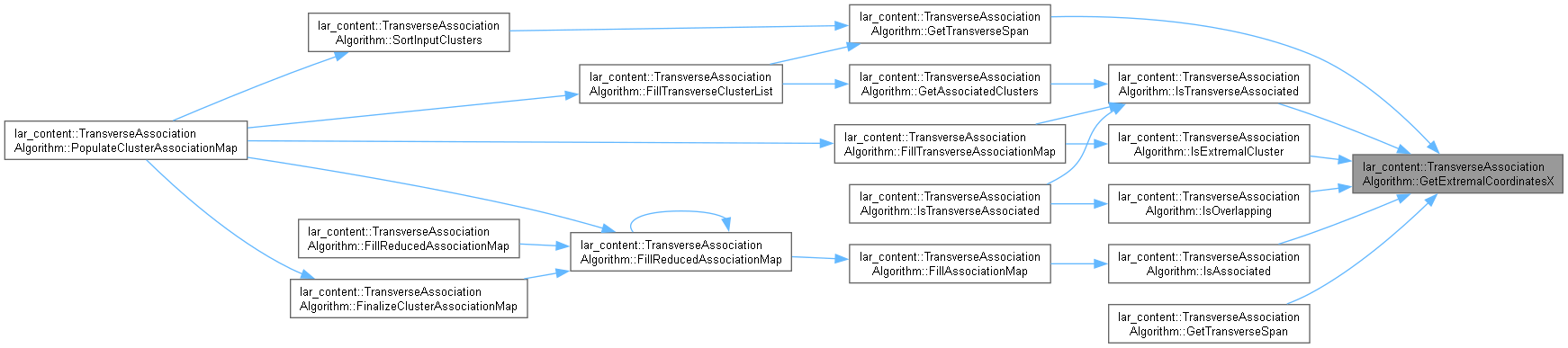

Here is the caller graph for this function:

◆ FillTransverseAssociationMap()

void lar_content::TransverseAssociationAlgorithm::FillTransverseAssociationMap	(	const ClusterToClustersMap &	nearbyClusters,
		const TransverseClusterList &	transverseClusterList,
		const ClusterAssociationMap &	transverseAssociationMap,
		ClusterAssociationMap &	clusterAssociationMap
	)		const

private

Form associations between transverse cluster objects.

Parameters

nearbyClusters	the nearby cluster map, extracted via use of a kd-tree
transverseClusterList	the input vector of transverse cluster objects
transverseAssociationMap	the external map of associations between clusters
clusterAssociationMap	the output map of associations between clusters

Definition at line 262 of file TransverseAssociationAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ FillTransverseClusterList()

void lar_content::TransverseAssociationAlgorithm::FillTransverseClusterList	(	const ClusterToClustersMap &	nearbyClusters,
		const pandora::ClusterVector &	inputClusters,
		const ClusterAssociationMap &	inputAssociationMap,
		TransverseClusterList &	transverseClusterList
	)		const

private

Create transverse cluster objects, these are protoclusters with a direction and inner/outer vertices.

Parameters

nearbyClusters	the nearby cluster map, extracted via use of a kd-tree
inputClusters	the input vector of clusters
inputAssociationMap	the map of associations between input clusters
transverseClusterList	the output vector of transverse cluster objects

Definition at line 243 of file TransverseAssociationAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ FinalizeClusterAssociationMap()

void lar_content::TransverseAssociationAlgorithm::FinalizeClusterAssociationMap	(	const ClusterAssociationMap &	inputAssociationMap,
		ClusterAssociationMap &	outputAssociationMap
	)		const

private

Symmetrise and then remove double-counting from an association map.

Parameters

inputAssociationMap	the inputted association map
outputAssociationMap	the outputted association map

Definition at line 769 of file TransverseAssociationAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetAssociatedClusters()

void lar_content::TransverseAssociationAlgorithm::GetAssociatedClusters	(	const ClusterToClustersMap &	nearbyClusters,
		const pandora::Cluster *const	pCluster,
		const ClusterAssociationMap &	inputAssociationMap,
		pandora::ClusterVector &	associatedClusters
	)		const

private

Find the clusters that are transversely associated with a target cluster.

Parameters

nearbyClusters	the nearby cluster map, extracted via use of a kd-tree
pCluster	the target cluster
inputAssociationMap	the map of associations between clusters
outputClusters	the output vector of clusters transversely associated with target cluster

Definition at line 305 of file TransverseAssociationAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetExtremalCoordinatesX() [1/2]

void lar_content::TransverseAssociationAlgorithm::GetExtremalCoordinatesX	(	const pandora::Cluster *const	pCluster,
		float &	minX,
		float &	maxX
	)		const

private

Get minimum and maximum X coordinates for a given cluster.

Parameters

pCluster	the input cluster
minX	the minimum X position
maxX	the maximum X position

Definition at line 539 of file TransverseAssociationAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetExtremalCoordinatesX() [2/2]

void lar_content::TransverseAssociationAlgorithm::GetExtremalCoordinatesX	(	const pandora::Cluster *const	pCluster,
		pandora::CartesianVector &	innerCoordinate,
		pandora::CartesianVector &	outerCoordinate
	)		const

private

Get extremal 2D coordinates for a given cluster (ordered by X)

Parameters

pCluster	the input cluster
innerCoordinate	the inner coordinate
outerCoordinate	the outer coordinate

Definition at line 580 of file TransverseAssociationAlgorithm.cc.

Here is the call graph for this function:

◆ GetExtremalCoordinatesXZ()

void lar_content::TransverseAssociationAlgorithm::GetExtremalCoordinatesXZ	(	const pandora::Cluster *const	pCluster,
		const bool	useX,
		float &	minXZ,
		float &	maxXZ
	)		const

private

Get minimum and maximum X or Z coordinates for a given cluster.

Parameters

pCluster	the input cluster
useX	calculate extermal coordinates for X (rather than Z)
minXZ	the minimum X or Z position
maxXZ	the maximum X or Z position

Definition at line 553 of file TransverseAssociationAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetExtremalCoordinatesZ()

void lar_content::TransverseAssociationAlgorithm::GetExtremalCoordinatesZ	(	const pandora::Cluster *const	pCluster,
		float &	minZ,
		float &	maxZ
	)		const

private

Get minimum and maximum Z coordinates for a given cluster.

Parameters

pCluster	the input cluster
minZ	the minimum Z position
maxZ	the maximum Z position

Definition at line 546 of file TransverseAssociationAlgorithm.cc.

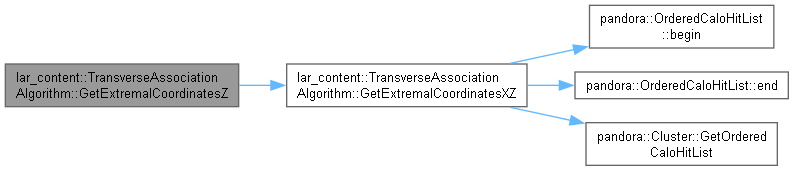

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetInstanceName()

const std::string & pandora::Process::GetInstanceName ( ) const

inlineinherited

Get the instance name.

Returns: The instance name

Definition at line 109 of file Process.h.

◆ GetListOfCleanClusters()

void lar_content::TransverseAssociationAlgorithm::GetListOfCleanClusters	(	const pandora::ClusterList *const	pClusterList,
		pandora::ClusterVector &	clusterVector
	)		const

privatevirtual

Populate cluster vector with subset of cluster list, containing clusters judged to be clean.

Parameters

pClusterList	address of the cluster list
clusterVector	to receive the populated cluster vector

Implements lar_content::ClusterAssociationAlgorithm.

Definition at line 42 of file TransverseAssociationAlgorithm.cc.

Here is the call graph for this function:

◆ GetLongitudinalSpan()

float lar_content::TransverseAssociationAlgorithm::GetLongitudinalSpan ( const pandora::Cluster *const pCluster ) const

private

Calculate the overall span in Z for a clusters.

Parameters

pCluster the target cluster

Definition at line 475 of file TransverseAssociationAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetNearbyClusterMap()

void lar_content::TransverseAssociationAlgorithm::GetNearbyClusterMap	(	const pandora::ClusterVector &	allClusters,
		ClusterToClustersMap &	nearbyClusters
	)		const

private

Use a kd-tree to obtain details of all nearby cluster combinations.

Parameters

allClusters	the list of all clusters
nearbyClusters	to obtain the nearby cluster map

Definition at line 118 of file TransverseAssociationAlgorithm.cc.

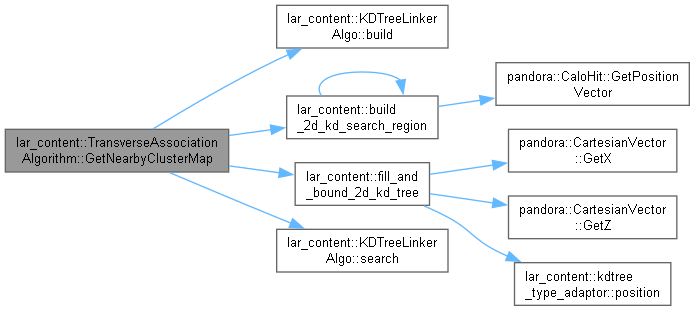

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPandora()

const Pandora & pandora::Process::GetPandora ( ) const

inlineinherited

Get the associated pandora instance.

Returns: the associated pandora instance

Definition at line 116 of file Process.h.

◆ GetTransverseSpan() [1/2]

float lar_content::TransverseAssociationAlgorithm::GetTransverseSpan ( const pandora::Cluster *const pCluster ) const

private

Calculate the overall span in X for a clusters.

Parameters

pCluster the target cluster

Definition at line 463 of file TransverseAssociationAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTransverseSpan() [2/2]

float lar_content::TransverseAssociationAlgorithm::GetTransverseSpan	(	const pandora::Cluster *const	pCluster,
		const pandora::ClusterVector &	associatedClusters
	)		const

private

Calculate the overall span in X for a set of clusters.

Parameters

pCluster	the target cluster
associatedClusters	the vector of associated clusters

Definition at line 487 of file TransverseAssociationAlgorithm.cc.

Here is the call graph for this function:

◆ GetType()

const std::string & pandora::Process::GetType ( ) const

inlineinherited

Get the type.

Returns: The type

Definition at line 102 of file Process.h.

◆ Initialize()

StatusCode pandora::Process::Initialize ( )

inlineprotectedvirtualinherited

Perform any operations that must occur after reading settings, but before running the process.

Reimplemented in lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, EventReadingAlgorithm, and EventWritingAlgorithm.

Definition at line 126 of file Process.h.

Here is the caller graph for this function:

◆ IsAssociated()

bool lar_content::TransverseAssociationAlgorithm::IsAssociated	(	const bool	isForward,
		const pandora::Cluster *const	pCluster1,
		const pandora::Cluster *const	pCluster2,
		const ClusterToClustersMap &	nearbyClusters
	)		const

private

Determine whether clusters are association.

Parameters

isForward	whether the association is forwards or backwards
pCluster1	the first cluster
pCluster2	the second cluster
nearbyClusters	the nearby cluster map, extracted via use of a kd-tree

Returns: boolean

Definition at line 335 of file TransverseAssociationAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsExtremalCluster()

bool lar_content::TransverseAssociationAlgorithm::IsExtremalCluster	(	const bool	isForward,
		const pandora::Cluster *const	pCurrentCluster,
		const pandora::Cluster *const	pTestCluster
	)		const

privatevirtual

Determine which of two clusters is extremal.

Parameters

isForward	whether propagation direction is forward
pCurrentCluster	current extremal cluster
pTestCluster	potential extremal cluster

Returns: boolean

Implements lar_content::ClusterAssociationAlgorithm.

Definition at line 515 of file TransverseAssociationAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsOverlapping()

bool lar_content::TransverseAssociationAlgorithm::IsOverlapping	(	const pandora::Cluster *const	pCluster1,
		const pandora::Cluster *const	pCluster2
	)		const

private

Determine whether two clusters are overlapping.

Parameters

pCluster1	the first cluster
pCluster2	the second cluster

Returns: boolean

Definition at line 445 of file TransverseAssociationAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsTransverseAssociated() [1/3]

bool lar_content::TransverseAssociationAlgorithm::IsTransverseAssociated	(	const LArTransverseCluster *const	pTransverseCluster,
		const pandora::CartesianVector &	testPosition
	)		const

private

Determine whether one transverse cluster is associated with the vertex from a second transverse cluster.

Parameters

pTransverseCluster	the target cluster
theVertex	the vertex position

Returns: boolean

Definition at line 427 of file TransverseAssociationAlgorithm.cc.

Here is the call graph for this function:

◆ IsTransverseAssociated() [2/3]

bool lar_content::TransverseAssociationAlgorithm::IsTransverseAssociated	(	const LArTransverseCluster *const	pTransverseCluster1,
		const LArTransverseCluster *const	pTransverseCluster2,
		const ClusterToClustersMap &	nearbyClusters
	)		const

private

Determine whether two transverse clusters are associated.

Parameters

pTransverseCluster1	the first transverse cluster
pTransverseCluster2	the second transverse cluster
nearbyClusters	the nearby cluster map, extracted via use of a kd-tree

Returns: boolean

Definition at line 404 of file TransverseAssociationAlgorithm.cc.

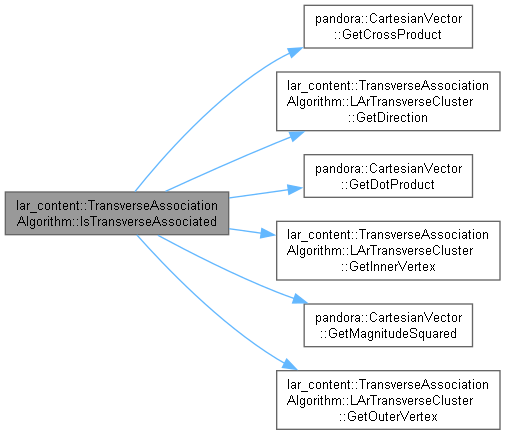

Here is the call graph for this function:

◆ IsTransverseAssociated() [3/3]

bool lar_content::TransverseAssociationAlgorithm::IsTransverseAssociated	(	const pandora::Cluster *const	pCluster1,
		const pandora::Cluster *const	pCluster2,
		const ClusterToClustersMap &	nearbyClusters
	)		const

private

Determine whether two clusters are within the same cluster window.

Parameters

pCluster1	the first cluster
pCluster2	the second cluster
nearbyClusters	the nearby cluster map, extracted via use of a kd-tree

Returns: boolean

Definition at line 371 of file TransverseAssociationAlgorithm.cc.

Here is the call graph for this function:

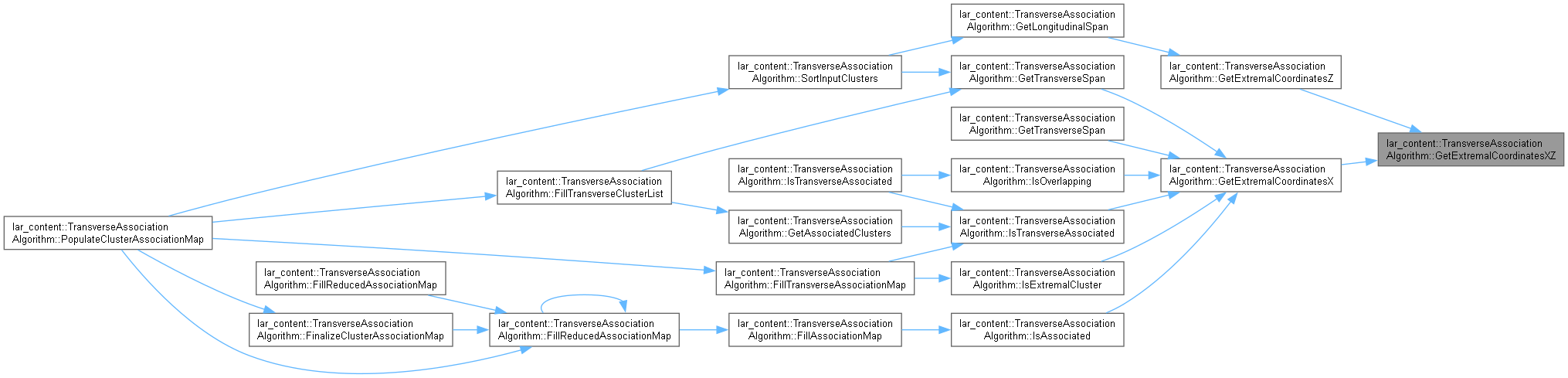

Here is the caller graph for this function:

◆ NavigateAlongAssociations()

void lar_content::ClusterAssociationAlgorithm::NavigateAlongAssociations	(	const ClusterAssociationMap &	clusterAssociationMap,
		const pandora::Cluster *const	pCluster,
		const bool	isForward,
		const pandora::Cluster *&	pExtremalCluster,
		pandora::ClusterSet &	clusterSet
	)		const

privateinherited

Navigate along cluster associations, from specified cluster, in specified direction.

Parameters

clusterAssociationMap	the cluster association map
pCluster	address of cluster with which to begin search
isForward	whether propagation direction is forward
pExtremalCluster	to receive the extremal cluster
clusterSet	to receive set of clusters traversed

Definition at line 231 of file ClusterAssociationAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PopulateClusterAssociationMap()

void lar_content::TransverseAssociationAlgorithm::PopulateClusterAssociationMap	(	const pandora::ClusterVector &	clusterVector,
		ClusterAssociationMap &	clusterAssociationMap
	)		const

privatevirtual

Populate the cluster association map.

Parameters

clusterVector	the cluster vector
clusterAssociationMap	to receive the populated cluster association map

Implements lar_content::ClusterAssociationAlgorithm.

Definition at line 51 of file TransverseAssociationAlgorithm.cc.

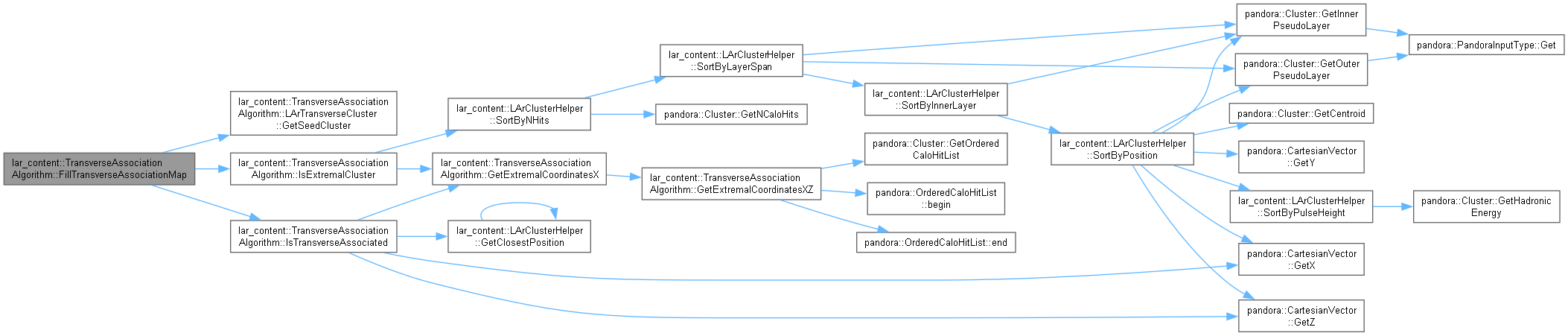

Here is the call graph for this function:

◆ ReadSettings()

StatusCode lar_content::TransverseAssociationAlgorithm::ReadSettings ( const pandora::TiXmlHandle xmlHandle )

privatevirtual

Read the algorithm settings.

Parameters

xmlHandle the relevant xml handle

Reimplemented from lar_content::ClusterAssociationAlgorithm.

Definition at line 850 of file TransverseAssociationAlgorithm.cc.

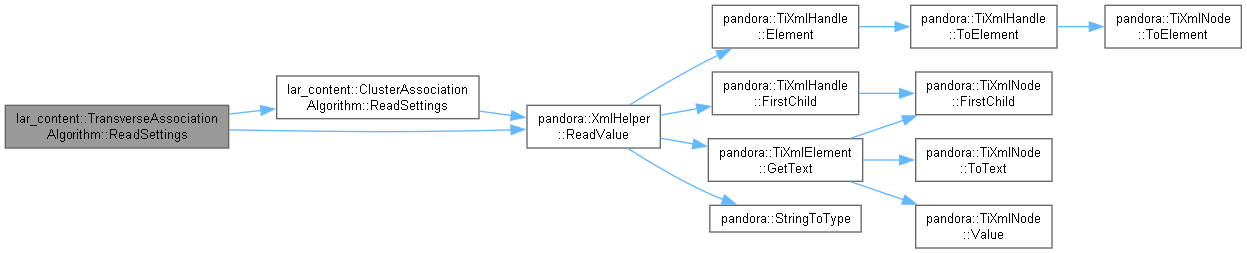

Here is the call graph for this function:

◆ RegisterDetails()

StatusCode pandora::Process::RegisterDetails	(	const Pandora *const	pPandora,
		const std::string &	type,
		const std::string &	instanceName
	)

inlineprotectedinherited

Register i) the pandora instance that will run the process and ii) the process type.

Parameters

pPandora	address of the pandora object that will run the process
type	the process type
instanceName	the process instance name

Definition at line 146 of file Process.h.

Here is the caller graph for this function:

◆ Reset()

StatusCode pandora::Process::Reset ( )

inlineprotectedvirtualinherited

Perform any operations when pandora is reset, typically at the end of each event.

Reimplemented in lar_content::MasterAlgorithm, lar_content::PostProcessingAlgorithm, and lar_content::PreProcessingAlgorithm.

Definition at line 133 of file Process.h.

Here is the caller graph for this function:

◆ Run()

StatusCode lar_content::ClusterAssociationAlgorithm::Run ( )

protectedvirtualinherited

Run the algorithm.

Implements pandora::Algorithm.

Definition at line 26 of file ClusterAssociationAlgorithm.cc.

Here is the call graph for this function:

◆ SortInputClusters()

void lar_content::TransverseAssociationAlgorithm::SortInputClusters	(	const pandora::ClusterVector &	inputClusters,
		pandora::ClusterVector &	shortClusters,
		pandora::ClusterVector &	transverseMediumClusters,
		pandora::ClusterVector &	longitudinalMediumClusters,
		pandora::ClusterVector &	longClusters
	)		const

private

Separate input clusters by length.

Parameters

inputClusters	the input vector of clusters
shortClusters	the output vector of short clusters
transverseMediumClusters	the output vector of transverse medium clusters
longitudinalMediumClusters	the output vector of longitudinal medium clusters
longClusters	the output vector of all long clusters

Definition at line 159 of file TransverseAssociationAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UnambiguousPropagation()

void lar_content::ClusterAssociationAlgorithm::UnambiguousPropagation	(	const pandora::Cluster *const	pCluster,
		const bool	isForward,
		ClusterAssociationMap &	clusterAssociationMap
	)		const

privateinherited

Unambiguous propagation.

Parameters

pCluster	address of the cluster to propagate
isForward	whether propagation direction is forward
clusterAssociationMap	the cluster association map

Definition at line 87 of file ClusterAssociationAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UpdateForAmbiguousMerge()

void lar_content::ClusterAssociationAlgorithm::UpdateForAmbiguousMerge	(	const pandora::Cluster *const	pCluster,
		ClusterAssociationMap &	clusterAssociationMap
	)		const

privateinherited

Update cluster association map to reflect an ambiguous cluster merge.

Parameters

pCluster	address of the cluster to be cleared
clusterAssociationMap	the cluster association map

Definition at line 204 of file ClusterAssociationAlgorithm.cc.

Here is the caller graph for this function:

◆ UpdateForUnambiguousMerge()

void lar_content::ClusterAssociationAlgorithm::UpdateForUnambiguousMerge	(	const pandora::Cluster *const	pClusterToEnlarge,
		const pandora::Cluster *const	pClusterToDelete,
		const bool	isForwardMerge,
		ClusterAssociationMap &	clusterAssociationMap
	)		const

privateinherited

Update cluster association map to reflect an unambiguous cluster merge.

Parameters

pClusterToEnlarge	address of the cluster to be enlarged
pClusterToDelete	address of the cluster to be deleted
isForwardMerge	whether merge is forward (pClusterToEnlarge is forward-associated with pClusterToDelete)
clusterAssociationMap	the cluster association map

Definition at line 166 of file ClusterAssociationAlgorithm.cc.

Here is the caller graph for this function:

Member Data Documentation

◆ m_clusterAngle

float lar_content::TransverseAssociationAlgorithm::m_clusterAngle

private

Definition at line 340 of file TransverseAssociationAlgorithm.h.

◆ m_clusterCosAngle

float lar_content::TransverseAssociationAlgorithm::m_clusterCosAngle

private

Definition at line 341 of file TransverseAssociationAlgorithm.h.

◆ m_clusterTanAngle

float lar_content::TransverseAssociationAlgorithm::m_clusterTanAngle

private

Definition at line 342 of file TransverseAssociationAlgorithm.h.

◆ m_clusterWindow

float lar_content::TransverseAssociationAlgorithm::m_clusterWindow

private

Definition at line 339 of file TransverseAssociationAlgorithm.h.

◆ m_firstLengthCut

float lar_content::TransverseAssociationAlgorithm::m_firstLengthCut

private

Definition at line 336 of file TransverseAssociationAlgorithm.h.

◆ m_instanceName

std::string pandora::Process::m_instanceName

protectedinherited

The process instance name.

Definition at line 89 of file Process.h.

◆ m_maxLongitudinalOverlap

float lar_content::TransverseAssociationAlgorithm::m_maxLongitudinalOverlap

private

Definition at line 346 of file TransverseAssociationAlgorithm.h.

◆ m_maxProjectedOverlap

float lar_content::TransverseAssociationAlgorithm::m_maxProjectedOverlap

private

Definition at line 345 of file TransverseAssociationAlgorithm.h.

◆ m_maxTransverseOverlap

float lar_content::TransverseAssociationAlgorithm::m_maxTransverseOverlap

private

Definition at line 344 of file TransverseAssociationAlgorithm.h.

◆ m_mergeMade

bool lar_content::ClusterAssociationAlgorithm::m_mergeMade

mutableprivateinherited

Definition at line 123 of file ClusterAssociationAlgorithm.h.

◆ m_pPandora

const Pandora* pandora::Process::m_pPandora

protectedinherited

The pandora object that will run the process.

Definition at line 87 of file Process.h.

◆ m_resolveAmbiguousAssociations

bool lar_content::ClusterAssociationAlgorithm::m_resolveAmbiguousAssociations

privateinherited

Whether to resolve ambiguous associations.

Definition at line 125 of file ClusterAssociationAlgorithm.h.

◆ m_searchRegionX

float lar_content::TransverseAssociationAlgorithm::m_searchRegionX

private

Search region, applied to x dimension, for look-up from kd-trees.

Definition at line 352 of file TransverseAssociationAlgorithm.h.

◆ m_searchRegionZ

float lar_content::TransverseAssociationAlgorithm::m_searchRegionZ

private

Search region, applied to u/v/w dimension, for look-up from kd-trees.

Definition at line 353 of file TransverseAssociationAlgorithm.h.

◆ m_secondLengthCut

float lar_content::TransverseAssociationAlgorithm::m_secondLengthCut

private

Definition at line 337 of file TransverseAssociationAlgorithm.h.

◆ m_transverseClusterMaxDisplacement

float lar_content::TransverseAssociationAlgorithm::m_transverseClusterMaxDisplacement

private

Definition at line 350 of file TransverseAssociationAlgorithm.h.

◆ m_transverseClusterMinCosTheta

float lar_content::TransverseAssociationAlgorithm::m_transverseClusterMinCosTheta

private

Definition at line 348 of file TransverseAssociationAlgorithm.h.

◆ m_transverseClusterMinLength

float lar_content::TransverseAssociationAlgorithm::m_transverseClusterMinLength

private

Definition at line 349 of file TransverseAssociationAlgorithm.h.

◆ m_type

std::string pandora::Process::m_type

protectedinherited

The process type.

Definition at line 88 of file Process.h.

The documentation for this class was generated from the following files:

LArContent/larpandoracontent/LArTwoDReco/LArClusterAssociation/TransverseAssociationAlgorithm.h
LArContent/larpandoracontent/LArTwoDReco/LArClusterAssociation/TransverseAssociationAlgorithm.cc

Classes

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ ClusterAssociationMap

◆ ClusterToClustersMap

◆ HitKDNode2D

◆ HitKDNode2DList

◆ HitKDTree2D

◆ HitToClusterMap

◆ TransverseClusterList

Constructor & Destructor Documentation

◆ TransverseAssociationAlgorithm()

Member Function Documentation

◆ AmbiguousPropagation()

◆ FillAssociationMap()

◆ FillReducedAssociationMap() [1/3]

◆ FillReducedAssociationMap() [2/3]

◆ FillReducedAssociationMap() [3/3]

◆ FillSymmetricAssociationMap()

◆ FillTransverseAssociationMap()

◆ FillTransverseClusterList()

◆ FinalizeClusterAssociationMap()

◆ GetAssociatedClusters()

◆ GetExtremalCoordinatesX() [1/2]

◆ GetExtremalCoordinatesX() [2/2]

◆ GetExtremalCoordinatesXZ()

◆ GetExtremalCoordinatesZ()

◆ GetInstanceName()

◆ GetListOfCleanClusters()

◆ GetLongitudinalSpan()

◆ GetNearbyClusterMap()

◆ GetPandora()

◆ GetTransverseSpan() [1/2]

◆ GetTransverseSpan() [2/2]

◆ GetType()

◆ Initialize()

◆ IsAssociated()

◆ IsExtremalCluster()

◆ IsOverlapping()

◆ IsTransverseAssociated() [1/3]

◆ IsTransverseAssociated() [2/3]

◆ IsTransverseAssociated() [3/3]

◆ NavigateAlongAssociations()

◆ PopulateClusterAssociationMap()

◆ ReadSettings()

◆ RegisterDetails()

◆ Reset()

◆ Run()

◆ SortInputClusters()

◆ UnambiguousPropagation()

◆ UpdateForAmbiguousMerge()

◆ UpdateForUnambiguousMerge()

Member Data Documentation

◆ m_clusterAngle

◆ m_clusterCosAngle

◆ m_clusterTanAngle

◆ m_clusterWindow

◆ m_firstLengthCut

◆ m_instanceName

◆ m_maxLongitudinalOverlap

◆ m_maxProjectedOverlap

◆ m_maxTransverseOverlap

◆ m_mergeMade

◆ m_pPandora

◆ m_resolveAmbiguousAssociations

◆ m_searchRegionX

◆ m_searchRegionZ

◆ m_secondLengthCut

◆ m_transverseClusterMaxDisplacement

◆ m_transverseClusterMinCosTheta

◆ m_transverseClusterMinLength

◆ m_type
