LongitudinalAssociationAlgorithm class. More...

#include "LongitudinalAssociationAlgorithm.h"

Inheritance diagram for lar_content::LongitudinalAssociationAlgorithm:

[legend]

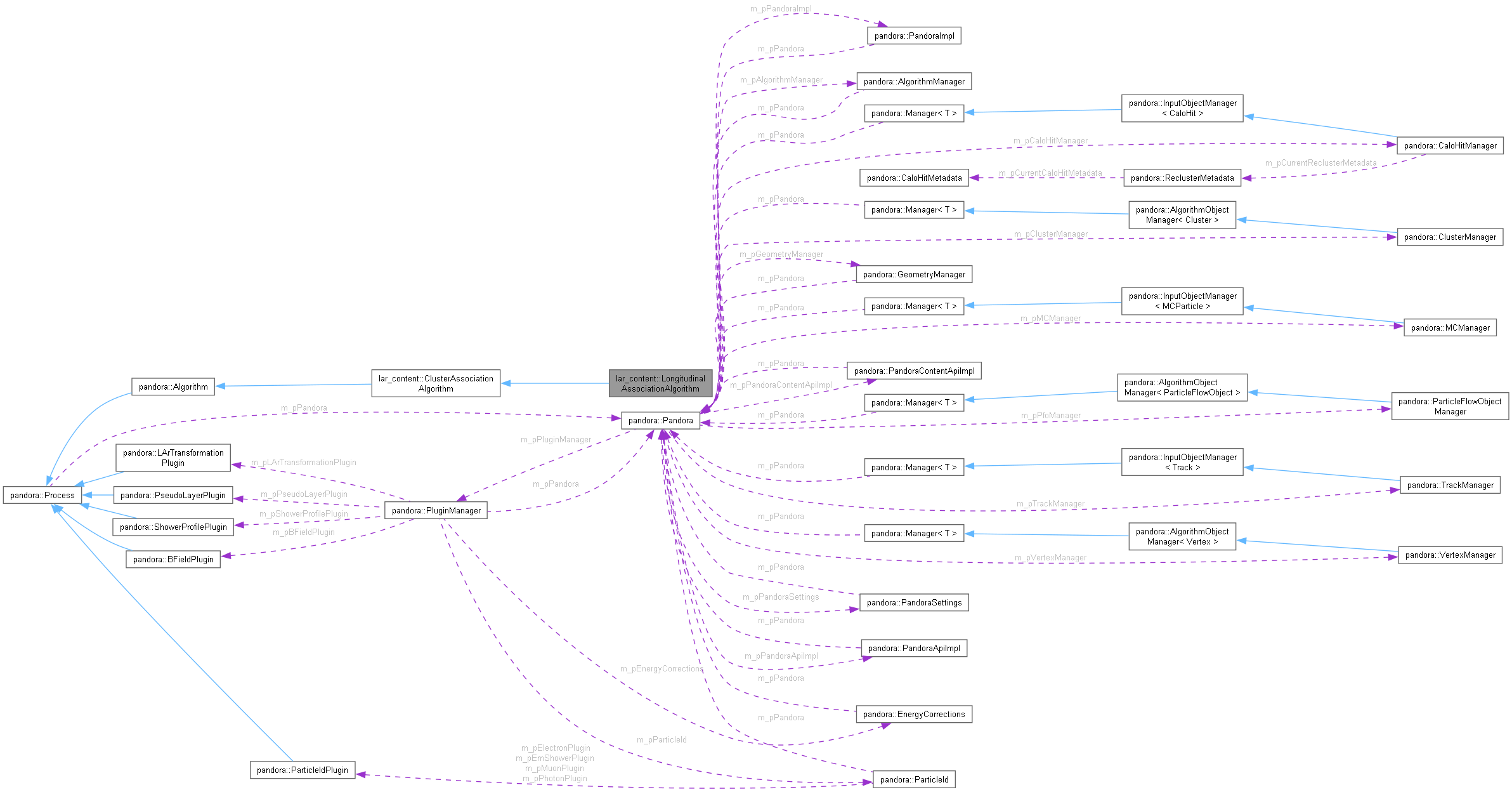

Collaboration diagram for lar_content::LongitudinalAssociationAlgorithm:

[legend]

Public Member Functions
	LongitudinalAssociationAlgorithm ()
	Default constructor.

const std::string &	GetType () const
	Get the type.

const std::string &	GetInstanceName () const
	Get the instance name.

const Pandora &	GetPandora () const
	Get the associated pandora instance.

Protected Types
typedef std::unordered_map< const pandora::Cluster *, ClusterAssociation >	ClusterAssociationMap

Protected Member Functions
virtual pandora::StatusCode	Run ()
	Run the algorithm.

virtual StatusCode	Initialize ()
	Perform any operations that must occur after reading settings, but before running the process.

virtual StatusCode	Reset ()
	Perform any operations when pandora is reset, typically at the end of each event.

StatusCode	RegisterDetails (const Pandora *const pPandora, const std::string &type, const std::string &instanceName)
	Register i) the pandora instance that will run the process and ii) the process type.

Protected Attributes
const Pandora *	m_pPandora
	The pandora object that will run the process.

std::string	m_type
	The process type.

std::string	m_instanceName
	The process instance name.

Private Member Functions
pandora::StatusCode	ReadSettings (const pandora::TiXmlHandle xmlHandle)
	Read the algorithm settings.

void	GetListOfCleanClusters (const pandora::ClusterList *const pClusterList, pandora::ClusterVector &clusterVector) const
	Populate cluster vector with subset of cluster list, containing clusters judged to be clean.

void	PopulateClusterAssociationMap (const pandora::ClusterVector &clusterVector, ClusterAssociationMap &clusterAssociationMap) const
	Populate the cluster association map.

bool	IsExtremalCluster (const bool isForward, const pandora::Cluster const pCurrentCluster, const pandora::Cluster const pTestCluster) const
	Determine which of two clusters is extremal.

bool	AreClustersAssociated (const pandora::Cluster const pInnerCluster, const pandora::Cluster const pOuterCluster) const
	Determine whether two clusters are associated.

bool	AreClustersAssociated (const pandora::CartesianVector &innerClusterEnd, const pandora::CartesianVector &outerClusterStart, const pandora::ClusterFitResult &innerFit, const pandora::ClusterFitResult &outerFit) const
	Determine whether two clusters are associated.

void	UnambiguousPropagation (const pandora::Cluster *const pCluster, const bool isForward, ClusterAssociationMap &clusterAssociationMap) const
	Unambiguous propagation.

void	AmbiguousPropagation (const pandora::Cluster *const pCluster, const bool isForward, ClusterAssociationMap &clusterAssociationMap) const
	Ambiguous propagation.

void	UpdateForUnambiguousMerge (const pandora::Cluster const pClusterToEnlarge, const pandora::Cluster const pClusterToDelete, const bool isForwardMerge, ClusterAssociationMap &clusterAssociationMap) const
	Update cluster association map to reflect an unambiguous cluster merge.

void	UpdateForAmbiguousMerge (const pandora::Cluster *const pCluster, ClusterAssociationMap &clusterAssociationMap) const
	Update cluster association map to reflect an ambiguous cluster merge.

void	NavigateAlongAssociations (const ClusterAssociationMap &clusterAssociationMap, const pandora::Cluster const pCluster, const bool isForward, const pandora::Cluster &pExtremalCluster, pandora::ClusterSet &clusterSet) const
	Navigate along cluster associations, from specified cluster, in specified direction.

Private Attributes
unsigned int	m_minClusterLayers
	minimum allowed number of layers for a clean cluster

unsigned int	m_maxGapLayers
	maximum allowed number of layers between associated clusters

unsigned int	m_fitLayers
	number of layers to fit at start and end of cluster

float	m_maxGapDistanceSquared
	maximum allowed distance (squared) between associated clusters

float	m_minCosRelativeAngle
	maximum allowed relative angle between associated clusters

float	m_maxTransverseDisplacement
	maximum allowed transverse displacement after extrapolation (normalised to cell size)

float	m_maxLongitudinalDisplacement
	maximum allowed longitudinal displacement after extrapolation (normalised to cell size)

float	m_hitSizeZ
	estimated hit size in z (wire number) dimension, units cm

float	m_hitSizeX
	estimated hit size in x (drift time) dimension, units cm

bool	m_mergeMade

bool	m_resolveAmbiguousAssociations
	Whether to resolve ambiguous associations.

Detailed Description

LongitudinalAssociationAlgorithm class.

Definition at line 23 of file LongitudinalAssociationAlgorithm.h.

Member Typedef Documentation

◆ ClusterAssociationMap

typedef std::unordered_map<const pandora::Cluster *, ClusterAssociation> lar_content::ClusterAssociationAlgorithm::ClusterAssociationMap

protectedinherited

Definition at line 43 of file ClusterAssociationAlgorithm.h.

Constructor & Destructor Documentation

◆ LongitudinalAssociationAlgorithm()

lar_content::LongitudinalAssociationAlgorithm::LongitudinalAssociationAlgorithm ( )

Default constructor.

Definition at line 20 of file LongitudinalAssociationAlgorithm.cc.

Member Function Documentation

◆ AmbiguousPropagation()

void lar_content::ClusterAssociationAlgorithm::AmbiguousPropagation	(	const pandora::Cluster *const	pCluster,
		const bool	isForward,
		ClusterAssociationMap &	clusterAssociationMap
	)		const

privateinherited

Ambiguous propagation.

Parameters

pCluster	address of the cluster to propagate
isForward	whether propagation direction is forward
clusterAssociationMap	the cluster association map

Definition at line 121 of file ClusterAssociationAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AreClustersAssociated() [1/2]

bool lar_content::LongitudinalAssociationAlgorithm::AreClustersAssociated	(	const pandora::CartesianVector &	innerClusterEnd,
		const pandora::CartesianVector &	outerClusterStart,
		const pandora::ClusterFitResult &	innerFit,
		const pandora::ClusterFitResult &	outerFit
	)		const

private

Determine whether two clusters are associated.

Parameters

innerClusterEnd	inner cluster end position
outerClusterStart	outer cluster start position
innerFit	inner cluster fit result
outerFit	outer cluster fit result

Returns: whether the clusters are associated

Definition at line 135 of file LongitudinalAssociationAlgorithm.cc.

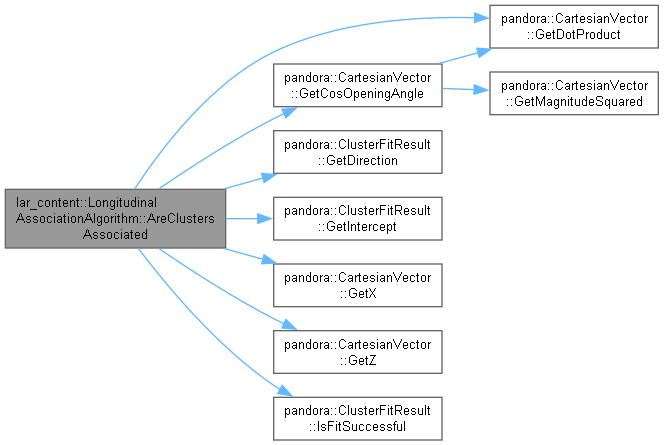

Here is the call graph for this function:

◆ AreClustersAssociated() [2/2]

bool lar_content::LongitudinalAssociationAlgorithm::AreClustersAssociated	(	const pandora::Cluster *const	pInnerCluster,
		const pandora::Cluster *const	pOuterCluster
	)		const

private

Determine whether two clusters are associated.

Parameters

pInnerCluster	address of the inner cluster
pOuterCluster	address of the outer cluster

Returns: whether the clusters are associated

Definition at line 93 of file LongitudinalAssociationAlgorithm.cc.

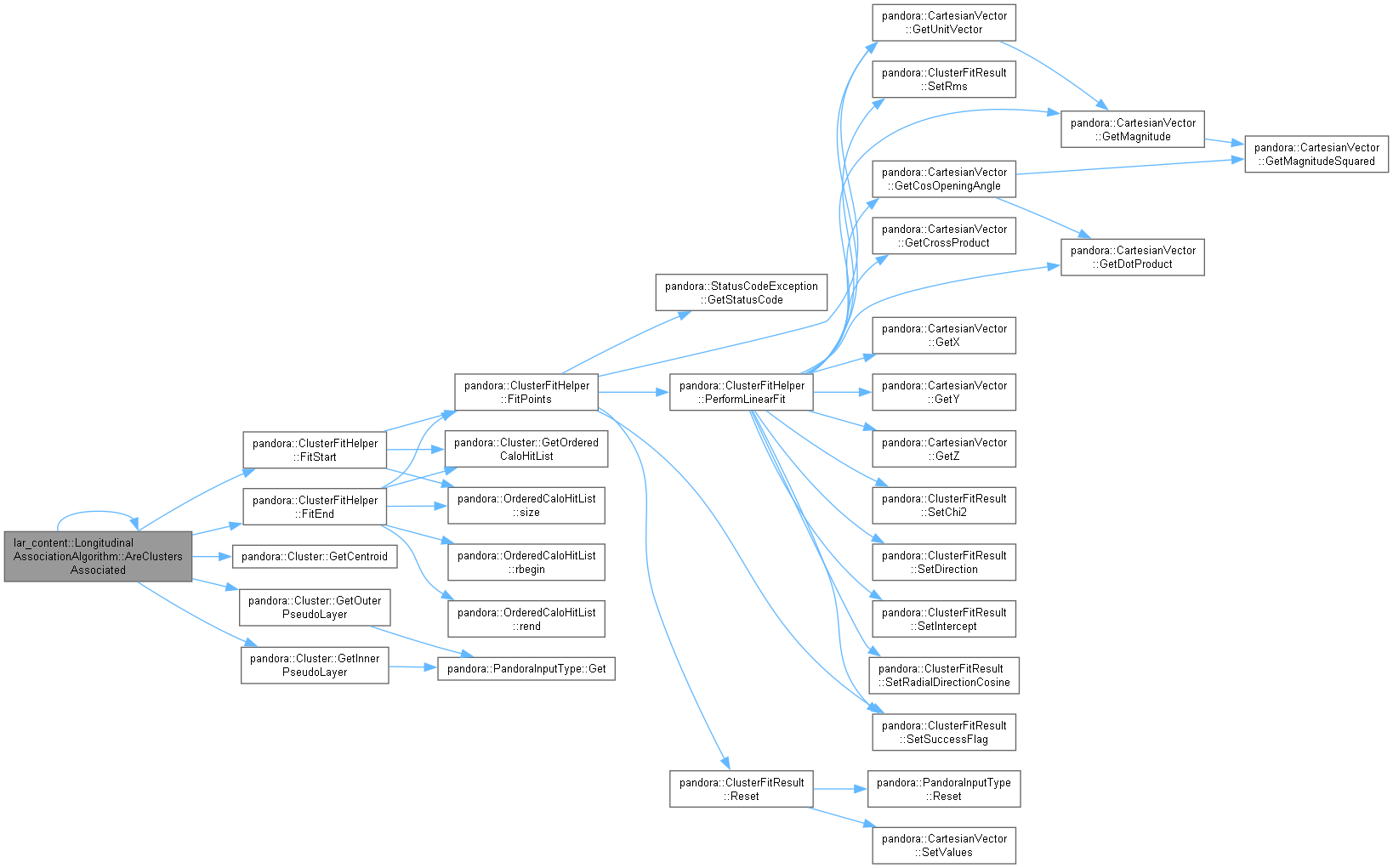

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetInstanceName()

const std::string & pandora::Process::GetInstanceName ( ) const

inlineinherited

Get the instance name.

Returns: The instance name

Definition at line 109 of file Process.h.

◆ GetListOfCleanClusters()

void lar_content::LongitudinalAssociationAlgorithm::GetListOfCleanClusters	(	const pandora::ClusterList *const	pClusterList,
		pandora::ClusterVector &	clusterVector
	)		const

privatevirtual

Populate cluster vector with subset of cluster list, containing clusters judged to be clean.

Parameters

pClusterList	address of the cluster list
clusterVector	to receive the populated cluster vector

Implements lar_content::ClusterAssociationAlgorithm.

Definition at line 35 of file LongitudinalAssociationAlgorithm.cc.

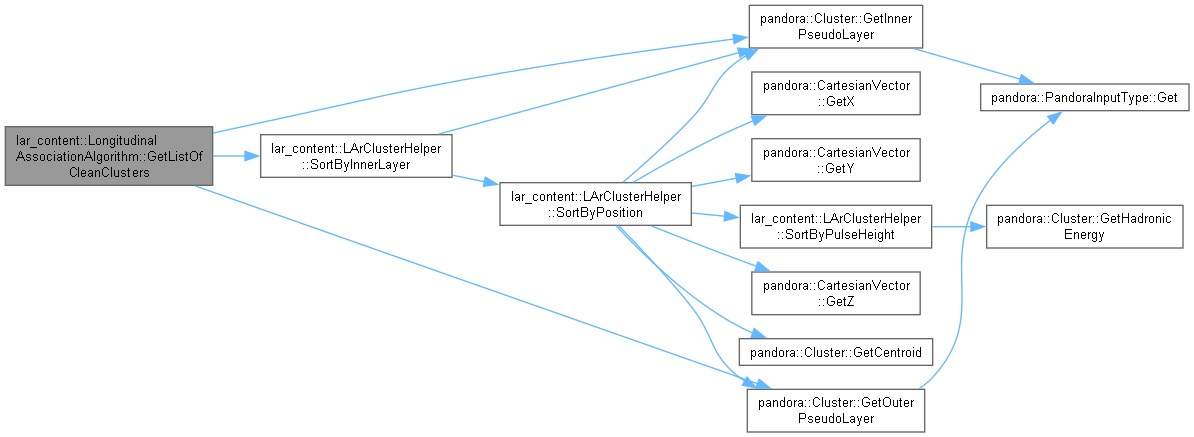

Here is the call graph for this function:

◆ GetPandora()

const Pandora & pandora::Process::GetPandora ( ) const

inlineinherited

Get the associated pandora instance.

Returns: the associated pandora instance

Definition at line 116 of file Process.h.

◆ GetType()

const std::string & pandora::Process::GetType ( ) const

inlineinherited

Get the type.

Returns: The type

Definition at line 102 of file Process.h.

◆ Initialize()

StatusCode pandora::Process::Initialize ( )

inlineprotectedvirtualinherited

Perform any operations that must occur after reading settings, but before running the process.

Reimplemented in lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, EventReadingAlgorithm, and EventWritingAlgorithm.

Definition at line 126 of file Process.h.

Here is the caller graph for this function:

◆ IsExtremalCluster()

bool lar_content::LongitudinalAssociationAlgorithm::IsExtremalCluster	(	const bool	isForward,
		const pandora::Cluster *const	pCurrentCluster,
		const pandora::Cluster *const	pTestCluster
	)		const

privatevirtual

Determine which of two clusters is extremal.

Parameters

isForward	whether propagation direction is forward
pCurrentCluster	current extremal cluster
pTestCluster	potential extremal cluster

Returns: boolean

Implements lar_content::ClusterAssociationAlgorithm.

Definition at line 77 of file LongitudinalAssociationAlgorithm.cc.

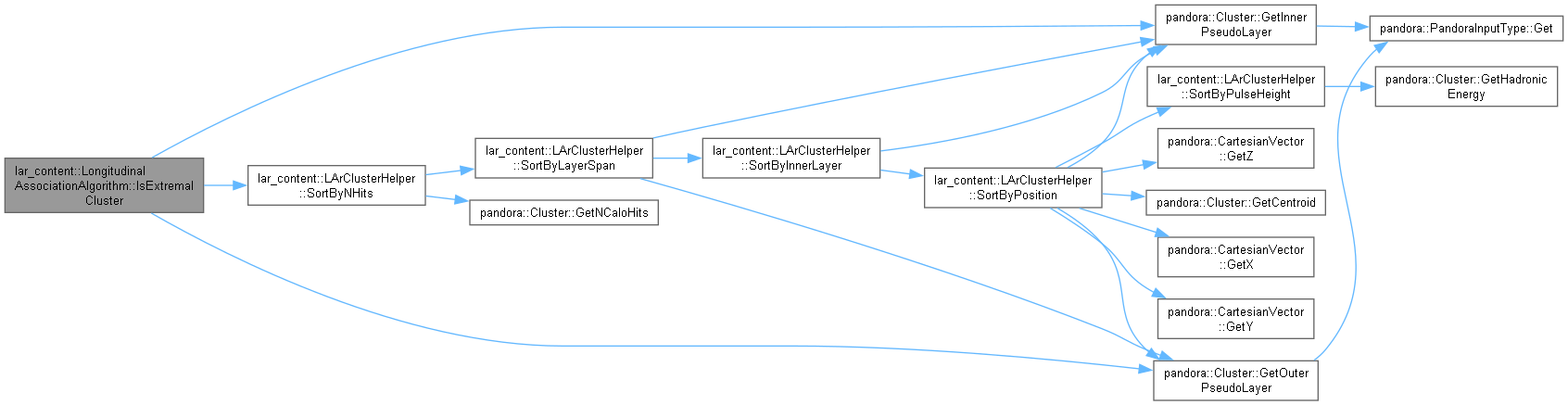

Here is the call graph for this function:

◆ NavigateAlongAssociations()

void lar_content::ClusterAssociationAlgorithm::NavigateAlongAssociations	(	const ClusterAssociationMap &	clusterAssociationMap,
		const pandora::Cluster *const	pCluster,
		const bool	isForward,
		const pandora::Cluster *&	pExtremalCluster,
		pandora::ClusterSet &	clusterSet
	)		const

privateinherited

Navigate along cluster associations, from specified cluster, in specified direction.

Parameters

clusterAssociationMap	the cluster association map
pCluster	address of cluster with which to begin search
isForward	whether propagation direction is forward
pExtremalCluster	to receive the extremal cluster
clusterSet	to receive set of clusters traversed

Definition at line 231 of file ClusterAssociationAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PopulateClusterAssociationMap()

void lar_content::LongitudinalAssociationAlgorithm::PopulateClusterAssociationMap	(	const pandora::ClusterVector &	clusterVector,
		ClusterAssociationMap &	clusterAssociationMap
	)		const

privatevirtual

Populate the cluster association map.

Parameters

clusterVector	the cluster vector
clusterAssociationMap	to receive the populated cluster association map

Implements lar_content::ClusterAssociationAlgorithm.

Definition at line 52 of file LongitudinalAssociationAlgorithm.cc.

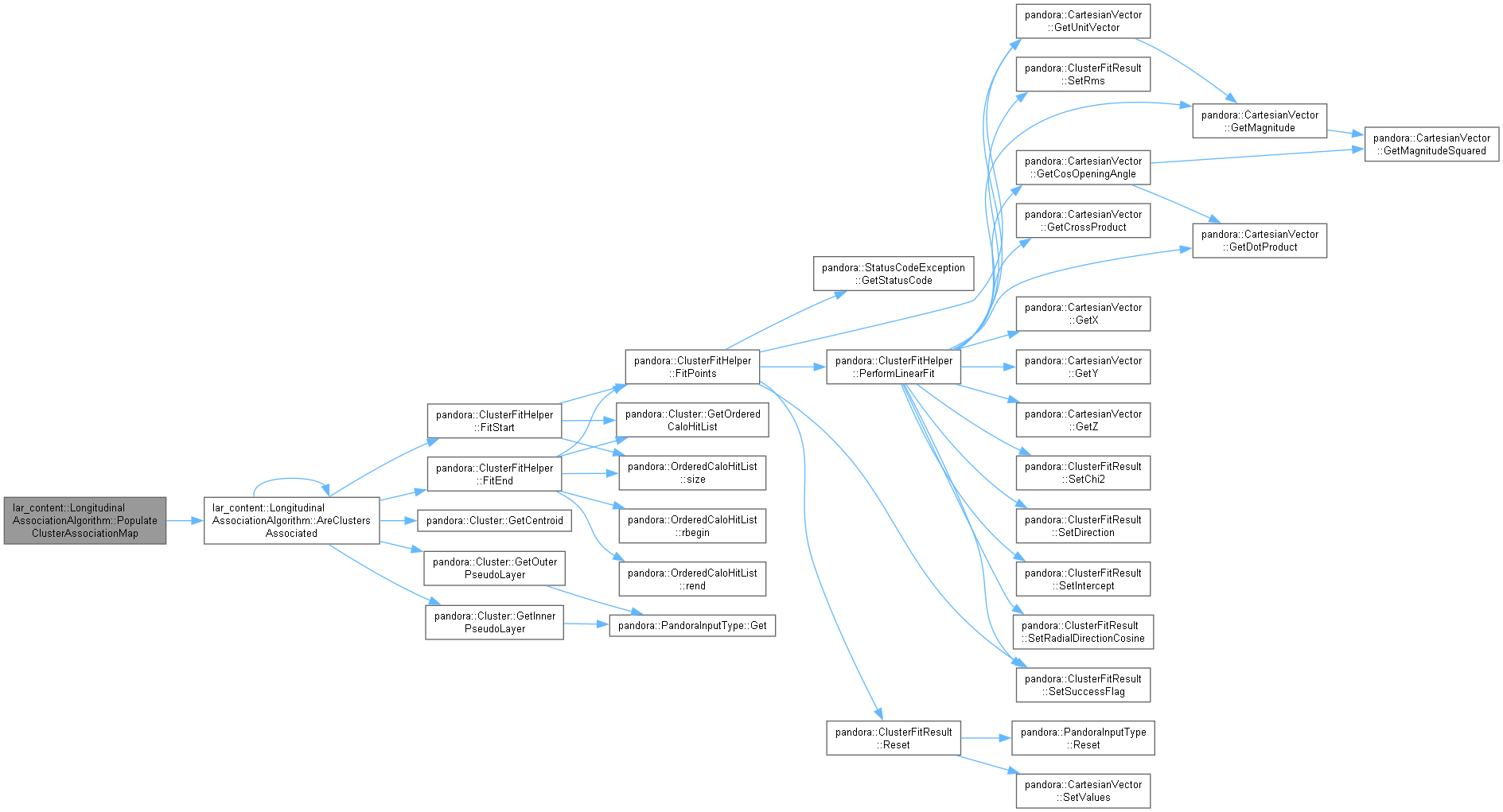

Here is the call graph for this function:

◆ ReadSettings()

StatusCode lar_content::LongitudinalAssociationAlgorithm::ReadSettings ( const pandora::TiXmlHandle xmlHandle )

privatevirtual

Read the algorithm settings.

Parameters

xmlHandle the relevant xml handle

Reimplemented from lar_content::ClusterAssociationAlgorithm.

Definition at line 183 of file LongitudinalAssociationAlgorithm.cc.

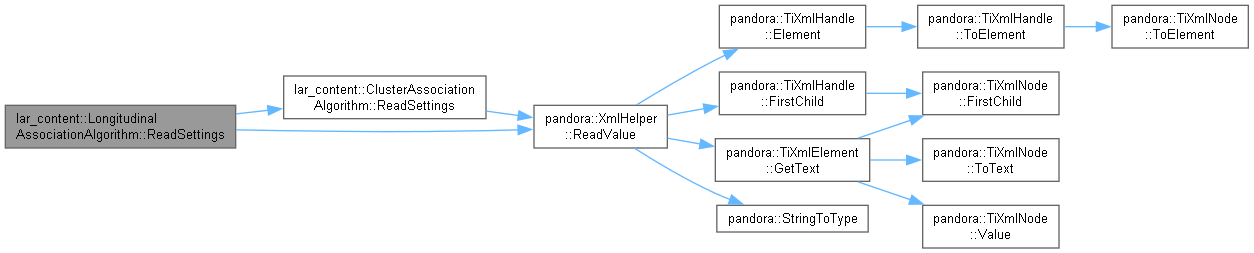

Here is the call graph for this function:

◆ RegisterDetails()

StatusCode pandora::Process::RegisterDetails	(	const Pandora *const	pPandora,
		const std::string &	type,
		const std::string &	instanceName
	)

inlineprotectedinherited

Register i) the pandora instance that will run the process and ii) the process type.

Parameters

pPandora	address of the pandora object that will run the process
type	the process type
instanceName	the process instance name

Definition at line 146 of file Process.h.

Here is the caller graph for this function:

◆ Reset()

StatusCode pandora::Process::Reset ( )

inlineprotectedvirtualinherited

Perform any operations when pandora is reset, typically at the end of each event.

Reimplemented in lar_content::MasterAlgorithm, lar_content::PostProcessingAlgorithm, and lar_content::PreProcessingAlgorithm.

Definition at line 133 of file Process.h.

Here is the caller graph for this function:

◆ Run()

StatusCode lar_content::ClusterAssociationAlgorithm::Run ( )

protectedvirtualinherited

Run the algorithm.

Implements pandora::Algorithm.

Definition at line 26 of file ClusterAssociationAlgorithm.cc.

Here is the call graph for this function:

◆ UnambiguousPropagation()

void lar_content::ClusterAssociationAlgorithm::UnambiguousPropagation	(	const pandora::Cluster *const	pCluster,
		const bool	isForward,
		ClusterAssociationMap &	clusterAssociationMap
	)		const

privateinherited

Unambiguous propagation.

Parameters

pCluster	address of the cluster to propagate
isForward	whether propagation direction is forward
clusterAssociationMap	the cluster association map

Definition at line 87 of file ClusterAssociationAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UpdateForAmbiguousMerge()

void lar_content::ClusterAssociationAlgorithm::UpdateForAmbiguousMerge	(	const pandora::Cluster *const	pCluster,
		ClusterAssociationMap &	clusterAssociationMap
	)		const

privateinherited

Update cluster association map to reflect an ambiguous cluster merge.

Parameters

pCluster	address of the cluster to be cleared
clusterAssociationMap	the cluster association map

Definition at line 204 of file ClusterAssociationAlgorithm.cc.

Here is the caller graph for this function:

◆ UpdateForUnambiguousMerge()

void lar_content::ClusterAssociationAlgorithm::UpdateForUnambiguousMerge	(	const pandora::Cluster *const	pClusterToEnlarge,
		const pandora::Cluster *const	pClusterToDelete,
		const bool	isForwardMerge,
		ClusterAssociationMap &	clusterAssociationMap
	)		const

privateinherited

Update cluster association map to reflect an unambiguous cluster merge.

Parameters

pClusterToEnlarge	address of the cluster to be enlarged
pClusterToDelete	address of the cluster to be deleted
isForwardMerge	whether merge is forward (pClusterToEnlarge is forward-associated with pClusterToDelete)
clusterAssociationMap	the cluster association map

Definition at line 166 of file ClusterAssociationAlgorithm.cc.

Here is the caller graph for this function:

Member Data Documentation

◆ m_fitLayers

unsigned int lar_content::LongitudinalAssociationAlgorithm::m_fitLayers

private

number of layers to fit at start and end of cluster

Definition at line 62 of file LongitudinalAssociationAlgorithm.h.

◆ m_hitSizeX

float lar_content::LongitudinalAssociationAlgorithm::m_hitSizeX

private

estimated hit size in x (drift time) dimension, units cm

Definition at line 68 of file LongitudinalAssociationAlgorithm.h.

◆ m_hitSizeZ

float lar_content::LongitudinalAssociationAlgorithm::m_hitSizeZ

private

estimated hit size in z (wire number) dimension, units cm

Definition at line 67 of file LongitudinalAssociationAlgorithm.h.

◆ m_instanceName

std::string pandora::Process::m_instanceName

protectedinherited

The process instance name.

Definition at line 89 of file Process.h.

◆ m_maxGapDistanceSquared

float lar_content::LongitudinalAssociationAlgorithm::m_maxGapDistanceSquared

private

maximum allowed distance (squared) between associated clusters

Definition at line 63 of file LongitudinalAssociationAlgorithm.h.

◆ m_maxGapLayers

unsigned int lar_content::LongitudinalAssociationAlgorithm::m_maxGapLayers

private

maximum allowed number of layers between associated clusters

Definition at line 61 of file LongitudinalAssociationAlgorithm.h.

◆ m_maxLongitudinalDisplacement

float lar_content::LongitudinalAssociationAlgorithm::m_maxLongitudinalDisplacement

private

maximum allowed longitudinal displacement after extrapolation (normalised to cell size)

Definition at line 66 of file LongitudinalAssociationAlgorithm.h.

◆ m_maxTransverseDisplacement

float lar_content::LongitudinalAssociationAlgorithm::m_maxTransverseDisplacement

private

maximum allowed transverse displacement after extrapolation (normalised to cell size)

Definition at line 65 of file LongitudinalAssociationAlgorithm.h.

◆ m_mergeMade

bool lar_content::ClusterAssociationAlgorithm::m_mergeMade

mutableprivateinherited

Definition at line 123 of file ClusterAssociationAlgorithm.h.

◆ m_minClusterLayers

unsigned int lar_content::LongitudinalAssociationAlgorithm::m_minClusterLayers

private

minimum allowed number of layers for a clean cluster

Definition at line 60 of file LongitudinalAssociationAlgorithm.h.

◆ m_minCosRelativeAngle

float lar_content::LongitudinalAssociationAlgorithm::m_minCosRelativeAngle

private

maximum allowed relative angle between associated clusters

Definition at line 64 of file LongitudinalAssociationAlgorithm.h.

◆ m_pPandora

const Pandora* pandora::Process::m_pPandora

protectedinherited

The pandora object that will run the process.

Definition at line 87 of file Process.h.

◆ m_resolveAmbiguousAssociations

bool lar_content::ClusterAssociationAlgorithm::m_resolveAmbiguousAssociations

privateinherited

Whether to resolve ambiguous associations.

Definition at line 125 of file ClusterAssociationAlgorithm.h.

◆ m_type

std::string pandora::Process::m_type

protectedinherited

The process type.

Definition at line 88 of file Process.h.

The documentation for this class was generated from the following files:

LArContent/larpandoracontent/LArTwoDReco/LArClusterAssociation/LongitudinalAssociationAlgorithm.h
LArContent/larpandoracontent/LArTwoDReco/LArClusterAssociation/LongitudinalAssociationAlgorithm.cc

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ ClusterAssociationMap

Constructor & Destructor Documentation

◆ LongitudinalAssociationAlgorithm()

Member Function Documentation

◆ AmbiguousPropagation()

◆ AreClustersAssociated() [1/2]

◆ AreClustersAssociated() [2/2]

◆ GetInstanceName()

◆ GetListOfCleanClusters()

◆ GetPandora()

◆ GetType()

◆ Initialize()

◆ IsExtremalCluster()

◆ NavigateAlongAssociations()

◆ PopulateClusterAssociationMap()

◆ ReadSettings()

◆ RegisterDetails()

◆ Reset()

◆ Run()

◆ UnambiguousPropagation()

◆ UpdateForAmbiguousMerge()

◆ UpdateForUnambiguousMerge()

Member Data Documentation

◆ m_fitLayers

◆ m_hitSizeX

◆ m_hitSizeZ

◆ m_instanceName

◆ m_maxGapDistanceSquared

◆ m_maxGapLayers

◆ m_maxLongitudinalDisplacement

◆ m_maxTransverseDisplacement

◆ m_mergeMade

◆ m_minClusterLayers

◆ m_minCosRelativeAngle

◆ m_pPandora

◆ m_resolveAmbiguousAssociations

◆ m_type
