pandora::Process Class Reference

Process class. More...

#include "Process.h"

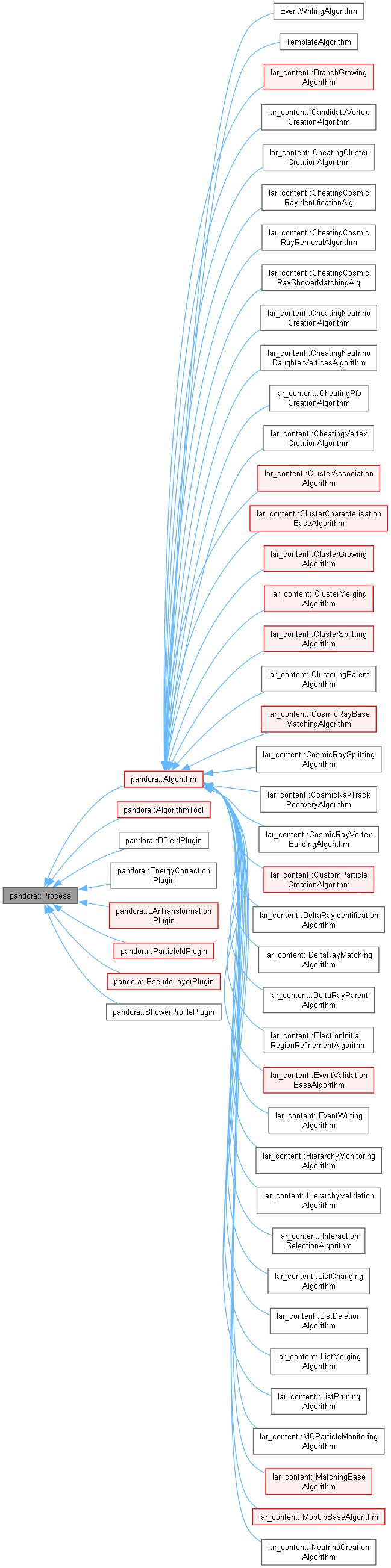

Inheritance diagram for pandora::Process:

Collaboration diagram for pandora::Process:

Public Member Functions
	Process ()
	Default constructor.
const std::string &	GetType () const
	Get the type.
const std::string &	GetInstanceName () const
	Get the instance name.
const Pandora &	GetPandora () const
	Get the associated pandora instance.

Protected Member Functions
virtual StatusCode	ReadSettings (const TiXmlHandle xmlHandle)=0
	Read the algorithm settings.
virtual StatusCode	Initialize ()
	Perform any operations that must occur after reading settings, but before running the process.
virtual StatusCode	Reset ()
	Perform any operations when pandora is reset, typically at the end of each event.
virtual	~Process ()
	Destructor.
StatusCode	RegisterDetails (const Pandora *const pPandora, const std::string &type, const std::string &instanceName)
	Register i) the pandora instance that will run the process and ii) the process type.

Protected Attributes
const Pandora *	m_pPandora
	The pandora object that will run the process.
std::string	m_type
	The process type.
std::string	m_instanceName
	The process instance name.

Detailed Description

Process class.

Definition at line 26 of file Process.h.

Constructor & Destructor Documentation

Process()

pandora::Process::Process ( )

inline

Default constructor.

Definition at line 95 of file Process.h.

~Process()

pandora::Process::~Process ( )

inlineprotectedvirtual

Destructor.

Definition at line 140 of file Process.h.

Member Function Documentation

GetInstanceName()

const std::string & pandora::Process::GetInstanceName ( ) const

inline

Get the instance name.

Returns

The instance name

Definition at line 109 of file Process.h.

GetPandora()

const Pandora & pandora::Process::GetPandora ( ) const

inline

Get the associated pandora instance.

Returns

the associated pandora instance

Definition at line 116 of file Process.h.

GetType()

const std::string & pandora::Process::GetType ( ) const

inline

Get the type.

Returns

The type

Definition at line 102 of file Process.h.

Initialize()

StatusCode pandora::Process::Initialize ( )

inlineprotectedvirtual

Perform any operations that must occur after reading settings, but before running the process.

Reimplemented in lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, EventReadingAlgorithm, and EventWritingAlgorithm.

Definition at line 126 of file Process.h.

Here is the caller graph for this function:

ReadSettings()

virtual StatusCode pandora::Process::ReadSettings ( const TiXmlHandle  xmlHandle )

protectedpure virtual

Read the algorithm settings.

Parameters

xmlHandle

the relevant xml handle

Implemented in lar_content::CheatingBeamParticleIdTool, lar_content::CheatingBeamParticleSliceSelectionTool, lar_content::CheatingClusterCreationAlgorithm, lar_content::CheatingCosmicRayIdentificationAlg, lar_content::CheatingCosmicRayRemovalAlgorithm, lar_content::CheatingCosmicRayShowerMatchingAlg, lar_content::CheatingCosmicRayTaggingTool, lar_content::CheatingEventSlicingTool, lar_content::CheatingNeutrinoCreationAlgorithm, lar_content::CheatingNeutrinoDaughterVerticesAlgorithm, lar_content::CheatingNeutrinoIdTool, lar_content::CheatingNeutrinoSliceSelectionTool, lar_content::CheatingPfoCreationAlgorithm, lar_content::CheatingSliceIdBaseTool, lar_content::CheatingSliceSelectionTool, lar_content::CheatingVertexCreationAlgorithm, lar_content::CheatingVertexSelectionAlgorithm, lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::MasterAlgorithm, lar_content::NeutrinoIdTool< T >, lar_content::PostProcessingAlgorithm, lar_content::PreProcessingAlgorithm, lar_content::SimpleNeutrinoIdTool, lar_content::SlicingAlgorithm, lar_content::StitchingCosmicRayMergingTool, lar_content::StreamingAlgorithm, lar_content::CustomParticleCreationAlgorithm, lar_content::PcaShowerParticleBuildingAlgorithm, lar_content::TrackParticleBuildingAlgorithm, lar_content::CosmicRayTaggingMonitoringTool, lar_content::EventValidationBaseAlgorithm, lar_content::HierarchyMonitoringAlgorithm, lar_content::HierarchyValidationAlgorithm, lar_content::MCParticleMonitoringAlgorithm, lar_content::MuonLeadingEventValidationAlgorithm, lar_content::NeutrinoEventValidationAlgorithm, lar_content::PfoValidationAlgorithm, lar_content::ShowerTensorVisualizationTool, lar_content::TestBeamEventValidationAlgorithm, lar_content::TestBeamHierarchyEventValidationAlgorithm, lar_content::TransverseMatrixVisualizationTool, lar_content::TransverseTensorVisualizationTool, lar_content::VertexMonitoringAlgorithm, lar_content::VisualMonitoringAlgorithm, lar_content::VisualParticleMonitoringAlgorithm, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArParticleIdPlugins::LArMuonId, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, lar_content::InitialRegionFeatureTool, lar_content::ConnectionRegionFeatureTool, lar_content::ShowerRegionFeatureTool, lar_content::AmbiguousRegionFeatureTool, lar_content::ElectronInitialRegionRefinementAlgorithm, lar_content::PeakDirectionFinderTool, lar_content::ProtoShowerMatchingTool, lar_content::ShowerSpineFinderTool, lar_content::ShowerStartFinderTool, lar_content::AmbiguousDeltaRayTool, lar_content::CosmicRayBaseMatchingAlgorithm, lar_content::CosmicRayRemovalTool, lar_content::CosmicRayShowerMatchingAlgorithm, lar_content::CosmicRayTrackMatchingAlgorithm, lar_content::CosmicRayTrackRecoveryAlgorithm, lar_content::CosmicRayVertexBuildingAlgorithm, lar_content::DeltaRayIdentificationAlgorithm, lar_content::DeltaRayMatchingAlgorithm, lar_content::DeltaRayMergeTool, lar_content::DeltaRayParentAlgorithm, lar_content::DeltaRayRemovalTool, lar_content::NViewDeltaRayMatchingAlgorithm< T >, lar_content::NViewDeltaRayMatchingAlgorithm< ThreeViewMatchingControl< DeltaRayOverlapResult > >, lar_content::NViewDeltaRayMatchingAlgorithm< TwoViewMatchingControl< TwoViewDeltaRayOverlapResult > >, lar_content::OneViewDeltaRayMatchingAlgorithm, lar_content::ThreeViewDeltaRayMatchingAlgorithm, lar_content::TwoViewAmbiguousDeltaRayTool, lar_content::TwoViewCosmicRayRemovalTool, lar_content::TwoViewDeltaRayMatchingAlgorithm, lar_content::UnambiguousDeltaRayTool, lar_content::UnattachedDeltaRaysAlgorithm, lar_content::BranchAssociatedPfosTool, lar_content::EndAssociatedPfosTool, lar_content::EventSlicingTool, lar_content::NeutrinoCreationAlgorithm, lar_content::NeutrinoDaughterVerticesAlgorithm, lar_content::NeutrinoHierarchyAlgorithm, lar_content::NeutrinoPropertiesAlgorithm, lar_content::TestBeamParticleCreationAlgorithm, lar_content::VertexAssociatedPfosTool, lar_content::HitCreationBaseTool, lar_content::LongitudinalTrackHitsBaseTool, lar_content::ShowerHitsBaseTool, lar_content::ThreeDHitCreationAlgorithm, lar_content::ThreeViewShowerHitsTool, lar_content::TrackHitsBaseTool, lar_content::ClearLongitudinalTracksTool, lar_content::MatchedEndPointsTool, lar_content::ThreeViewLongitudinalTracksAlgorithm, lar_content::RecursivePfoMopUpAlgorithm, lar_content::ShowerHierarchyMopUpAlgorithm, lar_content::ShowerPfoMopUpAlgorithm, lar_content::SlidingConePfoMopUpAlgorithm, lar_content::VertexBasedPfoMopUpAlgorithm, lar_content::ParticleRecoveryAlgorithm, lar_content::VertexBasedPfoRecoveryAlgorithm, lar_content::ClearRemnantsTool, lar_content::ConnectedRemnantsTool, lar_content::MopUpRemnantsTool, lar_content::ThreeViewRemnantsAlgorithm, lar_content::ClearShowersTool, lar_content::SimpleShowersTool, lar_content::SplitShowersTool, lar_content::ThreeViewShowersAlgorithm, lar_content::MatchingBaseAlgorithm, lar_content::NViewMatchingAlgorithm< T >, lar_content::NViewMatchingAlgorithm< ThreeViewMatchingControl< DeltaRayOverlapResult > >, lar_content::NViewMatchingAlgorithm< ThreeViewMatchingControl< float > >, lar_content::NViewMatchingAlgorithm< ThreeViewMatchingControl< FragmentOverlapResult > >, lar_content::NViewMatchingAlgorithm< ThreeViewMatchingControl< LongitudinalOverlapResult > >, lar_content::NViewMatchingAlgorithm< ThreeViewMatchingControl< ShowerOverlapResult > >, lar_content::NViewMatchingAlgorithm< ThreeViewMatchingControl< TransverseOverlapResult > >, lar_content::NViewMatchingAlgorithm< TwoViewMatchingControl< TwoViewDeltaRayOverlapResult > >, lar_content::NViewMatchingAlgorithm< TwoViewMatchingControl< TwoViewTransverseOverlapResult > >, lar_content::NViewTrackMatchingAlgorithm< T >, lar_content::NViewTrackMatchingAlgorithm< ThreeViewMatchingControl< FragmentOverlapResult > >, lar_content::NViewTrackMatchingAlgorithm< ThreeViewMatchingControl< LongitudinalOverlapResult > >, lar_content::NViewTrackMatchingAlgorithm< ThreeViewMatchingControl< TransverseOverlapResult > >, lar_content::NViewTrackMatchingAlgorithm< TwoViewMatchingControl< TwoViewTransverseOverlapResult > >, lar_content::ClearTrackFragmentsTool, lar_content::ThreeViewTrackFragmentsAlgorithm, lar_content::ClearTracksTool, lar_content::LongTracksTool, lar_content::MissingTrackSegmentTool, lar_content::MissingTrackTool, lar_content::OvershootTracksTool, lar_content::ThreeDKinkBaseTool, lar_content::ThreeViewTransverseTracksAlgorithm, lar_content::TracksCrossingGapsTool, lar_content::TrackSplittingTool, lar_content::UndershootTracksTool, lar_content::TwoViewClearTracksTool, lar_content::TwoViewLongTracksTool, lar_content::TwoViewSimpleTracksTool, lar_content::TwoViewThreeDKinkTool, lar_content::TwoViewTransverseTracksAlgorithm, lar_content::BranchGrowingAlgorithm, lar_content::ClusterCharacterisationBaseAlgorithm, lar_content::CutClusterCharacterisationAlgorithm, lar_content::CutPfoCharacterisationAlgorithm, lar_content::MvaPfoCharacterisationAlgorithm< T >, lar_content::PfoCharacterisationBaseAlgorithm, lar_content::ShowerGrowingAlgorithm, lar_content::TwoDShowerFitFeatureTool, lar_content::TwoDLinearFitFeatureTool, lar_content::TwoDVertexDistanceFeatureTool, lar_content::PfoHierarchyFeatureTool, lar_content::ThreeDLinearFitFeatureTool, lar_content::ThreeDVertexDistanceFeatureTool, lar_content::ConeChargeFeatureTool, lar_content::ThreeDOpeningAngleFeatureTool, lar_content::ThreeDPCAFeatureTool, lar_content::ThreeDChargeFeatureTool, lar_content::ClusterAssociationAlgorithm, lar_content::ClusterGrowingAlgorithm, lar_content::ClusterMergingAlgorithm, lar_content::CrossGapsAssociationAlgorithm, lar_content::CrossGapsExtensionAlgorithm, lar_content::HitWidthClusterMergingAlgorithm, lar_content::LongitudinalAssociationAlgorithm, lar_content::LongitudinalExtensionAlgorithm, lar_content::SimpleClusterGrowingAlgorithm, lar_content::SimpleClusterMergingAlgorithm, lar_content::TransverseAssociationAlgorithm, lar_content::TransverseExtensionAlgorithm, lar_content::ClusteringParentAlgorithm, lar_content::SimpleClusterCreationAlgorithm, lar_content::TrackClusterCreationAlgorithm, lar_content::BoundedClusterMopUpAlgorithm, lar_content::ClusterMopUpBaseAlgorithm, lar_content::ConeClusterMopUpAlgorithm, lar_content::IsolatedClusterMopUpAlgorithm, lar_content::NearbyClusterMopUpAlgorithm, lar_content::SlidingConeClusterMopUpAlgorithm, lar_content::BranchSplittingAlgorithm, lar_content::ClusterSplittingAlgorithm, lar_content::CrossedTrackSplittingAlgorithm, lar_content::DeltaRaySplittingAlgorithm, lar_content::KinkSplittingAlgorithm, lar_content::LayerSplittingAlgorithm, lar_content::OvershootSplittingAlgorithm, lar_content::TrackConsolidationAlgorithm, lar_content::TwoDSlidingFitConsolidationAlgorithm, lar_content::TwoDSlidingFitMultiSplitAlgorithm, lar_content::TwoDSlidingFitSplittingAlgorithm, lar_content::TwoDSlidingFitSplittingAndSplicingAlgorithm, lar_content::TwoDSlidingFitSplittingAndSwitchingAlgorithm, lar_content::VertexSplittingAlgorithm, lar_content::CosmicRayExtensionAlgorithm, lar_content::CosmicRaySplittingAlgorithm, lar_content::DeltaRayExtensionAlgorithm, lar_content::DeltaRayGrowingAlgorithm, lar_content::TrackMergeRefinementAlgorithm, lar_content::StreamSelectionAlgorithm, lar_content::TwoDParticleCreationAlgorithm, lar_content::InteractionSelectionAlgorithm, lar_content::ListChangingAlgorithm, lar_content::ListDeletionAlgorithm, lar_content::ListMergingAlgorithm, lar_content::ListPruningAlgorithm, lar_content::MopUpBaseAlgorithm, lar_content::PfoHitCleaningAlgorithm, lar_content::PfoMopUpBaseAlgorithm, lar_content::AsymmetryFeatureBaseTool, lar_content::CandidateVertexCreationAlgorithm, lar_content::EnergyKickFeatureTool, lar_content::EnergyKickVertexSelectionAlgorithm, lar_content::HitAngleVertexSelectionAlgorithm, lar_content::MvaVertexSelectionAlgorithm< T >, lar_content::RPhiFeatureTool, lar_content::TrainedVertexSelectionAlgorithm, lar_content::VertexRefinementAlgorithm, lar_content::VertexSelectionBaseAlgorithm, lar_dl_content::DLMasterAlgorithm, lar_dl_content::DlHitValidationAlgorithm, lar_dl_content::DlClusterCharacterisationAlgorithm, lar_dl_content::DlHitTrackShowerIdAlgorithm, lar_dl_content::DlPfoCharacterisationAlgorithm, lar_dl_content::DlTrackShowerStreamSelectionAlgorithm, lar_dl_content::DlVertexingAlgorithm, EventReadingAlgorithm, EventWritingAlgorithm, TemplateAlgorithm, TemplateAlgorithmTool, lar_content::EnergyDepositionAsymmetryFeatureTool, lar_content::GlobalAsymmetryFeatureTool, lar_content::LocalAsymmetryFeatureTool, lar_content::ShowerAsymmetryFeatureTool, lar_content::RemovalBaseTool, and lar_content::TrackRefinementBaseAlgorithm.

Here is the caller graph for this function:

RegisterDetails()

StatusCode pandora::Process::RegisterDetails ( const Pandora *const  pPandora, const std::string &  type, const std::string &  instanceName  )

inlineprotected

Register i) the pandora instance that will run the process and ii) the process type.

Parameters

pPandora	address of the pandora object that will run the process
type	the process type
instanceName	the process instance name

Definition at line 146 of file Process.h.

Here is the caller graph for this function:

Reset()

StatusCode pandora::Process::Reset ( )

inlineprotectedvirtual

Perform any operations when pandora is reset, typically at the end of each event.

Reimplemented in lar_content::MasterAlgorithm, lar_content::PostProcessingAlgorithm, and lar_content::PreProcessingAlgorithm.

Definition at line 133 of file Process.h.

Here is the caller graph for this function:

Member Data Documentation

m_instanceName

std::string pandora::Process::m_instanceName

protected

The process instance name.

Definition at line 89 of file Process.h.

m_pPandora

const Pandora* pandora::Process::m_pPandora

protected

The pandora object that will run the process.

Definition at line 87 of file Process.h.

m_type

std::string pandora::Process::m_type

protected

The process type.

Definition at line 88 of file Process.h.

---

The documentation for this class was generated from the following file:

• PandoraSDK/include/Pandora/Process.h
