#include "EventReadingAlgorithm.h"

Inheritance diagram for EventReadingAlgorithm:

[legend]

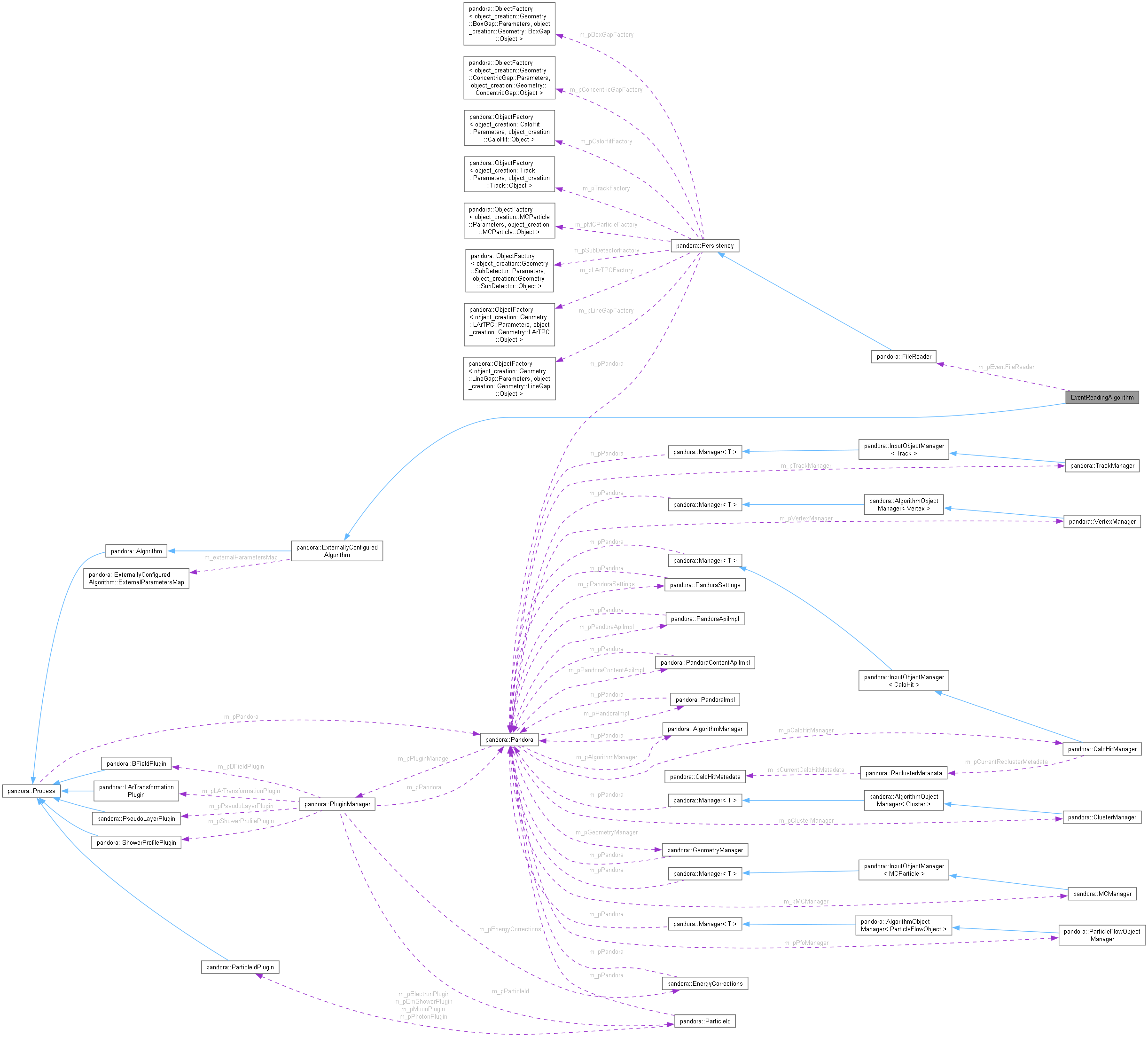

Collaboration diagram for EventReadingAlgorithm:

[legend]

Classes
class	ExternalEventReadingParameters
	External event reading parameters class. More...

class	Factory
	Factory class for instantiating algorithm. More...

Public Member Functions
	EventReadingAlgorithm ()
	Default constructor.

	~EventReadingAlgorithm ()
	Destructor.

const std::string &	GetType () const
	Get the type.

const std::string &	GetInstanceName () const
	Get the instance name.

const Pandora &	GetPandora () const
	Get the associated pandora instance.

Static Public Member Functions
static StatusCode	SetExternalParameters (const Pandora &pandora, const std::string &algorithmType, ExternalParameters *const pExternalParameters)
	Set the external parameters associated with an algorithm instance of a specific type, created by the given Pandora instance.

Protected Member Functions
pandora::StatusCode	Initialize ()
	Perform any operations that must occur after reading settings, but before running the process.

pandora::StatusCode	Run ()
	Run the algorithm.

void	MoveToNextEventFile ()
	Proceed to process next event file named in the input list.

pandora::StatusCode	ReplaceEventFileReader (const std::string &fileName)
	Replace the current event file reader with a new reader for the specified file.

pandora::FileType	GetFileType (const std::string &fileName) const
	Analyze a provided file name to extract the file type/extension.

pandora::StatusCode	ReadSettings (const pandora::TiXmlHandle xmlHandle)
	Read the algorithm settings.

bool	ExternalParametersPresent () const
	Whether external parameters are present.

ExternalParameters *	GetExternalParameters () const
	Get the external parameters associated with algorithm instances created by a given Pandora instance. A single call to this function per algorithm type, per Pandora instance is enforced to prevent misuse.

virtual StatusCode	Reset ()
	Perform any operations when pandora is reset, typically at the end of each event.

StatusCode	RegisterDetails (const Pandora *const pPandora, const std::string &type, const std::string &instanceName)
	Register i) the pandora instance that will run the process and ii) the process type.

Protected Attributes
std::string	m_geometryFileName
	Name of the file containing geometry information.

std::string	m_eventFileName
	Name of the current file containing event information.

pandora::StringVector	m_eventFileNameVector
	Vector of file names to be processed.

unsigned int	m_skipToEvent
	Index of first event to consider in first input file.

pandora::FileReader *	m_pEventFileReader
	Address of the event file reader.

const Pandora *	m_pPandora
	The pandora object that will run the process.

std::string	m_type
	The process type.

std::string	m_instanceName
	The process instance name.

Static Private Attributes
static ExternalParametersMap	m_externalParametersMap
	The external parameters map.

Detailed Description

EventReadingAlgorithm class.

Definition at line 24 of file EventReadingAlgorithm.h.

Constructor & Destructor Documentation

◆ EventReadingAlgorithm()

EventReadingAlgorithm::EventReadingAlgorithm ( )

Default constructor.

Definition at line 19 of file EventReadingAlgorithm.cc.

Here is the caller graph for this function:

◆ ~EventReadingAlgorithm()

EventReadingAlgorithm::~EventReadingAlgorithm ( )

Destructor.

Definition at line 27 of file EventReadingAlgorithm.cc.

Member Function Documentation

◆ ExternalParametersPresent()

bool pandora::ExternallyConfiguredAlgorithm::ExternalParametersPresent ( ) const

protectedinherited

Whether external parameters are present.

Returns: boolean

Definition at line 58 of file ExternallyConfiguredAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetExternalParameters()

ExternalParameters * pandora::ExternallyConfiguredAlgorithm::GetExternalParameters ( ) const

protectedinherited

Get the external parameters associated with algorithm instances created by a given Pandora instance. A single call to this function per algorithm type, per Pandora instance is enforced to prevent misuse.

Returns: the address of the external parameters

Definition at line 65 of file ExternallyConfiguredAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetFileType()

FileType EventReadingAlgorithm::GetFileType ( const std::string & fileName ) const

protected

Analyze a provided file name to extract the file type/extension.

Parameters

fileName the file name

Returns: the file type

Definition at line 135 of file EventReadingAlgorithm.cc.

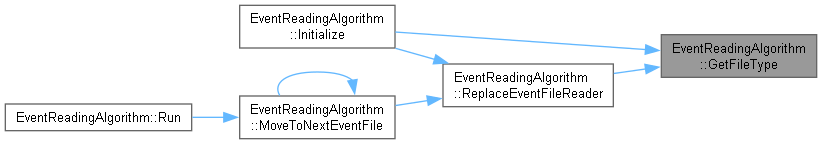

Here is the caller graph for this function:

◆ GetInstanceName()

const std::string & pandora::Process::GetInstanceName ( ) const

inlineinherited

Get the instance name.

Returns: The instance name

Definition at line 109 of file Process.h.

◆ GetPandora()

const Pandora & pandora::Process::GetPandora ( ) const

inlineinherited

Get the associated pandora instance.

Returns: the associated pandora instance

Definition at line 116 of file Process.h.

◆ GetType()

const std::string & pandora::Process::GetType ( ) const

inlineinherited

Get the type.

Returns: The type

Definition at line 102 of file Process.h.

◆ Initialize()

StatusCode EventReadingAlgorithm::Initialize ( )

protectedvirtual

Perform any operations that must occur after reading settings, but before running the process.

Reimplemented from pandora::Process.

Definition at line 34 of file EventReadingAlgorithm.cc.

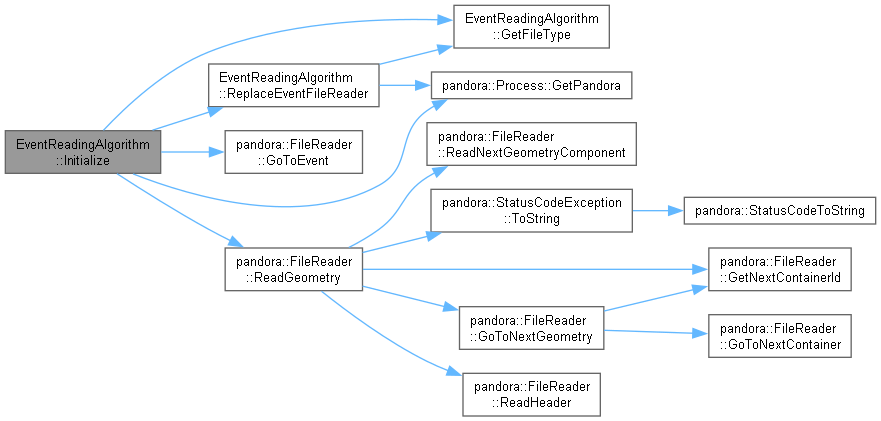

Here is the call graph for this function:

◆ MoveToNextEventFile()

void EventReadingAlgorithm::MoveToNextEventFile ( )

protected

Proceed to process next event file named in the input list.

Definition at line 88 of file EventReadingAlgorithm.cc.

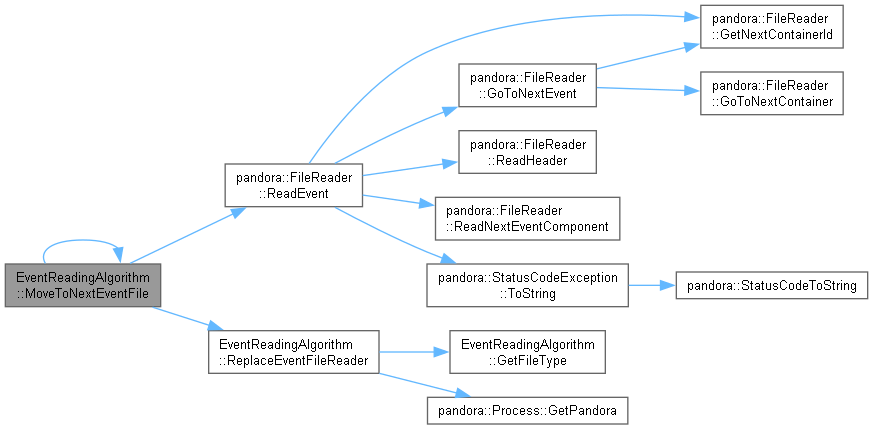

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReadSettings()

StatusCode EventReadingAlgorithm::ReadSettings ( const pandora::TiXmlHandle xmlHandle )

protectedvirtual

Read the algorithm settings.

Parameters

xmlHandle the relevant xml handle

Implements pandora::Process.

Definition at line 157 of file EventReadingAlgorithm.cc.

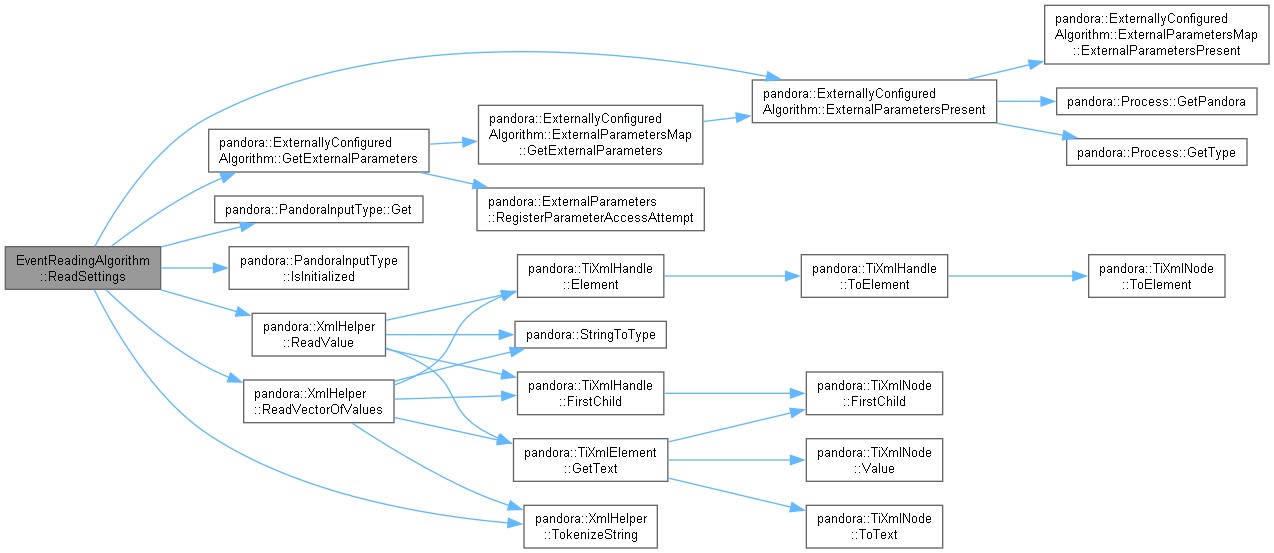

Here is the call graph for this function:

◆ RegisterDetails()

StatusCode pandora::Process::RegisterDetails	(	const Pandora *const	pPandora,
		const std::string &	type,
		const std::string &	instanceName
	)

inlineprotectedinherited

Register i) the pandora instance that will run the process and ii) the process type.

Parameters

pPandora	address of the pandora object that will run the process
type	the process type
instanceName	the process instance name

Definition at line 146 of file Process.h.

Here is the caller graph for this function:

◆ ReplaceEventFileReader()

StatusCode EventReadingAlgorithm::ReplaceEventFileReader ( const std::string & fileName )

protected

Replace the current event file reader with a new reader for the specified file.

Parameters

fileName the file name

Definition at line 109 of file EventReadingAlgorithm.cc.

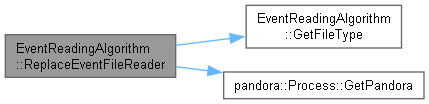

Here is the call graph for this function:

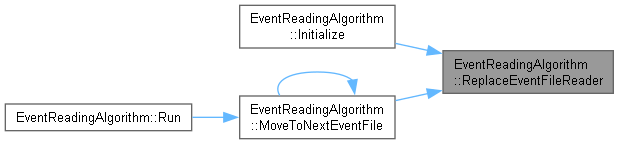

Here is the caller graph for this function:

◆ Reset()

StatusCode pandora::Process::Reset ( )

inlineprotectedvirtualinherited

Perform any operations when pandora is reset, typically at the end of each event.

Reimplemented in lar_content::MasterAlgorithm, lar_content::PostProcessingAlgorithm, and lar_content::PreProcessingAlgorithm.

Definition at line 133 of file Process.h.

Here is the caller graph for this function:

◆ Run()

StatusCode EventReadingAlgorithm::Run ( )

protectedvirtual

Run the algorithm.

Implements pandora::Algorithm.

Definition at line 67 of file EventReadingAlgorithm.cc.

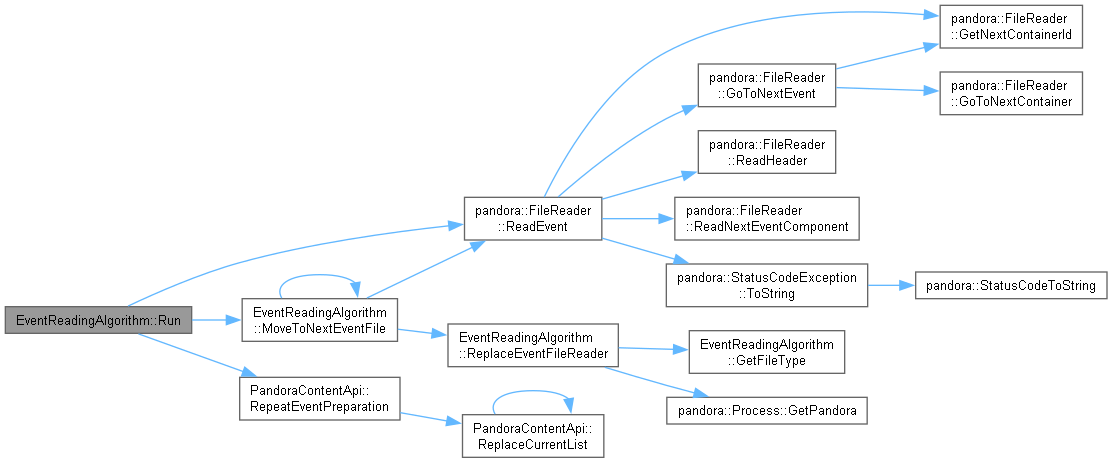

Here is the call graph for this function:

◆ SetExternalParameters()

StatusCode pandora::ExternallyConfiguredAlgorithm::SetExternalParameters	(	const Pandora &	pandora,
		const std::string &	algorithmType,
		ExternalParameters *const	pExternalParameters
	)

staticinherited

Set the external parameters associated with an algorithm instance of a specific type, created by the given Pandora instance.

Parameters

pandora	the pandora instance
algorithmType	the algorithm type
pExternalParameters	the address of the external parameters instance

Definition at line 51 of file ExternallyConfiguredAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_eventFileName

std::string EventReadingAlgorithm::m_eventFileName

protected

Name of the current file containing event information.

Definition at line 85 of file EventReadingAlgorithm.h.

◆ m_eventFileNameVector

pandora::StringVector EventReadingAlgorithm::m_eventFileNameVector

protected

Vector of file names to be processed.

Definition at line 86 of file EventReadingAlgorithm.h.

◆ m_externalParametersMap

ExternallyConfiguredAlgorithm::ExternalParametersMap pandora::ExternallyConfiguredAlgorithm::m_externalParametersMap

staticprivateinherited

The external parameters map.

Definition at line 143 of file ExternallyConfiguredAlgorithm.h.

◆ m_geometryFileName

std::string EventReadingAlgorithm::m_geometryFileName

protected

Name of the file containing geometry information.

Definition at line 84 of file EventReadingAlgorithm.h.

◆ m_instanceName

std::string pandora::Process::m_instanceName

protectedinherited

The process instance name.

Definition at line 89 of file Process.h.

◆ m_pEventFileReader

pandora::FileReader* EventReadingAlgorithm::m_pEventFileReader

protected

Address of the event file reader.

Definition at line 90 of file EventReadingAlgorithm.h.

◆ m_pPandora

const Pandora* pandora::Process::m_pPandora

protectedinherited

The pandora object that will run the process.

Definition at line 87 of file Process.h.

◆ m_skipToEvent

unsigned int EventReadingAlgorithm::m_skipToEvent

protected

Index of first event to consider in first input file.

Definition at line 88 of file EventReadingAlgorithm.h.

◆ m_type

std::string pandora::Process::m_type

protectedinherited

The process type.

Definition at line 88 of file Process.h.

The documentation for this class was generated from the following files:

PandoraSDK/include/Persistency/EventReadingAlgorithm.h
PandoraSDK/src/Persistency/EventReadingAlgorithm.cc
