ShowerRegionFeatureTool to calculate variables related to the shower region. More...

#include "ConnectionPathwayFeatureTool.h"

Inheritance diagram for lar_content::ShowerRegionFeatureTool:

[legend]

Collaboration diagram for lar_content::ShowerRegionFeatureTool:

[legend]

Public Types
typedef std::vector< MvaFeatureTool< Ts... > * >	FeatureToolVector

typedef std::map< std::string, MvaFeatureTool< Ts... > * >	FeatureToolMap

Public Member Functions
	ShowerRegionFeatureTool ()
	Default constructor.

void	Run (LArMvaHelper::MvaFeatureVector &featureVector, const pandora::Algorithm const pAlgorithm, const pandora::ParticleFlowObject const pShowerPfo, const pandora::CartesianVector &nuVertex3D, const ProtoShowerMatch &protoShowerMatch, const pandora::CartesianPointVector &showerStarts3D)

void	Run (LArMvaHelper::MvaFeatureMap &featureMap, pandora::StringVector &featureOrder, const std::string &featureToolName, const pandora::Algorithm const pAlgorithm, const pandora::ParticleFlowObject const pShowerPfo, const pandora::CartesianVector &nuVertex3D, const ProtoShowerMatch &protoShowerMatch, const pandora::CartesianPointVector &showerStarts3D)

virtual void	Run (MvaTypes::MvaFeatureVector &featureVector, Ts... args)=0
	Run the algorithm tool.

virtual void	Run (MvaTypes::MvaFeatureMap &featureMap, pandora::StringVector &featureOrder, const std::string &featureToolName, Ts...)

const std::string &	GetType () const
	Get the type.

const std::string &	GetInstanceName () const
	Get the instance name.

const Pandora &	GetPandora () const
	Get the associated pandora instance.

Protected Member Functions
virtual StatusCode	Initialize ()
	Perform any operations that must occur after reading settings, but before running the process.

virtual StatusCode	Reset ()
	Perform any operations when pandora is reset, typically at the end of each event.

StatusCode	RegisterDetails (const Pandora *const pPandora, const std::string &type, const std::string &instanceName)
	Register i) the pandora instance that will run the process and ii) the process type.

Protected Attributes
const Pandora *	m_pPandora
	The pandora object that will run the process.

std::string	m_type
	The process type.

std::string	m_instanceName
	The process instance name.

Private Member Functions
pandora::StatusCode	ReadSettings (const pandora::TiXmlHandle xmlHandle)
	Read the algorithm settings.

void	GetViewShowerRegionVariables (const pandora::Algorithm const pAlgorithm, const pandora::ParticleFlowObject const pShowerPfo, const pandora::CartesianVector &nuVertex3D, const ProtoShowerMatch &protoShowerMatch, const pandora::HitType hitType, const pandora::CartesianVector &showerStart3D, float &nHits, float &foundHitRatio, float &scatterAngle, float &openingAngle, float &nuVertexEnergyAsymmetry, float &nuVertexEnergyWeightedMeanRadialDistance, float &showerStartEnergyAsymmetry, float &showerStartMoliereRadius)
	Calculate the shower region variables for the input view.

void	BuildViewShower (const pandora::ParticleFlowObject *const pShowerPfo, const TwoDSlidingFitResult &spineFit, const pandora::HitType hitType, const pandora::CartesianVector &showerStart2D, const pandora::CartesianVector &nuVertex2D, pandora::CaloHitList &postShowerHitList, pandora::CartesianPointVector &postShowerPositions)
	Collect the shower region hits in a given view.

void	GetShowerHitVariables (const pandora::CaloHitList &spineHitList, const pandora::CaloHitList &postShowerHitList, const pandora::ParticleFlowObject *const pShowerPfo, const pandora::HitType hitType, float &nHits, float &foundHitRatio)
	Evaluate the variables associated with the shower region hit multiplicity.

void	CalculateViewScatterAngle (const pandora::CartesianVector &nuVertex2D, const TwoDSlidingFitResult &spineFitResult, const pandora::CartesianVector &showerStart2D, const TwoDSlidingFitResult &showerFitResult, float &scatterAngle)
	Calculate the connection pathway-shower region scatter angle.

void	CalculateViewOpeningAngle (const TwoDSlidingFitResult &showerFitResult, const pandora::CaloHitList &postShowerHitList, const pandora::CartesianVector &showerStart2D, float &openingAngle)
	Calculate the opening angle of the shower region.

void	CalculateViewNuVertexConsistencyVariables (const TwoDSlidingFitResult &spineFitResult, const pandora::CaloHitList &postShowerHitList, const bool isDownstream, const pandora::CartesianVector &nuVertex2D, float &nuVertexEnergyAsymmetry, float &nuVertexEnergyWeightedMeanRadialDistance)
	Evaluate the neutrino vertex consistency variables.

void	CalculateViewShowerStartConsistencyVariables (const TwoDSlidingFitResult &showerFitResult, const pandora::CaloHitList &postShowerHitList, const bool isShowerDownstream, float &showerStartEnergyAsymmetry, float &showerStartMoliereRadius)
	Evaluate the shower start consistency variables.

Private Attributes
float	m_defaultFloat
	Default float value.

float	m_defaultRatio
	Default float value for ratios.

unsigned int	m_spineFitWindow
	The spine fit window.

float	m_showerRadius
	The max. separation distance between a shower region hit and the shower core.

unsigned int	m_showerFitWindow
	The shower fit window.

float	m_edgeStep
	The binning of the shower boundaries.

float	m_moliereFraction
	The energy fraction which corresponds to minShowerStartMoliereRadius.

float	m_maxNHitsLimit
	maxNHits max. limit

float	m_maxFoundHitRatioLimit
	maxFoundHitRatio max. limit

float	m_maxScatterAngleLimit
	maxScatterAngle max. limit

float	m_maxOpeningAngleLimit
	maxOpeningAngle max. limit

float	m_maxNuVertexEnergyWeightedMeanRadialDistanceLimit
	maxNuVertexEnergyWeightedMeanRadialDistance max. limit

float	m_minShowerStartMoliereRadiusLimit
	minShowerStartMoliereRadius max. limit

Detailed Description

ShowerRegionFeatureTool to calculate variables related to the shower region.

Definition at line 128 of file ConnectionPathwayFeatureTool.h.

Member Typedef Documentation

◆ FeatureToolMap

template<typename... Ts>

typedef std::map<std::string, MvaFeatureTool<Ts...> *> lar_content::MvaFeatureTool< Ts >::FeatureToolMap

inherited

Definition at line 37 of file LArMvaHelper.h.

◆ FeatureToolVector

template<typename... Ts>

typedef std::vector<MvaFeatureTool<Ts...> *> lar_content::MvaFeatureTool< Ts >::FeatureToolVector

inherited

Definition at line 36 of file LArMvaHelper.h.

Constructor & Destructor Documentation

◆ ShowerRegionFeatureTool()

lar_content::ShowerRegionFeatureTool::ShowerRegionFeatureTool ( )

Default constructor.

Definition at line 335 of file ConnectionPathwayFeatureTool.cc.

Member Function Documentation

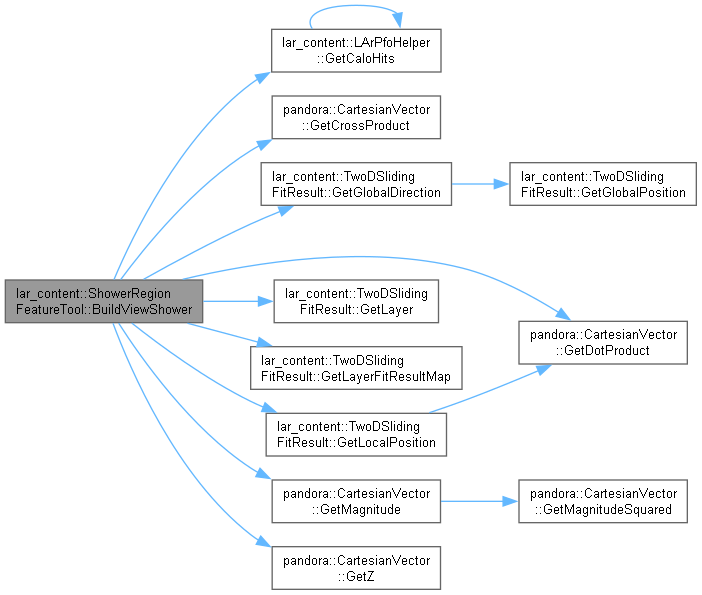

◆ BuildViewShower()

void lar_content::ShowerRegionFeatureTool::BuildViewShower	(	const pandora::ParticleFlowObject *const	pShowerPfo,
		const TwoDSlidingFitResult &	spineFit,
		const pandora::HitType	hitType,
		const pandora::CartesianVector &	showerStart2D,
		const pandora::CartesianVector &	nuVertex2D,
		pandora::CaloHitList &	postShowerHitList,
		pandora::CartesianPointVector &	postShowerPositions
	)

private

Collect the shower region hits in a given view.

Parameters

pShowerPfo	the shower pfo
spineFit	the shower spine fit
hitType	the 2D view
showerStart2D	the 2D shower start position
nuVertex2D	the 2D neutrino vertex position
postShowerHitList	the collected shower region hit list
postShowerPositions	the collected shower region hit position vector

Definition at line 579 of file ConnectionPathwayFeatureTool.cc.

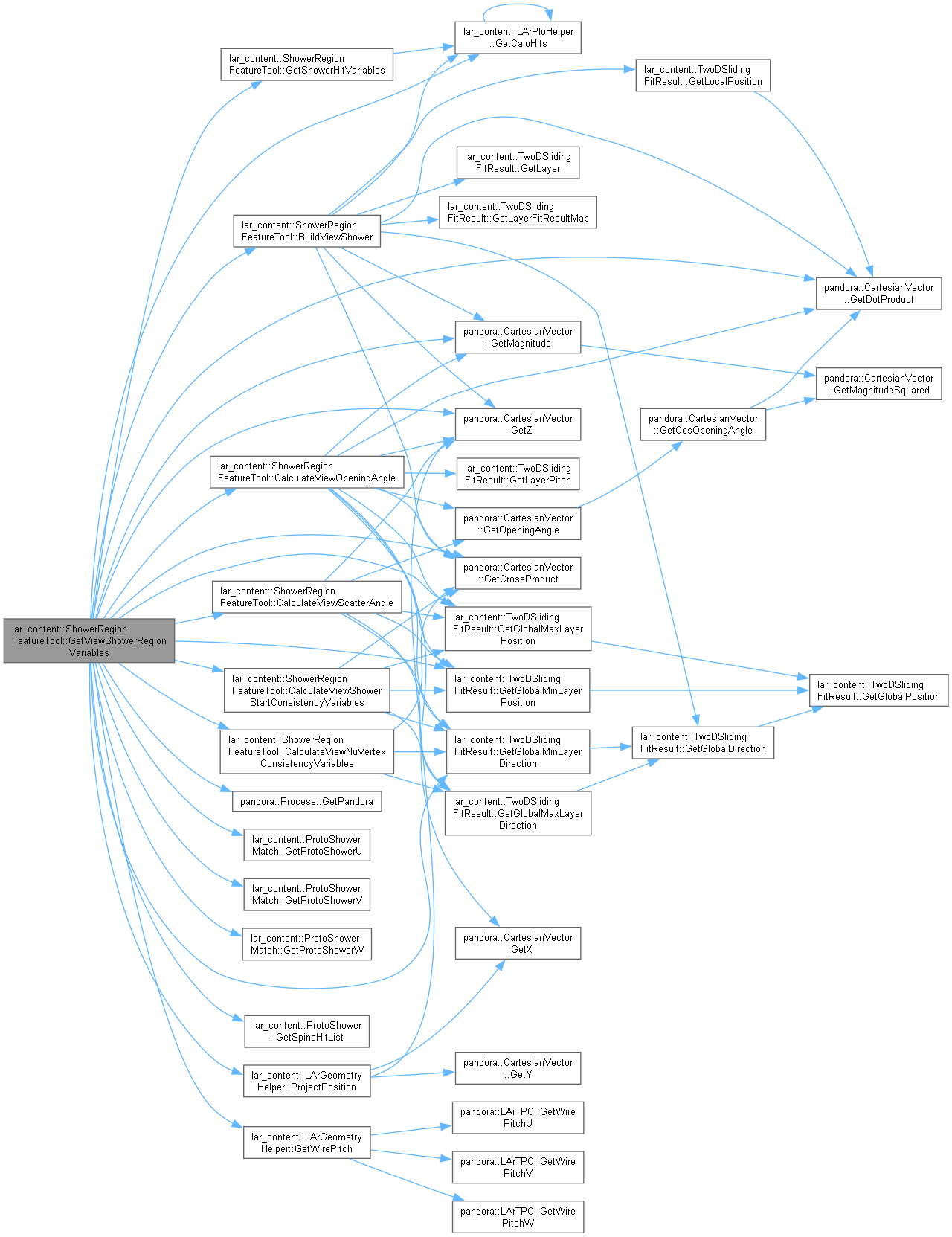

Here is the call graph for this function:

Here is the caller graph for this function:

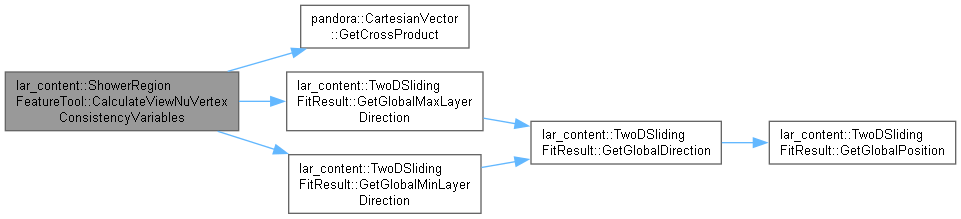

◆ CalculateViewNuVertexConsistencyVariables()

void lar_content::ShowerRegionFeatureTool::CalculateViewNuVertexConsistencyVariables	(	const TwoDSlidingFitResult &	spineFitResult,
		const pandora::CaloHitList &	postShowerHitList,
		const bool	isDownstream,
		const pandora::CartesianVector &	nuVertex2D,
		float &	nuVertexEnergyAsymmetry,
		float &	nuVertexEnergyWeightedMeanRadialDistance
	)

private

Evaluate the neutrino vertex consistency variables.

Parameters

spineHitList	the shower spine hit list
postShowerHitList	the collected shower region hit list
isDownstream	whether the shower direction is downstream (in Z) of the neutrino vertex
nuVertex2D	the 2D neutrino vertex
nuVertexEnergyAsymmetry	the output neutrino vertex energy asymmetry
nuVertexEnergyWeightedMeanRadialDistance	the output neutrino vertex energy weighted mean radial distance

Definition at line 725 of file ConnectionPathwayFeatureTool.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

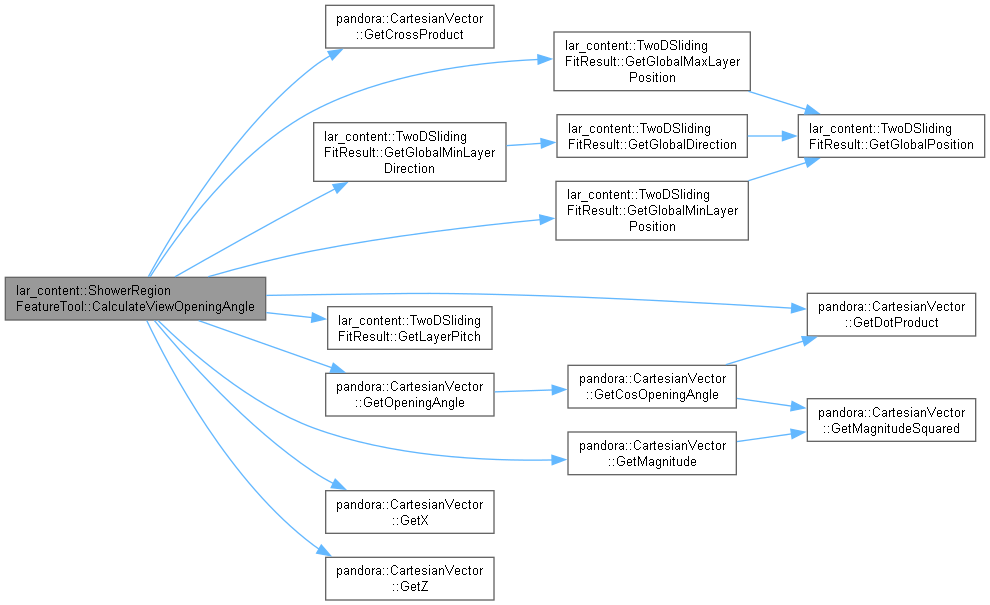

◆ CalculateViewOpeningAngle()

void lar_content::ShowerRegionFeatureTool::CalculateViewOpeningAngle	(	const TwoDSlidingFitResult &	showerFitResult,
		const pandora::CaloHitList &	postShowerHitList,
		const pandora::CartesianVector &	showerStart2D,
		float &	openingAngle
	)

private

Calculate the opening angle of the shower region.

Parameters

showerFitResult	the shower region fit
postShowerHitList	the collected shower region hit list
showerStart2D	the 2D shower start position
openingAngle	the output opening angle

Definition at line 661 of file ConnectionPathwayFeatureTool.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

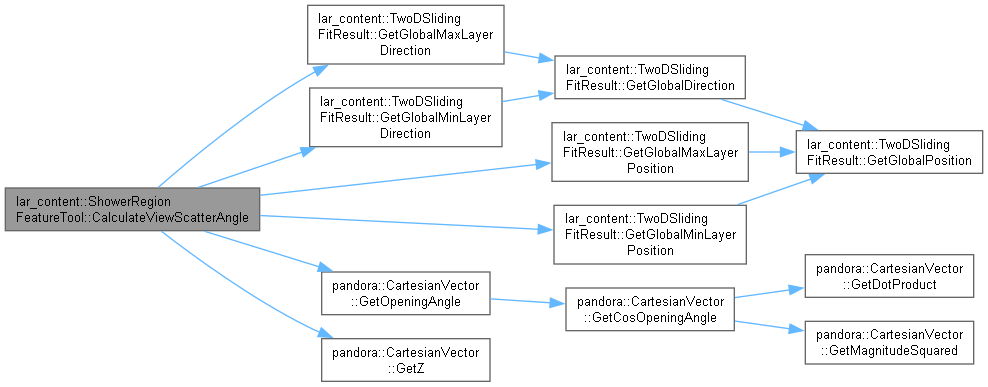

◆ CalculateViewScatterAngle()

void lar_content::ShowerRegionFeatureTool::CalculateViewScatterAngle	(	const pandora::CartesianVector &	nuVertex2D,
		const TwoDSlidingFitResult &	spineFitResult,
		const pandora::CartesianVector &	showerStart2D,
		const TwoDSlidingFitResult &	showerFitResult,
		float &	scatterAngle
	)

private

Calculate the connection pathway-shower region scatter angle.

Parameters

nuVertex2D	the 2D neutrino vertex
spineFitResult	the shower spine fit
showerStart2D	the 2D shower start position
showerFitResult	the shower region fit
scatterAngle	the output scatter angle

Definition at line 644 of file ConnectionPathwayFeatureTool.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

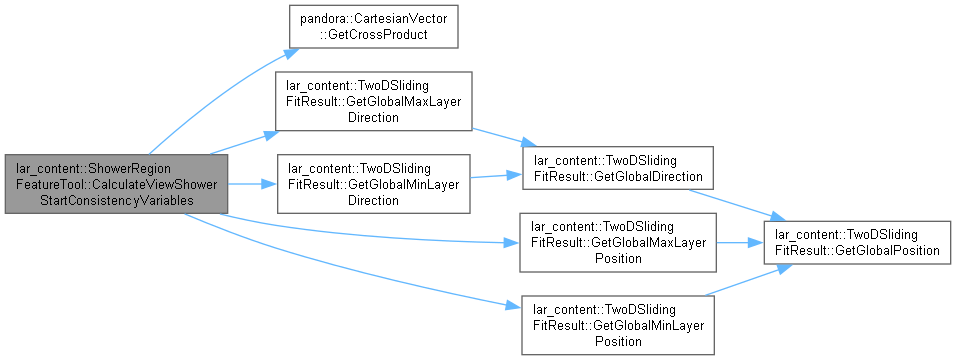

◆ CalculateViewShowerStartConsistencyVariables()

void lar_content::ShowerRegionFeatureTool::CalculateViewShowerStartConsistencyVariables	(	const TwoDSlidingFitResult &	showerFitResult,
		const pandora::CaloHitList &	postShowerHitList,
		const bool	isShowerDownstream,
		float &	showerStartEnergyAsymmetry,
		float &	showerStartMoliereRadius
	)

private

Evaluate the shower start consistency variables.

Parameters

showerFitResult	the shower fit result
postShowerHitList	the collected shower region hit list
isShowerDownstream	whether the shower direction is downstream (in Z) of the neutrino vertex
showerStartEnergyAsymmetry	the output shower start energy asymmetry
showerStartMoliereRadius	the output shower start moliere radius

Definition at line 768 of file ConnectionPathwayFeatureTool.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetInstanceName()

const std::string & pandora::Process::GetInstanceName ( ) const

inlineinherited

Get the instance name.

Returns: The instance name

Definition at line 109 of file Process.h.

◆ GetPandora()

const Pandora & pandora::Process::GetPandora ( ) const

inlineinherited

Get the associated pandora instance.

Returns: the associated pandora instance

Definition at line 116 of file Process.h.

◆ GetShowerHitVariables()

void lar_content::ShowerRegionFeatureTool::GetShowerHitVariables	(	const pandora::CaloHitList &	spineHitList,
		const pandora::CaloHitList &	postShowerHitList,
		const pandora::ParticleFlowObject *const	pShowerPfo,
		const pandora::HitType	hitType,
		float &	nHits,
		float &	foundHitRatio
	)

private

Evaluate the variables associated with the shower region hit multiplicity.

Parameters

spineHitList	the shower spine hit list
postShowerHitList	the collected shower region hit list
pShowerPfo	the shower pfo
hitType	the 2D view
nHits	the output number of shower region hits
foundHitRatio	the output found hit ratio

Definition at line 624 of file ConnectionPathwayFeatureTool.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetType()

const std::string & pandora::Process::GetType ( ) const

inlineinherited

Get the type.

Returns: The type

Definition at line 102 of file Process.h.

◆ GetViewShowerRegionVariables()

void lar_content::ShowerRegionFeatureTool::GetViewShowerRegionVariables	(	const pandora::Algorithm *const	pAlgorithm,
		const pandora::ParticleFlowObject *const	pShowerPfo,
		const pandora::CartesianVector &	nuVertex3D,
		const ProtoShowerMatch &	protoShowerMatch,
		const pandora::HitType	hitType,
		const pandora::CartesianVector &	showerStart3D,
		float &	nHits,
		float &	foundHitRatio,
		float &	scatterAngle,
		float &	openingAngle,
		float &	nuVertexEnergyAsymmetry,
		float &	nuVertexEnergyWeightedMeanRadialDistance,
		float &	showerStartEnergyAsymmetry,
		float &	showerStartMoliereRadius
	)

private

Calculate the shower region variables for the input view.

Parameters

pAlgorithm	the algorithm
pShowerPfo	the shower pfo
nuVertex3D	the 3D neutrino vertex
protoShowerMatch	the ProtoShower match
hitType	the 2D view
showerStart3D	the 3D shower start position
nHits	the output number of shower region hits
foundHitRatio	the output found hit ratio
scatterAngle	the output scatter angle
openingAngle	the output opening angle
nuVertexEnergyAsymmetry	the output neutrino vertex energy asymmetry
nuVertexEnergyWeightedMeanRadialDistance	the output neutrino vertex energy weighted mean radial distance
showerStartEnergyAsymmetry	the output shower start energy asymmetry
showerStartMoliereRadius	the output shower start moliere radius

Definition at line 502 of file ConnectionPathwayFeatureTool.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Initialize()

StatusCode pandora::Process::Initialize ( )

inlineprotectedvirtualinherited

Perform any operations that must occur after reading settings, but before running the process.

Reimplemented in lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, EventReadingAlgorithm, and EventWritingAlgorithm.

Definition at line 126 of file Process.h.

Here is the caller graph for this function:

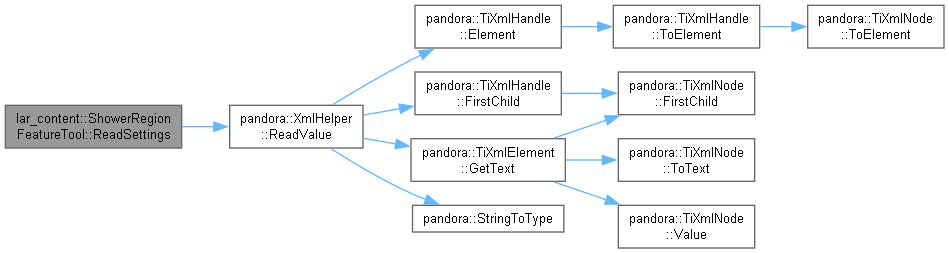

◆ ReadSettings()

StatusCode lar_content::ShowerRegionFeatureTool::ReadSettings ( const pandora::TiXmlHandle xmlHandle )

privatevirtual

Read the algorithm settings.

Parameters

xmlHandle the relevant xml handle

Implements pandora::Process.

Definition at line 830 of file ConnectionPathwayFeatureTool.cc.

Here is the call graph for this function:

◆ RegisterDetails()

StatusCode pandora::Process::RegisterDetails	(	const Pandora *const	pPandora,
		const std::string &	type,
		const std::string &	instanceName
	)

inlineprotectedinherited

Register i) the pandora instance that will run the process and ii) the process type.

Parameters

pPandora	address of the pandora object that will run the process
type	the process type
instanceName	the process instance name

Definition at line 146 of file Process.h.

Here is the caller graph for this function:

◆ Reset()

StatusCode pandora::Process::Reset ( )

inlineprotectedvirtualinherited

Perform any operations when pandora is reset, typically at the end of each event.

Reimplemented in lar_content::MasterAlgorithm, lar_content::PostProcessingAlgorithm, and lar_content::PreProcessingAlgorithm.

Definition at line 133 of file Process.h.

Here is the caller graph for this function:

◆ Run() [1/4]

void lar_content::ShowerRegionFeatureTool::Run	(	LArMvaHelper::MvaFeatureMap &	featureMap,
		pandora::StringVector &	featureOrder,
		const std::string &	featureToolName,
		const pandora::Algorithm *const	pAlgorithm,
		const pandora::ParticleFlowObject *const	pShowerPfo,
		const pandora::CartesianVector &	nuVertex3D,
		const ProtoShowerMatch &	protoShowerMatch,
		const pandora::CartesianPointVector &	showerStarts3D
	)

Definition at line 420 of file ConnectionPathwayFeatureTool.cc.

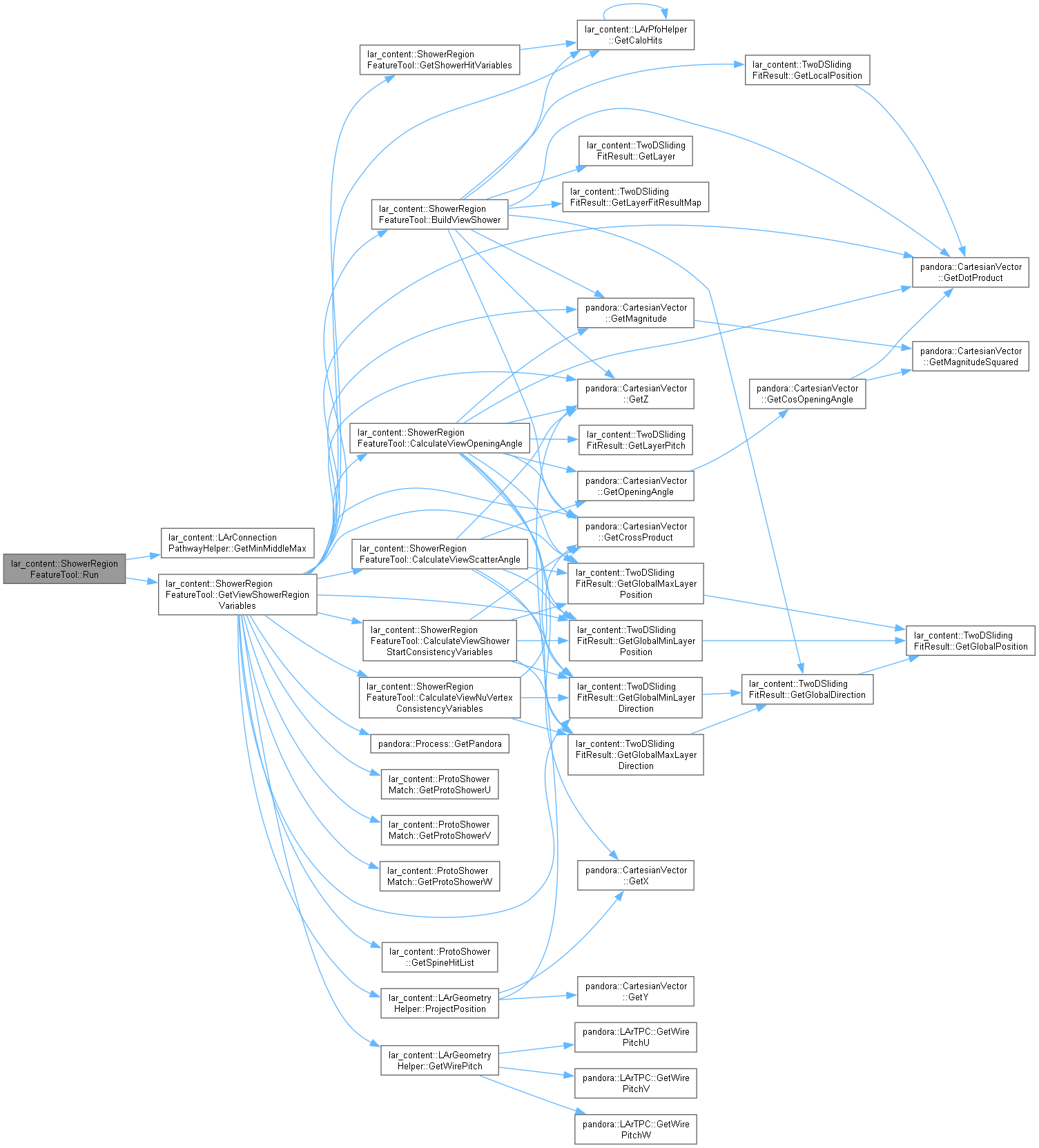

Here is the call graph for this function:

◆ Run() [2/4]

void lar_content::ShowerRegionFeatureTool::Run	(	LArMvaHelper::MvaFeatureVector &	featureVector,
		const pandora::Algorithm *const	pAlgorithm,
		const pandora::ParticleFlowObject *const	pShowerPfo,
		const pandora::CartesianVector &	nuVertex3D,
		const ProtoShowerMatch &	protoShowerMatch,
		const pandora::CartesianPointVector &	showerStarts3D
	)

Definition at line 354 of file ConnectionPathwayFeatureTool.cc.

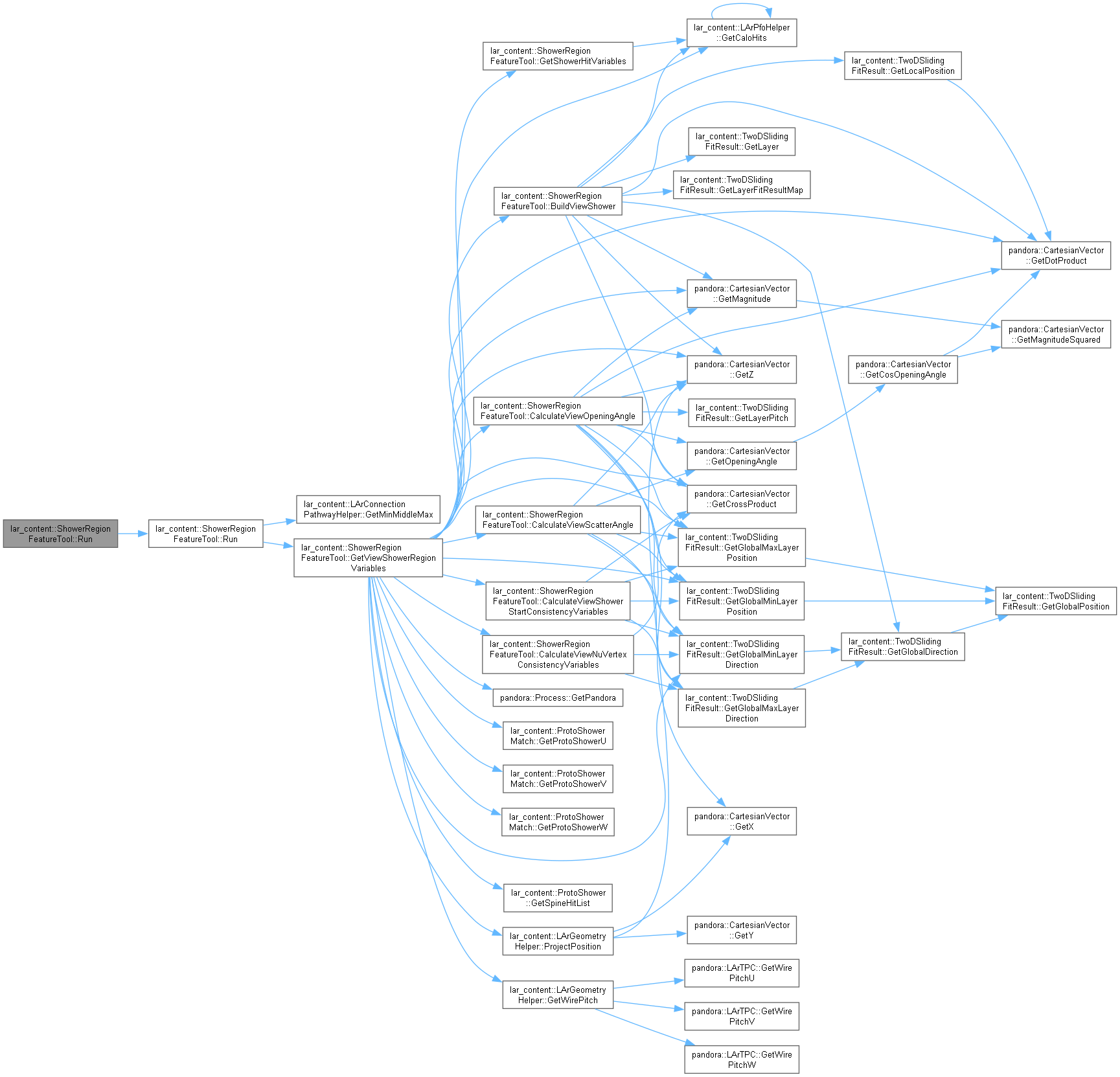

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Run() [3/4]

template<typename... Ts>

virtual void lar_content::MvaFeatureTool< Ts >::Run	(	MvaTypes::MvaFeatureMap &	featureMap,
		pandora::StringVector &	featureOrder,
		const std::string &	featureToolName,
		Ts...
	)

inlinevirtualinherited

Definition at line 51 of file LArMvaHelper.h.

◆ Run() [4/4]

template<typename... Ts>

virtual void lar_content::MvaFeatureTool< Ts >::Run	(	MvaTypes::MvaFeatureVector &	featureVector,
		Ts...	args
	)

pure virtualinherited

Run the algorithm tool.

Parameters

featureVector	the vector of features to append
args	arguments to pass to the tool

Member Data Documentation

◆ m_defaultFloat

float lar_content::ShowerRegionFeatureTool::m_defaultFloat

private

Default float value.

Definition at line 248 of file ConnectionPathwayFeatureTool.h.

◆ m_defaultRatio

float lar_content::ShowerRegionFeatureTool::m_defaultRatio

private

Default float value for ratios.

Definition at line 249 of file ConnectionPathwayFeatureTool.h.

◆ m_edgeStep

float lar_content::ShowerRegionFeatureTool::m_edgeStep

private

The binning of the shower boundaries.

Definition at line 253 of file ConnectionPathwayFeatureTool.h.

◆ m_instanceName

std::string pandora::Process::m_instanceName

protectedinherited

The process instance name.

Definition at line 89 of file Process.h.

◆ m_maxFoundHitRatioLimit

float lar_content::ShowerRegionFeatureTool::m_maxFoundHitRatioLimit

private

maxFoundHitRatio max. limit

Definition at line 256 of file ConnectionPathwayFeatureTool.h.

◆ m_maxNHitsLimit

float lar_content::ShowerRegionFeatureTool::m_maxNHitsLimit

private

maxNHits max. limit

Definition at line 255 of file ConnectionPathwayFeatureTool.h.

◆ m_maxNuVertexEnergyWeightedMeanRadialDistanceLimit

float lar_content::ShowerRegionFeatureTool::m_maxNuVertexEnergyWeightedMeanRadialDistanceLimit

private

maxNuVertexEnergyWeightedMeanRadialDistance max. limit

Definition at line 259 of file ConnectionPathwayFeatureTool.h.

◆ m_maxOpeningAngleLimit

float lar_content::ShowerRegionFeatureTool::m_maxOpeningAngleLimit

private

maxOpeningAngle max. limit

Definition at line 258 of file ConnectionPathwayFeatureTool.h.

◆ m_maxScatterAngleLimit

float lar_content::ShowerRegionFeatureTool::m_maxScatterAngleLimit

private

maxScatterAngle max. limit

Definition at line 257 of file ConnectionPathwayFeatureTool.h.

◆ m_minShowerStartMoliereRadiusLimit

float lar_content::ShowerRegionFeatureTool::m_minShowerStartMoliereRadiusLimit

private

minShowerStartMoliereRadius max. limit

Definition at line 260 of file ConnectionPathwayFeatureTool.h.

◆ m_moliereFraction

float lar_content::ShowerRegionFeatureTool::m_moliereFraction

private

The energy fraction which corresponds to minShowerStartMoliereRadius.

Definition at line 254 of file ConnectionPathwayFeatureTool.h.

◆ m_pPandora

const Pandora* pandora::Process::m_pPandora

protectedinherited

The pandora object that will run the process.

Definition at line 87 of file Process.h.

◆ m_showerFitWindow

unsigned int lar_content::ShowerRegionFeatureTool::m_showerFitWindow

private

The shower fit window.

Definition at line 252 of file ConnectionPathwayFeatureTool.h.

◆ m_showerRadius

float lar_content::ShowerRegionFeatureTool::m_showerRadius

private

The max. separation distance between a shower region hit and the shower core.

Definition at line 251 of file ConnectionPathwayFeatureTool.h.

◆ m_spineFitWindow

unsigned int lar_content::ShowerRegionFeatureTool::m_spineFitWindow

private

The spine fit window.

Definition at line 250 of file ConnectionPathwayFeatureTool.h.

◆ m_type

std::string pandora::Process::m_type

protectedinherited

The process type.

Definition at line 88 of file Process.h.

The documentation for this class was generated from the following files:

LArContent/larpandoracontent/LArShowerRefinement/ConnectionPathwayFeatureTool.h
LArContent/larpandoracontent/LArShowerRefinement/ConnectionPathwayFeatureTool.cc

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ FeatureToolMap

◆ FeatureToolVector

Constructor & Destructor Documentation

◆ ShowerRegionFeatureTool()

Member Function Documentation

◆ BuildViewShower()

◆ CalculateViewNuVertexConsistencyVariables()

◆ CalculateViewOpeningAngle()

◆ CalculateViewScatterAngle()

◆ CalculateViewShowerStartConsistencyVariables()

◆ GetInstanceName()

◆ GetPandora()

◆ GetShowerHitVariables()

◆ GetType()

◆ GetViewShowerRegionVariables()

◆ Initialize()

◆ ReadSettings()

◆ RegisterDetails()

◆ Reset()

◆ Run() [1/4]

◆ Run() [2/4]

◆ Run() [3/4]

◆ Run() [4/4]

Member Data Documentation

◆ m_defaultFloat

◆ m_defaultRatio

◆ m_edgeStep

◆ m_instanceName

◆ m_maxFoundHitRatioLimit

◆ m_maxNHitsLimit

◆ m_maxNuVertexEnergyWeightedMeanRadialDistanceLimit

◆ m_maxOpeningAngleLimit

◆ m_maxScatterAngleLimit

◆ m_minShowerStartMoliereRadiusLimit

◆ m_moliereFraction

◆ m_pPandora

◆ m_showerFitWindow

◆ m_showerRadius

◆ m_spineFitWindow

◆ m_type
