TrackClusterCreationAlgorithm class. More...

#include "TrackClusterCreationAlgorithm.h"

Inheritance diagram for lar_content::TrackClusterCreationAlgorithm:

[legend]

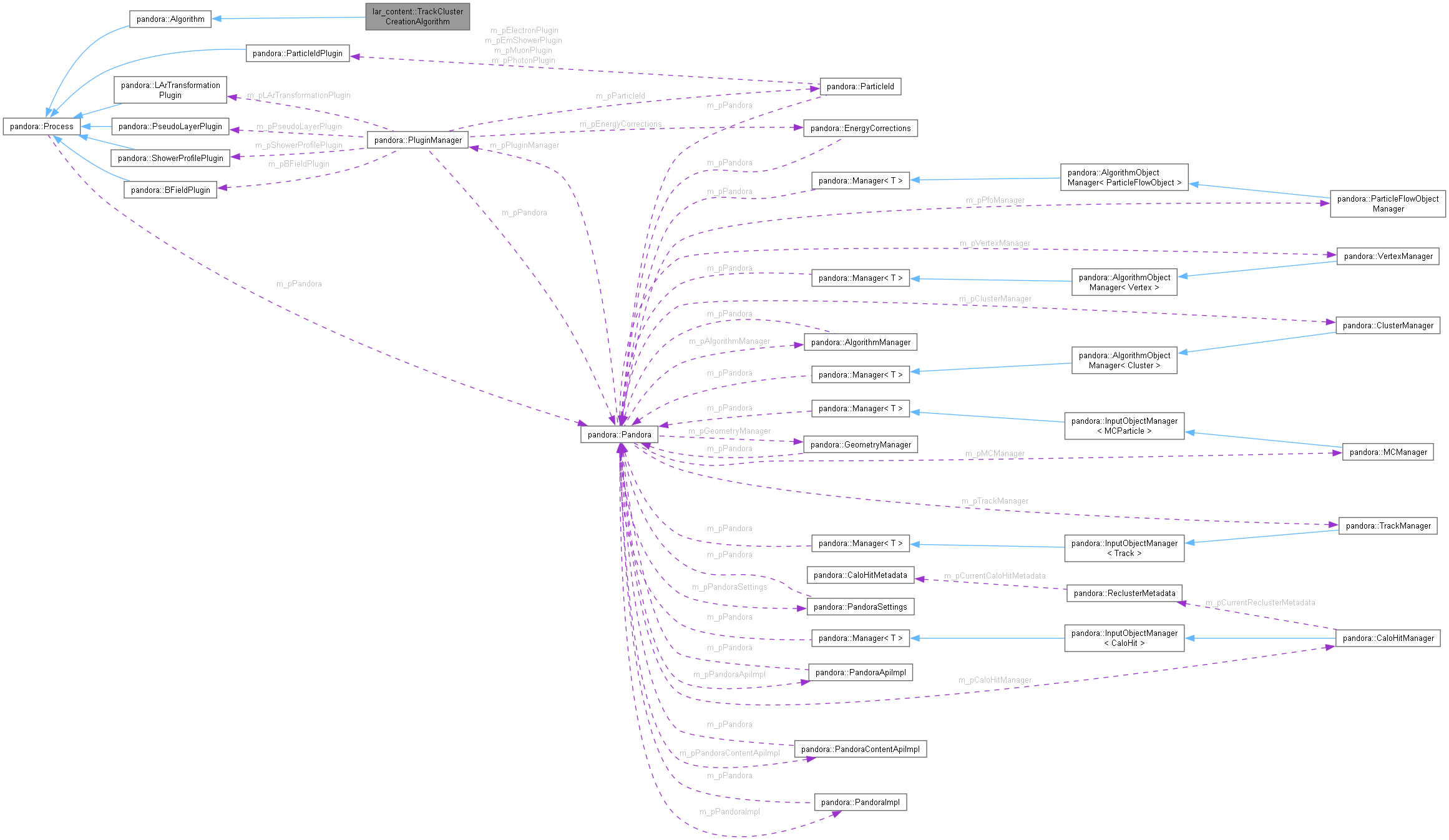

Collaboration diagram for lar_content::TrackClusterCreationAlgorithm:

[legend]

Classes
class	HitAssociation
	HitAssociation class. More...

Public Member Functions
	TrackClusterCreationAlgorithm ()
	Default constructor.

const std::string &	GetType () const
	Get the type.

const std::string &	GetInstanceName () const
	Get the instance name.

const Pandora &	GetPandora () const
	Get the associated pandora instance.

Protected Member Functions
virtual StatusCode	Initialize ()
	Perform any operations that must occur after reading settings, but before running the process.

virtual StatusCode	Reset ()
	Perform any operations when pandora is reset, typically at the end of each event.

StatusCode	RegisterDetails (const Pandora *const pPandora, const std::string &type, const std::string &instanceName)
	Register i) the pandora instance that will run the process and ii) the process type.

Protected Attributes
const Pandora *	m_pPandora
	The pandora object that will run the process.

std::string	m_type
	The process type.

std::string	m_instanceName
	The process instance name.

Private Types
typedef std::unordered_map< const pandora::CaloHit *, HitAssociation >	HitAssociationMap

typedef std::unordered_map< const pandora::CaloHit , const pandora::CaloHit >	HitJoinMap

typedef std::unordered_map< const pandora::CaloHit , const pandora::Cluster >	HitToClusterMap

Private Member Functions
pandora::StatusCode	Run ()
	Run the algorithm.

pandora::StatusCode	ReadSettings (const pandora::TiXmlHandle xmlHandle)
	Read the algorithm settings.

pandora::StatusCode	FilterCaloHits (const pandora::CaloHitList *const pCaloHitList, pandora::OrderedCaloHitList &selectedCaloHitList, pandora::OrderedCaloHitList &rejectedCaloHitList) const
	Filter out low pulse height hits in close proximity to high pulse height hits.

pandora::StatusCode	AddFilteredCaloHits (const pandora::OrderedCaloHitList &selectedCaloHitList, const pandora::OrderedCaloHitList &rejectedCaloHitList, HitToClusterMap &hitToClusterMap) const
	Merge previously filtered hits back into their associated clusters.

void	MakePrimaryAssociations (const pandora::OrderedCaloHitList &orderedCaloHitList, HitAssociationMap &forwardHitAssociationMap, HitAssociationMap &backwardHitAssociationMap) const
	Control primary association formation.

void	MakeSecondaryAssociations (const pandora::OrderedCaloHitList &orderedCaloHitList, HitAssociationMap &forwardHitAssociationMap, HitAssociationMap &backwardHitAssociationMap) const
	Control secondary association formation.

void	IdentifyJoins (const pandora::OrderedCaloHitList &orderedCaloHitList, const HitAssociationMap &forwardHitAssociationMap, const HitAssociationMap &backwardHitAssociationMap, HitJoinMap &hitJoinMap) const
	Identify final hit joins for use in cluster formation.

void	CreateClusters (const pandora::OrderedCaloHitList &orderedCaloHitList, const HitJoinMap &hitJoinMap, HitToClusterMap &hitToClusterMap) const
	Final cluster formation.

void	CreatePrimaryAssociation (const pandora::CaloHit const pCaloHitI, const pandora::CaloHit const pCaloHitJ, HitAssociationMap &forwardHitAssociationMap, HitAssociationMap &backwardHitAssociationMap) const
	Create primary association if appropriate, hitI<->hitJ.

void	CreateSecondaryAssociation (const pandora::CaloHit const pCaloHitI, const pandora::CaloHit const pCaloHitJ, HitAssociationMap &forwardHitAssociationMap, HitAssociationMap &backwardHitAssociationMap) const
	Create secondary association if appropriate, hitI<->hitJ.

const pandora::CaloHit *	GetJoinHit (const pandora::CaloHit *const pCaloHit, const HitAssociationMap &hitAssociationMapI, const HitAssociationMap &hitAssociationMapJ) const
	Get hit to join by tracing associations via map I, checking via map J.

const pandora::CaloHit *	TraceHitAssociation (const pandora::CaloHit *const pCaloHit, const HitAssociationMap &hitAssociationMapI, const HitAssociationMap &hitAssociationMapJ, unsigned int &nSteps) const
	Get last hit obtained by tracing associations via map I, checking via map J.

Private Attributes
bool	m_mergeBackFilteredHits
	Merge rejected hits into their associated clusters.

unsigned int	m_maxGapLayers
	Maximum number of layers for a gap.

float	m_maxCaloHitSeparationSquared
	Square of maximum calo hit separation.

float	m_minCaloHitSeparationSquared
	Square of minimum calo hit separation.

float	m_closeSeparationSquared
	Length scale (squared) for close hit separation.

Detailed Description

TrackClusterCreationAlgorithm class.

Definition at line 21 of file TrackClusterCreationAlgorithm.h.

Member Typedef Documentation

◆ HitAssociationMap

typedef std::unordered_map<const pandora::CaloHit *, HitAssociation> lar_content::TrackClusterCreationAlgorithm::HitAssociationMap

private

Definition at line 87 of file TrackClusterCreationAlgorithm.h.

◆ HitJoinMap

typedef std::unordered_map<const pandora::CaloHit *, const pandora::CaloHit *> lar_content::TrackClusterCreationAlgorithm::HitJoinMap

private

Definition at line 88 of file TrackClusterCreationAlgorithm.h.

◆ HitToClusterMap

typedef std::unordered_map<const pandora::CaloHit *, const pandora::Cluster *> lar_content::TrackClusterCreationAlgorithm::HitToClusterMap

private

Definition at line 89 of file TrackClusterCreationAlgorithm.h.

Constructor & Destructor Documentation

◆ TrackClusterCreationAlgorithm()

lar_content::TrackClusterCreationAlgorithm::TrackClusterCreationAlgorithm ( )

Default constructor.

Definition at line 20 of file TrackClusterCreationAlgorithm.cc.

Member Function Documentation

◆ AddFilteredCaloHits()

StatusCode lar_content::TrackClusterCreationAlgorithm::AddFilteredCaloHits	(	const pandora::OrderedCaloHitList &	selectedCaloHitList,
		const pandora::OrderedCaloHitList &	rejectedCaloHitList,
		HitToClusterMap &	hitToClusterMap
	)		const

private

Merge previously filtered hits back into their associated clusters.

Parameters

selectedCaloHitList	the ordered list of selected hits
rejectedCaloHitList	the ordered list of rejected hits
hitToClusterMap	the mapping between hits and their clusters

Definition at line 107 of file TrackClusterCreationAlgorithm.cc.

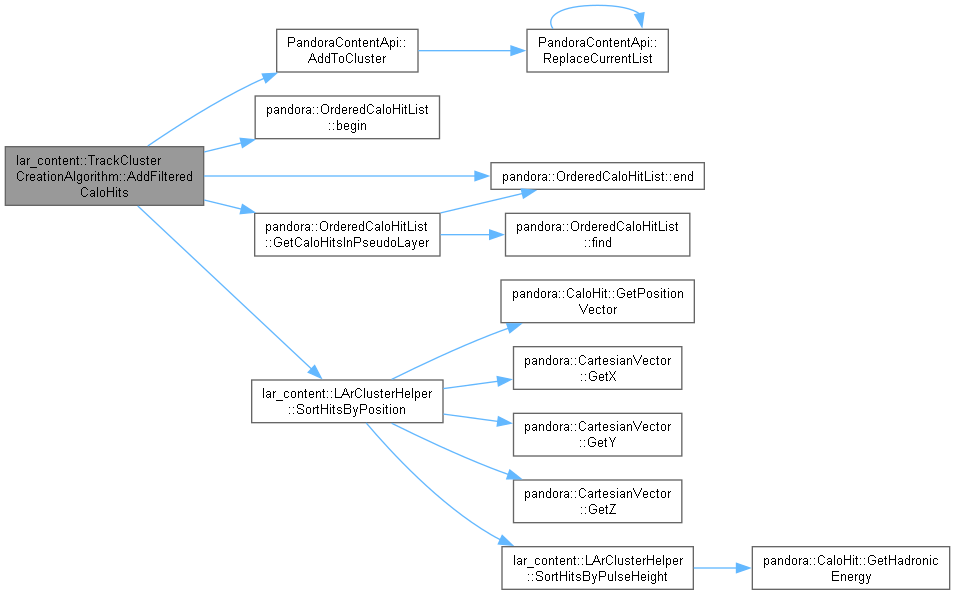

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateClusters()

void lar_content::TrackClusterCreationAlgorithm::CreateClusters	(	const pandora::OrderedCaloHitList &	orderedCaloHitList,
		const HitJoinMap &	hitJoinMap,
		HitToClusterMap &	hitToClusterMap
	)		const

private

Final cluster formation.

Parameters

orderedCaloHitList	the ordered calo hit list
hitJoinMap	the hit join map
hitToClusterMap	the mapping between hits and their clusters

Definition at line 276 of file TrackClusterCreationAlgorithm.cc.

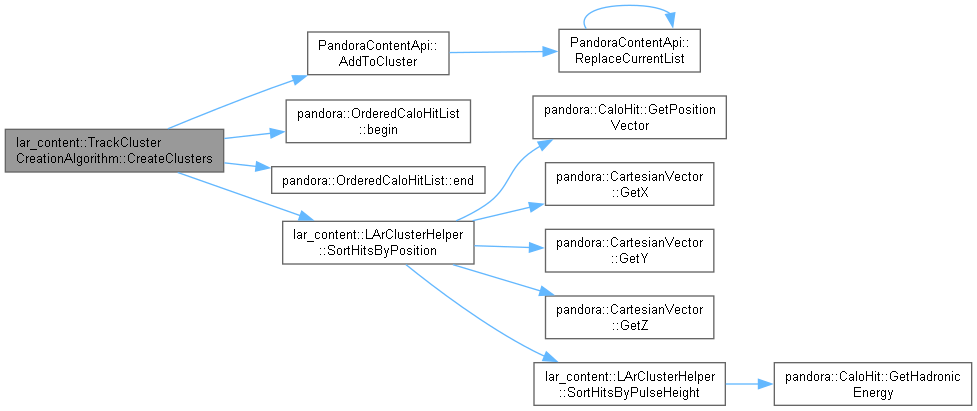

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreatePrimaryAssociation()

void lar_content::TrackClusterCreationAlgorithm::CreatePrimaryAssociation	(	const pandora::CaloHit *const	pCaloHitI,
		const pandora::CaloHit *const	pCaloHitJ,
		HitAssociationMap &	forwardHitAssociationMap,
		HitAssociationMap &	backwardHitAssociationMap
	)		const

private

Create primary association if appropriate, hitI<->hitJ.

Parameters

pCaloHitI	address of calo hit I
pCaloHitJ	address of calo hit J
forwardHitAssociationMap	the forward hit association map
backwardHitAssociationMap	the backward hit association map

Definition at line 318 of file TrackClusterCreationAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateSecondaryAssociation()

void lar_content::TrackClusterCreationAlgorithm::CreateSecondaryAssociation	(	const pandora::CaloHit *const	pCaloHitI,
		const pandora::CaloHit *const	pCaloHitJ,
		HitAssociationMap &	forwardHitAssociationMap,
		HitAssociationMap &	backwardHitAssociationMap
	)		const

private

Create secondary association if appropriate, hitI<->hitJ.

Parameters

pCaloHitI	address of calo hit I
pCaloHitJ	address of calo hit J
forwardHitAssociationMap	the forward hit association map
backwardHitAssociationMap	the backward hit association map

Definition at line 351 of file TrackClusterCreationAlgorithm.cc.

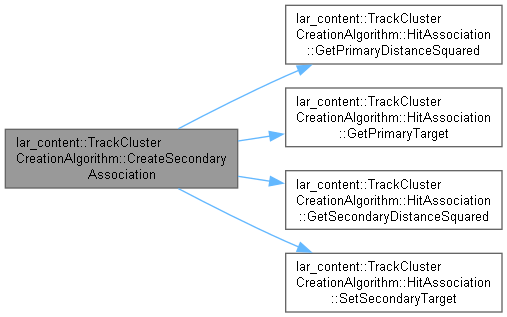

Here is the call graph for this function:

Here is the caller graph for this function:

◆ FilterCaloHits()

StatusCode lar_content::TrackClusterCreationAlgorithm::FilterCaloHits	(	const pandora::CaloHitList *const	pCaloHitList,
		pandora::OrderedCaloHitList &	selectedCaloHitList,
		pandora::OrderedCaloHitList &	rejectedCaloHitList
	)		const

private

Filter out low pulse height hits in close proximity to high pulse height hits.

Parameters

pCaloHitList	input hit list
selectedCaloHitList	the output selected list of selected hits
rejectedCaloHitList	the output rejected list of rejected hits

Definition at line 58 of file TrackClusterCreationAlgorithm.cc.

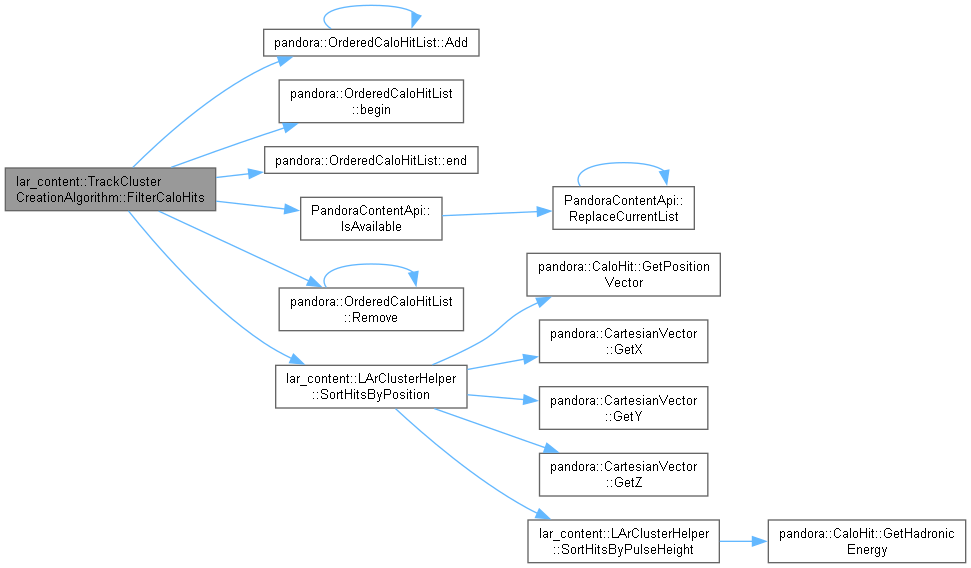

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetInstanceName()

const std::string & pandora::Process::GetInstanceName ( ) const

inlineinherited

Get the instance name.

Returns: The instance name

Definition at line 109 of file Process.h.

◆ GetJoinHit()

const CaloHit * lar_content::TrackClusterCreationAlgorithm::GetJoinHit	(	const pandora::CaloHit *const	pCaloHit,
		const HitAssociationMap &	hitAssociationMapI,
		const HitAssociationMap &	hitAssociationMapJ
	)		const

private

Get hit to join by tracing associations via map I, checking via map J.

Parameters

pCaloHit	the initial calo hit
hitAssociationMapI	hit association map I
hitAssociationMapJ	hit association map J

Returns: the hit to join

Definition at line 384 of file TrackClusterCreationAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPandora()

const Pandora & pandora::Process::GetPandora ( ) const

inlineinherited

Get the associated pandora instance.

Returns: the associated pandora instance

Definition at line 116 of file Process.h.

◆ GetType()

const std::string & pandora::Process::GetType ( ) const

inlineinherited

Get the type.

Returns: The type

Definition at line 102 of file Process.h.

◆ IdentifyJoins()

void lar_content::TrackClusterCreationAlgorithm::IdentifyJoins	(	const pandora::OrderedCaloHitList &	orderedCaloHitList,
		const HitAssociationMap &	forwardHitAssociationMap,
		const HitAssociationMap &	backwardHitAssociationMap,
		HitJoinMap &	hitJoinMap
	)		const

private

Identify final hit joins for use in cluster formation.

Parameters

orderedCaloHitList	the ordered calo hit list
forwardHitAssociationMap	the forward hit association map
backwardHitAssociationMap	the backward hit association map
hitJoinMap	to receive the hit join map

Definition at line 247 of file TrackClusterCreationAlgorithm.cc.

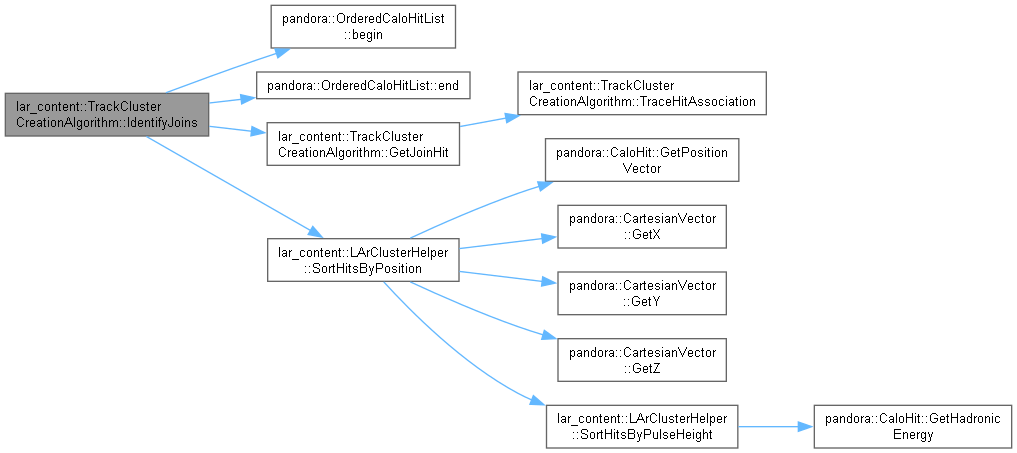

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Initialize()

StatusCode pandora::Process::Initialize ( )

inlineprotectedvirtualinherited

Perform any operations that must occur after reading settings, but before running the process.

Reimplemented in lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, EventReadingAlgorithm, and EventWritingAlgorithm.

Definition at line 126 of file Process.h.

Here is the caller graph for this function:

◆ MakePrimaryAssociations()

void lar_content::TrackClusterCreationAlgorithm::MakePrimaryAssociations	(	const pandora::OrderedCaloHitList &	orderedCaloHitList,
		HitAssociationMap &	forwardHitAssociationMap,
		HitAssociationMap &	backwardHitAssociationMap
	)		const

private

Control primary association formation.

Parameters

orderedCaloHitList	the ordered calo hit list
forwardHitAssociationMap	the forward hit association map
backwardHitAssociationMap	the backward hit association map

Definition at line 184 of file TrackClusterCreationAlgorithm.cc.

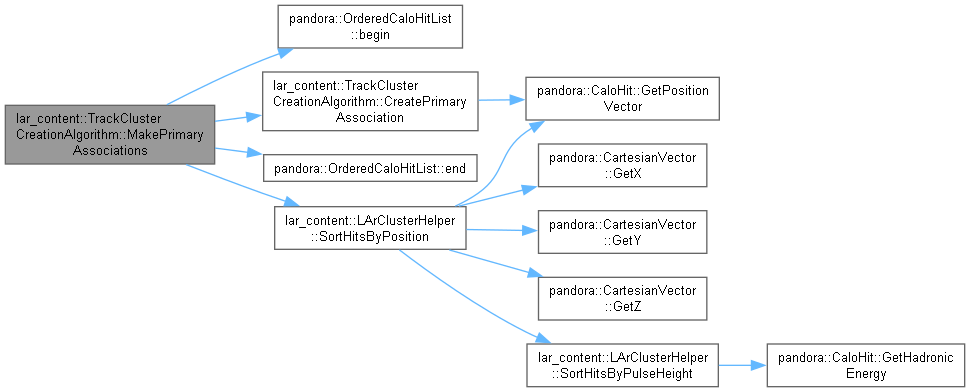

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MakeSecondaryAssociations()

void lar_content::TrackClusterCreationAlgorithm::MakeSecondaryAssociations	(	const pandora::OrderedCaloHitList &	orderedCaloHitList,
		HitAssociationMap &	forwardHitAssociationMap,
		HitAssociationMap &	backwardHitAssociationMap
	)		const

private

Control secondary association formation.

Parameters

orderedCaloHitList	the ordered calo hit list
forwardHitAssociationMap	the forward hit association map
backwardHitAssociationMap	the backward hit association map

Definition at line 214 of file TrackClusterCreationAlgorithm.cc.

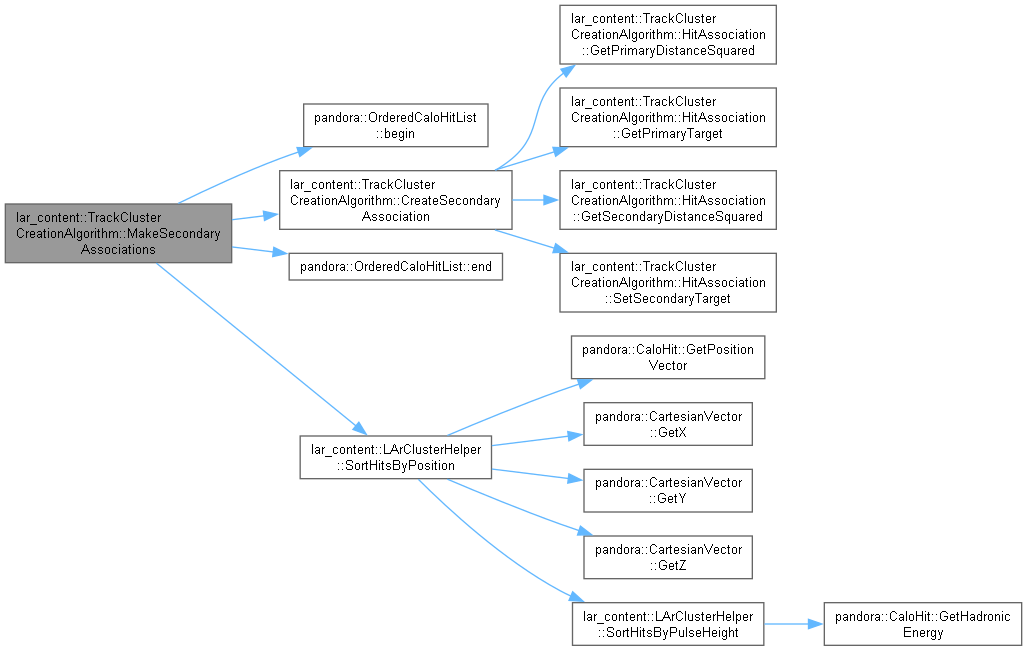

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReadSettings()

StatusCode lar_content::TrackClusterCreationAlgorithm::ReadSettings ( const pandora::TiXmlHandle xmlHandle )

privatevirtual

Read the algorithm settings.

Parameters

xmlHandle the relevant xml handle

Implements pandora::Process.

Definition at line 441 of file TrackClusterCreationAlgorithm.cc.

Here is the call graph for this function:

◆ RegisterDetails()

StatusCode pandora::Process::RegisterDetails	(	const Pandora *const	pPandora,
		const std::string &	type,
		const std::string &	instanceName
	)

inlineprotectedinherited

Register i) the pandora instance that will run the process and ii) the process type.

Parameters

pPandora	address of the pandora object that will run the process
type	the process type
instanceName	the process instance name

Definition at line 146 of file Process.h.

Here is the caller graph for this function:

◆ Reset()

StatusCode pandora::Process::Reset ( )

inlineprotectedvirtualinherited

Perform any operations when pandora is reset, typically at the end of each event.

Reimplemented in lar_content::MasterAlgorithm, lar_content::PostProcessingAlgorithm, and lar_content::PreProcessingAlgorithm.

Definition at line 133 of file Process.h.

Here is the caller graph for this function:

◆ Run()

StatusCode lar_content::TrackClusterCreationAlgorithm::Run ( )

privatevirtual

Run the algorithm.

Implements pandora::Algorithm.

Definition at line 31 of file TrackClusterCreationAlgorithm.cc.

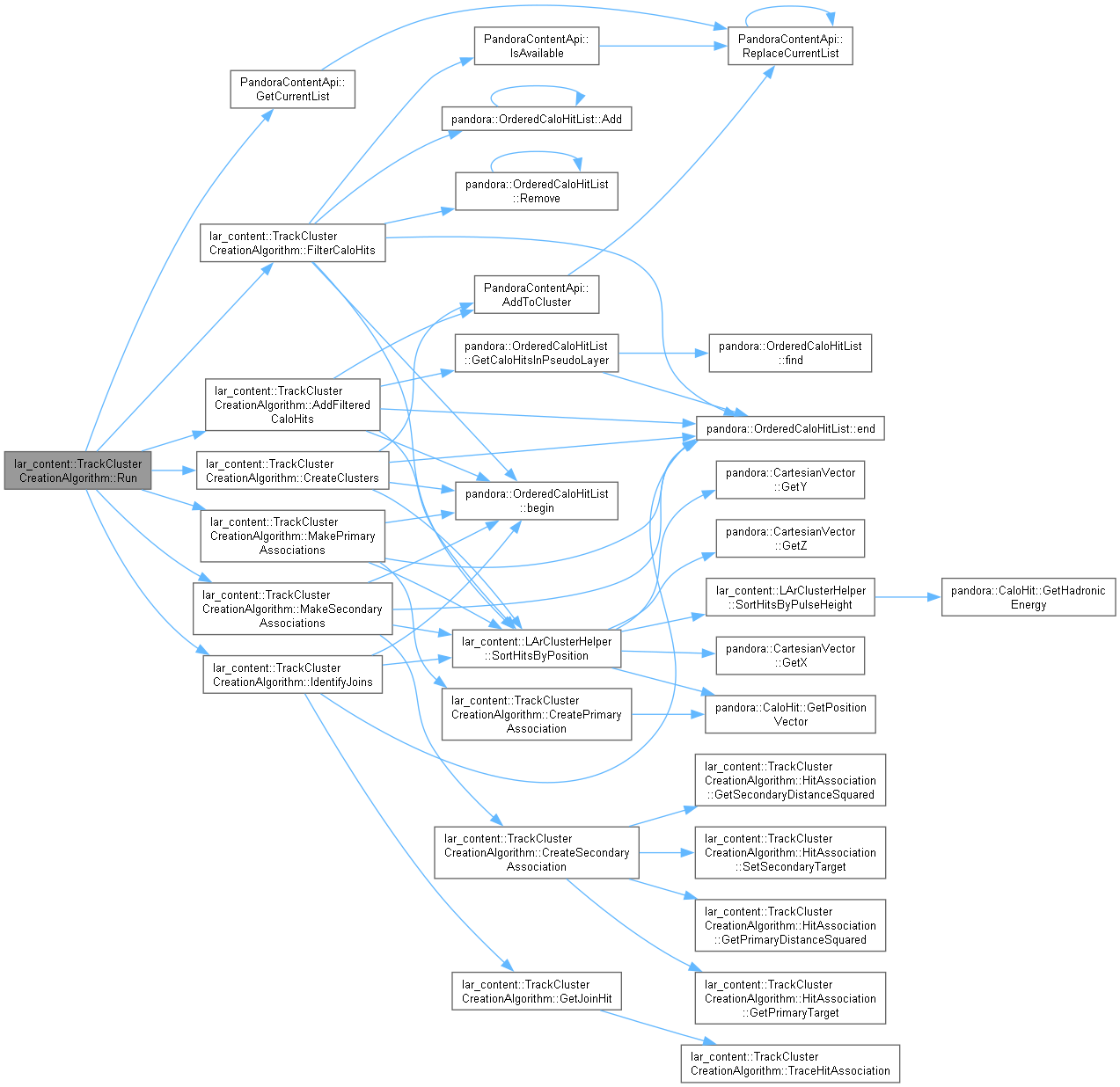

Here is the call graph for this function:

◆ TraceHitAssociation()

const CaloHit * lar_content::TrackClusterCreationAlgorithm::TraceHitAssociation	(	const pandora::CaloHit *const	pCaloHit,
		const HitAssociationMap &	hitAssociationMapI,
		const HitAssociationMap &	hitAssociationMapJ,
		unsigned int &	nSteps
	)		const

private

Get last hit obtained by tracing associations via map I, checking via map J.

Parameters

pCaloHit	the initial calo hit
hitAssociationMapI	hit association map I
hitAssociationMapJ	hit association map J
nSteps	to receive the number of association steps

Returns: the last hit obtained in the chain of associations

Definition at line 410 of file TrackClusterCreationAlgorithm.cc.

Here is the caller graph for this function:

Member Data Documentation

◆ m_closeSeparationSquared

float lar_content::TrackClusterCreationAlgorithm::m_closeSeparationSquared

private

Length scale (squared) for close hit separation.

Definition at line 205 of file TrackClusterCreationAlgorithm.h.

◆ m_instanceName

std::string pandora::Process::m_instanceName

protectedinherited

The process instance name.

Definition at line 89 of file Process.h.

◆ m_maxCaloHitSeparationSquared

float lar_content::TrackClusterCreationAlgorithm::m_maxCaloHitSeparationSquared

private

Square of maximum calo hit separation.

Definition at line 203 of file TrackClusterCreationAlgorithm.h.

◆ m_maxGapLayers

unsigned int lar_content::TrackClusterCreationAlgorithm::m_maxGapLayers

private

Maximum number of layers for a gap.

Definition at line 202 of file TrackClusterCreationAlgorithm.h.

◆ m_mergeBackFilteredHits

bool lar_content::TrackClusterCreationAlgorithm::m_mergeBackFilteredHits

private

Merge rejected hits into their associated clusters.

Definition at line 201 of file TrackClusterCreationAlgorithm.h.

◆ m_minCaloHitSeparationSquared

float lar_content::TrackClusterCreationAlgorithm::m_minCaloHitSeparationSquared

private

Square of minimum calo hit separation.

Definition at line 204 of file TrackClusterCreationAlgorithm.h.

◆ m_pPandora

const Pandora* pandora::Process::m_pPandora

protectedinherited

The pandora object that will run the process.

Definition at line 87 of file Process.h.

◆ m_type

std::string pandora::Process::m_type

protectedinherited

The process type.

Definition at line 88 of file Process.h.

The documentation for this class was generated from the following files:

LArContent/larpandoracontent/LArTwoDReco/LArClusterCreation/TrackClusterCreationAlgorithm.h
LArContent/larpandoracontent/LArTwoDReco/LArClusterCreation/TrackClusterCreationAlgorithm.cc

Classes

Public Member Functions

Protected Member Functions

Protected Attributes

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ HitAssociationMap

◆ HitJoinMap

◆ HitToClusterMap

Constructor & Destructor Documentation

◆ TrackClusterCreationAlgorithm()

Member Function Documentation

◆ AddFilteredCaloHits()

◆ CreateClusters()

◆ CreatePrimaryAssociation()

◆ CreateSecondaryAssociation()

◆ FilterCaloHits()

◆ GetInstanceName()

◆ GetJoinHit()

◆ GetPandora()

◆ GetType()

◆ IdentifyJoins()

◆ Initialize()

◆ MakePrimaryAssociations()

◆ MakeSecondaryAssociations()

◆ ReadSettings()

◆ RegisterDetails()

◆ Reset()

◆ Run()

◆ TraceHitAssociation()

Member Data Documentation

◆ m_closeSeparationSquared

◆ m_instanceName

◆ m_maxCaloHitSeparationSquared

◆ m_maxGapLayers

◆ m_mergeBackFilteredHits

◆ m_minCaloHitSeparationSquared

◆ m_pPandora

◆ m_type
