ThreeDHitCreationAlgorithm::Algorithm class. More...

#include "ThreeDHitCreationAlgorithm.h"

Inheritance diagram for lar_content::ThreeDHitCreationAlgorithm:

[legend]

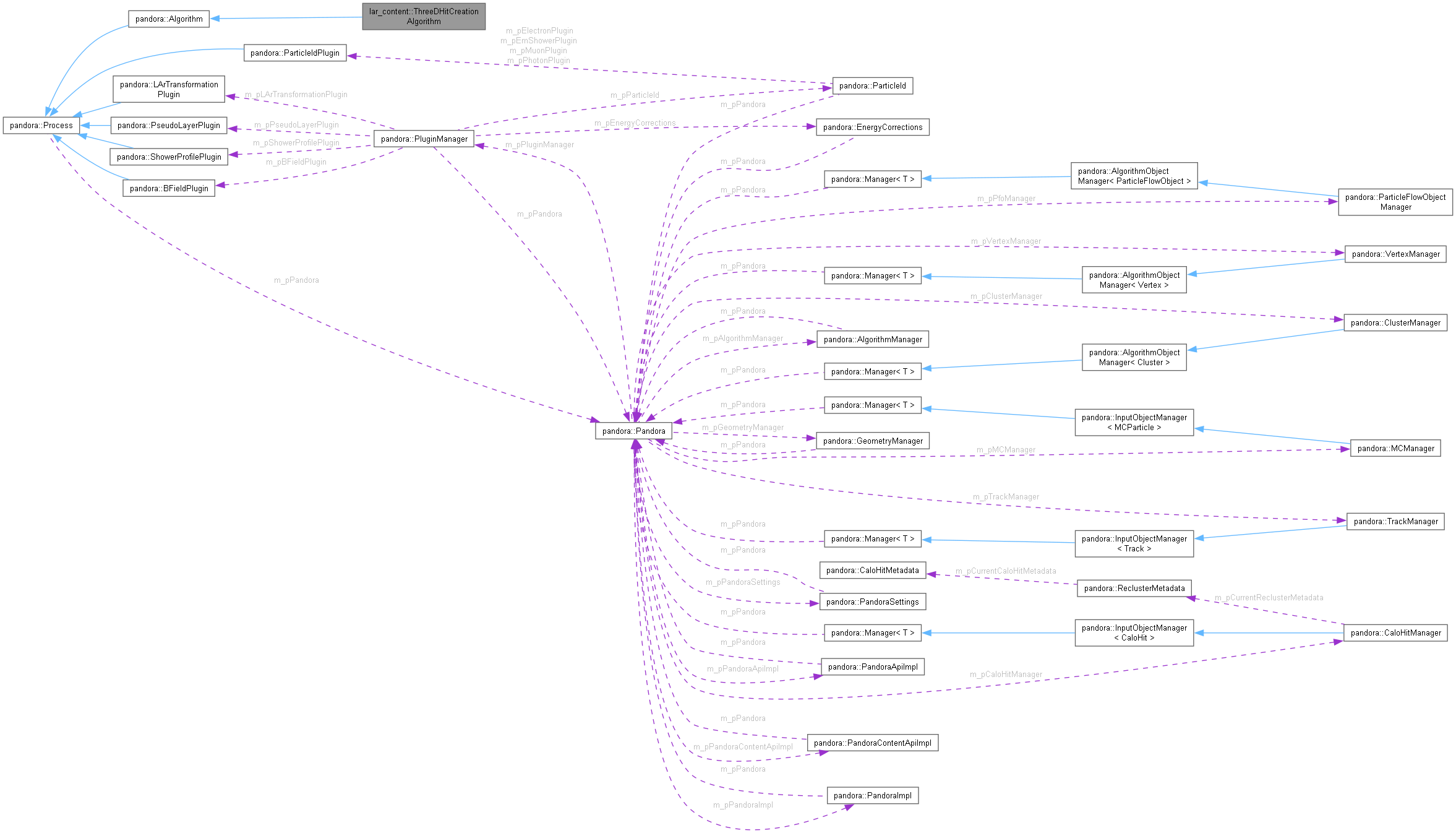

Collaboration diagram for lar_content::ThreeDHitCreationAlgorithm:

[legend]

Classes
class	ProtoHit
	Proto hits are temporary constructs to be used during iterative 3D hit procedure. More...

class	TrajectorySample
	Trajectory samples record the results of sampling a particles in a particular view. More...

Public Types
typedef std::vector< TrajectorySample >	TrajectorySampleVector

typedef std::vector< ProtoHit >	ProtoHitVector

Public Member Functions
	ThreeDHitCreationAlgorithm ()
	Default constructor.

void	FilterCaloHitsByType (const pandora::CaloHitVector &inputCaloHitVector, const pandora::HitType hitType, pandora::CaloHitVector &outputCaloHitVector) const
	Get the subset of a provided calo hit vector corresponding to a specified hit type.

const std::string &	GetType () const
	Get the type.

const std::string &	GetInstanceName () const
	Get the instance name.

const Pandora &	GetPandora () const
	Get the associated pandora instance.

Protected Member Functions
virtual StatusCode	Initialize ()
	Perform any operations that must occur after reading settings, but before running the process.

virtual StatusCode	Reset ()
	Perform any operations when pandora is reset, typically at the end of each event.

StatusCode	RegisterDetails (const Pandora *const pPandora, const std::string &type, const std::string &instanceName)
	Register i) the pandora instance that will run the process and ii) the process type.

Protected Attributes
const Pandora *	m_pPandora
	The pandora object that will run the process.

std::string	m_type
	The process type.

std::string	m_instanceName
	The process instance name.

Private Types
typedef std::vector< HitCreationBaseTool * >	HitCreationToolVector

Private Member Functions
pandora::StatusCode	Run ()
	Run the algorithm.

void	SeparateTwoDHits (const pandora::ParticleFlowObject *const pPfo, const ProtoHitVector &protoHitVector, pandora::CaloHitVector &remainingHitVector) const
	Get the list of 2D calo hits in a pfo for which 3D hits have and have not been created.

void	IterativeTreatment (ProtoHitVector &protoHitVector) const
	Improve initial 3D hits by fitting proto hits and iteratively creating consisted 3D hit trajectory.

void	ExtractResults (const ProtoHitVector &protoHitVector, double &chi2, pandora::CartesianPointVector &pointVector) const
	Extract key results from a provided proto hit vector.

double	GetChi2WrtFit (const ThreeDSlidingFitResult &slidingFitResult, const ProtoHitVector &protoHitVector) const
	Receive a chi2 value indicating consistency of a list of proto hits with a provided 3D sliding fit trajectory.

double	GetHitMovementChi2 (const ProtoHitVector &protoHitVector) const
	Receive a chi2 value indicating consistency of a list of proto hits with the original, input hit positions.

void	RefineHitPositions (const ThreeDSlidingFitResult &slidingFitResult, ProtoHitVector &protoHitVector) const
	Refine the 3D hit positions (and chi2) for a list of proto hits, in accordance with a provided 3D sliding fit trajectory.

void	CreateThreeDHits (const ProtoHitVector &protoHitVector, pandora::CaloHitList &newThreeDHits) const
	Create new three dimensional hits from two dimensional hits.

void	CreateThreeDHit (const ProtoHit &protoHit, const pandora::CaloHit *&pCaloHit3D) const
	Create a new three dimensional hit from a two dimensional hit.

bool	CheckThreeDHit (const ProtoHit &protoHit) const
	Check that a new three dimensional position is not unphysical.

void	AddThreeDHitsToPfo (const pandora::ParticleFlowObject *const pPfo, const pandora::CaloHitList &caloHitList) const
	Add a specified list of three dimensional hits to a cluster in a pfo, creating the new cluster if required.

pandora::StatusCode	ReadSettings (const pandora::TiXmlHandle xmlHandle)
	Read the algorithm settings.

Private Attributes
HitCreationToolVector	m_algorithmToolVector
	The algorithm tool vector.

std::string	m_inputPfoListName
	The name of the input pfo list.

std::string	m_outputCaloHitListName
	The name of the output calo hit list.

std::string	m_outputClusterListName
	The name of the output cluster list.

bool	m_iterateTrackHits
	Whether to enable iterative improvement of 3D hits for track trajectories.

bool	m_iterateShowerHits
	Whether to enable iterative improvement of 3D hits for showers.

unsigned int	m_slidingFitHalfWindow
	The sliding linear fit half window.

unsigned int	m_nHitRefinementIterations
	The maximum number of hit refinement iterations.

double	m_sigma3DFitMultiplier
	Multiplicative factor: sigmaUVW (same as sigmaHit and sigma2DFit) to sigma3DFit.

double	m_iterationMaxChi2Ratio
	Max ratio between current and previous chi2 values to cease iterations.

Detailed Description

ThreeDHitCreationAlgorithm::Algorithm class.

Definition at line 27 of file ThreeDHitCreationAlgorithm.h.

Member Typedef Documentation

◆ HitCreationToolVector

typedef std::vector<HitCreationBaseTool *> lar_content::ThreeDHitCreationAlgorithm::HitCreationToolVector

private

Definition at line 271 of file ThreeDHitCreationAlgorithm.h.

◆ ProtoHitVector

typedef std::vector<ProtoHit> lar_content::ThreeDHitCreationAlgorithm::ProtoHitVector

Definition at line 163 of file ThreeDHitCreationAlgorithm.h.

◆ TrajectorySampleVector

typedef std::vector<TrajectorySample> lar_content::ThreeDHitCreationAlgorithm::TrajectorySampleVector

Definition at line 68 of file ThreeDHitCreationAlgorithm.h.

Constructor & Destructor Documentation

◆ ThreeDHitCreationAlgorithm()

lar_content::ThreeDHitCreationAlgorithm::ThreeDHitCreationAlgorithm ( )

Default constructor.

Definition at line 27 of file ThreeDHitCreationAlgorithm.cc.

Member Function Documentation

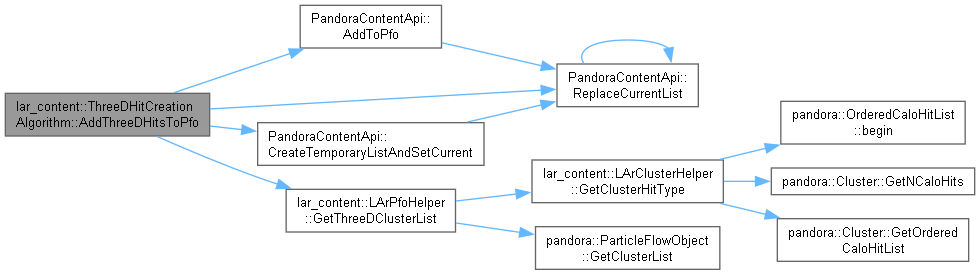

◆ AddThreeDHitsToPfo()

void lar_content::ThreeDHitCreationAlgorithm::AddThreeDHitsToPfo	(	const pandora::ParticleFlowObject *const	pPfo,
		const pandora::CaloHitList &	caloHitList
	)		const

private

Add a specified list of three dimensional hits to a cluster in a pfo, creating the new cluster if required.

Parameters

pPfo	the address of the pfo
caloHitList	the list of three dimensional hits

Definition at line 391 of file ThreeDHitCreationAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

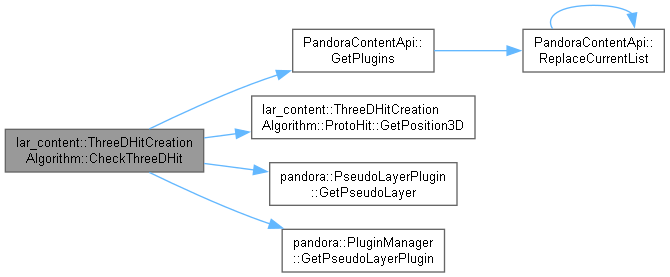

◆ CheckThreeDHit()

bool lar_content::ThreeDHitCreationAlgorithm::CheckThreeDHit ( const ProtoHit & protoHit ) const

private

Check that a new three dimensional position is not unphysical.

Parameters

protoHit	the proto hit
boolean

Definition at line 373 of file ThreeDHitCreationAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateThreeDHit()

void lar_content::ThreeDHitCreationAlgorithm::CreateThreeDHit	(	const ProtoHit &	protoHit,
		const pandora::CaloHit *&	pCaloHit3D
	)		const

private

Create a new three dimensional hit from a two dimensional hit.

Parameters

protoHit	the proto hit containing all required information
pCaloHit3D	to receive the address of the new three dimensional calo hit

Definition at line 338 of file ThreeDHitCreationAlgorithm.cc.

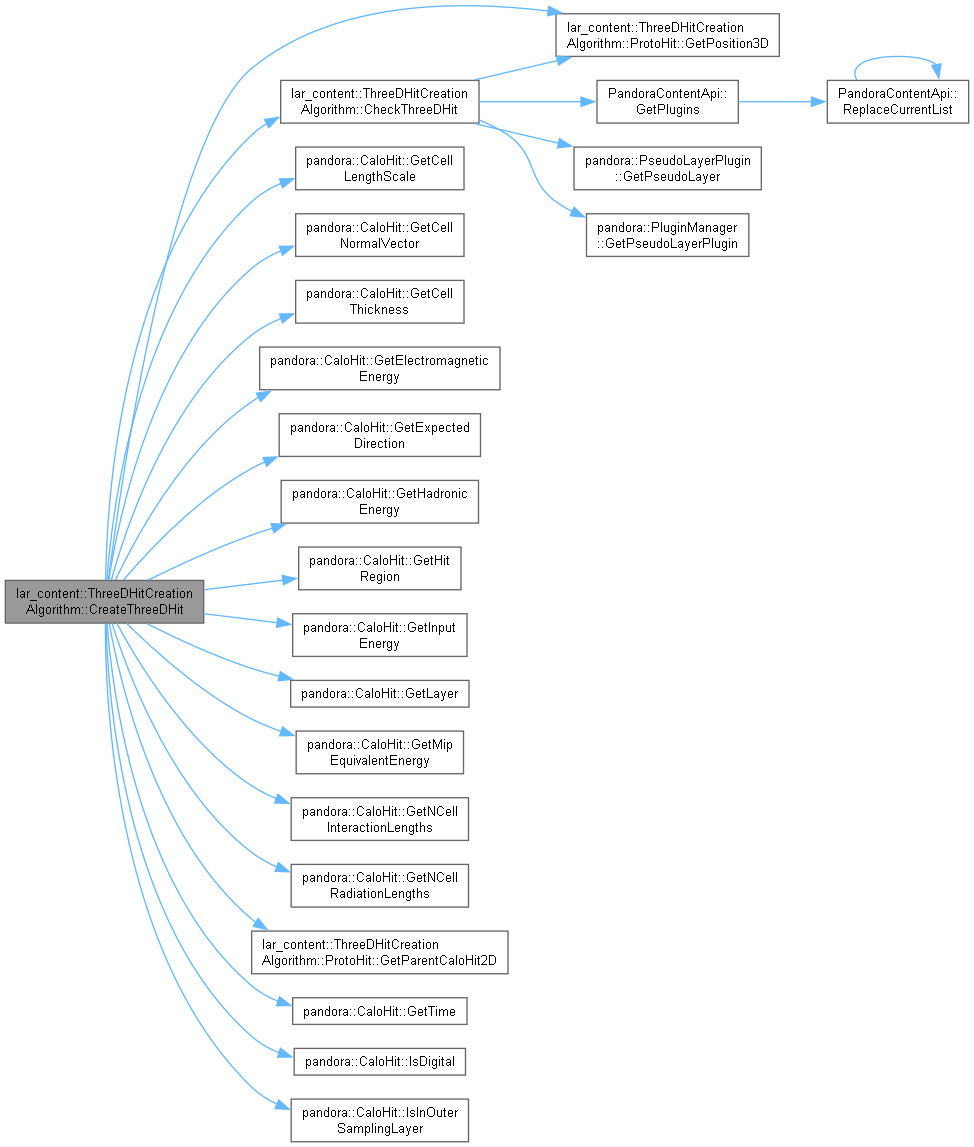

Here is the call graph for this function:

Here is the caller graph for this function:

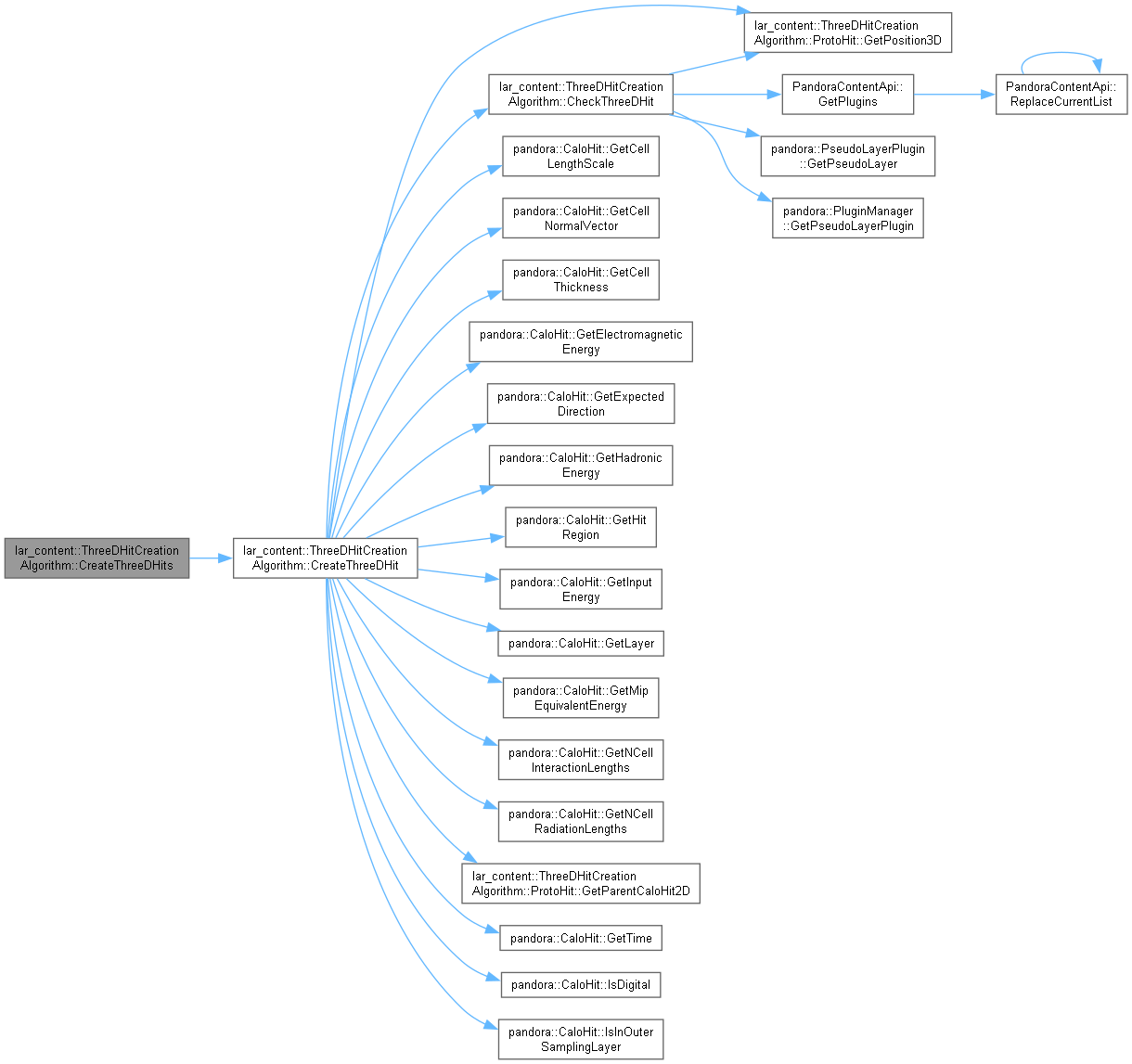

◆ CreateThreeDHits()

void lar_content::ThreeDHitCreationAlgorithm::CreateThreeDHits	(	const ProtoHitVector &	protoHitVector,
		pandora::CaloHitList &	newThreeDHits
	)		const

private

Create new three dimensional hits from two dimensional hits.

Parameters

protoHitVector	the input proto hit vector
newThreeDHits	to receive the addresses of the new three dimensional calo hits

Definition at line 322 of file ThreeDHitCreationAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ExtractResults()

void lar_content::ThreeDHitCreationAlgorithm::ExtractResults	(	const ProtoHitVector &	protoHitVector,
		double &	chi2,
		pandora::CartesianPointVector &	pointVector
	)		const

private

Extract key results from a provided proto hit vector.

Parameters

protoHitVector	the proto hit vector
chi2	to receive the sum of the proto hit chi2 values
pointVector	to receive a vector of proto hit 3D positions

Definition at line 180 of file ThreeDHitCreationAlgorithm.cc.

Here is the caller graph for this function:

◆ FilterCaloHitsByType()

void lar_content::ThreeDHitCreationAlgorithm::FilterCaloHitsByType	(	const pandora::CaloHitVector &	inputCaloHitVector,
		const pandora::HitType	hitType,
		pandora::CaloHitVector &	outputCaloHitVector
	)		const

Get the subset of a provided calo hit vector corresponding to a specified hit type.

Parameters

inputCaloHitVector	the input calo hit vector
hitType	the hit type to filter upon
outputCaloHitVector	to receive the output calo hit vector

Definition at line 39 of file ThreeDHitCreationAlgorithm.cc.

Here is the caller graph for this function:

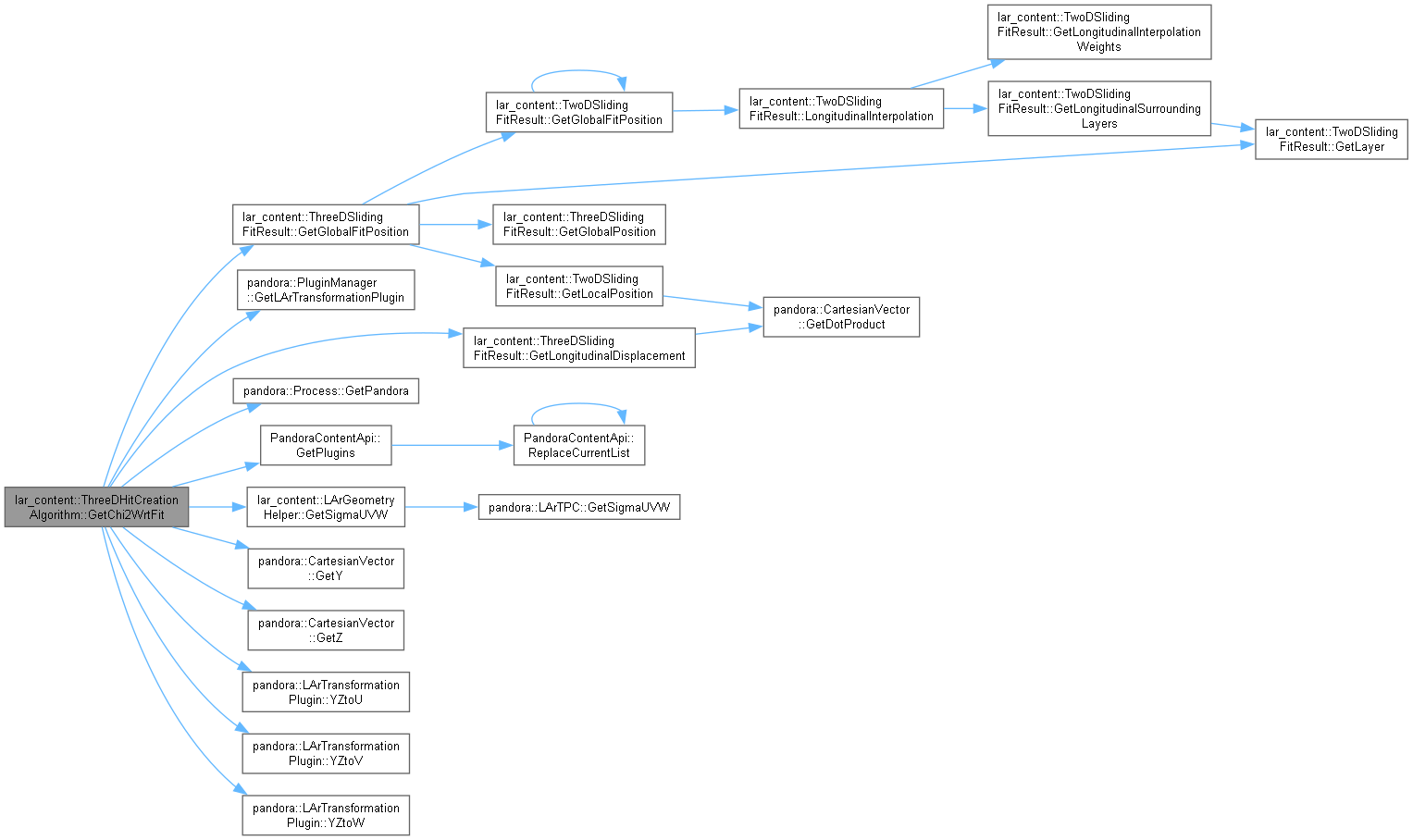

◆ GetChi2WrtFit()

double lar_content::ThreeDHitCreationAlgorithm::GetChi2WrtFit	(	const ThreeDSlidingFitResult &	slidingFitResult,
		const ProtoHitVector &	protoHitVector
	)		const

private

Receive a chi2 value indicating consistency of a list of proto hits with a provided 3D sliding fit trajectory.

Parameters

slidingFitResult	the 3D sliding fit result
protoHitVector	the proto hit vector

Returns: the chi2 value

Definition at line 194 of file ThreeDHitCreationAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

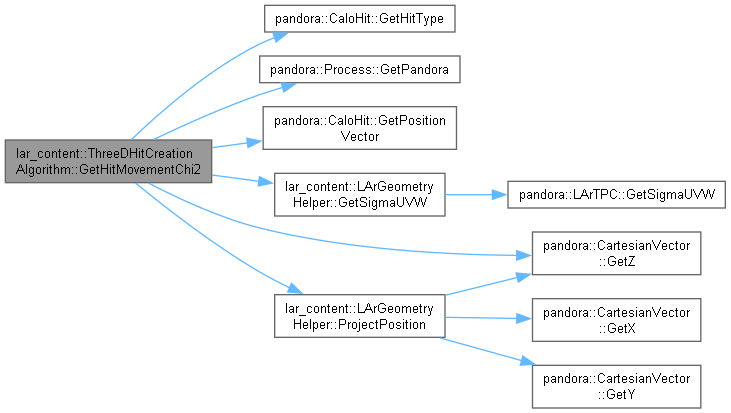

◆ GetHitMovementChi2()

double lar_content::ThreeDHitCreationAlgorithm::GetHitMovementChi2 ( const ProtoHitVector & protoHitVector ) const

private

Receive a chi2 value indicating consistency of a list of proto hits with the original, input hit positions.

Parameters

protoHitVector the proto hit vector

Returns: the chi2 value

Definition at line 230 of file ThreeDHitCreationAlgorithm.cc.

Here is the call graph for this function:

◆ GetInstanceName()

const std::string & pandora::Process::GetInstanceName ( ) const

inlineinherited

Get the instance name.

Returns: The instance name

Definition at line 109 of file Process.h.

◆ GetPandora()

const Pandora & pandora::Process::GetPandora ( ) const

inlineinherited

Get the associated pandora instance.

Returns: the associated pandora instance

Definition at line 116 of file Process.h.

◆ GetType()

const std::string & pandora::Process::GetType ( ) const

inlineinherited

Get the type.

Returns: The type

Definition at line 102 of file Process.h.

◆ Initialize()

StatusCode pandora::Process::Initialize ( )

inlineprotectedvirtualinherited

Perform any operations that must occur after reading settings, but before running the process.

Reimplemented in lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, EventReadingAlgorithm, and EventWritingAlgorithm.

Definition at line 126 of file Process.h.

Here is the caller graph for this function:

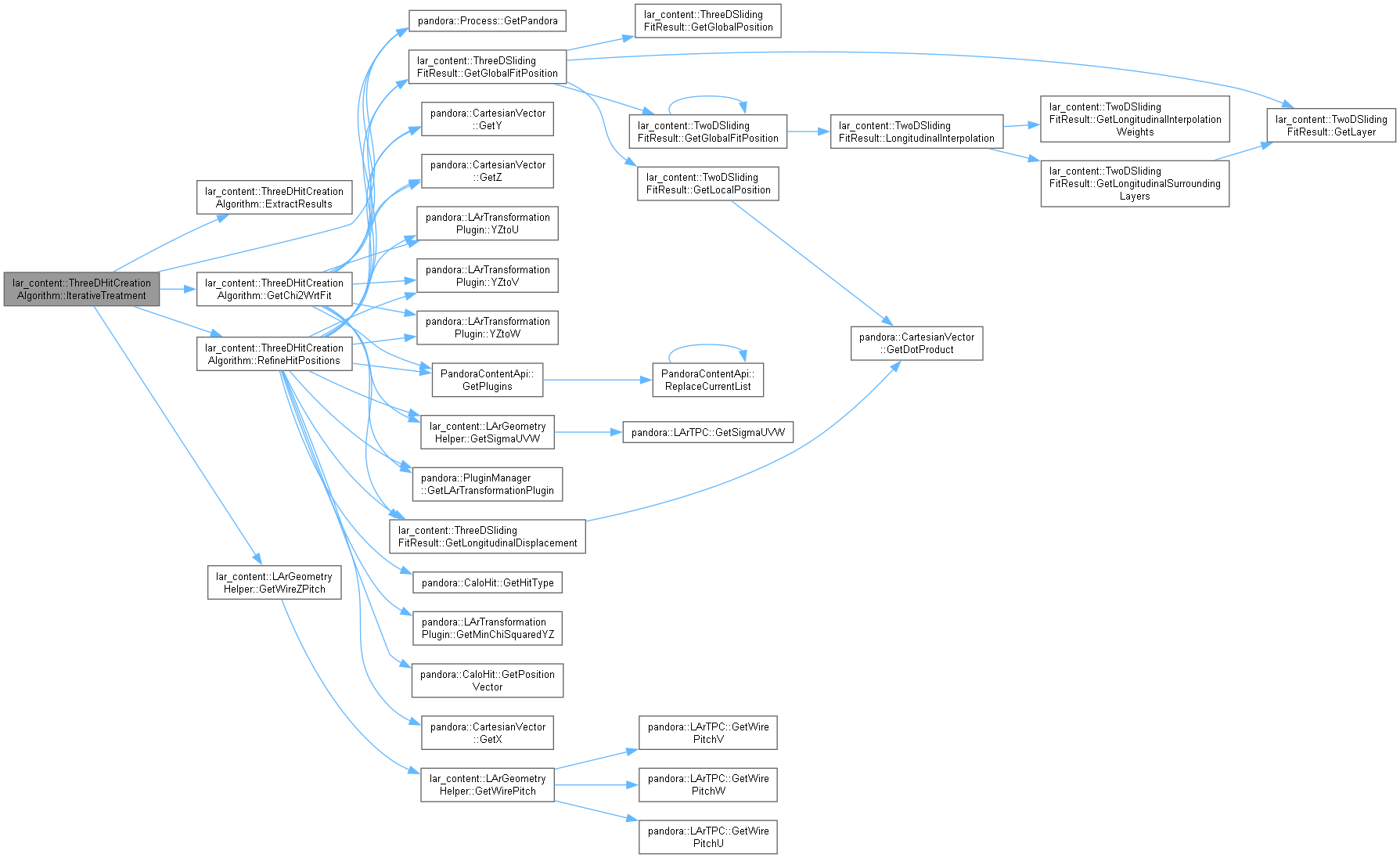

◆ IterativeTreatment()

void lar_content::ThreeDHitCreationAlgorithm::IterativeTreatment ( ProtoHitVector & protoHitVector ) const

private

Improve initial 3D hits by fitting proto hits and iteratively creating consisted 3D hit trajectory.

Parameters

protoHitVector the vector of proto hits, describing current state of 3D hit construction

Definition at line 138 of file ThreeDHitCreationAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReadSettings()

StatusCode lar_content::ThreeDHitCreationAlgorithm::ReadSettings ( const pandora::TiXmlHandle xmlHandle )

privatevirtual

Read the algorithm settings.

Parameters

xmlHandle the relevant xml handle

Implements pandora::Process.

Definition at line 463 of file ThreeDHitCreationAlgorithm.cc.

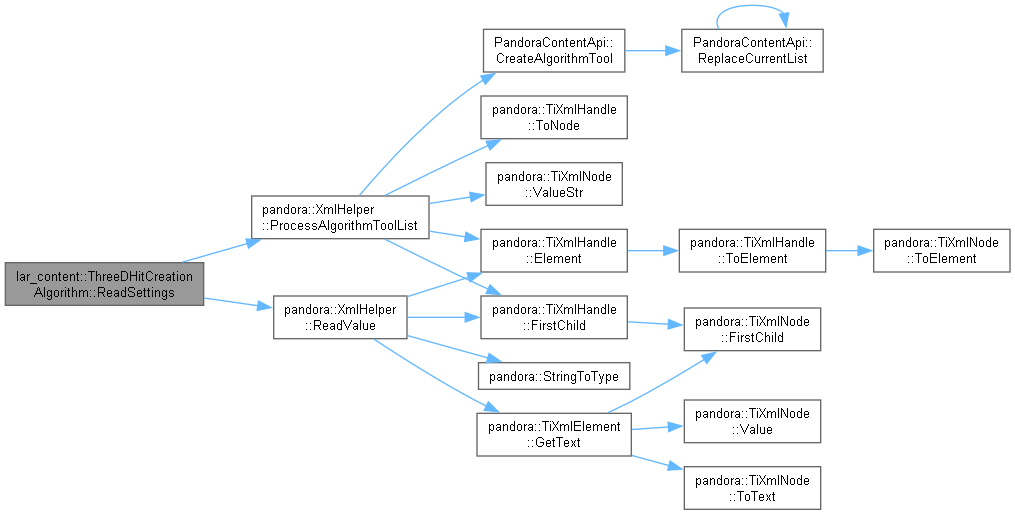

Here is the call graph for this function:

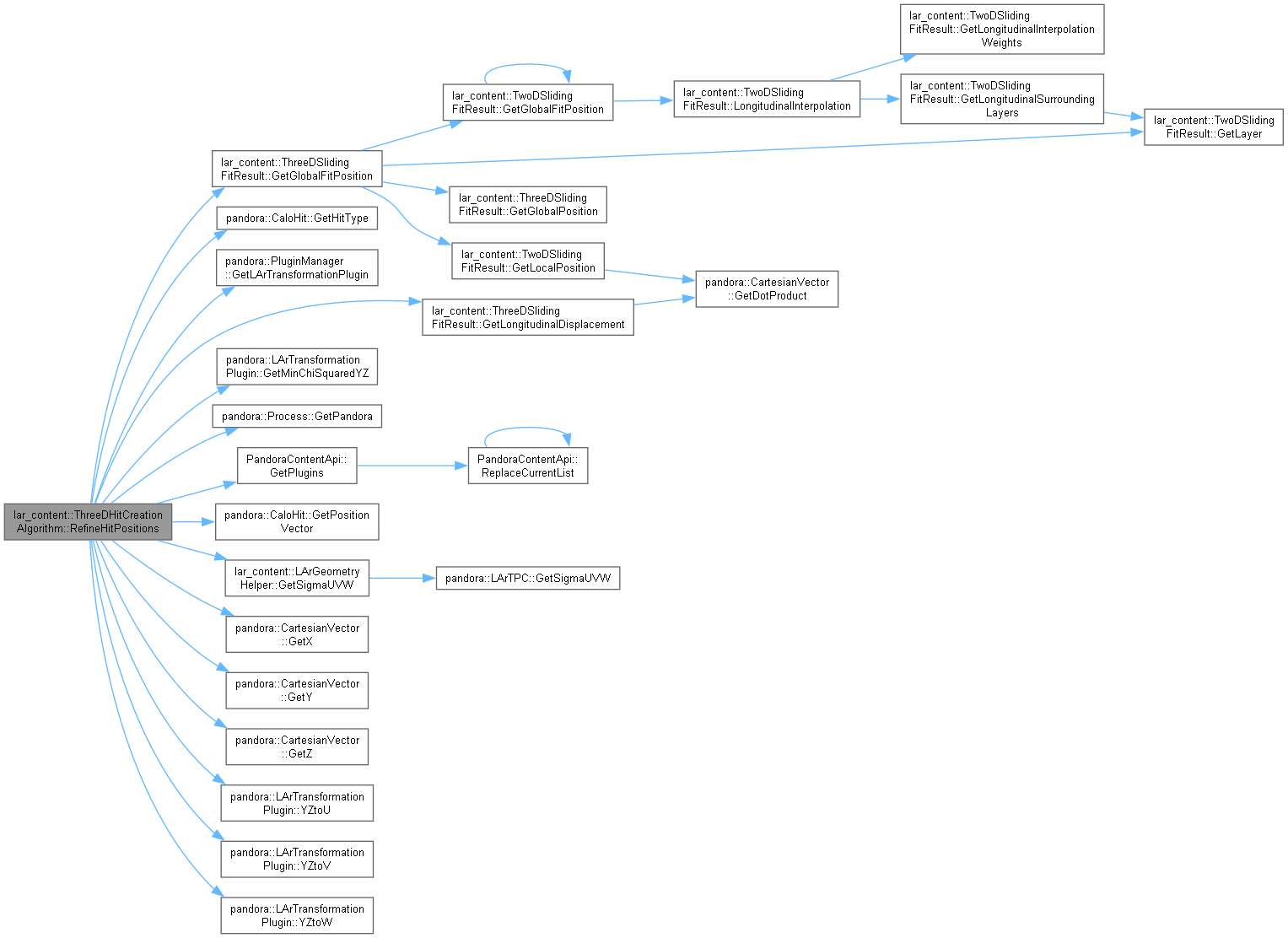

◆ RefineHitPositions()

void lar_content::ThreeDHitCreationAlgorithm::RefineHitPositions	(	const ThreeDSlidingFitResult &	slidingFitResult,
		ProtoHitVector &	protoHitVector
	)		const

private

Refine the 3D hit positions (and chi2) for a list of proto hits, in accordance with a provided 3D sliding fit trajectory.

Parameters

slidingFitResult	the 3D sliding fit result
protoHitVector	the proto hit vector, non const as proto hit properties will be updated

Definition at line 251 of file ThreeDHitCreationAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RegisterDetails()

StatusCode pandora::Process::RegisterDetails	(	const Pandora *const	pPandora,
		const std::string &	type,
		const std::string &	instanceName
	)

inlineprotectedinherited

Register i) the pandora instance that will run the process and ii) the process type.

Parameters

pPandora	address of the pandora object that will run the process
type	the process type
instanceName	the process instance name

Definition at line 146 of file Process.h.

Here is the caller graph for this function:

◆ Reset()

StatusCode pandora::Process::Reset ( )

inlineprotectedvirtualinherited

Perform any operations when pandora is reset, typically at the end of each event.

Reimplemented in lar_content::MasterAlgorithm, lar_content::PostProcessingAlgorithm, and lar_content::PreProcessingAlgorithm.

Definition at line 133 of file Process.h.

Here is the caller graph for this function:

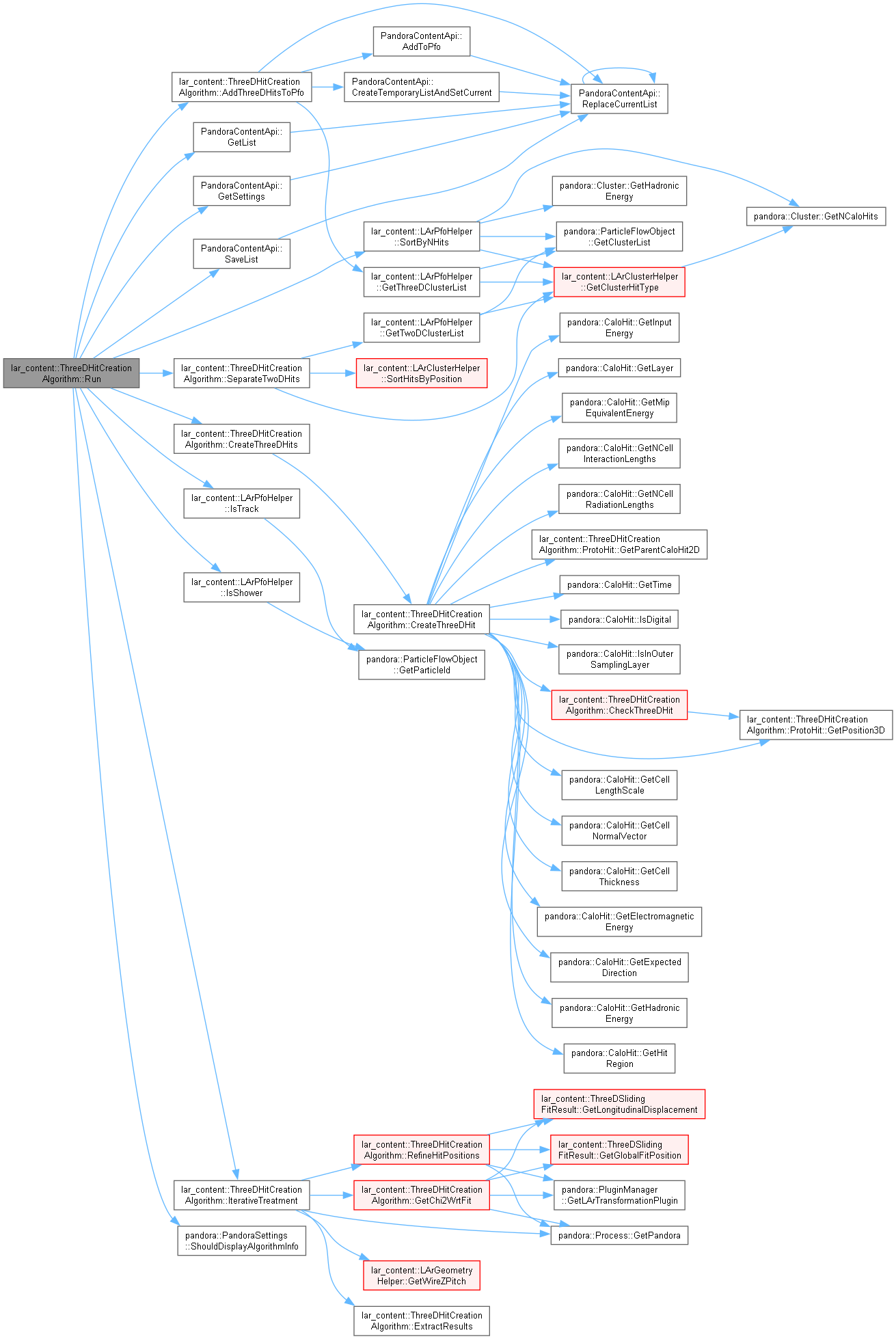

◆ Run()

StatusCode lar_content::ThreeDHitCreationAlgorithm::Run ( )

privatevirtual

Run the algorithm.

Implements pandora::Algorithm.

Definition at line 50 of file ThreeDHitCreationAlgorithm.cc.

Here is the call graph for this function:

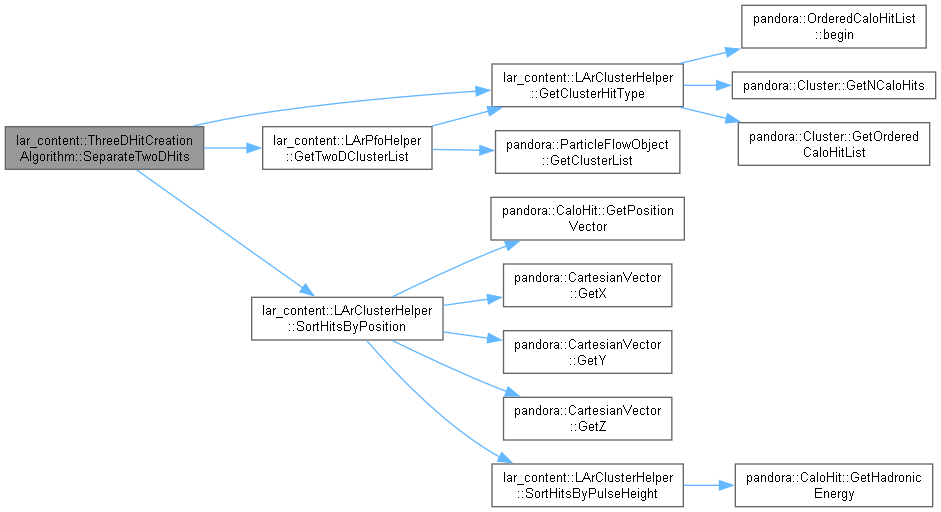

◆ SeparateTwoDHits()

void lar_content::ThreeDHitCreationAlgorithm::SeparateTwoDHits	(	const pandora::ParticleFlowObject *const	pPfo,
		const ProtoHitVector &	protoHitVector,
		pandora::CaloHitVector &	remainingHitVector
	)		const

private

Get the list of 2D calo hits in a pfo for which 3D hits have and have not been created.

Parameters

pPfo	the address of the pfo
protoHitVector	the vector of proto hits, describing current state of 3D hit construction
remainingHitVector	to receive the vector of 2D calo hits for which 3D hits have not been created

Definition at line 105 of file ThreeDHitCreationAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_algorithmToolVector

HitCreationToolVector lar_content::ThreeDHitCreationAlgorithm::m_algorithmToolVector

private

The algorithm tool vector.

Definition at line 272 of file ThreeDHitCreationAlgorithm.h.

◆ m_inputPfoListName

std::string lar_content::ThreeDHitCreationAlgorithm::m_inputPfoListName

private

The name of the input pfo list.

Definition at line 274 of file ThreeDHitCreationAlgorithm.h.

◆ m_instanceName

std::string pandora::Process::m_instanceName

protectedinherited

The process instance name.

Definition at line 89 of file Process.h.

◆ m_iterateShowerHits

bool lar_content::ThreeDHitCreationAlgorithm::m_iterateShowerHits

private

Whether to enable iterative improvement of 3D hits for showers.

Definition at line 279 of file ThreeDHitCreationAlgorithm.h.

◆ m_iterateTrackHits

bool lar_content::ThreeDHitCreationAlgorithm::m_iterateTrackHits

private

Whether to enable iterative improvement of 3D hits for track trajectories.

Definition at line 278 of file ThreeDHitCreationAlgorithm.h.

◆ m_iterationMaxChi2Ratio

double lar_content::ThreeDHitCreationAlgorithm::m_iterationMaxChi2Ratio

private

Max ratio between current and previous chi2 values to cease iterations.

Definition at line 283 of file ThreeDHitCreationAlgorithm.h.

◆ m_nHitRefinementIterations

unsigned int lar_content::ThreeDHitCreationAlgorithm::m_nHitRefinementIterations

private

The maximum number of hit refinement iterations.

Definition at line 281 of file ThreeDHitCreationAlgorithm.h.

◆ m_outputCaloHitListName

std::string lar_content::ThreeDHitCreationAlgorithm::m_outputCaloHitListName

private

The name of the output calo hit list.

Definition at line 275 of file ThreeDHitCreationAlgorithm.h.

◆ m_outputClusterListName

std::string lar_content::ThreeDHitCreationAlgorithm::m_outputClusterListName

private

The name of the output cluster list.

Definition at line 276 of file ThreeDHitCreationAlgorithm.h.

◆ m_pPandora

const Pandora* pandora::Process::m_pPandora

protectedinherited

The pandora object that will run the process.

Definition at line 87 of file Process.h.

◆ m_sigma3DFitMultiplier

double lar_content::ThreeDHitCreationAlgorithm::m_sigma3DFitMultiplier

private

Multiplicative factor: sigmaUVW (same as sigmaHit and sigma2DFit) to sigma3DFit.

Definition at line 282 of file ThreeDHitCreationAlgorithm.h.

◆ m_slidingFitHalfWindow

unsigned int lar_content::ThreeDHitCreationAlgorithm::m_slidingFitHalfWindow

private

The sliding linear fit half window.

Definition at line 280 of file ThreeDHitCreationAlgorithm.h.

◆ m_type

std::string pandora::Process::m_type

protectedinherited

The process type.

Definition at line 88 of file Process.h.

The documentation for this class was generated from the following files:

LArContent/larpandoracontent/LArThreeDReco/LArHitCreation/ThreeDHitCreationAlgorithm.h
LArContent/larpandoracontent/LArThreeDReco/LArHitCreation/ThreeDHitCreationAlgorithm.cc

Classes

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ HitCreationToolVector

◆ ProtoHitVector

◆ TrajectorySampleVector

Constructor & Destructor Documentation

◆ ThreeDHitCreationAlgorithm()

Member Function Documentation

◆ AddThreeDHitsToPfo()

◆ CheckThreeDHit()

◆ CreateThreeDHit()

◆ CreateThreeDHits()

◆ ExtractResults()

◆ FilterCaloHitsByType()

◆ GetChi2WrtFit()

◆ GetHitMovementChi2()

◆ GetInstanceName()

◆ GetPandora()

◆ GetType()

◆ Initialize()

◆ IterativeTreatment()

◆ ReadSettings()

◆ RefineHitPositions()

◆ RegisterDetails()

◆ Reset()

◆ Run()

◆ SeparateTwoDHits()

Member Data Documentation

◆ m_algorithmToolVector

◆ m_inputPfoListName

◆ m_instanceName

◆ m_iterateShowerHits

◆ m_iterateTrackHits

◆ m_iterationMaxChi2Ratio

◆ m_nHitRefinementIterations

◆ m_outputCaloHitListName

◆ m_outputClusterListName

◆ m_pPandora

◆ m_sigma3DFitMultiplier

◆ m_slidingFitHalfWindow

◆ m_type
