ElectronInitialRegionRefinementAlgorithm class. More...

#include "ElectronInitialRegionRefinementAlgorithm.h"

Inheritance diagram for lar_content::ElectronInitialRegionRefinementAlgorithm:

[legend]

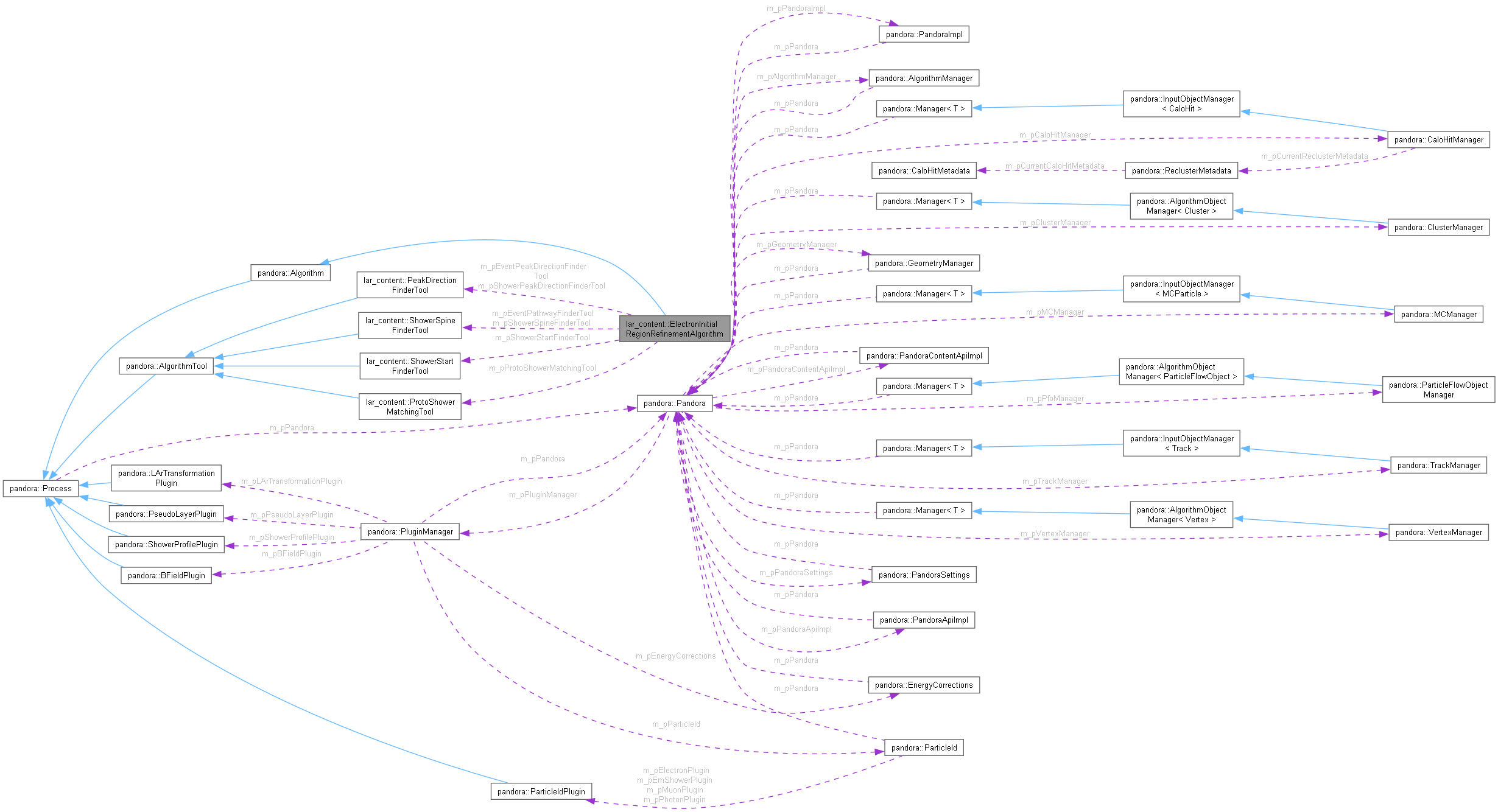

Collaboration diagram for lar_content::ElectronInitialRegionRefinementAlgorithm:

[legend]

Public Member Functions
	ElectronInitialRegionRefinementAlgorithm ()
	Default constructor.

const std::string &	GetType () const
	Get the type.

const std::string &	GetInstanceName () const
	Get the instance name.

const Pandora &	GetPandora () const
	Get the associated pandora instance.

Protected Member Functions
virtual StatusCode	Initialize ()
	Perform any operations that must occur after reading settings, but before running the process.

virtual StatusCode	Reset ()
	Perform any operations when pandora is reset, typically at the end of each event.

StatusCode	RegisterDetails (const Pandora *const pPandora, const std::string &type, const std::string &instanceName)
	Register i) the pandora instance that will run the process and ii) the process type.

Protected Attributes
const Pandora *	m_pPandora
	The pandora object that will run the process.

std::string	m_type
	The process type.

std::string	m_instanceName
	The process instance name.

Private Types
typedef std::map< const pandora::MCParticle *, pandora::CaloHitList >	HitOwnershipMap

Private Member Functions
pandora::StatusCode	Run ()
	Run the algorithm.

pandora::StatusCode	ReadSettings (const pandora::TiXmlHandle xmlHandle)
	Read the algorithm settings.

void	FillShowerPfoVector (pandora::PfoVector &showerPfoVector) const
	Obtain a sorted vector of the reconstructed shower pfos.

void	RefineShower (const pandora::ParticleFlowObject *const pShowerPfo) const
	Find and evaluate shower connection pathway, removing if necessary.

pandora::StatusCode	GetNeutrinoVertex (pandora::CartesianVector &nuVertex3D) const
	Obtain the reconstructed neutrino vertex.

void	BuildViewProtoShowers (const pandora::ParticleFlowObject *const pShowerPfo, const pandora::CartesianVector &nuVertex3D, pandora::HitType hitType, ProtoShowerVector &protoShowerVector) const
	Build the 2D ProtoShower objects for a given view.

pandora::StatusCode	GetHitListOfType (const pandora::HitType hitType, const pandora::CaloHitList *&pCaloHitList) const
	Obtain the event hit list of a given view.

pandora::CartesianVector	GetShowerVertex (const pandora::ParticleFlowObject *const pShowerPfo, const pandora::HitType hitType, const pandora::CartesianVector &nuVertex3D) const
	Fit the shower to obtain a 2D shower vertex.

void	RefineShowerVertex (const pandora::ParticleFlowObject *const pShowerPfo, const pandora::HitType hitType, const pandora::CartesianVector &nuVertex3D, const pandora::CartesianVector &peakDirection, pandora::CartesianVector &showerVertexPosition) const
	Move the shower vertex closer to the connection pathway.

bool	IsShowerConnected (const pandora::CartesianVector &showerVertexPosition, const pandora::CartesianVector &nuVertex2D, const pandora::CartesianVector &peakDirection) const
	To determine whether the shower vertex lies on the connection pathway.

bool	IsSpineCoincident (const pandora::ParticleFlowObject *const pShowerPfo, const pandora::CartesianVector &nuVertex3D, const pandora::HitType hitType, const pandora::CartesianVector &showerVertex, const pandora::CaloHitList &showerSpineHitList) const
	To determine if the hits downstream of the shower vertex lie within the shower.

void	BuildViewPathways (const pandora::ParticleFlowObject *const pShowerPfo, const pandora::CaloHitList &protectedHits, const pandora::CartesianVector &nuVertex3D, pandora::HitType hitType, ConnectionPathwayVector &viewPathways) const
	Build the connection pathways of all other particles in the event.

void	RefineHitsToAdd (const pandora::CartesianVector &nuVertex3D, const pandora::HitType hitType, const ConnectionPathwayVector &viewPathways, ProtoShower &protoShower) const
	Determine the continuous and unambiguous hits to add to an electron-like shower pfo.

void	FindContinuousPath (const pandora::CaloHitList &refinedHitList, const pandora::CartesianVector &nuVertex2D, pandora::CaloHitList &continuousHitList) const
	Find the continuous path of hits that lies closest to a given point.

void	SetMetadata (const pandora::ParticleFlowObject *const pShowerPfo, const LArMvaHelper::MvaFeatureMap &featureMap) const
	Add the shower characterisation information to the pfo metadata.

void	FillElectronHitMap (HitOwnershipMap &electronHitMap) const
	Determine the one-to-one mapping of leading MCParticle electrons and the hits which contain their energy depositions.

bool	IsElectron (const pandora::ParticleFlowObject *const pShowerPfo, const HitOwnershipMap &electronHitMap) const
	To determine whether a pfo is a true leading electron via its completeness and purity.

Private Attributes
PeakDirectionFinderTool *	m_pShowerPeakDirectionFinderTool
	The shower initial pathway direction finder tool.

PeakDirectionFinderTool *	m_pEventPeakDirectionFinderTool
	The other (not incl. shower) initial pathway direction finder tool.

ShowerSpineFinderTool *	m_pShowerSpineFinderTool
	The shower spine finder tool for the shower.

ShowerSpineFinderTool *	m_pEventPathwayFinderTool
	The shower spine finder tool for all other event particles.

ShowerStartFinderTool *	m_pShowerStartFinderTool
	The shower start finder tool.

ProtoShowerMatchingTool *	m_pProtoShowerMatchingTool
	The 2D -> 3D ProtoShower matching tool.

std::string	m_showerPfoListName
	The shower pfo list name.

std::string	m_neutrinoVertexListName
	The neutrino vertex list name.

std::string	m_caloHitListNameU
	The U calo hit list name.

std::string	m_caloHitListNameV
	The V calo hit list name.

std::string	m_caloHitListNameW
	The W calo hit list name.

unsigned int	m_minShowerHits3D
	The min. number of hits of a significant shower.

unsigned int	m_showerSlidingFitWindow
	The sliding fit window for shower fits.

float	m_maxCoincidenceTransverseSeparation
	The max. transverse distance from the pathway direction of a coincident shower vertex.

float	m_minSpinePurity
	The min. purity of a coincident shower spine downstream of the shower vertex.

bool	m_trainingMode
	Whether to run the algorithm to train the BDT.

std::string	m_trainingFileName
	The name of the output training file name.

float	m_unambiguousThreshold
	The min. transverse distance of an unambiguous shower hit from another pathway direction.

float	m_maxConnectionDistance
	The max. distance between connected hits.

unsigned int	m_minNConnectedHits
	The number of connected hits needed for a conntected pathway.

float	m_minElectronCompleteness
	The min. completeness of an electron-like pfo.

float	m_minElectronPurity
	The min. purity of an electron-like pfo.

float	m_maxSeparationFromHit
	The max. separation between the projected 3D shower start and the closest 2D shower hit.

float	m_maxProjectionSeparation
	The max. separation between the projected 3D shower start and the shower start of that view.

float	m_maxXSeparation
	The max. drift-coordinate separation between a 3D shower start and a matched 2D shower hit.

ConnectionPathwayFeatureTool::FeatureToolMap	m_featureToolMap
	The feature tool map.

pandora::StringVector	m_algorithmToolNames
	The algorithm tool names.

Detailed Description

ElectronInitialRegionRefinementAlgorithm class.

Definition at line 26 of file ElectronInitialRegionRefinementAlgorithm.h.

Member Typedef Documentation

◆ HitOwnershipMap

typedef std::map<const pandora::MCParticle *, pandora::CaloHitList> lar_content::ElectronInitialRegionRefinementAlgorithm::HitOwnershipMap

private

Definition at line 35 of file ElectronInitialRegionRefinementAlgorithm.h.

Constructor & Destructor Documentation

◆ ElectronInitialRegionRefinementAlgorithm()

lar_content::ElectronInitialRegionRefinementAlgorithm::ElectronInitialRegionRefinementAlgorithm ( )

Default constructor.

Definition at line 32 of file ElectronInitialRegionRefinementAlgorithm.cc.

Member Function Documentation

◆ BuildViewPathways()

void lar_content::ElectronInitialRegionRefinementAlgorithm::BuildViewPathways	(	const pandora::ParticleFlowObject *const	pShowerPfo,
		const pandora::CaloHitList &	protectedHits,
		const pandora::CartesianVector &	nuVertex3D,
		pandora::HitType	hitType,
		ConnectionPathwayVector &	viewPathways
	)		const

private

Build the connection pathways of all other particles in the event.

Parameters

pShowerPfo	the input shower pfo
protectedHits	the list of protected hits which will not be considered
nuVertex3D	the 3D neutrino vertex
hitType	the 2D view
viewPathways	the output vector of found connection pathways

Definition at line 402 of file ElectronInitialRegionRefinementAlgorithm.cc.

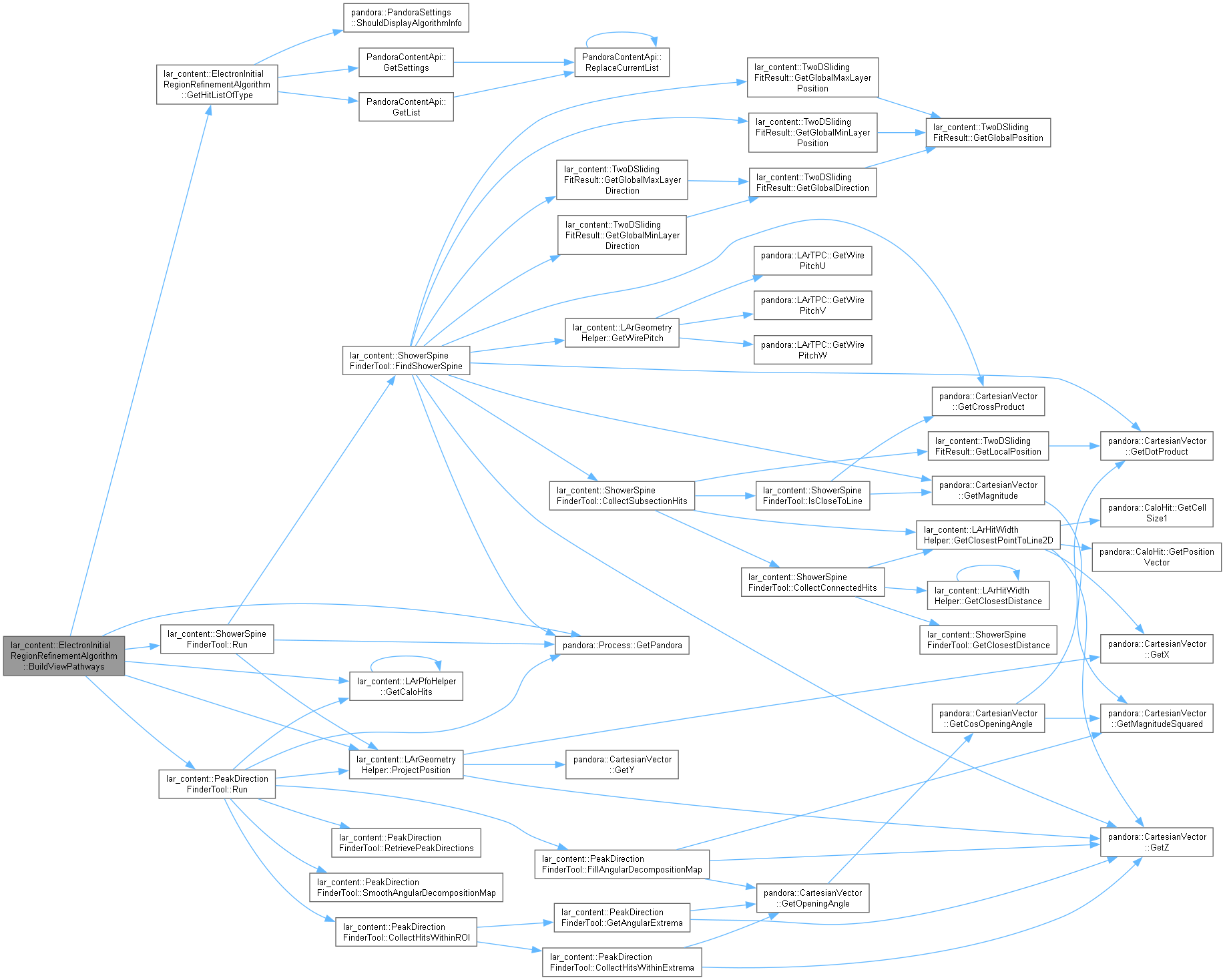

Here is the call graph for this function:

Here is the caller graph for this function:

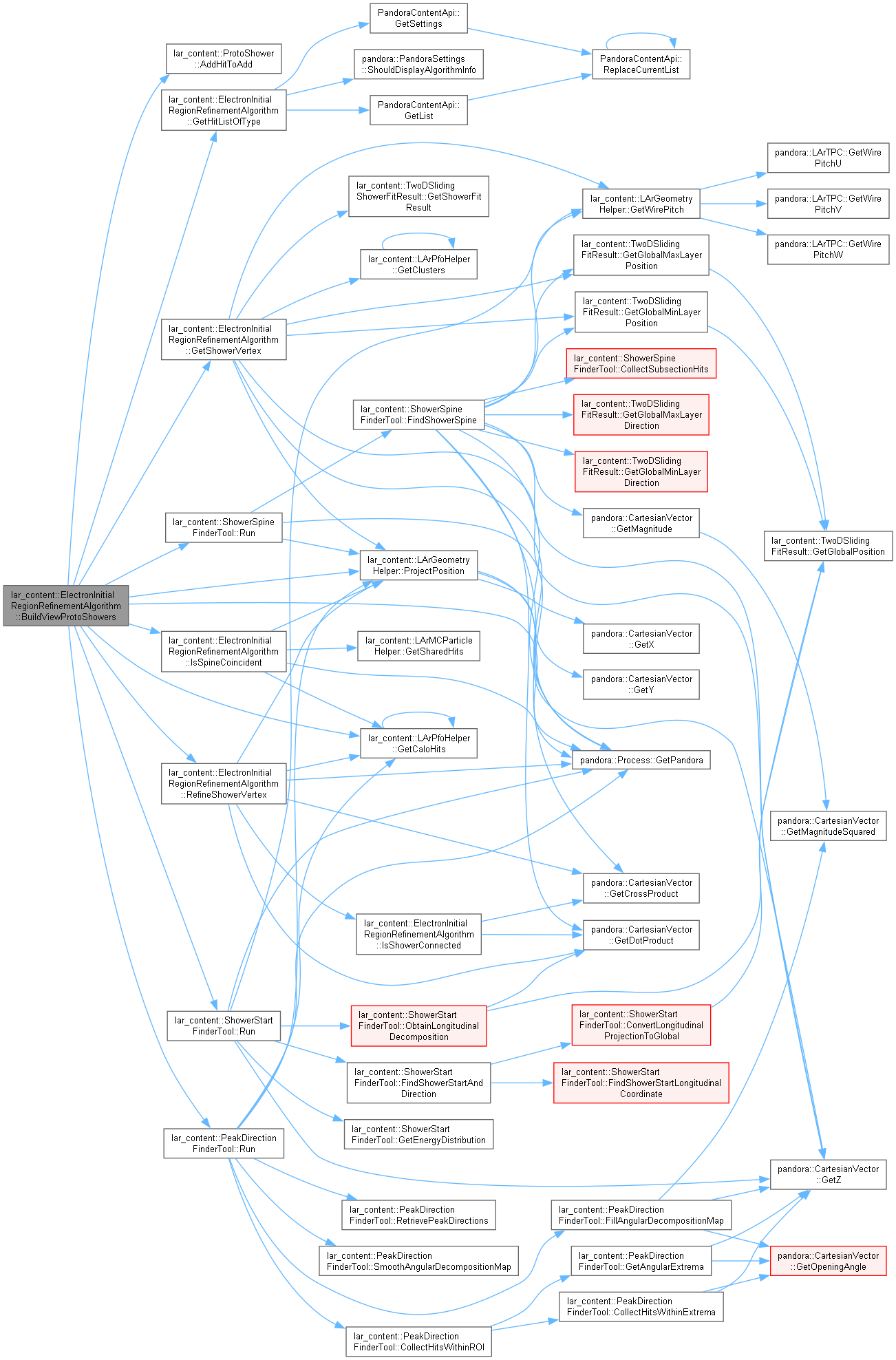

◆ BuildViewProtoShowers()

void lar_content::ElectronInitialRegionRefinementAlgorithm::BuildViewProtoShowers	(	const pandora::ParticleFlowObject *const	pShowerPfo,
		const pandora::CartesianVector &	nuVertex3D,
		pandora::HitType	hitType,
		ProtoShowerVector &	protoShowerVector
	)		const

private

Build the 2D ProtoShower objects for a given view.

Parameters

pShowerPfo	the input shower pfo
nuVertex3D	the 3D neutrino vertex
hitType	the 2D view
protoShowerVector	the output vector of ProtoShower objects

Definition at line 191 of file ElectronInitialRegionRefinementAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

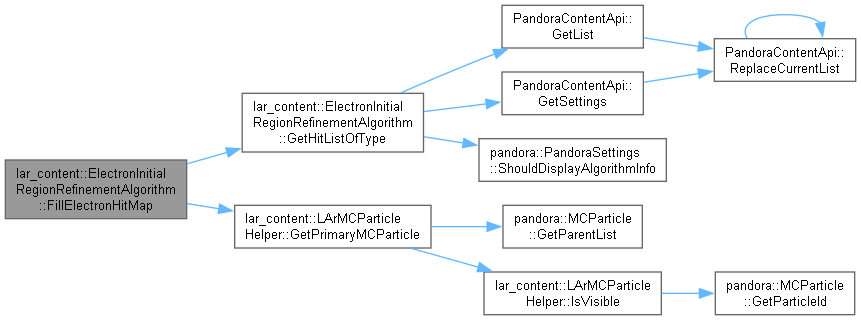

◆ FillElectronHitMap()

void lar_content::ElectronInitialRegionRefinementAlgorithm::FillElectronHitMap ( HitOwnershipMap & electronHitMap ) const

private

Determine the one-to-one mapping of leading MCParticle electrons and the hits which contain their energy depositions.

Parameters

electronHitMap the output [MCParticle -> CaloHitList] map

Definition at line 589 of file ElectronInitialRegionRefinementAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

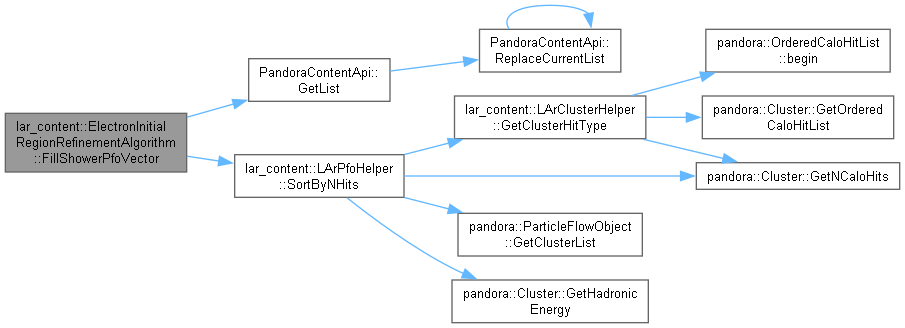

◆ FillShowerPfoVector()

void lar_content::ElectronInitialRegionRefinementAlgorithm::FillShowerPfoVector ( pandora::PfoVector & showerPfoVector ) const

private

Obtain a sorted vector of the reconstructed shower pfos.

Parameters

showerPfoVector the sorted shower vector to be filled

Definition at line 77 of file ElectronInitialRegionRefinementAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

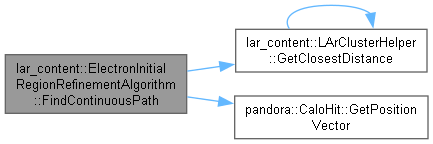

◆ FindContinuousPath()

void lar_content::ElectronInitialRegionRefinementAlgorithm::FindContinuousPath	(	const pandora::CaloHitList &	refinedHitList,
		const pandora::CartesianVector &	nuVertex2D,
		pandora::CaloHitList &	continuousHitList
	)		const

private

Find the continuous path of hits that lies closest to a given point.

Parameters

refinedHitList	the input hit list
nuVertex2D	the given point (the 2D neutrino vertex)
continuousHitList	the input hit list to be filled

Definition at line 481 of file ElectronInitialRegionRefinementAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetHitListOfType()

StatusCode lar_content::ElectronInitialRegionRefinementAlgorithm::GetHitListOfType	(	const pandora::HitType	hitType,
		const pandora::CaloHitList *&	pCaloHitList
	)		const

private

Obtain the event hit list of a given view.

Parameters

hitType	the 2D view
pCaloHitList	the output 2D hit list

Returns: whether a valid 2D hit list could be found

Definition at line 268 of file ElectronInitialRegionRefinementAlgorithm.cc.

Here is the call graph for this function:

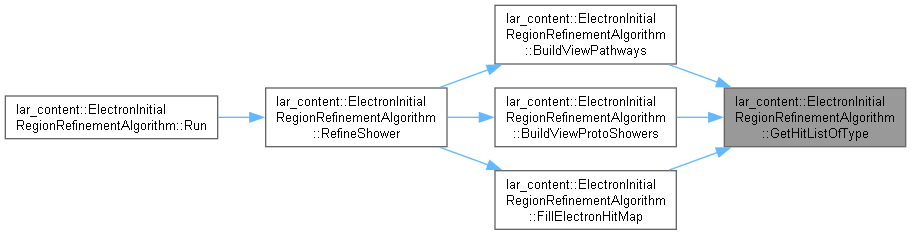

Here is the caller graph for this function:

◆ GetInstanceName()

const std::string & pandora::Process::GetInstanceName ( ) const

inlineinherited

Get the instance name.

Returns: The instance name

Definition at line 109 of file Process.h.

◆ GetNeutrinoVertex()

StatusCode lar_content::ElectronInitialRegionRefinementAlgorithm::GetNeutrinoVertex ( pandora::CartesianVector & nuVertex3D ) const

private

Obtain the reconstructed neutrino vertex.

Parameters

nuVertex3D the output neutrino vertex

Returns: whether a reconstructed neutrino vertex could be found

Definition at line 167 of file ElectronInitialRegionRefinementAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPandora()

const Pandora & pandora::Process::GetPandora ( ) const

inlineinherited

Get the associated pandora instance.

Returns: the associated pandora instance

Definition at line 116 of file Process.h.

◆ GetShowerVertex()

CartesianVector lar_content::ElectronInitialRegionRefinementAlgorithm::GetShowerVertex	(	const pandora::ParticleFlowObject *const	pShowerPfo,
		const pandora::HitType	hitType,
		const pandora::CartesianVector &	nuVertex3D
	)		const

private

Fit the shower to obtain a 2D shower vertex.

Parameters

pShowerPfo	the input shower pfo
hitType	the 2D view
nuVertex3D	the 3D neutrino vertex

Returns: the 2D shower vertex position

Definition at line 287 of file ElectronInitialRegionRefinementAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetType()

const std::string & pandora::Process::GetType ( ) const

inlineinherited

Get the type.

Returns: The type

Definition at line 102 of file Process.h.

◆ Initialize()

StatusCode pandora::Process::Initialize ( )

inlineprotectedvirtualinherited

Perform any operations that must occur after reading settings, but before running the process.

Reimplemented in lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, EventReadingAlgorithm, and EventWritingAlgorithm.

Definition at line 126 of file Process.h.

Here is the caller graph for this function:

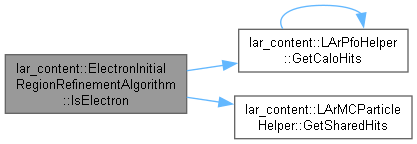

◆ IsElectron()

bool lar_content::ElectronInitialRegionRefinementAlgorithm::IsElectron	(	const pandora::ParticleFlowObject *const	pShowerPfo,
		const HitOwnershipMap &	electronHitMap
	)		const

private

To determine whether a pfo is a true leading electron via its completeness and purity.

Parameters

pShowerPfo	the input shower pfo
electronHitMap	the mapping of [MCParticle leading electrons -> their associated hits]

Definition at line 638 of file ElectronInitialRegionRefinementAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

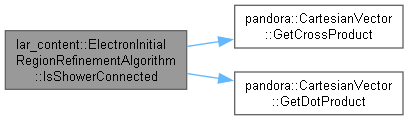

◆ IsShowerConnected()

bool lar_content::ElectronInitialRegionRefinementAlgorithm::IsShowerConnected	(	const pandora::CartesianVector &	showerVertexPosition,
		const pandora::CartesianVector &	nuVertex2D,
		const pandora::CartesianVector &	peakDirection
	)		const

private

To determine whether the shower vertex lies on the connection pathway.

Parameters

showerVertexPosition	the input 2D shower vertex position
nuVertex2D	the 2D neutrino vertex
peakDirection	the initial direction of the connection pathway

Returns: whether the shower vertex lies on the connection pathway

Definition at line 347 of file ElectronInitialRegionRefinementAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

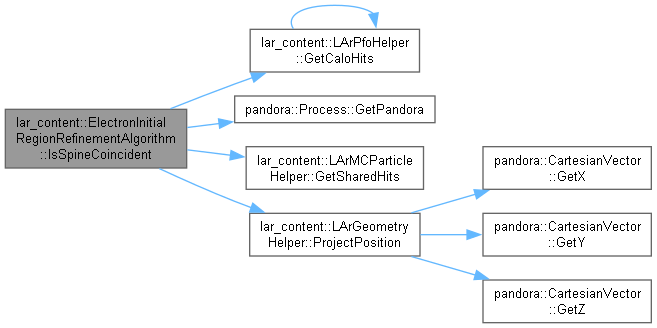

◆ IsSpineCoincident()

bool lar_content::ElectronInitialRegionRefinementAlgorithm::IsSpineCoincident	(	const pandora::ParticleFlowObject *const	pShowerPfo,
		const pandora::CartesianVector &	nuVertex3D,
		const pandora::HitType	hitType,
		const pandora::CartesianVector &	showerVertex,
		const pandora::CaloHitList &	showerSpineHitList
	)		const

private

To determine if the hits downstream of the shower vertex lie within the shower.

Parameters

pShowerPfo	the input shower pfo
nuVertex3D	the 3D neutrino vertex
hitType	the 2D view
showerVertex	the 2D shower vertex
showerSpineHitList	the hits of the found shower spine

Returns: whether the hits downstream of the shower vertex lie within the shower

Definition at line 367 of file ElectronInitialRegionRefinementAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

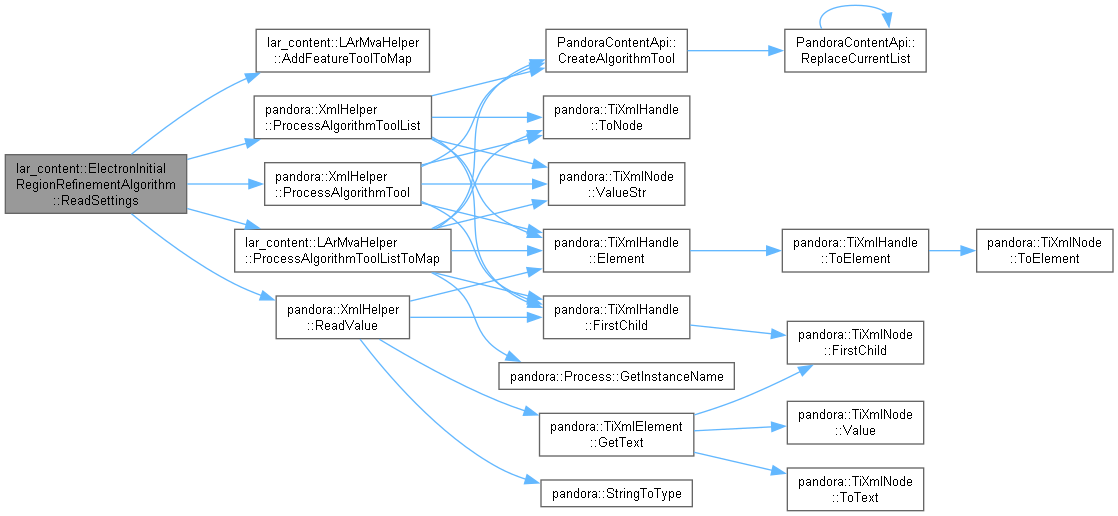

◆ ReadSettings()

StatusCode lar_content::ElectronInitialRegionRefinementAlgorithm::ReadSettings ( const pandora::TiXmlHandle xmlHandle )

privatevirtual

Read the algorithm settings.

Parameters

xmlHandle the relevant xml handle

Implements pandora::Process.

Definition at line 672 of file ElectronInitialRegionRefinementAlgorithm.cc.

Here is the call graph for this function:

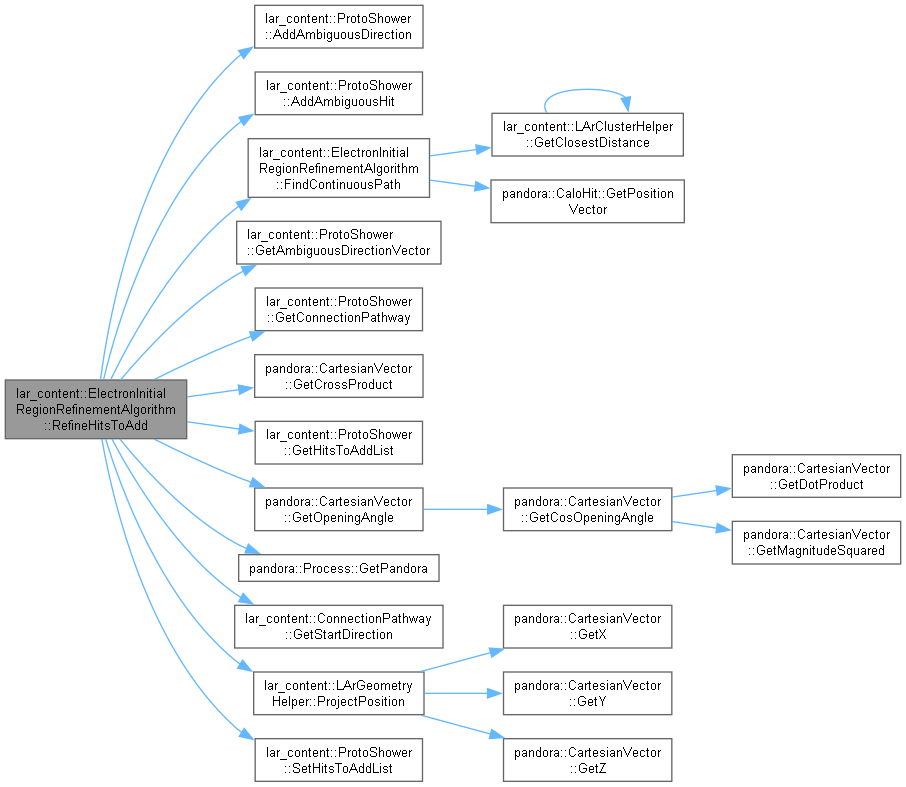

◆ RefineHitsToAdd()

void lar_content::ElectronInitialRegionRefinementAlgorithm::RefineHitsToAdd	(	const pandora::CartesianVector &	nuVertex3D,
		const pandora::HitType	hitType,
		const ConnectionPathwayVector &	viewPathways,
		ProtoShower &	protoShower
	)		const

private

Determine the continuous and unambiguous hits to add to an electron-like shower pfo.

Parameters

nuVertex3D	the 3D neutrino vertex
hitType	the 2D view
viewPathways	the vector of other event connection pathways
protoShower	the ProtoShower object associated with the input shower

Definition at line 433 of file ElectronInitialRegionRefinementAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

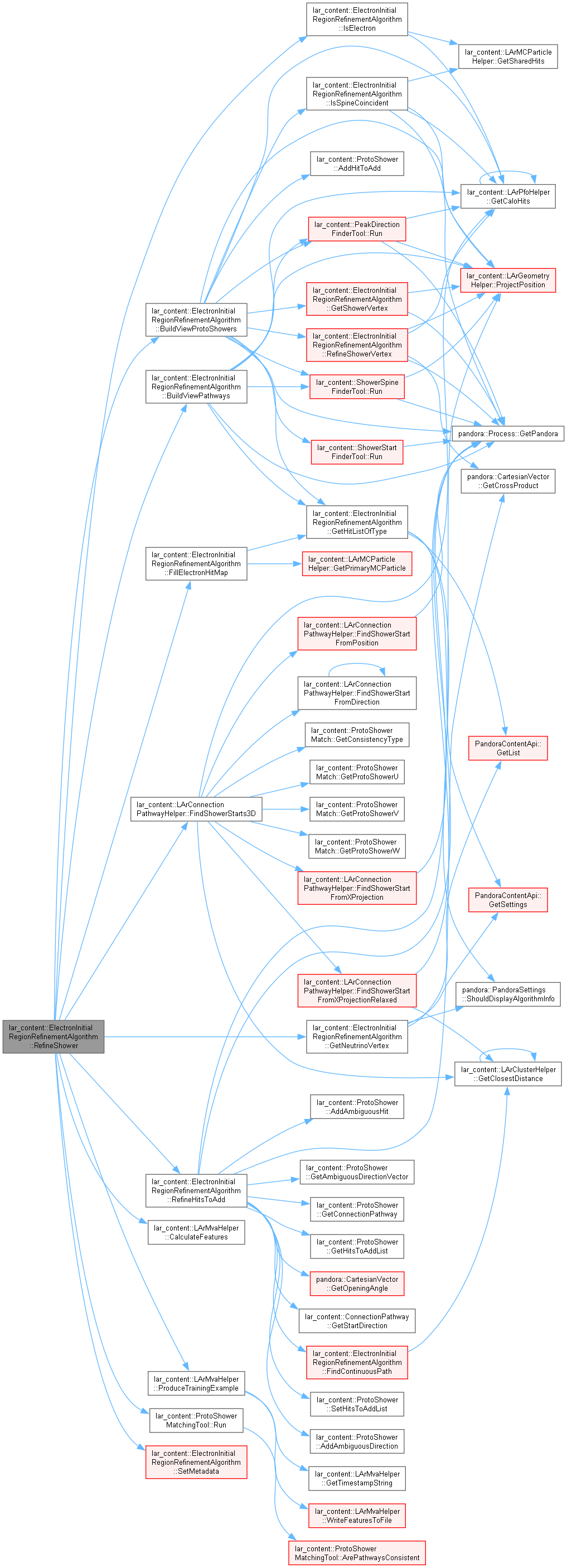

◆ RefineShower()

void lar_content::ElectronInitialRegionRefinementAlgorithm::RefineShower ( const pandora::ParticleFlowObject *const pShowerPfo ) const

private

Find and evaluate shower connection pathway, removing if necessary.

Parameters

pShowerPfo the input shower pfo

Definition at line 97 of file ElectronInitialRegionRefinementAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

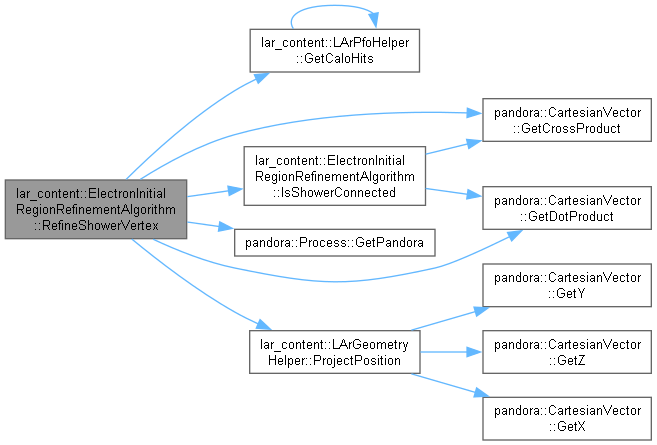

◆ RefineShowerVertex()

void lar_content::ElectronInitialRegionRefinementAlgorithm::RefineShowerVertex	(	const pandora::ParticleFlowObject *const	pShowerPfo,
		const pandora::HitType	hitType,
		const pandora::CartesianVector &	nuVertex3D,
		const pandora::CartesianVector &	peakDirection,
		pandora::CartesianVector &	showerVertexPosition
	)		const

private

Move the shower vertex closer to the connection pathway.

Parameters

pShowerPfo	the input shower pfo
hitType	the 2D view
nuVertex3D	the 3D neutrino vertex
peakDirection	the initial direction of the connection pathway
showerVertexPosition	the (perhaps) refined 2D shower vertex position

Definition at line 314 of file ElectronInitialRegionRefinementAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RegisterDetails()

StatusCode pandora::Process::RegisterDetails	(	const Pandora *const	pPandora,
		const std::string &	type,
		const std::string &	instanceName
	)

inlineprotectedinherited

Register i) the pandora instance that will run the process and ii) the process type.

Parameters

pPandora	address of the pandora object that will run the process
type	the process type
instanceName	the process instance name

Definition at line 146 of file Process.h.

Here is the caller graph for this function:

◆ Reset()

StatusCode pandora::Process::Reset ( )

inlineprotectedvirtualinherited

Perform any operations when pandora is reset, typically at the end of each event.

Reimplemented in lar_content::MasterAlgorithm, lar_content::PostProcessingAlgorithm, and lar_content::PreProcessingAlgorithm.

Definition at line 133 of file Process.h.

Here is the caller graph for this function:

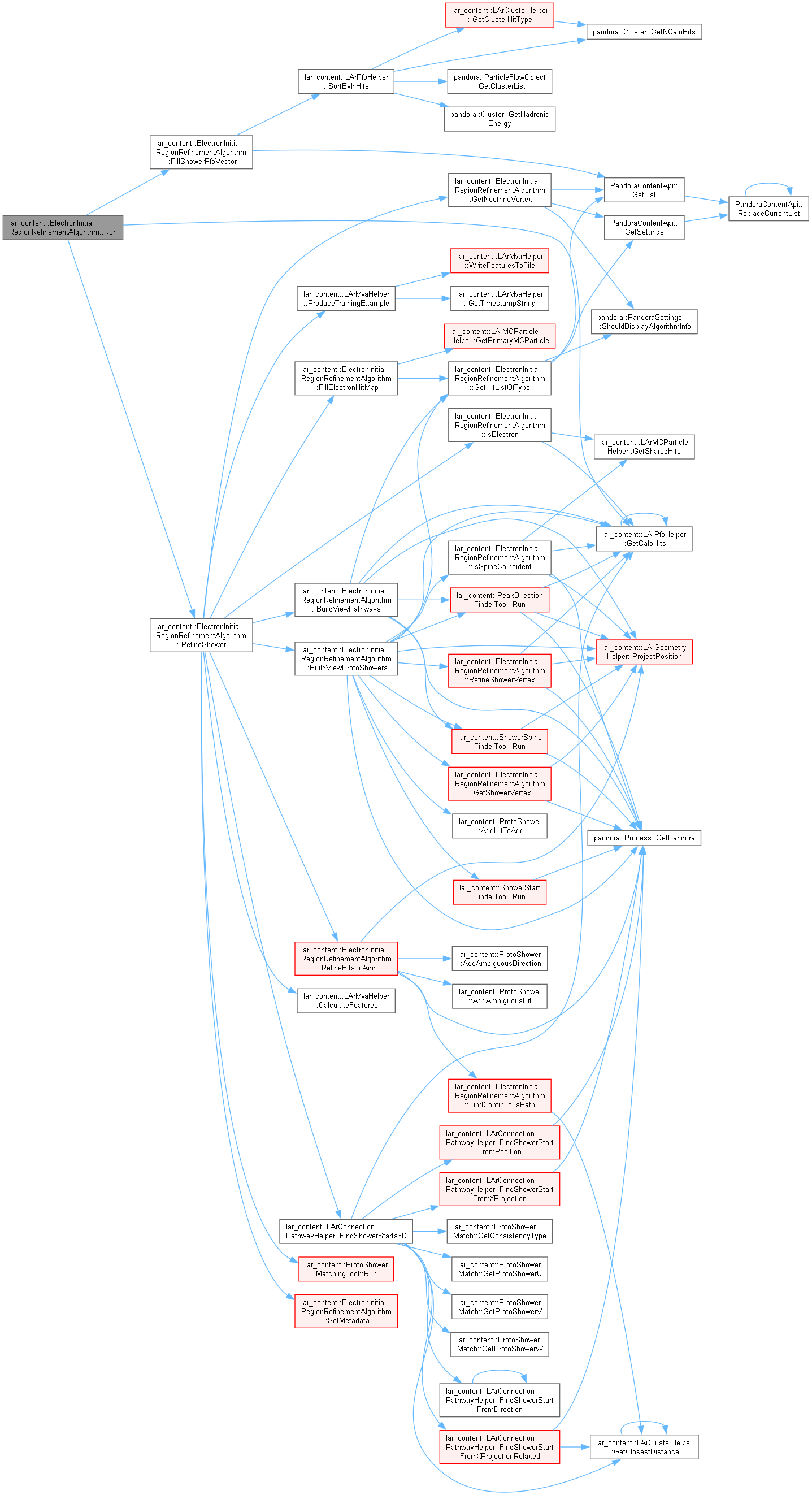

◆ Run()

StatusCode lar_content::ElectronInitialRegionRefinementAlgorithm::Run ( )

privatevirtual

Run the algorithm.

Implements pandora::Algorithm.

Definition at line 52 of file ElectronInitialRegionRefinementAlgorithm.cc.

Here is the call graph for this function:

◆ SetMetadata()

void lar_content::ElectronInitialRegionRefinementAlgorithm::SetMetadata	(	const pandora::ParticleFlowObject *const	pShowerPfo,
		const LArMvaHelper::MvaFeatureMap &	featureMap
	)		const

private

Add the shower characterisation information to the pfo metadata.

Parameters

pShowerPfo	the input shower pfo
featureMap	the map of [characterisation variable -> value]

Definition at line 531 of file ElectronInitialRegionRefinementAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_algorithmToolNames

pandora::StringVector lar_content::ElectronInitialRegionRefinementAlgorithm::m_algorithmToolNames

private

The algorithm tool names.

Definition at line 216 of file ElectronInitialRegionRefinementAlgorithm.h.

◆ m_caloHitListNameU

std::string lar_content::ElectronInitialRegionRefinementAlgorithm::m_caloHitListNameU

private

The U calo hit list name.

Definition at line 198 of file ElectronInitialRegionRefinementAlgorithm.h.

◆ m_caloHitListNameV

std::string lar_content::ElectronInitialRegionRefinementAlgorithm::m_caloHitListNameV

private

The V calo hit list name.

Definition at line 199 of file ElectronInitialRegionRefinementAlgorithm.h.

◆ m_caloHitListNameW

std::string lar_content::ElectronInitialRegionRefinementAlgorithm::m_caloHitListNameW

private

The W calo hit list name.

Definition at line 200 of file ElectronInitialRegionRefinementAlgorithm.h.

◆ m_featureToolMap

ConnectionPathwayFeatureTool::FeatureToolMap lar_content::ElectronInitialRegionRefinementAlgorithm::m_featureToolMap

private

The feature tool map.

Definition at line 215 of file ElectronInitialRegionRefinementAlgorithm.h.

◆ m_instanceName

std::string pandora::Process::m_instanceName

protectedinherited

The process instance name.

Definition at line 89 of file Process.h.

◆ m_maxCoincidenceTransverseSeparation

float lar_content::ElectronInitialRegionRefinementAlgorithm::m_maxCoincidenceTransverseSeparation

private

The max. transverse distance from the pathway direction of a coincident shower vertex.

Definition at line 203 of file ElectronInitialRegionRefinementAlgorithm.h.

◆ m_maxConnectionDistance

float lar_content::ElectronInitialRegionRefinementAlgorithm::m_maxConnectionDistance

private

The max. distance between connected hits.

Definition at line 208 of file ElectronInitialRegionRefinementAlgorithm.h.

◆ m_maxProjectionSeparation

float lar_content::ElectronInitialRegionRefinementAlgorithm::m_maxProjectionSeparation

private

The max. separation between the projected 3D shower start and the shower start of that view.

Definition at line 213 of file ElectronInitialRegionRefinementAlgorithm.h.

◆ m_maxSeparationFromHit

float lar_content::ElectronInitialRegionRefinementAlgorithm::m_maxSeparationFromHit

private

The max. separation between the projected 3D shower start and the closest 2D shower hit.

Definition at line 212 of file ElectronInitialRegionRefinementAlgorithm.h.

◆ m_maxXSeparation

float lar_content::ElectronInitialRegionRefinementAlgorithm::m_maxXSeparation

private

The max. drift-coordinate separation between a 3D shower start and a matched 2D shower hit.

Definition at line 214 of file ElectronInitialRegionRefinementAlgorithm.h.

◆ m_minElectronCompleteness

float lar_content::ElectronInitialRegionRefinementAlgorithm::m_minElectronCompleteness

private

The min. completeness of an electron-like pfo.

Definition at line 210 of file ElectronInitialRegionRefinementAlgorithm.h.

◆ m_minElectronPurity

float lar_content::ElectronInitialRegionRefinementAlgorithm::m_minElectronPurity

private

The min. purity of an electron-like pfo.

Definition at line 211 of file ElectronInitialRegionRefinementAlgorithm.h.

◆ m_minNConnectedHits

unsigned int lar_content::ElectronInitialRegionRefinementAlgorithm::m_minNConnectedHits

private

The number of connected hits needed for a conntected pathway.

Definition at line 209 of file ElectronInitialRegionRefinementAlgorithm.h.

◆ m_minShowerHits3D

unsigned int lar_content::ElectronInitialRegionRefinementAlgorithm::m_minShowerHits3D

private

The min. number of hits of a significant shower.

Definition at line 201 of file ElectronInitialRegionRefinementAlgorithm.h.

◆ m_minSpinePurity

float lar_content::ElectronInitialRegionRefinementAlgorithm::m_minSpinePurity

private

The min. purity of a coincident shower spine downstream of the shower vertex.

Definition at line 204 of file ElectronInitialRegionRefinementAlgorithm.h.

◆ m_neutrinoVertexListName

std::string lar_content::ElectronInitialRegionRefinementAlgorithm::m_neutrinoVertexListName

private

The neutrino vertex list name.

Definition at line 197 of file ElectronInitialRegionRefinementAlgorithm.h.

◆ m_pEventPathwayFinderTool

ShowerSpineFinderTool* lar_content::ElectronInitialRegionRefinementAlgorithm::m_pEventPathwayFinderTool

private

The shower spine finder tool for all other event particles.

Definition at line 193 of file ElectronInitialRegionRefinementAlgorithm.h.

◆ m_pEventPeakDirectionFinderTool

PeakDirectionFinderTool* lar_content::ElectronInitialRegionRefinementAlgorithm::m_pEventPeakDirectionFinderTool

private

The other (not incl. shower) initial pathway direction finder tool.

Definition at line 191 of file ElectronInitialRegionRefinementAlgorithm.h.

◆ m_pPandora

const Pandora* pandora::Process::m_pPandora

protectedinherited

The pandora object that will run the process.

Definition at line 87 of file Process.h.

◆ m_pProtoShowerMatchingTool

ProtoShowerMatchingTool* lar_content::ElectronInitialRegionRefinementAlgorithm::m_pProtoShowerMatchingTool

private

The 2D -> 3D ProtoShower matching tool.

Definition at line 195 of file ElectronInitialRegionRefinementAlgorithm.h.

◆ m_pShowerPeakDirectionFinderTool

PeakDirectionFinderTool* lar_content::ElectronInitialRegionRefinementAlgorithm::m_pShowerPeakDirectionFinderTool

private

The shower initial pathway direction finder tool.

Definition at line 190 of file ElectronInitialRegionRefinementAlgorithm.h.

◆ m_pShowerSpineFinderTool

ShowerSpineFinderTool* lar_content::ElectronInitialRegionRefinementAlgorithm::m_pShowerSpineFinderTool

private

The shower spine finder tool for the shower.

Definition at line 192 of file ElectronInitialRegionRefinementAlgorithm.h.

◆ m_pShowerStartFinderTool

ShowerStartFinderTool* lar_content::ElectronInitialRegionRefinementAlgorithm::m_pShowerStartFinderTool

private

The shower start finder tool.

Definition at line 194 of file ElectronInitialRegionRefinementAlgorithm.h.

◆ m_showerPfoListName

std::string lar_content::ElectronInitialRegionRefinementAlgorithm::m_showerPfoListName

private

The shower pfo list name.

Definition at line 196 of file ElectronInitialRegionRefinementAlgorithm.h.

◆ m_showerSlidingFitWindow

unsigned int lar_content::ElectronInitialRegionRefinementAlgorithm::m_showerSlidingFitWindow

private

The sliding fit window for shower fits.

Definition at line 202 of file ElectronInitialRegionRefinementAlgorithm.h.

◆ m_trainingFileName

std::string lar_content::ElectronInitialRegionRefinementAlgorithm::m_trainingFileName

private

The name of the output training file name.

Definition at line 206 of file ElectronInitialRegionRefinementAlgorithm.h.

◆ m_trainingMode

bool lar_content::ElectronInitialRegionRefinementAlgorithm::m_trainingMode

private

Whether to run the algorithm to train the BDT.

Definition at line 205 of file ElectronInitialRegionRefinementAlgorithm.h.

◆ m_type

std::string pandora::Process::m_type

protectedinherited

The process type.

Definition at line 88 of file Process.h.

◆ m_unambiguousThreshold

float lar_content::ElectronInitialRegionRefinementAlgorithm::m_unambiguousThreshold

private

The min. transverse distance of an unambiguous shower hit from another pathway direction.

Definition at line 207 of file ElectronInitialRegionRefinementAlgorithm.h.

The documentation for this class was generated from the following files:

LArContent/larpandoracontent/LArShowerRefinement/ElectronInitialRegionRefinementAlgorithm.h
LArContent/larpandoracontent/LArShowerRefinement/ElectronInitialRegionRefinementAlgorithm.cc

Public Member Functions

Protected Member Functions

Protected Attributes

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ HitOwnershipMap

Constructor & Destructor Documentation

◆ ElectronInitialRegionRefinementAlgorithm()

Member Function Documentation

◆ BuildViewPathways()

◆ BuildViewProtoShowers()

◆ FillElectronHitMap()

◆ FillShowerPfoVector()

◆ FindContinuousPath()

◆ GetHitListOfType()

◆ GetInstanceName()

◆ GetNeutrinoVertex()

◆ GetPandora()

◆ GetShowerVertex()

◆ GetType()

◆ Initialize()

◆ IsElectron()

◆ IsShowerConnected()

◆ IsSpineCoincident()

◆ ReadSettings()

◆ RefineHitsToAdd()

◆ RefineShower()

◆ RefineShowerVertex()

◆ RegisterDetails()

◆ Reset()

◆ Run()

◆ SetMetadata()

Member Data Documentation

◆ m_algorithmToolNames

◆ m_caloHitListNameU

◆ m_caloHitListNameV

◆ m_caloHitListNameW

◆ m_featureToolMap

◆ m_instanceName

◆ m_maxCoincidenceTransverseSeparation

◆ m_maxConnectionDistance

◆ m_maxProjectionSeparation

◆ m_maxSeparationFromHit

◆ m_maxXSeparation

◆ m_minElectronCompleteness

◆ m_minElectronPurity

◆ m_minNConnectedHits

◆ m_minShowerHits3D

◆ m_minSpinePurity

◆ m_neutrinoVertexListName

◆ m_pEventPathwayFinderTool

◆ m_pEventPeakDirectionFinderTool

◆ m_pPandora

◆ m_pProtoShowerMatchingTool

◆ m_pShowerPeakDirectionFinderTool

◆ m_pShowerSpineFinderTool

◆ m_pShowerStartFinderTool

◆ m_showerPfoListName

◆ m_showerSlidingFitWindow

◆ m_trainingFileName

◆ m_trainingMode

◆ m_type

◆ m_unambiguousThreshold
