lar_content::MissingTrackSegmentTool Class Reference

MissingTrackSegmentTool class. More...

#include "MissingTrackSegmentTool.h"

Inheritance diagram for lar_content::MissingTrackSegmentTool:

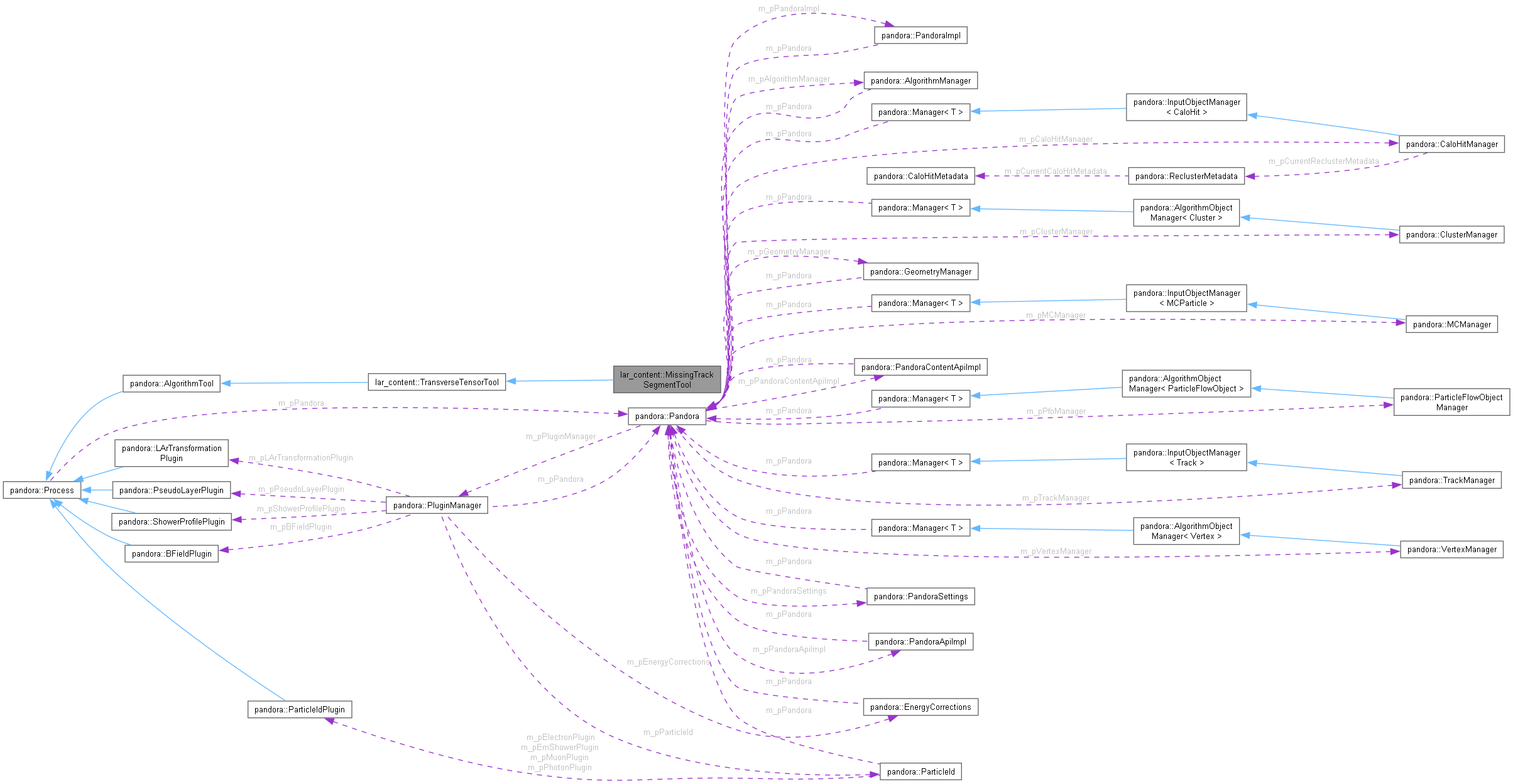

Collaboration diagram for lar_content::MissingTrackSegmentTool:

Classes
class	Particle
	Particle class. More...
class	SegmentOverlap
	SegmentOverlap class. More...

Public Types
typedef ThreeViewTransverseTracksAlgorithm::MatchingType::TensorType	TensorType
typedef std::vector< TensorType::ElementList::const_iterator >	IteratorList

Public Member Functions
	MissingTrackSegmentTool ()
	Default constructor.
bool	Run (ThreeViewTransverseTracksAlgorithm *const pAlgorithm, TensorType &overlapTensor)
	Run the algorithm tool.
const std::string &	GetType () const
	Get the type.
const std::string &	GetInstanceName () const
	Get the instance name.
const Pandora &	GetPandora () const
	Get the associated pandora instance.

Protected Member Functions
virtual StatusCode	Initialize ()
	Perform any operations that must occur after reading settings, but before running the process.
virtual StatusCode	Reset ()
	Perform any operations when pandora is reset, typically at the end of each event.
StatusCode	RegisterDetails (const Pandora *const pPandora, const std::string &type, const std::string &instanceName)
	Register i) the pandora instance that will run the process and ii) the process type.

Protected Attributes
const Pandora *	m_pPandora
	The pandora object that will run the process.
std::string	m_type
	The process type.
std::string	m_instanceName
	The process instance name.

Private Types
typedef std::unordered_map< const pandora::Cluster *, SegmentOverlap >	SegmentOverlapMap
typedef std::unordered_map< const pandora::Cluster *, pandora::ClusterList >	ClusterMergeMap

Private Member Functions
pandora::StatusCode	ReadSettings (const pandora::TiXmlHandle xmlHandle)
	Read the algorithm settings.
void	FindTracks (ThreeViewTransverseTracksAlgorithm *const pAlgorithm, const TensorType &overlapTensor, ProtoParticleVector &protoParticleVector, ClusterMergeMap &clusterMergeMap) const
	Find remaining tracks, hidden by missing track segments (and maybe other ambiguities) in the tensor.
void	SelectElements (const TensorType::ElementList &elementList, const pandora::ClusterSet &usedClusters, IteratorList &iteratorList) const
	Select a list of the relevant elements from a set of connected tensor elements.
bool	PassesParticleChecks (ThreeViewTransverseTracksAlgorithm *const pAlgorithm, const TensorType::Element &element, pandora::ClusterSet &usedClusters, ClusterMergeMap &clusterMergeMap) const
	Whether a provided tensor element can be used to construct a pfo.
void	GetCandidateClusters (ThreeViewTransverseTracksAlgorithm *const pAlgorithm, const Particle &particle, pandora::ClusterList &candidateClusters) const
	Get a list of candidate clusters, which may represent missing track segments for a provided particle.
void	GetSlidingFitResultMap (ThreeViewTransverseTracksAlgorithm *const pAlgorithm, const pandora::ClusterList &candidateClusterList, TwoDSlidingFitResultMap &slidingFitResultMap) const
	Get a sliding fit result map for the list of candidate clusters.
void	GetSegmentOverlapMap (ThreeViewTransverseTracksAlgorithm *const pAlgorithm, const Particle &particle, const TwoDSlidingFitResultMap &slidingFitResultMap, SegmentOverlapMap &segmentOverlapMap) const
	Get a segment overlap map, describing overlap between a provided particle and all clusters in a sliding fit result map.
bool	MakeDecisions (const Particle &particle, const TwoDSlidingFitResultMap &slidingFitResultMap, const SegmentOverlapMap &segmentOverlapMap, pandora::ClusterSet &usedClusters, ClusterMergeMap &clusterMergeMap) const
	Make decisions about whether to create a pfo for a provided particle and whether to make cluster merges.
bool	PassesSamplingCuts (const SegmentOverlap &segmentOverlap) const
	Whether the segment overlap object passes cuts on matched sampling points, etc.
bool	IsPossibleMerge (const pandora::Cluster *const pCluster, const Particle &particle, const SegmentOverlap &segmentOverlap, const TwoDSlidingFitResultMap &slidingFitResultMap) const
	Whether the cluster could be merged with the candidate particle.

Private Attributes
float	m_minMatchedFraction
	The min matched sampling point fraction for particle creation.
unsigned int	m_minMatchedSamplingPoints
	The min number of matched sampling points for particle creation.
unsigned int	m_minMatchedSamplingPointRatio
	The min ratio between 1st and 2nd highest msps for simple ambiguity resolution.
float	m_minInitialXOverlapFraction
	The min x overlap fraction (between long clusters and short cluster vs. shared overlap)
float	m_minFinalXOverlapFraction
	The min x overlap fraction between extended short cluster and the long clusters.
unsigned int	m_minCaloHitsInCandidateCluster
	The min no. of calo hits in a candidate cluster, for matching with long clusters.
float	m_pseudoChi2Cut
	The pseudo chi2 cut to determine whether a sampling point is matched.
unsigned int	m_makePfoMinSamplingPoints
	The min number of sampling points in order to be able to make pfo.
unsigned int	m_makePfoMinMatchedSamplingPoints
	The min number of matched sampling points in order to be able to make pfo.
float	m_makePfoMinMatchedFraction
	The min matched sampling point fraction in order to be able to make pfo.
float	m_makePfoMaxImpactParameter
	The max transverse impact parameter in order to be able to make pfo.
float	m_mergeMaxChi2PerSamplingPoint
	The max value of chi2 per sampling point in order to merge cluster with parent.
float	m_mergeXContainmentTolerance
	The tolerance in determining whether candidate cluster is contained in x window.

Detailed Description

MissingTrackSegmentTool class.

Definition at line 21 of file MissingTrackSegmentTool.h.

Member Typedef Documentation

ClusterMergeMap

typedef std::unordered_map<const pandora::Cluster *, pandora::ClusterList> lar_content::MissingTrackSegmentTool::ClusterMergeMap

private

Definition at line 78 of file MissingTrackSegmentTool.h.

IteratorList

typedef std::vector<TensorType::ElementList::const_iterator> lar_content::TransverseTensorTool::IteratorList

inherited

Definition at line 131 of file ThreeViewTransverseTracksAlgorithm.h.

SegmentOverlapMap

typedef std::unordered_map<const pandora::Cluster *, SegmentOverlap> lar_content::MissingTrackSegmentTool::SegmentOverlapMap

private

Definition at line 77 of file MissingTrackSegmentTool.h.

TensorType

typedef ThreeViewTransverseTracksAlgorithm::MatchingType::TensorType lar_content::TransverseTensorTool::TensorType

inherited

Definition at line 130 of file ThreeViewTransverseTracksAlgorithm.h.

Constructor & Destructor Documentation

MissingTrackSegmentTool()

lar_content::MissingTrackSegmentTool::MissingTrackSegmentTool

(

)

Default constructor.

Definition at line 25 of file MissingTrackSegmentTool.cc.

Member Function Documentation

FindTracks()

void lar_content::MissingTrackSegmentTool::FindTracks ( ThreeViewTransverseTracksAlgorithm *const  pAlgorithm, const TensorType &  overlapTensor, ProtoParticleVector &  protoParticleVector, ClusterMergeMap &  clusterMergeMap  ) const

private

Find remaining tracks, hidden by missing track segments (and maybe other ambiguities) in the tensor.

Parameters

pAlgorithm	address of the calling algorithm
overlapTensor	the overlap tensor
protoParticleVector	to receive the list of proto particles
clusterMergeMap	to receive the cluster merge map

Definition at line 61 of file MissingTrackSegmentTool.cc.

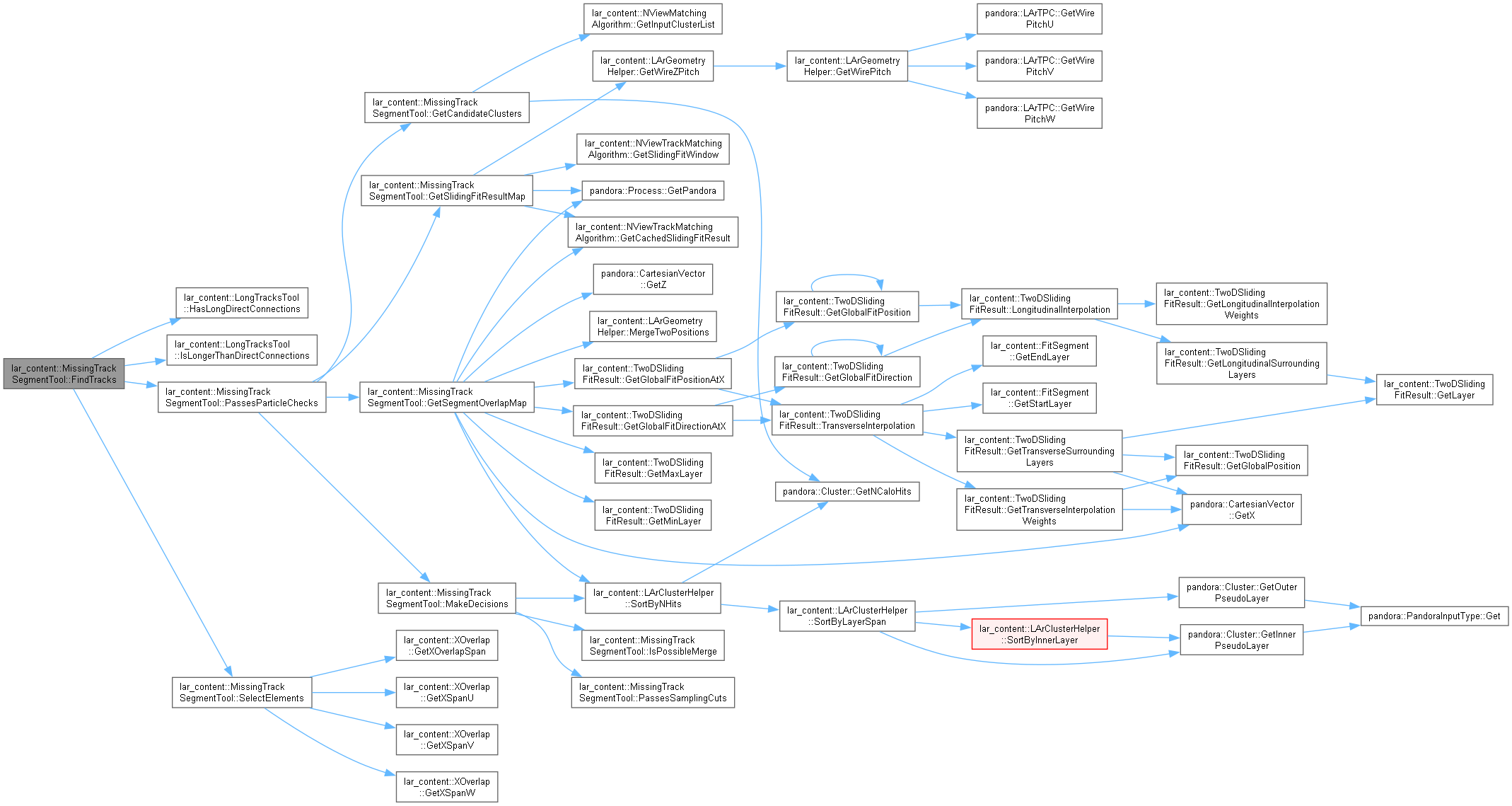

Here is the call graph for this function:

Here is the caller graph for this function:

GetCandidateClusters()

void lar_content::MissingTrackSegmentTool::GetCandidateClusters ( ThreeViewTransverseTracksAlgorithm *const  pAlgorithm, const Particle &  particle, pandora::ClusterList &  candidateClusters  ) const

private

Get a list of candidate clusters, which may represent missing track segments for a provided particle.

Parameters

pAlgorithm	address of the calling algorithm
particle	the particle
candidateClusters	to receive the list of candidate clusters

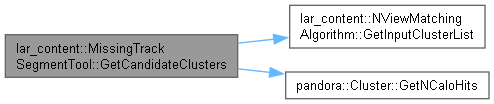

Definition at line 175 of file MissingTrackSegmentTool.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

GetInstanceName()

const std::string & pandora::Process::GetInstanceName ( ) const

inlineinherited

Get the instance name.

Returns

The instance name

Definition at line 109 of file Process.h.

GetPandora()

const Pandora & pandora::Process::GetPandora ( ) const

inlineinherited

Get the associated pandora instance.

Returns

the associated pandora instance

Definition at line 116 of file Process.h.

GetSegmentOverlapMap()

void lar_content::MissingTrackSegmentTool::GetSegmentOverlapMap ( ThreeViewTransverseTracksAlgorithm *const  pAlgorithm, const Particle &  particle, const TwoDSlidingFitResultMap &  slidingFitResultMap, SegmentOverlapMap &  segmentOverlapMap  ) const

private

Get a segment overlap map, describing overlap between a provided particle and all clusters in a sliding fit result map.

Parameters

pAlgorithm	address of the calling algorithm
particle	the particle
slidingFitResultMap	the sliding fit result map
segmentOverlapMap	to receive the segment overlap map

Definition at line 229 of file MissingTrackSegmentTool.cc.

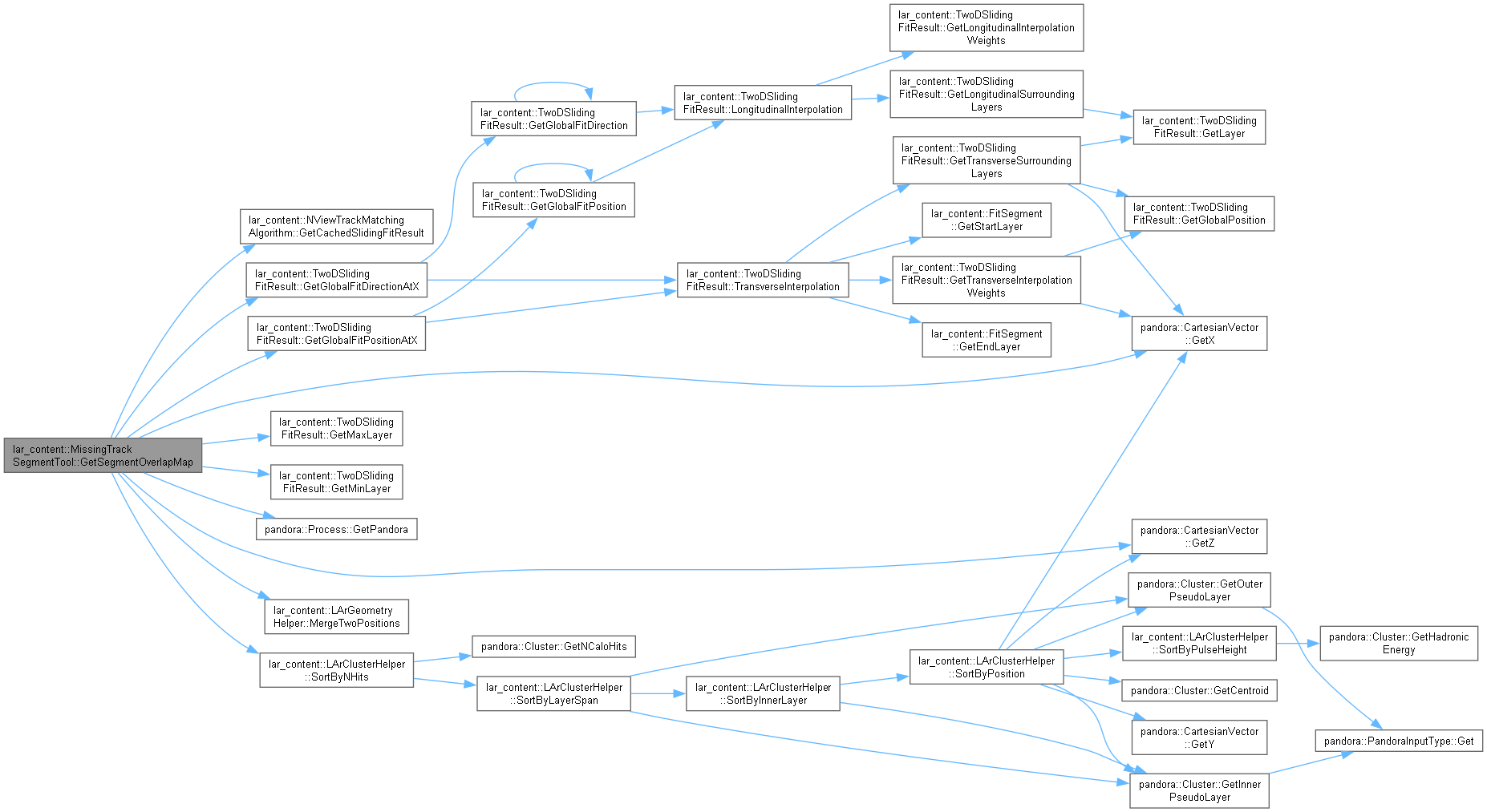

Here is the call graph for this function:

Here is the caller graph for this function:

GetSlidingFitResultMap()

void lar_content::MissingTrackSegmentTool::GetSlidingFitResultMap ( ThreeViewTransverseTracksAlgorithm *const  pAlgorithm, const pandora::ClusterList &  candidateClusterList, TwoDSlidingFitResultMap &  slidingFitResultMap  ) const

private

Get a sliding fit result map for the list of candidate clusters.

Parameters

pAlgorithm	address of the calling algorithm
candidateClusters	the list of candidate clusters
slidingFitResultMap	to receive the sliding fit result map

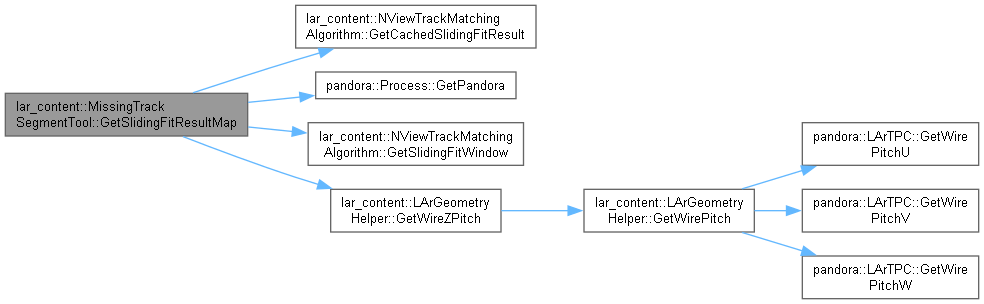

Definition at line 196 of file MissingTrackSegmentTool.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

GetType()

const std::string & pandora::Process::GetType ( ) const

inlineinherited

Get the type.

Returns

The type

Definition at line 102 of file Process.h.

Initialize()

StatusCode pandora::Process::Initialize ( )

inlineprotectedvirtualinherited

Perform any operations that must occur after reading settings, but before running the process.

Reimplemented in lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, EventReadingAlgorithm, and EventWritingAlgorithm.

Definition at line 126 of file Process.h.

Here is the caller graph for this function:

IsPossibleMerge()

bool lar_content::MissingTrackSegmentTool::IsPossibleMerge ( const pandora::Cluster *const  pCluster, const Particle &  particle, const SegmentOverlap &  segmentOverlap, const TwoDSlidingFitResultMap &  slidingFitResultMap  ) const

private

Whether the cluster could be merged with the candidate particle.

Parameters

pCluster	address of the cluster
particle	the particle
segmentOverlap	the segment overlap
slidingFitResultMap	the sliding fit result map

Returns

boolean

Definition at line 358 of file MissingTrackSegmentTool.cc.

Here is the caller graph for this function:

MakeDecisions()

bool lar_content::MissingTrackSegmentTool::MakeDecisions ( const Particle &  particle, const TwoDSlidingFitResultMap &  slidingFitResultMap, const SegmentOverlapMap &  segmentOverlapMap, pandora::ClusterSet &  usedClusters, ClusterMergeMap &  clusterMergeMap  ) const

private

Make decisions about whether to create a pfo for a provided particle and whether to make cluster merges.

Parameters

particle	the particle
slidingFitResultMap	the sliding fit result map
segmentOverlapMap	the segment overlap map
usedClusters	the list of used clusters
clusterMergeMap	to receive details of cluster merges clusterMergeMap

Returns

whether to make the particle

Definition at line 293 of file MissingTrackSegmentTool.cc.

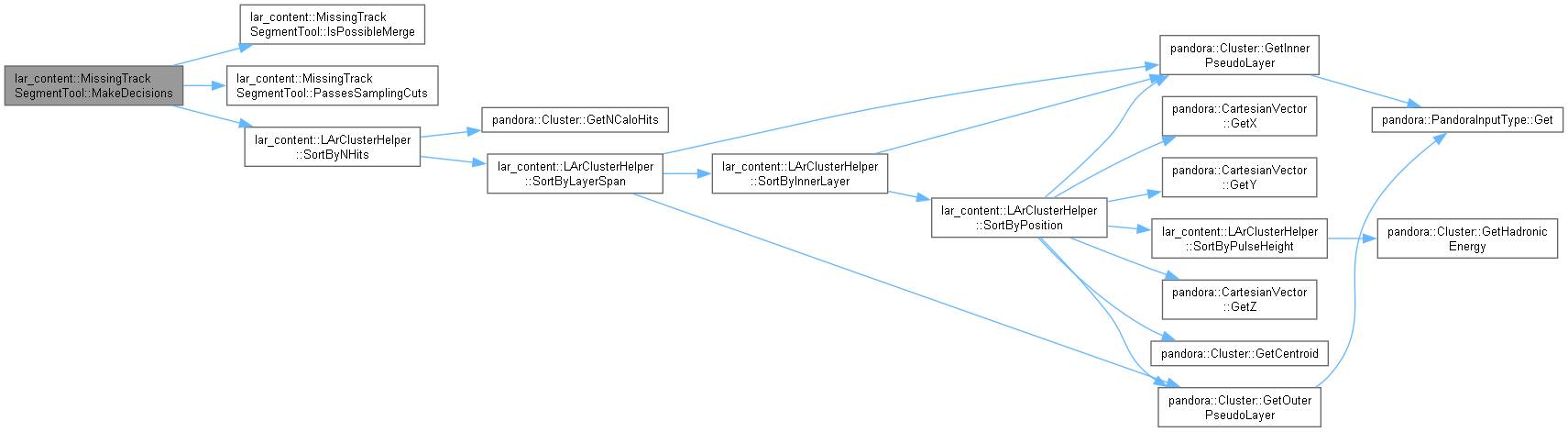

Here is the call graph for this function:

Here is the caller graph for this function:

PassesParticleChecks()

bool lar_content::MissingTrackSegmentTool::PassesParticleChecks ( ThreeViewTransverseTracksAlgorithm *const  pAlgorithm, const TensorType::Element &  element, pandora::ClusterSet &  usedClusters, ClusterMergeMap &  clusterMergeMap  ) const

private

Whether a provided tensor element can be used to construct a pfo.

Parameters

pAlgorithm	address of the calling algorithm
element	the tensor element
usedClusters	the list of used clusters
clusterMergeMap	to receive the cluster merge map

Definition at line 140 of file MissingTrackSegmentTool.cc.

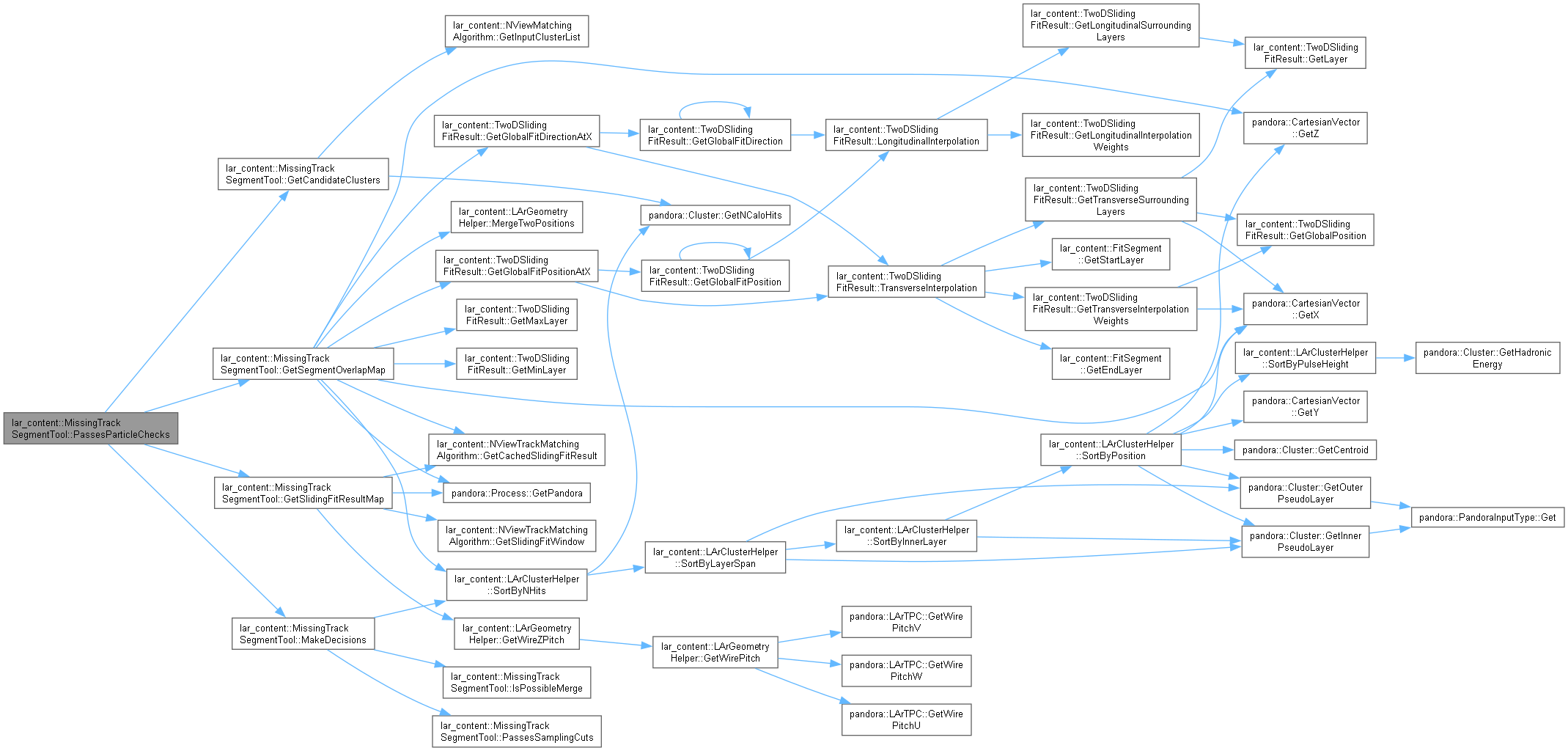

Here is the call graph for this function:

Here is the caller graph for this function:

PassesSamplingCuts()

bool lar_content::MissingTrackSegmentTool::PassesSamplingCuts ( const SegmentOverlap &  segmentOverlap ) const

private

Whether the segment overlap object passes cuts on matched sampling points, etc.

Parameters

segmentOverlap

the segment overlap

Returns

boolean

Definition at line 342 of file MissingTrackSegmentTool.cc.

Here is the caller graph for this function:

ReadSettings()

StatusCode lar_content::MissingTrackSegmentTool::ReadSettings ( const pandora::TiXmlHandle  xmlHandle )

privatevirtual

Read the algorithm settings.

Parameters

xmlHandle

the relevant xml handle

Implements pandora::Process.

Definition at line 419 of file MissingTrackSegmentTool.cc.

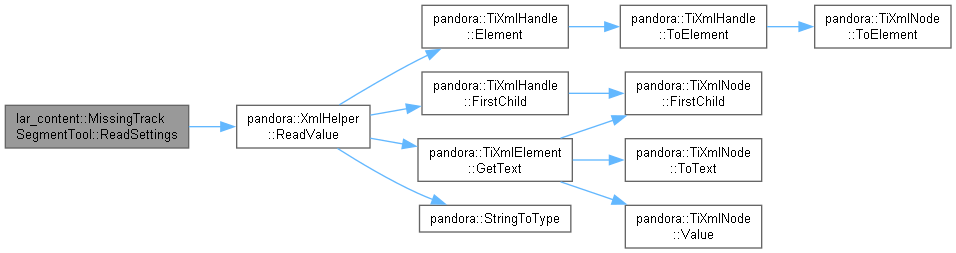

Here is the call graph for this function:

RegisterDetails()

StatusCode pandora::Process::RegisterDetails ( const Pandora *const  pPandora, const std::string &  type, const std::string &  instanceName  )

inlineprotectedinherited

Register i) the pandora instance that will run the process and ii) the process type.

Parameters

pPandora	address of the pandora object that will run the process
type	the process type
instanceName	the process instance name

Definition at line 146 of file Process.h.

Here is the caller graph for this function:

Reset()

StatusCode pandora::Process::Reset ( )

inlineprotectedvirtualinherited

Perform any operations when pandora is reset, typically at the end of each event.

Reimplemented in lar_content::MasterAlgorithm, lar_content::PostProcessingAlgorithm, and lar_content::PreProcessingAlgorithm.

Definition at line 133 of file Process.h.

Here is the caller graph for this function:

Run()

bool lar_content::MissingTrackSegmentTool::Run ( ThreeViewTransverseTracksAlgorithm *const  pAlgorithm, TensorType &  overlapTensor  )

virtual

Run the algorithm tool.

Parameters

pAlgorithm	address of the calling algorithm
overlapTensor	the overlap tensor

Returns

whether changes have been made by the tool

Implements lar_content::TransverseTensorTool.

Definition at line 44 of file MissingTrackSegmentTool.cc.

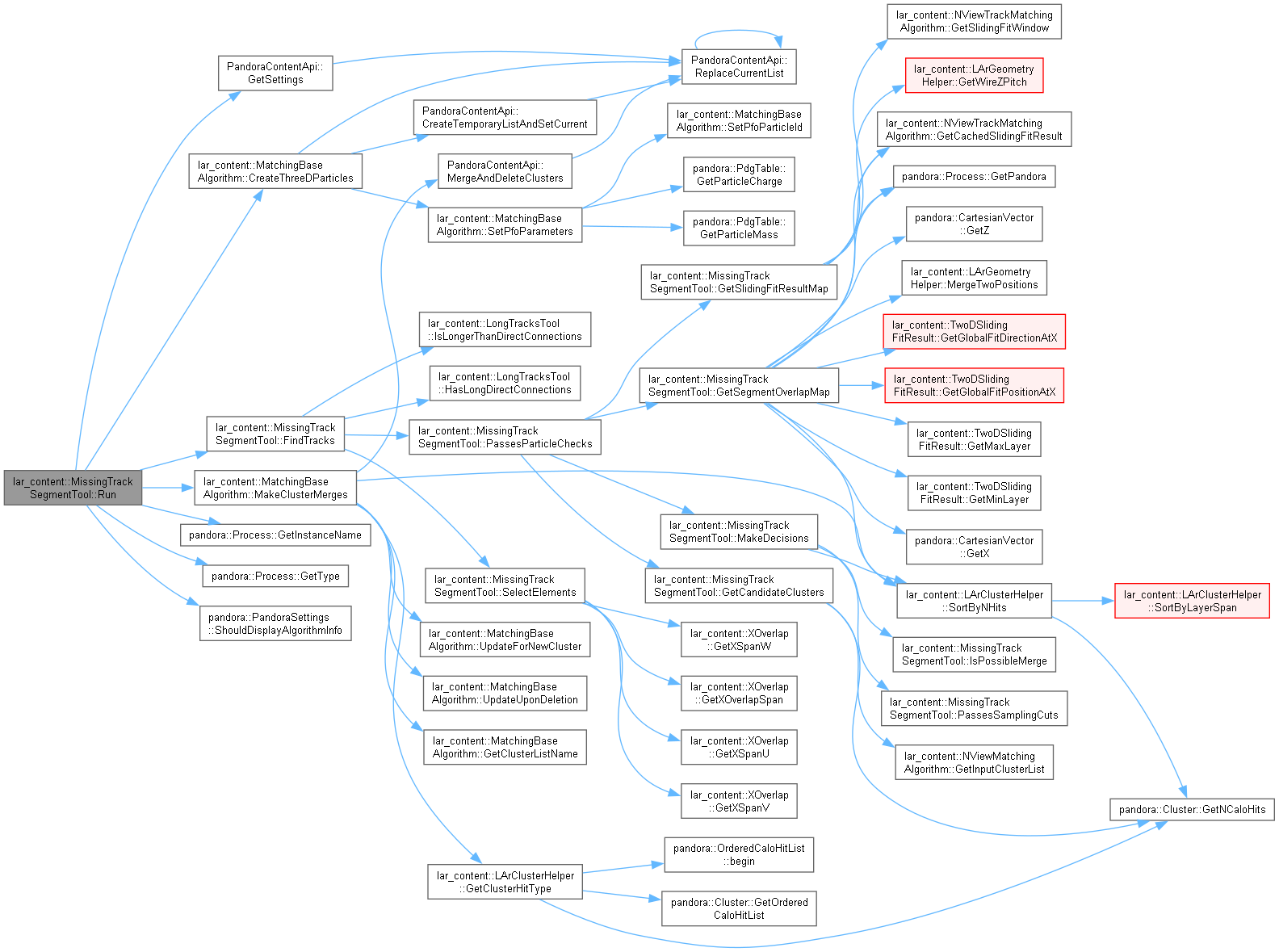

Here is the call graph for this function:

SelectElements()

void lar_content::MissingTrackSegmentTool::SelectElements ( const TensorType::ElementList &  elementList, const pandora::ClusterSet &  usedClusters, IteratorList &  iteratorList  ) const

private

Select a list of the relevant elements from a set of connected tensor elements.

Parameters

elementList	the full list of connected tensor elements
usedClusters	the list of clusters already marked as to be added to a pfo
iteratorList	to receive a list of iterators to long track-like elements

Definition at line 106 of file MissingTrackSegmentTool.cc.

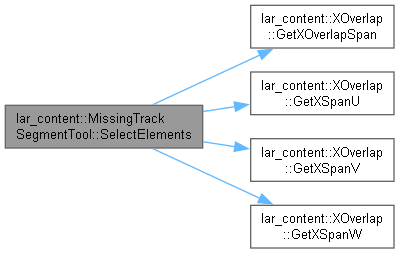

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_instanceName

std::string pandora::Process::m_instanceName

protectedinherited

The process instance name.

Definition at line 89 of file Process.h.

m_makePfoMaxImpactParameter

float lar_content::MissingTrackSegmentTool::m_makePfoMaxImpactParameter

private

The max transverse impact parameter in order to be able to make pfo.

Definition at line 190 of file MissingTrackSegmentTool.h.

m_makePfoMinMatchedFraction

float lar_content::MissingTrackSegmentTool::m_makePfoMinMatchedFraction

private

The min matched sampling point fraction in order to be able to make pfo.

Definition at line 189 of file MissingTrackSegmentTool.h.

m_makePfoMinMatchedSamplingPoints

unsigned int lar_content::MissingTrackSegmentTool::m_makePfoMinMatchedSamplingPoints

private

The min number of matched sampling points in order to be able to make pfo.

Definition at line 188 of file MissingTrackSegmentTool.h.

m_makePfoMinSamplingPoints

unsigned int lar_content::MissingTrackSegmentTool::m_makePfoMinSamplingPoints

private

The min number of sampling points in order to be able to make pfo.

Definition at line 187 of file MissingTrackSegmentTool.h.

m_mergeMaxChi2PerSamplingPoint

float lar_content::MissingTrackSegmentTool::m_mergeMaxChi2PerSamplingPoint

private

The max value of chi2 per sampling point in order to merge cluster with parent.

Definition at line 192 of file MissingTrackSegmentTool.h.

m_mergeXContainmentTolerance

float lar_content::MissingTrackSegmentTool::m_mergeXContainmentTolerance

private

The tolerance in determining whether candidate cluster is contained in x window.

Definition at line 193 of file MissingTrackSegmentTool.h.

m_minCaloHitsInCandidateCluster

unsigned int lar_content::MissingTrackSegmentTool::m_minCaloHitsInCandidateCluster

private

The min no. of calo hits in a candidate cluster, for matching with long clusters.

Definition at line 184 of file MissingTrackSegmentTool.h.

m_minFinalXOverlapFraction

float lar_content::MissingTrackSegmentTool::m_minFinalXOverlapFraction

private

The min x overlap fraction between extended short cluster and the long clusters.

Definition at line 182 of file MissingTrackSegmentTool.h.

m_minInitialXOverlapFraction

float lar_content::MissingTrackSegmentTool::m_minInitialXOverlapFraction

private

The min x overlap fraction (between long clusters and short cluster vs. shared overlap)

Definition at line 181 of file MissingTrackSegmentTool.h.

m_minMatchedFraction

float lar_content::MissingTrackSegmentTool::m_minMatchedFraction

private

The min matched sampling point fraction for particle creation.

Definition at line 177 of file MissingTrackSegmentTool.h.

m_minMatchedSamplingPointRatio

unsigned int lar_content::MissingTrackSegmentTool::m_minMatchedSamplingPointRatio

private

The min ratio between 1st and 2nd highest msps for simple ambiguity resolution.

Definition at line 179 of file MissingTrackSegmentTool.h.

m_minMatchedSamplingPoints

unsigned int lar_content::MissingTrackSegmentTool::m_minMatchedSamplingPoints

private

The min number of matched sampling points for particle creation.

Definition at line 178 of file MissingTrackSegmentTool.h.

m_pPandora

const Pandora* pandora::Process::m_pPandora

protectedinherited

The pandora object that will run the process.

Definition at line 87 of file Process.h.

m_pseudoChi2Cut

float lar_content::MissingTrackSegmentTool::m_pseudoChi2Cut

private

The pseudo chi2 cut to determine whether a sampling point is matched.

Definition at line 185 of file MissingTrackSegmentTool.h.

m_type

std::string pandora::Process::m_type

protectedinherited

The process type.

Definition at line 88 of file Process.h.

---

The documentation for this class was generated from the following files:

• LArContent/larpandoracontent/LArThreeDReco/LArTransverseTrackMatching/MissingTrackSegmentTool.h
• LArContent/larpandoracontent/LArThreeDReco/LArTransverseTrackMatching/MissingTrackSegmentTool.cc
