#include "TwoViewThreeDKinkTool.h"

Inheritance diagram for lar_content::TwoViewThreeDKinkTool:

[legend]

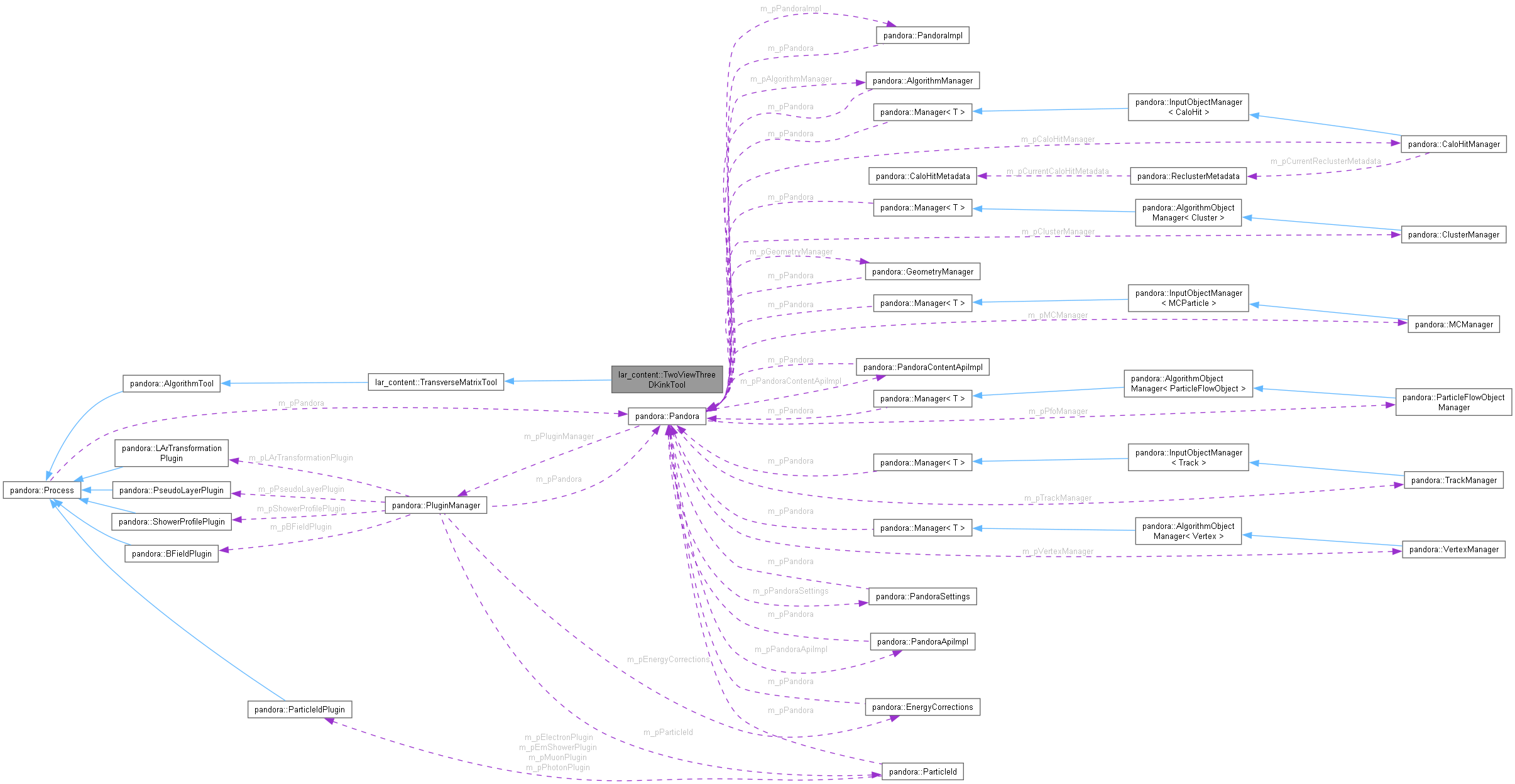

Collaboration diagram for lar_content::TwoViewThreeDKinkTool:

[legend]

Classes
class	Modification
	Modification class. More...

class	Particle
	Particle class. More...

Public Types
typedef TwoViewTransverseTracksAlgorithm::MatchingType::MatrixType	MatrixType

typedef std::vector< MatrixType::ElementList::const_iterator >	IteratorList

Public Member Functions
	TwoViewThreeDKinkTool ()
	Constructor.

virtual	~TwoViewThreeDKinkTool ()
	Destructor.

bool	Run (TwoViewTransverseTracksAlgorithm *const pAlgorithm, MatrixType &overlapMatrix)
	Run the algorithm tool.

const std::string &	GetType () const
	Get the type.

const std::string &	GetInstanceName () const
	Get the instance name.

const Pandora &	GetPandora () const
	Get the associated pandora instance.

Protected Member Functions
virtual StatusCode	Initialize ()
	Perform any operations that must occur after reading settings, but before running the process.

virtual StatusCode	Reset ()
	Perform any operations when pandora is reset, typically at the end of each event.

StatusCode	RegisterDetails (const Pandora *const pPandora, const std::string &type, const std::string &instanceName)
	Register i) the pandora instance that will run the process and ii) the process type.

Protected Attributes
const Pandora *	m_pPandora
	The pandora object that will run the process.

std::string	m_type
	The process type.

std::string	m_instanceName
	The process instance name.

Private Types
typedef std::vector< Modification >	ModificationList

Private Member Functions
void	GetModifications (TwoViewTransverseTracksAlgorithm *const pAlgorithm, const MatrixType &overlapMatrix, ModificationList &modificationList) const
	Get modification objects, identifying required splits and merges for clusters.

bool	PassesElementCuts (MatrixType::ElementList::const_iterator eIter, const pandora::ClusterSet &usedClusters) const
	Whether a provided (iterator to a) matrix element passes the selection cuts for overshoot identification.

void	SelectMatrixElements (MatrixType::ElementList::const_iterator eIter, const MatrixType::ElementList &elementList, const pandora::ClusterSet &usedClusters, IteratorList &iteratorList) const
	Select elements representing possible components of interest due to overshoots or undershoots in clustering.

void	GetIteratorListModifications (TwoViewTransverseTracksAlgorithm *const pAlgorithm, const IteratorList &iteratorList, ModificationList &modificationList) const
	Get modification objects for specific elements of the matrix, identifying required splits and merges for clusters.

bool	IsThreeDKink (TwoViewTransverseTracksAlgorithm *const pAlgorithm, const Particle &particle, const pandora::CartesianVector &splitPosition, const bool isALowestInX) const
	Whether the provided particle is consistent with being a kink, when examined in three dimensions at the provided split position.

float	GetXSamplingPoint (const pandora::CartesianVector &splitPosition1, const bool isForwardInX, const TwoDSlidingFitResult &fitResult1, const TwoDSlidingFitResult &fitResult2) const
	Get a sampling point in x that is common to sliding linear fit objects in two views.

bool	ApplyChanges (TwoViewTransverseTracksAlgorithm *const pAlgorithm, const ModificationList &modificationList) const
	Apply the changes cached in a modification list and update the matrix accordingly.

pandora::StatusCode	ReadSettings (const pandora::TiXmlHandle xmlHandle)
	Read the algorithm settings.

Static Private Member Functions
static bool	IsALowestInX (const LArPointingCluster &pointingClusterA, const LArPointingCluster &pointingClusterB)
	Whether pointing cluster labelled A extends to lowest x positions (as opposed to that labelled B)

Private Attributes
float	m_minXOverlapFraction
	The min x overlap fraction value for particle creation.

float	m_minMatchingScore
	The min global matching score for particle creation.

float	m_minLocallyMatchedFraction
	The min locally matched fraction for particle creation.

float	m_minLongitudinalImpactParameter
	The min longitudinal impact parameter for connecting accompanying clusters.

int	m_nLayersForKinkSearch
	The number of sliding fit layers to step in the kink search.

float	m_additionalXStepForKinkSearch
	An additional (safety) step to tack-on when choosing x sampling.

float	m_maxTransverseImpactParameter
	The maximum transverse impact parameter for connecting broken clusters.

float	m_minImpactParameterCosTheta
	The minimum cos theta (angle between vertex directions) for connecting broken clusters.

float	m_cosThetaCutForKinkSearch
	The cos theta cut used for the kink search in three dimensions.

Detailed Description

TwoViewThreeDKinkTool class.

Definition at line 21 of file TwoViewThreeDKinkTool.h.

Class Documentation

◆ lar_content::TwoViewThreeDKinkTool::Modification

class lar_content::TwoViewThreeDKinkTool::Modification

Modification class.

Definition at line 42 of file TwoViewThreeDKinkTool.h.

Class Members
ClusterList	m_affectedClusters	The list of affected clusters.
ClusterMergeMap	m_clusterMergeMap	The cluster merge map.
SplitPositionMap	m_splitPositionMap	The split position map.

Member Typedef Documentation

◆ IteratorList

typedef std::vector<MatrixType::ElementList::const_iterator> lar_content::TransverseMatrixTool::IteratorList

inherited

Definition at line 103 of file TwoViewTransverseTracksAlgorithm.h.

◆ MatrixType

typedef TwoViewTransverseTracksAlgorithm::MatchingType::MatrixType lar_content::TransverseMatrixTool::MatrixType

inherited

Definition at line 102 of file TwoViewTransverseTracksAlgorithm.h.

◆ ModificationList

typedef std::vector<Modification> lar_content::TwoViewThreeDKinkTool::ModificationList

private

Definition at line 50 of file TwoViewThreeDKinkTool.h.

Constructor & Destructor Documentation

◆ TwoViewThreeDKinkTool()

lar_content::TwoViewThreeDKinkTool::TwoViewThreeDKinkTool ( )

Constructor.

Parameters

nCommonClusters the number of common clusters to select

Definition at line 23 of file TwoViewThreeDKinkTool.cc.

◆ ~TwoViewThreeDKinkTool()

lar_content::TwoViewThreeDKinkTool::~TwoViewThreeDKinkTool ( )

virtual

Destructor.

Definition at line 38 of file TwoViewThreeDKinkTool.cc.

Member Function Documentation

◆ ApplyChanges()

bool lar_content::TwoViewThreeDKinkTool::ApplyChanges	(	TwoViewTransverseTracksAlgorithm *const	pAlgorithm,
		const ModificationList &	modificationList
	)		const

private

Apply the changes cached in a modification list and update the matrix accordingly.

Parameters

pAlgorithm	address of the calling algorithm
modificationList	the modification list

Returns: whether changes to the matrix have been made

Definition at line 179 of file TwoViewThreeDKinkTool.cc.

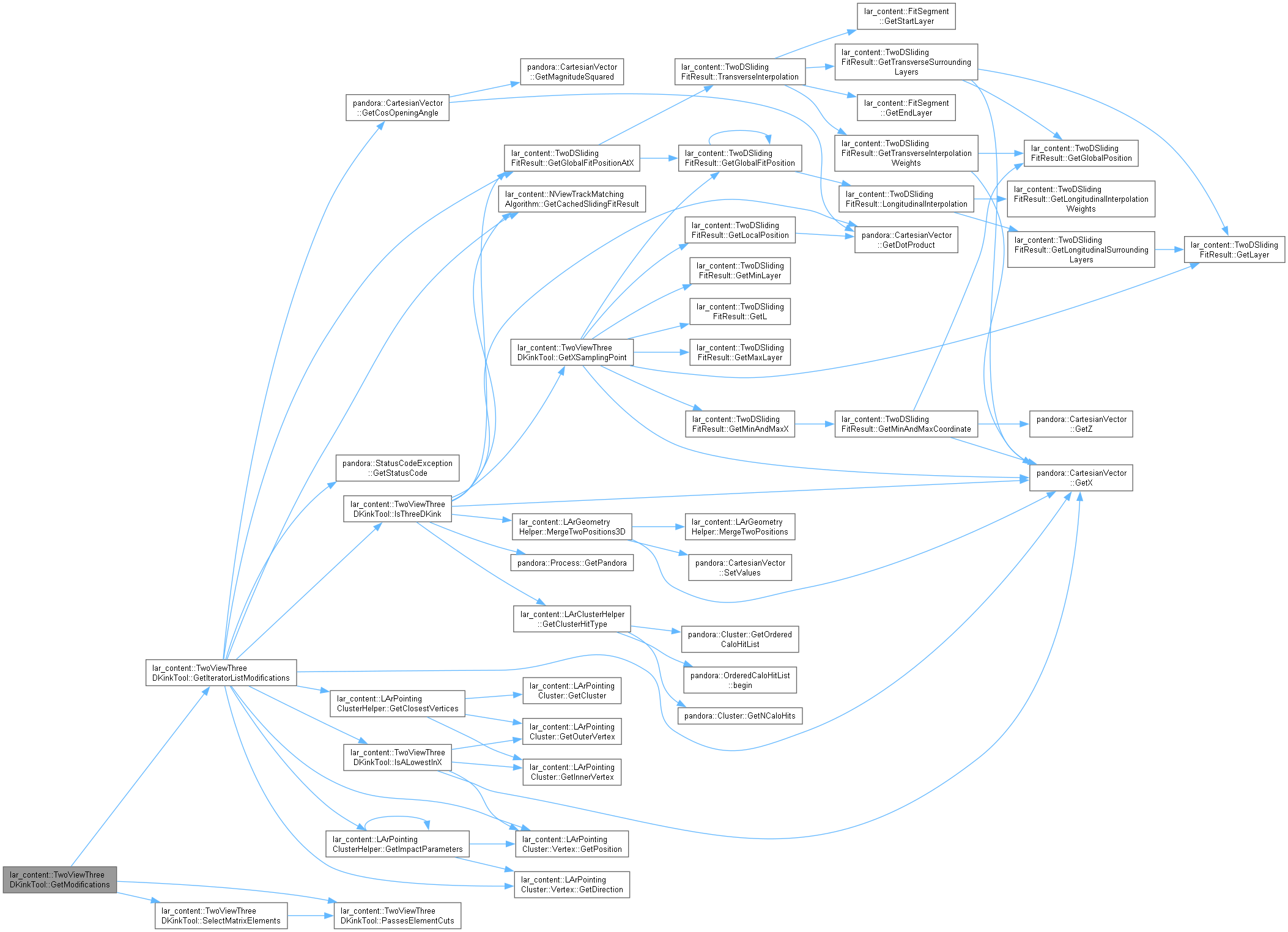

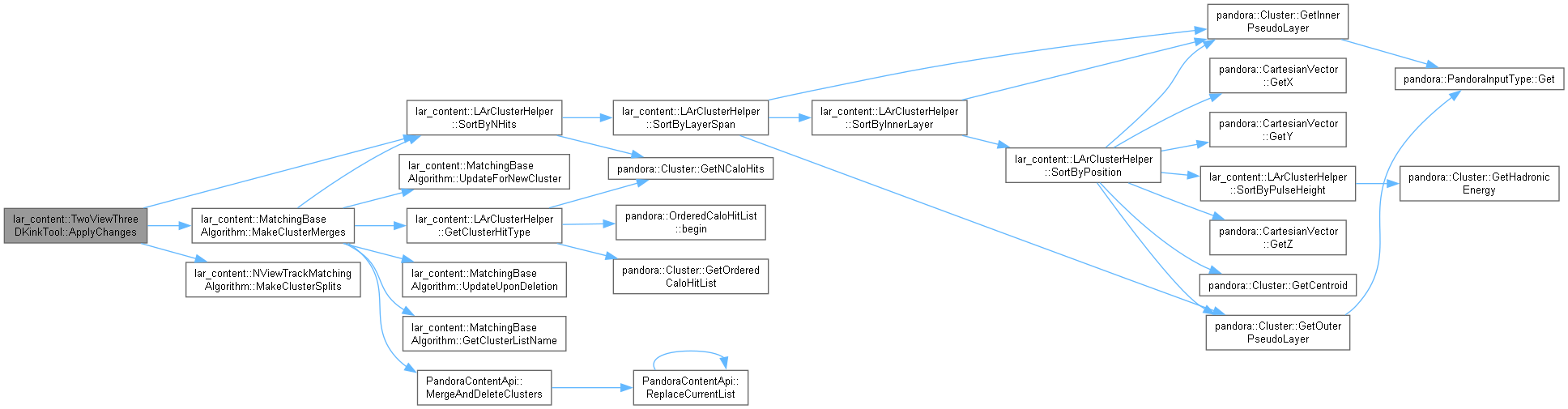

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetInstanceName()

const std::string & pandora::Process::GetInstanceName ( ) const

inlineinherited

Get the instance name.

Returns: The instance name

Definition at line 109 of file Process.h.

◆ GetIteratorListModifications()

void lar_content::TwoViewThreeDKinkTool::GetIteratorListModifications	(	TwoViewTransverseTracksAlgorithm *const	pAlgorithm,
		const IteratorList &	iteratorList,
		ModificationList &	modificationList
	)		const

private

Get modification objects for specific elements of the matrix, identifying required splits and merges for clusters.

Parameters

pAlgorithm	address of the calling algorithm
iteratorList	list of iterators to relevant tensor elements
modificationList	to be populated with modifications

Definition at line 268 of file TwoViewThreeDKinkTool.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetModifications()

void lar_content::TwoViewThreeDKinkTool::GetModifications	(	TwoViewTransverseTracksAlgorithm *const	pAlgorithm,
		const MatrixType &	overlapMatrix,
		ModificationList &	modificationList
	)		const

private

Get modification objects, identifying required splits and merges for clusters.

Parameters

pAlgorithm	address of the calling algorithm
overlapMatrix	the overlap matrix
modificationList	to be populated with modifications

Definition at line 131 of file TwoViewThreeDKinkTool.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPandora()

const Pandora & pandora::Process::GetPandora ( ) const

inlineinherited

Get the associated pandora instance.

Returns: the associated pandora instance

Definition at line 116 of file Process.h.

◆ GetType()

const std::string & pandora::Process::GetType ( ) const

inlineinherited

Get the type.

Returns: The type

Definition at line 102 of file Process.h.

◆ GetXSamplingPoint()

float lar_content::TwoViewThreeDKinkTool::GetXSamplingPoint	(	const pandora::CartesianVector &	splitPosition1,
		const bool	isForwardInX,
		const TwoDSlidingFitResult &	fitResult1,
		const TwoDSlidingFitResult &	fitResult2
	)		const

private

Get a sampling point in x that is common to sliding linear fit objects in two views.

Parameters

splitPosition1	the split position in view 1
isForwardInX	whether to work forwards (or backwards) in x
fitResult1	the sliding fit result in view 1
fitResult2	the sliding fit result in view 2

Returns: the sampling point

Definition at line 80 of file TwoViewThreeDKinkTool.cc.

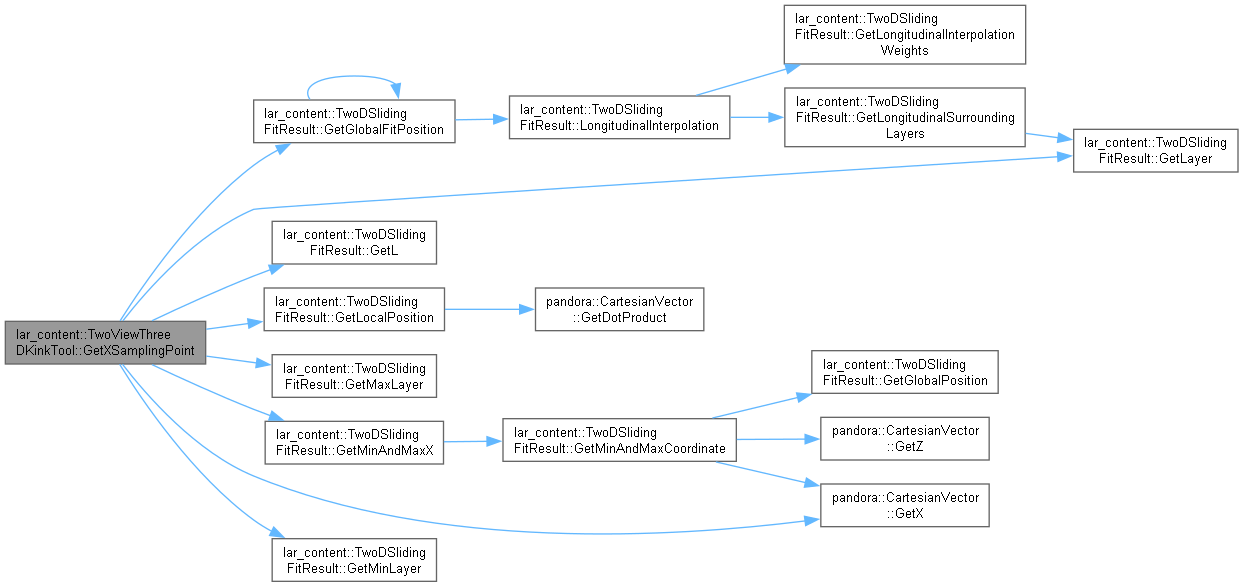

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Initialize()

StatusCode pandora::Process::Initialize ( )

inlineprotectedvirtualinherited

Perform any operations that must occur after reading settings, but before running the process.

Reimplemented in lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, EventReadingAlgorithm, and EventWritingAlgorithm.

Definition at line 126 of file Process.h.

Here is the caller graph for this function:

◆ IsALowestInX()

bool lar_content::TwoViewThreeDKinkTool::IsALowestInX	(	const LArPointingCluster &	pointingClusterA,
		const LArPointingCluster &	pointingClusterB
	)

staticprivate

Whether pointing cluster labelled A extends to lowest x positions (as opposed to that labelled B)

Parameters

pointingClusterA	pointing cluster A
pointingClusterB	pointing cluster B

Definition at line 122 of file TwoViewThreeDKinkTool.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsThreeDKink()

bool lar_content::TwoViewThreeDKinkTool::IsThreeDKink	(	TwoViewTransverseTracksAlgorithm *const	pAlgorithm,
		const Particle &	particle,
		const pandora::CartesianVector &	splitPosition,
		const bool	isALowestInX
	)		const

private

Whether the provided particle is consistent with being a kink, when examined in three dimensions at the provided split position.

Parameters

pAlgorithm	the calling algorithm
particle	the particle
splitPosition	the candidate split position
isALowestInX	whether cluster associated with matrix element a extends to lowest x positions

Returns: boolean

Definition at line 352 of file TwoViewThreeDKinkTool.cc.

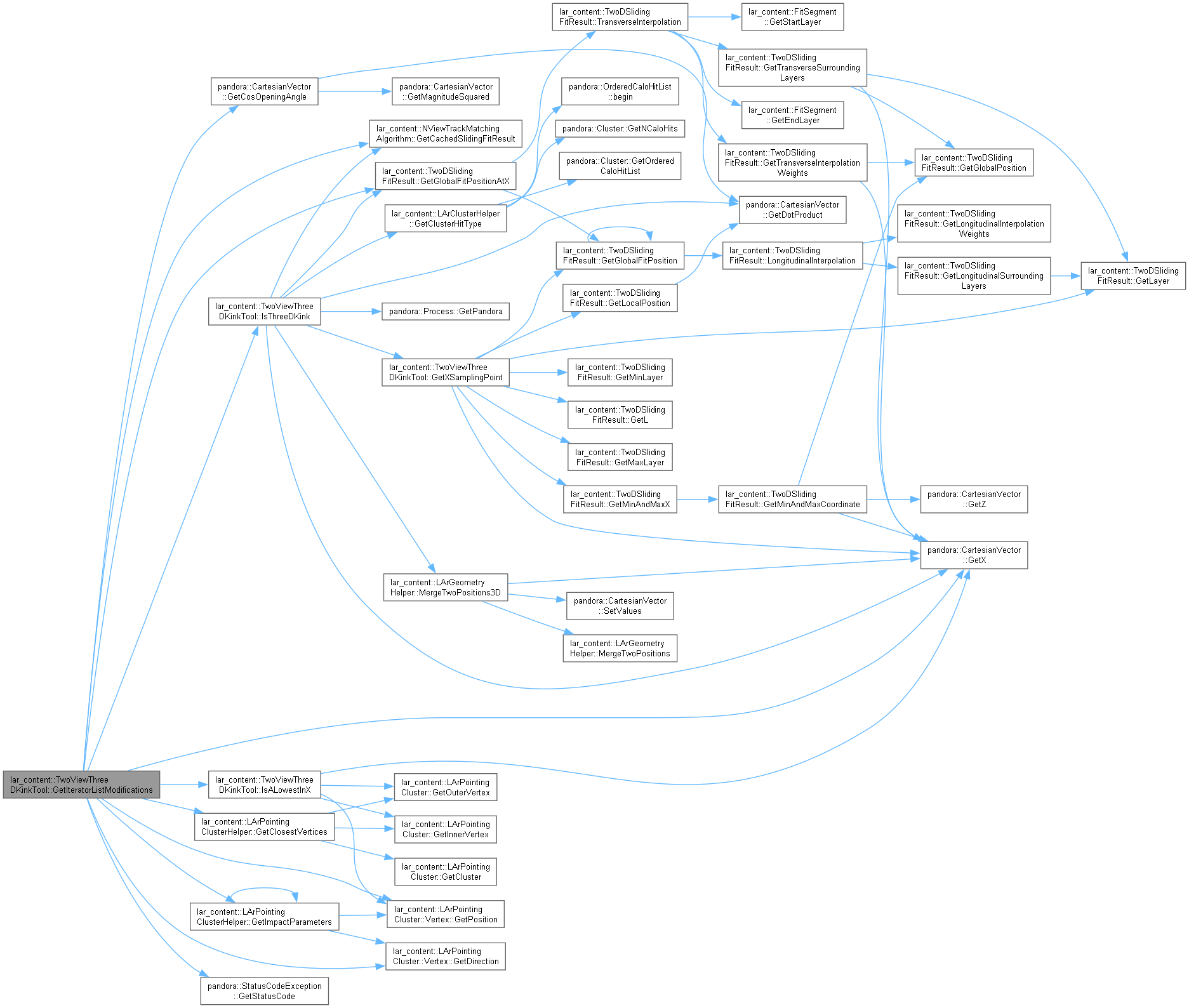

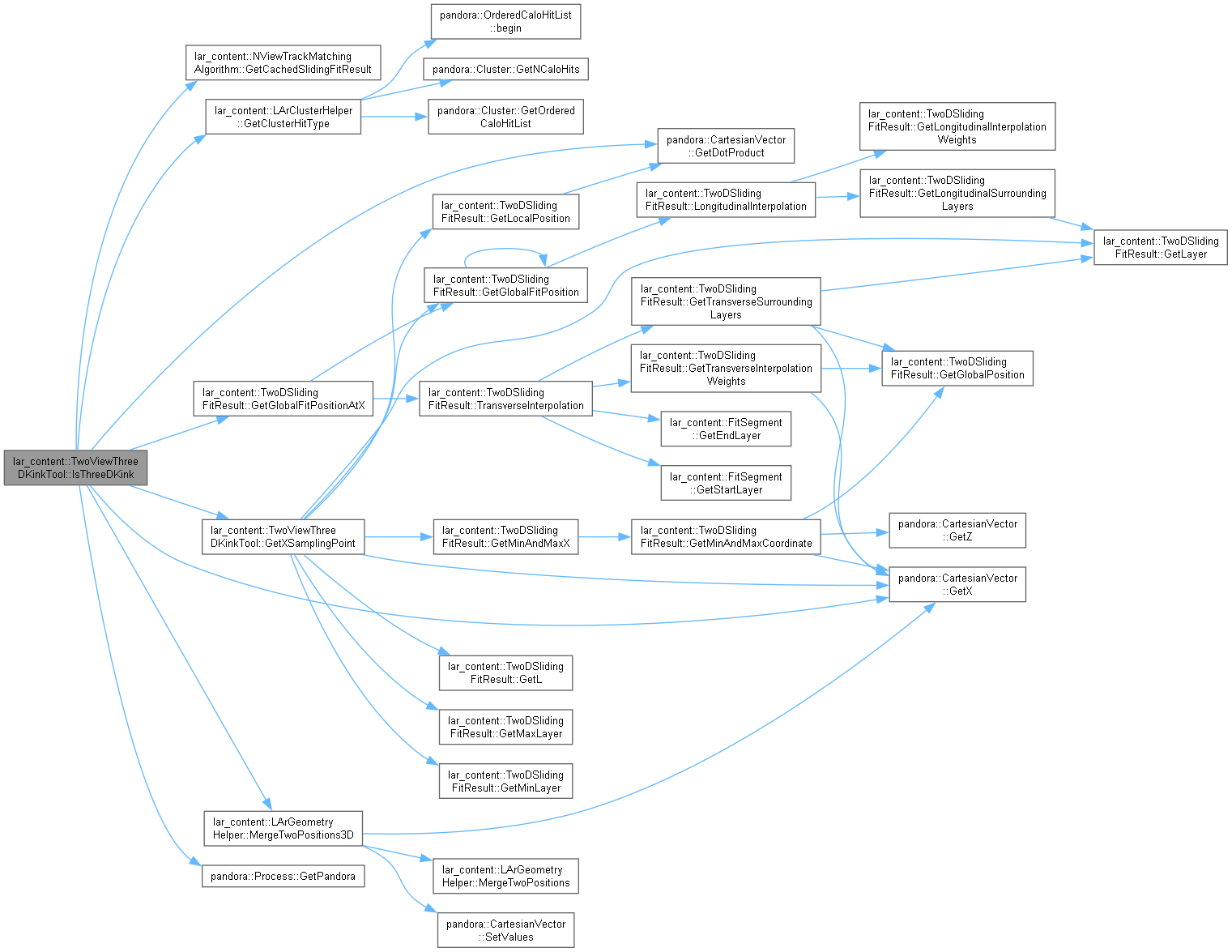

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PassesElementCuts()

bool lar_content::TwoViewThreeDKinkTool::PassesElementCuts	(	MatrixType::ElementList::const_iterator	eIter,
		const pandora::ClusterSet &	usedClusters
	)		const

private

Whether a provided (iterator to a) matrix element passes the selection cuts for overshoot identification.

Parameters

eIter	the iterator to the matrix element
usedClusters	the list of used clusters

Definition at line 58 of file TwoViewThreeDKinkTool.cc.

Here is the caller graph for this function:

◆ ReadSettings()

StatusCode lar_content::TwoViewThreeDKinkTool::ReadSettings ( const pandora::TiXmlHandle xmlHandle )

privatevirtual

Read the algorithm settings.

Parameters

xmlHandle the relevant xml handle

Implements pandora::Process.

Definition at line 419 of file TwoViewThreeDKinkTool.cc.

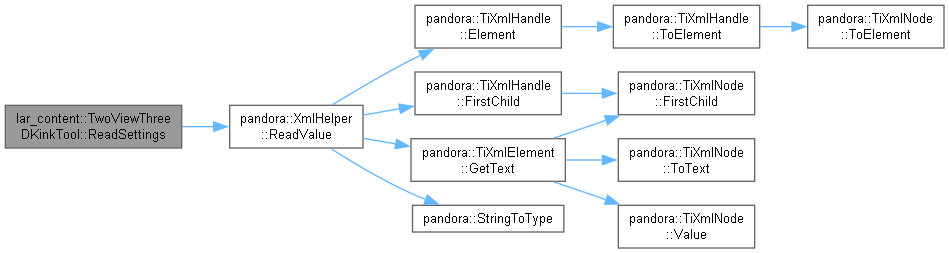

Here is the call graph for this function:

◆ RegisterDetails()

StatusCode pandora::Process::RegisterDetails	(	const Pandora *const	pPandora,
		const std::string &	type,
		const std::string &	instanceName
	)

inlineprotectedinherited

Register i) the pandora instance that will run the process and ii) the process type.

Parameters

pPandora	address of the pandora object that will run the process
type	the process type
instanceName	the process instance name

Definition at line 146 of file Process.h.

Here is the caller graph for this function:

◆ Reset()

StatusCode pandora::Process::Reset ( )

inlineprotectedvirtualinherited

Perform any operations when pandora is reset, typically at the end of each event.

Reimplemented in lar_content::MasterAlgorithm, lar_content::PostProcessingAlgorithm, and lar_content::PreProcessingAlgorithm.

Definition at line 133 of file Process.h.

Here is the caller graph for this function:

◆ Run()

bool lar_content::TwoViewThreeDKinkTool::Run	(	TwoViewTransverseTracksAlgorithm *const	pAlgorithm,
		MatrixType &	overlapMatrix
	)

virtual

Run the algorithm tool.

Parameters

pAlgorithm	address of the calling algorithm
overlapMatrix	the overlap matrix

Returns: whether changes have been made by the tool

Implements lar_content::TransverseMatrixTool.

Definition at line 44 of file TwoViewThreeDKinkTool.cc.

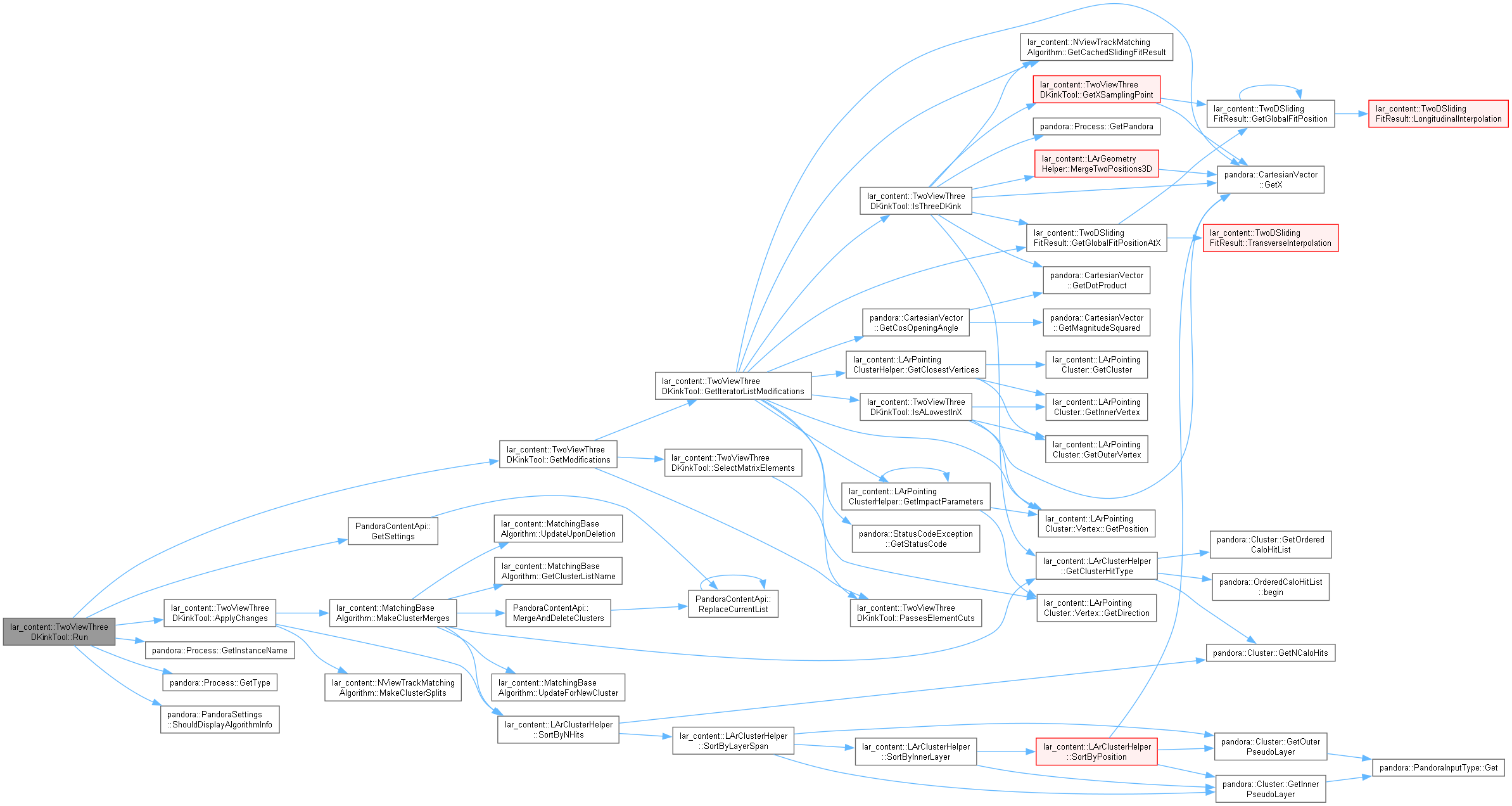

Here is the call graph for this function:

◆ SelectMatrixElements()

void lar_content::TwoViewThreeDKinkTool::SelectMatrixElements	(	MatrixType::ElementList::const_iterator	eIter,
		const MatrixType::ElementList &	elementList,
		const pandora::ClusterSet &	usedClusters,
		IteratorList &	iteratorList
	)		const

private

Select elements representing possible components of interest due to overshoots or undershoots in clustering.

Parameters

eIter	iterator to a candidate element
elementList	the provided element list
usedClusters	the list of used clusters
iteratorList	to receive a list of iterators to relevant elements

Definition at line 228 of file TwoViewThreeDKinkTool.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_additionalXStepForKinkSearch

float lar_content::TwoViewThreeDKinkTool::m_additionalXStepForKinkSearch

private

An additional (safety) step to tack-on when choosing x sampling.

Definition at line 168 of file TwoViewThreeDKinkTool.h.

◆ m_cosThetaCutForKinkSearch

float lar_content::TwoViewThreeDKinkTool::m_cosThetaCutForKinkSearch

private

The cos theta cut used for the kink search in three dimensions.

Definition at line 171 of file TwoViewThreeDKinkTool.h.

◆ m_instanceName

std::string pandora::Process::m_instanceName

protectedinherited

The process instance name.

Definition at line 89 of file Process.h.

◆ m_maxTransverseImpactParameter

float lar_content::TwoViewThreeDKinkTool::m_maxTransverseImpactParameter

private

The maximum transverse impact parameter for connecting broken clusters.

Definition at line 169 of file TwoViewThreeDKinkTool.h.

◆ m_minImpactParameterCosTheta

float lar_content::TwoViewThreeDKinkTool::m_minImpactParameterCosTheta

private

The minimum cos theta (angle between vertex directions) for connecting broken clusters.

Definition at line 170 of file TwoViewThreeDKinkTool.h.

◆ m_minLocallyMatchedFraction

float lar_content::TwoViewThreeDKinkTool::m_minLocallyMatchedFraction

private

The min locally matched fraction for particle creation.

Definition at line 165 of file TwoViewThreeDKinkTool.h.

◆ m_minLongitudinalImpactParameter

float lar_content::TwoViewThreeDKinkTool::m_minLongitudinalImpactParameter

private

The min longitudinal impact parameter for connecting accompanying clusters.

Definition at line 166 of file TwoViewThreeDKinkTool.h.

◆ m_minMatchingScore

float lar_content::TwoViewThreeDKinkTool::m_minMatchingScore

private

The min global matching score for particle creation.

Definition at line 164 of file TwoViewThreeDKinkTool.h.

◆ m_minXOverlapFraction

float lar_content::TwoViewThreeDKinkTool::m_minXOverlapFraction

private

The min x overlap fraction value for particle creation.

Definition at line 163 of file TwoViewThreeDKinkTool.h.

◆ m_nLayersForKinkSearch

int lar_content::TwoViewThreeDKinkTool::m_nLayersForKinkSearch

private

The number of sliding fit layers to step in the kink search.

Definition at line 167 of file TwoViewThreeDKinkTool.h.

◆ m_pPandora

const Pandora* pandora::Process::m_pPandora

protectedinherited

The pandora object that will run the process.

Definition at line 87 of file Process.h.

◆ m_type

std::string pandora::Process::m_type

protectedinherited

The process type.

Definition at line 88 of file Process.h.

The documentation for this class was generated from the following files:

LArContent/larpandoracontent/LArThreeDReco/LArTwoViewMatching/TwoViewThreeDKinkTool.h
LArContent/larpandoracontent/LArThreeDReco/LArTwoViewMatching/TwoViewThreeDKinkTool.cc

Classes

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Private Types

Private Member Functions

Static Private Member Functions

Private Attributes

Detailed Description

Class Documentation

◆ lar_content::TwoViewThreeDKinkTool::Modification

Member Typedef Documentation

◆ IteratorList

◆ MatrixType

◆ ModificationList

Constructor & Destructor Documentation

◆ TwoViewThreeDKinkTool()

◆ ~TwoViewThreeDKinkTool()

Member Function Documentation

◆ ApplyChanges()

◆ GetInstanceName()

◆ GetIteratorListModifications()

◆ GetModifications()

◆ GetPandora()

◆ GetType()

◆ GetXSamplingPoint()

◆ Initialize()

◆ IsALowestInX()

◆ IsThreeDKink()

◆ PassesElementCuts()

◆ ReadSettings()

◆ RegisterDetails()

◆ Reset()

◆ Run()

◆ SelectMatrixElements()

Member Data Documentation

◆ m_additionalXStepForKinkSearch

◆ m_cosThetaCutForKinkSearch

◆ m_instanceName

◆ m_maxTransverseImpactParameter

◆ m_minImpactParameterCosTheta

◆ m_minLocallyMatchedFraction

◆ m_minLongitudinalImpactParameter

◆ m_minMatchingScore

◆ m_minXOverlapFraction

◆ m_nLayersForKinkSearch

◆ m_pPandora

◆ m_type
