ParticleRecoveryAlgorithm class. More...

#include "ParticleRecoveryAlgorithm.h"

Inheritance diagram for lar_content::ParticleRecoveryAlgorithm:

[legend]

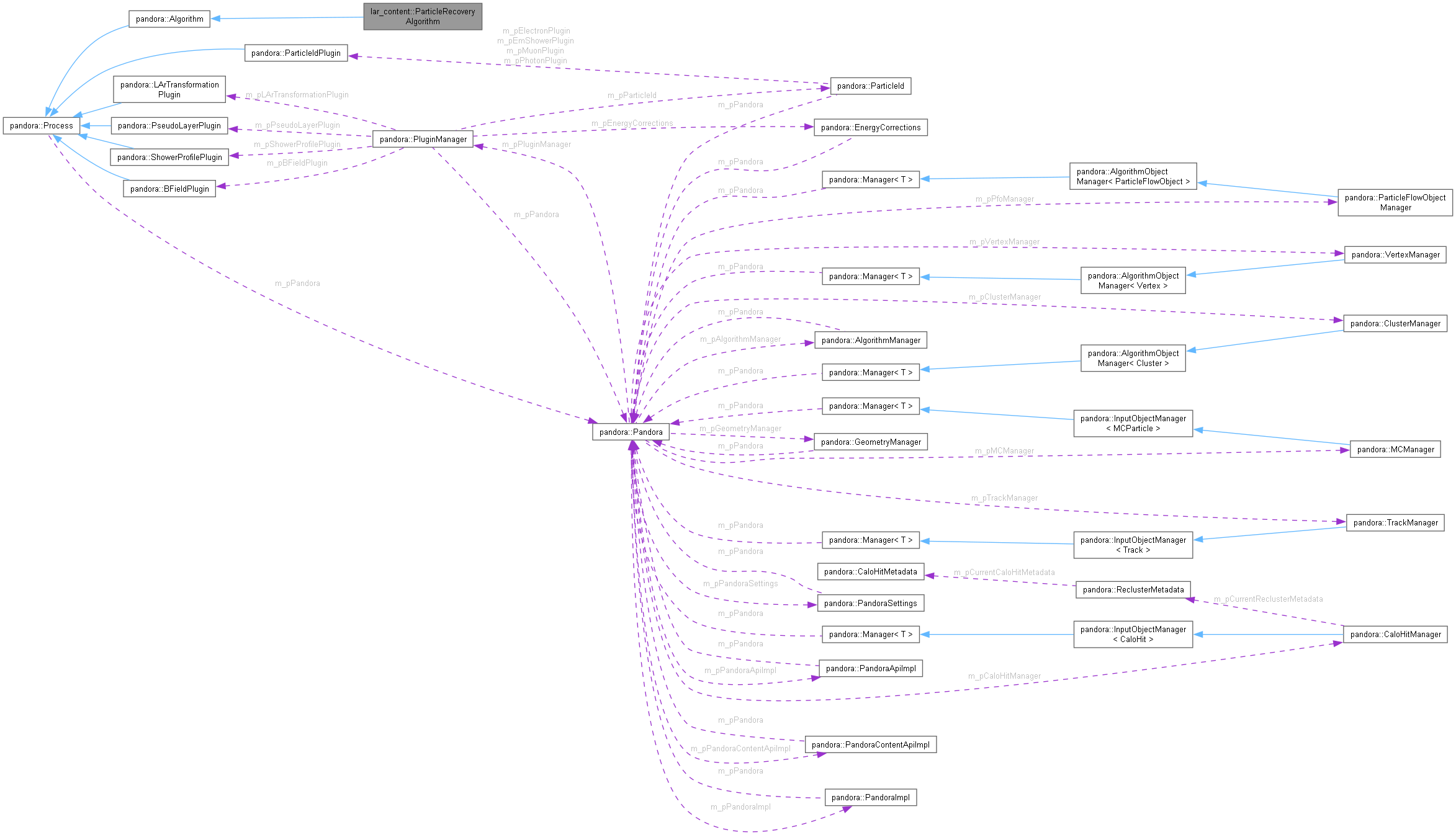

Collaboration diagram for lar_content::ParticleRecoveryAlgorithm:

[legend]

Classes
class	SimpleOverlapTensor
	SimpleOverlapTensor class. More...

Public Member Functions
	ParticleRecoveryAlgorithm ()
	Default constructor.

const std::string &	GetType () const
	Get the type.

const std::string &	GetInstanceName () const
	Get the instance name.

const Pandora &	GetPandora () const
	Get the associated pandora instance.

Protected Member Functions
virtual StatusCode	Initialize ()
	Perform any operations that must occur after reading settings, but before running the process.

virtual StatusCode	Reset ()
	Perform any operations when pandora is reset, typically at the end of each event.

StatusCode	RegisterDetails (const Pandora *const pPandora, const std::string &type, const std::string &instanceName)
	Register i) the pandora instance that will run the process and ii) the process type.

Protected Attributes
const Pandora *	m_pPandora
	The pandora object that will run the process.

std::string	m_type
	The process type.

std::string	m_instanceName
	The process instance name.

Private Member Functions
pandora::StatusCode	Run ()
	Run the algorithm.

void	GetInputClusters (pandora::ClusterList &inputClusterListU, pandora::ClusterList &inputClusterListV, pandora::ClusterList &inputClusterListW) const
	Get the input cluster lists for processing in this algorithm.

void	SelectInputClusters (const pandora::ClusterList &inputClusterList, pandora::ClusterList &selectedClusterList) const
	Select a subset of input clusters for processing in this algorithm.

void	StandardClusterSelection (const pandora::ClusterList &inputClusterList, pandora::ClusterList &selectedClusterList) const
	Select a subset of input clusters for processing in this algorithm.

void	VertexClusterSelection (const pandora::ClusterList &inputClusterList, pandora::ClusterList &selectedClusterList) const
	Select a subset of input clusters nodally associated with the vertices of existing particles.

void	FindOverlaps (const pandora::ClusterList &clusterList1, const pandora::ClusterList &clusterList2, SimpleOverlapTensor &overlapTensor) const
	Find cluster overlaps and record these in the overlap tensor.

bool	IsOverlap (const pandora::Cluster const pCluster1, const pandora::Cluster const pCluster2) const
	Whether two clusters overlap convincingly in x.

void	CalculateEffectiveOverlapFractions (const pandora::Cluster const pCluster1, const float xMin1, const float xMax1, const pandora::Cluster const pCluster2, const float xMin2, const float xMax2, float &xOverlapFraction1, float &xOverlapFraction2) const
	Calculate effective overlap fractions taking into account gaps.

void	CalculateEffectiveSpan (const pandora::Cluster *const pCluster, const float xMin, const float xMax, float &xMinEff, float &xMaxEff) const
	Calculate effective span for a given clsuter taking gaps into account.

void	ExamineTensor (const SimpleOverlapTensor &overlapTensor) const
	Identify unambiguous cluster overlaps and resolve ambiguous overlaps, creating new track particles.

bool	CheckConsistency (const pandora::Cluster const pClusterU, const pandora::Cluster const pClusterV, const pandora::Cluster *const pClusterW) const
	Whether a trio of clusters are consistent with representing projections of the same 3d trajectory.

void	CreateTrackParticle (const pandora::ClusterList &clusterList) const
	Create and save a track particle containing the provided clusters.

pandora::StatusCode	ReadSettings (const pandora::TiXmlHandle xmlHandle)
	Read the algorithm settings.

Private Attributes
pandora::StringVector	m_inputClusterListNames
	The list of cluster list names.

std::string	m_outputPfoListName
	The output pfo list name.

bool	m_checkGaps
	Whether to check for gaps in the calculation of the overlap.

unsigned int	m_minClusterCaloHits
	The min number of hits in base cluster selection method.

float	m_minClusterLengthSquared
	The min length (squared) in base cluster selection method.

float	m_minClusterXSpan
	The min x span required in order to consider a cluster.

bool	m_vertexClusterMode
	Whether to demand clusters are associated with vertices of existing particles.

float	m_minVertexLongitudinalDistance
	Vertex association check: min longitudinal distance cut.

float	m_maxVertexTransverseDistance
	Vertex association check: max transverse distance cut.

float	m_minXOverlapFraction
	The min x overlap fraction required in order to id overlapping clusters.

float	m_minXOverlapFractionGaps
	The min x overlap fraction when there are gaps involved.

float	m_sampleStepSize
	The sampling step size used in association checks, units cm.

unsigned int	m_slidingFitHalfWindow
	The half window for the fit sliding result constructor.

float	m_pseudoChi2Cut
	The selection cut on the matched chi2.

Detailed Description

ParticleRecoveryAlgorithm class.

Definition at line 21 of file ParticleRecoveryAlgorithm.h.

Constructor & Destructor Documentation

◆ ParticleRecoveryAlgorithm()

lar_content::ParticleRecoveryAlgorithm::ParticleRecoveryAlgorithm ( )

Default constructor.

Definition at line 26 of file ParticleRecoveryAlgorithm.cc.

Member Function Documentation

◆ CalculateEffectiveOverlapFractions()

void lar_content::ParticleRecoveryAlgorithm::CalculateEffectiveOverlapFractions	(	const pandora::Cluster *const	pCluster1,
		const float	xMin1,
		const float	xMax1,
		const pandora::Cluster *const	pCluster2,
		const float	xMin2,
		const float	xMax2,
		float &	xOverlapFraction1,
		float &	xOverlapFraction2
	)		const

private

Calculate effective overlap fractions taking into account gaps.

Parameters

pCluster1	address of the first cluster
xMin1	min x value of the first cluster
xMax1	max x value of the first cluster
pCluster2	address of the second cluster
xMin2	min x value of the second cluster
xMax2	max x value of the second cluster
xOverlapFraction1	to receive the effective overlap fraction for the first cluster
xOverlapFraction2	to receive the effective overlap fraction for the second cluster

Definition at line 234 of file ParticleRecoveryAlgorithm.cc.

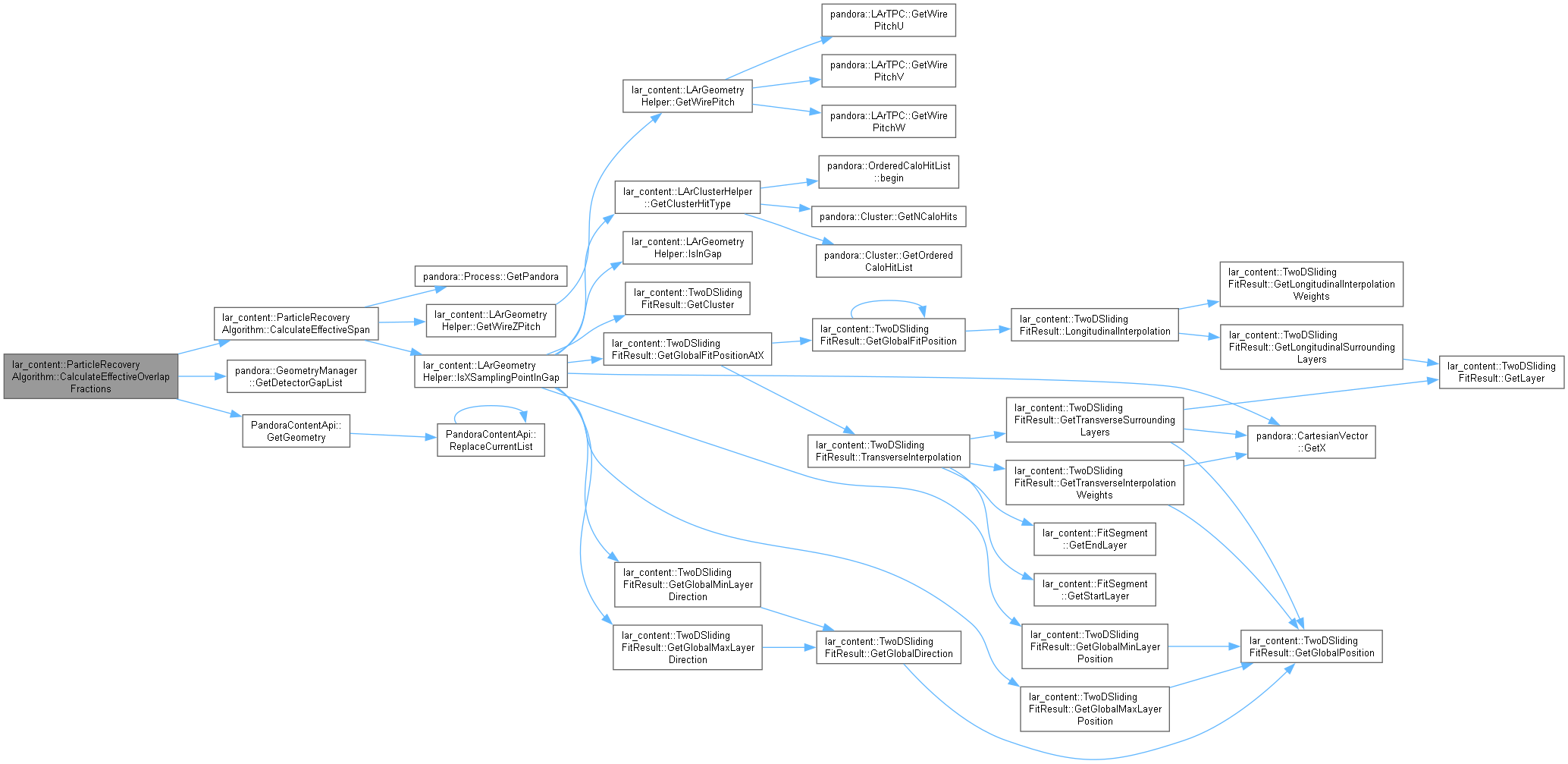

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CalculateEffectiveSpan()

void lar_content::ParticleRecoveryAlgorithm::CalculateEffectiveSpan	(	const pandora::Cluster *const	pCluster,
		const float	xMin,
		const float	xMax,
		float &	xMinEff,
		float &	xMaxEff
	)		const

private

Calculate effective span for a given clsuter taking gaps into account.

Parameters

pCluster	address of the cluster
xMin	the min x value above which checks for gaps will be performed
xMax	the max x value below which checks for gaps will be performed
xMinEff	to receive the effective min x value for the cluster, including adjacent gaps
xMaxEff	to receive the effective max x value for the cluster, including adjacent gaps

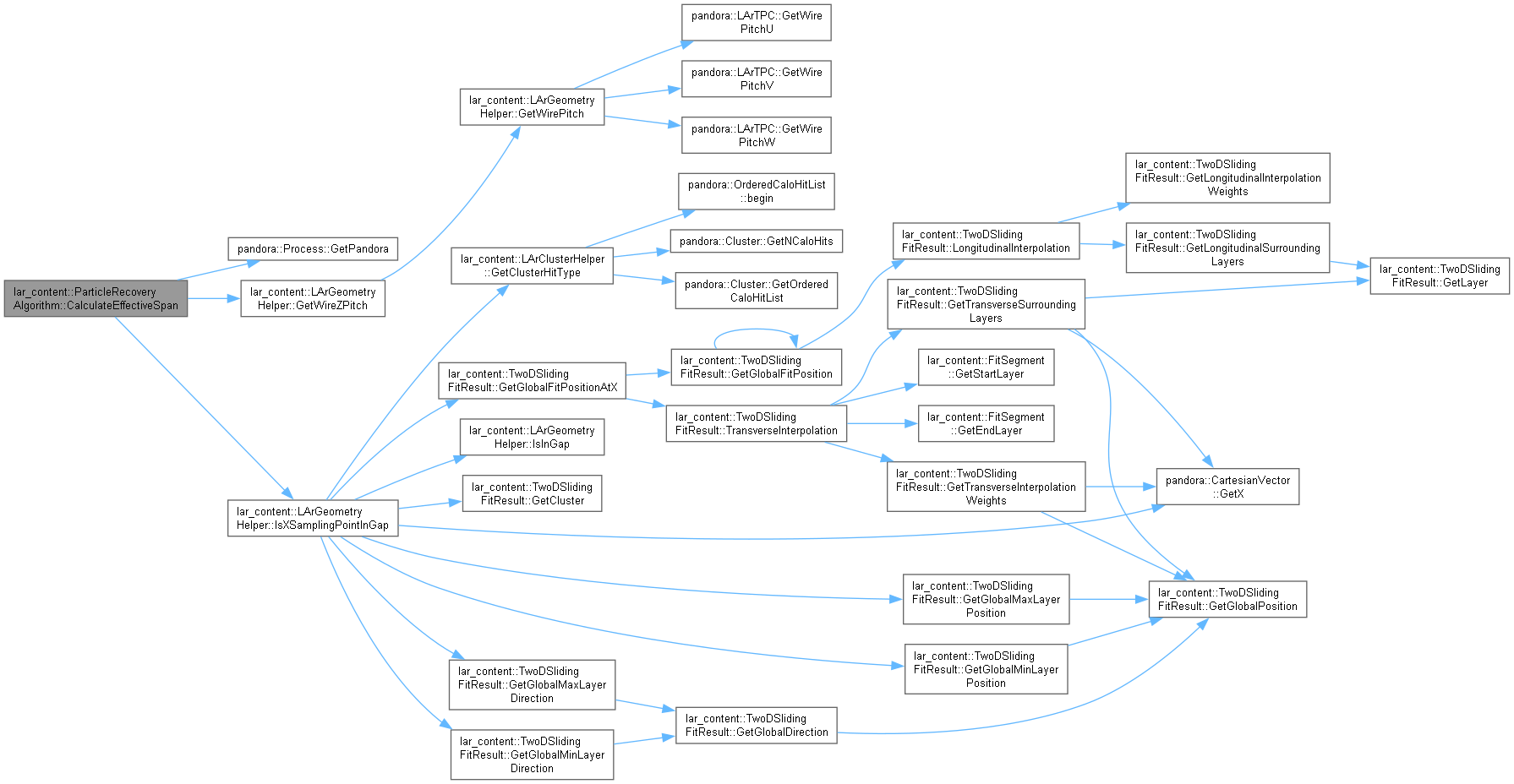

Definition at line 259 of file ParticleRecoveryAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CheckConsistency()

bool lar_content::ParticleRecoveryAlgorithm::CheckConsistency	(	const pandora::Cluster *const	pClusterU,
		const pandora::Cluster *const	pClusterV,
		const pandora::Cluster *const	pClusterW
	)		const

private

Whether a trio of clusters are consistent with representing projections of the same 3d trajectory.

Parameters

pClusterU	the address of cluster u
pClusterV	the address of cluster v
pClusterW	the address of cluster w

Returns: boolean

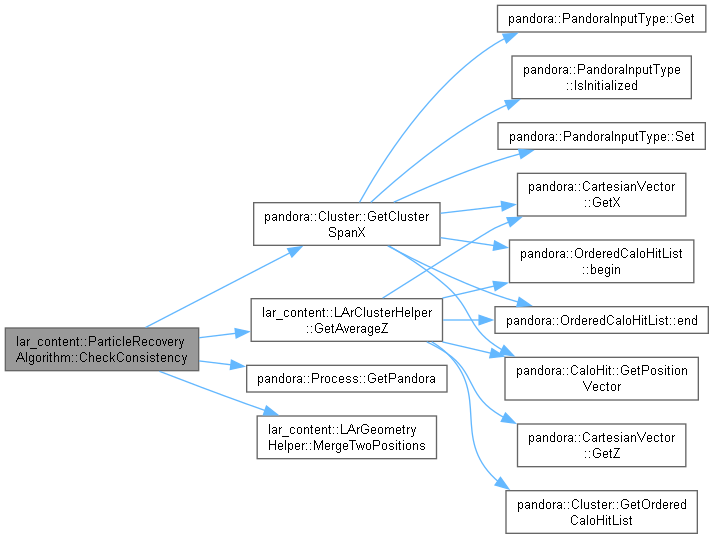

Definition at line 341 of file ParticleRecoveryAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateTrackParticle()

void lar_content::ParticleRecoveryAlgorithm::CreateTrackParticle ( const pandora::ClusterList & clusterList ) const

private

Create and save a track particle containing the provided clusters.

Parameters

clusterList the cluster list

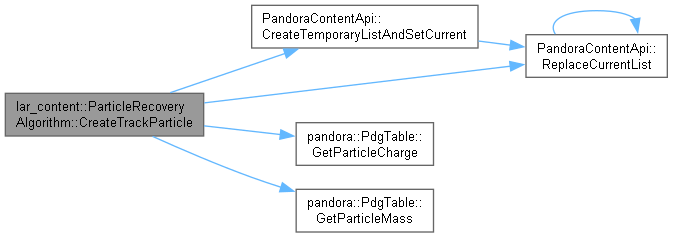

Definition at line 380 of file ParticleRecoveryAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ExamineTensor()

void lar_content::ParticleRecoveryAlgorithm::ExamineTensor ( const SimpleOverlapTensor & overlapTensor ) const

private

Identify unambiguous cluster overlaps and resolve ambiguous overlaps, creating new track particles.

Parameters

overlapTensor the overlap tensor

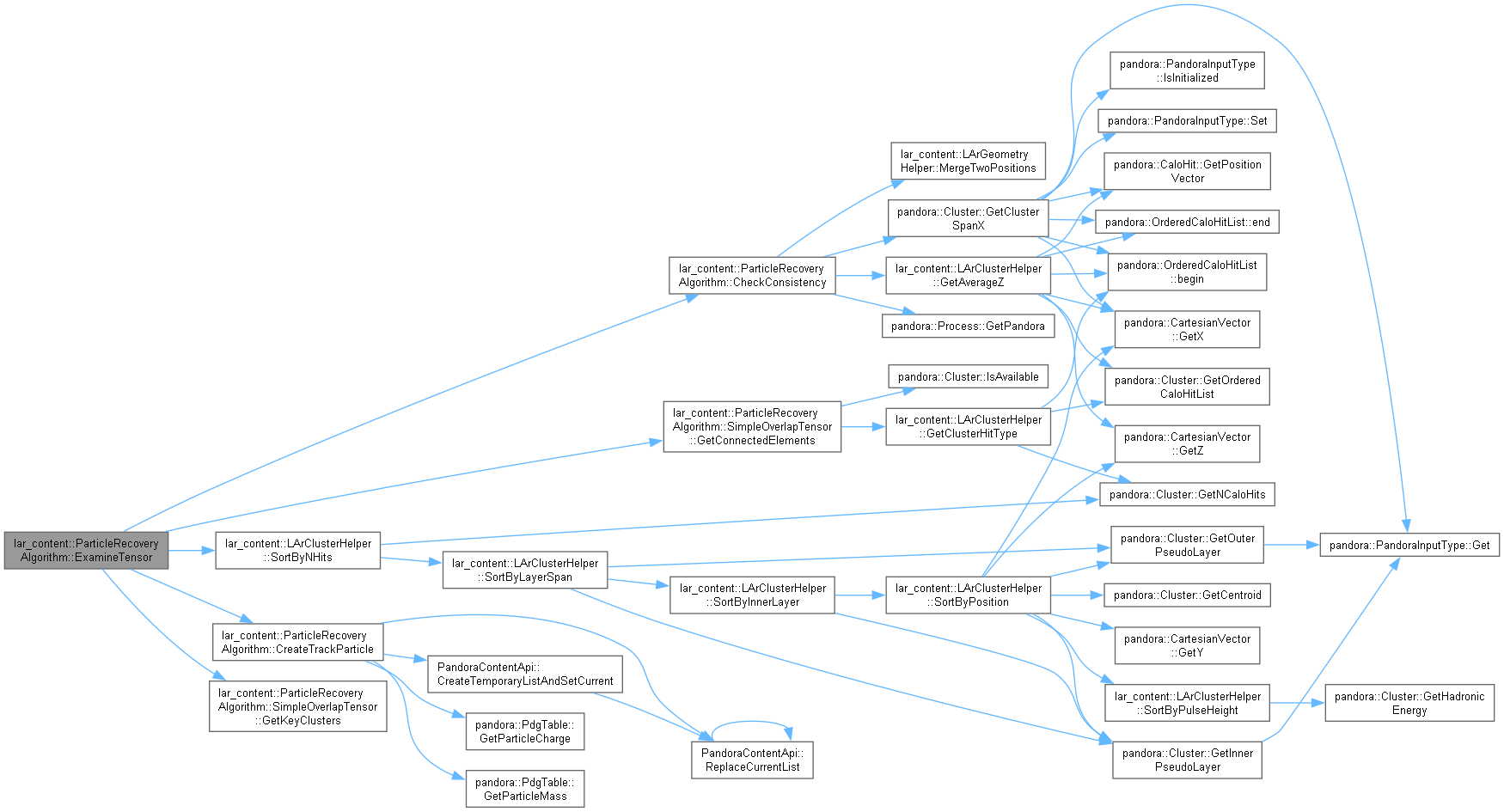

Definition at line 303 of file ParticleRecoveryAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ FindOverlaps()

void lar_content::ParticleRecoveryAlgorithm::FindOverlaps	(	const pandora::ClusterList &	clusterList1,
		const pandora::ClusterList &	clusterList2,
		SimpleOverlapTensor &	overlapTensor
	)		const

private

Find cluster overlaps and record these in the overlap tensor.

Parameters

clusterList1	the first cluster list
clusterList2	the second cluster list
overlapTensor	the overlap tensor

Definition at line 188 of file ParticleRecoveryAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetInputClusters()

void lar_content::ParticleRecoveryAlgorithm::GetInputClusters	(	pandora::ClusterList &	inputClusterListU,
		pandora::ClusterList &	inputClusterListV,
		pandora::ClusterList &	inputClusterListW
	)		const

private

Get the input cluster lists for processing in this algorithm.

Parameters

inputClusterListU	to receive the list of clusters in the u view
inputClusterListU	to receive the list of clusters in the v view
inputClusterListU	to receive the list of clusters in the w view

Definition at line 65 of file ParticleRecoveryAlgorithm.cc.

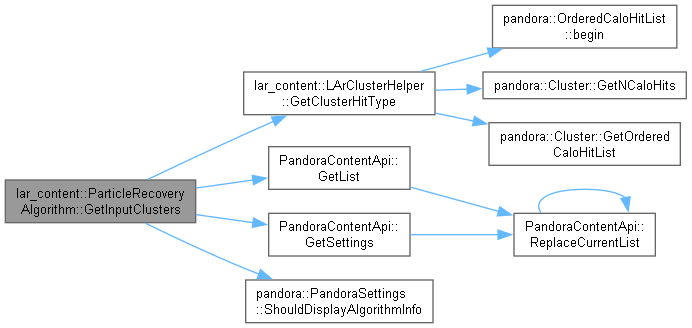

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetInstanceName()

const std::string & pandora::Process::GetInstanceName ( ) const

inlineinherited

Get the instance name.

Returns: The instance name

Definition at line 109 of file Process.h.

◆ GetPandora()

const Pandora & pandora::Process::GetPandora ( ) const

inlineinherited

Get the associated pandora instance.

Returns: the associated pandora instance

Definition at line 116 of file Process.h.

◆ GetType()

const std::string & pandora::Process::GetType ( ) const

inlineinherited

Get the type.

Returns: The type

Definition at line 102 of file Process.h.

◆ Initialize()

StatusCode pandora::Process::Initialize ( )

inlineprotectedvirtualinherited

Perform any operations that must occur after reading settings, but before running the process.

Reimplemented in lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, EventReadingAlgorithm, and EventWritingAlgorithm.

Definition at line 126 of file Process.h.

Here is the caller graph for this function:

◆ IsOverlap()

bool lar_content::ParticleRecoveryAlgorithm::IsOverlap	(	const pandora::Cluster *const	pCluster1,
		const pandora::Cluster *const	pCluster2
	)		const

private

Whether two clusters overlap convincingly in x.

Parameters

pCluster1	address of the first cluster
pCluster2	address of the second cluster

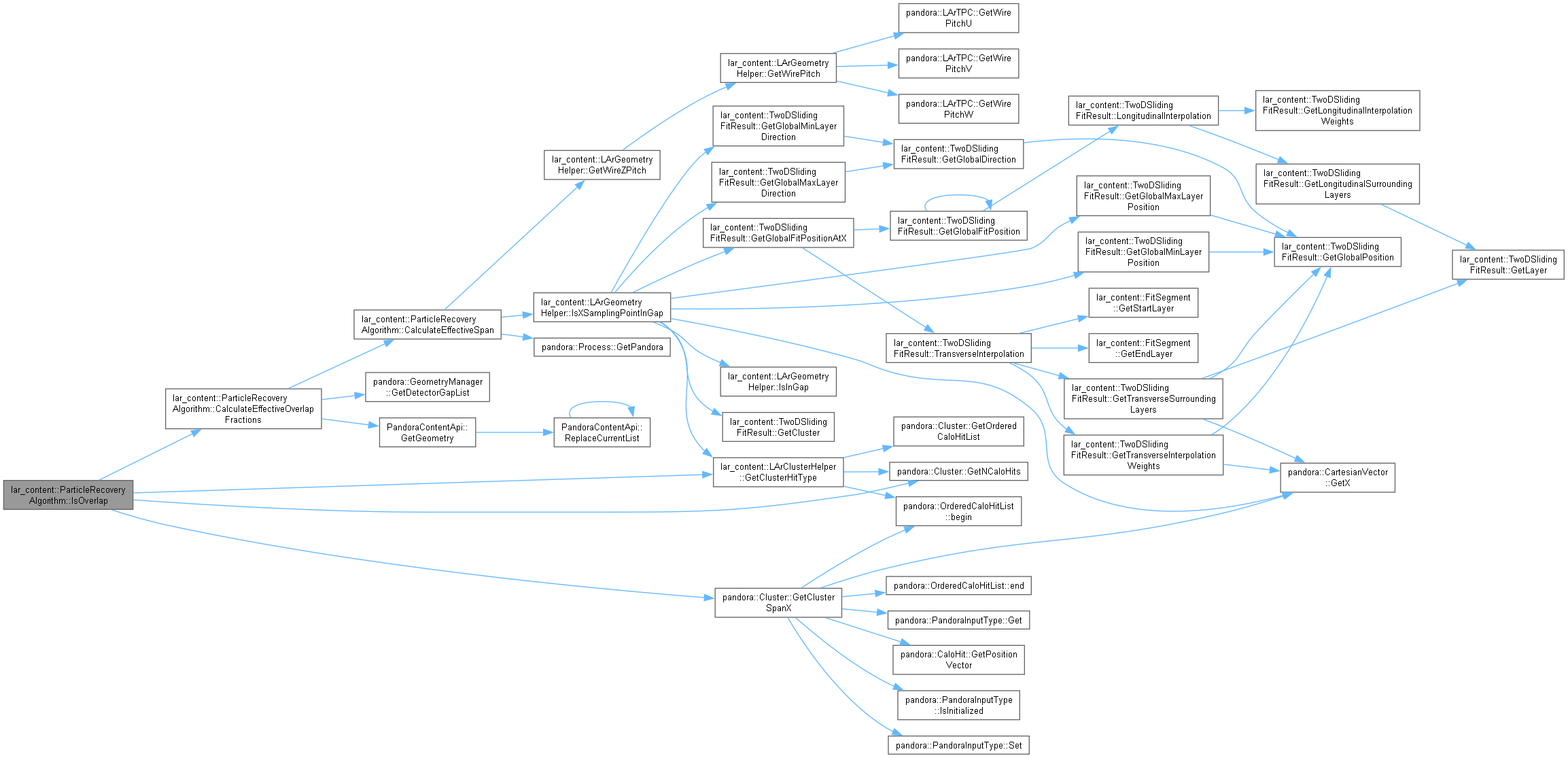

Definition at line 202 of file ParticleRecoveryAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReadSettings()

StatusCode lar_content::ParticleRecoveryAlgorithm::ReadSettings ( const pandora::TiXmlHandle xmlHandle )

privatevirtual

Read the algorithm settings.

Parameters

xmlHandle the relevant xml handle

Implements pandora::Process.

Definition at line 481 of file ParticleRecoveryAlgorithm.cc.

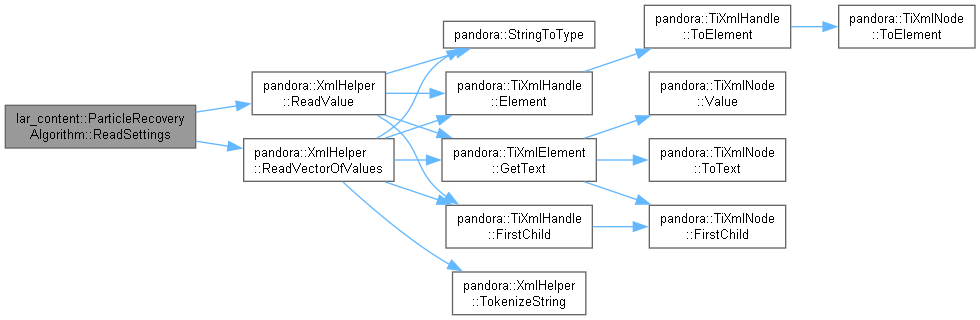

Here is the call graph for this function:

◆ RegisterDetails()

StatusCode pandora::Process::RegisterDetails	(	const Pandora *const	pPandora,
		const std::string &	type,
		const std::string &	instanceName
	)

inlineprotectedinherited

Register i) the pandora instance that will run the process and ii) the process type.

Parameters

pPandora	address of the pandora object that will run the process
type	the process type
instanceName	the process instance name

Definition at line 146 of file Process.h.

Here is the caller graph for this function:

◆ Reset()

StatusCode pandora::Process::Reset ( )

inlineprotectedvirtualinherited

Perform any operations when pandora is reset, typically at the end of each event.

Reimplemented in lar_content::MasterAlgorithm, lar_content::PostProcessingAlgorithm, and lar_content::PreProcessingAlgorithm.

Definition at line 133 of file Process.h.

Here is the caller graph for this function:

◆ Run()

StatusCode lar_content::ParticleRecoveryAlgorithm::Run ( )

privatevirtual

Run the algorithm.

Implements pandora::Algorithm.

Definition at line 44 of file ParticleRecoveryAlgorithm.cc.

Here is the call graph for this function:

◆ SelectInputClusters()

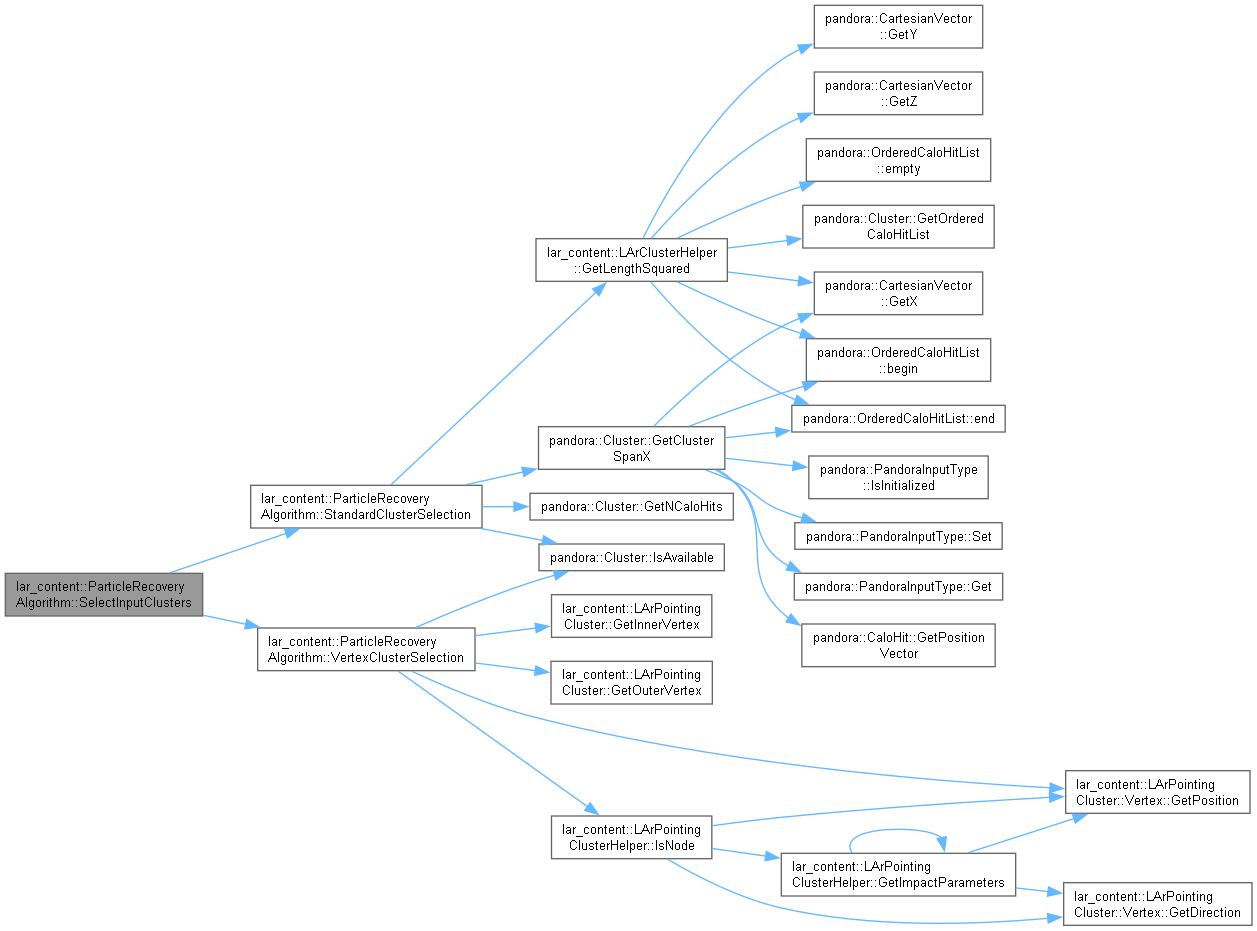

void lar_content::ParticleRecoveryAlgorithm::SelectInputClusters	(	const pandora::ClusterList &	inputClusterList,
		pandora::ClusterList &	selectedClusterList
	)		const

private

Select a subset of input clusters for processing in this algorithm.

Parameters

inputClusterList	the input cluster list
selectedClusterList	to receive the selected cluster list

Definition at line 96 of file ParticleRecoveryAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ StandardClusterSelection()

void lar_content::ParticleRecoveryAlgorithm::StandardClusterSelection	(	const pandora::ClusterList &	inputClusterList,
		pandora::ClusterList &	selectedClusterList
	)		const

private

Select a subset of input clusters for processing in this algorithm.

Parameters

inputClusterList	the input cluster list
selectedClusterList	to receive the selected cluster list

Definition at line 112 of file ParticleRecoveryAlgorithm.cc.

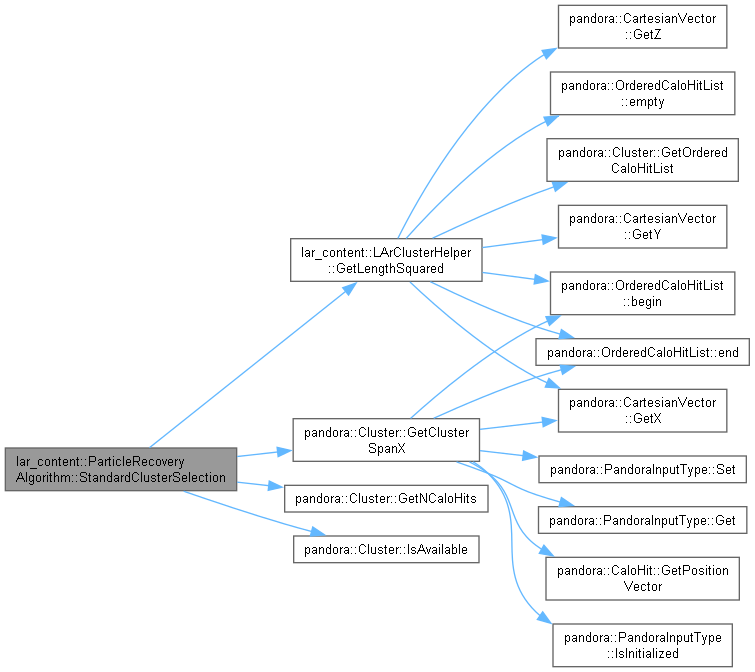

Here is the call graph for this function:

Here is the caller graph for this function:

◆ VertexClusterSelection()

void lar_content::ParticleRecoveryAlgorithm::VertexClusterSelection	(	const pandora::ClusterList &	inputClusterList,
		pandora::ClusterList &	selectedClusterList
	)		const

private

Select a subset of input clusters nodally associated with the vertices of existing particles.

Parameters

inputClusterList	the input cluster list
selectedClusterList	to receive the selected cluster list

Definition at line 139 of file ParticleRecoveryAlgorithm.cc.

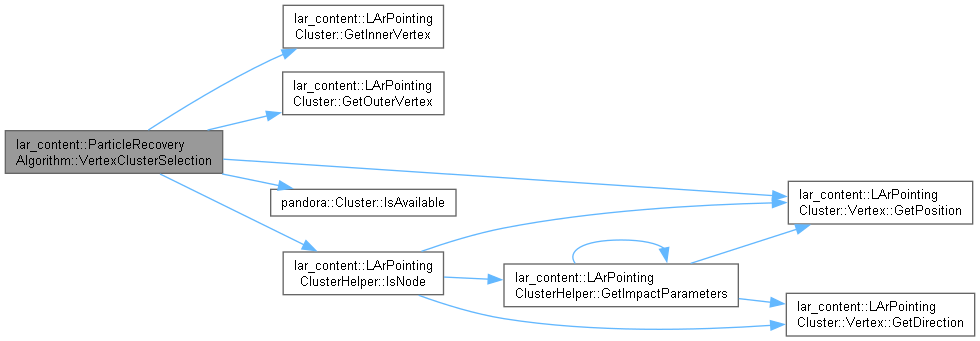

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_checkGaps

bool lar_content::ParticleRecoveryAlgorithm::m_checkGaps

private

Whether to check for gaps in the calculation of the overlap.

Definition at line 180 of file ParticleRecoveryAlgorithm.h.

◆ m_inputClusterListNames

pandora::StringVector lar_content::ParticleRecoveryAlgorithm::m_inputClusterListNames

private

The list of cluster list names.

Definition at line 177 of file ParticleRecoveryAlgorithm.h.

◆ m_instanceName

std::string pandora::Process::m_instanceName

protectedinherited

The process instance name.

Definition at line 89 of file Process.h.

◆ m_maxVertexTransverseDistance

float lar_content::ParticleRecoveryAlgorithm::m_maxVertexTransverseDistance

private

Vertex association check: max transverse distance cut.

Definition at line 188 of file ParticleRecoveryAlgorithm.h.

◆ m_minClusterCaloHits

unsigned int lar_content::ParticleRecoveryAlgorithm::m_minClusterCaloHits

private

The min number of hits in base cluster selection method.

Definition at line 182 of file ParticleRecoveryAlgorithm.h.

◆ m_minClusterLengthSquared

float lar_content::ParticleRecoveryAlgorithm::m_minClusterLengthSquared

private

The min length (squared) in base cluster selection method.

Definition at line 183 of file ParticleRecoveryAlgorithm.h.

◆ m_minClusterXSpan

float lar_content::ParticleRecoveryAlgorithm::m_minClusterXSpan

private

The min x span required in order to consider a cluster.

Definition at line 184 of file ParticleRecoveryAlgorithm.h.

◆ m_minVertexLongitudinalDistance

float lar_content::ParticleRecoveryAlgorithm::m_minVertexLongitudinalDistance

private

Vertex association check: min longitudinal distance cut.

Definition at line 187 of file ParticleRecoveryAlgorithm.h.

◆ m_minXOverlapFraction

float lar_content::ParticleRecoveryAlgorithm::m_minXOverlapFraction

private

The min x overlap fraction required in order to id overlapping clusters.

Definition at line 190 of file ParticleRecoveryAlgorithm.h.

◆ m_minXOverlapFractionGaps

float lar_content::ParticleRecoveryAlgorithm::m_minXOverlapFractionGaps

private

The min x overlap fraction when there are gaps involved.

Definition at line 191 of file ParticleRecoveryAlgorithm.h.

◆ m_outputPfoListName

std::string lar_content::ParticleRecoveryAlgorithm::m_outputPfoListName

private

The output pfo list name.

Definition at line 178 of file ParticleRecoveryAlgorithm.h.

◆ m_pPandora

const Pandora* pandora::Process::m_pPandora

protectedinherited

The pandora object that will run the process.

Definition at line 87 of file Process.h.

◆ m_pseudoChi2Cut

float lar_content::ParticleRecoveryAlgorithm::m_pseudoChi2Cut

private

The selection cut on the matched chi2.

Definition at line 194 of file ParticleRecoveryAlgorithm.h.

◆ m_sampleStepSize

float lar_content::ParticleRecoveryAlgorithm::m_sampleStepSize

private

The sampling step size used in association checks, units cm.

Definition at line 192 of file ParticleRecoveryAlgorithm.h.

◆ m_slidingFitHalfWindow

unsigned int lar_content::ParticleRecoveryAlgorithm::m_slidingFitHalfWindow

private

The half window for the fit sliding result constructor.

Definition at line 193 of file ParticleRecoveryAlgorithm.h.

◆ m_type

std::string pandora::Process::m_type

protectedinherited

The process type.

Definition at line 88 of file Process.h.

◆ m_vertexClusterMode

bool lar_content::ParticleRecoveryAlgorithm::m_vertexClusterMode

private

Whether to demand clusters are associated with vertices of existing particles.

Definition at line 186 of file ParticleRecoveryAlgorithm.h.

The documentation for this class was generated from the following files:

LArContent/larpandoracontent/LArThreeDReco/LArPfoRecovery/ParticleRecoveryAlgorithm.h
LArContent/larpandoracontent/LArThreeDReco/LArPfoRecovery/ParticleRecoveryAlgorithm.cc

Classes

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ParticleRecoveryAlgorithm()

Member Function Documentation

◆ CalculateEffectiveOverlapFractions()

◆ CalculateEffectiveSpan()

◆ CheckConsistency()

◆ CreateTrackParticle()

◆ ExamineTensor()

◆ FindOverlaps()

◆ GetInputClusters()

◆ GetInstanceName()

◆ GetPandora()

◆ GetType()

◆ Initialize()

◆ IsOverlap()

◆ ReadSettings()

◆ RegisterDetails()

◆ Reset()

◆ Run()

◆ SelectInputClusters()

◆ StandardClusterSelection()

◆ VertexClusterSelection()

Member Data Documentation

◆ m_checkGaps

◆ m_inputClusterListNames

◆ m_instanceName

◆ m_maxVertexTransverseDistance

◆ m_minClusterCaloHits

◆ m_minClusterLengthSquared

◆ m_minClusterXSpan

◆ m_minVertexLongitudinalDistance

◆ m_minXOverlapFraction

◆ m_minXOverlapFractionGaps

◆ m_outputPfoListName

◆ m_pPandora

◆ m_pseudoChi2Cut

◆ m_sampleStepSize

◆ m_slidingFitHalfWindow

◆ m_type

◆ m_vertexClusterMode
