#include "TracksCrossingGapsTool.h"

Inheritance diagram for lar_content::TracksCrossingGapsTool:

[legend]

Collaboration diagram for lar_content::TracksCrossingGapsTool:

[legend]

Public Types
typedef ThreeViewTransverseTracksAlgorithm::MatchingType::TensorType	TensorType

typedef std::vector< TensorType::ElementList::const_iterator >	IteratorList

Public Member Functions
	TracksCrossingGapsTool ()
	Default constructor.

bool	Run (ThreeViewTransverseTracksAlgorithm *const pAlgorithm, TensorType &overlapTensor)
	Run the algorithm tool.

const std::string &	GetType () const
	Get the type.

const std::string &	GetInstanceName () const
	Get the instance name.

const Pandora &	GetPandora () const
	Get the associated pandora instance.

Protected Member Functions
virtual StatusCode	Initialize ()
	Perform any operations that must occur after reading settings, but before running the process.

virtual StatusCode	Reset ()
	Perform any operations when pandora is reset, typically at the end of each event.

StatusCode	RegisterDetails (const Pandora *const pPandora, const std::string &type, const std::string &instanceName)
	Register i) the pandora instance that will run the process and ii) the process type.

Protected Attributes
const Pandora *	m_pPandora
	The pandora object that will run the process.

std::string	m_type
	The process type.

std::string	m_instanceName
	The process instance name.

Private Member Functions
pandora::StatusCode	ReadSettings (const pandora::TiXmlHandle xmlHandle)
	Read the algorithm settings.

void	FindTracks (ThreeViewTransverseTracksAlgorithm *const pAlgorithm, const TensorType &overlapTensor, ProtoParticleVector &protoParticleVector) const
	Find tracks crossing gaps, with unambiguous connection but poor overlap due to gaps.

void	SelectElements (ThreeViewTransverseTracksAlgorithm *const pAlgorithm, const TensorType::ElementList &elementList, const pandora::ClusterSet &usedClusters, IteratorList &iteratorList) const
	Select a list of track-like elements crossing a gap in one or more views from a set of connected tensor elements.

void	CalculateEffectiveOverlapFractions (ThreeViewTransverseTracksAlgorithm *const pAlgorithm, const TensorType::Element &element, float &xOverlapFractionU, float &xOverlapFractionV, float &xOverlapFractionW) const
	Calculate the effective overlap fractions given a set of clusters, taking gaps into account.

void	CalculateEffectiveOverlapSpan (ThreeViewTransverseTracksAlgorithm *const pAlgorithm, const TensorType::Element &element, float &xMinEffU, float &xMaxEffU, float &xMinEffV, float &xMaxEffV, float &xMinEffW, float &xMaxEffW) const
	Calculate the effective overlap span given a set of clusters, taking gaps into account.

bool	PassesGapChecks (ThreeViewTransverseTracksAlgorithm *const pAlgorithm, const TensorType::Element &element, const float xSample, bool &gapInU, bool &gapInV, bool &gapInW) const
	Check whether there is any gap in the three U-V-W clusters combination.

bool	CheckXPositionInGap (const float xSample, const TwoDSlidingFitResult &slidingFitResult1, const TwoDSlidingFitResult &slidingFitResult2, const TwoDSlidingFitResult &slidingFitResult3, bool &gapIn1, bool &gapIn2, bool &gapIn3) const
	Check individually each cluster where a gap might be present.

bool	IsEndOfCluster (const float xSample, const TwoDSlidingFitResult &slidingFitResult) const
	Check whether a x position is at the end of the cluster.

Private Attributes
float	m_minMatchedFraction
	The min matched sampling point fraction for particle creation.

unsigned int	m_minMatchedSamplingPoints
	The min number of matched sampling points for particle creation.

float	m_minXOverlapFraction
	The min x overlap fraction (in each view) for particle creation.

unsigned int	m_minMatchedSamplingPointRatio
	The min ratio between 1st and 2nd highest msps for simple ambiguity resolution.

float	m_maxGapTolerance
	The max gap tolerance.

float	m_sampleStepSize
	The sampling step size used in association checks, units cm.

unsigned int	m_maxAngleRatio
	The max ratio allowed in the angle.

Detailed Description

TracksCrossingGapsTool class.

Definition at line 20 of file TracksCrossingGapsTool.h.

Member Typedef Documentation

◆ IteratorList

typedef std::vector<TensorType::ElementList::const_iterator> lar_content::TransverseTensorTool::IteratorList

inherited

Definition at line 131 of file ThreeViewTransverseTracksAlgorithm.h.

◆ TensorType

typedef ThreeViewTransverseTracksAlgorithm::MatchingType::TensorType lar_content::TransverseTensorTool::TensorType

inherited

Definition at line 130 of file ThreeViewTransverseTracksAlgorithm.h.

Constructor & Destructor Documentation

◆ TracksCrossingGapsTool()

lar_content::TracksCrossingGapsTool::TracksCrossingGapsTool ( )

Default constructor.

Definition at line 22 of file TracksCrossingGapsTool.cc.

Member Function Documentation

◆ CalculateEffectiveOverlapFractions()

void lar_content::TracksCrossingGapsTool::CalculateEffectiveOverlapFractions	(	ThreeViewTransverseTracksAlgorithm *const	pAlgorithm,
		const TensorType::Element &	element,
		float &	xOverlapFractionU,
		float &	xOverlapFractionV,
		float &	xOverlapFractionW
	)		const

private

Calculate the effective overlap fractions given a set of clusters, taking gaps into account.

Parameters

pAlgorithm	address of the calling algorithm
element	the connected tensor element
xOverlapFractionU	to receive the effective overlap fraction in the u view
xOverlapFractionV	to receive the effective overlap fraction in the v view
xOverlapFractionW	to receive the effective overlap fraction in the w view

Definition at line 129 of file TracksCrossingGapsTool.cc.

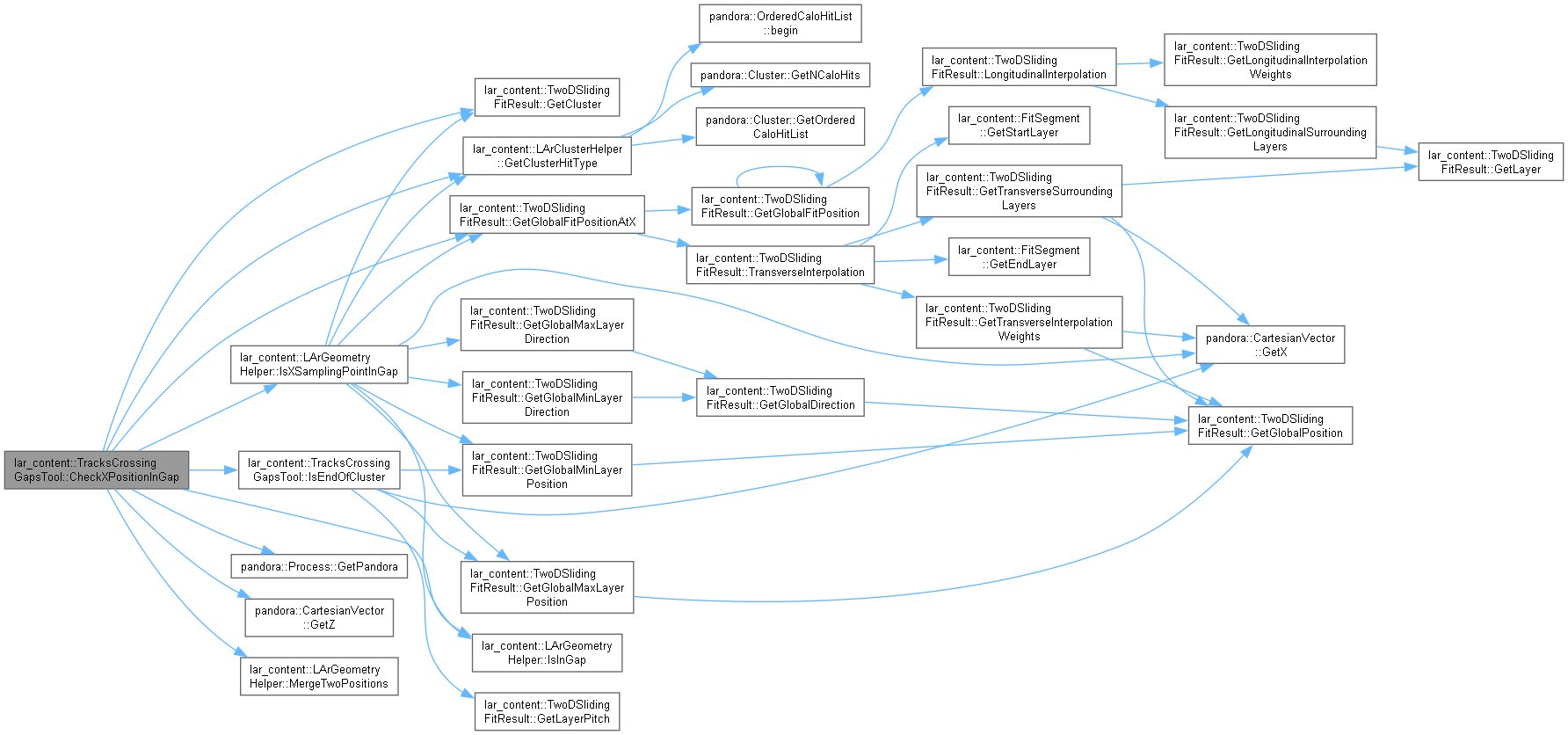

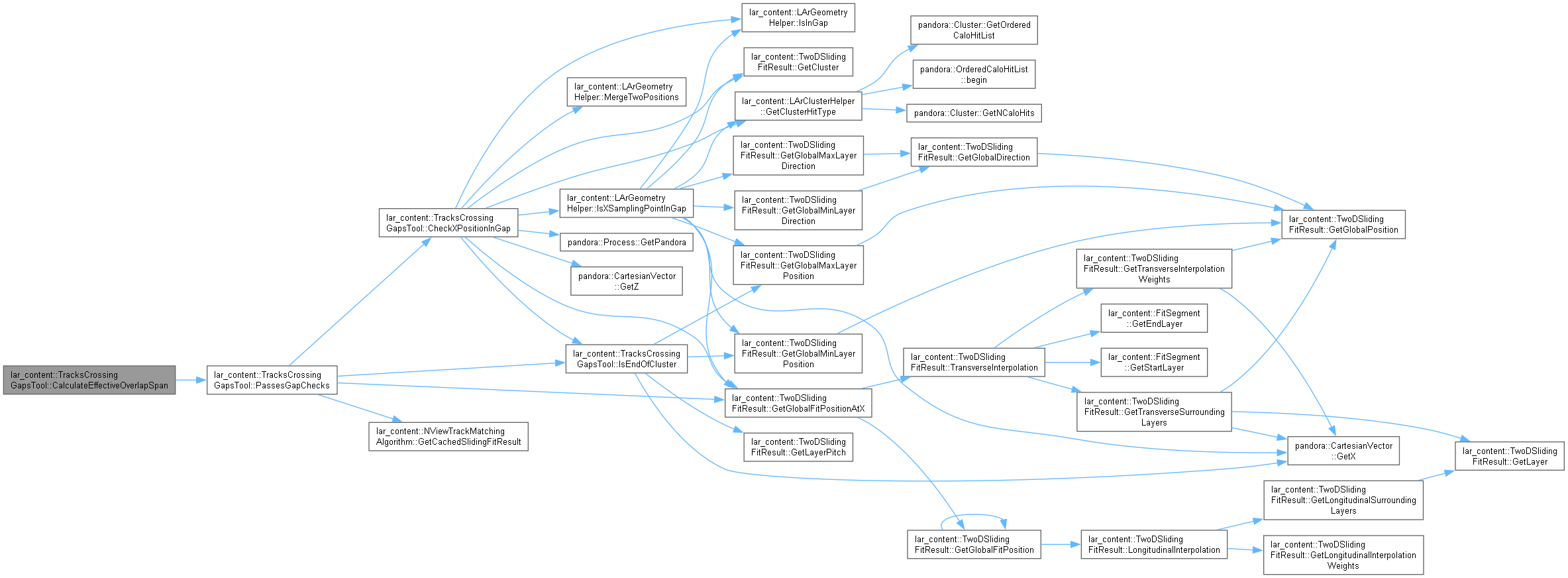

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CalculateEffectiveOverlapSpan()

void lar_content::TracksCrossingGapsTool::CalculateEffectiveOverlapSpan	(	ThreeViewTransverseTracksAlgorithm *const	pAlgorithm,
		const TensorType::Element &	element,
		float &	xMinEffU,
		float &	xMaxEffU,
		float &	xMinEffV,
		float &	xMaxEffV,
		float &	xMinEffW,
		float &	xMaxEffW
	)		const

private

Calculate the effective overlap span given a set of clusters, taking gaps into account.

Parameters

pAlgorithm	address of the calling algorithm
element	the connected tensor element
xMinEffU	to receive the effective min u coordinate
xMaxEffU	to receive the effective max u coordinate
xMinEffV	to receive the effective min v coordinate
xMaxEffV	to receive the effective max v coordinate
xMinEffW	to receive the effective min w coordinate
xMaxEffW	to receive the effective max w coordinate

Definition at line 150 of file TracksCrossingGapsTool.cc.

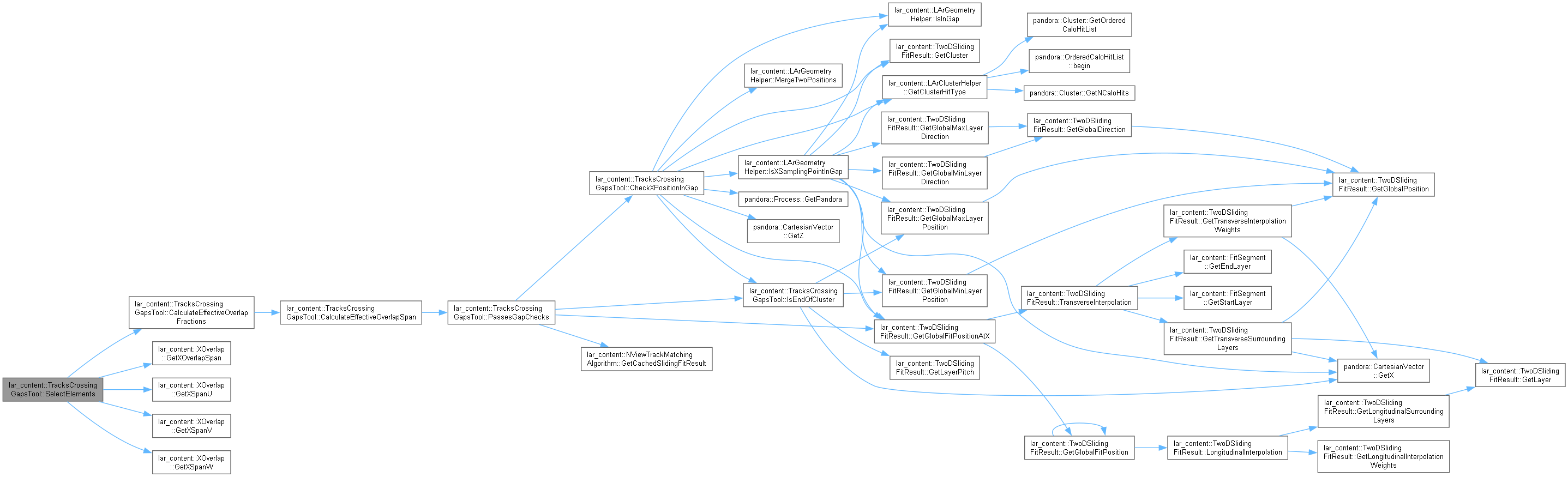

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CheckXPositionInGap()

bool lar_content::TracksCrossingGapsTool::CheckXPositionInGap	(	const float	xSample,
		const TwoDSlidingFitResult &	slidingFitResult1,
		const TwoDSlidingFitResult &	slidingFitResult2,
		const TwoDSlidingFitResult &	slidingFitResult3,
		bool &	gapIn1,
		bool &	gapIn2,
		bool &	gapIn3
	)		const

private

Check individually each cluster where a gap might be present.

Parameters

xSample,the	x coordinate we are checking
slidingFitResult1	the sliding fit result for the cluster in view 1
slidingFitResult2	the sliding fit result for the cluster in view 2
slidingFitResult3	the sliding fit result for the cluster in view 3
gapIn1	whether there is a gap in view 1
gapIn2	whether there is a gap in view 2
gapIn3	whether there is a gap in view 3

Returns: boolean

Definition at line 244 of file TracksCrossingGapsTool.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ FindTracks()

void lar_content::TracksCrossingGapsTool::FindTracks	(	ThreeViewTransverseTracksAlgorithm *const	pAlgorithm,
		const TensorType &	overlapTensor,
		ProtoParticleVector &	protoParticleVector
	)		const

private

Find tracks crossing gaps, with unambiguous connection but poor overlap due to gaps.

Parameters

pAlgorithm	address of the calling algorithm
overlapTensor	the overlap tensor
protoParticleVector	to receive the list of proto particles

Definition at line 52 of file TracksCrossingGapsTool.cc.

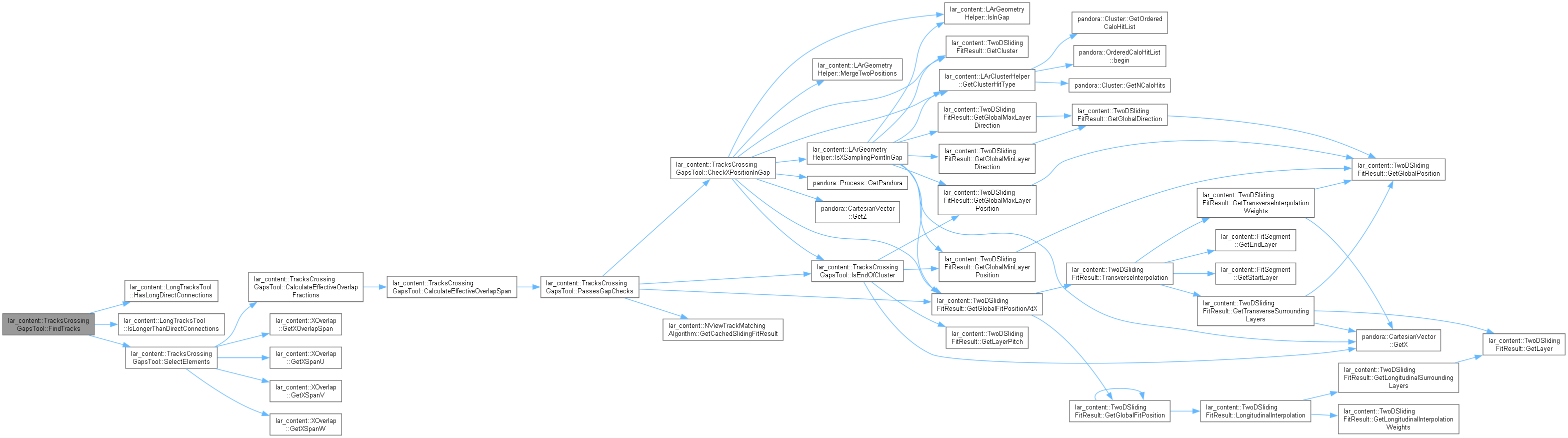

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetInstanceName()

const std::string & pandora::Process::GetInstanceName ( ) const

inlineinherited

Get the instance name.

Returns: The instance name

Definition at line 109 of file Process.h.

◆ GetPandora()

const Pandora & pandora::Process::GetPandora ( ) const

inlineinherited

Get the associated pandora instance.

Returns: the associated pandora instance

Definition at line 116 of file Process.h.

◆ GetType()

const std::string & pandora::Process::GetType ( ) const

inlineinherited

Get the type.

Returns: The type

Definition at line 102 of file Process.h.

◆ Initialize()

StatusCode pandora::Process::Initialize ( )

inlineprotectedvirtualinherited

Perform any operations that must occur after reading settings, but before running the process.

Reimplemented in lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, EventReadingAlgorithm, and EventWritingAlgorithm.

Definition at line 126 of file Process.h.

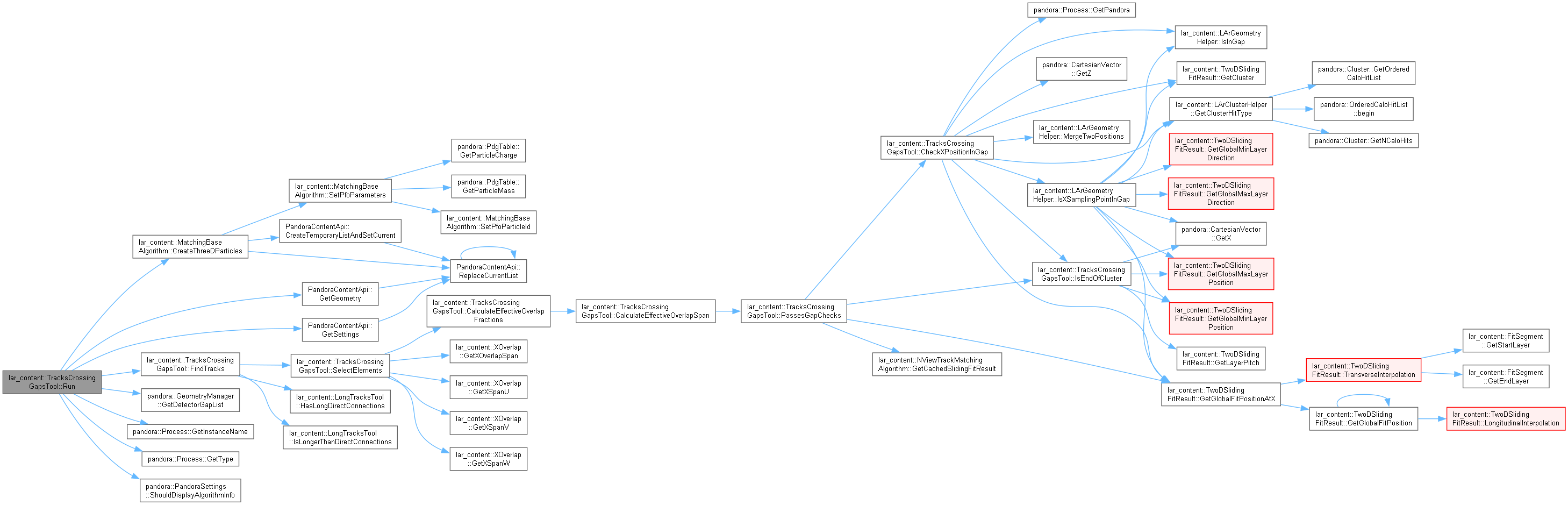

Here is the caller graph for this function:

◆ IsEndOfCluster()

bool lar_content::TracksCrossingGapsTool::IsEndOfCluster	(	const float	xSample,
		const TwoDSlidingFitResult &	slidingFitResult
	)		const

private

Check whether a x position is at the end of the cluster.

Parameters

xSample,the	x coordinate of the point tested
pCluster	the cluster we are interrogating for its extreme coordinates

Returns: boolean

Definition at line 299 of file TracksCrossingGapsTool.cc.

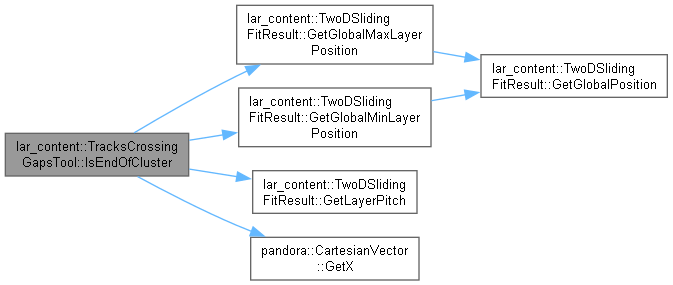

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PassesGapChecks()

bool lar_content::TracksCrossingGapsTool::PassesGapChecks	(	ThreeViewTransverseTracksAlgorithm *const	pAlgorithm,
		const TensorType::Element &	element,
		const float	xSample,
		bool &	gapInU,
		bool &	gapInV,
		bool &	gapInW
	)		const

private

Check whether there is any gap in the three U-V-W clusters combination.

Parameters

pAlgorithm	address of the calling algorithm
element	the connected tensor element
xSample	the x sampling position
gapInU	to receive whether there is a gap in the u view
gapInV	to receive whether there is a gap in the v view
gapInW	to receive whether there is a gap in the w view

Returns: boolean

Definition at line 207 of file TracksCrossingGapsTool.cc.

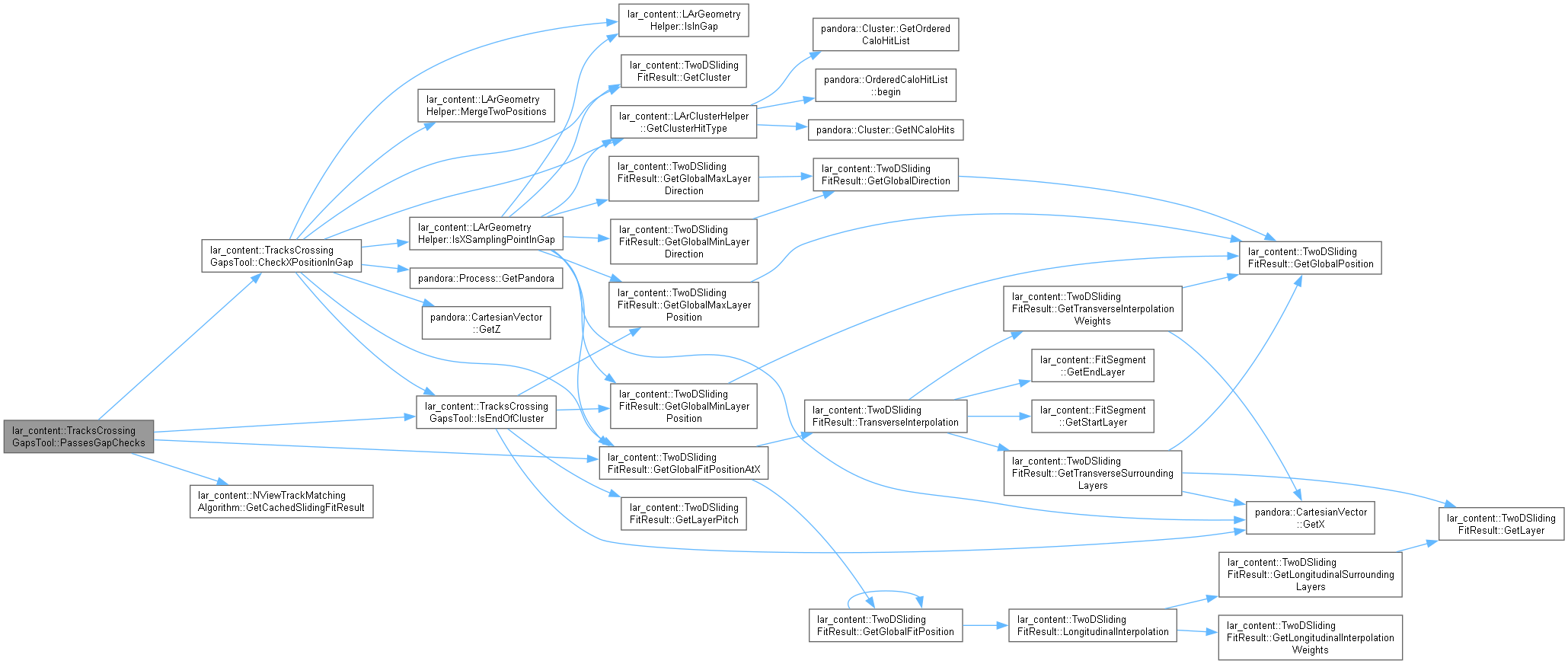

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReadSettings()

StatusCode lar_content::TracksCrossingGapsTool::ReadSettings ( const pandora::TiXmlHandle xmlHandle )

privatevirtual

Read the algorithm settings.

Parameters

xmlHandle the relevant xml handle

Implements pandora::Process.

Definition at line 307 of file TracksCrossingGapsTool.cc.

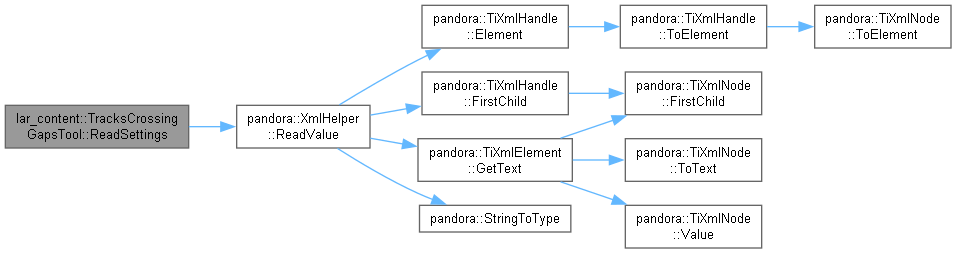

Here is the call graph for this function:

◆ RegisterDetails()

StatusCode pandora::Process::RegisterDetails	(	const Pandora *const	pPandora,
		const std::string &	type,
		const std::string &	instanceName
	)

inlineprotectedinherited

Register i) the pandora instance that will run the process and ii) the process type.

Parameters

pPandora	address of the pandora object that will run the process
type	the process type
instanceName	the process instance name

Definition at line 146 of file Process.h.

Here is the caller graph for this function:

◆ Reset()

StatusCode pandora::Process::Reset ( )

inlineprotectedvirtualinherited

Perform any operations when pandora is reset, typically at the end of each event.

Reimplemented in lar_content::MasterAlgorithm, lar_content::PostProcessingAlgorithm, and lar_content::PreProcessingAlgorithm.

Definition at line 133 of file Process.h.

Here is the caller graph for this function:

◆ Run()

bool lar_content::TracksCrossingGapsTool::Run	(	ThreeViewTransverseTracksAlgorithm *const	pAlgorithm,
		TensorType &	overlapTensor
	)

virtual

Run the algorithm tool.

Parameters

pAlgorithm	address of the calling algorithm
overlapTensor	the overlap tensor

Returns: whether changes have been made by the tool

Implements lar_content::TransverseTensorTool.

Definition at line 35 of file TracksCrossingGapsTool.cc.

Here is the call graph for this function:

◆ SelectElements()

void lar_content::TracksCrossingGapsTool::SelectElements	(	ThreeViewTransverseTracksAlgorithm *const	pAlgorithm,
		const TensorType::ElementList &	elementList,
		const pandora::ClusterSet &	usedClusters,
		IteratorList &	iteratorList
	)		const

private

Select a list of track-like elements crossing a gap in one or more views from a set of connected tensor elements.

Parameters

pAlgorithm	address of the calling algorithm
elementList	the full list of connected tensor elements
usedClusters	the set of clusters already marked as to be added to a pfo
iteratorList	to receive a list of iterators to long track-like elements

Definition at line 95 of file TracksCrossingGapsTool.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_instanceName

std::string pandora::Process::m_instanceName

protectedinherited

The process instance name.

Definition at line 89 of file Process.h.

◆ m_maxAngleRatio

unsigned int lar_content::TracksCrossingGapsTool::m_maxAngleRatio

private

The max ratio allowed in the angle.

Definition at line 127 of file TracksCrossingGapsTool.h.

◆ m_maxGapTolerance

float lar_content::TracksCrossingGapsTool::m_maxGapTolerance

private

The max gap tolerance.

Definition at line 125 of file TracksCrossingGapsTool.h.

◆ m_minMatchedFraction

float lar_content::TracksCrossingGapsTool::m_minMatchedFraction

private

The min matched sampling point fraction for particle creation.

Definition at line 121 of file TracksCrossingGapsTool.h.

◆ m_minMatchedSamplingPointRatio

unsigned int lar_content::TracksCrossingGapsTool::m_minMatchedSamplingPointRatio

private

The min ratio between 1st and 2nd highest msps for simple ambiguity resolution.

Definition at line 124 of file TracksCrossingGapsTool.h.

◆ m_minMatchedSamplingPoints

unsigned int lar_content::TracksCrossingGapsTool::m_minMatchedSamplingPoints

private

The min number of matched sampling points for particle creation.

Definition at line 122 of file TracksCrossingGapsTool.h.

◆ m_minXOverlapFraction

float lar_content::TracksCrossingGapsTool::m_minXOverlapFraction

private

The min x overlap fraction (in each view) for particle creation.

Definition at line 123 of file TracksCrossingGapsTool.h.

◆ m_pPandora

const Pandora* pandora::Process::m_pPandora

protectedinherited

The pandora object that will run the process.

Definition at line 87 of file Process.h.

◆ m_sampleStepSize

float lar_content::TracksCrossingGapsTool::m_sampleStepSize

private

The sampling step size used in association checks, units cm.

Definition at line 126 of file TracksCrossingGapsTool.h.

◆ m_type

std::string pandora::Process::m_type

protectedinherited

The process type.

Definition at line 88 of file Process.h.

The documentation for this class was generated from the following files:

LArContent/larpandoracontent/LArThreeDReco/LArTransverseTrackMatching/TracksCrossingGapsTool.h
LArContent/larpandoracontent/LArThreeDReco/LArTransverseTrackMatching/TracksCrossingGapsTool.cc

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ IteratorList

◆ TensorType

Constructor & Destructor Documentation

◆ TracksCrossingGapsTool()

Member Function Documentation

◆ CalculateEffectiveOverlapFractions()

◆ CalculateEffectiveOverlapSpan()

◆ CheckXPositionInGap()

◆ FindTracks()

◆ GetInstanceName()

◆ GetPandora()

◆ GetType()

◆ Initialize()

◆ IsEndOfCluster()

◆ PassesGapChecks()

◆ ReadSettings()

◆ RegisterDetails()

◆ Reset()

◆ Run()

◆ SelectElements()

Member Data Documentation

◆ m_instanceName

◆ m_maxAngleRatio

◆ m_maxGapTolerance

◆ m_minMatchedFraction

◆ m_minMatchedSamplingPointRatio

◆ m_minMatchedSamplingPoints

◆ m_minXOverlapFraction

◆ m_pPandora

◆ m_sampleStepSize

◆ m_type
