lar_content::ListChangingAlgorithm Class Reference

ListChangingAlgorithm::Algorithm class. More...

#include "ListChangingAlgorithm.h"

Inheritance diagram for lar_content::ListChangingAlgorithm:

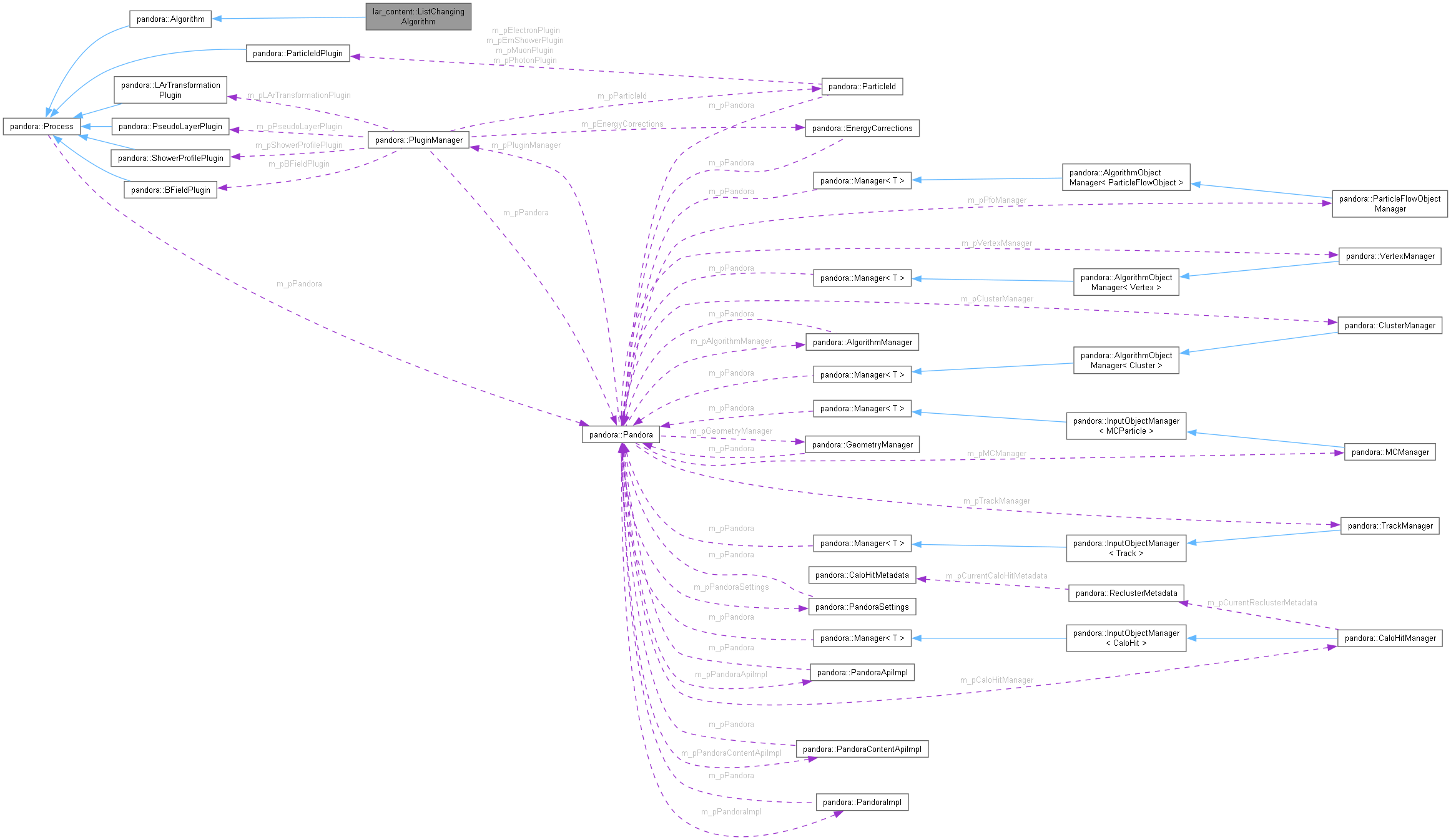

Collaboration diagram for lar_content::ListChangingAlgorithm:

Public Member Functions
const std::string &	GetType () const
	Get the type.
const std::string &	GetInstanceName () const
	Get the instance name.
const Pandora &	GetPandora () const
	Get the associated pandora instance.

Protected Member Functions
virtual StatusCode	Initialize ()
	Perform any operations that must occur after reading settings, but before running the process.
virtual StatusCode	Reset ()
	Perform any operations when pandora is reset, typically at the end of each event.
StatusCode	RegisterDetails (const Pandora *const pPandora, const std::string &type, const std::string &instanceName)
	Register i) the pandora instance that will run the process and ii) the process type.

Protected Attributes
const Pandora *	m_pPandora
	The pandora object that will run the process.
std::string	m_type
	The process type.
std::string	m_instanceName
	The process instance name.

Private Member Functions
pandora::StatusCode	Run ()
	Run the algorithm.
pandora::StatusCode	ReadSettings (const pandora::TiXmlHandle xmlHandle)
	Read the algorithm settings.

Private Attributes
std::string	m_caloHitListName
	The calo hit list name to set as the current calo hit list.
std::string	m_clusterListName
	The cluster list name to set as the current cluster list.
std::string	m_vertexListName
	The vertex list name to set as the current vertex list.
std::string	m_pfoListName
	The pfo list name to set as the current pfo list.

Detailed Description

ListChangingAlgorithm::Algorithm class.

Definition at line 19 of file ListChangingAlgorithm.h.

Member Function Documentation

GetInstanceName()

const std::string & pandora::Process::GetInstanceName ( ) const

inlineinherited

Get the instance name.

Returns

The instance name

Definition at line 109 of file Process.h.

GetPandora()

const Pandora & pandora::Process::GetPandora ( ) const

inlineinherited

Get the associated pandora instance.

Returns

the associated pandora instance

Definition at line 116 of file Process.h.

GetType()

const std::string & pandora::Process::GetType ( ) const

inlineinherited

Get the type.

Returns

The type

Definition at line 102 of file Process.h.

Initialize()

StatusCode pandora::Process::Initialize ( )

inlineprotectedvirtualinherited

Perform any operations that must occur after reading settings, but before running the process.

Reimplemented in lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, EventReadingAlgorithm, and EventWritingAlgorithm.

Definition at line 126 of file Process.h.

Here is the caller graph for this function:

ReadSettings()

StatusCode lar_content::ListChangingAlgorithm::ReadSettings ( const pandora::TiXmlHandle  xmlHandle )

privatevirtual

Read the algorithm settings.

Parameters

xmlHandle

the relevant xml handle

Implements pandora::Process.

Definition at line 69 of file ListChangingAlgorithm.cc.

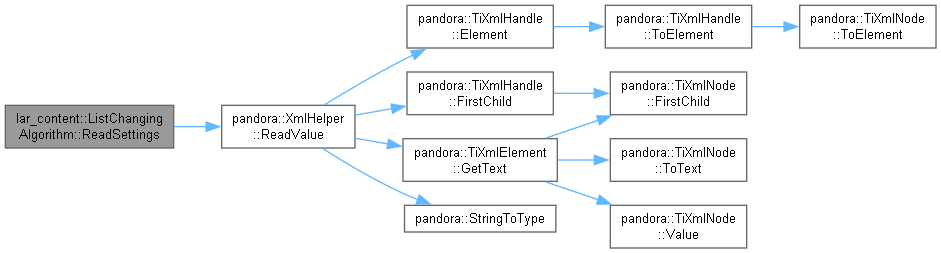

Here is the call graph for this function:

RegisterDetails()

StatusCode pandora::Process::RegisterDetails ( const Pandora *const  pPandora, const std::string &  type, const std::string &  instanceName  )

inlineprotectedinherited

Register i) the pandora instance that will run the process and ii) the process type.

Parameters

pPandora	address of the pandora object that will run the process
type	the process type
instanceName	the process instance name

Definition at line 146 of file Process.h.

Here is the caller graph for this function:

Reset()

StatusCode pandora::Process::Reset ( )

inlineprotectedvirtualinherited

Perform any operations when pandora is reset, typically at the end of each event.

Reimplemented in lar_content::MasterAlgorithm, lar_content::PostProcessingAlgorithm, and lar_content::PreProcessingAlgorithm.

Definition at line 133 of file Process.h.

Here is the caller graph for this function:

Run()

StatusCode lar_content::ListChangingAlgorithm::Run ( )

privatevirtual

Run the algorithm.

Implements pandora::Algorithm.

Definition at line 18 of file ListChangingAlgorithm.cc.

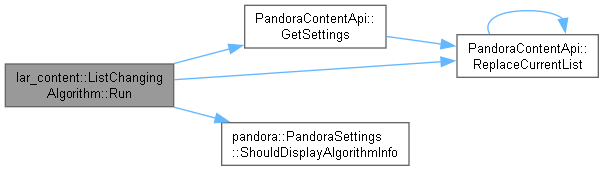

Here is the call graph for this function:

Member Data Documentation

m_caloHitListName

std::string lar_content::ListChangingAlgorithm::m_caloHitListName

private

The calo hit list name to set as the current calo hit list.

Definition at line 25 of file ListChangingAlgorithm.h.

m_clusterListName

std::string lar_content::ListChangingAlgorithm::m_clusterListName

private

The cluster list name to set as the current cluster list.

Definition at line 26 of file ListChangingAlgorithm.h.

m_instanceName

std::string pandora::Process::m_instanceName

protectedinherited

The process instance name.

Definition at line 89 of file Process.h.

m_pfoListName

std::string lar_content::ListChangingAlgorithm::m_pfoListName

private

The pfo list name to set as the current pfo list.

Definition at line 28 of file ListChangingAlgorithm.h.

m_pPandora

const Pandora* pandora::Process::m_pPandora

protectedinherited

The pandora object that will run the process.

Definition at line 87 of file Process.h.

m_type

std::string pandora::Process::m_type

protectedinherited

The process type.

Definition at line 88 of file Process.h.

m_vertexListName

std::string lar_content::ListChangingAlgorithm::m_vertexListName

private

The vertex list name to set as the current vertex list.

Definition at line 27 of file ListChangingAlgorithm.h.

---

The documentation for this class was generated from the following files:

• LArContent/larpandoracontent/LArUtility/ListChangingAlgorithm.h
• LArContent/larpandoracontent/LArUtility/ListChangingAlgorithm.cc
