CandidateVertexCreationAlgorithm::Algorithm class. More...

#include "CandidateVertexCreationAlgorithm.h"

Inheritance diagram for lar_content::CandidateVertexCreationAlgorithm:

[legend]

Collaboration diagram for lar_content::CandidateVertexCreationAlgorithm:

[legend]

Public Member Functions
	CandidateVertexCreationAlgorithm ()
	Default constructor.

const std::string &	GetType () const
	Get the type.

const std::string &	GetInstanceName () const
	Get the instance name.

const Pandora &	GetPandora () const
	Get the associated pandora instance.

Protected Member Functions
virtual StatusCode	Initialize ()
	Perform any operations that must occur after reading settings, but before running the process.

virtual StatusCode	Reset ()
	Perform any operations when pandora is reset, typically at the end of each event.

StatusCode	RegisterDetails (const Pandora *const pPandora, const std::string &type, const std::string &instanceName)
	Register i) the pandora instance that will run the process and ii) the process type.

Protected Attributes
const Pandora *	m_pPandora
	The pandora object that will run the process.

std::string	m_type
	The process type.

std::string	m_instanceName
	The process instance name.

Private Types
typedef std::unordered_map< const pandora::Cluster *, pandora::CartesianPointVector >	ClusterToSpacepointsMap

Private Member Functions
pandora::StatusCode	Run ()
	Run the algorithm.

void	SelectClusters (pandora::ClusterVector &clusterVectorU, pandora::ClusterVector &clusterVectorV, pandora::ClusterVector &clusterVectorW)
	Select a subset of input clusters (contained in the input list names) for processing in this algorithm.

void	CreateEndpointCandidates (const pandora::ClusterVector &clusterVector1, const pandora::ClusterVector &clusterVector2) const
	Create candidate vertex positions by comparing pairs of cluster end positions.

void	CreateEndpointVertex (const pandora::CartesianVector &position1, const pandora::HitType hitType1, const TwoDSlidingFitResult &fitResult2) const
	Create a candidate vertex position, using an end-point position from one cluster and sliding fit to a second cluster.

void	CreateCrossingCandidates (const pandora::ClusterVector &clusterVectorU, const pandora::ClusterVector &clusterVectorV, const pandora::ClusterVector &clusterVectorW) const
	Extrapolate 2D clusters, find where they cross, and match crossing points between views to create vertex candidates.

void	FindCrossingPoints (const pandora::ClusterVector &clusterVector, pandora::CartesianPointVector &crossingPoints) const
	Identify where (extrapolated) clusters plausibly cross in 2D.

void	GetSpacepoints (const pandora::Cluster *const pCluster, pandora::CartesianPointVector &spacePoints) const
	Get a list of spacepoints representing cluster 2D hit positions and extrapolated positions.

void	FindCrossingPoints (const pandora::CartesianPointVector &spacepoints1, const pandora::CartesianPointVector &spacepoints2, pandora::CartesianPointVector &crossingPoints) const
	Identify where (extrapolated) clusters plausibly cross in 2D.

void	CreateCrossingVertices (const pandora::CartesianPointVector &crossingPoints1, const pandora::CartesianPointVector &crossingPoints2, const pandora::HitType hitType1, const pandora::HitType hitType2, unsigned int &nCrossingCandidates) const
	Attempt to create candidate vertex positions, using 2D crossing points in 2 views.

void	AddInputVertices () const
	Add candidate vertices from any input vertices.

void	AddToSlidingFitCache (const pandora::Cluster *const pCluster)
	Creates a 2D sliding fit of a cluster and stores it for later use.

const TwoDSlidingFitResult &	GetCachedSlidingFitResult (const pandora::Cluster *const pCluster) const
	Get a sliding fit result from the algorithm cache.

void	TidyUp ()
	Clear relevant algorithm member variables between events.

pandora::StatusCode	ReadSettings (const pandora::TiXmlHandle xmlHandle)
	Read the algorithm settings.

Private Attributes
pandora::StringVector	m_inputClusterListNames
	The list of cluster list names.

std::string	m_inputVertexListName
	The list name for existing candidate vertices.

std::string	m_outputVertexListName
	The name under which to save the output vertex list.

bool	m_replaceCurrentVertexList
	Whether to replace the current vertex list with the output list.

unsigned int	m_slidingFitWindow
	The layer window for the sliding linear fits.

TwoDSlidingFitResultMap	m_slidingFitResultMap
	The sliding fit result map.

unsigned int	m_minClusterCaloHits
	The min number of hits in base cluster selection method.

float	m_minClusterLengthSquared
	The min length (squared) in base cluster selection method.

float	m_chiSquaredCut
	The chi squared cut (accept only 3D vertex positions with values below cut)

bool	m_enableEndpointCandidates
	Whether to create endpoint-based candidates.

float	m_maxEndpointXDiscrepancy
	The max cluster endpoint discrepancy.

bool	m_enableCrossingCandidates
	Whether to create crossing vertex candidates.

unsigned int	m_nMaxCrossingCandidates
	The max number of crossing candidates to create.

float	m_maxCrossingXDiscrepancy
	The max cluster endpoint discrepancy.

unsigned int	m_extrapolationNSteps
	Number of extrapolation steps, at each end of cluster, of specified size.

float	m_extrapolationStepSize
	The extrapolation step size in cm.

float	m_maxCrossingSeparationSquared
	The separation (squared) between spacepoints below which a crossing can be identified.

float	m_minNearbyCrossingDistanceSquared
	The minimum allowed distance between identified crossing positions.

bool	m_reducedCandidates
	Whether to reduce the number of candidates.

float	m_selectionCutFactorMax
	Maximum factor to multiply the base cluster selection cuts.

float	m_nClustersPassingMaxCutsPar
	Parameter for number of clusters passing the max base cluster selection cuts.

Detailed Description

CandidateVertexCreationAlgorithm::Algorithm class.

Definition at line 23 of file CandidateVertexCreationAlgorithm.h.

Member Typedef Documentation

◆ ClusterToSpacepointsMap

typedef std::unordered_map<const pandora::Cluster *, pandora::CartesianPointVector> lar_content::CandidateVertexCreationAlgorithm::ClusterToSpacepointsMap

private

Definition at line 134 of file CandidateVertexCreationAlgorithm.h.

Constructor & Destructor Documentation

◆ CandidateVertexCreationAlgorithm()

lar_content::CandidateVertexCreationAlgorithm::CandidateVertexCreationAlgorithm ( )

Default constructor.

Definition at line 23 of file CandidateVertexCreationAlgorithm.cc.

Member Function Documentation

◆ AddInputVertices()

void lar_content::CandidateVertexCreationAlgorithm::AddInputVertices ( ) const

private

Add candidate vertices from any input vertices.

Definition at line 386 of file CandidateVertexCreationAlgorithm.cc.

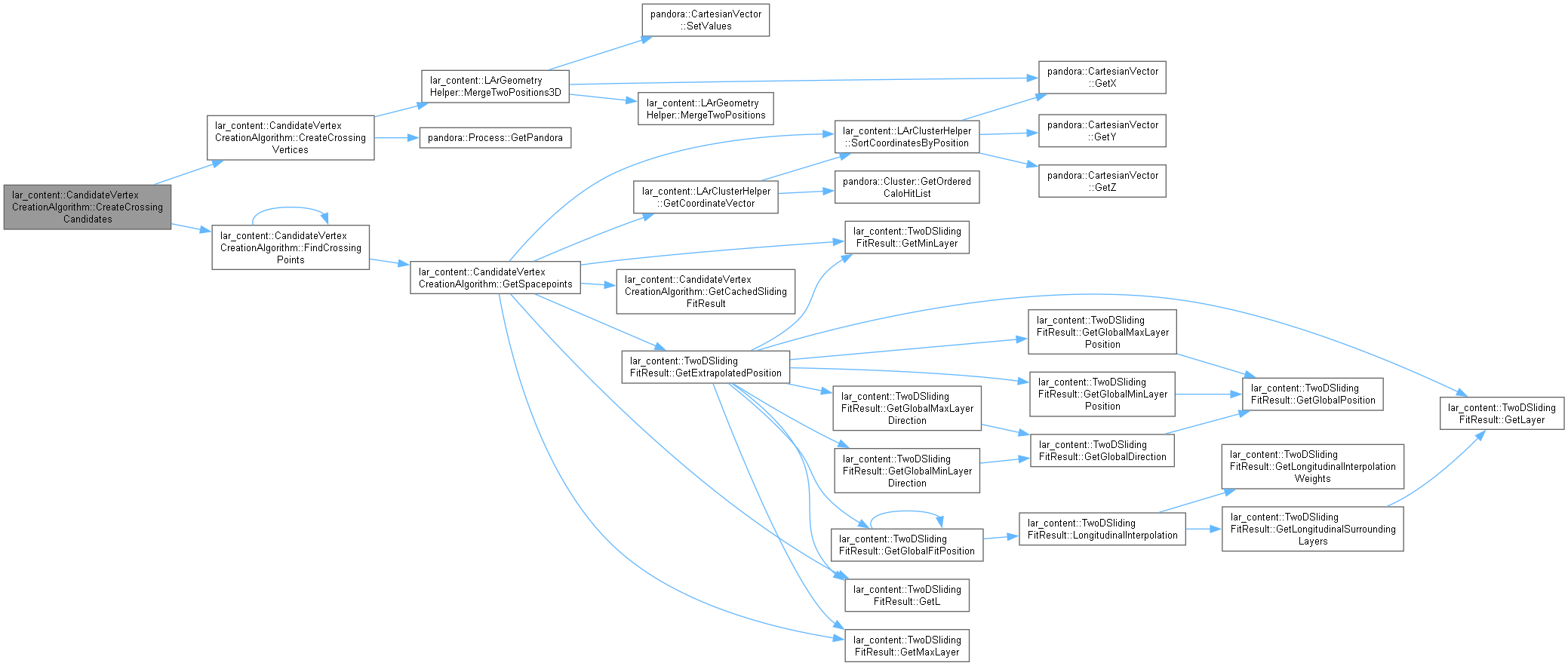

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AddToSlidingFitCache()

void lar_content::CandidateVertexCreationAlgorithm::AddToSlidingFitCache ( const pandora::Cluster *const pCluster )

private

Creates a 2D sliding fit of a cluster and stores it for later use.

Parameters

pCluster address of the relevant cluster

Definition at line 414 of file CandidateVertexCreationAlgorithm.cc.

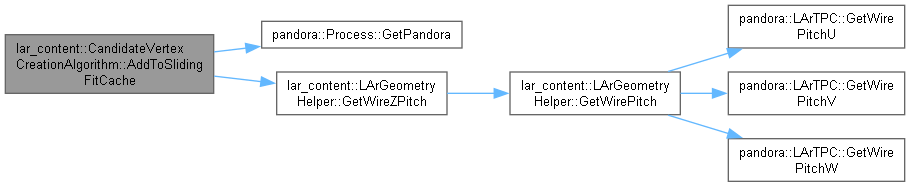

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateCrossingCandidates()

void lar_content::CandidateVertexCreationAlgorithm::CreateCrossingCandidates	(	const pandora::ClusterVector &	clusterVectorU,
		const pandora::ClusterVector &	clusterVectorV,
		const pandora::ClusterVector &	clusterVectorW
	)		const

private

Extrapolate 2D clusters, find where they cross, and match crossing points between views to create vertex candidates.

Parameters

clusterVectorU	the clusters in the u view
clusterVectorV	the clusters in the v view
clusterVectorW	the clusters in the w view

Definition at line 239 of file CandidateVertexCreationAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateCrossingVertices()

void lar_content::CandidateVertexCreationAlgorithm::CreateCrossingVertices	(	const pandora::CartesianPointVector &	crossingPoints1,
		const pandora::CartesianPointVector &	crossingPoints2,
		const pandora::HitType	hitType1,
		const pandora::HitType	hitType2,
		unsigned int &	nCrossingCandidates
	)		const

private

Attempt to create candidate vertex positions, using 2D crossing points in 2 views.

Parameters

crossingPoints1	the crossing points in view 1
crossingPoints2	the crossing points in view 2
hitType1	the hit type of crossing points 1
hitType2	the hit type of crossing points 2
nCrossingCandidates	to count the number of crossing candidates created

Definition at line 351 of file CandidateVertexCreationAlgorithm.cc.

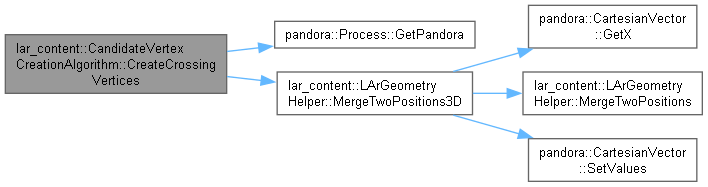

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateEndpointCandidates()

void lar_content::CandidateVertexCreationAlgorithm::CreateEndpointCandidates	(	const pandora::ClusterVector &	clusterVector1,
		const pandora::ClusterVector &	clusterVector2
	)		const

private

Create candidate vertex positions by comparing pairs of cluster end positions.

Parameters

clusterVector1	the clusters in view 1
clusterVector1	the clusters in view 2

Definition at line 173 of file CandidateVertexCreationAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateEndpointVertex()

void lar_content::CandidateVertexCreationAlgorithm::CreateEndpointVertex	(	const pandora::CartesianVector &	position1,
		const pandora::HitType	hitType1,
		const TwoDSlidingFitResult &	fitResult2
	)		const

private

Create a candidate vertex position, using an end-point position from one cluster and sliding fit to a second cluster.

Parameters

position1	an end-point position for the first cluster
hitType1	the hit type of the first cluster
fitResult2	the two dimensional sliding fit result for the second cluster

Definition at line 201 of file CandidateVertexCreationAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ FindCrossingPoints() [1/2]

void lar_content::CandidateVertexCreationAlgorithm::FindCrossingPoints	(	const pandora::CartesianPointVector &	spacepoints1,
		const pandora::CartesianPointVector &	spacepoints2,
		pandora::CartesianPointVector &	crossingPoints
	)		const

private

Identify where (extrapolated) clusters plausibly cross in 2D.

Parameters

spacepoints1	space points for cluster 1
spacepoints2	space points for cluster 2
crossingPoints	to receive the list of plausible 2D crossing points

Definition at line 304 of file CandidateVertexCreationAlgorithm.cc.

◆ FindCrossingPoints() [2/2]

void lar_content::CandidateVertexCreationAlgorithm::FindCrossingPoints	(	const pandora::ClusterVector &	clusterVector,
		pandora::CartesianPointVector &	crossingPoints
	)		const

private

Identify where (extrapolated) clusters plausibly cross in 2D.

Parameters

clusterVector	the input clusters
crossingPoints	to receive the 2D crossing points

Definition at line 255 of file CandidateVertexCreationAlgorithm.cc.

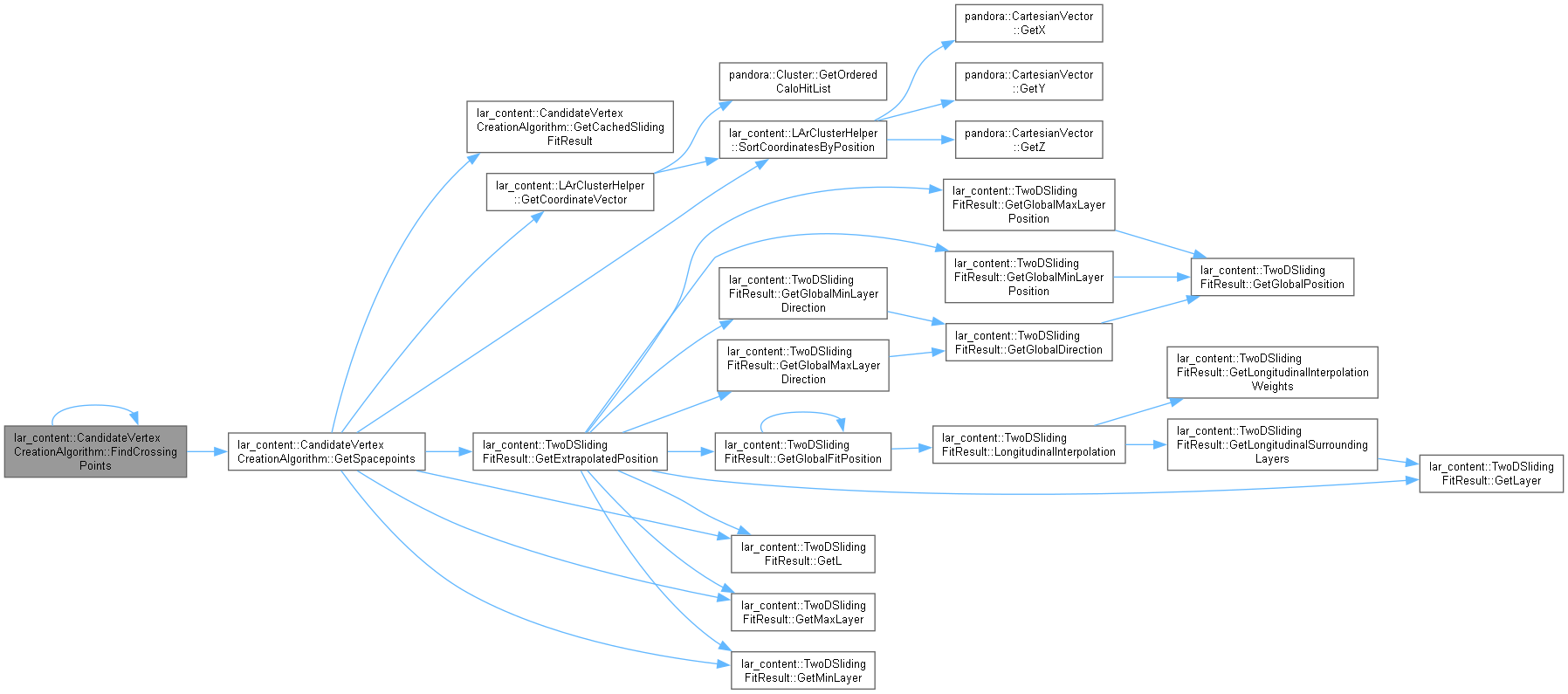

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetCachedSlidingFitResult()

const TwoDSlidingFitResult & lar_content::CandidateVertexCreationAlgorithm::GetCachedSlidingFitResult ( const pandora::Cluster *const pCluster ) const

private

Get a sliding fit result from the algorithm cache.

Parameters

pCluster address of the relevant cluster

Definition at line 425 of file CandidateVertexCreationAlgorithm.cc.

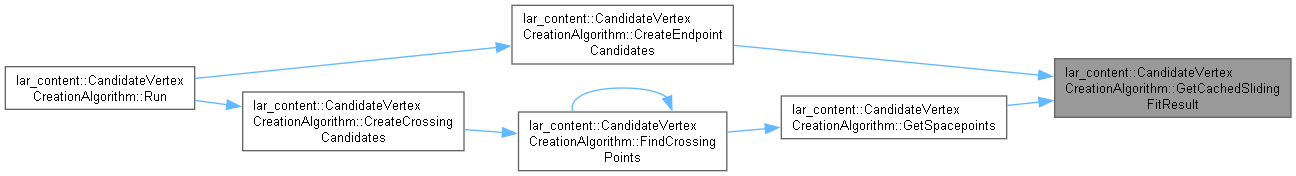

Here is the caller graph for this function:

◆ GetInstanceName()

const std::string & pandora::Process::GetInstanceName ( ) const

inlineinherited

Get the instance name.

Returns: The instance name

Definition at line 109 of file Process.h.

◆ GetPandora()

const Pandora & pandora::Process::GetPandora ( ) const

inlineinherited

Get the associated pandora instance.

Returns: the associated pandora instance

Definition at line 116 of file Process.h.

◆ GetSpacepoints()

void lar_content::CandidateVertexCreationAlgorithm::GetSpacepoints	(	const pandora::Cluster *const	pCluster,
		pandora::CartesianPointVector &	spacePoints
	)		const

private

Get a list of spacepoints representing cluster 2D hit positions and extrapolated positions.

Parameters

pCluster	address of the cluster
spacePoints	to receive the list of spacepoints

Definition at line 279 of file CandidateVertexCreationAlgorithm.cc.

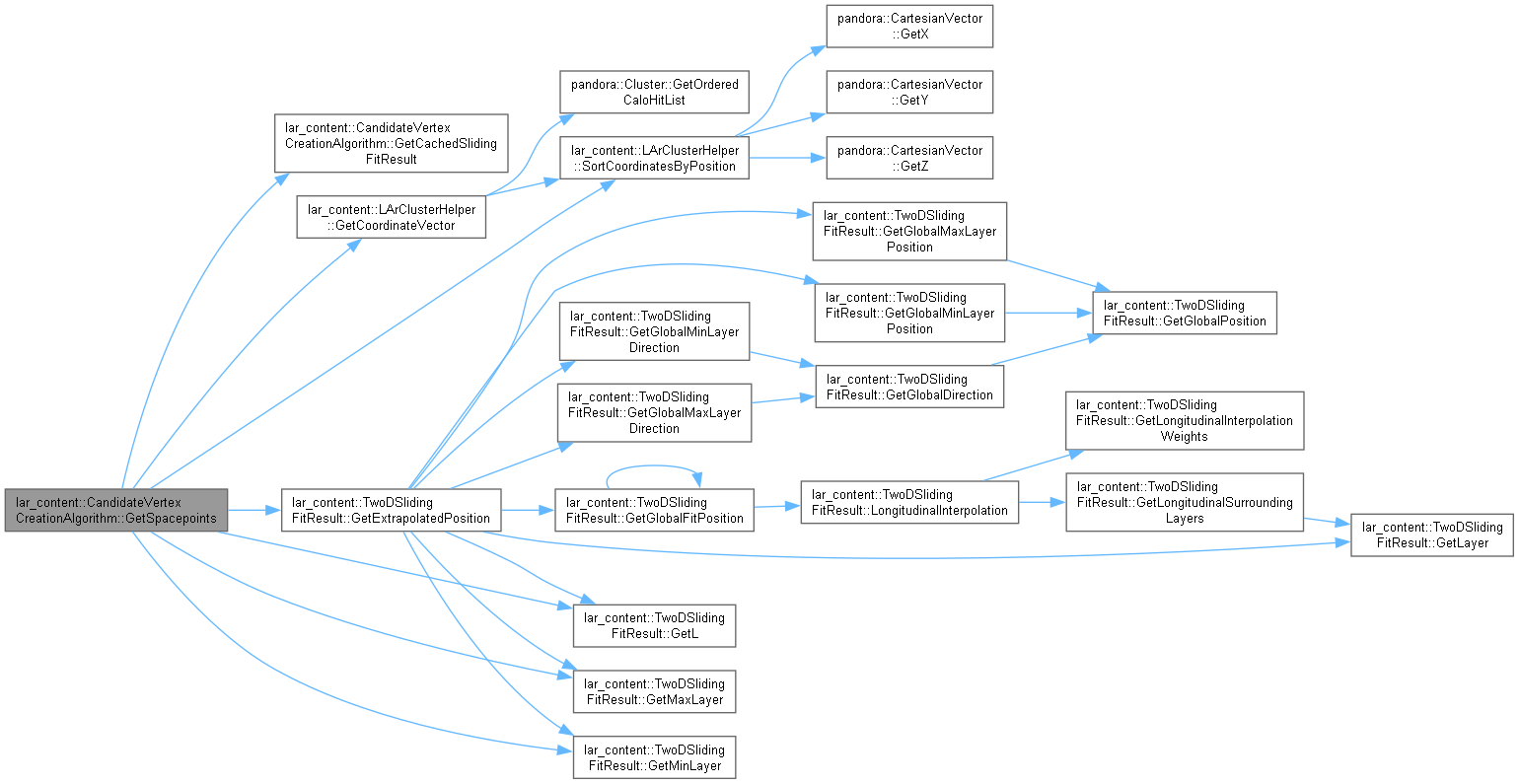

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetType()

const std::string & pandora::Process::GetType ( ) const

inlineinherited

Get the type.

Returns: The type

Definition at line 102 of file Process.h.

◆ Initialize()

StatusCode pandora::Process::Initialize ( )

inlineprotectedvirtualinherited

Perform any operations that must occur after reading settings, but before running the process.

Reimplemented in lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, EventReadingAlgorithm, and EventWritingAlgorithm.

Definition at line 126 of file Process.h.

Here is the caller graph for this function:

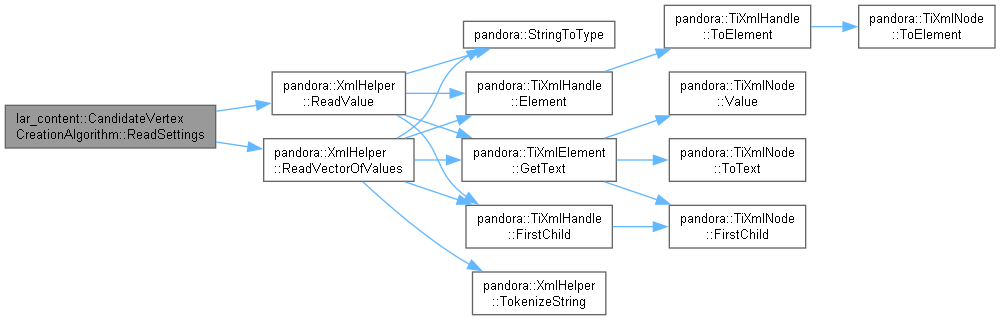

◆ ReadSettings()

StatusCode lar_content::CandidateVertexCreationAlgorithm::ReadSettings ( const pandora::TiXmlHandle xmlHandle )

privatevirtual

Read the algorithm settings.

Parameters

xmlHandle the relevant xml handle

Implements pandora::Process.

Definition at line 444 of file CandidateVertexCreationAlgorithm.cc.

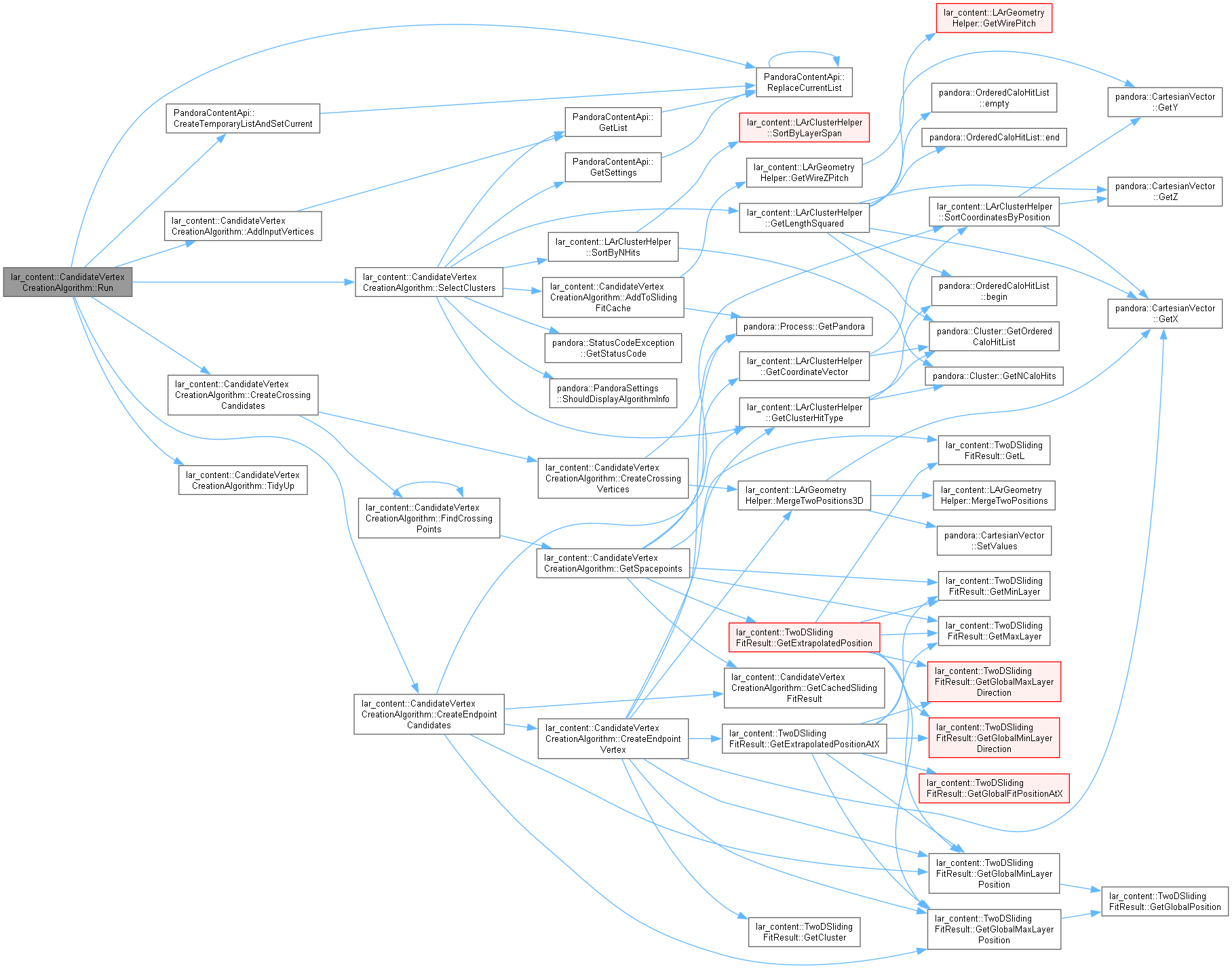

Here is the call graph for this function:

◆ RegisterDetails()

StatusCode pandora::Process::RegisterDetails	(	const Pandora *const	pPandora,
		const std::string &	type,
		const std::string &	instanceName
	)

inlineprotectedinherited

Register i) the pandora instance that will run the process and ii) the process type.

Parameters

pPandora	address of the pandora object that will run the process
type	the process type
instanceName	the process instance name

Definition at line 146 of file Process.h.

Here is the caller graph for this function:

◆ Reset()

StatusCode pandora::Process::Reset ( )

inlineprotectedvirtualinherited

Perform any operations when pandora is reset, typically at the end of each event.

Reimplemented in lar_content::MasterAlgorithm, lar_content::PostProcessingAlgorithm, and lar_content::PreProcessingAlgorithm.

Definition at line 133 of file Process.h.

Here is the caller graph for this function:

◆ Run()

StatusCode lar_content::CandidateVertexCreationAlgorithm::Run ( )

privatevirtual

Run the algorithm.

Implements pandora::Algorithm.

Definition at line 46 of file CandidateVertexCreationAlgorithm.cc.

Here is the call graph for this function:

◆ SelectClusters()

void lar_content::CandidateVertexCreationAlgorithm::SelectClusters	(	pandora::ClusterVector &	clusterVectorU,
		pandora::ClusterVector &	clusterVectorV,
		pandora::ClusterVector &	clusterVectorW
	)

private

Select a subset of input clusters (contained in the input list names) for processing in this algorithm.

Parameters

clusterVectorU	to receive the selected clusters in the u view
clusterVectorV	to receive the selected clusters in the v view
clusterVectorW	to receive the selected clusters in the w view

Definition at line 91 of file CandidateVertexCreationAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TidyUp()

void lar_content::CandidateVertexCreationAlgorithm::TidyUp ( )

private

Clear relevant algorithm member variables between events.

Definition at line 437 of file CandidateVertexCreationAlgorithm.cc.

Here is the caller graph for this function:

Member Data Documentation

◆ m_chiSquaredCut

float lar_content::CandidateVertexCreationAlgorithm::m_chiSquaredCut

private

The chi squared cut (accept only 3D vertex positions with values below cut)

Definition at line 146 of file CandidateVertexCreationAlgorithm.h.

◆ m_enableCrossingCandidates

bool lar_content::CandidateVertexCreationAlgorithm::m_enableCrossingCandidates

private

Whether to create crossing vertex candidates.

Definition at line 151 of file CandidateVertexCreationAlgorithm.h.

◆ m_enableEndpointCandidates

bool lar_content::CandidateVertexCreationAlgorithm::m_enableEndpointCandidates

private

Whether to create endpoint-based candidates.

Definition at line 148 of file CandidateVertexCreationAlgorithm.h.

◆ m_extrapolationNSteps

unsigned int lar_content::CandidateVertexCreationAlgorithm::m_extrapolationNSteps

private

Number of extrapolation steps, at each end of cluster, of specified size.

Definition at line 154 of file CandidateVertexCreationAlgorithm.h.

◆ m_extrapolationStepSize

float lar_content::CandidateVertexCreationAlgorithm::m_extrapolationStepSize

private

The extrapolation step size in cm.

Definition at line 155 of file CandidateVertexCreationAlgorithm.h.

◆ m_inputClusterListNames

pandora::StringVector lar_content::CandidateVertexCreationAlgorithm::m_inputClusterListNames

private

The list of cluster list names.

Definition at line 136 of file CandidateVertexCreationAlgorithm.h.

◆ m_inputVertexListName

std::string lar_content::CandidateVertexCreationAlgorithm::m_inputVertexListName

private

The list name for existing candidate vertices.

Definition at line 137 of file CandidateVertexCreationAlgorithm.h.

◆ m_instanceName

std::string pandora::Process::m_instanceName

protectedinherited

The process instance name.

Definition at line 89 of file Process.h.

◆ m_maxCrossingSeparationSquared

float lar_content::CandidateVertexCreationAlgorithm::m_maxCrossingSeparationSquared

private

The separation (squared) between spacepoints below which a crossing can be identified.

Definition at line 156 of file CandidateVertexCreationAlgorithm.h.

◆ m_maxCrossingXDiscrepancy

float lar_content::CandidateVertexCreationAlgorithm::m_maxCrossingXDiscrepancy

private

The max cluster endpoint discrepancy.

Definition at line 153 of file CandidateVertexCreationAlgorithm.h.

◆ m_maxEndpointXDiscrepancy

float lar_content::CandidateVertexCreationAlgorithm::m_maxEndpointXDiscrepancy

private

The max cluster endpoint discrepancy.

Definition at line 149 of file CandidateVertexCreationAlgorithm.h.

◆ m_minClusterCaloHits

unsigned int lar_content::CandidateVertexCreationAlgorithm::m_minClusterCaloHits

private

The min number of hits in base cluster selection method.

Definition at line 144 of file CandidateVertexCreationAlgorithm.h.

◆ m_minClusterLengthSquared

float lar_content::CandidateVertexCreationAlgorithm::m_minClusterLengthSquared

private

The min length (squared) in base cluster selection method.

Definition at line 145 of file CandidateVertexCreationAlgorithm.h.

◆ m_minNearbyCrossingDistanceSquared

float lar_content::CandidateVertexCreationAlgorithm::m_minNearbyCrossingDistanceSquared

private

The minimum allowed distance between identified crossing positions.

Definition at line 157 of file CandidateVertexCreationAlgorithm.h.

◆ m_nClustersPassingMaxCutsPar

float lar_content::CandidateVertexCreationAlgorithm::m_nClustersPassingMaxCutsPar

private

Parameter for number of clusters passing the max base cluster selection cuts.

Definition at line 161 of file CandidateVertexCreationAlgorithm.h.

◆ m_nMaxCrossingCandidates

unsigned int lar_content::CandidateVertexCreationAlgorithm::m_nMaxCrossingCandidates

private

The max number of crossing candidates to create.

Definition at line 152 of file CandidateVertexCreationAlgorithm.h.

◆ m_outputVertexListName

std::string lar_content::CandidateVertexCreationAlgorithm::m_outputVertexListName

private

The name under which to save the output vertex list.

Definition at line 138 of file CandidateVertexCreationAlgorithm.h.

◆ m_pPandora

const Pandora* pandora::Process::m_pPandora

protectedinherited

The pandora object that will run the process.

Definition at line 87 of file Process.h.

◆ m_reducedCandidates

bool lar_content::CandidateVertexCreationAlgorithm::m_reducedCandidates

private

Whether to reduce the number of candidates.

Definition at line 159 of file CandidateVertexCreationAlgorithm.h.

◆ m_replaceCurrentVertexList

bool lar_content::CandidateVertexCreationAlgorithm::m_replaceCurrentVertexList

private

Whether to replace the current vertex list with the output list.

Definition at line 139 of file CandidateVertexCreationAlgorithm.h.

◆ m_selectionCutFactorMax

float lar_content::CandidateVertexCreationAlgorithm::m_selectionCutFactorMax

private

Maximum factor to multiply the base cluster selection cuts.

Definition at line 160 of file CandidateVertexCreationAlgorithm.h.

◆ m_slidingFitResultMap

TwoDSlidingFitResultMap lar_content::CandidateVertexCreationAlgorithm::m_slidingFitResultMap

private

The sliding fit result map.

Definition at line 142 of file CandidateVertexCreationAlgorithm.h.

◆ m_slidingFitWindow

unsigned int lar_content::CandidateVertexCreationAlgorithm::m_slidingFitWindow

private

The layer window for the sliding linear fits.

Definition at line 141 of file CandidateVertexCreationAlgorithm.h.

◆ m_type

std::string pandora::Process::m_type

protectedinherited

The process type.

Definition at line 88 of file Process.h.

The documentation for this class was generated from the following files:

LArContent/larpandoracontent/LArVertex/CandidateVertexCreationAlgorithm.h
LArContent/larpandoracontent/LArVertex/CandidateVertexCreationAlgorithm.cc

Public Member Functions

Protected Member Functions

Protected Attributes

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ ClusterToSpacepointsMap

Constructor & Destructor Documentation

◆ CandidateVertexCreationAlgorithm()

Member Function Documentation

◆ AddInputVertices()

◆ AddToSlidingFitCache()

◆ CreateCrossingCandidates()

◆ CreateCrossingVertices()

◆ CreateEndpointCandidates()

◆ CreateEndpointVertex()

◆ FindCrossingPoints() [1/2]

◆ FindCrossingPoints() [2/2]

◆ GetCachedSlidingFitResult()

◆ GetInstanceName()

◆ GetPandora()

◆ GetSpacepoints()

◆ GetType()

◆ Initialize()

◆ ReadSettings()

◆ RegisterDetails()

◆ Reset()

◆ Run()

◆ SelectClusters()

◆ TidyUp()

Member Data Documentation

◆ m_chiSquaredCut

◆ m_enableCrossingCandidates

◆ m_enableEndpointCandidates

◆ m_extrapolationNSteps

◆ m_extrapolationStepSize

◆ m_inputClusterListNames

◆ m_inputVertexListName

◆ m_instanceName

◆ m_maxCrossingSeparationSquared

◆ m_maxCrossingXDiscrepancy

◆ m_maxEndpointXDiscrepancy

◆ m_minClusterCaloHits

◆ m_minClusterLengthSquared

◆ m_minNearbyCrossingDistanceSquared

◆ m_nClustersPassingMaxCutsPar

◆ m_nMaxCrossingCandidates

◆ m_outputVertexListName

◆ m_pPandora

◆ m_reducedCandidates

◆ m_replaceCurrentVertexList

◆ m_selectionCutFactorMax

◆ m_slidingFitResultMap

◆ m_slidingFitWindow

◆ m_type
