Public Member Functions | Protected Member Functions | Protected Attributes | Private Attributes | List of all members
lar_content::CustomParticleCreationAlgorithm Class Referenceabstract

CustomParticleCreationAlgorithm class. More...

#include "CustomParticleCreationAlgorithm.h"

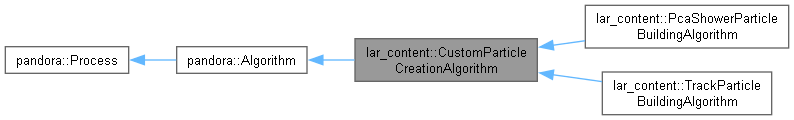

Inheritance diagram for lar_content::CustomParticleCreationAlgorithm:
Inheritance graph
[legend]

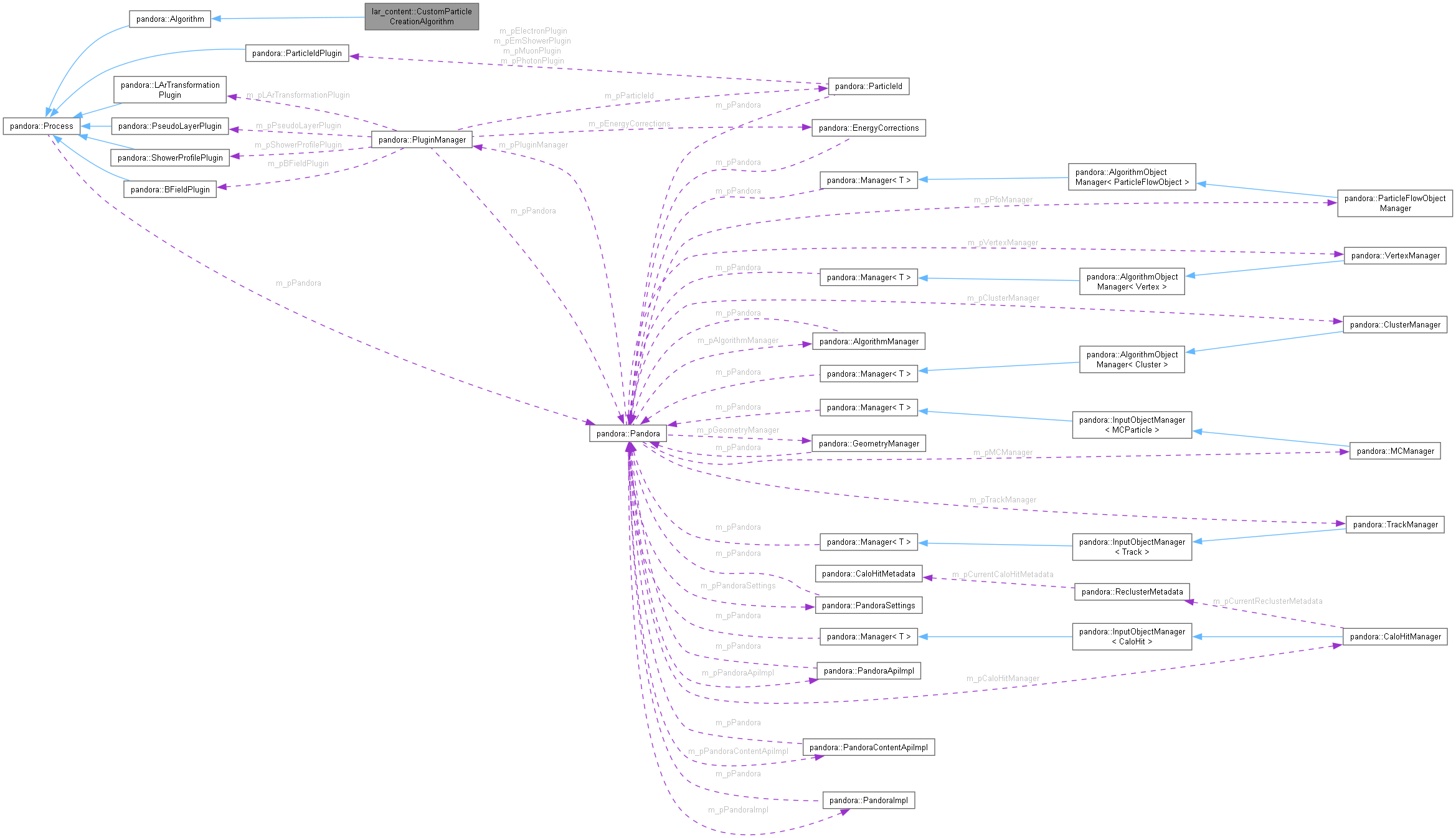

Collaboration diagram for lar_content::CustomParticleCreationAlgorithm:
Collaboration graph
[legend]

Public Member Functions

const std::string & GetType () const
 Get the type.

const std::string & GetInstanceName () const
 Get the instance name.

const Pandora & GetPandora () const
 Get the associated pandora instance.


Protected Member Functions

virtual pandora::StatusCode Run ()
 Run the algorithm.

virtual pandora::StatusCode ReadSettings (const pandora::TiXmlHandle xmlHandle)
 Read the algorithm settings.

virtual void CreatePfo (const pandora::ParticleFlowObject *const pInputPfo, const pandora::ParticleFlowObject *&pOutputPfo) const =0
 Create specialised Pfo from an generic input Pfo.

virtual StatusCode Initialize ()
 Perform any operations that must occur after reading settings, but before running the process.

virtual StatusCode Reset ()
 Perform any operations when pandora is reset, typically at the end of each event.

StatusCode RegisterDetails (const Pandora *const pPandora, const std::string &type, const std::string &instanceName)
 Register i) the pandora instance that will run the process and ii) the process type.


Protected Attributes

const Pandora * m_pPandora
 The pandora object that will run the process.

std::string m_type
 The process type.

std::string m_instanceName
 The process instance name.


Private Attributes

std::string m_pfoListName
 The name of the input pfo list.

std::string m_vertexListName
 The name of the input vertex list.


Detailed Description

CustomParticleCreationAlgorithm class.

Definition at line 19 of file CustomParticleCreationAlgorithm.h.

Member Function Documentation

◆ CreatePfo()

virtual void lar_content::CustomParticleCreationAlgorithm::CreatePfo ( const pandora::ParticleFlowObject *const  pInputPfo,
const pandora::ParticleFlowObject *&  pOutputPfo
) const
protectedpure virtual

Create specialised Pfo from an generic input Pfo.

Parameters
pInputPfothe address of the input Pfo
pOutputPfothe address of the output Pfo

Implemented in lar_content::PcaShowerParticleBuildingAlgorithm, and lar_content::TrackParticleBuildingAlgorithm.

Here is the caller graph for this function:

◆ GetInstanceName()

const std::string & pandora::Process::GetInstanceName ( ) const
inlineinherited

Get the instance name.

Returns
The instance name

Definition at line 109 of file Process.h.

◆ GetPandora()

const Pandora & pandora::Process::GetPandora ( ) const
inlineinherited

Get the associated pandora instance.

Returns
the associated pandora instance

Definition at line 116 of file Process.h.

◆ GetType()

const std::string & pandora::Process::GetType ( ) const
inlineinherited

Get the type.

Returns
The type

Definition at line 102 of file Process.h.

◆ Initialize()

StatusCode pandora::Process::Initialize ( )
inlineprotectedvirtualinherited

Perform any operations that must occur after reading settings, but before running the process.

Reimplemented in lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, EventReadingAlgorithm, and EventWritingAlgorithm.

Definition at line 126 of file Process.h.

Here is the caller graph for this function:

◆ ReadSettings()

StatusCode lar_content::CustomParticleCreationAlgorithm::ReadSettings ( const pandora::TiXmlHandle  xmlHandle)
protectedvirtual

Read the algorithm settings.

Parameters
xmlHandlethe relevant xml handle

Implements pandora::Process.

Reimplemented in lar_content::PcaShowerParticleBuildingAlgorithm, and lar_content::TrackParticleBuildingAlgorithm.

Definition at line 121 of file CustomParticleCreationAlgorithm.cc.

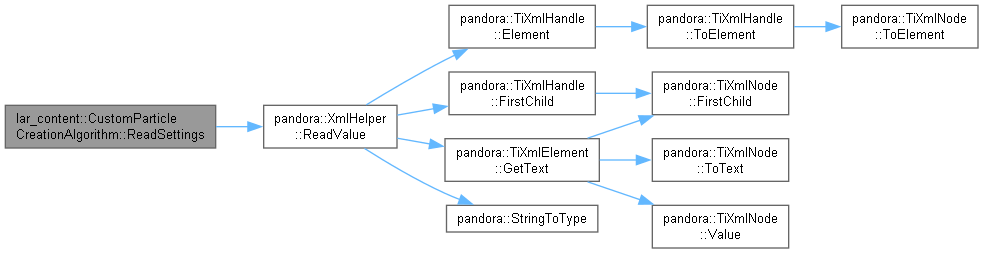

Here is the call graph for this function:

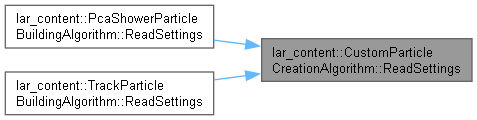

Here is the caller graph for this function:

◆ RegisterDetails()

StatusCode pandora::Process::RegisterDetails ( const Pandora *const  pPandora,
const std::string &  type,
const std::string &  instanceName
)
inlineprotectedinherited

Register i) the pandora instance that will run the process and ii) the process type.

Parameters
pPandoraaddress of the pandora object that will run the process
typethe process type
instanceNamethe process instance name

Definition at line 146 of file Process.h.

Here is the caller graph for this function:

◆ Reset()

StatusCode pandora::Process::Reset ( )
inlineprotectedvirtualinherited

Perform any operations when pandora is reset, typically at the end of each event.

Reimplemented in lar_content::MasterAlgorithm, lar_content::PostProcessingAlgorithm, and lar_content::PreProcessingAlgorithm.

Definition at line 133 of file Process.h.

Here is the caller graph for this function:

◆ Run()

StatusCode lar_content::CustomParticleCreationAlgorithm::Run ( )
protectedvirtual

Run the algorithm.

Implements pandora::Algorithm.

Definition at line 20 of file CustomParticleCreationAlgorithm.cc.

Here is the call graph for this function:

Member Data Documentation

◆ m_instanceName

std::string pandora::Process::m_instanceName
protectedinherited

The process instance name.

Definition at line 89 of file Process.h.

◆ m_pfoListName

std::string lar_content::CustomParticleCreationAlgorithm::m_pfoListName
private

The name of the input pfo list.

Definition at line 34 of file CustomParticleCreationAlgorithm.h.

◆ m_pPandora

const Pandora* pandora::Process::m_pPandora
protectedinherited

The pandora object that will run the process.

Definition at line 87 of file Process.h.

◆ m_type

std::string pandora::Process::m_type
protectedinherited

The process type.

Definition at line 88 of file Process.h.

◆ m_vertexListName

std::string lar_content::CustomParticleCreationAlgorithm::m_vertexListName
private

The name of the input vertex list.

Definition at line 35 of file CustomParticleCreationAlgorithm.h.

The documentation for this class was generated from the following files:
