#include "ShowerStartFinderTool.h"

Inheritance diagram for lar_content::ShowerStartFinderTool:

[legend]

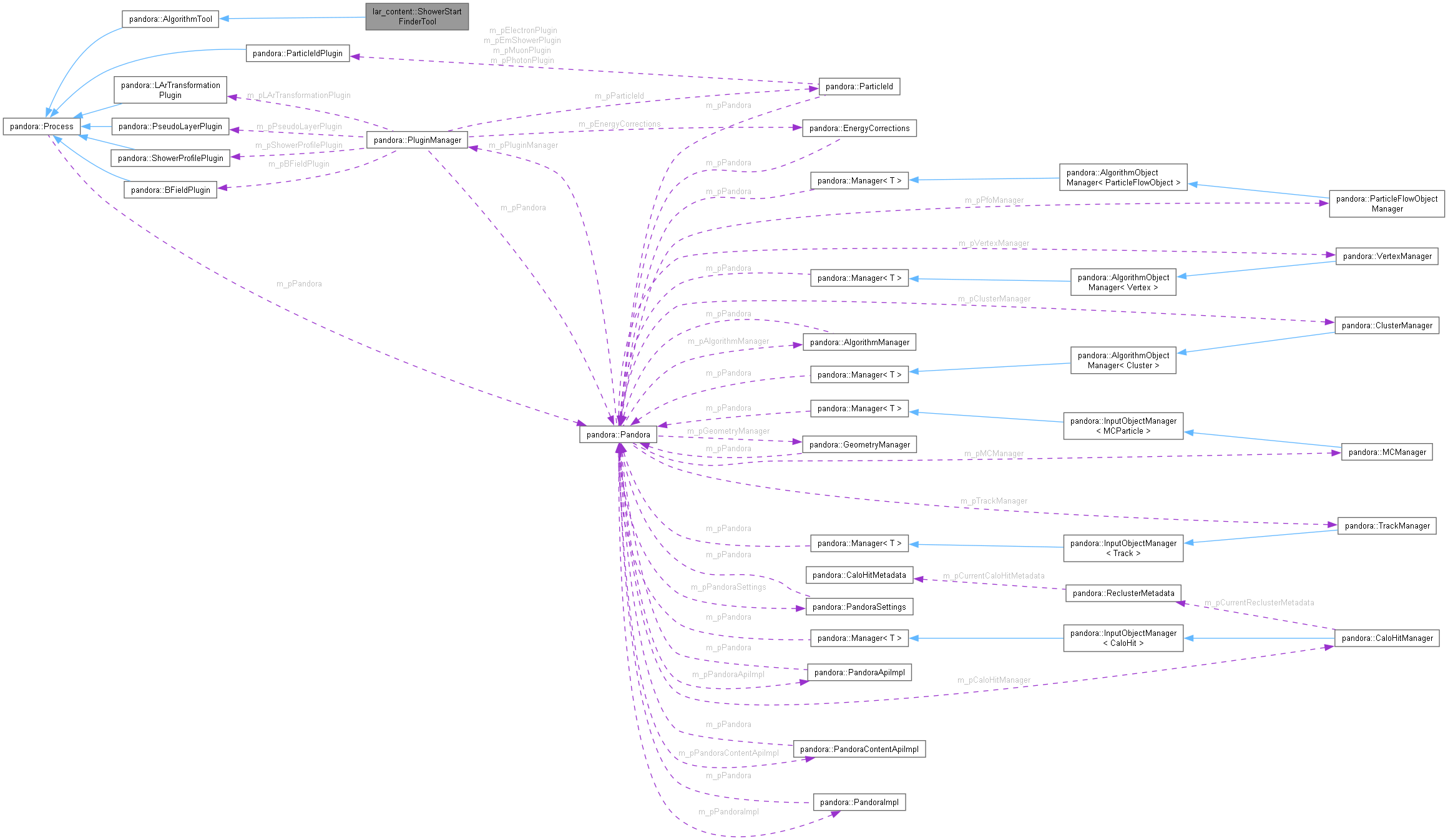

Collaboration diagram for lar_content::ShowerStartFinderTool:

[legend]

Public Member Functions
	ShowerStartFinderTool ()
	Default constructor.

pandora::StatusCode	Run (const pandora::ParticleFlowObject *const pShowerPfo, const pandora::CartesianVector &peakDirection, const pandora::HitType hitType, const pandora::CaloHitList &showerSpineHitList, pandora::CartesianVector &showerStartPosition, pandora::CartesianVector &showerStartDirection)

const std::string &	GetType () const
	Get the type.

const std::string &	GetInstanceName () const
	Get the instance name.

const Pandora &	GetPandora () const
	Get the associated pandora instance.

Protected Member Functions
virtual StatusCode	Initialize ()
	Perform any operations that must occur after reading settings, but before running the process.

virtual StatusCode	Reset ()
	Perform any operations when pandora is reset, typically at the end of each event.

StatusCode	RegisterDetails (const Pandora *const pPandora, const std::string &type, const std::string &instanceName)
	Register i) the pandora instance that will run the process and ii) the process type.

Protected Attributes
const Pandora *	m_pPandora
	The pandora object that will run the process.

std::string	m_type
	The process type.

std::string	m_instanceName
	The process instance name.

Private Types
typedef std::map< const pandora::CaloHit *, float >	LongitudinalPositionMap

typedef std::map< int, float >	EnergySpectrumMap

typedef std::map< int, pandora::CaloHitList >	LayerToHitMap

Private Member Functions
pandora::StatusCode	ReadSettings (const pandora::TiXmlHandle xmlHandle)
	Read the algorithm settings.

void	ObtainLongitudinalDecomposition (const TwoDSlidingFitResult &spineTwoDSlidingFit, const pandora::CaloHitList &showerSpineHitList, LongitudinalPositionMap &longitudinalPositionMap) const
	Create the [shower spine hit -> shower spine fit longitudinal projection] map.

void	GetEnergyDistribution (const pandora::CaloHitList &showerSpineHitList, const LongitudinalPositionMap &longitudinalPositionMap, EnergySpectrumMap &energySpectrumMap) const
	Create the longituidnal energy distribution.

void	FindShowerStartAndDirection (const pandora::ParticleFlowObject *const pShowerPfo, const pandora::HitType hitType, const TwoDSlidingFitResult &spineTwoDSlidingFit, const EnergySpectrumMap &energySpectrumMap, const pandora::CaloHitList &showerSpineHitList, const bool isEndDownstream, pandora::CartesianVector &showerStartPosition, pandora::CartesianVector &showerStartDirection) const
	Find the position at which the shower cascade looks to originate, and its initial direction.

template<typename T >
int	FindShowerStartLongitudinalCoordinate (const pandora::ParticleFlowObject *const pShowerPfo, const pandora::HitType hitType, const TwoDSlidingFitResult &spineTwoDSlidingFit, const EnergySpectrumMap &energySpectrumMap, const pandora::CaloHitList &showerSpineHitList, const bool isEndDownstream, const T startIter, const T endIter) const
	Find the longitudinal bin which corresponds to the start position of the shower cascade.

void	CharacteriseInitialEnergy (const EnergySpectrumMap &energySpectrumMap, const bool isEndDownstream, float &meanEnergy, float &energySigma) const
	Find the mean and standard deviation of the energy depositions in the initial region.

bool	IsShowerTopology (const pandora::ParticleFlowObject *const pShowerPfo, const pandora::HitType hitType, const TwoDSlidingFitResult &spineTwoDSlidingFit, const float longitudinalDistance, const pandora::CaloHitList &showerSpineHitList, const bool isEndDownstream) const
	Whether a sensible shower cascade looks to originate at a given position.

void	ConvertLongitudinalProjectionToGlobal (const TwoDSlidingFitResult &spineTwoDSlidingFit, const float longitudinalDistance, pandora::CartesianVector &globalPosition, pandora::CartesianVector &globalDirection) const
	Determine the (X,Y,Z) position and direction at a given longitudinal distance along the spine.

pandora::StatusCode	BuildShowerRegion (const pandora::ParticleFlowObject *const pShowerPfo, const pandora::HitType hitType, const pandora::CaloHitList &showerSpineHitList, const pandora::CartesianVector &showerStartPosition, const pandora::CartesianVector &showerStartDirection, const bool isEndDownstream, pandora::CartesianPointVector &showerRegionPositionVector) const
	Build the downstream 'shower region' at a given longitudinal distance along the spine.

pandora::StatusCode	CharacteriseShowerTopology (const pandora::CartesianPointVector &showerRegionPositionVector, const pandora::CartesianVector &showerStartPosition, const pandora::HitType hitType, const bool isEndDownstream, const pandora::CartesianVector &showerStartDirection, pandora::CartesianVector &positiveEdgeStart, pandora::CartesianVector &positiveEdgeEnd, pandora::CartesianVector &negativeEdgeStart, pandora::CartesianVector &negativeEdgeEnd, bool &isBetween) const
	Parameterise the topological structure of the shower region.

bool	IsClockwiseRotation (const pandora::CartesianVector &showerStartDirection, const pandora::CartesianVector &displacementVector) const
	Determine whether a point lies on the RHS or LHS (wrt +ve Z) of the shower core.

pandora::StatusCode	GetBoundaryExtremalPoints (const TwoDSlidingShowerFitResult &showerTwoDSlidingFit, const LayerFitResultMap &layerFitResultMap, const pandora::CartesianVector &showerStartPosition, const int showerStartLayer, const int showerEndLayer, pandora::CartesianVector &boundaryEdgeStart, pandora::CartesianVector &boundaryEdgeEnd) const
	Determine the start and end positions of a shower boundary.

Private Attributes
unsigned int	m_spineSlidingFitWindow
	The sliding window used to fit the shower spine.

float	m_longitudinalCoordinateBinSize
	The longitudinal coordinate bin size.

unsigned int	m_nInitialEnergyBins
	The number of longitudinal bins that define the initial region.

float	m_minSigmaDeviation
	The min. average energy deviation of a candidate shower start.

float	m_maxEdgeGap
	The max. allowed layer gap in a shower boundary.

float	m_longitudinalShowerFraction
	The shower region fraction considered.

float	m_minShowerOpeningAngle
	The min. opening angle of a sensible shower.

float	m_molliereRadius
	The max. distance from the shower core of a collected shower region hit.

unsigned int	m_showerSlidingFitWindow
	The sliding window used to fit the shower region.

int	m_maxLayerSeparation
	The max. allowed separation between the shower start and boundary start layers.

Detailed Description

Definition at line 20 of file ShowerStartFinderTool.h.

Member Typedef Documentation

◆ EnergySpectrumMap

typedef std::map<int, float> lar_content::ShowerStartFinderTool::EnergySpectrumMap

private

Definition at line 34 of file ShowerStartFinderTool.h.

◆ LayerToHitMap

typedef std::map<int, pandora::CaloHitList> lar_content::ShowerStartFinderTool::LayerToHitMap

private

Definition at line 35 of file ShowerStartFinderTool.h.

◆ LongitudinalPositionMap

typedef std::map<const pandora::CaloHit *, float> lar_content::ShowerStartFinderTool::LongitudinalPositionMap

private

Definition at line 33 of file ShowerStartFinderTool.h.

Constructor & Destructor Documentation

◆ ShowerStartFinderTool()

lar_content::ShowerStartFinderTool::ShowerStartFinderTool ( )

Default constructor.

Definition at line 26 of file ShowerStartFinderTool.cc.

Member Function Documentation

◆ BuildShowerRegion()

StatusCode lar_content::ShowerStartFinderTool::BuildShowerRegion	(	const pandora::ParticleFlowObject *const	pShowerPfo,
		const pandora::HitType	hitType,
		const pandora::CaloHitList &	showerSpineHitList,
		const pandora::CartesianVector &	showerStartPosition,
		const pandora::CartesianVector &	showerStartDirection,
		const bool	isEndDownstream,
		pandora::CartesianPointVector &	showerRegionPositionVector
	)		const

private

Build the downstream 'shower region' at a given longitudinal distance along the spine.

Parameters

pShowerPfo	the shower pfo
hitType	the 2D view
showerSpineHitList	the shower spine hit list
showerStartPosition	the candidate shower start position
showerStartDirection	the candidate shower start direction
isEndDownstream	whether the shower direction is downstream (in Z) of the neutrino vertex
showerRegionPositionVector	the ouput vector of shower region hit positions

Returns: whether the 'shower region finder' mechanics could proceed

Definition at line 347 of file ShowerStartFinderTool.cc.

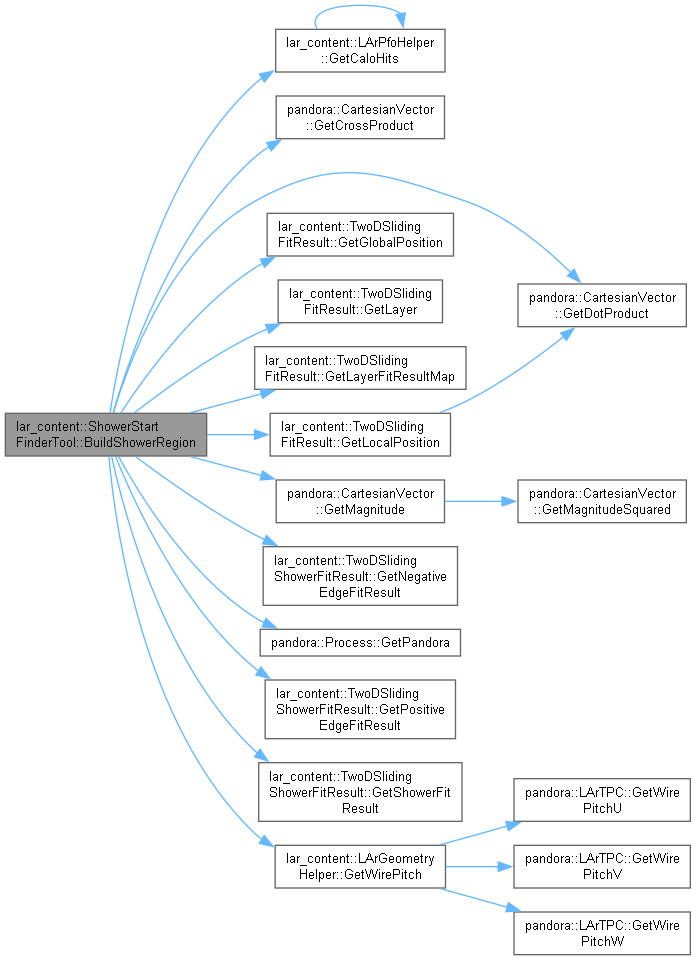

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CharacteriseInitialEnergy()

void lar_content::ShowerStartFinderTool::CharacteriseInitialEnergy	(	const EnergySpectrumMap &	energySpectrumMap,
		const bool	isEndDownstream,
		float &	meanEnergy,
		float &	energySigma
	)		const

private

Find the mean and standard deviation of the energy depositions in the initial region.

Parameters

energySpectrumMap	the [longitudial projection bin -> contained energy] map
isEndDownstream	whether the shower direction is downstream (in Z) of the neutrino vertex
meanEnergy	the output mean energy
energySigma	the output standard deviation

Definition at line 243 of file ShowerStartFinderTool.cc.

Here is the caller graph for this function:

◆ CharacteriseShowerTopology()

StatusCode lar_content::ShowerStartFinderTool::CharacteriseShowerTopology	(	const pandora::CartesianPointVector &	showerRegionPositionVector,
		const pandora::CartesianVector &	showerStartPosition,
		const pandora::HitType	hitType,
		const bool	isEndDownstream,
		const pandora::CartesianVector &	showerStartDirection,
		pandora::CartesianVector &	positiveEdgeStart,
		pandora::CartesianVector &	positiveEdgeEnd,
		pandora::CartesianVector &	negativeEdgeStart,
		pandora::CartesianVector &	negativeEdgeEnd,
		bool &	isBetween
	)		const

private

Parameterise the topological structure of the shower region.

Parameters

showerRegionPositionVector	the vector of shower region hit positions
showerStartPosition	the shower start position
hitType	the 2D view
isEndDownstream	whether the shower direction is downstream (in Z) of the neutrino vertex
showerStartDirection	the shower start direction
positiveEdgeStart	the start position of one shower boundary
positiveEdgeEnd	the end position of one shower boundary
negativeEdgeStart	the start position of the other shower boundary
negativeEdgeEnd	the end position of the other shower boundary
isBetween	if the shower core is between either the start or end boundary positions

Returns: whether the 'shower characterisation' mechanics could proceed

Definition at line 492 of file ShowerStartFinderTool.cc.

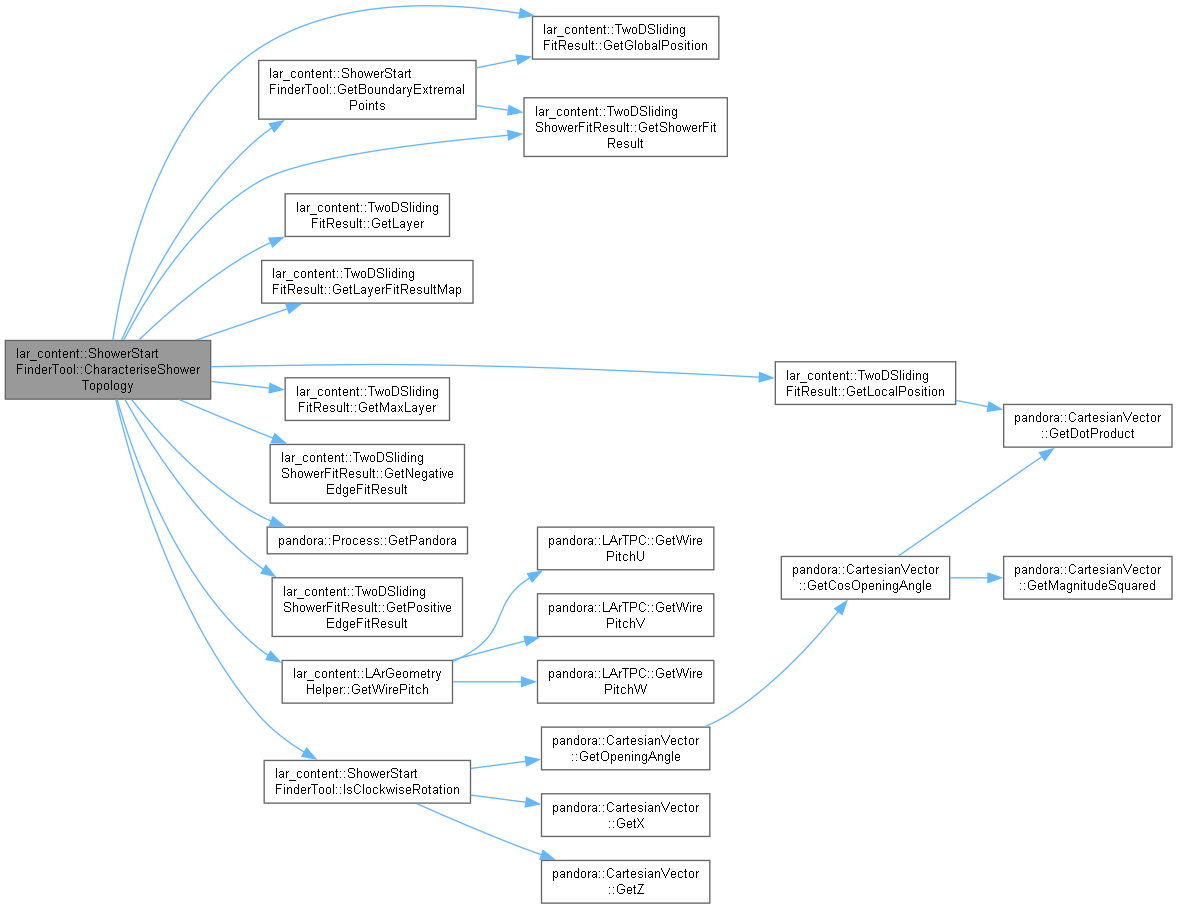

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ConvertLongitudinalProjectionToGlobal()

void lar_content::ShowerStartFinderTool::ConvertLongitudinalProjectionToGlobal	(	const TwoDSlidingFitResult &	spineTwoDSlidingFit,
		const float	longitudinalDistance,
		pandora::CartesianVector &	globalPosition,
		pandora::CartesianVector &	globalDirection
	)		const

private

Determine the (X,Y,Z) position and direction at a given longitudinal distance along the spine.

Parameters

spineTwoDSlidingFit	the shower spine fit
longitudinalDistance	the input longitudinal distance
globalPosition	the output (X,Y,Z) position
globalDirection	the output (X,Y,Z) direction

Definition at line 312 of file ShowerStartFinderTool.cc.

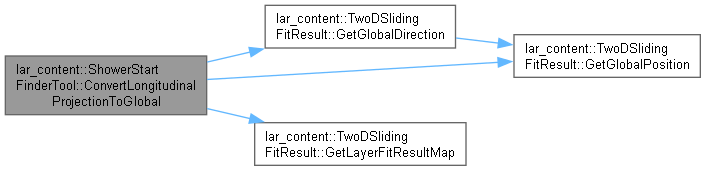

Here is the call graph for this function:

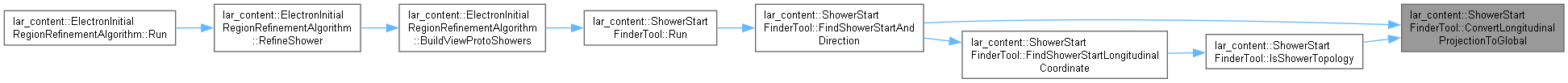

Here is the caller graph for this function:

◆ FindShowerStartAndDirection()

void lar_content::ShowerStartFinderTool::FindShowerStartAndDirection	(	const pandora::ParticleFlowObject *const	pShowerPfo,
		const pandora::HitType	hitType,
		const TwoDSlidingFitResult &	spineTwoDSlidingFit,
		const EnergySpectrumMap &	energySpectrumMap,
		const pandora::CaloHitList &	showerSpineHitList,
		const bool	isEndDownstream,
		pandora::CartesianVector &	showerStartPosition,
		pandora::CartesianVector &	showerStartDirection
	)		const

private

Find the position at which the shower cascade looks to originate, and its initial direction.

Parameters

pShowerPfo	the shower pfo
hitType	the 2D view
spineTwoDSlidingFit	the shower spine fit
energySpectrumMap	the [longitudial projection bin -> contained energy] map
showerSpineHitList	the shower spine hit list
isEndDownstream	whether the shower direction is downstream (in Z) of the neutrino vertex
showerStartPosition	the position at which the shower cascade looks to originate
showerStartDirection	the initial direction of the shower cascade

Definition at line 182 of file ShowerStartFinderTool.cc.

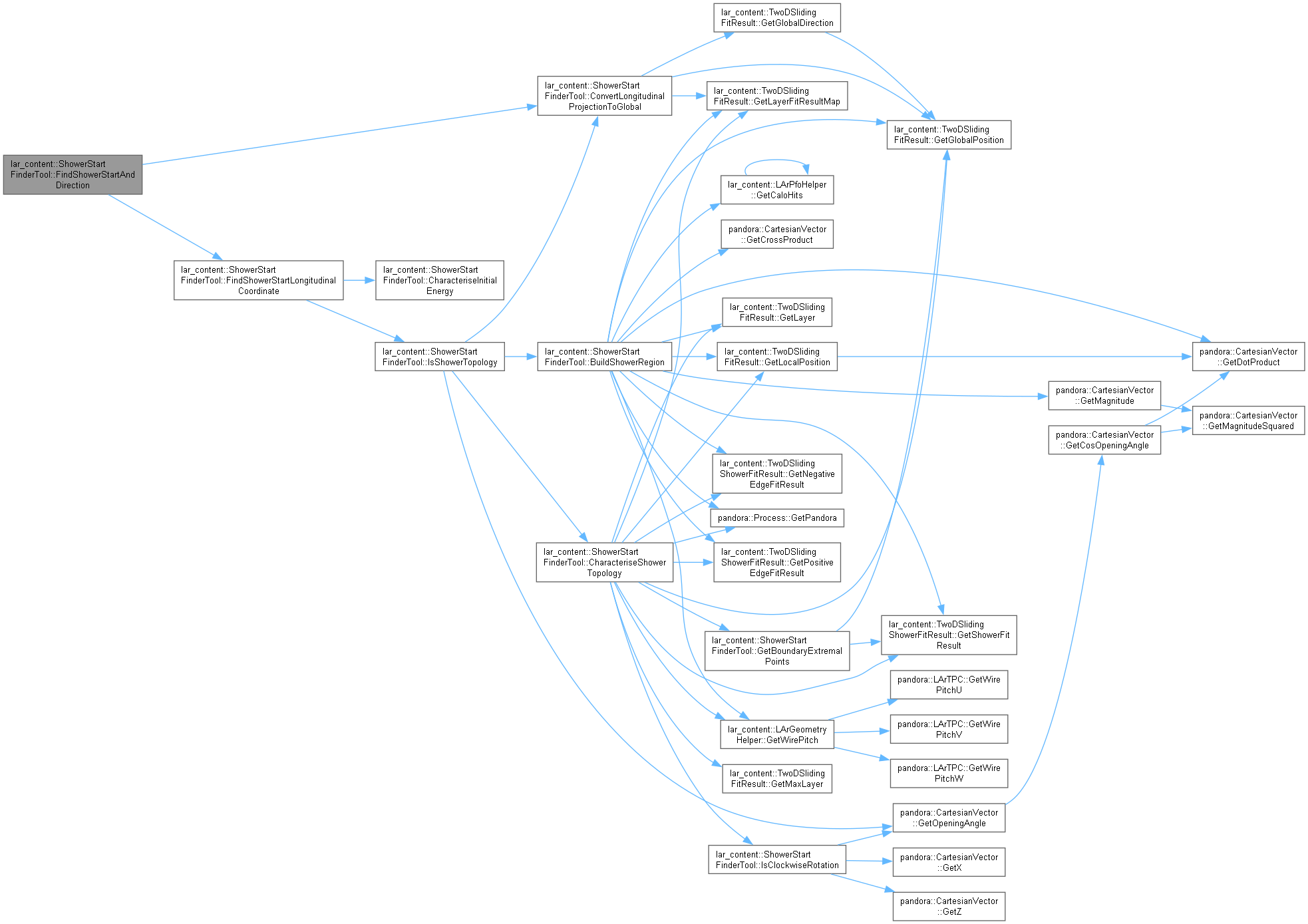

Here is the call graph for this function:

Here is the caller graph for this function:

◆ FindShowerStartLongitudinalCoordinate()

template<typename T >

int lar_content::ShowerStartFinderTool::FindShowerStartLongitudinalCoordinate	(	const pandora::ParticleFlowObject *const	pShowerPfo,
		const pandora::HitType	hitType,
		const TwoDSlidingFitResult &	spineTwoDSlidingFit,
		const EnergySpectrumMap &	energySpectrumMap,
		const pandora::CaloHitList &	showerSpineHitList,
		const bool	isEndDownstream,
		const T	startIter,
		const T	endIter
	)		const

private

Find the longitudinal bin which corresponds to the start position of the shower cascade.

Parameters

pShowerPfo	the shower pfo
hitType	the 2D view
spineTwoDSlidingFit	the shower spine fit
energySpectrumMap	the [longitudial projection bin -> contained energy] map
showerSpineHitList	the shower spine hit list
isEndDownstream	whether the shower direction is downstream (in Z) of the neutrino vertex
startIter	the start iterator of energySpectrumMap
endIter	the end iterator of energySpectrumMap

Definition at line 210 of file ShowerStartFinderTool.cc.

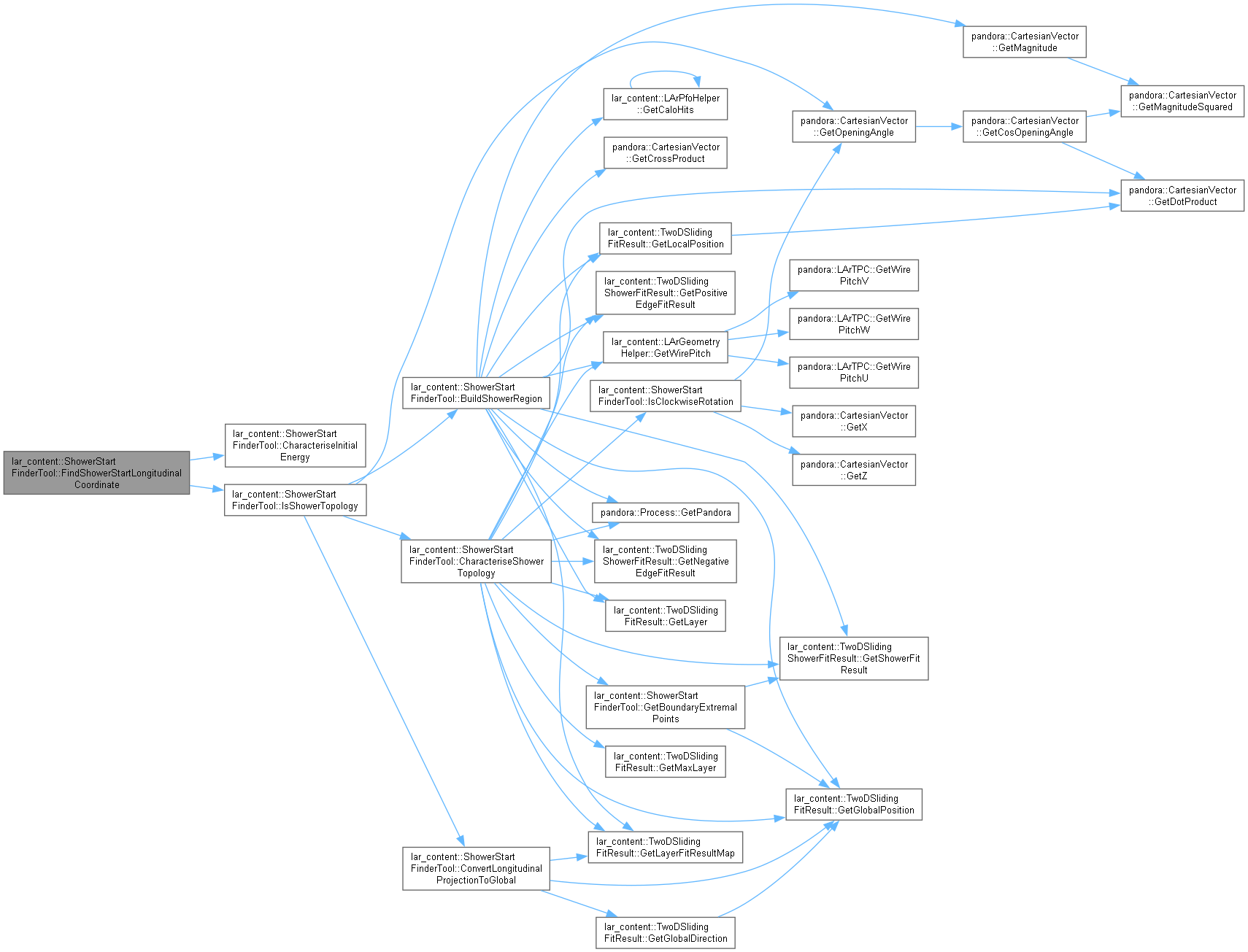

Here is the call graph for this function:

Here is the caller graph for this function:

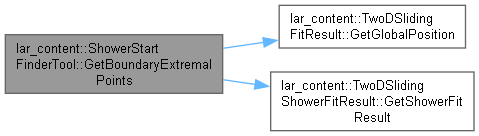

◆ GetBoundaryExtremalPoints()

StatusCode lar_content::ShowerStartFinderTool::GetBoundaryExtremalPoints	(	const TwoDSlidingShowerFitResult &	showerTwoDSlidingFit,
		const LayerFitResultMap &	layerFitResultMap,
		const pandora::CartesianVector &	showerStartPosition,
		const int	showerStartLayer,
		const int	showerEndLayer,
		pandora::CartesianVector &	boundaryEdgeStart,
		pandora::CartesianVector &	boundaryEdgeEnd
	)		const

private

Determine the start and end positions of a shower boundary.

Parameters

showerTwoDSlidingFit	the shower fit
layerFitResultMap	the layer fit result map of the shower boundary fit
showerStartPosition	the shower start position
showerStartLayer	the shower start layer wrt the shower region fit
showerEndLayer	the shower end layer wrt the shower region fit
boundaryEdgeStart	the output boundary start position
boundaryEdgeEnd	the output boundary end position

Returns: whether suitable positions could be found

Definition at line 606 of file ShowerStartFinderTool.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetEnergyDistribution()

void lar_content::ShowerStartFinderTool::GetEnergyDistribution	(	const pandora::CaloHitList &	showerSpineHitList,
		const LongitudinalPositionMap &	longitudinalPositionMap,
		EnergySpectrumMap &	energySpectrumMap
	)		const

private

Create the longituidnal energy distribution.

Parameters

showerSpineHitList	the shower spine hit list
longitudinalPositionMap	the shower spine longitudinal projection map
energySpectrumMap	the output [longitudial projection bin -> contained energy] map

Definition at line 159 of file ShowerStartFinderTool.cc.

Here is the caller graph for this function:

◆ GetInstanceName()

const std::string & pandora::Process::GetInstanceName ( ) const

inlineinherited

Get the instance name.

Returns: The instance name

Definition at line 109 of file Process.h.

◆ GetPandora()

const Pandora & pandora::Process::GetPandora ( ) const

inlineinherited

Get the associated pandora instance.

Returns: the associated pandora instance

Definition at line 116 of file Process.h.

◆ GetType()

const std::string & pandora::Process::GetType ( ) const

inlineinherited

Get the type.

Returns: The type

Definition at line 102 of file Process.h.

◆ Initialize()

StatusCode pandora::Process::Initialize ( )

inlineprotectedvirtualinherited

Perform any operations that must occur after reading settings, but before running the process.

Reimplemented in lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, EventReadingAlgorithm, and EventWritingAlgorithm.

Definition at line 126 of file Process.h.

Here is the caller graph for this function:

◆ IsClockwiseRotation()

bool lar_content::ShowerStartFinderTool::IsClockwiseRotation	(	const pandora::CartesianVector &	showerStartDirection,
		const pandora::CartesianVector &	displacementVector
	)		const

private

Determine whether a point lies on the RHS or LHS (wrt +ve Z) of the shower core.

Parameters

showerStartDirection	the shower start direction
displacementVector	the input position wrt the shower start position

Returns: whether a point lies on the RHS or LHS (wrt +ve Z) of the shower core

Definition at line 584 of file ShowerStartFinderTool.cc.

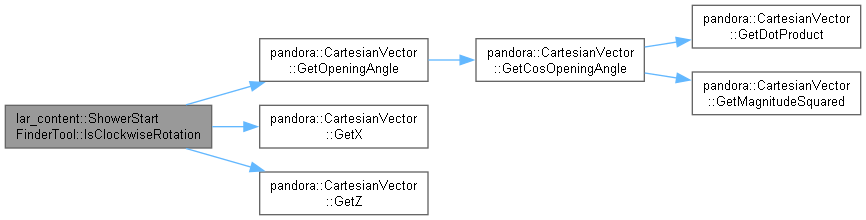

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsShowerTopology()

bool lar_content::ShowerStartFinderTool::IsShowerTopology	(	const pandora::ParticleFlowObject *const	pShowerPfo,
		const pandora::HitType	hitType,
		const TwoDSlidingFitResult &	spineTwoDSlidingFit,
		const float	longitudinalDistance,
		const pandora::CaloHitList &	showerSpineHitList,
		const bool	isEndDownstream
	)		const

private

Whether a sensible shower cascade looks to originate at a given position.

Parameters

pShowerPfo	the shower pfo
hitType	the 2D view
spineTwoDSlidingFit	the shower spine fit
longitudinalDistance	the longitudinal projection of the candidate shower start position
showerSpineHitList	the shower spine hit list
isEndDownstream	whether the shower direction is downstream (in Z) of the neutrino vertex

Returns: whether a sensible shower cascade looks to originate at the given position

Definition at line 269 of file ShowerStartFinderTool.cc.

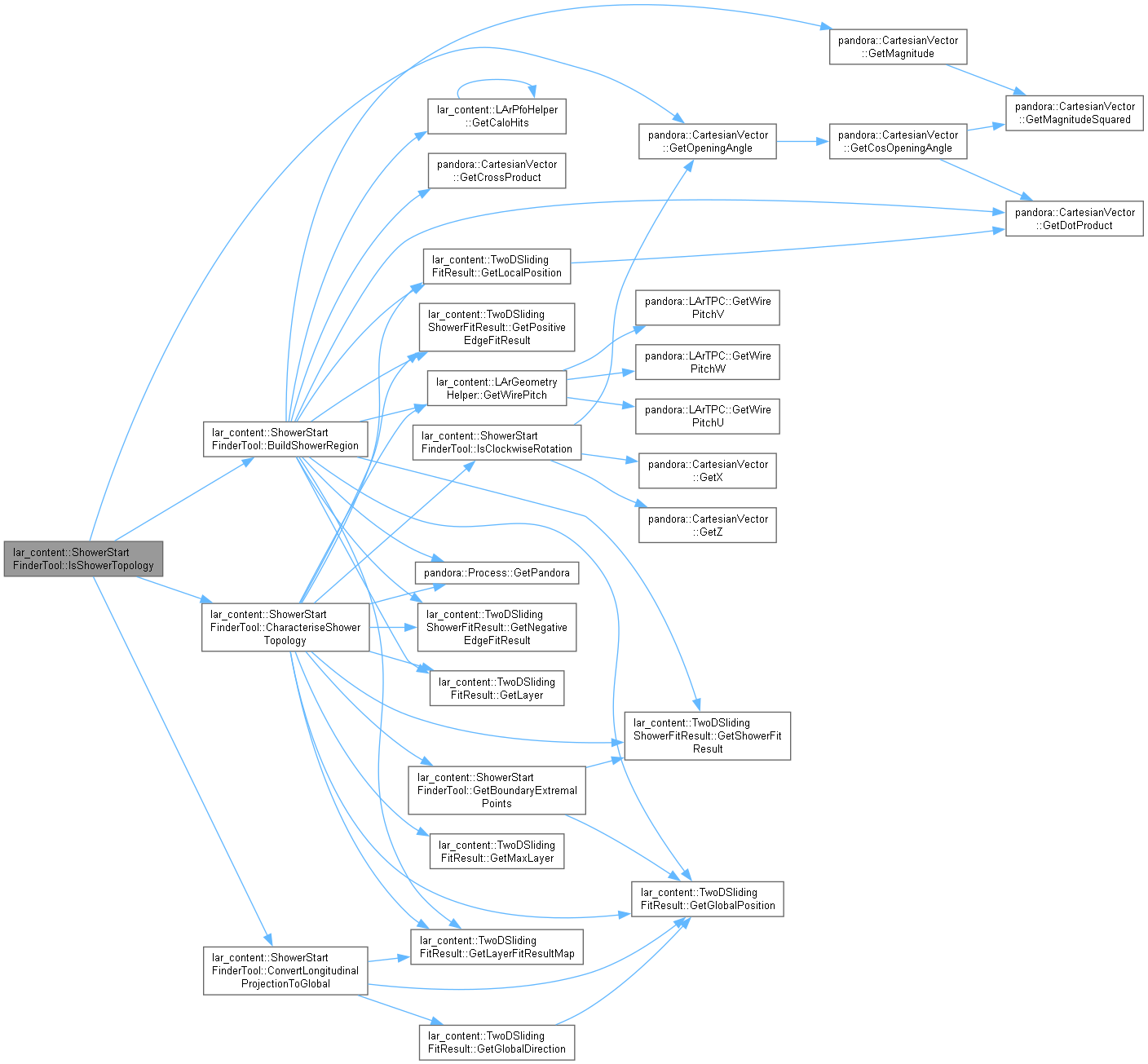

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ObtainLongitudinalDecomposition()

void lar_content::ShowerStartFinderTool::ObtainLongitudinalDecomposition	(	const TwoDSlidingFitResult &	spineTwoDSlidingFit,
		const pandora::CaloHitList &	showerSpineHitList,
		LongitudinalPositionMap &	longitudinalPositionMap
	)		const

private

Create the [shower spine hit -> shower spine fit longitudinal projection] map.

Parameters

spineTwoDSlidingFit	the shower spine fit
showerSpineHitList	the shower spine hit list
longitudinalPositionMap	the output shower spine longitudinal projection map

Definition at line 79 of file ShowerStartFinderTool.cc.

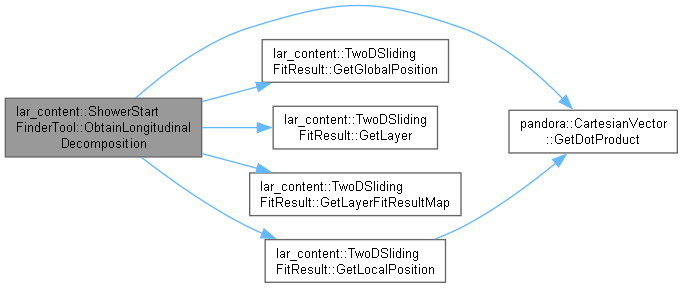

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReadSettings()

StatusCode lar_content::ShowerStartFinderTool::ReadSettings ( const pandora::TiXmlHandle xmlHandle )

privatevirtual

Read the algorithm settings.

Parameters

xmlHandle the relevant xml handle

Implements pandora::Process.

Definition at line 653 of file ShowerStartFinderTool.cc.

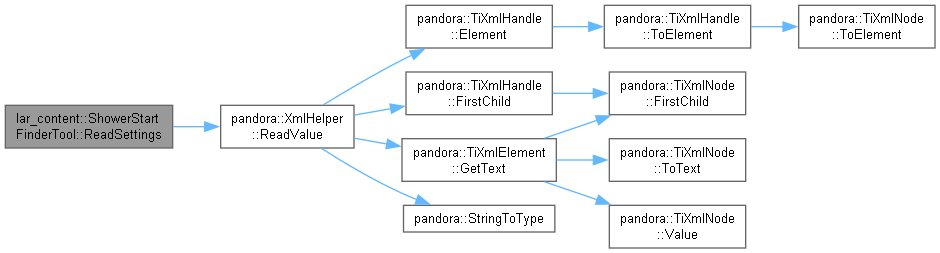

Here is the call graph for this function:

◆ RegisterDetails()

StatusCode pandora::Process::RegisterDetails	(	const Pandora *const	pPandora,
		const std::string &	type,
		const std::string &	instanceName
	)

inlineprotectedinherited

Register i) the pandora instance that will run the process and ii) the process type.

Parameters

pPandora	address of the pandora object that will run the process
type	the process type
instanceName	the process instance name

Definition at line 146 of file Process.h.

Here is the caller graph for this function:

◆ Reset()

StatusCode pandora::Process::Reset ( )

inlineprotectedvirtualinherited

Perform any operations when pandora is reset, typically at the end of each event.

Reimplemented in lar_content::MasterAlgorithm, lar_content::PostProcessingAlgorithm, and lar_content::PreProcessingAlgorithm.

Definition at line 133 of file Process.h.

Here is the caller graph for this function:

◆ Run()

StatusCode lar_content::ShowerStartFinderTool::Run	(	const pandora::ParticleFlowObject *const	pShowerPfo,
		const pandora::CartesianVector &	peakDirection,
		const pandora::HitType	hitType,
		const pandora::CaloHitList &	showerSpineHitList,
		pandora::CartesianVector &	showerStartPosition,
		pandora::CartesianVector &	showerStartDirection
	)

Definition at line 42 of file ShowerStartFinderTool.cc.

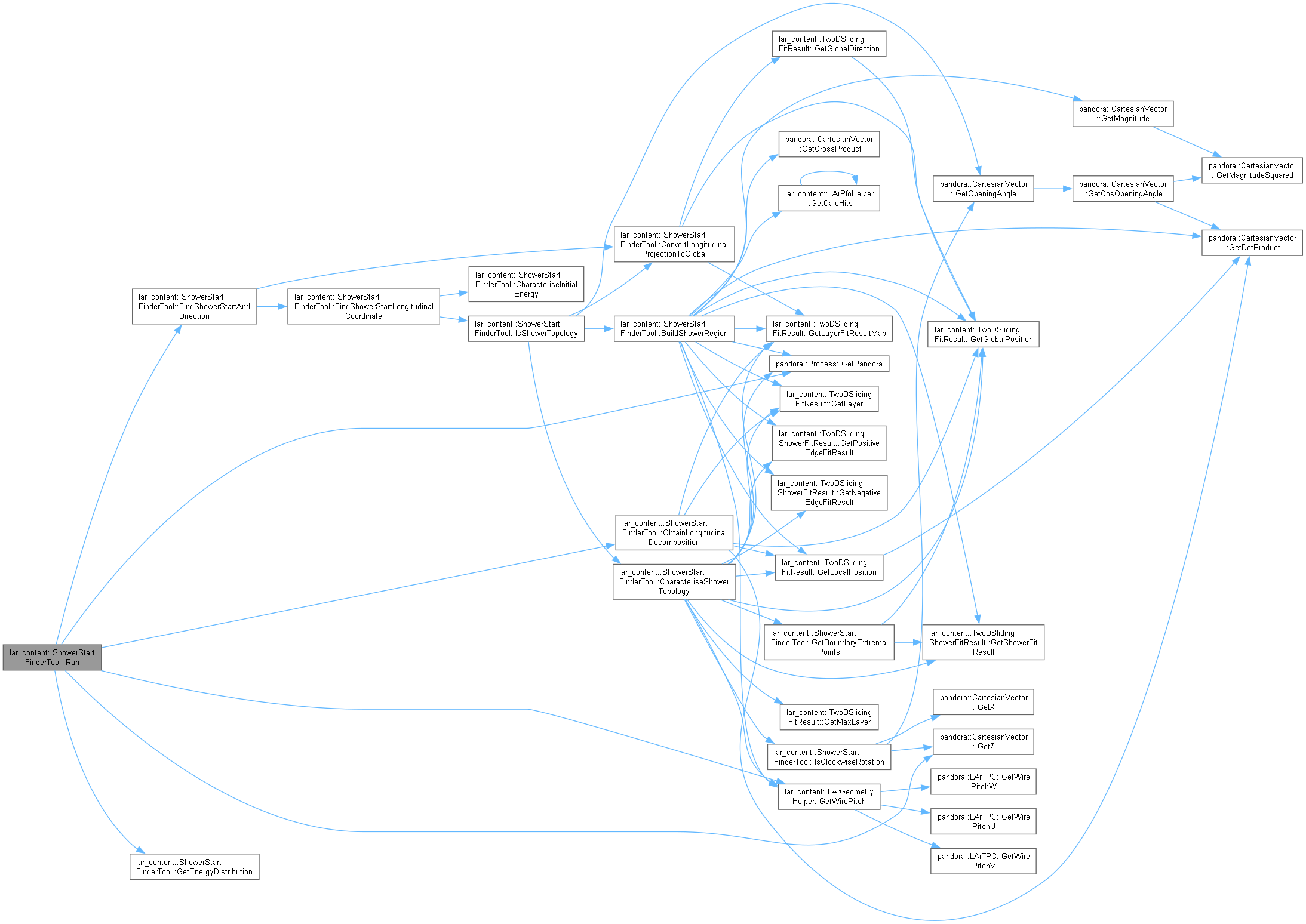

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_instanceName

std::string pandora::Process::m_instanceName

protectedinherited

The process instance name.

Definition at line 89 of file Process.h.

◆ m_longitudinalCoordinateBinSize

float lar_content::ShowerStartFinderTool::m_longitudinalCoordinateBinSize

private

The longitudinal coordinate bin size.

Definition at line 195 of file ShowerStartFinderTool.h.

◆ m_longitudinalShowerFraction

float lar_content::ShowerStartFinderTool::m_longitudinalShowerFraction

private

The shower region fraction considered.

Definition at line 199 of file ShowerStartFinderTool.h.

◆ m_maxEdgeGap

float lar_content::ShowerStartFinderTool::m_maxEdgeGap

private

The max. allowed layer gap in a shower boundary.

Definition at line 198 of file ShowerStartFinderTool.h.

◆ m_maxLayerSeparation

int lar_content::ShowerStartFinderTool::m_maxLayerSeparation

private

The max. allowed separation between the shower start and boundary start layers.

Definition at line 203 of file ShowerStartFinderTool.h.

◆ m_minShowerOpeningAngle

float lar_content::ShowerStartFinderTool::m_minShowerOpeningAngle

private

The min. opening angle of a sensible shower.

Definition at line 200 of file ShowerStartFinderTool.h.

◆ m_minSigmaDeviation

float lar_content::ShowerStartFinderTool::m_minSigmaDeviation

private

The min. average energy deviation of a candidate shower start.

Definition at line 197 of file ShowerStartFinderTool.h.

◆ m_molliereRadius

float lar_content::ShowerStartFinderTool::m_molliereRadius

private

The max. distance from the shower core of a collected shower region hit.

Definition at line 201 of file ShowerStartFinderTool.h.

◆ m_nInitialEnergyBins

unsigned int lar_content::ShowerStartFinderTool::m_nInitialEnergyBins

private

The number of longitudinal bins that define the initial region.

Definition at line 196 of file ShowerStartFinderTool.h.

◆ m_pPandora

const Pandora* pandora::Process::m_pPandora

protectedinherited

The pandora object that will run the process.

Definition at line 87 of file Process.h.

◆ m_showerSlidingFitWindow

unsigned int lar_content::ShowerStartFinderTool::m_showerSlidingFitWindow

private

The sliding window used to fit the shower region.

Definition at line 202 of file ShowerStartFinderTool.h.

◆ m_spineSlidingFitWindow

unsigned int lar_content::ShowerStartFinderTool::m_spineSlidingFitWindow

private

The sliding window used to fit the shower spine.

Definition at line 194 of file ShowerStartFinderTool.h.

◆ m_type

std::string pandora::Process::m_type

protectedinherited

The process type.

Definition at line 88 of file Process.h.

The documentation for this class was generated from the following files:

LArContent/larpandoracontent/LArShowerRefinement/ShowerStartFinderTool.h
LArContent/larpandoracontent/LArShowerRefinement/ShowerStartFinderTool.cc

Public Member Functions

Protected Member Functions

Protected Attributes

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ EnergySpectrumMap

◆ LayerToHitMap

◆ LongitudinalPositionMap

Constructor & Destructor Documentation

◆ ShowerStartFinderTool()

Member Function Documentation

◆ BuildShowerRegion()

◆ CharacteriseInitialEnergy()

◆ CharacteriseShowerTopology()

◆ ConvertLongitudinalProjectionToGlobal()

◆ FindShowerStartAndDirection()

◆ FindShowerStartLongitudinalCoordinate()

◆ GetBoundaryExtremalPoints()

◆ GetEnergyDistribution()

◆ GetInstanceName()

◆ GetPandora()

◆ GetType()

◆ Initialize()

◆ IsClockwiseRotation()

◆ IsShowerTopology()

◆ ObtainLongitudinalDecomposition()

◆ ReadSettings()

◆ RegisterDetails()

◆ Reset()

◆ Run()

Member Data Documentation

◆ m_instanceName

◆ m_longitudinalCoordinateBinSize

◆ m_longitudinalShowerFraction

◆ m_maxEdgeGap

◆ m_maxLayerSeparation

◆ m_minShowerOpeningAngle

◆ m_minSigmaDeviation

◆ m_molliereRadius

◆ m_nInitialEnergyBins

◆ m_pPandora

◆ m_showerSlidingFitWindow

◆ m_spineSlidingFitWindow

◆ m_type
