DeepLearningTrackShowerIdAlgorithm class. More...

#include "DlVertexingAlgorithm.h"

Inheritance diagram for lar_dl_content::DlVertexingAlgorithm:

[legend]

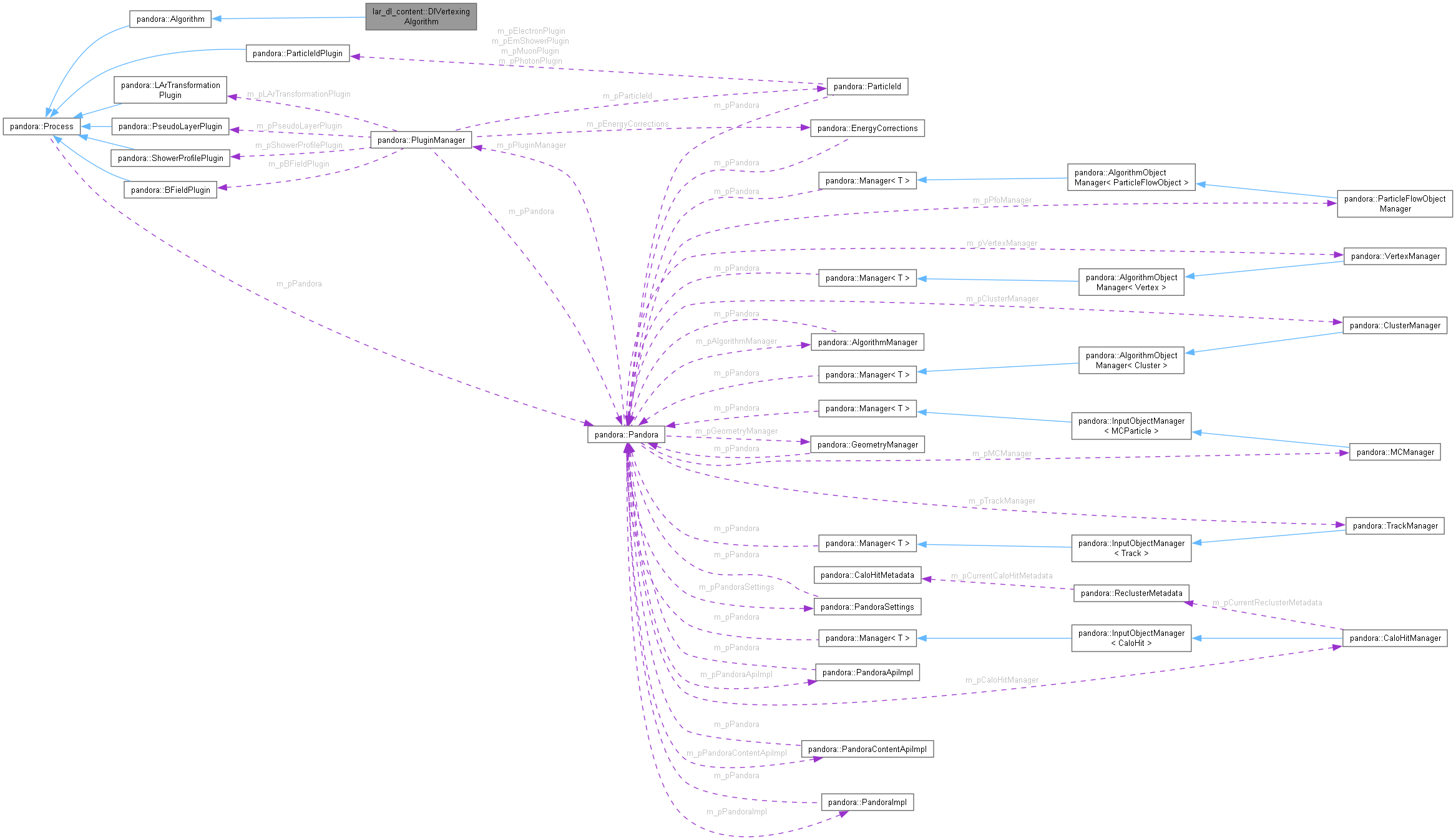

Collaboration diagram for lar_dl_content::DlVertexingAlgorithm:

[legend]

Classes
class	VertexTuple

Public Types
typedef std::map< std::pair< int, int >, std::vector< const pandora::CaloHit * > >	PixelToCaloHitsMap

Public Member Functions
	DlVertexingAlgorithm ()
	Default constructor.

virtual	~DlVertexingAlgorithm ()

const std::string &	GetType () const
	Get the type.

const std::string &	GetInstanceName () const
	Get the instance name.

const Pandora &	GetPandora () const
	Get the associated pandora instance.

Protected Member Functions
virtual StatusCode	Initialize ()
	Perform any operations that must occur after reading settings, but before running the process.

virtual StatusCode	Reset ()
	Perform any operations when pandora is reset, typically at the end of each event.

StatusCode	RegisterDetails (const Pandora *const pPandora, const std::string &type, const std::string &instanceName)
	Register i) the pandora instance that will run the process and ii) the process type.

Protected Attributes
const Pandora *	m_pPandora
	The pandora object that will run the process.

std::string	m_type
	The process type.

std::string	m_instanceName
	The process instance name.

Private Types
typedef std::pair< int, int >	Pixel

typedef std::vector< Pixel >	PixelVector

Private Member Functions
pandora::StatusCode	Run ()
	Run the algorithm.

pandora::StatusCode	ReadSettings (const pandora::TiXmlHandle xmlHandle)
	Read the algorithm settings.

pandora::StatusCode	PrepareTrainingSample ()

pandora::StatusCode	Infer ()

pandora::StatusCode	MakeNetworkInputFromHits (const pandora::CaloHitList &caloHits, const pandora::HitType view, const float xMin, const float xMax, const float zMin, const float zMax, LArDLHelper::TorchInput &networkInput, PixelVector &pixelVector) const

pandora::StatusCode	MakeWirePlaneCoordinatesFromCanvas (float **canvas, const int canvasWidth, const int canvasHeight, const int columnOffset, const int rowOffset, const pandora::HitType view, const float xMin, const float xMax, const float zMin, const float zMax, pandora::CartesianPointVector &positionVector) const

void	GetCanvasParameters (const LArDLHelper::TorchOutput &networkOutput, const PixelVector &pixelVector, int &columnOffset, int &rowOffset, int &width, int &height) const
	Determines the parameters of the canvas for extracting the vertex location. The network predicts the distance that each pixel associated with a hit is located from the vertex, but says nothing about the direction. As a result, the ring describing the potential vertices associated with that hit can extend beyond the original canvas size. This function returns the size of the required canvas and the offset for the bottom left corner.

void	DrawRing (float **canvas, const int row, const int col, const int inner, const int outer, const float weight) const
	Add a filled ring to the specified canvas. The ring has an inner radius based on the minimum predicted distance to the vertex and an outer radius based on the maximum predicted distance to the vertex. The centre of the ring is the location of the hit used to predict the distance to the vertex. Each pixel to be filled is augmented by the specified weight. In this way, once all hits have been considered, a consensus view emerges of the likely vertex location based on the overlap of various rings centred at different locations.

void	Update (const int radius, int &col, int &row) const
	Update the coordinates along the loci of a circle. When drawing the ring we need an efficient means to determine the next pixel defining the inner and outer loci of the ring. This update function uses the Bresenham midpoint circle update function to determine this location. The row position is always incremented by 1 pixel, the column position is left unchanged, or decremented by 1 pixel to best follow the arc of the true underlying circle.

pandora::StatusCode	GetMCToHitsMap (LArMCParticleHelper::MCContributionMap &mcToHitsMap) const

pandora::StatusCode	CompleteMCHierarchy (const LArMCParticleHelper::MCContributionMap &mcToHitsMap, pandora::MCParticleList &mcHierarchy) const

void	GetHitRegion (const pandora::CaloHitList &caloHitList, float &xMin, float &xMax, float &zMin, float &zMax) const

pandora::StatusCode	MakeCandidateVertexList (const pandora::CartesianPointVector &positions)
	Create a vertex list from the candidate vertices.

void	GetTrueVertexPosition (float &x, float &y, float &z) const
	Retrieve the true neutrino vertex position.

void	GetTrueVertexPosition (float &x, float &u, float &v, float &w) const
	Retrieve the true neutrino vertex position.

const pandora::CartesianVector &	GetTrueVertex () const
	Retrieve the true neutrino vertex.

Private Attributes
bool	m_trainingMode
	Training mode.

std::string	m_trainingOutputFile
	Output file name for training examples.

std::string	m_inputVertexListName
	Input vertex list name if 2nd pass.

std::string	m_outputVertexListName
	Output vertex list name.

pandora::StringVector	m_caloHitListNames
	Names of input calo hit lists.

LArDLHelper::TorchModel	m_modelU
	The model for the U view.

LArDLHelper::TorchModel	m_modelV
	The model for the V view.

LArDLHelper::TorchModel	m_modelW
	The model for the W view.

int	m_event
	The current event number.

int	m_pass
	The pass of the train/infer step.

int	m_nClasses
	The number of distance classes.

int	m_height
	The height of the images.

int	m_width
	The width of the images.

float	m_driftStep
	The size of a pixel in the drift direction in cm (most relevant in pass 2)

bool	m_visualise
	Whether or not to visualise the candidate vertices.

bool	m_writeTree
	Whether or not to write validation details to a ROOT tree.

std::string	m_rootTreeName
	The ROOT tree name.

std::string	m_rootFileName
	The ROOT file name.

std::mt19937	m_rng
	The random number generator.

std::vector< double >	m_thresholds
	Distance class thresholds.

std::string	m_volumeType
	The name of the fiducial volume type for the monitoring output.

Detailed Description

DeepLearningTrackShowerIdAlgorithm class.

Definition at line 27 of file DlVertexingAlgorithm.h.

Member Typedef Documentation

◆ Pixel

typedef std::pair<int, int> lar_dl_content::DlVertexingAlgorithm::Pixel

private

Definition at line 58 of file DlVertexingAlgorithm.h.

◆ PixelToCaloHitsMap

typedef std::map<std::pair<int, int>, std::vector<const pandora::CaloHit *> > lar_dl_content::DlVertexingAlgorithm::PixelToCaloHitsMap

Definition at line 30 of file DlVertexingAlgorithm.h.

◆ PixelVector

typedef std::vector<Pixel> lar_dl_content::DlVertexingAlgorithm::PixelVector

private

Definition at line 59 of file DlVertexingAlgorithm.h.

Constructor & Destructor Documentation

◆ DlVertexingAlgorithm()

lar_dl_content::DlVertexingAlgorithm::DlVertexingAlgorithm ( )

Default constructor.

Definition at line 28 of file DlVertexingAlgorithm.cc.

◆ ~DlVertexingAlgorithm()

lar_dl_content::DlVertexingAlgorithm::~DlVertexingAlgorithm ( )

virtual

Definition at line 44 of file DlVertexingAlgorithm.cc.

Here is the call graph for this function:

Member Function Documentation

◆ CompleteMCHierarchy()

StatusCode lar_dl_content::DlVertexingAlgorithm::CompleteMCHierarchy	(	const LArMCParticleHelper::MCContributionMap &	mcToHitsMap,
		pandora::MCParticleList &	mcHierarchy
	)		const

private

Definition at line 562 of file DlVertexingAlgorithm.cc.

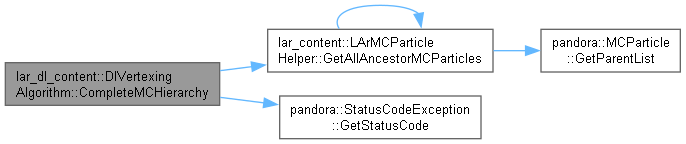

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DrawRing()

void lar_dl_content::DlVertexingAlgorithm::DrawRing	(	float **	canvas,
		const int	row,
		const int	col,
		const int	inner,
		const int	outer,
		const float	weight
	)		const

private

Add a filled ring to the specified canvas. The ring has an inner radius based on the minimum predicted distance to the vertex and an outer radius based on the maximum predicted distance to the vertex. The centre of the ring is the location of the hit used to predict the distance to the vertex. Each pixel to be filled is augmented by the specified weight. In this way, once all hits have been considered, a consensus view emerges of the likely vertex location based on the overlap of various rings centred at different locations.

The underlying implementation is a variant of the Bresenham midpoint circle algorithm and therefore only computes pixel coordinates for one octant of each circle (one of radius 'inner', one of radius 'outer') and interpolates the fill between points using integer arithmetic, guaranteeing each pixel of the ring is filled once and only once, and then mirrored to the remaining seven octants.

Parameters

networkOutput	The TorchOutput object populated by the network inference step
pixelVector	The vector of populated pixels
thresholds	The fractional distance thresholds representing the classes predicted by the network
columnOffset	The output column offset for the canvas
rowOffset	The output row offset for the canvas
width	The output width for the canvas
height	The output height for the canvas

Definition at line 475 of file DlVertexingAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetCanvasParameters()

void lar_dl_content::DlVertexingAlgorithm::GetCanvasParameters	(	const LArDLHelper::TorchOutput &	networkOutput,
		const PixelVector &	pixelVector,
		int &	columnOffset,
		int &	rowOffset,
		int &	width,
		int &	height
	)		const

private

Determines the parameters of the canvas for extracting the vertex location. The network predicts the distance that each pixel associated with a hit is located from the vertex, but says nothing about the direction. As a result, the ring describing the potential vertices associated with that hit can extend beyond the original canvas size. This function returns the size of the required canvas and the offset for the bottom left corner.

Parameters

networkOutput	The TorchOutput object populated by the network inference step
pixelVector	The vector of populated pixels
columnOffset	The output column offset for the canvas
rowOffset	The output row offset for the canvas
width	The output width for the canvas
height	The output height for the canvas

Definition at line 440 of file DlVertexingAlgorithm.cc.

Here is the caller graph for this function:

◆ GetHitRegion()

void lar_dl_content::DlVertexingAlgorithm::GetHitRegion	(	const pandora::CaloHitList &	caloHitList,
		float &	xMin,
		float &	xMax,
		float &	zMin,
		float &	zMax
	)		const

private

Definition at line 592 of file DlVertexingAlgorithm.cc.

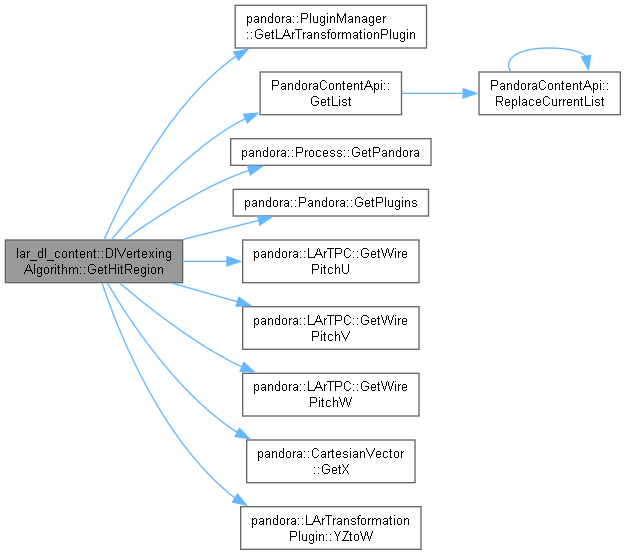

Here is the call graph for this function:

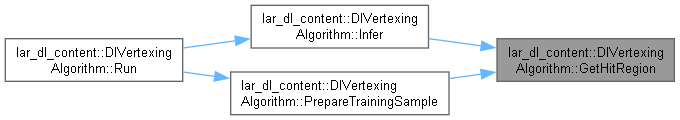

Here is the caller graph for this function:

◆ GetInstanceName()

const std::string & pandora::Process::GetInstanceName ( ) const

inlineinherited

Get the instance name.

Returns: The instance name

Definition at line 109 of file Process.h.

◆ GetMCToHitsMap()

StatusCode lar_dl_content::DlVertexingAlgorithm::GetMCToHitsMap ( LArMCParticleHelper::MCContributionMap & mcToHitsMap ) const

private

Definition at line 545 of file DlVertexingAlgorithm.cc.

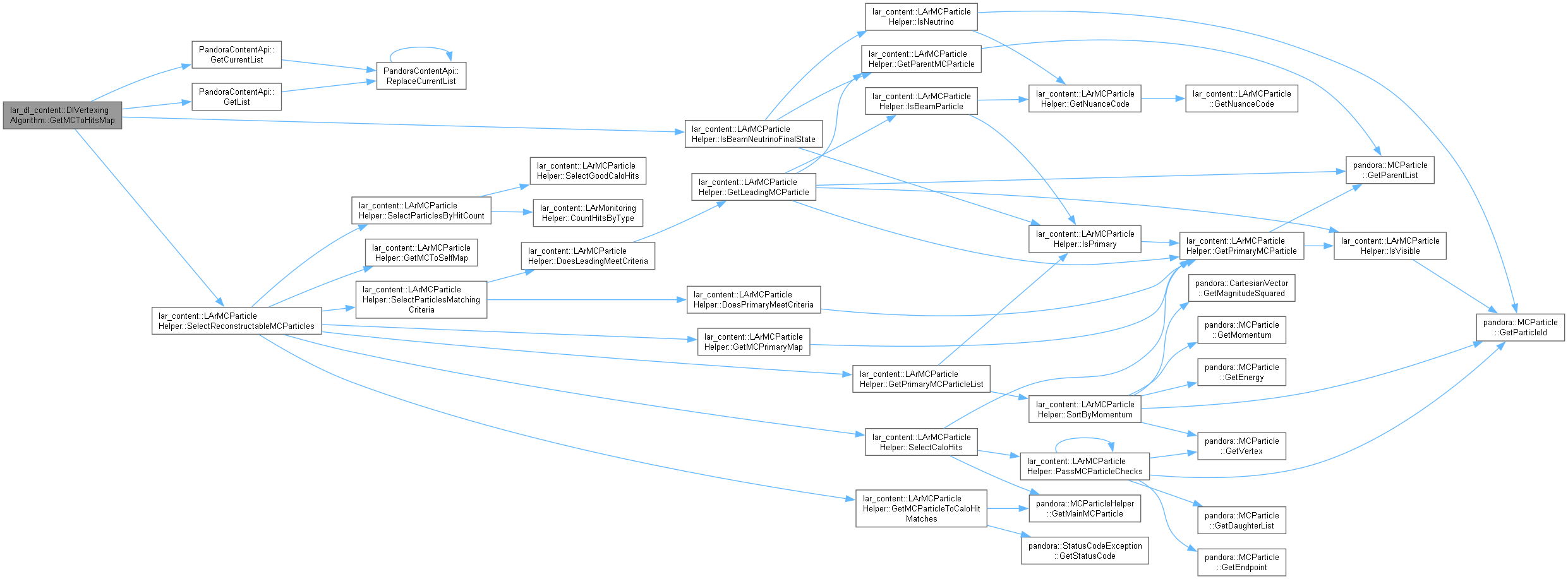

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPandora()

const Pandora & pandora::Process::GetPandora ( ) const

inlineinherited

Get the associated pandora instance.

Returns: the associated pandora instance

Definition at line 116 of file Process.h.

◆ GetTrueVertex()

const CartesianVector & lar_dl_content::DlVertexingAlgorithm::GetTrueVertex ( ) const

private

Retrieve the true neutrino vertex.

Definition at line 753 of file DlVertexingAlgorithm.cc.

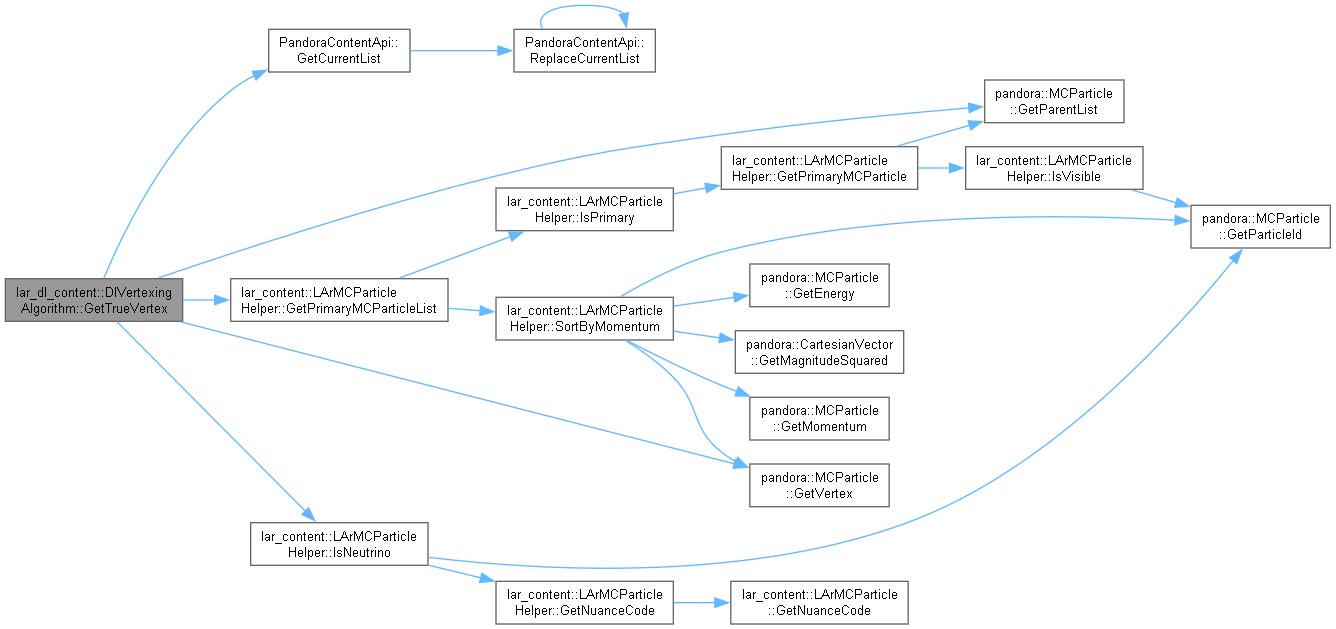

Here is the call graph for this function:

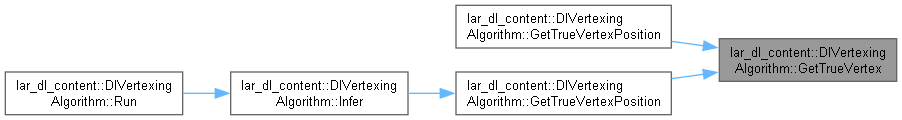

Here is the caller graph for this function:

◆ GetTrueVertexPosition() [1/2]

void lar_dl_content::DlVertexingAlgorithm::GetTrueVertexPosition	(	float &	x,
		float &	u,
		float &	v,
		float &	w
	)		const

private

Retrieve the true neutrino vertex position.

Definition at line 741 of file DlVertexingAlgorithm.cc.

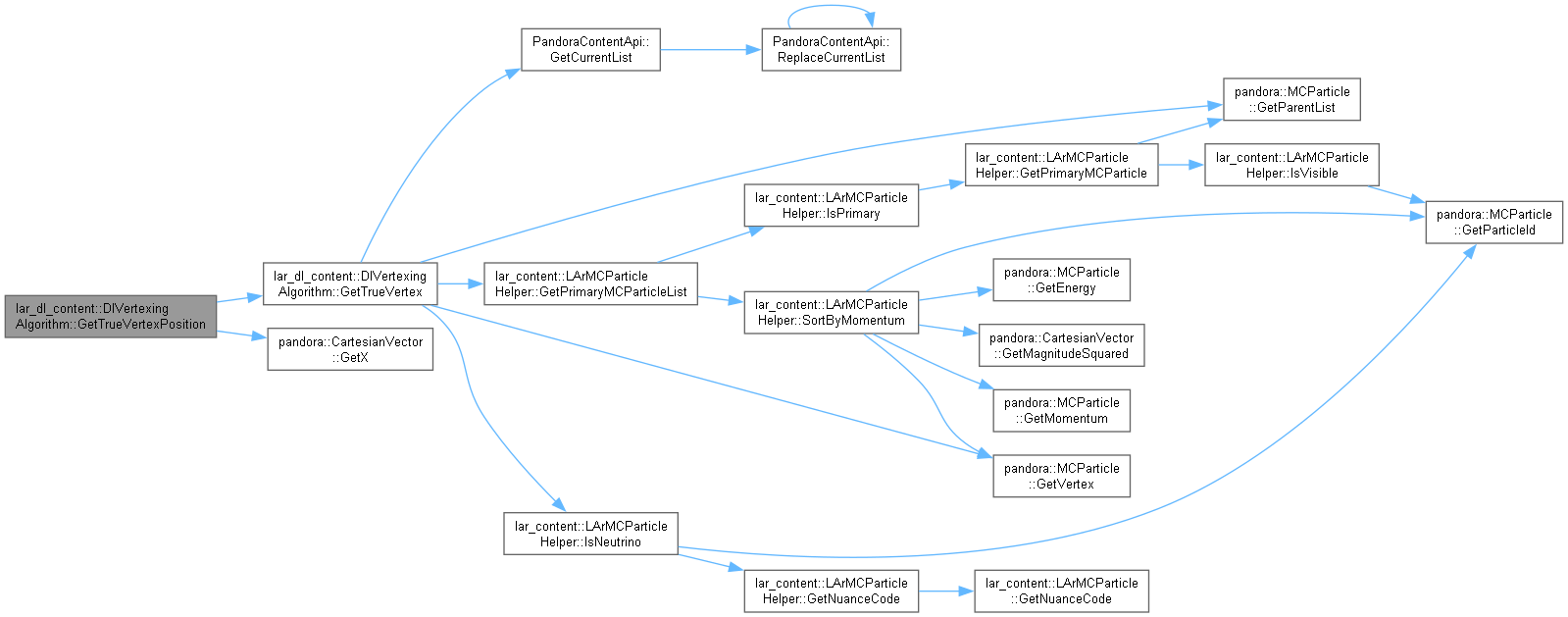

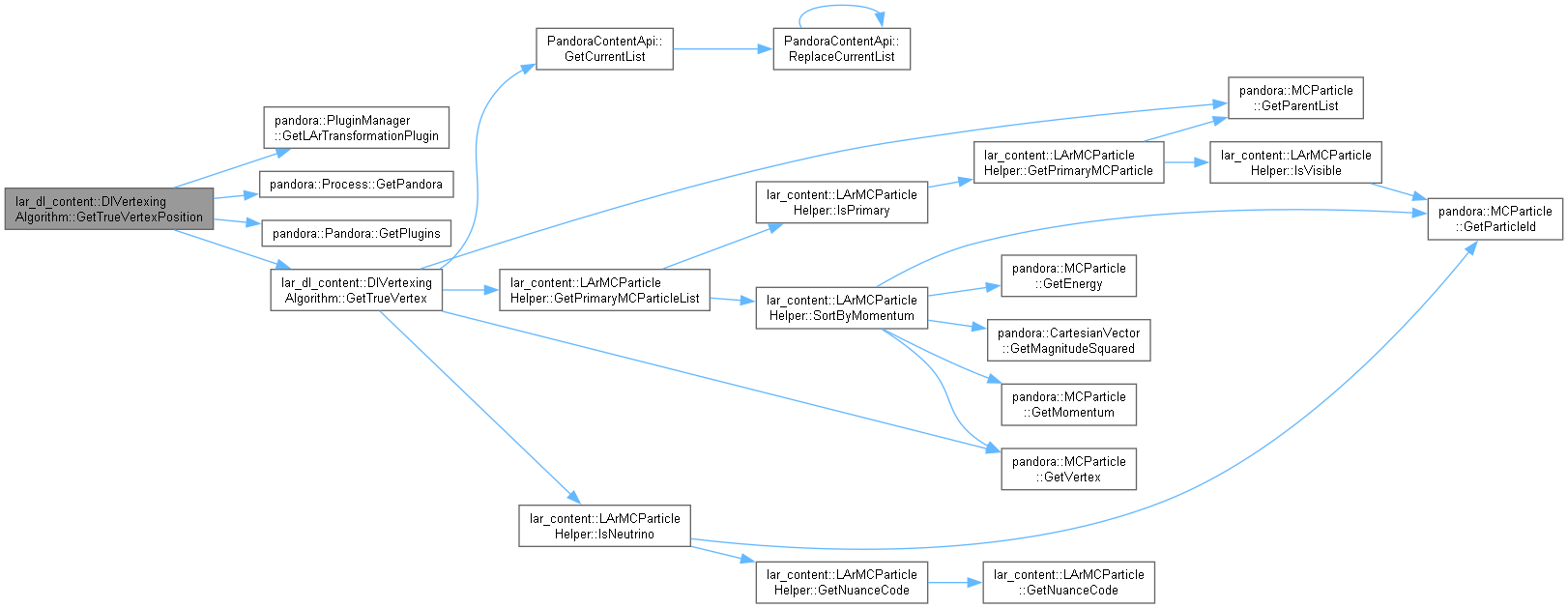

Here is the call graph for this function:

◆ GetTrueVertexPosition() [2/2]

void lar_dl_content::DlVertexingAlgorithm::GetTrueVertexPosition	(	float &	x,
		float &	y,
		float &	z
	)		const

private

Retrieve the true neutrino vertex position.

Definition at line 731 of file DlVertexingAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetType()

const std::string & pandora::Process::GetType ( ) const

inlineinherited

Get the type.

Returns: The type

Definition at line 102 of file Process.h.

◆ Infer()

StatusCode lar_dl_content::DlVertexingAlgorithm::Infer ( )

private

Definition at line 171 of file DlVertexingAlgorithm.cc.

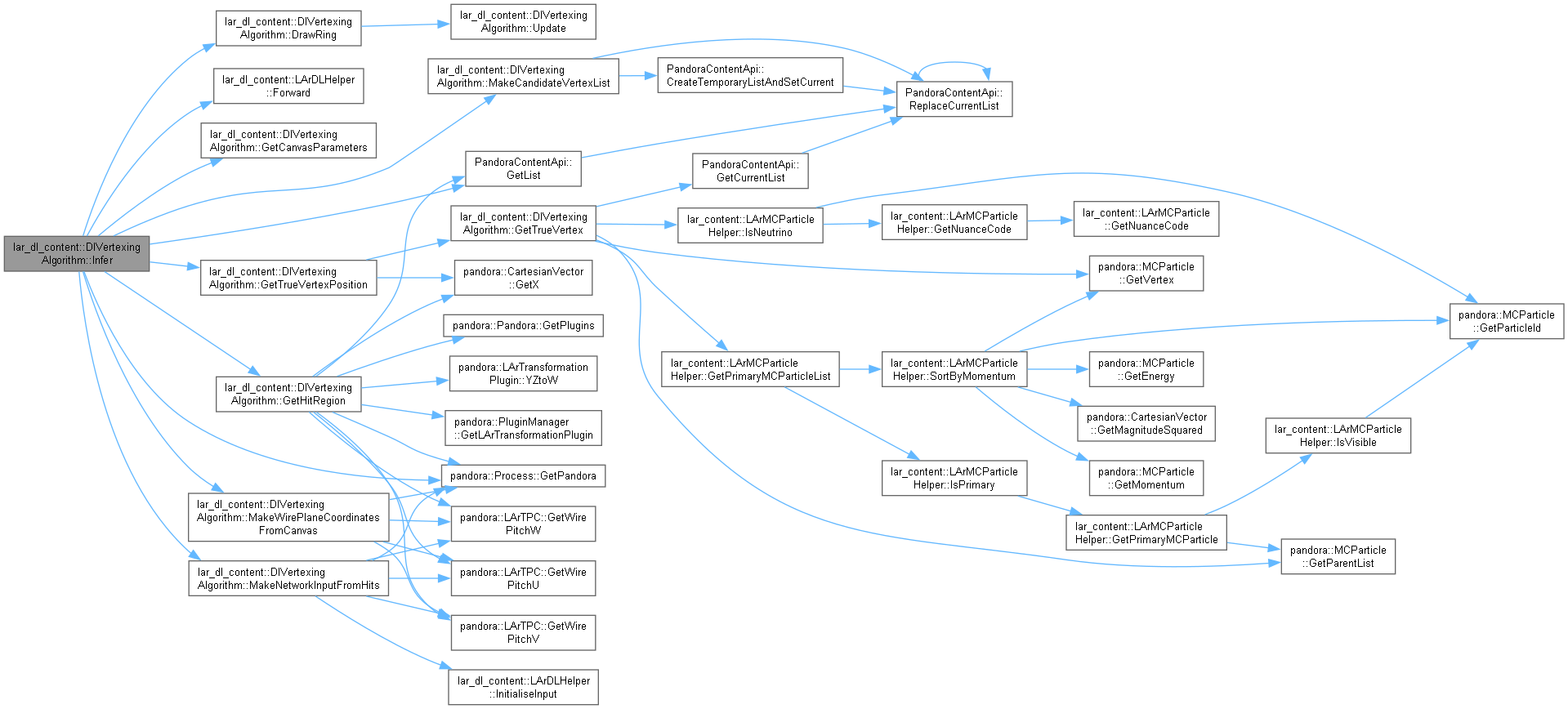

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Initialize()

StatusCode pandora::Process::Initialize ( )

inlineprotectedvirtualinherited

Perform any operations that must occur after reading settings, but before running the process.

Reimplemented in lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, EventReadingAlgorithm, and EventWritingAlgorithm.

Definition at line 126 of file Process.h.

Here is the caller graph for this function:

◆ MakeCandidateVertexList()

StatusCode lar_dl_content::DlVertexingAlgorithm::MakeCandidateVertexList ( const pandora::CartesianPointVector & positions )

private

Create a vertex list from the candidate vertices.

Parameters

candidates The candidate positions with which to create the list.

Returns: The StatusCode resulting from the function

Definition at line 707 of file DlVertexingAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MakeNetworkInputFromHits()

StatusCode lar_dl_content::DlVertexingAlgorithm::MakeNetworkInputFromHits	(	const pandora::CaloHitList &	caloHits,
		const pandora::HitType	view,
		const float	xMin,
		const float	xMax,
		const float	zMin,
		const float	zMax,
		LArDLHelper::TorchInput &	networkInput,
		PixelVector &	pixelVector
	)		const

private

Definition at line 356 of file DlVertexingAlgorithm.cc.

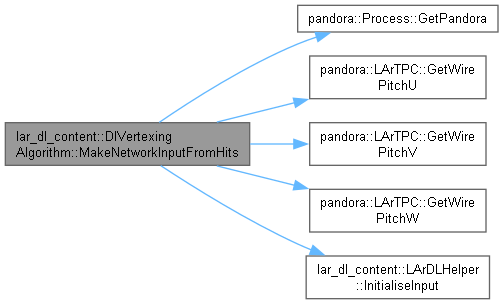

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MakeWirePlaneCoordinatesFromCanvas()

StatusCode lar_dl_content::DlVertexingAlgorithm::MakeWirePlaneCoordinatesFromCanvas	(	float **	canvas,
		const int	canvasWidth,
		const int	canvasHeight,
		const int	columnOffset,
		const int	rowOffset,
		const pandora::HitType	view,
		const float	xMin,
		const float	xMax,
		const float	zMin,
		const float	zMax,
		pandora::CartesianPointVector &	positionVector
	)		const

private

Definition at line 407 of file DlVertexingAlgorithm.cc.

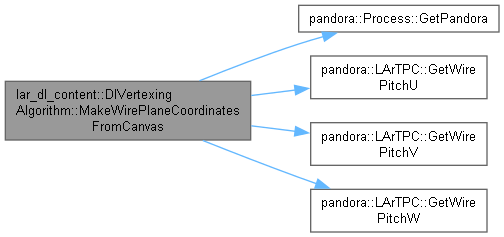

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PrepareTrainingSample()

StatusCode lar_dl_content::DlVertexingAlgorithm::PrepareTrainingSample ( )

private

Definition at line 71 of file DlVertexingAlgorithm.cc.

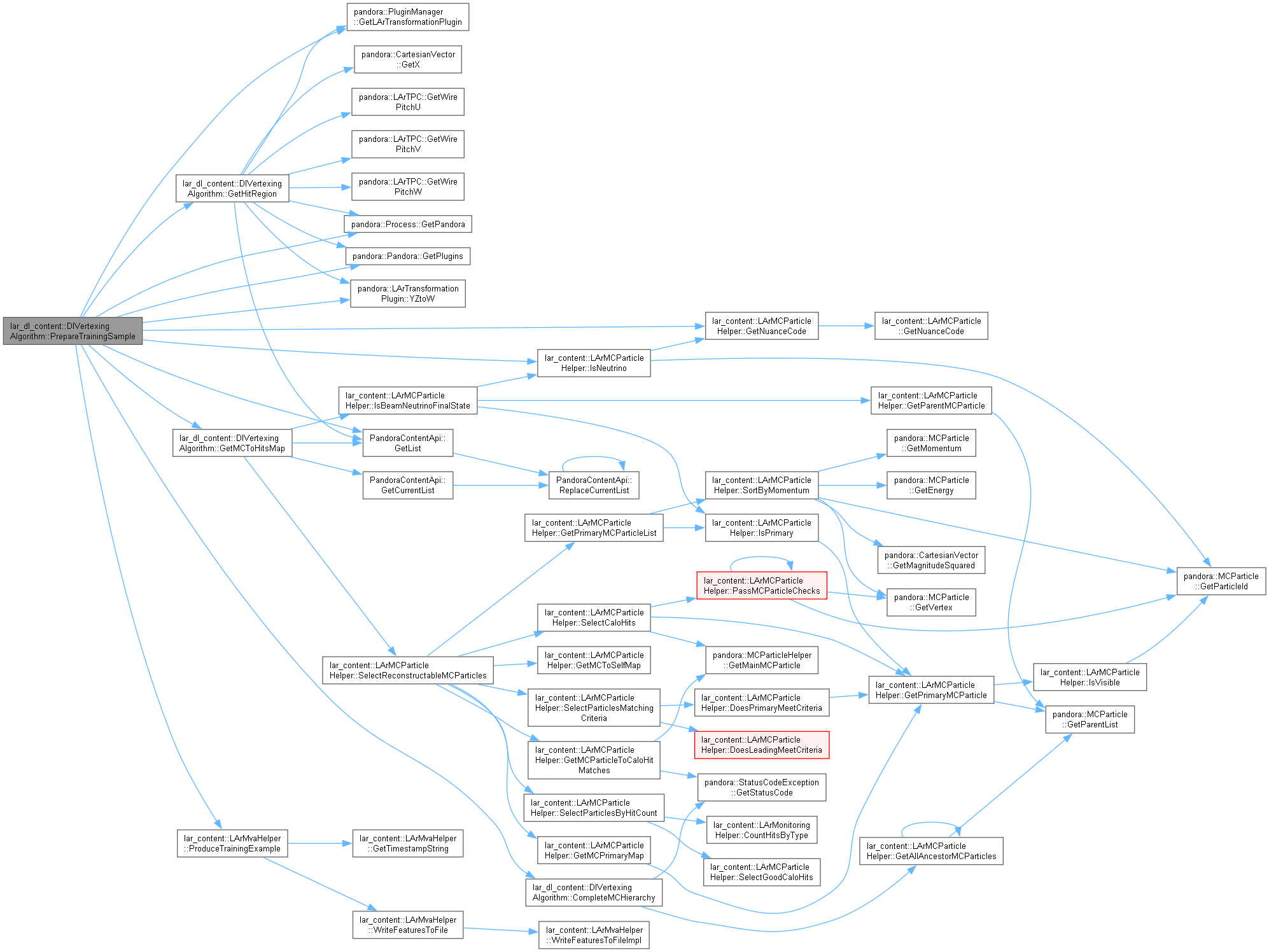

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReadSettings()

StatusCode lar_dl_content::DlVertexingAlgorithm::ReadSettings ( const pandora::TiXmlHandle xmlHandle )

privatevirtual

Read the algorithm settings.

Parameters

xmlHandle the relevant xml handle

Implements pandora::Process.

Definition at line 842 of file DlVertexingAlgorithm.cc.

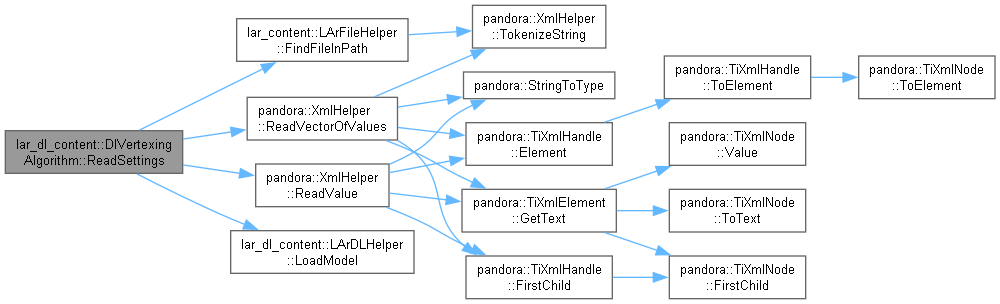

Here is the call graph for this function:

◆ RegisterDetails()

StatusCode pandora::Process::RegisterDetails	(	const Pandora *const	pPandora,
		const std::string &	type,
		const std::string &	instanceName
	)

inlineprotectedinherited

Register i) the pandora instance that will run the process and ii) the process type.

Parameters

pPandora	address of the pandora object that will run the process
type	the process type
instanceName	the process instance name

Definition at line 146 of file Process.h.

Here is the caller graph for this function:

◆ Reset()

StatusCode pandora::Process::Reset ( )

inlineprotectedvirtualinherited

Perform any operations when pandora is reset, typically at the end of each event.

Reimplemented in lar_content::MasterAlgorithm, lar_content::PostProcessingAlgorithm, and lar_content::PreProcessingAlgorithm.

Definition at line 133 of file Process.h.

Here is the caller graph for this function:

◆ Run()

StatusCode lar_dl_content::DlVertexingAlgorithm::Run ( )

privatevirtual

Run the algorithm.

Implements pandora::Algorithm.

Definition at line 61 of file DlVertexingAlgorithm.cc.

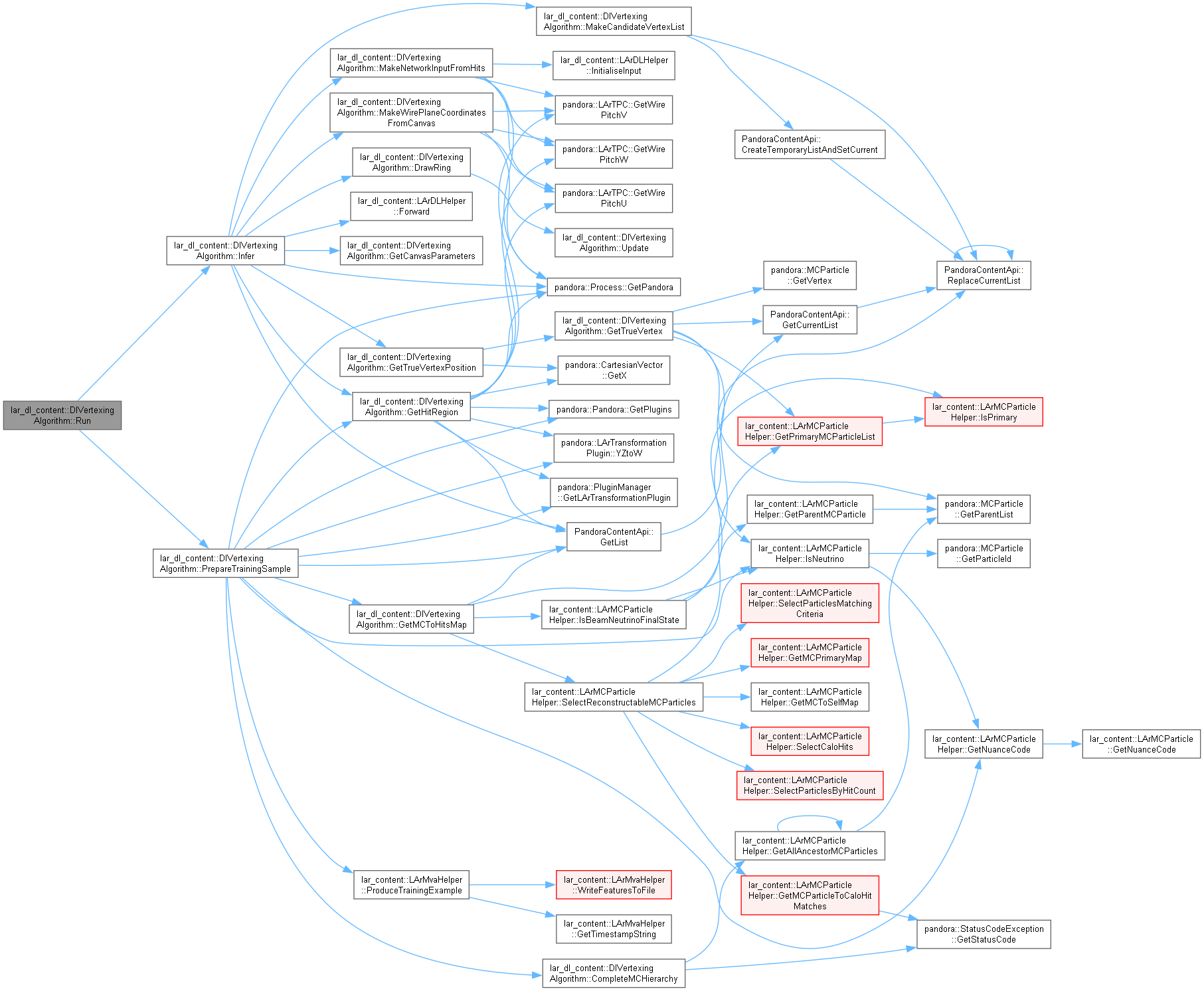

Here is the call graph for this function:

◆ Update()

void lar_dl_content::DlVertexingAlgorithm::Update	(	const int	radius,
		int &	col,
		int &	row
	)		const

private

Update the coordinates along the loci of a circle. When drawing the ring we need an efficient means to determine the next pixel defining the inner and outer loci of the ring. This update function uses the Bresenham midpoint circle update function to determine this location. The row position is always incremented by 1 pixel, the column position is left unchanged, or decremented by 1 pixel to best follow the arc of the true underlying circle.

Parameters

radius2	The squared radius of the circle under consideration
col	The input/output column position to (potentially) update
row	The input/output row position to update

Definition at line 527 of file DlVertexingAlgorithm.cc.

Here is the caller graph for this function:

Member Data Documentation

◆ m_caloHitListNames

pandora::StringVector lar_dl_content::DlVertexingAlgorithm::m_caloHitListNames

private

Names of input calo hit lists.

Definition at line 223 of file DlVertexingAlgorithm.h.

◆ m_driftStep

float lar_dl_content::DlVertexingAlgorithm::m_driftStep

private

The size of a pixel in the drift direction in cm (most relevant in pass 2)

Definition at line 232 of file DlVertexingAlgorithm.h.

◆ m_event

int lar_dl_content::DlVertexingAlgorithm::m_event

private

The current event number.

Definition at line 227 of file DlVertexingAlgorithm.h.

◆ m_height

int lar_dl_content::DlVertexingAlgorithm::m_height

private

The height of the images.

Definition at line 230 of file DlVertexingAlgorithm.h.

◆ m_inputVertexListName

std::string lar_dl_content::DlVertexingAlgorithm::m_inputVertexListName

private

Input vertex list name if 2nd pass.

Definition at line 221 of file DlVertexingAlgorithm.h.

◆ m_instanceName

std::string pandora::Process::m_instanceName

protectedinherited

The process instance name.

Definition at line 89 of file Process.h.

◆ m_modelU

LArDLHelper::TorchModel lar_dl_content::DlVertexingAlgorithm::m_modelU

private

The model for the U view.

Definition at line 224 of file DlVertexingAlgorithm.h.

◆ m_modelV

LArDLHelper::TorchModel lar_dl_content::DlVertexingAlgorithm::m_modelV

private

The model for the V view.

Definition at line 225 of file DlVertexingAlgorithm.h.

◆ m_modelW

LArDLHelper::TorchModel lar_dl_content::DlVertexingAlgorithm::m_modelW

private

The model for the W view.

Definition at line 226 of file DlVertexingAlgorithm.h.

◆ m_nClasses

int lar_dl_content::DlVertexingAlgorithm::m_nClasses

private

The number of distance classes.

Definition at line 229 of file DlVertexingAlgorithm.h.

◆ m_outputVertexListName

std::string lar_dl_content::DlVertexingAlgorithm::m_outputVertexListName

private

Output vertex list name.

Definition at line 222 of file DlVertexingAlgorithm.h.

◆ m_pass

int lar_dl_content::DlVertexingAlgorithm::m_pass

private

The pass of the train/infer step.

Definition at line 228 of file DlVertexingAlgorithm.h.

◆ m_pPandora

const Pandora* pandora::Process::m_pPandora

protectedinherited

The pandora object that will run the process.

Definition at line 87 of file Process.h.

◆ m_rng

std::mt19937 lar_dl_content::DlVertexingAlgorithm::m_rng

private

The random number generator.

Definition at line 237 of file DlVertexingAlgorithm.h.

◆ m_rootFileName

std::string lar_dl_content::DlVertexingAlgorithm::m_rootFileName

private

The ROOT file name.

Definition at line 236 of file DlVertexingAlgorithm.h.

◆ m_rootTreeName

std::string lar_dl_content::DlVertexingAlgorithm::m_rootTreeName

private

The ROOT tree name.

Definition at line 235 of file DlVertexingAlgorithm.h.

◆ m_thresholds

std::vector<double> lar_dl_content::DlVertexingAlgorithm::m_thresholds

private

Distance class thresholds.

Definition at line 238 of file DlVertexingAlgorithm.h.

◆ m_trainingMode

bool lar_dl_content::DlVertexingAlgorithm::m_trainingMode

private

Training mode.

Definition at line 219 of file DlVertexingAlgorithm.h.

◆ m_trainingOutputFile

std::string lar_dl_content::DlVertexingAlgorithm::m_trainingOutputFile

private

Output file name for training examples.

Definition at line 220 of file DlVertexingAlgorithm.h.

◆ m_type

std::string pandora::Process::m_type

protectedinherited

The process type.

Definition at line 88 of file Process.h.

◆ m_visualise

bool lar_dl_content::DlVertexingAlgorithm::m_visualise

private

Whether or not to visualise the candidate vertices.

Definition at line 233 of file DlVertexingAlgorithm.h.

◆ m_volumeType

std::string lar_dl_content::DlVertexingAlgorithm::m_volumeType

private

The name of the fiducial volume type for the monitoring output.

Definition at line 239 of file DlVertexingAlgorithm.h.

◆ m_width

int lar_dl_content::DlVertexingAlgorithm::m_width

private

The width of the images.

Definition at line 231 of file DlVertexingAlgorithm.h.

◆ m_writeTree

bool lar_dl_content::DlVertexingAlgorithm::m_writeTree

private

Whether or not to write validation details to a ROOT tree.

Definition at line 234 of file DlVertexingAlgorithm.h.

The documentation for this class was generated from the following files:

LArContent/larpandoradlcontent/LArVertex/DlVertexingAlgorithm.h
LArContent/larpandoradlcontent/LArVertex/DlVertexingAlgorithm.cc
