#include "ShowerGrowingAlgorithm.h"

Inheritance diagram for lar_content::ShowerGrowingAlgorithm:

[legend]

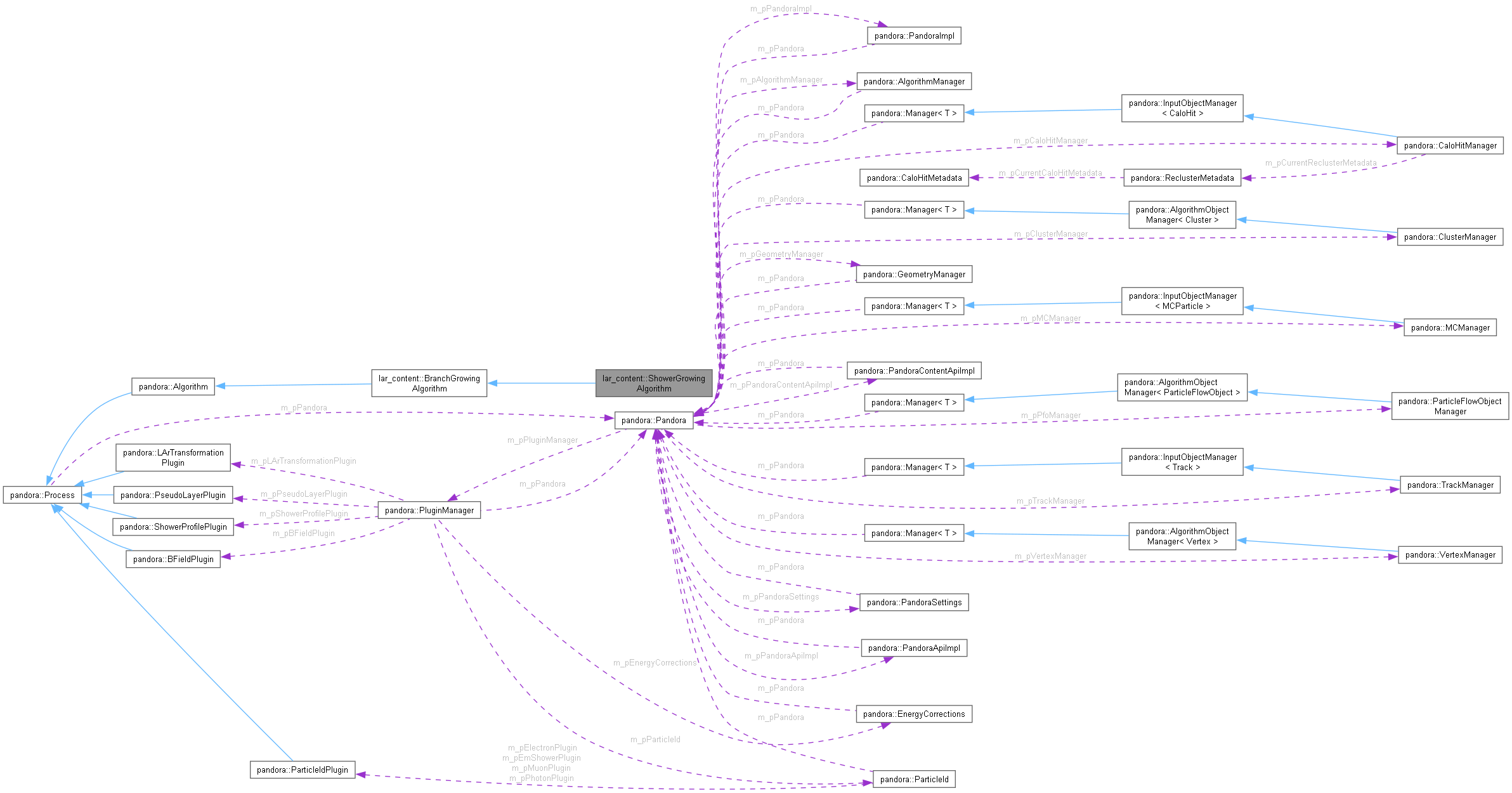

Collaboration diagram for lar_content::ShowerGrowingAlgorithm:

[legend]

Public Member Functions
	ShowerGrowingAlgorithm ()
	Default constructor.

const std::string &	GetType () const
	Get the type.

const std::string &	GetInstanceName () const
	Get the instance name.

const Pandora &	GetPandora () const
	Get the associated pandora instance.

Protected Types
typedef std::unordered_map< const pandora::Cluster *, LArVertexHelper::ClusterDirection >	ClusterDirectionMap

enum	AssociationType { NONE = 0 , SINGLE_ORDER = 1 , STANDARD = 2 , STRONG = 3 }
	AssociationType enum. More...

typedef std::unordered_map< const pandora::Cluster *, Association >	ClusterAssociationMap

typedef std::unordered_map< const pandora::Cluster *, ClusterAssociationMap >	ClusterUsageMap

typedef std::unordered_map< const pandora::Cluster *, pandora::ClusterVector >	SeedAssociationList

Protected Member Functions
bool	IsVertexAssociated (const LArPointingCluster &pointingCluster, const pandora::CartesianVector &vertexPosition2D) const
	Whether a pointing cluster is assciated with a provided 2D vertex projection.

void	FindAssociatedClusters (const pandora::Cluster *const pParticleSeed, pandora::ClusterVector &candidateClusters, ClusterUsageMap &forwardUsageMap, ClusterUsageMap &backwardUsageMap) const
	Find clusters associated with a particle seed.

void	IdentifyClusterMerges (const pandora::ClusterVector &particleSeedVector, const ClusterUsageMap &backwardUsageMap, SeedAssociationList &seedAssociationList) const
	Identify cluster merges.

virtual StatusCode	Initialize ()
	Perform any operations that must occur after reading settings, but before running the process.

virtual StatusCode	Reset ()
	Perform any operations when pandora is reset, typically at the end of each event.

StatusCode	RegisterDetails (const Pandora *const pPandora, const std::string &type, const std::string &instanceName)
	Register i) the pandora instance that will run the process and ii) the process type.

Static Protected Member Functions
static bool	SortClusters (const pandora::Cluster const pLhs, const pandora::Cluster const pRhs)
	Sorting for clusters to determine order in which seeds are considered.

Protected Attributes
ClusterDirectionMap	m_clusterDirectionMap
	The cluster direction map.

const Pandora *	m_pPandora
	The pandora object that will run the process.

std::string	m_type
	The process type.

std::string	m_instanceName
	The process instance name.

Private Member Functions
pandora::StatusCode	Run ()
	Run the algorithm.

void	SimpleModeShowerGrowing (const pandora::ClusterList *const pClusterList, const std::string &clusterListName) const
	Simple single-pass shower growing mode.

bool	GetNextSeedCandidate (const pandora::ClusterList const pClusterList, const pandora::ClusterSet &usedClusters, const pandora::Cluster &pSeedCluster) const
	Get the next seed candidate, using a list of available candidates and a list of those already used.

void	GetAllVertexSeedCandidates (const pandora::ClusterList const pClusterList, const pandora::Vertex const pVertex, pandora::ClusterVector &seedClusters) const
	Get all seed candidates associated with a provided vertex.

void	GetSeedAssociationList (const pandora::ClusterVector &particleSeedVector, const pandora::ClusterList *const pClusterList, SeedAssociationList &seedAssociationList) const
	Get the seed association list for a given vector of particle seed candidates.

void	ProcessSeedAssociationDetails (const SeedAssociationList &seedAssociationList, const std::string &clusterListName, pandora::ClusterSet &usedClusters) const
	Process the details stored in a specified seed association list.

void	ProcessBranchClusters (const pandora::Cluster *const pParentCluster, const pandora::ClusterVector &branchClusters, const std::string &listName) const
	Process the list of branch clusters, merging with specified parent cluster, dealing with any existing pfos as required.

AssociationType	AreClustersAssociated (const pandora::Cluster const pClusterSeed, const pandora::Cluster const pCluster) const
	Determine whether two clusters are associated.

float	GetFigureOfMerit (const SeedAssociationList &seedAssociationList) const
	Get a figure of merit representing the consistency of the provided seed associated list.

unsigned int	GetNVertexConnections (const pandora::CartesianVector &vertexPosition2D, const LArPointingClusterList &pointingClusterList) const
	Get the number of clusters associated with the vertex.

pandora::StatusCode	ReadSettings (const pandora::TiXmlHandle xmlHandle)
	Read the algorithm settings.

Private Attributes
pandora::StringVector	m_inputClusterListNames
	The names of the input cluster lists.

unsigned int	m_minCaloHitsPerCluster
	The minimum number of calo hits per (seed or branch) cluster.

float	m_nearbyClusterDistance
	The nearby cluster distance, used for determining cluster associations.

float	m_remoteClusterDistance
	The remote cluster distance, used for determining cluster associations.

float	m_directionTanAngle
	Direction determination, look for vertex inside triangle with apex shifted along the cluster length.

float	m_directionApexShift
	Direction determination, look for vertex inside triangle with apex shifted along the cluster length.

float	m_minVertexLongitudinalDistance
	Vertex association check: min longitudinal distance cut.

float	m_maxVertexLongitudinalDistance
	Vertex association check: max longitudinal distance cut.

float	m_maxVertexTransverseDistance
	Vertex association check: max transverse distance cut.

float	m_vertexAngularAllowance
	Vertex association check: pointing angular allowance in degrees.

Detailed Description

ShowerGrowingAlgorithm class.

Definition at line 27 of file ShowerGrowingAlgorithm.h.

Member Typedef Documentation

◆ ClusterAssociationMap

typedef std::unordered_map<const pandora::Cluster *, Association> lar_content::BranchGrowingAlgorithm::ClusterAssociationMap

protectedinherited

Definition at line 87 of file BranchGrowingAlgorithm.h.

◆ ClusterDirectionMap

typedef std::unordered_map<const pandora::Cluster *, LArVertexHelper::ClusterDirection> lar_content::ShowerGrowingAlgorithm::ClusterDirectionMap

protected

Definition at line 54 of file ShowerGrowingAlgorithm.h.

◆ ClusterUsageMap

typedef std::unordered_map<const pandora::Cluster *, ClusterAssociationMap> lar_content::BranchGrowingAlgorithm::ClusterUsageMap

protectedinherited

Definition at line 88 of file BranchGrowingAlgorithm.h.

◆ SeedAssociationList

typedef std::unordered_map<const pandora::Cluster *, pandora::ClusterVector> lar_content::BranchGrowingAlgorithm::SeedAssociationList

protectedinherited

Definition at line 111 of file BranchGrowingAlgorithm.h.

Member Enumeration Documentation

◆ AssociationType

enum lar_content::BranchGrowingAlgorithm::AssociationType

protectedinherited

AssociationType enum.

Enumerator
NONE
SINGLE_ORDER
STANDARD
STRONG

Definition at line 27 of file BranchGrowingAlgorithm.h.

Constructor & Destructor Documentation

◆ ShowerGrowingAlgorithm()

lar_content::ShowerGrowingAlgorithm::ShowerGrowingAlgorithm ( )

Default constructor.

Definition at line 25 of file ShowerGrowingAlgorithm.cc.

Member Function Documentation

◆ AreClustersAssociated()

ShowerGrowingAlgorithm::AssociationType lar_content::ShowerGrowingAlgorithm::AreClustersAssociated	(	const pandora::Cluster *const	pClusterSeed,
		const pandora::Cluster *const	pCluster
	)		const

privatevirtual

Determine whether two clusters are associated.

Parameters

pClusterSeed	address of cluster seed (may be daughter of primary seed)
pCluster	address of cluster

Returns: the association type

Implements lar_content::BranchGrowingAlgorithm.

Definition at line 276 of file ShowerGrowingAlgorithm.cc.

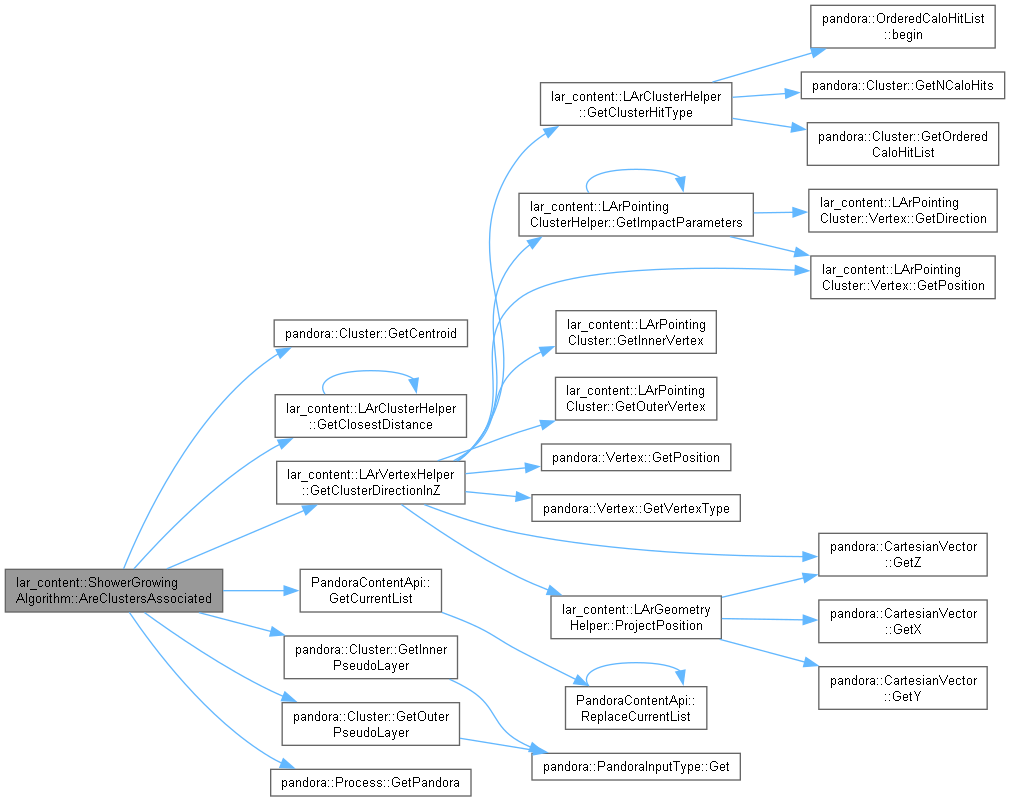

Here is the call graph for this function:

◆ FindAssociatedClusters()

void lar_content::BranchGrowingAlgorithm::FindAssociatedClusters	(	const pandora::Cluster *const	pParticleSeed,
		pandora::ClusterVector &	candidateClusters,
		ClusterUsageMap &	forwardUsageMap,
		ClusterUsageMap &	backwardUsageMap
	)		const

protectedinherited

Find clusters associated with a particle seed.

Parameters

pParticleSeed	address of the particle seed
candidateClusters	list of clusters which may be associated with seed
forwardUsageMap	the particle seed usage map
backwardUsageMap	the cluster usage map

Definition at line 20 of file BranchGrowingAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetAllVertexSeedCandidates()

void lar_content::ShowerGrowingAlgorithm::GetAllVertexSeedCandidates	(	const pandora::ClusterList *const	pClusterList,
		const pandora::Vertex *const	pVertex,
		pandora::ClusterVector &	seedClusters
	)		const

private

Get all seed candidates associated with a provided vertex.

Parameters

pClusterList	the list of available seed candidates
pVertex	the address of the vertex
seedClusters	to receive the list of vertex seed candidates

Definition at line 164 of file ShowerGrowingAlgorithm.cc.

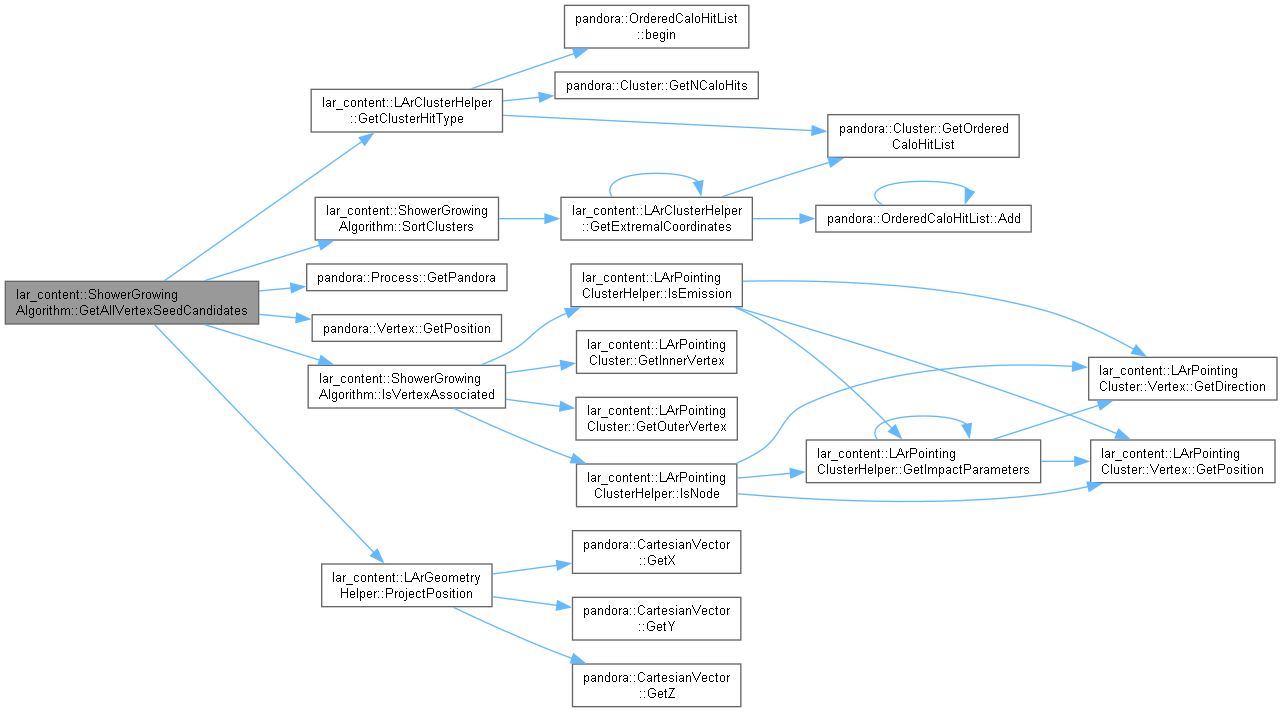

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetFigureOfMerit()

float lar_content::ShowerGrowingAlgorithm::GetFigureOfMerit ( const SeedAssociationList & seedAssociationList ) const

private

Get a figure of merit representing the consistency of the provided seed associated list.

Parameters

seedAssociationList the seed association list

Returns: the figure of merit

Definition at line 358 of file ShowerGrowingAlgorithm.cc.

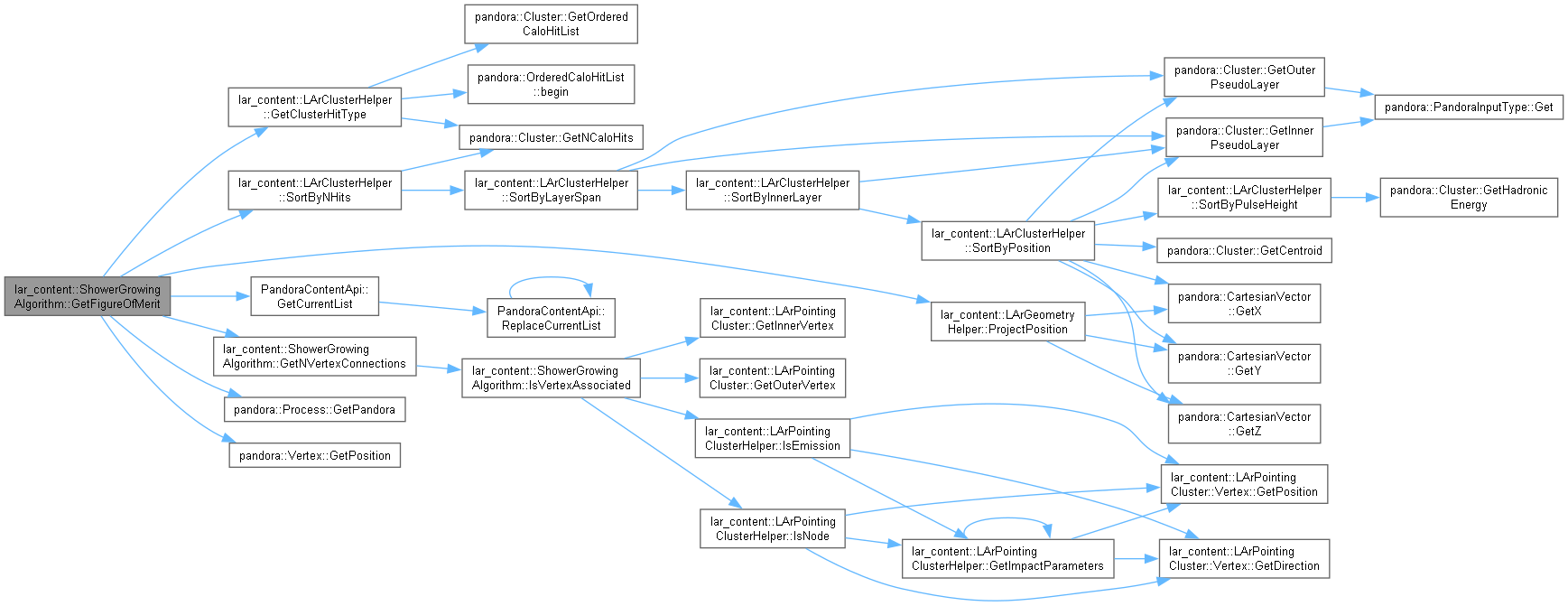

Here is the call graph for this function:

◆ GetInstanceName()

const std::string & pandora::Process::GetInstanceName ( ) const

inlineinherited

Get the instance name.

Returns: The instance name

Definition at line 109 of file Process.h.

◆ GetNextSeedCandidate()

bool lar_content::ShowerGrowingAlgorithm::GetNextSeedCandidate	(	const pandora::ClusterList *const	pClusterList,
		const pandora::ClusterSet &	usedClusters,
		const pandora::Cluster *&	pSeedCluster
	)		const

private

Get the next seed candidate, using a list of available candidates and a list of those already used.

Parameters

pClusterList	the list of available seed candidates
usedClusters	the list of candidates already considered
pSeedCluster	to receive the address of the next seed candidate

Returns: whether a seed candidate has been found

Definition at line 133 of file ShowerGrowingAlgorithm.cc.

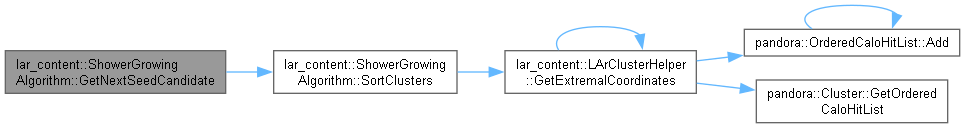

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetNVertexConnections()

unsigned int lar_content::ShowerGrowingAlgorithm::GetNVertexConnections	(	const pandora::CartesianVector &	vertexPosition2D,
		const LArPointingClusterList &	pointingClusterList
	)		const

private

Get the number of clusters associated with the vertex.

Parameters

vertexPosition2D	the projected vertex position
pointingClusterList	the list of relevant pointing clusters

Returns: the number of clusters associated with the vertex

Definition at line 413 of file ShowerGrowingAlgorithm.cc.

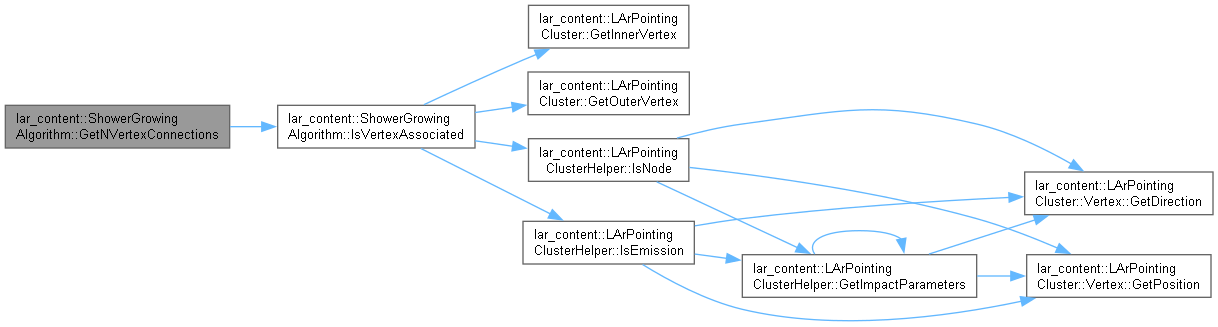

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPandora()

const Pandora & pandora::Process::GetPandora ( ) const

inlineinherited

Get the associated pandora instance.

Returns: the associated pandora instance

Definition at line 116 of file Process.h.

◆ GetSeedAssociationList()

void lar_content::ShowerGrowingAlgorithm::GetSeedAssociationList	(	const pandora::ClusterVector &	particleSeedVector,
		const pandora::ClusterList *const	pClusterList,
		SeedAssociationList &	seedAssociationList
	)		const

private

Get the seed association list for a given vector of particle seed candidates.

Parameters

particleSeedVector	the particle seed vector
pClusterList	the address of the input cluster list
seedAssociationList	to receive the populated seed association list

Definition at line 201 of file ShowerGrowingAlgorithm.cc.

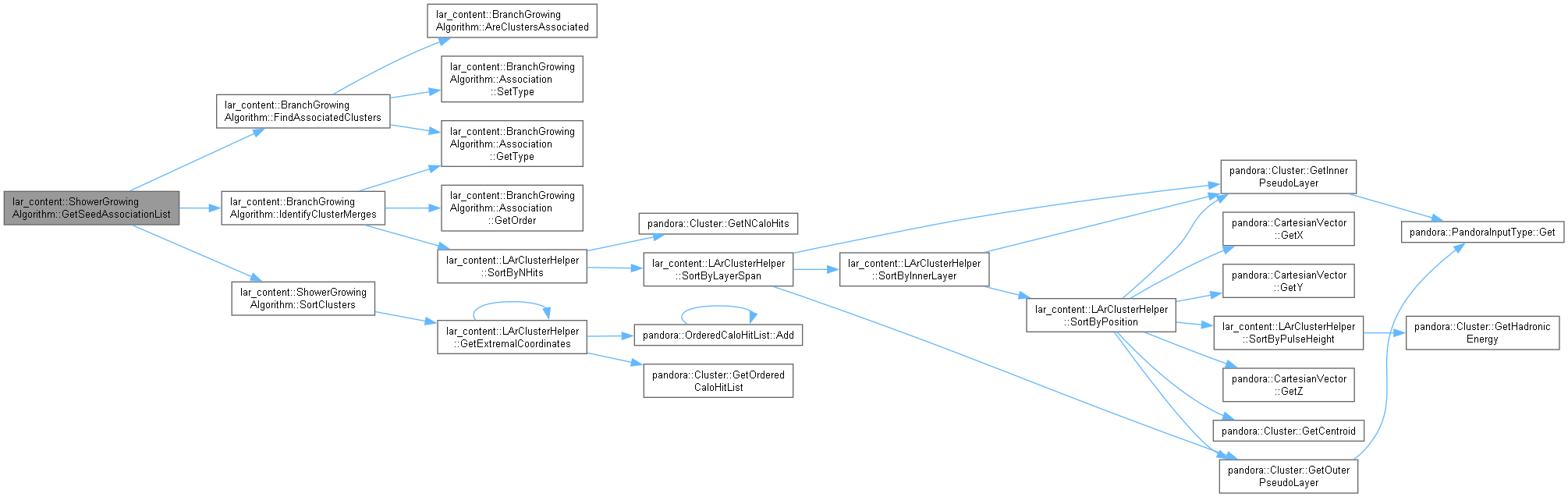

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetType()

const std::string & pandora::Process::GetType ( ) const

inlineinherited

Get the type.

Returns: The type

Definition at line 102 of file Process.h.

◆ IdentifyClusterMerges()

void lar_content::BranchGrowingAlgorithm::IdentifyClusterMerges	(	const pandora::ClusterVector &	particleSeedVector,
		const ClusterUsageMap &	backwardUsageMap,
		SeedAssociationList &	seedAssociationList
	)		const

protectedinherited

Identify cluster merges.

Parameters

particleSeedVector	the list of all particle seeds
backwardUsageMap	the map from cluster to particle seed associations
seedAssociationList	to receive the populated seed association list

Definition at line 73 of file BranchGrowingAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Initialize()

StatusCode pandora::Process::Initialize ( )

inlineprotectedvirtualinherited

Perform any operations that must occur after reading settings, but before running the process.

Reimplemented in lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, EventReadingAlgorithm, and EventWritingAlgorithm.

Definition at line 126 of file Process.h.

Here is the caller graph for this function:

◆ IsVertexAssociated()

bool lar_content::ShowerGrowingAlgorithm::IsVertexAssociated	(	const LArPointingCluster &	pointingCluster,
		const pandora::CartesianVector &	vertexPosition2D
	)		const

protected

Whether a pointing cluster is assciated with a provided 2D vertex projection.

Parameters

pointingCluster	the pointing cluster
vertexPosition2D	the projected vertex position

Returns: boolean

Definition at line 40 of file ShowerGrowingAlgorithm.cc.

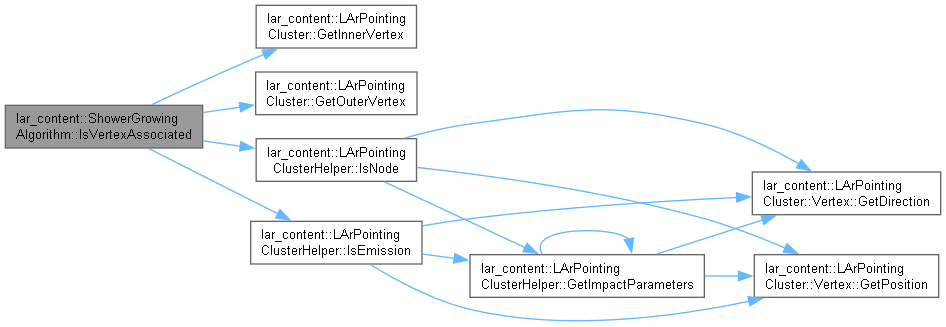

Here is the call graph for this function:

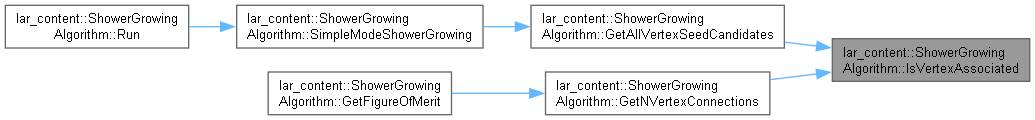

Here is the caller graph for this function:

◆ ProcessBranchClusters()

void lar_content::ShowerGrowingAlgorithm::ProcessBranchClusters	(	const pandora::Cluster *const	pParentCluster,
		const pandora::ClusterVector &	branchClusters,
		const std::string &	listName
	)		const

private

Process the list of branch clusters, merging with specified parent cluster, dealing with any existing pfos as required.

Parameters

pParentCluster	the address of the parent cluster
branchClusters	the list of branch clusters for the specified seed cluster
listName	the cluster list name
pfoList	the input pfo list

Definition at line 258 of file ShowerGrowingAlgorithm.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ProcessSeedAssociationDetails()

void lar_content::ShowerGrowingAlgorithm::ProcessSeedAssociationDetails	(	const SeedAssociationList &	seedAssociationList,
		const std::string &	clusterListName,
		pandora::ClusterSet &	usedClusters
	)		const

private

Process the details stored in a specified seed association list.

Parameters

seedAssociationList	the seed association list
clusterListName	the cluster list name
pfoList	the pfo list
usedClusters	the list of candidates already considered

Definition at line 238 of file ShowerGrowingAlgorithm.cc.

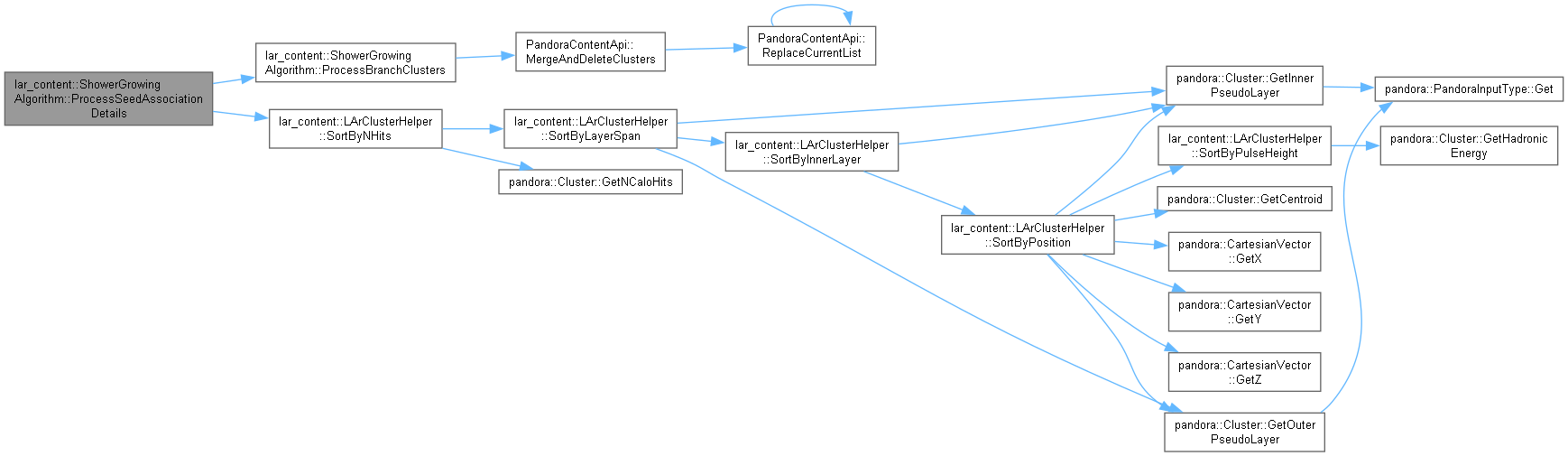

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReadSettings()

StatusCode lar_content::ShowerGrowingAlgorithm::ReadSettings ( const pandora::TiXmlHandle xmlHandle )

privatevirtual

Read the algorithm settings.

Parameters

xmlHandle the relevant xml handle

Reimplemented from lar_content::BranchGrowingAlgorithm.

Definition at line 428 of file ShowerGrowingAlgorithm.cc.

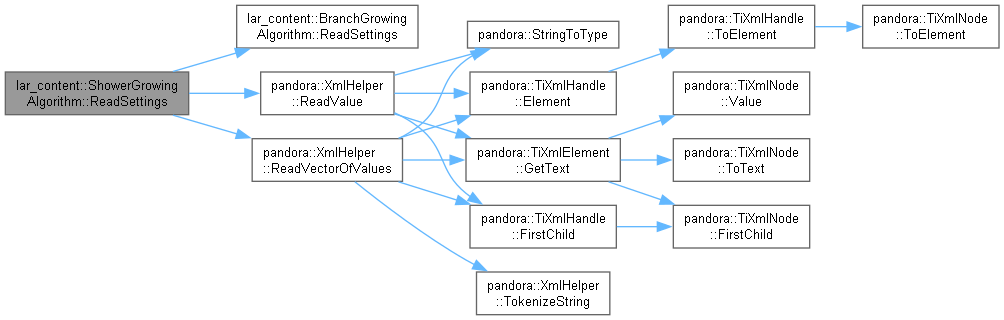

Here is the call graph for this function:

◆ RegisterDetails()

StatusCode pandora::Process::RegisterDetails	(	const Pandora *const	pPandora,
		const std::string &	type,
		const std::string &	instanceName
	)

inlineprotectedinherited

Register i) the pandora instance that will run the process and ii) the process type.

Parameters

pPandora	address of the pandora object that will run the process
type	the process type
instanceName	the process instance name

Definition at line 146 of file Process.h.

Here is the caller graph for this function:

◆ Reset()

StatusCode pandora::Process::Reset ( )

inlineprotectedvirtualinherited

Perform any operations when pandora is reset, typically at the end of each event.

Reimplemented in lar_content::MasterAlgorithm, lar_content::PostProcessingAlgorithm, and lar_content::PreProcessingAlgorithm.

Definition at line 133 of file Process.h.

Here is the caller graph for this function:

◆ Run()

StatusCode lar_content::ShowerGrowingAlgorithm::Run ( )

privatevirtual

Run the algorithm.

Implements pandora::Algorithm.

Definition at line 67 of file ShowerGrowingAlgorithm.cc.

Here is the call graph for this function:

◆ SimpleModeShowerGrowing()

void lar_content::ShowerGrowingAlgorithm::SimpleModeShowerGrowing	(	const pandora::ClusterList *const	pClusterList,
		const std::string &	clusterListName
	)		const

private

Simple single-pass shower growing mode.

Parameters

pClusterList	the list of clusters
clusterListName	the cluster list name

Definition at line 100 of file ShowerGrowingAlgorithm.cc.

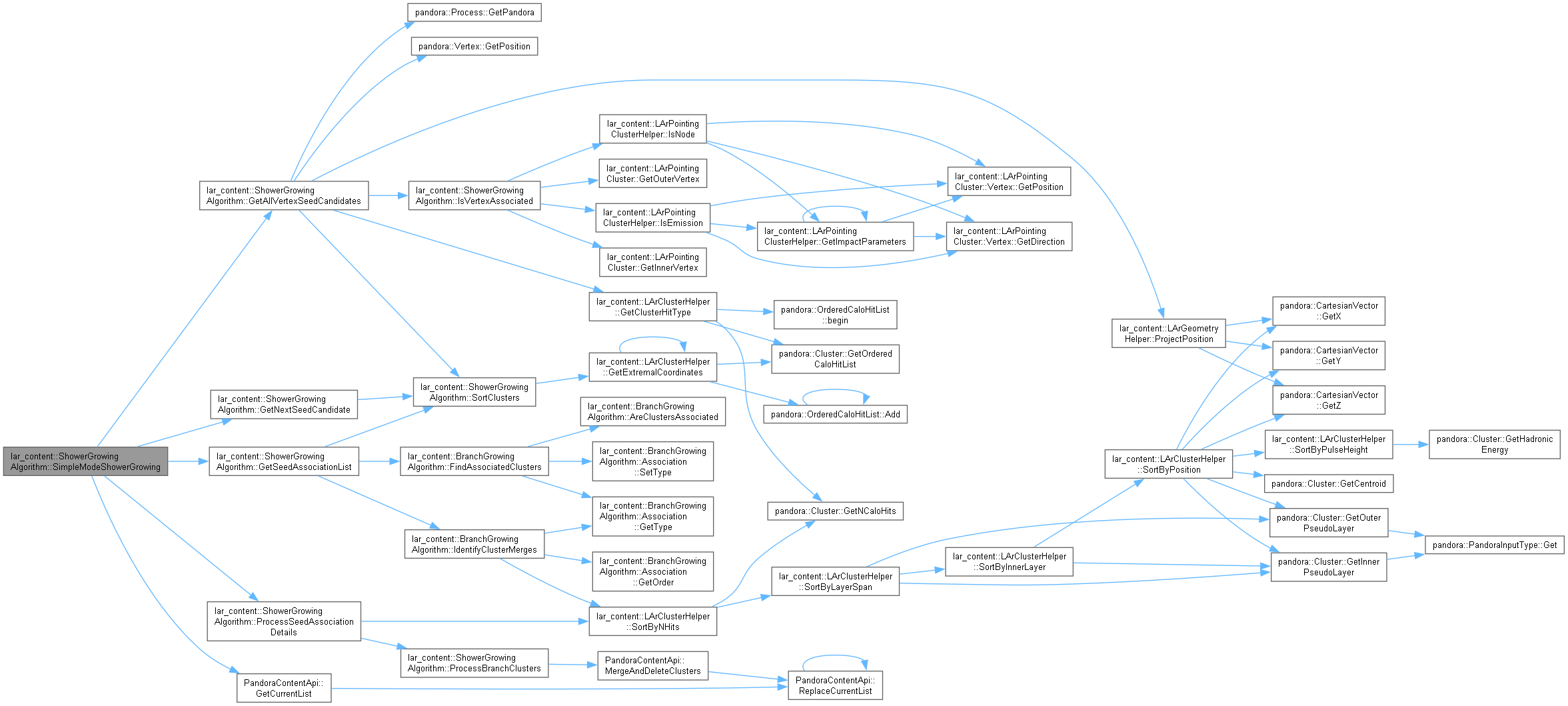

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SortClusters()

bool lar_content::ShowerGrowingAlgorithm::SortClusters	(	const pandora::Cluster *const	pLhs,
		const pandora::Cluster *const	pRhs
	)

staticprotected

Sorting for clusters to determine order in which seeds are considered.

Parameters

pLhs	address of first cluster
pRhs	address of second cluster

Definition at line 52 of file ShowerGrowingAlgorithm.cc.

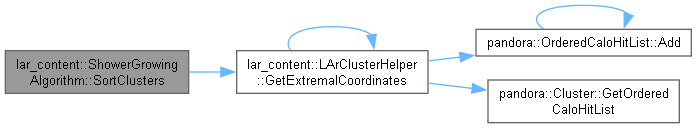

Here is the call graph for this function:

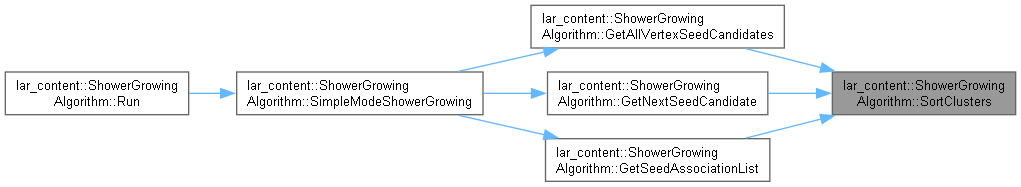

Here is the caller graph for this function:

Member Data Documentation

◆ m_clusterDirectionMap

ClusterDirectionMap lar_content::ShowerGrowingAlgorithm::m_clusterDirectionMap

mutableprotected

The cluster direction map.

Definition at line 55 of file ShowerGrowingAlgorithm.h.

◆ m_directionApexShift

float lar_content::ShowerGrowingAlgorithm::m_directionApexShift

private

Direction determination, look for vertex inside triangle with apex shifted along the cluster length.

Definition at line 152 of file ShowerGrowingAlgorithm.h.

◆ m_directionTanAngle

float lar_content::ShowerGrowingAlgorithm::m_directionTanAngle

private

Direction determination, look for vertex inside triangle with apex shifted along the cluster length.

Definition at line 151 of file ShowerGrowingAlgorithm.h.

◆ m_inputClusterListNames

pandora::StringVector lar_content::ShowerGrowingAlgorithm::m_inputClusterListNames

private

The names of the input cluster lists.

Definition at line 145 of file ShowerGrowingAlgorithm.h.

◆ m_instanceName

std::string pandora::Process::m_instanceName

protectedinherited

The process instance name.

Definition at line 89 of file Process.h.

◆ m_maxVertexLongitudinalDistance

float lar_content::ShowerGrowingAlgorithm::m_maxVertexLongitudinalDistance

private

Vertex association check: max longitudinal distance cut.

Definition at line 155 of file ShowerGrowingAlgorithm.h.

◆ m_maxVertexTransverseDistance

float lar_content::ShowerGrowingAlgorithm::m_maxVertexTransverseDistance

private

Vertex association check: max transverse distance cut.

Definition at line 156 of file ShowerGrowingAlgorithm.h.

◆ m_minCaloHitsPerCluster

unsigned int lar_content::ShowerGrowingAlgorithm::m_minCaloHitsPerCluster

private

The minimum number of calo hits per (seed or branch) cluster.

Definition at line 147 of file ShowerGrowingAlgorithm.h.

◆ m_minVertexLongitudinalDistance

float lar_content::ShowerGrowingAlgorithm::m_minVertexLongitudinalDistance

private

Vertex association check: min longitudinal distance cut.

Definition at line 154 of file ShowerGrowingAlgorithm.h.

◆ m_nearbyClusterDistance

float lar_content::ShowerGrowingAlgorithm::m_nearbyClusterDistance

private

The nearby cluster distance, used for determining cluster associations.

Definition at line 148 of file ShowerGrowingAlgorithm.h.

◆ m_pPandora

const Pandora* pandora::Process::m_pPandora

protectedinherited

The pandora object that will run the process.

Definition at line 87 of file Process.h.

◆ m_remoteClusterDistance

float lar_content::ShowerGrowingAlgorithm::m_remoteClusterDistance

private

The remote cluster distance, used for determining cluster associations.

Definition at line 149 of file ShowerGrowingAlgorithm.h.

◆ m_type

std::string pandora::Process::m_type

protectedinherited

The process type.

Definition at line 88 of file Process.h.

◆ m_vertexAngularAllowance

float lar_content::ShowerGrowingAlgorithm::m_vertexAngularAllowance

private

Vertex association check: pointing angular allowance in degrees.

Definition at line 157 of file ShowerGrowingAlgorithm.h.

The documentation for this class was generated from the following files:

LArContent/larpandoracontent/LArTrackShowerId/ShowerGrowingAlgorithm.h
LArContent/larpandoracontent/LArTrackShowerId/ShowerGrowingAlgorithm.cc

Public Member Functions

Protected Types

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ ClusterAssociationMap

◆ ClusterDirectionMap

◆ ClusterUsageMap

◆ SeedAssociationList

Member Enumeration Documentation

◆ AssociationType

Constructor & Destructor Documentation

◆ ShowerGrowingAlgorithm()

Member Function Documentation

◆ AreClustersAssociated()

◆ FindAssociatedClusters()

◆ GetAllVertexSeedCandidates()

◆ GetFigureOfMerit()

◆ GetInstanceName()

◆ GetNextSeedCandidate()

◆ GetNVertexConnections()

◆ GetPandora()

◆ GetSeedAssociationList()

◆ GetType()

◆ IdentifyClusterMerges()

◆ Initialize()

◆ IsVertexAssociated()

◆ ProcessBranchClusters()

◆ ProcessSeedAssociationDetails()

◆ ReadSettings()

◆ RegisterDetails()

◆ Reset()

◆ Run()

◆ SimpleModeShowerGrowing()

◆ SortClusters()

Member Data Documentation

◆ m_clusterDirectionMap

◆ m_directionApexShift

◆ m_directionTanAngle

◆ m_inputClusterListNames

◆ m_instanceName

◆ m_maxVertexLongitudinalDistance

◆ m_maxVertexTransverseDistance

◆ m_minCaloHitsPerCluster

◆ m_minVertexLongitudinalDistance

◆ m_nearbyClusterDistance

◆ m_pPandora

◆ m_remoteClusterDistance

◆ m_type

◆ m_vertexAngularAllowance
