TwoViewCosmicRayRemovalTool class. More...

#include "TwoViewCosmicRayRemovalTool.h"

Inheritance diagram for lar_content::TwoViewCosmicRayRemovalTool:

[legend]

Collaboration diagram for lar_content::TwoViewCosmicRayRemovalTool:

[legend]

Public Types
typedef std::vector< pandora::HitType >	HitTypeVector

typedef TwoViewDeltaRayMatchingAlgorithm::MatchingType::MatrixType	MatrixType

typedef std::vector< MatrixType::ElementList::const_iterator >	IteratorList

Public Member Functions
	TwoViewCosmicRayRemovalTool ()
	Default constructor.

const std::string &	GetType () const
	Get the type.

const std::string &	GetInstanceName () const
	Get the instance name.

const Pandora &	GetPandora () const
	Get the associated pandora instance.

Public Attributes
TwoViewDeltaRayMatchingAlgorithm *	m_pParentAlgorithm
	Address of the parent matching algorithm.

Protected Member Functions
virtual StatusCode	Initialize ()
	Perform any operations that must occur after reading settings, but before running the process.

virtual StatusCode	Reset ()
	Perform any operations when pandora is reset, typically at the end of each event.

StatusCode	RegisterDetails (const Pandora *const pPandora, const std::string &type, const std::string &instanceName)
	Register i) the pandora instance that will run the process and ii) the process type.

Protected Attributes
const Pandora *	m_pPandora
	The pandora object that will run the process.

std::string	m_type
	The process type.

std::string	m_instanceName
	The process instance name.

Private Member Functions
bool	Run (TwoViewDeltaRayMatchingAlgorithm *const pAlgorithm, MatrixType &overlapMatrix)
	Run the algorithm tool.

pandora::StatusCode	ReadSettings (const pandora::TiXmlHandle xmlHandle)
	Read the algorithm settings.

bool	RemoveCosmicRayHits (const MatrixType::ElementList &elementList) const
	Remove hits from delta ray clusters that belong to the parent muon.

bool	PassElementChecks (const MatrixType::Element &element, const pandora::HitType hitType) const
	Determine whether element satifies simple checks.

bool	IsMuonEndpoint (const MatrixType::Element &element, const pandora::HitType hitType) const
	Determine whether the matched clusters suggest that the delta ray is at the endpoint of the cosmic ray (and is likely to be a michel)

bool	IsContaminated (const MatrixType::Element &element, const pandora::HitType hitType) const
	Determine whether the cluster under investigation has muon contamination.

bool	IsCloseToLine (const pandora::CartesianVector &hitPosition, const pandora::CartesianVector &lineStart, const pandora::CartesianVector &lineEnd, const float distanceToLine) const
	Whether a given position is close to a defined line.

bool	IsInLineSegment (const pandora::CartesianVector &lowerBoundary, const pandora::CartesianVector &upperBoundary, const pandora::CartesianVector &point) const
	Whether the projection of a given position lies on a defined line.

bool	IsBestElement (const MatrixType::Element &element, const pandora::HitType hitType, const MatrixType::ElementList &elementList) const
	Determine whether the input element is the best to use to modify the contaminated cluster (best is defined by the total hit count)

void	CreateSeed (const MatrixType::Element &element, const pandora::HitType hitType, pandora::CaloHitList &collectedHits) const
	Collect hits in the delta ray cluster that lie close to calculated projected positions forming a seed to later grow.

pandora::StatusCode	GrowSeed (const MatrixType::Element &element, const pandora::HitType hitType, pandora::CaloHitList &collectedHits, pandora::CaloHitList &deltaRayRemantHits) const
	Examine remaining hits in the delta ray cluster adding them to the delta ray seed or parent muon if appropriate and a separate list if not.

void	CollectHitsFromDeltaRay (const pandora::CartesianVector &positionOnMuon, const pandora::CartesianVector &muonDirection, const pandora::Cluster *const pDeltaRayCluster, const float &minDistanceFromMuon, const bool demandCloserToCollected, const pandora::CaloHitList &protectedHits, pandora::CaloHitList &collectedHits) const
	Collect hits from the delta ray cluster to either keep (demandCloserToCollected == true) or separate into a new shower (demandCloserToCollected == false)

void	SplitDeltaRayCluster (const MatrixType::Element &element, const pandora::HitType hitType, pandora::CaloHitList &collectedHits, pandora::CaloHitList &deltaRayRemnantHits) const
	Fragment the delta ray cluster, refining the matched delta ray cluster perhaps creating significant remnants in the process.

void	ReclusterRemnant (const pandora::HitType hitType, const pandora::Cluster const pMuonCluster, const pandora::Cluster const pDeltaRayRemnant, pandora::ClusterVector &clusterVector, pandora::PfoVector &pfoVector) const
	Reculster the remnant cluster, merging insignificant created clusters into the parent muon (if proximity checks pass)

pandora::StatusCode	ProjectDeltaRayPositions (const MatrixType::Element &element, const pandora::HitType hitType, pandora::CartesianPointVector &projectedPositions) const
	Use two views of a delta ray pfo to calculate projected positions in a given third view.

Private Attributes
float	m_minSeparation
	The minimum delta ray - parent muon cluster separation required to investigate delta ray cluster.

unsigned int	m_slidingFitWindow
	The sliding fit window used in cosmic ray parameterisations.

float	m_distanceToLine
	The maximum perpendicular distance of a position to a line for it to be considered close.

float	m_minContaminationLength
	The minimum projected length of a delta ray cluster onto the muon track for it to be considered contaminated.

float	m_maxDistanceToHit
	The maximum distance of a hit from the cosmic ray track for it to be added into the CR.

unsigned int	m_minRemnantClusterSize
	The minimum hit number of a remnant cluster for it to be considered significant.

float	m_maxDistanceToTrack
	The minimum distance of an insignificant remnant cluster from the cosmic ray track for it to be merged into the CR.

Detailed Description

TwoViewCosmicRayRemovalTool class.

Definition at line 18 of file TwoViewCosmicRayRemovalTool.h.

Member Typedef Documentation

◆ HitTypeVector

typedef std::vector<pandora::HitType> lar_content::TwoViewCosmicRayRemovalTool::HitTypeVector

Definition at line 21 of file TwoViewCosmicRayRemovalTool.h.

◆ IteratorList

typedef std::vector<MatrixType::ElementList::const_iterator> lar_content::DeltaRayMatrixTool::IteratorList

inherited

Definition at line 203 of file TwoViewDeltaRayMatchingAlgorithm.h.

◆ MatrixType

typedef TwoViewDeltaRayMatchingAlgorithm::MatchingType::MatrixType lar_content::DeltaRayMatrixTool::MatrixType

inherited

Definition at line 202 of file TwoViewDeltaRayMatchingAlgorithm.h.

Constructor & Destructor Documentation

◆ TwoViewCosmicRayRemovalTool()

lar_content::TwoViewCosmicRayRemovalTool::TwoViewCosmicRayRemovalTool ( )

Default constructor.

Definition at line 22 of file TwoViewCosmicRayRemovalTool.cc.

Member Function Documentation

◆ CollectHitsFromDeltaRay()

void lar_content::TwoViewCosmicRayRemovalTool::CollectHitsFromDeltaRay	(	const pandora::CartesianVector &	positionOnMuon,
		const pandora::CartesianVector &	muonDirection,
		const pandora::Cluster *const	pDeltaRayCluster,
		const float &	minDistanceFromMuon,
		const bool	demandCloserToCollected,
		const pandora::CaloHitList &	protectedHits,
		pandora::CaloHitList &	collectedHits
	)		const

private

Collect hits from the delta ray cluster to either keep (demandCloserToCollected == true) or separate into a new shower (demandCloserToCollected == false)

Parameters

positionOnMuon	the parameterised muon position
muonDirection	the parameterised muon direction
pDeltaRayCluster	the delta ray cluster under investigation
minDistanceFromMuon	the minimum distance of a hit from the muon track for it to not belong to the muon
demandCloserToCollected	whether to demand a hit be closer to the collected hits than to the muon hits for it to be collected
protectedHits	the hits that are protected from being collected
collectedHits	the output list of collected hits

Definition at line 374 of file TwoViewCosmicRayRemovalTool.cc.

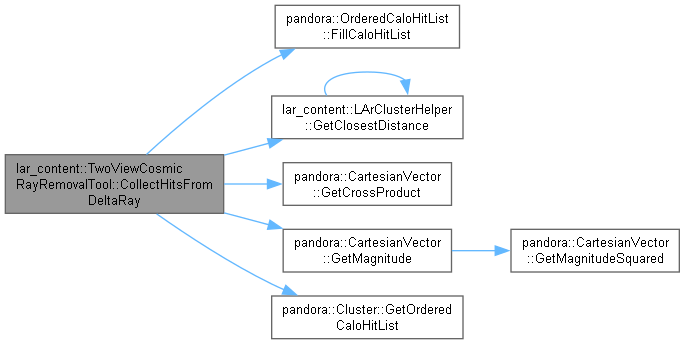

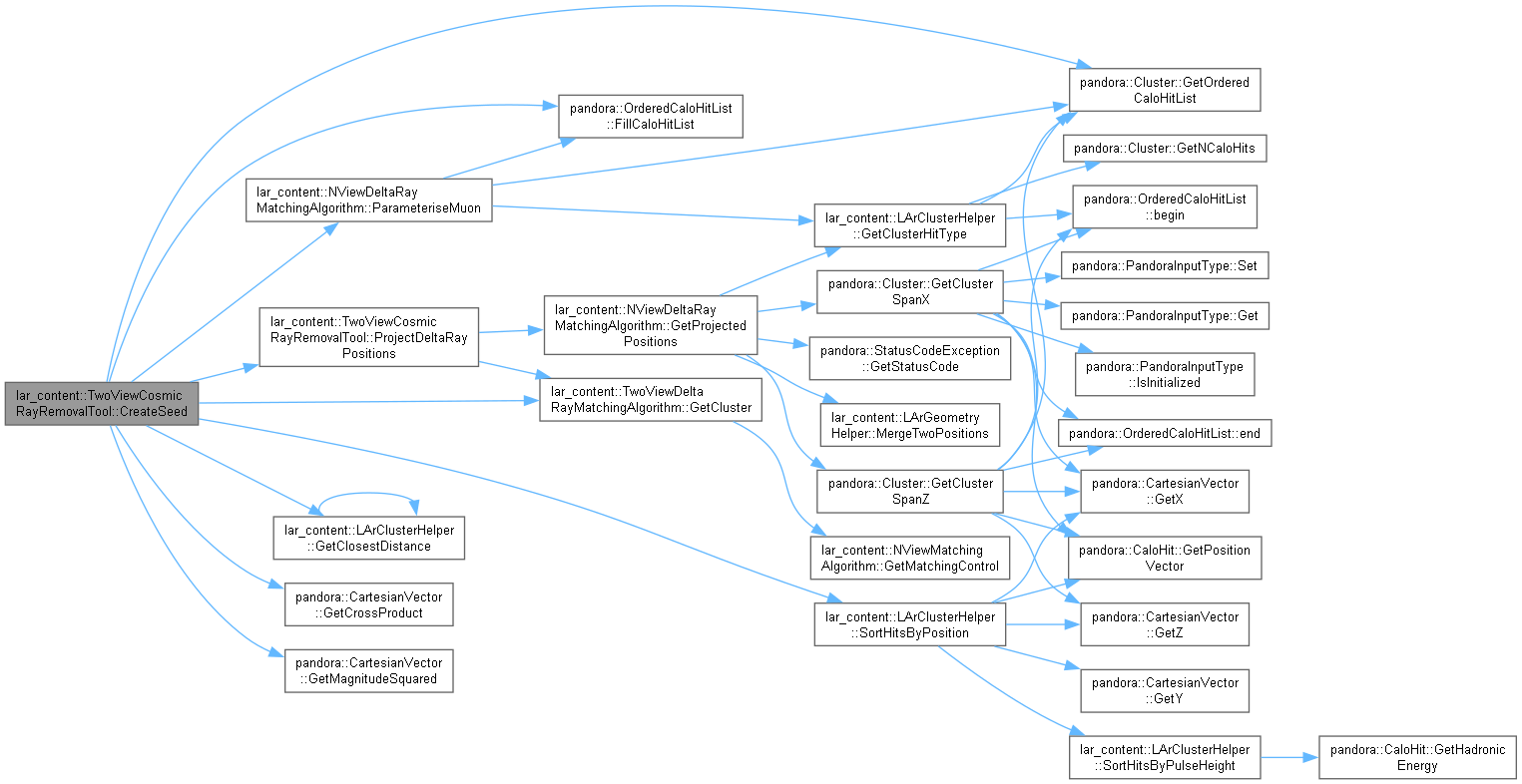

Here is the call graph for this function:

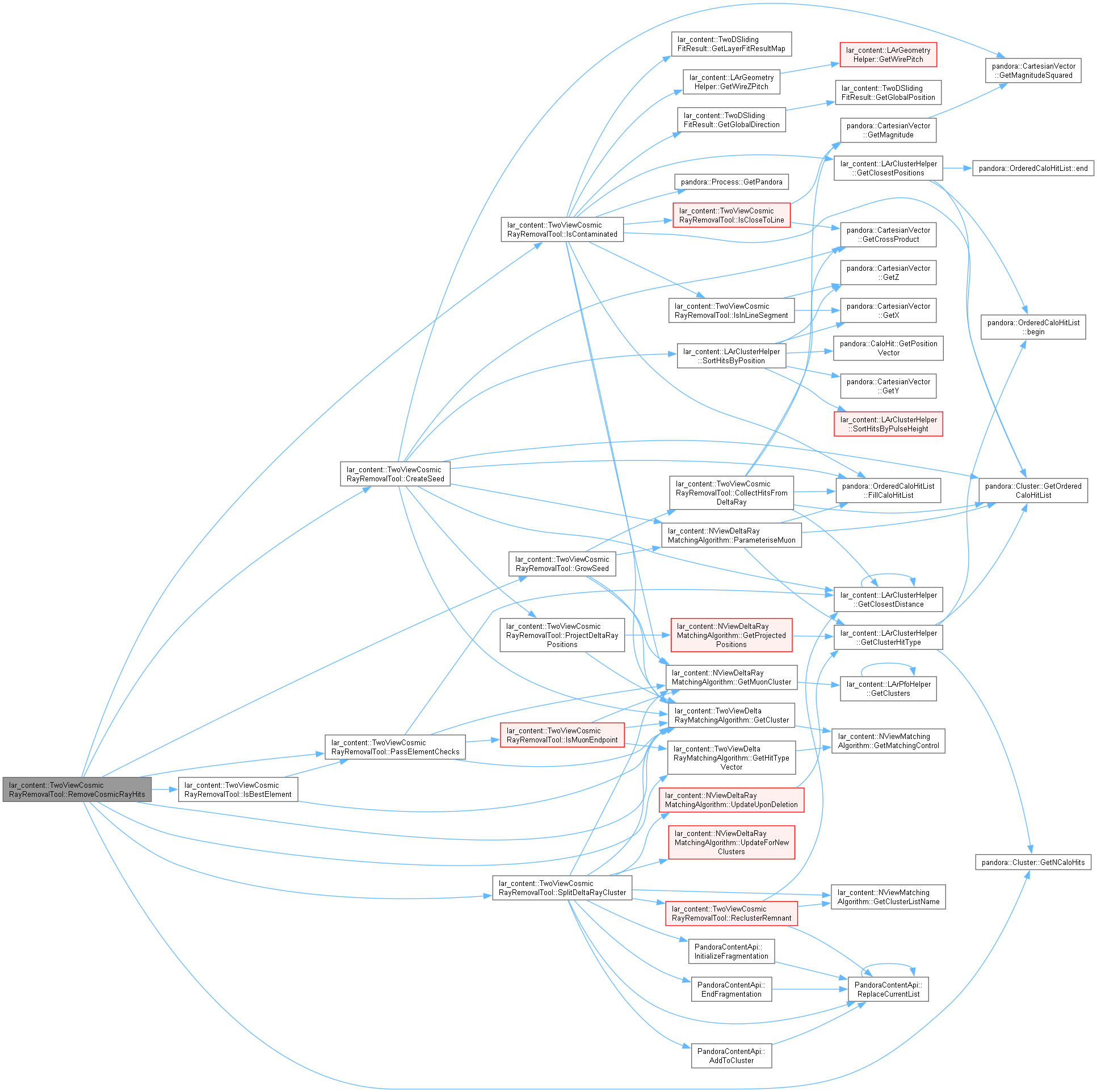

Here is the caller graph for this function:

◆ CreateSeed()

void lar_content::TwoViewCosmicRayRemovalTool::CreateSeed	(	const MatrixType::Element &	element,
		const pandora::HitType	hitType,
		pandora::CaloHitList &	collectedHits
	)		const

private

Collect hits in the delta ray cluster that lie close to calculated projected positions forming a seed to later grow.

Parameters

element	the matrix element
hitType	the hit type of the cluster under investigation
collectedHits	the output list of identified delta ray hits

Definition at line 302 of file TwoViewCosmicRayRemovalTool.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetInstanceName()

const std::string & pandora::Process::GetInstanceName ( ) const

inlineinherited

Get the instance name.

Returns: The instance name

Definition at line 109 of file Process.h.

◆ GetPandora()

const Pandora & pandora::Process::GetPandora ( ) const

inlineinherited

Get the associated pandora instance.

Returns: the associated pandora instance

Definition at line 116 of file Process.h.

◆ GetType()

const std::string & pandora::Process::GetType ( ) const

inlineinherited

Get the type.

Returns: The type

Definition at line 102 of file Process.h.

◆ GrowSeed()

StatusCode lar_content::TwoViewCosmicRayRemovalTool::GrowSeed	(	const MatrixType::Element &	element,
		const pandora::HitType	hitType,
		pandora::CaloHitList &	collectedHits,
		pandora::CaloHitList &	deltaRayRemantHits
	)		const

private

Examine remaining hits in the delta ray cluster adding them to the delta ray seed or parent muon if appropriate and a separate list if not.

Parameters

element	the matrix element
hitType	the hit type of the cluster under investigation
collectedHits	the list of identified delta ray hits
deltaRayRemantHits	the list of remainder hits

Returns: whether the muon projection mechanics were successful - abort process if not

Definition at line 349 of file TwoViewCosmicRayRemovalTool.cc.

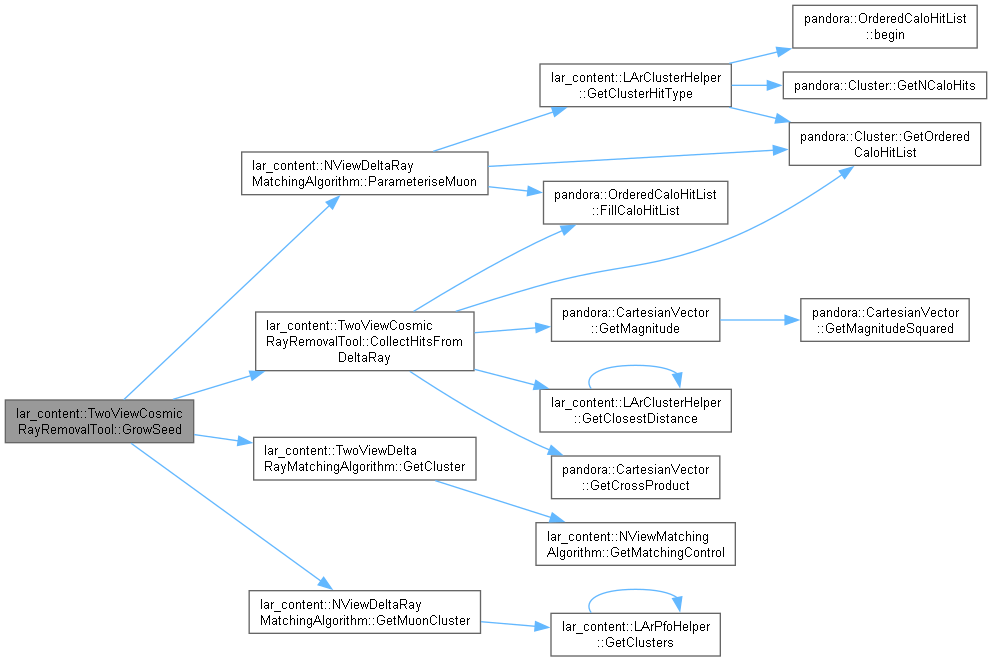

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Initialize()

StatusCode pandora::Process::Initialize ( )

inlineprotectedvirtualinherited

Perform any operations that must occur after reading settings, but before running the process.

Reimplemented in lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, EventReadingAlgorithm, and EventWritingAlgorithm.

Definition at line 126 of file Process.h.

Here is the caller graph for this function:

◆ IsBestElement()

bool lar_content::TwoViewCosmicRayRemovalTool::IsBestElement	(	const MatrixType::Element &	element,
		const pandora::HitType	hitType,
		const MatrixType::ElementList &	elementList
	)		const

private

Determine whether the input element is the best to use to modify the contaminated cluster (best is defined by the total hit count)

Parameters

element	the matrix element
hitType	the hit type of the cluster under investigation
elementList	the matrix element list

Returns: whether the input element is the best element

Definition at line 274 of file TwoViewCosmicRayRemovalTool.cc.

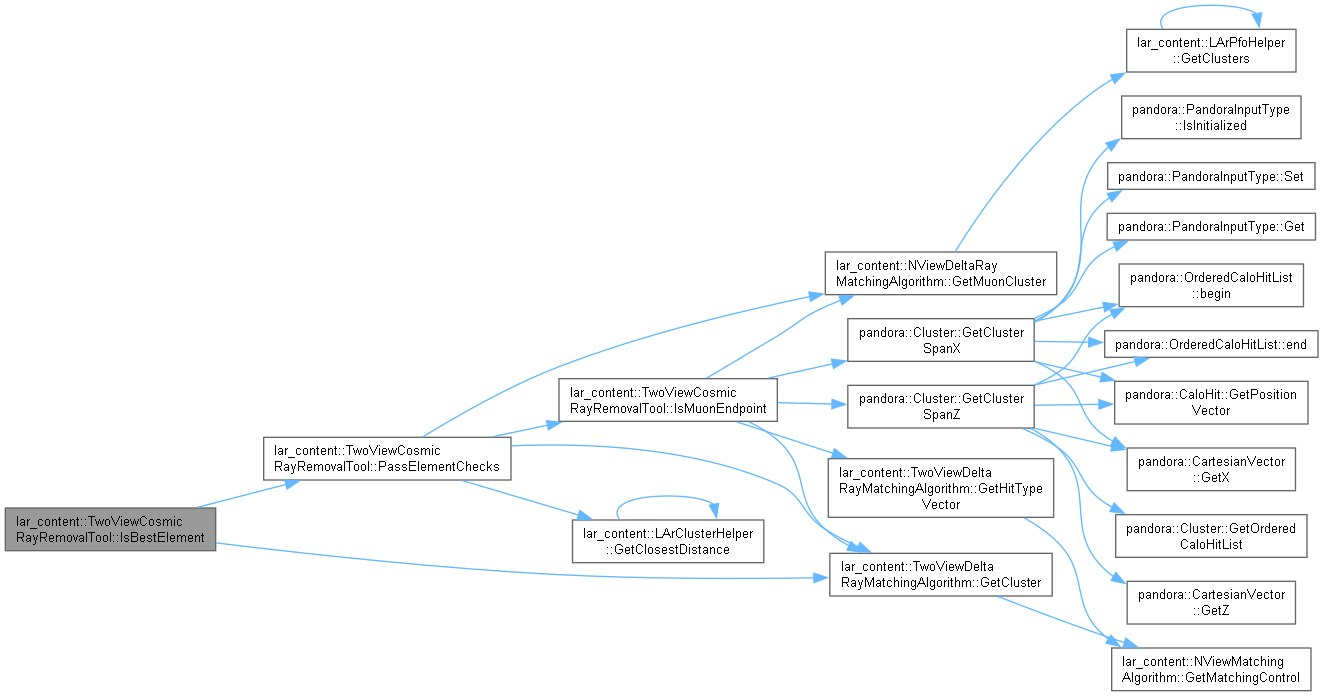

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsCloseToLine()

bool lar_content::TwoViewCosmicRayRemovalTool::IsCloseToLine	(	const pandora::CartesianVector &	hitPosition,
		const pandora::CartesianVector &	lineStart,
		const pandora::CartesianVector &	lineEnd,
		const float	distanceToLine
	)		const

private

Whether a given position is close to a defined line.

Parameters

hitPosition	the input position
lineStart	the start position of the line
lineEnd	the end position of the line
distanceToLine	the definition of close

Returns: whether the position is close to the definied line

Definition at line 234 of file TwoViewCosmicRayRemovalTool.cc.

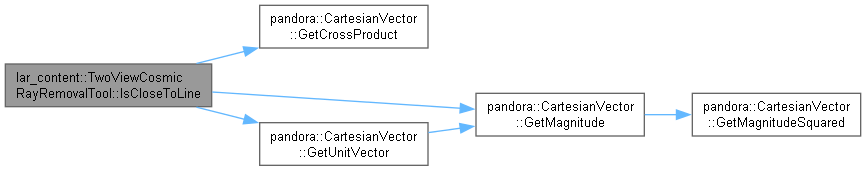

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsContaminated()

bool lar_content::TwoViewCosmicRayRemovalTool::IsContaminated	(	const MatrixType::Element &	element,
		const pandora::HitType	hitType
	)		const

private

Determine whether the cluster under investigation has muon contamination.

Parameters

element	the matrix element
hitType	the hit type of the cluster under investigation

Returns: whether the cluster contains muon hits to remove

Definition at line 177 of file TwoViewCosmicRayRemovalTool.cc.

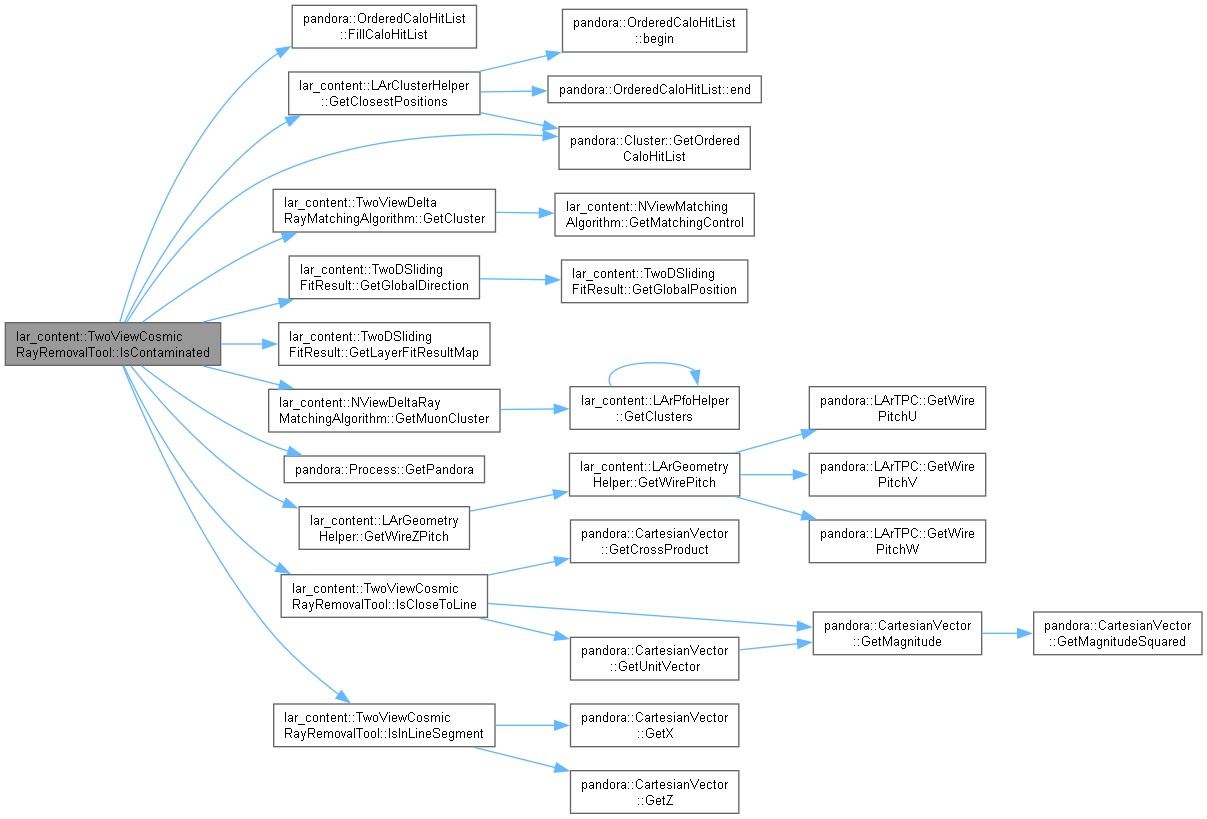

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsInLineSegment()

bool lar_content::TwoViewCosmicRayRemovalTool::IsInLineSegment	(	const pandora::CartesianVector &	lowerBoundary,
		const pandora::CartesianVector &	upperBoundary,
		const pandora::CartesianVector &	point
	)		const

private

Whether the projection of a given position lies on a defined line.

Parameters

lowerBoundary	the start position of the line
upperBoundary	the end position of the line
point	the input position

Returns: whether the position lies between the two points

Definition at line 250 of file TwoViewCosmicRayRemovalTool.cc.

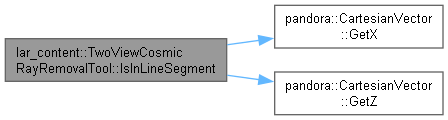

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsMuonEndpoint()

bool lar_content::TwoViewCosmicRayRemovalTool::IsMuonEndpoint	(	const MatrixType::Element &	element,
		const pandora::HitType	hitType
	)		const

private

Determine whether the matched clusters suggest that the delta ray is at the endpoint of the cosmic ray (and is likely to be a michel)

Parameters

element	the matrix element
ignoreHitType	whether to ignore the cluster under investigation
hitTypeToIgnore	the hit type to ignore

Returns: whether the delta ray is at the endpoint of the cosmic ray

Definition at line 141 of file TwoViewCosmicRayRemovalTool.cc.

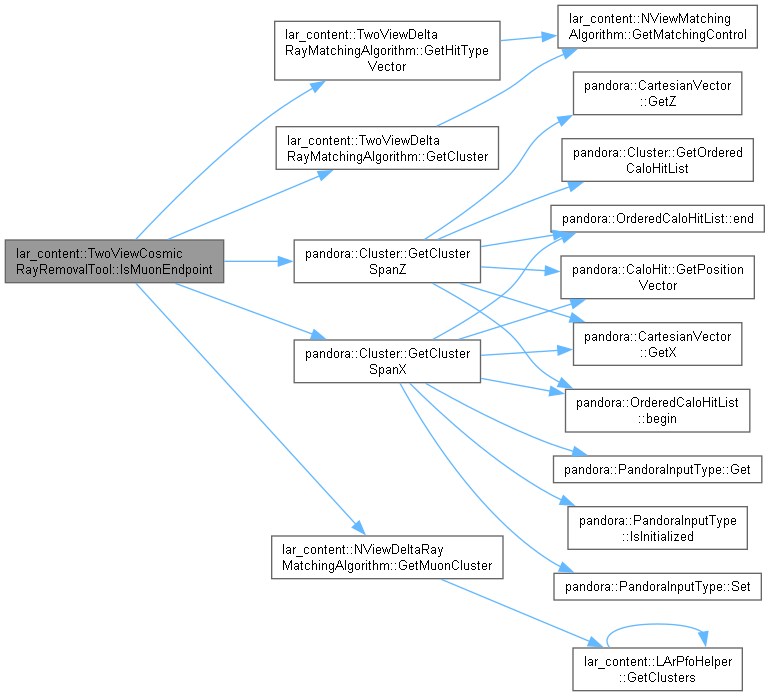

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PassElementChecks()

bool lar_content::TwoViewCosmicRayRemovalTool::PassElementChecks	(	const MatrixType::Element &	element,
		const pandora::HitType	hitType
	)		const

private

Determine whether element satifies simple checks.

Parameters

element	the matrix element
hitType	the hit type of the cluster under investigation

Returns: whether the checks pass

Definition at line 123 of file TwoViewCosmicRayRemovalTool.cc.

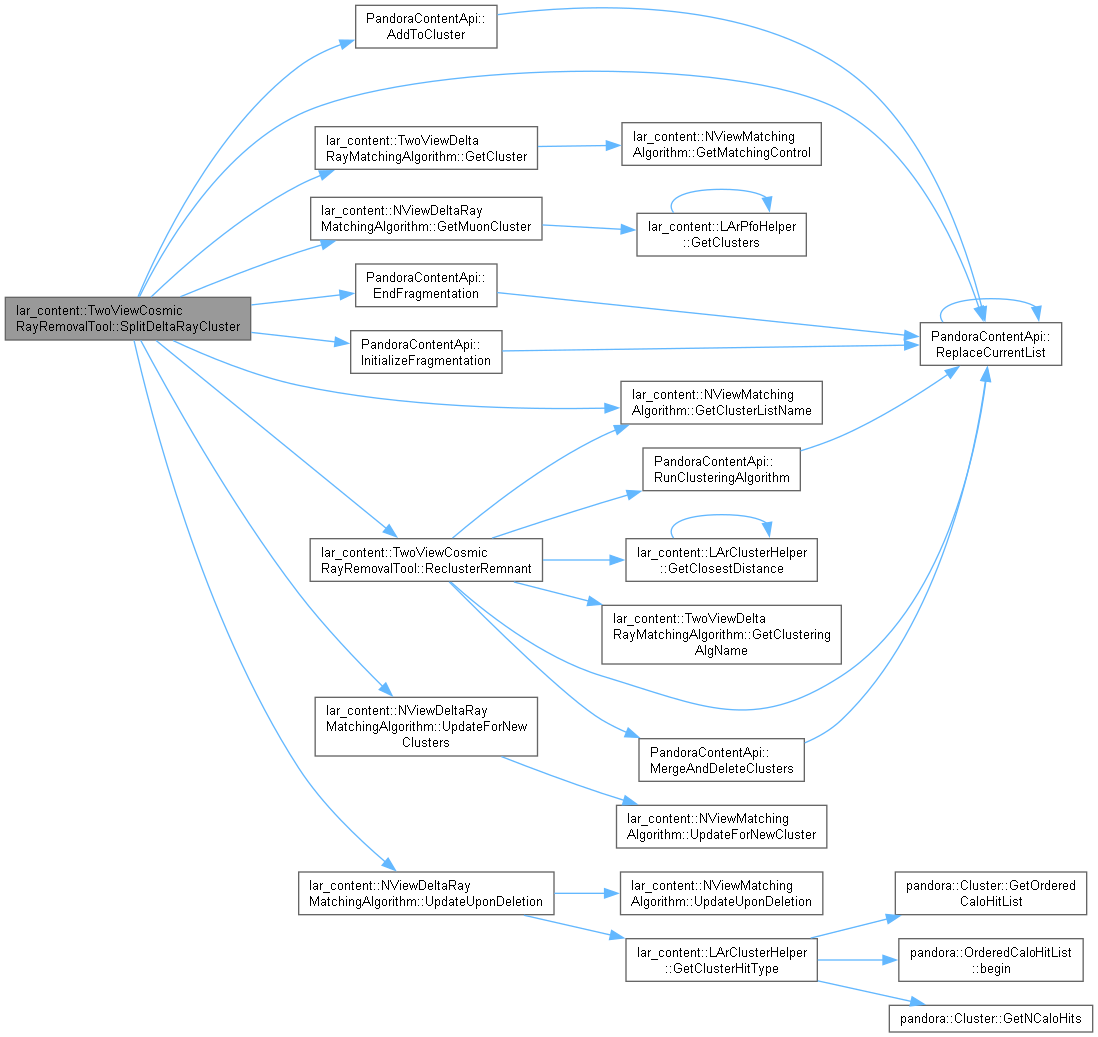

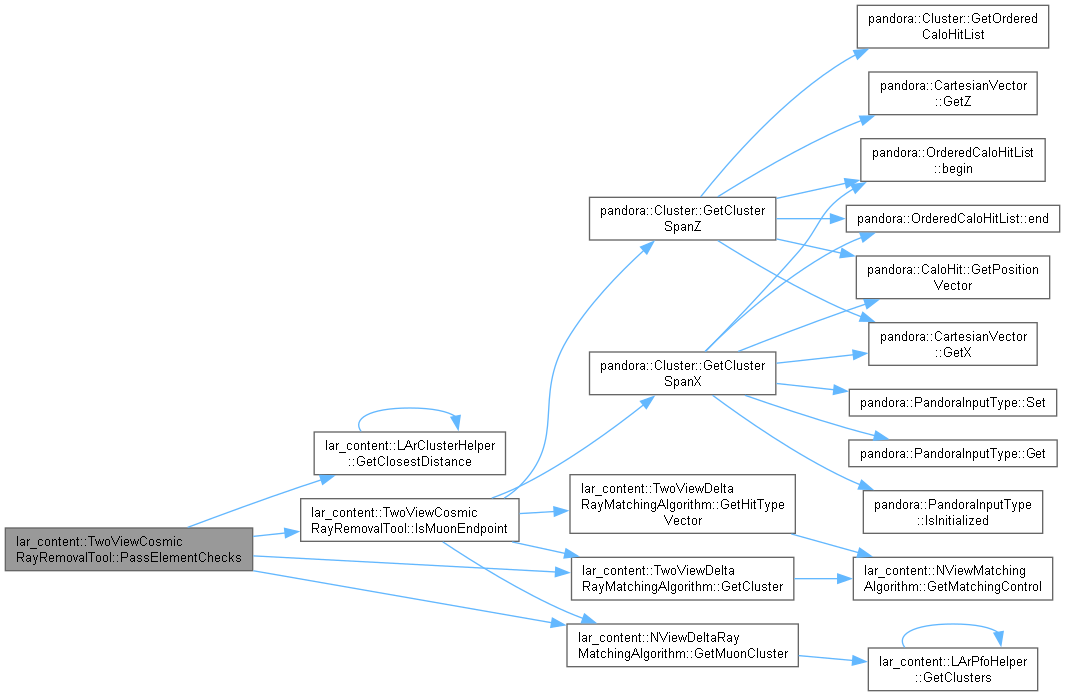

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ProjectDeltaRayPositions()

StatusCode lar_content::TwoViewCosmicRayRemovalTool::ProjectDeltaRayPositions	(	const MatrixType::Element &	element,
		const pandora::HitType	hitType,
		pandora::CartesianPointVector &	projectedPositions
	)		const

private

Use two views of a delta ray pfo to calculate projected positions in a given third view.

Parameters

element	the matrix element
hitType	the view to be projected into
projectedPositions	the output list of projected positions

Returns: a status code reflecting whether the procedure ran smoothly and if the outcome is good

Definition at line 511 of file TwoViewCosmicRayRemovalTool.cc.

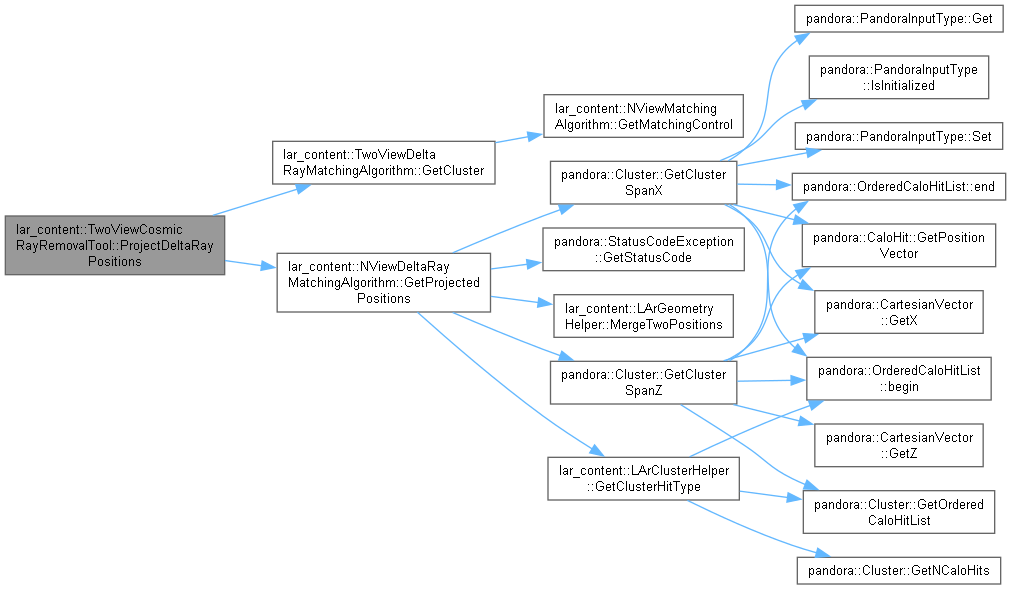

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReadSettings()

StatusCode lar_content::TwoViewCosmicRayRemovalTool::ReadSettings ( const pandora::TiXmlHandle xmlHandle )

privatevirtual

Read the algorithm settings.

Parameters

xmlHandle the relevant xml handle

Implements pandora::Process.

Definition at line 529 of file TwoViewCosmicRayRemovalTool.cc.

Here is the call graph for this function:

◆ ReclusterRemnant()

void lar_content::TwoViewCosmicRayRemovalTool::ReclusterRemnant	(	const pandora::HitType	hitType,
		const pandora::Cluster *const	pMuonCluster,
		const pandora::Cluster *const	pDeltaRayRemnant,
		pandora::ClusterVector &	clusterVector,
		pandora::PfoVector &	pfoVector
	)		const

private

Reculster the remnant cluster, merging insignificant created clusters into the parent muon (if proximity checks pass)

Parameters

hitType	the hit type of the cluster under investigation
pMuonCluster	the address of the parent muon cluster
pDeltaRayRemnant	the address of the delta ray remnant
clusterVector	a vector containing the address of created/modified clusters for bookeeping purposes
pfoVector	a vector containing the address of the pfo to which a modified muon cluster belongs for bookeeping purposes

Definition at line 471 of file TwoViewCosmicRayRemovalTool.cc.

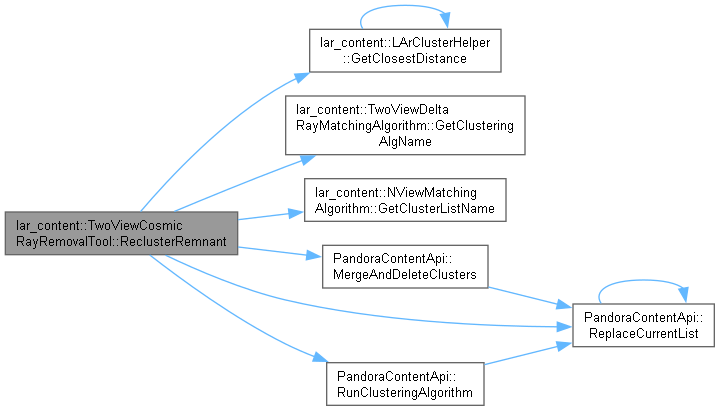

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RegisterDetails()

StatusCode pandora::Process::RegisterDetails	(	const Pandora *const	pPandora,
		const std::string &	type,
		const std::string &	instanceName
	)

inlineprotectedinherited

Register i) the pandora instance that will run the process and ii) the process type.

Parameters

pPandora	address of the pandora object that will run the process
type	the process type
instanceName	the process instance name

Definition at line 146 of file Process.h.

Here is the caller graph for this function:

◆ RemoveCosmicRayHits()

bool lar_content::TwoViewCosmicRayRemovalTool::RemoveCosmicRayHits ( const MatrixType::ElementList & elementList ) const

private

Remove hits from delta ray clusters that belong to the parent muon.

Parameters

elementList the matrix element list

Returns: whether any clusters have been modified

Definition at line 69 of file TwoViewCosmicRayRemovalTool.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Reset()

StatusCode pandora::Process::Reset ( )

inlineprotectedvirtualinherited

Perform any operations when pandora is reset, typically at the end of each event.

Reimplemented in lar_content::MasterAlgorithm, lar_content::PostProcessingAlgorithm, and lar_content::PreProcessingAlgorithm.

Definition at line 133 of file Process.h.

Here is the caller graph for this function:

◆ Run()

bool lar_content::TwoViewCosmicRayRemovalTool::Run	(	TwoViewDeltaRayMatchingAlgorithm *const	pAlgorithm,
		MatrixType &	matrixTensor
	)

privatevirtual

Run the algorithm tool.

Parameters

pAlgorithm	address of the calling algorithm
overlapTensor	the overlap tensor

Returns: whether changes have been made by the tool

Implements lar_content::DeltaRayMatrixTool.

Definition at line 35 of file TwoViewCosmicRayRemovalTool.cc.

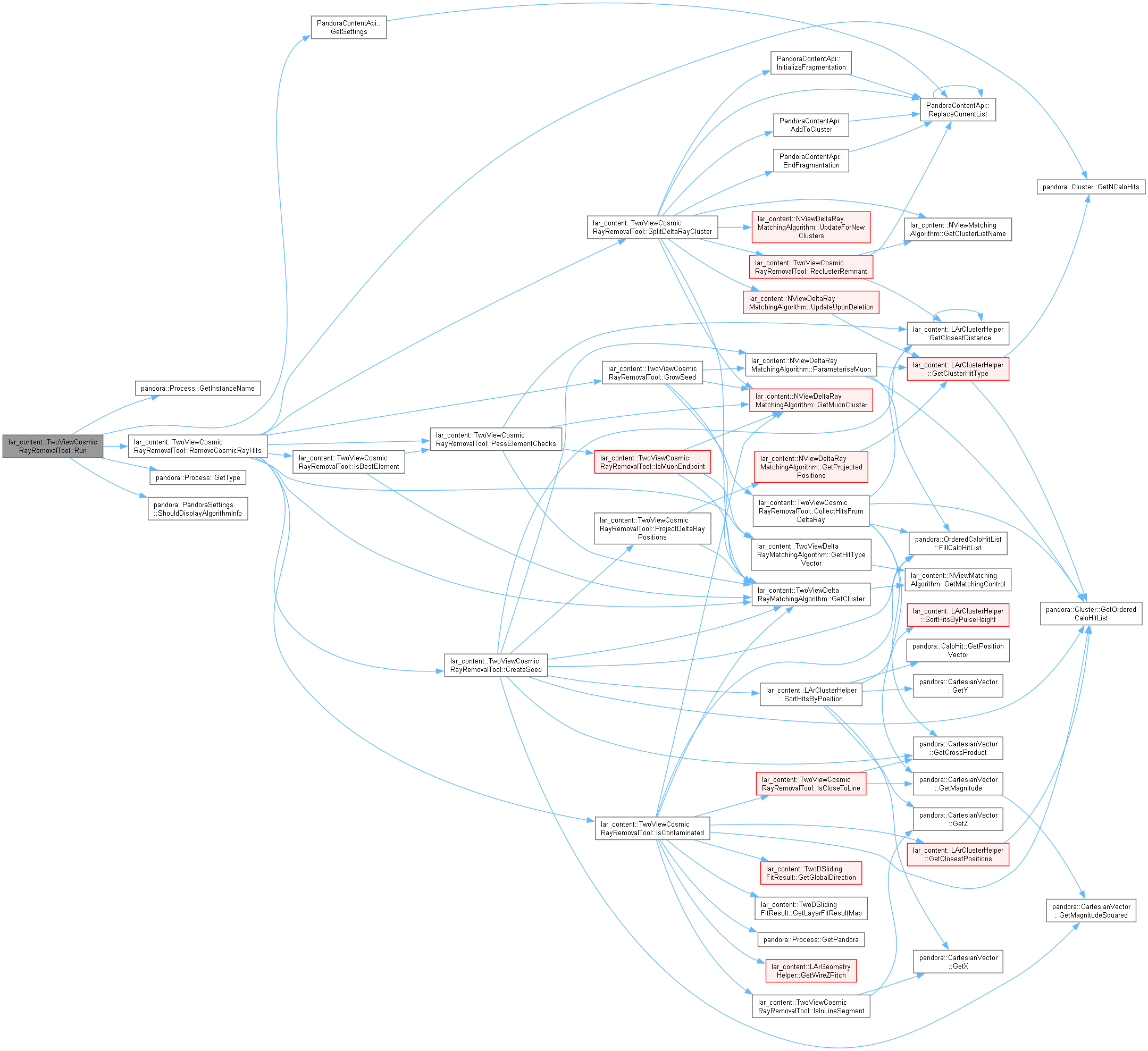

Here is the call graph for this function:

◆ SplitDeltaRayCluster()

void lar_content::TwoViewCosmicRayRemovalTool::SplitDeltaRayCluster	(	const MatrixType::Element &	element,
		const pandora::HitType	hitType,
		pandora::CaloHitList &	collectedHits,
		pandora::CaloHitList &	deltaRayRemnantHits
	)		const

private

Fragment the delta ray cluster, refining the matched delta ray cluster perhaps creating significant remnants in the process.

Parameters

element	the matrix element
hitType	the hit type of the cluster under investigation
collectedHits	the list of identified delta ray hits
deltaRayRemantHits	the list of remainder hits

Definition at line 411 of file TwoViewCosmicRayRemovalTool.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_distanceToLine

float lar_content::TwoViewCosmicRayRemovalTool::m_distanceToLine

private

The maximum perpendicular distance of a position to a line for it to be considered close.

Definition at line 181 of file TwoViewCosmicRayRemovalTool.h.

◆ m_instanceName

std::string pandora::Process::m_instanceName

protectedinherited

The process instance name.

Definition at line 89 of file Process.h.

◆ m_maxDistanceToHit

float lar_content::TwoViewCosmicRayRemovalTool::m_maxDistanceToHit

private

The maximum distance of a hit from the cosmic ray track for it to be added into the CR.

Definition at line 183 of file TwoViewCosmicRayRemovalTool.h.

◆ m_maxDistanceToTrack

float lar_content::TwoViewCosmicRayRemovalTool::m_maxDistanceToTrack

private

The minimum distance of an insignificant remnant cluster from the cosmic ray track for it to be merged into the CR.

Definition at line 185 of file TwoViewCosmicRayRemovalTool.h.

◆ m_minContaminationLength

float lar_content::TwoViewCosmicRayRemovalTool::m_minContaminationLength

private

The minimum projected length of a delta ray cluster onto the muon track for it to be considered contaminated.

Definition at line 182 of file TwoViewCosmicRayRemovalTool.h.

◆ m_minRemnantClusterSize

unsigned int lar_content::TwoViewCosmicRayRemovalTool::m_minRemnantClusterSize

private

The minimum hit number of a remnant cluster for it to be considered significant.

Definition at line 184 of file TwoViewCosmicRayRemovalTool.h.

◆ m_minSeparation

float lar_content::TwoViewCosmicRayRemovalTool::m_minSeparation

private

The minimum delta ray - parent muon cluster separation required to investigate delta ray cluster.

Definition at line 179 of file TwoViewCosmicRayRemovalTool.h.

◆ m_pPandora

const Pandora* pandora::Process::m_pPandora

protectedinherited

The pandora object that will run the process.

Definition at line 87 of file Process.h.

◆ m_pParentAlgorithm

TwoViewDeltaRayMatchingAlgorithm* lar_content::DeltaRayMatrixTool::m_pParentAlgorithm

inherited

Address of the parent matching algorithm.

Definition at line 215 of file TwoViewDeltaRayMatchingAlgorithm.h.

◆ m_slidingFitWindow

unsigned int lar_content::TwoViewCosmicRayRemovalTool::m_slidingFitWindow

private

The sliding fit window used in cosmic ray parameterisations.

Definition at line 180 of file TwoViewCosmicRayRemovalTool.h.

◆ m_type

std::string pandora::Process::m_type

protectedinherited

The process type.

Definition at line 88 of file Process.h.

The documentation for this class was generated from the following files:

LArContent/larpandoracontent/LArThreeDReco/LArCosmicRay/TwoViewCosmicRayRemovalTool.h
LArContent/larpandoracontent/LArThreeDReco/LArCosmicRay/TwoViewCosmicRayRemovalTool.cc

Public Types

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ HitTypeVector

◆ IteratorList

◆ MatrixType

Constructor & Destructor Documentation

◆ TwoViewCosmicRayRemovalTool()

Member Function Documentation

◆ CollectHitsFromDeltaRay()

◆ CreateSeed()

◆ GetInstanceName()

◆ GetPandora()

◆ GetType()

◆ GrowSeed()

◆ Initialize()

◆ IsBestElement()

◆ IsCloseToLine()

◆ IsContaminated()

◆ IsInLineSegment()

◆ IsMuonEndpoint()

◆ PassElementChecks()

◆ ProjectDeltaRayPositions()

◆ ReadSettings()

◆ ReclusterRemnant()

◆ RegisterDetails()

◆ RemoveCosmicRayHits()

◆ Reset()

◆ Run()

◆ SplitDeltaRayCluster()

Member Data Documentation

◆ m_distanceToLine

◆ m_instanceName

◆ m_maxDistanceToHit

◆ m_maxDistanceToTrack

◆ m_minContaminationLength

◆ m_minRemnantClusterSize

◆ m_minSeparation

◆ m_pPandora

◆ m_pParentAlgorithm

◆ m_slidingFitWindow

◆ m_type
