LArRotationalTransformationPlugin class. More...

#include "LArRotationalTransformationPlugin.h"

Inheritance diagram for lar_content::LArRotationalTransformationPlugin:

[legend]

Collaboration diagram for lar_content::LArRotationalTransformationPlugin:

[legend]

Public Member Functions
	LArRotationalTransformationPlugin ()
	Default constructor.

virtual double	UVtoW (const double u, const double v) const
	Transform from (U,V) to W position.

virtual double	VWtoU (const double v, const double w) const
	Transform from (V,W) to U position.

virtual double	WUtoV (const double w, const double u) const
	Transform from (W,U) to V position.

virtual double	UVtoY (const double u, const double v) const
	Transform from (U,V) to Y position.

virtual double	UVtoZ (const double u, const double v) const
	Transform from (U,V) to Z position.

virtual double	UWtoY (const double u, const double w) const
	Transform from (U,W) to Y position.

virtual double	UWtoZ (const double u, const double w) const
	Transform from (U,W) to Z position.

virtual double	VWtoY (const double v, const double w) const
	Transform from (V,W) to Y position.

virtual double	VWtoZ (const double v, const double w) const
	Transform from (V,W) to Z position.

virtual double	YZtoU (const double y, const double z) const
	Transform from (Y,Z) to U position.

virtual double	YZtoV (const double y, const double z) const
	Transform from (Y,Z) to V position.

virtual double	YZtoW (const double y, const double z) const
	Transform from (Y,Z) to W position.

virtual void	GetMinChiSquaredYZ (const double u, const double v, const double w, const double sigmaU, const double sigmaV, const double sigmaW, double &y, double &z, double &chiSquared) const
	Get the y, z position that yields the minimum chi squared value with respect to specified u, v and w coordinates.

virtual void	GetMinChiSquaredYZ (const double u, const double v, const double w, const double sigmaU, const double sigmaV, const double sigmaW, const double uFit, const double vFit, const double wFit, const double sigmaFit, double &y, double &z, double &chiSquared) const
	Get the y, z position that yields the minimum chi squared value with respect to specified u, v and w coordinates and a provided fit to an overall trajectory in 3D.

const std::string &	GetType () const
	Get the type.

const std::string &	GetInstanceName () const
	Get the instance name.

const Pandora &	GetPandora () const
	Get the associated pandora instance.

Protected Member Functions
virtual StatusCode	Reset ()
	Perform any operations when pandora is reset, typically at the end of each event.

StatusCode	RegisterDetails (const Pandora *const pPandora, const std::string &type, const std::string &instanceName)
	Register i) the pandora instance that will run the process and ii) the process type.

Protected Attributes
const Pandora *	m_pPandora
	The pandora object that will run the process.

std::string	m_type
	The process type.

std::string	m_instanceName
	The process instance name.

Private Member Functions
pandora::StatusCode	Initialize ()
	Perform any operations that must occur after reading settings, but before running the process.

pandora::StatusCode	ReadSettings (const pandora::TiXmlHandle xmlHandle)
	Read the algorithm settings.

Private Attributes
double	m_thetaU
	inclination of U wires (radians)

double	m_thetaV
	inclination of V wires (radians)

double	m_thetaW
	inclination of W wires (radians)

double	m_sinU
	sin(thetaU)

double	m_sinV
	sin(thetaV)

double	m_sinW
	sin(thetaW)

double	m_cosU
	cos(thetaU)

double	m_cosV
	cos(thetaV)

double	m_cosW
	cos(thetaW)

double	m_sinVminusU
	sin(thetaV - thetaU)

double	m_sinWminusV
	sin(thetaW - thetaV)

double	m_sinUminusW
	sin(thetaU - thetaW)

double	m_maxAngularDiscrepancyU
	Maximum allowed difference between u wire angles between LArTPCs.

double	m_maxAngularDiscrepancyV
	Maximum allowed difference between v wire angles between LArTPCs.

double	m_maxAngularDiscrepancyW
	Maximum allowed difference between w wire angles between LArTPCs.

double	m_maxSigmaDiscrepancy
	Maximum allowed difference between like wire sigma values between LArTPCs.

Detailed Description

LArRotationalTransformationPlugin class.

Definition at line 19 of file LArRotationalTransformationPlugin.h.

Constructor & Destructor Documentation

◆ LArRotationalTransformationPlugin()

lar_content::LArRotationalTransformationPlugin::LArRotationalTransformationPlugin ( )

Default constructor.

Definition at line 28 of file LArRotationalTransformationPlugin.cc.

Member Function Documentation

◆ GetInstanceName()

const std::string & pandora::Process::GetInstanceName ( ) const

inlineinherited

Get the instance name.

Returns: The instance name

Definition at line 109 of file Process.h.

◆ GetMinChiSquaredYZ() [1/2]

void lar_content::LArRotationalTransformationPlugin::GetMinChiSquaredYZ	(	const double	u,
		const double	v,
		const double	w,
		const double	sigmaU,
		const double	sigmaV,
		const double	sigmaW,
		const double	uFit,
		const double	vFit,
		const double	wFit,
		const double	sigmaFit,
		double &	y,
		double &	z,
		double &	chiSquared
	)		const

virtual

Get the y, z position that yields the minimum chi squared value with respect to specified u, v and w coordinates and a provided fit to an overall trajectory in 3D.

Parameters

u	the u coordinate
v	the v coordinate
w	the w coordinate
sigmaU	the uncertainty in the u coordinate
sigmaV	the uncertainty in the v coordinate
sigmaW	the uncertainty in the w coordinate
uFit	the u coordinate from a fit to an overall trajectory
vFit	the v coordinate from a fit to an overall trajectory
wFit	the w coordinate from a fit to an overall trajectory
sigmaFit	the uncertainty in coordinates extracted from the fit to an overall trajectory
y	to receive the y coordinate
z	to receive the z coordinate
chiSquared	to receive the chi squared value

Implements pandora::LArTransformationPlugin.

Definition at line 166 of file LArRotationalTransformationPlugin.cc.

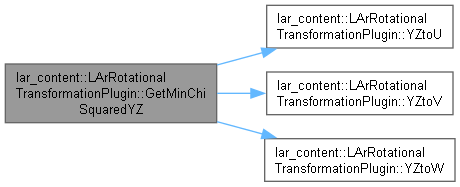

Here is the call graph for this function:

◆ GetMinChiSquaredYZ() [2/2]

void lar_content::LArRotationalTransformationPlugin::GetMinChiSquaredYZ	(	const double	u,
		const double	v,
		const double	w,
		const double	sigmaU,
		const double	sigmaV,
		const double	sigmaW,
		double &	y,
		double &	z,
		double &	chiSquared
	)		const

virtual

Get the y, z position that yields the minimum chi squared value with respect to specified u, v and w coordinates.

Parameters

u	the u coordinate
v	the v coordinate
w	the w coordinate
sigmaU	the uncertainty in the u coordinate
sigmaV	the uncertainty in the v coordinate
sigmaW	the uncertainty in the w coordinate
y	to receive the y coordinate
z	to receive the z coordinate
chiSquared	to receive the chi squared value

Implements pandora::LArTransformationPlugin.

Definition at line 134 of file LArRotationalTransformationPlugin.cc.

Here is the call graph for this function:

◆ GetPandora()

const Pandora & pandora::Process::GetPandora ( ) const

inlineinherited

Get the associated pandora instance.

Returns: the associated pandora instance

Definition at line 116 of file Process.h.

◆ GetType()

const std::string & pandora::Process::GetType ( ) const

inlineinherited

Get the type.

Returns: The type

Definition at line 102 of file Process.h.

◆ Initialize()

StatusCode lar_content::LArRotationalTransformationPlugin::Initialize ( )

privatevirtual

Perform any operations that must occur after reading settings, but before running the process.

Reimplemented from pandora::Process.

Definition at line 275 of file LArRotationalTransformationPlugin.cc.

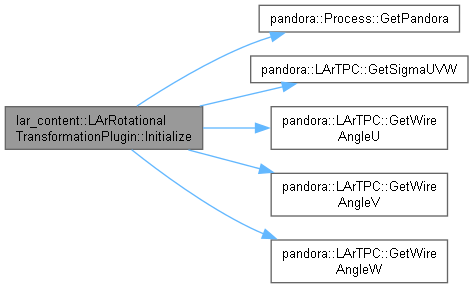

Here is the call graph for this function:

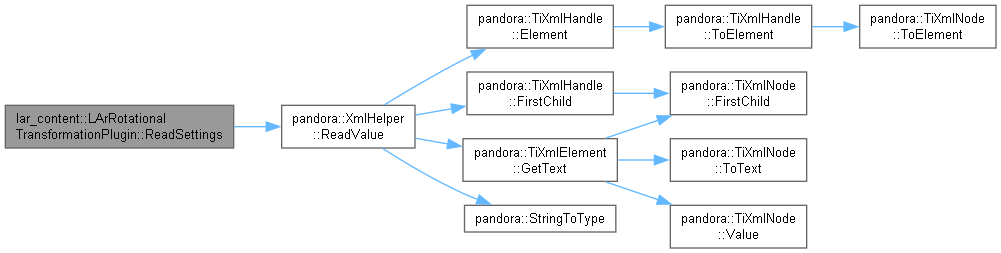

◆ ReadSettings()

pandora::StatusCode lar_content::LArRotationalTransformationPlugin::ReadSettings ( const pandora::TiXmlHandle xmlHandle )

privatevirtual

Read the algorithm settings.

Parameters

xmlHandle the relevant xml handle

Implements pandora::Process.

Definition at line 330 of file LArRotationalTransformationPlugin.cc.

Here is the call graph for this function:

◆ RegisterDetails()

StatusCode pandora::Process::RegisterDetails	(	const Pandora *const	pPandora,
		const std::string &	type,
		const std::string &	instanceName
	)

inlineprotectedinherited

Register i) the pandora instance that will run the process and ii) the process type.

Parameters

pPandora	address of the pandora object that will run the process
type	the process type
instanceName	the process instance name

Definition at line 146 of file Process.h.

Here is the caller graph for this function:

◆ Reset()

StatusCode pandora::Process::Reset ( )

inlineprotectedvirtualinherited

Perform any operations when pandora is reset, typically at the end of each event.

Reimplemented in lar_content::MasterAlgorithm, lar_content::PostProcessingAlgorithm, and lar_content::PreProcessingAlgorithm.

Definition at line 133 of file Process.h.

Here is the caller graph for this function:

◆ UVtoW()

double lar_content::LArRotationalTransformationPlugin::UVtoW	(	const double	u,
		const double	v
	)		const

virtual

Transform from (U,V) to W position.

Parameters

U	the U position
V	the V position

Implements pandora::LArTransformationPlugin.

Definition at line 50 of file LArRotationalTransformationPlugin.cc.

◆ UVtoY()

double lar_content::LArRotationalTransformationPlugin::UVtoY	(	const double	u,
		const double	v
	)		const

virtual

Transform from (U,V) to Y position.

Parameters

U	the U position
V	the V position

Implements pandora::LArTransformationPlugin.

Definition at line 71 of file LArRotationalTransformationPlugin.cc.

◆ UVtoZ()

double lar_content::LArRotationalTransformationPlugin::UVtoZ	(	const double	u,
		const double	v
	)		const

virtual

Transform from (U,V) to Z position.

Parameters

U	the U position
V	the V position

Implements pandora::LArTransformationPlugin.

Definition at line 78 of file LArRotationalTransformationPlugin.cc.

◆ UWtoY()

double lar_content::LArRotationalTransformationPlugin::UWtoY	(	const double	u,
		const double	w
	)		const

virtual

Transform from (U,W) to Y position.

Parameters

U	the U position
W	the W position

Implements pandora::LArTransformationPlugin.

Definition at line 85 of file LArRotationalTransformationPlugin.cc.

◆ UWtoZ()

double lar_content::LArRotationalTransformationPlugin::UWtoZ	(	const double	u,
		const double	w
	)		const

virtual

Transform from (U,W) to Z position.

Parameters

U	the U position
W	the W position

Implements pandora::LArTransformationPlugin.

Definition at line 92 of file LArRotationalTransformationPlugin.cc.

◆ VWtoU()

double lar_content::LArRotationalTransformationPlugin::VWtoU	(	const double	v,
		const double	w
	)		const

virtual

Transform from (V,W) to U position.

Parameters

V	the V position
W	the W position

Implements pandora::LArTransformationPlugin.

Definition at line 57 of file LArRotationalTransformationPlugin.cc.

◆ VWtoY()

double lar_content::LArRotationalTransformationPlugin::VWtoY	(	const double	v,
		const double	w
	)		const

virtual

Transform from (V,W) to Y position.

Parameters

V	the V position
W	the W position

Implements pandora::LArTransformationPlugin.

Definition at line 99 of file LArRotationalTransformationPlugin.cc.

◆ VWtoZ()

double lar_content::LArRotationalTransformationPlugin::VWtoZ	(	const double	v,
		const double	w
	)		const

virtual

Transform from (V,W) to Z position.

Parameters

V	the V position
W	the W position

Implements pandora::LArTransformationPlugin.

Definition at line 106 of file LArRotationalTransformationPlugin.cc.

◆ WUtoV()

double lar_content::LArRotationalTransformationPlugin::WUtoV	(	const double	w,
		const double	u
	)		const

virtual

Transform from (W,U) to V position.

Parameters

W	the W position
U	the U position

Implements pandora::LArTransformationPlugin.

Definition at line 64 of file LArRotationalTransformationPlugin.cc.

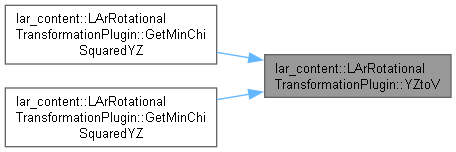

◆ YZtoU()

double lar_content::LArRotationalTransformationPlugin::YZtoU	(	const double	y,
		const double	z
	)		const

virtual

Transform from (Y,Z) to U position.

Parameters

Y	the Y position
Z	the Z position

Implements pandora::LArTransformationPlugin.

Definition at line 113 of file LArRotationalTransformationPlugin.cc.

Here is the caller graph for this function:

◆ YZtoV()

double lar_content::LArRotationalTransformationPlugin::YZtoV	(	const double	y,
		const double	z
	)		const

virtual

Transform from (Y,Z) to V position.

Parameters

Y	the Y position
Z	the Z position

Implements pandora::LArTransformationPlugin.

Definition at line 120 of file LArRotationalTransformationPlugin.cc.

Here is the caller graph for this function:

◆ YZtoW()

double lar_content::LArRotationalTransformationPlugin::YZtoW	(	const double	y,
		const double	z
	)		const

virtual

Transform from (Y,Z) to W position.

Parameters

Y	the Y position
Z	the Z position

Implements pandora::LArTransformationPlugin.

Definition at line 127 of file LArRotationalTransformationPlugin.cc.

Here is the caller graph for this function:

Member Data Documentation

◆ m_cosU

double lar_content::LArRotationalTransformationPlugin::m_cosU

private

cos(thetaU)

Definition at line 58 of file LArRotationalTransformationPlugin.h.

◆ m_cosV

double lar_content::LArRotationalTransformationPlugin::m_cosV

private

cos(thetaV)

Definition at line 59 of file LArRotationalTransformationPlugin.h.

◆ m_cosW

double lar_content::LArRotationalTransformationPlugin::m_cosW

private

cos(thetaW)

Definition at line 60 of file LArRotationalTransformationPlugin.h.

◆ m_instanceName

std::string pandora::Process::m_instanceName

protectedinherited

The process instance name.

Definition at line 89 of file Process.h.

◆ m_maxAngularDiscrepancyU

double lar_content::LArRotationalTransformationPlugin::m_maxAngularDiscrepancyU

private

Maximum allowed difference between u wire angles between LArTPCs.

Definition at line 65 of file LArRotationalTransformationPlugin.h.

◆ m_maxAngularDiscrepancyV

double lar_content::LArRotationalTransformationPlugin::m_maxAngularDiscrepancyV

private

Maximum allowed difference between v wire angles between LArTPCs.

Definition at line 66 of file LArRotationalTransformationPlugin.h.

◆ m_maxAngularDiscrepancyW

double lar_content::LArRotationalTransformationPlugin::m_maxAngularDiscrepancyW

private

Maximum allowed difference between w wire angles between LArTPCs.

Definition at line 67 of file LArRotationalTransformationPlugin.h.

◆ m_maxSigmaDiscrepancy

double lar_content::LArRotationalTransformationPlugin::m_maxSigmaDiscrepancy

private

Maximum allowed difference between like wire sigma values between LArTPCs.

Definition at line 68 of file LArRotationalTransformationPlugin.h.

◆ m_pPandora

const Pandora* pandora::Process::m_pPandora

protectedinherited

The pandora object that will run the process.

Definition at line 87 of file Process.h.

◆ m_sinU

double lar_content::LArRotationalTransformationPlugin::m_sinU

private

sin(thetaU)

Definition at line 55 of file LArRotationalTransformationPlugin.h.

◆ m_sinUminusW

double lar_content::LArRotationalTransformationPlugin::m_sinUminusW

private

sin(thetaU - thetaW)

Definition at line 63 of file LArRotationalTransformationPlugin.h.

◆ m_sinV

double lar_content::LArRotationalTransformationPlugin::m_sinV

private

sin(thetaV)

Definition at line 56 of file LArRotationalTransformationPlugin.h.

◆ m_sinVminusU

double lar_content::LArRotationalTransformationPlugin::m_sinVminusU

private

sin(thetaV - thetaU)

Definition at line 61 of file LArRotationalTransformationPlugin.h.

◆ m_sinW

double lar_content::LArRotationalTransformationPlugin::m_sinW

private

sin(thetaW)

Definition at line 57 of file LArRotationalTransformationPlugin.h.

◆ m_sinWminusV

double lar_content::LArRotationalTransformationPlugin::m_sinWminusV

private

sin(thetaW - thetaV)

Definition at line 62 of file LArRotationalTransformationPlugin.h.

◆ m_thetaU

double lar_content::LArRotationalTransformationPlugin::m_thetaU

private

inclination of U wires (radians)

Definition at line 51 of file LArRotationalTransformationPlugin.h.

◆ m_thetaV

double lar_content::LArRotationalTransformationPlugin::m_thetaV

private

inclination of V wires (radians)

Definition at line 52 of file LArRotationalTransformationPlugin.h.

◆ m_thetaW

double lar_content::LArRotationalTransformationPlugin::m_thetaW

private

inclination of W wires (radians)

Definition at line 53 of file LArRotationalTransformationPlugin.h.

◆ m_type

std::string pandora::Process::m_type

protectedinherited

The process type.

Definition at line 88 of file Process.h.

The documentation for this class was generated from the following files:

LArContent/larpandoracontent/LArPlugins/LArRotationalTransformationPlugin.h
LArContent/larpandoracontent/LArPlugins/LArRotationalTransformationPlugin.cc

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ LArRotationalTransformationPlugin()

Member Function Documentation

◆ GetInstanceName()

◆ GetMinChiSquaredYZ() [1/2]

◆ GetMinChiSquaredYZ() [2/2]

◆ GetPandora()

◆ GetType()

◆ Initialize()

◆ ReadSettings()

◆ RegisterDetails()

◆ Reset()

◆ UVtoW()

◆ UVtoY()

◆ UVtoZ()

◆ UWtoY()

◆ UWtoZ()

◆ VWtoU()

◆ VWtoY()

◆ VWtoZ()

◆ WUtoV()

◆ YZtoU()

◆ YZtoV()

◆ YZtoW()

Member Data Documentation

◆ m_cosU

◆ m_cosV

◆ m_cosW

◆ m_instanceName

◆ m_maxAngularDiscrepancyU

◆ m_maxAngularDiscrepancyV

◆ m_maxAngularDiscrepancyW

◆ m_maxSigmaDiscrepancy

◆ m_pPandora

◆ m_sinU

◆ m_sinUminusW

◆ m_sinV

◆ m_sinVminusU

◆ m_sinW

◆ m_sinWminusV

◆ m_thetaU

◆ m_thetaV

◆ m_thetaW

◆ m_type
