StitchingCosmicRayMergingTool class. More...

#include "StitchingCosmicRayMergingTool.h"

Inheritance diagram for lar_content::StitchingCosmicRayMergingTool:

[legend]

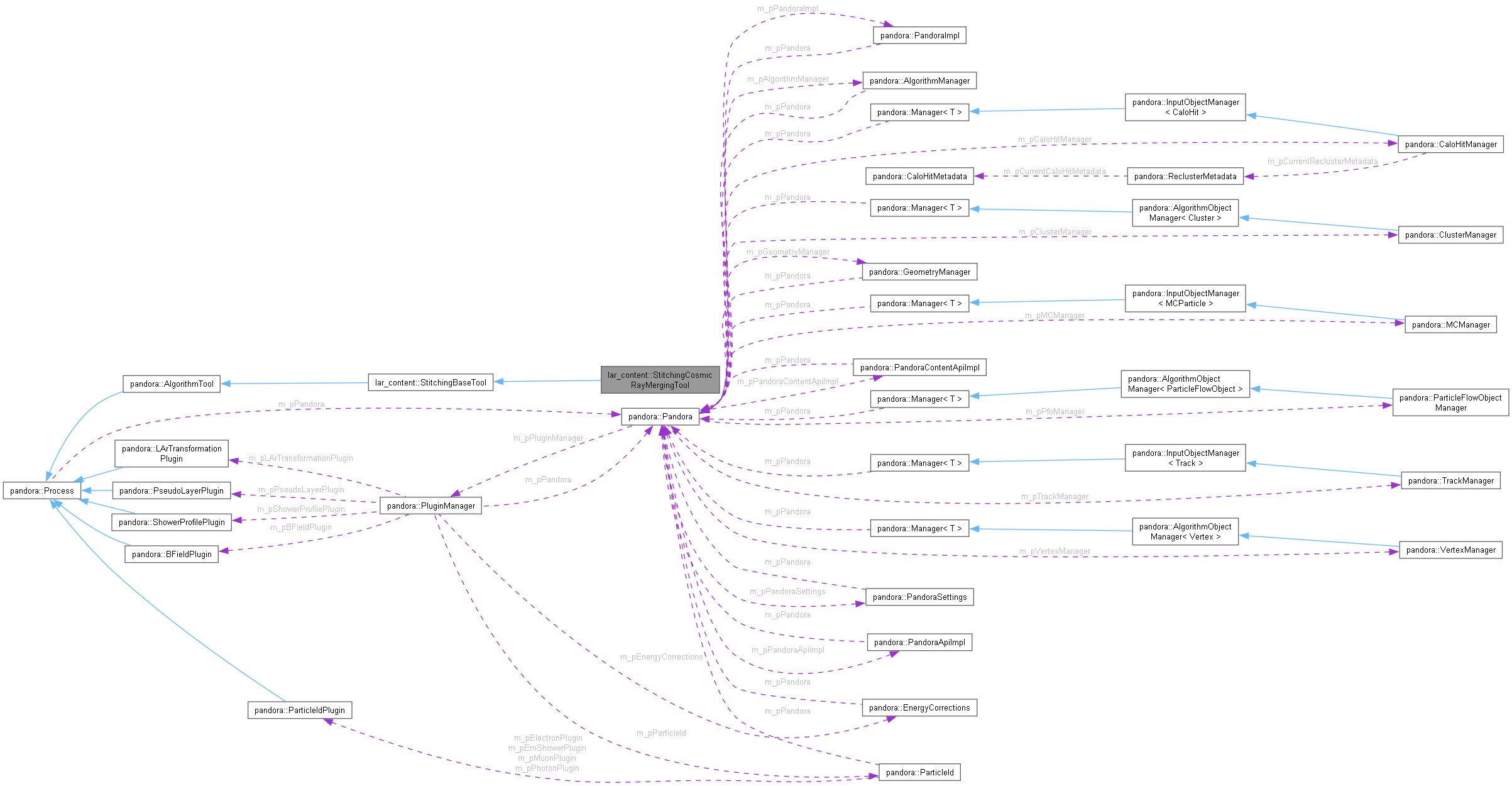

Collaboration diagram for lar_content::StitchingCosmicRayMergingTool:

[legend]

Classes
class	PfoAssociation
	PfoAssociation class. More...

Public Member Functions
	StitchingCosmicRayMergingTool ()
	Default constructor.

void	Run (const MasterAlgorithm const pAlgorithm, const pandora::PfoList const pMultiPfoList, PfoToLArTPCMap &pfoToLArTPCMap, PfoToFloatMap &stitchedPfosToX0Map)
	Run the algorithm tool.

const std::string &	GetType () const
	Get the type.

const std::string &	GetInstanceName () const
	Get the instance name.

const Pandora &	GetPandora () const
	Get the associated pandora instance.

Protected Member Functions
virtual StatusCode	Initialize ()
	Perform any operations that must occur after reading settings, but before running the process.

virtual StatusCode	Reset ()
	Perform any operations when pandora is reset, typically at the end of each event.

StatusCode	RegisterDetails (const Pandora *const pPandora, const std::string &type, const std::string &instanceName)
	Register i) the pandora instance that will run the process and ii) the process type.

Protected Attributes
const Pandora *	m_pPandora
	The pandora object that will run the process.

std::string	m_type
	The process type.

std::string	m_instanceName
	The process instance name.

Private Types
typedef std::unordered_map< const pandora::ParticleFlowObject *, LArPointingCluster >	ThreeDPointingClusterMap

typedef std::unordered_map< const pandora::LArTPC *, pandora::PfoList >	LArTPCToPfoMap

typedef std::unordered_map< const pandora::ParticleFlowObject *, PfoAssociation >	PfoAssociationMap

typedef std::unordered_map< const pandora::ParticleFlowObject *, PfoAssociationMap >	PfoAssociationMatrix

typedef std::unordered_map< const pandora::ParticleFlowObject *, pandora::PfoList >	PfoMergeMap

typedef std::unordered_map< const pandora::ParticleFlowObject *, LArPointingCluster::Vertex >	PfoToPointingVertexMap

typedef std::unordered_map< const pandora::ParticleFlowObject *, PfoToPointingVertexMap >	PfoToPointingVertexMatrix

Private Member Functions
pandora::StatusCode	ReadSettings (const pandora::TiXmlHandle xmlHandle)
	Read the algorithm settings.

void	SelectPrimaryPfos (const pandora::PfoList *pInputPfoList, const PfoToLArTPCMap &pfoToLArTPCMap, pandora::PfoList &outputPfoList) const
	Select primary Pfos from the input list of Pfos.

void	BuildPointingClusterMaps (const pandora::PfoList &inputPfoList, const PfoToLArTPCMap &pfoToLArTPCMap, ThreeDPointingClusterMap &pointingClusterMap) const
	Build a 3D pointing cluster for each Pfo.

void	BuildTPCMaps (const pandora::PfoList &inputPfoList, const PfoToLArTPCMap &pfoToLArTPCMap, LArTPCToPfoMap &larTPCToPfoMap) const
	Build a list of Pfos for each tpc.

void	CreatePfoMatches (const LArTPCToPfoMap &larTPCToPfoMap, const ThreeDPointingClusterMap &pointingClusterMap, PfoAssociationMatrix &pfoAssociationMatrix) const
	Create associations between Pfos using 3D pointing clusters.

void	CreatePfoMatches (const pandora::LArTPC &larTPC1, const pandora::LArTPC &larTPC2, const pandora::ParticleFlowObject const pPfo1, const pandora::ParticleFlowObject const pPfo2, const ThreeDPointingClusterMap &pointingClusterMap, PfoAssociationMatrix &pfoAssociationMatrix) const
	Create associations between Pfos using 3D pointing clusters.

void	SelectPfoMatches (const PfoAssociationMatrix &pfoAssociationMatrix, PfoMergeMap &pfoSelectedMatches) const
	Select the best associations between Pfos; create a mapping between associated Pfos, handling any ambiguities.

void	SelectPfoMerges (const PfoMergeMap &pfoMatches, PfoMergeMap &pfoMerges) const
	Create an initial map of Pfo merges to be made.

void	CollectAssociatedPfos (const pandora::ParticleFlowObject const pSeedPfo, const pandora::ParticleFlowObject const pCurrentPfo, const PfoMergeMap &pfoMerges, const pandora::PfoSet &vetoSet, pandora::PfoList &associatedList) const
	Collect up associations between Pfos.

void	OrderPfoMerges (const PfoToLArTPCMap &pfoToLArTPCMap, const ThreeDPointingClusterMap &pointingClusterMap, const PfoMergeMap &inputPfoMerges, PfoMergeMap &outputPfoMerges) const
	Identify the vertex Pfo and then re-order the map of merges so that the vertex Pfo will be enlarged.

void	StitchPfos (const MasterAlgorithm *const pAlgorithm, const ThreeDPointingClusterMap &pointingClusterMap, const PfoMergeMap &pfoMerges, PfoToLArTPCMap &pfoToLArTPCMap, PfoToFloatMap &stitchedPfosToX0Map) const
	Apply X0 corrections, and then stitch together Pfos.

void	ShiftPfo (const MasterAlgorithm const pAlgorithm, const pandora::ParticleFlowObject const pPfoToShift, const pandora::ParticleFlowObject *const pMatchedPfo, const float x0, const PfoToLArTPCMap &pfoToLArTPCMap, const PfoToPointingVertexMatrix &pfoToPointingVertexMatrix) const
	Shift a pfo given its pfo stitching pair.

bool	CalculateX0 (const PfoToLArTPCMap &pfoToLArTPCMap, const ThreeDPointingClusterMap &pointingClusterMap, const pandora::PfoVector &pfoVector, float &x0, PfoToPointingVertexMatrix &pfoToPointingVertexMatrix) const
	Calculate x0 shift for a group of associated Pfos.

Private Attributes
bool	m_useXcoordinate

bool	m_alwaysApplyT0Calculation

int	m_halfWindowLayers

float	m_minLengthSquared

float	m_minCosRelativeAngle

float	m_relaxMinLongitudinalDisplacement
	The minimum value of the longitudinal impact parameter for association if both verticies fall in the detector gap.

float	m_maxLongitudinalDisplacementX

float	m_maxTransverseDisplacement

float	m_relaxCosRelativeAngle

float	m_relaxTransverseDisplacement

unsigned int	m_minNCaloHits3D

float	m_maxX0FractionalDeviation
	The maximum allowed fractional difference of an X0 contribution for matches to be stitched.

float	m_boundaryToleranceWidth
	The distance from the APA/CPA boundary inside which the deviation consideration is ignored.

Detailed Description

StitchingCosmicRayMergingTool class.

Definition at line 23 of file StitchingCosmicRayMergingTool.h.

Member Typedef Documentation

◆ LArTPCToPfoMap

typedef std::unordered_map<const pandora::LArTPC *, pandora::PfoList> lar_content::StitchingCosmicRayMergingTool::LArTPCToPfoMap

private

Definition at line 110 of file StitchingCosmicRayMergingTool.h.

◆ PfoAssociationMap

typedef std::unordered_map<const pandora::ParticleFlowObject *, PfoAssociation> lar_content::StitchingCosmicRayMergingTool::PfoAssociationMap

private

Definition at line 121 of file StitchingCosmicRayMergingTool.h.

◆ PfoAssociationMatrix

typedef std::unordered_map<const pandora::ParticleFlowObject *, PfoAssociationMap> lar_content::StitchingCosmicRayMergingTool::PfoAssociationMatrix

private

Definition at line 122 of file StitchingCosmicRayMergingTool.h.

◆ PfoMergeMap

typedef std::unordered_map<const pandora::ParticleFlowObject *, pandora::PfoList> lar_content::StitchingCosmicRayMergingTool::PfoMergeMap

private

Definition at line 148 of file StitchingCosmicRayMergingTool.h.

◆ PfoToPointingVertexMap

typedef std::unordered_map<const pandora::ParticleFlowObject *, LArPointingCluster::Vertex> lar_content::StitchingCosmicRayMergingTool::PfoToPointingVertexMap

private

Definition at line 201 of file StitchingCosmicRayMergingTool.h.

◆ PfoToPointingVertexMatrix

typedef std::unordered_map<const pandora::ParticleFlowObject *, PfoToPointingVertexMap> lar_content::StitchingCosmicRayMergingTool::PfoToPointingVertexMatrix

private

Definition at line 202 of file StitchingCosmicRayMergingTool.h.

◆ ThreeDPointingClusterMap

typedef std::unordered_map<const pandora::ParticleFlowObject *, LArPointingCluster> lar_content::StitchingCosmicRayMergingTool::ThreeDPointingClusterMap

private

Definition at line 98 of file StitchingCosmicRayMergingTool.h.

Constructor & Destructor Documentation

◆ StitchingCosmicRayMergingTool()

lar_content::StitchingCosmicRayMergingTool::StitchingCosmicRayMergingTool ( )

Default constructor.

Definition at line 25 of file StitchingCosmicRayMergingTool.cc.

Member Function Documentation

◆ BuildPointingClusterMaps()

void lar_content::StitchingCosmicRayMergingTool::BuildPointingClusterMaps	(	const pandora::PfoList &	inputPfoList,
		const PfoToLArTPCMap &	pfoToLArTPCMap,
		ThreeDPointingClusterMap &	pointingClusterMap
	)		const

private

Build a 3D pointing cluster for each Pfo.

Parameters

inputPfoList	the input list of Pfos
pfoToLArTPCMap	the input mapping between Pfos and tpc
pointingClusterMap	the mapping between Pfos and their corresponding 3D pointing clusters

Definition at line 98 of file StitchingCosmicRayMergingTool.cc.

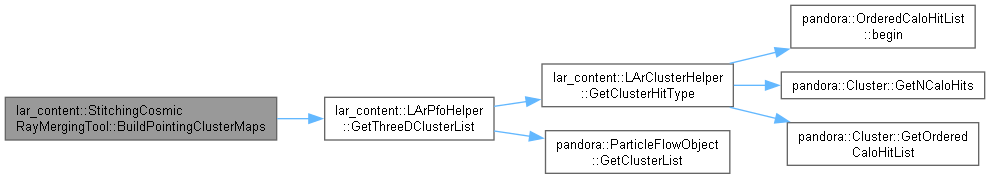

Here is the call graph for this function:

Here is the caller graph for this function:

◆ BuildTPCMaps()

void lar_content::StitchingCosmicRayMergingTool::BuildTPCMaps	(	const pandora::PfoList &	inputPfoList,
		const PfoToLArTPCMap &	pfoToLArTPCMap,
		LArTPCToPfoMap &	larTPCToPfoMap
	)		const

private

Build a list of Pfos for each tpc.

Parameters

inputPfoList	the input list of Pfos
pfoToLArTPCMap	the input mapping between Pfos and tpc
larTPCToPfoMap	the output mapping between tpc and Pfos

Definition at line 129 of file StitchingCosmicRayMergingTool.cc.

Here is the caller graph for this function:

◆ CalculateX0()

bool lar_content::StitchingCosmicRayMergingTool::CalculateX0	(	const PfoToLArTPCMap &	pfoToLArTPCMap,
		const ThreeDPointingClusterMap &	pointingClusterMap,
		const pandora::PfoVector &	pfoVector,
		float &	x0,
		PfoToPointingVertexMatrix &	pfoToPointingVertexMatrix
	)		const

private

Calculate x0 shift for a group of associated Pfos.

Parameters

pfoToLArTPCMap	the mapping between pfos and tpc
pointingClusterMap	the mapping between Pfos and their corresponding 3D pointing clusters
pfoVector	the vector of parent Pfos to stitch together
x0	the output x0 value
pfoToPointingVertexMatrix	map of pfo to a map of matched pfo and the corresponding pointing vertex used in stitching

Returns: bool true if all x0 contributions were consistent, false otherwise

Definition at line 662 of file StitchingCosmicRayMergingTool.cc.

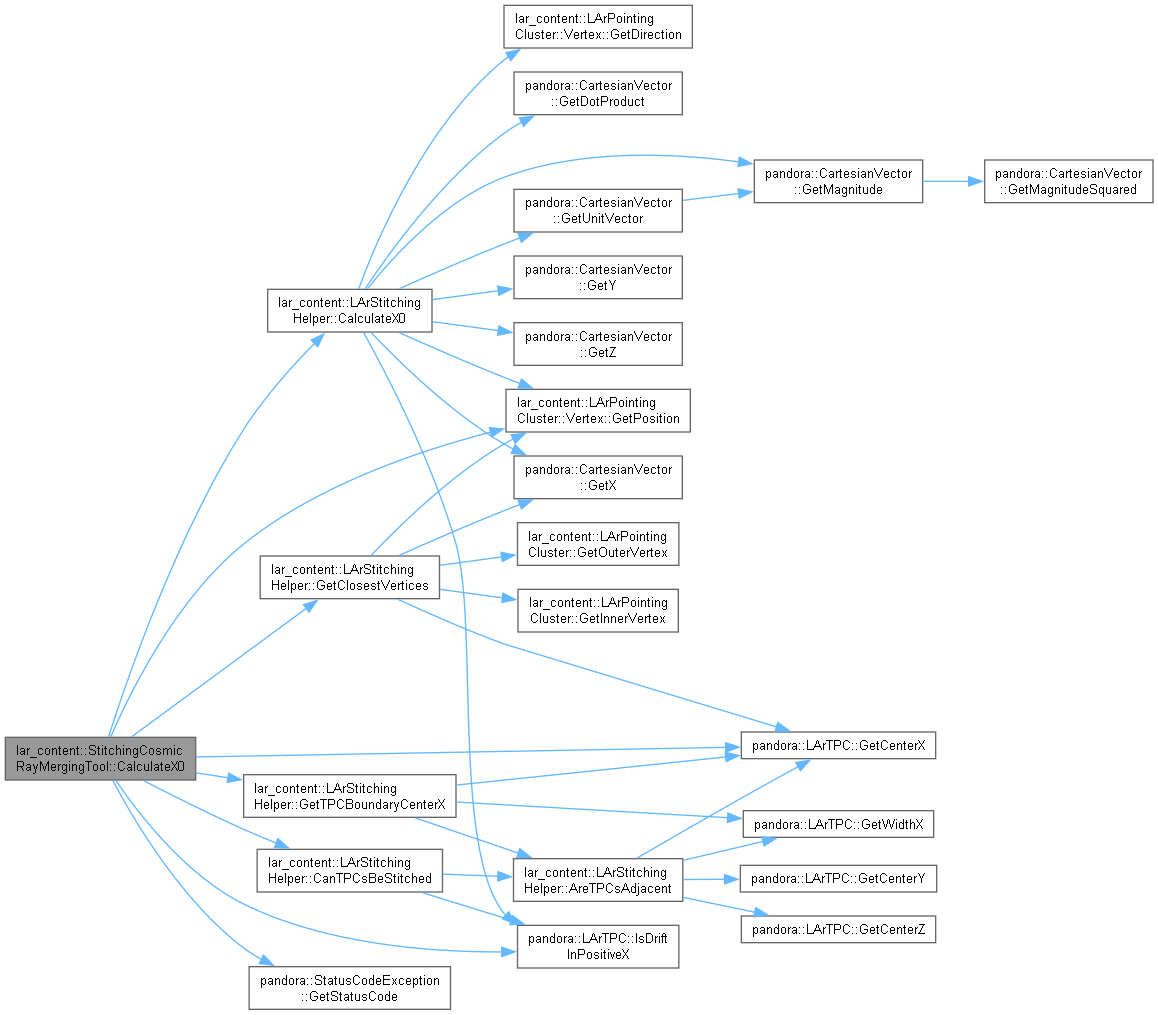

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CollectAssociatedPfos()

void lar_content::StitchingCosmicRayMergingTool::CollectAssociatedPfos	(	const pandora::ParticleFlowObject *const	pSeedPfo,
		const pandora::ParticleFlowObject *const	pCurrentPfo,
		const PfoMergeMap &	pfoMerges,
		const pandora::PfoSet &	vetoSet,
		pandora::PfoList &	associatedList
	)		const

private

Collect up associations between Pfos.

Parameters

pSeedPfo	the seed Pfo (will be enlarged after merging)
pCurrentPfo	the target Pfo (will be deleted after merging)
pfoMerges	the list of associations between Pfos
vetoSet	the set of associated Pfos that have already been considered
associatedList	the output list of associated Pfos

Definition at line 432 of file StitchingCosmicRayMergingTool.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreatePfoMatches() [1/2]

void lar_content::StitchingCosmicRayMergingTool::CreatePfoMatches	(	const LArTPCToPfoMap &	larTPCToPfoMap,
		const ThreeDPointingClusterMap &	pointingClusterMap,
		PfoAssociationMatrix &	pfoAssociationMatrix
	)		const

private

Create associations between Pfos using 3D pointing clusters.

Parameters

larTPCToPfoMap	the input mapping between tpc and Pfos
pointingClusterMap	the input mapping between Pfos and their corresponding 3D pointing clusters
pfoAssociationMatrix	the output matrix of associations between Pfos

Definition at line 142 of file StitchingCosmicRayMergingTool.cc.

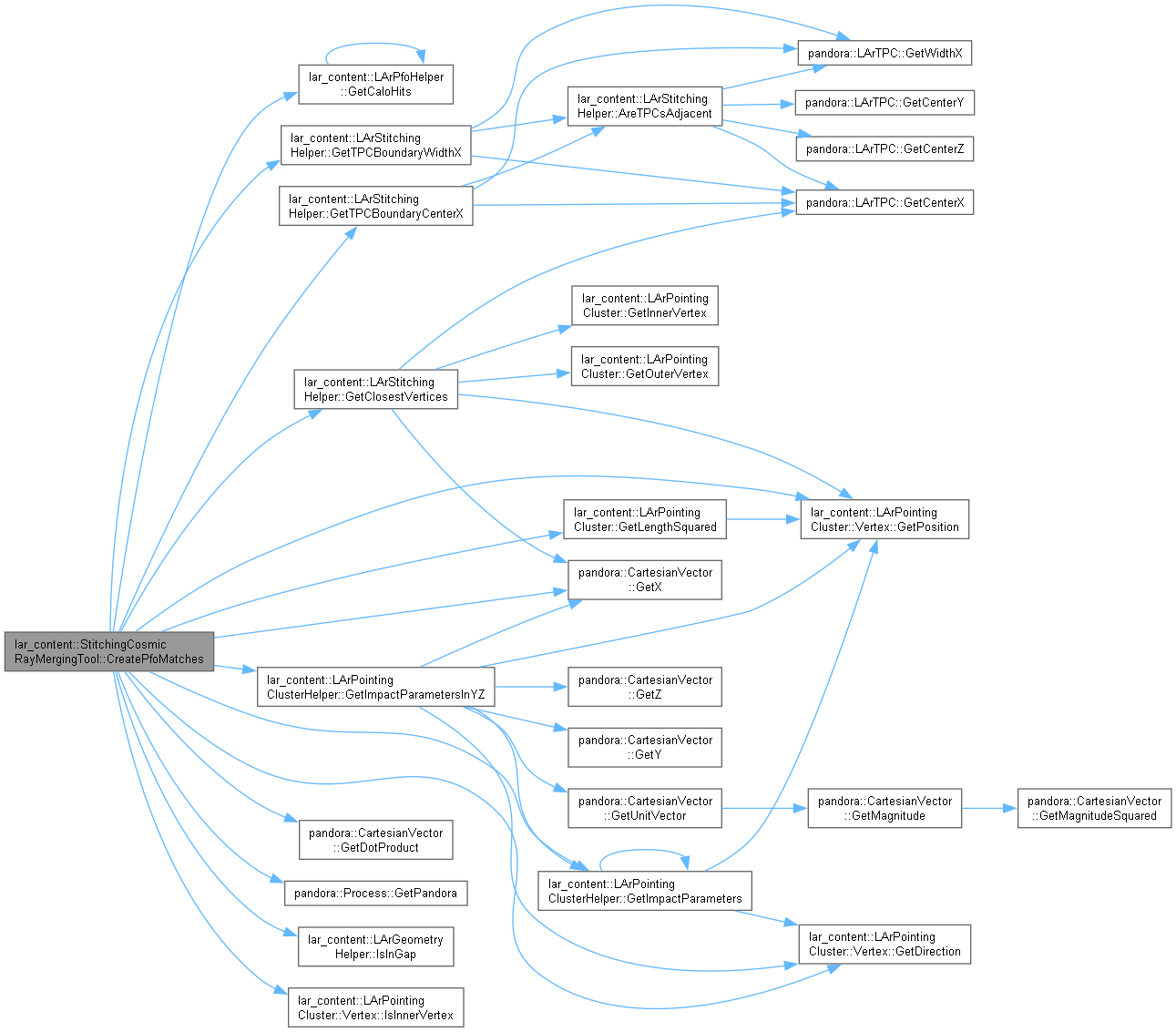

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreatePfoMatches() [2/2]

void lar_content::StitchingCosmicRayMergingTool::CreatePfoMatches	(	const pandora::LArTPC &	larTPC1,
		const pandora::LArTPC &	larTPC2,
		const pandora::ParticleFlowObject *const	pPfo1,
		const pandora::ParticleFlowObject *const	pPfo2,
		const ThreeDPointingClusterMap &	pointingClusterMap,
		PfoAssociationMatrix &	pfoAssociationMatrix
	)		const

private

Create associations between Pfos using 3D pointing clusters.

Parameters

larTPC1	the tpc description for the first Pfo
larTPC2	the tpc description for the second Pfo
pPfo1	the first Pfo
pPfo2	the second Pfo
pointingClusterMap	the input mapping between Pfos and their corresponding 3D pointing clusters
pfoAssociationMatrix	the output matrix of associations between Pfos

Definition at line 174 of file StitchingCosmicRayMergingTool.cc.

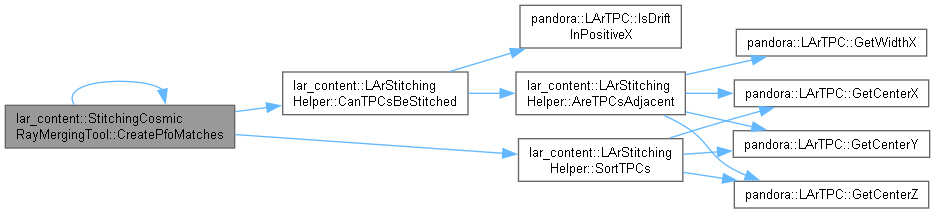

Here is the call graph for this function:

◆ GetInstanceName()

const std::string & pandora::Process::GetInstanceName ( ) const

inlineinherited

Get the instance name.

Returns: The instance name

Definition at line 109 of file Process.h.

◆ GetPandora()

const Pandora & pandora::Process::GetPandora ( ) const

inlineinherited

Get the associated pandora instance.

Returns: the associated pandora instance

Definition at line 116 of file Process.h.

◆ GetType()

const std::string & pandora::Process::GetType ( ) const

inlineinherited

Get the type.

Returns: The type

Definition at line 102 of file Process.h.

◆ Initialize()

StatusCode pandora::Process::Initialize ( )

inlineprotectedvirtualinherited

Perform any operations that must occur after reading settings, but before running the process.

Reimplemented in lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, EventReadingAlgorithm, and EventWritingAlgorithm.

Definition at line 126 of file Process.h.

Here is the caller graph for this function:

◆ OrderPfoMerges()

void lar_content::StitchingCosmicRayMergingTool::OrderPfoMerges	(	const PfoToLArTPCMap &	pfoToLArTPCMap,
		const ThreeDPointingClusterMap &	pointingClusterMap,
		const PfoMergeMap &	inputPfoMerges,
		PfoMergeMap &	outputPfoMerges
	)		const

private

Identify the vertex Pfo and then re-order the map of merges so that the vertex Pfo will be enlarged.

Parameters

pfoToLArTPCMap	the mapping between pfos and tpc
pointingClusterMap	the mapping between Pfos and their corresponding 3D pointing clusters
inputPfoMerges	the input map of Pfo merges
outputPfoMerges	the re-ordered map of Pfo merges

Definition at line 461 of file StitchingCosmicRayMergingTool.cc.

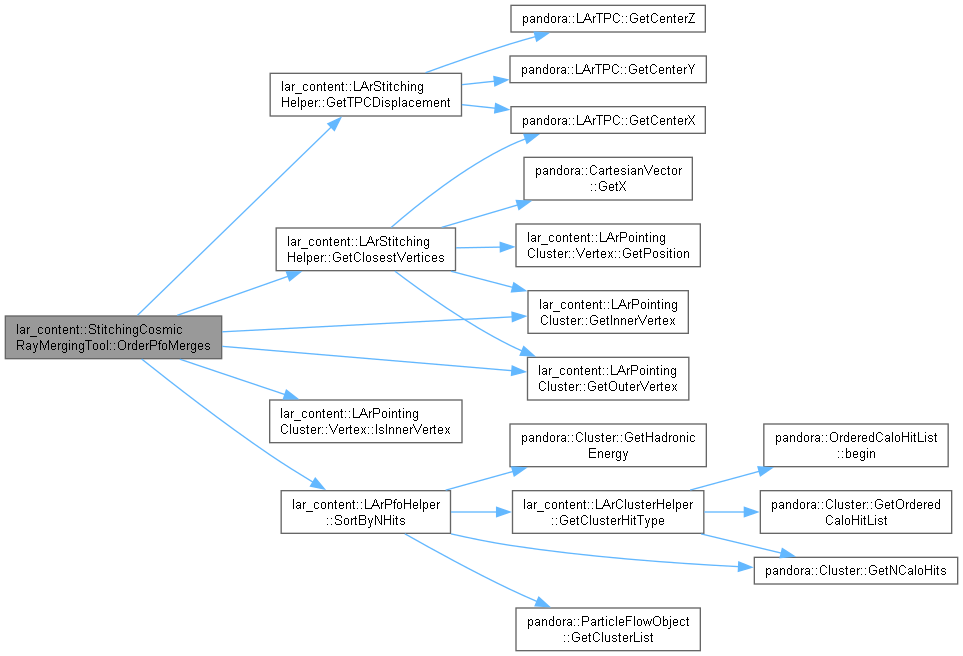

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReadSettings()

StatusCode lar_content::StitchingCosmicRayMergingTool::ReadSettings ( const pandora::TiXmlHandle xmlHandle )

privatevirtual

Read the algorithm settings.

Parameters

xmlHandle the relevant xml handle

Implements pandora::Process.

Definition at line 818 of file StitchingCosmicRayMergingTool.cc.

Here is the call graph for this function:

◆ RegisterDetails()

StatusCode pandora::Process::RegisterDetails	(	const Pandora *const	pPandora,
		const std::string &	type,
		const std::string &	instanceName
	)

inlineprotectedinherited

Register i) the pandora instance that will run the process and ii) the process type.

Parameters

pPandora	address of the pandora object that will run the process
type	the process type
instanceName	the process instance name

Definition at line 146 of file Process.h.

Here is the caller graph for this function:

◆ Reset()

StatusCode pandora::Process::Reset ( )

inlineprotectedvirtualinherited

Perform any operations when pandora is reset, typically at the end of each event.

Reimplemented in lar_content::MasterAlgorithm, lar_content::PostProcessingAlgorithm, and lar_content::PreProcessingAlgorithm.

Definition at line 133 of file Process.h.

Here is the caller graph for this function:

◆ Run()

void lar_content::StitchingCosmicRayMergingTool::Run	(	const MasterAlgorithm *const	pAlgorithm,
		const pandora::PfoList *const	pMultiPfoList,
		PfoToLArTPCMap &	pfoToLArTPCMap,
		PfoToFloatMap &	stitchedPfosToX0Map
	)

virtual

Run the algorithm tool.

Parameters

pAlgorithm	address of the calling algorithm
pMultiPfoList	the list of pfos in multiple lar tpcs
pfoToLArTPCMap	the pfo to lar tpc map
stitchedPfosToX0Map	a map of cosmic-ray pfos that have been stitched between lar tpcs to the X0 shift

Implements lar_content::StitchingBaseTool.

Definition at line 42 of file StitchingCosmicRayMergingTool.cc.

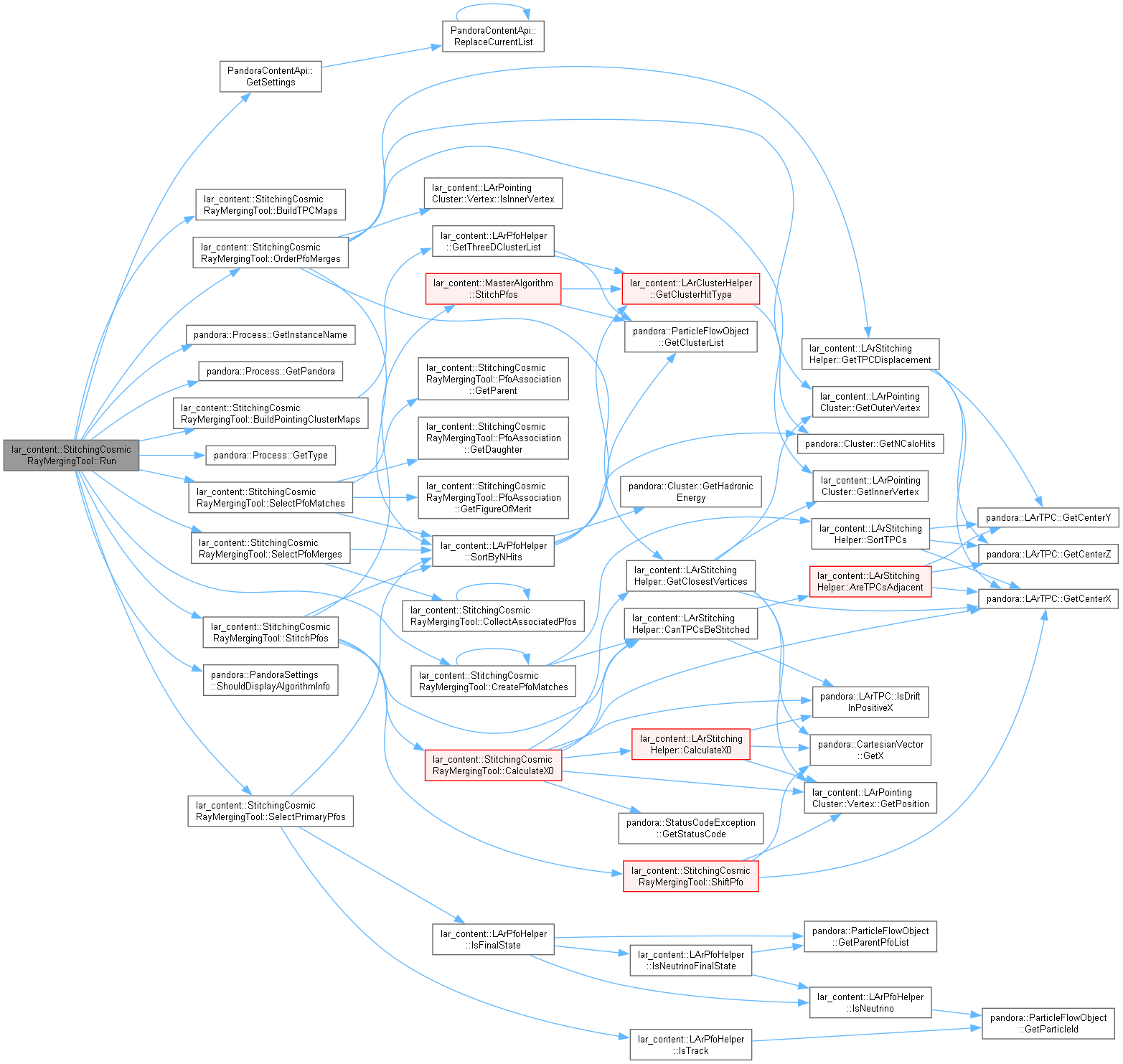

Here is the call graph for this function:

◆ SelectPfoMatches()

void lar_content::StitchingCosmicRayMergingTool::SelectPfoMatches	(	const PfoAssociationMatrix &	pfoAssociationMatrix,
		PfoMergeMap &	pfoSelectedMatches
	)		const

private

Select the best associations between Pfos; create a mapping between associated Pfos, handling any ambiguities.

Parameters

pfoAssociationMatrix	the input list of all associations between Pfos
pfoSelectedMatches	the output list of good associations between pfos (candidates for merging)

Definition at line 291 of file StitchingCosmicRayMergingTool.cc.

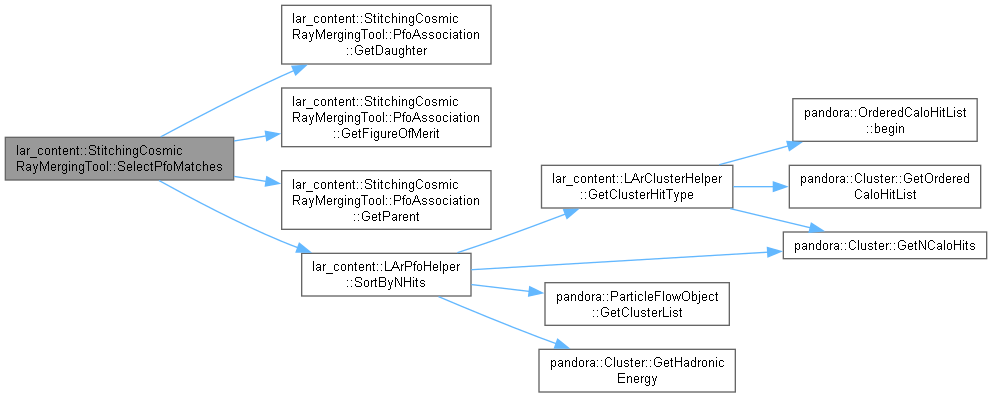

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SelectPfoMerges()

void lar_content::StitchingCosmicRayMergingTool::SelectPfoMerges	(	const PfoMergeMap &	pfoMatches,
		PfoMergeMap &	pfoMerges
	)		const

private

Create an initial map of Pfo merges to be made.

Parameters

pfoMatches	the input list of associated Pfos
pfoMerges	the output mapping between Pfos to enlarge and Pfos to delete

Definition at line 392 of file StitchingCosmicRayMergingTool.cc.

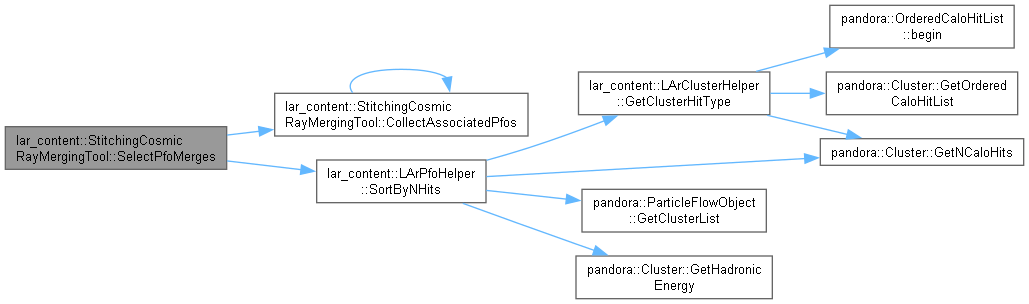

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SelectPrimaryPfos()

void lar_content::StitchingCosmicRayMergingTool::SelectPrimaryPfos	(	const pandora::PfoList *	pInputPfoList,
		const PfoToLArTPCMap &	pfoToLArTPCMap,
		pandora::PfoList &	outputPfoList
	)		const

private

Select primary Pfos from the input list of Pfos.

Parameters

pInputPfoList	the input list of Pfos
pfoToLArTPCMap	the input mapping between Pfos and tpc
outputPfoList	the output list of Pfos

Definition at line 80 of file StitchingCosmicRayMergingTool.cc.

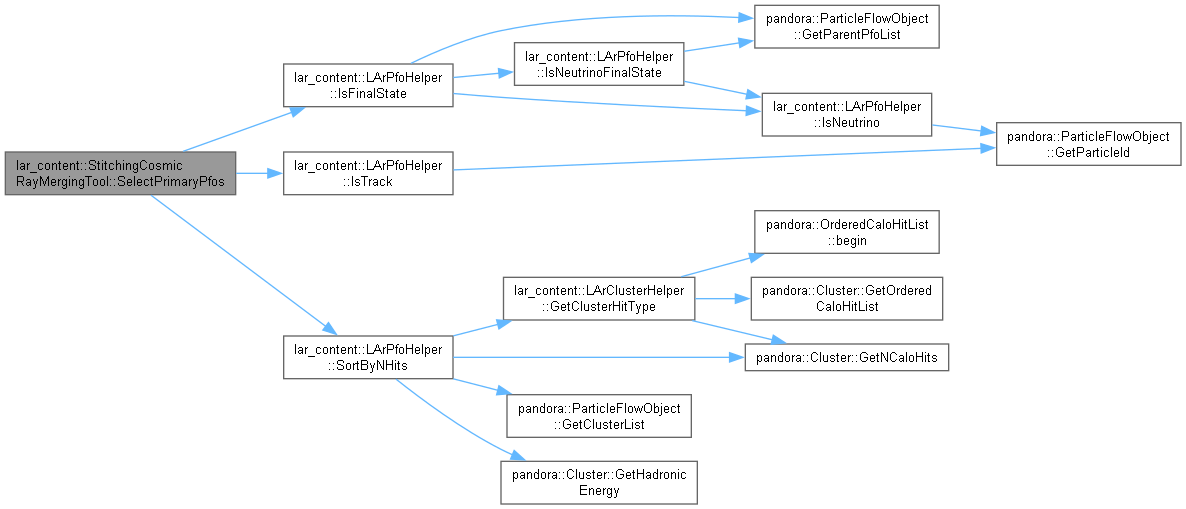

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ShiftPfo()

void lar_content::StitchingCosmicRayMergingTool::ShiftPfo	(	const MasterAlgorithm *const	pAlgorithm,
		const pandora::ParticleFlowObject *const	pPfoToShift,
		const pandora::ParticleFlowObject *const	pMatchedPfo,
		const float	x0,
		const PfoToLArTPCMap &	pfoToLArTPCMap,
		const PfoToPointingVertexMatrix &	pfoToPointingVertexMatrix
	)		const

private

Shift a pfo given its pfo stitching pair.

Parameters

pPfoToShift	the pfo of the stitching pair to shift
pMatchedPfo	the pfo of the stitching pair to remain stationary
x0	the distance by which pPfoToShift is to be shifted (direction of shift is determined in method)
pfoToLArTPCMap	the pfo to lar tpc map
pfoToPointingVertexMatrix	the map [pfo -> map [matched pfo -> pfo stitching vertex]]

Definition at line 618 of file StitchingCosmicRayMergingTool.cc.

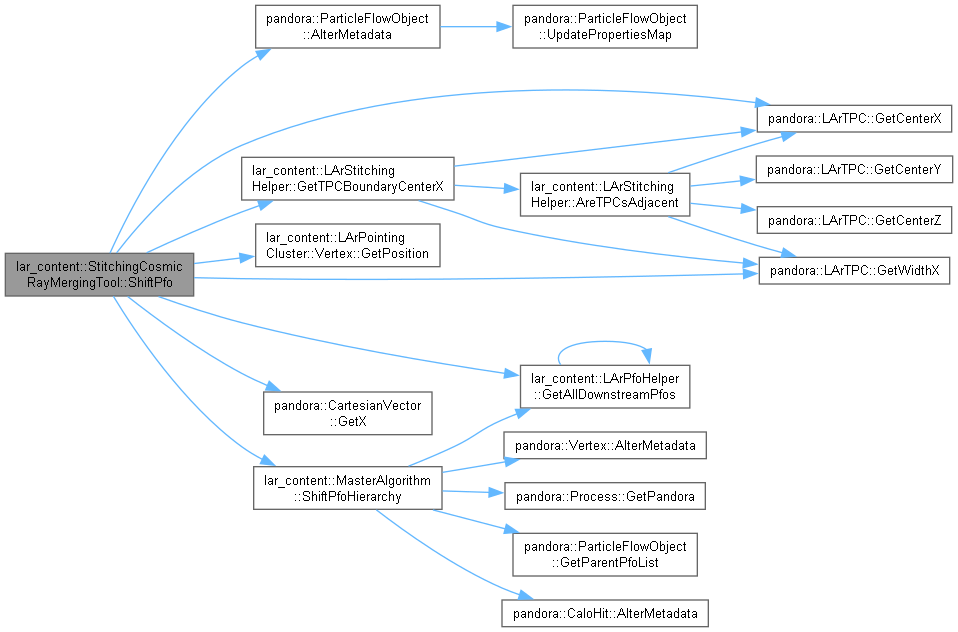

Here is the call graph for this function:

Here is the caller graph for this function:

◆ StitchPfos()

void lar_content::StitchingCosmicRayMergingTool::StitchPfos	(	const MasterAlgorithm *const	pAlgorithm,
		const ThreeDPointingClusterMap &	pointingClusterMap,
		const PfoMergeMap &	pfoMerges,
		PfoToLArTPCMap &	pfoToLArTPCMap,
		PfoToFloatMap &	stitchedPfosToX0Map
	)		const

private

Apply X0 corrections, and then stitch together Pfos.

Parameters

pAlgorithm	the address of the parent stitching algorithm
pointingClusterMap	the mapping between Pfos and their corresponding 3D pointing clusters
pfoMerges	the input map of Pfo merges
pfoToLArTPCMap	the pfo to lar tpc map
stitchedPfosToX0Map	a map of cosmic-ray pfos that have been stitched between lar tpcs to the X0 shift

Definition at line 541 of file StitchingCosmicRayMergingTool.cc.

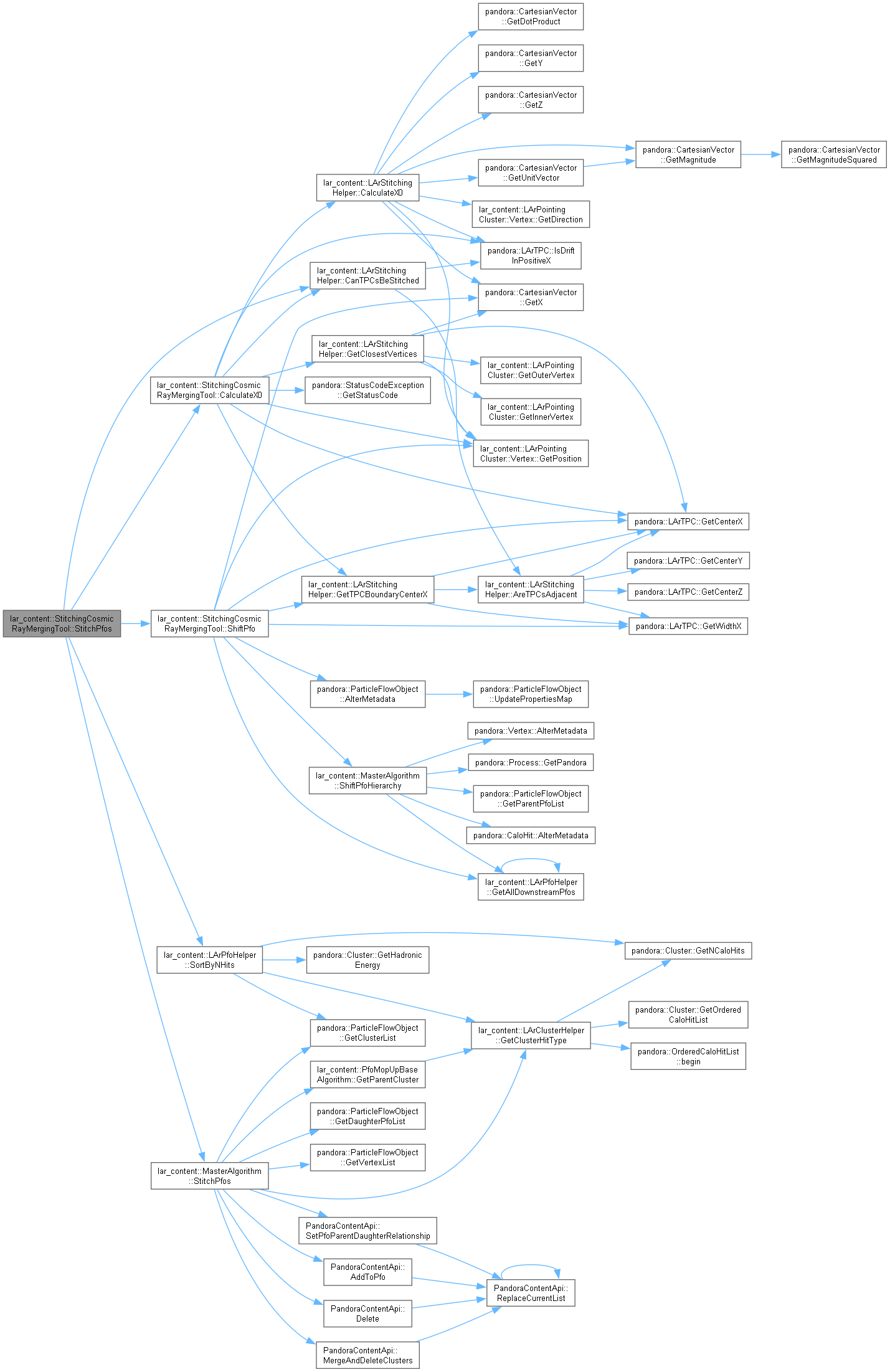

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_alwaysApplyT0Calculation

bool lar_content::StitchingCosmicRayMergingTool::m_alwaysApplyT0Calculation

private

Definition at line 232 of file StitchingCosmicRayMergingTool.h.

◆ m_boundaryToleranceWidth

float lar_content::StitchingCosmicRayMergingTool::m_boundaryToleranceWidth

private

The distance from the APA/CPA boundary inside which the deviation consideration is ignored.

Definition at line 243 of file StitchingCosmicRayMergingTool.h.

◆ m_halfWindowLayers

int lar_content::StitchingCosmicRayMergingTool::m_halfWindowLayers

private

Definition at line 233 of file StitchingCosmicRayMergingTool.h.

◆ m_instanceName

std::string pandora::Process::m_instanceName

protectedinherited

The process instance name.

Definition at line 89 of file Process.h.

◆ m_maxLongitudinalDisplacementX

float lar_content::StitchingCosmicRayMergingTool::m_maxLongitudinalDisplacementX

private

Definition at line 237 of file StitchingCosmicRayMergingTool.h.

◆ m_maxTransverseDisplacement

float lar_content::StitchingCosmicRayMergingTool::m_maxTransverseDisplacement

private

Definition at line 238 of file StitchingCosmicRayMergingTool.h.

◆ m_maxX0FractionalDeviation

float lar_content::StitchingCosmicRayMergingTool::m_maxX0FractionalDeviation

private

The maximum allowed fractional difference of an X0 contribution for matches to be stitched.

Definition at line 242 of file StitchingCosmicRayMergingTool.h.

◆ m_minCosRelativeAngle

float lar_content::StitchingCosmicRayMergingTool::m_minCosRelativeAngle

private

Definition at line 235 of file StitchingCosmicRayMergingTool.h.

◆ m_minLengthSquared

float lar_content::StitchingCosmicRayMergingTool::m_minLengthSquared

private

Definition at line 234 of file StitchingCosmicRayMergingTool.h.

◆ m_minNCaloHits3D

unsigned int lar_content::StitchingCosmicRayMergingTool::m_minNCaloHits3D

private

Definition at line 241 of file StitchingCosmicRayMergingTool.h.

◆ m_pPandora

const Pandora* pandora::Process::m_pPandora

protectedinherited

The pandora object that will run the process.

Definition at line 87 of file Process.h.

◆ m_relaxCosRelativeAngle

float lar_content::StitchingCosmicRayMergingTool::m_relaxCosRelativeAngle

private

Definition at line 239 of file StitchingCosmicRayMergingTool.h.

◆ m_relaxMinLongitudinalDisplacement

float lar_content::StitchingCosmicRayMergingTool::m_relaxMinLongitudinalDisplacement

private

The minimum value of the longitudinal impact parameter for association if both verticies fall in the detector gap.

Definition at line 236 of file StitchingCosmicRayMergingTool.h.

◆ m_relaxTransverseDisplacement

float lar_content::StitchingCosmicRayMergingTool::m_relaxTransverseDisplacement

private

Definition at line 240 of file StitchingCosmicRayMergingTool.h.

◆ m_type

std::string pandora::Process::m_type

protectedinherited

The process type.

Definition at line 88 of file Process.h.

◆ m_useXcoordinate

bool lar_content::StitchingCosmicRayMergingTool::m_useXcoordinate

private

Definition at line 231 of file StitchingCosmicRayMergingTool.h.

The documentation for this class was generated from the following files:

LArContent/larpandoracontent/LArControlFlow/StitchingCosmicRayMergingTool.h
LArContent/larpandoracontent/LArControlFlow/StitchingCosmicRayMergingTool.cc

Classes

Public Member Functions

Protected Member Functions

Protected Attributes

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ LArTPCToPfoMap

◆ PfoAssociationMap

◆ PfoAssociationMatrix

◆ PfoMergeMap

◆ PfoToPointingVertexMap

◆ PfoToPointingVertexMatrix

◆ ThreeDPointingClusterMap

Constructor & Destructor Documentation

◆ StitchingCosmicRayMergingTool()

Member Function Documentation

◆ BuildPointingClusterMaps()

◆ BuildTPCMaps()

◆ CalculateX0()

◆ CollectAssociatedPfos()

◆ CreatePfoMatches() [1/2]

◆ CreatePfoMatches() [2/2]

◆ GetInstanceName()

◆ GetPandora()

◆ GetType()

◆ Initialize()

◆ OrderPfoMerges()

◆ ReadSettings()

◆ RegisterDetails()

◆ Reset()

◆ Run()

◆ SelectPfoMatches()

◆ SelectPfoMerges()

◆ SelectPrimaryPfos()

◆ ShiftPfo()

◆ StitchPfos()

Member Data Documentation

◆ m_alwaysApplyT0Calculation

◆ m_boundaryToleranceWidth

◆ m_halfWindowLayers

◆ m_instanceName

◆ m_maxLongitudinalDisplacementX

◆ m_maxTransverseDisplacement

◆ m_maxX0FractionalDeviation

◆ m_minCosRelativeAngle

◆ m_minLengthSquared

◆ m_minNCaloHits3D

◆ m_pPandora

◆ m_relaxCosRelativeAngle

◆ m_relaxMinLongitudinalDisplacement

◆ m_relaxTransverseDisplacement

◆ m_type

◆ m_useXcoordinate
