pandora::ExternallyConfiguredAlgorithm Class Referenceabstract

Externally configured algorithm class. Provides ability for external specification of algorithm-defined parameter blocks. A single call to GetExternalParameters per algorithm type, per Pandora instance is enforced to prevent misuse. In the case of multiple instances of a given algorithm type, must revert to standard xml-based configuration. More...

#include "ExternallyConfiguredAlgorithm.h"

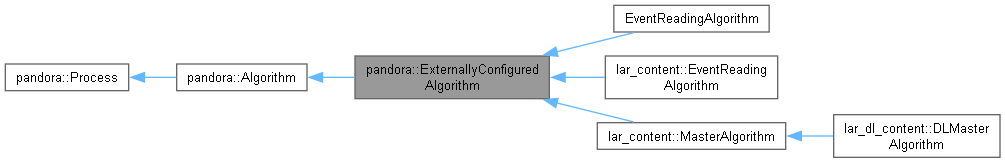

Inheritance diagram for pandora::ExternallyConfiguredAlgorithm:
Inheritance graph
[legend]

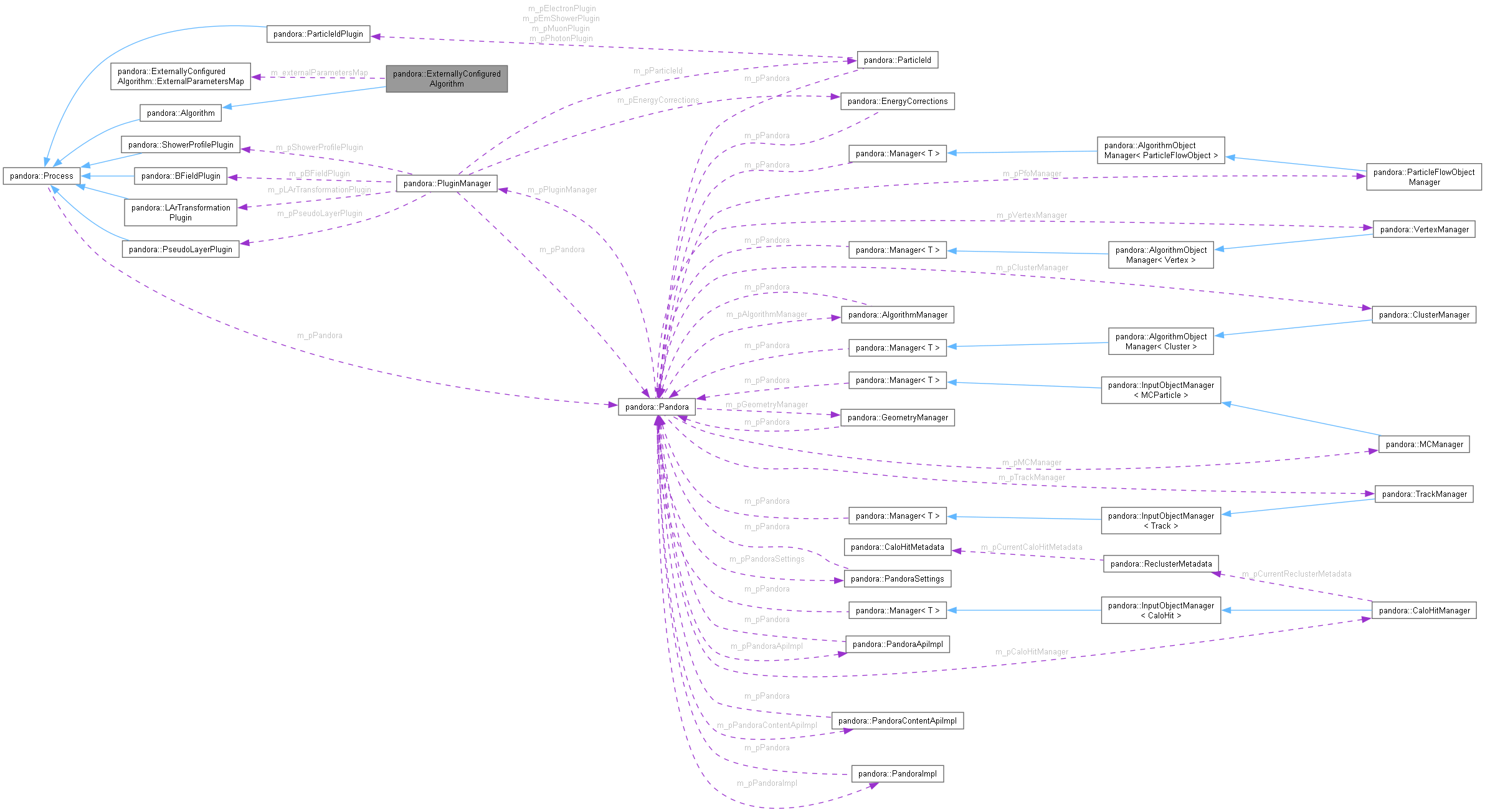

Collaboration diagram for pandora::ExternallyConfiguredAlgorithm:
Collaboration graph
[legend]

Classes

class  ExternalParametersMap
 External parameters map class. More...


Public Member Functions

virtual ~ExternallyConfiguredAlgorithm ()
 Destructor.

const std::string & GetType () const
 Get the type.

const std::string & GetInstanceName () const
 Get the instance name.

const Pandora & GetPandora () const
 Get the associated pandora instance.


Static Public Member Functions

static StatusCode SetExternalParameters (const Pandora &pandora, const std::string &algorithmType, ExternalParameters *const pExternalParameters)
 Set the external parameters associated with an algorithm instance of a specific type, created by the given Pandora instance.


Protected Member Functions

bool ExternalParametersPresent () const
 Whether external parameters are present.

ExternalParameters * GetExternalParameters () const
 Get the external parameters associated with algorithm instances created by a given Pandora instance. A single call to this function per algorithm type, per Pandora instance is enforced to prevent misuse.

virtual StatusCode Run ()=0
 Run the algorithm.

virtual StatusCode ReadSettings (const TiXmlHandle xmlHandle)=0
 Read the algorithm settings.

virtual StatusCode Initialize ()
 Perform any operations that must occur after reading settings, but before running the process.

virtual StatusCode Reset ()
 Perform any operations when pandora is reset, typically at the end of each event.

StatusCode RegisterDetails (const Pandora *const pPandora, const std::string &type, const std::string &instanceName)
 Register i) the pandora instance that will run the process and ii) the process type.


Protected Attributes

const Pandora * m_pPandora
 The pandora object that will run the process.

std::string m_type
 The process type.

std::string m_instanceName
 The process instance name.


Static Private Attributes

static ExternalParametersMap m_externalParametersMap
 The external parameters map.


Detailed Description

Externally configured algorithm class. Provides ability for external specification of algorithm-defined parameter blocks. A single call to GetExternalParameters per algorithm type, per Pandora instance is enforced to prevent misuse. In the case of multiple instances of a given algorithm type, must revert to standard xml-based configuration.

Definition at line 53 of file ExternallyConfiguredAlgorithm.h.

Constructor & Destructor Documentation

◆ ~ExternallyConfiguredAlgorithm()

pandora::ExternallyConfiguredAlgorithm::~ExternallyConfiguredAlgorithm ( )
virtual

Destructor.

Definition at line 40 of file ExternallyConfiguredAlgorithm.cc.

Here is the call graph for this function:

Member Function Documentation

◆ ExternalParametersPresent()

bool pandora::ExternallyConfiguredAlgorithm::ExternalParametersPresent ( ) const
protected

Whether external parameters are present.

Returns
boolean

Definition at line 58 of file ExternallyConfiguredAlgorithm.cc.

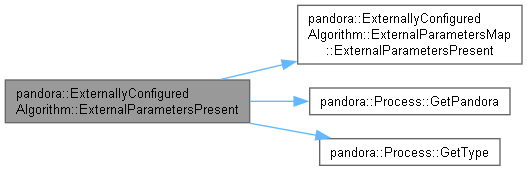

Here is the call graph for this function:

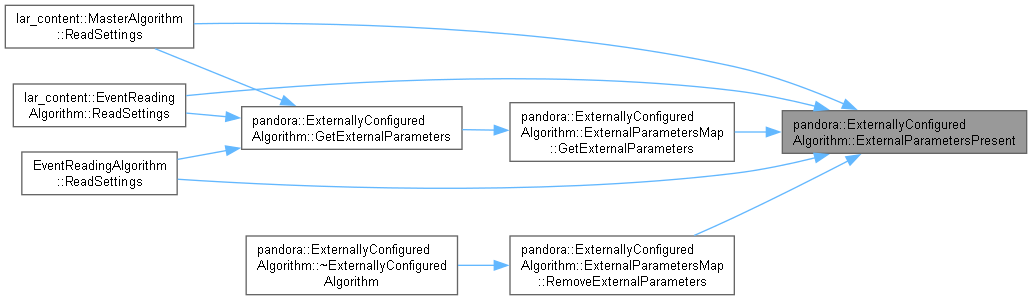

Here is the caller graph for this function:

◆ GetExternalParameters()

ExternalParameters * pandora::ExternallyConfiguredAlgorithm::GetExternalParameters ( ) const
protected

Get the external parameters associated with algorithm instances created by a given Pandora instance. A single call to this function per algorithm type, per Pandora instance is enforced to prevent misuse.

Returns
the address of the external parameters

Definition at line 65 of file ExternallyConfiguredAlgorithm.cc.

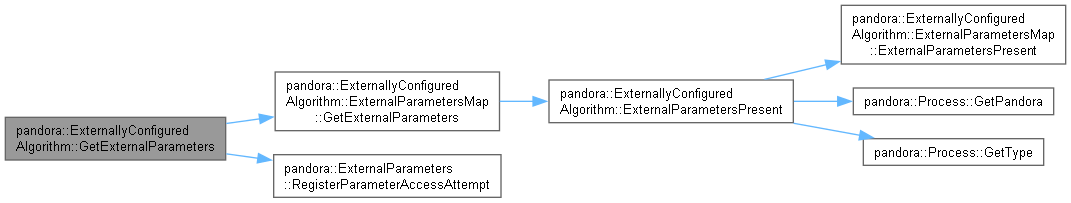

Here is the call graph for this function:

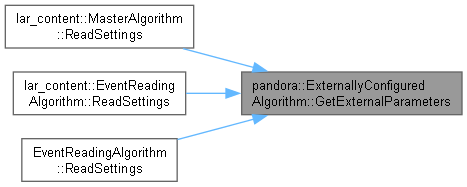

Here is the caller graph for this function:

◆ GetInstanceName()

const std::string & pandora::Process::GetInstanceName ( ) const
inlineinherited

Get the instance name.

Returns
The instance name

Definition at line 109 of file Process.h.

◆ GetPandora()

const Pandora & pandora::Process::GetPandora ( ) const
inlineinherited

Get the associated pandora instance.

Returns
the associated pandora instance

Definition at line 116 of file Process.h.

◆ GetType()

const std::string & pandora::Process::GetType ( ) const
inlineinherited

Get the type.

Returns
The type

Definition at line 102 of file Process.h.

◆ Initialize()

StatusCode pandora::Process::Initialize ( )
inlineprotectedvirtualinherited

Perform any operations that must occur after reading settings, but before running the process.

Reimplemented in lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, EventReadingAlgorithm, and EventWritingAlgorithm.

Definition at line 126 of file Process.h.

Here is the caller graph for this function:

◆ ReadSettings()

virtual StatusCode pandora::Process::ReadSettings ( const TiXmlHandle  xmlHandle)
protectedpure virtualinherited

Read the algorithm settings.

Parameters
xmlHandlethe relevant xml handle

Implemented in lar_content::CheatingBeamParticleIdTool, lar_content::CheatingBeamParticleSliceSelectionTool, lar_content::CheatingClusterCreationAlgorithm, lar_content::CheatingCosmicRayIdentificationAlg, lar_content::CheatingCosmicRayRemovalAlgorithm, lar_content::CheatingCosmicRayShowerMatchingAlg, lar_content::CheatingCosmicRayTaggingTool, lar_content::CheatingEventSlicingTool, lar_content::CheatingNeutrinoCreationAlgorithm, lar_content::CheatingNeutrinoDaughterVerticesAlgorithm, lar_content::CheatingNeutrinoIdTool, lar_content::CheatingNeutrinoSliceSelectionTool, lar_content::CheatingPfoCreationAlgorithm, lar_content::CheatingSliceIdBaseTool, lar_content::CheatingSliceSelectionTool, lar_content::CheatingVertexCreationAlgorithm, lar_content::CheatingVertexSelectionAlgorithm, lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::MasterAlgorithm, lar_content::NeutrinoIdTool< T >, lar_content::PostProcessingAlgorithm, lar_content::PreProcessingAlgorithm, lar_content::SimpleNeutrinoIdTool, lar_content::SlicingAlgorithm, lar_content::StitchingCosmicRayMergingTool, lar_content::StreamingAlgorithm, lar_content::CustomParticleCreationAlgorithm, lar_content::PcaShowerParticleBuildingAlgorithm, lar_content::TrackParticleBuildingAlgorithm, lar_content::CosmicRayTaggingMonitoringTool, lar_content::EventValidationBaseAlgorithm, lar_content::HierarchyMonitoringAlgorithm, lar_content::HierarchyValidationAlgorithm, lar_content::MCParticleMonitoringAlgorithm, lar_content::MuonLeadingEventValidationAlgorithm, lar_content::NeutrinoEventValidationAlgorithm, lar_content::PfoValidationAlgorithm, lar_content::ShowerTensorVisualizationTool, lar_content::TestBeamEventValidationAlgorithm, lar_content::TestBeamHierarchyEventValidationAlgorithm, lar_content::TransverseMatrixVisualizationTool, lar_content::TransverseTensorVisualizationTool, lar_content::VertexMonitoringAlgorithm, lar_content::VisualMonitoringAlgorithm, lar_content::VisualParticleMonitoringAlgorithm, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArParticleIdPlugins::LArMuonId, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, lar_content::InitialRegionFeatureTool, lar_content::ConnectionRegionFeatureTool, lar_content::ShowerRegionFeatureTool, lar_content::AmbiguousRegionFeatureTool, lar_content::ElectronInitialRegionRefinementAlgorithm, lar_content::PeakDirectionFinderTool, lar_content::ProtoShowerMatchingTool, lar_content::ShowerSpineFinderTool, lar_content::ShowerStartFinderTool, lar_content::AmbiguousDeltaRayTool, lar_content::CosmicRayBaseMatchingAlgorithm, lar_content::CosmicRayRemovalTool, lar_content::CosmicRayShowerMatchingAlgorithm, lar_content::CosmicRayTrackMatchingAlgorithm, lar_content::CosmicRayTrackRecoveryAlgorithm, lar_content::CosmicRayVertexBuildingAlgorithm, lar_content::DeltaRayIdentificationAlgorithm, lar_content::DeltaRayMatchingAlgorithm, lar_content::DeltaRayMergeTool, lar_content::DeltaRayParentAlgorithm, lar_content::DeltaRayRemovalTool, lar_content::NViewDeltaRayMatchingAlgorithm< T >, lar_content::NViewDeltaRayMatchingAlgorithm< ThreeViewMatchingControl< DeltaRayOverlapResult > >, lar_content::NViewDeltaRayMatchingAlgorithm< TwoViewMatchingControl< TwoViewDeltaRayOverlapResult > >, lar_content::OneViewDeltaRayMatchingAlgorithm, lar_content::ThreeViewDeltaRayMatchingAlgorithm, lar_content::TwoViewAmbiguousDeltaRayTool, lar_content::TwoViewCosmicRayRemovalTool, lar_content::TwoViewDeltaRayMatchingAlgorithm, lar_content::UnambiguousDeltaRayTool, lar_content::UnattachedDeltaRaysAlgorithm, lar_content::BranchAssociatedPfosTool, lar_content::EndAssociatedPfosTool, lar_content::EventSlicingTool, lar_content::NeutrinoCreationAlgorithm, lar_content::NeutrinoDaughterVerticesAlgorithm, lar_content::NeutrinoHierarchyAlgorithm, lar_content::NeutrinoPropertiesAlgorithm, lar_content::TestBeamParticleCreationAlgorithm, lar_content::VertexAssociatedPfosTool, lar_content::HitCreationBaseTool, lar_content::LongitudinalTrackHitsBaseTool, lar_content::ShowerHitsBaseTool, lar_content::ThreeDHitCreationAlgorithm, lar_content::ThreeViewShowerHitsTool, lar_content::TrackHitsBaseTool, lar_content::ClearLongitudinalTracksTool, lar_content::MatchedEndPointsTool, lar_content::ThreeViewLongitudinalTracksAlgorithm, lar_content::RecursivePfoMopUpAlgorithm, lar_content::ShowerHierarchyMopUpAlgorithm, lar_content::ShowerPfoMopUpAlgorithm, lar_content::SlidingConePfoMopUpAlgorithm, lar_content::VertexBasedPfoMopUpAlgorithm, lar_content::ParticleRecoveryAlgorithm, lar_content::VertexBasedPfoRecoveryAlgorithm, lar_content::ClearRemnantsTool, lar_content::ConnectedRemnantsTool, lar_content::MopUpRemnantsTool, lar_content::ThreeViewRemnantsAlgorithm, lar_content::ClearShowersTool, lar_content::SimpleShowersTool, lar_content::SplitShowersTool, lar_content::ThreeViewShowersAlgorithm, lar_content::MatchingBaseAlgorithm, lar_content::NViewMatchingAlgorithm< T >, lar_content::NViewMatchingAlgorithm< ThreeViewMatchingControl< DeltaRayOverlapResult > >, lar_content::NViewMatchingAlgorithm< ThreeViewMatchingControl< float > >, lar_content::NViewMatchingAlgorithm< ThreeViewMatchingControl< FragmentOverlapResult > >, lar_content::NViewMatchingAlgorithm< ThreeViewMatchingControl< LongitudinalOverlapResult > >, lar_content::NViewMatchingAlgorithm< ThreeViewMatchingControl< ShowerOverlapResult > >, lar_content::NViewMatchingAlgorithm< ThreeViewMatchingControl< TransverseOverlapResult > >, lar_content::NViewMatchingAlgorithm< TwoViewMatchingControl< TwoViewDeltaRayOverlapResult > >, lar_content::NViewMatchingAlgorithm< TwoViewMatchingControl< TwoViewTransverseOverlapResult > >, lar_content::NViewTrackMatchingAlgorithm< T >, lar_content::NViewTrackMatchingAlgorithm< ThreeViewMatchingControl< FragmentOverlapResult > >, lar_content::NViewTrackMatchingAlgorithm< ThreeViewMatchingControl< LongitudinalOverlapResult > >, lar_content::NViewTrackMatchingAlgorithm< ThreeViewMatchingControl< TransverseOverlapResult > >, lar_content::NViewTrackMatchingAlgorithm< TwoViewMatchingControl< TwoViewTransverseOverlapResult > >, lar_content::ClearTrackFragmentsTool, lar_content::ThreeViewTrackFragmentsAlgorithm, lar_content::ClearTracksTool, lar_content::LongTracksTool, lar_content::MissingTrackSegmentTool, lar_content::MissingTrackTool, lar_content::OvershootTracksTool, lar_content::ThreeDKinkBaseTool, lar_content::ThreeViewTransverseTracksAlgorithm, lar_content::TracksCrossingGapsTool, lar_content::TrackSplittingTool, lar_content::UndershootTracksTool, lar_content::TwoViewClearTracksTool, lar_content::TwoViewLongTracksTool, lar_content::TwoViewSimpleTracksTool, lar_content::TwoViewThreeDKinkTool, lar_content::TwoViewTransverseTracksAlgorithm, lar_content::BranchGrowingAlgorithm, lar_content::ClusterCharacterisationBaseAlgorithm, lar_content::CutClusterCharacterisationAlgorithm, lar_content::CutPfoCharacterisationAlgorithm, lar_content::MvaPfoCharacterisationAlgorithm< T >, lar_content::PfoCharacterisationBaseAlgorithm, lar_content::ShowerGrowingAlgorithm, lar_content::TwoDShowerFitFeatureTool, lar_content::TwoDLinearFitFeatureTool, lar_content::TwoDVertexDistanceFeatureTool, lar_content::PfoHierarchyFeatureTool, lar_content::ThreeDLinearFitFeatureTool, lar_content::ThreeDVertexDistanceFeatureTool, lar_content::ConeChargeFeatureTool, lar_content::ThreeDOpeningAngleFeatureTool, lar_content::ThreeDPCAFeatureTool, lar_content::ThreeDChargeFeatureTool, lar_content::ClusterAssociationAlgorithm, lar_content::ClusterGrowingAlgorithm, lar_content::ClusterMergingAlgorithm, lar_content::CrossGapsAssociationAlgorithm, lar_content::CrossGapsExtensionAlgorithm, lar_content::HitWidthClusterMergingAlgorithm, lar_content::LongitudinalAssociationAlgorithm, lar_content::LongitudinalExtensionAlgorithm, lar_content::SimpleClusterGrowingAlgorithm, lar_content::SimpleClusterMergingAlgorithm, lar_content::TransverseAssociationAlgorithm, lar_content::TransverseExtensionAlgorithm, lar_content::ClusteringParentAlgorithm, lar_content::SimpleClusterCreationAlgorithm, lar_content::TrackClusterCreationAlgorithm, lar_content::BoundedClusterMopUpAlgorithm, lar_content::ClusterMopUpBaseAlgorithm, lar_content::ConeClusterMopUpAlgorithm, lar_content::IsolatedClusterMopUpAlgorithm, lar_content::NearbyClusterMopUpAlgorithm, lar_content::SlidingConeClusterMopUpAlgorithm, lar_content::BranchSplittingAlgorithm, lar_content::ClusterSplittingAlgorithm, lar_content::CrossedTrackSplittingAlgorithm, lar_content::DeltaRaySplittingAlgorithm, lar_content::KinkSplittingAlgorithm, lar_content::LayerSplittingAlgorithm, lar_content::OvershootSplittingAlgorithm, lar_content::TrackConsolidationAlgorithm, lar_content::TwoDSlidingFitConsolidationAlgorithm, lar_content::TwoDSlidingFitMultiSplitAlgorithm, lar_content::TwoDSlidingFitSplittingAlgorithm, lar_content::TwoDSlidingFitSplittingAndSplicingAlgorithm, lar_content::TwoDSlidingFitSplittingAndSwitchingAlgorithm, lar_content::VertexSplittingAlgorithm, lar_content::CosmicRayExtensionAlgorithm, lar_content::CosmicRaySplittingAlgorithm, lar_content::DeltaRayExtensionAlgorithm, lar_content::DeltaRayGrowingAlgorithm, lar_content::TrackMergeRefinementAlgorithm, lar_content::StreamSelectionAlgorithm, lar_content::TwoDParticleCreationAlgorithm, lar_content::InteractionSelectionAlgorithm, lar_content::ListChangingAlgorithm, lar_content::ListDeletionAlgorithm, lar_content::ListMergingAlgorithm, lar_content::ListPruningAlgorithm, lar_content::MopUpBaseAlgorithm, lar_content::PfoHitCleaningAlgorithm, lar_content::PfoMopUpBaseAlgorithm, lar_content::AsymmetryFeatureBaseTool, lar_content::CandidateVertexCreationAlgorithm, lar_content::EnergyKickFeatureTool, lar_content::EnergyKickVertexSelectionAlgorithm, lar_content::HitAngleVertexSelectionAlgorithm, lar_content::MvaVertexSelectionAlgorithm< T >, lar_content::RPhiFeatureTool, lar_content::TrainedVertexSelectionAlgorithm, lar_content::VertexRefinementAlgorithm, lar_content::VertexSelectionBaseAlgorithm, lar_dl_content::DLMasterAlgorithm, lar_dl_content::DlHitValidationAlgorithm, lar_dl_content::DlClusterCharacterisationAlgorithm, lar_dl_content::DlHitTrackShowerIdAlgorithm, lar_dl_content::DlPfoCharacterisationAlgorithm, lar_dl_content::DlTrackShowerStreamSelectionAlgorithm, lar_dl_content::DlVertexingAlgorithm, EventReadingAlgorithm, EventWritingAlgorithm, TemplateAlgorithm, TemplateAlgorithmTool, lar_content::EnergyDepositionAsymmetryFeatureTool, lar_content::GlobalAsymmetryFeatureTool, lar_content::LocalAsymmetryFeatureTool, lar_content::ShowerAsymmetryFeatureTool, lar_content::RemovalBaseTool, and lar_content::TrackRefinementBaseAlgorithm.

Here is the caller graph for this function:

◆ RegisterDetails()

StatusCode pandora::Process::RegisterDetails ( const Pandora *const  pPandora,
const std::string &  type,
const std::string &  instanceName
)
inlineprotectedinherited

Register i) the pandora instance that will run the process and ii) the process type.

Parameters
pPandoraaddress of the pandora object that will run the process
typethe process type
instanceNamethe process instance name

Definition at line 146 of file Process.h.

Here is the caller graph for this function:

◆ Reset()

StatusCode pandora::Process::Reset ( )
inlineprotectedvirtualinherited

Perform any operations when pandora is reset, typically at the end of each event.

Reimplemented in lar_content::MasterAlgorithm, lar_content::PostProcessingAlgorithm, and lar_content::PreProcessingAlgorithm.

Definition at line 133 of file Process.h.

Here is the caller graph for this function:

◆ Run()

virtual StatusCode pandora::Algorithm::Run ( )
protectedpure virtualinherited

Run the algorithm.

Implemented in lar_content::CheatingClusterCreationAlgorithm, lar_content::CheatingCosmicRayIdentificationAlg, lar_content::CheatingCosmicRayRemovalAlgorithm, lar_content::CheatingCosmicRayShowerMatchingAlg, lar_content::CheatingNeutrinoCreationAlgorithm, lar_content::CheatingNeutrinoDaughterVerticesAlgorithm, lar_content::CheatingPfoCreationAlgorithm, lar_content::CheatingVertexCreationAlgorithm, lar_content::MasterAlgorithm, lar_content::PostProcessingAlgorithm, lar_content::PreProcessingAlgorithm, lar_content::SlicingAlgorithm, lar_content::StreamingAlgorithm, lar_content::CustomParticleCreationAlgorithm, lar_content::EventValidationBaseAlgorithm, lar_content::HierarchyMonitoringAlgorithm, lar_content::HierarchyValidationAlgorithm, lar_content::MCParticleMonitoringAlgorithm, lar_content::PfoValidationAlgorithm, lar_content::VertexMonitoringAlgorithm, lar_content::VisualMonitoringAlgorithm, lar_content::VisualParticleMonitoringAlgorithm, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::ElectronInitialRegionRefinementAlgorithm, lar_content::CosmicRayBaseMatchingAlgorithm, lar_content::CosmicRayTrackRecoveryAlgorithm, lar_content::CosmicRayVertexBuildingAlgorithm, lar_content::DeltaRayIdentificationAlgorithm, lar_content::DeltaRayMatchingAlgorithm, lar_content::DeltaRayParentAlgorithm, lar_content::OneViewDeltaRayMatchingAlgorithm, lar_content::UnattachedDeltaRaysAlgorithm, lar_content::NeutrinoCreationAlgorithm, lar_content::NeutrinoDaughterVerticesAlgorithm, lar_content::NeutrinoHierarchyAlgorithm, lar_content::NeutrinoPropertiesAlgorithm, lar_content::TestBeamParticleCreationAlgorithm, lar_content::ThreeDHitCreationAlgorithm, lar_content::RecursivePfoMopUpAlgorithm, lar_content::ShowerHierarchyMopUpAlgorithm, lar_content::SlidingConePfoMopUpAlgorithm, lar_content::VertexBasedPfoMopUpAlgorithm, lar_content::ParticleRecoveryAlgorithm, lar_content::VertexBasedPfoRecoveryAlgorithm, lar_content::MatchingBaseAlgorithm, lar_content::ClusterCharacterisationBaseAlgorithm, lar_content::PfoCharacterisationBaseAlgorithm, lar_content::ShowerGrowingAlgorithm, lar_content::ClusterAssociationAlgorithm, lar_content::ClusterGrowingAlgorithm, lar_content::ClusterMergingAlgorithm, lar_content::ClusteringParentAlgorithm, lar_content::SimpleClusterCreationAlgorithm, lar_content::TrackClusterCreationAlgorithm, lar_content::ClusterMopUpBaseAlgorithm, lar_content::SlidingConeClusterMopUpAlgorithm, lar_content::ClusterSplittingAlgorithm, lar_content::TwoDSlidingFitConsolidationAlgorithm, lar_content::TwoDSlidingFitMultiSplitAlgorithm, lar_content::TwoDSlidingFitSplittingAndSplicingAlgorithm, lar_content::TwoDSlidingFitSplittingAndSwitchingAlgorithm, lar_content::CosmicRaySplittingAlgorithm, lar_content::TrackMergeRefinementAlgorithm, lar_content::StreamSelectionAlgorithm, lar_content::TwoDParticleCreationAlgorithm, lar_content::InteractionSelectionAlgorithm, lar_content::ListChangingAlgorithm, lar_content::ListDeletionAlgorithm, lar_content::ListMergingAlgorithm, lar_content::ListPruningAlgorithm, lar_content::PfoHitCleaningAlgorithm, lar_content::CandidateVertexCreationAlgorithm, lar_content::VertexRefinementAlgorithm, lar_content::VertexSelectionBaseAlgorithm, lar_dl_content::DLMasterAlgorithm, lar_dl_content::DlHitValidationAlgorithm, lar_dl_content::DlHitTrackShowerIdAlgorithm, lar_dl_content::DlVertexingAlgorithm, EventReadingAlgorithm, EventWritingAlgorithm, TemplateAlgorithm, and lar_content::TrackRefinementBaseAlgorithm.

◆ SetExternalParameters()

StatusCode pandora::ExternallyConfiguredAlgorithm::SetExternalParameters ( const Pandora &  pandora,
const std::string &  algorithmType,
ExternalParameters *const  pExternalParameters
)
static

Set the external parameters associated with an algorithm instance of a specific type, created by the given Pandora instance.

Parameters
pandorathe pandora instance
algorithmTypethe algorithm type
pExternalParametersthe address of the external parameters instance

Definition at line 51 of file ExternallyConfiguredAlgorithm.cc.

Here is the call graph for this function:

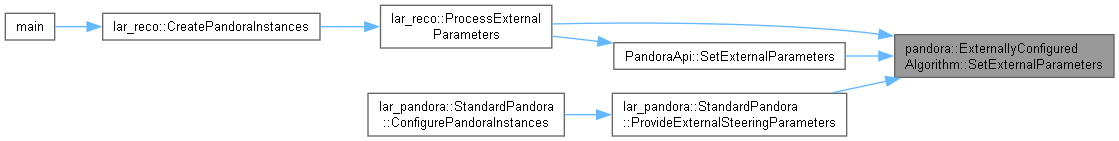

Here is the caller graph for this function:

Member Data Documentation

◆ m_externalParametersMap

ExternallyConfiguredAlgorithm::ExternalParametersMap pandora::ExternallyConfiguredAlgorithm::m_externalParametersMap
staticprivate

The external parameters map.

Definition at line 143 of file ExternallyConfiguredAlgorithm.h.

◆ m_instanceName

std::string pandora::Process::m_instanceName
protectedinherited

The process instance name.

Definition at line 89 of file Process.h.

◆ m_pPandora

const Pandora* pandora::Process::m_pPandora
protectedinherited

The pandora object that will run the process.

Definition at line 87 of file Process.h.

◆ m_type

std::string pandora::Process::m_type
protectedinherited

The process type.

Definition at line 88 of file Process.h.

The documentation for this class was generated from the following files:
