lar_content::DeltaRayTensorTool Class Reference

DeltaRayTensorTool class. More...

#include "ThreeViewDeltaRayMatchingAlgorithm.h"

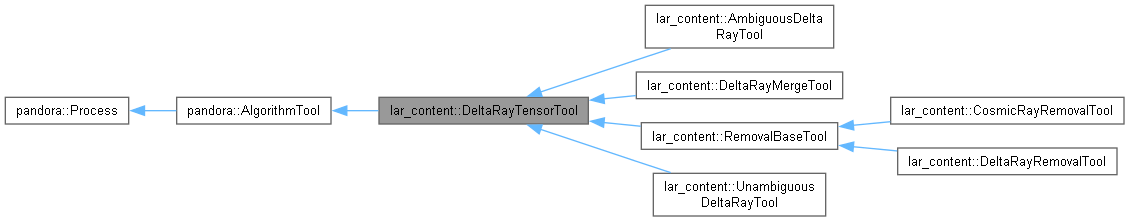

Inheritance diagram for lar_content::DeltaRayTensorTool:

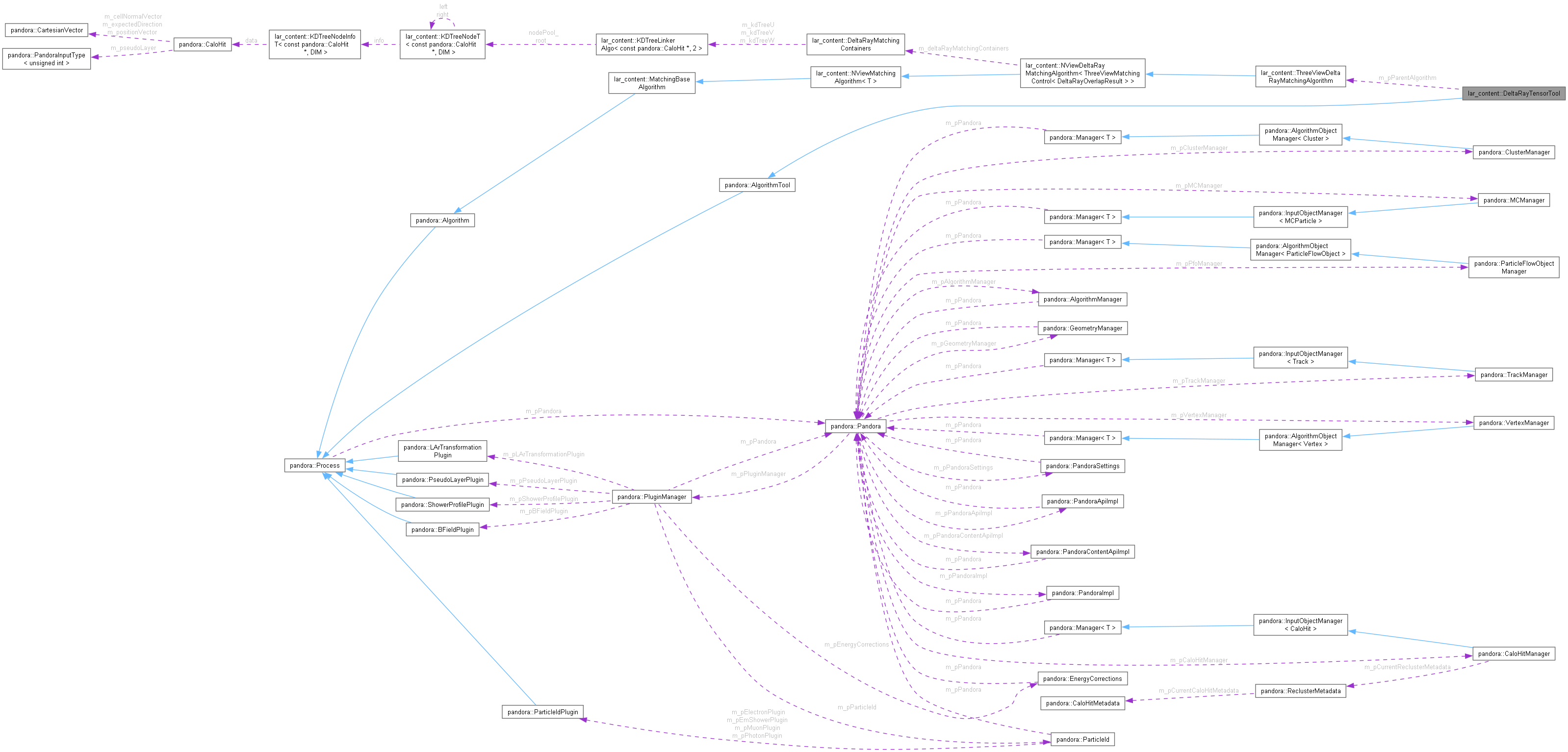

Collaboration diagram for lar_content::DeltaRayTensorTool:

Public Types
typedef ThreeViewDeltaRayMatchingAlgorithm::MatchingType::TensorType	TensorType
typedef std::vector< TensorType::ElementList::const_iterator >	IteratorList

Public Member Functions
virtual bool	Run (ThreeViewDeltaRayMatchingAlgorithm *const pAlgorithm, TensorType &overlapTensor)=0
	Run the algorithm tool.
const std::string &	GetType () const
	Get the type.
const std::string &	GetInstanceName () const
	Get the instance name.
const Pandora &	GetPandora () const
	Get the associated pandora instance.

Public Attributes
ThreeViewDeltaRayMatchingAlgorithm *	m_pParentAlgorithm
	Address of the parent matching algorithm.

Protected Member Functions
virtual StatusCode	ReadSettings (const TiXmlHandle xmlHandle)=0
	Read the algorithm settings.
virtual StatusCode	Initialize ()
	Perform any operations that must occur after reading settings, but before running the process.
virtual StatusCode	Reset ()
	Perform any operations when pandora is reset, typically at the end of each event.
StatusCode	RegisterDetails (const Pandora *const pPandora, const std::string &type, const std::string &instanceName)
	Register i) the pandora instance that will run the process and ii) the process type.

Protected Attributes
const Pandora *	m_pPandora
	The pandora object that will run the process.
std::string	m_type
	The process type.
std::string	m_instanceName
	The process instance name.

Detailed Description

DeltaRayTensorTool class.

Definition at line 98 of file ThreeViewDeltaRayMatchingAlgorithm.h.

Member Typedef Documentation

IteratorList

typedef std::vector<TensorType::ElementList::const_iterator> lar_content::DeltaRayTensorTool::IteratorList

Definition at line 102 of file ThreeViewDeltaRayMatchingAlgorithm.h.

TensorType

typedef ThreeViewDeltaRayMatchingAlgorithm::MatchingType::TensorType lar_content::DeltaRayTensorTool::TensorType

Definition at line 101 of file ThreeViewDeltaRayMatchingAlgorithm.h.

Member Function Documentation

GetInstanceName()

const std::string & pandora::Process::GetInstanceName ( ) const

inlineinherited

Get the instance name.

Returns

The instance name

Definition at line 109 of file Process.h.

GetPandora()

const Pandora & pandora::Process::GetPandora ( ) const

inlineinherited

Get the associated pandora instance.

Returns

the associated pandora instance

Definition at line 116 of file Process.h.

GetType()

const std::string & pandora::Process::GetType ( ) const

inlineinherited

Get the type.

Returns

The type

Definition at line 102 of file Process.h.

Initialize()

StatusCode pandora::Process::Initialize ( )

inlineprotectedvirtualinherited

Perform any operations that must occur after reading settings, but before running the process.

Reimplemented in lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, EventReadingAlgorithm, and EventWritingAlgorithm.

Definition at line 126 of file Process.h.

Here is the caller graph for this function:

ReadSettings()

virtual StatusCode pandora::Process::ReadSettings ( const TiXmlHandle  xmlHandle )

protectedpure virtualinherited

Read the algorithm settings.

Parameters

xmlHandle

the relevant xml handle

Implemented in lar_content::CheatingBeamParticleIdTool, lar_content::CheatingBeamParticleSliceSelectionTool, lar_content::CheatingClusterCreationAlgorithm, lar_content::CheatingCosmicRayIdentificationAlg, lar_content::CheatingCosmicRayRemovalAlgorithm, lar_content::CheatingCosmicRayShowerMatchingAlg, lar_content::CheatingCosmicRayTaggingTool, lar_content::CheatingEventSlicingTool, lar_content::CheatingNeutrinoCreationAlgorithm, lar_content::CheatingNeutrinoDaughterVerticesAlgorithm, lar_content::CheatingNeutrinoIdTool, lar_content::CheatingNeutrinoSliceSelectionTool, lar_content::CheatingPfoCreationAlgorithm, lar_content::CheatingSliceIdBaseTool, lar_content::CheatingSliceSelectionTool, lar_content::CheatingVertexCreationAlgorithm, lar_content::CheatingVertexSelectionAlgorithm, lar_content::BdtBeamParticleIdTool, lar_content::BeamParticleIdTool, lar_content::CosmicRayTaggingTool, lar_content::MasterAlgorithm, lar_content::NeutrinoIdTool< T >, lar_content::PostProcessingAlgorithm, lar_content::PreProcessingAlgorithm, lar_content::SimpleNeutrinoIdTool, lar_content::SlicingAlgorithm, lar_content::StitchingCosmicRayMergingTool, lar_content::StreamingAlgorithm, lar_content::CustomParticleCreationAlgorithm, lar_content::PcaShowerParticleBuildingAlgorithm, lar_content::TrackParticleBuildingAlgorithm, lar_content::CosmicRayTaggingMonitoringTool, lar_content::EventValidationBaseAlgorithm, lar_content::HierarchyMonitoringAlgorithm, lar_content::HierarchyValidationAlgorithm, lar_content::MCParticleMonitoringAlgorithm, lar_content::MuonLeadingEventValidationAlgorithm, lar_content::NeutrinoEventValidationAlgorithm, lar_content::PfoValidationAlgorithm, lar_content::ShowerTensorVisualizationTool, lar_content::TestBeamEventValidationAlgorithm, lar_content::TestBeamHierarchyEventValidationAlgorithm, lar_content::TransverseMatrixVisualizationTool, lar_content::TransverseTensorVisualizationTool, lar_content::VertexMonitoringAlgorithm, lar_content::VisualMonitoringAlgorithm, lar_content::VisualParticleMonitoringAlgorithm, lar_content::EventReadingAlgorithm, lar_content::EventWritingAlgorithm, lar_content::LArParticleIdPlugins::LArMuonId, lar_content::LArPseudoLayerPlugin, lar_content::LArRotationalTransformationPlugin, lar_content::InitialRegionFeatureTool, lar_content::ConnectionRegionFeatureTool, lar_content::ShowerRegionFeatureTool, lar_content::AmbiguousRegionFeatureTool, lar_content::ElectronInitialRegionRefinementAlgorithm, lar_content::PeakDirectionFinderTool, lar_content::ProtoShowerMatchingTool, lar_content::ShowerSpineFinderTool, lar_content::ShowerStartFinderTool, lar_content::AmbiguousDeltaRayTool, lar_content::CosmicRayBaseMatchingAlgorithm, lar_content::CosmicRayRemovalTool, lar_content::CosmicRayShowerMatchingAlgorithm, lar_content::CosmicRayTrackMatchingAlgorithm, lar_content::CosmicRayTrackRecoveryAlgorithm, lar_content::CosmicRayVertexBuildingAlgorithm, lar_content::DeltaRayIdentificationAlgorithm, lar_content::DeltaRayMatchingAlgorithm, lar_content::DeltaRayMergeTool, lar_content::DeltaRayParentAlgorithm, lar_content::DeltaRayRemovalTool, lar_content::NViewDeltaRayMatchingAlgorithm< T >, lar_content::NViewDeltaRayMatchingAlgorithm< ThreeViewMatchingControl< DeltaRayOverlapResult > >, lar_content::NViewDeltaRayMatchingAlgorithm< TwoViewMatchingControl< TwoViewDeltaRayOverlapResult > >, lar_content::OneViewDeltaRayMatchingAlgorithm, lar_content::ThreeViewDeltaRayMatchingAlgorithm, lar_content::TwoViewAmbiguousDeltaRayTool, lar_content::TwoViewCosmicRayRemovalTool, lar_content::TwoViewDeltaRayMatchingAlgorithm, lar_content::UnambiguousDeltaRayTool, lar_content::UnattachedDeltaRaysAlgorithm, lar_content::BranchAssociatedPfosTool, lar_content::EndAssociatedPfosTool, lar_content::EventSlicingTool, lar_content::NeutrinoCreationAlgorithm, lar_content::NeutrinoDaughterVerticesAlgorithm, lar_content::NeutrinoHierarchyAlgorithm, lar_content::NeutrinoPropertiesAlgorithm, lar_content::TestBeamParticleCreationAlgorithm, lar_content::VertexAssociatedPfosTool, lar_content::HitCreationBaseTool, lar_content::LongitudinalTrackHitsBaseTool, lar_content::ShowerHitsBaseTool, lar_content::ThreeDHitCreationAlgorithm, lar_content::ThreeViewShowerHitsTool, lar_content::TrackHitsBaseTool, lar_content::ClearLongitudinalTracksTool, lar_content::MatchedEndPointsTool, lar_content::ThreeViewLongitudinalTracksAlgorithm, lar_content::RecursivePfoMopUpAlgorithm, lar_content::ShowerHierarchyMopUpAlgorithm, lar_content::ShowerPfoMopUpAlgorithm, lar_content::SlidingConePfoMopUpAlgorithm, lar_content::VertexBasedPfoMopUpAlgorithm, lar_content::ParticleRecoveryAlgorithm, lar_content::VertexBasedPfoRecoveryAlgorithm, lar_content::ClearRemnantsTool, lar_content::ConnectedRemnantsTool, lar_content::MopUpRemnantsTool, lar_content::ThreeViewRemnantsAlgorithm, lar_content::ClearShowersTool, lar_content::SimpleShowersTool, lar_content::SplitShowersTool, lar_content::ThreeViewShowersAlgorithm, lar_content::MatchingBaseAlgorithm, lar_content::NViewMatchingAlgorithm< T >, lar_content::NViewMatchingAlgorithm< ThreeViewMatchingControl< DeltaRayOverlapResult > >, lar_content::NViewMatchingAlgorithm< ThreeViewMatchingControl< float > >, lar_content::NViewMatchingAlgorithm< ThreeViewMatchingControl< FragmentOverlapResult > >, lar_content::NViewMatchingAlgorithm< ThreeViewMatchingControl< LongitudinalOverlapResult > >, lar_content::NViewMatchingAlgorithm< ThreeViewMatchingControl< ShowerOverlapResult > >, lar_content::NViewMatchingAlgorithm< ThreeViewMatchingControl< TransverseOverlapResult > >, lar_content::NViewMatchingAlgorithm< TwoViewMatchingControl< TwoViewDeltaRayOverlapResult > >, lar_content::NViewMatchingAlgorithm< TwoViewMatchingControl< TwoViewTransverseOverlapResult > >, lar_content::NViewTrackMatchingAlgorithm< T >, lar_content::NViewTrackMatchingAlgorithm< ThreeViewMatchingControl< FragmentOverlapResult > >, lar_content::NViewTrackMatchingAlgorithm< ThreeViewMatchingControl< LongitudinalOverlapResult > >, lar_content::NViewTrackMatchingAlgorithm< ThreeViewMatchingControl< TransverseOverlapResult > >, lar_content::NViewTrackMatchingAlgorithm< TwoViewMatchingControl< TwoViewTransverseOverlapResult > >, lar_content::ClearTrackFragmentsTool, lar_content::ThreeViewTrackFragmentsAlgorithm, lar_content::ClearTracksTool, lar_content::LongTracksTool, lar_content::MissingTrackSegmentTool, lar_content::MissingTrackTool, lar_content::OvershootTracksTool, lar_content::ThreeDKinkBaseTool, lar_content::ThreeViewTransverseTracksAlgorithm, lar_content::TracksCrossingGapsTool, lar_content::TrackSplittingTool, lar_content::UndershootTracksTool, lar_content::TwoViewClearTracksTool, lar_content::TwoViewLongTracksTool, lar_content::TwoViewSimpleTracksTool, lar_content::TwoViewThreeDKinkTool, lar_content::TwoViewTransverseTracksAlgorithm, lar_content::BranchGrowingAlgorithm, lar_content::ClusterCharacterisationBaseAlgorithm, lar_content::CutClusterCharacterisationAlgorithm, lar_content::CutPfoCharacterisationAlgorithm, lar_content::MvaPfoCharacterisationAlgorithm< T >, lar_content::PfoCharacterisationBaseAlgorithm, lar_content::ShowerGrowingAlgorithm, lar_content::TwoDShowerFitFeatureTool, lar_content::TwoDLinearFitFeatureTool, lar_content::TwoDVertexDistanceFeatureTool, lar_content::PfoHierarchyFeatureTool, lar_content::ThreeDLinearFitFeatureTool, lar_content::ThreeDVertexDistanceFeatureTool, lar_content::ConeChargeFeatureTool, lar_content::ThreeDOpeningAngleFeatureTool, lar_content::ThreeDPCAFeatureTool, lar_content::ThreeDChargeFeatureTool, lar_content::ClusterAssociationAlgorithm, lar_content::ClusterGrowingAlgorithm, lar_content::ClusterMergingAlgorithm, lar_content::CrossGapsAssociationAlgorithm, lar_content::CrossGapsExtensionAlgorithm, lar_content::HitWidthClusterMergingAlgorithm, lar_content::LongitudinalAssociationAlgorithm, lar_content::LongitudinalExtensionAlgorithm, lar_content::SimpleClusterGrowingAlgorithm, lar_content::SimpleClusterMergingAlgorithm, lar_content::TransverseAssociationAlgorithm, lar_content::TransverseExtensionAlgorithm, lar_content::ClusteringParentAlgorithm, lar_content::SimpleClusterCreationAlgorithm, lar_content::TrackClusterCreationAlgorithm, lar_content::BoundedClusterMopUpAlgorithm, lar_content::ClusterMopUpBaseAlgorithm, lar_content::ConeClusterMopUpAlgorithm, lar_content::IsolatedClusterMopUpAlgorithm, lar_content::NearbyClusterMopUpAlgorithm, lar_content::SlidingConeClusterMopUpAlgorithm, lar_content::BranchSplittingAlgorithm, lar_content::ClusterSplittingAlgorithm, lar_content::CrossedTrackSplittingAlgorithm, lar_content::DeltaRaySplittingAlgorithm, lar_content::KinkSplittingAlgorithm, lar_content::LayerSplittingAlgorithm, lar_content::OvershootSplittingAlgorithm, lar_content::TrackConsolidationAlgorithm, lar_content::TwoDSlidingFitConsolidationAlgorithm, lar_content::TwoDSlidingFitMultiSplitAlgorithm, lar_content::TwoDSlidingFitSplittingAlgorithm, lar_content::TwoDSlidingFitSplittingAndSplicingAlgorithm, lar_content::TwoDSlidingFitSplittingAndSwitchingAlgorithm, lar_content::VertexSplittingAlgorithm, lar_content::CosmicRayExtensionAlgorithm, lar_content::CosmicRaySplittingAlgorithm, lar_content::DeltaRayExtensionAlgorithm, lar_content::DeltaRayGrowingAlgorithm, lar_content::TrackMergeRefinementAlgorithm, lar_content::StreamSelectionAlgorithm, lar_content::TwoDParticleCreationAlgorithm, lar_content::InteractionSelectionAlgorithm, lar_content::ListChangingAlgorithm, lar_content::ListDeletionAlgorithm, lar_content::ListMergingAlgorithm, lar_content::ListPruningAlgorithm, lar_content::MopUpBaseAlgorithm, lar_content::PfoHitCleaningAlgorithm, lar_content::PfoMopUpBaseAlgorithm, lar_content::AsymmetryFeatureBaseTool, lar_content::CandidateVertexCreationAlgorithm, lar_content::EnergyKickFeatureTool, lar_content::EnergyKickVertexSelectionAlgorithm, lar_content::HitAngleVertexSelectionAlgorithm, lar_content::MvaVertexSelectionAlgorithm< T >, lar_content::RPhiFeatureTool, lar_content::TrainedVertexSelectionAlgorithm, lar_content::VertexRefinementAlgorithm, lar_content::VertexSelectionBaseAlgorithm, lar_dl_content::DLMasterAlgorithm, lar_dl_content::DlHitValidationAlgorithm, lar_dl_content::DlClusterCharacterisationAlgorithm, lar_dl_content::DlHitTrackShowerIdAlgorithm, lar_dl_content::DlPfoCharacterisationAlgorithm, lar_dl_content::DlTrackShowerStreamSelectionAlgorithm, lar_dl_content::DlVertexingAlgorithm, EventReadingAlgorithm, EventWritingAlgorithm, TemplateAlgorithm, TemplateAlgorithmTool, lar_content::EnergyDepositionAsymmetryFeatureTool, lar_content::GlobalAsymmetryFeatureTool, lar_content::LocalAsymmetryFeatureTool, lar_content::ShowerAsymmetryFeatureTool, lar_content::RemovalBaseTool, and lar_content::TrackRefinementBaseAlgorithm.

Here is the caller graph for this function:

RegisterDetails()

StatusCode pandora::Process::RegisterDetails ( const Pandora *const  pPandora, const std::string &  type, const std::string &  instanceName  )

inlineprotectedinherited

Register i) the pandora instance that will run the process and ii) the process type.

Parameters

pPandora	address of the pandora object that will run the process
type	the process type
instanceName	the process instance name

Definition at line 146 of file Process.h.

Here is the caller graph for this function:

Reset()

StatusCode pandora::Process::Reset ( )

inlineprotectedvirtualinherited

Perform any operations when pandora is reset, typically at the end of each event.

Reimplemented in lar_content::MasterAlgorithm, lar_content::PostProcessingAlgorithm, and lar_content::PreProcessingAlgorithm.

Definition at line 133 of file Process.h.

Here is the caller graph for this function:

Run()

virtual bool lar_content::DeltaRayTensorTool::Run ( ThreeViewDeltaRayMatchingAlgorithm *const  pAlgorithm, TensorType &  overlapTensor  )

pure virtual

Run the algorithm tool.

Parameters

pAlgorithm	address of the calling algorithm
overlapTensor	the overlap tensor

Returns

whether changes have been made by the tool

Implemented in lar_content::AmbiguousDeltaRayTool, lar_content::CosmicRayRemovalTool, lar_content::DeltaRayMergeTool, lar_content::DeltaRayRemovalTool, lar_content::UnambiguousDeltaRayTool, and lar_content::RemovalBaseTool.

Here is the caller graph for this function:

Member Data Documentation

m_instanceName

std::string pandora::Process::m_instanceName

protectedinherited

The process instance name.

Definition at line 89 of file Process.h.

m_pPandora

const Pandora* pandora::Process::m_pPandora

protectedinherited

The pandora object that will run the process.

Definition at line 87 of file Process.h.

m_pParentAlgorithm

ThreeViewDeltaRayMatchingAlgorithm* lar_content::DeltaRayTensorTool::m_pParentAlgorithm

Address of the parent matching algorithm.

Definition at line 114 of file ThreeViewDeltaRayMatchingAlgorithm.h.

m_type

std::string pandora::Process::m_type

protectedinherited

The process type.

Definition at line 88 of file Process.h.

---

The documentation for this class was generated from the following file:

• LArContent/larpandoracontent/LArThreeDReco/LArCosmicRay/ThreeViewDeltaRayMatchingAlgorithm.h
