LArMvaHelper class. More...

#include "LArMvaHelper.h"

Public Types
typedef MvaTypes::MvaFeature	MvaFeature

typedef MvaTypes::MvaFeatureVector	MvaFeatureVector

typedef std::map< std::string, double >	DoubleMap

typedef MvaTypes::MvaFeatureMap	MvaFeatureMap

typedef std::map< std::string, pandora::AlgorithmTool * >	AlgorithmToolMap

Static Public Member Functions
template<typename TCONTAINER >
static pandora::StatusCode	ProduceTrainingExample (const std::string &trainingOutputFile, const bool result, TCONTAINER &&featureContainer)
	Produce a training example with the given features and result.

template<typename TCONTAINER >
static pandora::StatusCode	ProduceTrainingExample (const std::string &trainingOutputFile, const bool result, const pandora::StringVector &featureOrder, TCONTAINER &&featureContainer)
	Produce a training example with the given features and result - using a map.

template<typename TCONTAINER >
static bool	Classify (const MvaInterface &classifier, TCONTAINER &&featureContainer)
	Use the trained classifier to predict the boolean class of an example.

template<typename TCONTAINER >
static bool	Classify (const MvaInterface &classifier, const pandora::StringVector &featureOrder, TCONTAINER &&featureContainer)
	Use the trained classifier to predict the boolean class of an example – using a map.

template<typename TCONTAINER >
static double	CalculateClassificationScore (const MvaInterface &classifier, TCONTAINER &&featureContainer)
	Use the trained classifer to calculate the classification score of an example (>0 means boolean class true)

template<typename TCONTAINER >
static double	CalculateProbability (const MvaInterface &classifier, TCONTAINER &&featureContainer)
	Use the trained mva to calculate a classification probability for an example.

template<typename TCONTAINER >
static double	CalculateProbability (const MvaInterface &classifier, const pandora::StringVector &featureOrder, TCONTAINER &&featureContainer)
	Use the trained mva to calculate a classification probability for an example – using a map.

template<typename... Ts, typename... TARGS>
static MvaFeatureVector	CalculateFeatures (const MvaFeatureToolVector< Ts... > &featureToolVector, TARGS &&... args)
	Calculate the features in a given feature tool vector.

template<typename... Ts, typename... TARGS>
static MvaFeatureMap	CalculateFeatures (const pandora::StringVector &featureToolOrder, const MvaFeatureToolMap< Ts... > &featureToolMap, pandora::StringVector &featureOrder, TARGS &&... args)
	Calculate the features in a given feature tool map, and fill an MvaFeatureMap and vector with feature order.

template<typename T , typename... Ts, typename... TARGS>
static MvaFeatureVector	CalculateFeaturesOfType (const MvaFeatureToolVector< Ts... > &featureToolVector, TARGS &&... args)
	Calculate the features of a given derived feature tool type in a feature tool vector.

template<typename... Ts>
static pandora::StatusCode	AddFeatureToolToVector (pandora::AlgorithmTool *const pFeatureTool, MvaFeatureToolVector< Ts... > &featureToolVector)
	Add a feature tool to a vector of feature tools.

template<typename... Ts>
static pandora::StatusCode	AddFeatureToolToMap (pandora::AlgorithmTool *const pFeatureTool, std::string pFeatureToolName, MvaFeatureToolMap< Ts... > &featureToolMap)
	Add a feature tool to a map of feature tools.

static pandora::StatusCode	ProcessAlgorithmToolListToMap (const pandora::Algorithm &algorithm, const pandora::TiXmlHandle &xmlHandle, const std::string &listName, pandora::StringVector &algorithToolNameVector, AlgorithmToolMap &algorithmToolMap)
	Process a list of algorithms tools in an xml file, using a map. Idea is for this to go to XmlHelper in PandoraSDK eventually as an overload to ProcessAlgorithmToolList.

template<typename TLIST , typename... TLISTS>
static MvaFeatureVector	ConcatenateFeatureLists (TLIST &&featureList, TLISTS &&... featureLists)
	Recursively concatenate vectors of features.

static MvaFeatureVector	ConcatenateFeatureLists ()
	Recursively concatenate vectors of features (terminating method)

Static Private Member Functions
static std::string	GetTimestampString ()
	Get a timestamp string for this point in time.

template<typename TCONTAINER >
static pandora::StatusCode	WriteFeaturesToFile (std::ofstream &outfile, const std::string &delimiter, TCONTAINER &&featureContainer)
	Write the features of the given lists to file.

template<typename TCONTAINER >
static pandora::StatusCode	WriteFeaturesToFileImpl (std::ofstream &outfile, const std::string &delimiter, TCONTAINER &&featureContainer)
	Write the features of the given list to file (implementation method)

Detailed Description

LArMvaHelper class.

Definition at line 71 of file LArMvaHelper.h.

Member Typedef Documentation

◆ AlgorithmToolMap

typedef std::map<std::string, pandora::AlgorithmTool *> lar_content::LArMvaHelper::AlgorithmToolMap

Definition at line 79 of file LArMvaHelper.h.

◆ DoubleMap

typedef std::map<std::string, double> lar_content::LArMvaHelper::DoubleMap

Definition at line 76 of file LArMvaHelper.h.

◆ MvaFeature

typedef MvaTypes::MvaFeature lar_content::LArMvaHelper::MvaFeature

Definition at line 74 of file LArMvaHelper.h.

◆ MvaFeatureMap

typedef MvaTypes::MvaFeatureMap lar_content::LArMvaHelper::MvaFeatureMap

Definition at line 78 of file LArMvaHelper.h.

◆ MvaFeatureVector

typedef MvaTypes::MvaFeatureVector lar_content::LArMvaHelper::MvaFeatureVector

Definition at line 75 of file LArMvaHelper.h.

Member Function Documentation

◆ AddFeatureToolToMap()

template<typename... Ts>

pandora::StatusCode lar_content::LArMvaHelper::AddFeatureToolToMap	(	pandora::AlgorithmTool *const	pFeatureTool,
		std::string	pFeatureToolName,
		MvaFeatureToolMap< Ts... > &	featureToolMap
	)

static

Add a feature tool to a map of feature tools.

Parameters

pFeatureTool	the feature tool
pFeatureToolName	the name of the feature tool
featureToolMap	the map to append

Returns: success

Definition at line 465 of file LArMvaHelper.h.

Here is the caller graph for this function:

◆ AddFeatureToolToVector()

template<typename... Ts>

pandora::StatusCode lar_content::LArMvaHelper::AddFeatureToolToVector	(	pandora::AlgorithmTool *const	pFeatureTool,
		MvaFeatureToolVector< Ts... > &	featureToolVector
	)

static

Add a feature tool to a vector of feature tools.

Parameters

pFeatureTool	the feature tool
featureToolVector	the vector to append

Returns: success

Definition at line 451 of file LArMvaHelper.h.

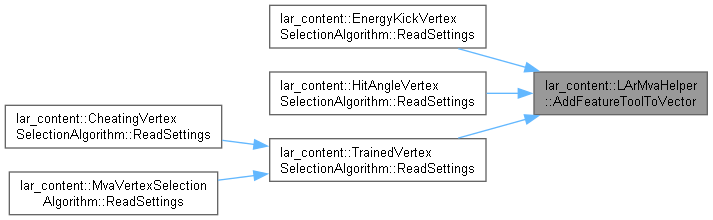

Here is the caller graph for this function:

◆ CalculateClassificationScore()

template<typename TCONTAINER >

double lar_content::LArMvaHelper::CalculateClassificationScore	(	const MvaInterface &	classifier,
		TCONTAINER &&	featureContainer
	)

static

Use the trained classifer to calculate the classification score of an example (>0 means boolean class true)

Parameters

classifier	the classifier
featureContainer	the container of features

Returns: the classification score

Definition at line 361 of file LArMvaHelper.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CalculateFeatures() [1/2]

template<typename... Ts, typename... TARGS>

LArMvaHelper::MvaFeatureVector lar_content::LArMvaHelper::CalculateFeatures	(	const MvaFeatureToolVector< Ts... > &	featureToolVector,
		TARGS &&...	args
	)

static

Calculate the features in a given feature tool vector.

Parameters

featureToolVector	the feature tool vector
args	arguments to pass to the tool

Returns: the vector of features

Definition at line 399 of file LArMvaHelper.h.

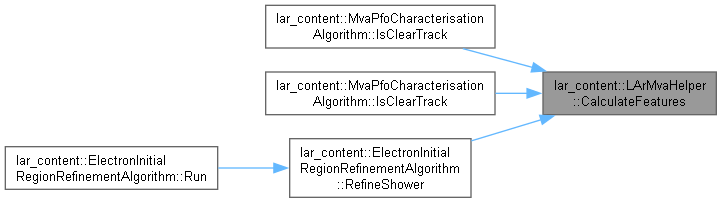

Here is the caller graph for this function:

◆ CalculateFeatures() [2/2]

template<typename... Ts, typename... TARGS>

LArMvaHelper::MvaFeatureMap lar_content::LArMvaHelper::CalculateFeatures	(	const pandora::StringVector &	featureToolOrder,
		const MvaFeatureToolMap< Ts... > &	featureToolMap,
		pandora::StringVector &	featureOrder,
		TARGS &&...	args
	)

static

Calculate the features in a given feature tool map, and fill an MvaFeatureMap and vector with feature order.

Parameters

featureToolOrder	vector of strings of the ordered keys
featureToolMap	the feature tool map
featureOrder	a vector that is to be filled with the order of features in the function
args	arguments to pass to the tool

Returns: the map of features

Definition at line 412 of file LArMvaHelper.h.

◆ CalculateFeaturesOfType()

template<typename T , typename... Ts, typename... TARGS>

LArMvaHelper::MvaFeatureVector lar_content::LArMvaHelper::CalculateFeaturesOfType	(	const MvaFeatureToolVector< Ts... > &	featureToolVector,
		TARGS &&...	args
	)

static

Calculate the features of a given derived feature tool type in a feature tool vector.

Parameters

featureToolVector	the feature tool vector
args	arguments to pass to the tool

Returns: the vector of features

Definition at line 434 of file LArMvaHelper.h.

◆ CalculateProbability() [1/2]

template<typename TCONTAINER >

double lar_content::LArMvaHelper::CalculateProbability	(	const MvaInterface &	classifier,
		const pandora::StringVector &	featureOrder,
		TCONTAINER &&	featureContainer
	)

static

Use the trained mva to calculate a classification probability for an example – using a map.

Parameters

classifier	the classifier
featureOrder	the vector of strings corresponding to ordered list of keys
featureContainer	the container of features

Returns: the classification probability

Definition at line 377 of file LArMvaHelper.h.

Here is the call graph for this function:

◆ CalculateProbability() [2/2]

template<typename TCONTAINER >

double lar_content::LArMvaHelper::CalculateProbability	(	const MvaInterface &	classifier,
		TCONTAINER &&	featureContainer
	)

static

Use the trained mva to calculate a classification probability for an example.

Parameters

classifier	the classifier
featureContainer	the container of features

Returns: the classification probability

Definition at line 369 of file LArMvaHelper.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Classify() [1/2]

template<typename TCONTAINER >

bool lar_content::LArMvaHelper::Classify	(	const MvaInterface &	classifier,
		const pandora::StringVector &	featureOrder,
		TCONTAINER &&	featureContainer
	)

static

Use the trained classifier to predict the boolean class of an example – using a map.

Parameters

classifier	the classifier
featureOrder	the vector of strings corresponding to ordered list of keys
featureContainer	the container of features

Returns: the predicted boolean class of the example

Definition at line 339 of file LArMvaHelper.h.

Here is the call graph for this function:

◆ Classify() [2/2]

template<typename TCONTAINER >

bool lar_content::LArMvaHelper::Classify	(	const MvaInterface &	classifier,
		TCONTAINER &&	featureContainer
	)

static

Use the trained classifier to predict the boolean class of an example.

Parameters

classifier	the classifier
featureContainer	the container of features

Returns: the predicted boolean class of the example

Definition at line 331 of file LArMvaHelper.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ConcatenateFeatureLists() [1/2]

LArMvaHelper::MvaFeatureVector lar_content::LArMvaHelper::ConcatenateFeatureLists ( )

inlinestatic

Recursively concatenate vectors of features (terminating method)

Definition at line 541 of file LArMvaHelper.h.

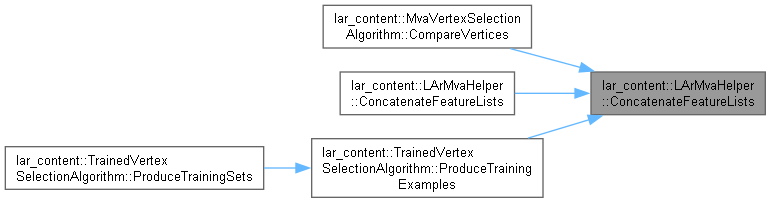

Here is the caller graph for this function:

◆ ConcatenateFeatureLists() [2/2]

template<typename TLIST , typename... TLISTS>

LArMvaHelper::MvaFeatureVector lar_content::LArMvaHelper::ConcatenateFeatureLists	(	TLIST &&	featureList,
		TLISTS &&...	featureLists
	)

static

Recursively concatenate vectors of features.

Parameters

featureList	a list of features
featureLists	optional further lists of features

Returns: the concatenated vector of features

Definition at line 523 of file LArMvaHelper.h.

Here is the call graph for this function:

◆ GetTimestampString()

std::string lar_content::LArMvaHelper::GetTimestampString ( )

inlinestaticprivate

Get a timestamp string for this point in time.

Returns: a timestamp string

Definition at line 479 of file LArMvaHelper.h.

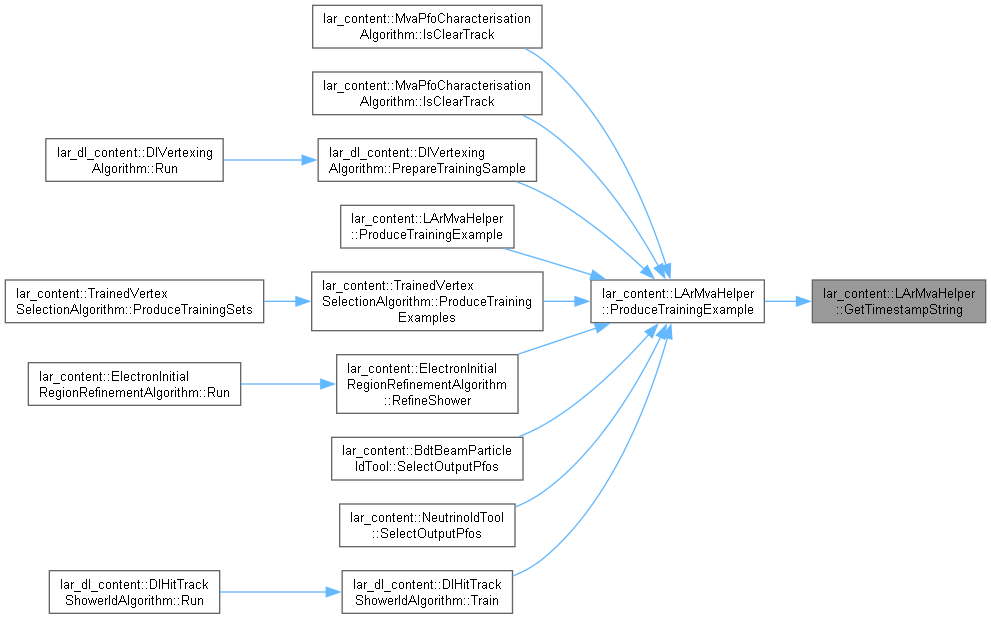

Here is the caller graph for this function:

◆ ProcessAlgorithmToolListToMap()

StatusCode lar_content::LArMvaHelper::ProcessAlgorithmToolListToMap	(	const pandora::Algorithm &	algorithm,
		const pandora::TiXmlHandle &	xmlHandle,
		const std::string &	listName,
		pandora::StringVector &	algorithToolNameVector,
		AlgorithmToolMap &	algorithmToolMap
	)

static

Process a list of algorithms tools in an xml file, using a map. Idea is for this to go to XmlHelper in PandoraSDK eventually as an overload to ProcessAlgorithmToolList.

Parameters

algorithm	the parent algorithm calling this function
xmlHandle	the relevant xml handle
listName	the name of the algorithm tool list
algorithmToolMap	to receive the vector of addresses of the algorithm tool instances, but also keep the name

Definition at line 16 of file LArMvaHelper.cc.

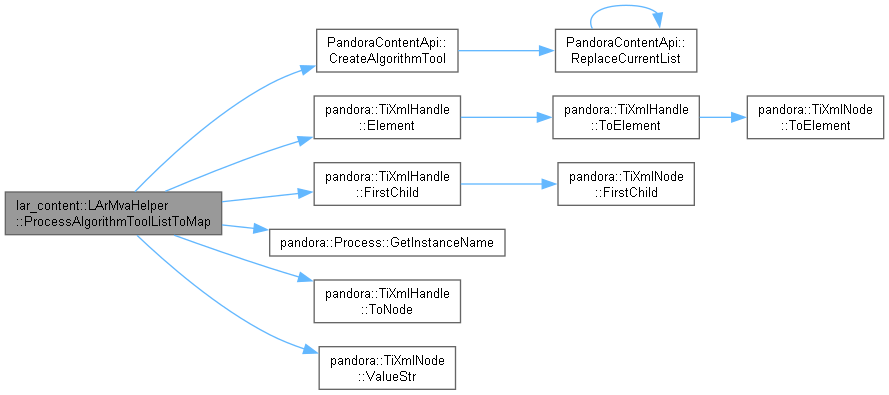

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ProduceTrainingExample() [1/2]

template<typename TCONTAINER >

pandora::StatusCode lar_content::LArMvaHelper::ProduceTrainingExample	(	const std::string &	trainingOutputFile,
		const bool	result,
		const pandora::StringVector &	featureOrder,
		TCONTAINER &&	featureContainer
	)

static

Produce a training example with the given features and result - using a map.

Parameters

trainingOutputFile	the file to which to append the example
featureOrder	the vector of strings corresponding to ordered list of keys
featureContainer	the container of features

Returns: success

Definition at line 308 of file LArMvaHelper.h.

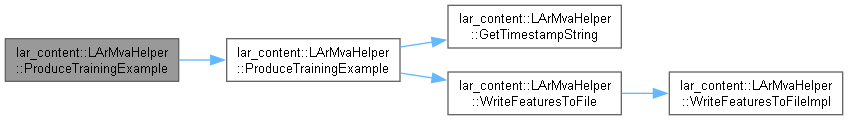

Here is the call graph for this function:

◆ ProduceTrainingExample() [2/2]

template<typename TCONTAINER >

pandora::StatusCode lar_content::LArMvaHelper::ProduceTrainingExample	(	const std::string &	trainingOutputFile,
		const bool	result,
		TCONTAINER &&	featureContainer
	)

static

Produce a training example with the given features and result.

Parameters

trainingOutputFile	the file to which to append the example
featureContainer	the container of features

Returns: success

Definition at line 285 of file LArMvaHelper.h.

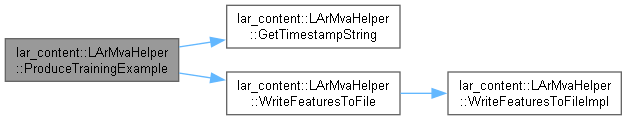

Here is the call graph for this function:

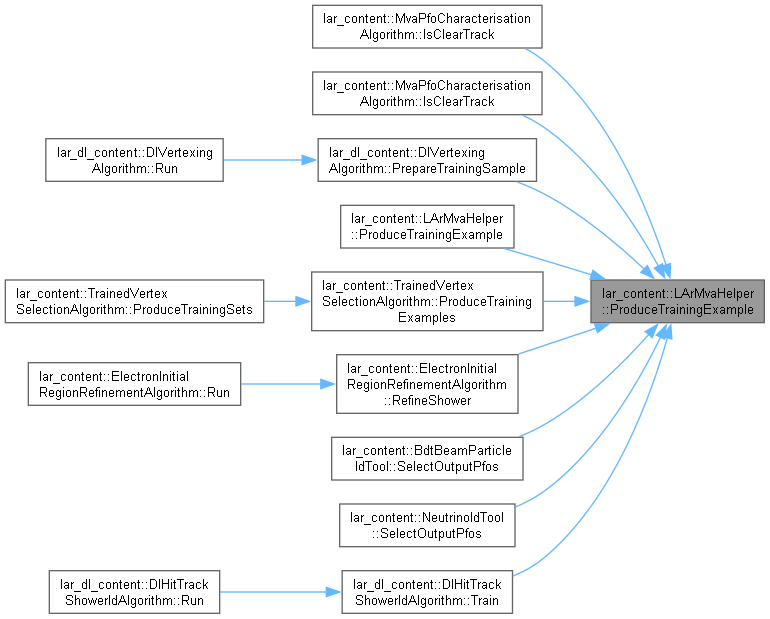

Here is the caller graph for this function:

◆ WriteFeaturesToFile()

template<typename TCONTAINER >

pandora::StatusCode lar_content::LArMvaHelper::WriteFeaturesToFile	(	std::ofstream &	outfile,
		const std::string &	delimiter,
		TCONTAINER &&	featureContainer
	)

inlinestaticprivate

Write the features of the given lists to file.

Parameters

outfile	the std::ofstream object to use
delimiter	the delimiter string
featureContainer	a container of features to write

Returns: success

Definition at line 500 of file LArMvaHelper.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WriteFeaturesToFileImpl()

template<typename TCONTAINER >

pandora::StatusCode lar_content::LArMvaHelper::WriteFeaturesToFileImpl	(	std::ofstream &	outfile,
		const std::string &	delimiter,
		TCONTAINER &&	featureContainer
	)

staticprivate

Write the features of the given list to file (implementation method)

Parameters

outfile	the std::ofstream object to use
delimiter	the delimiter string
featureContainer	a container of features to write

Returns: success

Definition at line 512 of file LArMvaHelper.h.

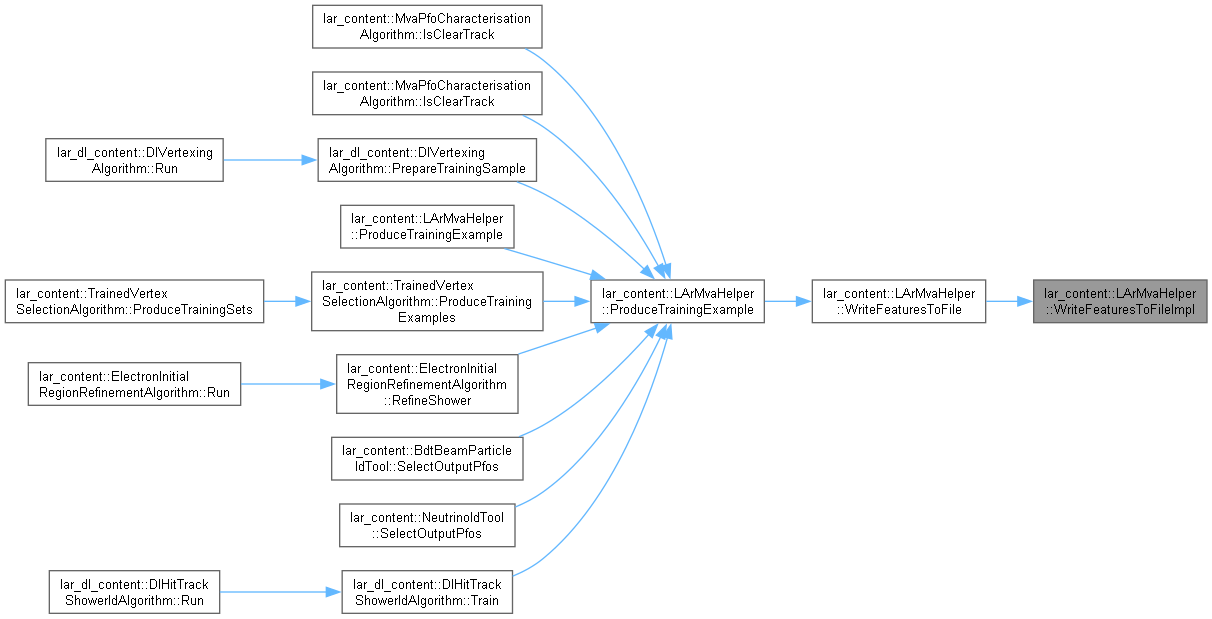

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

LArContent/larpandoracontent/LArHelpers/LArMvaHelper.h
LArContent/larpandoracontent/LArHelpers/LArMvaHelper.cc

Public Types

Static Public Member Functions

Static Private Member Functions

Detailed Description

Member Typedef Documentation

◆ AlgorithmToolMap

◆ DoubleMap

◆ MvaFeature

◆ MvaFeatureMap

◆ MvaFeatureVector

Member Function Documentation

◆ AddFeatureToolToMap()

◆ AddFeatureToolToVector()

◆ CalculateClassificationScore()

◆ CalculateFeatures() [1/2]

◆ CalculateFeatures() [2/2]

◆ CalculateFeaturesOfType()

◆ CalculateProbability() [1/2]

◆ CalculateProbability() [2/2]

◆ Classify() [1/2]

◆ Classify() [2/2]

◆ ConcatenateFeatureLists() [1/2]

◆ ConcatenateFeatureLists() [2/2]

◆ GetTimestampString()

◆ ProcessAlgorithmToolListToMap()

◆ ProduceTrainingExample() [1/2]

◆ ProduceTrainingExample() [2/2]

◆ WriteFeaturesToFile()

◆ WriteFeaturesToFileImpl()
