#include "LArProtoShower.h"

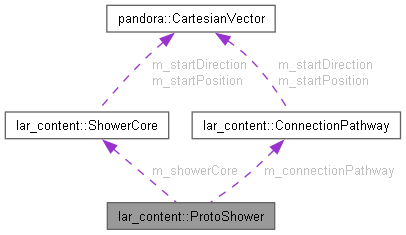

Collaboration diagram for lar_content::ProtoShower:

[legend]

Public Member Functions
	ProtoShower (const ShowerCore &showerCore, const ConnectionPathway &connectionPathway, const pandora::CaloHitList &spineHitList, const pandora::CaloHitList &ambiguousHitList, const pandora::CartesianPointVector &ambiguousDirectionVector, const pandora::CaloHitList &hitsToAdd)
	Constructor.

	ProtoShower (const ProtoShower &protoShower)
	Copy constructor.

const ShowerCore &	GetShowerCore () const
	Get the shower core.

const ConnectionPathway &	GetConnectionPathway () const
	Get the connection pathway.

const pandora::CaloHitList &	GetSpineHitList () const
	Get the spine hit list.

const pandora::CaloHitList &	GetAmbiguousHitList () const
	Get the ambiguous hit list.

void	AddAmbiguousHit (const pandora::CaloHit *const ambiguousHit)
	Add an ambiguous hit to the ambiguous hit list.

const pandora::CartesianPointVector &	GetAmbiguousDirectionVector () const
	Get the ambiguous direction vector.

void	AddAmbiguousDirection (const pandora::CartesianVector &ambiguousDirection)
	Add an ambiguous direction to the ambiguous direction vector.

const pandora::CaloHitList &	GetHitsToAddList () const
	Get the hits to add list.

void	SetHitsToAddList (const pandora::CaloHitList &hitsToAddList)
	Set the hits to add list.

void	AddHitToAdd (const pandora::CaloHit *const hitToAdd)
	Add a hit to the hits to add list.

Private Attributes
const ShowerCore	m_showerCore
	the ShowerCore object

const ConnectionPathway	m_connectionPathway
	the ConnectionPathway object

pandora::CaloHitList	m_spineHitList
	the shower spine hit list

pandora::CaloHitList	m_ambiguousHitList
	the list of ambiguous hits (those with shared energy deposits)

pandora::CartesianPointVector	m_ambiguousDirectionVector
	the initial directions of the ambiguous hit owners

pandora::CaloHitList	m_hitsToAdd
	the list of hits to add to an electron shower pfo

Detailed Description

ProtoShower class.

Definition at line 162 of file LArProtoShower.h.

Constructor & Destructor Documentation

◆ ProtoShower() [1/2]

lar_content::ProtoShower::ProtoShower	(	const ShowerCore &	showerCore,
		const ConnectionPathway &	connectionPathway,
		const pandora::CaloHitList &	spineHitList,
		const pandora::CaloHitList &	ambiguousHitList,
		const pandora::CartesianPointVector &	ambiguousDirectionVector,
		const pandora::CaloHitList &	hitsToAdd
	)

inline

Constructor.

Parameters

showerCore	the ShowerCore object
connectionPathway	the ConnectionPathway object
spineHitList	the shower spine hit list
ambiguousHitList	the list of ambiguous hits (those with shared energy deposits)
ambiguousDirectionVector	the initial directions of the ambiguous hit owners
hitsToAdd	the list of hits to add to an electron shower pfo

Definition at line 269 of file LArProtoShower.h.

◆ ProtoShower() [2/2]

lar_content::ProtoShower::ProtoShower ( const ProtoShower & protoShower )

inline

Copy constructor.

Parameters

protoShower the input ProtoShower object to copy

Definition at line 283 of file LArProtoShower.h.

Member Function Documentation

◆ AddAmbiguousDirection()

void lar_content::ProtoShower::AddAmbiguousDirection ( const pandora::CartesianVector & ambiguousDirection )

inline

Add an ambiguous direction to the ambiguous direction vector.

Parameters

ambiguousDirection the ambiguous direction to add

Definition at line 338 of file LArProtoShower.h.

Here is the caller graph for this function:

◆ AddAmbiguousHit()

void lar_content::ProtoShower::AddAmbiguousHit ( const pandora::CaloHit *const ambiguousHit )

inline

Add an ambiguous hit to the ambiguous hit list.

Parameters

ambiguousHit the ambiguous hit to add

Definition at line 324 of file LArProtoShower.h.

Here is the caller graph for this function:

◆ AddHitToAdd()

void lar_content::ProtoShower::AddHitToAdd ( const pandora::CaloHit *const hitToAdd )

inline

Add a hit to the hits to add list.

Parameters

hitToAdd the hit to add

Definition at line 359 of file LArProtoShower.h.

Here is the caller graph for this function:

◆ GetAmbiguousDirectionVector()

const pandora::CartesianPointVector & lar_content::ProtoShower::GetAmbiguousDirectionVector ( ) const

inline

Get the ambiguous direction vector.

Returns: the ambiguous direction vector

Definition at line 331 of file LArProtoShower.h.

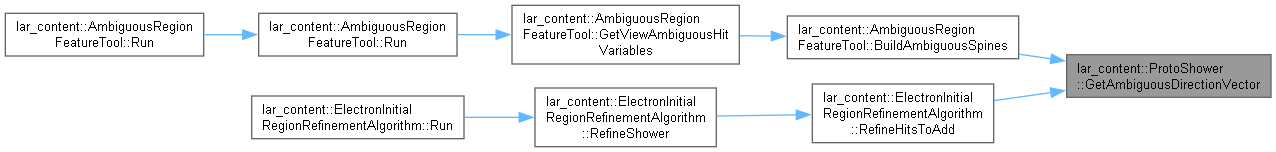

Here is the caller graph for this function:

◆ GetAmbiguousHitList()

const pandora::CaloHitList & lar_content::ProtoShower::GetAmbiguousHitList ( ) const

inline

Get the ambiguous hit list.

Returns: the ambiguous hit list

Definition at line 317 of file LArProtoShower.h.

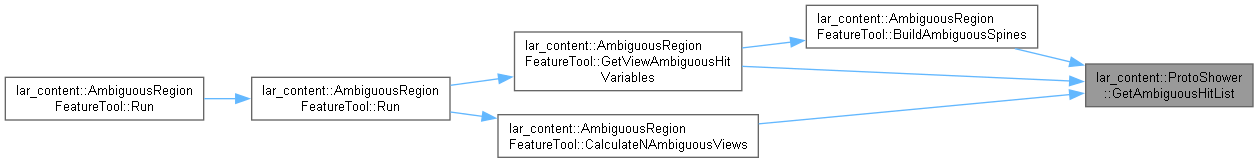

Here is the caller graph for this function:

◆ GetConnectionPathway()

const ConnectionPathway & lar_content::ProtoShower::GetConnectionPathway ( ) const

inline

Get the connection pathway.

Returns: the connection pathway

Definition at line 303 of file LArProtoShower.h.

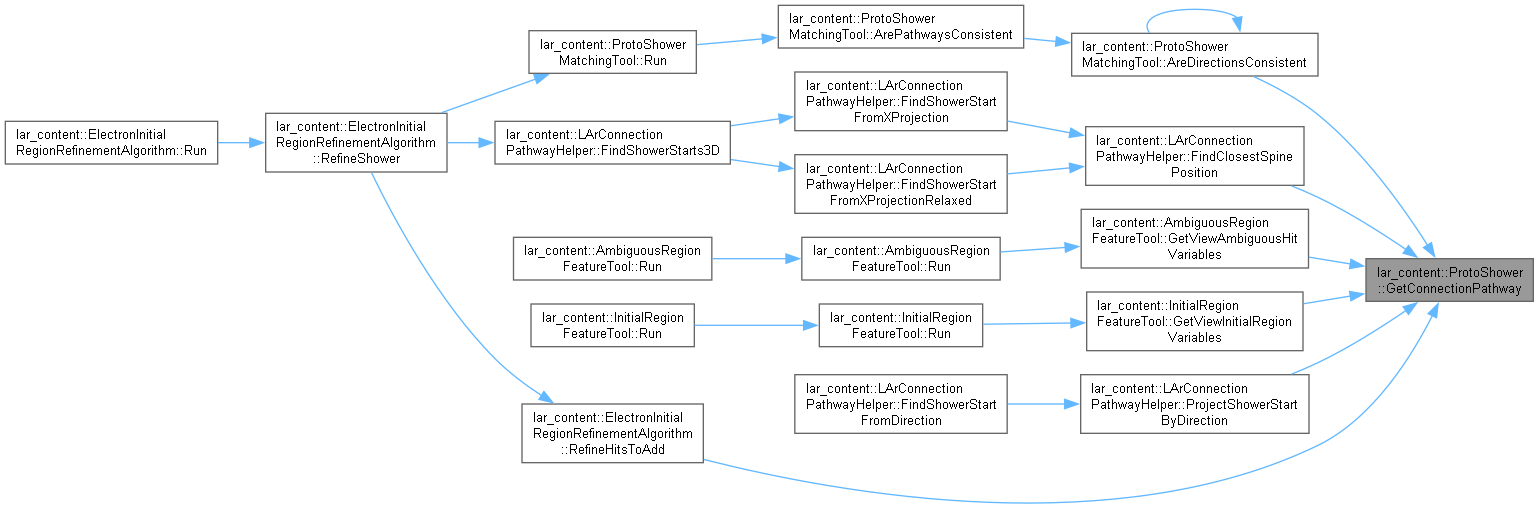

Here is the caller graph for this function:

◆ GetHitsToAddList()

const pandora::CaloHitList & lar_content::ProtoShower::GetHitsToAddList ( ) const

inline

Get the hits to add list.

Returns: the hits to add list

Definition at line 345 of file LArProtoShower.h.

Here is the caller graph for this function:

◆ GetShowerCore()

const ShowerCore & lar_content::ProtoShower::GetShowerCore ( ) const

inline

Get the shower core.

Returns: the shower core

Definition at line 296 of file LArProtoShower.h.

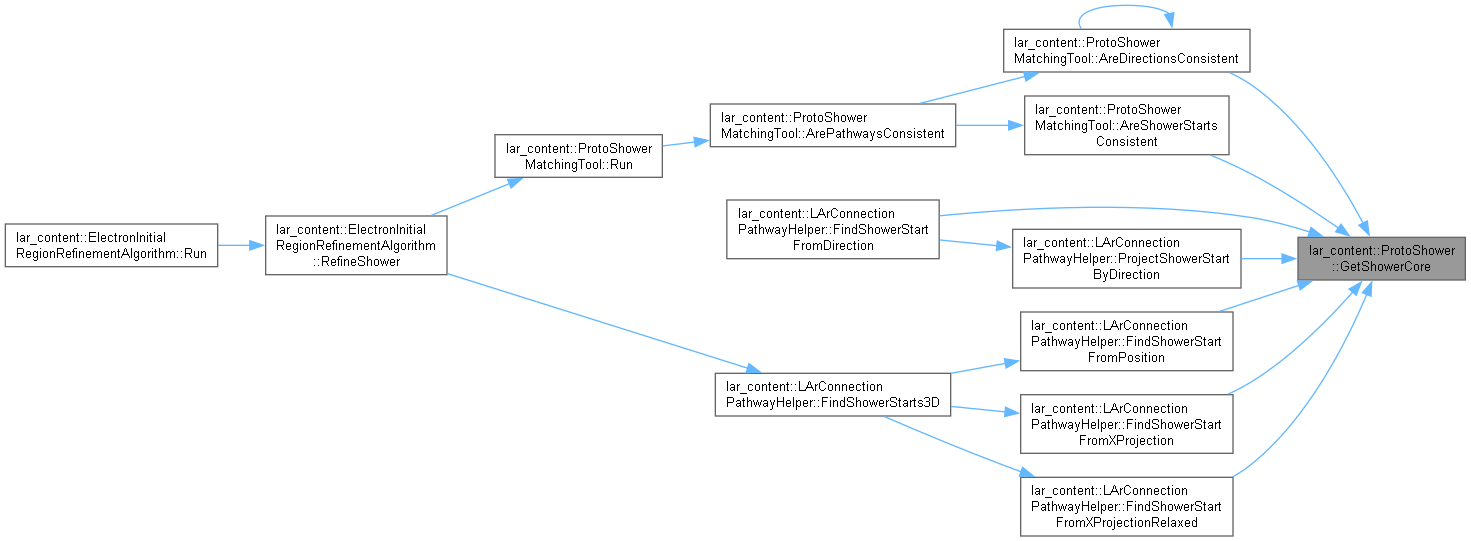

Here is the caller graph for this function:

◆ GetSpineHitList()

const pandora::CaloHitList & lar_content::ProtoShower::GetSpineHitList ( ) const

inline

Get the spine hit list.

Returns: the spine hit list

Definition at line 310 of file LArProtoShower.h.

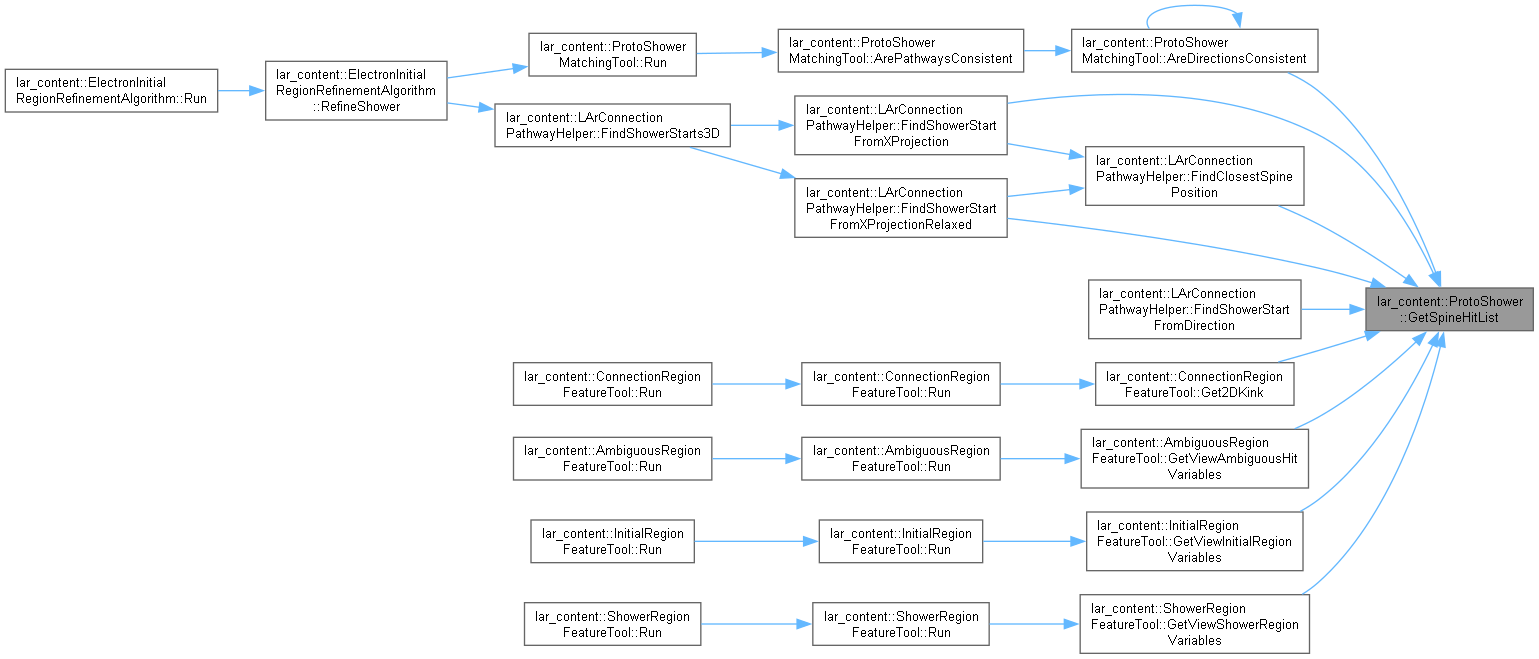

Here is the caller graph for this function:

◆ SetHitsToAddList()

void lar_content::ProtoShower::SetHitsToAddList ( const pandora::CaloHitList & hitsToAddList )

inline

Set the hits to add list.

Parameters

the	hits to add list

Definition at line 352 of file LArProtoShower.h.

Here is the caller graph for this function:

Member Data Documentation

◆ m_ambiguousDirectionVector

pandora::CartesianPointVector lar_content::ProtoShower::m_ambiguousDirectionVector

private

the initial directions of the ambiguous hit owners

Definition at line 261 of file LArProtoShower.h.

◆ m_ambiguousHitList

pandora::CaloHitList lar_content::ProtoShower::m_ambiguousHitList

private

the list of ambiguous hits (those with shared energy deposits)

Definition at line 260 of file LArProtoShower.h.

◆ m_connectionPathway

const ConnectionPathway lar_content::ProtoShower::m_connectionPathway

private

the ConnectionPathway object

Definition at line 258 of file LArProtoShower.h.

◆ m_hitsToAdd

pandora::CaloHitList lar_content::ProtoShower::m_hitsToAdd

private

the list of hits to add to an electron shower pfo

Definition at line 262 of file LArProtoShower.h.

◆ m_showerCore

const ShowerCore lar_content::ProtoShower::m_showerCore

private

the ShowerCore object

Definition at line 257 of file LArProtoShower.h.

◆ m_spineHitList

pandora::CaloHitList lar_content::ProtoShower::m_spineHitList

private

the shower spine hit list

Definition at line 259 of file LArProtoShower.h.

The documentation for this class was generated from the following file:

LArContent/larpandoracontent/LArShowerRefinement/LArProtoShower.h
