#include "LArTwoDSlidingFitResult.h"

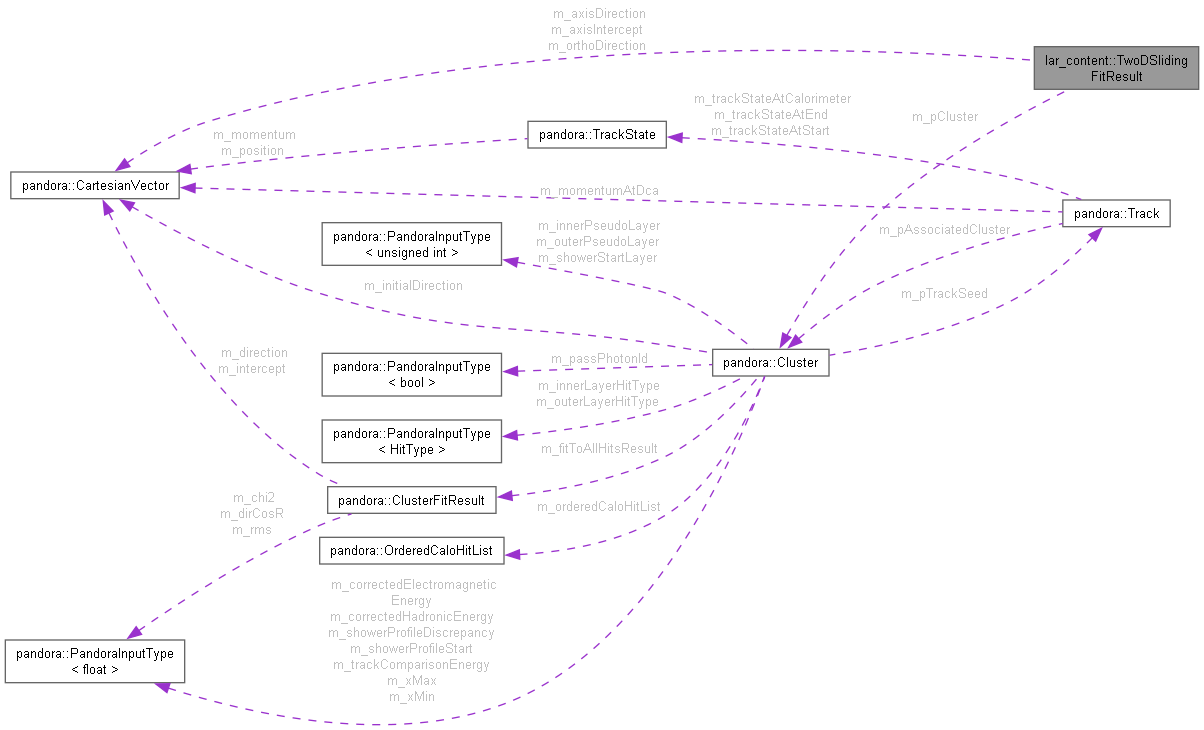

Collaboration diagram for lar_content::TwoDSlidingFitResult:

[legend]

Public Member Functions
template<typename T >
	TwoDSlidingFitResult (const T *const pT, const unsigned int layerFitHalfWindow, const float layerPitch, const float axisDeviationLimitForHitDivision=0.95f)
	Constructor using internal definition of primary axis.

template<typename T >
	TwoDSlidingFitResult (const T *const pT, const unsigned int layerFitHalfWindow, const float layerPitch, const pandora::CartesianVector &axisIntercept, const pandora::CartesianVector &axisDirection, const pandora::CartesianVector &orthoDirection, const float axisDeviationLimitForHitDivision=0.95f)
	Constructor using specified primary axis. The orthogonal axis must be perpendicular to the primary axis.

	TwoDSlidingFitResult (const unsigned int layerFitHalfWindow, const float layerPitch, const pandora::CartesianVector &axisIntercept, const pandora::CartesianVector &axisDirection, const pandora::CartesianVector &orthoDirection, const LayerFitContributionMap &layerFitContributionMap)
	Constructor using specified primary axis and layer fit contribution map. User is responsible for ensuring that z-pitch, axis intercept and axis direction agree with calculations used to fill the layer fit contribution map. The orthogonal axis must be perpendicular to the primary axis.

const pandora::Cluster *	GetCluster () const
	Get the address of the cluster, if originally provided.

unsigned int	GetLayerFitHalfWindow () const
	Get the layer fit half window.

float	GetLayerPitch () const
	Get the layer pitch, units cm.

const pandora::CartesianVector &	GetAxisIntercept () const
	Get the axis intercept position.

const pandora::CartesianVector &	GetAxisDirection () const
	Get the axis direction vector.

const pandora::CartesianVector &	GetOrthoDirection () const
	Get the orthogonal direction vector.

const LayerFitResultMap &	GetLayerFitResultMap () const
	Get the layer fit result map.

const LayerFitContributionMap &	GetLayerFitContributionMap () const
	Get the layer fit contribution map.

const FitSegmentList &	GetFitSegmentList () const
	Get the fit segment list.

float	GetLayerFitHalfWindowLength () const
	Get the layer fit half window length.

int	GetMinLayer () const
	Get the minimum occupied layer in the sliding fit.

int	GetMaxLayer () const
	Get the maximum occupied layer in the sliding fit.

void	GetMinAndMaxX (float &minX, float &maxX) const
	Get the minimum and maximum x coordinates associated with the sliding fit.

void	GetMinAndMaxZ (float &minZ, float &maxZ) const
	Get the minimum and maximum z coordinates associated with the sliding fit.

int	GetLayer (const float rL) const
	Get layer number for given sliding linear fit longitudinal coordinate.

float	GetL (const int layer) const
	Get longitudinal coordinate for a given sliding linear fit layer number.

void	GetLocalPosition (const pandora::CartesianVector &position, float &rL, float &rT) const
	Get local sliding fit coordinates for a given global position.

void	GetLocalDirection (const pandora::CartesianVector &direction, float &dTdL) const
	Get local sliding fit gradient for a given global direction.

void	GetGlobalPosition (const float rL, const float rT, pandora::CartesianVector &position) const
	Get global coordinates for given sliding linear fit coordinates.

void	GetGlobalDirection (const float dTdL, pandora::CartesianVector &direction) const
	Get global direction coordinates for given sliding linear fit gradient.

pandora::CartesianVector	GetGlobalMinLayerPosition () const
	Get global position corresponding to the fit result in minimum fit layer.

pandora::CartesianVector	GetGlobalMaxLayerPosition () const
	Get global position corresponding to the fit result in maximum fit layer.

pandora::CartesianVector	GetGlobalMinLayerDirection () const
	Get global direction corresponding to the fit result in minimum fit layer.

pandora::CartesianVector	GetGlobalMaxLayerDirection () const
	Get global direction corresponding to the fit result in maximum fit layer.

float	GetMinLayerRms () const
	Get rms at minimum layer.

float	GetMaxLayerRms () const
	Get rms at maximum layer.

float	GetFitRms (const float rL) const
	Get fit rms for a given longitudinal coordinate.

float	GetCosScatteringAngle (const float rL) const
	Get scattering angle for a given longitudinal coordinate.

pandora::StatusCode	GetGlobalFitPosition (const float rL, pandora::CartesianVector &position) const
	Get global fit position for a given longitudinal coordinate.

pandora::StatusCode	GetGlobalFitDirection (const float rL, pandora::CartesianVector &direction) const
	Get global fit direction for a given longitudinal coordinate.

pandora::StatusCode	GetGlobalFitPositionAtX (const float x, pandora::CartesianVector &position) const
	Get global fit position for a given input x coordinate.

pandora::StatusCode	GetGlobalFitDirectionAtX (const float x, pandora::CartesianVector &direction) const
	Get global fit direction for a given input x coordinate.

pandora::StatusCode	GetGlobalFitProjection (const pandora::CartesianVector &inputPosition, pandora::CartesianVector &projectedPosition) const
	Get projected position on global fit for a given position vector.

pandora::StatusCode	GetGlobalFitPositionListAtX (const float x, pandora::CartesianPointVector &positionList) const
	Get a list of projected positions for a given input x coordinate.

pandora::StatusCode	GetTransverseProjection (const float x, const FitSegment &fitSegment, pandora::CartesianVector &position) const
	Get projected position for a given input x coordinate and fit segment.

pandora::StatusCode	GetTransverseProjection (const float x, const FitSegment &fitSegment, pandora::CartesianVector &position, pandora::CartesianVector &direction) const
	Get projected position and direction for a given input x coordinate and fit segment.

pandora::StatusCode	GetExtrapolatedPosition (const float rL, pandora::CartesianVector &position) const
	Get extrapolated position (beyond span) for a given input coordinate.

pandora::StatusCode	GetExtrapolatedDirection (const float rL, pandora::CartesianVector &direction) const
	Get extrapolated direction (beyond span) for a given input coordinate.

pandora::StatusCode	GetExtrapolatedPositionAtX (const float x, pandora::CartesianVector &position) const
	Get extrapolated position (beyond span) for a given input x coordinate.

const FitSegment &	GetFitSegment (const float rL) const
	Get fit segment for a given longitudinal coordinate.

template<>
	TwoDSlidingFitResult (const Cluster *const pCluster, const unsigned int layerFitHalfWindow, const float layerPitch, const float axisDeviationLimitForHitDivision)

template<>
	TwoDSlidingFitResult (const CartesianPointVector *const pPointVector, const unsigned int layerFitHalfWindow, const float layerPitch, const float)

template<>
	TwoDSlidingFitResult (const Cluster *const pCluster, const unsigned int layerFitHalfWindow, const float layerPitch, const CartesianVector &axisIntercept, const CartesianVector &axisDirection, const CartesianVector &orthoDirection, const float axisDeviationLimitForHitDivision)

template<>
	TwoDSlidingFitResult (const CartesianPointVector *const pPointVector, const unsigned int layerFitHalfWindow, const float layerPitch, const CartesianVector &axisIntercept, const CartesianVector &axisDirection, const CartesianVector &orthoDirection, const float)

Private Member Functions
void	CalculateAxes (const pandora::CartesianPointVector &coordinateVector, const float layerPitch)
	Calculate the longitudinal and transverse axes.

void	FillLayerFitContributionMap (const pandora::CartesianPointVector &coordinateVector)
	Fill the layer fit contribution map.

void	PerformSlidingLinearFit ()
	Perform the sliding linear fit.

void	FindSlidingFitSegments ()
	Find sliding fit segments; sections with tramsverse direction.

void	GetMinAndMaxCoordinate (const bool isX, float &min, float &max) const
	Get the minimum and maximum x or z coordinates associated with the sliding fit.

pandora::CartesianVector	GetGlobalFitPosition (const LayerInterpolation &layerInterpolation) const
	Interpolate a position between two layers.

pandora::CartesianVector	GetGlobalFitDirection (const LayerInterpolation &layerInterpolation) const
	Interpolate a direction between two layers.

float	GetFitRms (const LayerInterpolation &layerInterpolation) const
	Interpolate a rms between two layers.

pandora::StatusCode	LongitudinalInterpolation (const float rL, LayerInterpolation &layerInterpolation) const
	Get the pair of layers surrounding a specified longitudinal position.

pandora::StatusCode	TransverseInterpolation (const float x, const FitSegment &fitSegment, LayerInterpolation &layerInterpolation) const
	Get the surrounding pair of layers for a specified transverse position and fit segment.

pandora::StatusCode	TransverseInterpolation (const float x, LayerInterpolationList &layerInterpolationList) const
	Get the a list of surrounding layer pairs for a specified transverse position.

pandora::StatusCode	GetLongitudinalSurroundingLayers (const float rL, LayerFitResultMap::const_iterator &firstLayerIter, LayerFitResultMap::const_iterator &secondLayerIter) const
	Get iterators for layers surrounding the specified longitudinal position.

pandora::StatusCode	GetTransverseSurroundingLayers (const float x, const int minLayer, const int maxLayer, LayerFitResultMap::const_iterator &firstLayerIter, LayerFitResultMap::const_iterator &secondLayerIter) const
	Get iterators for layers surrounding a specified transverse position.

void	GetLongitudinalInterpolationWeights (const float rL, const LayerFitResultMap::const_iterator &firstLayerIter, const LayerFitResultMap::const_iterator &secondLayerIter, double &firstWeight, double &secondWeight) const
	Get interpolation weights for layers surrounding a specified longitudinal position.

void	GetTransverseInterpolationWeights (const float x, const LayerFitResultMap::const_iterator &firstLayerIter, const LayerFitResultMap::const_iterator &secondLayerIter, double &firstWeight, double &secondWeight) const
	Get interpolation weights for layers surrounding a specified transverse position.

Private Attributes
const pandora::Cluster *	m_pCluster
	The address of the cluster.

unsigned int	m_layerFitHalfWindow
	The layer fit half window.

float	m_layerPitch
	The layer pitch, units cm.

pandora::CartesianVector	m_axisIntercept
	The axis intercept position.

pandora::CartesianVector	m_axisDirection
	The axis direction vector.

pandora::CartesianVector	m_orthoDirection
	The orthogonal direction vector.

LayerFitResultMap	m_layerFitResultMap
	The layer fit result map.

LayerFitContributionMap	m_layerFitContributionMap
	The layer fit contribution map.

FitSegmentList	m_fitSegmentList
	The fit segment list.

Detailed Description

TwoDSlidingFitResult class.

Definition at line 23 of file LArTwoDSlidingFitResult.h.

Constructor & Destructor Documentation

◆ TwoDSlidingFitResult() [1/7]

template<typename T >

lar_content::TwoDSlidingFitResult::TwoDSlidingFitResult	(	const T *const	pT,
		const unsigned int	layerFitHalfWindow,
		const float	layerPitch,
		const float	axisDeviationLimitForHitDivision = `0.95f`
	)

Constructor using internal definition of primary axis.

Parameters

pT	describing the positions to be fitted
layerFitHalfWindow	the layer fit half window
layerPitch	the layer pitch, units cm
axisDeviationLimitForHitDivision	the value of the cosine of the opening angle between the principal axis and xAxis, above which cluster hits are broken into their constituent hits - only used with cluster input

◆ TwoDSlidingFitResult() [2/7]

template<typename T >

lar_content::TwoDSlidingFitResult::TwoDSlidingFitResult	(	const T *const	pT,
		const unsigned int	layerFitHalfWindow,
		const float	layerPitch,
		const pandora::CartesianVector &	axisIntercept,
		const pandora::CartesianVector &	axisDirection,
		const pandora::CartesianVector &	orthoDirection,
		const float	axisDeviationLimitForHitDivision = `0.95f`
	)

Constructor using specified primary axis. The orthogonal axis must be perpendicular to the primary axis.

Parameters

pT	describing the positions to be fitted
layerFitHalfWindow	the layer fit half window
layerPitch	the layer pitch, units cm
axisIntercept	the axis intercept position
axisDirection	the axis direction vector
orthoDirection	the orthogonal direction vector
axisDeviationLimitForHitDivision	the value of the cosine of the opening angle between the principal axis and xAxis, above which cluster hits are broken into their constituent hits - only used with cluster input

◆ TwoDSlidingFitResult() [3/7]

lar_content::TwoDSlidingFitResult::TwoDSlidingFitResult	(	const unsigned int	layerFitHalfWindow,
		const float	layerPitch,
		const pandora::CartesianVector &	axisIntercept,
		const pandora::CartesianVector &	axisDirection,
		const pandora::CartesianVector &	orthoDirection,
		const LayerFitContributionMap &	layerFitContributionMap
	)

Constructor using specified primary axis and layer fit contribution map. User is responsible for ensuring that z-pitch, axis intercept and axis direction agree with calculations used to fill the layer fit contribution map. The orthogonal axis must be perpendicular to the primary axis.

Parameters

layerFitHalfWindow	the layer fit half window
layerPitch	the layer pitch, units cm
axisIntercept	the axis intercept position
axisDirection	the axis direction vector
orthoDirection	the orthogonal direction vector
layerFitContributionMap	the layer fit contribution map

Definition at line 127 of file LArTwoDSlidingFitResult.cc.

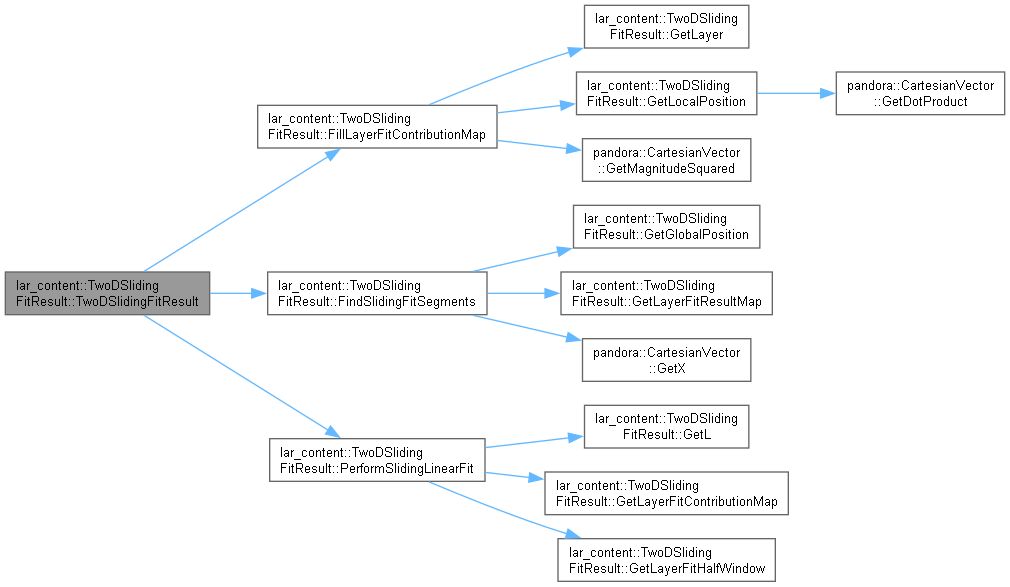

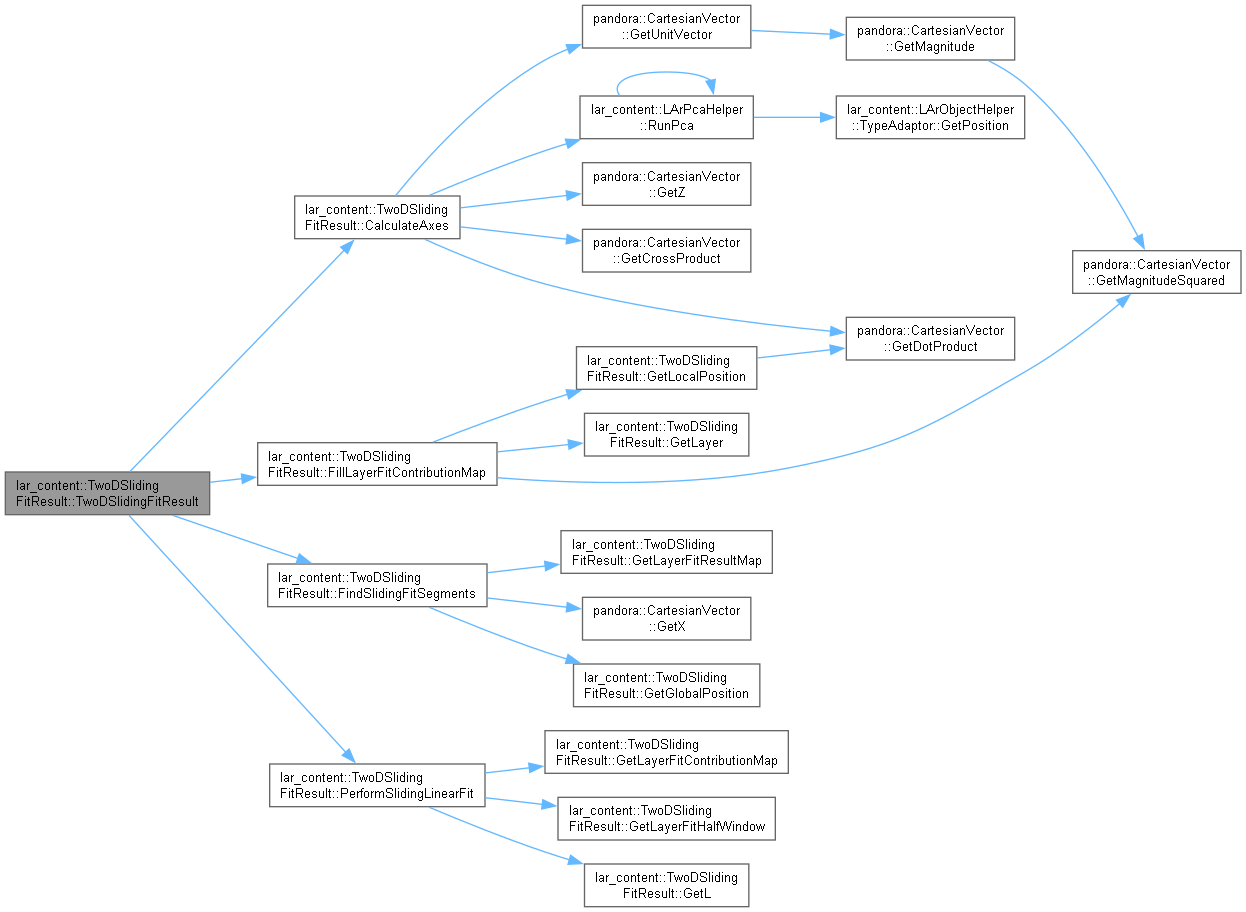

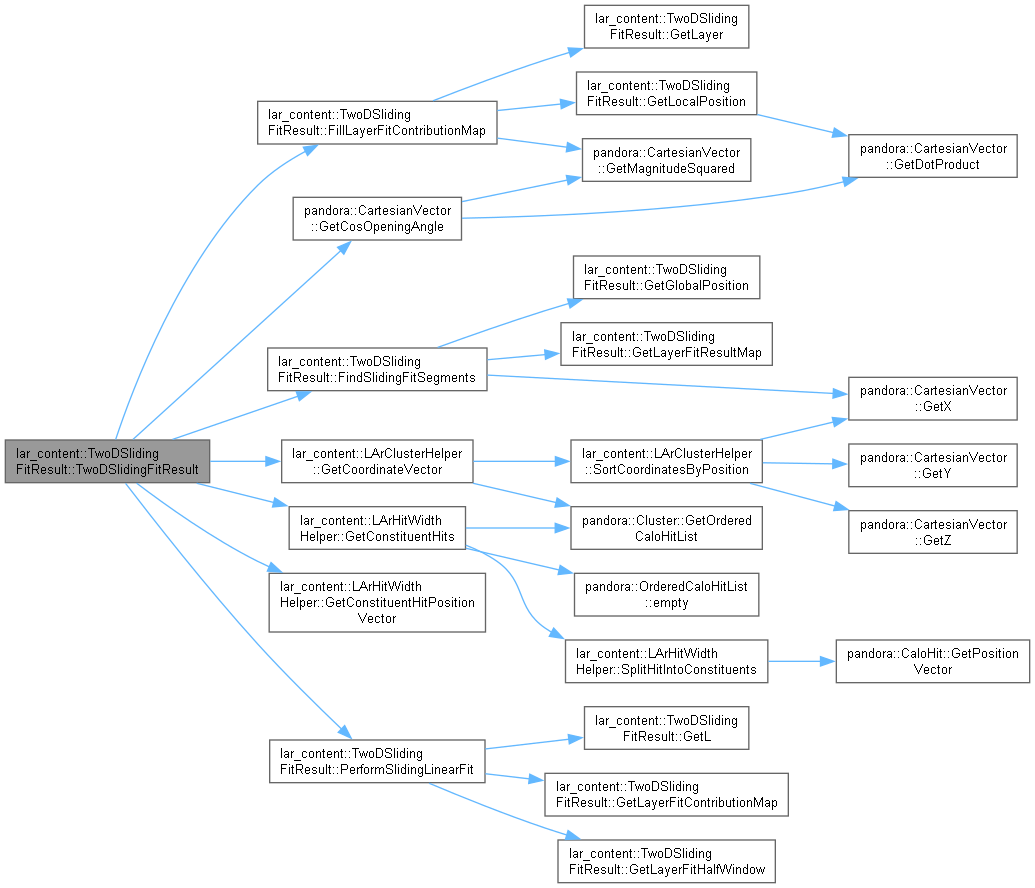

Here is the call graph for this function:

◆ TwoDSlidingFitResult() [4/7]

template<>

lar_content::TwoDSlidingFitResult::TwoDSlidingFitResult	(	const Cluster *const	pCluster,
		const unsigned int	layerFitHalfWindow,
		const float	layerPitch,
		const float	axisDeviationLimitForHitDivision
	)

Definition at line 26 of file LArTwoDSlidingFitResult.cc.

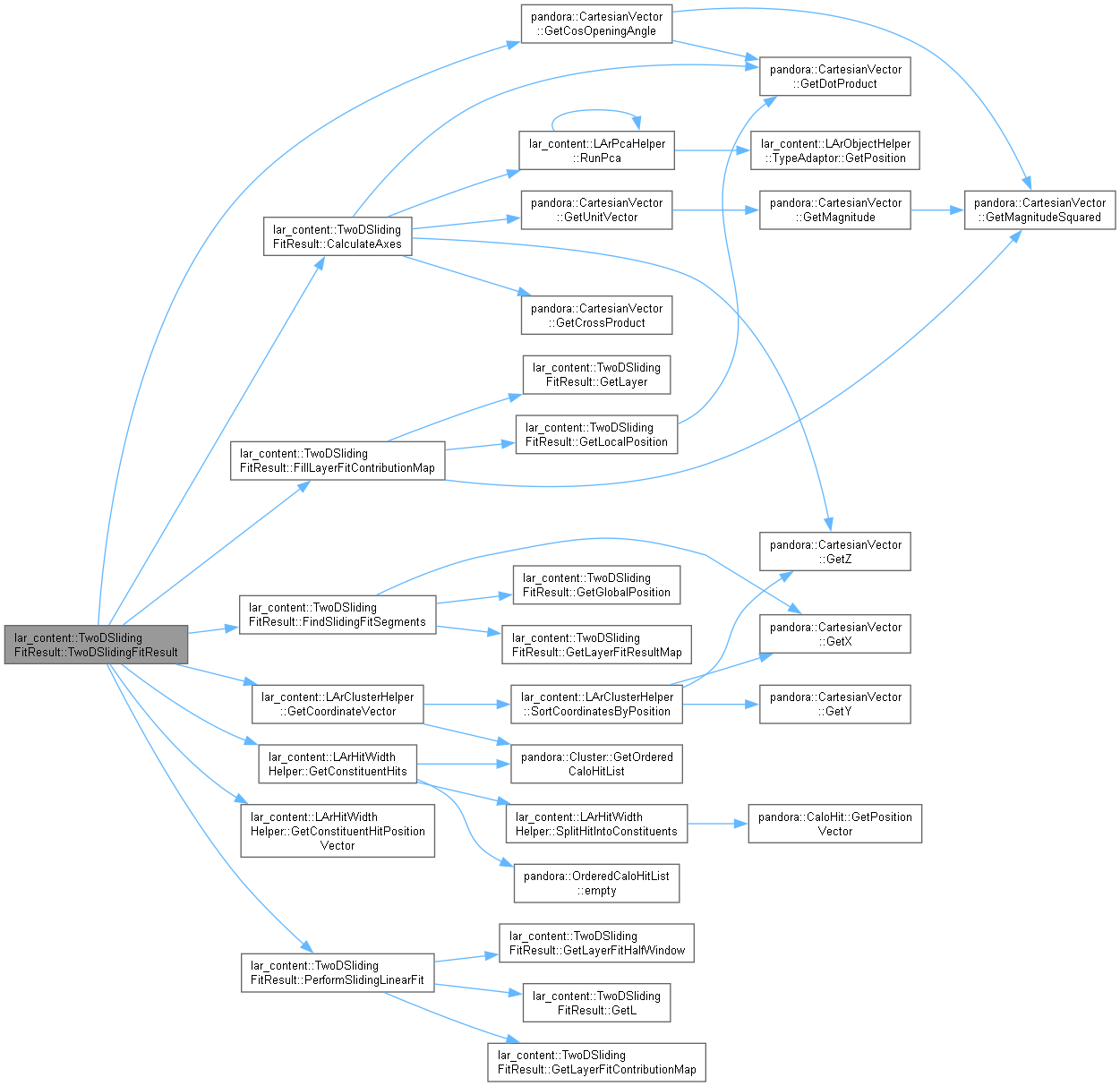

Here is the call graph for this function:

◆ TwoDSlidingFitResult() [5/7]

template<>

lar_content::TwoDSlidingFitResult::TwoDSlidingFitResult	(	const CartesianPointVector *const	pPointVector,
		const unsigned int	layerFitHalfWindow,
		const float	layerPitch,
		const float
	)

Definition at line 60 of file LArTwoDSlidingFitResult.cc.

Here is the call graph for this function:

◆ TwoDSlidingFitResult() [6/7]

template<>

lar_content::TwoDSlidingFitResult::TwoDSlidingFitResult	(	const Cluster *const	pCluster,
		const unsigned int	layerFitHalfWindow,
		const float	layerPitch,
		const CartesianVector &	axisIntercept,
		const CartesianVector &	axisDirection,
		const CartesianVector &	orthoDirection,
		const float	axisDeviationLimitForHitDivision
	)

Definition at line 78 of file LArTwoDSlidingFitResult.cc.

Here is the call graph for this function:

◆ TwoDSlidingFitResult() [7/7]

template<>

lar_content::TwoDSlidingFitResult::TwoDSlidingFitResult	(	const CartesianPointVector *const	pPointVector,
		const unsigned int	layerFitHalfWindow,
		const float	layerPitch,
		const CartesianVector &	axisIntercept,
		const CartesianVector &	axisDirection,
		const CartesianVector &	orthoDirection,
		const float
	)

Definition at line 110 of file LArTwoDSlidingFitResult.cc.

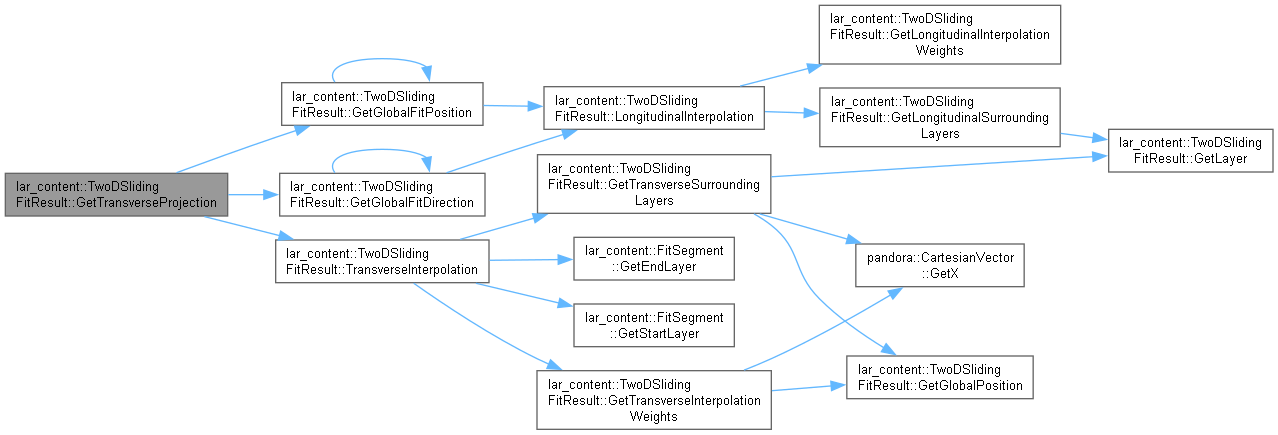

Here is the call graph for this function:

Member Function Documentation

◆ CalculateAxes()

void lar_content::TwoDSlidingFitResult::CalculateAxes	(	const pandora::CartesianPointVector &	coordinateVector,
		const float	layerPitch
	)

private

Calculate the longitudinal and transverse axes.

Definition at line 588 of file LArTwoDSlidingFitResult.cc.

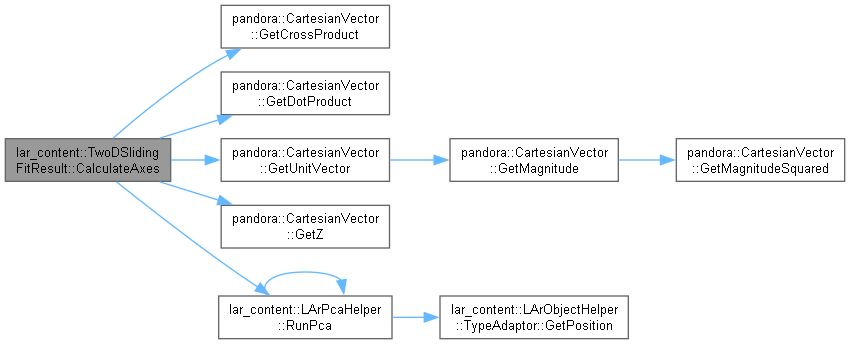

Here is the call graph for this function:

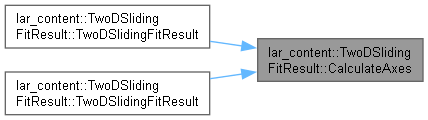

Here is the caller graph for this function:

◆ FillLayerFitContributionMap()

void lar_content::TwoDSlidingFitResult::FillLayerFitContributionMap ( const pandora::CartesianPointVector & coordinateVector )

private

Fill the layer fit contribution map.

Definition at line 621 of file LArTwoDSlidingFitResult.cc.

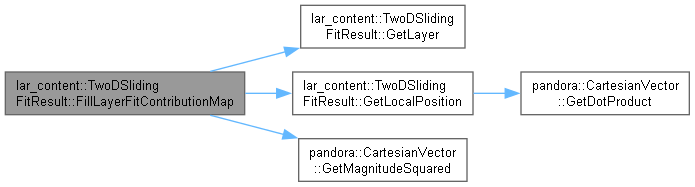

Here is the call graph for this function:

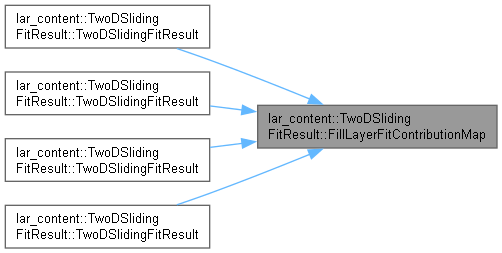

Here is the caller graph for this function:

◆ FindSlidingFitSegments()

void lar_content::TwoDSlidingFitResult::FindSlidingFitSegments ( )

private

Find sliding fit segments; sections with tramsverse direction.

Definition at line 744 of file LArTwoDSlidingFitResult.cc.

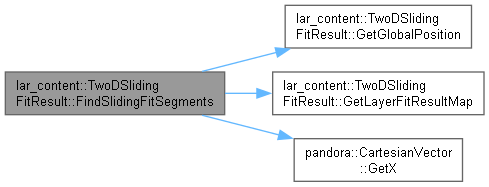

Here is the call graph for this function:

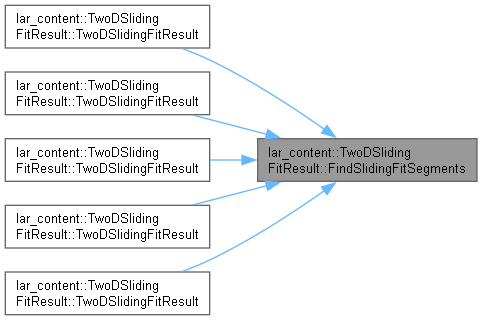

Here is the caller graph for this function:

◆ GetAxisDirection()

const pandora::CartesianVector & lar_content::TwoDSlidingFitResult::GetAxisDirection ( ) const

inline

Get the axis direction vector.

Returns: the axis direction vector

Definition at line 577 of file LArTwoDSlidingFitResult.h.

Here is the caller graph for this function:

◆ GetAxisIntercept()

const pandora::CartesianVector & lar_content::TwoDSlidingFitResult::GetAxisIntercept ( ) const

inline

Get the axis intercept position.

Returns: the axis intercept position

Definition at line 570 of file LArTwoDSlidingFitResult.h.

Here is the caller graph for this function:

◆ GetCluster()

const pandora::Cluster * lar_content::TwoDSlidingFitResult::GetCluster ( ) const

Get the address of the cluster, if originally provided.

Returns: the address of the cluster

Exceptions

StatusCodeException

Definition at line 143 of file LArTwoDSlidingFitResult.cc.

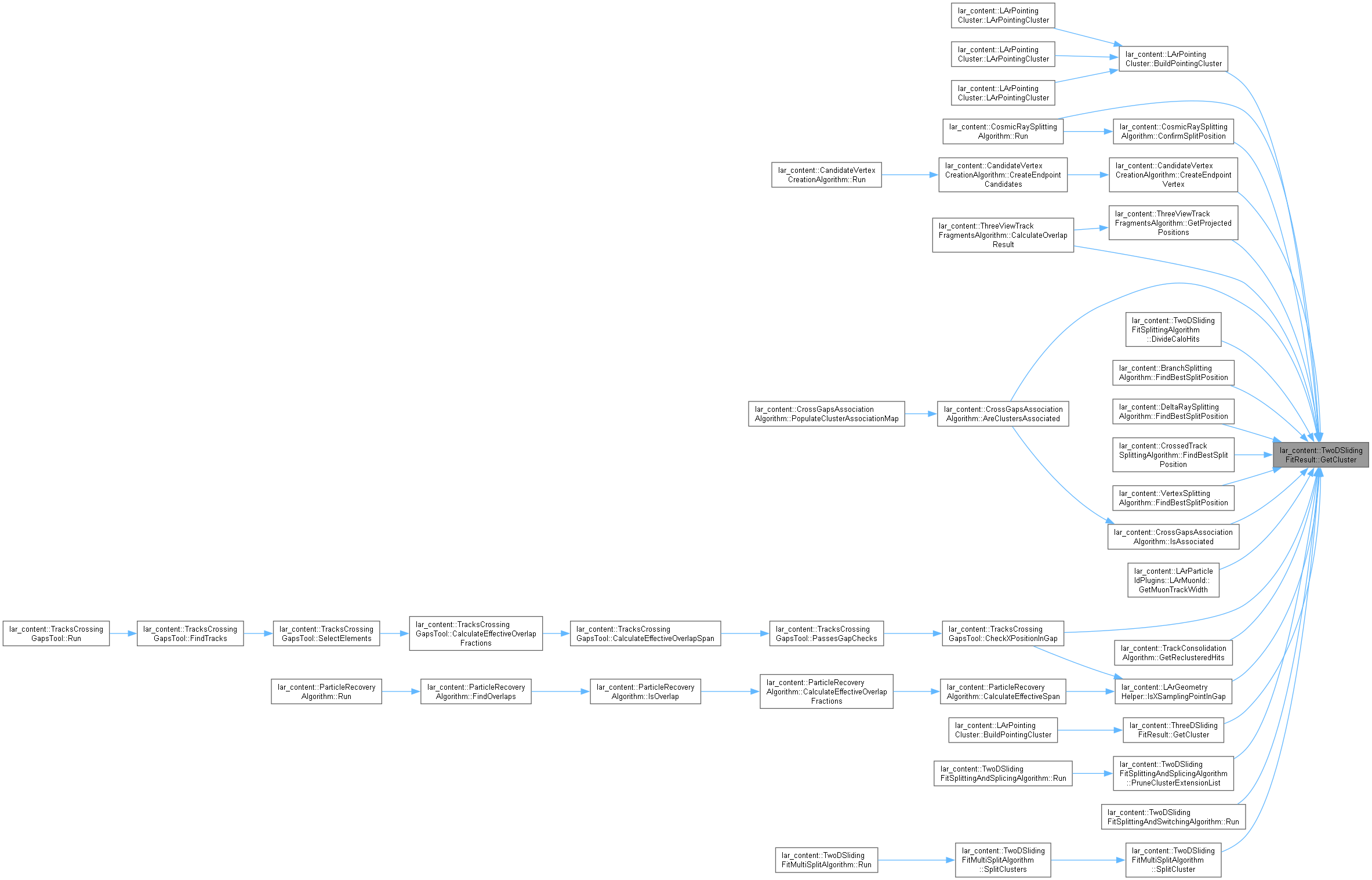

Here is the caller graph for this function:

◆ GetCosScatteringAngle()

float lar_content::TwoDSlidingFitResult::GetCosScatteringAngle ( const float rL ) const

Get scattering angle for a given longitudinal coordinate.

Parameters

rL	the longitudinal coordinate

Definition at line 326 of file LArTwoDSlidingFitResult.cc.

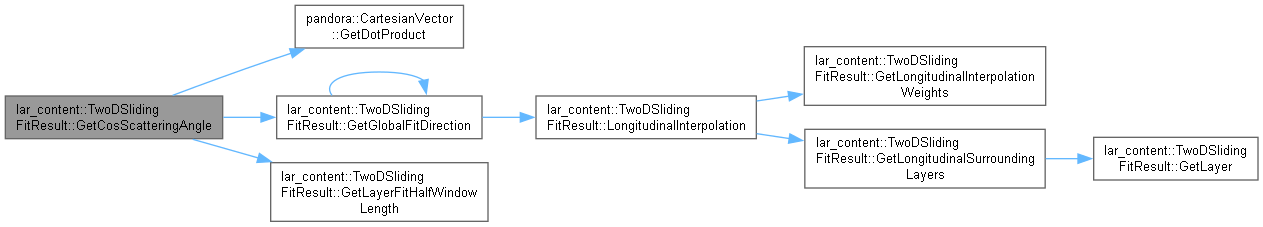

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetExtrapolatedDirection()

StatusCode lar_content::TwoDSlidingFitResult::GetExtrapolatedDirection	(	const float	rL,
		pandora::CartesianVector &	direction
	)		const

Get extrapolated direction (beyond span) for a given input coordinate.

Parameters

rL	the input coordinate
position	the extrapolated direction at these coordinates

Returns: status code, faster than throwing in regular use-cases

Definition at line 495 of file LArTwoDSlidingFitResult.cc.

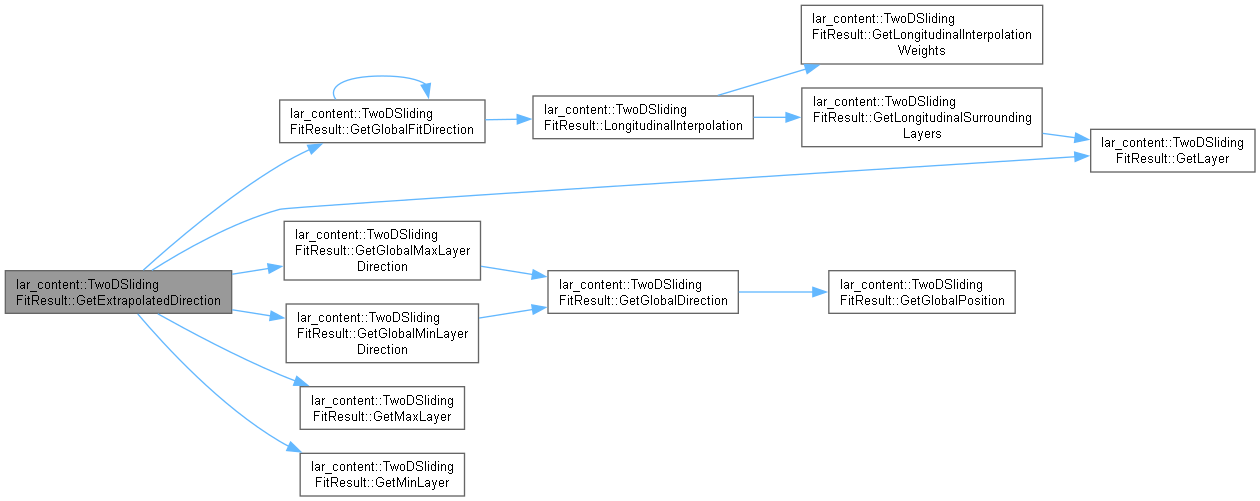

Here is the call graph for this function:

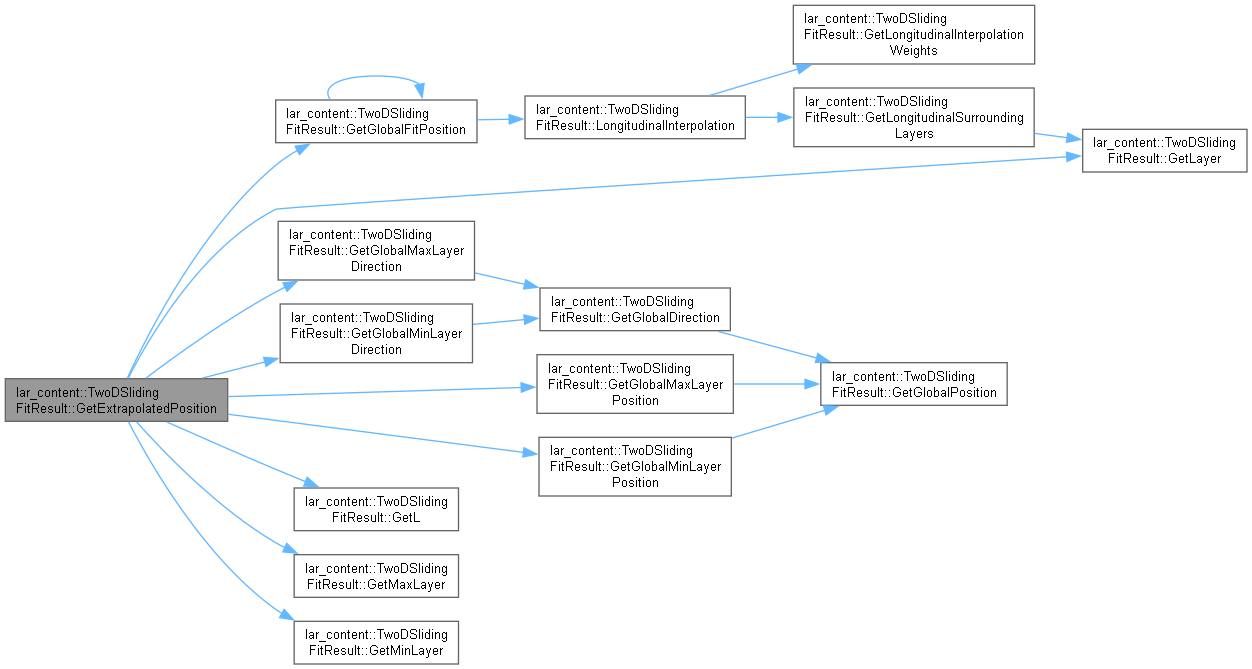

◆ GetExtrapolatedPosition()

StatusCode lar_content::TwoDSlidingFitResult::GetExtrapolatedPosition	(	const float	rL,
		pandora::CartesianVector &	position
	)		const

Get extrapolated position (beyond span) for a given input coordinate.

Parameters

rL	the input coordinate
position	the extrapolated position at these coordinates

Returns: status code, faster than throwing in regular use-cases

Definition at line 466 of file LArTwoDSlidingFitResult.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetExtrapolatedPositionAtX()

StatusCode lar_content::TwoDSlidingFitResult::GetExtrapolatedPositionAtX	(	const float	x,
		pandora::CartesianVector &	position
	)		const

Get extrapolated position (beyond span) for a given input x coordinate.

Parameters

x	the input coordinate
position	the extrapolated position at these coordinates

Returns: status code, faster than throwing in regular use-cases

Definition at line 524 of file LArTwoDSlidingFitResult.cc.

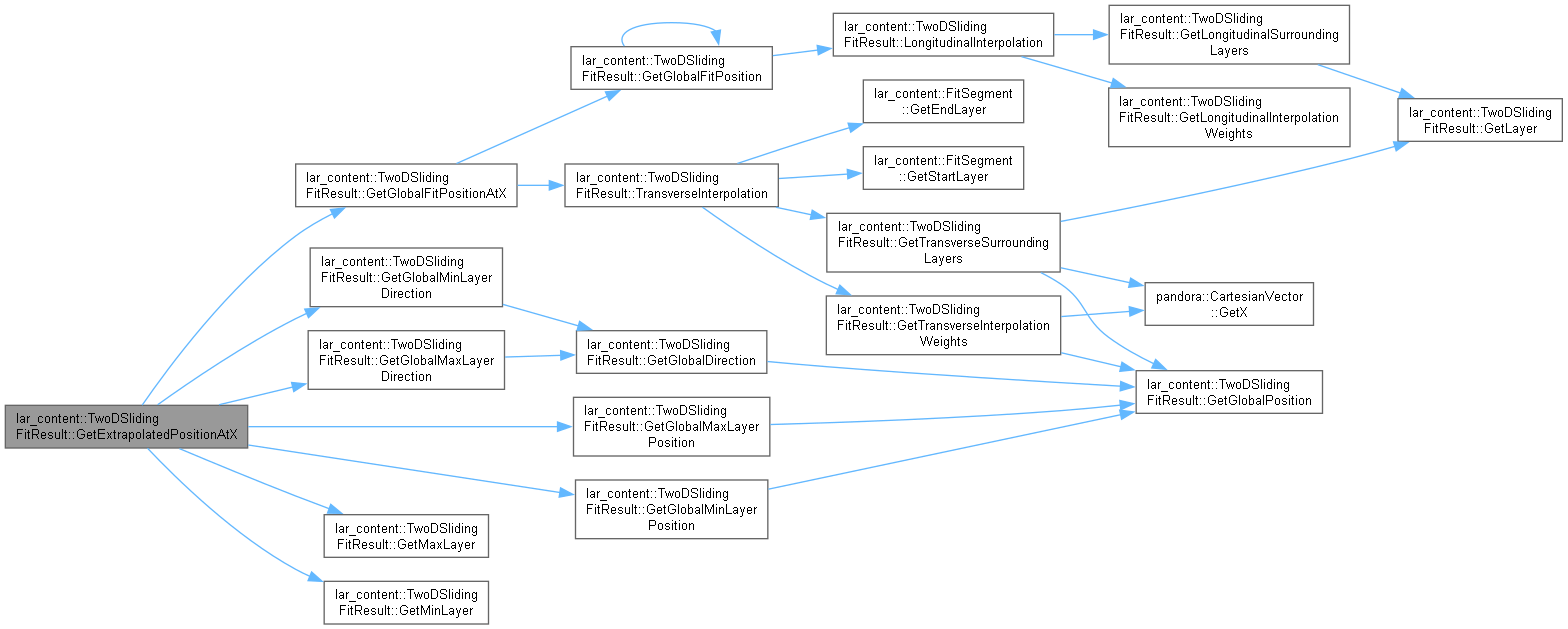

Here is the call graph for this function:

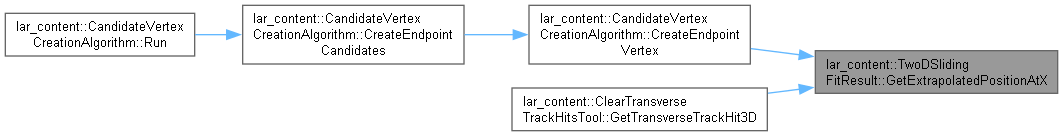

Here is the caller graph for this function:

◆ GetFitRms() [1/2]

float lar_content::TwoDSlidingFitResult::GetFitRms ( const float rL ) const

Get fit rms for a given longitudinal coordinate.

Parameters

rL	the longitudinal coordinate

Returns: the fit rms

Definition at line 313 of file LArTwoDSlidingFitResult.cc.

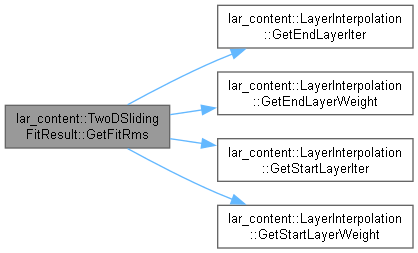

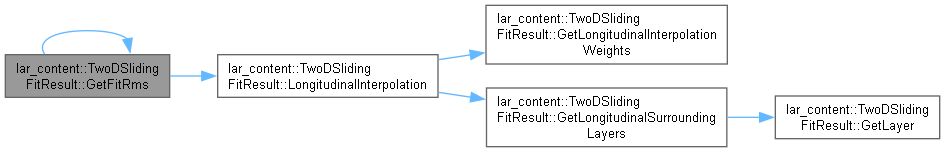

Here is the call graph for this function:

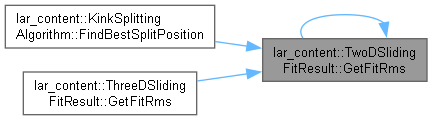

Here is the caller graph for this function:

◆ GetFitRms() [2/2]

float lar_content::TwoDSlidingFitResult::GetFitRms ( const LayerInterpolation & layerInterpolation ) const

private

Interpolate a rms between two layers.

Parameters

layerInterpolation the pair of surrounding layers

Returns: the interpolated rms

Definition at line 876 of file LArTwoDSlidingFitResult.cc.

Here is the call graph for this function:

◆ GetFitSegment()

const FitSegment & lar_content::TwoDSlidingFitResult::GetFitSegment ( const float rL ) const

Get fit segment for a given longitudinal coordinate.

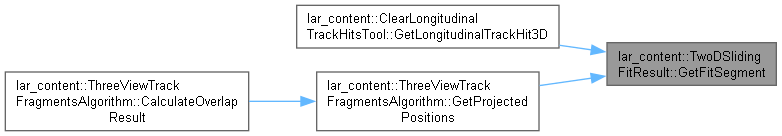

Parameters

rL	the longitudinal coordinate

Definition at line 570 of file LArTwoDSlidingFitResult.cc.

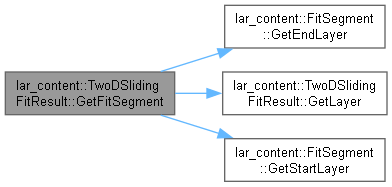

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetFitSegmentList()

const FitSegmentList & lar_content::TwoDSlidingFitResult::GetFitSegmentList ( ) const

inline

Get the fit segment list.

Returns: the fit segment list

Definition at line 605 of file LArTwoDSlidingFitResult.h.

Here is the caller graph for this function:

◆ GetGlobalDirection()

void lar_content::TwoDSlidingFitResult::GetGlobalDirection	(	const float	dTdL,
		pandora::CartesianVector &	direction
	)		const

Get global direction coordinates for given sliding linear fit gradient.

Parameters

dTdL	the transverse coordinate
direction	to receive the direction cartesian vector

Definition at line 227 of file LArTwoDSlidingFitResult.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetGlobalFitDirection() [1/2]

StatusCode lar_content::TwoDSlidingFitResult::GetGlobalFitDirection	(	const float	rL,
		pandora::CartesianVector &	direction
	)		const

Get global fit direction for a given longitudinal coordinate.

Parameters

rL	the longitudinal coordinate
direction	the fitted direction at these coordinates

Returns: status code, faster than throwing in regular use-cases

Definition at line 361 of file LArTwoDSlidingFitResult.cc.

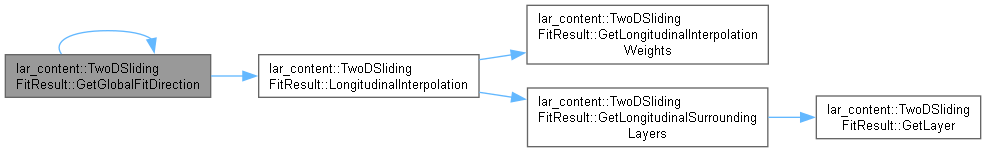

Here is the call graph for this function:

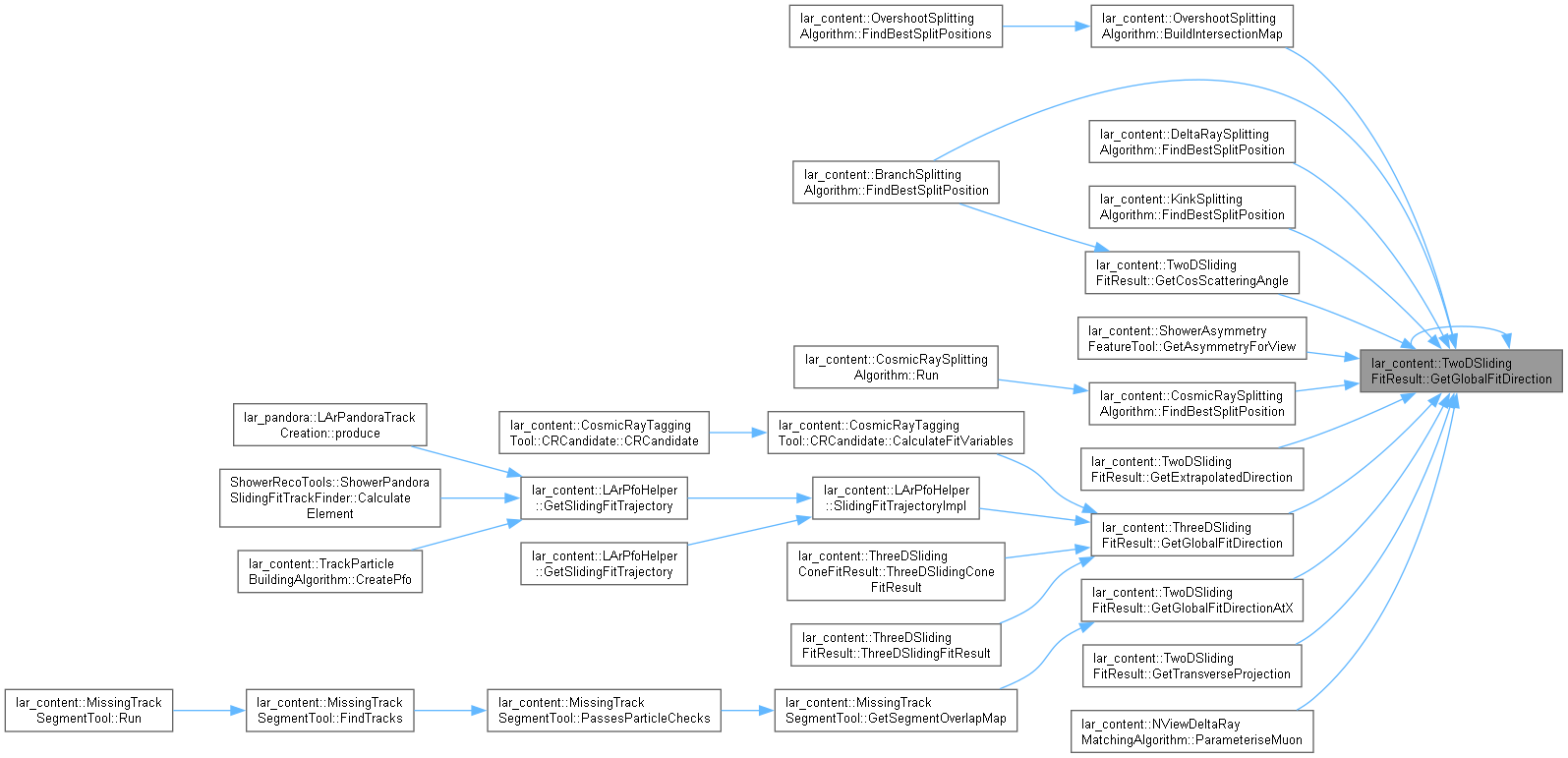

Here is the caller graph for this function:

◆ GetGlobalFitDirection() [2/2]

CartesianVector lar_content::TwoDSlidingFitResult::GetGlobalFitDirection ( const LayerInterpolation & layerInterpolation ) const

private

Interpolate a direction between two layers.

Parameters

layerInterpolation the pair of surrounding layers

Returns: the interpolated direction

Definition at line 848 of file LArTwoDSlidingFitResult.cc.

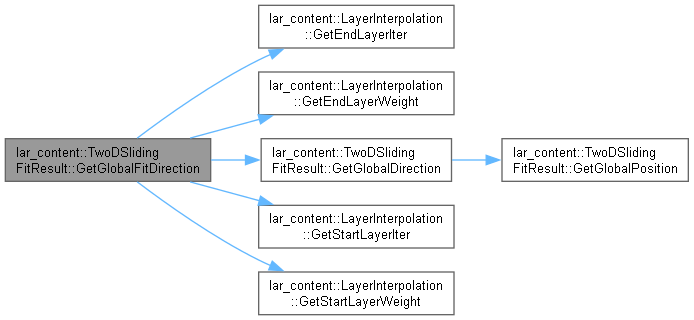

Here is the call graph for this function:

◆ GetGlobalFitDirectionAtX()

StatusCode lar_content::TwoDSlidingFitResult::GetGlobalFitDirectionAtX	(	const float	x,
		pandora::CartesianVector &	direction
	)		const

Get global fit direction for a given input x coordinate.

Parameters

x	the input coordinate
direction	the fitted direction at these coordinates

Returns: status code, faster than throwing in regular use-cases

Definition at line 392 of file LArTwoDSlidingFitResult.cc.

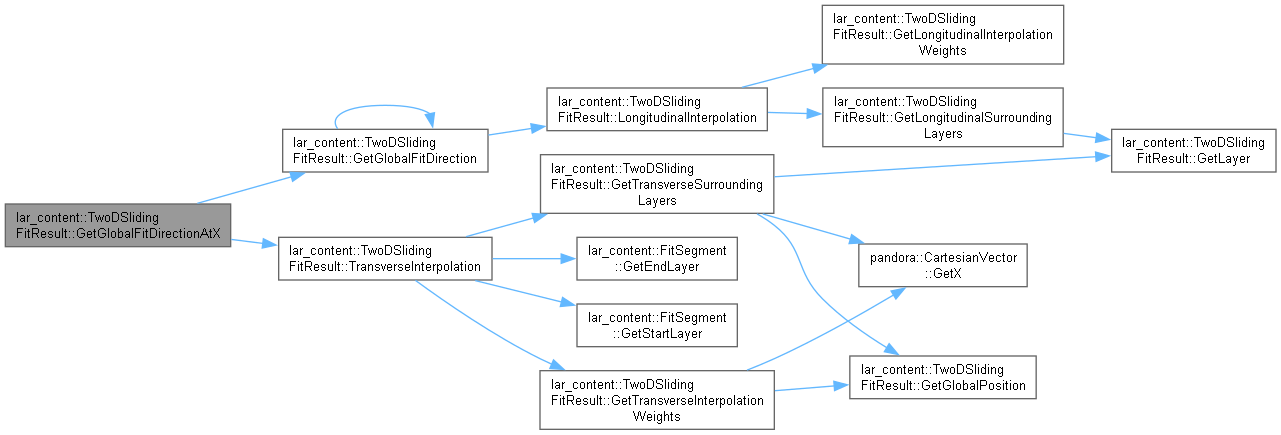

Here is the call graph for this function:

Here is the caller graph for this function:

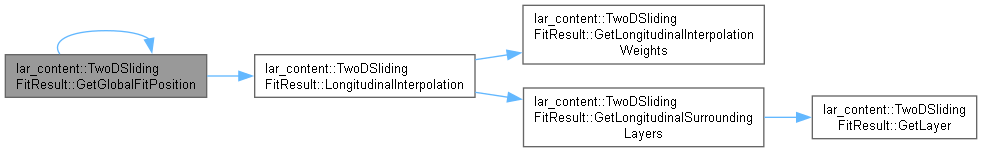

◆ GetGlobalFitPosition() [1/2]

StatusCode lar_content::TwoDSlidingFitResult::GetGlobalFitPosition	(	const float	rL,
		pandora::CartesianVector &	position
	)		const

Get global fit position for a given longitudinal coordinate.

Parameters

rL	the longitudinal coordinate
position	the fitted position at these coordinates

Returns: status code, faster than throwing in regular use-cases

Definition at line 347 of file LArTwoDSlidingFitResult.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetGlobalFitPosition() [2/2]

CartesianVector lar_content::TwoDSlidingFitResult::GetGlobalFitPosition ( const LayerInterpolation & layerInterpolation ) const

private

Interpolate a position between two layers.

Parameters

layerInterpolation the pair of surrounding layers

Returns: the interpolated position

Definition at line 820 of file LArTwoDSlidingFitResult.cc.

Here is the call graph for this function:

◆ GetGlobalFitPositionAtX()

StatusCode lar_content::TwoDSlidingFitResult::GetGlobalFitPositionAtX	(	const float	x,
		pandora::CartesianVector &	position
	)		const

Get global fit position for a given input x coordinate.

Parameters

x	the input coordinate
position	the fitted position at these coordinates

Returns: status code, faster than throwing in regular use-cases

Definition at line 375 of file LArTwoDSlidingFitResult.cc.

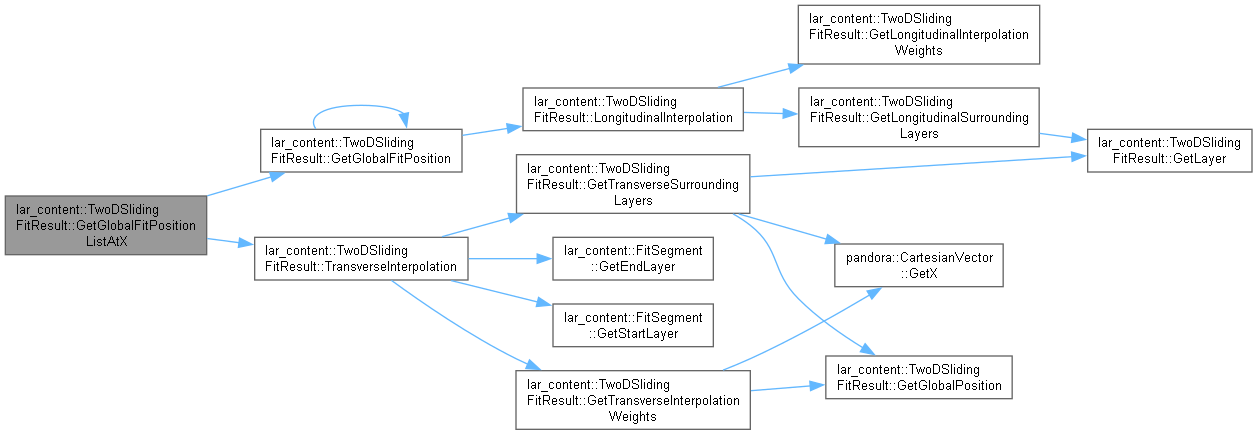

Here is the call graph for this function:

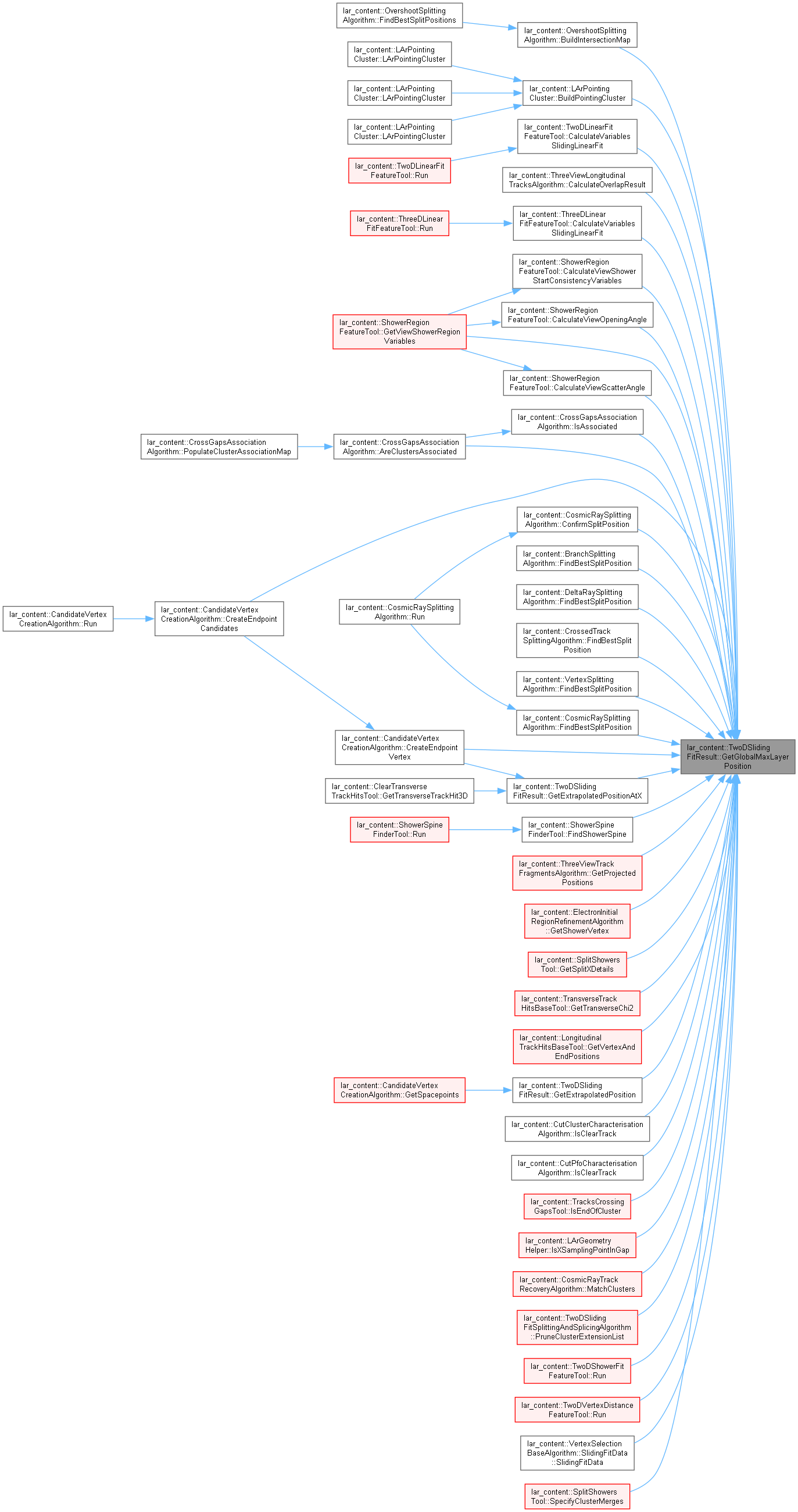

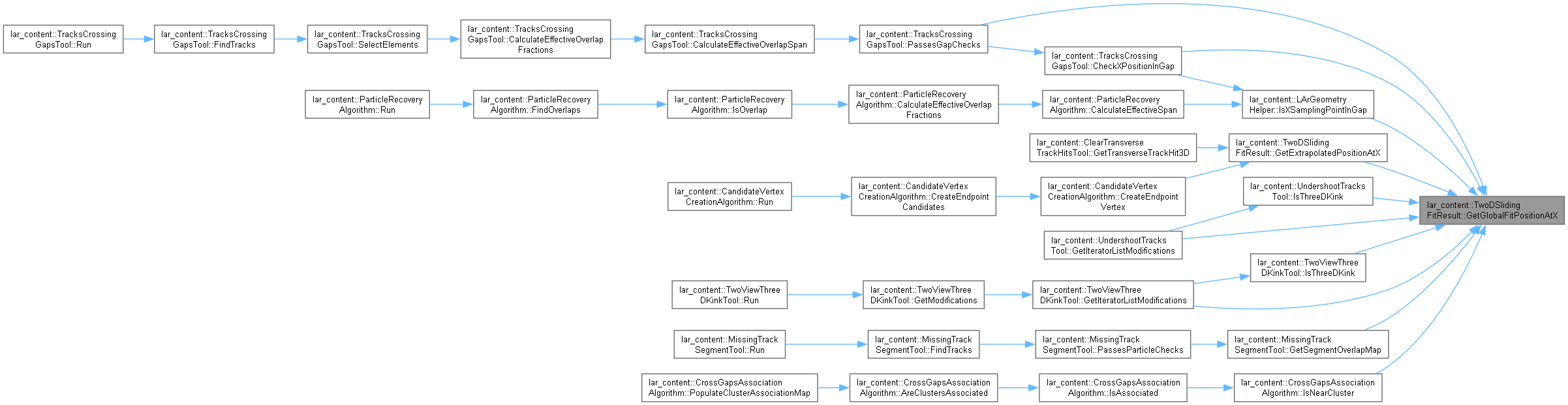

Here is the caller graph for this function:

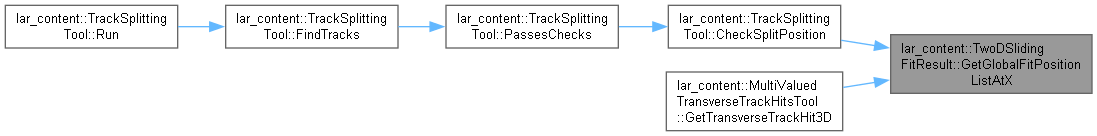

◆ GetGlobalFitPositionListAtX()

StatusCode lar_content::TwoDSlidingFitResult::GetGlobalFitPositionListAtX	(	const float	x,
		pandora::CartesianPointVector &	positionList
	)		const

Get a list of projected positions for a given input x coordinate.

Parameters

x	the input x coordinate
positionList	the output list of positions

Returns: status code, faster than throwing in regular use-cases

Definition at line 418 of file LArTwoDSlidingFitResult.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetGlobalFitProjection()

StatusCode lar_content::TwoDSlidingFitResult::GetGlobalFitProjection	(	const pandora::CartesianVector &	inputPosition,
		pandora::CartesianVector &	projectedPosition
	)		const

Get projected position on global fit for a given position vector.

Parameters

inputPosition	the input coordinate
projectedPosition	the projected position on the global fit for these coordinates

Returns: status code, faster than throwing in regular use-cases

Definition at line 409 of file LArTwoDSlidingFitResult.cc.

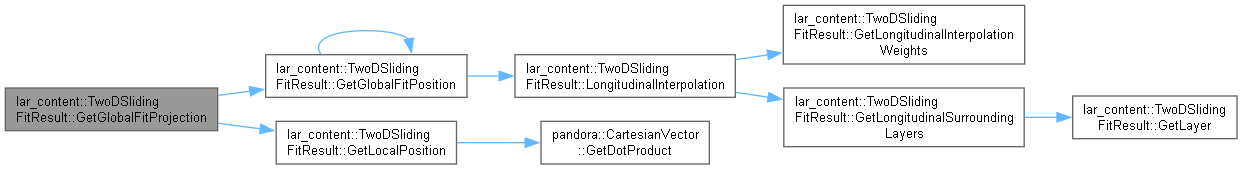

Here is the call graph for this function:

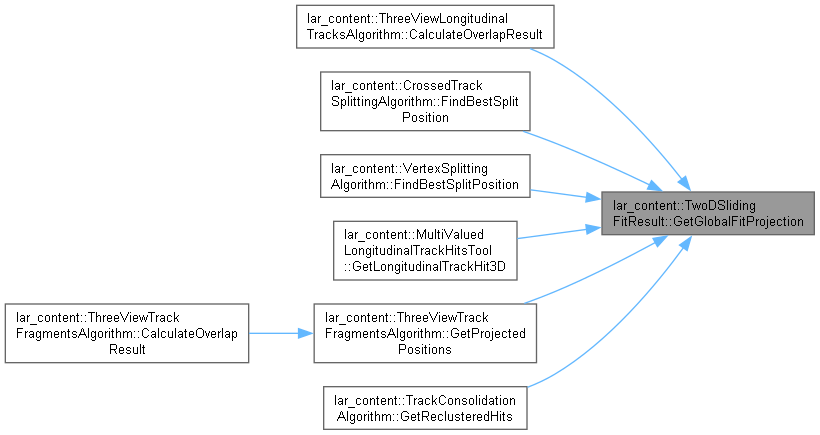

Here is the caller graph for this function:

◆ GetGlobalMaxLayerDirection()

CartesianVector lar_content::TwoDSlidingFitResult::GetGlobalMaxLayerDirection ( ) const

Get global direction corresponding to the fit result in maximum fit layer.

Returns: the position

Definition at line 278 of file LArTwoDSlidingFitResult.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

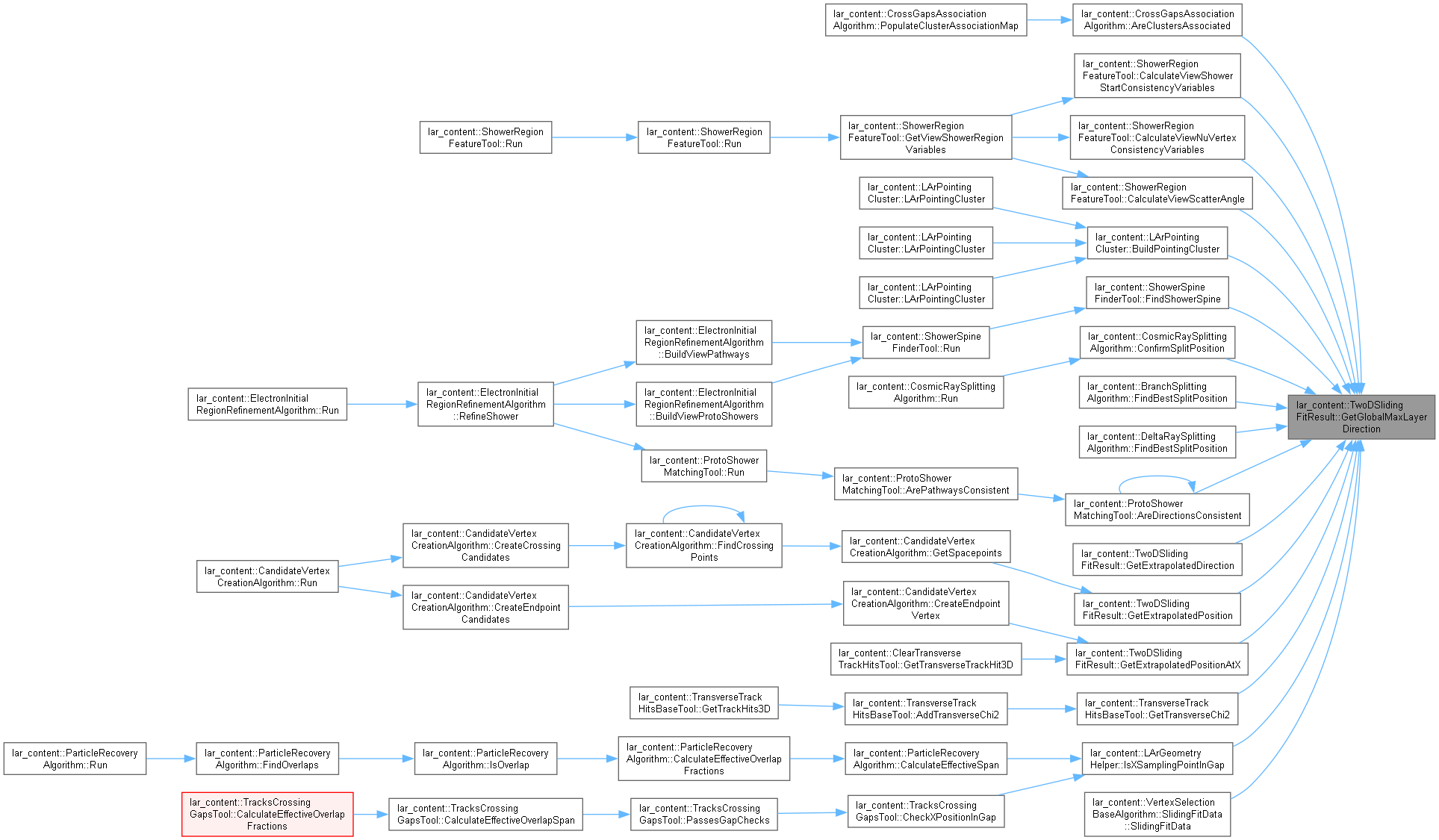

◆ GetGlobalMaxLayerPosition()

CartesianVector lar_content::TwoDSlidingFitResult::GetGlobalMaxLayerPosition ( ) const

Get global position corresponding to the fit result in maximum fit layer.

Returns: the position

Definition at line 252 of file LArTwoDSlidingFitResult.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetGlobalMinLayerDirection()

CartesianVector lar_content::TwoDSlidingFitResult::GetGlobalMinLayerDirection ( ) const

Get global direction corresponding to the fit result in minimum fit layer.

Returns: the position

Definition at line 265 of file LArTwoDSlidingFitResult.cc.

Here is the call graph for this function:

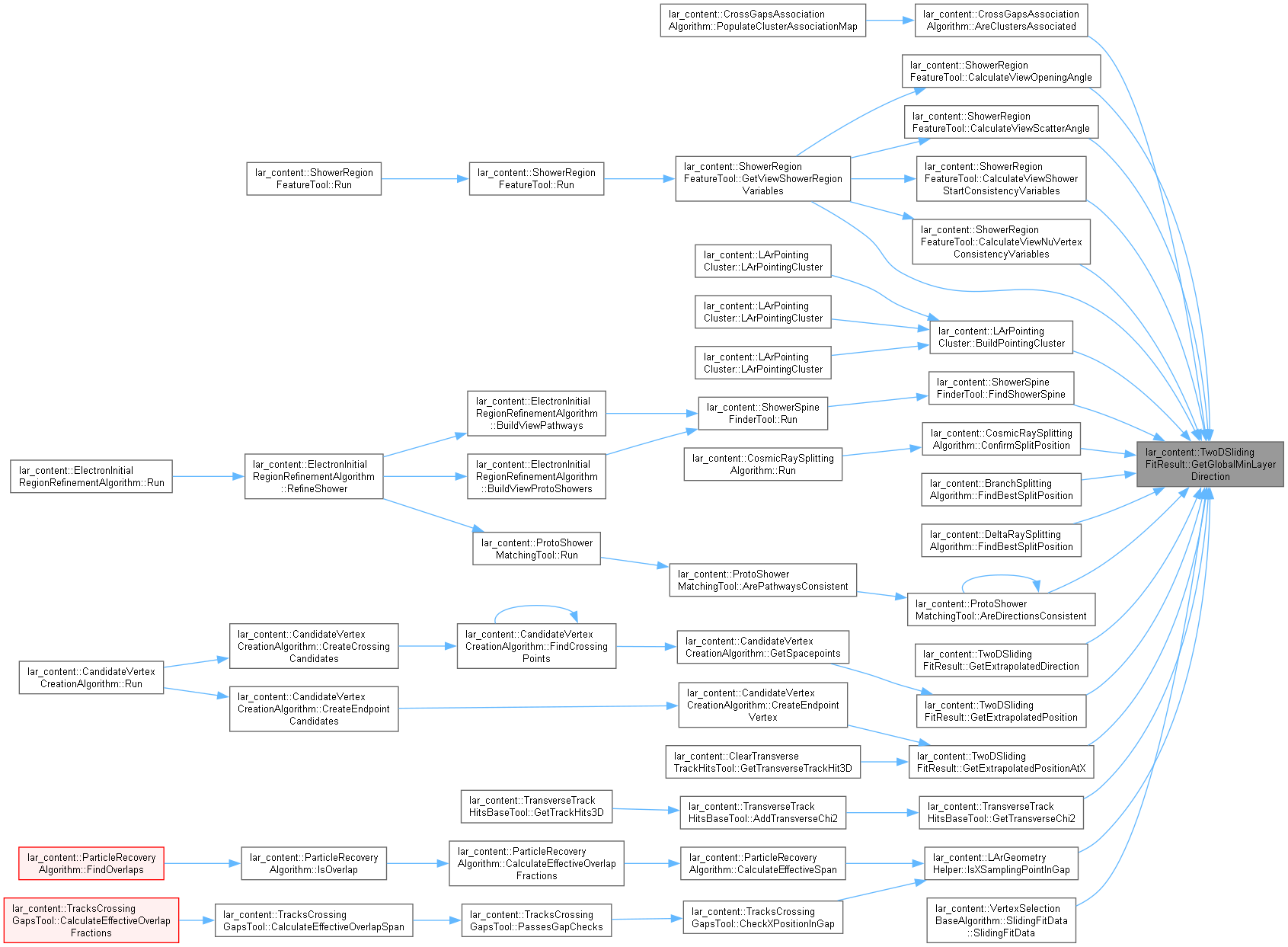

Here is the caller graph for this function:

◆ GetGlobalMinLayerPosition()

CartesianVector lar_content::TwoDSlidingFitResult::GetGlobalMinLayerPosition ( ) const

Get global position corresponding to the fit result in minimum fit layer.

Returns: the position

Definition at line 239 of file LArTwoDSlidingFitResult.cc.

Here is the call graph for this function:

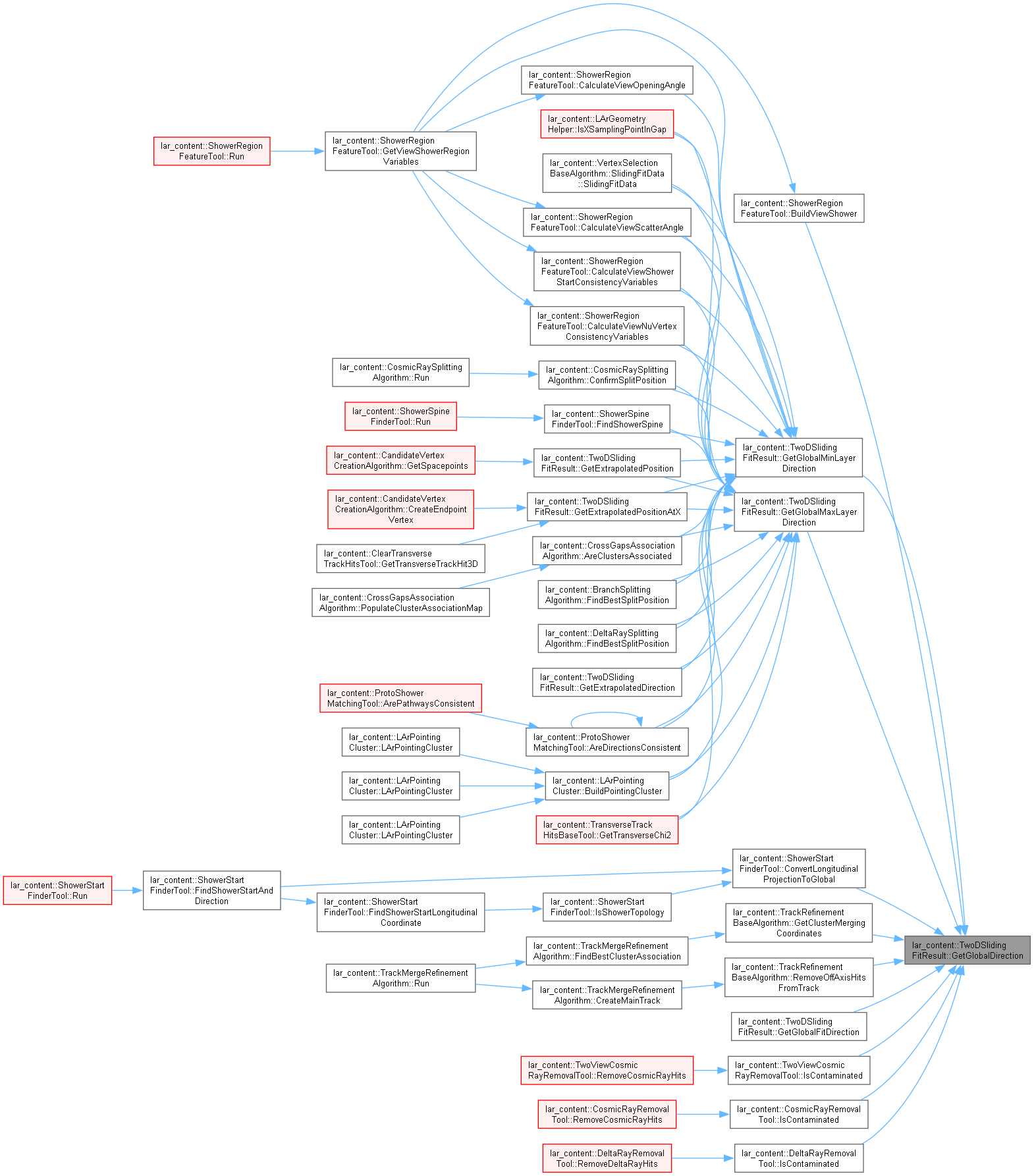

Here is the caller graph for this function:

◆ GetGlobalPosition()

void lar_content::TwoDSlidingFitResult::GetGlobalPosition	(	const float	rL,
		const float	rT,
		pandora::CartesianVector &	position
	)		const

Get global coordinates for given sliding linear fit coordinates.

Parameters

rL	the longitudinal coordinate
rT	the transverse coordinate
position	to receive the position cartesian vector

Definition at line 220 of file LArTwoDSlidingFitResult.cc.

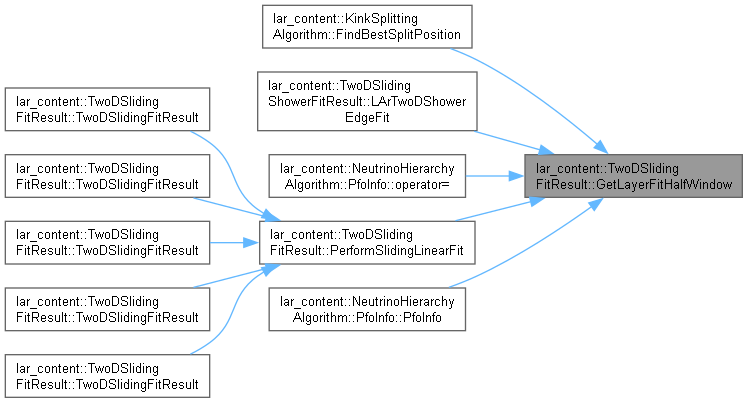

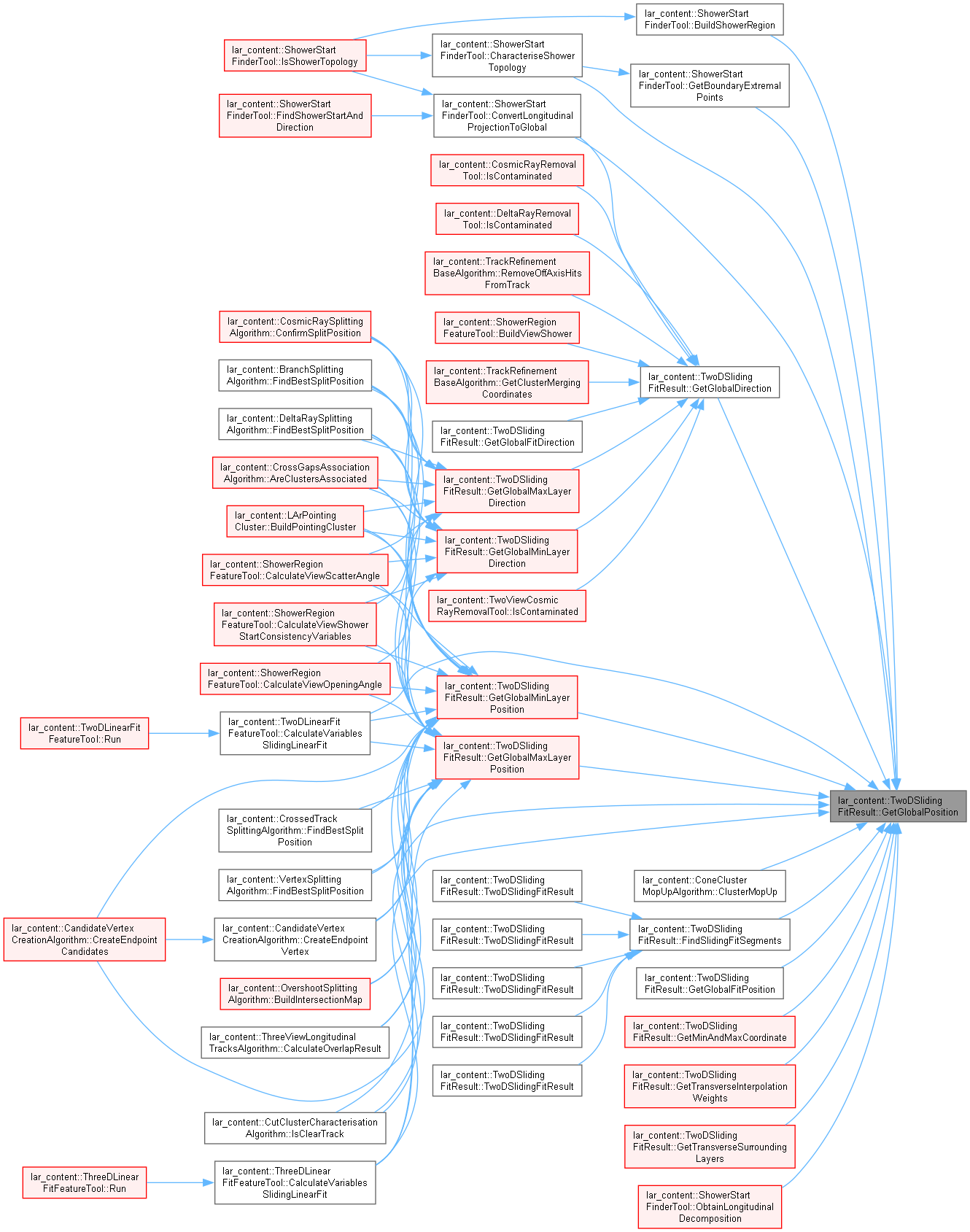

Here is the caller graph for this function:

◆ GetL()

float lar_content::TwoDSlidingFitResult::GetL ( const int layer ) const

Get longitudinal coordinate for a given sliding linear fit layer number.

Parameters

layer the layer number

Definition at line 190 of file LArTwoDSlidingFitResult.cc.

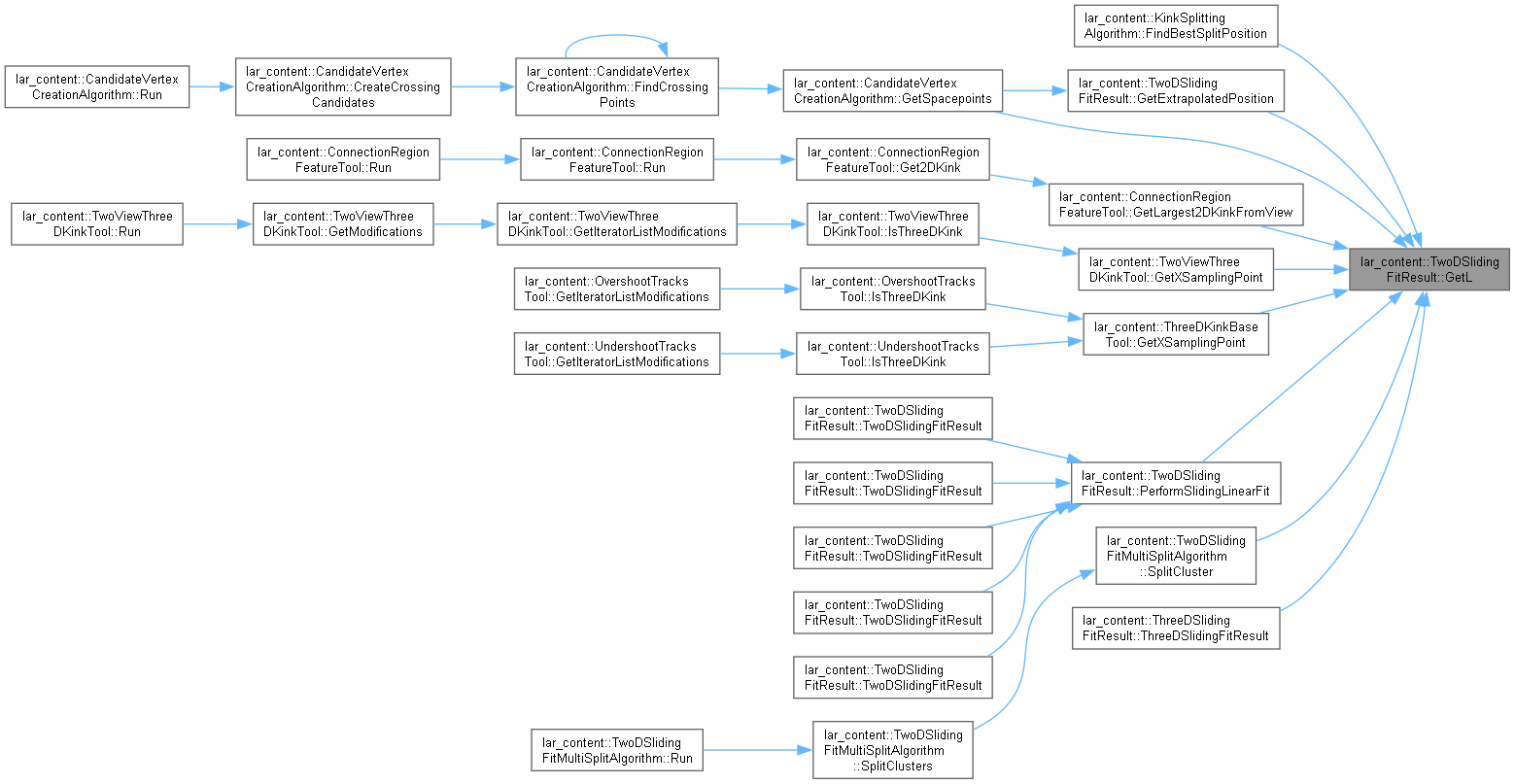

Here is the caller graph for this function:

◆ GetLayer()

int lar_content::TwoDSlidingFitResult::GetLayer ( const float rL ) const

Get layer number for given sliding linear fit longitudinal coordinate.

Parameters

rL	the longitudinal coordinate

Definition at line 180 of file LArTwoDSlidingFitResult.cc.

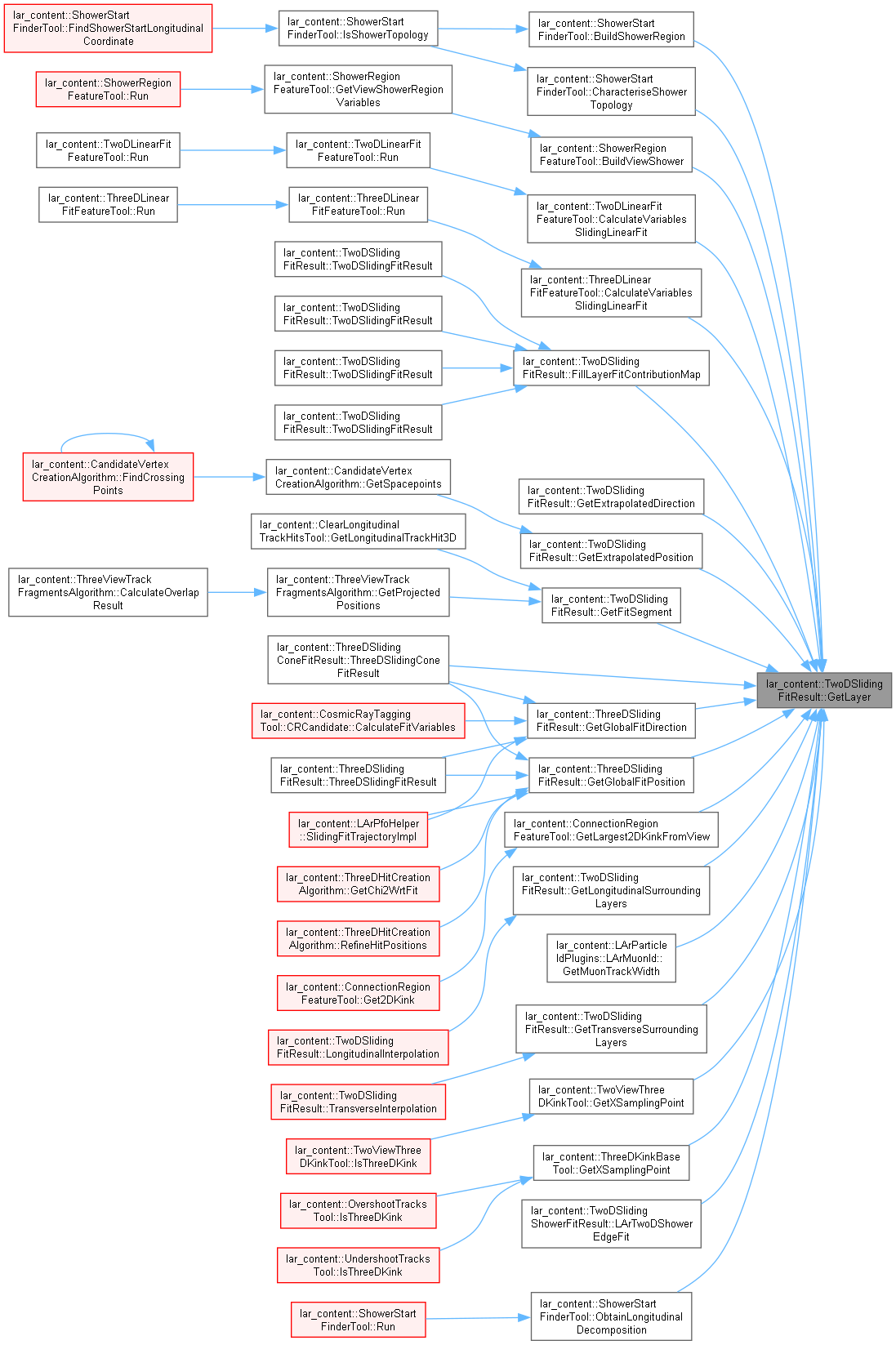

Here is the caller graph for this function:

◆ GetLayerFitContributionMap()

const LayerFitContributionMap & lar_content::TwoDSlidingFitResult::GetLayerFitContributionMap ( ) const

inline

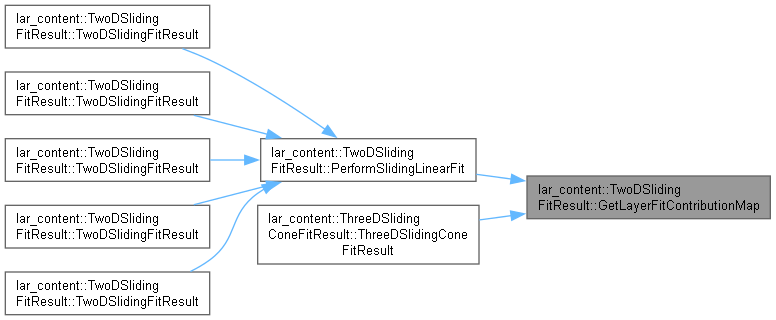

Get the layer fit contribution map.

Returns: the layer fit contribution map

Definition at line 598 of file LArTwoDSlidingFitResult.h.

Here is the caller graph for this function:

◆ GetLayerFitHalfWindow()

unsigned int lar_content::TwoDSlidingFitResult::GetLayerFitHalfWindow ( ) const

inline

Get the layer fit half window.

Returns: the layer fit half window

Definition at line 556 of file LArTwoDSlidingFitResult.h.

Here is the caller graph for this function:

◆ GetLayerFitHalfWindowLength()

float lar_content::TwoDSlidingFitResult::GetLayerFitHalfWindowLength ( ) const

Get the layer fit half window length.

Returns: the layer fit half window length

Definition at line 153 of file LArTwoDSlidingFitResult.cc.

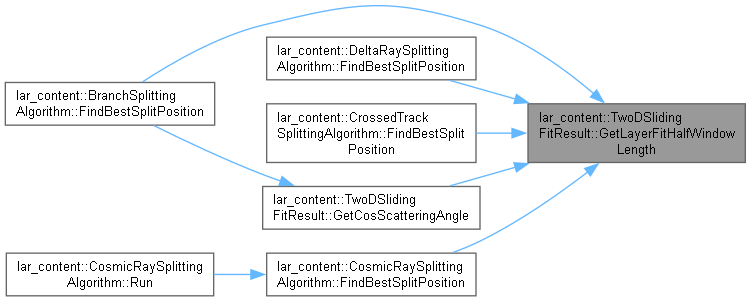

Here is the caller graph for this function:

◆ GetLayerFitResultMap()

const LayerFitResultMap & lar_content::TwoDSlidingFitResult::GetLayerFitResultMap ( ) const

inline

Get the layer fit result map.

Returns: the layer fit result map

Definition at line 591 of file LArTwoDSlidingFitResult.h.

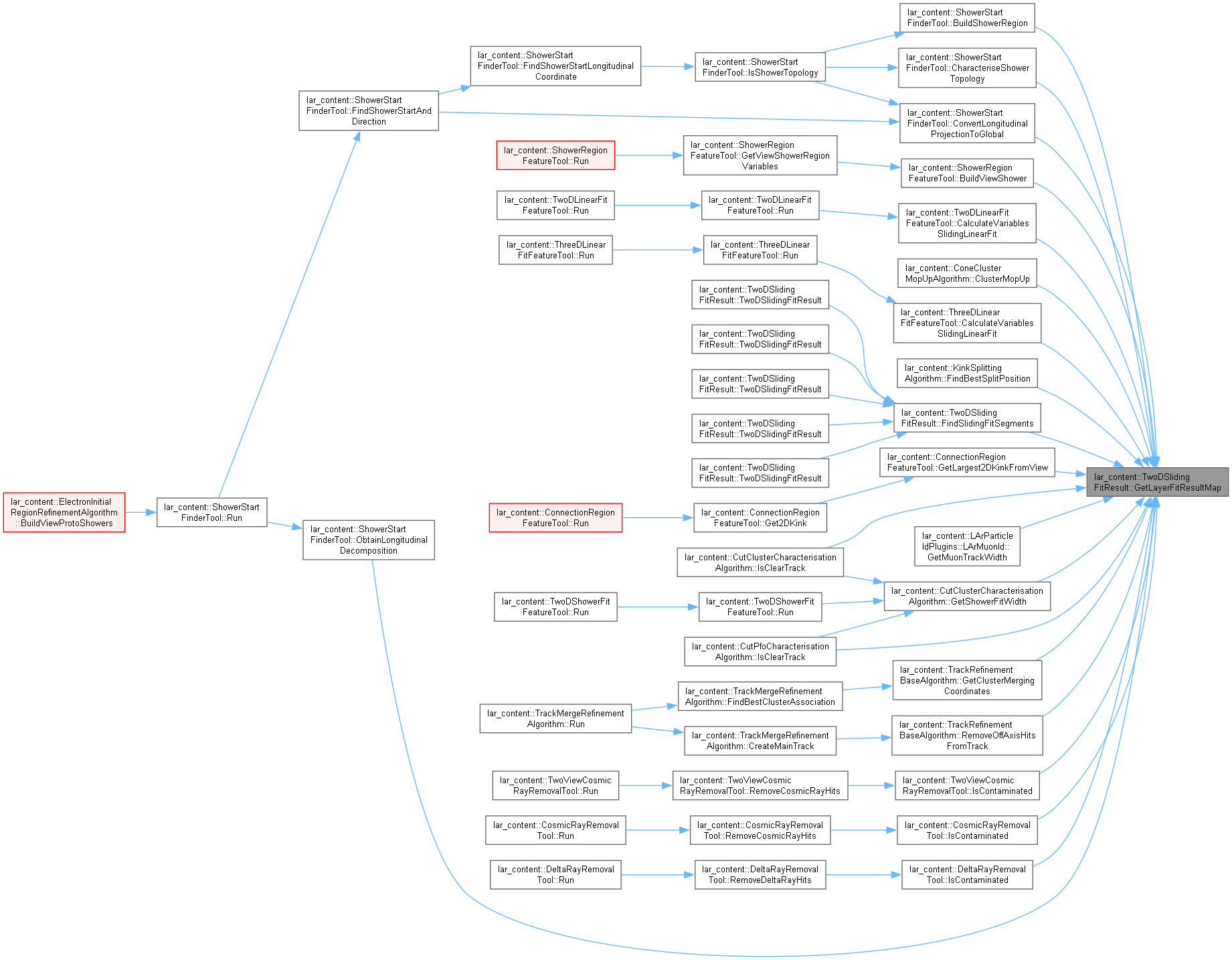

Here is the caller graph for this function:

◆ GetLayerPitch()

float lar_content::TwoDSlidingFitResult::GetLayerPitch ( ) const

inline

Get the layer pitch, units cm.

Returns: the layer pitch

Definition at line 563 of file LArTwoDSlidingFitResult.h.

Here is the caller graph for this function:

◆ GetLocalDirection()

void lar_content::TwoDSlidingFitResult::GetLocalDirection	(	const pandora::CartesianVector &	direction,
		float &	dTdL
	)		const

Get local sliding fit gradient for a given global direction.

Parameters

direction	the direction cartesian vector
dTdL	to receive the local gradient

Definition at line 207 of file LArTwoDSlidingFitResult.cc.

Here is the call graph for this function:

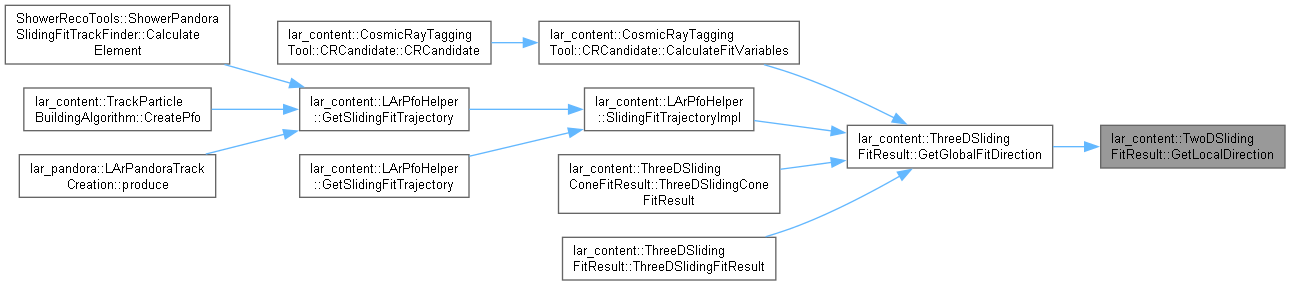

Here is the caller graph for this function:

◆ GetLocalPosition()

void lar_content::TwoDSlidingFitResult::GetLocalPosition	(	const pandora::CartesianVector &	position,
		float &	rL,
		float &	rT
	)		const

Get local sliding fit coordinates for a given global position.

Parameters

position	the position cartesian vector
rL	to receive the longitudinal coordinate
rT	to receive the transverse coordinate

Definition at line 197 of file LArTwoDSlidingFitResult.cc.

Here is the call graph for this function:

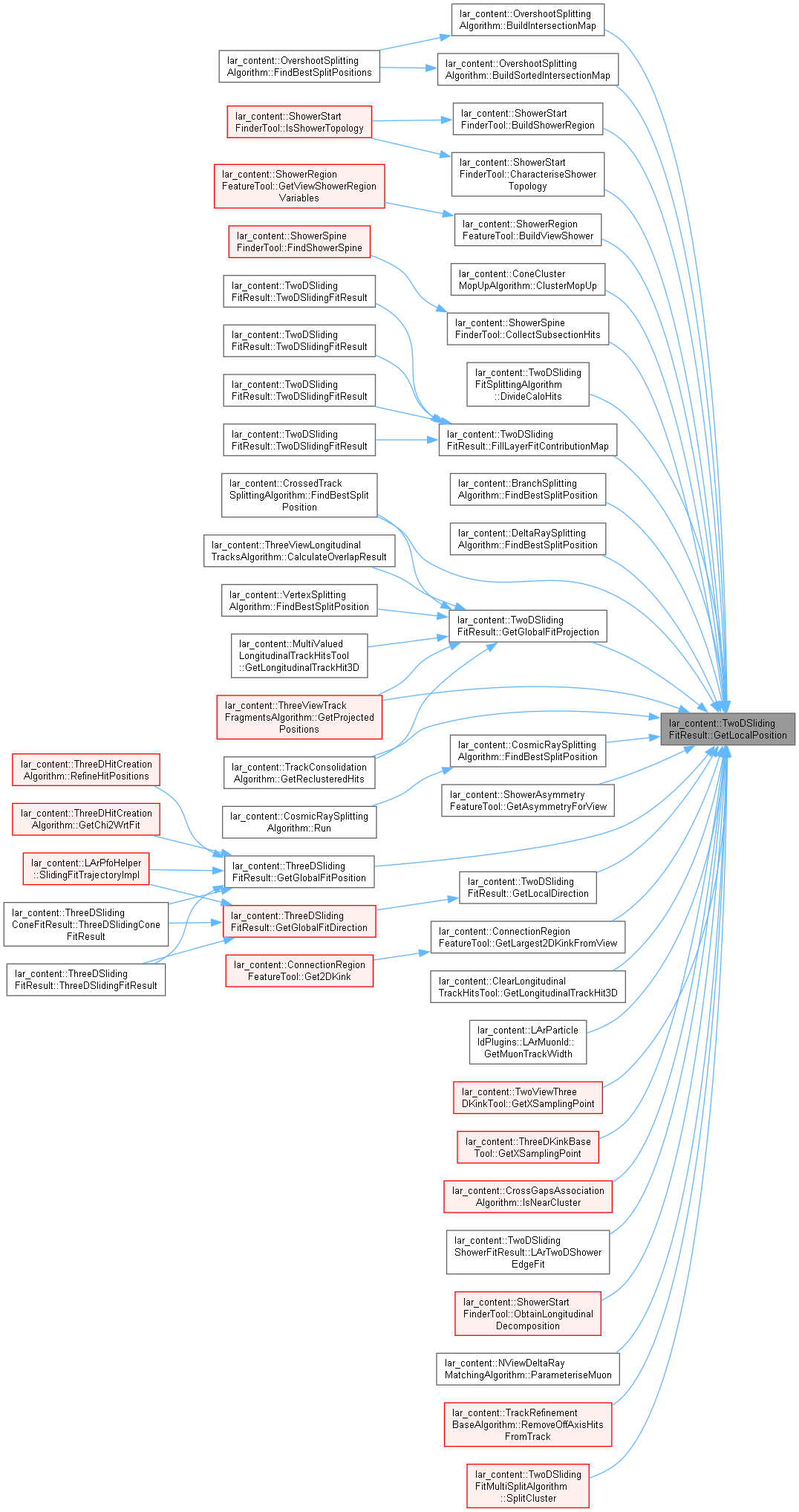

Here is the caller graph for this function:

◆ GetLongitudinalInterpolationWeights()

void lar_content::TwoDSlidingFitResult::GetLongitudinalInterpolationWeights	(	const float	rL,
		const LayerFitResultMap::const_iterator &	firstLayerIter,
		const LayerFitResultMap::const_iterator &	secondLayerIter,
		double &	firstWeight,
		double &	secondWeight
	)		const

private

Get interpolation weights for layers surrounding a specified longitudinal position.

Parameters

rL	the longitudinal coordinate
firstLayerIter	the iterator for the layer below the input coordinate
secondLayerIter	the iterator for the layer above the input coordinate
firstWeight	the weight assigned to the layer below the input coordinate
secondWeight	the weight assigned to the layer above the input coordinate

Definition at line 1102 of file LArTwoDSlidingFitResult.cc.

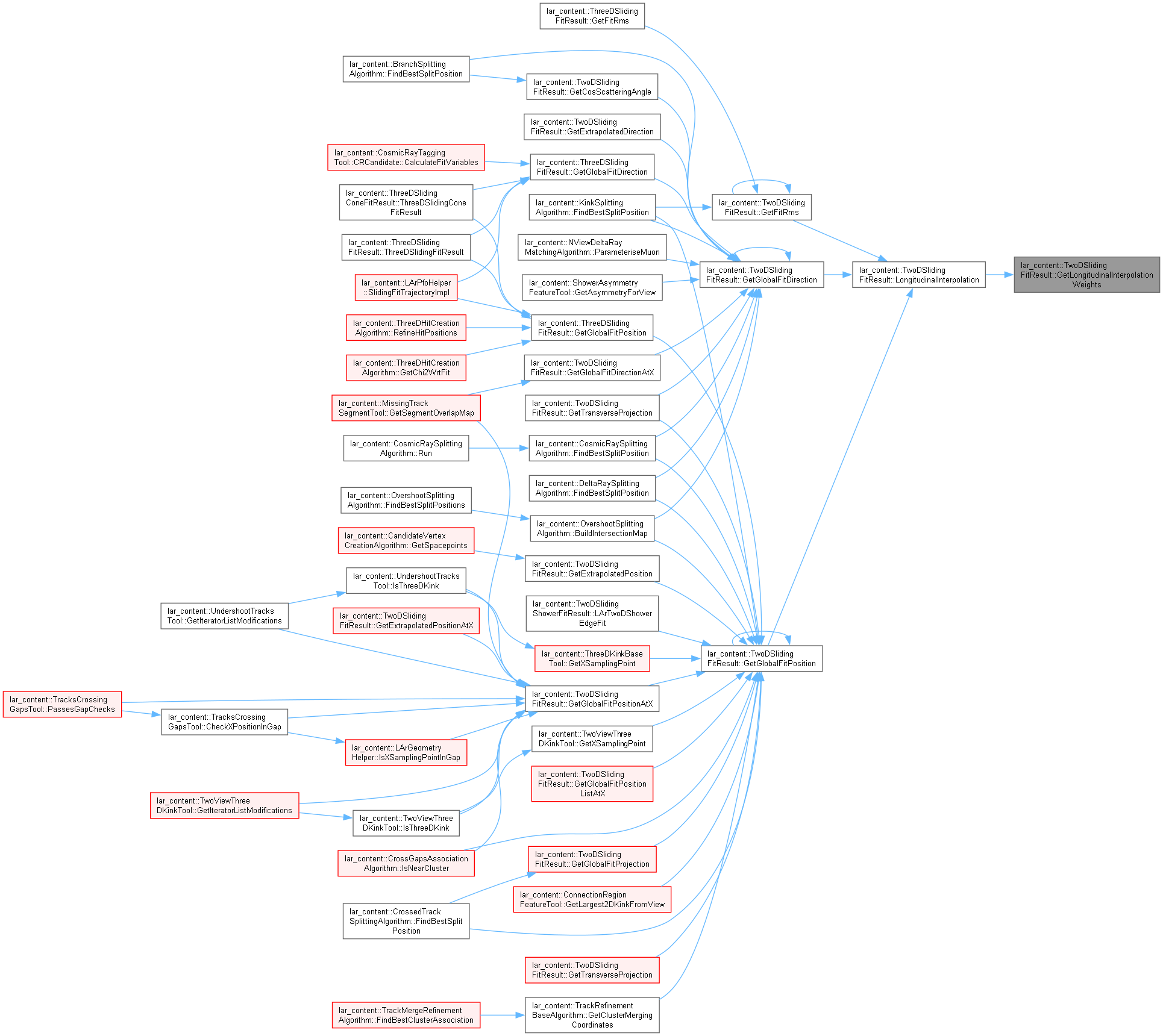

Here is the caller graph for this function:

◆ GetLongitudinalSurroundingLayers()

StatusCode lar_content::TwoDSlidingFitResult::GetLongitudinalSurroundingLayers	(	const float	rL,
		LayerFitResultMap::const_iterator &	firstLayerIter,
		LayerFitResultMap::const_iterator &	secondLayerIter
	)		const

private

Get iterators for layers surrounding the specified longitudinal position.

Parameters

rL	the longitudinal coordinate
firstLayerIter	to receive the iterator for the layer just below the input coordinate
secondLayerIter	to receive the iterator for the layer just above the input coordinate

Returns: status code, faster than throwing in regular use-cases

Definition at line 961 of file LArTwoDSlidingFitResult.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetMaxLayer()

int lar_content::TwoDSlidingFitResult::GetMaxLayer ( ) const

Get the maximum occupied layer in the sliding fit.

Parameters

the	maximum occupied layer in the sliding fit

Definition at line 170 of file LArTwoDSlidingFitResult.cc.

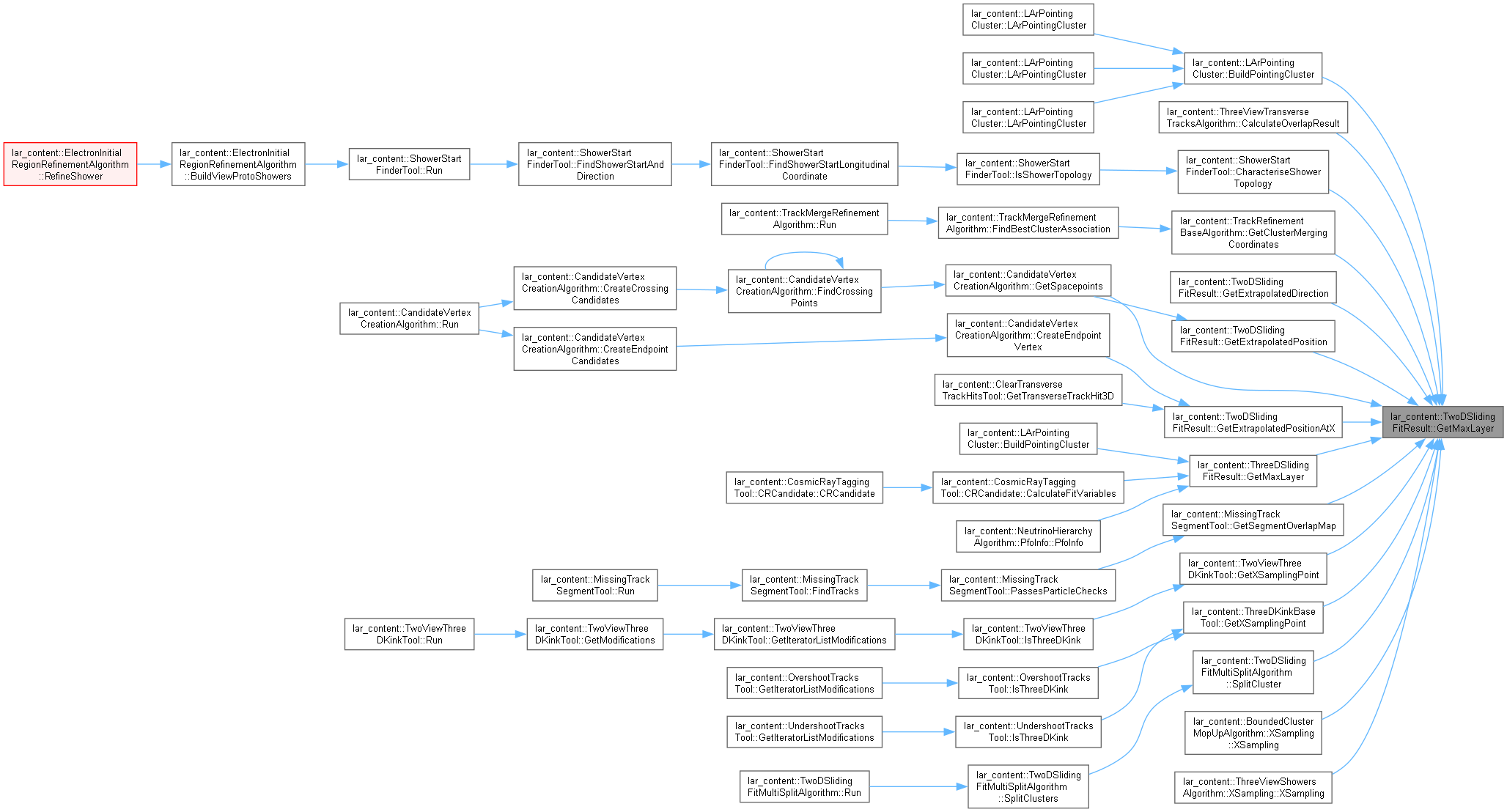

Here is the caller graph for this function:

◆ GetMaxLayerRms()

float lar_content::TwoDSlidingFitResult::GetMaxLayerRms ( ) const

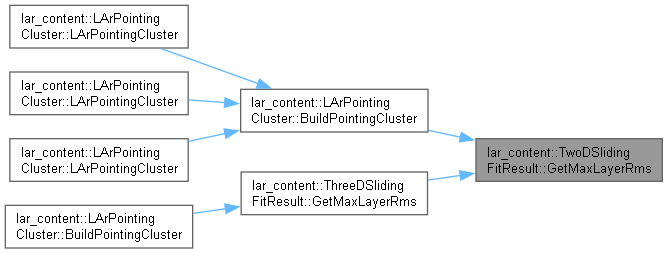

Get rms at maximum layer.

Returns: the rms

Definition at line 302 of file LArTwoDSlidingFitResult.cc.

Here is the caller graph for this function:

◆ GetMinAndMaxCoordinate()

void lar_content::TwoDSlidingFitResult::GetMinAndMaxCoordinate	(	const bool	isX,
		float &	min,
		float &	max
	)		const

private

Get the minimum and maximum x or z coordinates associated with the sliding fit.

Parameters

isX	whether to provide extremal x or z coordinates
to	receive the min coordinate value
to	receive the max coordinate value

Definition at line 800 of file LArTwoDSlidingFitResult.cc.

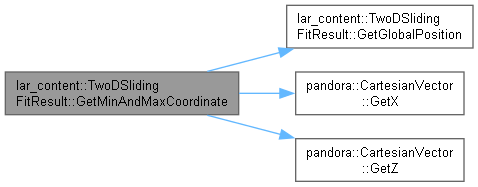

Here is the call graph for this function:

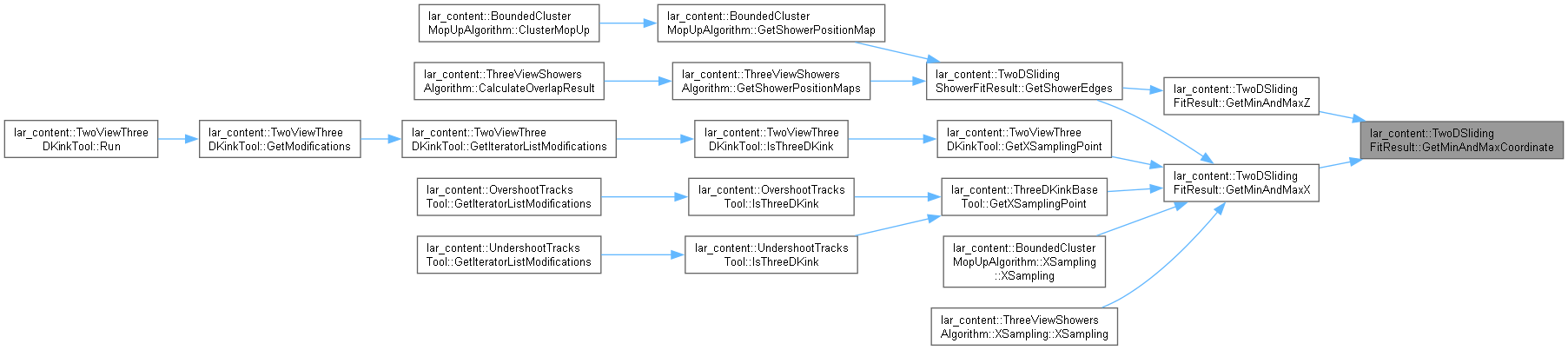

Here is the caller graph for this function:

◆ GetMinAndMaxX()

void lar_content::TwoDSlidingFitResult::GetMinAndMaxX	(	float &	minX,
		float &	maxX
	)		const

inline

Get the minimum and maximum x coordinates associated with the sliding fit.

Parameters

to	receive the min x value
to	receive the max x value

Definition at line 612 of file LArTwoDSlidingFitResult.h.

Here is the call graph for this function:

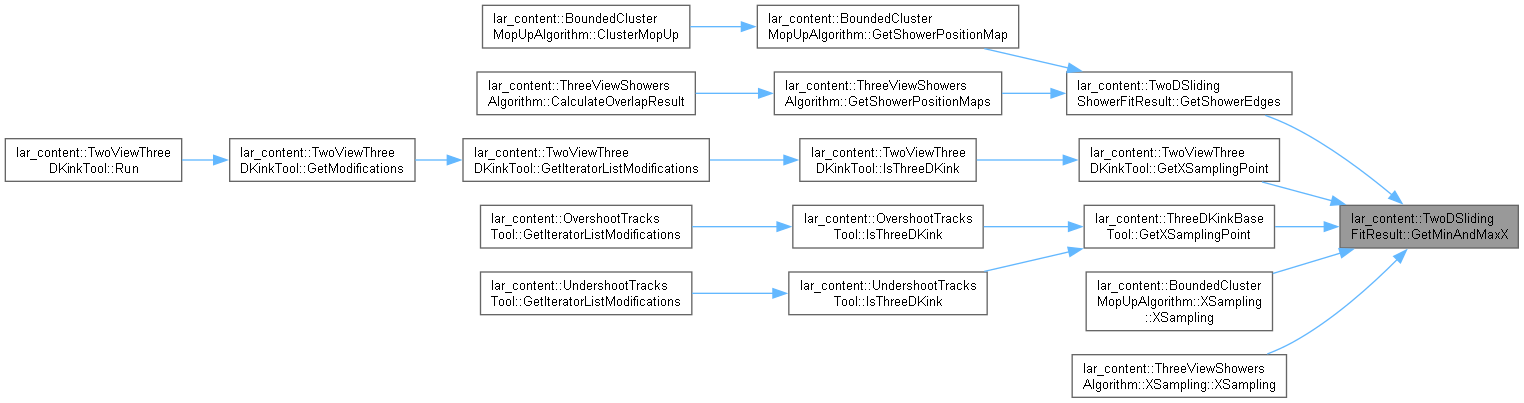

Here is the caller graph for this function:

◆ GetMinAndMaxZ()

void lar_content::TwoDSlidingFitResult::GetMinAndMaxZ	(	float &	minZ,
		float &	maxZ
	)		const

inline

Get the minimum and maximum z coordinates associated with the sliding fit.

Parameters

to	receive the min z value
to	receive the max z value

Definition at line 619 of file LArTwoDSlidingFitResult.h.

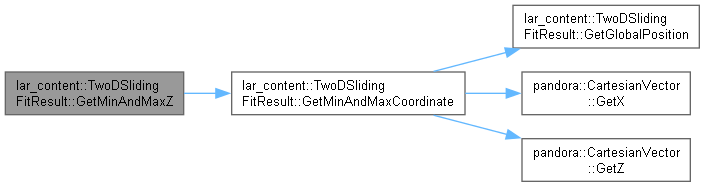

Here is the call graph for this function:

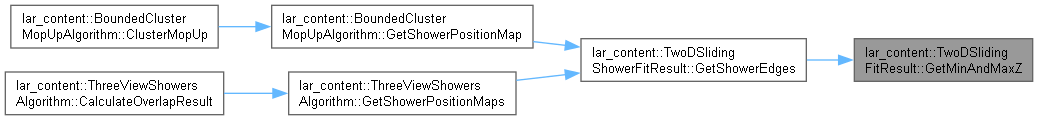

Here is the caller graph for this function:

◆ GetMinLayer()

int lar_content::TwoDSlidingFitResult::GetMinLayer ( ) const

Get the minimum occupied layer in the sliding fit.

Parameters

the	minimum occupied layer in the sliding fit

Definition at line 160 of file LArTwoDSlidingFitResult.cc.

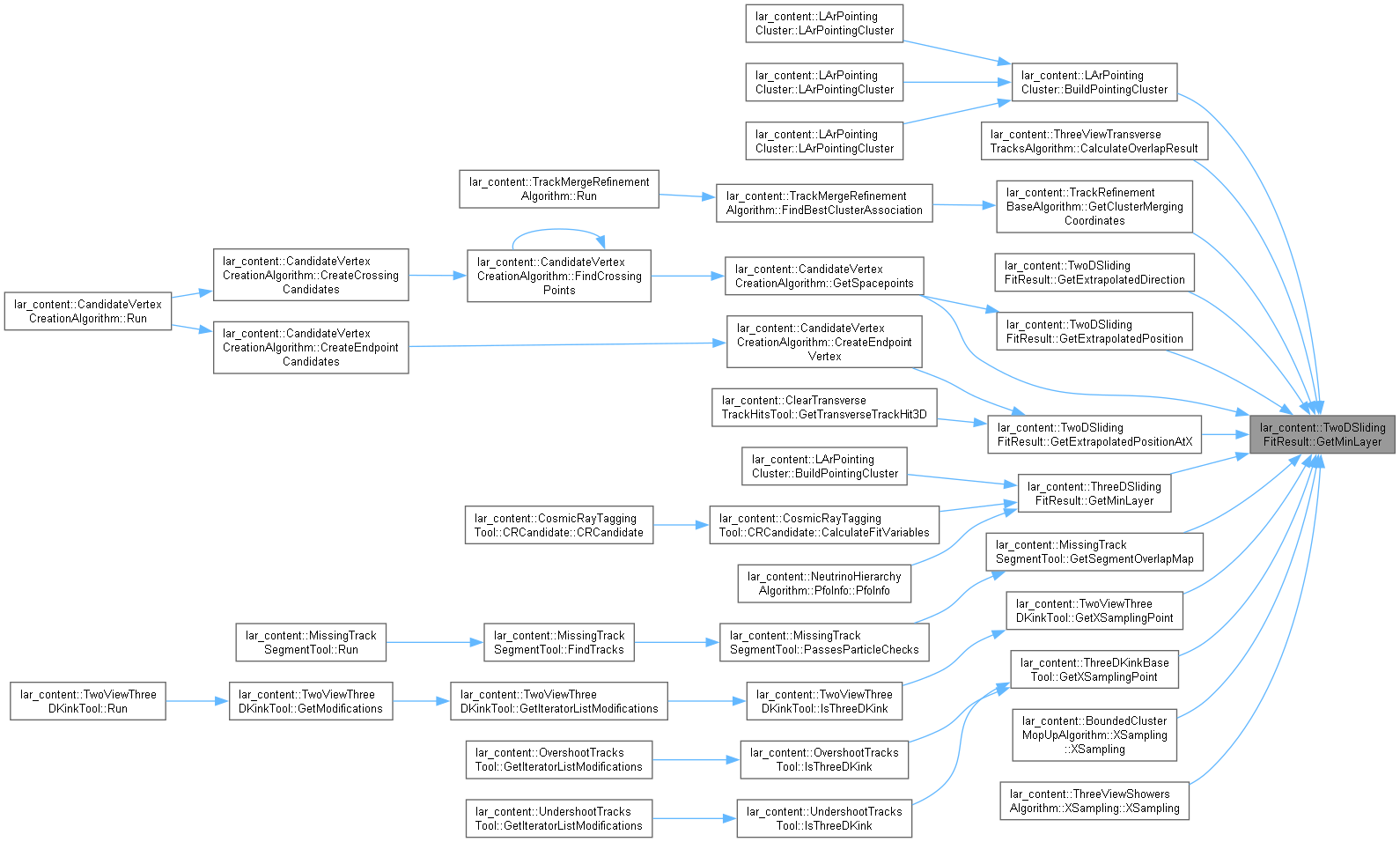

Here is the caller graph for this function:

◆ GetMinLayerRms()

float lar_content::TwoDSlidingFitResult::GetMinLayerRms ( ) const

Get rms at minimum layer.

Returns: the rms

Definition at line 291 of file LArTwoDSlidingFitResult.cc.

Here is the caller graph for this function:

◆ GetOrthoDirection()

const pandora::CartesianVector & lar_content::TwoDSlidingFitResult::GetOrthoDirection ( ) const

inline

Get the orthogonal direction vector.

Returns: the orthogonal direction vector

Definition at line 584 of file LArTwoDSlidingFitResult.h.

Here is the caller graph for this function:

◆ GetTransverseInterpolationWeights()

void lar_content::TwoDSlidingFitResult::GetTransverseInterpolationWeights	(	const float	x,
		const LayerFitResultMap::const_iterator &	firstLayerIter,
		const LayerFitResultMap::const_iterator &	secondLayerIter,
		double &	firstWeight,
		double &	secondWeight
	)		const

private

Get interpolation weights for layers surrounding a specified transverse position.

Parameters

x	the transverse coordinate
firstLayerIter	the iterator for the layer below the input coordinate
secondLayerIter	the iterator for the layer above the input coordinate
firstWeight	the weight assigned to the layer below the input coordinate
firstWeight	the weight assigned to the layer above the input coordinate

Definition at line 1125 of file LArTwoDSlidingFitResult.cc.

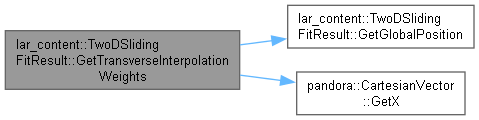

Here is the call graph for this function:

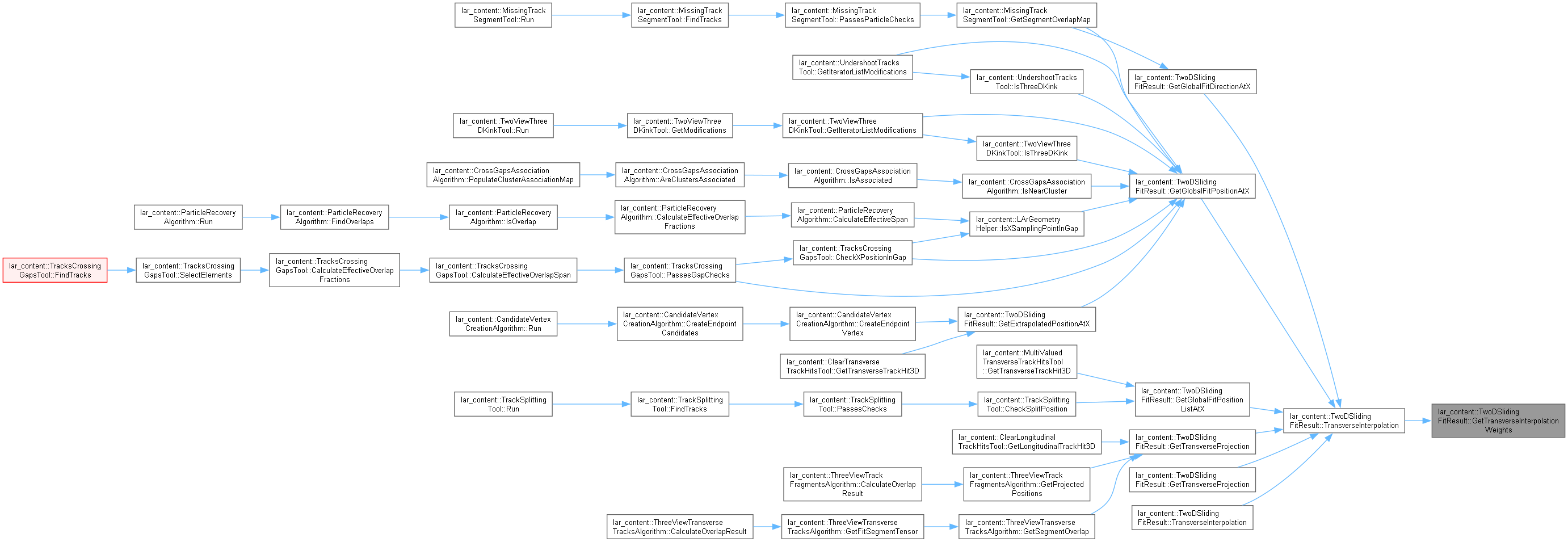

Here is the caller graph for this function:

◆ GetTransverseProjection() [1/2]

StatusCode lar_content::TwoDSlidingFitResult::GetTransverseProjection	(	const float	x,
		const FitSegment &	fitSegment,
		pandora::CartesianVector &	position
	)		const

Get projected position for a given input x coordinate and fit segment.

Parameters

x	the input x coordinate
fitSegment	the portion of sliding linear fit
position	the output position

Returns: status code, faster than throwing in regular use-cases

Definition at line 436 of file LArTwoDSlidingFitResult.cc.

Here is the call graph for this function:

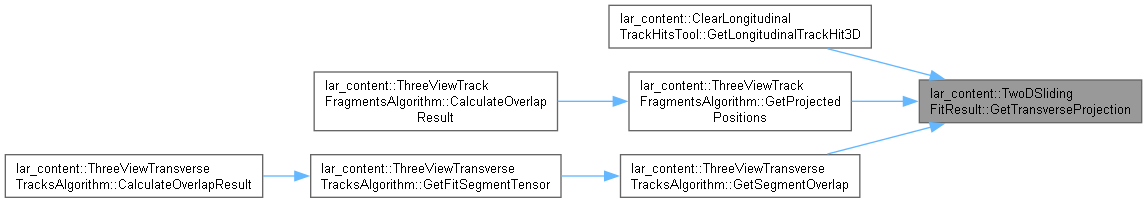

Here is the caller graph for this function:

◆ GetTransverseProjection() [2/2]

StatusCode lar_content::TwoDSlidingFitResult::GetTransverseProjection	(	const float	x,
		const FitSegment &	fitSegment,
		pandora::CartesianVector &	position,
		pandora::CartesianVector &	direction
	)		const

Get projected position and direction for a given input x coordinate and fit segment.

Parameters

x	the input x coordinate
fitSegment	the portion of sliding linear fit
position	the output position
position	the output direction

Returns: status code, faster than throwing in regular use-cases

Definition at line 450 of file LArTwoDSlidingFitResult.cc.

Here is the call graph for this function:

◆ GetTransverseSurroundingLayers()

StatusCode lar_content::TwoDSlidingFitResult::GetTransverseSurroundingLayers	(	const float	x,
		const int	minLayer,
		const int	maxLayer,
		LayerFitResultMap::const_iterator &	firstLayerIter,
		LayerFitResultMap::const_iterator &	secondLayerIter
	)		const

private

Get iterators for layers surrounding a specified transverse position.

Parameters

x	the transverse coordinate
minLayer	the minimum allowed layer
maxLayer	the maximum allowed layer
firstLayerIter	to receive the iterator for the layer just below the input coordinate
secondLayerIter	to receive the iterator for the layer just above the input coordinate

Returns: status code, faster than throwing in regular use-cases

Definition at line 1018 of file LArTwoDSlidingFitResult.cc.

Here is the call graph for this function:

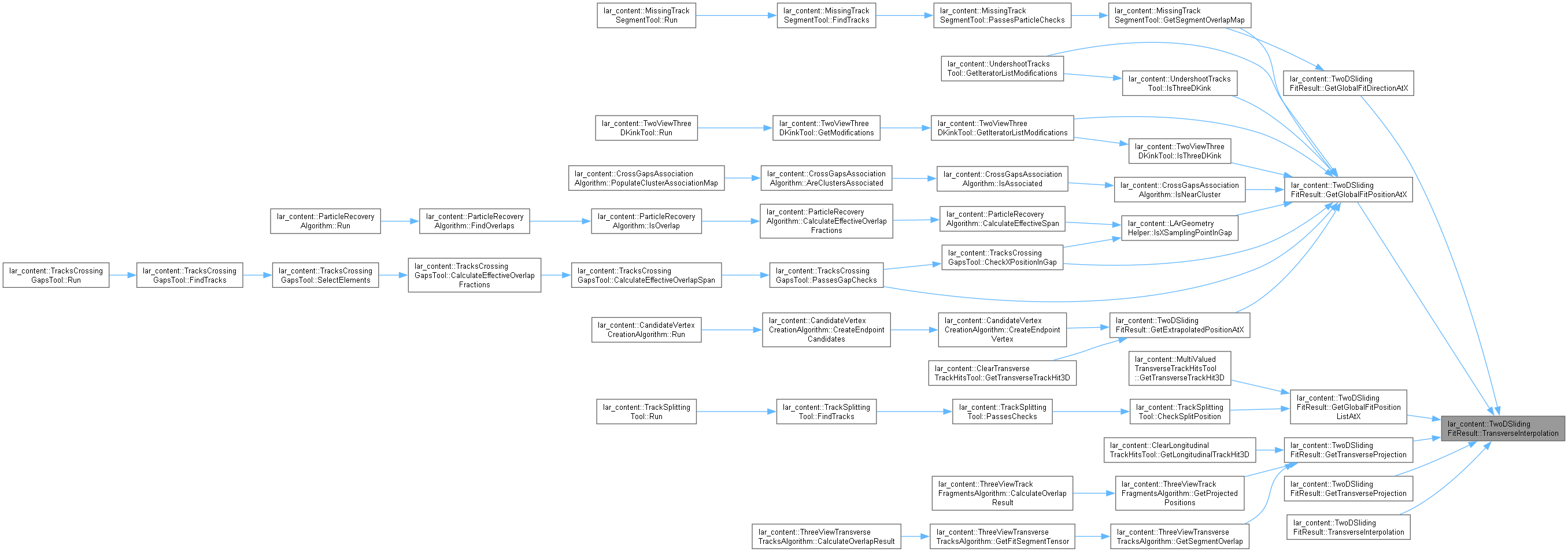

Here is the caller graph for this function:

◆ LongitudinalInterpolation()

StatusCode lar_content::TwoDSlidingFitResult::LongitudinalInterpolation	(	const float	rL,
		LayerInterpolation &	layerInterpolation
	)		const

private

Get the pair of layers surrounding a specified longitudinal position.

Parameters

rL	the longitudinal coordinate
layerInterpolation	to receive the populated layer interpolation object

Returns: status code, faster than throwing in regular use-cases

Definition at line 902 of file LArTwoDSlidingFitResult.cc.

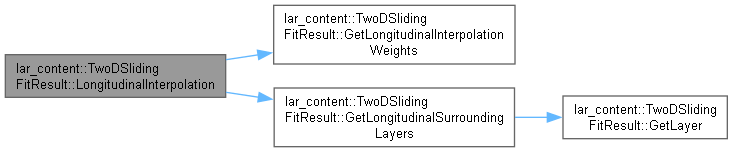

Here is the call graph for this function:

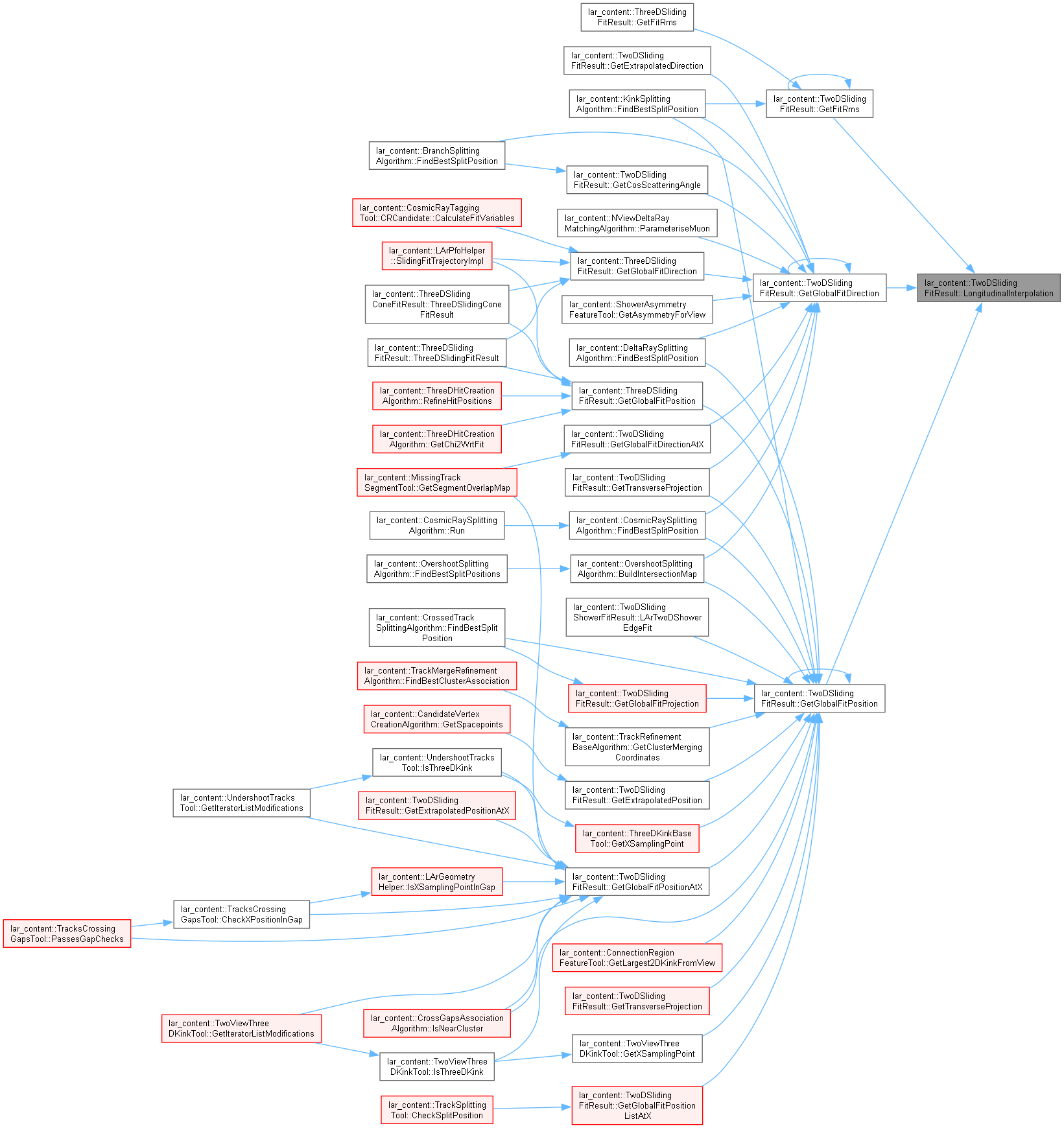

Here is the caller graph for this function:

◆ PerformSlidingLinearFit()

void lar_content::TwoDSlidingFitResult::PerformSlidingLinearFit ( )

private

Perform the sliding linear fit.

Definition at line 643 of file LArTwoDSlidingFitResult.cc.

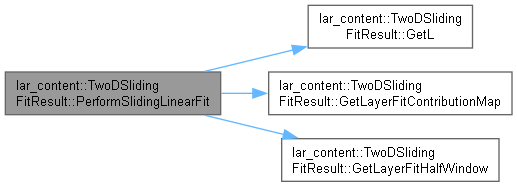

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TransverseInterpolation() [1/2]

StatusCode lar_content::TwoDSlidingFitResult::TransverseInterpolation	(	const float	x,
		const FitSegment &	fitSegment,
		LayerInterpolation &	layerInterpolation
	)		const

private

Get the surrounding pair of layers for a specified transverse position and fit segment.

Parameters

x	the input coordinate
fitSegment	the fit segment
layerInterpolation	to receive the populated layer interpolation object

Returns: status code, faster than throwing in regular use-cases

Definition at line 920 of file LArTwoDSlidingFitResult.cc.

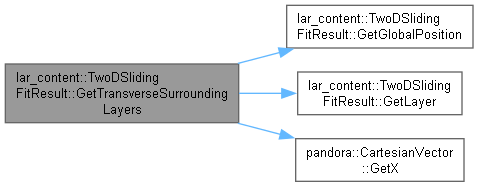

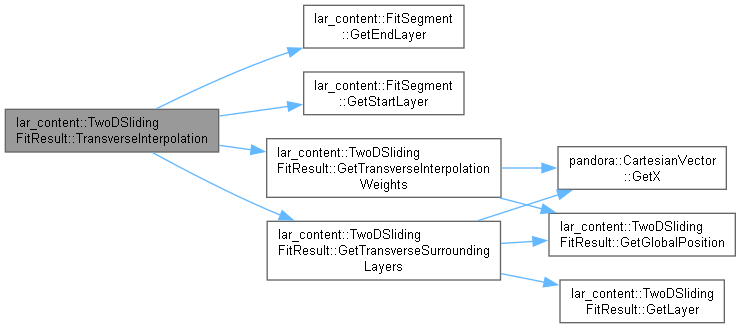

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TransverseInterpolation() [2/2]

StatusCode lar_content::TwoDSlidingFitResult::TransverseInterpolation	(	const float	x,
		LayerInterpolationList &	layerInterpolationList
	)		const

private

Get the a list of surrounding layer pairs for a specified transverse position.

Parameters

x	the input coordinate
layerInterpolationList	the output list of layer interpolation objects

Returns: status code, faster than throwing in regular use-cases

Definition at line 939 of file LArTwoDSlidingFitResult.cc.

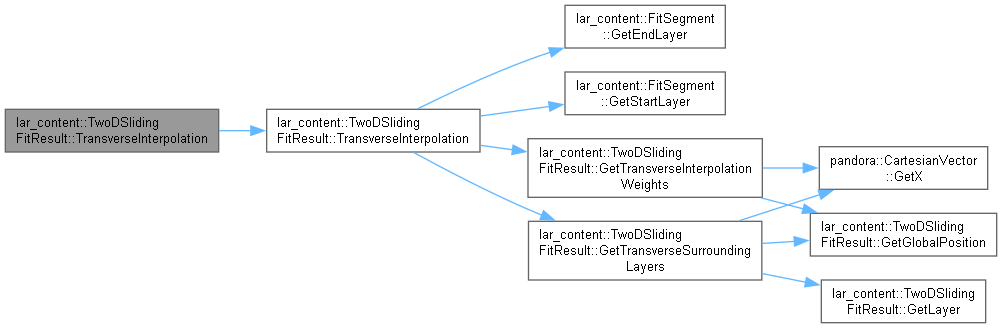

Here is the call graph for this function:

Member Data Documentation

◆ m_axisDirection

pandora::CartesianVector lar_content::TwoDSlidingFitResult::m_axisDirection

private

The axis direction vector.

Definition at line 543 of file LArTwoDSlidingFitResult.h.

◆ m_axisIntercept

pandora::CartesianVector lar_content::TwoDSlidingFitResult::m_axisIntercept

private

The axis intercept position.

Definition at line 542 of file LArTwoDSlidingFitResult.h.

◆ m_fitSegmentList

FitSegmentList lar_content::TwoDSlidingFitResult::m_fitSegmentList

private

The fit segment list.

Definition at line 547 of file LArTwoDSlidingFitResult.h.

◆ m_layerFitContributionMap

LayerFitContributionMap lar_content::TwoDSlidingFitResult::m_layerFitContributionMap

private

The layer fit contribution map.

Definition at line 546 of file LArTwoDSlidingFitResult.h.

◆ m_layerFitHalfWindow

unsigned int lar_content::TwoDSlidingFitResult::m_layerFitHalfWindow

private

The layer fit half window.

Definition at line 540 of file LArTwoDSlidingFitResult.h.

◆ m_layerFitResultMap

LayerFitResultMap lar_content::TwoDSlidingFitResult::m_layerFitResultMap

private

The layer fit result map.

Definition at line 545 of file LArTwoDSlidingFitResult.h.

◆ m_layerPitch

float lar_content::TwoDSlidingFitResult::m_layerPitch

private

The layer pitch, units cm.

Definition at line 541 of file LArTwoDSlidingFitResult.h.

◆ m_orthoDirection

pandora::CartesianVector lar_content::TwoDSlidingFitResult::m_orthoDirection

private

The orthogonal direction vector.

Definition at line 544 of file LArTwoDSlidingFitResult.h.

◆ m_pCluster

const pandora::Cluster* lar_content::TwoDSlidingFitResult::m_pCluster

private

The address of the cluster.

Definition at line 539 of file LArTwoDSlidingFitResult.h.

The documentation for this class was generated from the following files:

LArContent/larpandoracontent/LArObjects/LArTwoDSlidingFitResult.h
LArContent/larpandoracontent/LArObjects/LArTwoDSlidingFitResult.cc

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ TwoDSlidingFitResult() [1/7]

◆ TwoDSlidingFitResult() [2/7]

◆ TwoDSlidingFitResult() [3/7]

◆ TwoDSlidingFitResult() [4/7]

◆ TwoDSlidingFitResult() [5/7]

◆ TwoDSlidingFitResult() [6/7]

◆ TwoDSlidingFitResult() [7/7]

Member Function Documentation

◆ CalculateAxes()

◆ FillLayerFitContributionMap()

◆ FindSlidingFitSegments()

◆ GetAxisDirection()

◆ GetAxisIntercept()

◆ GetCluster()

◆ GetCosScatteringAngle()

◆ GetExtrapolatedDirection()

◆ GetExtrapolatedPosition()

◆ GetExtrapolatedPositionAtX()

◆ GetFitRms() [1/2]

◆ GetFitRms() [2/2]

◆ GetFitSegment()

◆ GetFitSegmentList()

◆ GetGlobalDirection()

◆ GetGlobalFitDirection() [1/2]

◆ GetGlobalFitDirection() [2/2]

◆ GetGlobalFitDirectionAtX()

◆ GetGlobalFitPosition() [1/2]

◆ GetGlobalFitPosition() [2/2]

◆ GetGlobalFitPositionAtX()

◆ GetGlobalFitPositionListAtX()

◆ GetGlobalFitProjection()

◆ GetGlobalMaxLayerDirection()

◆ GetGlobalMaxLayerPosition()

◆ GetGlobalMinLayerDirection()

◆ GetGlobalMinLayerPosition()

◆ GetGlobalPosition()

◆ GetL()

◆ GetLayer()

◆ GetLayerFitContributionMap()

◆ GetLayerFitHalfWindow()

◆ GetLayerFitHalfWindowLength()

◆ GetLayerFitResultMap()

◆ GetLayerPitch()

◆ GetLocalDirection()

◆ GetLocalPosition()

◆ GetLongitudinalInterpolationWeights()

◆ GetLongitudinalSurroundingLayers()

◆ GetMaxLayer()

◆ GetMaxLayerRms()

◆ GetMinAndMaxCoordinate()

◆ GetMinAndMaxX()

◆ GetMinAndMaxZ()

◆ GetMinLayer()

◆ GetMinLayerRms()

◆ GetOrthoDirection()

◆ GetTransverseInterpolationWeights()

◆ GetTransverseProjection() [1/2]

◆ GetTransverseProjection() [2/2]

◆ GetTransverseSurroundingLayers()

◆ LongitudinalInterpolation()

◆ PerformSlidingLinearFit()

◆ TransverseInterpolation() [1/2]

◆ TransverseInterpolation() [2/2]

Member Data Documentation

◆ m_axisDirection

◆ m_axisIntercept

◆ m_fitSegmentList

◆ m_layerFitContributionMap

◆ m_layerFitHalfWindow

◆ m_layerFitResultMap

◆ m_layerPitch

◆ m_orthoDirection

◆ m_pCluster
