#include "CaloHit.h"

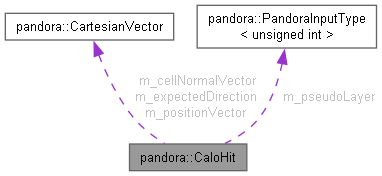

Collaboration diagram for pandora::CaloHit:

[legend]

Public Member Functions
const CartesianVector &	GetPositionVector () const
	Get the position vector of center of calorimeter cell, units mm.

float	GetX0 () const
	For LArTPC usage, the x-coordinate shift associated with a drift time t0 shift, units mm.

const CartesianVector &	GetExpectedDirection () const
	Get the unit vector in direction of expected hit propagation.

const CartesianVector &	GetCellNormalVector () const
	Get the unit vector normal to the sampling layer, pointing outwards from the origin.

CellGeometry	GetCellGeometry () const
	Get the cell geometry.

float	GetCellSize0 () const
	Get the cell size 0 [pointing: eta, rectangular: up in ENDCAP, along beam in BARREL, units mm].

float	GetCellSize1 () const
	Get the cell size 1 [pointing: phi, rectangular: perpendicular to size 0 and thickness, units mm].

float	GetCellThickness () const
	Get the thickness of cell, units mm.

float	GetNCellRadiationLengths () const
	Get the absorber material in front of cell, units radiation lengths.

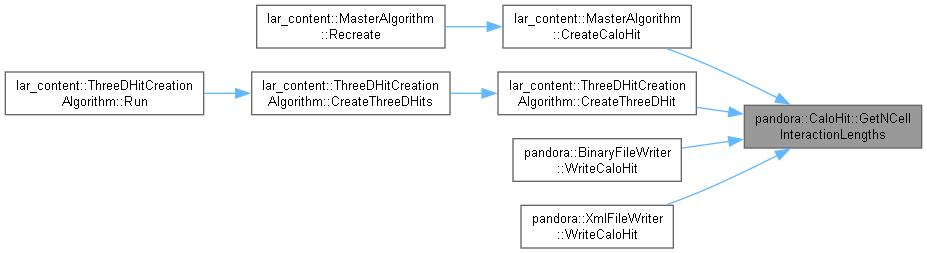

float	GetNCellInteractionLengths () const
	Get the absorber material in front of cell, units interaction lengths.

float	GetInputEnergy () const
	Get the corrected energy of the calorimeter cell, units GeV, as supplied by the user.

float	GetTime () const
	Get the time of (earliest) energy deposition in this cell, units ns.

bool	IsDigital () const
	Whether cell should be treated as digital.

HitType	GetHitType () const
	Get the calorimeter hit type.

HitRegion	GetHitRegion () const
	Get the region of the detector in which the calo hit is located.

unsigned int	GetLayer () const
	Get the subdetector readout layer number.

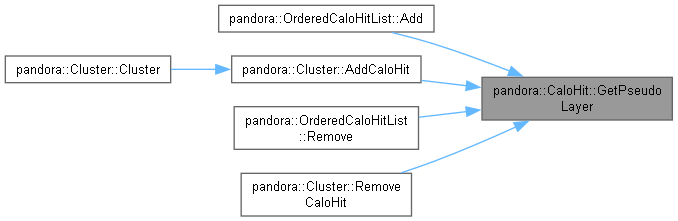

unsigned int	GetPseudoLayer () const
	Get pseudo layer for the calo hit.

bool	IsInOuterSamplingLayer () const
	Whether cell is in one of the outermost detector sampling layers.

float	GetMipEquivalentEnergy () const
	Get the calibrated mip equivalent energy.

float	GetElectromagneticEnergy () const
	Get the calibrated electromagnetic energy measure.

float	GetHadronicEnergy () const
	Get the calibrated hadronic energy measure.

float	GetCellLengthScale () const
	Get the typical length scale of cell, units mm.

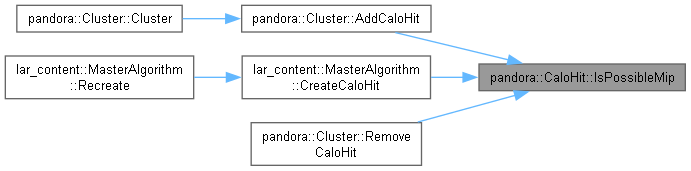

bool	IsPossibleMip () const
	Whether the calo hit is flagged as a possible mip hit.

bool	IsIsolated () const
	Whether the calo hit is flagged as isolated.

float	GetWeight () const
	Get the calo hit weight, which may not be unity if the hit has been fragmented.

const MCParticleWeightMap &	GetMCParticleWeightMap () const
	Get mc particle weight map for the calo hit.

const void *	GetParentAddress () const
	Get the address of the parent calo hit in the user framework.

void	GetCellCorners (CartesianPointVector &cartesianPointVector) const
	Get the list of cartesian coordinates for the cell corners.

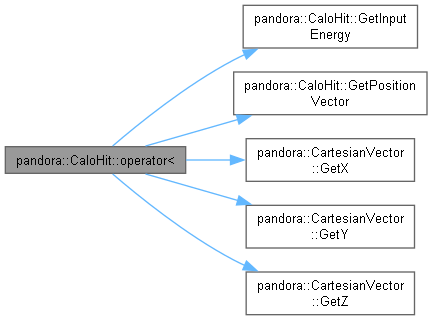

bool	operator< (const CaloHit &rhs) const
	operator< sorting by position, then energy

Protected Member Functions
	CaloHit (const object_creation::CaloHit::Parameters &parameters)
	Constructor.

	CaloHit (const object_creation::CaloHitFragment::Parameters &parameters)
	Weighted copy constructor.

virtual	~CaloHit ()
	Destructor.

StatusCode	AlterMetadata (const object_creation::CaloHit::Metadata &metadata)
	Alter the metadata information stored in a calo hit.

StatusCode	SetPseudoLayer (const unsigned int pseudoLayer)
	Set the mc pseudo layer for the calo hit.

void	SetMCParticleWeightMap (const MCParticleWeightMap &mcParticleWeightMap)
	Set the mc particles associated with the calo hit.

void	RemoveMCParticles ()
	Remove the mc particles associated with the calo hit.

float	CalculateCellLengthScale () const
	Calculate the typical length scale of the cell, units mm.

void	GetRectangularCellCorners (CartesianPointVector &cartesianPointVector) const
	Get the list of cartesian coordinates for rectangular cell corners.

void	GetPointingCellCorners (CartesianPointVector &cartesianPointVector) const
	Get the list of cartesian coordinates for pointing cell corners.

bool	IsAvailable () const
	Whether the calo hit is available to be added to a cluster (access this function via PandoraContentAPI)

void	SetAvailability (bool isAvailable)
	Set availability of calo hit to be added to a cluster.

Protected Attributes
CartesianVector	m_positionVector
	Position vector of center of calorimeter cell, units mm.

float	m_x0
	For LArTPC usage, the x-coordinate shift associated with a drift time t0 shift, units mm.

const CartesianVector	m_expectedDirection
	Unit vector in direction of expected hit propagation.

const CartesianVector	m_cellNormalVector
	Unit normal to the sampling layer, pointing outwards from the origin.

const CellGeometry	m_cellGeometry
	The cell geometry type, pointing or rectangular.

const float	m_cellSize0
	Cell size 0 [pointing: pseudo rapidity, eta, rectangular: up in ENDCAP, along beam in BARREL, units mm].

const float	m_cellSize1
	Cell size 1 [pointing: azimuthal angle, phi, rectangular: perpendicular to size 0 and thickness, units mm].

const float	m_cellThickness
	Thickness of cell, units mm.

const float	m_nCellRadiationLengths
	Absorber material in front of cell, units radiation lengths.

const float	m_nCellInteractionLengths
	Absorber material in front of cell, units interaction lengths.

const float	m_time
	Time of (earliest) energy deposition in this cell, units ns.

const float	m_inputEnergy
	Corrected energy of calorimeter cell in user framework, units GeV.

const float	m_mipEquivalentEnergy
	The calibrated mip equivalent energy, units mip.

const float	m_electromagneticEnergy
	The calibrated electromagnetic energy measure, units GeV.

const float	m_hadronicEnergy
	The calibrated hadronic energy measure, units GeV.

const bool	m_isDigital
	Whether cell should be treated as digital (implies constant cell energy)

const HitType	m_hitType
	The type of calorimeter hit.

const HitRegion	m_hitRegion
	Region of the detector in which the calo hit is located.

const unsigned int	m_layer
	The subdetector readout layer number.

InputUInt	m_pseudoLayer
	The pseudo layer to which the calo hit has been assigned.

const bool	m_isInOuterSamplingLayer
	Whether cell is in one of the outermost detector sampling layers.

float	m_cellLengthScale
	Typical length scale [pointing: measured at cell mid-point, rectangular: std::sqrt(cellSize0 * cellSize1), units mm ].

bool	m_isPossibleMip
	Whether the calo hit is a possible mip hit.

bool	m_isIsolated
	Whether the calo hit is isolated.

bool	m_isAvailable
	Whether the calo hit is available to be added to a cluster.

float	m_weight
	The calo hit weight, which may not be unity if the hit has been fragmented.

MCParticleWeightMap	m_mcParticleWeightMap
	The mc particle weight map.

const void *	m_pParentAddress
	The address of the parent calo hit in the user framework.

Friends
class	CaloHitMetadata

class	CaloHitManager

class	InputObjectManager< CaloHit >

class	PandoraObjectFactory< object_creation::CaloHit::Parameters, object_creation::CaloHit::Object >

class	PandoraObjectFactory< object_creation::CaloHitFragment::Parameters, object_creation::CaloHitFragment::Object >

Detailed Description

CaloHit class.

Definition at line 25 of file CaloHit.h.

Constructor & Destructor Documentation

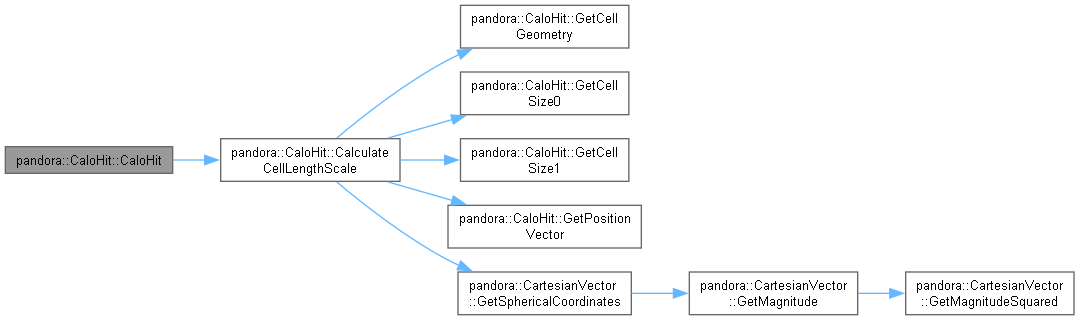

◆ CaloHit() [1/2]

pandora::CaloHit::CaloHit ( const object_creation::CaloHit::Parameters & parameters )

protected

Constructor.

Parameters

parameters the calo hit parameters

Definition at line 52 of file CaloHit.cc.

Here is the call graph for this function:

◆ CaloHit() [2/2]

pandora::CaloHit::CaloHit ( const object_creation::CaloHitFragment::Parameters & parameters )

protected

Weighted copy constructor.

Parameters

parameters the calo hit fragmentation parameters

Definition at line 85 of file CaloHit.cc.

◆ ~CaloHit()

pandora::CaloHit::~CaloHit ( )

protectedvirtual

Destructor.

Definition at line 121 of file CaloHit.cc.

Member Function Documentation

◆ AlterMetadata()

StatusCode pandora::CaloHit::AlterMetadata ( const object_creation::CaloHit::Metadata & metadata )

protected

Alter the metadata information stored in a calo hit.

Parameters

metaData the metadata (only populated metadata fields will be propagated to the object)

Definition at line 127 of file CaloHit.cc.

Here is the caller graph for this function:

◆ CalculateCellLengthScale()

float pandora::CaloHit::CalculateCellLengthScale ( ) const

protected

Calculate the typical length scale of the cell, units mm.

Returns: the typical length scale of cell

Definition at line 171 of file CaloHit.cc.

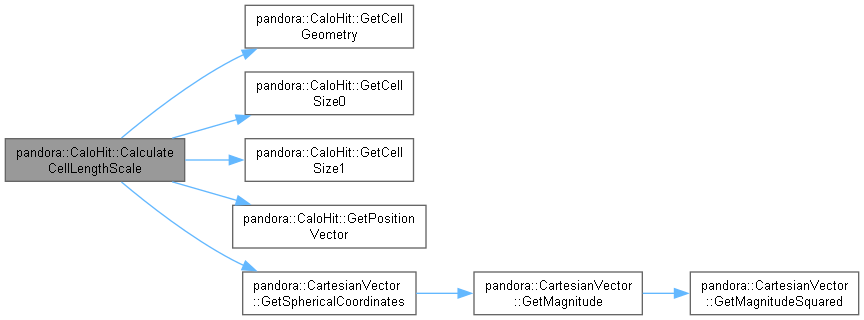

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetCellCorners()

void pandora::CaloHit::GetCellCorners ( CartesianPointVector & cartesianPointVector ) const

Get the list of cartesian coordinates for the cell corners.

Parameters

cartesianPointVector to receive the cartesian coordinates of the cell corners

Definition at line 16 of file CaloHit.cc.

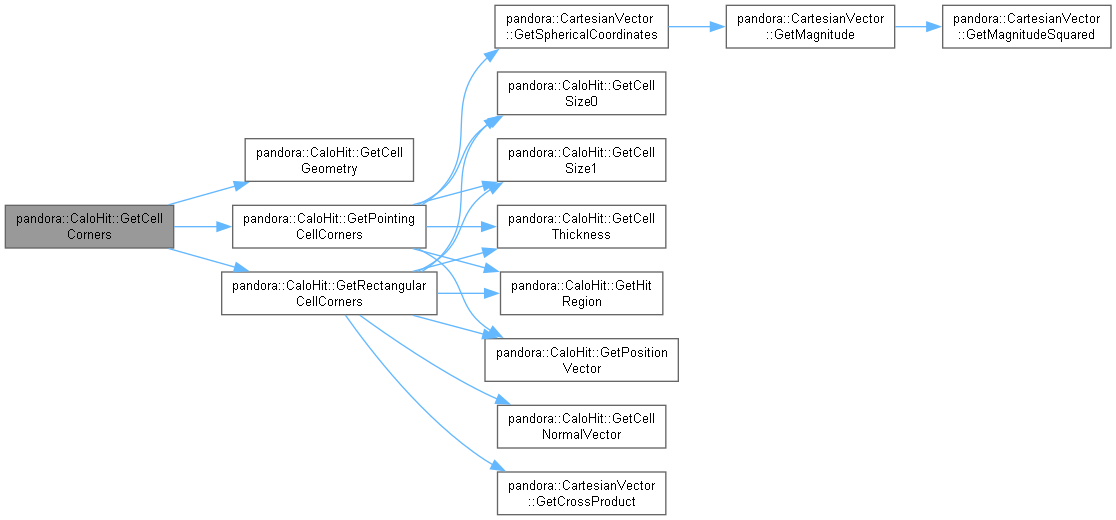

Here is the call graph for this function:

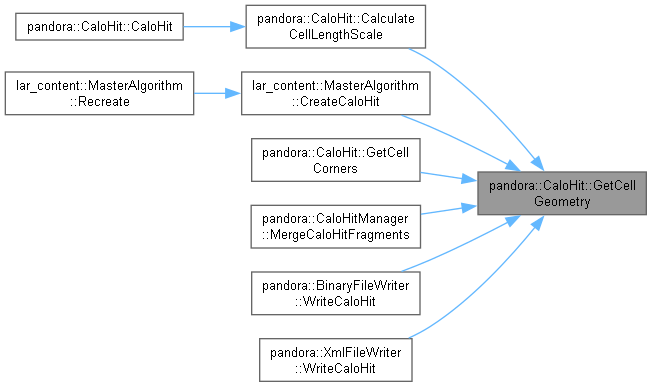

◆ GetCellGeometry()

CellGeometry pandora::CaloHit::GetCellGeometry ( ) const

inline

Get the cell geometry.

Returns: the cell geometry

Definition at line 378 of file CaloHit.h.

Here is the caller graph for this function:

◆ GetCellLengthScale()

float pandora::CaloHit::GetCellLengthScale ( ) const

inline

Get the typical length scale of cell, units mm.

Returns: the typical length scale of cell

Definition at line 497 of file CaloHit.h.

Here is the caller graph for this function:

◆ GetCellNormalVector()

const CartesianVector & pandora::CaloHit::GetCellNormalVector ( ) const

inline

Get the unit vector normal to the sampling layer, pointing outwards from the origin.

Returns: the normal vector

Definition at line 371 of file CaloHit.h.

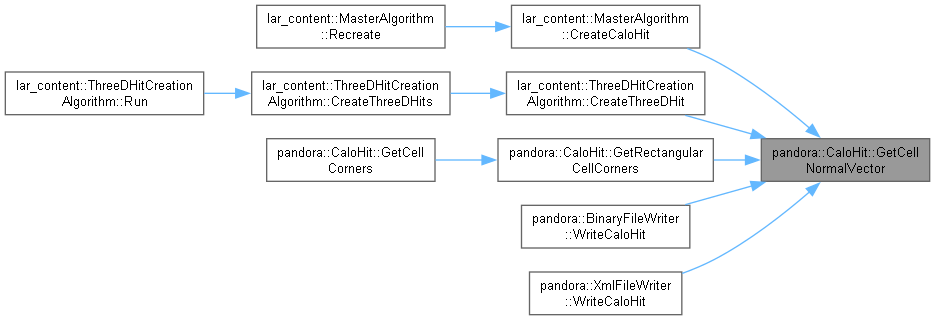

Here is the caller graph for this function:

◆ GetCellSize0()

float pandora::CaloHit::GetCellSize0 ( ) const

inline

Get the cell size 0 [pointing: eta, rectangular: up in ENDCAP, along beam in BARREL, units mm].

Returns: the cell size 0

Definition at line 385 of file CaloHit.h.

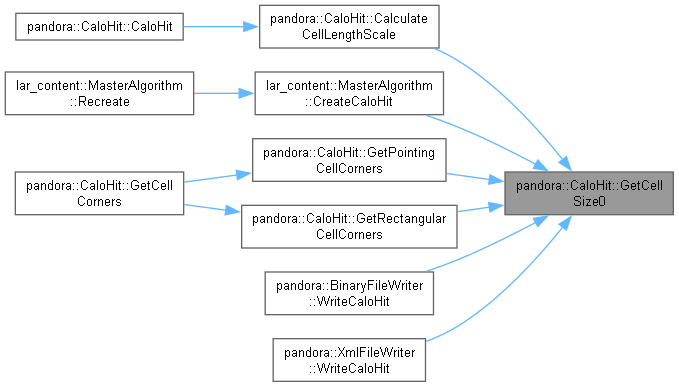

Here is the caller graph for this function:

◆ GetCellSize1()

float pandora::CaloHit::GetCellSize1 ( ) const

inline

Get the cell size 1 [pointing: phi, rectangular: perpendicular to size 0 and thickness, units mm].

Returns: the cell size 1

Definition at line 392 of file CaloHit.h.

Here is the caller graph for this function:

◆ GetCellThickness()

float pandora::CaloHit::GetCellThickness ( ) const

inline

Get the thickness of cell, units mm.

Returns: the thickness of cell

Definition at line 399 of file CaloHit.h.

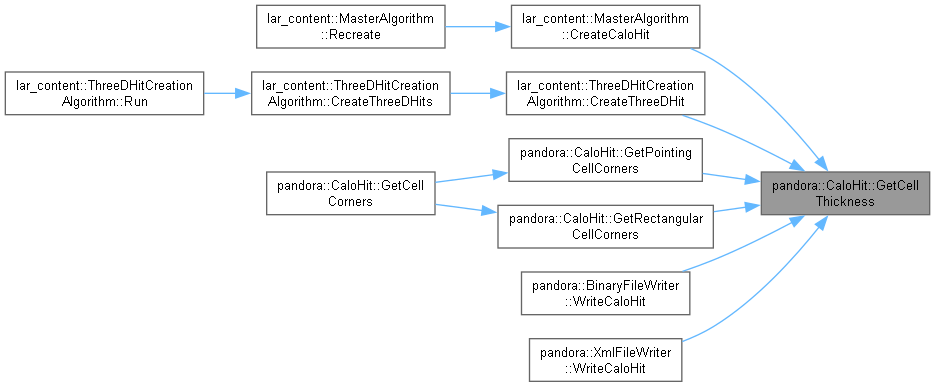

Here is the caller graph for this function:

◆ GetElectromagneticEnergy()

float pandora::CaloHit::GetElectromagneticEnergy ( ) const

inline

Get the calibrated electromagnetic energy measure.

Returns: the calibrated electromagnetic energy

Definition at line 483 of file CaloHit.h.

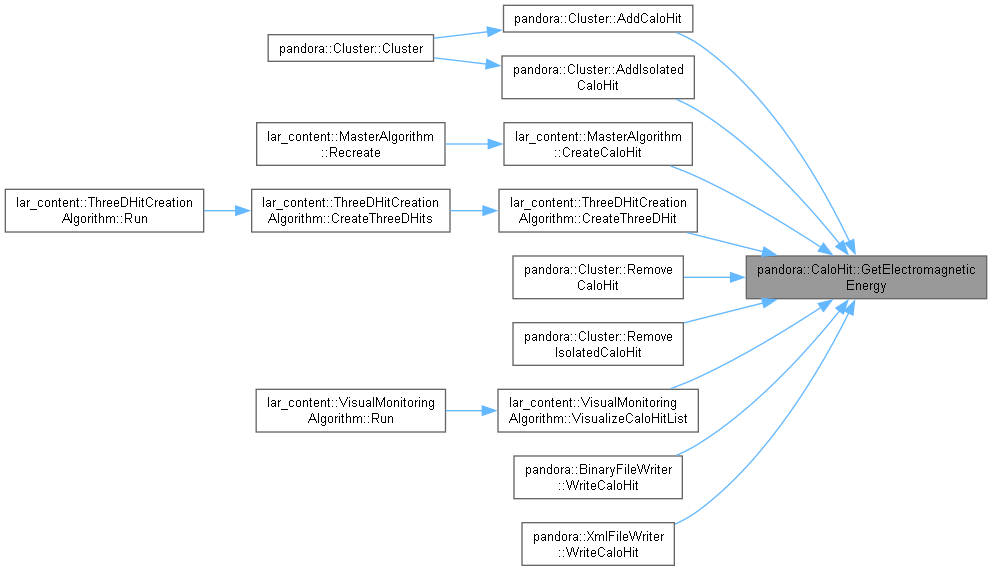

Here is the caller graph for this function:

◆ GetExpectedDirection()

const CartesianVector & pandora::CaloHit::GetExpectedDirection ( ) const

inline

Get the unit vector in direction of expected hit propagation.

Returns: the expected direction

Definition at line 364 of file CaloHit.h.

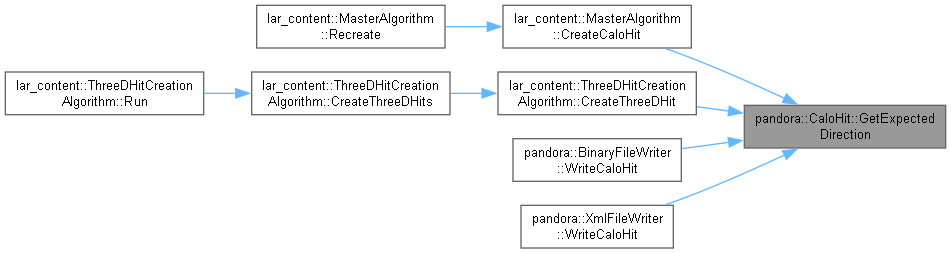

Here is the caller graph for this function:

◆ GetHadronicEnergy()

float pandora::CaloHit::GetHadronicEnergy ( ) const

inline

Get the calibrated hadronic energy measure.

Returns: the calibrated hadronic energy

Definition at line 490 of file CaloHit.h.

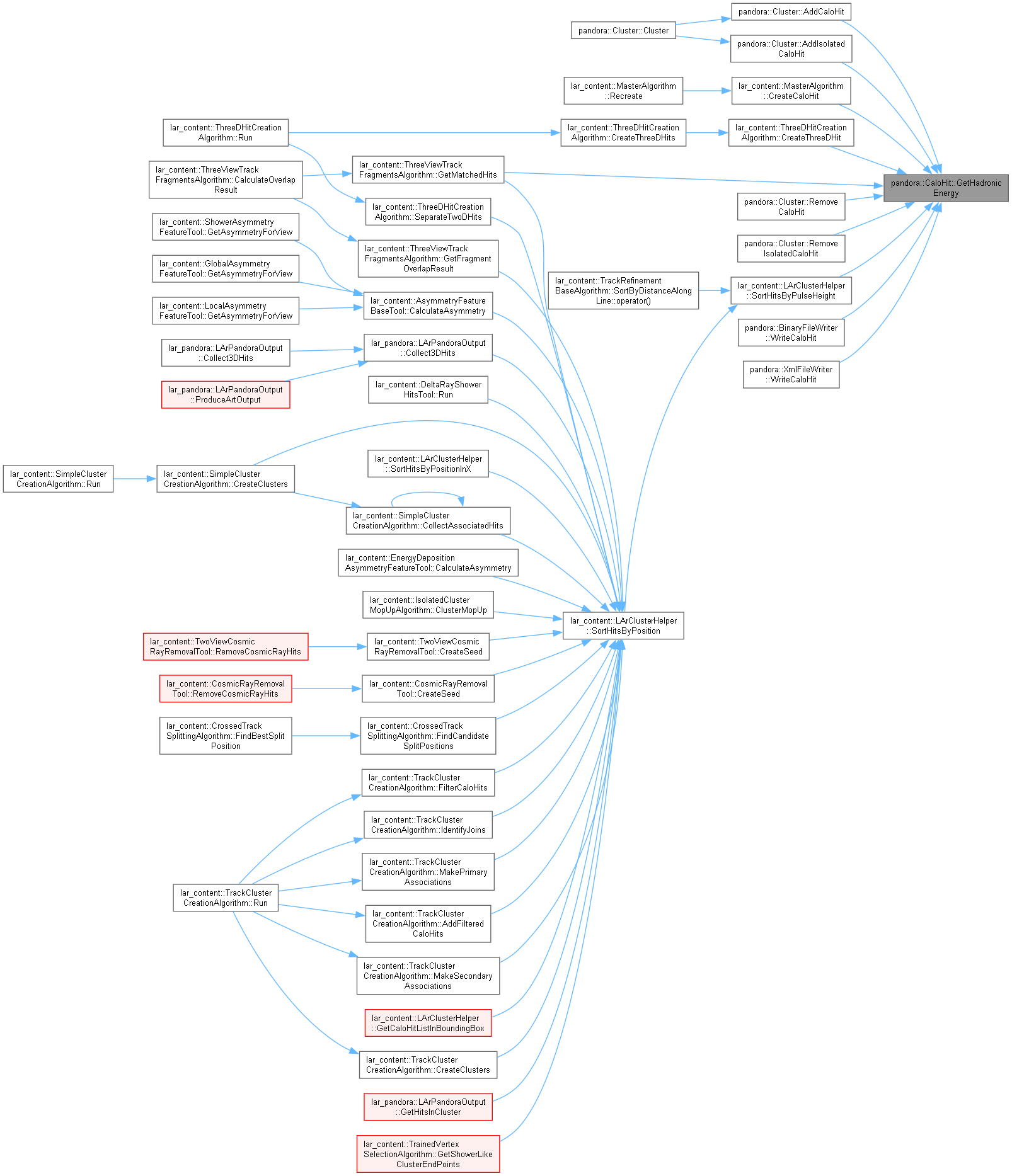

Here is the caller graph for this function:

◆ GetHitRegion()

HitRegion pandora::CaloHit::GetHitRegion ( ) const

inline

Get the region of the detector in which the calo hit is located.

Returns: the detector region

Definition at line 448 of file CaloHit.h.

Here is the caller graph for this function:

◆ GetHitType()

HitType pandora::CaloHit::GetHitType ( ) const

inline

Get the calorimeter hit type.

Returns: the calorimeter hit type

Definition at line 441 of file CaloHit.h.

Here is the caller graph for this function:

◆ GetInputEnergy()

float pandora::CaloHit::GetInputEnergy ( ) const

inline

Get the corrected energy of the calorimeter cell, units GeV, as supplied by the user.

Returns: the corrected energy of the calorimeter cell

Definition at line 420 of file CaloHit.h.

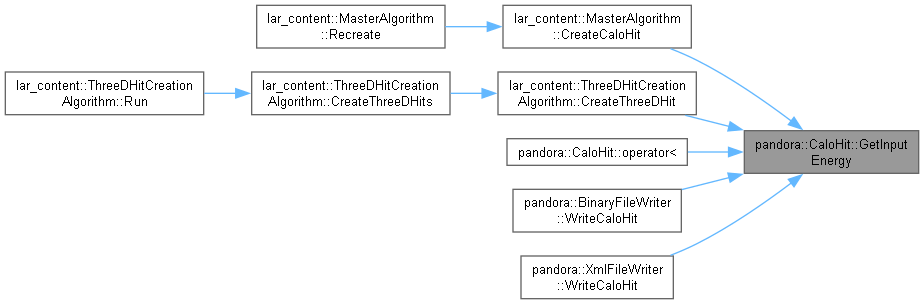

Here is the caller graph for this function:

◆ GetLayer()

unsigned int pandora::CaloHit::GetLayer ( ) const

inline

Get the subdetector readout layer number.

Returns: the subdetector readout layer number

Definition at line 455 of file CaloHit.h.

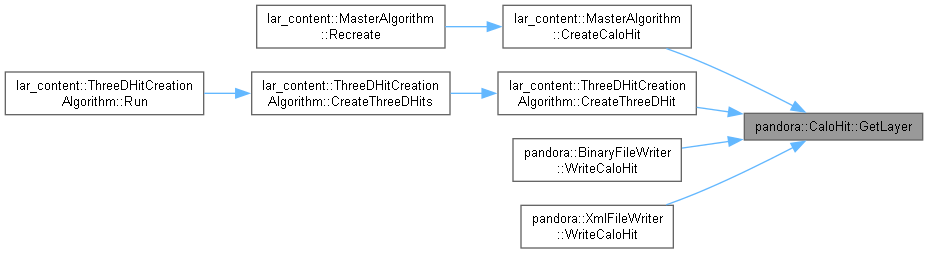

Here is the caller graph for this function:

◆ GetMCParticleWeightMap()

const MCParticleWeightMap & pandora::CaloHit::GetMCParticleWeightMap ( ) const

inline

Get mc particle weight map for the calo hit.

Returns: the mc particle weight map

Definition at line 525 of file CaloHit.h.

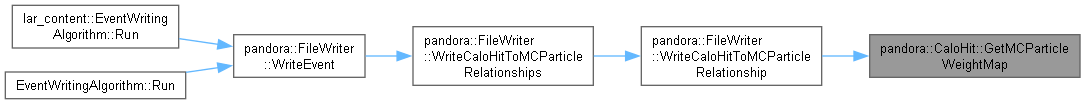

Here is the caller graph for this function:

◆ GetMipEquivalentEnergy()

float pandora::CaloHit::GetMipEquivalentEnergy ( ) const

inline

Get the calibrated mip equivalent energy.

Returns: the calibrated mip equivalent energy

Definition at line 476 of file CaloHit.h.

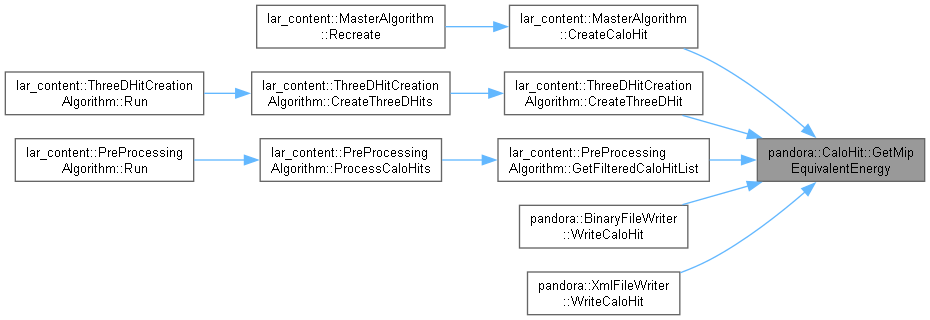

Here is the caller graph for this function:

◆ GetNCellInteractionLengths()

float pandora::CaloHit::GetNCellInteractionLengths ( ) const

inline

Get the absorber material in front of cell, units interaction lengths.

Returns: the absorber material in front of cell in interaction lengths

Definition at line 413 of file CaloHit.h.

Here is the caller graph for this function:

◆ GetNCellRadiationLengths()

float pandora::CaloHit::GetNCellRadiationLengths ( ) const

inline

Get the absorber material in front of cell, units radiation lengths.

Returns: the absorber material in front of cell in radiation lengths

Definition at line 406 of file CaloHit.h.

Here is the caller graph for this function:

◆ GetParentAddress()

const void * pandora::CaloHit::GetParentAddress ( ) const

inline

Get the address of the parent calo hit in the user framework.

Definition at line 532 of file CaloHit.h.

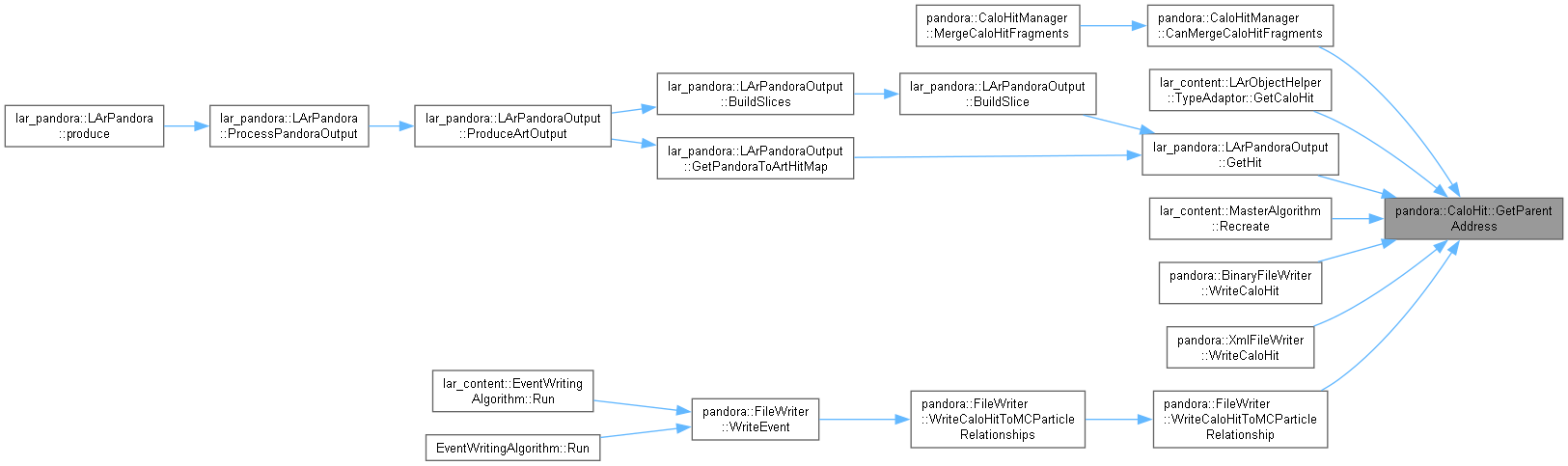

Here is the caller graph for this function:

◆ GetPointingCellCorners()

void pandora::CaloHit::GetPointingCellCorners ( CartesianPointVector & cartesianPointVector ) const

protected

Get the list of cartesian coordinates for pointing cell corners.

Parameters

cartesianPointVector to receive the cartesian coordinates of the cell corners

Definition at line 221 of file CaloHit.cc.

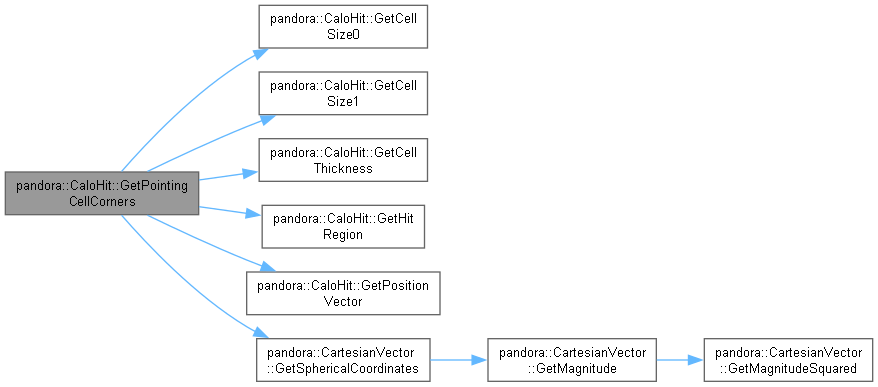

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPositionVector()

const CartesianVector & pandora::CaloHit::GetPositionVector ( ) const

inline

Get the position vector of center of calorimeter cell, units mm.

Returns: the position vector

Definition at line 350 of file CaloHit.h.

◆ GetPseudoLayer()

unsigned int pandora::CaloHit::GetPseudoLayer ( ) const

inline

Get pseudo layer for the calo hit.

Returns: the pseudo layer

Definition at line 462 of file CaloHit.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetRectangularCellCorners()

void pandora::CaloHit::GetRectangularCellCorners ( CartesianPointVector & cartesianPointVector ) const

protected

Get the list of cartesian coordinates for rectangular cell corners.

Parameters

cartesianPointVector to receive the cartesian coordinates of the cell corners

Definition at line 196 of file CaloHit.cc.

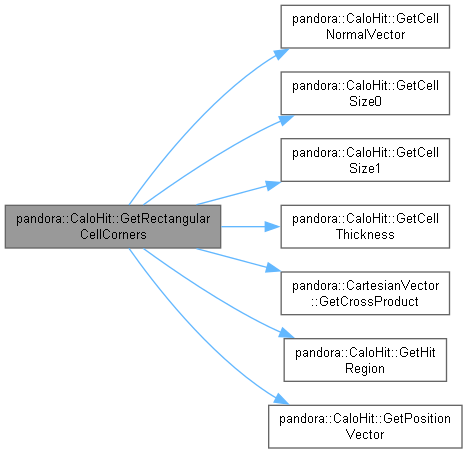

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTime()

float pandora::CaloHit::GetTime ( ) const

inline

Get the time of (earliest) energy deposition in this cell, units ns.

Returns: the time of (earliest) energy deposition in this cell

Definition at line 427 of file CaloHit.h.

Here is the caller graph for this function:

◆ GetWeight()

float pandora::CaloHit::GetWeight ( ) const

inline

Get the calo hit weight, which may not be unity if the hit has been fragmented.

Returns: the calo hit weight

Definition at line 511 of file CaloHit.h.

Here is the caller graph for this function:

◆ GetX0()

float pandora::CaloHit::GetX0 ( ) const

inline

For LArTPC usage, the x-coordinate shift associated with a drift time t0 shift, units mm.

Returns: the x-coordinate shift

Definition at line 357 of file CaloHit.h.

◆ IsAvailable()

bool pandora::CaloHit::IsAvailable ( ) const

inlineprotected

Whether the calo hit is available to be added to a cluster (access this function via PandoraContentAPI)

Returns: boolean

Definition at line 539 of file CaloHit.h.

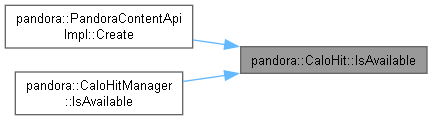

Here is the caller graph for this function:

◆ IsDigital()

bool pandora::CaloHit::IsDigital ( ) const

inline

Whether cell should be treated as digital.

Returns: boolean

Definition at line 434 of file CaloHit.h.

Here is the caller graph for this function:

◆ IsInOuterSamplingLayer()

bool pandora::CaloHit::IsInOuterSamplingLayer ( ) const

inline

Whether cell is in one of the outermost detector sampling layers.

Returns: boolean

Definition at line 469 of file CaloHit.h.

Here is the caller graph for this function:

◆ IsIsolated()

bool pandora::CaloHit::IsIsolated ( ) const

inline

Whether the calo hit is flagged as isolated.

Returns: boolean

Definition at line 518 of file CaloHit.h.

Here is the caller graph for this function:

◆ IsPossibleMip()

bool pandora::CaloHit::IsPossibleMip ( ) const

inline

Whether the calo hit is flagged as a possible mip hit.

Returns: boolean

Definition at line 504 of file CaloHit.h.

Here is the caller graph for this function:

◆ operator<()

bool pandora::CaloHit::operator< ( const CaloHit & rhs ) const

operator< sorting by position, then energy

Parameters

rhs	the object for comparison

Returns: boolean

Definition at line 34 of file CaloHit.cc.

Here is the call graph for this function:

◆ RemoveMCParticles()

void pandora::CaloHit::RemoveMCParticles ( )

protected

Remove the mc particles associated with the calo hit.

Definition at line 164 of file CaloHit.cc.

◆ SetAvailability()

void pandora::CaloHit::SetAvailability ( bool isAvailable )

inlineprotected

Set availability of calo hit to be added to a cluster.

Parameters

isAvailable the calo hit availability

Definition at line 546 of file CaloHit.h.

◆ SetMCParticleWeightMap()

void pandora::CaloHit::SetMCParticleWeightMap ( const MCParticleWeightMap & mcParticleWeightMap )

protected

Set the mc particles associated with the calo hit.

Parameters

mcParticleWeightMap the mc particle weight map

Definition at line 157 of file CaloHit.cc.

◆ SetPseudoLayer()

StatusCode pandora::CaloHit::SetPseudoLayer ( const unsigned int pseudoLayer )

protected

Set the mc pseudo layer for the calo hit.

Parameters

pseudoLayer the pseudo layer

Definition at line 147 of file CaloHit.cc.

Friends And Related Symbol Documentation

◆ CaloHitManager

friend class CaloHitManager

friend

Definition at line 342 of file CaloHit.h.

◆ CaloHitMetadata

friend class CaloHitMetadata

friend

Definition at line 341 of file CaloHit.h.

◆ InputObjectManager< CaloHit >

friend class InputObjectManager< CaloHit >

friend

Definition at line 342 of file CaloHit.h.

◆ PandoraObjectFactory< object_creation::CaloHit::Parameters, object_creation::CaloHit::Object >

friend class PandoraObjectFactory< object_creation::CaloHit::Parameters, object_creation::CaloHit::Object >

friend

Definition at line 342 of file CaloHit.h.

◆ PandoraObjectFactory< object_creation::CaloHitFragment::Parameters, object_creation::CaloHitFragment::Object >

friend class PandoraObjectFactory< object_creation::CaloHitFragment::Parameters, object_creation::CaloHitFragment::Object >

friend

Definition at line 342 of file CaloHit.h.

Member Data Documentation

◆ m_cellGeometry

const CellGeometry pandora::CaloHit::m_cellGeometry

protected

The cell geometry type, pointing or rectangular.

Definition at line 316 of file CaloHit.h.

◆ m_cellLengthScale

float pandora::CaloHit::m_cellLengthScale

protected

Typical length scale [pointing: measured at cell mid-point, rectangular: std::sqrt(cellSize0 * cellSize1), units mm ].

Definition at line 333 of file CaloHit.h.

◆ m_cellNormalVector

const CartesianVector pandora::CaloHit::m_cellNormalVector

protected

Unit normal to the sampling layer, pointing outwards from the origin.

Definition at line 315 of file CaloHit.h.

◆ m_cellSize0

const float pandora::CaloHit::m_cellSize0

protected

Cell size 0 [pointing: pseudo rapidity, eta, rectangular: up in ENDCAP, along beam in BARREL, units mm].

Definition at line 317 of file CaloHit.h.

◆ m_cellSize1

const float pandora::CaloHit::m_cellSize1

protected

Cell size 1 [pointing: azimuthal angle, phi, rectangular: perpendicular to size 0 and thickness, units mm].

Definition at line 318 of file CaloHit.h.

◆ m_cellThickness

const float pandora::CaloHit::m_cellThickness

protected

Thickness of cell, units mm.

Definition at line 319 of file CaloHit.h.

◆ m_electromagneticEnergy

const float pandora::CaloHit::m_electromagneticEnergy

protected

The calibrated electromagnetic energy measure, units GeV.

Definition at line 325 of file CaloHit.h.

◆ m_expectedDirection

const CartesianVector pandora::CaloHit::m_expectedDirection

protected

Unit vector in direction of expected hit propagation.

Definition at line 314 of file CaloHit.h.

◆ m_hadronicEnergy

const float pandora::CaloHit::m_hadronicEnergy

protected

The calibrated hadronic energy measure, units GeV.

Definition at line 326 of file CaloHit.h.

◆ m_hitRegion

const HitRegion pandora::CaloHit::m_hitRegion

protected

Region of the detector in which the calo hit is located.

Definition at line 329 of file CaloHit.h.

◆ m_hitType

const HitType pandora::CaloHit::m_hitType

protected

The type of calorimeter hit.

Definition at line 328 of file CaloHit.h.

◆ m_inputEnergy

const float pandora::CaloHit::m_inputEnergy

protected

Corrected energy of calorimeter cell in user framework, units GeV.

Definition at line 323 of file CaloHit.h.

◆ m_isAvailable

bool pandora::CaloHit::m_isAvailable

protected

Whether the calo hit is available to be added to a cluster.

Definition at line 336 of file CaloHit.h.

◆ m_isDigital

const bool pandora::CaloHit::m_isDigital

protected

Whether cell should be treated as digital (implies constant cell energy)

Definition at line 327 of file CaloHit.h.

◆ m_isInOuterSamplingLayer

const bool pandora::CaloHit::m_isInOuterSamplingLayer

protected

Whether cell is in one of the outermost detector sampling layers.

Definition at line 332 of file CaloHit.h.

◆ m_isIsolated

bool pandora::CaloHit::m_isIsolated

protected

Whether the calo hit is isolated.

Definition at line 335 of file CaloHit.h.

◆ m_isPossibleMip

bool pandora::CaloHit::m_isPossibleMip

protected

Whether the calo hit is a possible mip hit.

Definition at line 334 of file CaloHit.h.

◆ m_layer

const unsigned int pandora::CaloHit::m_layer

protected

The subdetector readout layer number.

Definition at line 330 of file CaloHit.h.

◆ m_mcParticleWeightMap

MCParticleWeightMap pandora::CaloHit::m_mcParticleWeightMap

protected

The mc particle weight map.

Definition at line 338 of file CaloHit.h.

◆ m_mipEquivalentEnergy

const float pandora::CaloHit::m_mipEquivalentEnergy

protected

The calibrated mip equivalent energy, units mip.

Definition at line 324 of file CaloHit.h.

◆ m_nCellInteractionLengths

const float pandora::CaloHit::m_nCellInteractionLengths

protected

Absorber material in front of cell, units interaction lengths.

Definition at line 321 of file CaloHit.h.

◆ m_nCellRadiationLengths

const float pandora::CaloHit::m_nCellRadiationLengths

protected

Absorber material in front of cell, units radiation lengths.

Definition at line 320 of file CaloHit.h.

◆ m_positionVector

CartesianVector pandora::CaloHit::m_positionVector

protected

Position vector of center of calorimeter cell, units mm.

Definition at line 312 of file CaloHit.h.

◆ m_pParentAddress

const void* pandora::CaloHit::m_pParentAddress

protected

The address of the parent calo hit in the user framework.

Definition at line 339 of file CaloHit.h.

◆ m_pseudoLayer

InputUInt pandora::CaloHit::m_pseudoLayer

protected

The pseudo layer to which the calo hit has been assigned.

Definition at line 331 of file CaloHit.h.

◆ m_time

const float pandora::CaloHit::m_time

protected

Time of (earliest) energy deposition in this cell, units ns.

Definition at line 322 of file CaloHit.h.

◆ m_weight

float pandora::CaloHit::m_weight

protected

The calo hit weight, which may not be unity if the hit has been fragmented.

Definition at line 337 of file CaloHit.h.

◆ m_x0

float pandora::CaloHit::m_x0

protected

For LArTPC usage, the x-coordinate shift associated with a drift time t0 shift, units mm.

Definition at line 313 of file CaloHit.h.

The documentation for this class was generated from the following files:

PandoraSDK/include/Objects/CaloHit.h
PandoraSDK/src/Objects/CaloHit.cc

Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ CaloHit() [1/2]

◆ CaloHit() [2/2]

◆ ~CaloHit()

Member Function Documentation

◆ AlterMetadata()

◆ CalculateCellLengthScale()

◆ GetCellCorners()

◆ GetCellGeometry()

◆ GetCellLengthScale()

◆ GetCellNormalVector()

◆ GetCellSize0()

◆ GetCellSize1()

◆ GetCellThickness()

◆ GetElectromagneticEnergy()

◆ GetExpectedDirection()

◆ GetHadronicEnergy()

◆ GetHitRegion()

◆ GetHitType()

◆ GetInputEnergy()

◆ GetLayer()

◆ GetMCParticleWeightMap()

◆ GetMipEquivalentEnergy()

◆ GetNCellInteractionLengths()

◆ GetNCellRadiationLengths()

◆ GetParentAddress()

◆ GetPointingCellCorners()

◆ GetPositionVector()

◆ GetPseudoLayer()

◆ GetRectangularCellCorners()

◆ GetTime()

◆ GetWeight()

◆ GetX0()

◆ IsAvailable()

◆ IsDigital()

◆ IsInOuterSamplingLayer()

◆ IsIsolated()

◆ IsPossibleMip()

◆ operator<()

◆ RemoveMCParticles()

◆ SetAvailability()

◆ SetMCParticleWeightMap()

◆ SetPseudoLayer()

Friends And Related Symbol Documentation

◆ CaloHitManager

◆ CaloHitMetadata

◆ InputObjectManager< CaloHit >

◆ PandoraObjectFactory< object_creation::CaloHit::Parameters, object_creation::CaloHit::Object >

◆ PandoraObjectFactory< object_creation::CaloHitFragment::Parameters, object_creation::CaloHitFragment::Object >

Member Data Documentation

◆ m_cellGeometry

◆ m_cellLengthScale

◆ m_cellNormalVector

◆ m_cellSize0

◆ m_cellSize1

◆ m_cellThickness

◆ m_electromagneticEnergy

◆ m_expectedDirection

◆ m_hadronicEnergy

◆ m_hitRegion

◆ m_hitType

◆ m_inputEnergy

◆ m_isAvailable

◆ m_isDigital

◆ m_isInOuterSamplingLayer

◆ m_isIsolated

◆ m_isPossibleMip

◆ m_layer

◆ m_mcParticleWeightMap

◆ m_mipEquivalentEnergy

◆ m_nCellInteractionLengths

◆ m_nCellRadiationLengths

◆ m_positionVector

◆ m_pParentAddress

◆ m_pseudoLayer
