#include "TrackManager.h"

Inheritance diagram for pandora::TrackManager:

[legend]

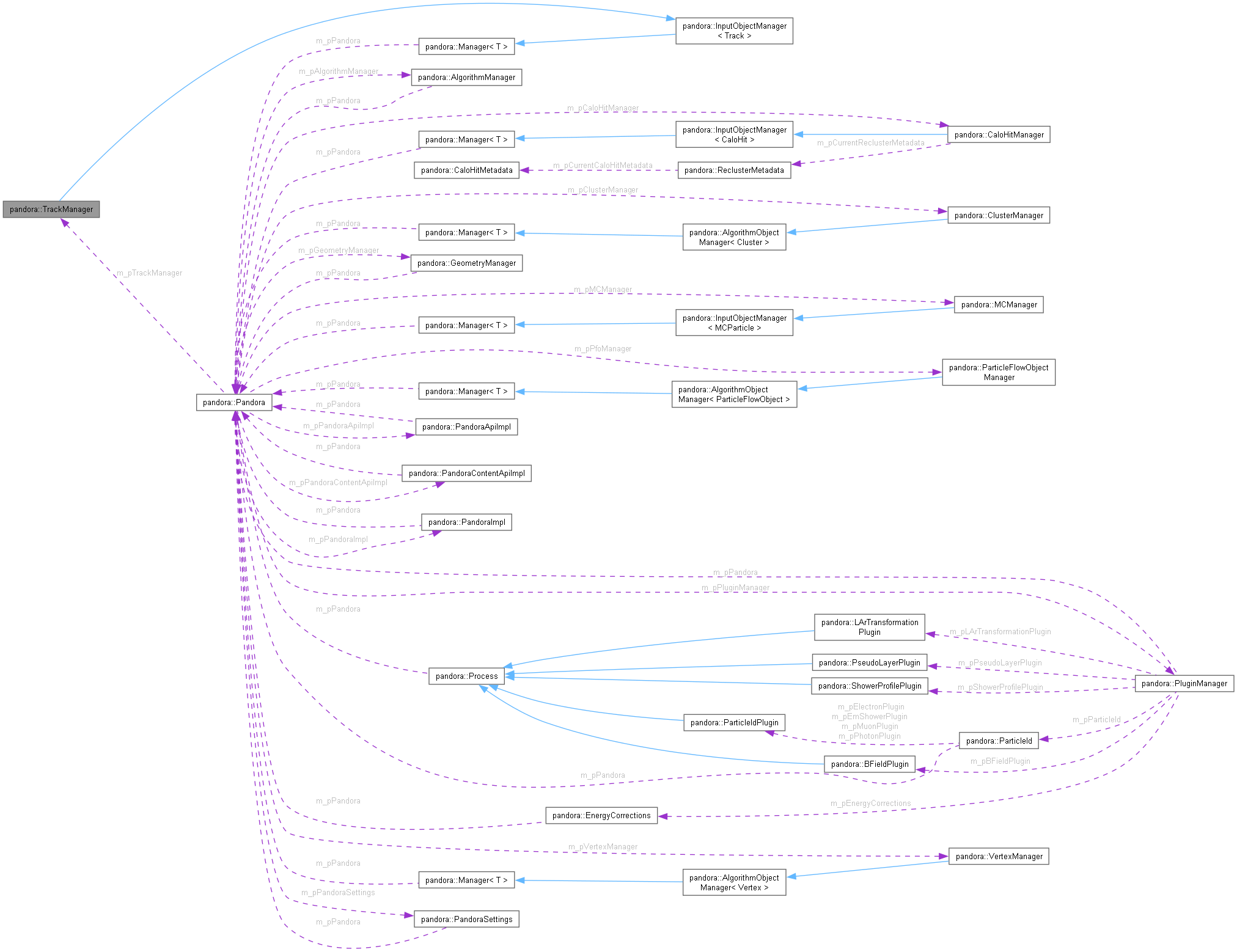

Collaboration diagram for pandora::TrackManager:

[legend]

Public Member Functions
	TrackManager (const Pandora *const pPandora)
	Constructor.

	~TrackManager ()
	Destructor.

template<>
bool	IsAvailable (const Track *const pTrack) const

template<>
bool	IsAvailable (const TrackList *const pTrackList) const

template<>
void	SetAvailability (const Track *const pTrack, bool isAvailable) const

template<>
void	SetAvailability (const TrackList *const pTrackList, bool isAvailable) const

Protected Types
typedef Manager< Track >::ObjectList	ObjectList

typedef std::map< std::string, ObjectList * >	NameToListMap

typedef std::unordered_map< const Algorithm *, AlgorithmInfo >	AlgorithmInfoMap

Protected Member Functions
virtual StatusCode	CreateInputList ()
	Create the input list (accessible to algorithms), using objects created by client application.

virtual StatusCode	CreateTemporaryListAndSetCurrent (const Algorithm *const pAlgorithm, const ObjectList &objectList, std::string &temporaryListName)
	Change the current list to a specified temporary list.

virtual StatusCode	CreateTemporaryListAndSetCurrent (const Algorithm *const pAlgorithm, std::string &temporaryListName)
	Create a temporary list associated with a particular algorithm.

virtual StatusCode	SaveList (const std::string &listName, const ObjectList &objectList)
	Save a list of objects in a list with a specified name; create new list if required.

virtual StatusCode	AddObjectsToList (const std::string &listName, const ObjectList &objectList)
	Add objects to a saved list with a specified name.

virtual StatusCode	RemoveObjectsFromList (const std::string &listName, const ObjectList &objectList)
	Remove objects from a saved list.

virtual StatusCode	RenameList (const std::string &oldListName, const std::string &newListName)
	Rename a saved list, altering its saved name from a specified old list name to a specified new list name.

virtual StatusCode	CreateInitialLists ()
	Create initial lists.

virtual StatusCode	GetList (const std::string &listName, const ObjectList *&pObjectList) const
	Get a list.

virtual StatusCode	GetCurrentList (const ObjectList *&pObjectList, std::string &listName) const
	Get the current list.

virtual StatusCode	GetCurrentListName (std::string &listName) const
	Get the current list name.

virtual StatusCode	GetAlgorithmInputList (const Algorithm const pAlgorithm, const ObjectList &pObjectList, std::string &listName) const
	Get the algorithm input list.

virtual StatusCode	GetAlgorithmInputListName (const Algorithm *const pAlgorithm, std::string &listName) const
	Get the algorithm track list name.

virtual StatusCode	ResetCurrentListToAlgorithmInputList (const Algorithm *const pAlgorithm)
	Reset the current list to the algorithm input list.

virtual StatusCode	ReplaceCurrentAndAlgorithmInputLists (const Algorithm *const pAlgorithm, const std::string &listName)
	Replace the current and algorithm input lists with a pre-existing list.

virtual StatusCode	DropCurrentList (const Algorithm *const pAlgorithm)
	Drop the current list, returning the current list to its default empty/null state.

virtual StatusCode	RegisterAlgorithm (const Algorithm *const pAlgorithm)
	Register an algorithm with the manager.

virtual StatusCode	ResetAlgorithmInfo (const Algorithm *const pAlgorithm, bool isAlgorithmFinished)
	Remove temporary lists and reset the current list to that when algorithm was initialized.

virtual StatusCode	ResetForNextEvent ()
	Reset the manager.

virtual T *	Modifiable (const T *const pT) const
	Access a modifiable object, when provided with address to const object.

Protected Attributes
const std::string	m_inputListName
	The name of the input list.

const std::string	m_nullListName
	The name of the default empty (NULL) list.

const Pandora *const	m_pPandora
	The associated pandora object.

NameToListMap	m_nameToListMap
	The name to list map.

AlgorithmInfoMap	m_algorithmInfoMap
	The algorithm info map.

std::string	m_currentListName
	The name of the current list.

StringSet	m_savedLists
	The set of saved lists.

Private Types
typedef std::unordered_map< Uid, const Track * >	UidToTrackMap

typedef std::unordered_multimap< Uid, Uid >	TrackRelationMap

Private Member Functions
StatusCode	Create (const object_creation::Track::Parameters &parameters, const Track *&pTrack, const ObjectFactory< object_creation::Track::Parameters, object_creation::Track::Object > &factory)
	Create track.

template<typename T >
bool	IsAvailable (const T *const pT) const
	Is a track, or a list of tracks, available to add to a particle flow object.

template<typename T >
void	SetAvailability (const T *const pT, bool isAvailable) const
	Set availability of a track, or a list of tracks, to be added to a particle flow object.

StatusCode	EraseAllContent ()
	Erase all track manager content.

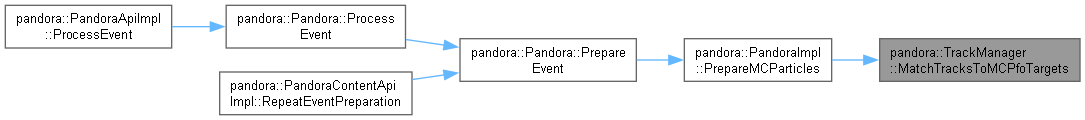

StatusCode	MatchTracksToMCPfoTargets (const UidToMCParticleWeightMap &trackToPfoTargetsMap)
	Match tracks to their correct mc particles for particle flow.

StatusCode	RemoveAllMCParticleRelationships ()
	Remove all mc particle associations that have been registered with tracks.

StatusCode	SetTrackParentDaughterRelationship (const Uid parentUid, const Uid daughterUid)
	Set a track parent-daughter relationship.

StatusCode	SetTrackSiblingRelationship (const Uid firstSiblingUid, const Uid secondSiblingUid)
	Set a track sibling relationship.

StatusCode	AssociateTracks () const
	Apply track associations (parent-daughter and sibling) that have been registered with the track manager.

StatusCode	AddParentDaughterAssociations () const
	Add parent-daughter associations to tracks.

StatusCode	AddSiblingAssociations () const
	Add sibling associations to tracks.

StatusCode	SetAssociatedCluster (const Track const pTrack, const Cluster const pCluster) const
	Set the cluster associated with a track.

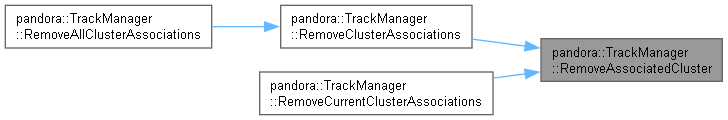

StatusCode	RemoveAssociatedCluster (const Track const pTrack, const Cluster const pCluster) const
	Remove the association of a track with a cluster.

StatusCode	RemoveAllClusterAssociations () const
	Remove all track to cluster associations.

StatusCode	RemoveCurrentClusterAssociations (TrackToClusterMap &danglingClusters) const
	Remove track to cluster associations from all tracks in the current list.

StatusCode	RemoveClusterAssociations (const TrackList &trackList) const
	Remove track to cluster associations from a specified list of tracks.

StatusCode	InitializeReclustering (const Algorithm *const pAlgorithm, const TrackList &trackList, const std::string &originalReclusterListName)
	Initialize reclustering operations, preparing lists and metadata accordingly.

Private Attributes
UidToTrackMap	m_uidToTrackMap
	The uid to track map.

TrackRelationMap	m_parentDaughterRelationMap
	The track parent-daughter relation map.

TrackRelationMap	m_siblingRelationMap
	The track sibling relation map.

Friends
class	PandoraApiImpl

class	PandoraContentApiImpl

class	PandoraImpl

Detailed Description

TrackManager class.

Definition at line 22 of file TrackManager.h.

Member Typedef Documentation

◆ AlgorithmInfoMap

template<typename T >

typedef std::unordered_map<const Algorithm *, AlgorithmInfo> pandora::Manager< T >::AlgorithmInfoMap

protectedinherited

Definition at line 176 of file Manager.h.

◆ NameToListMap

template<typename T >

typedef std::map<std::string, ObjectList *> pandora::Manager< T >::NameToListMap

protectedinherited

Definition at line 175 of file Manager.h.

◆ ObjectList

typedef Manager<Track >::ObjectList pandora::InputObjectManager< Track >::ObjectList

protectedinherited

Definition at line 36 of file InputObjectManager.h.

◆ TrackRelationMap

typedef std::unordered_multimap<Uid, Uid> pandora::TrackManager::TrackRelationMap

private

Definition at line 161 of file TrackManager.h.

◆ UidToTrackMap

typedef std::unordered_map<Uid, const Track *> pandora::TrackManager::UidToTrackMap

private

Definition at line 160 of file TrackManager.h.

Constructor & Destructor Documentation

◆ TrackManager()

pandora::TrackManager::TrackManager ( const Pandora *const pPandora )

Constructor.

Parameters

pPandora address of the associated pandora object

Definition at line 21 of file TrackManager.cc.

Here is the call graph for this function:

◆ ~TrackManager()

pandora::TrackManager::~TrackManager ( )

Destructor.

Definition at line 29 of file TrackManager.cc.

Here is the call graph for this function:

Member Function Documentation

◆ AddObjectsToList()

StatusCode pandora::InputObjectManager< Track >::AddObjectsToList	(	const std::string &	listName,
		const ObjectList &	objectList
	)

protectedvirtualinherited

Add objects to a saved list with a specified name.

Parameters

listName	the list to add the objects to
objectList	the list of objects to be added

Definition at line 69 of file InputObjectManager.cc.

◆ AddParentDaughterAssociations()

StatusCode pandora::TrackManager::AddParentDaughterAssociations ( ) const

private

Add parent-daughter associations to tracks.

Definition at line 180 of file TrackManager.cc.

Here is the call graph for this function:

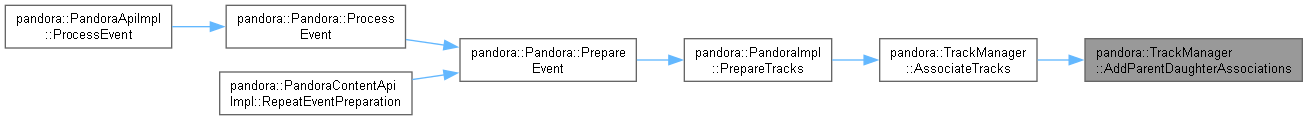

Here is the caller graph for this function:

◆ AddSiblingAssociations()

StatusCode pandora::TrackManager::AddSiblingAssociations ( ) const

private

Add sibling associations to tracks.

Definition at line 220 of file TrackManager.cc.

Here is the call graph for this function:

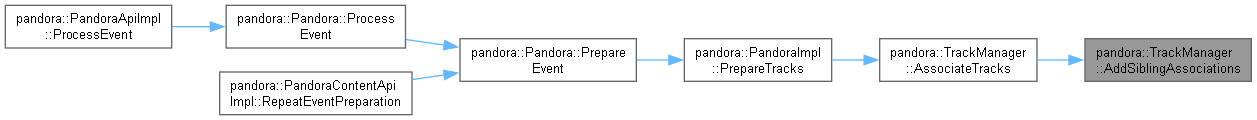

Here is the caller graph for this function:

◆ AssociateTracks()

StatusCode pandora::TrackManager::AssociateTracks ( ) const

private

Apply track associations (parent-daughter and sibling) that have been registered with the track manager.

Definition at line 170 of file TrackManager.cc.

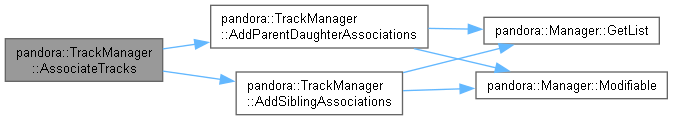

Here is the call graph for this function:

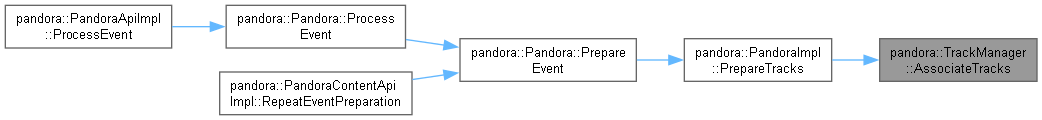

Here is the caller graph for this function:

◆ Create()

StatusCode pandora::TrackManager::Create	(	const object_creation::Track::Parameters &	parameters,
		const Track *&	pTrack,
		const ObjectFactory< object_creation::Track::Parameters, object_creation::Track::Object > &	factory
	)

private

Create track.

Parameters

parameters	the track parameters
pTrack	to receive the address of the track
factory	the factory that performs the object allocation

Definition at line 36 of file TrackManager.cc.

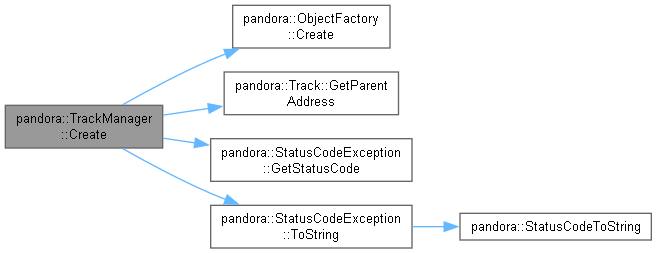

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateInitialLists()

StatusCode pandora::InputObjectManager< Track >::CreateInitialLists ( )

protectedvirtualinherited

Create initial lists.

Reimplemented from pandora::Manager< T >.

Definition at line 95 of file InputObjectManager.cc.

◆ CreateInputList()

StatusCode pandora::InputObjectManager< Track >::CreateInputList ( )

protectedvirtualinherited

Create the input list (accessible to algorithms), using objects created by client application.

Definition at line 41 of file InputObjectManager.cc.

◆ CreateTemporaryListAndSetCurrent() [1/2]

StatusCode pandora::InputObjectManager< Track >::CreateTemporaryListAndSetCurrent	(	const Algorithm *const	pAlgorithm,
		const ObjectList &	objectList,
		std::string &	temporaryListName
	)

protectedvirtualinherited

Change the current list to a specified temporary list.

Parameters

pAlgorithm	address of the algorithm changing the current list
objectList	the specified temporary list
temporaryListName	to receive the name of the temporary list

Definition at line 52 of file InputObjectManager.cc.

◆ CreateTemporaryListAndSetCurrent() [2/2]

template<typename T >

StatusCode pandora::Manager< T >::CreateTemporaryListAndSetCurrent	(	const Algorithm *const	pAlgorithm,
		std::string &	temporaryListName
	)

protectedvirtualinherited

Create a temporary list associated with a particular algorithm.

Parameters

pAlgorithm	address of the algorithm
temporaryListName	to receive the name of the temporary list

Reimplemented in pandora::AlgorithmObjectManager< T >, pandora::AlgorithmObjectManager< Cluster >, pandora::AlgorithmObjectManager< ParticleFlowObject >, and pandora::AlgorithmObjectManager< Vertex >.

Definition at line 177 of file Manager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DropCurrentList()

template<typename T >

StatusCode pandora::Manager< T >::DropCurrentList ( const Algorithm *const pAlgorithm )

protectedvirtualinherited

Drop the current list, returning the current list to its default empty/null state.

Parameters

pAlgorithm address of the algorithm altering the lists

Reimplemented in pandora::AlgorithmObjectManager< T >, pandora::AlgorithmObjectManager< Cluster >, pandora::AlgorithmObjectManager< ParticleFlowObject >, and pandora::AlgorithmObjectManager< Vertex >.

Definition at line 134 of file Manager.cc.

Here is the caller graph for this function:

◆ EraseAllContent()

StatusCode pandora::TrackManager::EraseAllContent ( )

privatevirtual

Erase all track manager content.

Reimplemented from pandora::InputObjectManager< Track >.

Definition at line 101 of file TrackManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetAlgorithmInputList()

template<typename T >

StatusCode pandora::Manager< T >::GetAlgorithmInputList	(	const Algorithm *const	pAlgorithm,
		const ObjectList *&	pObjectList,
		std::string &	listName
	)		const

protectedvirtualinherited

Get the algorithm input list.

Parameters

pAlgorithm	address of the algorithm
pObjectList	to receive the algorithm input list
listName	to receive the name of the algorithm input list

Definition at line 69 of file Manager.cc.

◆ GetAlgorithmInputListName()

template<typename T >

StatusCode pandora::Manager< T >::GetAlgorithmInputListName	(	const Algorithm *const	pAlgorithm,
		std::string &	listName
	)		const

inlineprotectedvirtualinherited

Get the algorithm track list name.

Parameters

pAlgorithm	address of the algorithm
listName	to receive the algorithm input list name

Definition at line 88 of file Manager.cc.

◆ GetCurrentList()

template<typename T >

StatusCode pandora::Manager< T >::GetCurrentList	(	const ObjectList *&	pObjectList,
		std::string &	listName
	)		const

protectedvirtualinherited

Get the current list.

Parameters

pObjectList	to receive the current list
listName	to receive the name of the current list

Definition at line 48 of file Manager.cc.

Here is the caller graph for this function:

◆ GetCurrentListName()

template<typename T >

StatusCode pandora::Manager< T >::GetCurrentListName ( std::string & listName ) const

inlineprotectedvirtualinherited

Get the current list name.

Parameters

listName to receive the current list name

Definition at line 57 of file Manager.cc.

◆ GetList()

template<typename T >

StatusCode pandora::Manager< T >::GetList	(	const std::string &	listName,
		const ObjectList *&	pObjectList
	)		const

protectedvirtualinherited

Get a list.

Parameters

listName	the name of the list
pObjectList	to receive the list

Definition at line 34 of file Manager.cc.

Here is the caller graph for this function:

◆ InitializeReclustering()

StatusCode pandora::TrackManager::InitializeReclustering	(	const Algorithm *const	pAlgorithm,
		const TrackList &	trackList,
		const std::string &	originalReclusterListName
	)

private

Initialize reclustering operations, preparing lists and metadata accordingly.

Parameters

pAlgorithm	address of the algorithm controlling reclustering
clusterList	the input cluster list
originalReclusterListName	the list name/key for the original recluster candidates

Definition at line 322 of file TrackManager.cc.

Here is the call graph for this function:

◆ IsAvailable() [1/3]

template<typename T >

bool pandora::TrackManager::IsAvailable ( const T *const pT ) const

private

Is a track, or a list of tracks, available to add to a particle flow object.

Parameters

pT	address of the object or object list

Returns: boolean

Here is the caller graph for this function:

◆ IsAvailable() [2/3]

template<>

bool pandora::TrackManager::IsAvailable ( const Track *const pTrack ) const

Definition at line 68 of file TrackManager.cc.

Here is the call graph for this function:

◆ IsAvailable() [3/3]

template<>

bool pandora::TrackManager::IsAvailable ( const TrackList *const pTrackList ) const

Definition at line 74 of file TrackManager.cc.

Here is the call graph for this function:

◆ MatchTracksToMCPfoTargets()

StatusCode pandora::TrackManager::MatchTracksToMCPfoTargets ( const UidToMCParticleWeightMap & trackToPfoTargetsMap )

private

Match tracks to their correct mc particles for particle flow.

Parameters

trackToPfoTargetsMap the track uid to mc pfo target map

Definition at line 112 of file TrackManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Modifiable()

template<typename T >

T * pandora::Manager< T >::Modifiable ( const T *const pT ) const

protectedvirtualinherited

Access a modifiable object, when provided with address to const object.

Parameters

pT	the address of the const object

Returns: address of the modifiable object

Definition at line 288 of file Manager.cc.

Here is the caller graph for this function:

◆ RegisterAlgorithm()

template<typename T >

StatusCode pandora::Manager< T >::RegisterAlgorithm ( const Algorithm *const pAlgorithm )

protectedvirtualinherited

Register an algorithm with the manager.

Parameters

pAlgorithm address of the algorithm

Definition at line 198 of file Manager.cc.

◆ RemoveAllClusterAssociations()

StatusCode pandora::TrackManager::RemoveAllClusterAssociations ( ) const

private

Remove all track to cluster associations.

Definition at line 274 of file TrackManager.cc.

Here is the call graph for this function:

◆ RemoveAllMCParticleRelationships()

StatusCode pandora::TrackManager::RemoveAllMCParticleRelationships ( )

private

Remove all mc particle associations that have been registered with tracks.

Definition at line 137 of file TrackManager.cc.

Here is the call graph for this function:

◆ RemoveAssociatedCluster()

StatusCode pandora::TrackManager::RemoveAssociatedCluster	(	const Track *const	pTrack,
		const Cluster *const	pCluster
	)		const

private

Remove the association of a track with a cluster.

Parameters

pTrack	the address of the relevant track
pCluster	the address of the cluster with which the track is no longer associated

Definition at line 267 of file TrackManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RemoveClusterAssociations()

StatusCode pandora::TrackManager::RemoveClusterAssociations ( const TrackList & trackList ) const

private

Remove track to cluster associations from a specified list of tracks.

Parameters

trackList the specified track list

Definition at line 309 of file TrackManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RemoveCurrentClusterAssociations()

StatusCode pandora::TrackManager::RemoveCurrentClusterAssociations ( TrackToClusterMap & danglingClusters ) const

private

Remove track to cluster associations from all tracks in the current list.

Parameters

danglingClusters to receive the list of "dangling" associations

Definition at line 286 of file TrackManager.cc.

Here is the call graph for this function:

◆ RemoveObjectsFromList()

StatusCode pandora::InputObjectManager< Track >::RemoveObjectsFromList	(	const std::string &	listName,
		const ObjectList &	objectList
	)

protectedvirtualinherited

Remove objects from a saved list.

Parameters

listName	the list to remove the objects from
objectList	the list of objects to be removed

Definition at line 77 of file InputObjectManager.cc.

◆ RenameList()

StatusCode pandora::InputObjectManager< Track >::RenameList	(	const std::string &	oldListName,
		const std::string &	newListName
	)

protectedvirtualinherited

Rename a saved list, altering its saved name from a specified old list name to a specified new list name.

Parameters

oldListName	the old list name
newListName	the new list name

Reimplemented from pandora::Manager< T >.

Definition at line 85 of file InputObjectManager.cc.

◆ ReplaceCurrentAndAlgorithmInputLists()

template<typename T >

StatusCode pandora::Manager< T >::ReplaceCurrentAndAlgorithmInputLists	(	const Algorithm *const	pAlgorithm,
		const std::string &	listName
	)

protectedvirtualinherited

Replace the current and algorithm input lists with a pre-existing list.

Parameters

pAlgorithm	address of the algorithm changing the current list
listName	the name of the new current (and algorithm input) list

Reimplemented in pandora::AlgorithmObjectManager< T >, pandora::AlgorithmObjectManager< Cluster >, pandora::AlgorithmObjectManager< ParticleFlowObject >, and pandora::AlgorithmObjectManager< Vertex >.

Definition at line 110 of file Manager.cc.

Here is the caller graph for this function:

◆ ResetAlgorithmInfo()

template<typename T >

StatusCode pandora::Manager< T >::ResetAlgorithmInfo	(	const Algorithm *const	pAlgorithm,
		bool	isAlgorithmFinished
	)

protectedvirtualinherited

Remove temporary lists and reset the current list to that when algorithm was initialized.

Parameters

pAlgorithm	address of the algorithm altering the lists
isAlgorithmFinished	whether the algorithm has completely finished and the algorithm info should be entirely removed

Reimplemented in pandora::AlgorithmObjectManager< T >, pandora::AlgorithmObjectManager< Cluster >, pandora::AlgorithmObjectManager< ParticleFlowObject >, and pandora::AlgorithmObjectManager< Vertex >.

Definition at line 216 of file Manager.cc.

Here is the caller graph for this function:

◆ ResetCurrentListToAlgorithmInputList()

template<typename T >

StatusCode pandora::Manager< T >::ResetCurrentListToAlgorithmInputList ( const Algorithm *const pAlgorithm )

protectedvirtualinherited

Reset the current list to the algorithm input list.

Parameters

pAlgorithm address of the algorithm changing the current track list

Reimplemented in pandora::AlgorithmObjectManager< T >, pandora::AlgorithmObjectManager< Cluster >, pandora::AlgorithmObjectManager< ParticleFlowObject >, and pandora::AlgorithmObjectManager< Vertex >.

Definition at line 102 of file Manager.cc.

Here is the caller graph for this function:

◆ ResetForNextEvent()

template<typename T >

StatusCode pandora::Manager< T >::ResetForNextEvent ( )

protectedvirtualinherited

Reset the manager.

Definition at line 247 of file Manager.cc.

Here is the caller graph for this function:

◆ SaveList()

StatusCode pandora::InputObjectManager< Track >::SaveList	(	const std::string &	listName,
		const ObjectList &	objectList
	)

protectedvirtualinherited

Save a list of objects in a list with a specified name; create new list if required.

Parameters

listName	the list name
objectList	the object list

Definition at line 61 of file InputObjectManager.cc.

◆ SetAssociatedCluster()

StatusCode pandora::TrackManager::SetAssociatedCluster	(	const Track *const	pTrack,
		const Cluster *const	pCluster
	)		const

private

Set the cluster associated with a track.

Parameters

pTrack	the address of the relevant track
pCluster	the address of the associated cluster

Definition at line 260 of file TrackManager.cc.

Here is the call graph for this function:

◆ SetAvailability() [1/3]

template<typename T >

void pandora::TrackManager::SetAvailability	(	const T *const	pT,
		bool	isAvailable
	)		const

private

Set availability of a track, or a list of tracks, to be added to a particle flow object.

Parameters

pT	the address of the object or object list
isAvailable	the availability

Here is the caller graph for this function:

◆ SetAvailability() [2/3]

template<>

void pandora::TrackManager::SetAvailability	(	const Track *const	pTrack,
		bool	isAvailable
	)		const

Definition at line 87 of file TrackManager.cc.

Here is the call graph for this function:

◆ SetAvailability() [3/3]

template<>

void pandora::TrackManager::SetAvailability	(	const TrackList *const	pTrackList,
		bool	isAvailable
	)		const

Definition at line 93 of file TrackManager.cc.

Here is the call graph for this function:

◆ SetTrackParentDaughterRelationship()

StatusCode pandora::TrackManager::SetTrackParentDaughterRelationship	(	const Uid	parentUid,
		const Uid	daughterUid
	)

private

Set a track parent-daughter relationship.

Parameters

parentUid	the parent track unique identifier
daughterUid	the daughter track unique identifier

Definition at line 152 of file TrackManager.cc.

Here is the caller graph for this function:

◆ SetTrackSiblingRelationship()

StatusCode pandora::TrackManager::SetTrackSiblingRelationship	(	const Uid	firstSiblingUid,
		const Uid	secondSiblingUid
	)

private

Set a track sibling relationship.

Parameters

firstSiblingUid	the first sibling track unique identifier
secondSiblingUid	the second sibling track unique identifier

Definition at line 161 of file TrackManager.cc.

Here is the caller graph for this function:

Friends And Related Symbol Documentation

◆ PandoraApiImpl

friend class PandoraApiImpl

friend

Definition at line 167 of file TrackManager.h.

◆ PandoraContentApiImpl

friend class PandoraContentApiImpl

friend

Definition at line 168 of file TrackManager.h.

◆ PandoraImpl

friend class PandoraImpl

friend

Definition at line 169 of file TrackManager.h.

Member Data Documentation

◆ m_algorithmInfoMap

template<typename T >

AlgorithmInfoMap pandora::Manager< T >::m_algorithmInfoMap

protectedinherited

The algorithm info map.

Definition at line 179 of file Manager.h.

◆ m_currentListName

template<typename T >

std::string pandora::Manager< T >::m_currentListName

protectedinherited

The name of the current list.

Definition at line 181 of file Manager.h.

◆ m_inputListName

const std::string pandora::InputObjectManager< Track >::m_inputListName

protectedinherited

The name of the input list.

Definition at line 97 of file InputObjectManager.h.

◆ m_nameToListMap

template<typename T >

NameToListMap pandora::Manager< T >::m_nameToListMap

protectedinherited

The name to list map.

Definition at line 178 of file Manager.h.

◆ m_nullListName

template<typename T >

const std::string pandora::Manager< T >::m_nullListName

protectedinherited

The name of the default empty (NULL) list.

Definition at line 172 of file Manager.h.

◆ m_parentDaughterRelationMap

TrackRelationMap pandora::TrackManager::m_parentDaughterRelationMap

private

The track parent-daughter relation map.

Definition at line 164 of file TrackManager.h.

◆ m_pPandora

template<typename T >

const Pandora* const pandora::Manager< T >::m_pPandora

protectedinherited

The associated pandora object.

Definition at line 173 of file Manager.h.

◆ m_savedLists

template<typename T >

StringSet pandora::Manager< T >::m_savedLists

protectedinherited

The set of saved lists.

Definition at line 182 of file Manager.h.

◆ m_siblingRelationMap

TrackRelationMap pandora::TrackManager::m_siblingRelationMap

private

The track sibling relation map.

Definition at line 165 of file TrackManager.h.

◆ m_uidToTrackMap

UidToTrackMap pandora::TrackManager::m_uidToTrackMap

private

The uid to track map.

Definition at line 163 of file TrackManager.h.

The documentation for this class was generated from the following files:

PandoraSDK/include/Managers/TrackManager.h
PandoraSDK/src/Managers/TrackManager.cc

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Private Types

Private Member Functions

Private Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ AlgorithmInfoMap

◆ NameToListMap

◆ ObjectList

◆ TrackRelationMap

◆ UidToTrackMap

Constructor & Destructor Documentation

◆ TrackManager()

◆ ~TrackManager()

Member Function Documentation

◆ AddObjectsToList()

◆ AddParentDaughterAssociations()

◆ AddSiblingAssociations()

◆ AssociateTracks()

◆ Create()

◆ CreateInitialLists()

◆ CreateInputList()

◆ CreateTemporaryListAndSetCurrent() [1/2]

◆ CreateTemporaryListAndSetCurrent() [2/2]

◆ DropCurrentList()

◆ EraseAllContent()

◆ GetAlgorithmInputList()

◆ GetAlgorithmInputListName()

◆ GetCurrentList()

◆ GetCurrentListName()

◆ GetList()

◆ InitializeReclustering()

◆ IsAvailable() [1/3]

◆ IsAvailable() [2/3]

◆ IsAvailable() [3/3]

◆ MatchTracksToMCPfoTargets()

◆ Modifiable()

◆ RegisterAlgorithm()

◆ RemoveAllClusterAssociations()

◆ RemoveAllMCParticleRelationships()

◆ RemoveAssociatedCluster()

◆ RemoveClusterAssociations()

◆ RemoveCurrentClusterAssociations()

◆ RemoveObjectsFromList()

◆ RenameList()

◆ ReplaceCurrentAndAlgorithmInputLists()

◆ ResetAlgorithmInfo()

◆ ResetCurrentListToAlgorithmInputList()

◆ ResetForNextEvent()

◆ SaveList()

◆ SetAssociatedCluster()

◆ SetAvailability() [1/3]

◆ SetAvailability() [2/3]

◆ SetAvailability() [3/3]

◆ SetTrackParentDaughterRelationship()

◆ SetTrackSiblingRelationship()

Friends And Related Symbol Documentation

◆ PandoraApiImpl

◆ PandoraContentApiImpl

◆ PandoraImpl

Member Data Documentation

◆ m_algorithmInfoMap

◆ m_currentListName

◆ m_inputListName

◆ m_nameToListMap

◆ m_nullListName

◆ m_parentDaughterRelationMap

◆ m_pPandora

◆ m_savedLists

◆ m_siblingRelationMap

◆ m_uidToTrackMap
