#include "PandoraApiImpl.h"

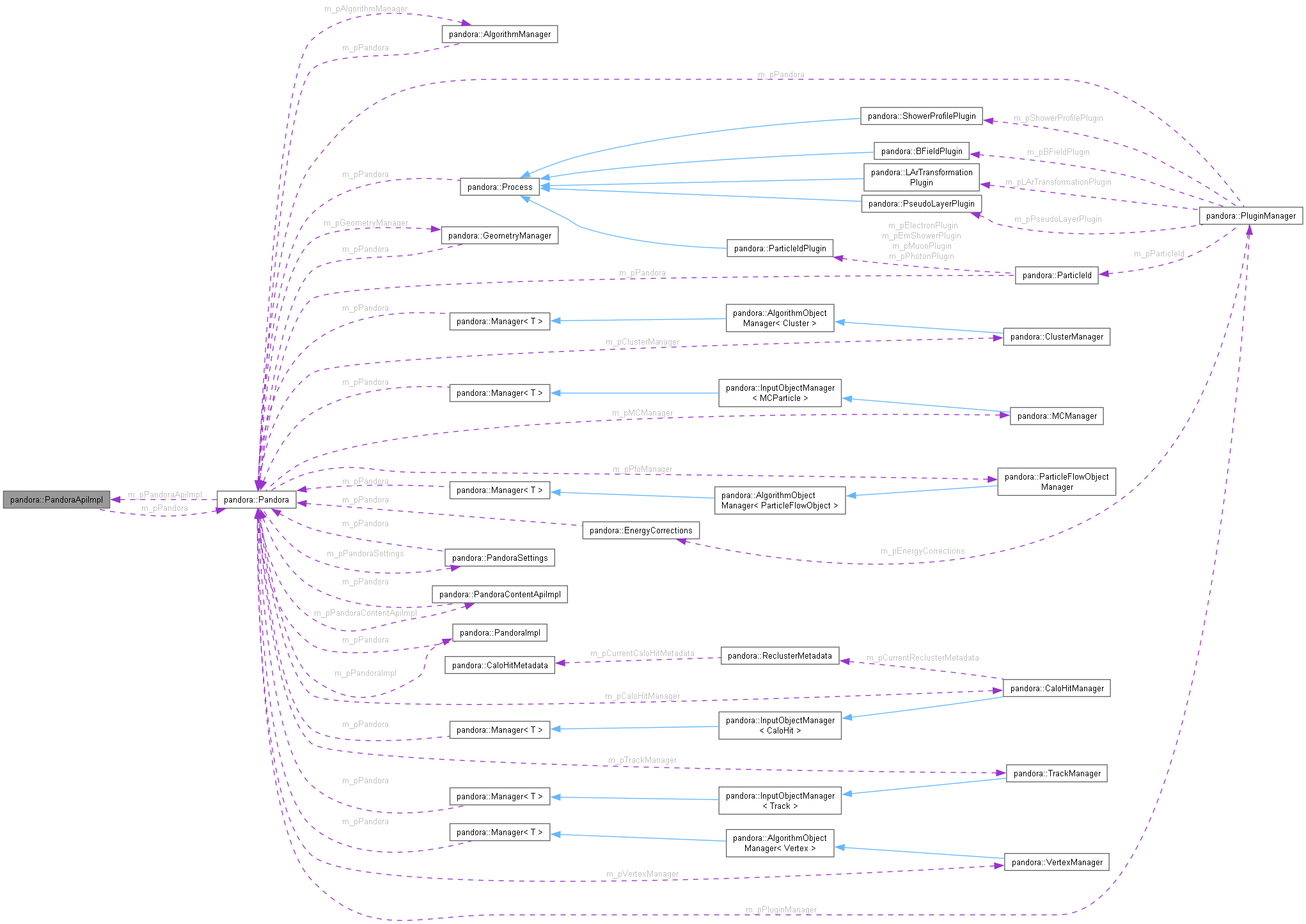

Collaboration diagram for pandora::PandoraApiImpl:

[legend]

Public Member Functions
template<>
StatusCode	Create (const object_creation::MCParticle::Parameters &parameters, const ObjectFactory< object_creation::MCParticle::Parameters, object_creation::MCParticle::Object > &factory) const

template<>
StatusCode	Create (const object_creation::Track::Parameters &parameters, const ObjectFactory< object_creation::Track::Parameters, object_creation::Track::Object > &factory) const

template<>
StatusCode	Create (const object_creation::CaloHit::Parameters &parameters, const ObjectFactory< object_creation::CaloHit::Parameters, object_creation::CaloHit::Object > &factory) const

template<>
StatusCode	Create (const object_creation::Geometry::SubDetector::Parameters &parameters, const ObjectFactory< object_creation::Geometry::SubDetector::Parameters, object_creation::Geometry::SubDetector::Object > &factory) const

template<>
StatusCode	Create (const object_creation::Geometry::LArTPC::Parameters &parameters, const ObjectFactory< object_creation::Geometry::LArTPC::Parameters, object_creation::Geometry::LArTPC::Object > &factory) const

template<>
StatusCode	Create (const object_creation::Geometry::LineGap::Parameters &parameters, const ObjectFactory< object_creation::Geometry::LineGap::Parameters, object_creation::Geometry::LineGap::Object > &factory) const

template<>
StatusCode	Create (const object_creation::Geometry::BoxGap::Parameters &parameters, const ObjectFactory< object_creation::Geometry::BoxGap::Parameters, object_creation::Geometry::BoxGap::Object > &factory) const

template<>
StatusCode	Create (const object_creation::Geometry::ConcentricGap::Parameters &parameters, const ObjectFactory< object_creation::Geometry::ConcentricGap::Parameters, object_creation::Geometry::ConcentricGap::Object > &factory) const

Private Member Functions
template<typename PARAMETERS , typename OBJECT >
StatusCode	Create (const PARAMETERS &parameters, const ObjectFactory< PARAMETERS, OBJECT > &factory) const
	Create an object for pandora.

StatusCode	ProcessEvent () const
	Process event.

StatusCode	ReadSettings (const std::string &xmlFileName) const
	Read pandora settings.

StatusCode	RegisterAlgorithmFactory (const std::string &algorithmType, AlgorithmFactory *const pAlgorithmFactory) const
	Register an algorithm factory with pandora.

StatusCode	RegisterAlgorithmToolFactory (const std::string &algorithmToolType, AlgorithmToolFactory *const pAlgorithmToolFactory) const
	Register an algorithm tool factory with pandora.

StatusCode	SetMCParentDaughterRelationship (const void const pParentAddress, const void const pDaughterAddress) const
	Set parent-daughter mc particle relationship.

StatusCode	SetTrackParentDaughterRelationship (const void const pParentAddress, const void const pDaughterAddress) const
	Set parent-daughter track relationship.

StatusCode	SetTrackSiblingRelationship (const void const pFirstSiblingAddress, const void const pSecondSiblingAddress) const
	Set sibling track relationship.

StatusCode	SetCaloHitToMCParticleRelationship (const void const pCaloHitParentAddress, const void const pMCParticleParentAddress, const float mcParticleWeight) const
	Set calo hit to mc particle relationship.

StatusCode	SetTrackToMCParticleRelationship (const void const pTrackParentAddress, const void const pMCParticleParentAddress, const float mcParticleWeight) const
	Set track to mc particle relationship.

StatusCode	GetCurrentPfoList (const PfoList *&pPfoList, std::string &pfoListName) const
	Get the current pfo list.

StatusCode	GetPfoList (const std::string &pfoListName, const PfoList *&pPfoList) const
	Get a named pfo list.

StatusCode	SetHitTypeGranularity (const HitType hitType, const Granularity granularity) const
	Set the granularity level to be associated with a specified hit type.

StatusCode	SetBFieldPlugin (BFieldPlugin *const pBFieldPlugin) const
	Set the bfield plugin used by pandora.

StatusCode	SetLArTransformationPlugin (LArTransformationPlugin *const pLArTransformationPlugin) const
	Set the lar transformation plugin used by pandora.

StatusCode	SetPseudoLayerPlugin (PseudoLayerPlugin *const pPseudoLayerPlugin) const
	Set the pseudo layer plugin used by pandora.

StatusCode	SetShowerProfilePlugin (ShowerProfilePlugin *const pShowerProfilePlugin) const
	Set the shower profile plugin used by pandora.

StatusCode	RegisterEnergyCorrectionPlugin (const std::string &name, const EnergyCorrectionType energyCorrectionType, EnergyCorrectionPlugin *const pEnergyCorrectionPlugin) const
	Register an energy correction plugin.

StatusCode	RegisterParticleIdPlugin (const std::string &name, ParticleIdPlugin *const pParticleIdPlugin) const
	Register a particle id plugin.

StatusCode	ResetEvent () const
	Reset pandora to process another event.

	PandoraApiImpl (Pandora *const pPandora)
	Constructor.

Private Attributes
Pandora *	m_pPandora
	The pandora object to provide an interface to.

Friends
class	Pandora

class	PandoraImpl

class	::PandoraApi

template<typename PARAMETERS , typename METADATA , typename OBJECT >
class	::object_creation::ObjectCreationHelper

Detailed Description

PandoraApiImpl class.

Definition at line 23 of file PandoraApiImpl.h.

Constructor & Destructor Documentation

◆ PandoraApiImpl()

pandora::PandoraApiImpl::PandoraApiImpl ( Pandora *const pPandora )

private

Constructor.

Parameters

pPandora address of the pandora object to interface

Definition at line 236 of file PandoraApiImpl.cc.

Member Function Documentation

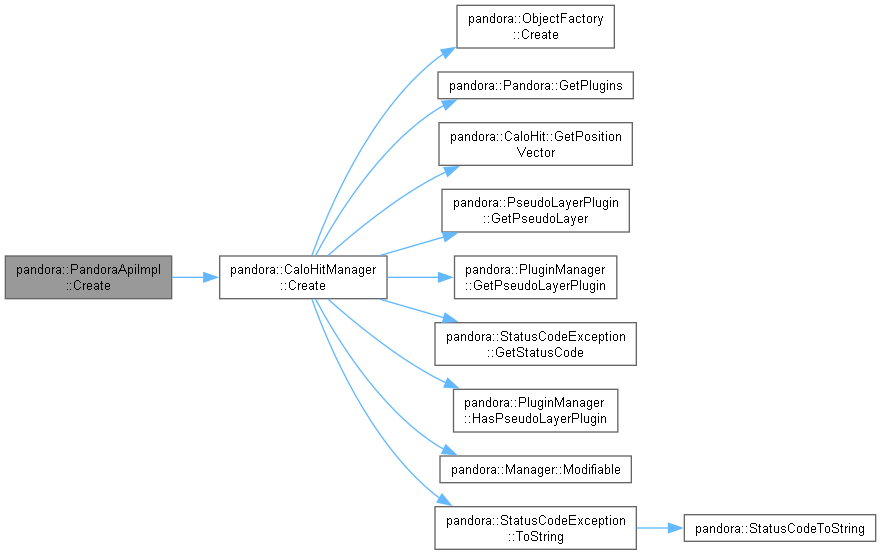

◆ Create() [1/9]

template<>

StatusCode pandora::PandoraApiImpl::Create	(	const object_creation::CaloHit::Parameters &	parameters,
		const ObjectFactory< object_creation::CaloHit::Parameters, object_creation::CaloHit::Object > &	factory
	)		const

Definition at line 50 of file PandoraApiImpl.cc.

Here is the call graph for this function:

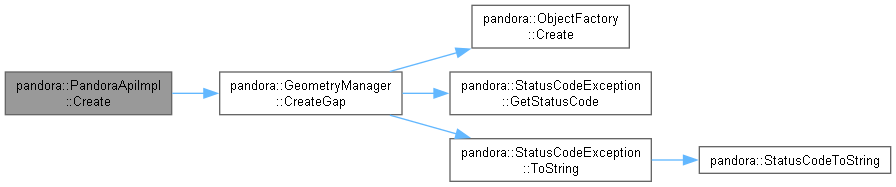

◆ Create() [2/9]

template<>

StatusCode pandora::PandoraApiImpl::Create	(	const object_creation::Geometry::BoxGap::Parameters &	parameters,
		const ObjectFactory< object_creation::Geometry::BoxGap::Parameters, object_creation::Geometry::BoxGap::Object > &	factory
	)		const

Definition at line 79 of file PandoraApiImpl.cc.

Here is the call graph for this function:

◆ Create() [3/9]

template<>

StatusCode pandora::PandoraApiImpl::Create	(	const object_creation::Geometry::ConcentricGap::Parameters &	parameters,
		const ObjectFactory< object_creation::Geometry::ConcentricGap::Parameters, object_creation::Geometry::ConcentricGap::Object > &	factory
	)		const

Definition at line 86 of file PandoraApiImpl.cc.

Here is the call graph for this function:

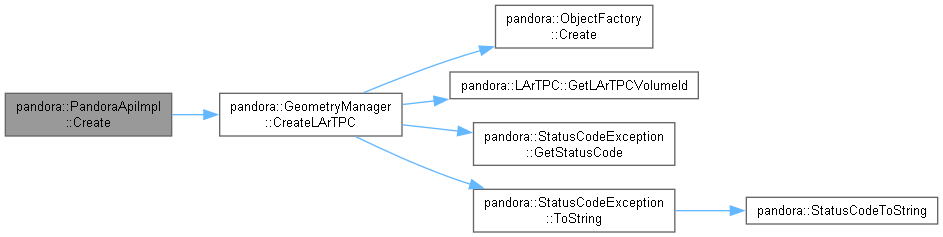

◆ Create() [4/9]

template<>

StatusCode pandora::PandoraApiImpl::Create	(	const object_creation::Geometry::LArTPC::Parameters &	parameters,
		const ObjectFactory< object_creation::Geometry::LArTPC::Parameters, object_creation::Geometry::LArTPC::Object > &	factory
	)		const

Definition at line 65 of file PandoraApiImpl.cc.

Here is the call graph for this function:

◆ Create() [5/9]

template<>

StatusCode pandora::PandoraApiImpl::Create	(	const object_creation::Geometry::LineGap::Parameters &	parameters,
		const ObjectFactory< object_creation::Geometry::LineGap::Parameters, object_creation::Geometry::LineGap::Object > &	factory
	)		const

Definition at line 72 of file PandoraApiImpl.cc.

Here is the call graph for this function:

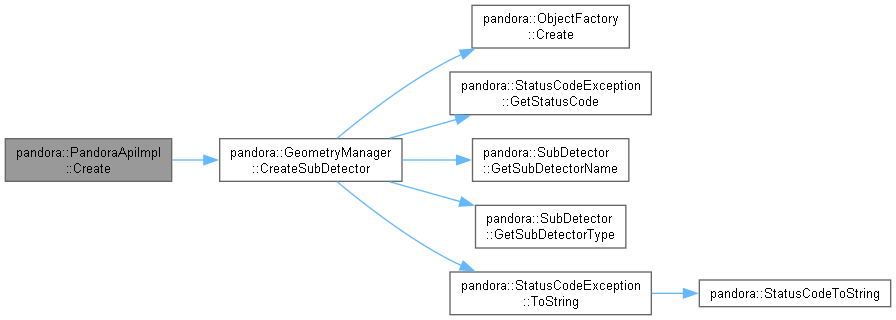

◆ Create() [6/9]

template<>

StatusCode pandora::PandoraApiImpl::Create	(	const object_creation::Geometry::SubDetector::Parameters &	parameters,
		const ObjectFactory< object_creation::Geometry::SubDetector::Parameters, object_creation::Geometry::SubDetector::Object > &	factory
	)		const

Definition at line 58 of file PandoraApiImpl.cc.

Here is the call graph for this function:

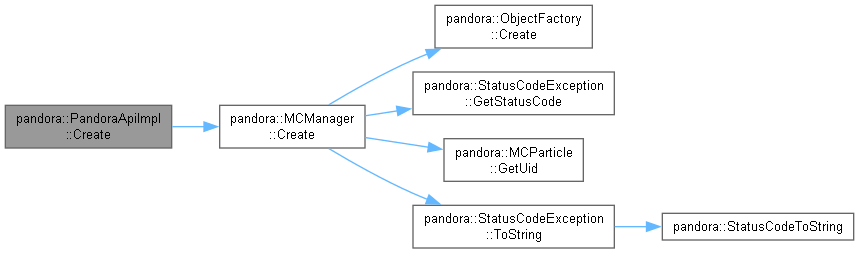

◆ Create() [7/9]

template<>

StatusCode pandora::PandoraApiImpl::Create	(	const object_creation::MCParticle::Parameters &	parameters,
		const ObjectFactory< object_creation::MCParticle::Parameters, object_creation::MCParticle::Object > &	factory
	)		const

Definition at line 34 of file PandoraApiImpl.cc.

Here is the call graph for this function:

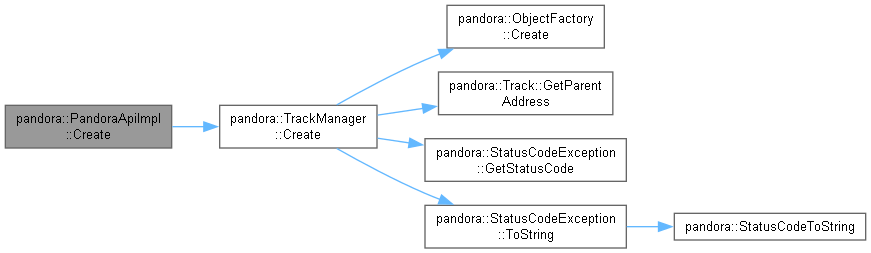

◆ Create() [8/9]

template<>

StatusCode pandora::PandoraApiImpl::Create	(	const object_creation::Track::Parameters &	parameters,
		const ObjectFactory< object_creation::Track::Parameters, object_creation::Track::Object > &	factory
	)		const

Definition at line 42 of file PandoraApiImpl.cc.

Here is the call graph for this function:

◆ Create() [9/9]

template<typename PARAMETERS , typename OBJECT >

StatusCode pandora::PandoraApiImpl::Create	(	const PARAMETERS &	parameters,
		const ObjectFactory< PARAMETERS, OBJECT > &	factory
	)		const

private

Create an object for pandora.

Parameters

parameters	the object parameters
factory	the factory that performs the object allocation

Definition at line 93 of file PandoraApiImpl.cc.

◆ GetCurrentPfoList()

StatusCode pandora::PandoraApiImpl::GetCurrentPfoList	(	const PfoList *&	pPfoList,
		std::string &	pfoListName
	)		const

private

Get the current pfo list.

Parameters

pPfoList	to receive the address of the current pfo list
pfoListName	to receive the current pfo list name

Definition at line 165 of file PandoraApiImpl.cc.

Here is the call graph for this function:

◆ GetPfoList()

StatusCode pandora::PandoraApiImpl::GetPfoList	(	const std::string &	pfoListName,
		const PfoList *&	pPfoList
	)		const

private

Get a named pfo list.

Parameters

pfoListName	the name of the pfo list
pPfoList	to receive the address of the pfo list

Definition at line 172 of file PandoraApiImpl.cc.

Here is the call graph for this function:

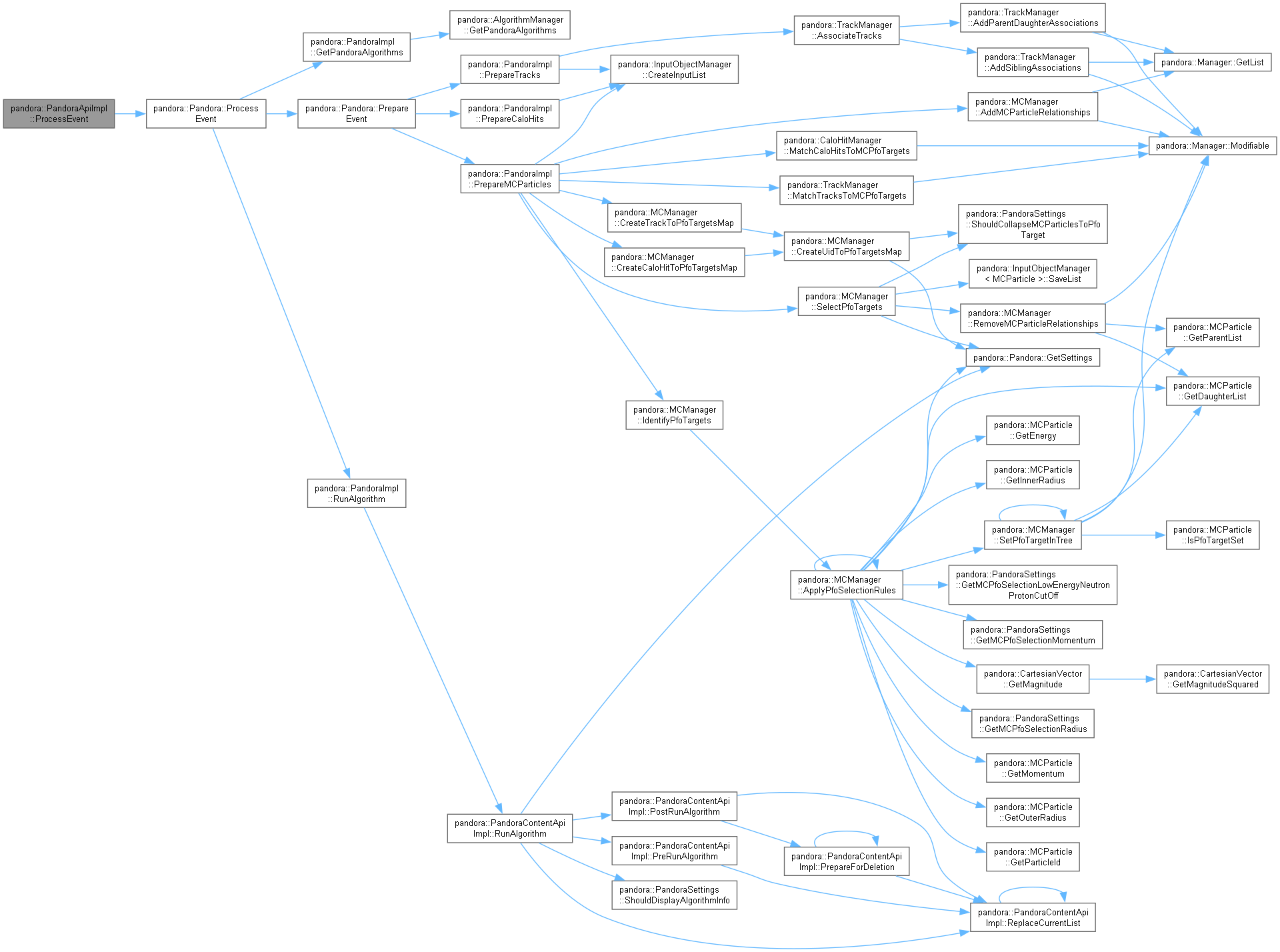

◆ ProcessEvent()

StatusCode pandora::PandoraApiImpl::ProcessEvent ( ) const

private

Process event.

Definition at line 100 of file PandoraApiImpl.cc.

Here is the call graph for this function:

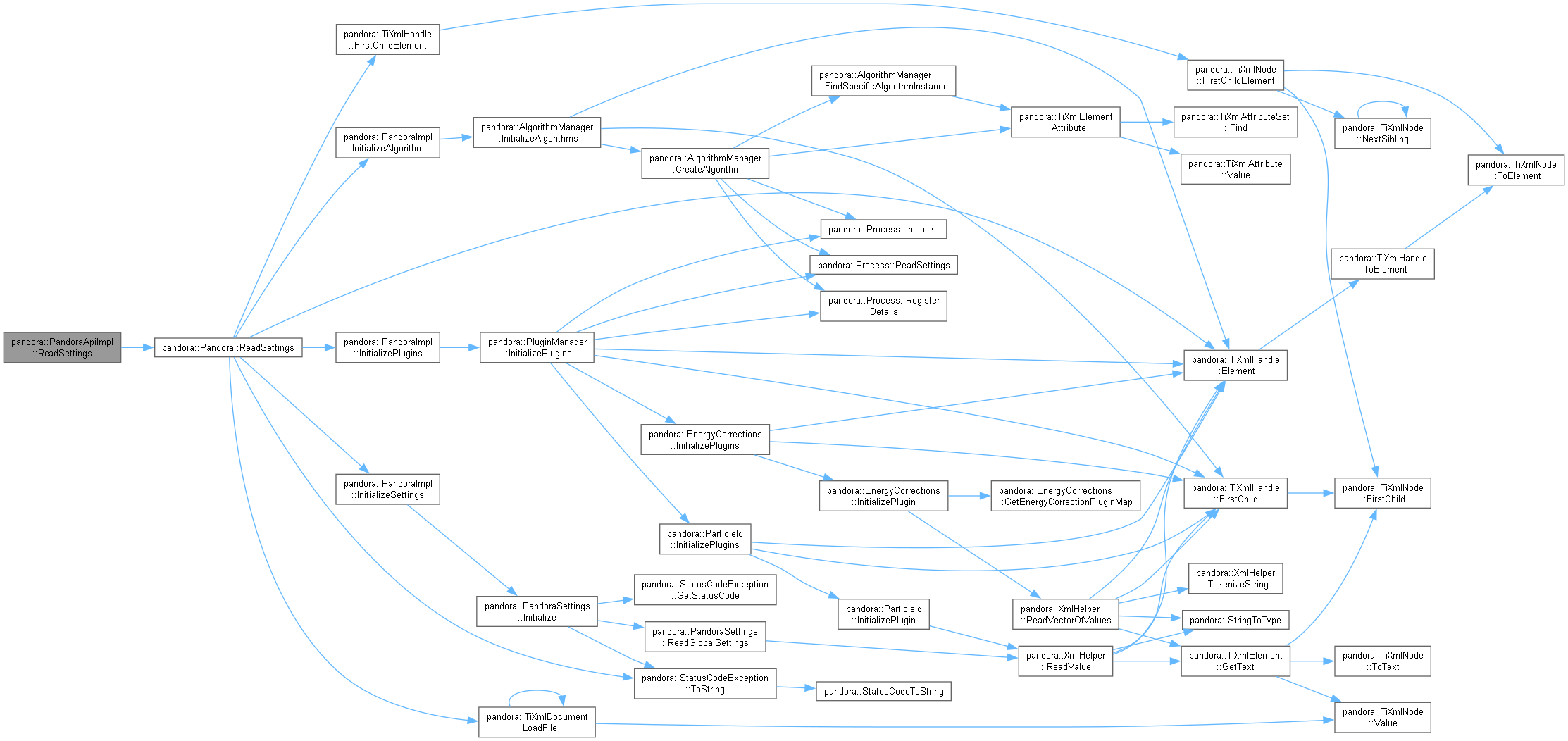

◆ ReadSettings()

StatusCode pandora::PandoraApiImpl::ReadSettings ( const std::string & xmlFileName ) const

private

Read pandora settings.

Parameters

xmlFileName the name of the xml file containing the settings

Definition at line 107 of file PandoraApiImpl.cc.

Here is the call graph for this function:

◆ RegisterAlgorithmFactory()

StatusCode pandora::PandoraApiImpl::RegisterAlgorithmFactory	(	const std::string &	algorithmType,
		AlgorithmFactory *const	pAlgorithmFactory
	)		const

private

Register an algorithm factory with pandora.

Parameters

algorithmType	the type of algorithm that the factory will create
pAlgorithmFactory	the address of an algorithm factory instance

Definition at line 114 of file PandoraApiImpl.cc.

Here is the call graph for this function:

◆ RegisterAlgorithmToolFactory()

StatusCode pandora::PandoraApiImpl::RegisterAlgorithmToolFactory	(	const std::string &	algorithmToolType,
		AlgorithmToolFactory *const	pAlgorithmToolFactory
	)		const

private

Register an algorithm tool factory with pandora.

Parameters

algorithmToolType	the type of algorithm tool that the factory will create
pAlgorithmToolFactory	the address of an algorithm tool factory instance

Definition at line 121 of file PandoraApiImpl.cc.

Here is the call graph for this function:

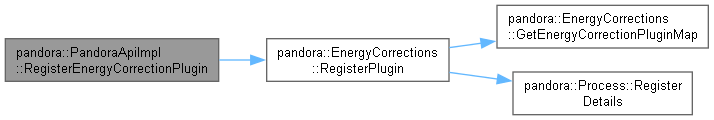

◆ RegisterEnergyCorrectionPlugin()

StatusCode pandora::PandoraApiImpl::RegisterEnergyCorrectionPlugin	(	const std::string &	name,
		const EnergyCorrectionType	energyCorrectionType,
		EnergyCorrectionPlugin *const	pEnergyCorrectionPlugin
	)		const

private

Register an energy correction plugin.

Parameters

name	the name/label associated with the energy correction plugin
energyCorrectionType	the energy correction type
pEnergyCorrectionPlugin	address of the energy correction plugin (will pass ownership to pandora)

Definition at line 214 of file PandoraApiImpl.cc.

Here is the call graph for this function:

◆ RegisterParticleIdPlugin()

StatusCode pandora::PandoraApiImpl::RegisterParticleIdPlugin	(	const std::string &	name,
		ParticleIdPlugin *const	pParticleIdPlugin
	)		const

private

Register a particle id plugin.

Parameters

functionName	the name/label associated with the particle id plugin
pParticleIdPlugin	address of the particle id plugin (will pass ownership to pandora)

Definition at line 222 of file PandoraApiImpl.cc.

Here is the call graph for this function:

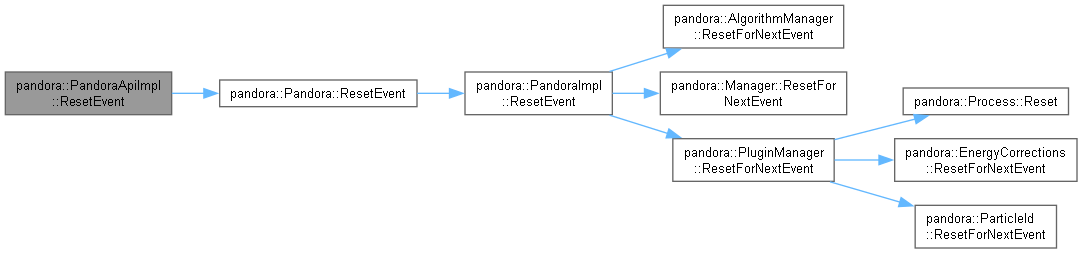

◆ ResetEvent()

StatusCode pandora::PandoraApiImpl::ResetEvent ( ) const

private

Reset pandora to process another event.

Definition at line 229 of file PandoraApiImpl.cc.

Here is the call graph for this function:

◆ SetBFieldPlugin()

StatusCode pandora::PandoraApiImpl::SetBFieldPlugin ( BFieldPlugin *const pBFieldPlugin ) const

private

Set the bfield plugin used by pandora.

Parameters

pBFieldPlugin address of the bfield plugin (will pass ownership to pandora)

Definition at line 186 of file PandoraApiImpl.cc.

Here is the call graph for this function:

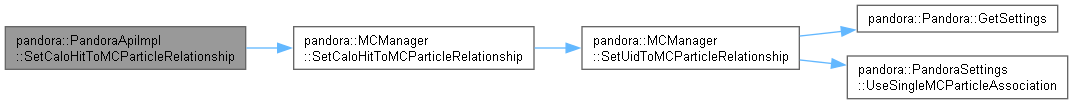

◆ SetCaloHitToMCParticleRelationship()

StatusCode pandora::PandoraApiImpl::SetCaloHitToMCParticleRelationship	(	const void *const	pCaloHitParentAddress,
		const void *const	pMCParticleParentAddress,
		const float	mcParticleWeight
	)		const

private

Set calo hit to mc particle relationship.

Parameters

pCaloHitParentAddress	address of calo hit in the user framework
pMCParticleParentAddress	address of mc particle in the user framework
mcParticleWeight	weighting to assign to the mc particle

Definition at line 149 of file PandoraApiImpl.cc.

Here is the call graph for this function:

◆ SetHitTypeGranularity()

StatusCode pandora::PandoraApiImpl::SetHitTypeGranularity	(	const HitType	hitType,
		const Granularity	granularity
	)		const

private

Set the granularity level to be associated with a specified hit type.

Parameters

hitType	the specified hit type
granularity	the specified granularity

Definition at line 179 of file PandoraApiImpl.cc.

Here is the call graph for this function:

◆ SetLArTransformationPlugin()

StatusCode pandora::PandoraApiImpl::SetLArTransformationPlugin ( LArTransformationPlugin *const pLArTransformationPlugin ) const

private

Set the lar transformation plugin used by pandora.

Parameters

pLArTransformationPlugin address of the lar transformation plugin (will pass ownership to pandora)

Definition at line 193 of file PandoraApiImpl.cc.

Here is the call graph for this function:

◆ SetMCParentDaughterRelationship()

StatusCode pandora::PandoraApiImpl::SetMCParentDaughterRelationship	(	const void *const	pParentAddress,
		const void *const	pDaughterAddress
	)		const

private

Set parent-daughter mc particle relationship.

Parameters

pParentAddress	address of parent mc particle in the user framework
pDaughterAddress	address of daughter mc particle in the user framework

Definition at line 128 of file PandoraApiImpl.cc.

Here is the call graph for this function:

◆ SetPseudoLayerPlugin()

StatusCode pandora::PandoraApiImpl::SetPseudoLayerPlugin ( PseudoLayerPlugin *const pPseudoLayerPlugin ) const

private

Set the pseudo layer plugin used by pandora.

Parameters

pPseudoLayerPlugin address of the pseudo layer plugin (will pass ownership to pandora)

Definition at line 200 of file PandoraApiImpl.cc.

Here is the call graph for this function:

◆ SetShowerProfilePlugin()

StatusCode pandora::PandoraApiImpl::SetShowerProfilePlugin ( ShowerProfilePlugin *const pShowerProfilePlugin ) const

private

Set the shower profile plugin used by pandora.

Parameters

pPseudoLayerPlugin address of the pseudo layer plugin (will pass ownership to pandora)

Definition at line 207 of file PandoraApiImpl.cc.

Here is the call graph for this function:

◆ SetTrackParentDaughterRelationship()

StatusCode pandora::PandoraApiImpl::SetTrackParentDaughterRelationship	(	const void *const	pParentAddress,
		const void *const	pDaughterAddress
	)		const

private

Set parent-daughter track relationship.

Parameters

pParentAddress	address of parent track in the user framework
pDaughterAddress	address of daughter track in the user framework

Definition at line 135 of file PandoraApiImpl.cc.

Here is the call graph for this function:

◆ SetTrackSiblingRelationship()

StatusCode pandora::PandoraApiImpl::SetTrackSiblingRelationship	(	const void *const	pFirstSiblingAddress,
		const void *const	pSecondSiblingAddress
	)		const

private

Set sibling track relationship.

Parameters

pFirstSiblingAddress	address of first sibling track in the user framework
pSecondSiblingAddress	address of second sibling track in the user framework

Definition at line 142 of file PandoraApiImpl.cc.

Here is the call graph for this function:

◆ SetTrackToMCParticleRelationship()

StatusCode pandora::PandoraApiImpl::SetTrackToMCParticleRelationship	(	const void *const	pTrackParentAddress,
		const void *const	pMCParticleParentAddress,
		const float	mcParticleWeight
	)		const

private

Set track to mc particle relationship.

Parameters

pTrackParentAddress	address of track in the user framework
pMCParticleParentAddress	address of mc particle in the user framework
mcParticleWeight	weighting to assign to the mc particle

Definition at line 157 of file PandoraApiImpl.cc.

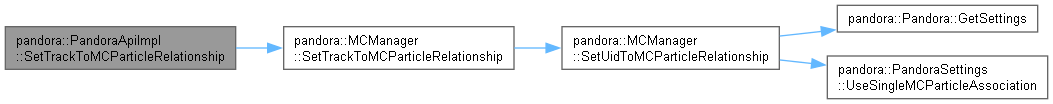

Here is the call graph for this function:

Friends And Related Symbol Documentation

◆ ::object_creation::ObjectCreationHelper

template<typename PARAMETERS , typename METADATA , typename OBJECT >

friend class ::object_creation::ObjectCreationHelper

friend

Definition at line 194 of file PandoraApiImpl.h.

◆ ::PandoraApi

friend class ::PandoraApi

friend

Definition at line 193 of file PandoraApiImpl.h.

◆ Pandora

friend class Pandora

friend

Definition at line 191 of file PandoraApiImpl.h.

◆ PandoraImpl

friend class PandoraImpl

friend

Definition at line 192 of file PandoraApiImpl.h.

Member Data Documentation

◆ m_pPandora

Pandora* pandora::PandoraApiImpl::m_pPandora

private

The pandora object to provide an interface to.

Definition at line 189 of file PandoraApiImpl.h.

The documentation for this class was generated from the following files:

PandoraSDK/include/Api/PandoraApiImpl.h
PandoraSDK/src/Api/PandoraApiImpl.cc

Public Member Functions

Private Member Functions

Private Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ PandoraApiImpl()

Member Function Documentation

◆ Create() [1/9]

◆ Create() [2/9]

◆ Create() [3/9]

◆ Create() [4/9]

◆ Create() [5/9]

◆ Create() [6/9]

◆ Create() [7/9]

◆ Create() [8/9]

◆ Create() [9/9]

◆ GetCurrentPfoList()

◆ GetPfoList()

◆ ProcessEvent()

◆ ReadSettings()

◆ RegisterAlgorithmFactory()

◆ RegisterAlgorithmToolFactory()

◆ RegisterEnergyCorrectionPlugin()

◆ RegisterParticleIdPlugin()

◆ ResetEvent()

◆ SetBFieldPlugin()

◆ SetCaloHitToMCParticleRelationship()

◆ SetHitTypeGranularity()

◆ SetLArTransformationPlugin()

◆ SetMCParentDaughterRelationship()

◆ SetPseudoLayerPlugin()

◆ SetShowerProfilePlugin()

◆ SetTrackParentDaughterRelationship()

◆ SetTrackSiblingRelationship()

◆ SetTrackToMCParticleRelationship()

Friends And Related Symbol Documentation

◆ ::object_creation::ObjectCreationHelper

◆ ::PandoraApi

◆ Pandora

◆ PandoraImpl

Member Data Documentation

◆ m_pPandora
