#include "Manager.h"

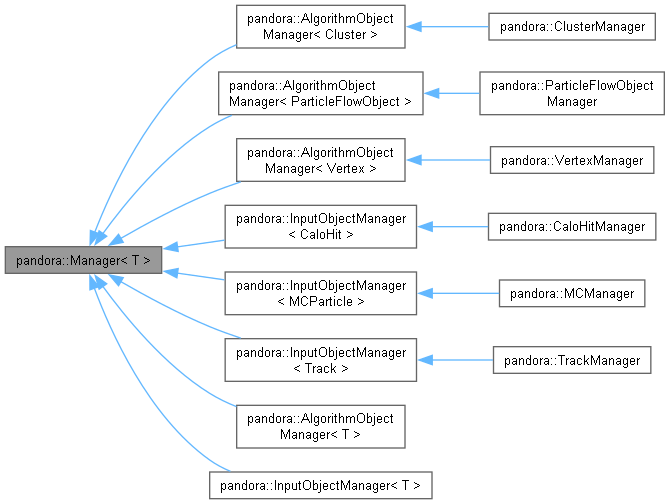

Inheritance diagram for pandora::Manager< T >:

[legend]

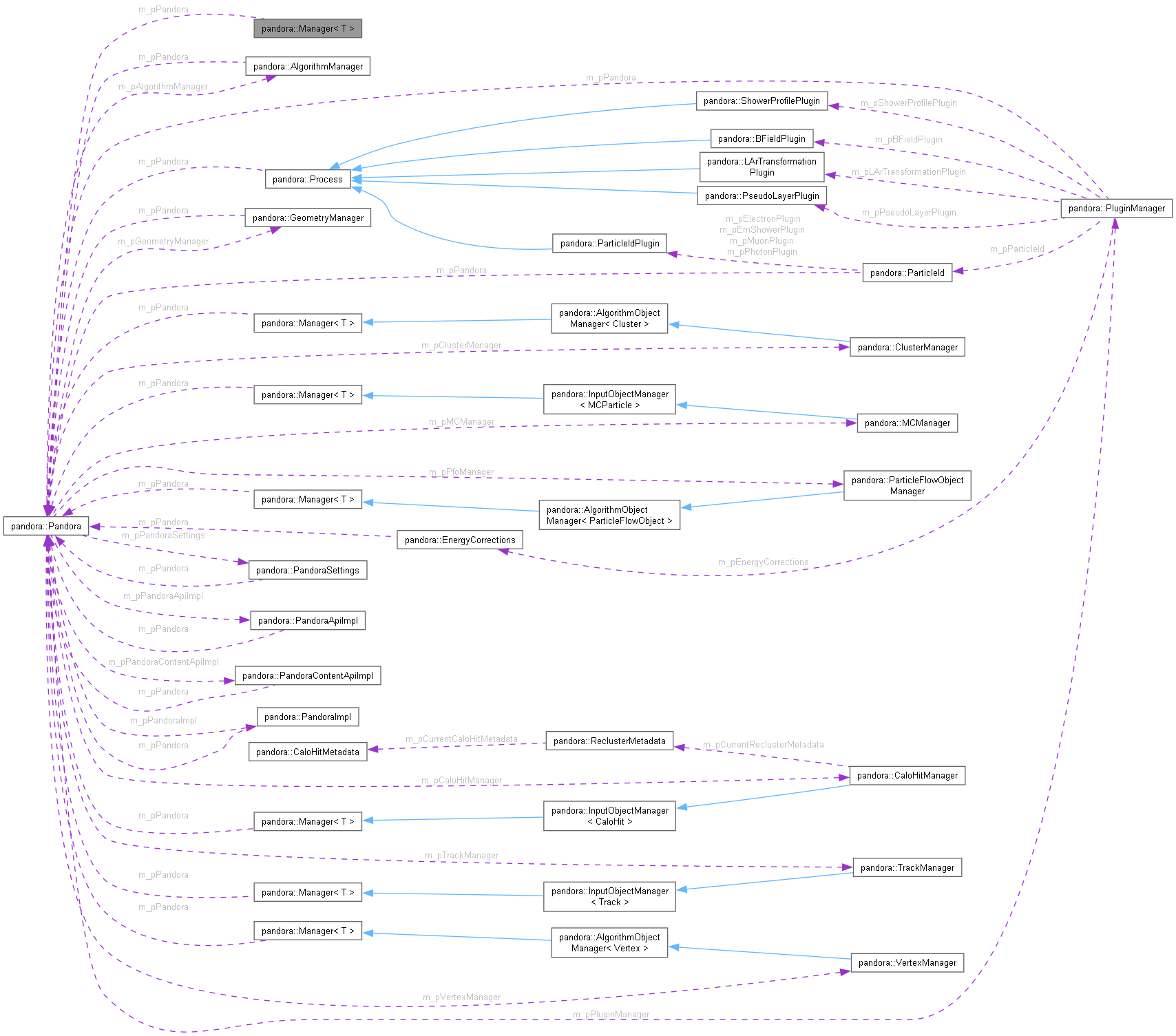

Collaboration diagram for pandora::Manager< T >:

[legend]

Classes
class	AlgorithmInfo
	AlgorithmInfo class. More...

Public Member Functions
	Manager (const Pandora *const pPandora)
	Constructor.

virtual	~Manager ()
	Destructor.

Protected Types
typedef MANAGED_CONTAINER< const T * >	ObjectList

typedef std::map< std::string, ObjectList * >	NameToListMap

typedef std::unordered_map< const Algorithm *, AlgorithmInfo >	AlgorithmInfoMap

Protected Member Functions
virtual StatusCode	GetList (const std::string &listName, const ObjectList *&pObjectList) const
	Get a list.

virtual StatusCode	GetCurrentList (const ObjectList *&pObjectList, std::string &listName) const
	Get the current list.

virtual StatusCode	GetCurrentListName (std::string &listName) const
	Get the current list name.

virtual StatusCode	GetAlgorithmInputList (const Algorithm const pAlgorithm, const ObjectList &pObjectList, std::string &listName) const
	Get the algorithm input list.

virtual StatusCode	GetAlgorithmInputListName (const Algorithm *const pAlgorithm, std::string &listName) const
	Get the algorithm track list name.

virtual StatusCode	ResetCurrentListToAlgorithmInputList (const Algorithm *const pAlgorithm)
	Reset the current list to the algorithm input list.

virtual StatusCode	ReplaceCurrentAndAlgorithmInputLists (const Algorithm *const pAlgorithm, const std::string &listName)
	Replace the current and algorithm input lists with a pre-existing list.

virtual StatusCode	DropCurrentList (const Algorithm *const pAlgorithm)
	Drop the current list, returning the current list to its default empty/null state.

virtual StatusCode	RenameList (const std::string &oldListName, const std::string &newListName)
	Rename a saved list, altering its saved name from a specified old list name to a specified new list name.

virtual StatusCode	CreateTemporaryListAndSetCurrent (const Algorithm *const pAlgorithm, std::string &temporaryListName)
	Create a temporary list associated with a particular algorithm.

virtual StatusCode	RegisterAlgorithm (const Algorithm *const pAlgorithm)
	Register an algorithm with the manager.

virtual StatusCode	ResetAlgorithmInfo (const Algorithm *const pAlgorithm, bool isAlgorithmFinished)
	Remove temporary lists and reset the current list to that when algorithm was initialized.

virtual StatusCode	ResetForNextEvent ()
	Reset the manager.

virtual StatusCode	EraseAllContent ()
	Erase all manager content.

virtual StatusCode	CreateInitialLists ()
	Create initial lists.

virtual T *	Modifiable (const T *const pT) const
	Access a modifiable object, when provided with address to const object.

Protected Attributes
const std::string	m_nullListName
	The name of the default empty (NULL) list.

const Pandora *const	m_pPandora
	The associated pandora object.

NameToListMap	m_nameToListMap
	The name to list map.

AlgorithmInfoMap	m_algorithmInfoMap
	The algorithm info map.

std::string	m_currentListName
	The name of the current list.

StringSet	m_savedLists
	The set of saved lists.

Detailed Description

template<typename T>
class pandora::Manager< T >

Manager class.

Definition at line 26 of file Manager.h.

Class Documentation

◆ pandora::Manager::AlgorithmInfo

class pandora::Manager::AlgorithmInfo

template<typename T>
class pandora::Manager< T >::AlgorithmInfo

AlgorithmInfo class.

Definition at line 164 of file Manager.h.

Class Members
unsigned int	m_numberOfListsCreated	The number of lists created by the algorithm.
string	m_parentListName	The current list when algorithm was initialized.
StringSet	m_temporaryListNames	The temporary list names.

Member Typedef Documentation

◆ AlgorithmInfoMap

template<typename T >

typedef std::unordered_map<const Algorithm *, AlgorithmInfo> pandora::Manager< T >::AlgorithmInfoMap

protected

Definition at line 176 of file Manager.h.

◆ NameToListMap

template<typename T >

typedef std::map<std::string, ObjectList *> pandora::Manager< T >::NameToListMap

protected

Definition at line 175 of file Manager.h.

◆ ObjectList

template<typename T >

typedef MANAGED_CONTAINER<const T *> pandora::Manager< T >::ObjectList

protected

Definition at line 42 of file Manager.h.

Constructor & Destructor Documentation

◆ Manager()

template<typename T >

pandora::Manager< T >::Manager ( const Pandora *const pPandora )

Constructor.

Parameters

pPandora address of the associated pandora object

Definition at line 17 of file Manager.cc.

◆ ~Manager()

template<typename T >

pandora::Manager< T >::~Manager ( )

virtual

Destructor.

Definition at line 27 of file Manager.cc.

Member Function Documentation

◆ CreateInitialLists()

template<typename T >

StatusCode pandora::Manager< T >::CreateInitialLists ( )

protectedvirtual

Create initial lists.

Reimplemented in pandora::InputObjectManager< T >, pandora::InputObjectManager< CaloHit >, pandora::InputObjectManager< MCParticle >, and pandora::InputObjectManager< Track >.

Definition at line 274 of file Manager.cc.

Here is the caller graph for this function:

◆ CreateTemporaryListAndSetCurrent()

template<typename T >

StatusCode pandora::Manager< T >::CreateTemporaryListAndSetCurrent	(	const Algorithm *const	pAlgorithm,
		std::string &	temporaryListName
	)

protectedvirtual

Create a temporary list associated with a particular algorithm.

Parameters

pAlgorithm	address of the algorithm
temporaryListName	to receive the name of the temporary list

Reimplemented in pandora::AlgorithmObjectManager< T >, pandora::AlgorithmObjectManager< Cluster >, pandora::AlgorithmObjectManager< ParticleFlowObject >, and pandora::AlgorithmObjectManager< Vertex >.

Definition at line 177 of file Manager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DropCurrentList()

template<typename T >

StatusCode pandora::Manager< T >::DropCurrentList ( const Algorithm *const pAlgorithm )

protectedvirtual

Drop the current list, returning the current list to its default empty/null state.

Parameters

pAlgorithm address of the algorithm altering the lists

Reimplemented in pandora::AlgorithmObjectManager< T >, pandora::AlgorithmObjectManager< Cluster >, pandora::AlgorithmObjectManager< ParticleFlowObject >, and pandora::AlgorithmObjectManager< Vertex >.

Definition at line 134 of file Manager.cc.

Here is the caller graph for this function:

◆ EraseAllContent()

template<typename T >

StatusCode pandora::Manager< T >::EraseAllContent ( )

protectedvirtual

Erase all manager content.

Reimplemented in pandora::AlgorithmObjectManager< T >, pandora::AlgorithmObjectManager< Cluster >, pandora::AlgorithmObjectManager< ParticleFlowObject >, pandora::AlgorithmObjectManager< Vertex >, pandora::CaloHitManager, pandora::InputObjectManager< T >, pandora::InputObjectManager< CaloHit >, pandora::InputObjectManager< MCParticle >, pandora::InputObjectManager< Track >, pandora::MCManager, and pandora::TrackManager.

Definition at line 258 of file Manager.cc.

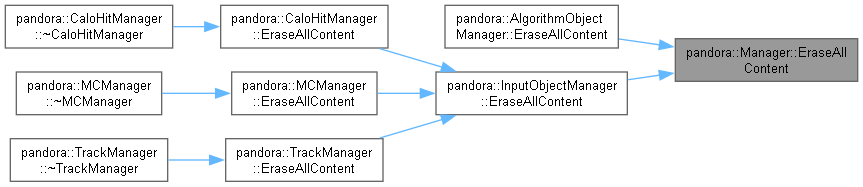

Here is the caller graph for this function:

◆ GetAlgorithmInputList()

template<typename T >

StatusCode pandora::Manager< T >::GetAlgorithmInputList	(	const Algorithm *const	pAlgorithm,
		const ObjectList *&	pObjectList,
		std::string &	listName
	)		const

protectedvirtual

Get the algorithm input list.

Parameters

pAlgorithm	address of the algorithm
pObjectList	to receive the algorithm input list
listName	to receive the name of the algorithm input list

Definition at line 69 of file Manager.cc.

◆ GetAlgorithmInputListName()

template<typename T >

StatusCode pandora::Manager< T >::GetAlgorithmInputListName	(	const Algorithm *const	pAlgorithm,
		std::string &	listName
	)		const

inlineprotectedvirtual

Get the algorithm track list name.

Parameters

pAlgorithm	address of the algorithm
listName	to receive the algorithm input list name

Definition at line 88 of file Manager.cc.

◆ GetCurrentList()

template<typename T >

StatusCode pandora::Manager< T >::GetCurrentList	(	const ObjectList *&	pObjectList,
		std::string &	listName
	)		const

protectedvirtual

Get the current list.

Parameters

pObjectList	to receive the current list
listName	to receive the name of the current list

Definition at line 48 of file Manager.cc.

Here is the caller graph for this function:

◆ GetCurrentListName()

template<typename T >

StatusCode pandora::Manager< T >::GetCurrentListName ( std::string & listName ) const

inlineprotectedvirtual

Get the current list name.

Parameters

listName to receive the current list name

Definition at line 57 of file Manager.cc.

◆ GetList()

template<typename T >

StatusCode pandora::Manager< T >::GetList	(	const std::string &	listName,
		const ObjectList *&	pObjectList
	)		const

protectedvirtual

Get a list.

Parameters

listName	the name of the list
pObjectList	to receive the list

Definition at line 34 of file Manager.cc.

Here is the caller graph for this function:

◆ Modifiable()

template<typename T >

T * pandora::Manager< T >::Modifiable ( const T *const pT ) const

protectedvirtual

Access a modifiable object, when provided with address to const object.

Parameters

pT	the address of the const object

Returns: address of the modifiable object

Definition at line 288 of file Manager.cc.

Here is the caller graph for this function:

◆ RegisterAlgorithm()

template<typename T >

StatusCode pandora::Manager< T >::RegisterAlgorithm ( const Algorithm *const pAlgorithm )

protectedvirtual

Register an algorithm with the manager.

Parameters

pAlgorithm address of the algorithm

Definition at line 198 of file Manager.cc.

◆ RenameList()

template<typename T >

StatusCode pandora::Manager< T >::RenameList	(	const std::string &	oldListName,
		const std::string &	newListName
	)

protectedvirtual

Rename a saved list, altering its saved name from a specified old list name to a specified new list name.

Parameters

oldListName	the old list name
newListName	the new list name

Reimplemented in pandora::AlgorithmObjectManager< T >, pandora::AlgorithmObjectManager< Cluster >, pandora::AlgorithmObjectManager< ParticleFlowObject >, pandora::AlgorithmObjectManager< Vertex >, pandora::InputObjectManager< T >, pandora::InputObjectManager< CaloHit >, pandora::InputObjectManager< MCParticle >, and pandora::InputObjectManager< Track >.

Definition at line 142 of file Manager.cc.

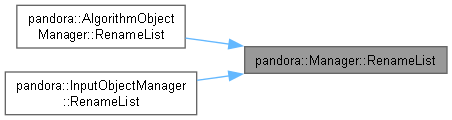

Here is the caller graph for this function:

◆ ReplaceCurrentAndAlgorithmInputLists()

template<typename T >

StatusCode pandora::Manager< T >::ReplaceCurrentAndAlgorithmInputLists	(	const Algorithm *const	pAlgorithm,
		const std::string &	listName
	)

protectedvirtual

Replace the current and algorithm input lists with a pre-existing list.

Parameters

pAlgorithm	address of the algorithm changing the current list
listName	the name of the new current (and algorithm input) list

Reimplemented in pandora::AlgorithmObjectManager< T >, pandora::AlgorithmObjectManager< Cluster >, pandora::AlgorithmObjectManager< ParticleFlowObject >, and pandora::AlgorithmObjectManager< Vertex >.

Definition at line 110 of file Manager.cc.

Here is the caller graph for this function:

◆ ResetAlgorithmInfo()

template<typename T >

StatusCode pandora::Manager< T >::ResetAlgorithmInfo	(	const Algorithm *const	pAlgorithm,
		bool	isAlgorithmFinished
	)

protectedvirtual

Remove temporary lists and reset the current list to that when algorithm was initialized.

Parameters

pAlgorithm	address of the algorithm altering the lists
isAlgorithmFinished	whether the algorithm has completely finished and the algorithm info should be entirely removed

Reimplemented in pandora::AlgorithmObjectManager< T >, pandora::AlgorithmObjectManager< Cluster >, pandora::AlgorithmObjectManager< ParticleFlowObject >, and pandora::AlgorithmObjectManager< Vertex >.

Definition at line 216 of file Manager.cc.

Here is the caller graph for this function:

◆ ResetCurrentListToAlgorithmInputList()

template<typename T >

StatusCode pandora::Manager< T >::ResetCurrentListToAlgorithmInputList ( const Algorithm *const pAlgorithm )

protectedvirtual

Reset the current list to the algorithm input list.

Parameters

pAlgorithm address of the algorithm changing the current track list

Reimplemented in pandora::AlgorithmObjectManager< T >, pandora::AlgorithmObjectManager< Cluster >, pandora::AlgorithmObjectManager< ParticleFlowObject >, and pandora::AlgorithmObjectManager< Vertex >.

Definition at line 102 of file Manager.cc.

Here is the caller graph for this function:

◆ ResetForNextEvent()

template<typename T >

StatusCode pandora::Manager< T >::ResetForNextEvent ( )

protectedvirtual

Reset the manager.

Definition at line 247 of file Manager.cc.

Here is the caller graph for this function:

Member Data Documentation

◆ m_algorithmInfoMap

template<typename T >

AlgorithmInfoMap pandora::Manager< T >::m_algorithmInfoMap

protected

The algorithm info map.

Definition at line 179 of file Manager.h.

◆ m_currentListName

template<typename T >

std::string pandora::Manager< T >::m_currentListName

protected

The name of the current list.

Definition at line 181 of file Manager.h.

◆ m_nameToListMap

template<typename T >

NameToListMap pandora::Manager< T >::m_nameToListMap

protected

The name to list map.

Definition at line 178 of file Manager.h.

◆ m_nullListName

template<typename T >

const std::string pandora::Manager< T >::m_nullListName

protected

The name of the default empty (NULL) list.

Definition at line 172 of file Manager.h.

◆ m_pPandora

template<typename T >

const Pandora* const pandora::Manager< T >::m_pPandora

protected

The associated pandora object.

Definition at line 173 of file Manager.h.

◆ m_savedLists

template<typename T >

StringSet pandora::Manager< T >::m_savedLists

protected

The set of saved lists.

Definition at line 182 of file Manager.h.

The documentation for this class was generated from the following files:

PandoraSDK/include/Managers/Manager.h
PandoraSDK/src/Managers/Manager.cc

Classes

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

Class Documentation

◆ pandora::Manager::AlgorithmInfo

Member Typedef Documentation

◆ AlgorithmInfoMap

◆ NameToListMap

◆ ObjectList

Constructor & Destructor Documentation

◆ Manager()

◆ ~Manager()

Member Function Documentation

◆ CreateInitialLists()

◆ CreateTemporaryListAndSetCurrent()

◆ DropCurrentList()

◆ EraseAllContent()

◆ GetAlgorithmInputList()

◆ GetAlgorithmInputListName()

◆ GetCurrentList()

◆ GetCurrentListName()

◆ GetList()

◆ Modifiable()

◆ RegisterAlgorithm()

◆ RenameList()

◆ ReplaceCurrentAndAlgorithmInputLists()

◆ ResetAlgorithmInfo()

◆ ResetCurrentListToAlgorithmInputList()

◆ ResetForNextEvent()

Member Data Documentation

◆ m_algorithmInfoMap

◆ m_currentListName

◆ m_nameToListMap

◆ m_nullListName

◆ m_pPandora

◆ m_savedLists
