#include "Track.h"

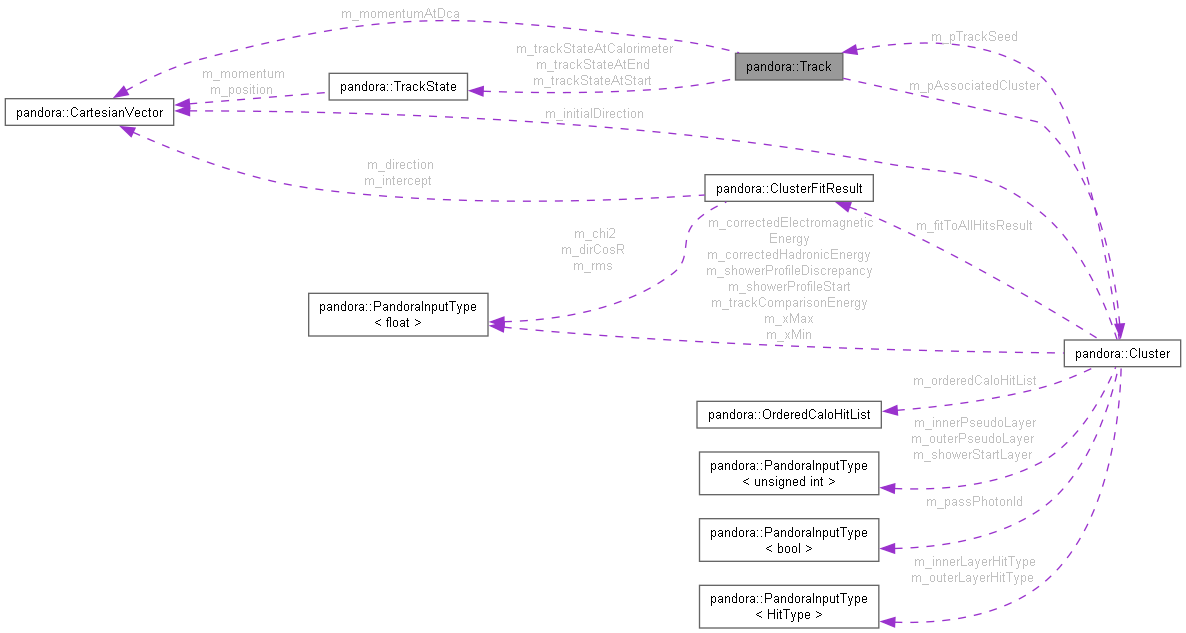

Collaboration diagram for pandora::Track:

[legend]

Public Member Functions
float	GetD0 () const
	Get the 2D impact parameter wrt (0,0)

float	GetZ0 () const
	Get the z coordinate at the 2D distance of closest approach.

int	GetParticleId () const
	Get the PDG code of the tracked particle.

int	GetCharge () const
	Get the charge of the tracked particle.

float	GetMass () const
	Get the mass of the tracked particle, units GeV.

const CartesianVector &	GetMomentumAtDca () const
	Get the track momentum at the 2D distance of closest approach.

float	GetEnergyAtDca () const
	Get the track energy at the 2D distance of closest approach.

const TrackState &	GetTrackStateAtStart () const
	Get the track state at the start of the track.

const TrackState &	GetTrackStateAtEnd () const
	Get the track state at the end of the track.

const TrackState &	GetTrackStateAtCalorimeter () const
	Get the (sometimes projected) track state at the calorimeter.

float	GetTimeAtCalorimeter () const
	Get the (sometimes projected) time at the calorimeter.

bool	ReachesCalorimeter () const
	Whether the track reaches the calorimeter.

bool	IsProjectedToEndCap () const
	Whether the calorimeter projection is to an endcap.

bool	CanFormPfo () const
	Whether track should form a pfo, if it has an associated cluster.

bool	CanFormClusterlessPfo () const
	Whether track should form a pfo, even if it has no associated cluster.

bool	HasAssociatedCluster () const
	Whether the track has an associated cluster.

const Cluster *	GetAssociatedCluster () const
	Get address of the cluster associated with the track.

const MCParticleWeightMap &	GetMCParticleWeightMap () const
	Get mc particle weight map for the track.

const void *	GetParentAddress () const
	Get the address of the parent track in the user framework.

const TrackList &	GetParentList () const
	Get the parent track list.

const TrackList &	GetSiblingList () const
	Get the sibling track list.

const TrackList &	GetDaughterList () const
	Get the daughter track list.

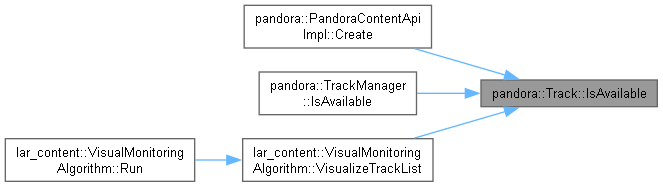

bool	IsAvailable () const
	Whether the track is available to be added to a particle flow object.

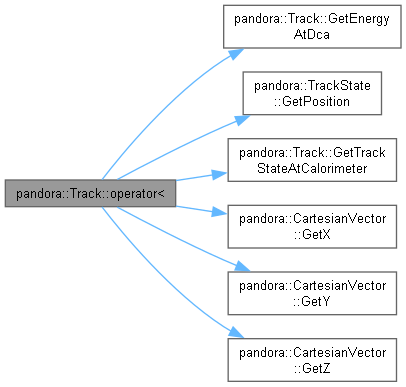

bool	operator< (const Track &rhs) const
	operator< sorting by position at calorimeter, then energy at the 2D distance of closest approach

Protected Member Functions
	Track (const object_creation::Track::Parameters &parameters)
	Constructor.

virtual	~Track ()
	Destructor.

void	SetMCParticleWeightMap (const MCParticleWeightMap &mcParticleWeightMap)
	Set the mc particles associated with the track.

void	RemoveMCParticles ()
	Remove the mc particles associated with the track.

StatusCode	SetAssociatedCluster (const Cluster *const pCluster)
	Set the cluster associated with the track.

StatusCode	RemoveAssociatedCluster (const Cluster *const pCluster)
	Remove the association with a cluster.

StatusCode	AddParent (const Track *const pTrack)
	Add a parent track to the parent track list.

StatusCode	AddDaughter (const Track *const pTrack)
	Add a daughter track to the daughter track list.

StatusCode	AddSibling (const Track *const pTrack)
	Add a sibling track to the sibling track list.

void	SetAvailability (bool isAvailable)
	Set availability of track to be added to a particle flow object.

Protected Attributes
const float	m_d0
	The 2D impact parameter wrt (0,0), units mm.

const float	m_z0
	The z coordinate at the 2D distance of closest approach, units mm.

const int	m_particleId
	The PDG code of the tracked particle.

const int	m_charge
	The charge of the tracked particle.

const float	m_mass
	The mass of the tracked particle, units GeV.

const CartesianVector	m_momentumAtDca
	The momentum vector at the 2D distance of closest approach, units GeV.

const float	m_energyAtDca
	The track energy at the 2D distance of closest approach, units GeV.

const TrackState	m_trackStateAtStart
	The track state at the start of the track, units mm and GeV.

const TrackState	m_trackStateAtEnd
	The track state at the end of the track, units mm and GeV.

const TrackState	m_trackStateAtCalorimeter
	The (sometimes projected) track state at the calorimeter, units mm and GeV.

const float	m_timeAtCalorimeter
	The (sometimes projected) time at the calorimeter, units ns.

const bool	m_reachesCalorimeter
	Whether the track actually reaches the calorimeter.

const bool	m_isProjectedToEndCap
	Whether the calorimeter projection is to an endcap.

const bool	m_canFormPfo
	Whether track should form a pfo, if it has an associated cluster.

const bool	m_canFormClusterlessPfo
	Whether track should form a pfo, even if it has no associated cluster.

const Cluster *	m_pAssociatedCluster
	The address of an associated cluster.

MCParticleWeightMap	m_mcParticleWeightMap
	The mc particle weight map.

const void *	m_pParentAddress
	The address of the parent track in the user framework.

TrackList	m_parentTrackList
	The list of parent track addresses.

TrackList	m_siblingTrackList
	The list of sibling track addresses.

TrackList	m_daughterTrackList
	The list of daughter track addresses.

bool	m_isAvailable
	Whether the track is available to be added to a particle flow object.

Friends
class	TrackManager

class	InputObjectManager< Track >

class	PandoraObjectFactory< object_creation::Track::Parameters, object_creation::Track::Object >

Detailed Description

Track class.

Definition at line 25 of file Track.h.

Constructor & Destructor Documentation

◆ Track()

pandora::Track::Track ( const object_creation::Track::Parameters & parameters )

protected

Constructor.

Parameters

parameters the track parameters

Definition at line 45 of file Track.cc.

◆ ~Track()

pandora::Track::~Track ( )

protectedvirtual

Destructor.

Definition at line 75 of file Track.cc.

Member Function Documentation

◆ AddDaughter()

StatusCode pandora::Track::AddDaughter ( const Track *const pTrack )

protected

Add a daughter track to the daughter track list.

Parameters

pTrack the address of the daughter track

Definition at line 134 of file Track.cc.

◆ AddParent()

StatusCode pandora::Track::AddParent ( const Track *const pTrack )

protected

Add a parent track to the parent track list.

Parameters

pTrack the address of the parent track

Definition at line 120 of file Track.cc.

◆ AddSibling()

StatusCode pandora::Track::AddSibling ( const Track *const pTrack )

protected

Add a sibling track to the sibling track list.

Parameters

pTrack the address of the sibling track

Definition at line 148 of file Track.cc.

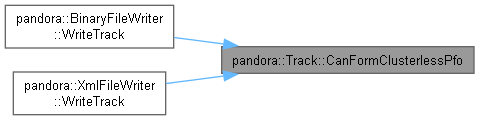

◆ CanFormClusterlessPfo()

bool pandora::Track::CanFormClusterlessPfo ( ) const

inline

Whether track should form a pfo, even if it has no associated cluster.

Returns: boolean

Definition at line 393 of file Track.h.

Here is the caller graph for this function:

◆ CanFormPfo()

bool pandora::Track::CanFormPfo ( ) const

inline

Whether track should form a pfo, if it has an associated cluster.

Returns: boolean

Definition at line 386 of file Track.h.

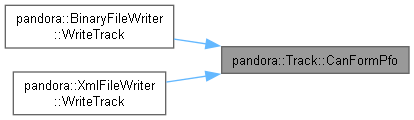

Here is the caller graph for this function:

◆ GetAssociatedCluster()

const Cluster * pandora::Track::GetAssociatedCluster ( ) const

Get address of the cluster associated with the track.

Returns: the address of the cluster

Definition at line 17 of file Track.cc.

◆ GetCharge()

int pandora::Track::GetCharge ( ) const

inline

Get the charge of the tracked particle.

Returns: the charge of the tracked particle

Definition at line 316 of file Track.h.

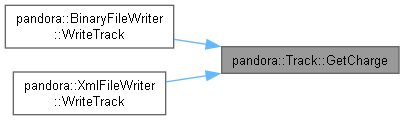

Here is the caller graph for this function:

◆ GetD0()

float pandora::Track::GetD0 ( ) const

inline

Get the 2D impact parameter wrt (0,0)

Returns: the 2D impact parameter wrt (0,0)

Definition at line 295 of file Track.h.

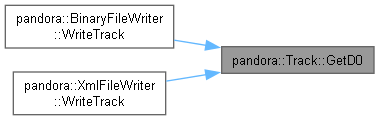

Here is the caller graph for this function:

◆ GetDaughterList()

const TrackList & pandora::Track::GetDaughterList ( ) const

inline

Get the daughter track list.

Returns: the daughter track list

Definition at line 435 of file Track.h.

Here is the caller graph for this function:

◆ GetEnergyAtDca()

float pandora::Track::GetEnergyAtDca ( ) const

inline

Get the track energy at the 2D distance of closest approach.

Returns: the track energy at the 2D distance of closest approach

Definition at line 337 of file Track.h.

Here is the caller graph for this function:

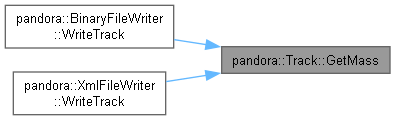

◆ GetMass()

float pandora::Track::GetMass ( ) const

inline

Get the mass of the tracked particle, units GeV.

Returns: the mass of the tracked particle

Definition at line 323 of file Track.h.

Here is the caller graph for this function:

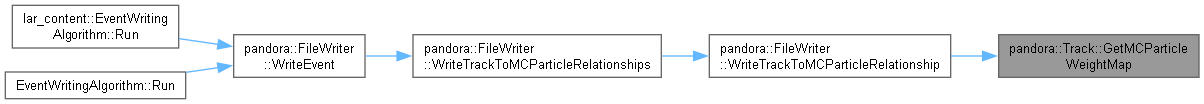

◆ GetMCParticleWeightMap()

const MCParticleWeightMap & pandora::Track::GetMCParticleWeightMap ( ) const

inline

Get mc particle weight map for the track.

Returns: the mc particle weight map

Definition at line 407 of file Track.h.

Here is the caller graph for this function:

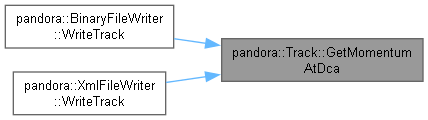

◆ GetMomentumAtDca()

const CartesianVector & pandora::Track::GetMomentumAtDca ( ) const

inline

Get the track momentum at the 2D distance of closest approach.

Returns: the track momentum at the 2D distance of closest approach

Definition at line 330 of file Track.h.

Here is the caller graph for this function:

◆ GetParentAddress()

const void * pandora::Track::GetParentAddress ( ) const

inline

Get the address of the parent track in the user framework.

Parameters

the	address of the parent track in the user framework

Definition at line 414 of file Track.h.

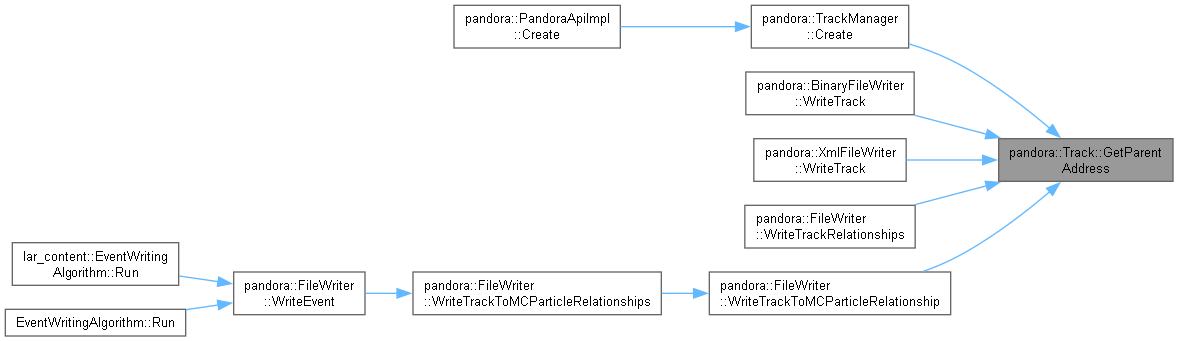

Here is the caller graph for this function:

◆ GetParentList()

const TrackList & pandora::Track::GetParentList ( ) const

inline

Get the parent track list.

Returns: the parent track list

Definition at line 421 of file Track.h.

Here is the caller graph for this function:

◆ GetParticleId()

int pandora::Track::GetParticleId ( ) const

inline

Get the PDG code of the tracked particle.

Returns: the PDG code of the tracked particle

Definition at line 309 of file Track.h.

Here is the caller graph for this function:

◆ GetSiblingList()

const TrackList & pandora::Track::GetSiblingList ( ) const

inline

Get the sibling track list.

Returns: the sibling track list

Definition at line 428 of file Track.h.

Here is the caller graph for this function:

◆ GetTimeAtCalorimeter()

float pandora::Track::GetTimeAtCalorimeter ( ) const

inline

Get the (sometimes projected) time at the calorimeter.

Returns: the time at the calorimeter

Definition at line 365 of file Track.h.

Here is the caller graph for this function:

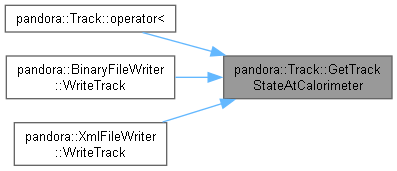

◆ GetTrackStateAtCalorimeter()

const TrackState & pandora::Track::GetTrackStateAtCalorimeter ( ) const

inline

Get the (sometimes projected) track state at the calorimeter.

Returns: the track state at the calorimeter

Definition at line 358 of file Track.h.

Here is the caller graph for this function:

◆ GetTrackStateAtEnd()

const TrackState & pandora::Track::GetTrackStateAtEnd ( ) const

inline

Get the track state at the end of the track.

Returns: the track state at the end of the track

Definition at line 351 of file Track.h.

Here is the caller graph for this function:

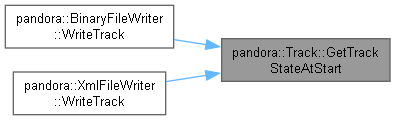

◆ GetTrackStateAtStart()

const TrackState & pandora::Track::GetTrackStateAtStart ( ) const

inline

Get the track state at the start of the track.

Returns: the track state at the start of the track

Definition at line 344 of file Track.h.

Here is the caller graph for this function:

◆ GetZ0()

float pandora::Track::GetZ0 ( ) const

inline

Get the z coordinate at the 2D distance of closest approach.

Returns: the z coordinate at the 2D distance of closest approach

Definition at line 302 of file Track.h.

Here is the caller graph for this function:

◆ HasAssociatedCluster()

bool pandora::Track::HasAssociatedCluster ( ) const

inline

Whether the track has an associated cluster.

Returns: boolean

Definition at line 400 of file Track.h.

◆ IsAvailable()

bool pandora::Track::IsAvailable ( ) const

inline

Whether the track is available to be added to a particle flow object.

Returns: boolean

Definition at line 442 of file Track.h.

Here is the caller graph for this function:

◆ IsProjectedToEndCap()

bool pandora::Track::IsProjectedToEndCap ( ) const

inline

Whether the calorimeter projection is to an endcap.

Returns: boolean

Definition at line 379 of file Track.h.

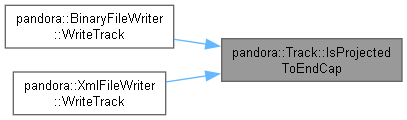

Here is the caller graph for this function:

◆ operator<()

bool pandora::Track::operator< ( const Track & rhs ) const

operator< sorting by position at calorimeter, then energy at the 2D distance of closest approach

Parameters

rhs	the object for comparison

Returns: boolean

Definition at line 27 of file Track.cc.

Here is the call graph for this function:

◆ ReachesCalorimeter()

bool pandora::Track::ReachesCalorimeter ( ) const

inline

Whether the track reaches the calorimeter.

Returns: boolean

Definition at line 372 of file Track.h.

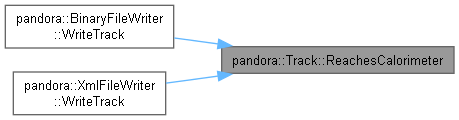

Here is the caller graph for this function:

◆ RemoveAssociatedCluster()

StatusCode pandora::Track::RemoveAssociatedCluster ( const Cluster *const pCluster )

protected

Remove the association with a cluster.

Parameters

pCluster the address of the cluster with which the track is no longer associated

Definition at line 109 of file Track.cc.

◆ RemoveMCParticles()

void pandora::Track::RemoveMCParticles ( )

protected

Remove the mc particles associated with the track.

Definition at line 88 of file Track.cc.

◆ SetAssociatedCluster()

StatusCode pandora::Track::SetAssociatedCluster ( const Cluster *const pCluster )

protected

Set the cluster associated with the track.

Parameters

pCluster the address of the associated cluster

Definition at line 95 of file Track.cc.

◆ SetAvailability()

void pandora::Track::SetAvailability ( bool isAvailable )

inlineprotected

Set availability of track to be added to a particle flow object.

Parameters

isAvailable the track availability

Definition at line 449 of file Track.h.

◆ SetMCParticleWeightMap()

void pandora::Track::SetMCParticleWeightMap ( const MCParticleWeightMap & mcParticleWeightMap )

protected

Set the mc particles associated with the track.

Parameters

mcParticleWeightMap the mc particle weight map

Definition at line 81 of file Track.cc.

Friends And Related Symbol Documentation

◆ InputObjectManager< Track >

friend class InputObjectManager< Track >

friend

Definition at line 288 of file Track.h.

◆ PandoraObjectFactory< object_creation::Track::Parameters, object_creation::Track::Object >

friend class PandoraObjectFactory< object_creation::Track::Parameters, object_creation::Track::Object >

friend

Definition at line 288 of file Track.h.

◆ TrackManager

friend class TrackManager

friend

Definition at line 288 of file Track.h.

Member Data Documentation

◆ m_canFormClusterlessPfo

const bool pandora::Track::m_canFormClusterlessPfo

protected

Whether track should form a pfo, even if it has no associated cluster.

Definition at line 279 of file Track.h.

◆ m_canFormPfo

const bool pandora::Track::m_canFormPfo

protected

Whether track should form a pfo, if it has an associated cluster.

Definition at line 278 of file Track.h.

◆ m_charge

const int pandora::Track::m_charge

protected

The charge of the tracked particle.

Definition at line 268 of file Track.h.

◆ m_d0

const float pandora::Track::m_d0

protected

The 2D impact parameter wrt (0,0), units mm.

Definition at line 265 of file Track.h.

◆ m_daughterTrackList

TrackList pandora::Track::m_daughterTrackList

protected

The list of daughter track addresses.

Definition at line 285 of file Track.h.

◆ m_energyAtDca

const float pandora::Track::m_energyAtDca

protected

The track energy at the 2D distance of closest approach, units GeV.

Definition at line 271 of file Track.h.

◆ m_isAvailable

bool pandora::Track::m_isAvailable

protected

Whether the track is available to be added to a particle flow object.

Definition at line 286 of file Track.h.

◆ m_isProjectedToEndCap

const bool pandora::Track::m_isProjectedToEndCap

protected

Whether the calorimeter projection is to an endcap.

Definition at line 277 of file Track.h.

◆ m_mass

const float pandora::Track::m_mass

protected

The mass of the tracked particle, units GeV.

Definition at line 269 of file Track.h.

◆ m_mcParticleWeightMap

MCParticleWeightMap pandora::Track::m_mcParticleWeightMap

protected

The mc particle weight map.

Definition at line 281 of file Track.h.

◆ m_momentumAtDca

const CartesianVector pandora::Track::m_momentumAtDca

protected

The momentum vector at the 2D distance of closest approach, units GeV.

Definition at line 270 of file Track.h.

◆ m_parentTrackList

TrackList pandora::Track::m_parentTrackList

protected

The list of parent track addresses.

Definition at line 283 of file Track.h.

◆ m_particleId

const int pandora::Track::m_particleId

protected

The PDG code of the tracked particle.

Definition at line 267 of file Track.h.

◆ m_pAssociatedCluster

const Cluster* pandora::Track::m_pAssociatedCluster

protected

The address of an associated cluster.

Definition at line 280 of file Track.h.

◆ m_pParentAddress

const void* pandora::Track::m_pParentAddress

protected

The address of the parent track in the user framework.

Definition at line 282 of file Track.h.

◆ m_reachesCalorimeter

const bool pandora::Track::m_reachesCalorimeter

protected

Whether the track actually reaches the calorimeter.

Definition at line 276 of file Track.h.

◆ m_siblingTrackList

TrackList pandora::Track::m_siblingTrackList

protected

The list of sibling track addresses.

Definition at line 284 of file Track.h.

◆ m_timeAtCalorimeter

const float pandora::Track::m_timeAtCalorimeter

protected

The (sometimes projected) time at the calorimeter, units ns.

Definition at line 275 of file Track.h.

◆ m_trackStateAtCalorimeter

const TrackState pandora::Track::m_trackStateAtCalorimeter

protected

The (sometimes projected) track state at the calorimeter, units mm and GeV.

Definition at line 274 of file Track.h.

◆ m_trackStateAtEnd

const TrackState pandora::Track::m_trackStateAtEnd

protected

The track state at the end of the track, units mm and GeV.

Definition at line 273 of file Track.h.

◆ m_trackStateAtStart

const TrackState pandora::Track::m_trackStateAtStart

protected

The track state at the start of the track, units mm and GeV.

Definition at line 272 of file Track.h.

◆ m_z0

const float pandora::Track::m_z0

protected

The z coordinate at the 2D distance of closest approach, units mm.

Definition at line 266 of file Track.h.

The documentation for this class was generated from the following files:

PandoraSDK/include/Objects/Track.h
PandoraSDK/src/Objects/Track.cc

Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ Track()

◆ ~Track()

Member Function Documentation

◆ AddDaughter()

◆ AddParent()

◆ AddSibling()

◆ CanFormClusterlessPfo()

◆ CanFormPfo()

◆ GetAssociatedCluster()

◆ GetCharge()

◆ GetD0()

◆ GetDaughterList()

◆ GetEnergyAtDca()

◆ GetMass()

◆ GetMCParticleWeightMap()

◆ GetMomentumAtDca()

◆ GetParentAddress()

◆ GetParentList()

◆ GetParticleId()

◆ GetSiblingList()

◆ GetTimeAtCalorimeter()

◆ GetTrackStateAtCalorimeter()

◆ GetTrackStateAtEnd()

◆ GetTrackStateAtStart()

◆ GetZ0()

◆ HasAssociatedCluster()

◆ IsAvailable()

◆ IsProjectedToEndCap()

◆ operator<()

◆ ReachesCalorimeter()

◆ RemoveAssociatedCluster()

◆ RemoveMCParticles()

◆ SetAssociatedCluster()

◆ SetAvailability()

◆ SetMCParticleWeightMap()

Friends And Related Symbol Documentation

◆ InputObjectManager< Track >

◆ PandoraObjectFactory< object_creation::Track::Parameters, object_creation::Track::Object >

◆ TrackManager

Member Data Documentation

◆ m_canFormClusterlessPfo

◆ m_canFormPfo

◆ m_charge

◆ m_d0

◆ m_daughterTrackList

◆ m_energyAtDca

◆ m_isAvailable

◆ m_isProjectedToEndCap

◆ m_mass

◆ m_mcParticleWeightMap

◆ m_momentumAtDca

◆ m_parentTrackList

◆ m_particleId

◆ m_pAssociatedCluster

◆ m_pParentAddress

◆ m_reachesCalorimeter

◆ m_siblingTrackList

◆ m_timeAtCalorimeter

◆ m_trackStateAtCalorimeter

◆ m_trackStateAtEnd

◆ m_trackStateAtStart

◆ m_z0
