pandora::PandoraImpl Class Reference

PandoraImpl class. More...

#include "PandoraImpl.h"

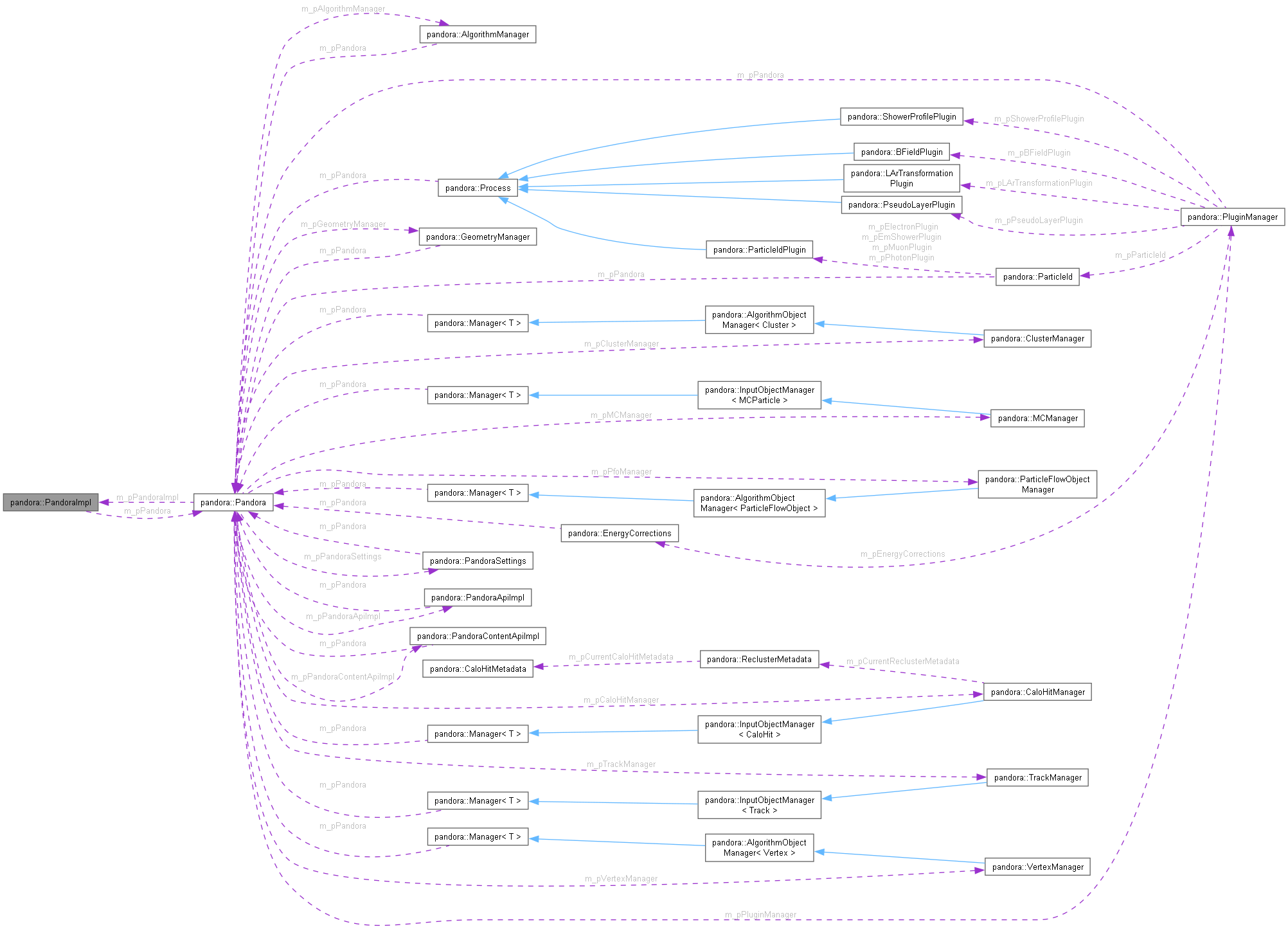

Collaboration diagram for pandora::PandoraImpl:

Private Member Functions
StatusCode	PrepareMCParticles () const
	Prepare mc particles: select mc pfo targets, match tracks and calo hits to the correct mc particles for particle flow.
StatusCode	PrepareTracks () const
	Prepare tracks: add track associations (parent-daughter and sibling)
StatusCode	PrepareCaloHits () const
	Prepare calo hits: order the hits by pseudo layer, calculate density weights, identify isolated hits, identify possible mip hits and calculate surrounding energy values.
const StringVector &	GetPandoraAlgorithms () const
	Get the list of algorithms to be run by pandora.
StatusCode	RunAlgorithm (const std::string &algorithmName) const
	Run an algorithm registered with pandora.
StatusCode	InitializeSettings (const TiXmlHandle *const pXmlHandle) const
	Initialize pandora settings.
StatusCode	InitializeAlgorithms (const TiXmlHandle *const pXmlHandle) const
	Initialize pandora algorithms.
StatusCode	InitializePlugins (const TiXmlHandle *const pXmlHandle) const
	Initialize pandora plugins.
StatusCode	ResetEvent () const
	Ï event, calling manager reset functions and any registered reset functions.
	PandoraImpl (Pandora *const pPandora)
	Constructor.

Private Attributes
Pandora *	m_pPandora
	The pandora object to provide an interface to.

Friends
class	Pandora

Detailed Description

PandoraImpl class.

Definition at line 17 of file PandoraImpl.h.

Constructor & Destructor Documentation

PandoraImpl()

pandora::PandoraImpl::PandoraImpl ( Pandora *const  pPandora )

private

Constructor.

Parameters

pPandora

address of the pandora object to interface

Definition at line 115 of file PandoraImpl.cc.

Member Function Documentation

GetPandoraAlgorithms()

const StringVector & pandora::PandoraImpl::GetPandoraAlgorithms ( ) const

private

Get the list of algorithms to be run by pandora.

Returns

address of the list pandora algorithms

Definition at line 64 of file PandoraImpl.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

InitializeAlgorithms()

StatusCode pandora::PandoraImpl::InitializeAlgorithms ( const TiXmlHandle *const  pXmlHandle ) const

private

Initialize pandora algorithms.

Parameters

pXmlHandle

address of the relevant xml handle

Definition at line 85 of file PandoraImpl.cc.

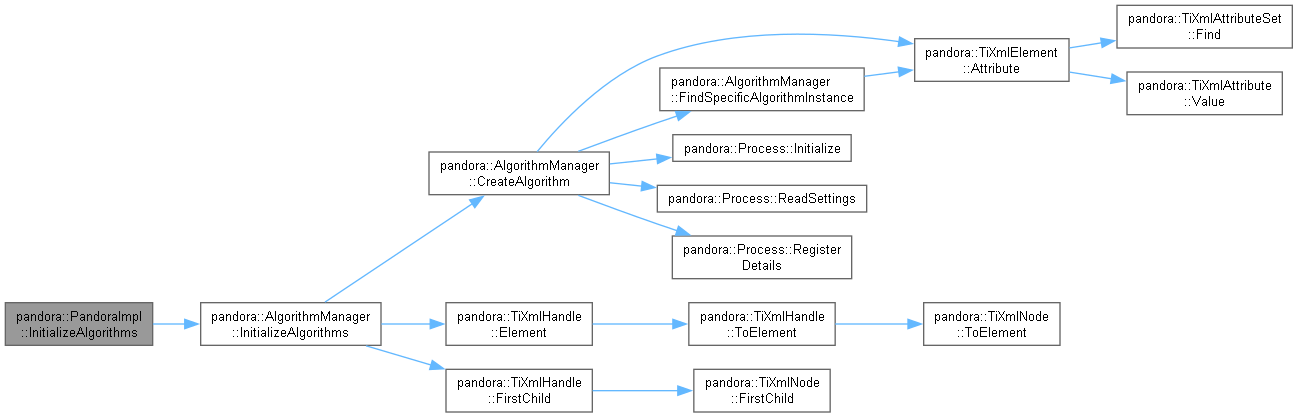

Here is the call graph for this function:

Here is the caller graph for this function:

InitializePlugins()

StatusCode pandora::PandoraImpl::InitializePlugins ( const TiXmlHandle *const  pXmlHandle ) const

private

Initialize pandora plugins.

Parameters

pXmlHandle

address of the relevant xml handle

Definition at line 92 of file PandoraImpl.cc.

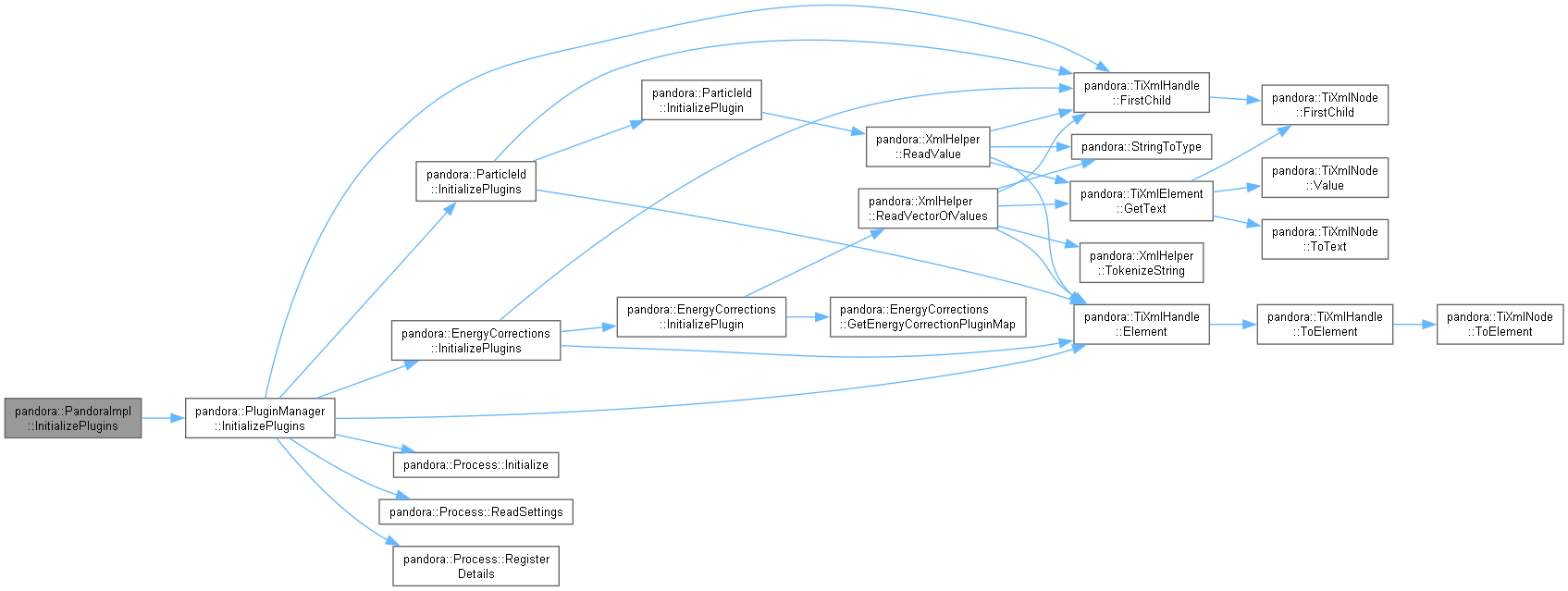

Here is the call graph for this function:

Here is the caller graph for this function:

InitializeSettings()

StatusCode pandora::PandoraImpl::InitializeSettings ( const TiXmlHandle *const  pXmlHandle ) const

private

Initialize pandora settings.

Parameters

pXmlHandle

address of the relevant xml handle

Definition at line 78 of file PandoraImpl.cc.

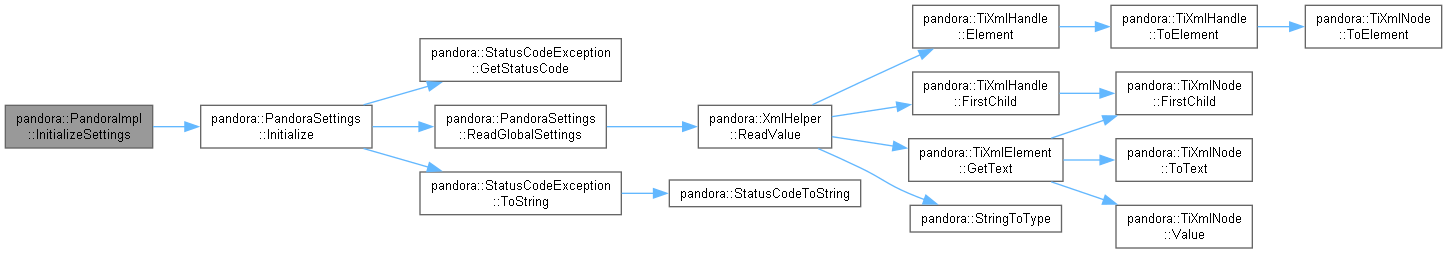

Here is the call graph for this function:

Here is the caller graph for this function:

PrepareCaloHits()

StatusCode pandora::PandoraImpl::PrepareCaloHits ( ) const

private

Prepare calo hits: order the hits by pseudo layer, calculate density weights, identify isolated hits, identify possible mip hits and calculate surrounding energy values.

Definition at line 57 of file PandoraImpl.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

PrepareMCParticles()

StatusCode pandora::PandoraImpl::PrepareMCParticles ( ) const

private

Prepare mc particles: select mc pfo targets, match tracks and calo hits to the correct mc particles for particle flow.

Definition at line 27 of file PandoraImpl.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

PrepareTracks()

StatusCode pandora::PandoraImpl::PrepareTracks ( ) const

private

Prepare tracks: add track associations (parent-daughter and sibling)

Definition at line 47 of file PandoraImpl.cc.

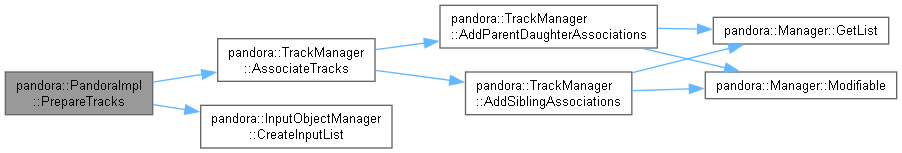

Here is the call graph for this function:

Here is the caller graph for this function:

ResetEvent()

StatusCode pandora::PandoraImpl::ResetEvent ( ) const

private

Ï event, calling manager reset functions and any registered reset functions.

Definition at line 99 of file PandoraImpl.cc.

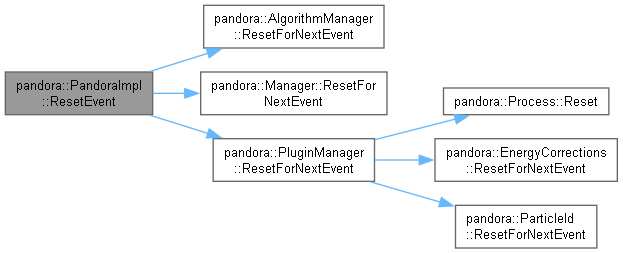

Here is the call graph for this function:

Here is the caller graph for this function:

RunAlgorithm()

StatusCode pandora::PandoraImpl::RunAlgorithm ( const std::string &  algorithmName ) const

private

Run an algorithm registered with pandora.

Parameters

algorithmName

the name of the algorithm instance to run

Definition at line 71 of file PandoraImpl.cc.

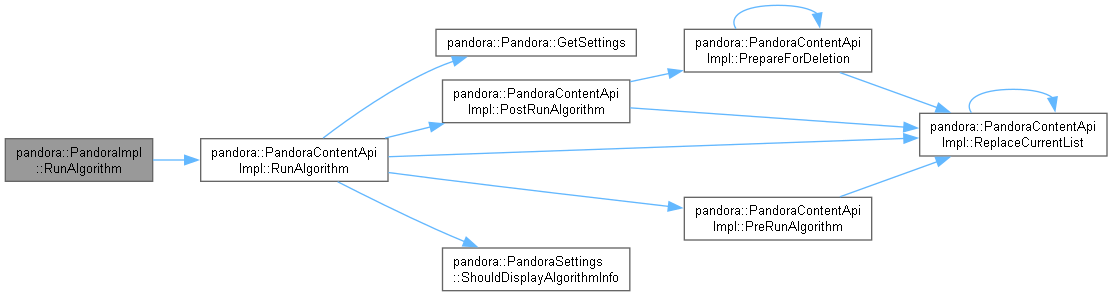

Here is the call graph for this function:

Here is the caller graph for this function:

Friends And Related Symbol Documentation

Pandora

friend class Pandora

friend

Definition at line 86 of file PandoraImpl.h.

Member Data Documentation

m_pPandora

Pandora* pandora::PandoraImpl::m_pPandora

private

The pandora object to provide an interface to.

Definition at line 84 of file PandoraImpl.h.

---

The documentation for this class was generated from the following files:

• PandoraSDK/include/Pandora/PandoraImpl.h
• PandoraSDK/src/Pandora/PandoraImpl.cc
