lar_content::LArPointingCluster::Vertex Class Reference

Vertex class. More...

#include "LArPointingCluster.h"

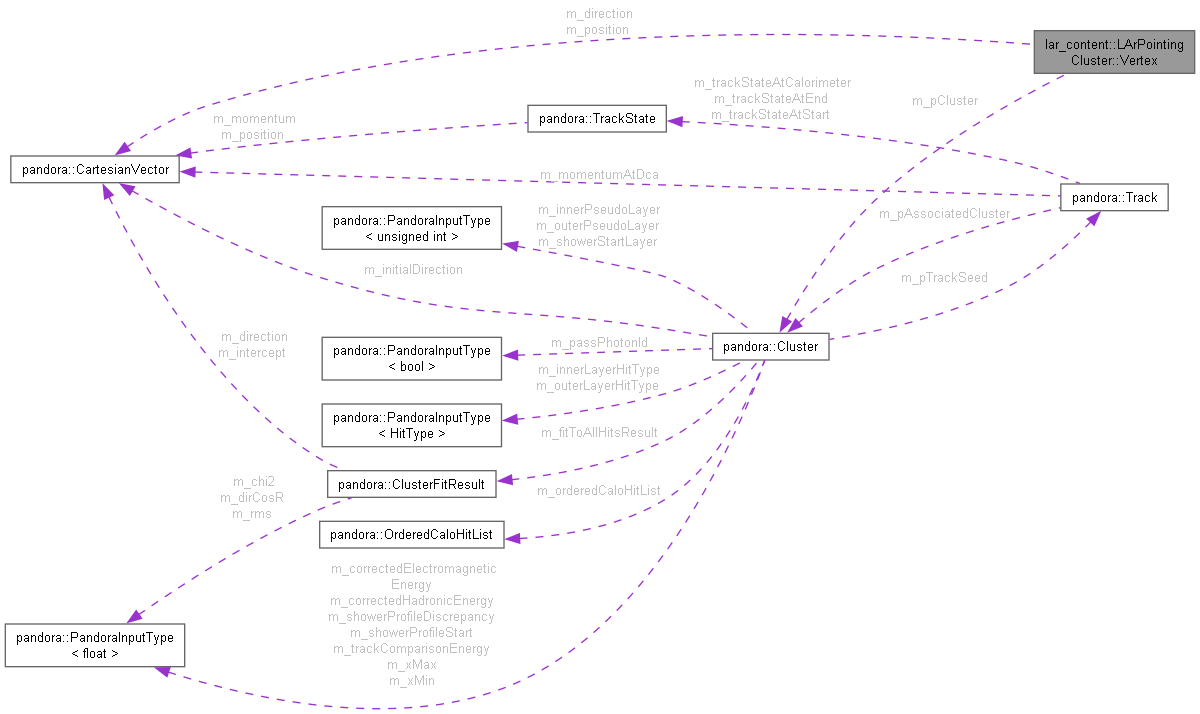

Collaboration diagram for lar_content::LArPointingCluster::Vertex:

Public Member Functions
	Vertex ()
	Default constructor.
	Vertex (const pandora::Cluster *const pCluster, const pandora::CartesianVector &position, const pandora::CartesianVector &direction, const float rms, const bool isInner)
	Constructor.
	Vertex (const Vertex &rhs)
	Copy constructor.
	~Vertex ()
	Destructor.
const pandora::Cluster *	GetCluster () const
	Get the address of the cluster.
const pandora::CartesianVector &	GetPosition () const
	Get the vertex position.
const pandora::CartesianVector &	GetDirection () const
	Get the vertex direction.
float	GetRms () const
	Get rms from vertex fit.
bool	IsInnerVertex () const
	Is this the inner vertex.
bool	IsInitialized () const
	Whether the vertex has been initialized.
Vertex &	operator= (const Vertex &rhs)
	Vertex assigment operator.

Private Attributes
const pandora::Cluster *	m_pCluster
	The address of the cluster.
pandora::CartesianVector	m_position
	The vertex position.
pandora::CartesianVector	m_direction
	The vertex direction.
float	m_rms
	Rms from vertex fit.
bool	m_isInner
	Whether this is the inner vertex.
bool	m_isInitialized
	Whether the vertex has been initialized.

Detailed Description

Vertex class.

Definition at line 26 of file LArPointingCluster.h.

Constructor & Destructor Documentation

Vertex() [1/3]

lar_content::LArPointingCluster::Vertex::Vertex

(

)

Default constructor.

Definition at line 97 of file LArPointingCluster.cc.

Vertex() [2/3]

lar_content::LArPointingCluster::Vertex::Vertex	(	const pandora::Cluster *const	pCluster,
		const pandora::CartesianVector &	position,
		const pandora::CartesianVector &	direction,
		const float	rms,
		const bool	isInner
	)

Constructor.

Parameters

pCluster	address of the cluster
position	the vertex position
direction	the vertex direction
rms	the rms from vertex fit
isInner	whether this is a cluster inner or outer vertex

Definition at line 109 of file LArPointingCluster.cc.

Vertex() [3/3]

lar_content::LArPointingCluster::Vertex::Vertex

(

const Vertex &

rhs

)

Copy constructor.

Parameters

rhs	the vertex instance to copy

Definition at line 122 of file LArPointingCluster.cc.

~Vertex()

lar_content::LArPointingCluster::Vertex::~Vertex

(

)

Destructor.

Definition at line 134 of file LArPointingCluster.cc.

Member Function Documentation

GetCluster()

const pandora::Cluster * lar_content::LArPointingCluster::Vertex::GetCluster ( ) const

inline

Get the address of the cluster.

Returns

the address of the cluster

Definition at line 237 of file LArPointingCluster.h.

Here is the caller graph for this function:

GetDirection()

const pandora::CartesianVector & lar_content::LArPointingCluster::Vertex::GetDirection ( ) const

inline

Get the vertex direction.

Returns

the vertex direction

Definition at line 257 of file LArPointingCluster.h.

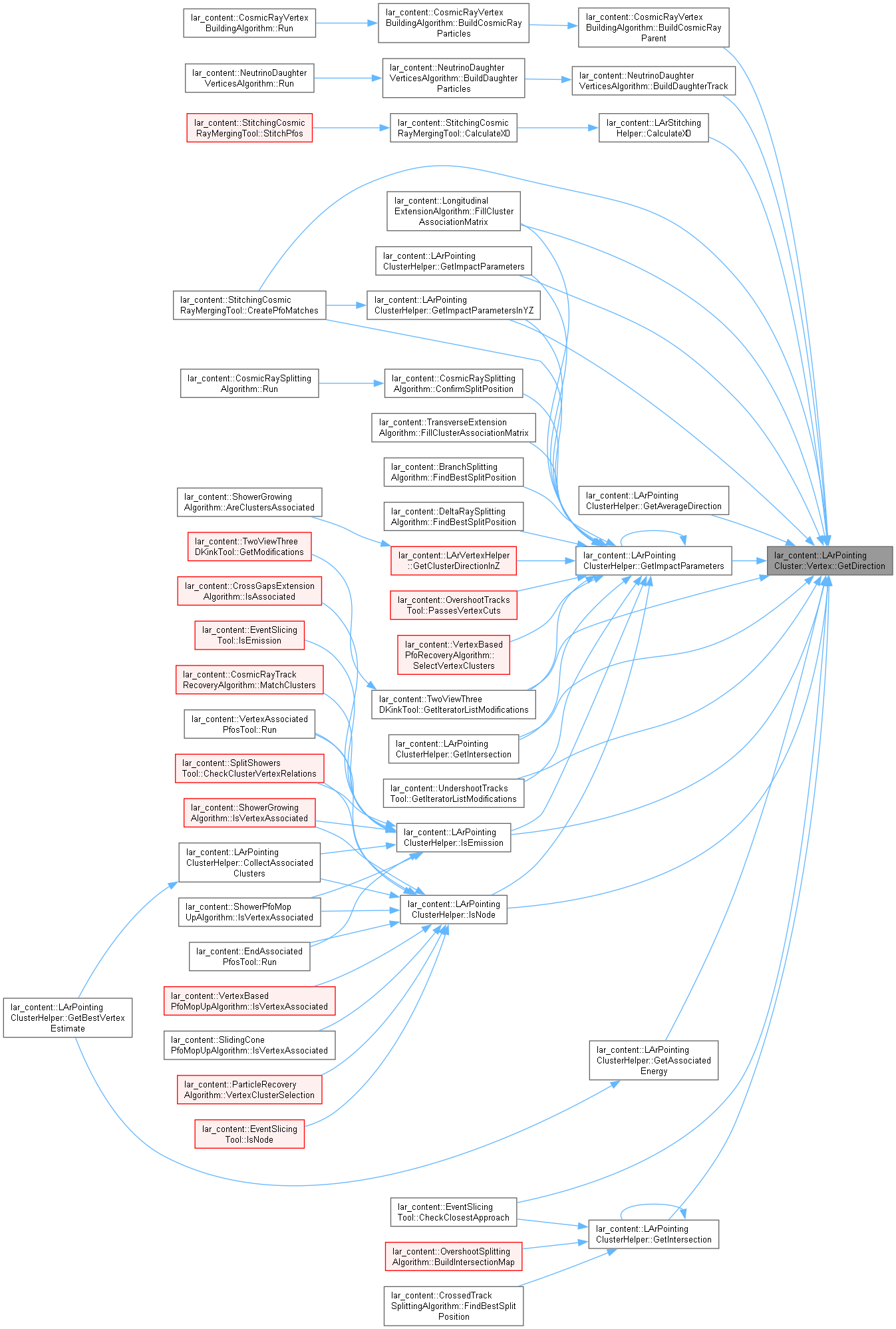

Here is the caller graph for this function:

GetPosition()

const pandora::CartesianVector & lar_content::LArPointingCluster::Vertex::GetPosition ( ) const

inline

Get the vertex position.

Returns

the vertex position

Definition at line 247 of file LArPointingCluster.h.

Here is the caller graph for this function:

GetRms()

float lar_content::LArPointingCluster::Vertex::GetRms ( ) const

inline

Get rms from vertex fit.

Returns

the rms

Definition at line 267 of file LArPointingCluster.h.

Here is the caller graph for this function:

IsInitialized()

bool lar_content::LArPointingCluster::Vertex::IsInitialized ( ) const

inline

Whether the vertex has been initialized.

Returns

boolean

Definition at line 287 of file LArPointingCluster.h.

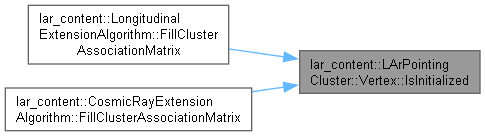

Here is the caller graph for this function:

IsInnerVertex()

bool lar_content::LArPointingCluster::Vertex::IsInnerVertex ( ) const

inline

Is this the inner vertex.

Returns

boolean

Definition at line 277 of file LArPointingCluster.h.

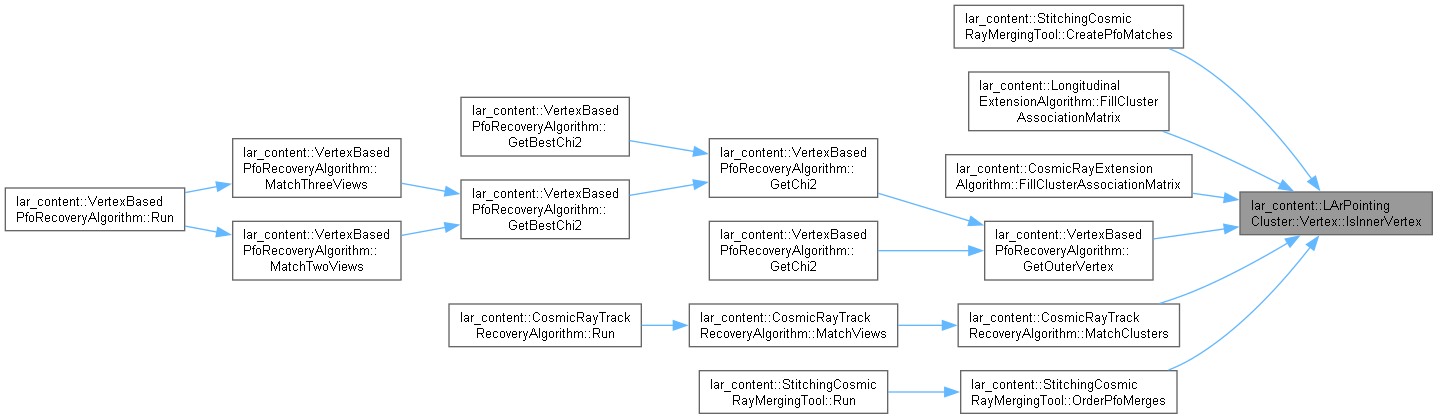

Here is the caller graph for this function:

operator=()

LArPointingCluster::Vertex & lar_content::LArPointingCluster::Vertex::operator=

(

const Vertex &

rhs

)

Vertex assigment operator.

Parameters

rhs	the vertex to assign

Definition at line 140 of file LArPointingCluster.cc.

Member Data Documentation

m_direction

pandora::CartesianVector lar_content::LArPointingCluster::Vertex::m_direction

private

The vertex direction.

Definition at line 111 of file LArPointingCluster.h.

m_isInitialized

bool lar_content::LArPointingCluster::Vertex::m_isInitialized

private

Whether the vertex has been initialized.

Definition at line 114 of file LArPointingCluster.h.

m_isInner

bool lar_content::LArPointingCluster::Vertex::m_isInner

private

Whether this is the inner vertex.

Definition at line 113 of file LArPointingCluster.h.

m_pCluster

const pandora::Cluster* lar_content::LArPointingCluster::Vertex::m_pCluster

private

The address of the cluster.

Definition at line 109 of file LArPointingCluster.h.

m_position

pandora::CartesianVector lar_content::LArPointingCluster::Vertex::m_position

private

The vertex position.

Definition at line 110 of file LArPointingCluster.h.

m_rms

float lar_content::LArPointingCluster::Vertex::m_rms

private

Rms from vertex fit.

Definition at line 112 of file LArPointingCluster.h.

---

The documentation for this class was generated from the following files:

• LArContent/larpandoracontent/LArObjects/LArPointingCluster.h
• LArContent/larpandoracontent/LArObjects/LArPointingCluster.cc
