#include "MCManager.h"

Inheritance diagram for pandora::MCManager:

[legend]

Collaboration diagram for pandora::MCManager:

[legend]

Public Member Functions
	MCManager (const Pandora *const pPandora)
	Constructor.

	~MCManager ()
	Destructor.

Protected Types
typedef Manager< MCParticle >::ObjectList	ObjectList

typedef std::map< std::string, ObjectList * >	NameToListMap

typedef std::unordered_map< const Algorithm *, AlgorithmInfo >	AlgorithmInfoMap

Protected Member Functions
virtual StatusCode	CreateInputList ()
	Create the input list (accessible to algorithms), using objects created by client application.

virtual StatusCode	CreateTemporaryListAndSetCurrent (const Algorithm *const pAlgorithm, const ObjectList &objectList, std::string &temporaryListName)
	Change the current list to a specified temporary list.

virtual StatusCode	CreateTemporaryListAndSetCurrent (const Algorithm *const pAlgorithm, std::string &temporaryListName)
	Create a temporary list associated with a particular algorithm.

virtual StatusCode	SaveList (const std::string &listName, const ObjectList &objectList)
	Save a list of objects in a list with a specified name; create new list if required.

virtual StatusCode	AddObjectsToList (const std::string &listName, const ObjectList &objectList)
	Add objects to a saved list with a specified name.

virtual StatusCode	RemoveObjectsFromList (const std::string &listName, const ObjectList &objectList)
	Remove objects from a saved list.

virtual StatusCode	RenameList (const std::string &oldListName, const std::string &newListName)
	Rename a saved list, altering its saved name from a specified old list name to a specified new list name.

virtual StatusCode	CreateInitialLists ()
	Create initial lists.

virtual StatusCode	GetList (const std::string &listName, const ObjectList *&pObjectList) const
	Get a list.

virtual StatusCode	GetCurrentList (const ObjectList *&pObjectList, std::string &listName) const
	Get the current list.

virtual StatusCode	GetCurrentListName (std::string &listName) const
	Get the current list name.

virtual StatusCode	GetAlgorithmInputList (const Algorithm const pAlgorithm, const ObjectList &pObjectList, std::string &listName) const
	Get the algorithm input list.

virtual StatusCode	GetAlgorithmInputListName (const Algorithm *const pAlgorithm, std::string &listName) const
	Get the algorithm track list name.

virtual StatusCode	ResetCurrentListToAlgorithmInputList (const Algorithm *const pAlgorithm)
	Reset the current list to the algorithm input list.

virtual StatusCode	ReplaceCurrentAndAlgorithmInputLists (const Algorithm *const pAlgorithm, const std::string &listName)
	Replace the current and algorithm input lists with a pre-existing list.

virtual StatusCode	DropCurrentList (const Algorithm *const pAlgorithm)
	Drop the current list, returning the current list to its default empty/null state.

virtual StatusCode	RegisterAlgorithm (const Algorithm *const pAlgorithm)
	Register an algorithm with the manager.

virtual StatusCode	ResetAlgorithmInfo (const Algorithm *const pAlgorithm, bool isAlgorithmFinished)
	Remove temporary lists and reset the current list to that when algorithm was initialized.

virtual StatusCode	ResetForNextEvent ()
	Reset the manager.

virtual T *	Modifiable (const T *const pT) const
	Access a modifiable object, when provided with address to const object.

Protected Attributes
const std::string	m_inputListName
	The name of the input list.

const std::string	m_nullListName
	The name of the default empty (NULL) list.

const Pandora *const	m_pPandora
	The associated pandora object.

NameToListMap	m_nameToListMap
	The name to list map.

AlgorithmInfoMap	m_algorithmInfoMap
	The algorithm info map.

std::string	m_currentListName
	The name of the current list.

StringSet	m_savedLists
	The set of saved lists.

Private Types
typedef std::unordered_map< Uid, float >	UidToWeightMap

typedef std::unordered_map< Uid, UidToWeightMap >	ObjectRelationMap

typedef std::unordered_multimap< Uid, Uid >	MCParticleRelationMap

Private Member Functions
StatusCode	Create (const object_creation::MCParticle::Parameters &parameters, const MCParticle *&pMCParticle, const ObjectFactory< object_creation::MCParticle::Parameters, object_creation::MCParticle::Object > &factory)
	Create a mc particle.

StatusCode	EraseAllContent ()
	Erase all mc manager content.

StatusCode	SetMCParentDaughterRelationship (const Uid parentUid, const Uid daughterUid)
	Set mc particle relationship.

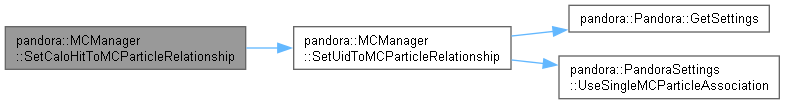

StatusCode	SetCaloHitToMCParticleRelationship (const Uid caloHitUid, const Uid mcParticleUid, const float mcParticleWeight)
	Set calo hit to mc particle relationship.

StatusCode	SetTrackToMCParticleRelationship (const Uid trackUid, const Uid mcParticleUid, const float mcParticleWeight)
	Set track to mc particle relationship.

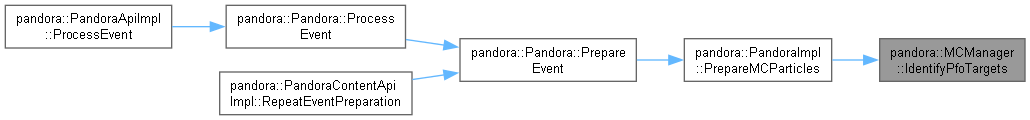

StatusCode	IdentifyPfoTargets ()
	Identify pfo targets.

StatusCode	SelectPfoTargets ()
	Select pfo targets.

StatusCode	ApplyPfoSelectionRules (const MCParticle *const mcRootParticle, MCParticleSet &mcPfoSet) const
	Apply mc pfo selection rules.

StatusCode	SetPfoTargetInTree (const MCParticle const pMCParticle, const MCParticle const pPfoTarget, bool onlyDaughters=false) const
	Set pfo target for a mc tree.

StatusCode	CreateCaloHitToPfoTargetsMap (UidToMCParticleWeightMap &caloHitToPfoTargetsMap) const
	Create a map relating calo hit uid to mc pfo target.

StatusCode	CreateTrackToPfoTargetsMap (UidToMCParticleWeightMap &trackToPfoTargetsMap) const
	Create a map relating track uid to mc pfo target.

StatusCode	AddMCParticleRelationships () const
	Apply mc particle associations (parent-daughter) that have been registered with the mc manager.

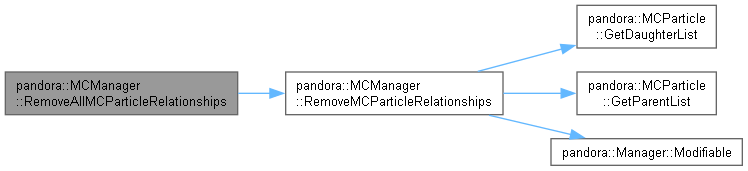

StatusCode	RemoveAllMCParticleRelationships ()
	Remove all mc particle associations that have been registered with the mc manager.

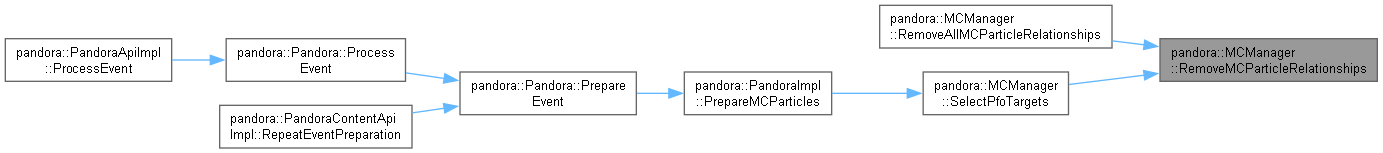

StatusCode	RemoveMCParticleRelationships (const MCParticle *const pMCParticle) const
	Remove all parent/daughter particle links from a mc particle and from its (previously) linked particles.

StatusCode	SetUidToMCParticleRelationship (const Uid objectUid, const Uid mcParticleUid, const float mcParticleWeight, ObjectRelationMap &objectRelationMap) const
	Set an object (e.g. calo hit or track) to mc particle relationship.

StatusCode	CreateUidToPfoTargetsMap (UidToMCParticleWeightMap &uidToMCParticleWeightMap, const ObjectRelationMap &objectRelationMap) const
	Create a map relating an object (calo hit or track) uid to mc pfo targets.

Private Attributes
const std::string	m_selectedListName
	The name of the selected list.

UidToMCParticleMap	m_uidToMCParticleMap
	The uid to mc particle map.

MCParticleRelationMap	m_parentDaughterRelationMap
	The mc particle parent-daughter relation map.

ObjectRelationMap	m_caloHitToMCParticleMap
	The calo hit to mc particle relation map.

ObjectRelationMap	m_trackToMCParticleMap
	The track to mc particle relation map.

Friends
class	PandoraApiImpl

class	PandoraContentApiImpl

class	PandoraImpl

Detailed Description

MCManager class.

Definition at line 22 of file MCManager.h.

Member Typedef Documentation

◆ AlgorithmInfoMap

template<typename T >

typedef std::unordered_map<const Algorithm *, AlgorithmInfo> pandora::Manager< T >::AlgorithmInfoMap

protectedinherited

Definition at line 176 of file Manager.h.

◆ MCParticleRelationMap

typedef std::unordered_multimap<Uid, Uid> pandora::MCManager::MCParticleRelationMap

private

Definition at line 139 of file MCManager.h.

◆ NameToListMap

template<typename T >

typedef std::map<std::string, ObjectList *> pandora::Manager< T >::NameToListMap

protectedinherited

Definition at line 175 of file Manager.h.

◆ ObjectList

typedef Manager<MCParticle >::ObjectList pandora::InputObjectManager< MCParticle >::ObjectList

protectedinherited

Definition at line 36 of file InputObjectManager.h.

◆ ObjectRelationMap

typedef std::unordered_map<Uid, UidToWeightMap> pandora::MCManager::ObjectRelationMap

private

Definition at line 138 of file MCManager.h.

◆ UidToWeightMap

typedef std::unordered_map<Uid, float> pandora::MCManager::UidToWeightMap

private

Definition at line 137 of file MCManager.h.

Constructor & Destructor Documentation

◆ MCManager()

pandora::MCManager::MCManager ( const Pandora *const pPandora )

Constructor.

Parameters

pPandora address of the associated pandora object

Definition at line 24 of file MCManager.cc.

Here is the call graph for this function:

◆ ~MCManager()

pandora::MCManager::~MCManager ( )

Destructor.

Definition at line 33 of file MCManager.cc.

Here is the call graph for this function:

Member Function Documentation

◆ AddMCParticleRelationships()

StatusCode pandora::MCManager::AddMCParticleRelationships ( ) const

private

Apply mc particle associations (parent-daughter) that have been registered with the mc manager.

Definition at line 214 of file MCManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AddObjectsToList()

StatusCode pandora::InputObjectManager< MCParticle >::AddObjectsToList	(	const std::string &	listName,
		const ObjectList &	objectList
	)

protectedvirtualinherited

Add objects to a saved list with a specified name.

Parameters

listName	the list to add the objects to
objectList	the list of objects to be added

Definition at line 69 of file InputObjectManager.cc.

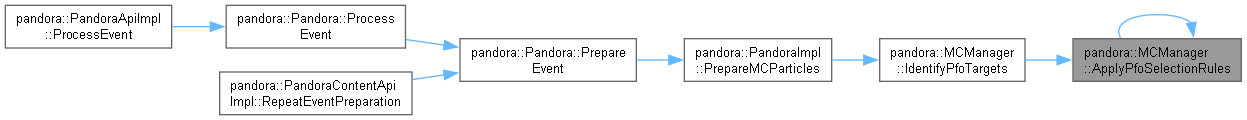

◆ ApplyPfoSelectionRules()

StatusCode pandora::MCManager::ApplyPfoSelectionRules	(	const MCParticle *const	mcRootParticle,
		MCParticleSet &	mcPfoSet
	)		const

private

Apply mc pfo selection rules.

Parameters

mcRootParticle	address of the mc root particle
mcPfoSet	set of all MCPFOs selected so far

Definition at line 158 of file MCManager.cc.

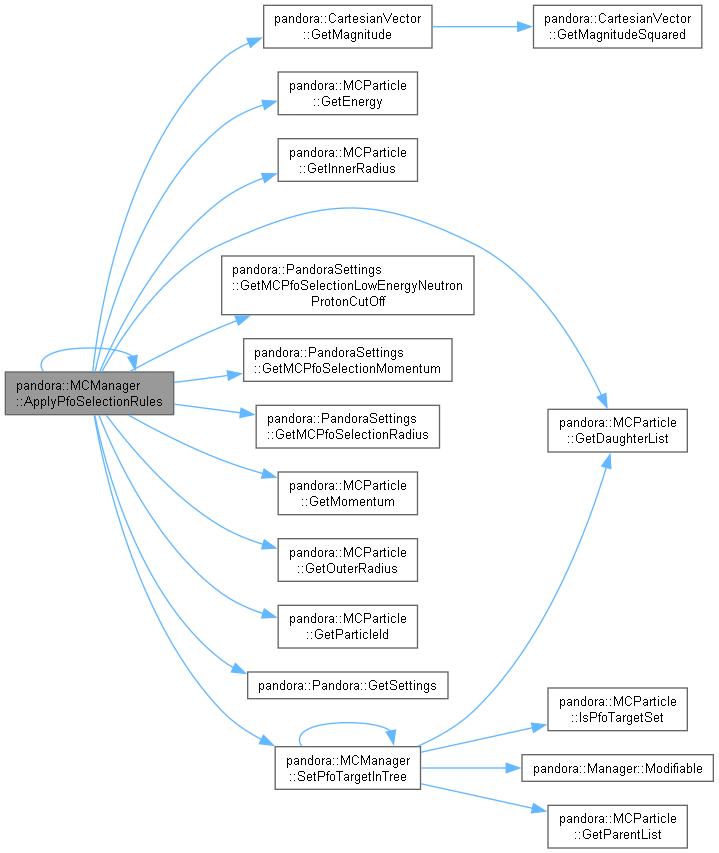

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Create()

StatusCode pandora::MCManager::Create	(	const object_creation::MCParticle::Parameters &	parameters,
		const MCParticle *&	pMCParticle,
		const ObjectFactory< object_creation::MCParticle::Parameters, object_creation::MCParticle::Object > &	factory
	)

private

Create a mc particle.

Parameters

parameters	the mc particle parameters
pMCParticle	address of the mc particle
factory	the factory that performs the object allocation

Definition at line 40 of file MCManager.cc.

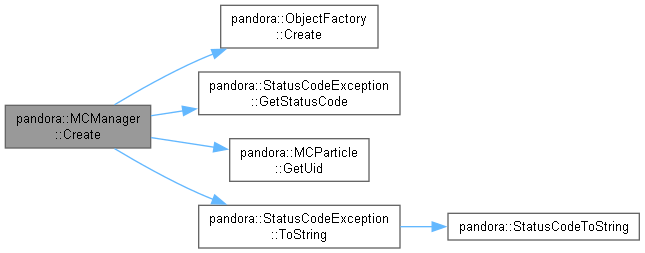

Here is the call graph for this function:

Here is the caller graph for this function:

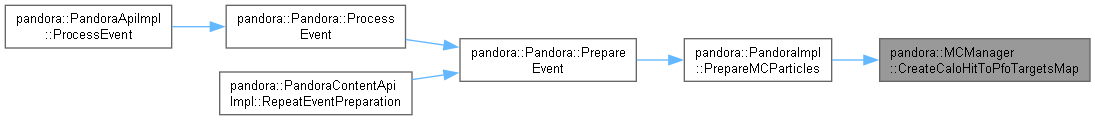

◆ CreateCaloHitToPfoTargetsMap()

StatusCode pandora::MCManager::CreateCaloHitToPfoTargetsMap ( UidToMCParticleWeightMap & caloHitToPfoTargetsMap ) const

inlineprivate

Create a map relating calo hit uid to mc pfo target.

Parameters

caloHitToPfoTargetMap to receive the calo hit uid to mc pfo target map

Definition at line 188 of file MCManager.h.

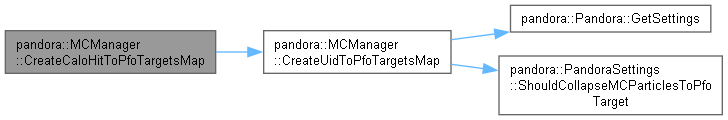

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateInitialLists()

StatusCode pandora::InputObjectManager< MCParticle >::CreateInitialLists ( )

protectedvirtualinherited

Create initial lists.

Reimplemented from pandora::Manager< T >.

Definition at line 95 of file InputObjectManager.cc.

◆ CreateInputList()

StatusCode pandora::InputObjectManager< MCParticle >::CreateInputList ( )

protectedvirtualinherited

Create the input list (accessible to algorithms), using objects created by client application.

Definition at line 41 of file InputObjectManager.cc.

◆ CreateTemporaryListAndSetCurrent() [1/2]

StatusCode pandora::InputObjectManager< MCParticle >::CreateTemporaryListAndSetCurrent	(	const Algorithm *const	pAlgorithm,
		const ObjectList &	objectList,
		std::string &	temporaryListName
	)

protectedvirtualinherited

Change the current list to a specified temporary list.

Parameters

pAlgorithm	address of the algorithm changing the current list
objectList	the specified temporary list
temporaryListName	to receive the name of the temporary list

Definition at line 52 of file InputObjectManager.cc.

◆ CreateTemporaryListAndSetCurrent() [2/2]

template<typename T >

StatusCode pandora::Manager< T >::CreateTemporaryListAndSetCurrent	(	const Algorithm *const	pAlgorithm,
		std::string &	temporaryListName
	)

protectedvirtualinherited

Create a temporary list associated with a particular algorithm.

Parameters

pAlgorithm	address of the algorithm
temporaryListName	to receive the name of the temporary list

Reimplemented in pandora::AlgorithmObjectManager< T >, pandora::AlgorithmObjectManager< Cluster >, pandora::AlgorithmObjectManager< ParticleFlowObject >, and pandora::AlgorithmObjectManager< Vertex >.

Definition at line 177 of file Manager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateTrackToPfoTargetsMap()

StatusCode pandora::MCManager::CreateTrackToPfoTargetsMap ( UidToMCParticleWeightMap & trackToPfoTargetsMap ) const

inlineprivate

Create a map relating track uid to mc pfo target.

Parameters

trackToPfoTargetMap to receive the track uid to mc pfo target map

Definition at line 195 of file MCManager.h.

Here is the call graph for this function:

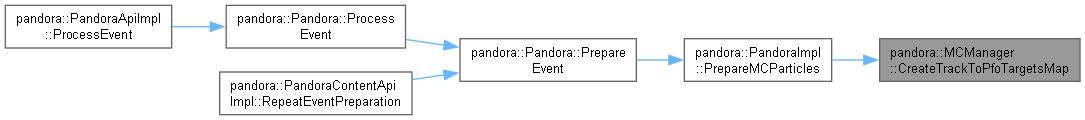

Here is the caller graph for this function:

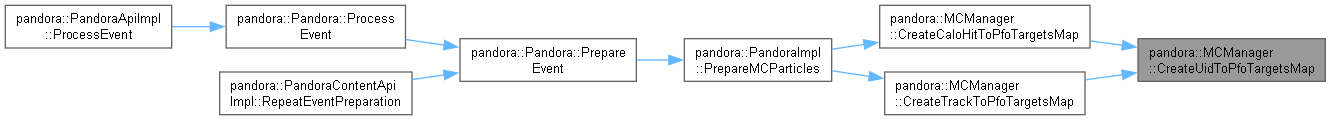

◆ CreateUidToPfoTargetsMap()

StatusCode pandora::MCManager::CreateUidToPfoTargetsMap	(	UidToMCParticleWeightMap &	uidToMCParticleWeightMap,
		const ObjectRelationMap &	objectRelationMap
	)		const

private

Create a map relating an object (calo hit or track) uid to mc pfo targets.

Parameters

uidToMCParticleWeightMap	to receive the calo hit uid to mc pfo target map
objectRelationMap	the object relation map containing the information

Definition at line 331 of file MCManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DropCurrentList()

template<typename T >

StatusCode pandora::Manager< T >::DropCurrentList ( const Algorithm *const pAlgorithm )

protectedvirtualinherited

Drop the current list, returning the current list to its default empty/null state.

Parameters

pAlgorithm address of the algorithm altering the lists

Reimplemented in pandora::AlgorithmObjectManager< T >, pandora::AlgorithmObjectManager< Cluster >, pandora::AlgorithmObjectManager< ParticleFlowObject >, and pandora::AlgorithmObjectManager< Vertex >.

Definition at line 134 of file Manager.cc.

Here is the caller graph for this function:

◆ EraseAllContent()

StatusCode pandora::MCManager::EraseAllContent ( )

privatevirtual

Erase all mc manager content.

Reimplemented from pandora::InputObjectManager< MCParticle >.

Definition at line 71 of file MCManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetAlgorithmInputList()

template<typename T >

StatusCode pandora::Manager< T >::GetAlgorithmInputList	(	const Algorithm *const	pAlgorithm,
		const ObjectList *&	pObjectList,
		std::string &	listName
	)		const

protectedvirtualinherited

Get the algorithm input list.

Parameters

pAlgorithm	address of the algorithm
pObjectList	to receive the algorithm input list
listName	to receive the name of the algorithm input list

Definition at line 69 of file Manager.cc.

◆ GetAlgorithmInputListName()

template<typename T >

StatusCode pandora::Manager< T >::GetAlgorithmInputListName	(	const Algorithm *const	pAlgorithm,
		std::string &	listName
	)		const

inlineprotectedvirtualinherited

Get the algorithm track list name.

Parameters

pAlgorithm	address of the algorithm
listName	to receive the algorithm input list name

Definition at line 88 of file Manager.cc.

◆ GetCurrentList()

template<typename T >

StatusCode pandora::Manager< T >::GetCurrentList	(	const ObjectList *&	pObjectList,
		std::string &	listName
	)		const

protectedvirtualinherited

Get the current list.

Parameters

pObjectList	to receive the current list
listName	to receive the name of the current list

Definition at line 48 of file Manager.cc.

Here is the caller graph for this function:

◆ GetCurrentListName()

template<typename T >

StatusCode pandora::Manager< T >::GetCurrentListName ( std::string & listName ) const

inlineprotectedvirtualinherited

Get the current list name.

Parameters

listName to receive the current list name

Definition at line 57 of file Manager.cc.

◆ GetList()

template<typename T >

StatusCode pandora::Manager< T >::GetList	(	const std::string &	listName,
		const ObjectList *&	pObjectList
	)		const

protectedvirtualinherited

Get a list.

Parameters

listName	the name of the list
pObjectList	to receive the list

Definition at line 34 of file Manager.cc.

Here is the caller graph for this function:

◆ IdentifyPfoTargets()

StatusCode pandora::MCManager::IdentifyPfoTargets ( )

private

Identify pfo targets.

Definition at line 92 of file MCManager.cc.

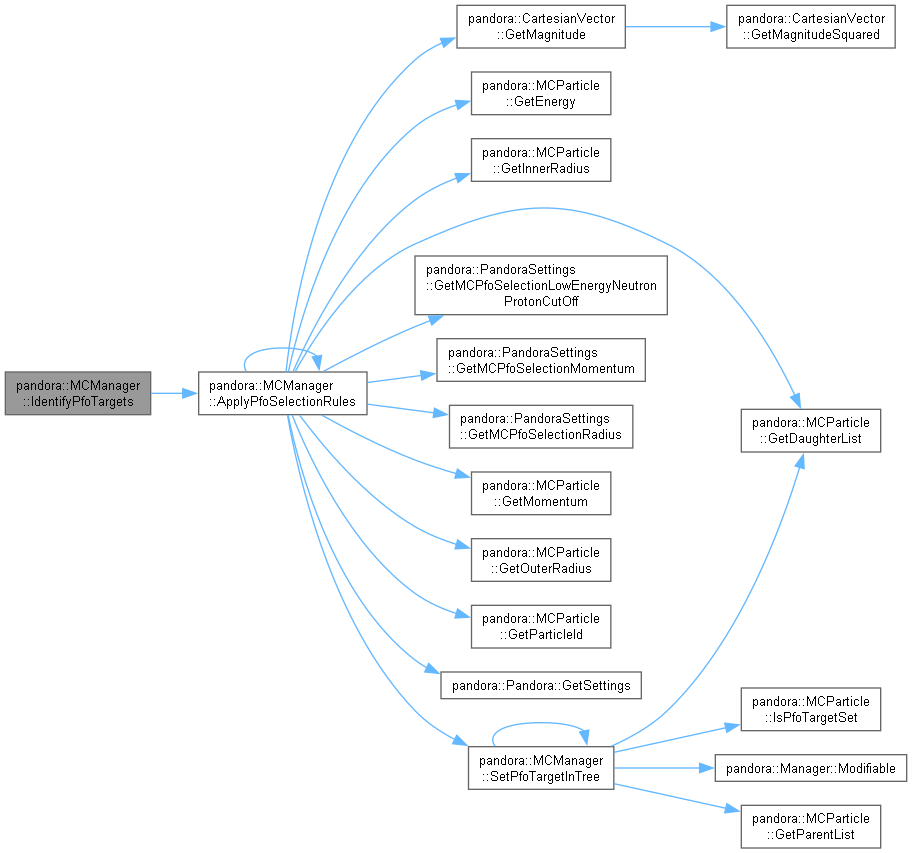

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Modifiable()

template<typename T >

T * pandora::Manager< T >::Modifiable ( const T *const pT ) const

protectedvirtualinherited

Access a modifiable object, when provided with address to const object.

Parameters

pT	the address of the const object

Returns: address of the modifiable object

Definition at line 288 of file Manager.cc.

Here is the caller graph for this function:

◆ RegisterAlgorithm()

template<typename T >

StatusCode pandora::Manager< T >::RegisterAlgorithm ( const Algorithm *const pAlgorithm )

protectedvirtualinherited

Register an algorithm with the manager.

Parameters

pAlgorithm address of the algorithm

Definition at line 198 of file Manager.cc.

◆ RemoveAllMCParticleRelationships()

StatusCode pandora::MCManager::RemoveAllMCParticleRelationships ( )

private

Remove all mc particle associations that have been registered with the mc manager.

Definition at line 254 of file MCManager.cc.

Here is the call graph for this function:

◆ RemoveMCParticleRelationships()

StatusCode pandora::MCManager::RemoveMCParticleRelationships ( const MCParticle *const pMCParticle ) const

private

Remove all parent/daughter particle links from a mc particle and from its (previously) linked particles.

Parameters

pMCParticle address of the mc particle

Definition at line 274 of file MCManager.cc.

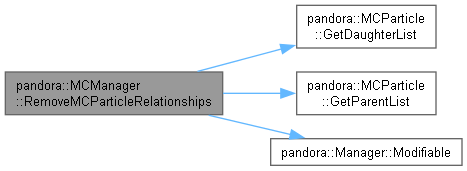

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RemoveObjectsFromList()

StatusCode pandora::InputObjectManager< MCParticle >::RemoveObjectsFromList	(	const std::string &	listName,
		const ObjectList &	objectList
	)

protectedvirtualinherited

Remove objects from a saved list.

Parameters

listName	the list to remove the objects from
objectList	the list of objects to be removed

Definition at line 77 of file InputObjectManager.cc.

◆ RenameList()

StatusCode pandora::InputObjectManager< MCParticle >::RenameList	(	const std::string &	oldListName,
		const std::string &	newListName
	)

protectedvirtualinherited

Rename a saved list, altering its saved name from a specified old list name to a specified new list name.

Parameters

oldListName	the old list name
newListName	the new list name

Reimplemented from pandora::Manager< T >.

Definition at line 85 of file InputObjectManager.cc.

◆ ReplaceCurrentAndAlgorithmInputLists()

template<typename T >

StatusCode pandora::Manager< T >::ReplaceCurrentAndAlgorithmInputLists	(	const Algorithm *const	pAlgorithm,
		const std::string &	listName
	)

protectedvirtualinherited

Replace the current and algorithm input lists with a pre-existing list.

Parameters

pAlgorithm	address of the algorithm changing the current list
listName	the name of the new current (and algorithm input) list

Reimplemented in pandora::AlgorithmObjectManager< T >, pandora::AlgorithmObjectManager< Cluster >, pandora::AlgorithmObjectManager< ParticleFlowObject >, and pandora::AlgorithmObjectManager< Vertex >.

Definition at line 110 of file Manager.cc.

Here is the caller graph for this function:

◆ ResetAlgorithmInfo()

template<typename T >

StatusCode pandora::Manager< T >::ResetAlgorithmInfo	(	const Algorithm *const	pAlgorithm,
		bool	isAlgorithmFinished
	)

protectedvirtualinherited

Remove temporary lists and reset the current list to that when algorithm was initialized.

Parameters

pAlgorithm	address of the algorithm altering the lists
isAlgorithmFinished	whether the algorithm has completely finished and the algorithm info should be entirely removed

Reimplemented in pandora::AlgorithmObjectManager< T >, pandora::AlgorithmObjectManager< Cluster >, pandora::AlgorithmObjectManager< ParticleFlowObject >, and pandora::AlgorithmObjectManager< Vertex >.

Definition at line 216 of file Manager.cc.

Here is the caller graph for this function:

◆ ResetCurrentListToAlgorithmInputList()

template<typename T >

StatusCode pandora::Manager< T >::ResetCurrentListToAlgorithmInputList ( const Algorithm *const pAlgorithm )

protectedvirtualinherited

Reset the current list to the algorithm input list.

Parameters

pAlgorithm address of the algorithm changing the current track list

Reimplemented in pandora::AlgorithmObjectManager< T >, pandora::AlgorithmObjectManager< Cluster >, pandora::AlgorithmObjectManager< ParticleFlowObject >, and pandora::AlgorithmObjectManager< Vertex >.

Definition at line 102 of file Manager.cc.

Here is the caller graph for this function:

◆ ResetForNextEvent()

template<typename T >

StatusCode pandora::Manager< T >::ResetForNextEvent ( )

protectedvirtualinherited

Reset the manager.

Definition at line 247 of file Manager.cc.

Here is the caller graph for this function:

◆ SaveList()

StatusCode pandora::InputObjectManager< MCParticle >::SaveList	(	const std::string &	listName,
		const ObjectList &	objectList
	)

protectedvirtualinherited

Save a list of objects in a list with a specified name; create new list if required.

Parameters

listName	the list name
objectList	the object list

Definition at line 61 of file InputObjectManager.cc.

◆ SelectPfoTargets()

StatusCode pandora::MCManager::SelectPfoTargets ( )

private

Select pfo targets.

Definition at line 112 of file MCManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetCaloHitToMCParticleRelationship()

StatusCode pandora::MCManager::SetCaloHitToMCParticleRelationship	(	const Uid	caloHitUid,
		const Uid	mcParticleUid,
		const float	mcParticleWeight
	)

inlineprivate

Set calo hit to mc particle relationship.

Parameters

caloHitUid	the calo hit unique identifier
mcParticleUid	the mc particle unique identifier
mcParticleWeight	weighting to assign to the mc particle

Definition at line 174 of file MCManager.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetMCParentDaughterRelationship()

StatusCode pandora::MCManager::SetMCParentDaughterRelationship	(	const Uid	parentUid,
		const Uid	daughterUid
	)

private

Set mc particle relationship.

Parameters

parentUid	the parent unique identifier
daughterUid	the daughter unique identifier

Definition at line 83 of file MCManager.cc.

Here is the caller graph for this function:

◆ SetPfoTargetInTree()

StatusCode pandora::MCManager::SetPfoTargetInTree	(	const MCParticle *const	pMCParticle,
		const MCParticle *const	pPfoTarget,
		bool	onlyDaughters = `false`
	)		const

private

Set pfo target for a mc tree.

Parameters

pMCParticle	address of a particle in the mc tree
pPfoTarget	address of the pfo target
onlyDaughters	if "true" go through daughters only, if false go through parents as well

Definition at line 189 of file MCManager.cc.

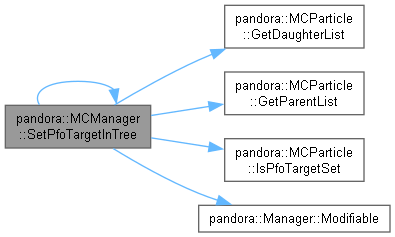

Here is the call graph for this function:

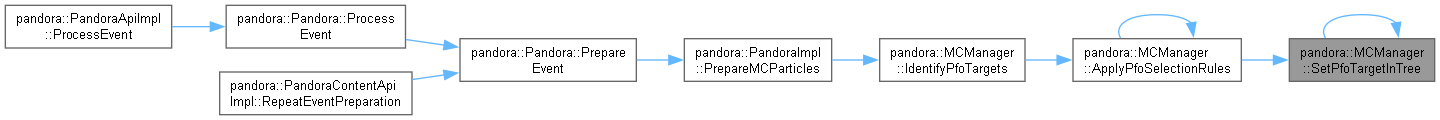

Here is the caller graph for this function:

◆ SetTrackToMCParticleRelationship()

StatusCode pandora::MCManager::SetTrackToMCParticleRelationship	(	const Uid	trackUid,
		const Uid	mcParticleUid,
		const float	mcParticleWeight
	)

inlineprivate

Set track to mc particle relationship.

Parameters

trackUid	the track unique identifier
mcParticleUid	the mc particle unique identifier
mcParticleWeight	weighting to assign to the mc particle

Definition at line 181 of file MCManager.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetUidToMCParticleRelationship()

StatusCode pandora::MCManager::SetUidToMCParticleRelationship	(	const Uid	objectUid,
		const Uid	mcParticleUid,
		const float	mcParticleWeight,
		ObjectRelationMap &	objectRelationMap
	)		const

private

Set an object (e.g. calo hit or track) to mc particle relationship.

Parameters

uid	the unique identifier of the object
mcParticleUid	the mc particle unique identifier
mcParticleWeight	weighting to assign to the mc particle
objectRelationMap	the uid relation map to populate

Definition at line 297 of file MCManager.cc.

Here is the call graph for this function:

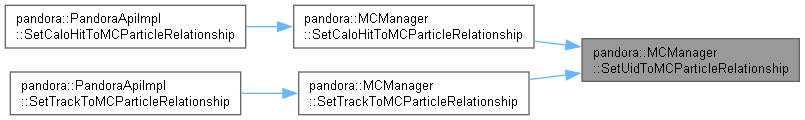

Here is the caller graph for this function:

Friends And Related Symbol Documentation

◆ PandoraApiImpl

friend class PandoraApiImpl

friend

Definition at line 167 of file MCManager.h.

◆ PandoraContentApiImpl

friend class PandoraContentApiImpl

friend

Definition at line 168 of file MCManager.h.

◆ PandoraImpl

friend class PandoraImpl

friend

Definition at line 169 of file MCManager.h.

Member Data Documentation

◆ m_algorithmInfoMap

template<typename T >

AlgorithmInfoMap pandora::Manager< T >::m_algorithmInfoMap

protectedinherited

The algorithm info map.

Definition at line 179 of file Manager.h.

◆ m_caloHitToMCParticleMap

ObjectRelationMap pandora::MCManager::m_caloHitToMCParticleMap

private

The calo hit to mc particle relation map.

Definition at line 164 of file MCManager.h.

◆ m_currentListName

template<typename T >

std::string pandora::Manager< T >::m_currentListName

protectedinherited

The name of the current list.

Definition at line 181 of file Manager.h.

◆ m_inputListName

const std::string pandora::InputObjectManager< MCParticle >::m_inputListName

protectedinherited

The name of the input list.

Definition at line 97 of file InputObjectManager.h.

◆ m_nameToListMap

template<typename T >

NameToListMap pandora::Manager< T >::m_nameToListMap

protectedinherited

The name to list map.

Definition at line 178 of file Manager.h.

◆ m_nullListName

template<typename T >

const std::string pandora::Manager< T >::m_nullListName

protectedinherited

The name of the default empty (NULL) list.

Definition at line 172 of file Manager.h.

◆ m_parentDaughterRelationMap

MCParticleRelationMap pandora::MCManager::m_parentDaughterRelationMap

private

The mc particle parent-daughter relation map.

Definition at line 163 of file MCManager.h.

◆ m_pPandora

template<typename T >

const Pandora* const pandora::Manager< T >::m_pPandora

protectedinherited

The associated pandora object.

Definition at line 173 of file Manager.h.

◆ m_savedLists

template<typename T >

StringSet pandora::Manager< T >::m_savedLists

protectedinherited

The set of saved lists.

Definition at line 182 of file Manager.h.

◆ m_selectedListName

const std::string pandora::MCManager::m_selectedListName

private

The name of the selected list.

Definition at line 160 of file MCManager.h.

◆ m_trackToMCParticleMap

ObjectRelationMap pandora::MCManager::m_trackToMCParticleMap

private

The track to mc particle relation map.

Definition at line 165 of file MCManager.h.

◆ m_uidToMCParticleMap

UidToMCParticleMap pandora::MCManager::m_uidToMCParticleMap

private

The uid to mc particle map.

Definition at line 162 of file MCManager.h.

The documentation for this class was generated from the following files:

PandoraSDK/include/Managers/MCManager.h
PandoraSDK/src/Managers/MCManager.cc

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Private Types

Private Member Functions

Private Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ AlgorithmInfoMap

◆ MCParticleRelationMap

◆ NameToListMap

◆ ObjectList

◆ ObjectRelationMap

◆ UidToWeightMap

Constructor & Destructor Documentation

◆ MCManager()

◆ ~MCManager()

Member Function Documentation

◆ AddMCParticleRelationships()

◆ AddObjectsToList()

◆ ApplyPfoSelectionRules()

◆ Create()

◆ CreateCaloHitToPfoTargetsMap()

◆ CreateInitialLists()

◆ CreateInputList()

◆ CreateTemporaryListAndSetCurrent() [1/2]

◆ CreateTemporaryListAndSetCurrent() [2/2]

◆ CreateTrackToPfoTargetsMap()

◆ CreateUidToPfoTargetsMap()

◆ DropCurrentList()

◆ EraseAllContent()

◆ GetAlgorithmInputList()

◆ GetAlgorithmInputListName()

◆ GetCurrentList()

◆ GetCurrentListName()

◆ GetList()

◆ IdentifyPfoTargets()

◆ Modifiable()

◆ RegisterAlgorithm()

◆ RemoveAllMCParticleRelationships()

◆ RemoveMCParticleRelationships()

◆ RemoveObjectsFromList()

◆ RenameList()

◆ ReplaceCurrentAndAlgorithmInputLists()

◆ ResetAlgorithmInfo()

◆ ResetCurrentListToAlgorithmInputList()

◆ ResetForNextEvent()

◆ SaveList()

◆ SelectPfoTargets()

◆ SetCaloHitToMCParticleRelationship()

◆ SetMCParentDaughterRelationship()

◆ SetPfoTargetInTree()

◆ SetTrackToMCParticleRelationship()

◆ SetUidToMCParticleRelationship()

Friends And Related Symbol Documentation

◆ PandoraApiImpl

◆ PandoraContentApiImpl

◆ PandoraImpl

Member Data Documentation

◆ m_algorithmInfoMap

◆ m_caloHitToMCParticleMap

◆ m_currentListName

◆ m_inputListName

◆ m_nameToListMap

◆ m_nullListName

◆ m_parentDaughterRelationMap

◆ m_pPandora

◆ m_savedLists

◆ m_selectedListName

◆ m_trackToMCParticleMap

◆ m_uidToMCParticleMap
