pandora::VertexManager Class Reference

VertexManager class. More...

#include "VertexManager.h"

Inheritance diagram for pandora::VertexManager:

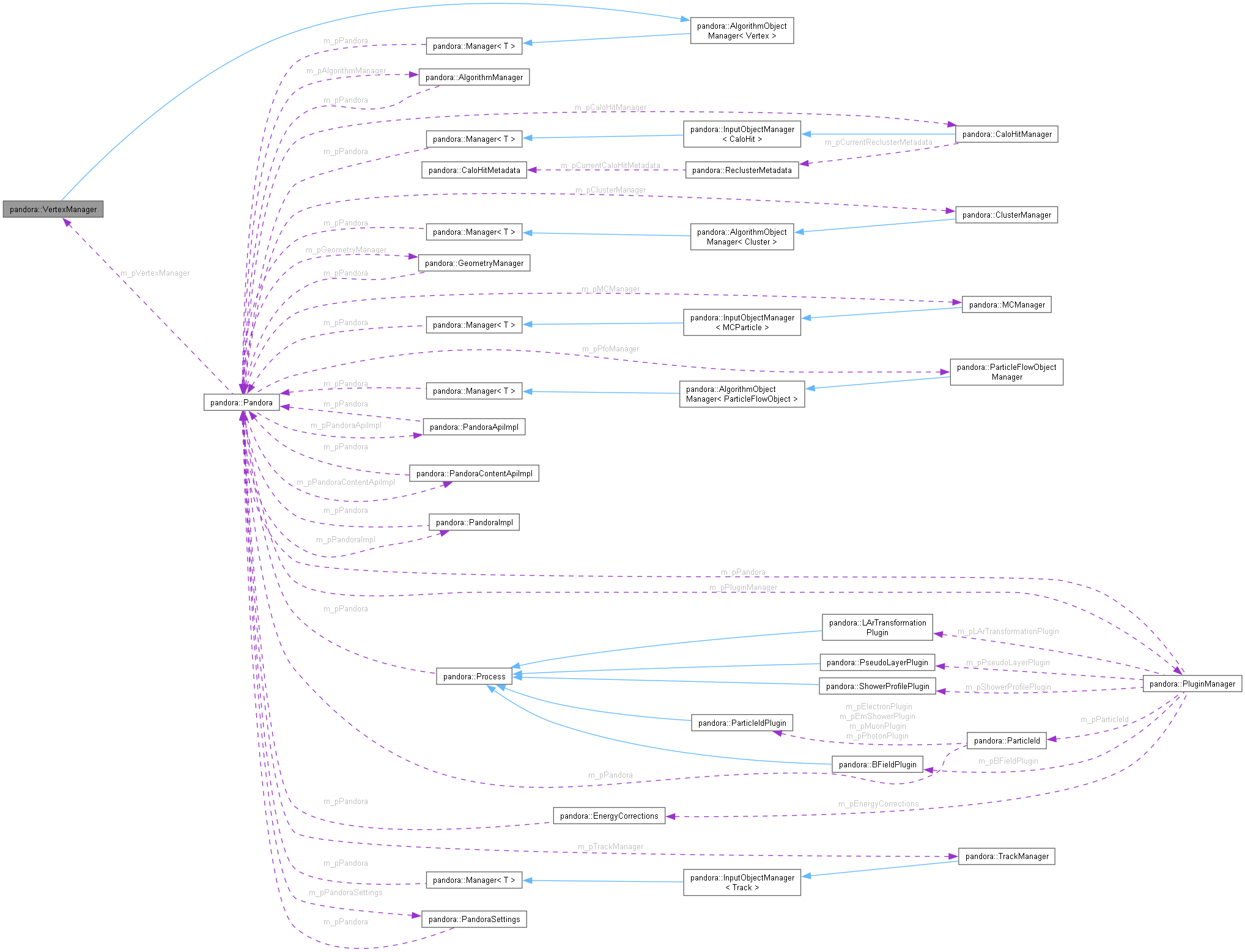

Collaboration diagram for pandora::VertexManager:

Public Member Functions
	VertexManager (const Pandora *const pPandora)
	Constructor.
	~VertexManager ()
	Destructor.
template<>
bool	IsAvailable (const Vertex *const pVertex) const
template<>
bool	IsAvailable (const VertexList *const pVertexList) const
template<>
void	SetAvailability (const Vertex *const pVertex, bool isAvailable) const
template<>
void	SetAvailability (const VertexList *const pVertexList, bool isAvailable) const

Protected Types
typedef Manager< Vertex >::ObjectList	ObjectList
typedef std::map< std::string, ObjectList * >	NameToListMap
typedef std::unordered_map< const Algorithm *, AlgorithmInfo >	AlgorithmInfoMap

Protected Member Functions
virtual StatusCode	CreateTemporaryListAndSetCurrent (const Algorithm *const pAlgorithm, std::string &temporaryListName)
	Make a temporary list and set it to be the current list.
virtual StatusCode	MoveObjectsToTemporaryListAndSetCurrent (const Algorithm *const pAlgorithm, const std::string &originalListName, std::string &temporaryListName, const ObjectList &objectsToMove)
	Move objects to a new temporary object list and set it to be the current object list.
virtual StatusCode	SaveObjects (const std::string &targetListName, const std::string &sourceListName)
	Save a list of objects.
virtual StatusCode	SaveObjects (const std::string &targetListName, const std::string &sourceListName, const ObjectList &objectsToSave)
	Save a list of objects.
virtual StatusCode	MoveObjectsBetweenLists (const std::string &targetListName, const std::string &sourceListName, const ObjectList *pObjectSubset=nullptr)
	Move (a subset of) objects between two lists.
virtual StatusCode	TemporarilyReplaceCurrentList (const std::string &listName)
	Temporarily replace the current list with another list, which may only be a temporary list. This switch will persist only for the duration of the algorithm and its daughters; unless otherwise specified, the list will revert to the algorithm input list upon algorithm completion.
virtual StatusCode	DeleteObject (const Vertex *const pT, const std::string &listName)
	Delete an object from a specified list.
virtual StatusCode	DeleteObjects (const ObjectList &objectList, const std::string &listName)
	Delete a list of objects from a specified list.
virtual StatusCode	DeleteTemporaryObjects (const Algorithm *const pAlgorithm, const std::string &temporaryListName)
	Delete the contents of a temporary list.
virtual StatusCode	GetResetDeletionObjects (const Algorithm *const pAlgorithm, ObjectList &objectList) const
	Get the list of objects that will be deleted when the algorithm info is reset.
virtual StatusCode	ResetCurrentListToAlgorithmInputList (const Algorithm *const pAlgorithm)
	Reset the current list to the algorithm input list.
virtual StatusCode	ReplaceCurrentAndAlgorithmInputLists (const Algorithm *const pAlgorithm, const std::string &listName)
	Replace the current and algorithm input lists with a pre-existing list.
virtual StatusCode	DropCurrentList (const Algorithm *const pAlgorithm)
	Drop the current list, returning the current list to its default empty/null state.
virtual StatusCode	RenameList (const std::string &oldListName, const std::string &newListName)
	Rename a saved list, altering its saved name from a specified old list name to a specified new list name.
virtual StatusCode	ResetAlgorithmInfo (const Algorithm *const pAlgorithm, bool isAlgorithmFinished)
	Remove temporary lists and reset the current cluster list to that when algorithm was initialized.
virtual StatusCode	EraseAllContent ()
	Erase all manager content.
virtual StatusCode	GetList (const std::string &listName, const ObjectList *&pObjectList) const
	Get a list.
virtual StatusCode	GetCurrentList (const ObjectList *&pObjectList, std::string &listName) const
	Get the current list.
virtual StatusCode	GetCurrentListName (std::string &listName) const
	Get the current list name.
virtual StatusCode	GetAlgorithmInputList (const Algorithm *const pAlgorithm, const ObjectList *&pObjectList, std::string &listName) const
	Get the algorithm input list.
virtual StatusCode	GetAlgorithmInputListName (const Algorithm *const pAlgorithm, std::string &listName) const
	Get the algorithm track list name.
virtual StatusCode	RegisterAlgorithm (const Algorithm *const pAlgorithm)
	Register an algorithm with the manager.
virtual StatusCode	ResetForNextEvent ()
	Reset the manager.
virtual StatusCode	CreateInitialLists ()
	Create initial lists.
virtual T *	Modifiable (const T *const pT) const
	Access a modifiable object, when provided with address to const object.

Protected Attributes
bool	m_canMakeNewObjects
	Whether the manager is allowed to make new objects when requested by algorithms.
const std::string	m_nullListName
	The name of the default empty (NULL) list.
const Pandora *const	m_pPandora
	The associated pandora object.
NameToListMap	m_nameToListMap
	The name to list map.
AlgorithmInfoMap	m_algorithmInfoMap
	The algorithm info map.
std::string	m_currentListName
	The name of the current list.
StringSet	m_savedLists
	The set of saved lists.

Private Member Functions
StatusCode	Create (const object_creation::Vertex::Parameters &parameters, const Vertex *&pVertex, const ObjectFactory< object_creation::Vertex::Parameters, object_creation::Vertex::Object > &factory)
	Create a vertex.
StatusCode	AlterMetadata (const Vertex *const pVertex, const object_creation::Vertex::Metadata &metadata) const
	Alter the metadata information stored in a vertex.
template<typename T >
bool	IsAvailable (const T *const pT) const
	Is a vertex, or a list of vertices, available to add to a particle flow object.
template<typename T >
void	SetAvailability (const T *const pT, bool isAvailable) const
	Set availability of a vertex, or a list of vertices, to be added to a particle flow object.

Friends
class	PandoraContentApiImpl
class	PandoraImpl

Detailed Description

VertexManager class.

Definition at line 22 of file VertexManager.h.

Member Typedef Documentation

AlgorithmInfoMap

template<typename T >

typedef std::unordered_map<const Algorithm *, AlgorithmInfo> pandora::Manager< T >::AlgorithmInfoMap

protectedinherited

Definition at line 176 of file Manager.h.

NameToListMap

template<typename T >

typedef std::map<std::string, ObjectList *> pandora::Manager< T >::NameToListMap

protectedinherited

Definition at line 175 of file Manager.h.

ObjectList

typedef Manager<Vertex >::ObjectList pandora::AlgorithmObjectManager< Vertex >::ObjectList

protectedinherited

Definition at line 36 of file AlgorithmObjectManager.h.

Constructor & Destructor Documentation

VertexManager()

pandora::VertexManager::VertexManager

(

const Pandora *const

pPandora

)

Constructor.

Parameters

pPandora

address of the associated pandora object

Definition at line 20 of file VertexManager.cc.

Here is the call graph for this function:

~VertexManager()

pandora::VertexManager::~VertexManager

(

)

Destructor.

Definition at line 28 of file VertexManager.cc.

Here is the call graph for this function:

Member Function Documentation

AlterMetadata()

StatusCode pandora::VertexManager::AlterMetadata ( const Vertex *const  pVertex, const object_creation::Vertex::Metadata &  metadata  ) const

private

Alter the metadata information stored in a vertex.

Parameters

pVertex	address of the vertex to modify
metaData	the metadata (only populated metadata fields will be propagated to the object)

Definition at line 69 of file VertexManager.cc.

Here is the call graph for this function:

Create()

StatusCode pandora::VertexManager::Create ( const object_creation::Vertex::Parameters &  parameters, const Vertex *&  pVertex, const ObjectFactory< object_creation::Vertex::Parameters, object_creation::Vertex::Object > &  factory  )

private

Create a vertex.

Parameters

parameters	the vertex parameters
pVertex	to receive the address of the vertex created
factory	the factory that performs the object allocation

Definition at line 35 of file VertexManager.cc.

Here is the call graph for this function:

CreateInitialLists()

template<typename T >

StatusCode pandora::Manager< T >::CreateInitialLists ( )

protectedvirtualinherited

Create initial lists.

Reimplemented in pandora::InputObjectManager< T >, pandora::InputObjectManager< CaloHit >, pandora::InputObjectManager< MCParticle >, and pandora::InputObjectManager< Track >.

Definition at line 274 of file Manager.cc.

Here is the caller graph for this function:

CreateTemporaryListAndSetCurrent()

StatusCode pandora::AlgorithmObjectManager< Vertex >::CreateTemporaryListAndSetCurrent ( const Algorithm *const  pAlgorithm, std::string &  temporaryListName  )

protectedvirtualinherited

Make a temporary list and set it to be the current list.

Parameters

pAlgorithm	address of the algorithm requesting a temporary list
temporaryListName	to receive the name of the temporary list

Reimplemented from pandora::Manager< T >.

Definition at line 44 of file AlgorithmObjectManager.cc.

DeleteObject()

StatusCode pandora::AlgorithmObjectManager< Vertex >::DeleteObject ( const Vertex *const  pT, const std::string &  listName  )

protectedvirtualinherited

Delete an object from a specified list.

Parameters

pCluster	address of the object to delete
listName	the name of the list containing the object

Definition at line 103 of file AlgorithmObjectManager.cc.

DeleteObjects()

StatusCode pandora::AlgorithmObjectManager< Vertex >::DeleteObjects ( const ObjectList &  objectList, const std::string &  listName  )

protectedvirtualinherited

Delete a list of objects from a specified list.

Parameters

objectList	the list of objects to delete
listName	the name of the list containing the objects

Definition at line 111 of file AlgorithmObjectManager.cc.

DeleteTemporaryObjects()

StatusCode pandora::AlgorithmObjectManager< Vertex >::DeleteTemporaryObjects ( const Algorithm *const  pAlgorithm, const std::string &  temporaryListName  )

protectedvirtualinherited

Delete the contents of a temporary list.

Parameters

pAlgorithm	address of the algorithm calling this function
temporaryListName	the name of the temporary list

Definition at line 119 of file AlgorithmObjectManager.cc.

DropCurrentList()

StatusCode pandora::AlgorithmObjectManager< Vertex >::DropCurrentList ( const Algorithm *const  pAlgorithm )

protectedvirtualinherited

Drop the current list, returning the current list to its default empty/null state.

Parameters

pAlgorithm

address of the algorithm altering the lists

Reimplemented from pandora::Manager< T >.

Definition at line 149 of file AlgorithmObjectManager.cc.

EraseAllContent()

StatusCode pandora::AlgorithmObjectManager< Vertex >::EraseAllContent ( )

protectedvirtualinherited

Erase all manager content.

Reimplemented from pandora::Manager< T >.

Definition at line 170 of file AlgorithmObjectManager.cc.

GetAlgorithmInputList()

template<typename T >

StatusCode pandora::Manager< T >::GetAlgorithmInputList ( const Algorithm *const  pAlgorithm, const ObjectList *&  pObjectList, std::string &  listName  ) const

protectedvirtualinherited

Get the algorithm input list.

Parameters

pAlgorithm	address of the algorithm
pObjectList	to receive the algorithm input list
listName	to receive the name of the algorithm input list

Definition at line 69 of file Manager.cc.

GetAlgorithmInputListName()

template<typename T >

StatusCode pandora::Manager< T >::GetAlgorithmInputListName ( const Algorithm *const  pAlgorithm, std::string &  listName  ) const

inlineprotectedvirtualinherited

Get the algorithm track list name.

Parameters

pAlgorithm	address of the algorithm
listName	to receive the algorithm input list name

Definition at line 88 of file Manager.cc.

GetCurrentList()

template<typename T >

StatusCode pandora::Manager< T >::GetCurrentList ( const ObjectList *&  pObjectList, std::string &  listName  ) const

protectedvirtualinherited

Get the current list.

Parameters

pObjectList	to receive the current list
listName	to receive the name of the current list

Definition at line 48 of file Manager.cc.

Here is the caller graph for this function:

GetCurrentListName()

template<typename T >

StatusCode pandora::Manager< T >::GetCurrentListName ( std::string &  listName ) const

inlineprotectedvirtualinherited

Get the current list name.

Parameters

listName

to receive the current list name

Definition at line 57 of file Manager.cc.

GetList()

template<typename T >

StatusCode pandora::Manager< T >::GetList ( const std::string &  listName, const ObjectList *&  pObjectList  ) const

protectedvirtualinherited

Get a list.

Parameters

listName	the name of the list
pObjectList	to receive the list

Definition at line 34 of file Manager.cc.

Here is the caller graph for this function:

GetResetDeletionObjects()

StatusCode pandora::AlgorithmObjectManager< Vertex >::GetResetDeletionObjects ( const Algorithm *const  pAlgorithm, ObjectList &  objectList  ) const

protectedvirtualinherited

Get the list of objects that will be deleted when the algorithm info is reset.

Parameters

pAlgorithm	address of the algorithm
objectList	to receive the list of objects that will be deleted when the algorithm info is reset

Definition at line 127 of file AlgorithmObjectManager.cc.

IsAvailable() [1/3]

template<typename T >

bool pandora::VertexManager::IsAvailable ( const T *const  pT ) const

private

Is a vertex, or a list of vertices, available to add to a particle flow object.

Parameters

pT	address of the object or object list

Returns

boolean

Here is the caller graph for this function:

IsAvailable() [2/3]

template<>

bool pandora::VertexManager::IsAvailable

(

const Vertex *const

pVertex

)

const

Definition at line 77 of file VertexManager.cc.

Here is the call graph for this function:

IsAvailable() [3/3]

template<>

bool pandora::VertexManager::IsAvailable

(

const VertexList *const

pVertexList

)

const

Definition at line 83 of file VertexManager.cc.

Here is the call graph for this function:

Modifiable()

template<typename T >

T * pandora::Manager< T >::Modifiable ( const T *const  pT ) const

protectedvirtualinherited

Access a modifiable object, when provided with address to const object.

Parameters

pT	the address of the const object

Returns

address of the modifiable object

Definition at line 288 of file Manager.cc.

Here is the caller graph for this function:

MoveObjectsBetweenLists()

StatusCode pandora::AlgorithmObjectManager< Vertex >::MoveObjectsBetweenLists ( const std::string &  targetListName, const std::string &  sourceListName, const ObjectList *  pObjectSubset = nullptr  )

protectedvirtualinherited

Move (a subset of) objects between two lists.

Parameters

targetListName	the name of the target object list, which will be created if it doesn't currently exist
sourceListName	the name of the object list containing objects to save
pObjectSubset	if specified, only objects in both this and the source list will be moved

Definition at line 85 of file AlgorithmObjectManager.cc.

MoveObjectsToTemporaryListAndSetCurrent()

StatusCode pandora::AlgorithmObjectManager< Vertex >::MoveObjectsToTemporaryListAndSetCurrent ( const Algorithm *const  pAlgorithm, const std::string &  originalListName, std::string &  temporaryListName, const ObjectList &  objectsToMove  )

protectedvirtualinherited

Move objects to a new temporary object list and set it to be the current object list.

Parameters

pAlgorithm	address of the algorithm requesting a temporary list
originalListName	the list in which the object currently exist
temporaryListName	to receive the name of the temporary list
objectsToMove	only objects in both this and the current list will be moved other object in the current list will remain in original list an empty object list will be rejected

Definition at line 56 of file AlgorithmObjectManager.cc.

RegisterAlgorithm()

template<typename T >

StatusCode pandora::Manager< T >::RegisterAlgorithm ( const Algorithm *const  pAlgorithm )

protectedvirtualinherited

Register an algorithm with the manager.

Parameters

pAlgorithm

address of the algorithm

Definition at line 198 of file Manager.cc.

RenameList()

StatusCode pandora::AlgorithmObjectManager< Vertex >::RenameList ( const std::string &  oldListName, const std::string &  newListName  )

protectedvirtualinherited

Rename a saved list, altering its saved name from a specified old list name to a specified new list name.

Parameters

oldListName	the old list name
newListName	the new list name

Reimplemented from pandora::Manager< T >.

Definition at line 157 of file AlgorithmObjectManager.cc.

ReplaceCurrentAndAlgorithmInputLists()

StatusCode pandora::AlgorithmObjectManager< Vertex >::ReplaceCurrentAndAlgorithmInputLists ( const Algorithm *const  pAlgorithm, const std::string &  listName  )

protectedvirtualinherited

Replace the current and algorithm input lists with a pre-existing list.

Parameters

pAlgorithm	address of the algorithm changing the current list
listName	the name of the new current (and algorithm input) list

Reimplemented from pandora::Manager< T >.

Definition at line 142 of file AlgorithmObjectManager.cc.

ResetAlgorithmInfo()

StatusCode pandora::AlgorithmObjectManager< Vertex >::ResetAlgorithmInfo ( const Algorithm *const  pAlgorithm, bool  isAlgorithmFinished  )

protectedvirtualinherited

Remove temporary lists and reset the current cluster list to that when algorithm was initialized.

Parameters

pAlgorithm	the algorithm associated with the temporary objects
isAlgorithmFinished	whether the algorithm has completely finished and the algorithm info should be entirely removed

Reimplemented from pandora::Manager< T >.

Definition at line 165 of file AlgorithmObjectManager.cc.

ResetCurrentListToAlgorithmInputList()

StatusCode pandora::AlgorithmObjectManager< Vertex >::ResetCurrentListToAlgorithmInputList ( const Algorithm *const  pAlgorithm )

protectedvirtualinherited

Reset the current list to the algorithm input list.

Parameters

pAlgorithm

address of the algorithm changing the current track list

Reimplemented from pandora::Manager< T >.

Definition at line 134 of file AlgorithmObjectManager.cc.

ResetForNextEvent()

template<typename T >

StatusCode pandora::Manager< T >::ResetForNextEvent ( )

protectedvirtualinherited

Reset the manager.

Definition at line 247 of file Manager.cc.

Here is the caller graph for this function:

SaveObjects() [1/2]

StatusCode pandora::AlgorithmObjectManager< Vertex >::SaveObjects ( const std::string &  targetListName, const std::string &  sourceListName  )

protectedvirtualinherited

Save a list of objects.

Parameters

targetListName	the name of the target object list, which will be created if it doesn't currently exist
sourceListName	the name of the (typically temporary) object list to save

Definition at line 65 of file AlgorithmObjectManager.cc.

SaveObjects() [2/2]

StatusCode pandora::AlgorithmObjectManager< Vertex >::SaveObjects ( const std::string &  targetListName, const std::string &  sourceListName, const ObjectList &  objectsToSave  )

protectedvirtualinherited

Save a list of objects.

Parameters

targetListName	the name of the target object list, which will be created if it doesn't currently exist
sourceListName	the name of the (typically temporary) object list containing objects to save
objectToSave	only objects in both this and the temporary list will be stored other object will remain in the temporary list and will be deleted when the parent algorithm exits an empty object list will be rejected

Definition at line 76 of file AlgorithmObjectManager.cc.

SetAvailability() [1/3]

template<typename T >

void pandora::VertexManager::SetAvailability ( const T *const  pT, bool  isAvailable  ) const

private

Set availability of a vertex, or a list of vertices, to be added to a particle flow object.

Parameters

pT	the address of the object or object list
isAvailable	the availability

Here is the caller graph for this function:

SetAvailability() [2/3]

template<>

void pandora::VertexManager::SetAvailability	(	const Vertex *const	pVertex,
		bool	isAvailable
	)		const

Definition at line 96 of file VertexManager.cc.

Here is the call graph for this function:

SetAvailability() [3/3]

template<>

void pandora::VertexManager::SetAvailability	(	const VertexList *const	pVertexList,
		bool	isAvailable
	)		const

Definition at line 102 of file VertexManager.cc.

Here is the call graph for this function:

TemporarilyReplaceCurrentList()

StatusCode pandora::AlgorithmObjectManager< Vertex >::TemporarilyReplaceCurrentList ( const std::string &  listName )

protectedvirtualinherited

Temporarily replace the current list with another list, which may only be a temporary list. This switch will persist only for the duration of the algorithm and its daughters; unless otherwise specified, the list will revert to the algorithm input list upon algorithm completion.

Parameters

listName

the name of the new current (and algorithm input) list

Definition at line 95 of file AlgorithmObjectManager.cc.

Friends And Related Symbol Documentation

PandoraContentApiImpl

friend class PandoraContentApiImpl

friend

Definition at line 75 of file VertexManager.h.

PandoraImpl

friend class PandoraImpl

friend

Definition at line 76 of file VertexManager.h.

Member Data Documentation

m_algorithmInfoMap

template<typename T >

AlgorithmInfoMap pandora::Manager< T >::m_algorithmInfoMap

protectedinherited

The algorithm info map.

Definition at line 179 of file Manager.h.

m_canMakeNewObjects

bool pandora::AlgorithmObjectManager< Vertex >::m_canMakeNewObjects

protectedinherited

Whether the manager is allowed to make new objects when requested by algorithms.

Definition at line 172 of file AlgorithmObjectManager.h.

m_currentListName

template<typename T >

std::string pandora::Manager< T >::m_currentListName

protectedinherited

The name of the current list.

Definition at line 181 of file Manager.h.

m_nameToListMap

template<typename T >

NameToListMap pandora::Manager< T >::m_nameToListMap

protectedinherited

The name to list map.

Definition at line 178 of file Manager.h.

m_nullListName

template<typename T >

const std::string pandora::Manager< T >::m_nullListName

protectedinherited

The name of the default empty (NULL) list.

Definition at line 172 of file Manager.h.

m_pPandora

template<typename T >

const Pandora* const pandora::Manager< T >::m_pPandora

protectedinherited

The associated pandora object.

Definition at line 173 of file Manager.h.

m_savedLists

template<typename T >

StringSet pandora::Manager< T >::m_savedLists

protectedinherited

The set of saved lists.

Definition at line 182 of file Manager.h.

---

The documentation for this class was generated from the following files:

• PandoraSDK/include/Managers/VertexManager.h
• PandoraSDK/src/Managers/VertexManager.cc
