#include "AlgorithmManager.h"

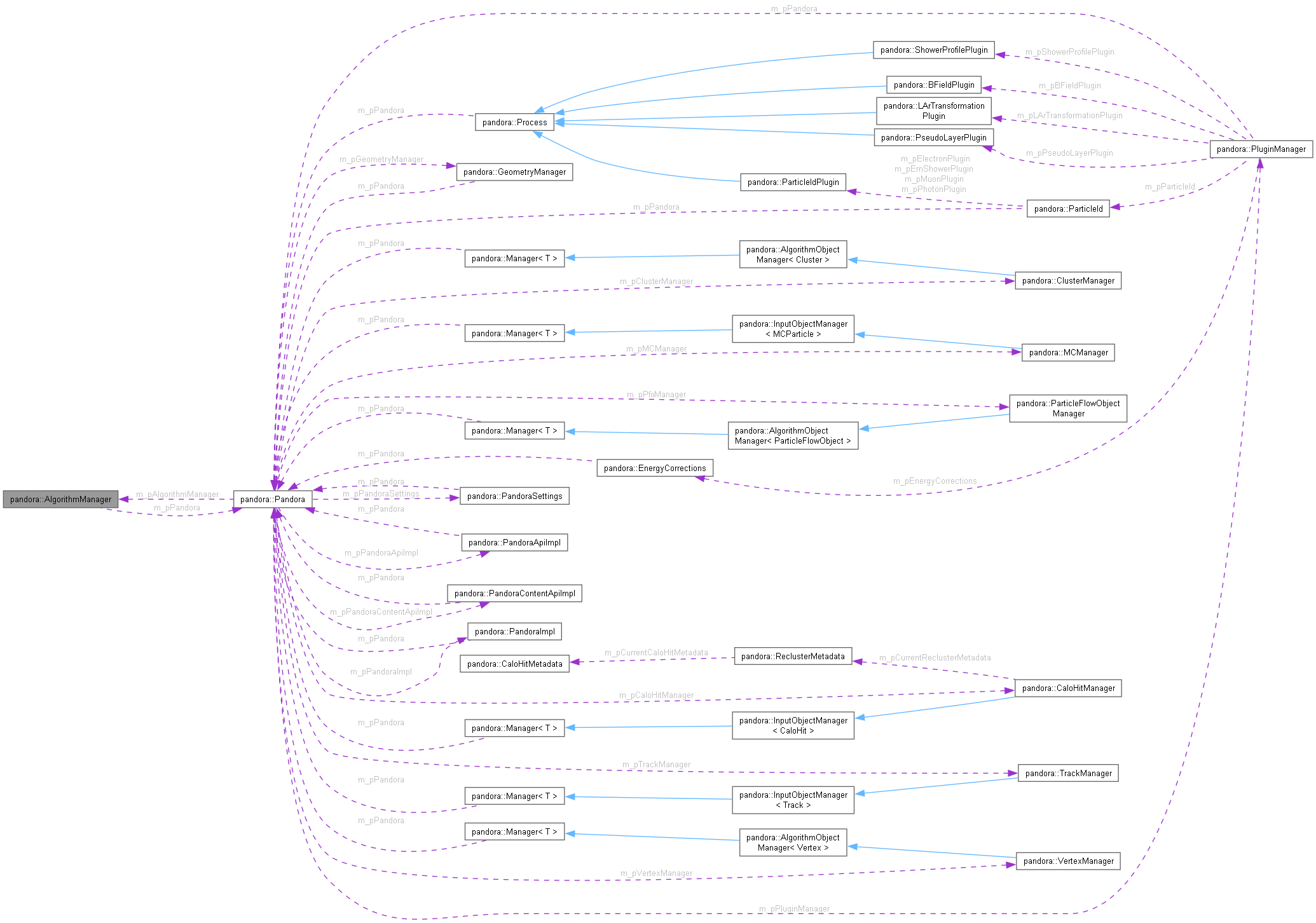

Collaboration diagram for pandora::AlgorithmManager:

[legend]

Public Member Functions
	AlgorithmManager (const Pandora *const pPandora)
	Constructor.

	~AlgorithmManager ()
	Destructor.

const StringVector &	GetPandoraAlgorithms () const
	Get the list of algorithms to be run by pandora.

Private Types
typedef std::map< const std::string, Algorithm *const >	AlgorithmMap

typedef std::map< const std::string, AlgorithmFactory *const >	AlgorithmFactoryMap

typedef std::map< const std::string, const std::string >	SpecificAlgorithmInstanceMap

typedef std::map< const std::string, AlgorithmToolFactory *const >	AlgorithmToolFactoryMap

Private Member Functions
StatusCode	RegisterAlgorithmFactory (const std::string &algorithmType, AlgorithmFactory *const pAlgorithmFactory)
	Register an algorithm factory.

StatusCode	RegisterAlgorithmToolFactory (const std::string &algorithmToolType, AlgorithmToolFactory *const pAlgorithmToolFactory)
	Register an algorithm tool factory.

StatusCode	InitializeAlgorithms (const TiXmlHandle *const pXmlHandle)
	Initialize algorithms.

StatusCode	CreateAlgorithm (TiXmlElement *const pXmlElement, std::string &algorithmName)
	Create an algorithm, via one of the algorithm factories registered with pandora.

StatusCode	CreateAlgorithmTool (TiXmlElement const pXmlElement, AlgorithmTool &pAlgorithmTool)
	Create an algorithm tool, via one of the algorithm tool factories registered with pandora.

StatusCode	FindSpecificAlgorithmInstance (TiXmlElement *const pXmlElement, std::string &algorithmName, std::string &xmlInstanceLabel) const
	Find the name of a specific algorithm instance, so that it can be re-used.

StatusCode	ResetForNextEvent ()
	Call the reset callback in all managed algorithms and algorithm tools.

Private Attributes
AlgorithmMap	m_algorithmMap
	The algorithm map.

AlgorithmFactoryMap	m_algorithmFactoryMap
	The algorithm factory map.

SpecificAlgorithmInstanceMap	m_specificAlgorithmInstanceMap
	The specific algorithm instance map.

StringVector	m_pandoraAlgorithms
	The ordered list of names of top-level algorithms, to be run by pandora.

AlgorithmToolVector	m_algorithmToolVector
	The algorithm tool vector.

AlgorithmToolFactoryMap	m_algorithmToolFactoryMap
	The algorithm tool factory map.

const Pandora *const	m_pPandora
	The pandora instance that will run the algorithms.

Friends
class	PandoraApiImpl

class	PandoraContentApiImpl

class	PandoraImpl

Detailed Description

AlgorithmManager class.

Definition at line 30 of file AlgorithmManager.h.

Member Typedef Documentation

◆ AlgorithmFactoryMap

typedef std::map<const std::string, AlgorithmFactory *const> pandora::AlgorithmManager::AlgorithmFactoryMap

private

Definition at line 107 of file AlgorithmManager.h.

◆ AlgorithmMap

typedef std::map<const std::string, Algorithm *const> pandora::AlgorithmManager::AlgorithmMap

private

Definition at line 106 of file AlgorithmManager.h.

◆ AlgorithmToolFactoryMap

typedef std::map<const std::string, AlgorithmToolFactory *const> pandora::AlgorithmManager::AlgorithmToolFactoryMap

private

Definition at line 115 of file AlgorithmManager.h.

◆ SpecificAlgorithmInstanceMap

typedef std::map<const std::string, const std::string> pandora::AlgorithmManager::SpecificAlgorithmInstanceMap

private

Definition at line 108 of file AlgorithmManager.h.

Constructor & Destructor Documentation

◆ AlgorithmManager()

pandora::AlgorithmManager::AlgorithmManager ( const Pandora *const pPandora )

Constructor.

Parameters

pPandora address of the associated pandora object

Definition at line 26 of file AlgorithmManager.cc.

Here is the call graph for this function:

◆ ~AlgorithmManager()

pandora::AlgorithmManager::~AlgorithmManager ( )

Destructor.

Definition at line 35 of file AlgorithmManager.cc.

Member Function Documentation

◆ CreateAlgorithm()

StatusCode pandora::AlgorithmManager::CreateAlgorithm	(	TiXmlElement *const	pXmlElement,
		std::string &	algorithmName
	)

private

Create an algorithm, via one of the algorithm factories registered with pandora.

Parameters

pXmlElement	address of the xml element describing the algorithm type and settings
algorithmName	to receive the name of the algorithm instance

Definition at line 92 of file AlgorithmManager.cc.

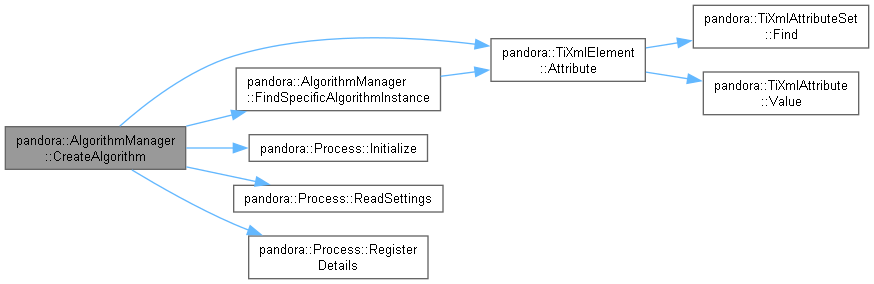

Here is the call graph for this function:

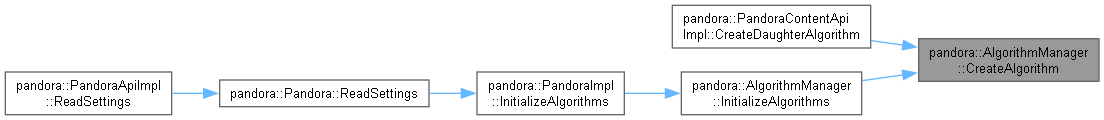

Here is the caller graph for this function:

◆ CreateAlgorithmTool()

StatusCode pandora::AlgorithmManager::CreateAlgorithmTool	(	TiXmlElement *const	pXmlElement,
		AlgorithmTool *&	pAlgorithmTool
	)

private

Create an algorithm tool, via one of the algorithm tool factories registered with pandora.

Parameters

pXmlElement	address of the xml element describing the algorithm tool type and settings
pAlgorithmTool	to receive the address of the algorithm tool instance

Definition at line 150 of file AlgorithmManager.cc.

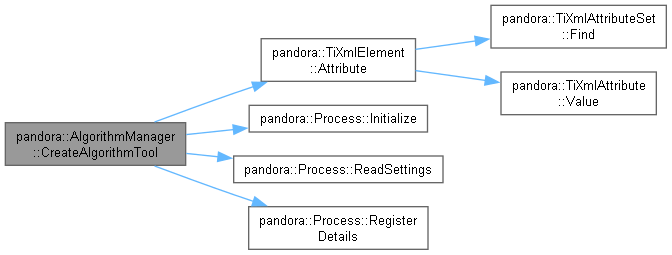

Here is the call graph for this function:

Here is the caller graph for this function:

◆ FindSpecificAlgorithmInstance()

StatusCode pandora::AlgorithmManager::FindSpecificAlgorithmInstance	(	TiXmlElement *const	pXmlElement,
		std::string &	algorithmName,
		std::string &	xmlInstanceLabel
	)		const

private

Find the name of a specific algorithm instance, so that it can be re-used.

Parameters

pXmlElement	address of the xml element describing the algorithm type and settings
algorithmName	to receive the name of the algorithm instance
xmlInstanceLabel	to receive the xml label referring to a specific algorithm instance

Definition at line 194 of file AlgorithmManager.cc.

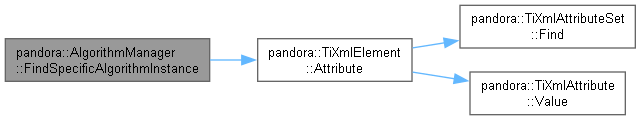

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPandoraAlgorithms()

const StringVector & pandora::AlgorithmManager::GetPandoraAlgorithms ( ) const

inline

Get the list of algorithms to be run by pandora.

Returns: address of the list pandora algorithms

Definition at line 129 of file AlgorithmManager.h.

Here is the caller graph for this function:

◆ InitializeAlgorithms()

StatusCode pandora::AlgorithmManager::InitializeAlgorithms ( const TiXmlHandle *const pXmlHandle )

private

Initialize algorithms.

Parameters

pXmlHandle address of the relevant xml handle

Definition at line 77 of file AlgorithmManager.cc.

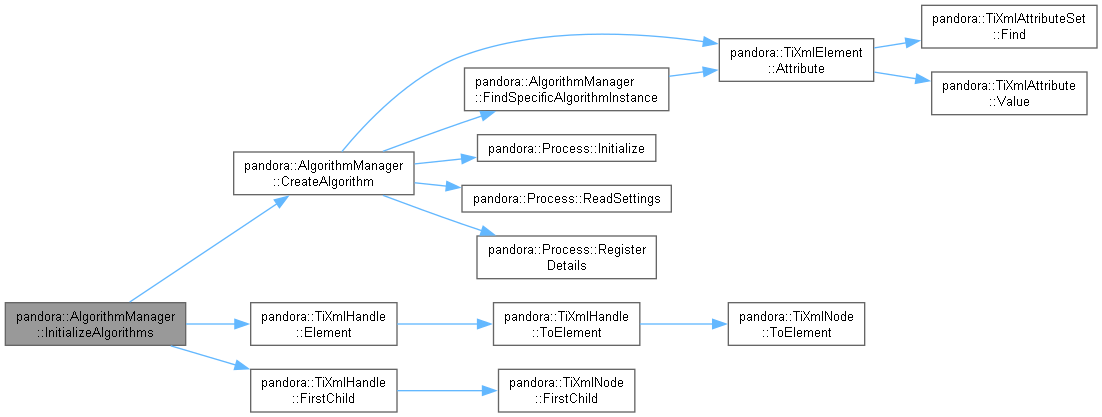

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RegisterAlgorithmFactory()

StatusCode pandora::AlgorithmManager::RegisterAlgorithmFactory	(	const std::string &	algorithmType,
		AlgorithmFactory *const	pAlgorithmFactory
	)

private

Register an algorithm factory.

Parameters

algorithmType	the type of algorithm that the factory will create
pAlgorithmFactory	the address of an algorithm factory instance

Definition at line 57 of file AlgorithmManager.cc.

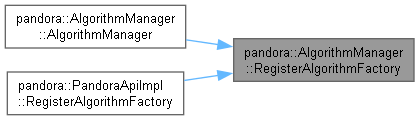

Here is the caller graph for this function:

◆ RegisterAlgorithmToolFactory()

StatusCode pandora::AlgorithmManager::RegisterAlgorithmToolFactory	(	const std::string &	algorithmToolType,
		AlgorithmToolFactory *const	pAlgorithmToolFactory
	)

private

Register an algorithm tool factory.

Parameters

algorithmToolType	the type of algorithm tool that the factory will create
pAlgorithmToolFactory	the address of an algorithm tool factory instance

Definition at line 67 of file AlgorithmManager.cc.

Here is the caller graph for this function:

◆ ResetForNextEvent()

StatusCode pandora::AlgorithmManager::ResetForNextEvent ( )

private

Call the reset callback in all managed algorithms and algorithm tools.

Definition at line 225 of file AlgorithmManager.cc.

Here is the caller graph for this function:

Friends And Related Symbol Documentation

◆ PandoraApiImpl

friend class PandoraApiImpl

friend

Definition at line 122 of file AlgorithmManager.h.

◆ PandoraContentApiImpl

friend class PandoraContentApiImpl

friend

Definition at line 123 of file AlgorithmManager.h.

◆ PandoraImpl

friend class PandoraImpl

friend

Definition at line 124 of file AlgorithmManager.h.

Member Data Documentation

◆ m_algorithmFactoryMap

AlgorithmFactoryMap pandora::AlgorithmManager::m_algorithmFactoryMap

private

The algorithm factory map.

Definition at line 111 of file AlgorithmManager.h.

◆ m_algorithmMap

AlgorithmMap pandora::AlgorithmManager::m_algorithmMap

private

The algorithm map.

Definition at line 110 of file AlgorithmManager.h.

◆ m_algorithmToolFactoryMap

AlgorithmToolFactoryMap pandora::AlgorithmManager::m_algorithmToolFactoryMap

private

The algorithm tool factory map.

Definition at line 118 of file AlgorithmManager.h.

◆ m_algorithmToolVector

AlgorithmToolVector pandora::AlgorithmManager::m_algorithmToolVector

private

The algorithm tool vector.

Definition at line 117 of file AlgorithmManager.h.

◆ m_pandoraAlgorithms

StringVector pandora::AlgorithmManager::m_pandoraAlgorithms

private

The ordered list of names of top-level algorithms, to be run by pandora.

Definition at line 113 of file AlgorithmManager.h.

◆ m_pPandora

const Pandora* const pandora::AlgorithmManager::m_pPandora

private

The pandora instance that will run the algorithms.

Definition at line 120 of file AlgorithmManager.h.

◆ m_specificAlgorithmInstanceMap

SpecificAlgorithmInstanceMap pandora::AlgorithmManager::m_specificAlgorithmInstanceMap

private

The specific algorithm instance map.

Definition at line 112 of file AlgorithmManager.h.

The documentation for this class was generated from the following files:

PandoraSDK/include/Managers/AlgorithmManager.h
PandoraSDK/src/Managers/AlgorithmManager.cc
