PandoraContentApi class. More...

#include "PandoraContentApi.h"

Static Public Member Functions
static const pandora::PandoraSettings *	GetSettings (const pandora::Algorithm &algorithm)
	Get the pandora settings instance.

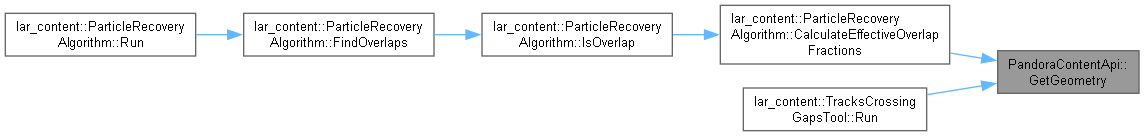

static const pandora::GeometryManager *	GetGeometry (const pandora::Algorithm &algorithm)
	Get the pandora geometry instance.

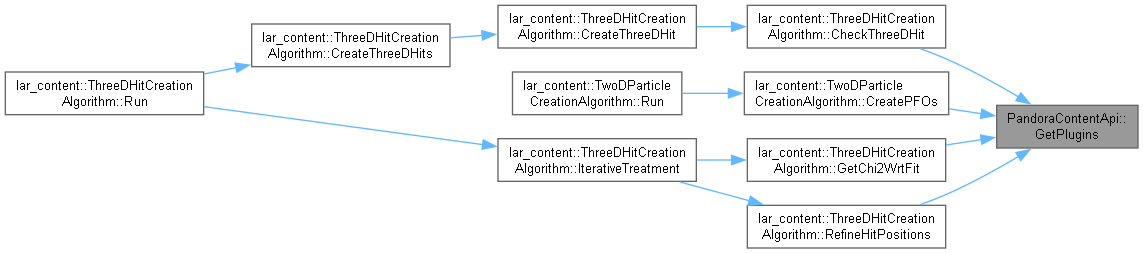

static const pandora::PluginManager *	GetPlugins (const pandora::Algorithm &algorithm)
	Get the pandora plugin instance, providing access to user registered functions and calculators.

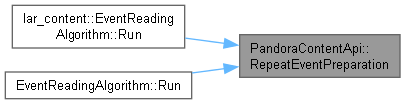

static pandora::StatusCode	RepeatEventPreparation (const pandora::Algorithm &algorithm)
	Repeat the event preparation stages, which are used to calculate properties of input objects for later use in algorithms.

static pandora::StatusCode	CreateAlgorithmTool (const pandora::Algorithm &algorithm, pandora::TiXmlElement const pXmlElement, pandora::AlgorithmTool &pAlgorithmTool)
	Create an algorithm tool instance, via one of the algorithm tool factories registered with pandora. This function is expected to be called whilst reading the settings for a parent algorithm.

static pandora::StatusCode	CreateDaughterAlgorithm (const pandora::Algorithm &algorithm, pandora::TiXmlElement *const pXmlElement, std::string &daughterAlgorithmName)
	Create an algorithm instance, via one of the algorithm factories registered with pandora. This function is expected to be called whilst reading the settings for a parent algorithm.

static pandora::StatusCode	RunDaughterAlgorithm (const pandora::Algorithm &algorithm, const std::string &daughterAlgorithmName)
	Run an algorithm registered with pandora, from within a parent algorithm.

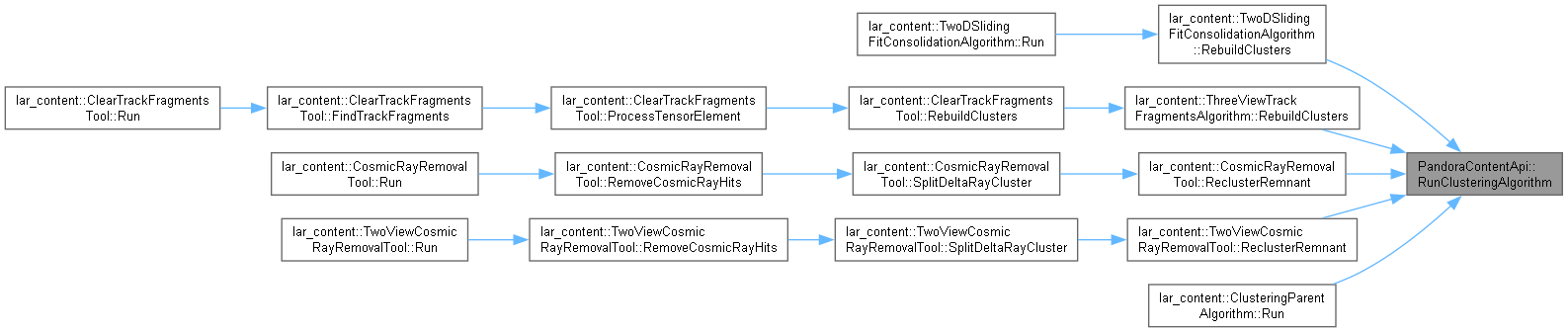

static pandora::StatusCode	RunClusteringAlgorithm (const pandora::Algorithm &algorithm, const std::string &clusteringAlgorithmName, const pandora::ClusterList *&pNewClusterList, std::string &newClusterListName)
	Run a clustering algorithm (an algorithm that will create new cluster objects)

template<typename T >
static pandora::StatusCode	GetCurrentList (const pandora::Algorithm &algorithm, const T *&pT)
	Get the current list.

template<typename T >
static pandora::StatusCode	GetCurrentList (const pandora::Algorithm &algorithm, const T *&pT, std::string &listName)
	Get the current list.

template<typename T >
static pandora::StatusCode	GetCurrentListName (const pandora::Algorithm &algorithm, std::string &listName)
	Get the current list name.

template<typename T >
static pandora::StatusCode	ReplaceCurrentList (const pandora::Algorithm &algorithm, const std::string &newListName)
	Replace the current list with a pre-saved list; use this new list as a permanent replacement for the current list (will persist outside the current algorithm)

template<typename T >
static pandora::StatusCode	DropCurrentList (const pandora::Algorithm &algorithm)
	Drop the current list, returning the current list to its default empty/null state.

template<typename T >
static pandora::StatusCode	GetList (const pandora::Algorithm &algorithm, const std::string &listName, const T *&pT)
	Get a named list.

template<typename T >
static pandora::StatusCode	RenameList (const pandora::Algorithm &algorithm, const std::string &oldListName, const std::string &newListName)
	Rename a saved list, altering its saved name from a specified old list name to a specified new list name.

template<typename T >

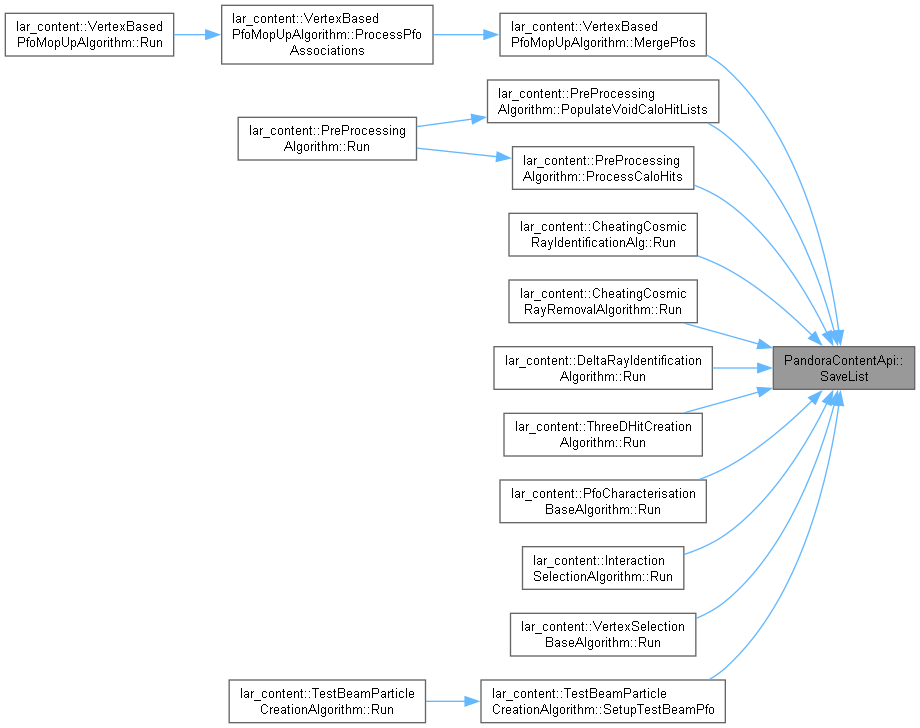

static pandora::StatusCode	SaveList (const pandora::Algorithm &algorithm, const T &t, const std::string &newListName)
	Save a provided input object list under a new name.

template<typename T >
static pandora::StatusCode	SaveList (const pandora::Algorithm &algorithm, const std::string &newListName)
	Save the current list in a list with the specified new name. Note that this will empty the list; the objects will all be moved to the new named list.

template<typename T >
static pandora::StatusCode	SaveList (const pandora::Algorithm &algorithm, const std::string &oldListName, const std::string &newListName)
	Save a named list in a list with the specified new name. Note that this will empty the old list; the objects will all be moved to the new named list.

template<typename T >
static pandora::StatusCode	SaveList (const pandora::Algorithm &algorithm, const std::string &newListName, const T &t)
	Save elements of the current list in a list with the specified new name. If all the objects in the current list are saved, this will empty the current list; the objects will all be moved to the new named list.

template<typename T >
static pandora::StatusCode	SaveList (const pandora::Algorithm &algorithm, const std::string &oldListName, const std::string &newListName, const T &t)
	Save elements of a named list in a list with the specified new name. If all the objects in the old list are saved, this will empty the old list; the objects will all be moved to the new named list.

template<typename T >
static pandora::StatusCode	TemporarilyReplaceCurrentList (const pandora::Algorithm &algorithm, const std::string &newListName)
	Temporarily replace the current list with another list, which may only be a temporary list. This switch will persist only for the duration of the algorithm and its daughters; unless otherwise specified, the current list will revert to the algorithm input list upon algorithm completion.

template<typename T >
static pandora::StatusCode	CreateTemporaryListAndSetCurrent (const pandora::Algorithm &algorithm, const T *&pT, std::string &temporaryListName)
	Create a temporary list and set it to be the current list, enabling object creation.

template<typename T >

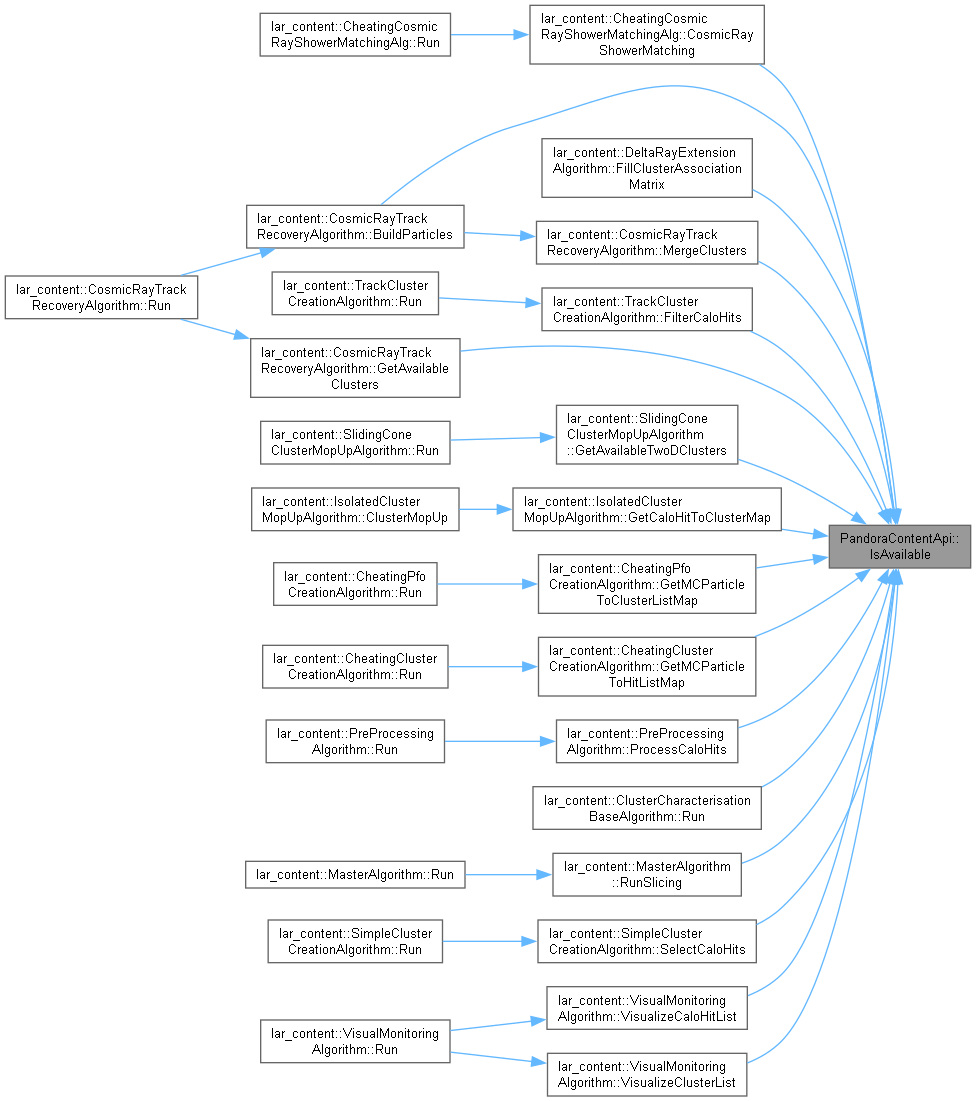

static bool	IsAvailable (const pandora::Algorithm &algorithm, const T *const pT)
	Is object, or a list of objects, available as a building block.

template<typename T >
static pandora::StatusCode	Delete (const pandora::Algorithm &algorithm, const T *const pT)
	Delete an object from the current list.

template<typename T >
static pandora::StatusCode	Delete (const pandora::Algorithm &algorithm, const T *const pT, const std::string &listName)
	Delete an object from a specified list.

template<typename T >
static pandora::StatusCode	AddToCluster (const pandora::Algorithm &algorithm, const pandora::Cluster const pCluster, const T const pT)
	Add a calo hit, or a list of calo hits, to a cluster.

static pandora::StatusCode	RemoveFromCluster (const pandora::Algorithm &algorithm, const pandora::Cluster const pCluster, const pandora::CaloHit const pCaloHit)
	Remove a calo hit from a cluster. Note this function will not remove the final calo hit from a cluster, and will instead return status code "not allowed" as a prompt to delete the cluster.

template<typename T >
static pandora::StatusCode	AddIsolatedToCluster (const pandora::Algorithm &algorithm, const pandora::Cluster const pCluster, const T const pT)
	Add an isolated calo hit, or a list of isolated calo hits, to a cluster. An isolated calo hit is not counted as a regular calo hit: it contributes only towards the cluster energy and does not affect any other cluster properties.

static pandora::StatusCode	RemoveIsolatedFromCluster (const pandora::Algorithm &algorithm, const pandora::Cluster const pCluster, const pandora::CaloHit const pCaloHit)
	Remove an isolated calo hit from a cluster. Note this function will not remove the final calo hit from a cluster, and will instead return status code "not allowed" as a prompt to delete the cluster.

static pandora::StatusCode	Fragment (const pandora::Algorithm &algorithm, const pandora::CaloHit const pOriginalCaloHit, const float fraction1, const pandora::CaloHit &pDaughterCaloHit1, const pandora::CaloHit *&pDaughterCaloHit2, const pandora::ObjectFactory< object_creation::CaloHitFragment::Parameters, object_creation::CaloHitFragment::Object > &factory=pandora::PandoraObjectFactory< object_creation::CaloHitFragment::Parameters, object_creation::CaloHitFragment::Object >())
	Fragment a calo hit into two daughter calo hits, with a specified energy division.

static pandora::StatusCode	MergeFragments (const pandora::Algorithm &algorithm, const pandora::CaloHit const pFragmentCaloHit1, const pandora::CaloHit const pFragmentCaloHit2, const pandora::CaloHit *&pMergedCaloHit, const pandora::ObjectFactory< object_creation::CaloHitFragment::Parameters, object_creation::CaloHitFragment::Object > &factory=pandora::PandoraObjectFactory< object_creation::CaloHitFragment::Parameters, object_creation::CaloHitFragment::Object >())
	Merge two calo hit fragments, originally from the same parent hit, to form a new calo hit.

static pandora::StatusCode	AddTrackClusterAssociation (const pandora::Algorithm &algorithm, const pandora::Track const pTrack, const pandora::Cluster const pCluster)
	Add an association between a track and a cluster.

static pandora::StatusCode	RemoveTrackClusterAssociation (const pandora::Algorithm &algorithm, const pandora::Track const pTrack, const pandora::Cluster const pCluster)
	Remove an association between a track and a cluster.

static pandora::StatusCode	RemoveCurrentTrackClusterAssociations (const pandora::Algorithm &algorithm)
	Remove all track-cluster associations from objects in the current track and cluster lists.

static pandora::StatusCode	RemoveAllTrackClusterAssociations (const pandora::Algorithm &algorithm)
	Remove all associations between tracks and clusters.

static pandora::StatusCode	RemoveAllMCParticleRelationships (const pandora::Algorithm &algorithm)
	Remove all mc particle relationships previously registered with the mc manager and linked to tracks/calo hits.

static pandora::StatusCode	MergeAndDeleteClusters (const pandora::Algorithm &algorithm, const pandora::Cluster const pClusterToEnlarge, const pandora::Cluster const pClusterToDelete)
	Merge two clusters in the current list, enlarging one cluster and deleting the second.

static pandora::StatusCode	MergeAndDeleteClusters (const pandora::Algorithm &algorithm, const pandora::Cluster const pClusterToEnlarge, const pandora::Cluster const pClusterToDelete, const std::string &enlargeListName, const std::string &deleteListName)
	Merge two clusters from two specified lists, enlarging one cluster and deleting the second.

template<typename T >
static pandora::StatusCode	AddToPfo (const pandora::Algorithm &algorithm, const pandora::ParticleFlowObject const pPfo, const T const pT)
	Add a cluster to a particle flow object.

template<typename T >

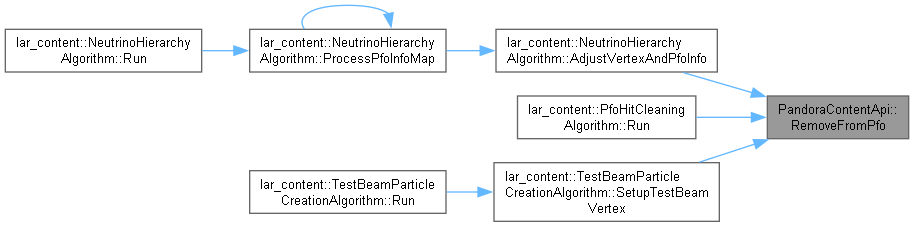

static pandora::StatusCode	RemoveFromPfo (const pandora::Algorithm &algorithm, const pandora::ParticleFlowObject const pPfo, const T const pT)
	Remove a cluster from a particle flow object. Note this function will not remove the final object (track or cluster) from a particle flow object, and will instead return status code "not allowed" as a prompt to delete the cluster.

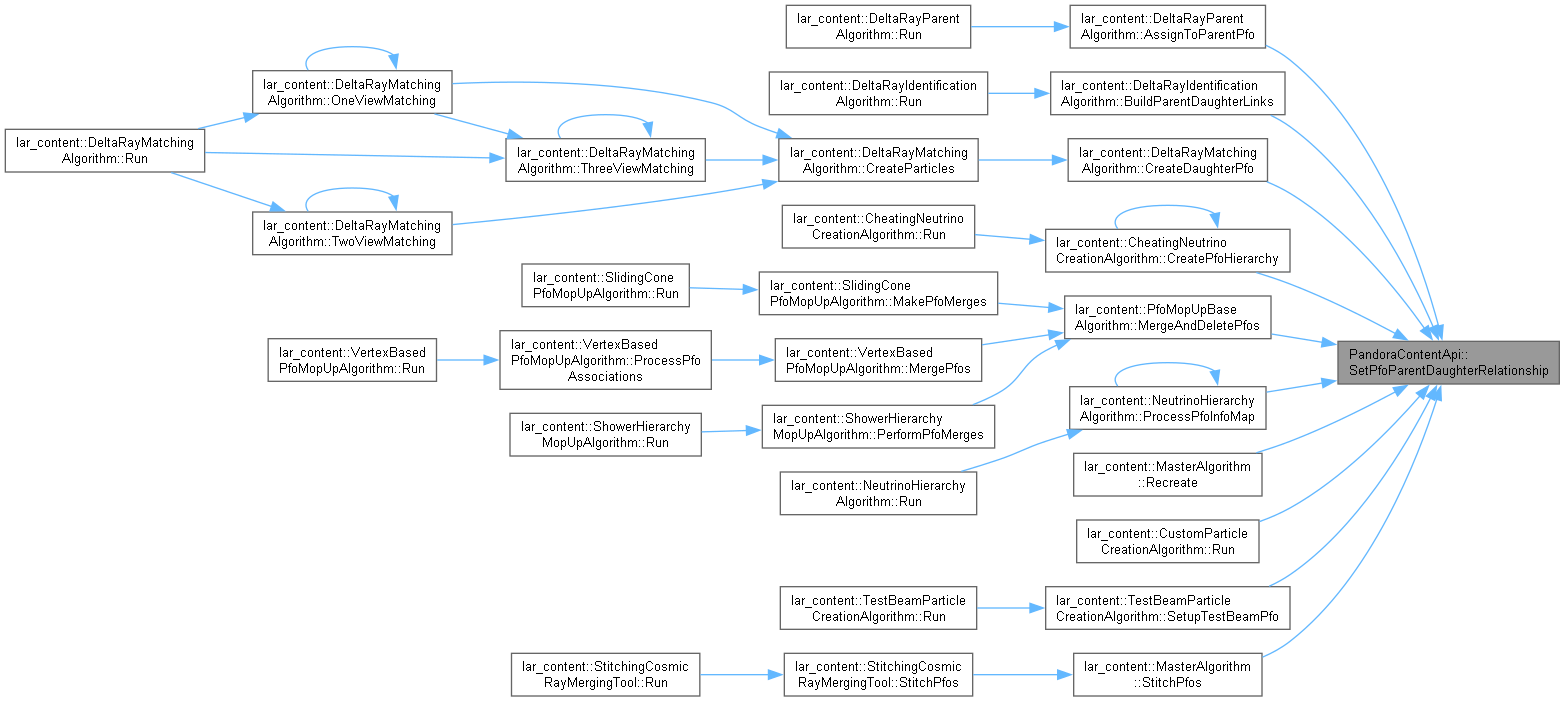

static pandora::StatusCode	SetPfoParentDaughterRelationship (const pandora::Algorithm &algorithm, const pandora::ParticleFlowObject const pParentPfo, const pandora::ParticleFlowObject const pDaughterPfo)
	Set parent-daughter particle flow object relationship.

static pandora::StatusCode	RemovePfoParentDaughterRelationship (const pandora::Algorithm &algorithm, const pandora::ParticleFlowObject const pParentPfo, const pandora::ParticleFlowObject const pDaughterPfo)
	Remove parent-daughter particle flow object relationship.

static pandora::StatusCode	InitializeFragmentation (const pandora::Algorithm &algorithm, const pandora::ClusterList &inputClusterList, std::string &originalClustersListName, std::string &fragmentClustersListName)
	Initialize cluster fragmentation operations on clusters in the algorithm input list. This allows hits in a list of clusters (a subset of the algorithm input list) to be redistributed.

static pandora::StatusCode	EndFragmentation (const pandora::Algorithm &algorithm, const std::string &clusterListToSaveName, const std::string &clusterListToDeleteName)
	End cluster fragmentation operations on clusters in the algorithm input list.

static pandora::StatusCode	InitializeReclustering (const pandora::Algorithm &algorithm, const pandora::TrackList &inputTrackList, const pandora::ClusterList &inputClusterList, std::string &originalClustersListName)
	Initialize reclustering operations on clusters in the algorithm input list. This allows hits in a list of clusters (a subset of the algorithm input list) to be redistributed.

static pandora::StatusCode	EndReclustering (const pandora::Algorithm &algorithm, const std::string &selectedClusterListName)
	End reclustering operations on clusters in the algorithm input list.

Detailed Description

PandoraContentApi class.

Definition at line 22 of file PandoraContentApi.h.

Member Typedef Documentation

◆ CaloHit

typedef object_creation::CaloHit PandoraContentApi::CaloHit

Definition at line 26 of file PandoraContentApi.h.

◆ CaloHitFragment

typedef object_creation::CaloHitFragment PandoraContentApi::CaloHitFragment

Definition at line 32 of file PandoraContentApi.h.

◆ Cluster

typedef object_creation::Cluster PandoraContentApi::Cluster

Definition at line 27 of file PandoraContentApi.h.

◆ MCParticle

typedef object_creation::MCParticle PandoraContentApi::MCParticle

Definition at line 30 of file PandoraContentApi.h.

◆ ParticleFlowObject

typedef object_creation::ParticleFlowObject PandoraContentApi::ParticleFlowObject

Definition at line 28 of file PandoraContentApi.h.

◆ Track

typedef object_creation::Track PandoraContentApi::Track

Definition at line 31 of file PandoraContentApi.h.

◆ Vertex

typedef object_creation::Vertex PandoraContentApi::Vertex

Definition at line 29 of file PandoraContentApi.h.

Member Function Documentation

◆ AddIsolatedToCluster()

template<typename T >

pandora::StatusCode PandoraContentApi::AddIsolatedToCluster	(	const pandora::Algorithm &	algorithm,
		const pandora::Cluster *const	pCluster,
		const T *const	pT
	)

static

Add an isolated calo hit, or a list of isolated calo hits, to a cluster. An isolated calo hit is not counted as a regular calo hit: it contributes only towards the cluster energy and does not affect any other cluster properties.

Parameters

algorithm	the algorithm calling this function
pCluster	address of the cluster to modify
pT	address of the isolated calo hit, or list of isolated calo hits, to add

Definition at line 231 of file PandoraContentApi.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AddToCluster()

template<typename T >

pandora::StatusCode PandoraContentApi::AddToCluster	(	const pandora::Algorithm &	algorithm,
		const pandora::Cluster *const	pCluster,
		const T *const	pT
	)

static

Add a calo hit, or a list of calo hits, to a cluster.

Parameters

algorithm	the algorithm calling this function
pCluster	address of the cluster to modify
pT	address of the calo hit, or list of calo hits, to add

Definition at line 215 of file PandoraContentApi.cc.

Here is the call graph for this function:

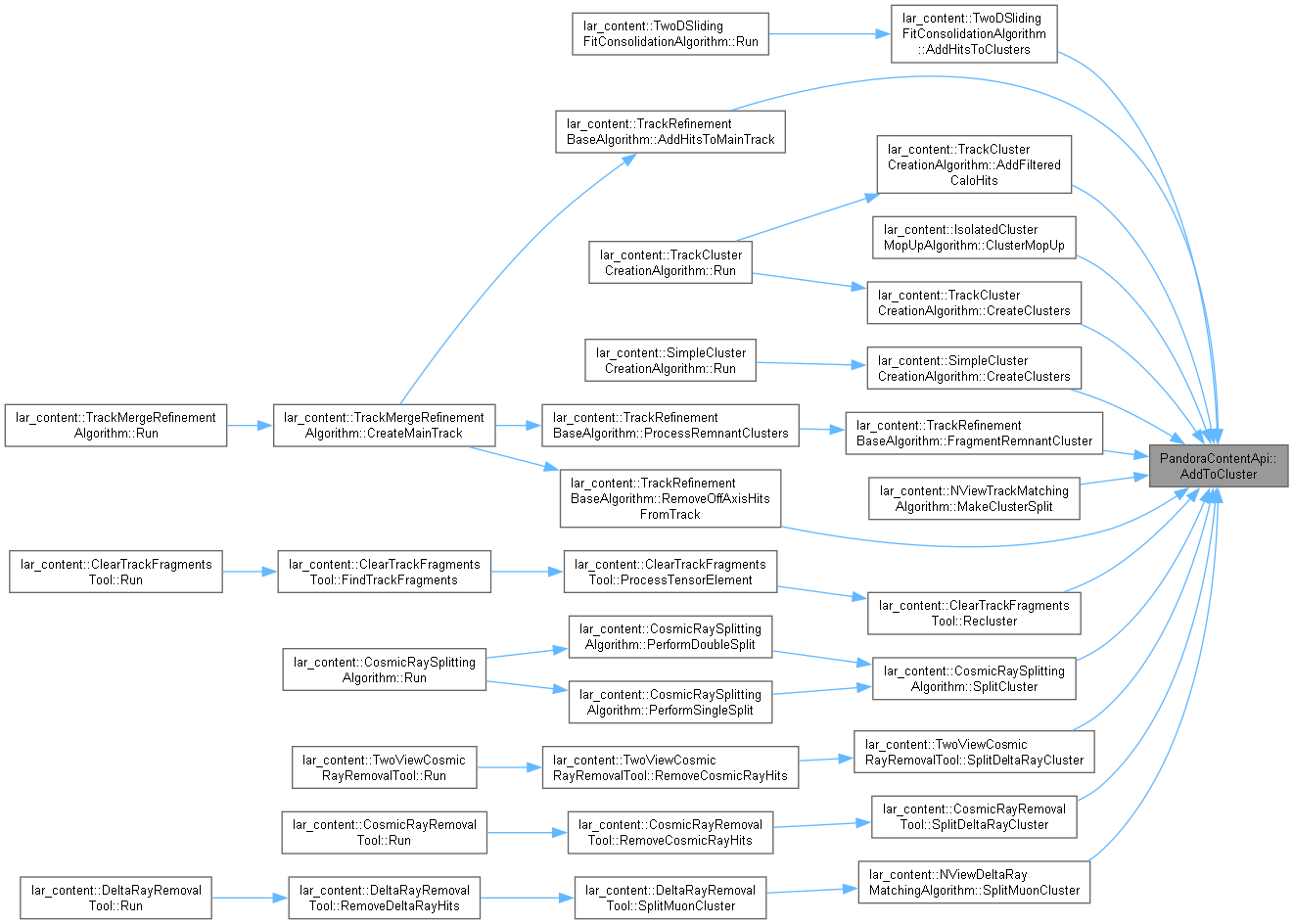

Here is the caller graph for this function:

◆ AddToPfo()

template<typename T >

pandora::StatusCode PandoraContentApi::AddToPfo	(	const pandora::Algorithm &	algorithm,
		const pandora::ParticleFlowObject *const	pPfo,
		const T *const	pT
	)

static

Add a cluster to a particle flow object.

Parameters

algorithm	the algorithm calling this function
pPfo	address of the particle flow object to modify
pCluster	address of the cluster to add

Definition at line 318 of file PandoraContentApi.cc.

Here is the call graph for this function:

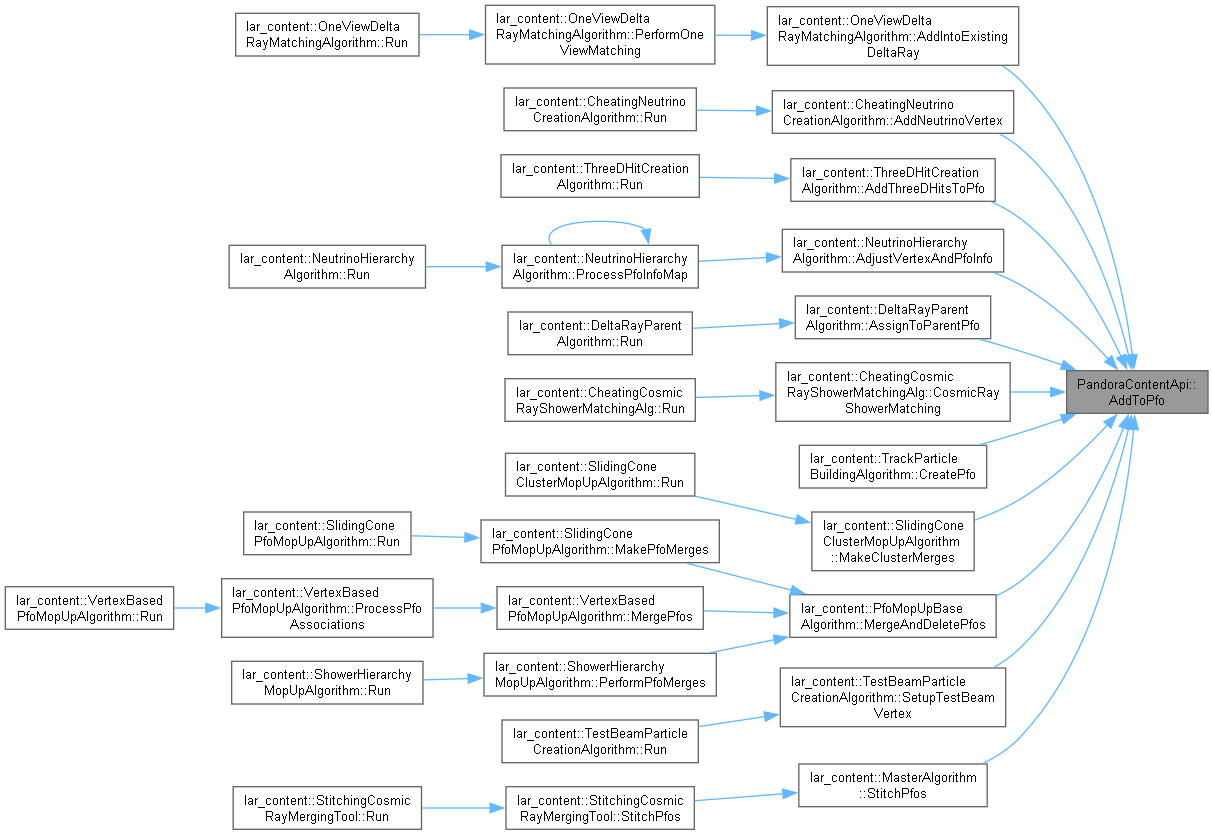

Here is the caller graph for this function:

◆ AddTrackClusterAssociation()

pandora::StatusCode PandoraContentApi::AddTrackClusterAssociation	(	const pandora::Algorithm &	algorithm,
		const pandora::Track *const	pTrack,
		const pandora::Cluster *const	pCluster
	)

static

Add an association between a track and a cluster.

Parameters

algorithm	the algorithm calling this function
pTrack	address of the track
pCluster	address of the cluster

Definition at line 264 of file PandoraContentApi.cc.

Here is the call graph for this function:

◆ CreateAlgorithmTool()

pandora::StatusCode PandoraContentApi::CreateAlgorithmTool	(	const pandora::Algorithm &	algorithm,
		pandora::TiXmlElement *const	pXmlElement,
		pandora::AlgorithmTool *&	pAlgorithmTool
	)

static

Create an algorithm tool instance, via one of the algorithm tool factories registered with pandora. This function is expected to be called whilst reading the settings for a parent algorithm.

Parameters

algorithm	the parent algorithm, which will later run this algorithm tool
pXmlElement	address of the xml element describing the algorithm tool type and settings
pAlgorithmTool	to receive the address of the algorithm tool instance

Definition at line 43 of file PandoraContentApi.cc.

Here is the call graph for this function:

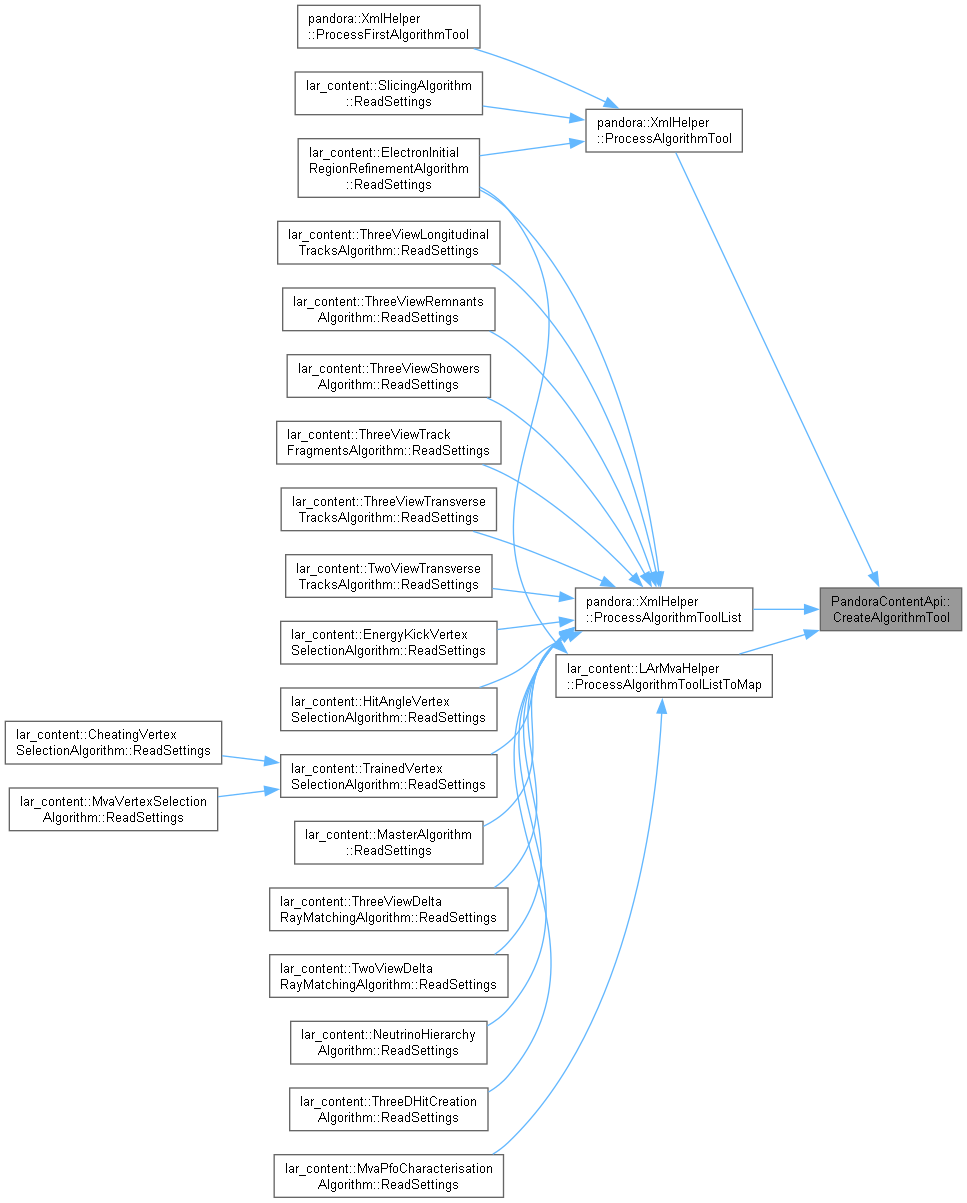

Here is the caller graph for this function:

◆ CreateDaughterAlgorithm()

pandora::StatusCode PandoraContentApi::CreateDaughterAlgorithm	(	const pandora::Algorithm &	algorithm,
		pandora::TiXmlElement *const	pXmlElement,
		std::string &	daughterAlgorithmName
	)

static

Create an algorithm instance, via one of the algorithm factories registered with pandora. This function is expected to be called whilst reading the settings for a parent algorithm.

Parameters

algorithm	address of the parent algorithm, which will later run this daughter algorithm
pXmlElement	address of the xml element describing the daughter algorithm type and settings
daughterAlgorithmName	to receive the name of the daughter algorithm instance

Definition at line 51 of file PandoraContentApi.cc.

Here is the call graph for this function:

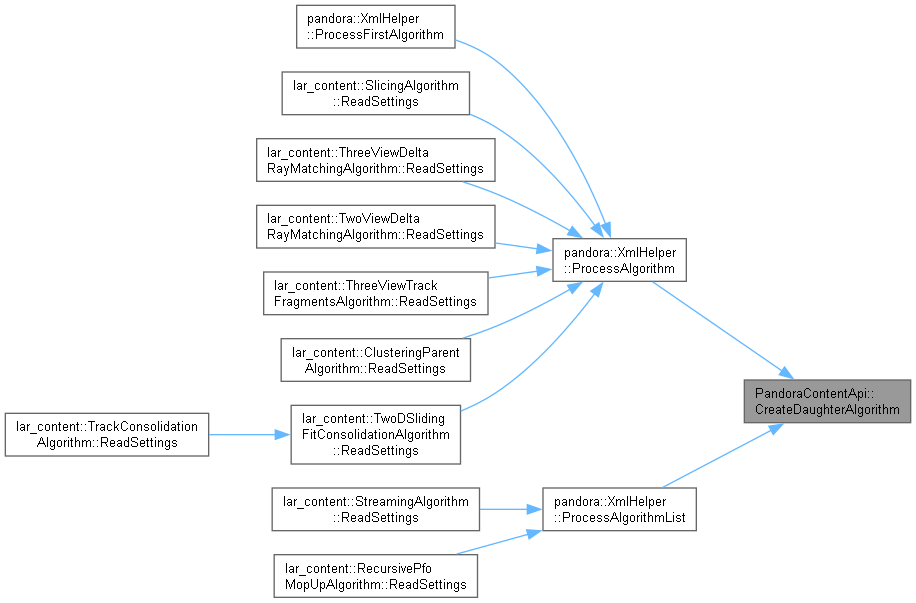

Here is the caller graph for this function:

◆ CreateTemporaryListAndSetCurrent()

template<typename T >

pandora::StatusCode PandoraContentApi::CreateTemporaryListAndSetCurrent	(	const pandora::Algorithm &	algorithm,
		const T *&	pT,
		std::string &	temporaryListName
	)

static

Create a temporary list and set it to be the current list, enabling object creation.

Parameters

algorithm	the algorithm calling this function
pT	to receive the address of the temporary list
temporaryListName	to receive the temporary list name

Definition at line 182 of file PandoraContentApi.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Delete() [1/2]

template<typename T >

pandora::StatusCode PandoraContentApi::Delete	(	const pandora::Algorithm &	algorithm,
		const T *const	pT
	)

static

Delete an object from the current list.

Parameters

algorithm	the algorithm calling this function
pT	address of the object, or a list of objects, to delete

Definition at line 199 of file PandoraContentApi.cc.

Here is the call graph for this function:

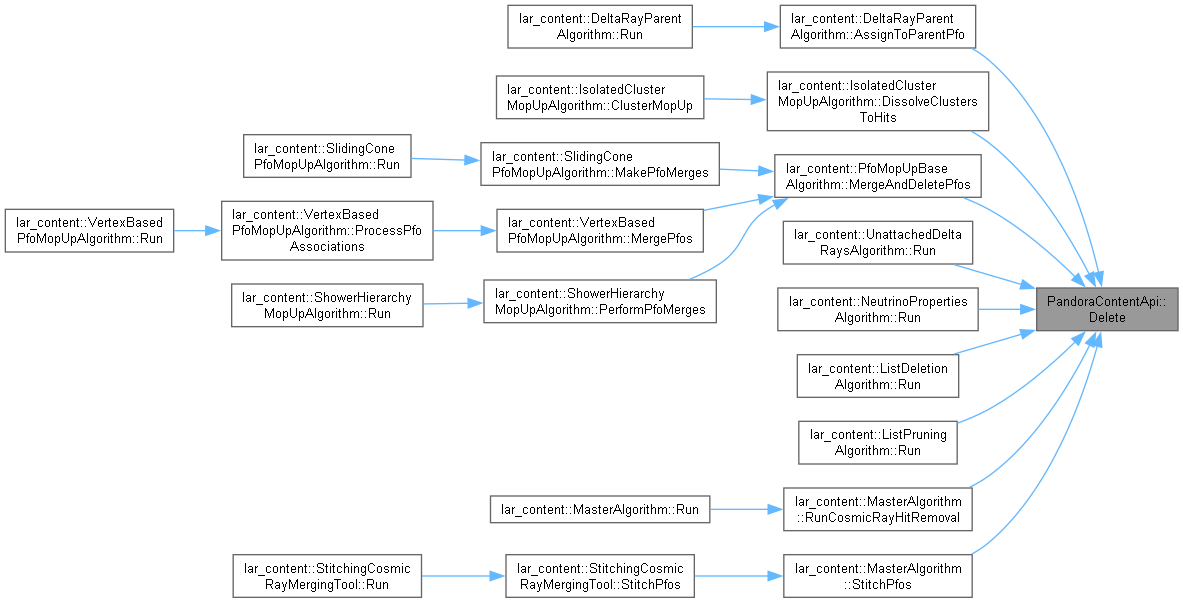

Here is the caller graph for this function:

◆ Delete() [2/2]

template<typename T >

pandora::StatusCode PandoraContentApi::Delete	(	const pandora::Algorithm &	algorithm,
		const T *const	pT,
		const std::string &	listName
	)

static

Delete an object from a specified list.

Parameters

algorithm	the algorithm calling this function
pT	address of the object, or a list of objects, to delete
listName	name of the list containing the object

Definition at line 207 of file PandoraContentApi.cc.

Here is the call graph for this function:

◆ DropCurrentList()

template<typename T >

pandora::StatusCode PandoraContentApi::DropCurrentList ( const pandora::Algorithm & algorithm )

static

Drop the current list, returning the current list to its default empty/null state.

Parameters

algorithm the algorithm calling this function

Definition at line 108 of file PandoraContentApi.cc.

Here is the call graph for this function:

◆ EndFragmentation()

pandora::StatusCode PandoraContentApi::EndFragmentation	(	const pandora::Algorithm &	algorithm,
		const std::string &	clusterListToSaveName,
		const std::string &	clusterListToDeleteName
	)

static

End cluster fragmentation operations on clusters in the algorithm input list.

Parameters

algorithm	the algorithm calling this function
clusterListToSaveName	the name of the list containing the clusters chosen to be saved (original or fragments)
clusterListToDeleteName	the name of the list containing the clusters chosen to be deleted (original or fragments)

Definition at line 358 of file PandoraContentApi.cc.

Here is the call graph for this function:

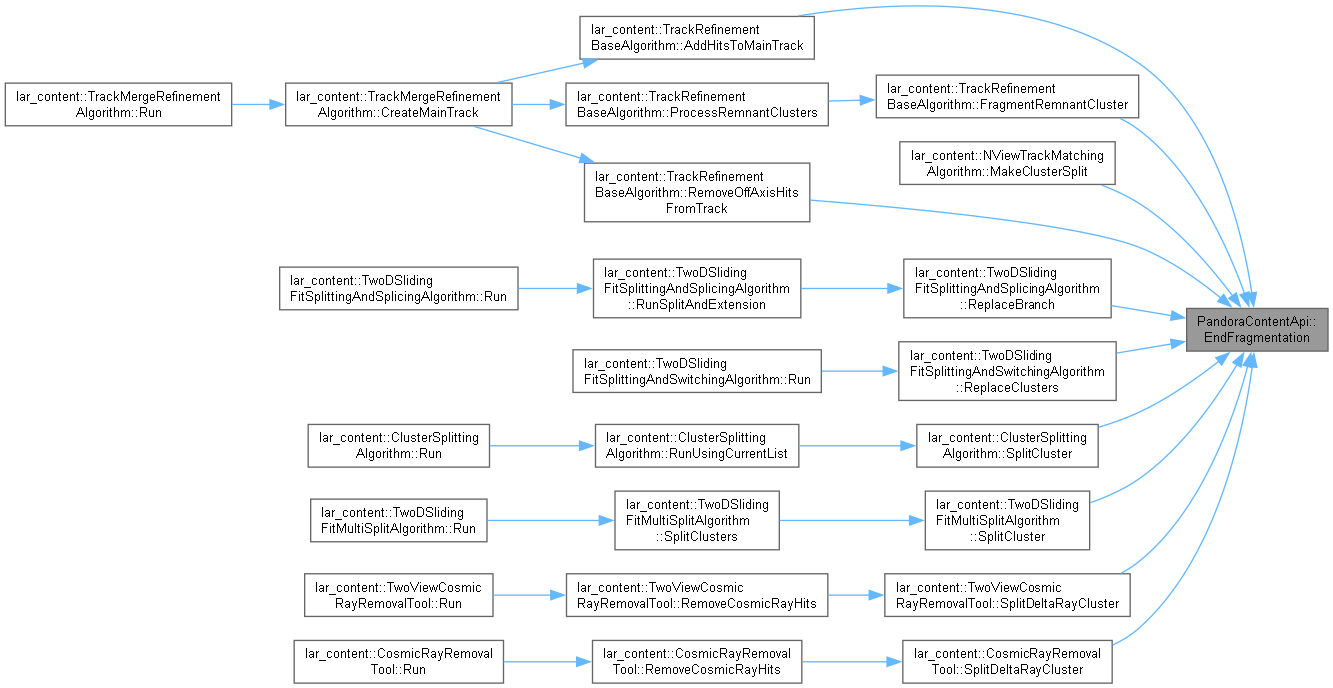

Here is the caller graph for this function:

◆ EndReclustering()

pandora::StatusCode PandoraContentApi::EndReclustering	(	const pandora::Algorithm &	algorithm,
		const std::string &	selectedClusterListName
	)

static

End reclustering operations on clusters in the algorithm input list.

Parameters

algorithm	the algorithm calling this function
selectedClusterListName	the name of the list containing the chosen recluster candidates (or the original candidates)

Definition at line 374 of file PandoraContentApi.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Fragment()

pandora::StatusCode PandoraContentApi::Fragment	(	const pandora::Algorithm &	algorithm,
		const pandora::CaloHit *const	pOriginalCaloHit,
		const float	fraction1,
		const pandora::CaloHit *&	pDaughterCaloHit1,
		const pandora::CaloHit *&	pDaughterCaloHit2,
		const pandora::ObjectFactory< object_creation::CaloHitFragment::Parameters, object_creation::CaloHitFragment::Object > &	factory = `pandora::PandoraObjectFactory<object_creation::CaloHitFragment::Parameters, object_creation::CaloHitFragment::Object>()`
	)

static

Fragment a calo hit into two daughter calo hits, with a specified energy division.

Parameters

algorithm	the algorithm calling this function
pOriginalCaloHit	address of the original calo hit, which will be deleted
fraction1	the fraction of energy to be assigned to daughter fragment 1
pDaughterCaloHit1	to receive the address of daughter fragment 1
pDaughterCaloHit2	to receive the address of daughter fragment 2
factory	to create the fragmented calo hits

Definition at line 246 of file PandoraContentApi.cc.

Here is the call graph for this function:

◆ GetCurrentList() [1/2]

template<typename T >

pandora::StatusCode PandoraContentApi::GetCurrentList	(	const pandora::Algorithm &	algorithm,
		const T *&	pT
	)

static

Get the current list.

Parameters

algorithm	the algorithm calling this function
pT	to receive the address of the current list

Definition at line 75 of file PandoraContentApi.cc.

Here is the call graph for this function:

◆ GetCurrentList() [2/2]

template<typename T >

pandora::StatusCode PandoraContentApi::GetCurrentList	(	const pandora::Algorithm &	algorithm,
		const T *&	pT,
		std::string &	listName
	)

static

Get the current list.

Parameters

algorithm	the algorithm calling this function
pT	to receive the address of the current list
listName	to receive the current list name

Definition at line 84 of file PandoraContentApi.cc.

Here is the call graph for this function:

◆ GetCurrentListName()

template<typename T >

pandora::StatusCode PandoraContentApi::GetCurrentListName	(	const pandora::Algorithm &	algorithm,
		std::string &	listName
	)

static

Get the current list name.

Parameters

algorithm	the algorithm calling this function
listName	to receive the current list name

Definition at line 92 of file PandoraContentApi.cc.

Here is the call graph for this function:

◆ GetGeometry()

const pandora::GeometryManager * PandoraContentApi::GetGeometry ( const pandora::Algorithm & algorithm )

static

Get the pandora geometry instance.

Parameters

algorithm the algorithm calling this function

Returns: the address of the pandora geometry instance

Definition at line 22 of file PandoraContentApi.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetList()

template<typename T >

pandora::StatusCode PandoraContentApi::GetList	(	const pandora::Algorithm &	algorithm,
		const std::string &	listName,
		const T *&	pT
	)

static

Get a named list.

Parameters

algorithm	the algorithm calling this function
listName	the name of the list
pT	to receive the address of the list

Definition at line 116 of file PandoraContentApi.cc.

Here is the call graph for this function:

◆ GetPlugins()

const pandora::PluginManager * PandoraContentApi::GetPlugins ( const pandora::Algorithm & algorithm )

static

Get the pandora plugin instance, providing access to user registered functions and calculators.

Parameters

algorithm the algorithm calling this function

Returns: the address of the pandora plugin instance

Definition at line 29 of file PandoraContentApi.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetSettings()

const pandora::PandoraSettings * PandoraContentApi::GetSettings ( const pandora::Algorithm & algorithm )

static

Get the pandora settings instance.

Parameters

algorithm the algorithm calling this function

Returns: the address of the pandora settings instance

Definition at line 15 of file PandoraContentApi.cc.

Here is the call graph for this function:

◆ InitializeFragmentation()

pandora::StatusCode PandoraContentApi::InitializeFragmentation	(	const pandora::Algorithm &	algorithm,
		const pandora::ClusterList &	inputClusterList,
		std::string &	originalClustersListName,
		std::string &	fragmentClustersListName
	)

static

Initialize cluster fragmentation operations on clusters in the algorithm input list. This allows hits in a list of clusters (a subset of the algorithm input list) to be redistributed.

Parameters

algorithm	the algorithm calling this function
inputClusterList	the input cluster list
originalClustersListName	to receive the name of the list in which the original clusters are stored
fragmentClustersListName	to receive the name of the list in which the fragment clusters are stored

Definition at line 349 of file PandoraContentApi.cc.

Here is the call graph for this function:

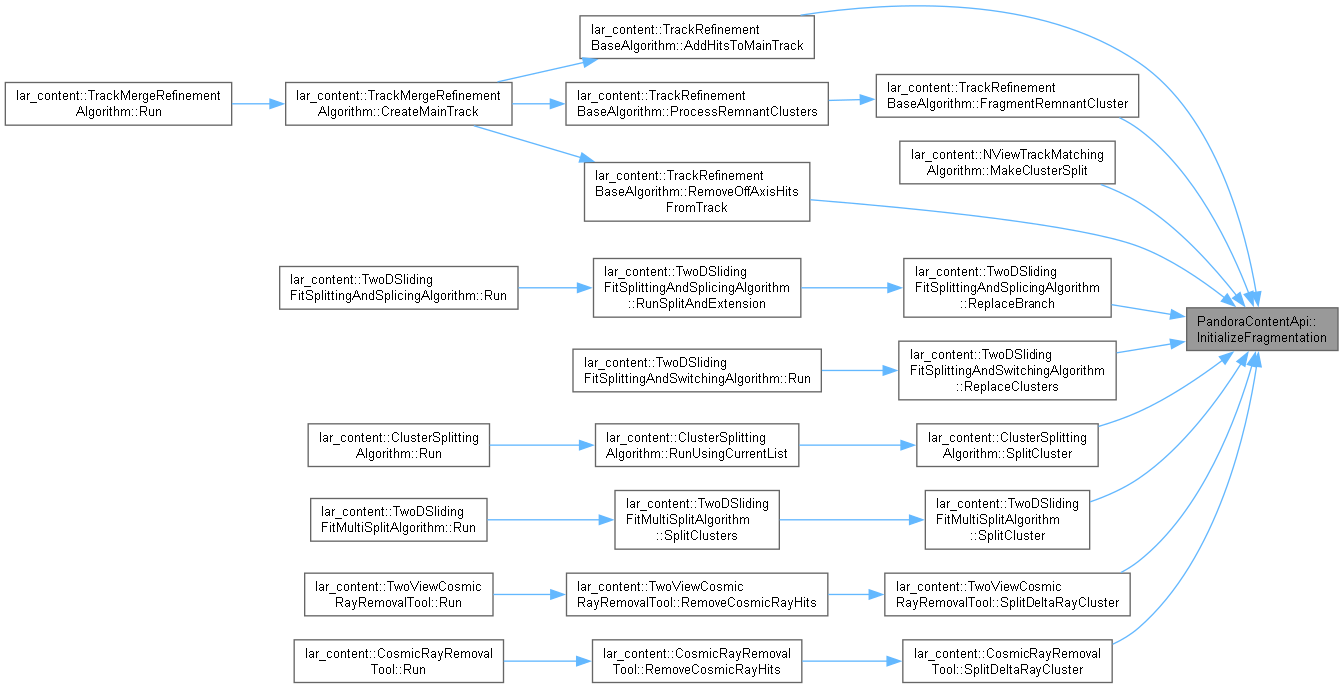

Here is the caller graph for this function:

◆ InitializeReclustering()

pandora::StatusCode PandoraContentApi::InitializeReclustering	(	const pandora::Algorithm &	algorithm,
		const pandora::TrackList &	inputTrackList,
		const pandora::ClusterList &	inputClusterList,
		std::string &	originalClustersListName
	)

static

Initialize reclustering operations on clusters in the algorithm input list. This allows hits in a list of clusters (a subset of the algorithm input list) to be redistributed.

Parameters

algorithm	the algorithm calling this function
inputTrackList	the input track list
inputClusterList	the input cluster list
originalClustersListName	to receive the name of the list in which the original clusters are stored

Definition at line 366 of file PandoraContentApi.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsAvailable()

template<typename T >

bool PandoraContentApi::IsAvailable	(	const pandora::Algorithm &	algorithm,
		const T *const	pT
	)

static

Is object, or a list of objects, available as a building block.

Parameters

algorithm	the algorithm calling this function
pT	address of the object

Returns: boolean

Definition at line 191 of file PandoraContentApi.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MergeAndDeleteClusters() [1/2]

pandora::StatusCode PandoraContentApi::MergeAndDeleteClusters	(	const pandora::Algorithm &	algorithm,
		const pandora::Cluster *const	pClusterToEnlarge,
		const pandora::Cluster *const	pClusterToDelete
	)

static

Merge two clusters in the current list, enlarging one cluster and deleting the second.

Parameters

algorithm	the algorithm calling this function
pClusterToEnlarge	address of the cluster to enlarge
pClusterToDelete	address of the cluster to delete

Definition at line 301 of file PandoraContentApi.cc.

Here is the call graph for this function:

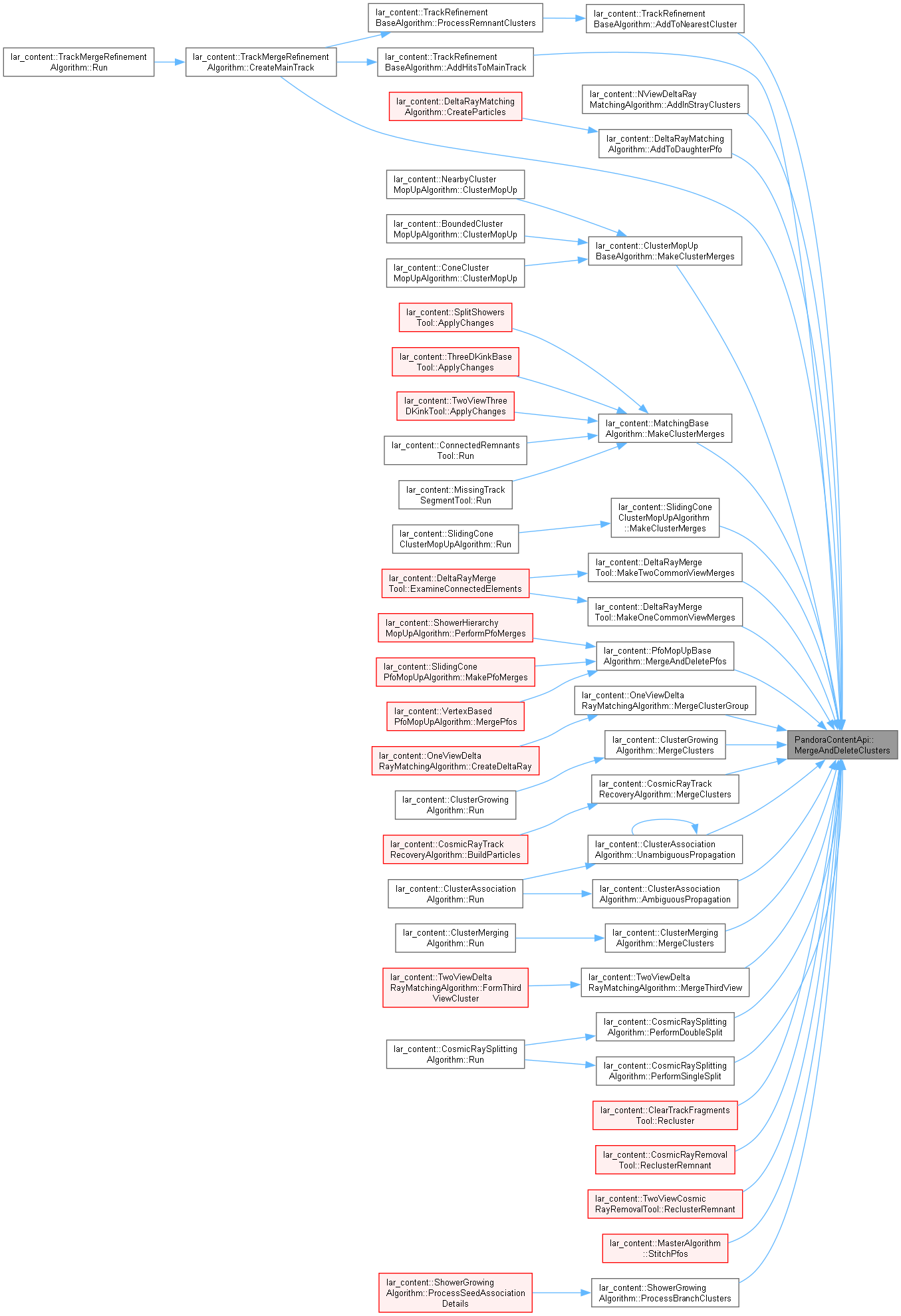

Here is the caller graph for this function:

◆ MergeAndDeleteClusters() [2/2]

pandora::StatusCode PandoraContentApi::MergeAndDeleteClusters	(	const pandora::Algorithm &	algorithm,
		const pandora::Cluster *const	pClusterToEnlarge,
		const pandora::Cluster *const	pClusterToDelete,
		const std::string &	enlargeListName,
		const std::string &	deleteListName
	)

static

Merge two clusters from two specified lists, enlarging one cluster and deleting the second.

Parameters

algorithm	the algorithm calling this function
pClusterToEnlarge	address of the cluster to enlarge
pClusterToDelete	address of the cluster to delete
enlargeListName	name of the list containing the cluster to enlarge
deleteListName	name of the list containing the cluster to delete

Definition at line 309 of file PandoraContentApi.cc.

Here is the call graph for this function:

◆ MergeFragments()

pandora::StatusCode PandoraContentApi::MergeFragments	(	const pandora::Algorithm &	algorithm,
		const pandora::CaloHit *const	pFragmentCaloHit1,
		const pandora::CaloHit *const	pFragmentCaloHit2,
		const pandora::CaloHit *&	pMergedCaloHit,
		const pandora::ObjectFactory< object_creation::CaloHitFragment::Parameters, object_creation::CaloHitFragment::Object > &	factory = `pandora::PandoraObjectFactory<object_creation::CaloHitFragment::Parameters, object_creation::CaloHitFragment::Object>()`
	)

static

Merge two calo hit fragments, originally from the same parent hit, to form a new calo hit.

Parameters

algorithm	the algorithm calling this function
pFragmentCaloHit1	address of calo hit fragment 1, which will be deleted
pFragmentCaloHit2	address of calo hit fragment 2, which will be deleted
pMergedCaloHit	to receive the address of the merged calo hit
factory	to create the fragmented calo hits

Definition at line 255 of file PandoraContentApi.cc.

Here is the call graph for this function:

◆ RemoveAllMCParticleRelationships()

pandora::StatusCode PandoraContentApi::RemoveAllMCParticleRelationships ( const pandora::Algorithm & algorithm )

static

Remove all mc particle relationships previously registered with the mc manager and linked to tracks/calo hits.

Parameters

algorithm the algorithm calling this function

Definition at line 294 of file PandoraContentApi.cc.

Here is the call graph for this function:

◆ RemoveAllTrackClusterAssociations()

pandora::StatusCode PandoraContentApi::RemoveAllTrackClusterAssociations ( const pandora::Algorithm & algorithm )

static

Remove all associations between tracks and clusters.

Parameters

algorithm the algorithm calling this function

Definition at line 287 of file PandoraContentApi.cc.

Here is the call graph for this function:

◆ RemoveCurrentTrackClusterAssociations()

pandora::StatusCode PandoraContentApi::RemoveCurrentTrackClusterAssociations ( const pandora::Algorithm & algorithm )

static

Remove all track-cluster associations from objects in the current track and cluster lists.

Parameters

algorithm the algorithm calling this function

Definition at line 280 of file PandoraContentApi.cc.

Here is the call graph for this function:

◆ RemoveFromCluster()

pandora::StatusCode PandoraContentApi::RemoveFromCluster	(	const pandora::Algorithm &	algorithm,
		const pandora::Cluster *const	pCluster,
		const pandora::CaloHit *const	pCaloHit
	)

static

Remove a calo hit from a cluster. Note this function will not remove the final calo hit from a cluster, and will instead return status code "not allowed" as a prompt to delete the cluster.

Parameters

algorithm	the algorithm calling this function
pCluster	address of the cluster to modify
pCaloHit	address of the hit to remove

Definition at line 222 of file PandoraContentApi.cc.

Here is the call graph for this function:

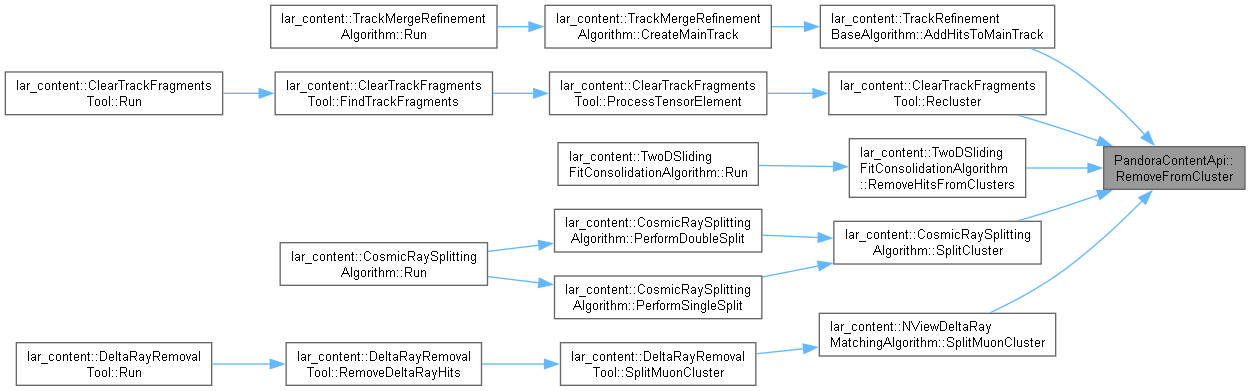

Here is the caller graph for this function:

◆ RemoveFromPfo()

template<typename T >

pandora::StatusCode PandoraContentApi::RemoveFromPfo	(	const pandora::Algorithm &	algorithm,
		const pandora::ParticleFlowObject *const	pPfo,
		const T *const	pT
	)

static

Remove a cluster from a particle flow object. Note this function will not remove the final object (track or cluster) from a particle flow object, and will instead return status code "not allowed" as a prompt to delete the cluster.

Parameters

algorithm	the algorithm calling this function
pPfo	address of the particle flow object to modify
pCluster	address of the cluster to remove

Definition at line 326 of file PandoraContentApi.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RemoveIsolatedFromCluster()

pandora::StatusCode PandoraContentApi::RemoveIsolatedFromCluster	(	const pandora::Algorithm &	algorithm,
		const pandora::Cluster *const	pCluster,
		const pandora::CaloHit *const	pCaloHit
	)

static

Remove an isolated calo hit from a cluster. Note this function will not remove the final calo hit from a cluster, and will instead return status code "not allowed" as a prompt to delete the cluster.

Parameters

algorithm	the algorithm calling this function
pCluster	address of the cluster to modify
pCaloHit	address of the isolated hit to remove

Definition at line 238 of file PandoraContentApi.cc.

Here is the call graph for this function:

◆ RemovePfoParentDaughterRelationship()

pandora::StatusCode PandoraContentApi::RemovePfoParentDaughterRelationship	(	const pandora::Algorithm &	algorithm,
		const pandora::ParticleFlowObject *const	pParentPfo,
		const pandora::ParticleFlowObject *const	pDaughterPfo
	)

static

Remove parent-daughter particle flow object relationship.

Parameters

algorithm	the algorithm calling this function
pParentPfo	address of parent particle flow object
pDaughterPfo	address of daughter particle flow object

Definition at line 341 of file PandoraContentApi.cc.

Here is the call graph for this function:

◆ RemoveTrackClusterAssociation()

pandora::StatusCode PandoraContentApi::RemoveTrackClusterAssociation	(	const pandora::Algorithm &	algorithm,
		const pandora::Track *const	pTrack,
		const pandora::Cluster *const	pCluster
	)

static

Remove an association between a track and a cluster.

Parameters

algorithm	the algorithm calling this function
pTrack	address of the track
pCluster	address of the cluster

Definition at line 272 of file PandoraContentApi.cc.

Here is the call graph for this function:

◆ RenameList()

template<typename T >

pandora::StatusCode PandoraContentApi::RenameList	(	const pandora::Algorithm &	algorithm,
		const std::string &	oldListName,
		const std::string &	newListName
	)

static

Rename a saved list, altering its saved name from a specified old list name to a specified new list name.

Parameters

algorithm	the algorithm calling this function
oldListName	the old list name
newListName	the new list name

Definition at line 124 of file PandoraContentApi.cc.

Here is the call graph for this function:

◆ RepeatEventPreparation()

pandora::StatusCode PandoraContentApi::RepeatEventPreparation ( const pandora::Algorithm & algorithm )

static

Repeat the event preparation stages, which are used to calculate properties of input objects for later use in algorithms.

Parameters

algorithm the algorithm calling this function

Definition at line 36 of file PandoraContentApi.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReplaceCurrentList()

template<typename T >

pandora::StatusCode PandoraContentApi::ReplaceCurrentList	(	const pandora::Algorithm &	algorithm,
		const std::string &	newListName
	)

static

Replace the current list with a pre-saved list; use this new list as a permanent replacement for the current list (will persist outside the current algorithm)

Parameters

algorithm	the algorithm calling this function
newListName	the name of the replacement list

Definition at line 100 of file PandoraContentApi.cc.

Here is the call graph for this function:

◆ RunClusteringAlgorithm()

pandora::StatusCode PandoraContentApi::RunClusteringAlgorithm	(	const pandora::Algorithm &	algorithm,
		const std::string &	clusteringAlgorithmName,
		const pandora::ClusterList *&	pNewClusterList,
		std::string &	newClusterListName
	)

static

Run a clustering algorithm (an algorithm that will create new cluster objects)

Parameters

algorithm	the parent algorithm, now attempting to run a daughter clustering algorithm
clusteringAlgorithmName	the name of the clustering algorithm to run
pNewClusterList	to receive the address of the new cluster list populated
newClusterListName	to receive the name of the new cluster list populated

Definition at line 66 of file PandoraContentApi.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RunDaughterAlgorithm()

pandora::StatusCode PandoraContentApi::RunDaughterAlgorithm	(	const pandora::Algorithm &	algorithm,
		const std::string &	daughterAlgorithmName
	)

static

Run an algorithm registered with pandora, from within a parent algorithm.

Parameters

algorithm	the parent algorithm, now attempting to run a daughter algorithm
daughterAlgorithmName	the name of the daughter algorithm instance to run

Definition at line 59 of file PandoraContentApi.cc.

Here is the call graph for this function:

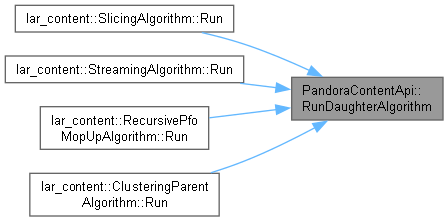

Here is the caller graph for this function:

◆ SaveList() [1/5]

template<typename T >

pandora::StatusCode PandoraContentApi::SaveList	(	const pandora::Algorithm &	algorithm,
		const std::string &	newListName
	)

static

Save the current list in a list with the specified new name. Note that this will empty the list; the objects will all be moved to the new named list.

Parameters

algorithm	the algorithm calling this function
newListName	the new list name

Definition at line 140 of file PandoraContentApi.cc.

Here is the call graph for this function:

◆ SaveList() [2/5]

template<typename T >

pandora::StatusCode PandoraContentApi::SaveList	(	const pandora::Algorithm &	algorithm,
		const std::string &	newListName,
		const T &	t
	)

static

Save elements of the current list in a list with the specified new name. If all the objects in the current list are saved, this will empty the current list; the objects will all be moved to the new named list.

Parameters

algorithm	the algorithm calling this function
newListName	the new list name
t	a subset of the current object list - only objects in both this and the current list will be saved

Definition at line 157 of file PandoraContentApi.cc.

Here is the call graph for this function:

◆ SaveList() [3/5]

template<typename T >

pandora::StatusCode PandoraContentApi::SaveList	(	const pandora::Algorithm &	algorithm,
		const std::string &	oldListName,
		const std::string &	newListName
	)

static

Save a named list in a list with the specified new name. Note that this will empty the old list; the objects will all be moved to the new named list.

Parameters

algorithm	the algorithm calling this function
oldListName	the old list name
newListName	the new list name

Definition at line 148 of file PandoraContentApi.cc.

Here is the call graph for this function:

◆ SaveList() [4/5]

template<typename T >

pandora::StatusCode PandoraContentApi::SaveList	(	const pandora::Algorithm &	algorithm,
		const std::string &	oldListName,
		const std::string &	newListName,
		const T &	t
	)

static

Save elements of a named list in a list with the specified new name. If all the objects in the old list are saved, this will empty the old list; the objects will all be moved to the new named list.

Parameters

algorithm	the algorithm calling this function
oldClusterListName	the old cluster list name
newClusterListName	the new cluster list name
t	a subset of the old object list - only objects in both this and the old list will be saved

Definition at line 165 of file PandoraContentApi.cc.

Here is the call graph for this function:

◆ SaveList() [5/5]

template<typename T >

pandora::StatusCode PandoraContentApi::SaveList	(	const pandora::Algorithm &	algorithm,
		const T &	t,
		const std::string &	newListName
	)

static

Save a provided input object list under a new name.

Parameters

algorithm	the algorithm calling this function
t	the provided input object list
newListName	the new list name

Definition at line 132 of file PandoraContentApi.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetPfoParentDaughterRelationship()

pandora::StatusCode PandoraContentApi::SetPfoParentDaughterRelationship	(	const pandora::Algorithm &	algorithm,
		const pandora::ParticleFlowObject *const	pParentPfo,
		const pandora::ParticleFlowObject *const	pDaughterPfo
	)

static

Set parent-daughter particle flow object relationship.

Parameters

algorithm	the algorithm calling this function
pParentPfo	address of parent particle flow object
pDaughterPfo	address of daughter particle flow object

Definition at line 333 of file PandoraContentApi.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TemporarilyReplaceCurrentList()

template<typename T >

pandora::StatusCode PandoraContentApi::TemporarilyReplaceCurrentList	(	const pandora::Algorithm &	algorithm,
		const std::string &	newListName
	)

static

Temporarily replace the current list with another list, which may only be a temporary list. This switch will persist only for the duration of the algorithm and its daughters; unless otherwise specified, the current list will revert to the algorithm input list upon algorithm completion.

Parameters

algorithm	the algorithm calling this function
newListName	the name of the replacement list

Definition at line 174 of file PandoraContentApi.cc.

Here is the call graph for this function:

The documentation for this class was generated from the following files:

PandoraSDK/include/Api/PandoraContentApi.h
PandoraSDK/src/Api/PandoraContentApi.cc

Public Types
typedef object_creation::CaloHit	CaloHit

typedef object_creation::Cluster	Cluster

typedef object_creation::ParticleFlowObject	ParticleFlowObject

typedef object_creation::Vertex	Vertex

typedef object_creation::MCParticle	MCParticle

typedef object_creation::Track	Track

typedef object_creation::CaloHitFragment	CaloHitFragment

Public Types

Static Public Member Functions

Detailed Description

Member Typedef Documentation

◆ CaloHit

◆ CaloHitFragment

◆ Cluster

◆ MCParticle

◆ ParticleFlowObject

◆ Track

◆ Vertex

Member Function Documentation

◆ AddIsolatedToCluster()

◆ AddToCluster()

◆ AddToPfo()

◆ AddTrackClusterAssociation()

◆ CreateAlgorithmTool()

◆ CreateDaughterAlgorithm()

◆ CreateTemporaryListAndSetCurrent()

◆ Delete() [1/2]

◆ Delete() [2/2]

◆ DropCurrentList()

◆ EndFragmentation()

◆ EndReclustering()

◆ Fragment()

◆ GetCurrentList() [1/2]

◆ GetCurrentList() [2/2]

◆ GetCurrentListName()

◆ GetGeometry()

◆ GetList()

◆ GetPlugins()

◆ GetSettings()

◆ InitializeFragmentation()

◆ InitializeReclustering()

◆ IsAvailable()

◆ MergeAndDeleteClusters() [1/2]

◆ MergeAndDeleteClusters() [2/2]

◆ MergeFragments()

◆ RemoveAllMCParticleRelationships()

◆ RemoveAllTrackClusterAssociations()

◆ RemoveCurrentTrackClusterAssociations()

◆ RemoveFromCluster()

◆ RemoveFromPfo()

◆ RemoveIsolatedFromCluster()

◆ RemovePfoParentDaughterRelationship()

◆ RemoveTrackClusterAssociation()

◆ RenameList()

◆ RepeatEventPreparation()

◆ ReplaceCurrentList()

◆ RunClusteringAlgorithm()

◆ RunDaughterAlgorithm()

◆ SaveList() [1/5]

◆ SaveList() [2/5]

◆ SaveList() [3/5]

◆ SaveList() [4/5]

◆ SaveList() [5/5]

◆ SetPfoParentDaughterRelationship()

◆ TemporarilyReplaceCurrentList()
