XmlHelper class. More...

#include "XmlHelper.h"

Static Public Member Functions
template<typename T >
static StatusCode	ReadValue (const TiXmlHandle &xmlHandle, const std::string &xmlElementName, T &t)
	Read a value from an xml element.

template<typename T >
static StatusCode	ReadVectorOfValues (const TiXmlHandle &xmlHandle, const std::string &xmlElementName, std::vector< T > &vector)
	Read a vector of values from a (space separated) list in an xml element.

template<typename T >
static StatusCode	Read2DVectorOfValues (const TiXmlHandle &xmlHandle, const std::string &xmlElementName, const std::string &rowName, std::vector< std::vector< T > > &vector)
	Read a two-dimensional array of values into a vector of vectors. Each row of values must be contained within <rowname></rowname> xml tags, whilst the values in the row must be space separated.

static StatusCode	ProcessAlgorithm (const Algorithm &algorithm, const TiXmlHandle &xmlHandle, const std::string &description, std::string &algorithmName)
	Process an algorithm described in an xml element with a matching "description = ..." attribute.

static StatusCode	ProcessFirstAlgorithm (const Algorithm &algorithm, const TiXmlHandle &xmlHandle, std::string &algorithmName)
	Process a single algorithm described in an xml file (the first found by the xml handle)

static StatusCode	ProcessAlgorithmList (const Algorithm &algorithm, const TiXmlHandle &xmlHandle, const std::string &listName, StringVector &algorithmNames)
	Process a list of daughter algorithms in an xml file.

static StatusCode	ProcessAlgorithmTool (const Algorithm &algorithm, const TiXmlHandle &xmlHandle, const std::string &description, AlgorithmTool *&pAlgorithmTool)
	Process an algorithm tool described in an xml element with a matching "description = ..." attribute.

static StatusCode	ProcessFirstAlgorithmTool (const Algorithm &algorithm, const TiXmlHandle &xmlHandle, AlgorithmTool *&pAlgorithmTool)
	Process a single algorithm tool described in an xml file (the first found by the xml handle)

static StatusCode	ProcessAlgorithmToolList (const Algorithm &algorithm, const TiXmlHandle &xmlHandle, const std::string &listName, AlgorithmToolVector &algorithmToolVector)
	Process a list of algorithms tools in an xml file.

static void	TokenizeString (const std::string &inputString, StringVector &tokens, const std::string &delimiter=" ")
	Tokenize a string.

template<>
StatusCode	ReadValue (const TiXmlHandle &xmlHandle, const std::string &xmlElementName, CartesianVector &t)

template<>
StatusCode	ReadValue (const TiXmlHandle &xmlHandle, const std::string &xmlElementName, TrackState &t)

template<>
StatusCode	ReadValue (const TiXmlHandle &xmlHandle, const std::string &xmlElementName, bool &t)

Detailed Description

XmlHelper class.

Definition at line 25 of file XmlHelper.h.

Member Function Documentation

◆ ProcessAlgorithm()

StatusCode pandora::XmlHelper::ProcessAlgorithm	(	const Algorithm &	algorithm,
		const TiXmlHandle &	xmlHandle,
		const std::string &	description,
		std::string &	algorithmName
	)

static

Process an algorithm described in an xml element with a matching "description = ..." attribute.

Parameters

algorithm	the parent algorithm calling this function
xmlHandle	the relevant xml handle
description	the description attribute of the algorithm xml element
algorithmName	to receive the name of the algorithm instance

Definition at line 16 of file XmlHelper.cc.

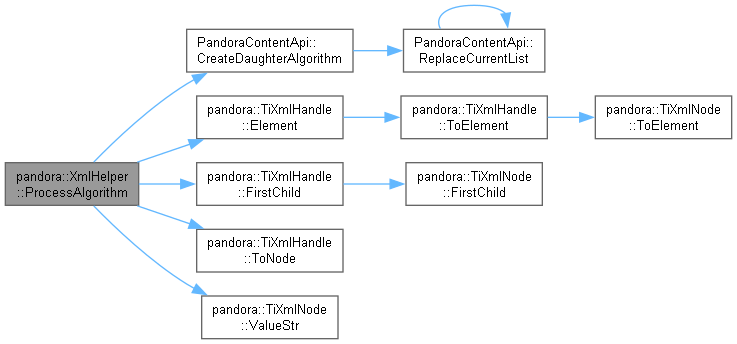

Here is the call graph for this function:

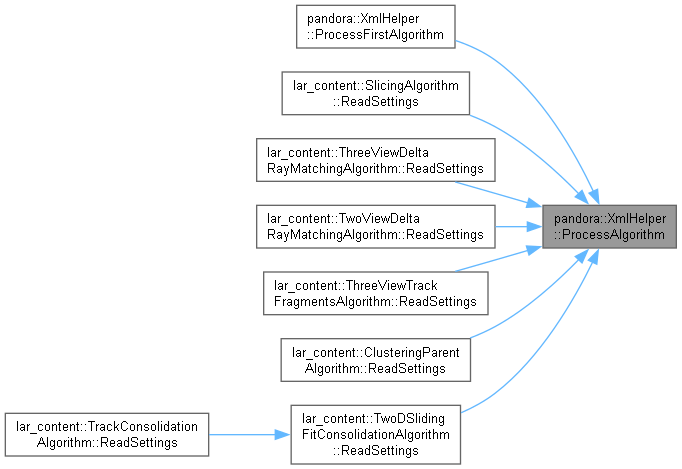

Here is the caller graph for this function:

◆ ProcessAlgorithmList()

StatusCode pandora::XmlHelper::ProcessAlgorithmList	(	const Algorithm &	algorithm,
		const TiXmlHandle &	xmlHandle,
		const std::string &	listName,
		StringVector &	algorithmNames
	)

static

Process a list of daughter algorithms in an xml file.

Parameters

algorithm	the parent algorithm calling this function
xmlHandle	the relevant xml handle
listName	the name of the algorithm list
algorithmNames	to receive the names of the algorithm instances

Definition at line 48 of file XmlHelper.cc.

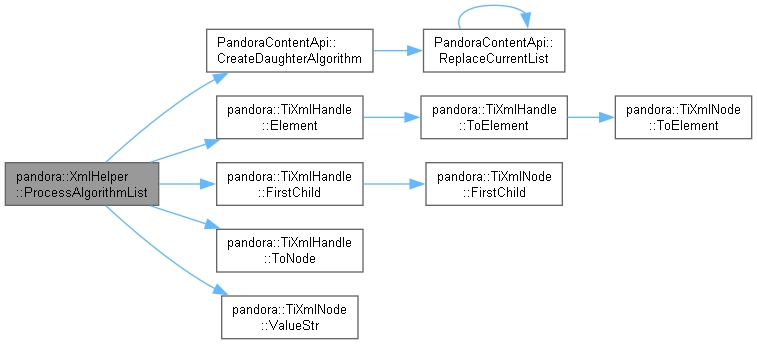

Here is the call graph for this function:

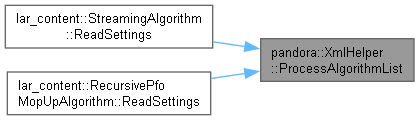

Here is the caller graph for this function:

◆ ProcessAlgorithmTool()

StatusCode pandora::XmlHelper::ProcessAlgorithmTool	(	const Algorithm &	algorithm,
		const TiXmlHandle &	xmlHandle,
		const std::string &	description,
		AlgorithmTool *&	pAlgorithmTool
	)

static

Process an algorithm tool described in an xml element with a matching "description = ..." attribute.

Parameters

algorithm	the parent algorithm calling this function
xmlHandle	the relevant xml handle
description	the description attribute of the algorithm tool xml element
pAlgorithmTool	to receive the address of the algorithm tool instance

Definition at line 69 of file XmlHelper.cc.

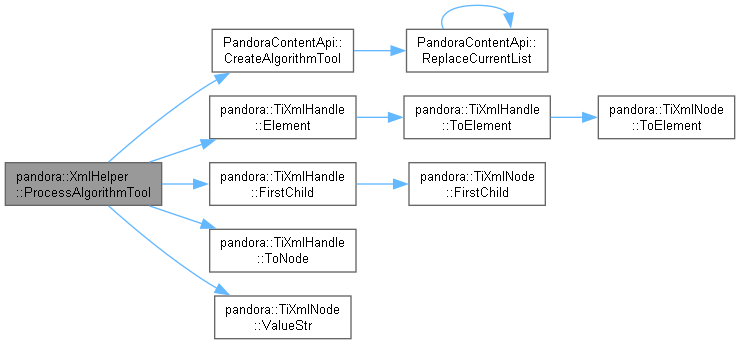

Here is the call graph for this function:

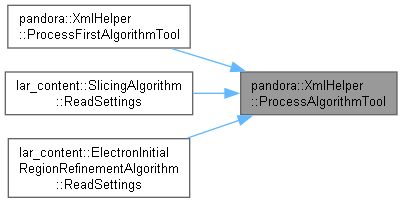

Here is the caller graph for this function:

◆ ProcessAlgorithmToolList()

StatusCode pandora::XmlHelper::ProcessAlgorithmToolList	(	const Algorithm &	algorithm,
		const TiXmlHandle &	xmlHandle,
		const std::string &	listName,
		AlgorithmToolVector &	algorithmToolVector
	)

static

Process a list of algorithms tools in an xml file.

Parameters

algorithm	the parent algorithm calling this function
xmlHandle	the relevant xml handle
listName	the name of the algorithm tool list
algorithmToolVector	to receive the vector of addresses of the algorithm tool instances

Definition at line 101 of file XmlHelper.cc.

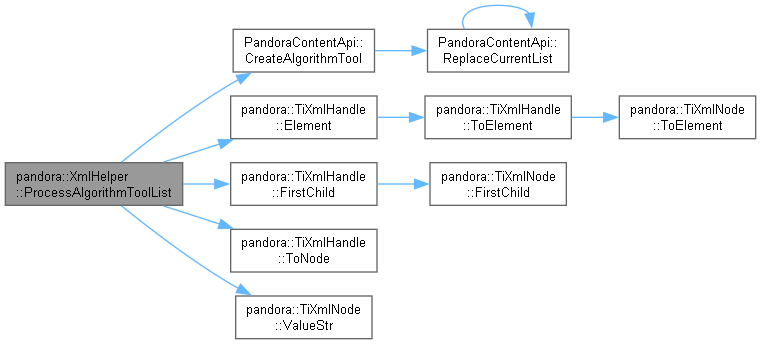

Here is the call graph for this function:

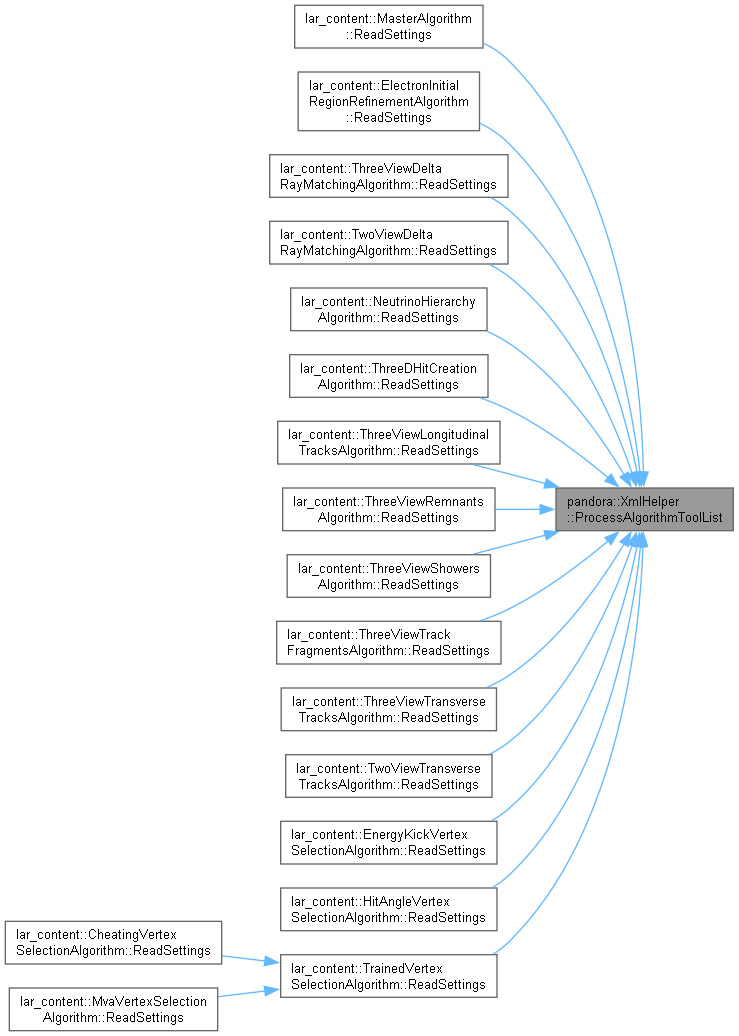

Here is the caller graph for this function:

◆ ProcessFirstAlgorithm()

StatusCode pandora::XmlHelper::ProcessFirstAlgorithm	(	const Algorithm &	algorithm,
		const TiXmlHandle &	xmlHandle,
		std::string &	algorithmName
	)

inlinestatic

Process a single algorithm described in an xml file (the first found by the xml handle)

Parameters

algorithm	the parent algorithm calling this function
xmlHandle	the relevant xml handle
algorithmName	to receive the name of the algorithm instance

Definition at line 293 of file XmlHelper.h.

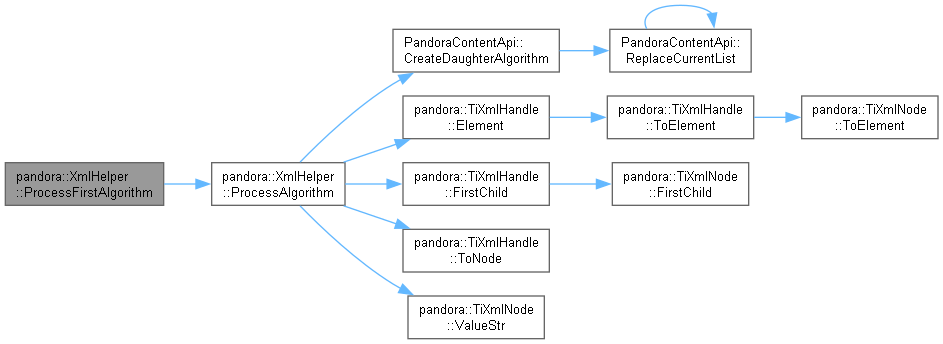

Here is the call graph for this function:

◆ ProcessFirstAlgorithmTool()

StatusCode pandora::XmlHelper::ProcessFirstAlgorithmTool	(	const Algorithm &	algorithm,
		const TiXmlHandle &	xmlHandle,
		AlgorithmTool *&	pAlgorithmTool
	)

inlinestatic

Process a single algorithm tool described in an xml file (the first found by the xml handle)

Parameters

algorithm	the parent algorithm calling this function
xmlHandle	the relevant xml handle
pAlgorithmTool	to receive the address of the algorithm tool instance

Definition at line 301 of file XmlHelper.h.

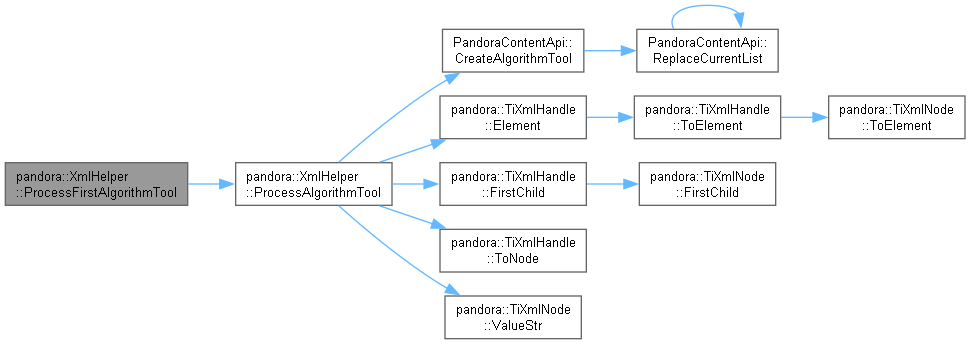

Here is the call graph for this function:

◆ Read2DVectorOfValues()

template<typename T >

StatusCode pandora::XmlHelper::Read2DVectorOfValues	(	const TiXmlHandle &	xmlHandle,
		const std::string &	xmlElementName,
		const std::string &	rowName,
		std::vector< std::vector< T > > &	vector
	)

inlinestatic

Read a two-dimensional array of values into a vector of vectors. Each row of values must be contained within <rowname></rowname> xml tags, whilst the values in the row must be space separated.

Parameters

xmlHandle	the relevant xml handle
xmlElementName	the name of the xml element to examine
rowName	the row name
vector	to receive the 2d vector of values

Definition at line 255 of file XmlHelper.h.

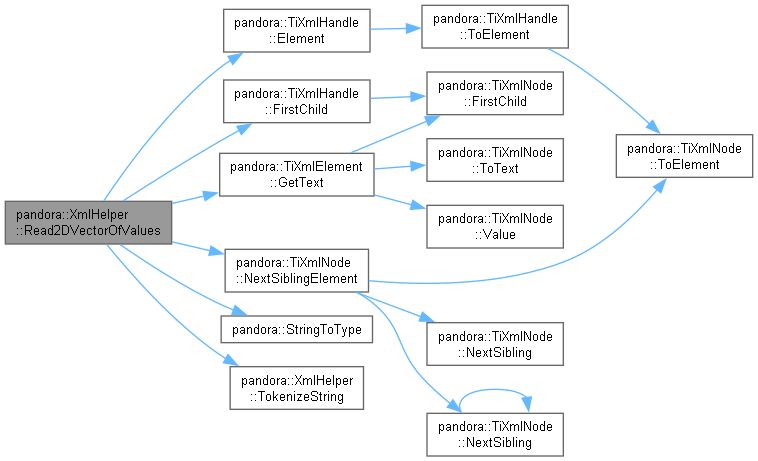

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReadValue() [1/4]

template<>

StatusCode pandora::XmlHelper::ReadValue	(	const TiXmlHandle &	xmlHandle,
		const std::string &	xmlElementName,
		bool &	t
	)

inlinestatic

Definition at line 201 of file XmlHelper.h.

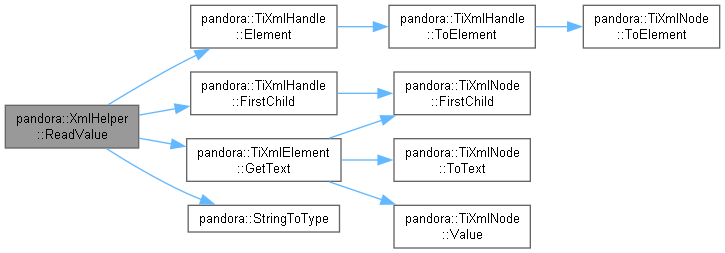

Here is the call graph for this function:

◆ ReadValue() [2/4]

template<>

StatusCode pandora::XmlHelper::ReadValue	(	const TiXmlHandle &	xmlHandle,
		const std::string &	xmlElementName,
		CartesianVector &	t
	)

inlinestatic

Definition at line 150 of file XmlHelper.h.

Here is the call graph for this function:

◆ ReadValue() [3/4]

template<typename T >

StatusCode pandora::XmlHelper::ReadValue	(	const TiXmlHandle &	xmlHandle,
		const std::string &	xmlElementName,
		T &	t
	)

inlinestatic

Read a value from an xml element.

Parameters

xmlHandle	the relevant xml handle
xmlElementName	the name of the xml element to examine
t	to receive the value

Definition at line 136 of file XmlHelper.h.

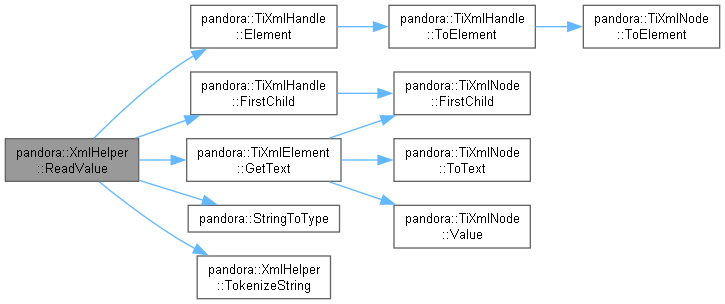

Here is the call graph for this function:

◆ ReadValue() [4/4]

template<>

StatusCode pandora::XmlHelper::ReadValue	(	const TiXmlHandle &	xmlHandle,
		const std::string &	xmlElementName,
		TrackState &	t
	)

inlinestatic

Definition at line 174 of file XmlHelper.h.

Here is the call graph for this function:

◆ ReadVectorOfValues()

template<typename T >

StatusCode pandora::XmlHelper::ReadVectorOfValues	(	const TiXmlHandle &	xmlHandle,
		const std::string &	xmlElementName,
		std::vector< T > &	vector
	)

inlinestatic

Read a vector of values from a (space separated) list in an xml element.

Parameters

xmlHandle	the relevant xml handle
xmlElementName	the name of the xml element to examine
vector	to receive the vector of values

Definition at line 229 of file XmlHelper.h.

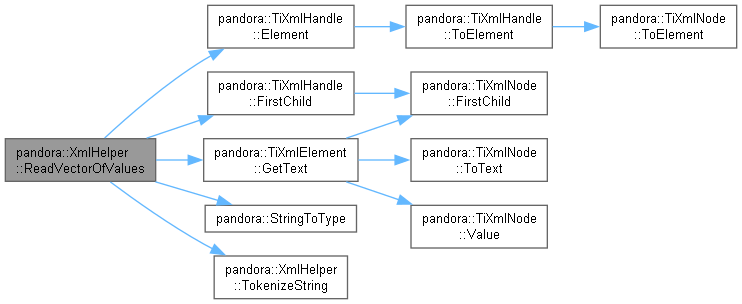

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TokenizeString()

void pandora::XmlHelper::TokenizeString	(	const std::string &	inputString,
		StringVector &	tokens,
		const std::string &	delimiter = `" "`
	)

static

Tokenize a string.

Parameters

inputString	the input string
tokens	to receive the resulting tokens
delimiter	the specified delimeter

Definition at line 122 of file XmlHelper.cc.

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

PandoraSDK/include/Helpers/XmlHelper.h
PandoraSDK/src/Helpers/XmlHelper.cc
