pandora::ClusterFitPoint Class Reference

ClusterFitPoint class. More...

#include "ClusterFitHelper.h"

Collaboration diagram for pandora::ClusterFitPoint:

Public Member Functions
	ClusterFitPoint (const CaloHit *const pCaloHit)
	Constructor.
	ClusterFitPoint (const CartesianVector &position, const CartesianVector &cellNormalVector, const float cellSize, const float energy, const unsigned int pseudoLayer)
	Constructor.
const CartesianVector &	GetPosition () const
	Get the position vector of the fit point.
const CartesianVector &	GetCellNormalVector () const
	Get the unit normal vector to the cell in which the point was recorded.
float	GetCellSize () const
	Get the size of the cell in which the point was recorded.
float	GetEnergy () const
	Get the energy deposited in the cell in which the point was recorded.
unsigned int	GetPseudoLayer () const
	Get the pseudolayer in which the point was recorded.
bool	operator< (const ClusterFitPoint &rhs) const
	operator< to define an ordering for cluster fit points

Private Attributes
CartesianVector	m_position
	The position vector of the fit point.
CartesianVector	m_cellNormalVector
	The unit normal vector to the cell in which the point was recorded.
float	m_cellSize
	The size of the cell in which the point was recorded.
float	m_energy
	The energy deposited in the cell in which the point was recorded.
unsigned int	m_pseudoLayer
	The pseudolayer in which the point was recorded.

Detailed Description

ClusterFitPoint class.

Definition at line 20 of file ClusterFitHelper.h.

Constructor & Destructor Documentation

ClusterFitPoint() [1/2]

pandora::ClusterFitPoint::ClusterFitPoint

(

const CaloHit *const

pCaloHit

)

Constructor.

Parameters

pCaloHit

address of a calo hit on which to base the cluster fit point

Definition at line 373 of file ClusterFitHelper.cc.

ClusterFitPoint() [2/2]

pandora::ClusterFitPoint::ClusterFitPoint	(	const CartesianVector &	position,
		const CartesianVector &	cellNormalVector,
		const float	cellSize,
		const float	energy,
		const unsigned int	pseudoLayer
	)

Constructor.

Parameters

position	the position vector of the fit point
cellNormalVector	the unit normal vector to the cell in which the point was recorded
cellSize	the size of the cell in which the point was recorded
energy	the energy deposited in the cell in which the point was recorded
pseudoLayer	the pseudolayer in which the point was recorded

Definition at line 386 of file ClusterFitHelper.cc.

Member Function Documentation

GetCellNormalVector()

const CartesianVector & pandora::ClusterFitPoint::GetCellNormalVector ( ) const

inline

Get the unit normal vector to the cell in which the point was recorded.

Returns

the unit normal vector to the cell in which the point was recorded

Definition at line 296 of file ClusterFitHelper.h.

GetCellSize()

float pandora::ClusterFitPoint::GetCellSize ( ) const

inline

Get the size of the cell in which the point was recorded.

Returns

the size of the cell in which the point was recorded

Definition at line 303 of file ClusterFitHelper.h.

GetEnergy()

float pandora::ClusterFitPoint::GetEnergy ( ) const

inline

Get the energy deposited in the cell in which the point was recorded.

Returns

energy deposited in the cell in which the point was recorded

Definition at line 310 of file ClusterFitHelper.h.

Here is the caller graph for this function:

GetPosition()

const CartesianVector & pandora::ClusterFitPoint::GetPosition ( ) const

inline

Get the position vector of the fit point.

Returns

the position vector of the fit point

Definition at line 289 of file ClusterFitHelper.h.

Here is the caller graph for this function:

GetPseudoLayer()

unsigned int pandora::ClusterFitPoint::GetPseudoLayer ( ) const

inline

Get the pseudolayer in which the point was recorded.

Returns

the pseudolayer in which the point was recorded

Definition at line 317 of file ClusterFitHelper.h.

operator<()

bool pandora::ClusterFitPoint::operator<

(

const ClusterFitPoint &

rhs

)

const

operator< to define an ordering for cluster fit points

Parameters

rhs	the cluster fit point for comparison

Returns

boolean

Definition at line 400 of file ClusterFitHelper.cc.

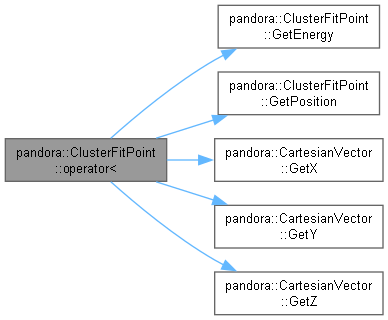

Here is the call graph for this function:

Member Data Documentation

m_cellNormalVector

CartesianVector pandora::ClusterFitPoint::m_cellNormalVector

private

The unit normal vector to the cell in which the point was recorded.

Definition at line 88 of file ClusterFitHelper.h.

m_cellSize

float pandora::ClusterFitPoint::m_cellSize

private

The size of the cell in which the point was recorded.

Definition at line 89 of file ClusterFitHelper.h.

m_energy

float pandora::ClusterFitPoint::m_energy

private

The energy deposited in the cell in which the point was recorded.

Definition at line 90 of file ClusterFitHelper.h.

m_position

CartesianVector pandora::ClusterFitPoint::m_position

private

The position vector of the fit point.

Definition at line 87 of file ClusterFitHelper.h.

m_pseudoLayer

unsigned int pandora::ClusterFitPoint::m_pseudoLayer

private

The pseudolayer in which the point was recorded.

Definition at line 91 of file ClusterFitHelper.h.

---

The documentation for this class was generated from the following files:

• PandoraSDK/include/Helpers/ClusterFitHelper.h
• PandoraSDK/src/Helpers/ClusterFitHelper.cc
